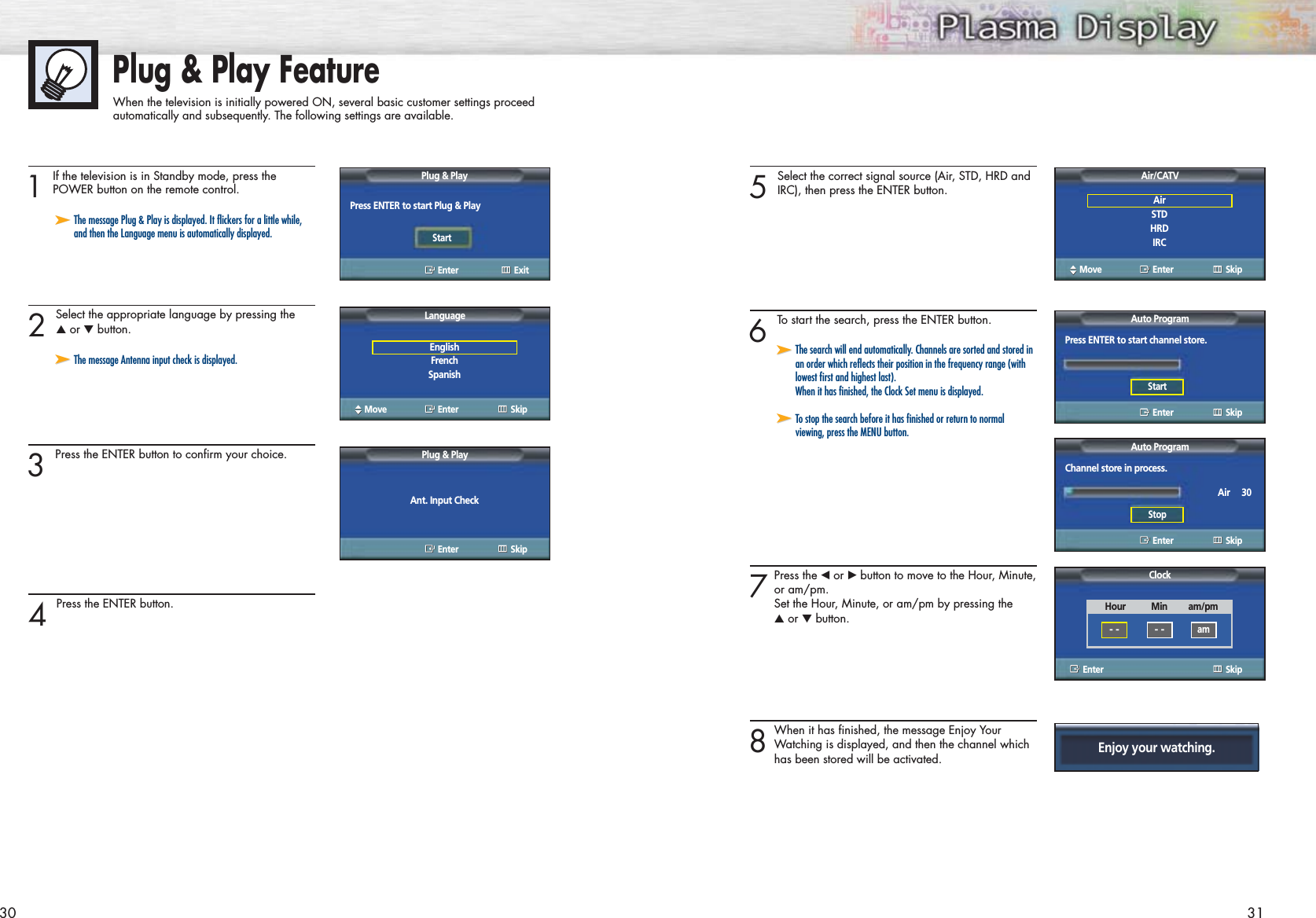

5 Select the correct signal source (Air, STD, HRD andIRC), then press the ENTER button.6 To start the search, press the ENTER button.7Press the œor √button to move to the Hour, Minute,or am/pm.Set the Hour, Minute, or am/pm by pressing the ▲or ▼button.8When it has finished, the message Enjoy YourWatching is displayed, and then the channel which has been stored will be activated.3130Plug & Play FeatureWhen the television is initially powered ON, several basic customer settings proceed automatically and subsequently. The following settings are available.1 If the television is in Standby mode, press thePOWER button on the remote control.2 Select the appropriate language by pressing the ▲or ▼button.3 Press the ENTER button to confirm your choice.4 Press the ENTER button.➤➤The message Plug & Play is displayed. It flickers for a little while, and then the Language menu is automatically displayed.➤➤The message Antenna input check is displayed.➤➤The search will end automatically. Channels are sorted and stored inan order which reflects their position in the frequency range (withlowest first and highest last).When it has finished, the Clock Set menu is displayed.➤➤To stop the search before it has finished or return to normalviewing, press the MENU button.Press ENTER to start Plug & PlayStartPlug & PlayEnter ExitLanguageMove Enter SkipEnglishFrenchSpanishAir/CATVAirSTDHRDIRCClockEnter SkipPlug & PlayEnter SkipAnt. Input CheckAuto ProgramEnter SkipPress ENTER to start channel store.StartAuto ProgramEnter SkipChannel store in process.Air 30StopMove Enter SkipHour Min am/pm- - - -amEnjoy your watching.

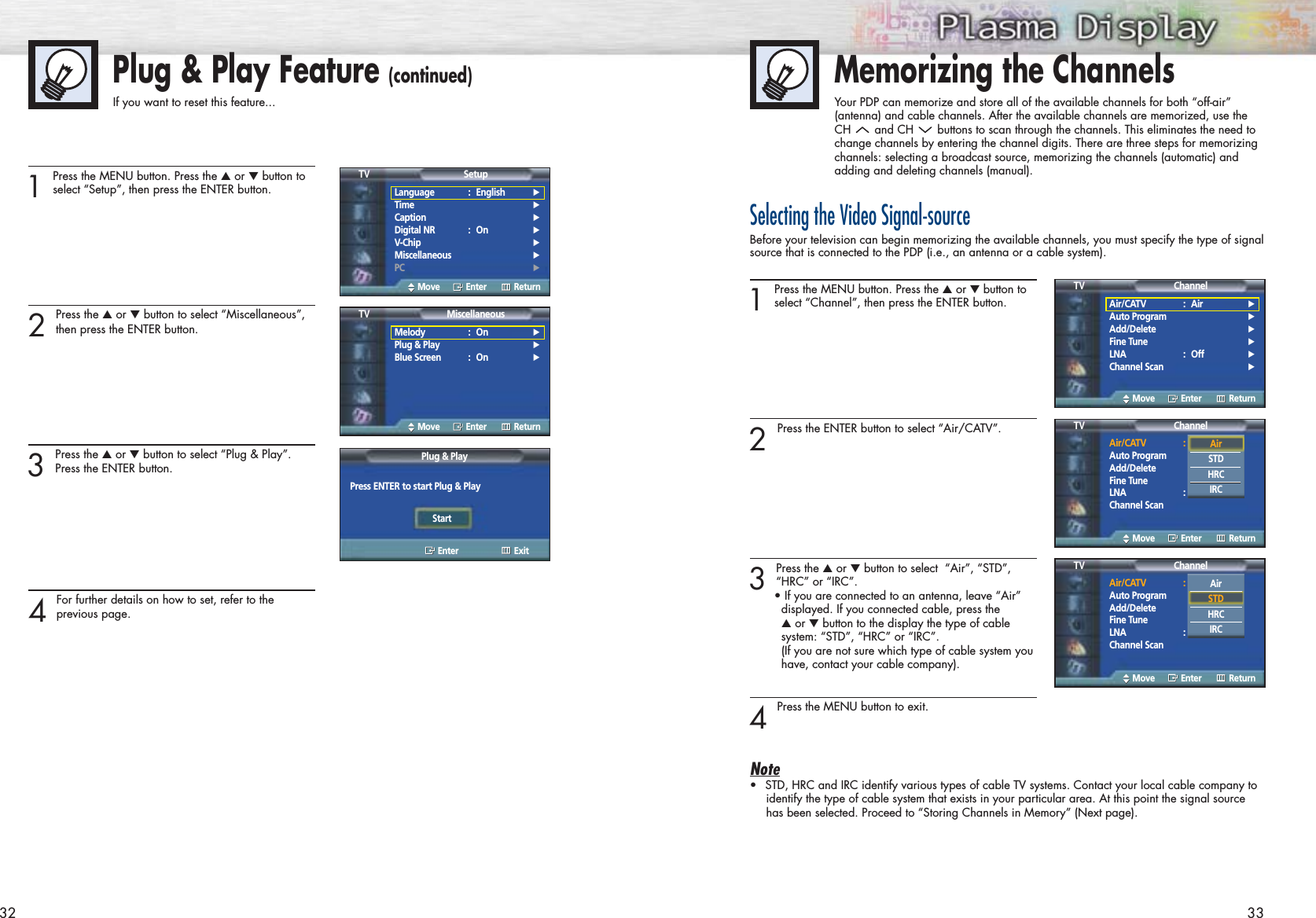

3332Plug & Play Feature (continued)If you want to reset this feature...1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2 Press the ▲or ▼button to select “Miscellaneous”,then press the ENTER button.3 Press the ▲or ▼button to select “Plug & Play”.Press the ENTER button.4 For further details on how to set, refer to the previous page.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnMelody : On√Plug & Play√Blue Screen : On√MiscellaneousTVMove Enter ReturnSelecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signalsource that is connected to the PDP (i.e., an antenna or a cable system).1 Press the MENU button. Press the ▲or ▼button toselect “Channel”, then press the ENTER button.2 Press the ENTER button to select “Air/CATV”.3 Press the ▲or ▼button to select “Air”, “STD”,“HRC” or “IRC”.• If you are connected to an antenna, leave “Air” displayed. If you connected cable, press the ▲or ▼button to the display the type of cable system: “STD”, “HRC” or “IRC”.(If you are not sure which type of cable system you have, contact your cable company).4 Press the MENU button to exit.Note•STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company toidentify the type of cable system that exists in your particular area. At this point the signal sourcehas been selected. Proceed to “Storing Channels in Memory” (Next page).Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air”(antenna) and cable channels. After the available channels are memorized, use theCH and CH buttons to scan through the channels. This eliminates the need tochange channels by entering the channel digits. There are three steps for memorizingchannels: selecting a broadcast source, memorizing the channels (automatic) andadding and deleting channels (manual).Air/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Channel Scan√ChannelTVMove Enter ReturnAir/CATV : AirAuto ProgramAdd/DeleteFine TuneLNA : OnChannel ScanChannelTVMove Enter ReturnAirSTDHRCIRCAir/CATV : AirAuto ProgramAdd/DeleteFine TuneLNA : OnChannel ScanChannelTVMove Enter ReturnAirSTDHRCIRCPress ENTER to start Plug & PlayStartPlug & PlayEnter Exit

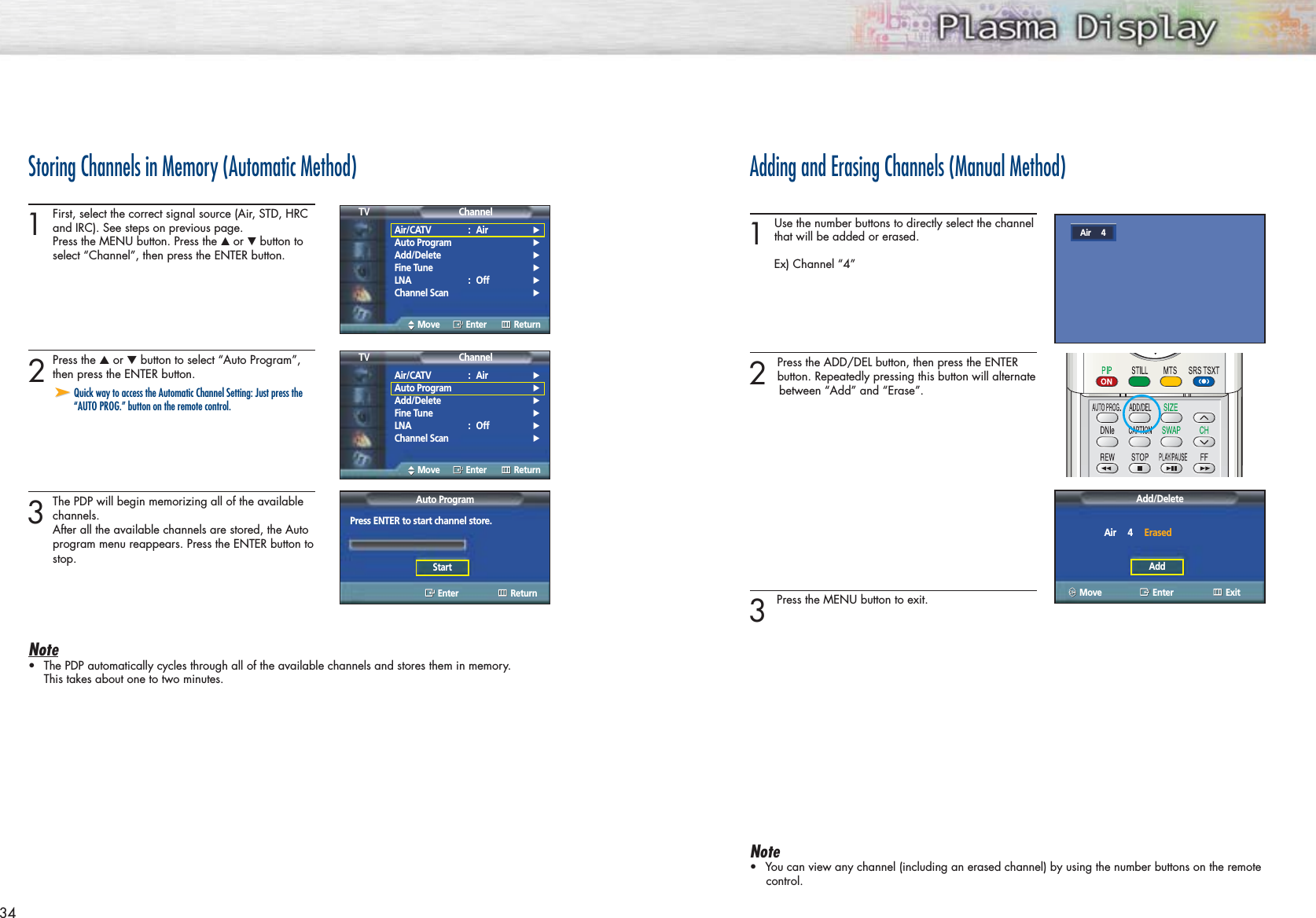

34Storing Channels in Memory (Automatic Method)1First, select the correct signal source (Air, STD, HRC and IRC). See steps on previous page.Press the MENU button. Press the ▲or ▼button to select “Channel”, then press the ENTER button. 2Press the ▲or ▼button to select “Auto Program”,then press the ENTER button.3The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Autoprogram menu reappears. Press the ENTER button tostop.Note•The PDP automatically cycles through all of the available channels and stores them in memory.This takes about one to two minutes.➤➤Quick way to access the Automatic Channel Setting: Just press the“AUTO PROG.” button on the remote control.Adding and Erasing Channels (Manual Method)1 Use the number buttons to directly select the channelthat will be added or erased.Ex) Channel “4”2 Press the ADD/DEL button, then press the ENTER button. Repeatedly pressing this button will alternatebetween “Add” and “Erase”.3 Press the MENU button to exit.Note•You can view any channel (including an erased channel) by using the number buttons on the remotecontrol.Air/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Channel Scan√ChannelTVMove Enter ReturnAir/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Channel Scan√ChannelTVMove Enter ReturnAuto ProgramEnter ReturnPress ENTER to start channel store.StartAdd/DeleteEnter ExitAir 4 ErasedAddAir 4Move

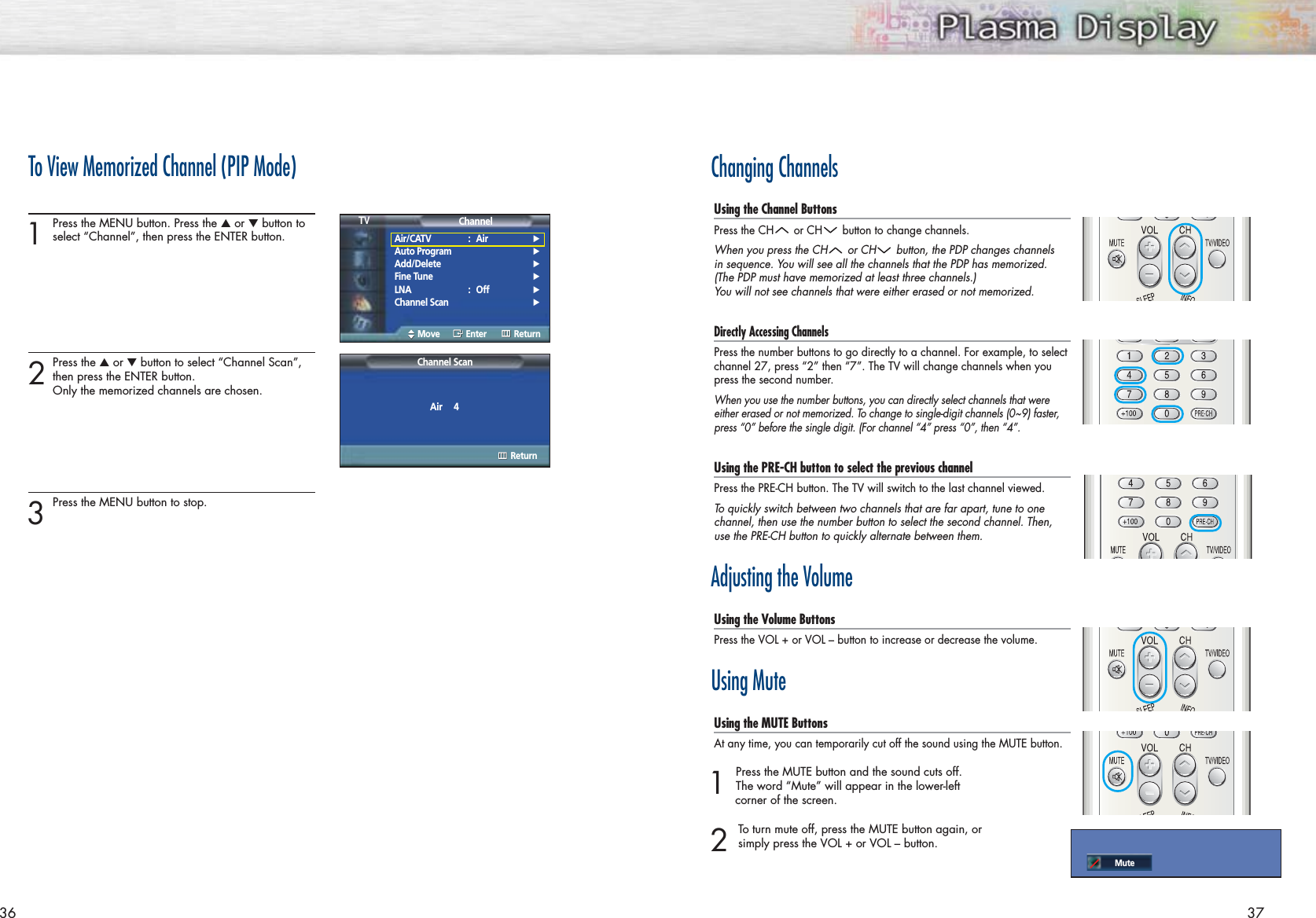

36 37To View Memorized Channel (PIP Mode)1Press the MENU button. Press the ▲or ▼button toselect “Channel”, then press the ENTER button.2Press the ▲or ▼button to select “Channel Scan”,then press the ENTER button.Only the memorized channels are chosen. 3Press the MENU button to stop.Changing ChannelsUsing the Channel ButtonsPress the CH or CH button to change channels.When you press the CH or CH button, the PDP changes channels in sequence. You will see all the channels that the PDP has memorized.(The PDP must have memorized at least three channels.) You will not see channels that were either erased or not memorized.Directly Accessing ChannelsPress the number buttons to go directly to a channel. For example, to selectchannel 27, press “2” then “7”. The TV will change channels when youpress the second number.When you use the number buttons, you can directly select channels that wereeither erased or not memorized. To change to single-digit channels (0~9) faster,press “0” before the single digit. (For channel “4” press “0”, then “4”. Using the PRE-CH button to select the previous channelPress the PRE-CH button. The TV will switch to the last channel viewed.To quickly switch between two channels that are far apart, tune to onechannel, then use the number button to select the second channel. Then,use the PRE-CH button to quickly alternate between them.Adjusting the VolumeUsing the Volume ButtonsPress the VOL + or VOL – button to increase or decrease the volume. Using MuteUsing the MUTE ButtonsAt any time, you can temporarily cut off the sound using the MUTE button.1 Press the MUTE button and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.2 To turn mute off, press the MUTE button again, orsimply press the VOL + or VOL – button.Air/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Channel Scan√ChannelTVMove Enter ReturnMuteChannel ScanReturnAir 4

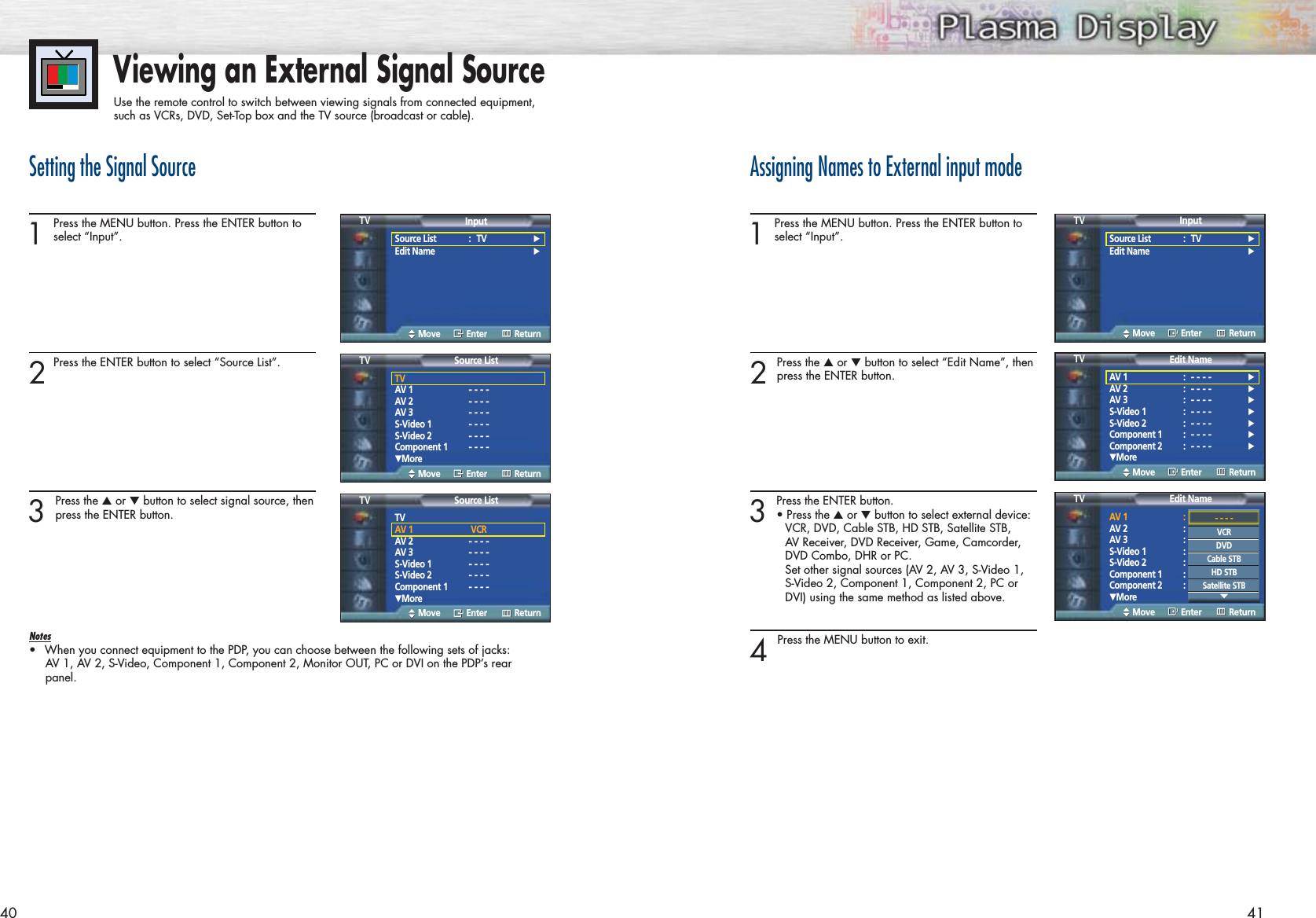

Assigning Names to External input mode1Press the MENU button. Press the ENTER button toselect “Input”.2 Press the ▲or ▼button to select “Edit Name”, thenpress the ENTER button.3 Press the ENTER button.• Press the ▲or ▼button to select external device: VCR, DVD, Cable STB, HD STB, Satellite STB, AV Receiver, DVD Receiver, Game, Camcorder, DVD Combo, DHR or PC. Set other signal sources (AV 2, AV 3, S-Video 1, S-Video 2, Component 1, Component 2, PC or DVI) using the same method as listed above.4 Press the MENU button to exit.40 41Setting the Signal Source1Press the MENU button. Press the ENTER button toselect “Input”.2Press the ENTER button to select “Source List”.3 Press the ▲or ▼button to select signal source, thenpress the ENTER button.Notes•When you connect equipment to the PDP, you can choose between the following sets of jacks: AV 1, AV 2, S-Video, Component 1, Component 2, Monitor OUT, PC or DVI on the PDP’s rearpanel.Viewing an External Signal SourceUse the remote control to switch between viewing signals from connected equipment,such as VCRs, DVD, Set-Top box and the TV source (broadcast or cable).Edit NameSource List : TV √Edit Name √InputTVMove Enter ReturnSource List : TV √Edit Name √InputTVMove Enter ReturnEdit NameAV 1 :- - - -√AV 2 :- - - -√AV 3 :- - - -√S-Video 1 :- - - -√S-Video 2 :- - - -√Component 1 :- - - -√Component 2 :- - - -√†MoreEdit NameTVMove Enter ReturnAV 1 :- - - -√AV 2 :- - - -√AV 3 :- - - -√S-Video 1 :- - - -√S-Video 2 :- - - -√Component 1 :- - - -√Component 2 :- - - -√†MoreEdit NameTVMove Enter ReturnTVAV 1- - - -AV 2- - - -AV 3- - - -S-Video 1- - - -S-Video 2- - - -Component 1- - - -†MoreSource ListTVMove Enter ReturnTVAV 1 VCRAV 2- - - -AV 3- - - -S-Video 1- - - -S-Video 2- - - -Component 1- - - -†MoreSource ListTVMove Enter Return- - - -VCRDVDCable STBHD STBSatellite STB†

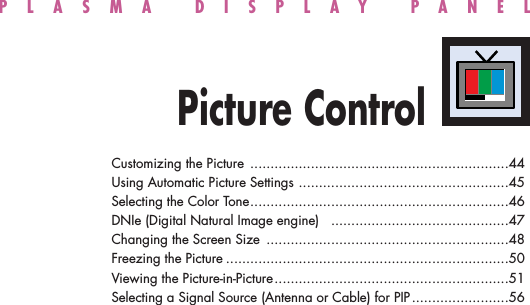

PLASMA DISPLAY PANELPicture ControlCustomizing the Picture ................................................................44Using Automatic Picture Settings ....................................................45Selecting the Color Tone................................................................46DNIe (Digital Natural Image engine) ............................................47Changing the Screen Size ............................................................48Freezing the Picture ......................................................................50Viewing the Picture-in-Picture..........................................................51Selecting a Signal Source (Antenna or Cable) for PIP........................56

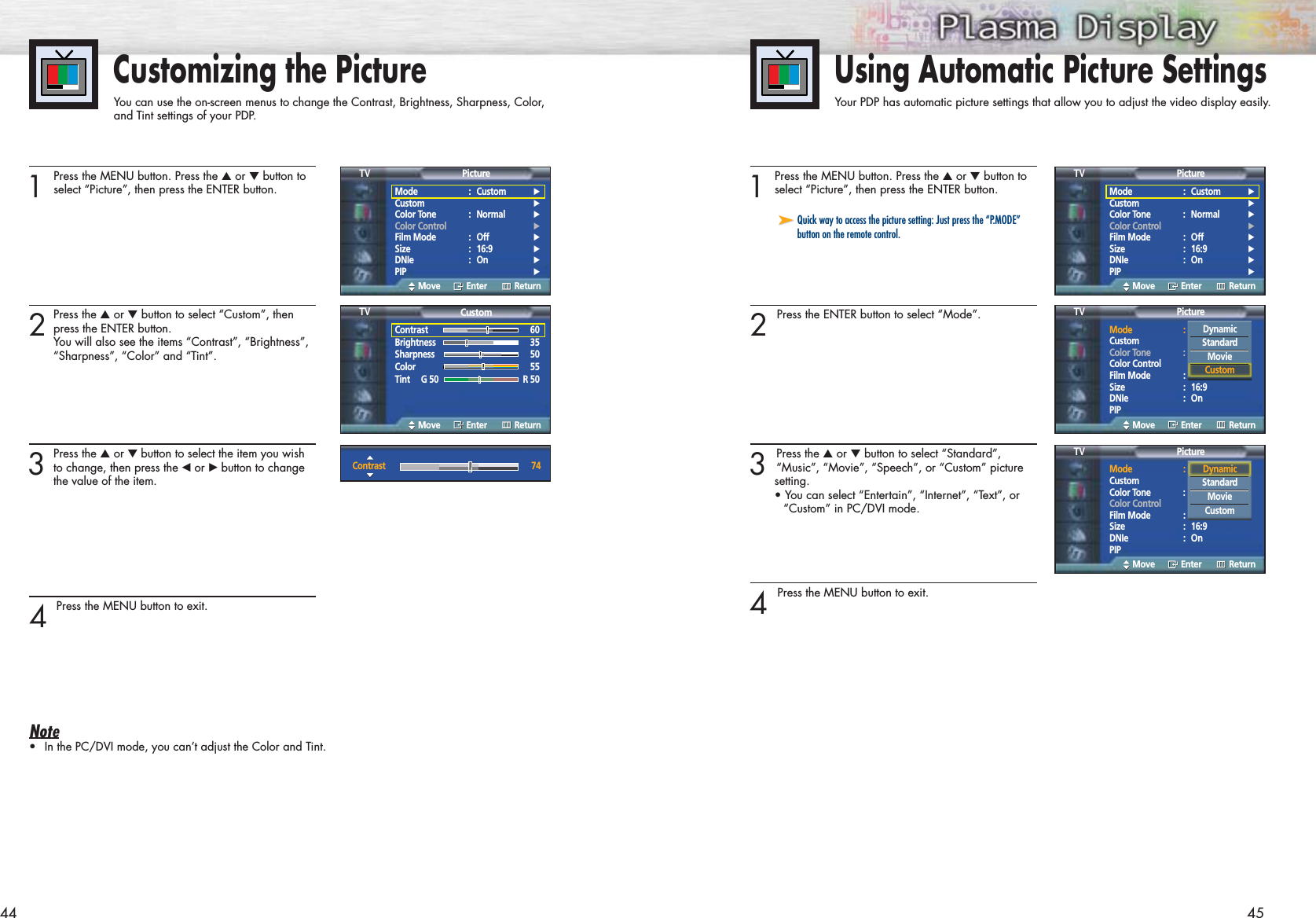

Customizing the PictureYou can use the on-screen menus to change the Contrast, Brightness, Sharpness, Color, and Tint settings of your PDP.451 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2 Press the ENTER button to select “Mode”.3 Press the ▲or ▼button to select “Standard”, “Music”, “Movie”, “Speech”, or “Custom” picture setting.• You can select “Entertain”, “Internet”, “Text”, or “Custom” in PC/DVI mode.4 Press the MENU button to exit. Using Automatic Picture SettingsYour PDP has automatic picture settings that allow you to adjust the video display easily.441 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2Press the ▲or ▼button to select “Custom”, thenpress the ENTER button.You will also see the items “Contrast”, “Brightness”,“Sharpness”, “Color” and “Tint”.3Press the ▲or ▼ button to select the item you wishto change, then press the œor √button to change the value of the item.4 Press the MENU button to exit.Note•In the PC/DVI mode, you can’t adjust the Color and Tint.➤➤Quick way to access the picture setting: Just press the “P.MODE”button on the remote control.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnContrast 60Brightness 35Sharpness 50Color 55Tint G 50 R 50CustomTVMove Enter ReturnContrast 74DynamicStandardMovieCustomMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnDynamicStandardMovieCustom

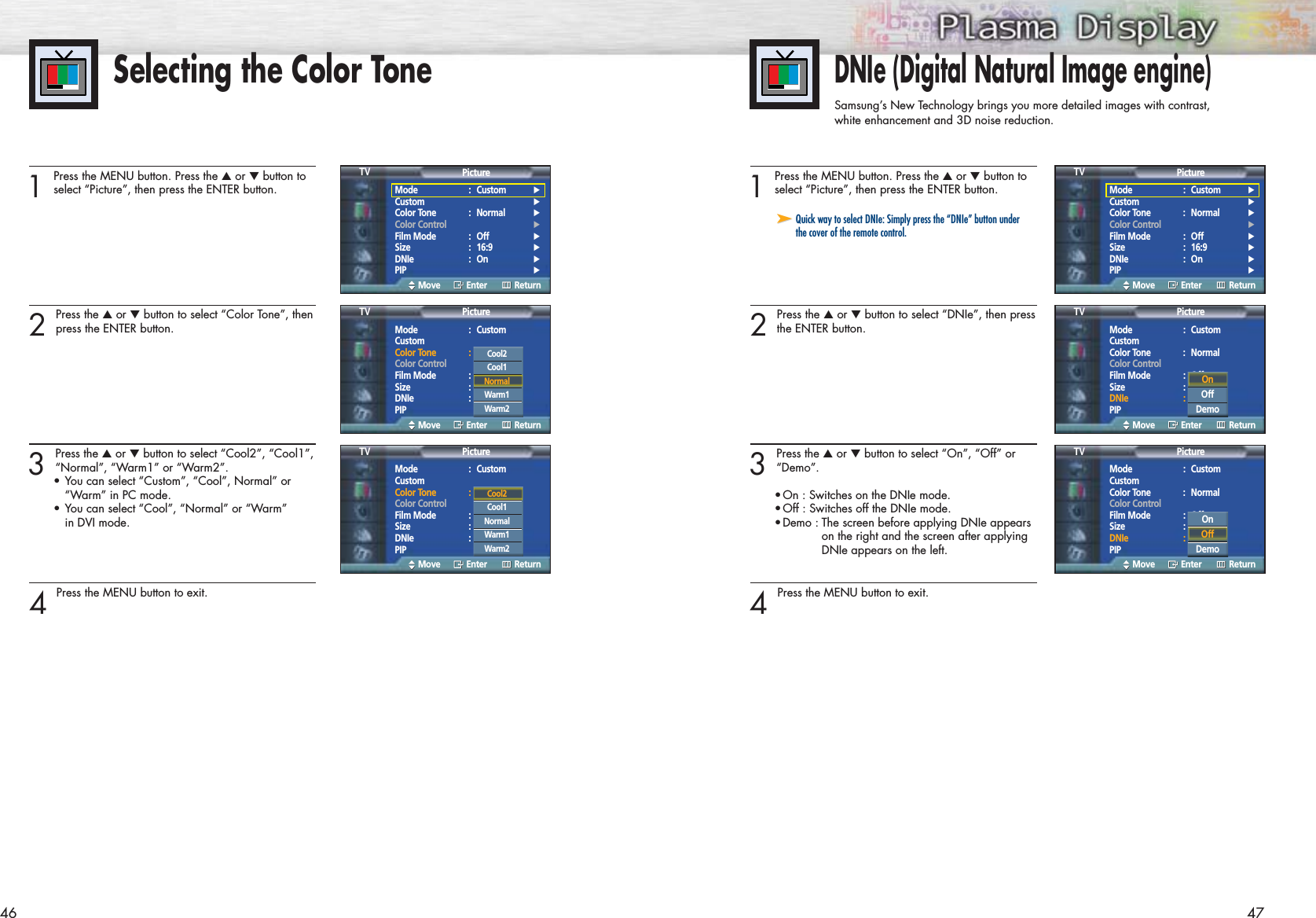

46Selecting the Color Tone1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2 Press the ▲or ▼button to select “Color Tone”, thenpress the ENTER button.3 Press the ▲or ▼button to select “Cool2”, “Cool1”,“Normal”, “Warm1” or “Warm2”.•You can select “Custom”, “Cool”, Normal” or “Warm” in PC mode.•You can select “Cool”, “Normal” or “Warm” in DVI mode.4 Press the MENU button to exit.DNIe (Digital Natural Image engine)Samsung’s New Technology brings you more detailed images with contrast,white enhancement and 3D noise reduction.1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2 Press the ▲or ▼button to select “DNIe”, then pressthe ENTER button. 3 Press the ▲or ▼button to select “On”, “Off” or“Demo”.•On : Switches on the DNIe mode.•Off : Switches off the DNIe mode.•Demo : The screen before applying DNIe appears on the right and the screen after applying DNIe appears on the left.4 Press the MENU button to exit.47➤➤Quick way to select DNIe: Simply press the “DNIe” button underthe cover of the remote control.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnCool2Cool1NormalWarm1Warm2Mode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnCool2Cool1NormalWarm1Warm2On Off DemoMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnOnOffDemo

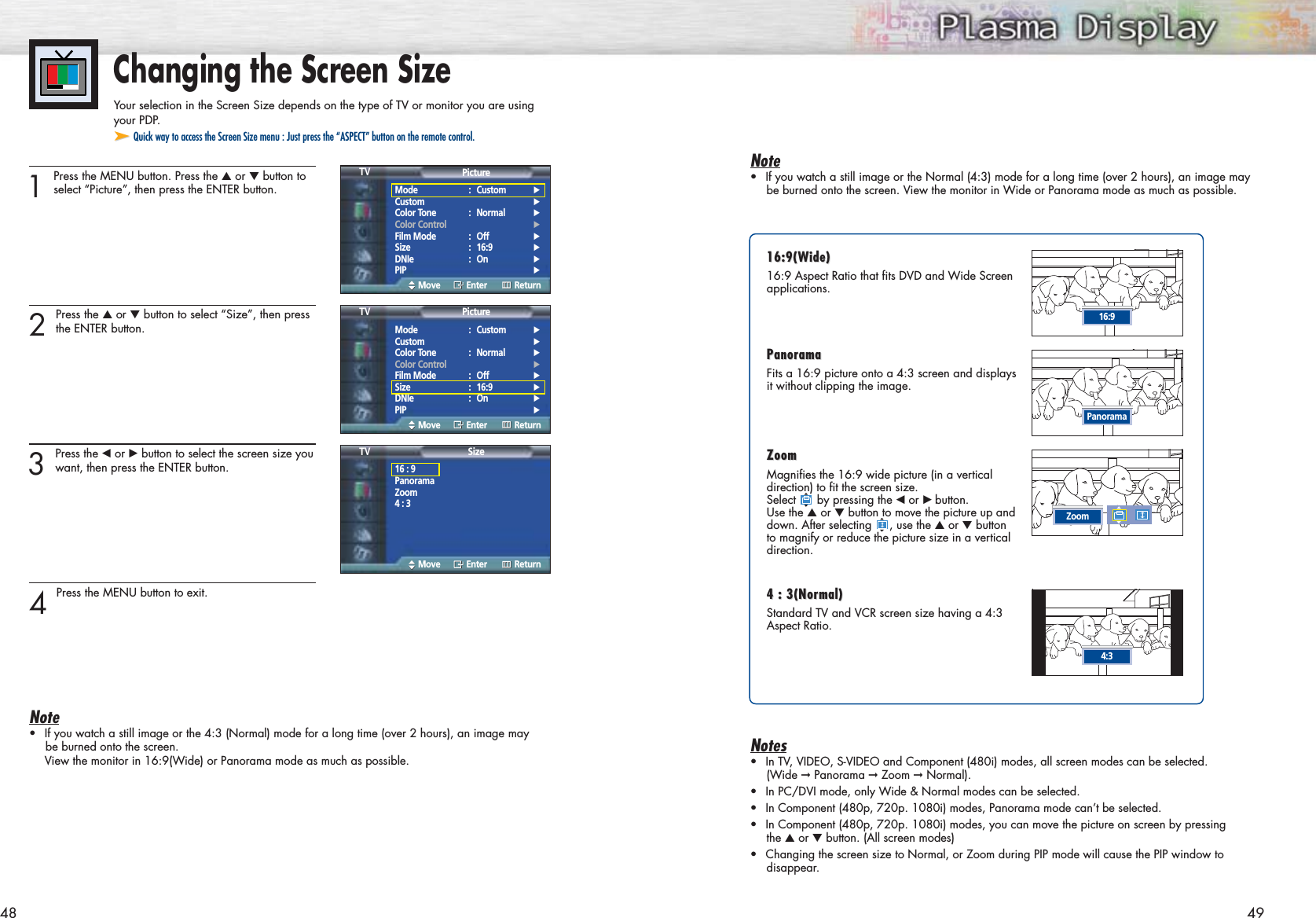

4948Changing the Screen SizeYour selection in the Screen Size depends on the type of TV or monitor you are usingyour PDP.➤➤Quick way to access the Screen Size menu : Just press the “ASPECT” button on the remote control.1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2 Press the ▲or ▼button to select “Size”, then pressthe ENTER button.3 Press the œor √button to select the screen size youwant, then press the ENTER button.4 Press the MENU button to exit.Note•If you watch a still image or the 4:3 (Normal) mode for a long time (over 2 hours), an image maybe burned onto the screen.View the monitor in 16:9(Wide) or Panorama mode as much as possible.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter Return16 : 9PanoramaZoom4 : 3SizeTVMove Enter ReturnNote•If you watch a still image or the Normal (4:3) mode for a long time (over 2 hours), an image maybe burned onto the screen. View the monitor in Wide or Panorama mode as much as possible.Notes•In TV, VIDEO, S-VIDEO and Component (480i) modes, all screen modes can be selected.(Wide ➞Panorama ➞Zoom ➞Normal).•In PC/DVI mode, only Wide & Normal modes can be selected.•In Component (480p, 720p. 1080i) modes, Panorama mode can’t be selected.•In Component (480p, 720p. 1080i) modes, you can move the picture on screen by pressingthe ▲or ▼button. (All screen modes)•Changing the screen size to Normal, or Zoom during PIP mode will cause the PIP window todisappear.16:9(W16:9(Wide)ide)16:9 Aspect Ratio that fits DVD and Wide Screenapplications.PanoramaPanoramaFits a 16:9 picture onto a 4:3 screen and displaysit without clipping the image.ZoomZoomMagnifies the 16:9 wide picture (in a vertical direction) to fit the screen size. Select by pressing the œor √ button. Use the ▲or ▼button to move the picture up anddown. After selecting , use the ▲or ▼button to magnify or reduce the picture size in a verticaldirection.4 : 3(Nor4 : 3(Normal)mal)Standard TV and VCR screen size having a 4:3Aspect Ratio.16:9PanoramaZoom4:3

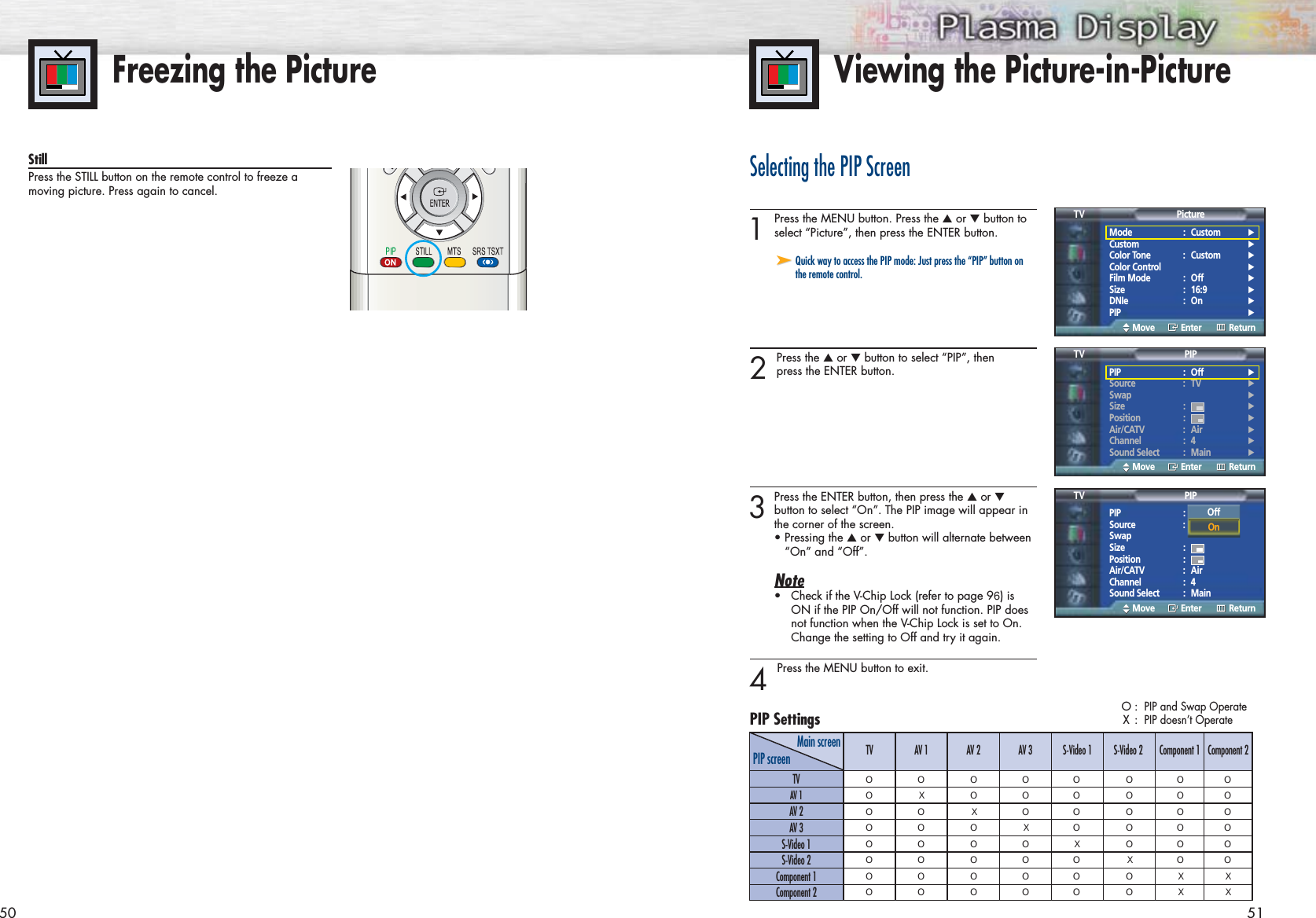

Selecting the PIP Screen1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “PIP”, then press the ENTER button. 3Press the ENTER button, then press the ▲or ▼button to select “On”. The PIP image will appear in the corner of the screen.•Pressing the ▲or ▼button will alternate between “On” and “Off”.Note•Check if the V-Chip Lock (refer to page 96) is ON if the PIP On/Off will not function. PIP does not function when the V-Chip Lock is set to On.Change the setting to Off and try it again.4 Press the MENU button to exit.PIP Settings 50Viewing the Picture-in-PictureStillPress the STILL button on the remote control to freeze a moving picture. Press again to cancel.Freezing the PicturePIP screenMain screen TV AV 1 AV 2 AV 3 S-Video 1 S-Video 2 Component 2Component 1TVOOOOOOOOOXOOOOOOOOXOOOOOOOOXOOOOOOOOXOOOOOOOOXOOOOOOOOXXOOOOOOXXAV 1AV 2AV 3S-Video 1S-Video 2Component 1Component 2O:PIP and Swap Operate X:PIP doesn’t Operate ➤➤Quick way to access the PIP mode: Just press the “PIP” button onthe remote control.51Mode : Custom √Custom √Color Tone : Custom √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnPIP : Off √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : OffSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnOffOn

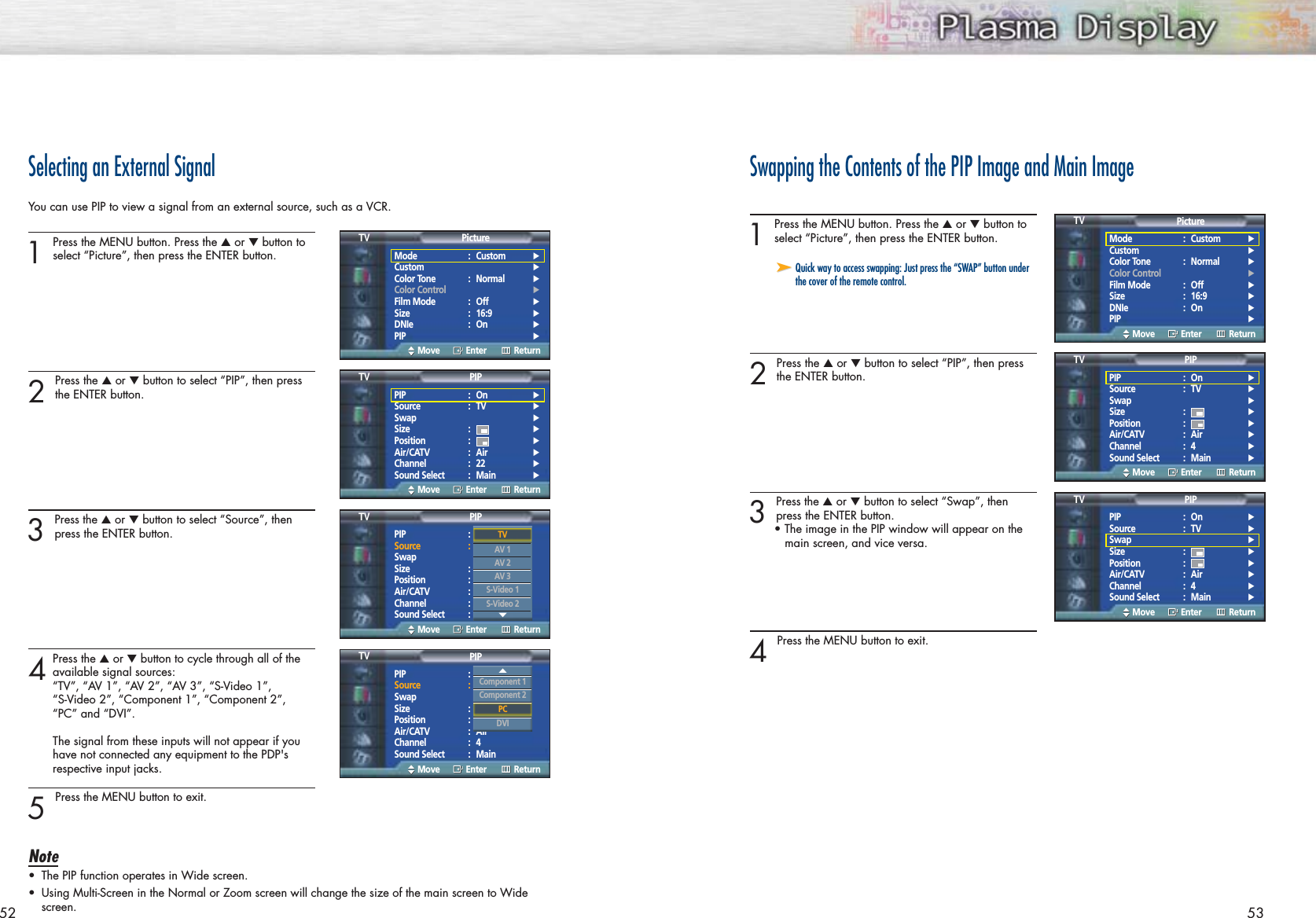

Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR.1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Source”, thenpress the ENTER button.4Press the ▲or ▼button to cycle through all of theavailable signal sources: “TV”, “AV 1”, “AV 2”, “AV 3”, “S-Video 1”,“S-Video 2”, “Component 1”, “Component 2”, “PC” and “DVI”.The signal from these inputs will not appear if you have not connected any equipment to the PDP's respective input jacks.5 Press the MENU button to exit.Note•The PIP function operates in Wide screen.•Using Multi-Screen in the Normal or Zoom screen will change the size of the main screen to Wide screen. 52 53Swapping the Contents of the PIP Image and Main Image1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Swap”, thenpress the ENTER button.• The image in the PIP window will appear on the main screen, and vice versa.4 Press the MENU button to exit.➤➤Quick way to access swapping: Just press the “SWAP” button underthe cover of the remote control.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 22 √Sound Select : Main √PIPTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : OffSource : TVSwapSize :Position :Air/CATV : AirChannel : 22Sound Select : MainPIPTVMove Enter ReturnTVAV 1AV 2AV 3S-Video 1S-Video 2†PIP : OffSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter Return…Component 1Component 2PCDVI

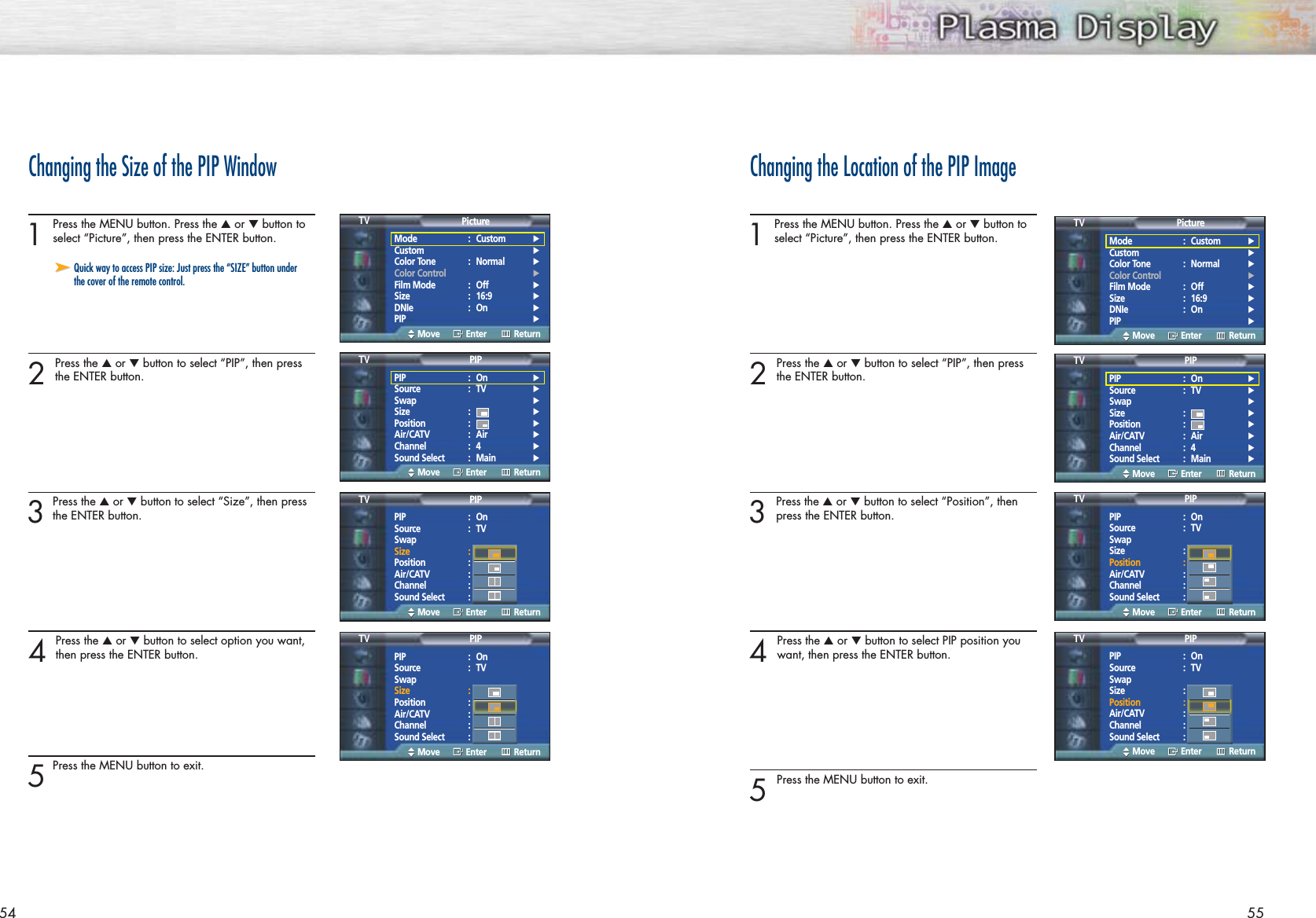

54 55Changing the Size of the PIP Window1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3Press the ▲or ▼button to select “Size”, then pressthe ENTER button.4 Press the ▲or ▼button to select option you want,then press the ENTER button.5Press the MENU button to exit.➤➤Quick way to access PIP size: Just press the “SIZE” button underthe cover of the remote control.Changing the Location of the PIP Image1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Position”, thenpress the ENTER button. 4 Press the ▲or ▼button to select PIP position youwant, then press the ENTER button.5 Press the MENU button to exit. Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter Return

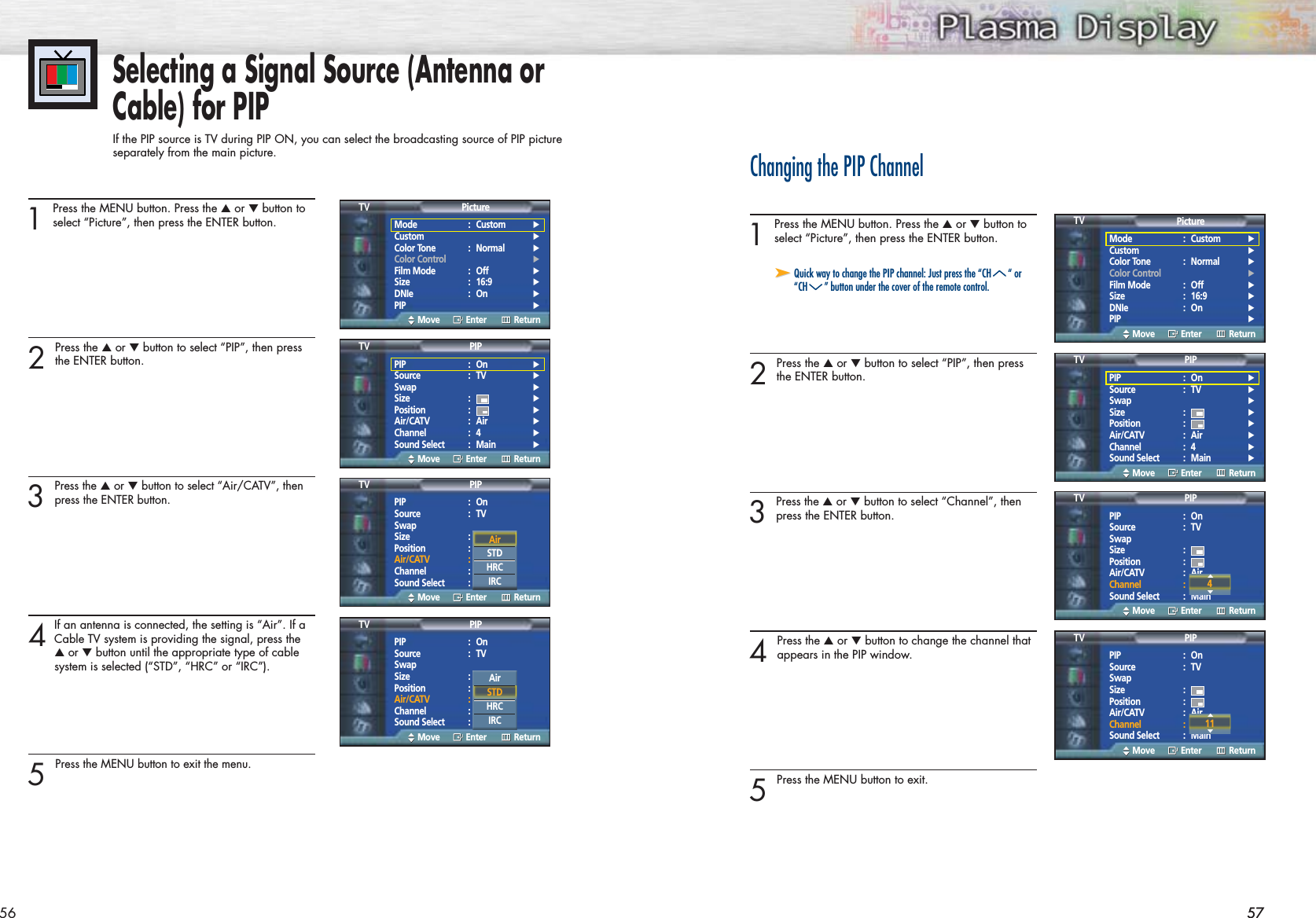

5756 57Selecting a Signal Source (Antenna orCable) for PIPIf the PIP source is TV during PIP ON, you can select the broadcasting source of PIP picture separately from the main picture.1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2 Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Air/CATV”, thenpress the ENTER button.4If an antenna is connected, the setting is “Air”. If aCable TV system is providing the signal, press the ▲or ▼button until the appropriate type of cable system is selected (“STD”, “HRC” or “IRC”).5 Press the MENU button to exit the menu.Changing the PIP Channel1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Channel”, thenpress the ENTER button. 4 Press the ▲or ▼button to change the channel thatappears in the PIP window.5 Press the MENU button to exit.➤➤Quick way to change the PIP channel: Just press the “CH “ or“CH ” button under the cover of the remote control.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnAirSTDHRCIRCAirSTDHRCIRCPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter Return4▲▲PIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter Return11▲▲

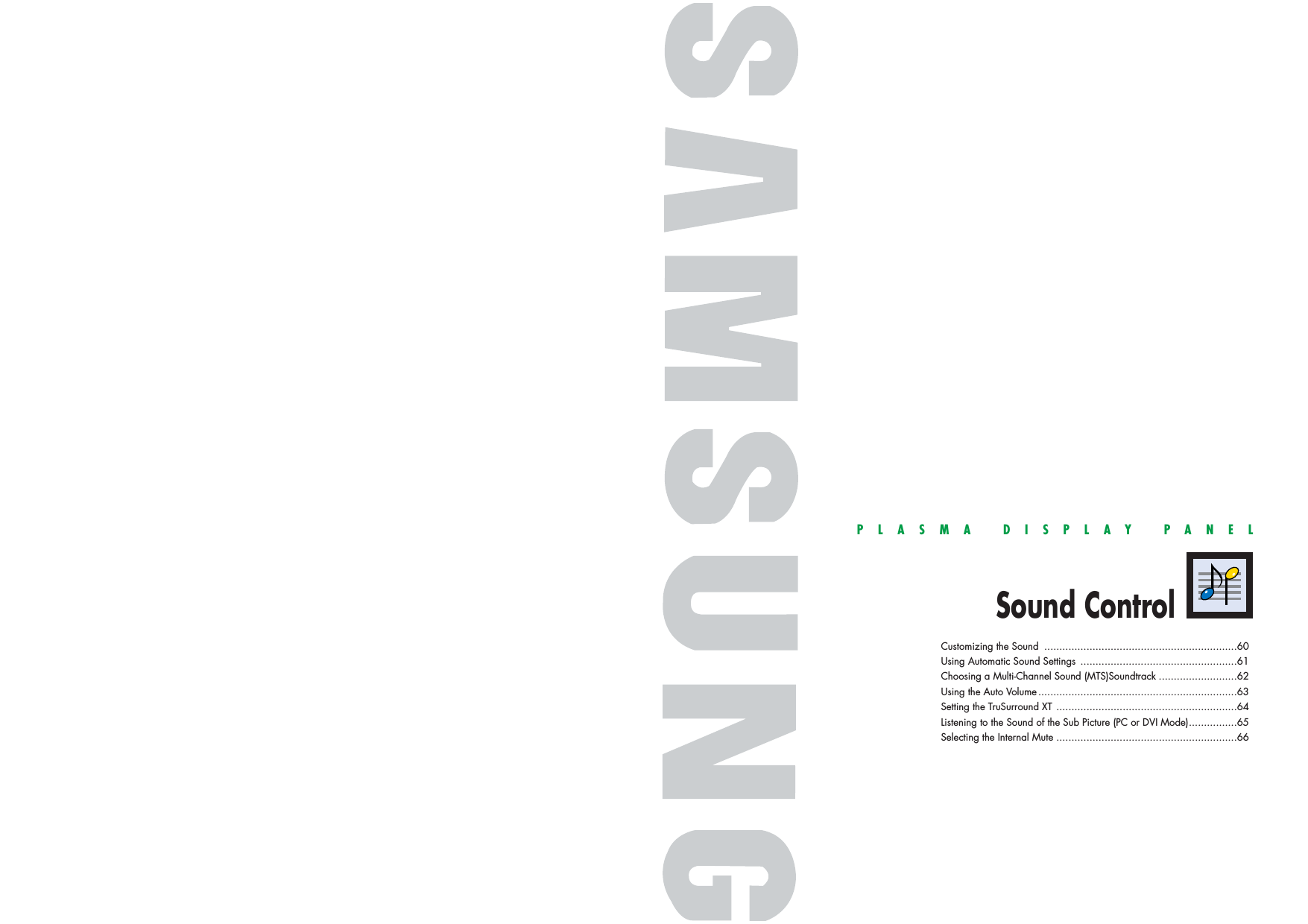

PLASMA DISPLAY PANELSound ControlCustomizing the Sound ................................................................60Using Automatic Sound Settings ....................................................61Choosing a Multi-Channel Sound (MTS)Soundtrack ..........................62Using the Auto Volume..................................................................63Setting the TruSurround XT ............................................................64Listening to the Sound of the Sub Picture (PC or DVI Mode)................65Selecting the Internal Mute ............................................................66

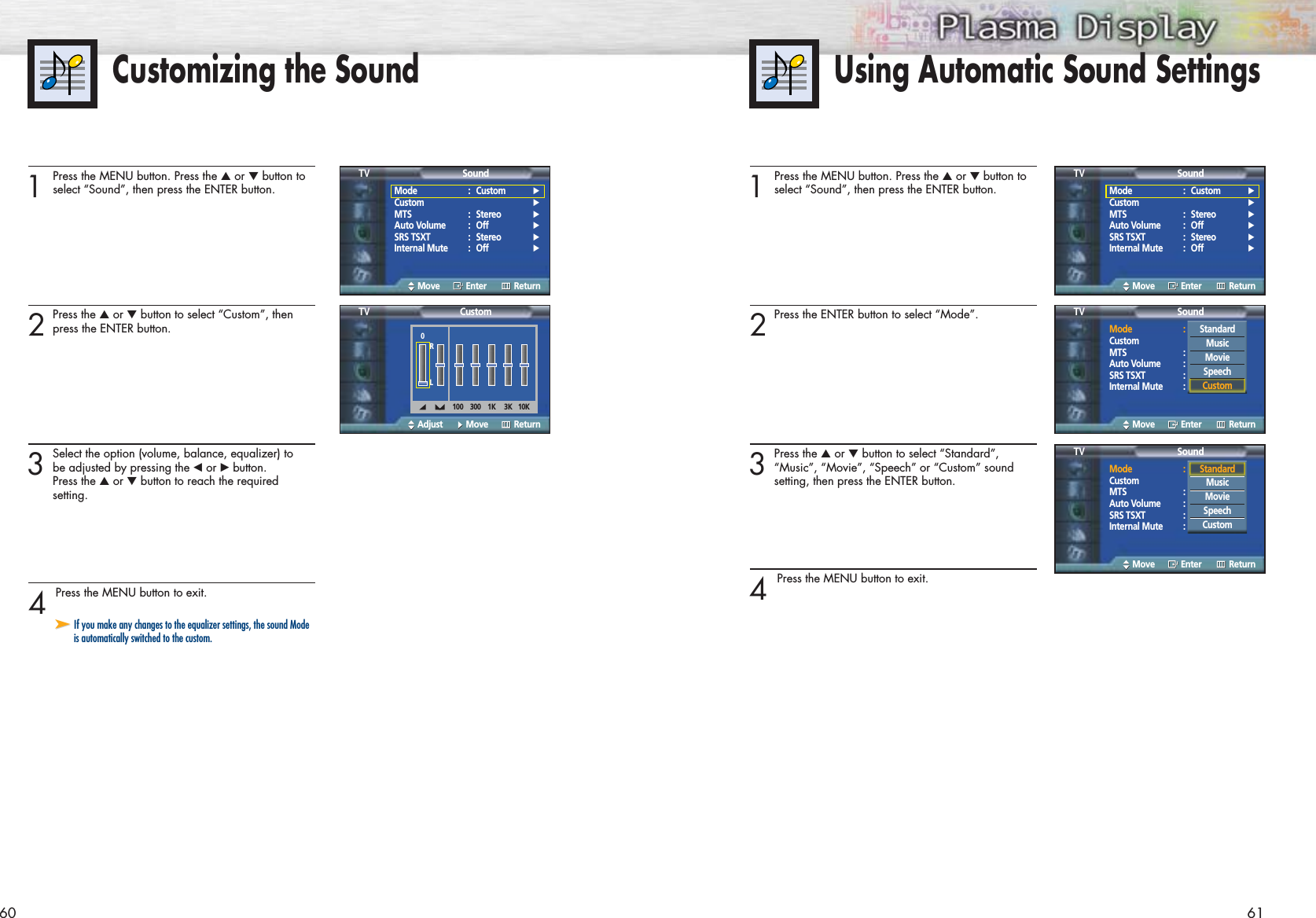

61601 Press the MENU button. Press the ▲or ▼ button toselect “Sound”, then press the ENTER button. 2Press the ENTER button to select “Mode”.3Press the ▲or ▼button to select “Standard”,“Music”, “Movie”, “Speech” or “Custom” sound setting, then press the ENTER button.4 Press the MENU button to exit.Using Automatic Sound SettingsCustomizing the Sound1 Press the MENU button. Press the ▲or ▼button toselect “Sound”, then press the ENTER button. 2Press the ▲or ▼button to select “Custom”, thenpress the ENTER button. 3Select the option (volume, balance, equalizer) to be adjusted by pressing the œor √button.Press the ▲or ▼button to reach the required setting.4 Press the MENU button to exit.Mode : Custom √Custom √MTS : Stereo √Auto Volume : Off √SRS TSXT : Stereo √Internal Mute : Off √SoundTVMove Enter ReturnMode : Custom √Custom √MTS : Stereo √Auto Volume : Off √SRS TSXT : Stereo √Internal Mute : Off √SoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnCustomTVAdjust Move Return100 300 1K 3K 10K0RL➤➤If you make any changes to the equalizer settings, the sound Modeis automatically switched to the custom.StandardMusicMovieSpeechCustomMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnStandardMusicMovieSpeechCustom

63621 Press the MENU button. Press the ▲or ▼button toselect “Sound”, then press the ENTER button. 2Press the ▲or ▼button to select “Auto Volume”,then press the ENTER button.3 Press the ▲or ▼button to select “On”, then pressthe ENTER button. • Pressing the ▲or ▼button will alternate between “On” and “Off”. 4 Press the MENU button to exit.Using the Auto VolumeEach broadcasting station has its own signal conditions, which can make it necessary toadjust the volume every time the channel is changed. “Auto volume” lets you automaticallyadjust the volume of the desired channel by lowering the sound output when the modula-tion signal is high or by raising the sound output when the modulation signal is low.1 Press the MENU button. Press the ▲or ▼button toselect “Sound”, then press the ENTER button. 2Press the ▲or ▼button to select “MTS”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Mono”, “Stereo”or “SAP”, then press the ENTER button. 4 Press the MENU button to exit.•Choose StereoStereo for channels that are broadcasting in stereo.•Choose MonoMono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.•Choose SAPSAP to listen to the Separate Audio Program, which is usually a foreign-language translation.Note• The MTS function operates in TV mode only.➤➤Quick way to access the MTS menu: Just press the “MTS” button onthe remote control.Choosing a Multi-Channel Sound (MTS)SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or aSeparate Audio Program. (SAP audio is usually a foreign-language translation. SometimesSAP has unrelated information like news or weather.)Mode : Custom √Custom √MTS : Stereo √Auto Volume : Off √SRS TSXT : Stereo √Internal Mute : Off √SoundTVMove Enter ReturnMode : Custom √Custom √MTS : Stereo √Auto Volume : Off √SRS TSXT : Stereo √Internal Mute : Off √SoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnMono Stereo SAPMonoStereoSAPMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnOffOnOffOn

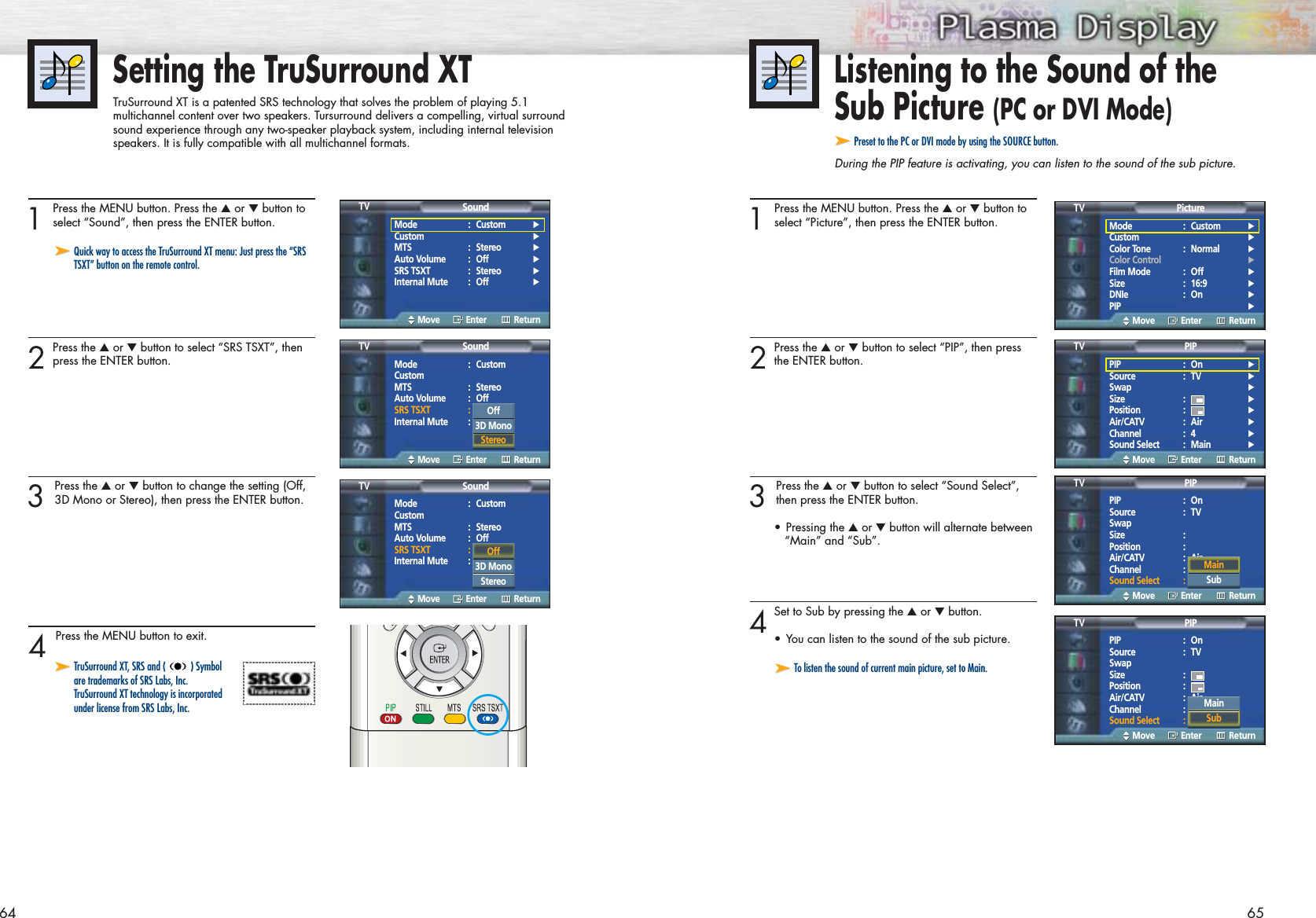

64Listening to the Sound of the Sub Picture (PC or DVI Mode)➤➤Preset to the PC or DVI mode by using the SOURCE button.During the PIP feature is activating, you can listen to the sound of the sub picture.Setting the TruSurround XTTruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. Tursurround delivers a compelling, virtual surroundsound experience through any two-speaker playback system, including internal televisionspeakers. It is fully compatible with all multichannel formats.651 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2Press the ▲or ▼button to select “PIP”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Sound Select”,then press the ENTER button.•Pressing the ▲or ▼button will alternate between“Main” and “Sub”.4Set to Sub by pressing the ▲or ▼button. •You can listen to the sound of the sub picture.1 Press the MENU button. Press the ▲or ▼button toselect “Sound”, then press the ENTER button.2Press the ▲or ▼button to select “SRS TSXT”, thenpress the ENTER button.3 Press the ▲or ▼button to change the setting (Off,3D Mono or Stereo), then press the ENTER button.4 Press the MENU button to exit.➤➤Quick way to access the TruSurround XT menu: Just press the “SRSTSXT” button on the remote control.➤➤TruSurround XT, SRS and ( ) Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.Mode : Custom √Custom √MTS : Stereo √Auto Volume : Off √SRS TSXT : Stereo √Internal Mute : Off √SoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnOff3D Mono StereoMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnOff3D Mono Stereo ➤➤To listen the sound of current main picture, set to Main.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnPIP : On √Source : TV √Swap √Size : √Position : √Air/CATV : Air √Channel : 4 √Sound Select : Main √PIPTVMove Enter ReturnOffOnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnPIP : OnSource : TVSwapSize :Position :Air/CATV : AirChannel : 4Sound Select : MainPIPTVMove Enter ReturnMainSubMainSub

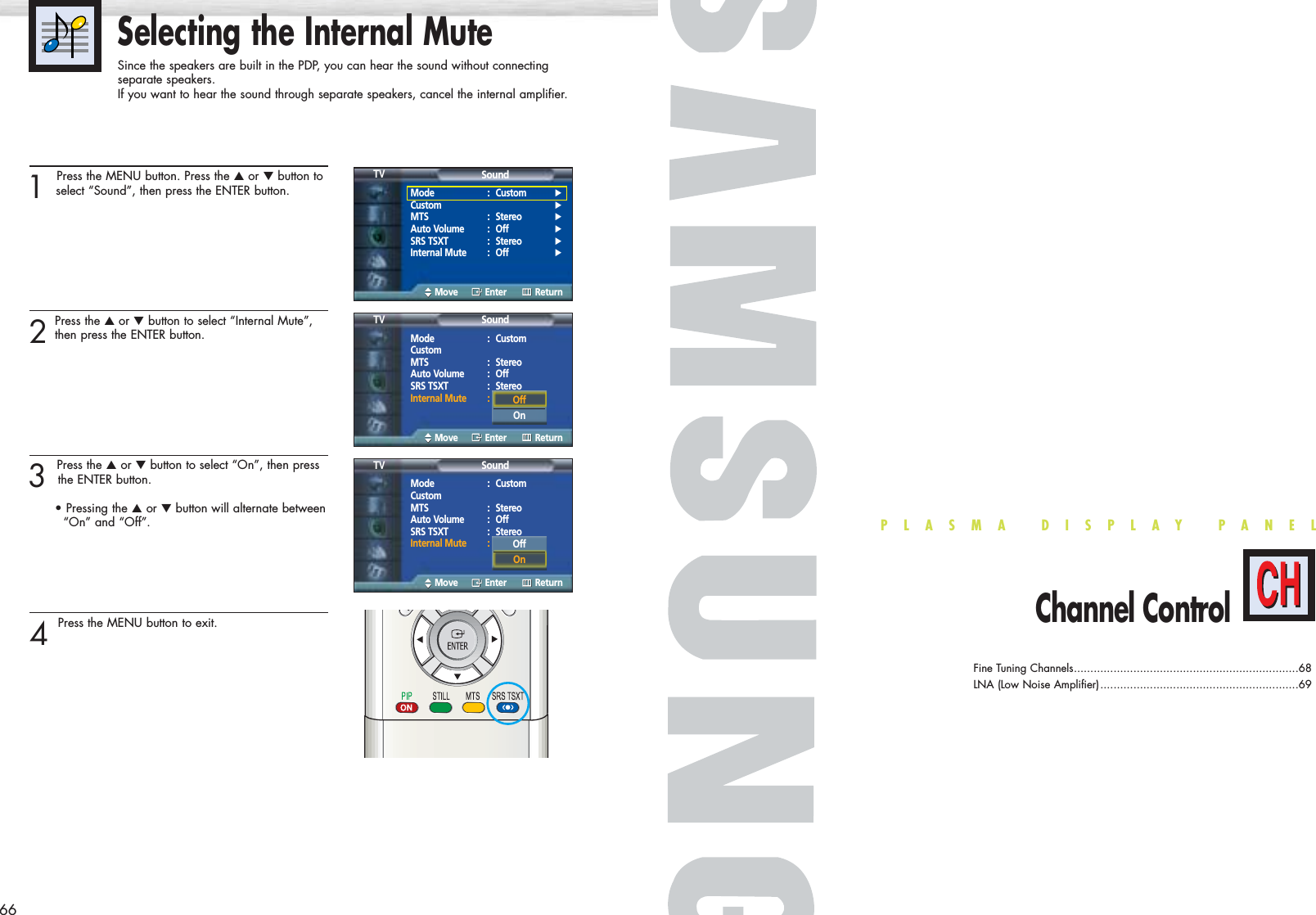

PLASMA DISPLAY PANELChannel ControlFine Tuning Channels....................................................................68LNA (Low Noise Amplifier)............................................................6966Selecting the Internal MuteSince the speakers are built in the PDP, you can hear the sound without connecting separate speakers.If you want to hear the sound through separate speakers, cancel the internal amplifier.1 Press the MENU button. Press the ▲or ▼button toselect “Sound”, then press the ENTER button.2Press the ▲or ▼button to select “Internal Mute”,then press the ENTER button.3 Press the ▲or ▼button to select “On”, then pressthe ENTER button.• Pressing the ▲or ▼button will alternate between“On” and “Off”.4 Press the MENU button to exit.Mode : Custom √Custom √MTS : Stereo √Auto Volume : Off √SRS TSXT : Stereo √Internal Mute : Off √SoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnMode : CustomCustomMTS : StereoAuto Volume : OffSRS TSXT : StereoInternal Mute : OffSoundTVMove Enter ReturnOffOnOffOn

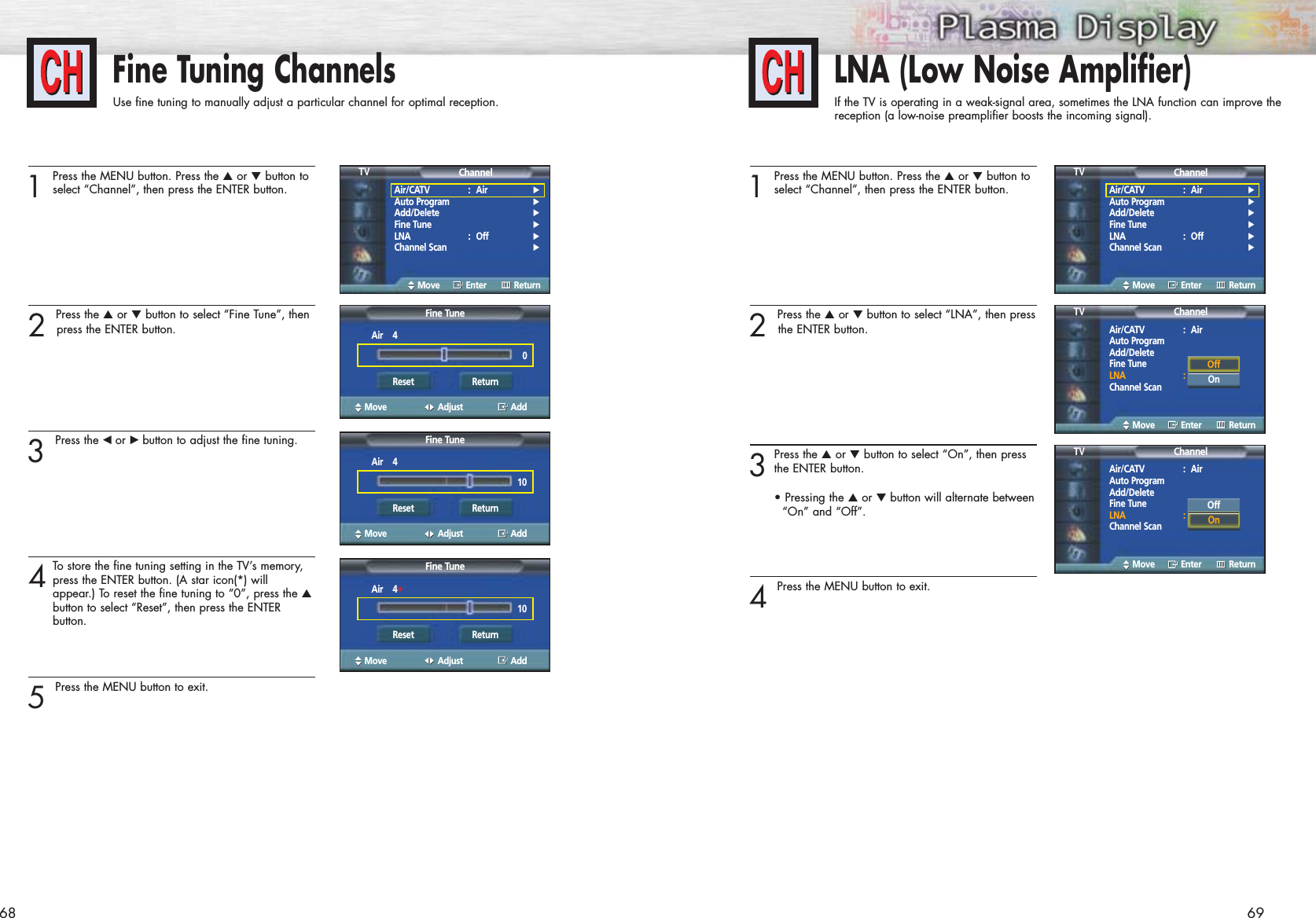

69Fine Tuning ChannelsUse fine tuning to manually adjust a particular channel for optimal reception.681Press the MENU button. Press the ▲or ▼button toselect “Channel”, then press the ENTER button.2 Press the ▲or ▼button to select “Fine Tune”, thenpress the ENTER button.3 Press the œ or √ button to adjust the fine tuning.4To store the fine tuning setting in the TV’s memory,press the ENTER button. (A star icon(*) will appear.) To reset the fine tuning to “0”, press the ▲button to select “Reset”, then press the ENTER button.5 Press the MENU button to exit.LNA (Low Noise Amplifier)If the TV is operating in a weak-signal area, sometimes the LNA function can improve thereception (a low-noise preamplifier boosts the incoming signal).1Press the MENU button. Press the ▲or ▼button toselect “Channel”, then press the ENTER button.2 Press the ▲or ▼button to select “LNA”, then pressthe ENTER button.3Press the ▲or ▼button to select “On”, then pressthe ENTER button.• Pressing the ▲or ▼button will alternate between“On” and “Off”.4 Press the MENU button to exit.Air/CATV : Air √Auto Program √Add/Delete √Fine Tune √LNA : Off √Channel Scan √ChannelTVMove Enter ReturnAir/CATV : Air √Auto Program √Add/Delete √Fine Tune √LNA : Off √Channel Scan √ChannelTVMove Enter ReturnFine TuneMove Adjust AddAir 40Reset ReturnFine TuneMove Adjust AddAir 410Reset ReturnFine TuneMove Adjust AddAir 4*10Reset ReturnAir/CATV : AirAuto ProgramAdd/DeleteFine TuneLNA : OffChannel ScanChannelTVMove Enter ReturnAir/CATV : AirAuto ProgramAdd/DeleteFine TuneLNA : OffChannel ScanChannelTVMove Enter ReturnOffOnOffOn

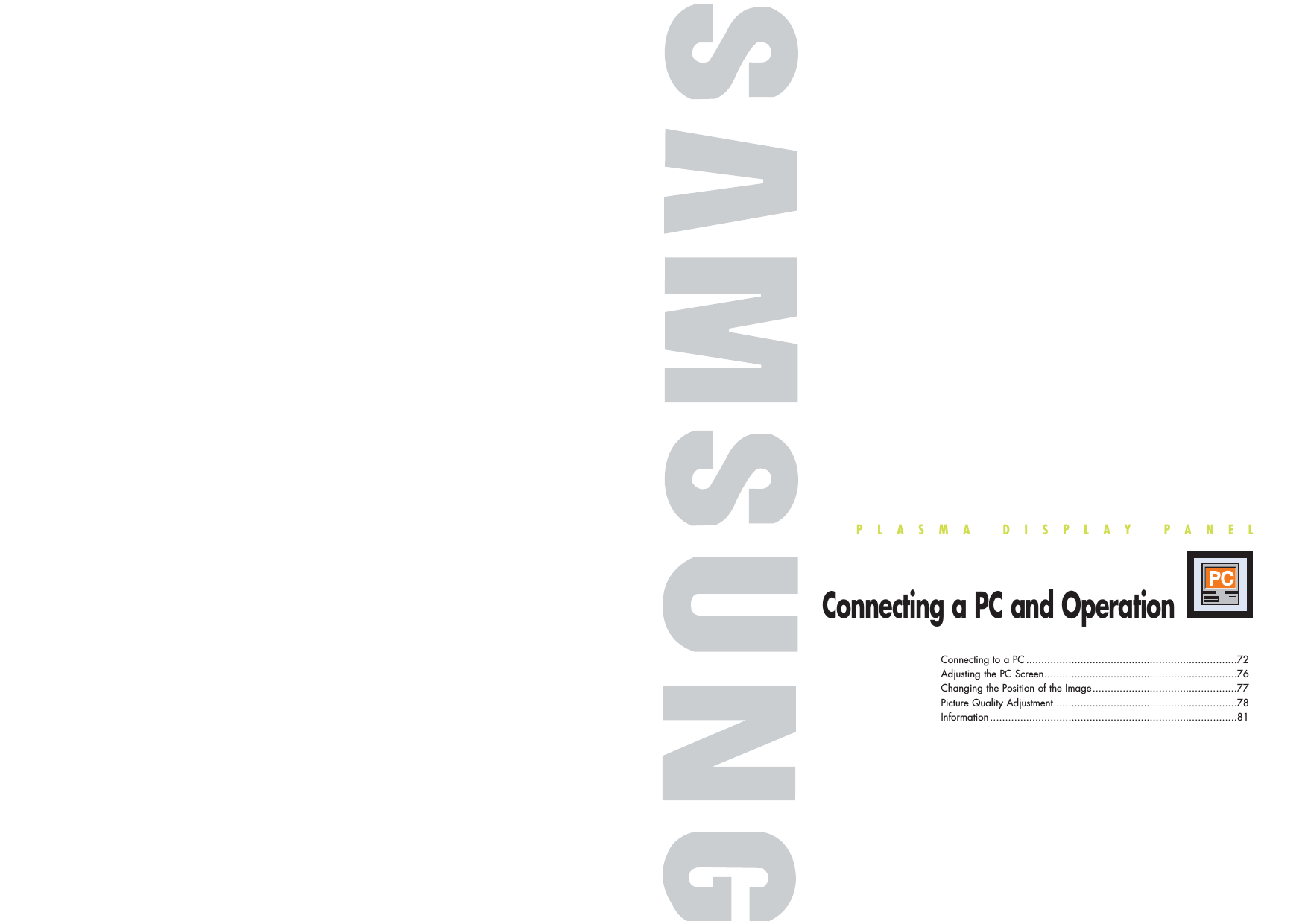

PLASMA DISPLAY PANELConnecting a PC and OperationConnecting to a PC ......................................................................72Adjusting the PC Screen................................................................76Changing the Position of the Image................................................77Picture Quality Adjustment ............................................................78Information ..................................................................................81

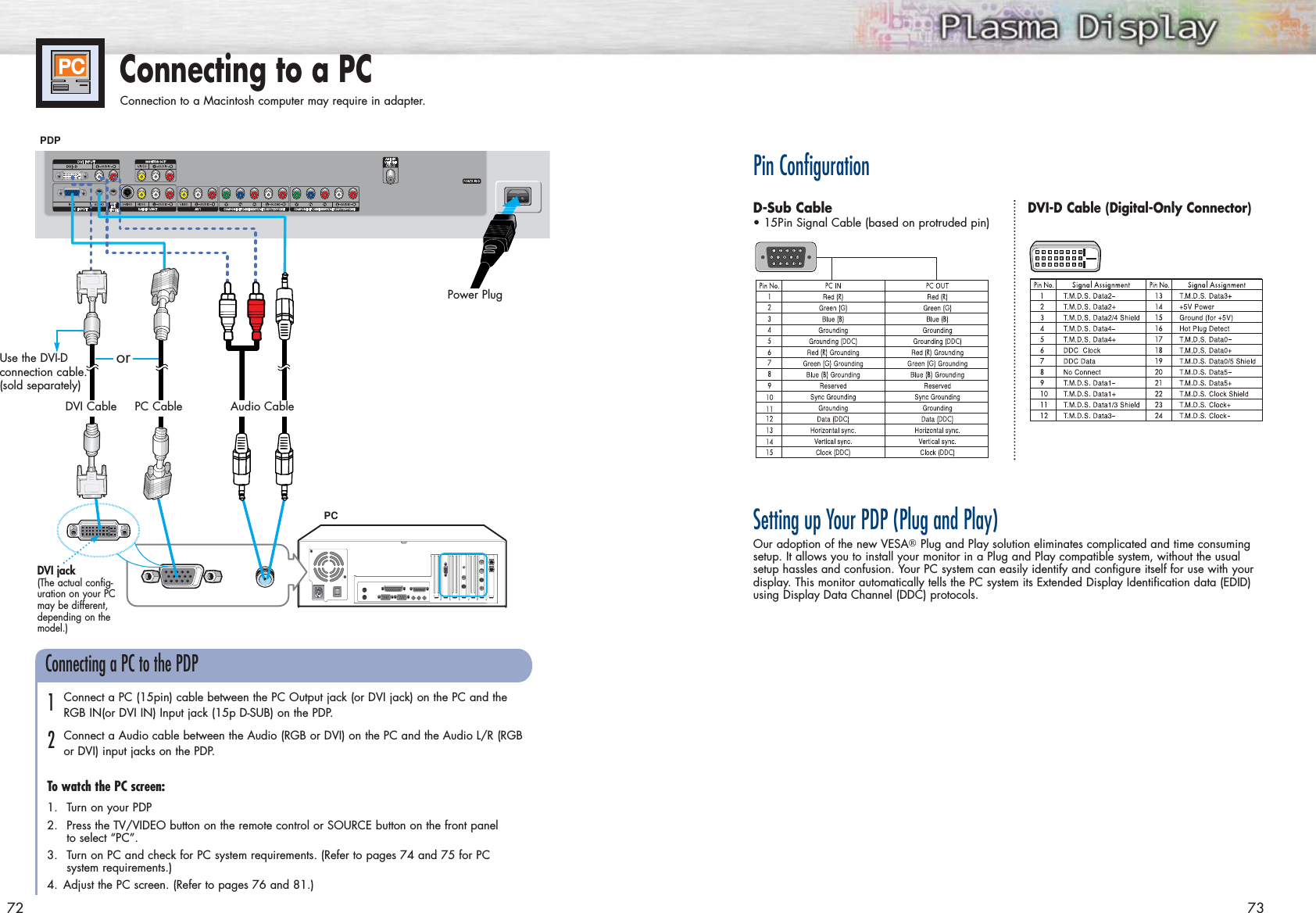

73Connecting to a PCConnection to a Macintosh computer may require in adapter.72To watch the PC screen:1. Turn on your PDP2. Press the TV/VIDEO button on the remote control or SOURCE button on the front panelto select “PC”.3. Turn on PC and check for PC system requirements. (Refer to pages 74 and 75 for PC system requirements.)4. Adjust the PC screen. (Refer to pages 76 and 81.)Connecting a PC to the PDPAudio CablePC CableDVI CablePower PlugPin ConfigurationD-Sub CableDVI-D Cable (Digital-Only Connector)• 15Pin Signal Cable (based on protruded pin)Setting up Your PDP (Plug and Play)Our adoption of the new VESAPlug and Play solution eliminates complicated and time consumingsetup. It allows you to install your monitor in a Plug and Play compatible system, without the usualsetup hassles and confusion. Your PC system can easily identify and configure itself for use with yourdisplay. This monitor automatically tells the PC system its Extended Display Identification data (EDID)using Display Data Channel (DDC) protocols. DVI jack(The actual config-uration on your PCmay be different,depending on themodel.)PDPPCorUse the DVI-D connection cable.(sold separately)Connect a PC (15pin) cable between the PC Output jack (or DVI jack) on the PC and theRGB IN(or DVI IN) Input jack (15p D-SUB) on the PDP. Connect a Audio cable between the Audio (RGB or DVI) on the PC and the Audio L/R (RGBor DVI) input jacks on the PDP. 12

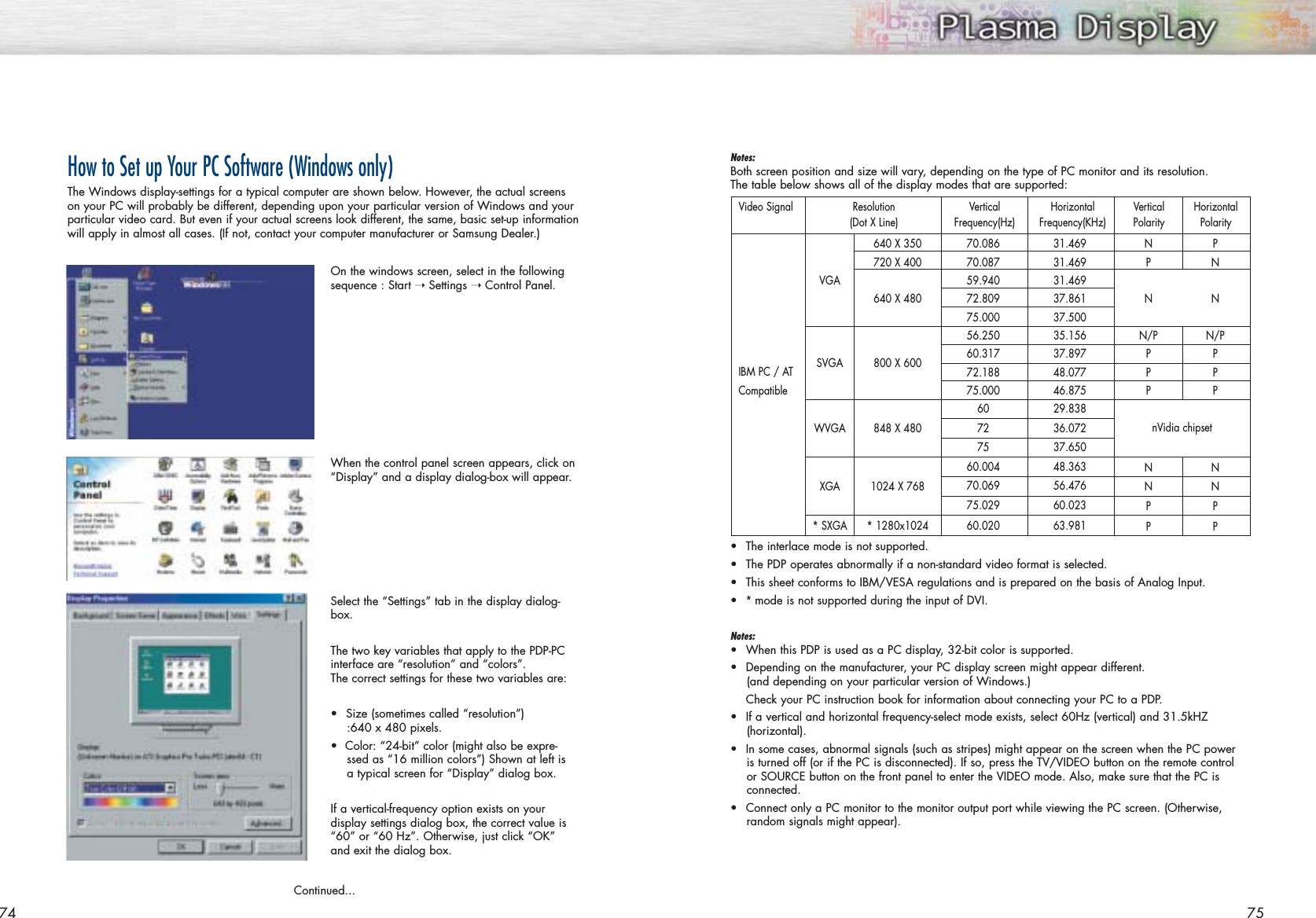

74 75How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. However, the actual screenson your PC will probably be different, depending upon your particular version of Windows and yourparticular video card. But even if your actual screens look different, the same, basic set-up informationwill apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)On the windows screen, select in the followingsequence : Start ➝ Settings ➝ Control Panel.When the control panel screen appears, click on“Display” and a display dialog-box will appear.Select the “Settings” tab in the display dialog-box.The two key variables that apply to the PDP-PC interface are “resolution” and “colors”. The correct settings for these two variables are:•Size (sometimes called “resolution”) :640 x 480 pixels.• Color: “24-bit” color (might also be expre-ssed as “16 million colors”) Shown at left is a typical screen for “Display” dialog box. If a vertical-frequency option exists on your display settings dialog box, the correct value is“60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.Continued...Notes: Both screen position and size will vary, depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported:•The interlace mode is not supported.•The PDP operates abnormally if a non-standard video format is selected.•This sheet conforms to IBM/VESA regulations and is prepared on the basis of Analog Input.•* mode is not supported during the input of DVI.Notes: •When this PDP is used as a PC display, 32-bit color is supported.•Depending on the manufacturer, your PC display screen might appear different.(and depending on your particular version of Windows.) Check your PC instruction book for information about connecting your PC to a PDP.•If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHZ (horizontal).•In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the TV/VIDEO button on the remote control or SOURCE button on the front panel to enter the VIDEO mode. Also, make sure that the PC is connected.•Connect only a PC monitor to the monitor output port while viewing the PC screen. (Otherwise, random signals might appear).Video SignalIBM PC / ATCompatibleResolution(Dot X Line)VerticalFrequency(Hz)VGASVGAWVGAXGA* SXGA640 X 350720 X 400640 X 480800 X 600848 X 4801024 X 768* 1280x102470.08670.08759.94072.80975.00056.25060.31772.18875.00060727560.00470.06975.02960.020HorizontalFrequency(KHz)31.46931.46931.46937.86137.50035.15637.89748.07746.87529.83836.07237.65048.36356.47660.02363.981VerticalPolarityNPNN/PPPPNNPPHorizontalPolarityPNNN/PPPPNNPPnVidia chipset

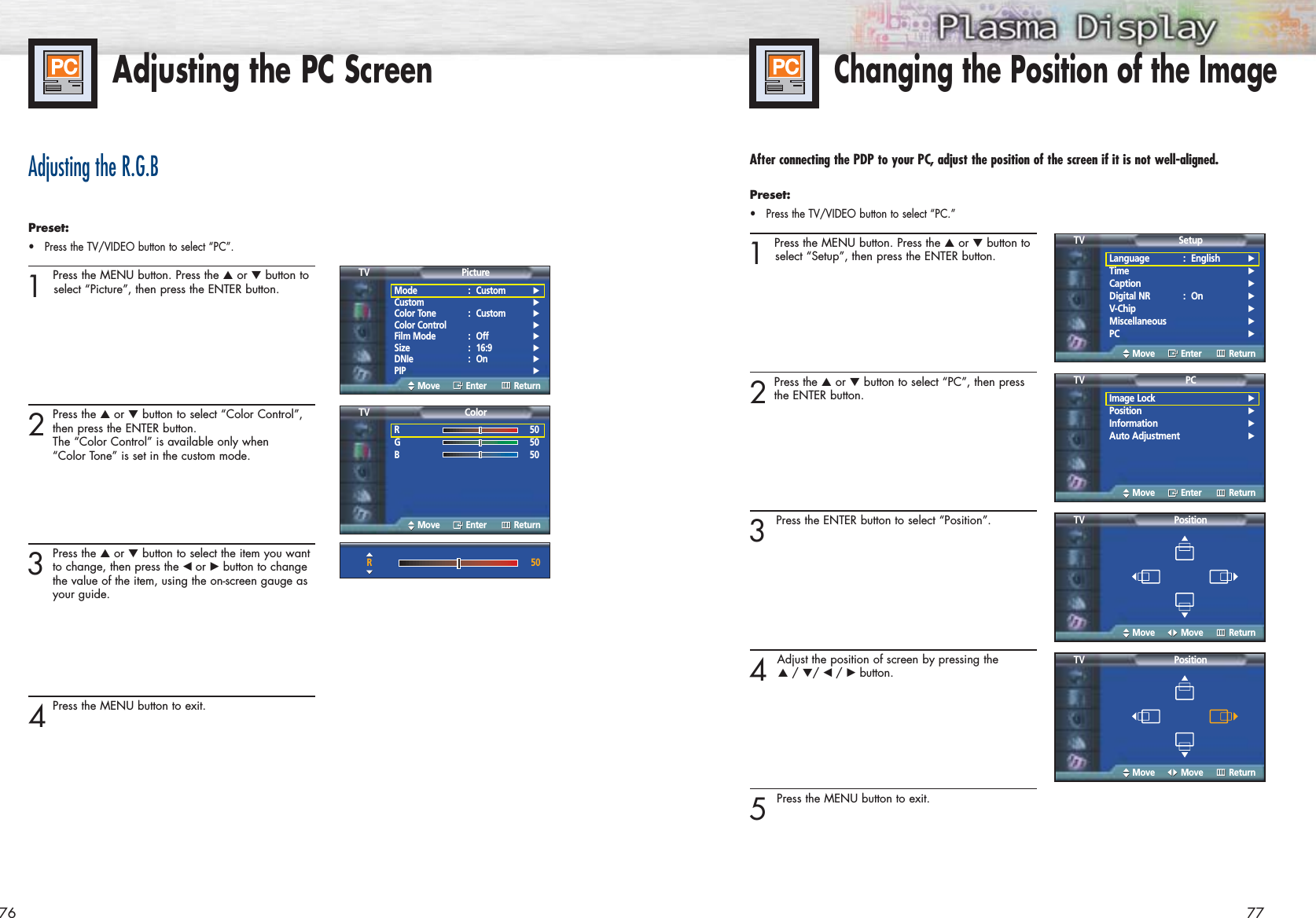

77Adjusting the PC Screen76Adjusting the R.G.BPreset: •Press the TV/VIDEO button to select “PC”.1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button.2Press the ▲or ▼button to select “Color Control”,then press the ENTER button. The “Color Control” is available only when “Color Tone” is set in the custom mode. 3Press the ▲or ▼button to select the item you wantto change, then press the œ or √button to change the value of the item, using the on-screen gauge as your guide.4Press the MENU button to exit.Changing the Position of the ImageAfter connecting the PDP to your PC, adjust the position of the screen if it is not well-aligned.Preset: •Press the TV/VIDEO button to select “PC.”1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2Press the ▲or ▼button to select “PC”, then pressthe ENTER button. 3 Press the ENTER button to select “Position”.4 Adjust the position of screen by pressing the ▲/ ▼/ œ /√button.5 Press the MENU button to exit.Mode : Custom √Custom √Color Tone : Custom √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnR50G50B50ColorTVMove Enter ReturnR50Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnImage Lock√Position√Information√Auto Adjustment√PCTVMove Enter ReturnPositionTVMove Move ReturnPositionTVMove Move Return

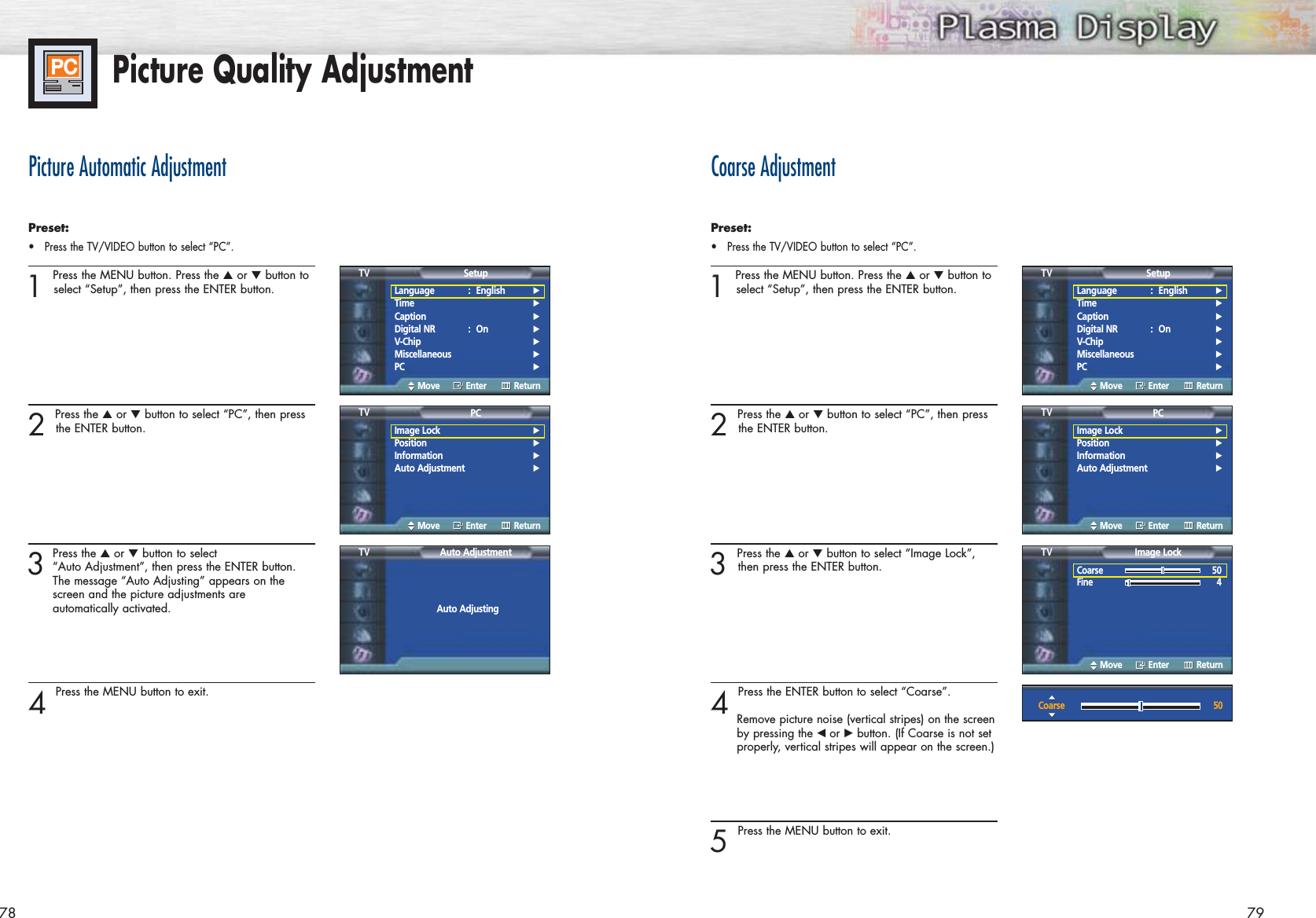

78 79Picture Quality AdjustmentPicture Automatic Adjustment Preset: •Press the TV/VIDEO button to select “PC”.1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “PC”, then pressthe ENTER button.3Press the ▲or ▼button to select “Auto Adjustment”, then press the ENTER button.The message “Auto Adjusting” appears on thescreen and the picture adjustments areautomatically activated.4 Press the MENU button to exit.Coarse AdjustmentPreset: •Press the TV/VIDEO button to select “PC”.1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “PC”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Image Lock”,then press the ENTER button.4 Press the ENTER button to select “Coarse”.Remove picture noise (vertical stripes) on the screenby pressing the œ or √button. (If Coarse is not set properly, vertical stripes will appear on the screen.)5 Press the MENU button to exit.Air 11Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnLanguage : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnImage Lock√Position√Information√Auto Adjustment√PCTVMove Enter ReturnImage Lock√Position√Information√Auto Adjustment√PCTVMove Enter ReturnAuto AdjustingAuto AdjustmentTVCoarse 50Fine 4Image LockTVMove Enter ReturnCoarse 50

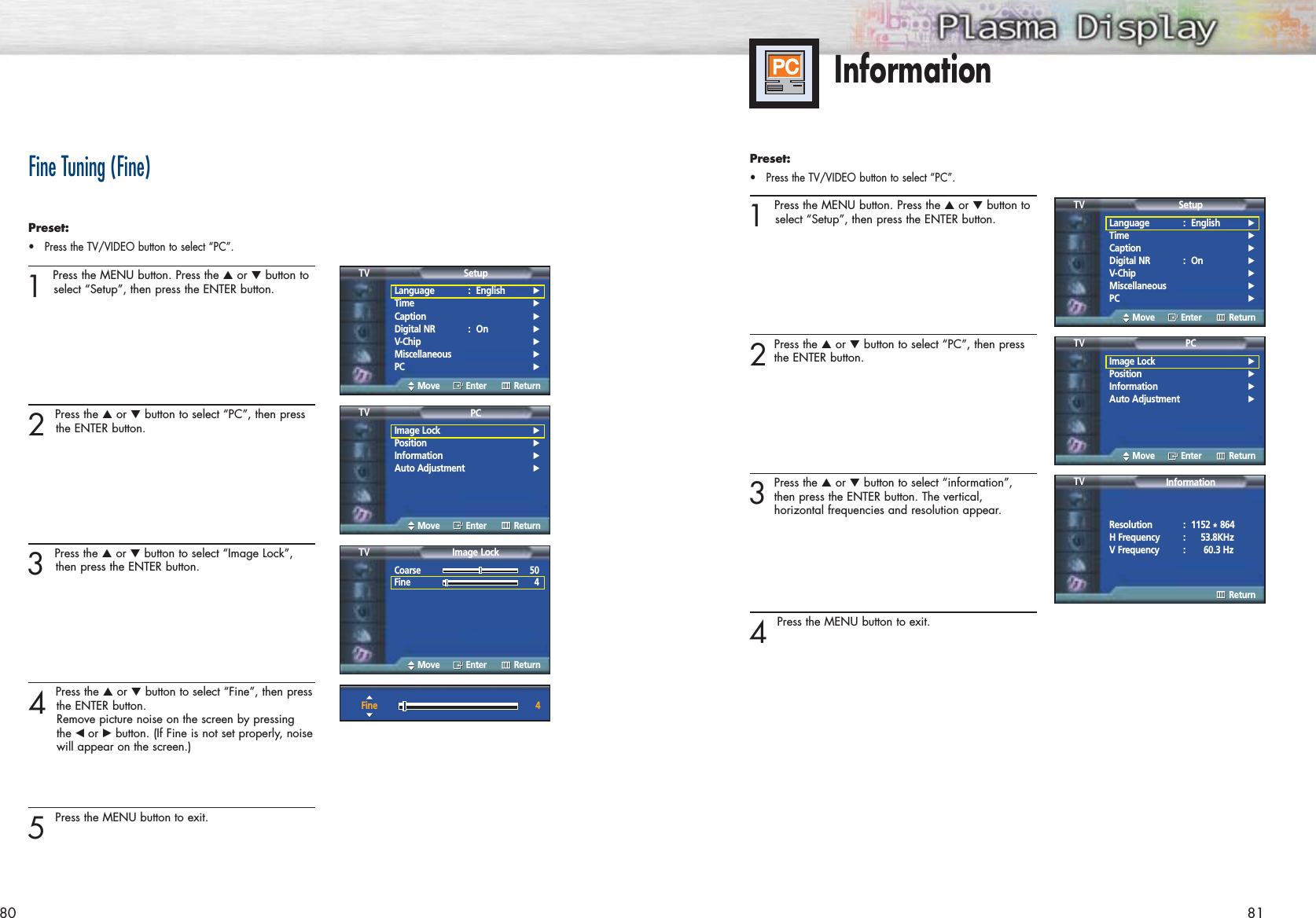

80 81InformationPreset: •Press the TV/VIDEO button to select “PC”.1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2Press the ▲or ▼button to select “PC”, then pressthe ENTER button.3Press the ▲or ▼button to select “information”,then press the ENTER button. The vertical, horizontal frequencies and resolution appear.4 Press the MENU button to exit. Fine Tuning (Fine)Preset: •Press the TV/VIDEO button to select “PC”.1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “PC”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Image Lock”,then press the ENTER button.4 Press the ▲or ▼button to select “Fine”, then pressthe ENTER button. Remove picture noise on the screen by pressing the œ or √button. (If Fine is not set properly, noisewill appear on the screen.)5 Press the MENU button to exit.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnLanguage : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnImage Lock√Position√Information√Auto Adjustment√PCTVMove Enter ReturnImage Lock√Position√Information√Auto Adjustment√PCTVMove Enter ReturnResolution : 1152 *864H Frequency : 53.8KHzV Frequency : 60.3 HzInformationTVReturnCoarse 50Fine 4Image LockTVMove Enter ReturnFine 4

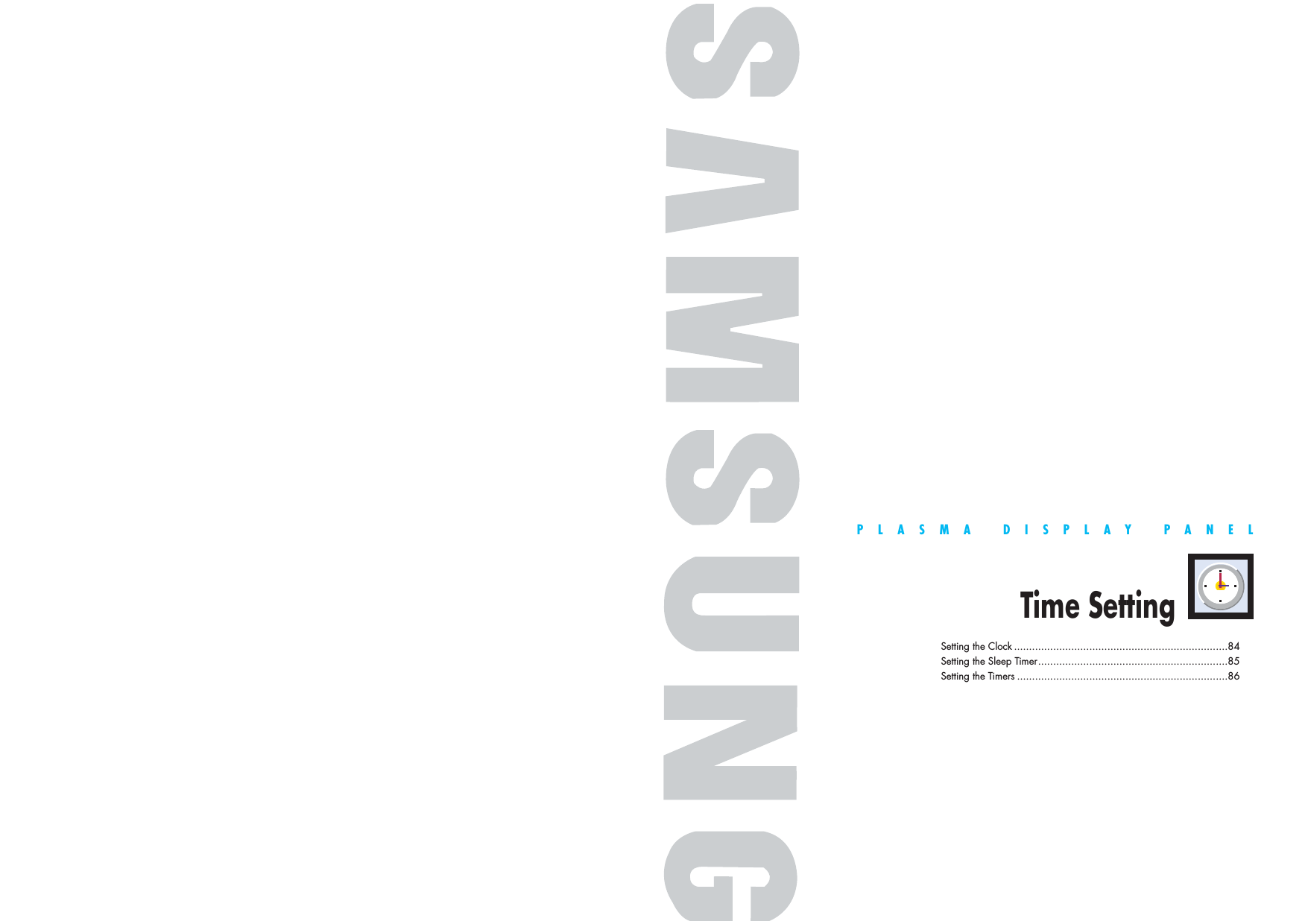

PLASMA DISPLAY PANELTime SettingSetting the Clock .......................................................................84Setting the Sleep Timer...............................................................85Setting the Timers ......................................................................86

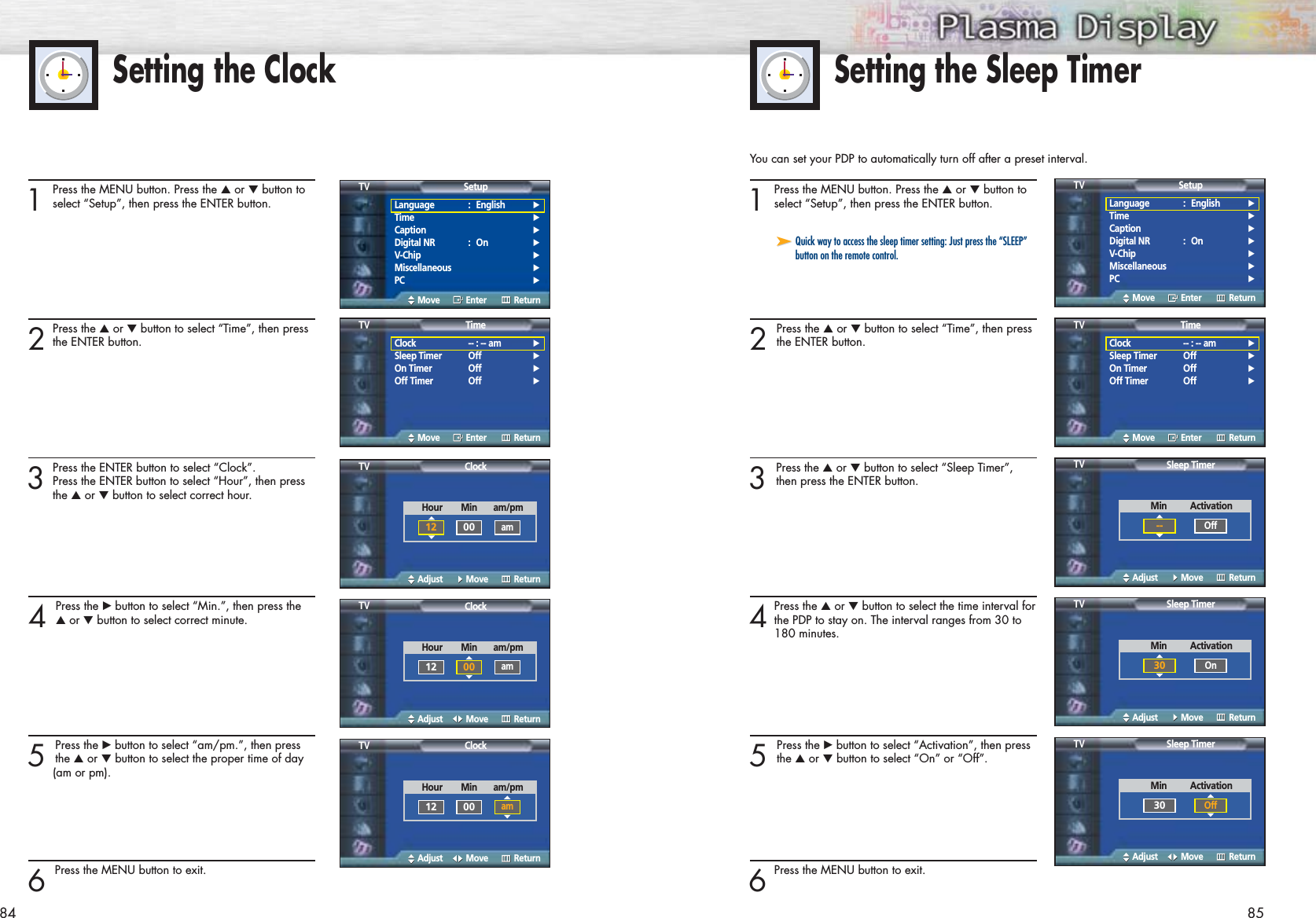

Setting the ClockYou can set your PDP to automatically turn off after a preset interval.1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “Time”, then pressthe ENTER button.3 Press the ▲or ▼button to select “Sleep Timer”,then press the ENTER button.4Press the ▲or ▼button to select the time interval forthe PDP to stay on. The interval ranges from 30 to 180 minutes.5 Press the √button to select “Activation”, then pressthe ▲or ▼button to select “On” or “Off”.6Press the MENU button to exit. Setting the Sleep Timer1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2Press the ▲or ▼button to select “Time”, then pressthe ENTER button.3Press the ENTER button to select “Clock”.Press the ENTER button to select “Hour”, then press the ▲or ▼button to select correct hour.4 Press the √button to select “Min.”, then press the▲or ▼button to select correct minute.5 Press the √button to select “am/pm.”, then pressthe ▲or ▼button to select the proper time of day (am or pm).6 Press the MENU button to exit.➤➤Quick way to access the sleep timer setting: Just press the “SLEEP”button on the remote control.84 85Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnLanguage : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnClock -- : -- am√Sleep Timer Off√On Timer Off√Off Timer Off√TimeTVMove Enter ReturnClock -- : -- am√Sleep Timer Off√On Timer Off√Off Timer Off√TimeTVMove Enter ReturnClockTVAdjust Move ReturnHour Min am/pm12 00amSleep TimerTVAdjust Move ReturnMin Activation--OffClockTVAdjust Move ReturnHour Min am/pm12 00amClockTVAdjust Move ReturnHour Min am/pm12 00amSleep TimerTVAdjust Move ReturnMin Activation30OnSleep TimerTVAdjust Move ReturnMin Activation30Off

6Press the √ button to select “Channel”, then pressthe ▲or ▼button to select the channel you want when PDP turns on.7Press the √button to select “Volume”, then press the▲or ▼button to select the volume level you want when PDP turns on.8 Press the √button to select “Activation”, then pressthe ▲or ▼button to select “On” or “Off”.9If you want to set Off Time, press the ▲or ▼buttonto select “Off Time”. Set the “Off Time” just as you set “On Time”.10Press the MENU button to exit.Note•If you set an On or Off Time, the Power Indicator on the Front Panel changes to Green.86 87Setting the TimersThis PDP can be set to turn on or off automatically at specific times that you choose. Before using the timers, you must set the PDP’s clock, as described previously.1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “Time”, then pressthe ENTER button.3Press the ▲or ▼button to select “On Timer”, thenpress the ENTER button.Press the √button to select “Hour”, then press the ▲or ▼button to select correct hour.4Press the √button to select “Min.”, then press the ▲or ▼button to select correct minute.5 Press the √button to select “am/pm”, then press the▲or ▼button to select the proper time of day (amor pm).▲▲▲▲Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnClock -- : -- am√Sleep Timer Off√On Timer Off√Off Timer Off√TimeTVMove Enter ReturnOn TimerTVAdjust Move ReturnHour Min am/pm12 00amChannel Volume ActivationAir 3 10OffOn TimerTVAdjust Move ReturnHour Min am/pm12 00amChannel Volume ActivationAir 3 10OffOn TimerTVAdjust Move ReturnHour Min am/pm12 00amChannel Volume ActivationAir 3 10OffOn TimerTVAdjust Move ReturnHour Min am/pm12 00amChannel Volume ActivationAir 3 10OffOn TimerTVAdjust Move ReturnHour Min am/pm12 00amChannel Volume ActivationAir 3 10Off▲▲On TimerTVAdjust Move ReturnHour Min am/pm12 00amChannel Volume ActivationAir 3 10Off

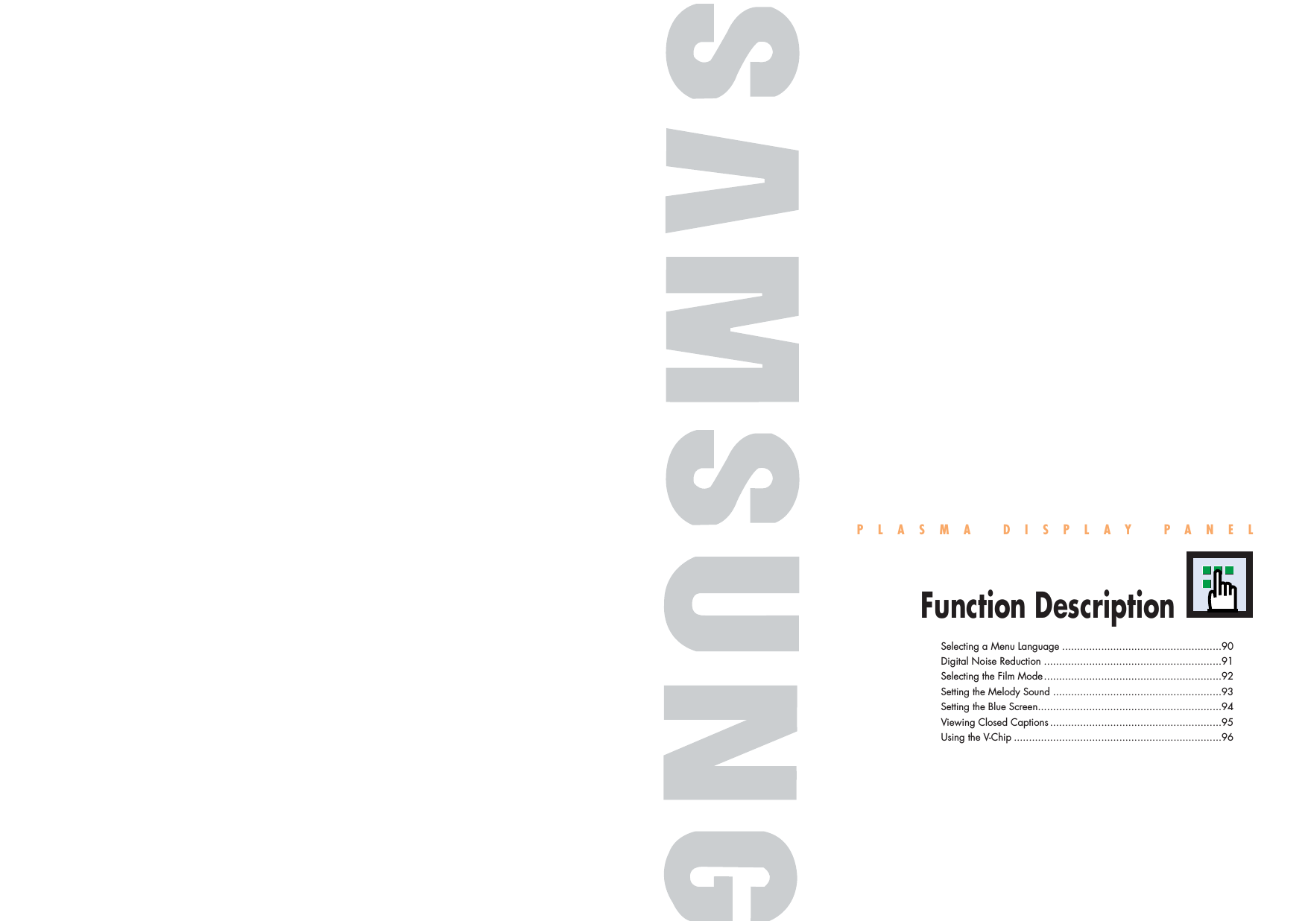

Selecting a Menu Language .....................................................90Digital Noise Reduction ...........................................................91Selecting the Film Mode...........................................................92Setting the Melody Sound ........................................................93Setting the Blue Screen.............................................................94Viewing Closed Captions .........................................................95Using the V-Chip .....................................................................96PLASMA DISPLAY PANELFunction Description

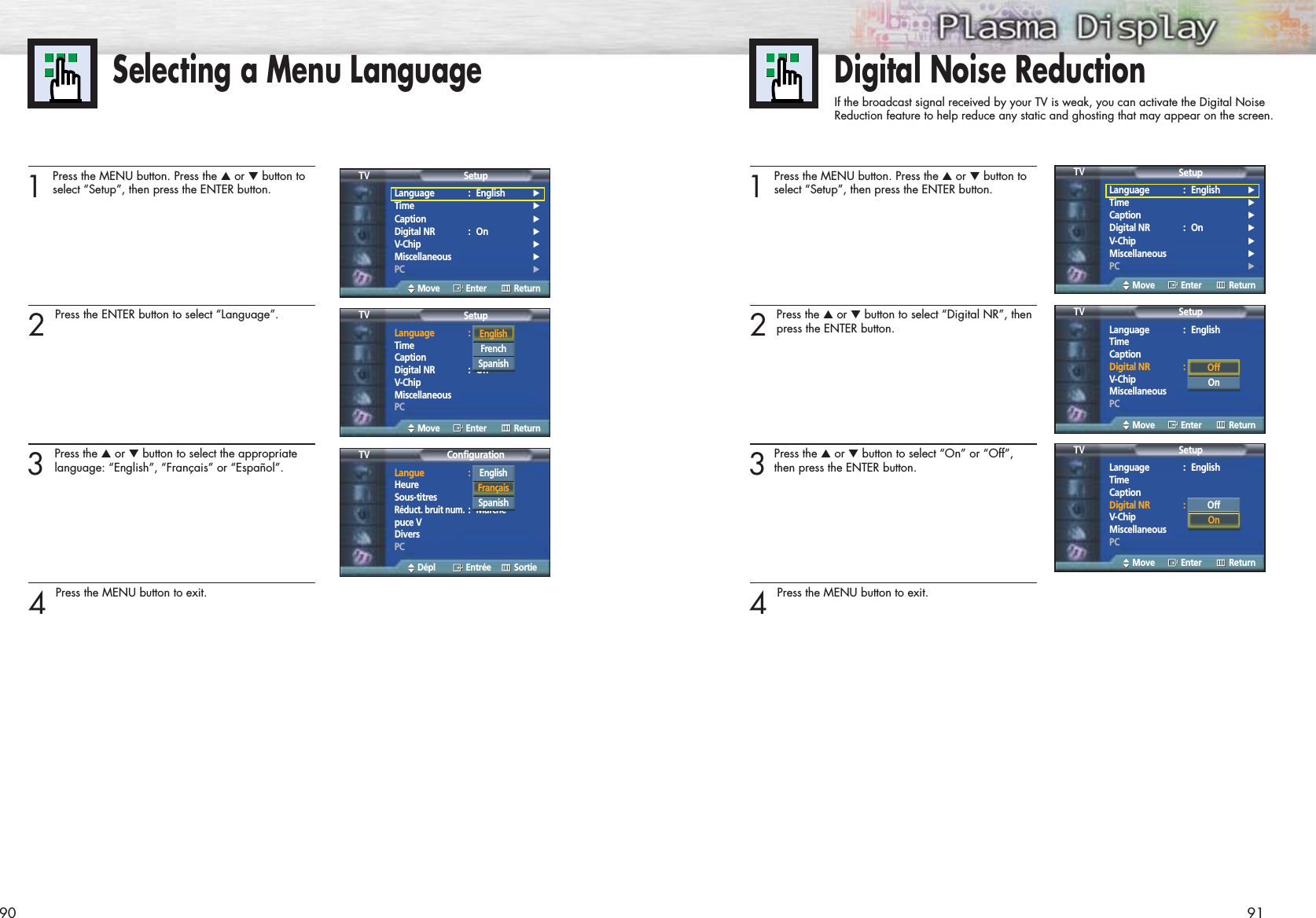

Selecting a Menu Language90 911Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ENTER button to select “Language”.3 Press the ▲or ▼button to select the appropriatelanguage: “English”, “Français” or “Español”.4 Press the MENU button to exit.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnLanguage : EnglishTimeCaptionDigital NR : OnV-ChipMiscellaneousPCSetupTVMove Enter ReturnEnglishFrench Spanish Langue : FrançaisHeureSous-titresRéduct. bruit num.:Marchepuce VDiversPCConfigurationTVDépl Entrée SortieEnglishFrançaisSpanish Digital Noise ReductionIf the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “Digital NR”, thenpress the ENTER button.3Press the ▲or ▼button to select “On” or “Off”,then press the ENTER button.4 Press the MENU button to exit.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnLanguage : EnglishTimeCaptionDigital NR : OnV-ChipMiscellaneousPCSetupTVMove Enter ReturnLanguage : EnglishTimeCaptionDigital NR : OnV-ChipMiscellaneousPCSetupTVMove Enter ReturnOffOnOffOn

1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2 Press the ▲or ▼button to select “Miscellaneous”,then press the ENTER button.3Press the ▲or ▼button to select “Melody”, pressthe ENTER button.4 Press the ▲or ▼button to change the setting. (On or Off).92 93Setting the Melody SoundYou can hear clear melody sound when the television is powered on or off.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnMelody : On√Plug & Play√Blue Screen : On√MiscellaneousTVMove Enter ReturnMelody : OnPlug & PlayBlue Screen : OnMiscellaneousTVMove Enter ReturnMelody : OnPlug & PlayBlue Screen : OnMiscellaneousTVMove Enter ReturnOffOnOffOnSelecting the Film ModeOn: Automatically senses and processes film signals from all sources and adjusts thepicture for optimum quality.Off: Switches off the Film mode.1 Press the MENU button. Press the ▲or ▼button toselect “Picture”, then press the ENTER button. 2 Press the ▲or ▼button to select “Film Mode”, thenpress the ENTER button.3 Press the ▲or ▼button to select “On” or “Off”,then press the ENTER button.4 Press the MENU button to exit.Note•Film mode is supported in Video, S-Vide and Component 480i.Mode : Custom √Custom √Color Tone : Normal √Color Control √Film Mode : Off √Size : 16:9 √DNIe : On √PIP √PictureTVMove Enter ReturnMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnOffOnOffOnMode : CustomCustomColor Tone : NormalColor ControlFilm Mode : OffSize : 16:9DNIe : OnPIPPictureTVMove Enter ReturnOffOn

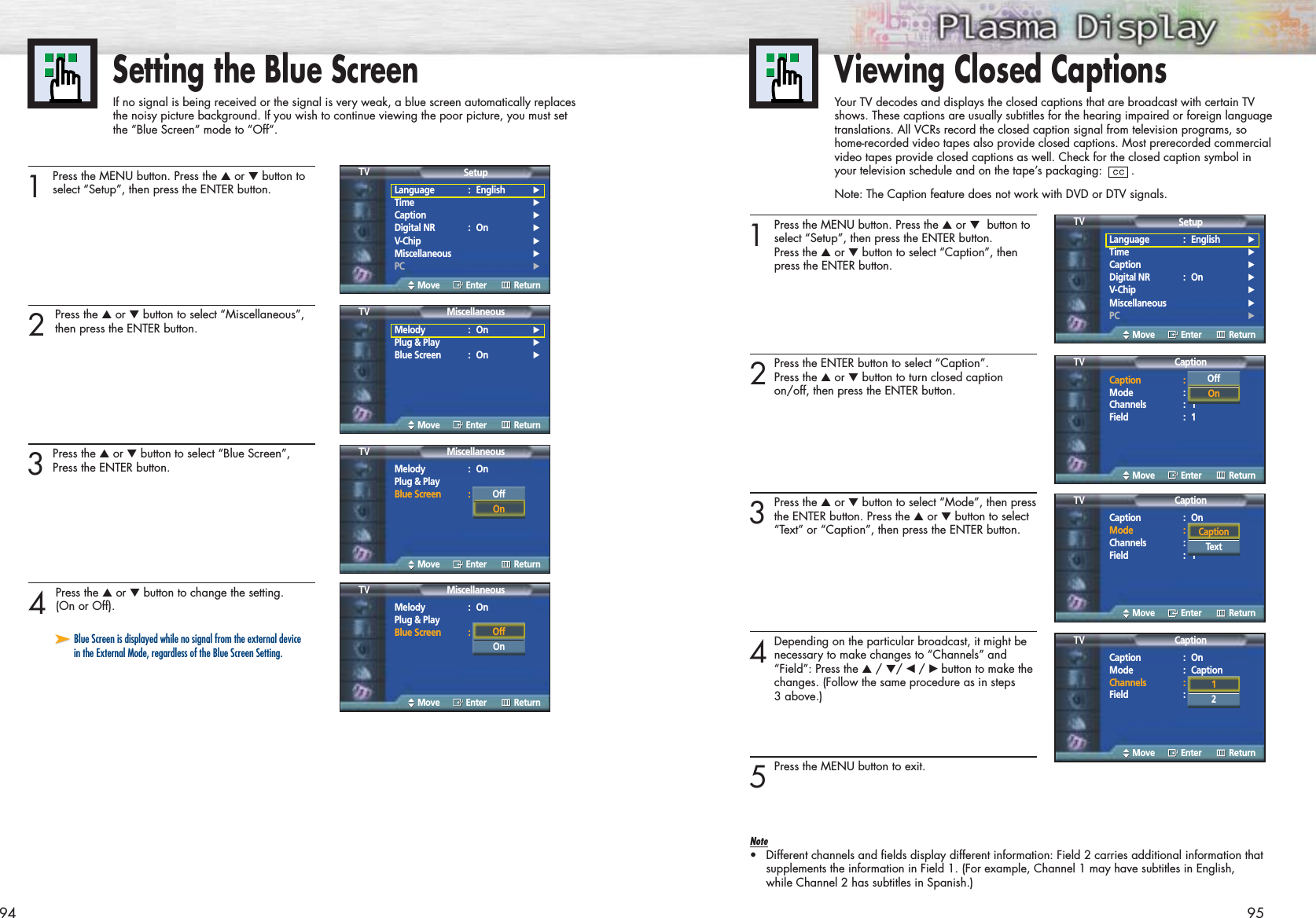

9594Setting the Blue ScreenIf no signal is being received or the signal is very weak, a blue screen automatically replacesthe noisy picture background. If you wish to continue viewing the poor picture, you must setthe “Blue Screen“ mode to “Off“.1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “Miscellaneous”,then press the ENTER button.3Press the ▲or ▼button to select “Blue Screen”,Press the ENTER button.4 Press the ▲or ▼button to change the setting.(On or Off).Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter Return➤➤Blue Screen is displayed while no signal from the external devicein the External Mode, regardless of the Blue Screen Setting.Melody : On√Plug & Play√Blue Screen : On√MiscellaneousTVMove Enter ReturnMelody : OnPlug & PlayBlue Screen : OnMiscellaneousTVMove Enter ReturnMelody : OnPlug & PlayBlue Screen : OnMiscellaneousTVMove Enter ReturnOffOnOffOn1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. Press the ▲or ▼button to select “Caption”, then press the ENTER button.2Press the ENTER button to select “Caption”.Press the ▲or ▼button to turn closed caption on/off, then press the ENTER button.3Press the ▲or ▼button to select “Mode”, then pressthe ENTER button. Press the ▲or ▼button to select “Text” or “Caption”, then press the ENTER button.4Depending on the particular broadcast, it might benecessary to make changes to “Channels” and “Field”: Press the ▲/ ▼/ œ /√ button to make the changes. (Follow the same procedure as in steps 3 above.)5Press the MENU button to exit.Note•Different channels and fields display different information: Field 2 carries additional information thatsupplements the information in Field 1. (For example, Channel 1 may have subtitles in English,while Channel 2 has subtitles in Spanish.)Viewing Closed CaptionsYour TV decodes and displays the closed captions that are broadcast with certain TVshows. These captions are usually subtitles for the hearing impaired or foreign languagetranslations. All VCRs record the closed caption signal from television programs, sohome-recorded video tapes also provide closed captions. Most prerecorded commercialvideo tapes provide closed captions as well. Check for the closed caption symbol inyour television schedule and on the tape’s packaging: . Note: The Caption feature does not work with DVD or DTV signals.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnCaption : OnMode : CaptionChannels : 1Field : 1CaptionTVMove Enter ReturnOffOnCaption : OnMode : CaptionChannels : 1Field : 1CaptionTVMove Enter ReturnCaptionTextCaption : OnMode : CaptionChannels : 1Field : 1CaptionTVMove Enter Return12

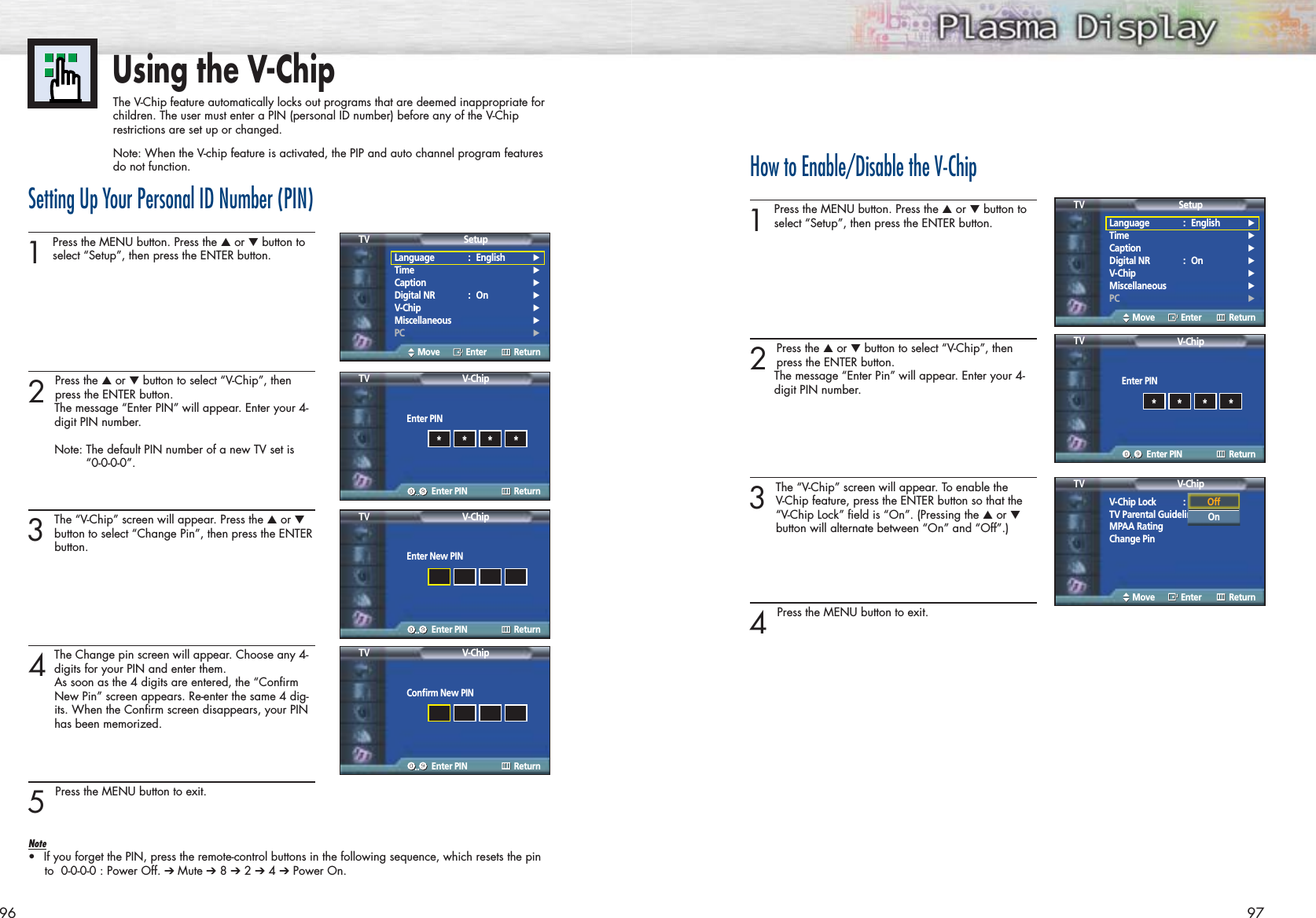

96 97Using the V-ChipThe V-Chip feature automatically locks out programs that are deemed inappropriate forchildren. The user must enter a PIN (personal ID number) before any of the V-Chiprestrictions are set up or changed.Note: When the V-chip feature is activated, the PIP and auto channel program featuresdo not function.Setting Up Your Personal ID Number (PIN)1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2 Press the ▲or ▼button to select “V-Chip”, then press the ENTER button.The message “Enter PIN” will appear. Enter your 4-digit PIN number.Note: The default PIN number of a new TV set is “0-0-0-0”.3The “V-Chip” screen will appear. Press the ▲or ▼button to select “Change Pin”, then press the ENTERbutton.4The Change pin screen will appear. Choose any 4-digits for your PIN and enter them.As soon as the 4 digits are entered, the “Confirm New Pin” screen appears. Re-enter the same 4 dig-its. When the Confirm screen disappears, your PIN has been memorized.5 Press the MENU button to exit.Note•If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pinto 0-0-0-0 : Power Off. ➔ Mute ➔8 ➔2 ➔4 ➔Power On.How to Enable/Disable the V-Chip1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2 Press the ▲or ▼button to select “V-Chip”, thenpress the ENTER button.The message “Enter Pin” will appear. Enter your 4-digit PIN number. 3The “V-Chip” screen will appear. To enable the V-Chip feature, press the ENTER button so that the “V-Chip Lock” field is “On”. (Pressing the ▲or ▼button will alternate between “On” and “Off”.)4 Press the MENU button to exit.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnLanguage : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnEnter PINV-ChipTVEnter PIN Return****Enter PINV-ChipTVEnter PIN Return****Enter New PINV-ChipTVEnter PIN ReturnConfirm New PINV-ChipTVEnter PIN ReturnV-Chip Lock : OffTV Parental GuidelinesMPAA RatingChange PinV-ChipTVMove Enter ReturnOffOn

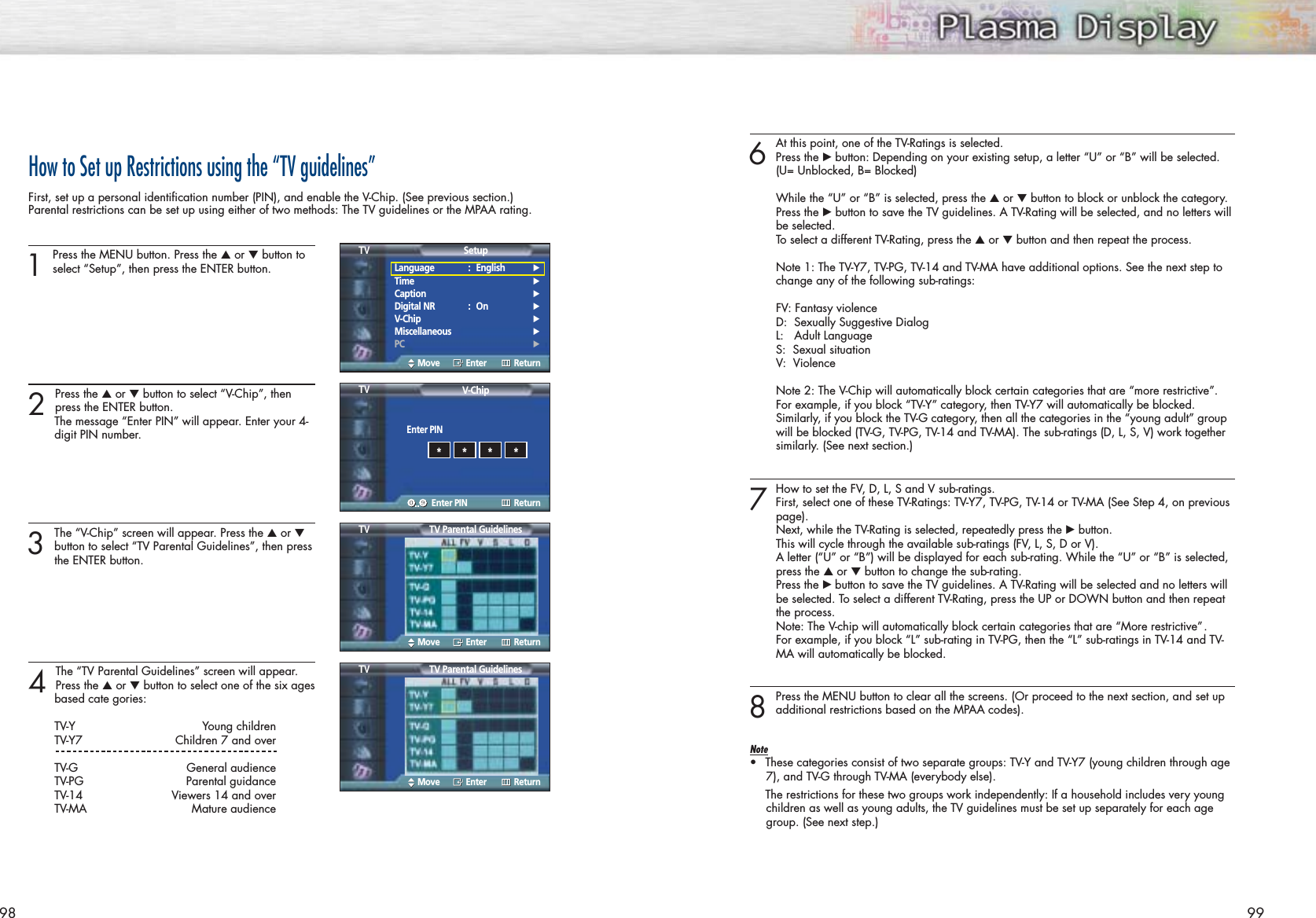

98How to Set up Restrictions using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.)Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button.2 Press the ▲or ▼button to select “V-Chip”, then press the ENTER button.The message “Enter PIN” will appear. Enter your 4- digit PIN number. 3The “V-Chip” screen will appear. Press the ▲or ▼button to select “TV Parental Guidelines”, then pressthe ENTER button.4 The “TV Parental Guidelines” screen will appear.Press the ▲or ▼button to select one of the six agesbased cate gories:TV-Y Young childrenTV-Y7 Children 7 and overTV-G General audienceTV-PG Parental guidanceTV-14 Viewers 14 and overTV-MA Mature audience996At this point, one of the TV-Ratings is selected. Press the √button: Depending on your existing setup, a letter “U” or “B” will be selected.(U= Unblocked, B= Blocked)While the “U” or “B” is selected, press the ▲or ▼button to block or unblock the category.Press the √button to save the TV guidelines. A TV-Rating will be selected, and no letters will be selected.To select a different TV-Rating, press the ▲or ▼button and then repeat the process.Note 1: The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:FV: Fantasy violenceD: Sexually Suggestive DialogL: Adult LanguageS: Sexual situationV: ViolenceNote 2: The V-Chip will automatically block certain categories that are “more restrictive”.For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked.Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together similarly. (See next section.)7How to set the FV, D, L, S and V sub-ratings.First, select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA (See Step 4, on previous page).Next, while the TV-Rating is selected, repeatedly press the √button. This will cycle through the available sub-ratings (FV, L, S, D or V).A letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is selected, press the ▲or ▼button to change the sub-rating.Press the √ button to save the TV guidelines. A TV-Rating will be selected and no letters will be selected. To select a different TV-Rating, press the UP or DOWN button and then repeat the process.Note: The V-chip will automatically block certain categories that are “More restrictive” .For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.8Press the MENU button to clear all the screens. (Or proceed to the next section, and set upadditional restrictions based on the MPAA codes).Note•These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age7), and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very youngchildren as well as young adults, the TV guidelines must be set up separately for each agegroup. (See next step.)Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnTV Parental GuidelinesTVMove Enter ReturnEnter PINV-ChipTVEnter PIN Return****TV Parental GuidelinesTVMove Enter Return

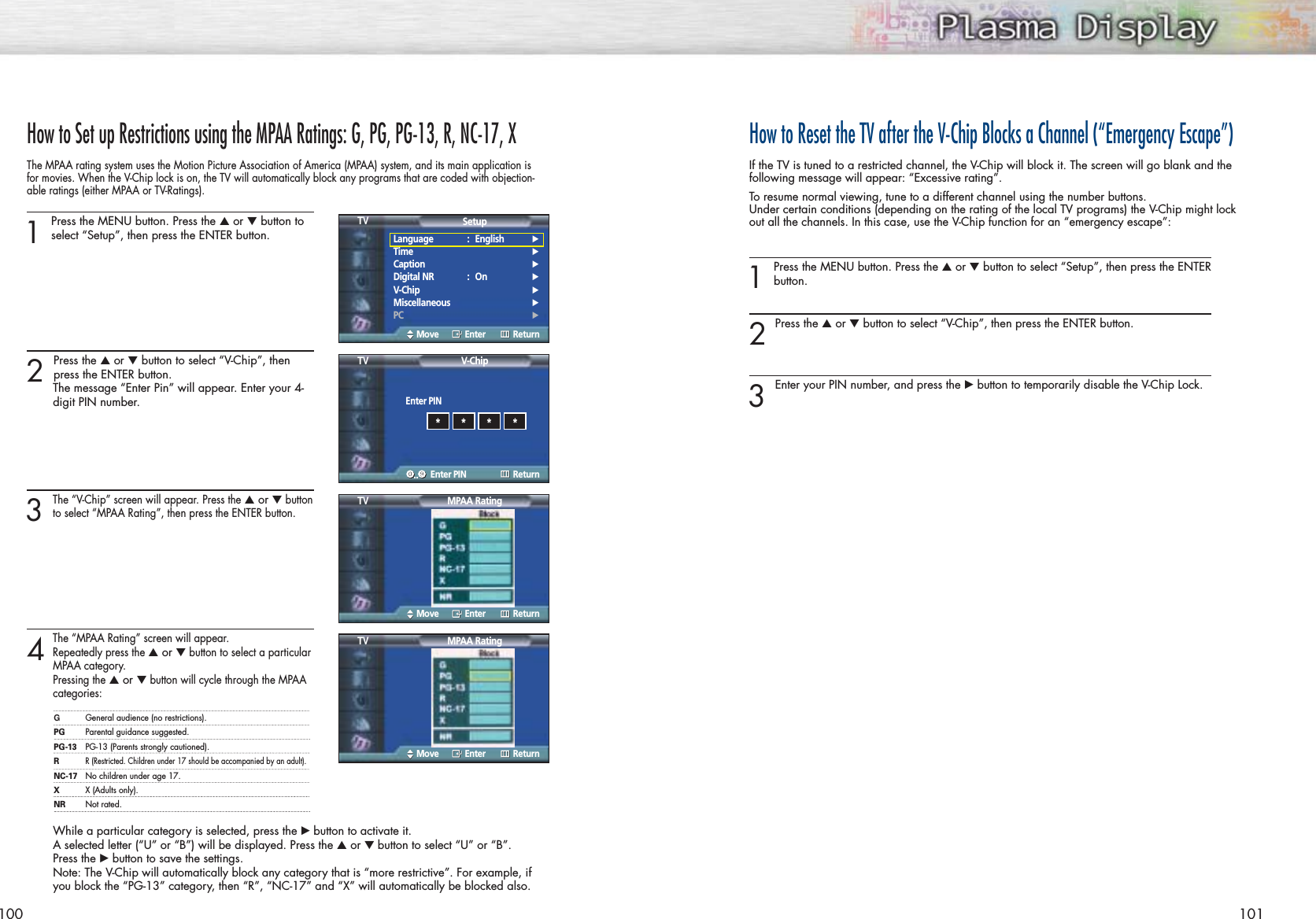

100 101How to Set up Restrictions using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application isfor movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objection-able ratings (either MPAA or TV-Ratings).1Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2 Press the ▲or ▼button to select “V-Chip”, then press the ENTER button.The message “Enter Pin” will appear. Enter your 4-digit PIN number.3The “V-Chip” screen will appear. Press the ▲or ▼buttonto select “MPAA Rating”, then press the ENTER button.4The “MPAA Rating” screen will appear.Repeatedly press the ▲or ▼button to select a particular MPAA category. Pressing the ▲or ▼button will cycle through the MPAA categories:While a particular category is selected, press the √button to activate it.A selected letter (“U” or “B”) will be displayed. Press the ▲or ▼ button to select “U” or “B”.Press the √button to save the settings.Note: The V-Chip will automatically block any category that is “more restrictive”. For example, if you block the “PG-13” category, then “R”, “NC-17” and “X” will automatically be blocked also.GGeneral audience (no restrictions).PG Parental guidance suggested.PG-13 PG-13 (Parents strongly cautioned).RR (Restricted. Children under 17 should be accompanied by an adult).NC-17 No children under age 17.XX (Adults only).NR Not rated.How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and thefollowing message will appear: “Excessive rating”.To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lockout all the channels. In this case, use the V-Chip function for an “emergency escape”:1 Press the MENU button. Press the ▲or ▼button to select “Setup”, then press the ENTERbutton. 2Press the ▲or ▼button to select “V-Chip”, then press the ENTER button.3Enter your PIN number, and press the √button to temporarily disable the V-Chip Lock. Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√SetupTVMove Enter ReturnEnter PINV-ChipTVEnter PIN Return****MPAA RatingTVMove Enter ReturnMPAA RatingTVMove Enter Return

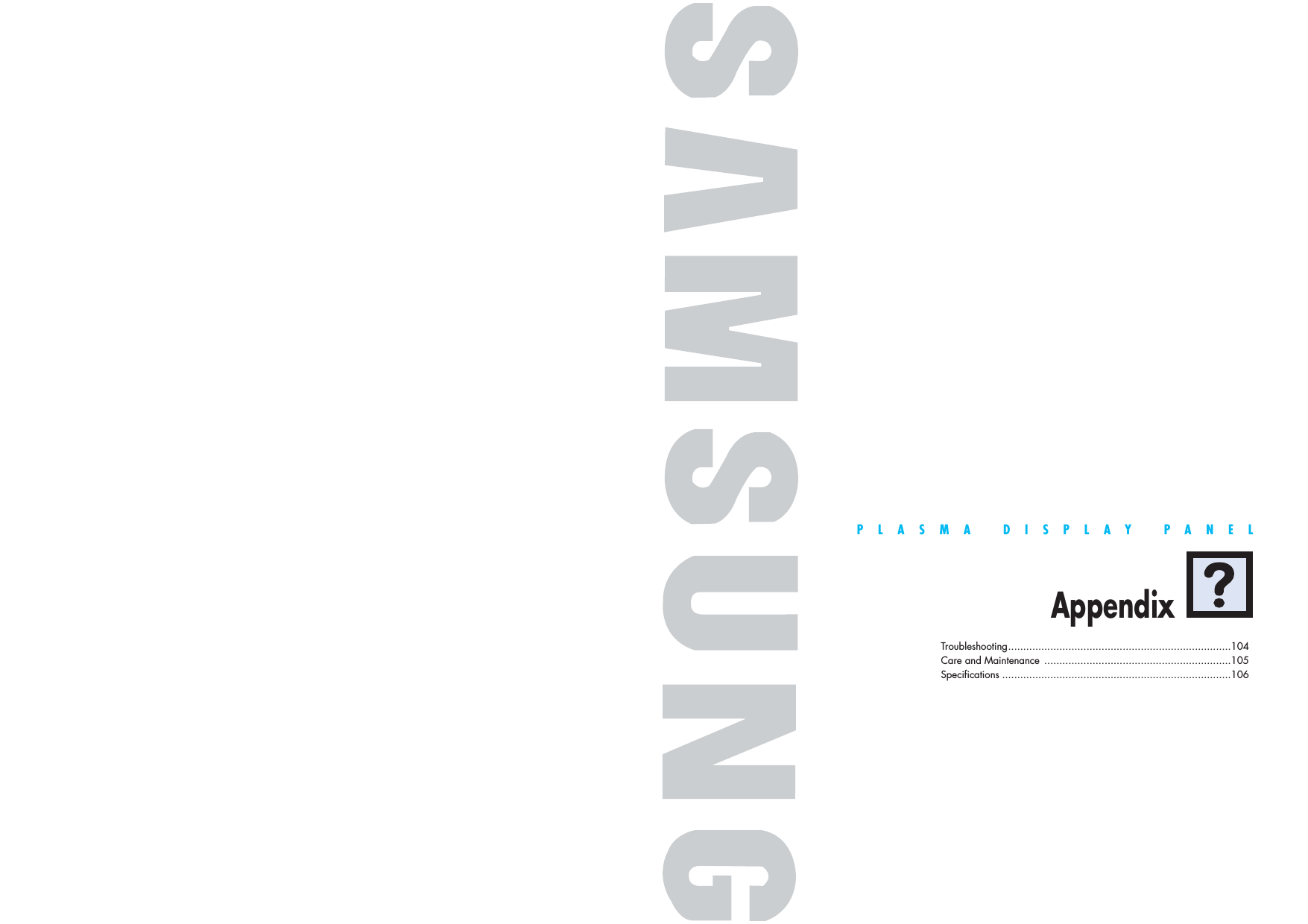

PLASMA DISPLAY PANELAppendixTroubleshooting..........................................................................104Care and Maintenance ..............................................................105Specifications ............................................................................106

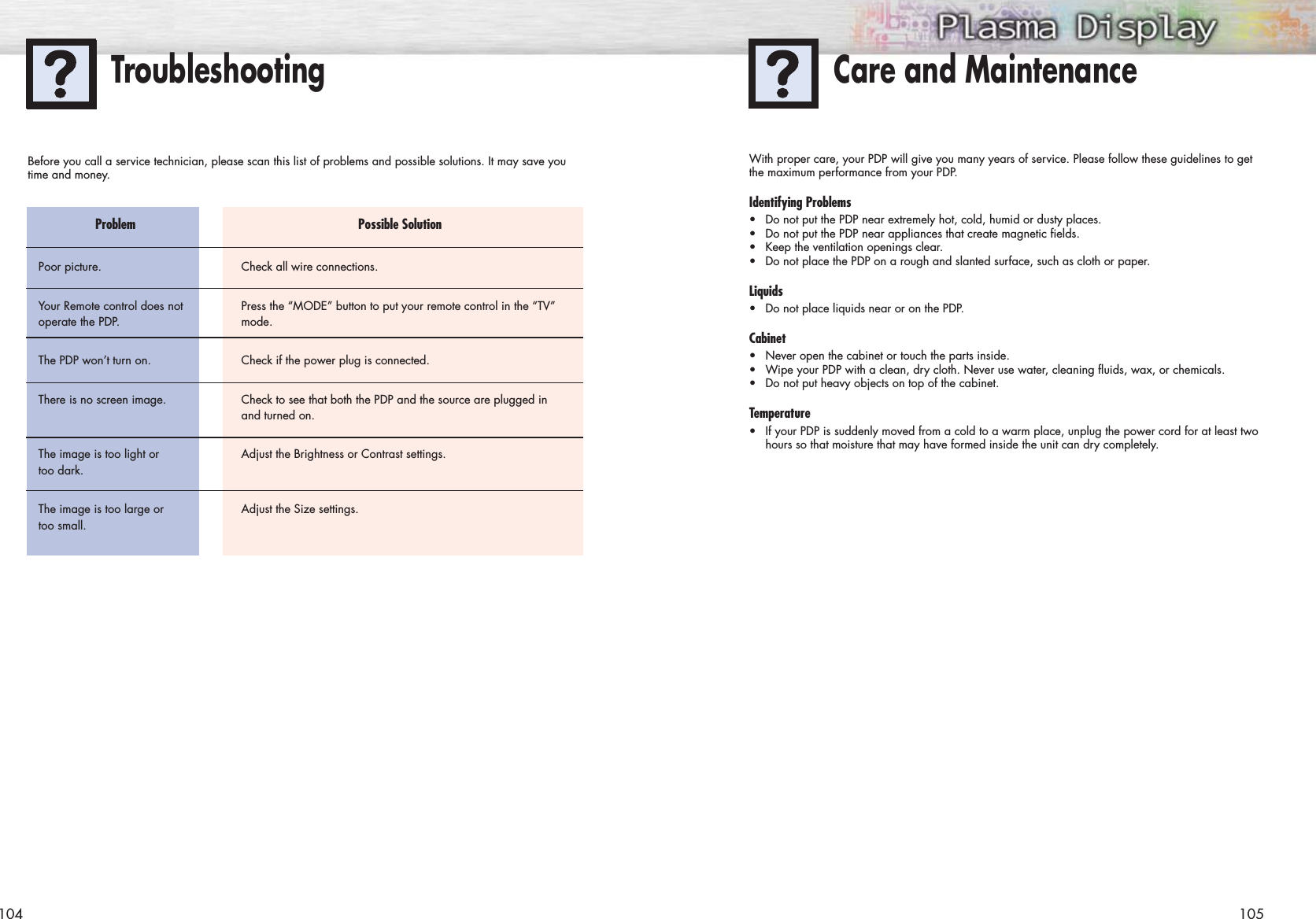

104 105TroubleshootingProblemPoor picture.Your Remote control does notoperate the PDP.The PDP won’t turn on.There is no screen image.The image is too light or too dark. The image is too large or too small.Before you call a service technician, please scan this list of problems and possible solutions. It may save youtime and money.Possible SolutionCheck all wire connections.Press the “MODE” button to put your remote control in the “TV”mode.Check if the power plug is connected. Check to see that both the PDP and the source are plugged inand turned on.Adjust the Brightness or Contrast settings.Adjust the Size settings.With proper care, your PDP will give you many years of service. Please follow these guidelines to getthe maximum performance from your PDP.Identifying Problems•Do not put the PDP near extremely hot, cold, humid or dusty places.•Do not put the PDP near appliances that create magnetic fields.•Keep the ventilation openings clear.•Do not place the PDP on a rough and slanted surface, such as cloth or paper.Liquids•Do not place liquids near or on the PDP.Cabinet•Never open the cabinet or touch the parts inside.•Wipe your PDP with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.•Do not put heavy objects on top of the cabinet.Temperature•If your PDP is suddenly moved from a cold to a warm place, unplug the power cord for at least twohours so that moisture that may have formed inside the unit can dry completely.Care and Maintenance

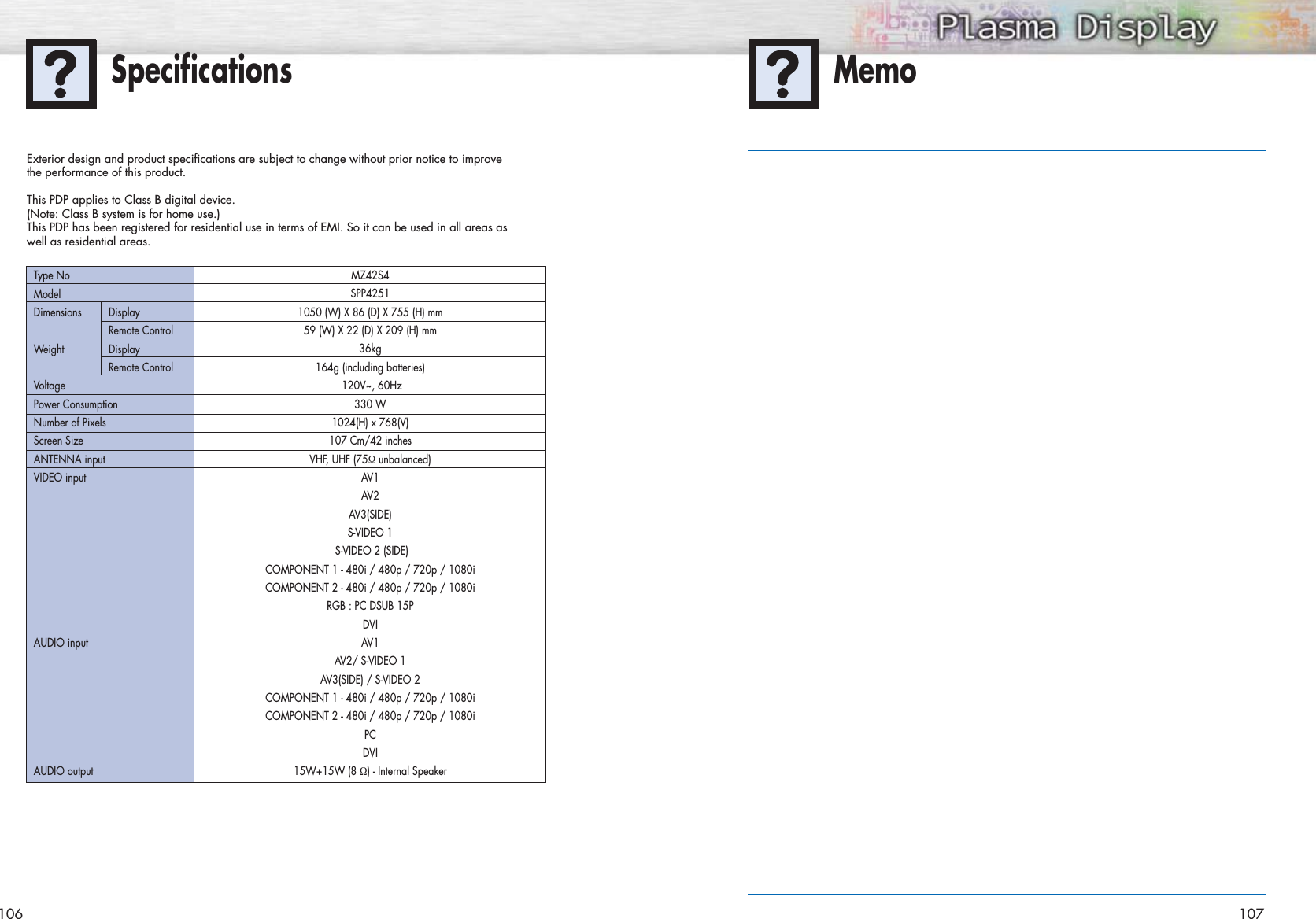

106 107MemoSpecificationsMZ42S4SPP42511050 (W) X 86 (D) X 755 (H) mm59 (W) X 22 (D) X 209 (H) mm36kg164g (including batteries) 120V~, 60Hz330 W1024(H) x 768(V) 107 Cm/42 inches VHF, UHF (75Ωunbalanced)AV1AV2AV3(SIDE)S-VIDEO 1S-VIDEO 2 (SIDE)COMPONENT 1 - 480i / 480p / 720p / 1080iCOMPONENT 2 - 480i / 480p / 720p / 1080iRGB : PC DSUB 15PDVI AV1 AV2/ S-VIDEO 1AV3(SIDE) / S-VIDEO 2COMPONENT 1 - 480i / 480p / 720p / 1080iCOMPONENT 2 - 480i / 480p / 720p / 1080iPC DVI15W+15W (8 Ω) - Internal SpeakerType NoModelDimensions DisplayRemote ControlWeight DisplayRemote ControlVoltagePower ConsumptionNumber of PixelsScreen SizeANTENNA inputVIDEO inputAUDIO inputAUDIO outputExterior design and product specifications are subject to change without prior notice to improve the performance of this product.This PDP applies to Class B digital device.(Note: Class B system is for home use.)This PDP has been registered for residential use in terms of EMI. So it can be used in all areas as well as residential areas.

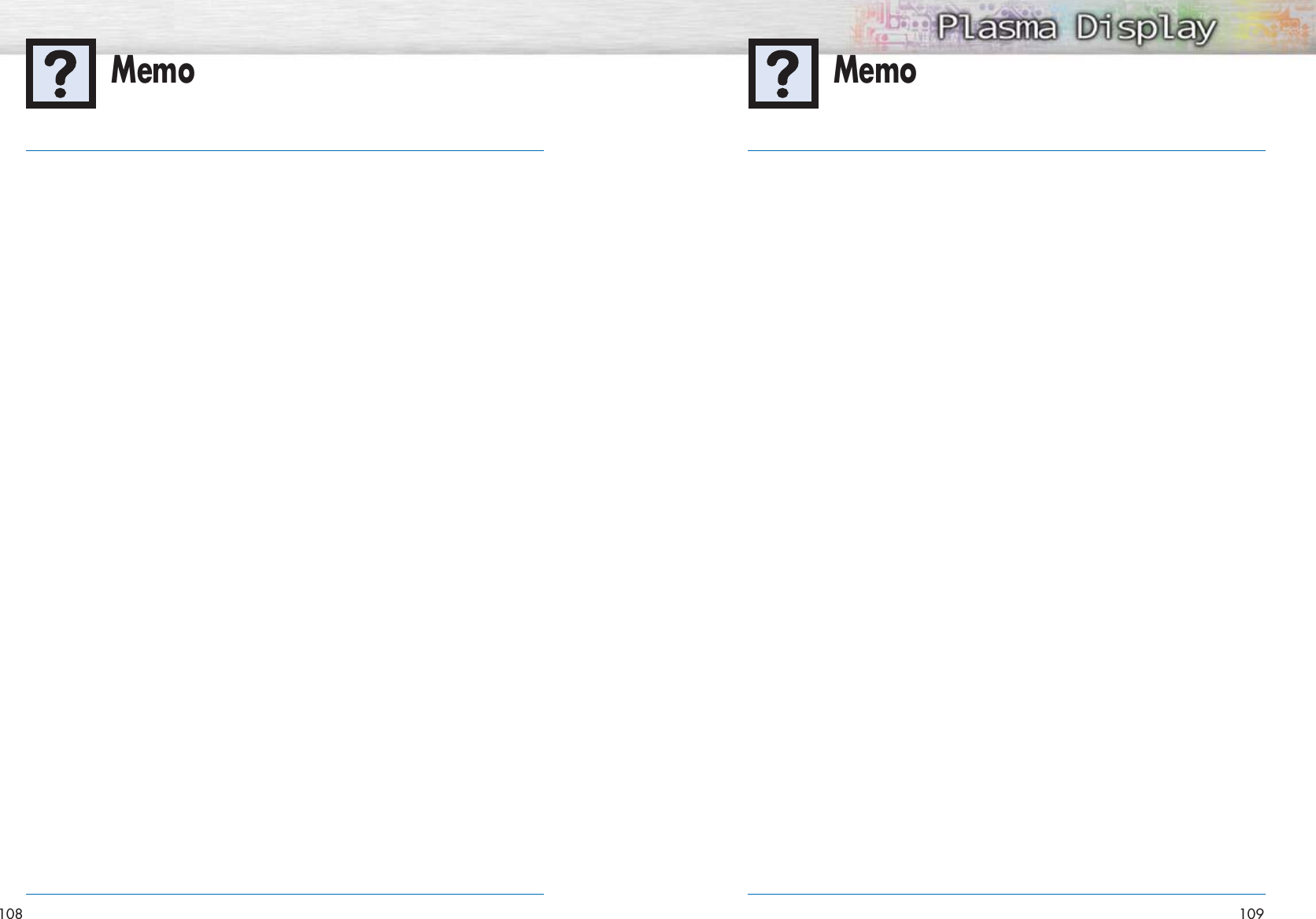

109MemoMemo108
