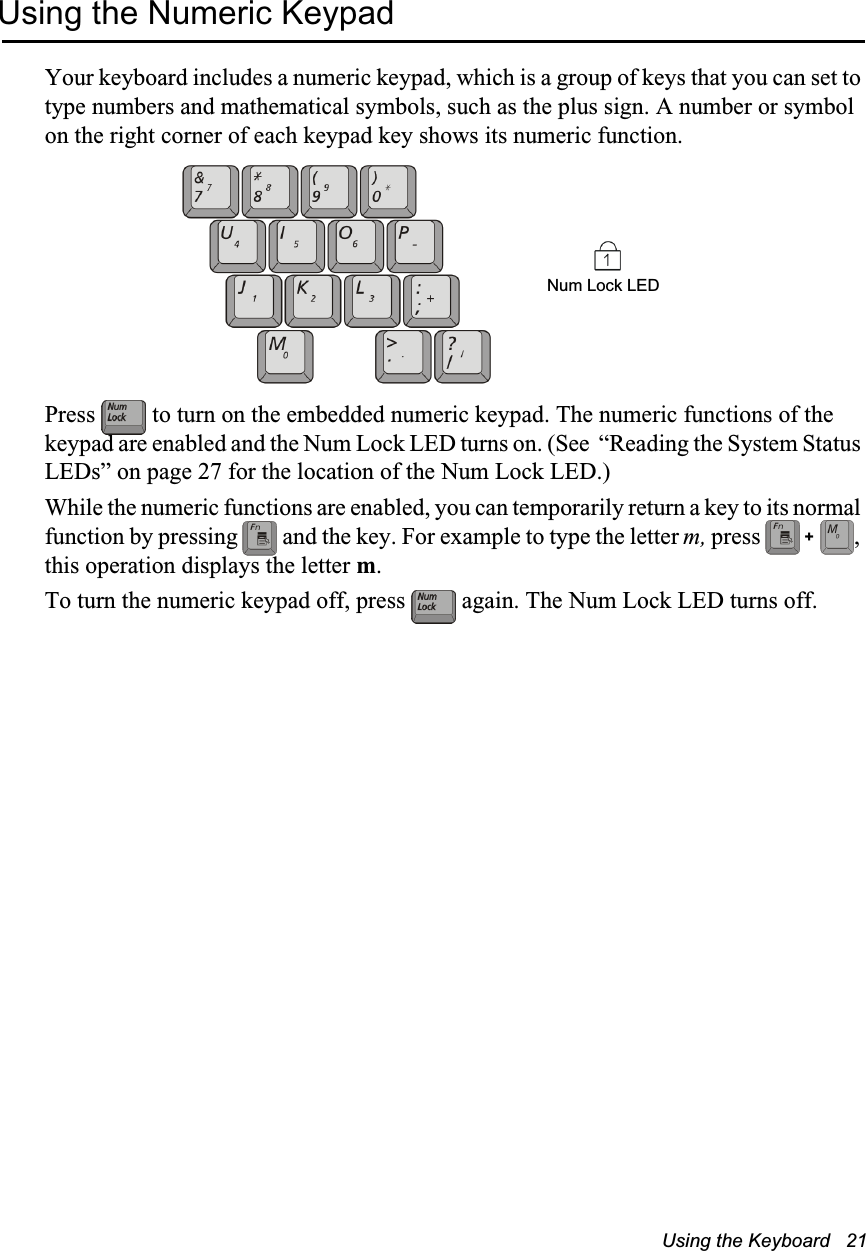

Using the Keyboard 21Using the Numeric KeypadYour keyboard includes a numeric keypad, which is a group of keys that you can set to type numbers and mathematical symbols, such as the plus sign. A number or symbol on the right corner of each keypad key shows its numeric function.Press to turn on the embedded numeric keypad. The numeric functions of the keypad are enabled and the Num Lock LED turns on. (See “Reading the System Status LEDs” on page 27 for the location of the Num Lock LED.)While the numeric functions are enabled, you can temporarily return a key to its normal function by pressing and the key. For example to type the letter m, press , this operation displays the letter m.To turn the numeric keypad off, press again. The Num Lock LED turns off.Num Lock LED+

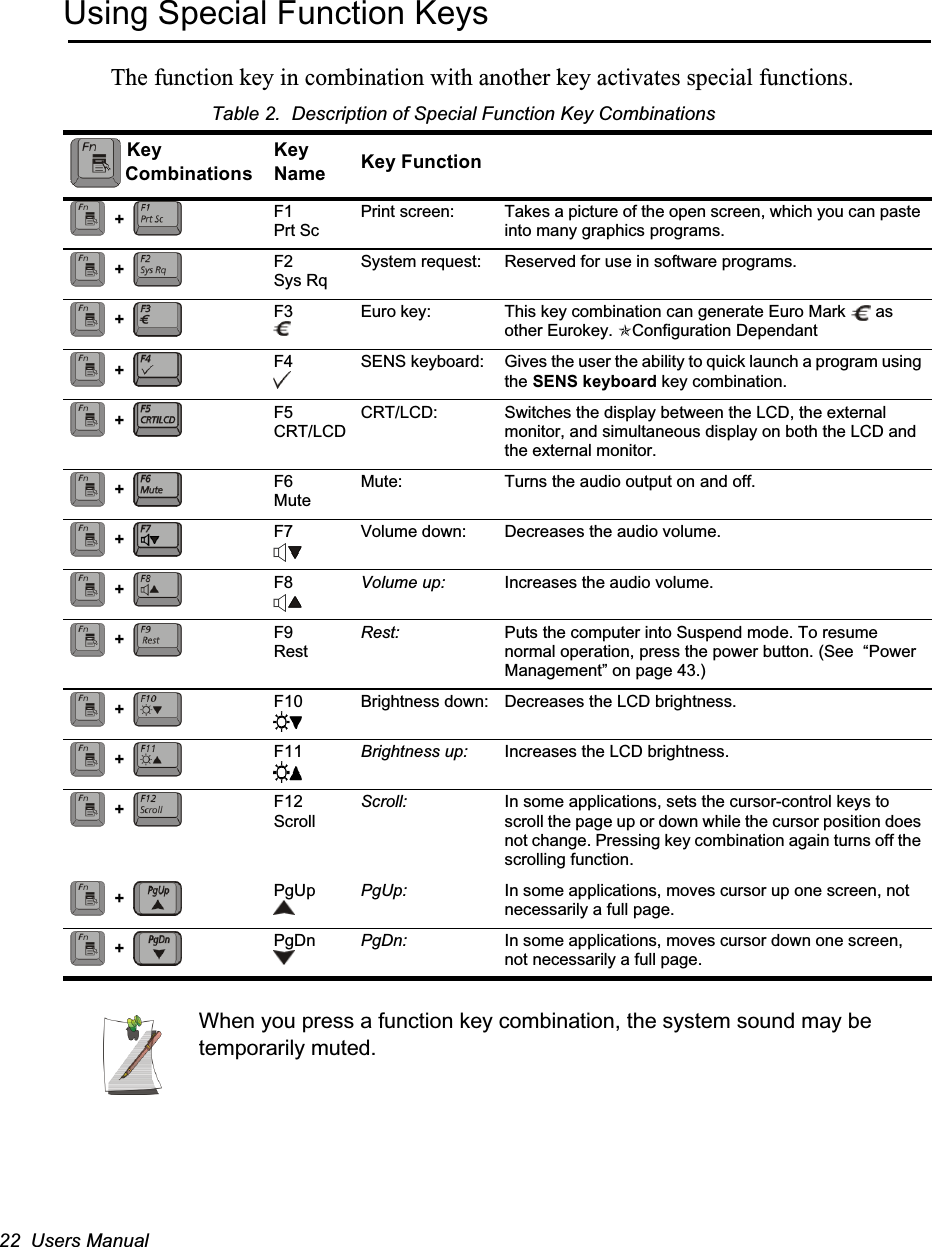

22 Users ManualUsing Special Function KeysThe function key in combination with another key activates special functions.Table 2. Description of Special Function Key CombinationsWhen you press a function key combination, the system sound may be temporarily muted. KeyCombinationsKey Name Key FunctionF1Prt ScPrint screen: Takes a picture of the open screen, which you can paste into many graphics programs.F2Sys RqSystem request: Reserved for use in software programs.F3 Euro key: This key combination can generate Euro Mark as other Eurokey. ✯Configuration DependantF4 SENS keyboard: Gives the user the ability to quick launch a program using the SENS keyboard key combination.F5CRT/LCDCRT/LCD: Switches the display between the LCD, the external monitor, and simultaneous display on both the LCD and the external monitor.F6MuteMute: Turns the audio output on and off.F7 Volume down: Decreases the audio volume.F8 Volume up: Increases the audio volume.F9RestRest: Puts the computer into Suspend mode. To resume normal operation, press the power button. (See “Power Management” on page 43.)F10 Brightness down: Decreases the LCD brightness. F11 Brightness up: Increases the LCD brightness. F12ScrollScroll: In some applications, sets the cursor-control keys to scroll the page up or down while the cursor position does not change. Pressing key combination again turns off the scrolling function. PgUp PgUp: In some applications, moves cursor up one screen, not necessarily a full page.PgDn PgDn: In some applications, moves cursor down one screen, not necessarily a full page.++++++++++++++

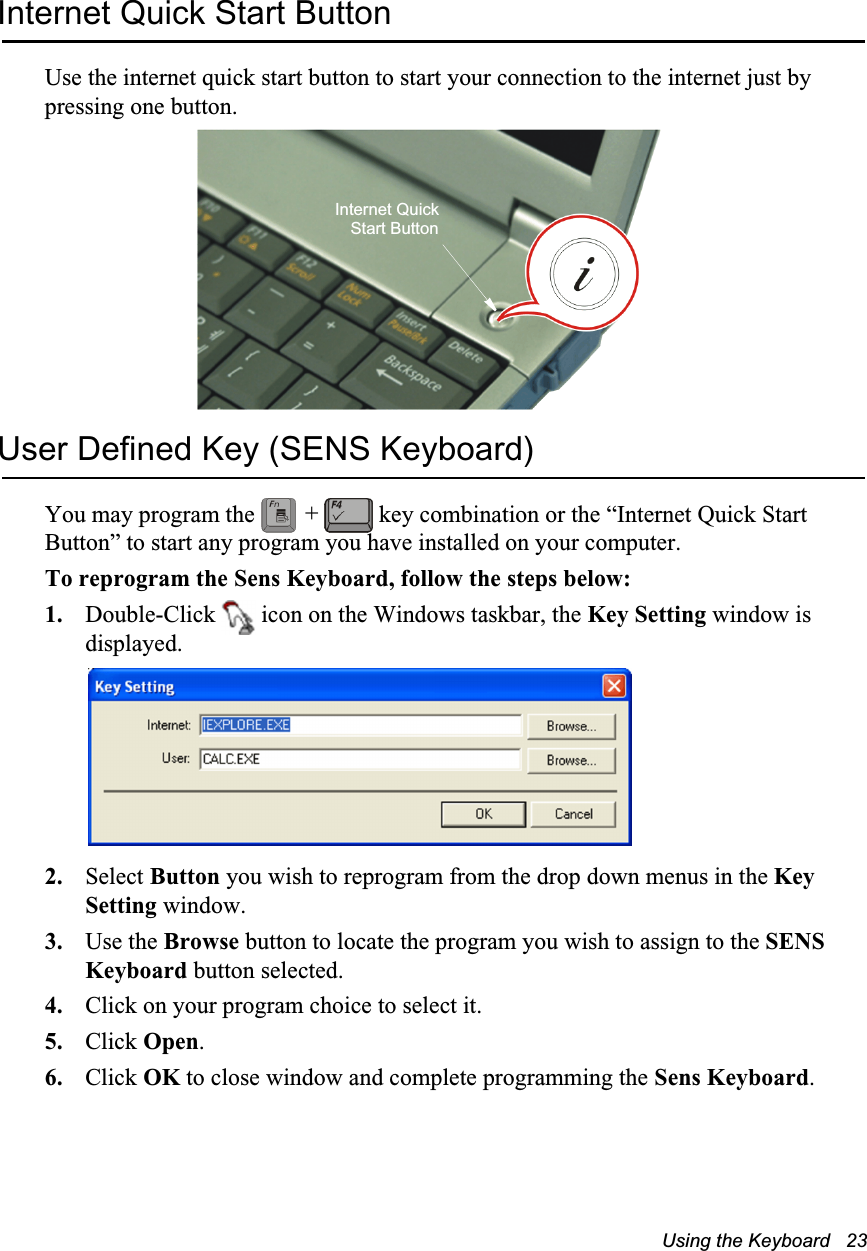

Using the Keyboard 23Internet Quick Start ButtonUse the internet quick start button to start your connection to the internet just by pressing one button.User Defined Key (SENS Keyboard) You may program the key combination or the “Internet Quick Start Button” to start any program you have installed on your computer. To reprogram the Sens Keyboard, follow the steps below:1. Double-Click icon on the Windows taskbar, the Key Setting window is displayed.2. Select Button you wish to reprogram from the drop down menus in the Key Setting window.3. Use the Browse button to locate the program you wish to assign to the SENS Keyboard button selected.4. Click on your program choice to select it.5. Click Open. 6. Click OK to close window and complete programming the Sens Keyboard.Internet QuickStart Button+

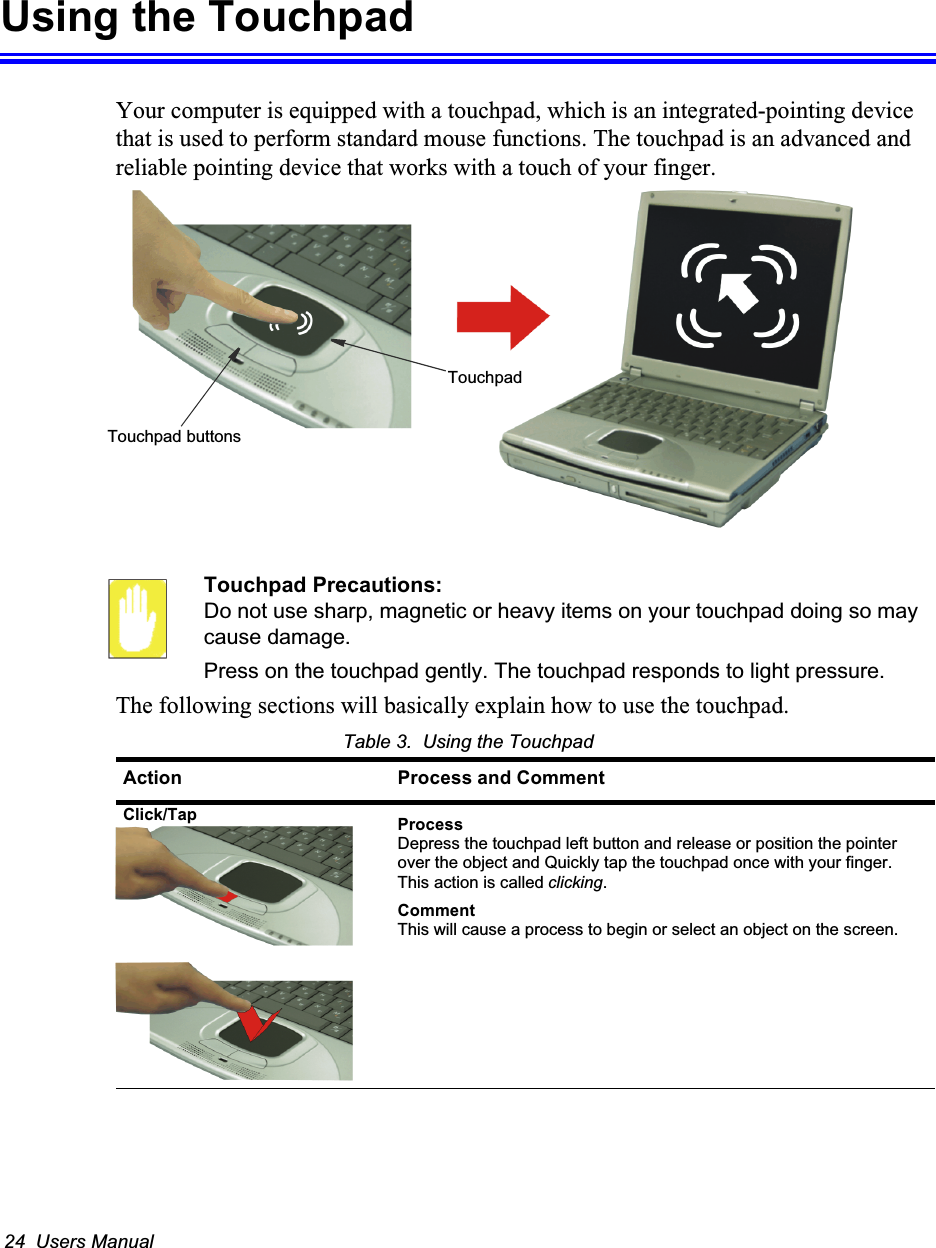

24 Users ManualUsing the TouchpadYour computer is equipped with a touchpad, which is an integrated-pointing device that is used to perform standard mouse functions. The touchpad is an advanced and reliable pointing device that works with a touch of your finger. Touchpad Precautions:Do not use sharp, magnetic or heavy items on your touchpad doing so may cause damage. Press on the touchpad gently. The touchpad responds to light pressure. The following sections will basically explain how to use the touchpad.Table 3. Using the TouchpadAction Process and CommentClick/Tap ProcessDepress the touchpad left button and release or position the pointer over the object and Quickly tap the touchpad once with your finger. This action is called clicking.CommentThis will cause a process to begin or select an object on the screen. Touchpad buttonsTouchpad

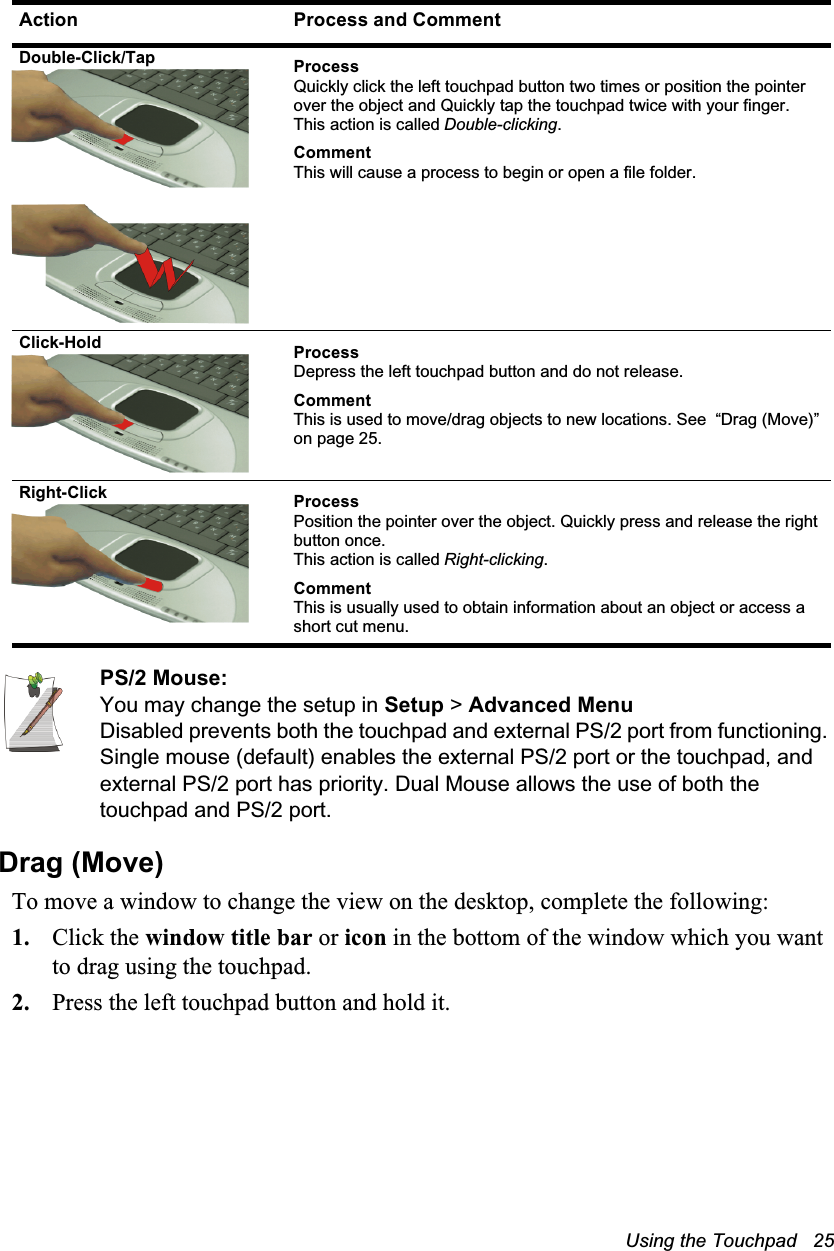

Using the Touchpad 25PS/2 Mouse: You may change the setup in Setup > Advanced MenuDisabled prevents both the touchpad and external PS/2 port from functioning. Single mouse (default) enables the external PS/2 port or the touchpad, and external PS/2 port has priority. Dual Mouse allows the use of both the touchpad and PS/2 port.Drag (Move)To move a window to change the view on the desktop, complete the following:1. Click the window title bar or icon in the bottom of the window which you want to drag using the touchpad.2. Press the left touchpad button and hold it.Double-Click/Tap ProcessQuickly click the left touchpad button two times or position the pointer over the object and Quickly tap the touchpad twice with your finger. This action is called Double-clicking.CommentThis will cause a process to begin or open a file folder.Click-Hold ProcessDepress the left touchpad button and do not release.CommentThis is used to move/drag objects to new locations. See “Drag (Move)” on page 25.Right-Click ProcessPosition the pointer over the object. Quickly press and release the right button once. This action is called Right-clicking.CommentThis is usually used to obtain information about an object or access a short cut menu.Action Process and Comment

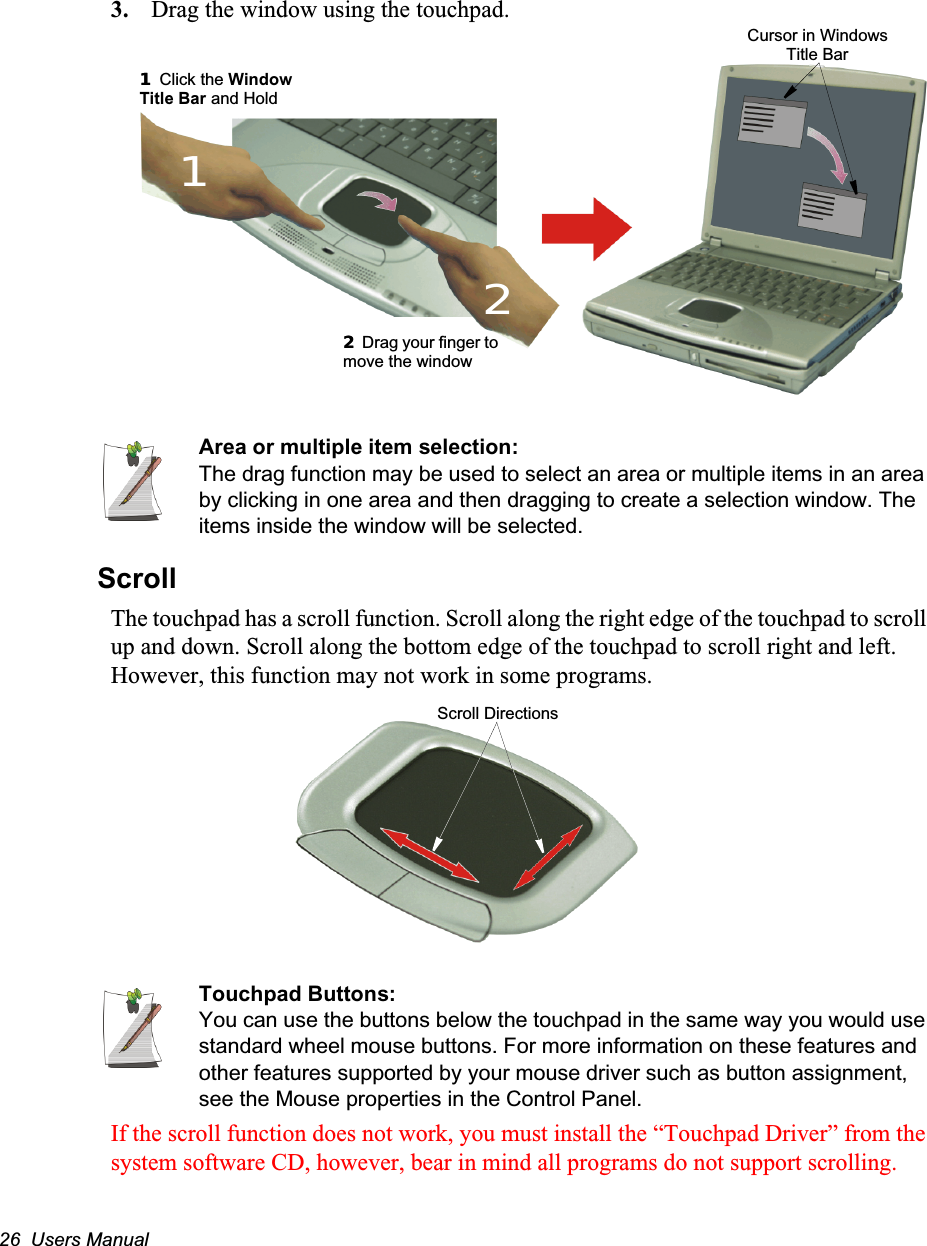

26 Users Manual3. Drag the window using the touchpad.Area or multiple item selection:The drag function may be used to select an area or multiple items in an area by clicking in one area and then dragging to create a selection window. The items inside the window will be selected.ScrollThe touchpad has a scroll function. Scroll along the right edge of the touchpad to scroll up and down. Scroll along the bottom edge of the touchpad to scroll right and left. However, this function may not work in some programs.Touchpad Buttons:You can use the buttons below the touchpad in the same way you would use standard wheel mouse buttons. For more information on these features and other features supported by your mouse driver such as button assignment, see the Mouse properties in the Control Panel.If the scroll function does not work, you must install the “Touchpad Driver” from the system software CD, however, bear in mind all programs do not support scrolling.22 Drag your finger to move the window11 Click the Window Title Bar and Hold1Cursor in Windows Title Bar2Scroll Directions

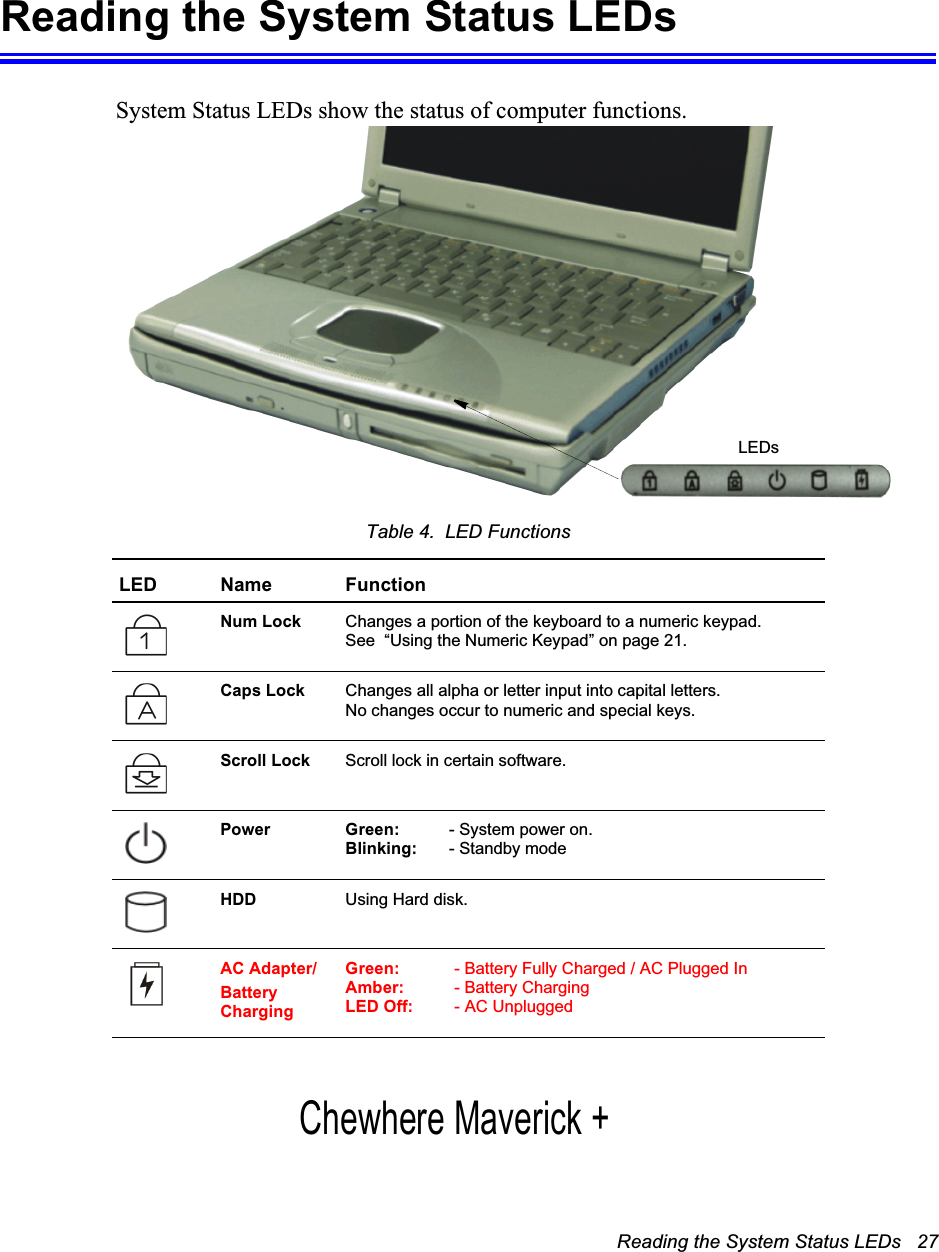

Reading the System Status LEDs 27Reading the System Status LEDsSystem Status LEDs show the status of computer functions.Table 4. LED FunctionsLED Name FunctionNum Lock Changes a portion of the keyboard to a numeric keypad.See “Using the Numeric Keypad” on page 21.Caps Lock Changes all alpha or letter input into capital letters.No changes occur to numeric and special keys.Scroll Lock Scroll lock in certain software.Power Green: - System power on.Blinking: - Standby modeHDD Using Hard disk.AC Adapter/Battery ChargingGreen: - Battery Fully Charged / AC Plugged InAmber: - Battery ChargingLED Off: - AC UnpluggedLEDsChewhere Maverick +

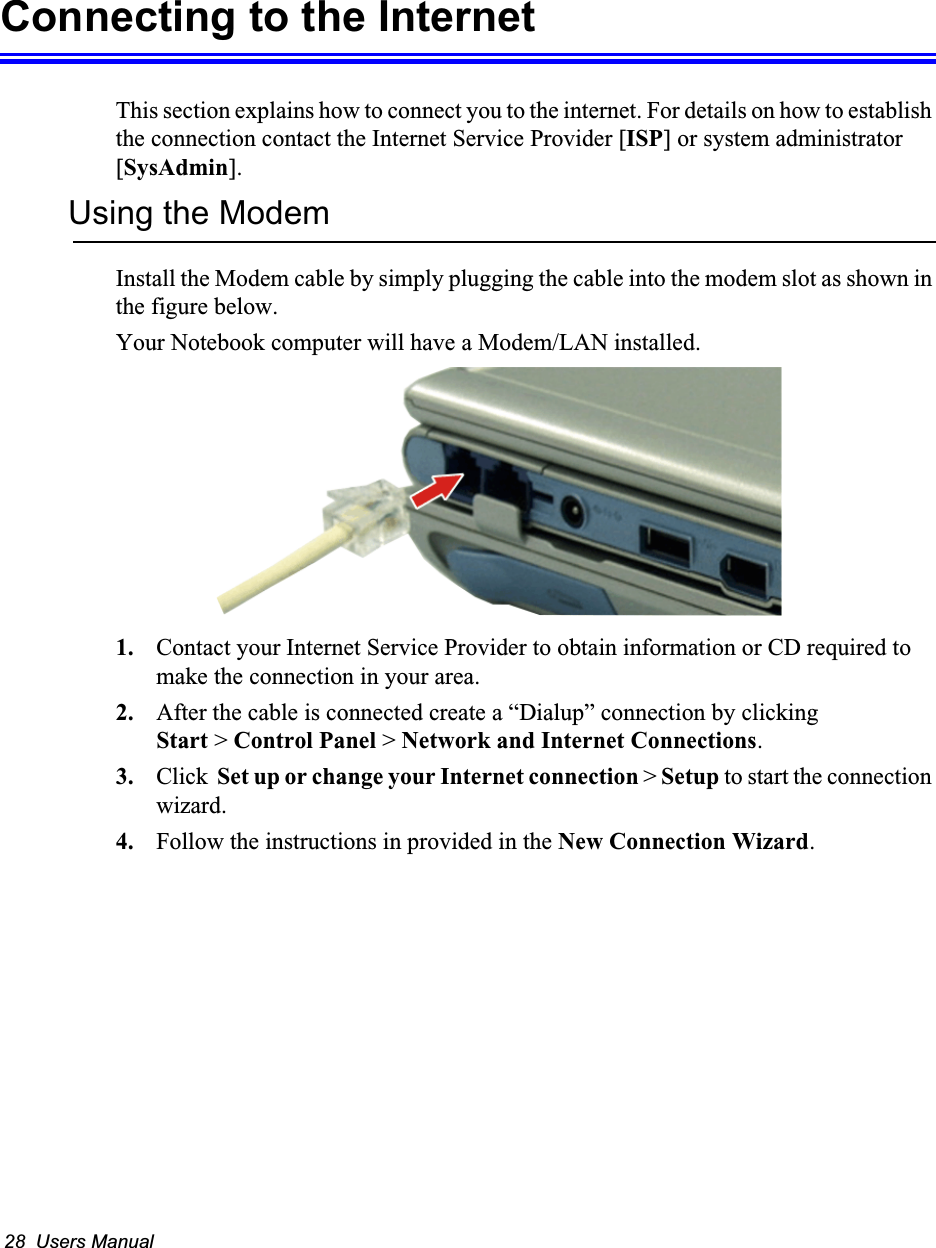

28 Users ManualConnecting to the InternetThis section explains how to connect you to the internet. For details on how to establish the connection contact the Internet Service Provider [ISP] or system administrator [SysAdmin].Using the ModemInstall the Modem cable by simply plugging the cable into the modem slot as shown in the figure below. Your Notebook computer will have a Modem/LAN installed.1. Contact your Internet Service Provider to obtain information or CD required to make the connection in your area.2. After the cable is connected create a “Dialup” connection by clickingStart > Control Panel > Network and Internet Connections.3. Click Set up or change your Internet connection > Setup to start the connection wizard.4. Follow the instructions in provided in the New Connection Wizard.

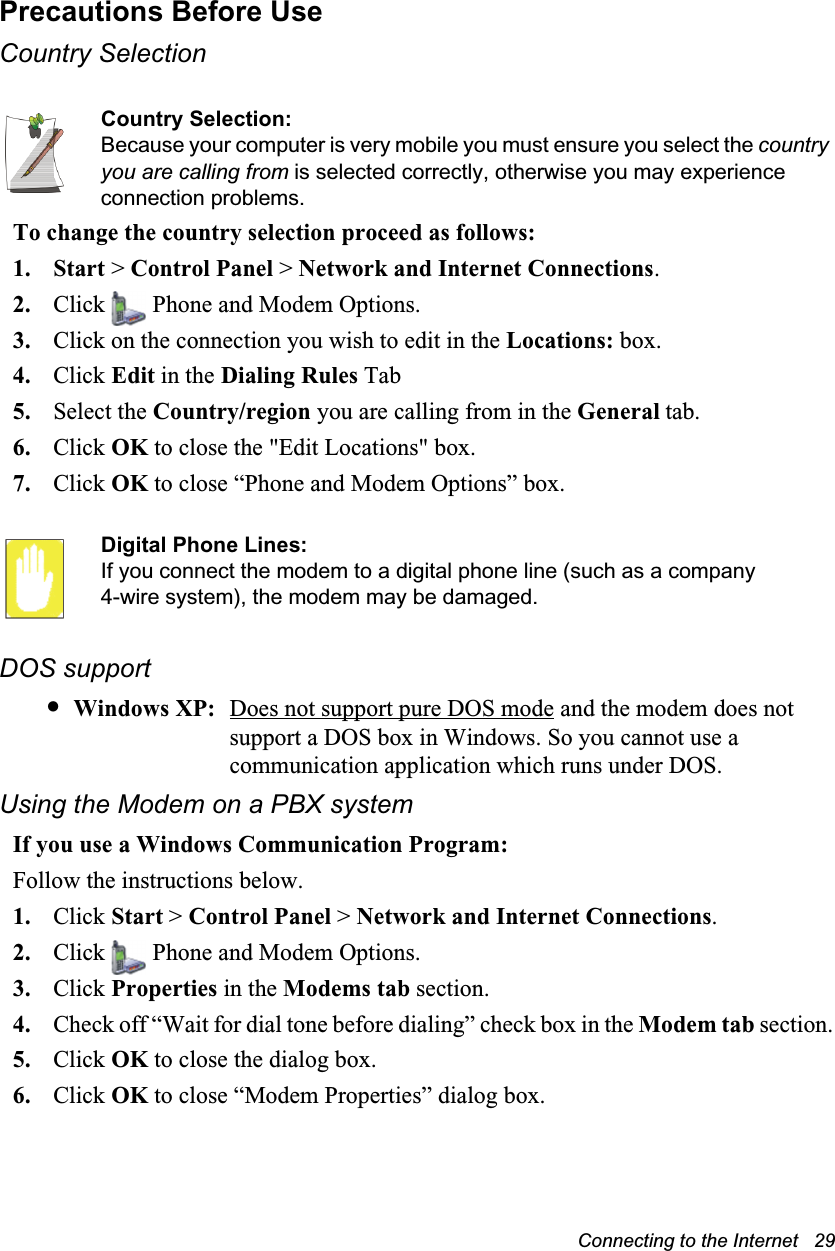

Connecting to the Internet 29Precautions Before UseCountry SelectionCountry Selection:Because your computer is very mobile you must ensure you select the country you are calling from is selected correctly, otherwise you may experience connection problems.To change the country selection proceed as follows:1. Start > Control Panel > Network and Internet Connections.2. Click Phone and Modem Options.3. Click on the connection you wish to edit in the Locations: box.4. Click Edit in the Dialing Rules Tab5. Select the Country/region you are calling from in the General tab.6. Click OK to close the "Edit Locations" box.7. Click OK to close “Phone and Modem Options” box.Digital Phone Lines:If you connect the modem to a digital phone line (such as a company 4-wire system), the modem may be damaged.DOS support•Windows XP: Does not support pure DOS mode and the modem does not support a DOS box in Windows. So you cannot use a communication application which runs under DOS.Using the Modem on a PBX systemIf you use a Windows Communication Program:Follow the instructions below.1. Click Start > Control Panel > Network and Internet Connections.2. Click Phone and Modem Options.3. Click Properties in the Modems tab section.4. Check off “Wait for dial tone before dialing” check box in the Modem tab section.5. Click OK to close the dialog box.6. Click OK to close “Modem Properties” dialog box.

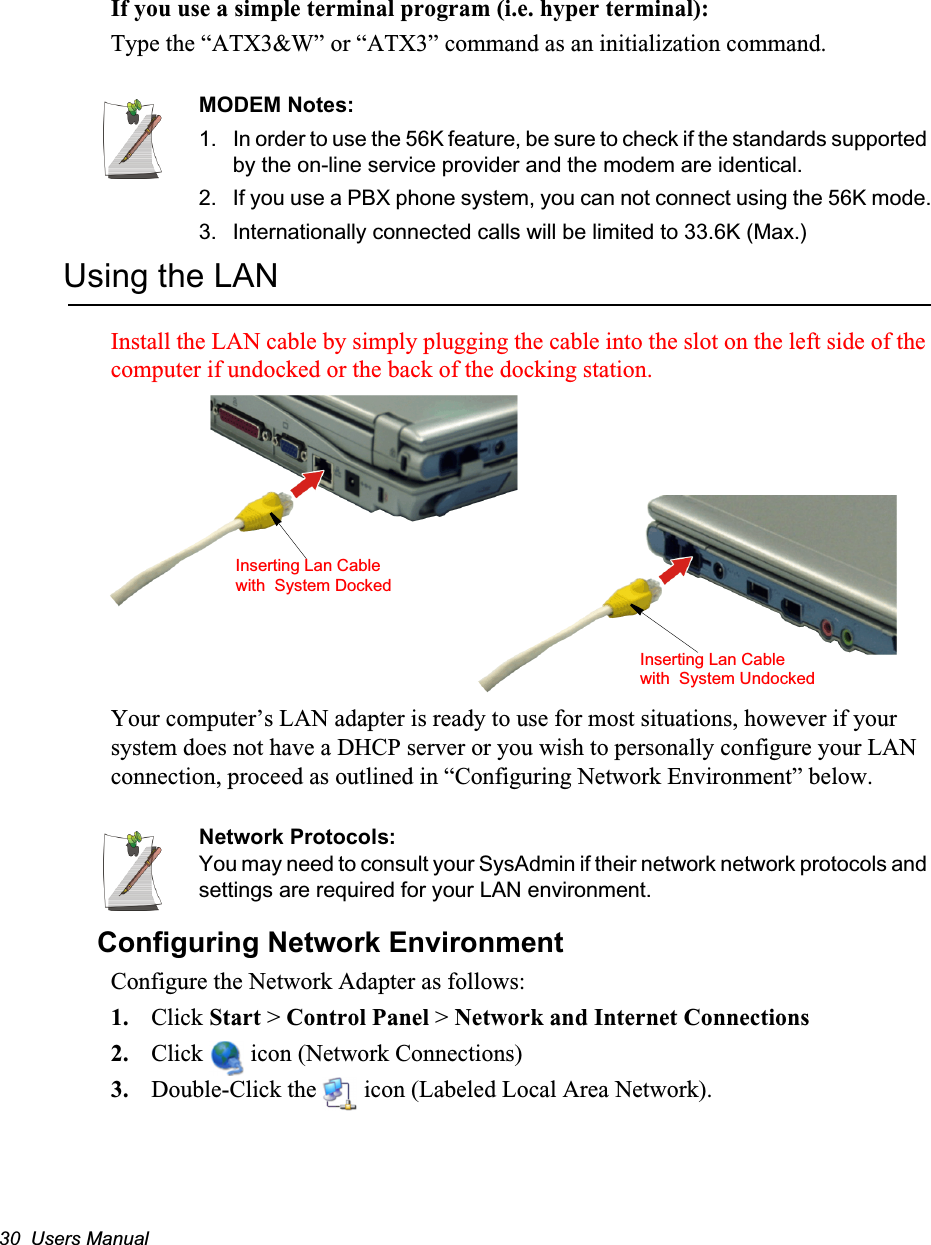

30 Users ManualIf you use a simple terminal program (i.e. hyper terminal): Type the “ATX3&W” or “ATX3” command as an initialization command.MODEM Notes:1. In order to use the 56K feature, be sure to check if the standards supported by the on-line service provider and the modem are identical.2. If you use a PBX phone system, you can not connect using the 56K mode.3. Internationally connected calls will be limited to 33.6K (Max.)Using the LANInstall the LAN cable by simply plugging the cable into the slot on the left side of the computer if undocked or the back of the docking station.Your computer’s LAN adapter is ready to use for most situations, however if your system does not have a DHCP server or you wish to personally configure your LAN connection, proceed as outlined in “Configuring Network Environment” below.Network Protocols:You may need to consult your SysAdmin if their network network protocols and settings are required for your LAN environment.Configuring Network EnvironmentConfigure the Network Adapter as follows:1. Click Start > Control Panel > Network and Internet Connections2. Click icon (Network Connections) 3. Double-Click the icon (Labeled Local Area Network).Inserting Lan Cable with System UndockedInserting Lan Cable with System Docked
