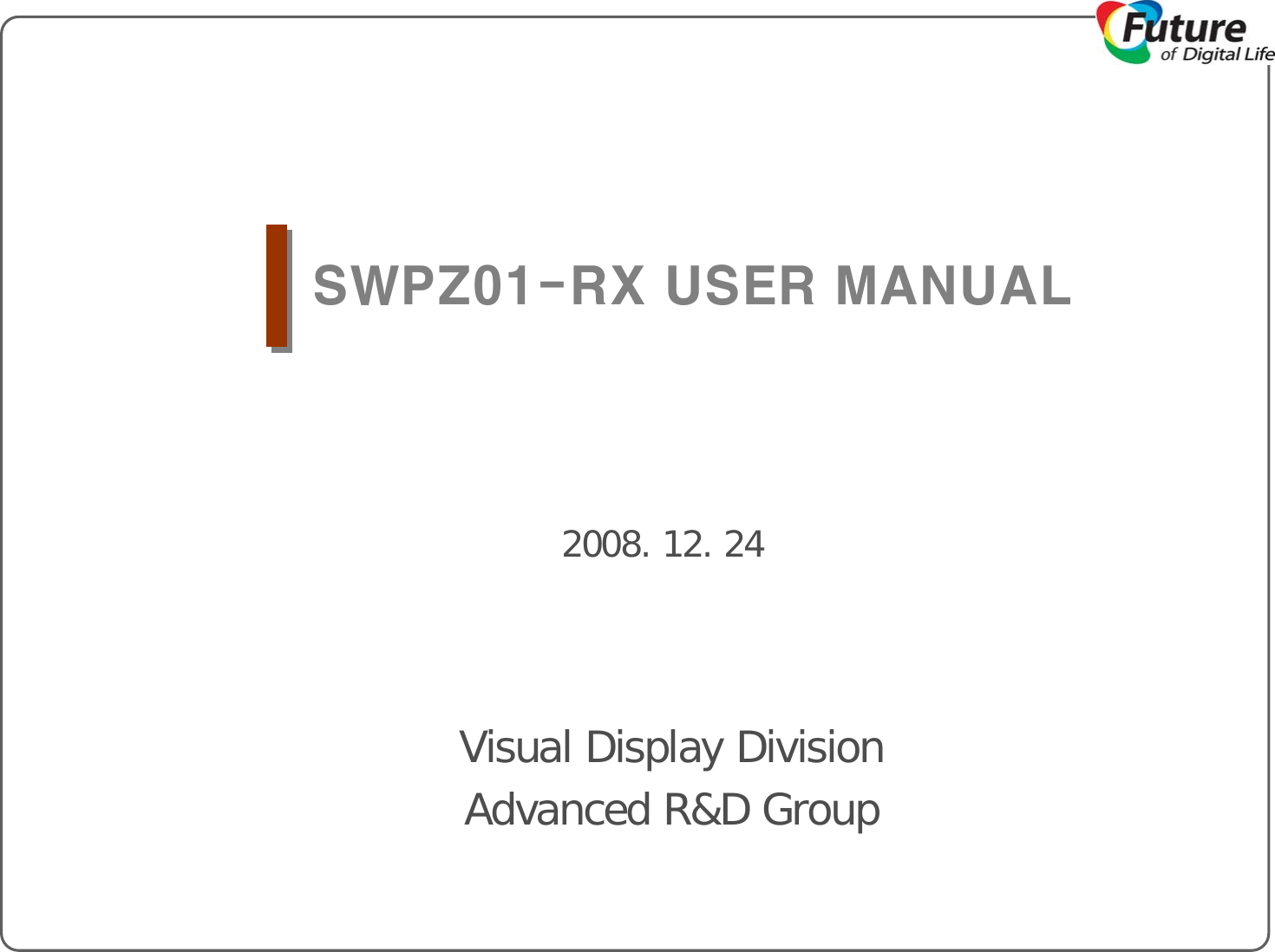

Visual Display DivisionAdvanced R&D Group2008. 12. 24SWPZ01-RX USER MANUAL

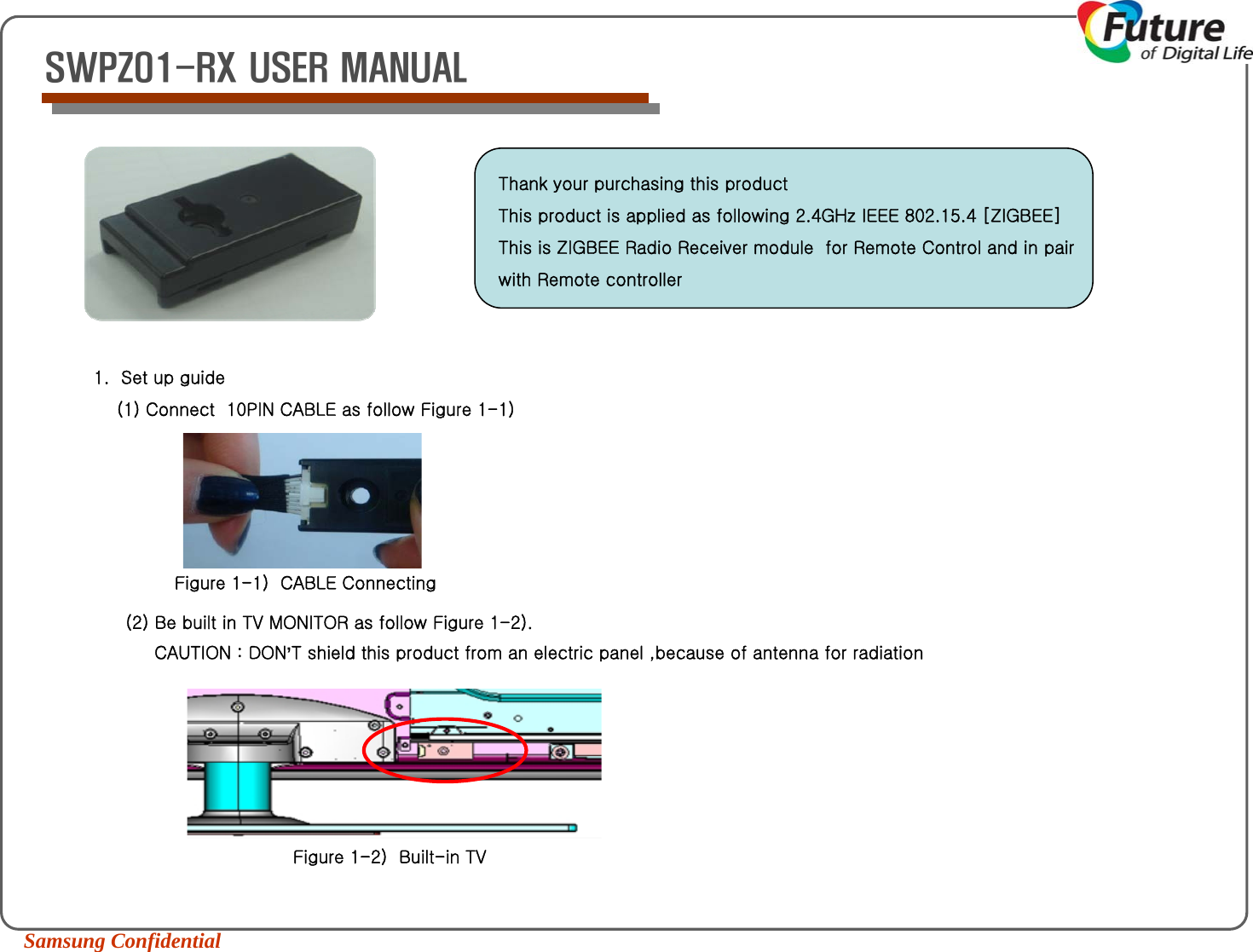

Samsung Confidential SWPZ01-RX USER MANUALThank your purchasing this productThis product is applied as following 2.4GHz IEEE 802.15.4 [ZIGBEE]This is ZIGBEE Radio Receiver module for Remote Control and in pair with Remote controller1. Set up guide(1) Connect 10PIN CABLE as follow Figure 1-1)Figure 1-1) CABLE Connecting(2) Be built in TV MONITOR as follow Figure 1-2).CAUTION : DON’T shield this product from an electric panel ,because of antennafor radiationFigure 1-2) Built-in TV
Samsung Confidential (3) Pairing with SWPZ01-TX RF Remote Controller.- Caution for Pairing Mode -Make close RF remote controller to TV (about 30cm) when pairingTV pairing signal transmitting just before TV powered on and display Pairing will be completed when the TV received pairing data of remote controller Once pairing started, TV and remote controller will be operate as one to oneWhen remote controller lost and purchased new one, you have do pairing again.Repeat pairing with TV power off and on when pairing failed 1) Push Pairing button 2) Power on TV(Please use main power button)3) Pairing CompletedSWPZ01-RX USER MANUAL
Samsung Confidential SWPZ01-RX USER MANUAL▣Pin DescriptionsOnly for program update (ACTIVE "H")IDigitalISP10Not used at this modelIDigitalAudio Rch9Not used at this modelIDigital5V_in8Not used at this modelIDigitalAudio Lch7POWER DECTER OUTPUTODigitalPWR DECT6UART TX OUTPUTODigitalUART RXD15Ground-GroundGND4UART TX INPUTIPowerUART TXD13Reset (Active Low)IDigitalRESETB2DC 3.0V Power supplyI/OPower3.0V_in1DescriptionI/OInter faceNAMETerminal
Samsung Confidential SWPZ01-RX USER MANUALFCC Compliance InformationThis device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. WarningsThis equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generates, uses, and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Of this equipment does cause unacceptable interference to radio and television reception, which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced Radio/TV technician for help.
Samsung Confidential SWPZ01-RX USER MANUALCautionChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Spec.Type of device: RF ReceiverFrequency bands: 2405 MHz ~ 2480 MHz Channel space: 5 MHzChannel number: 16Data rate: 250 kbpsRF output power: 6.79 dBm (Peak)Size(with stand): 152 x 30.0 x 246 mmWeight: 165 gInput power: 3.0 VdcAntenna type: Chip antenna (-0.97 dBi)
