Installation Instruction Manual

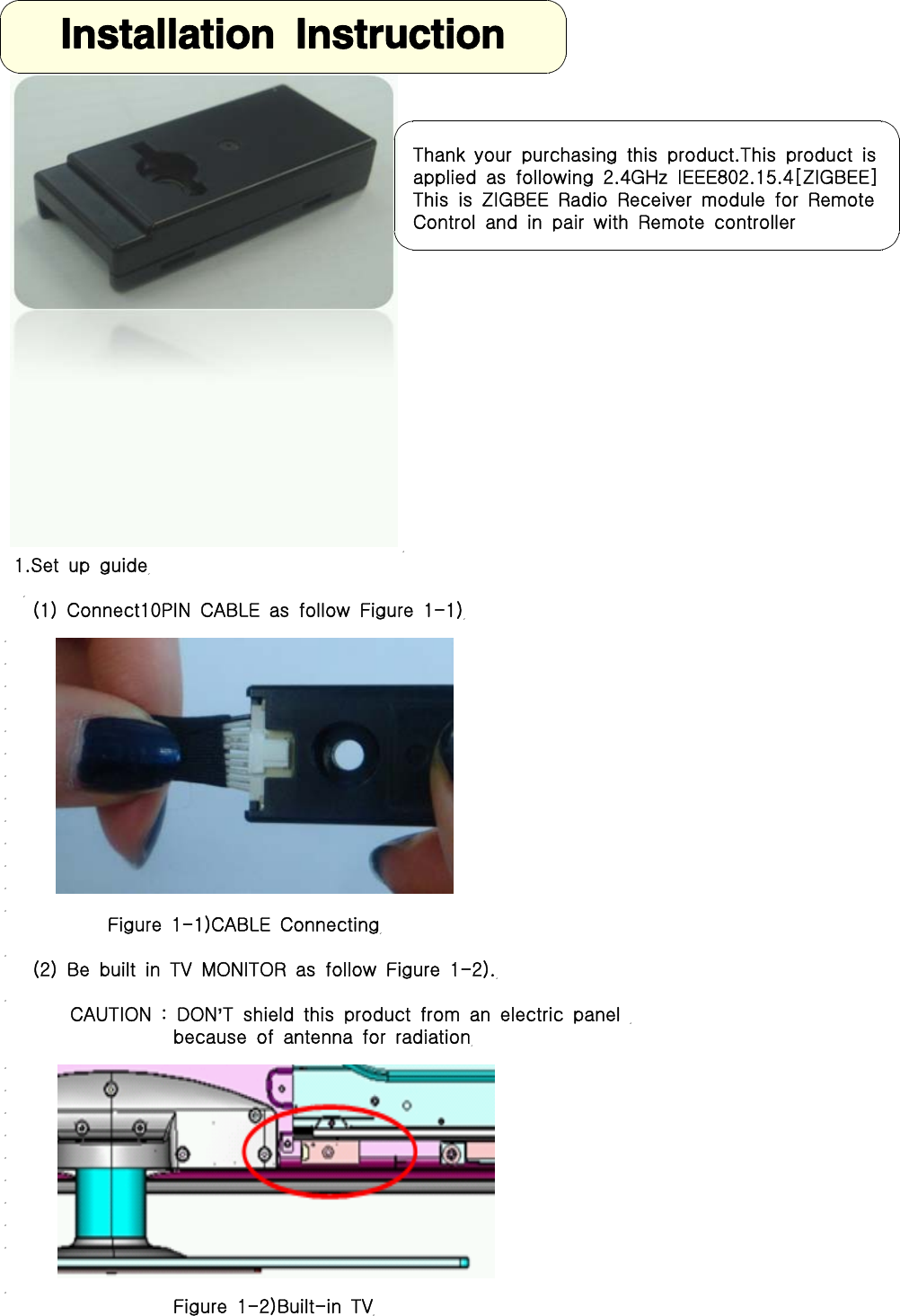

1.Set up guide(1) Connect10PIN CABLE as follow Figure 1-1)Figure 1-1)CABLE Connecting(2) Be built in TV MONITOR as follow Figure 1-2).CAUTION : DON’T shield this product from an electric panelbecause of antenna for radiationFigure 1-2)Built-in TVThank your purchasing this product.This product isapplied as following 2.4GHz IEEE802.15.4[ZIGBEE]This is ZIGBEE Radio Receiver module for RemoteControl and in pair with Remote controllerInstallation Instruction
