SWPZ01-RX USER MANUAL
Samsung Confidential
SWPZ01-RX USER MANUAL
Thank your purchasing this product
This product is applied as following 2.4GHz IEEE 802.15.4 [ZIGBEE]
This is ZIGBEE Radio Receiver module for Remote Control and in pair
with Remote controller
1. Set up guide

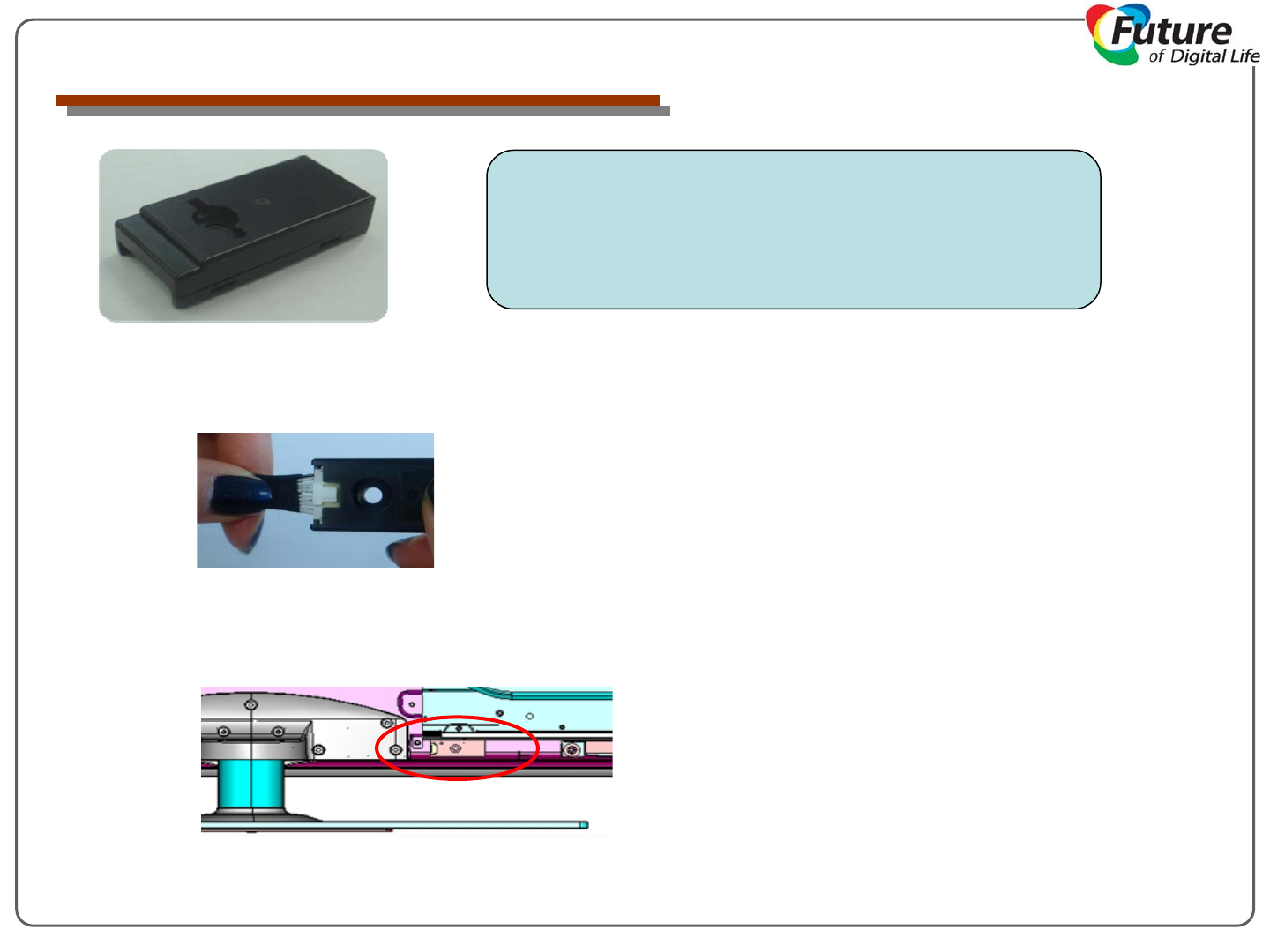

(1) Connect 10PIN CABLE as follow Figure 1-1)
Figure 1-1) CABLE Connecting
(2) Be built in TV MONITOR as follow Figure 1-2).
CAUTION : DON’T shield this product from an electric panel ,because of antennafor radiation
Figure 1-2) Built-in TV
Samsung Confidential
(3) Pairing with SWPZ01-TX RF Remote Controller.
- Caution for Pairing Mode -
Make close RF remote controller to TV (about 30cm) when pairing
TV pairing signal transmitting just before TV powered on and display
Pairing will be completed when the TV received pairing data of remote controller
Once pairing started, TV and remote controller will be operate as one to one
When remote controller lost and purchased new one, you have do pairing again.
Repeat pairing with TV power off and on when pairing failed

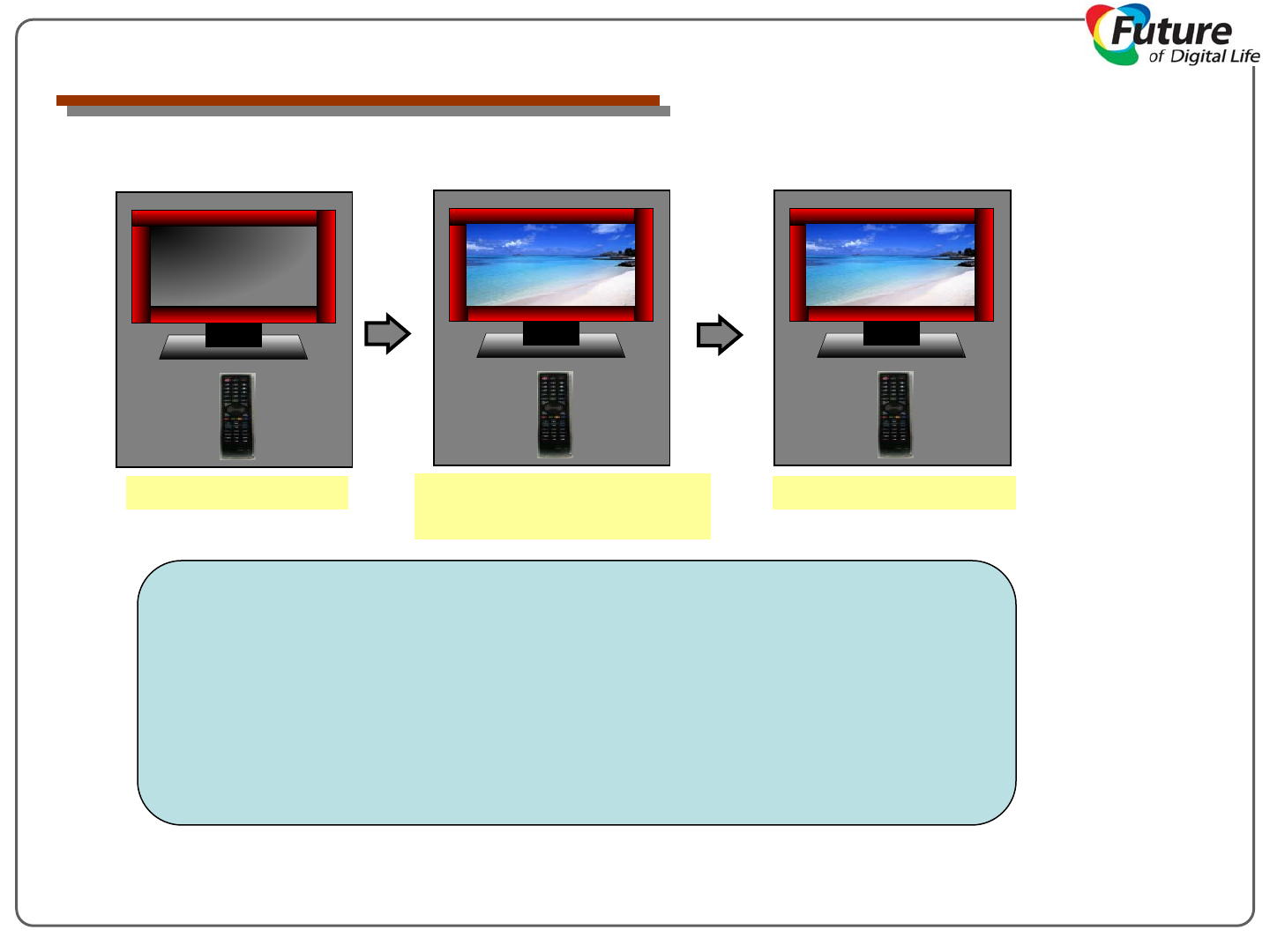

1) Push Pairing button 2) Power on TV
(Please use main power button)
3) Pairing Completed
SWPZ01-RX USER MANUAL
Samsung Confidential
SWPZ01-RX USER MANUAL
▣Pin Descriptions
Only for program update (ACTIVE "H")IDigitalISP10
Not used at this modelIDigitalAudio Rch9
Not used at this model
I
Digital5V_in8
Not used at this modelIDigitalAudio Lch7
POWER DECTER OUTPUTODigitalPWR DECT6
UART TX OUTPUTODigitalUART RXD15
Ground-GroundGND4
UART TX INPUTIPowerUART TXD13
Reset (Active Low)IDigitalRESETB2
DC 3.0V Power supply
I/OPower3.0V_in1
DescriptionI/OInter faceNAMETerminal
Samsung Confidential
SWPZ01-RX USER MANUAL
FCC Compliance Information
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that may cause undesired
operation.
Warnings
This equipment has been tested and found to comply with limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment can generates, uses, and radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. Of this equipment does cause unacceptable interference to radio and television reception,
which can be determined by turning the equipment off and on the user is encouraged to try to correct the
interference by one or more of the following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced Radio/TV technician for help.
Samsung Confidential
SWPZ01-RX USER MANUAL
Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the us
er’s authority to operate the equipment.
Spec.
Type of device: RF Receiver
Frequency bands: 2405 MHz ~ 2480 MHz
Channel space: 5 MHz
Channel number: 16
Data rate: 250 kbps
RF output power: 6.79 dBm (Peak)
Size(with stand): 152 x 30.0 x 246 mm
Weight: 165 g
Input power: 3.0 Vdc
Antenna type: Chip antenna (-0.97 dBi)
