Sato SATOTR3 RFID Reader/Writer Module Transmitter User Manual 453436

Sato Corporation RFID Reader/Writer Module Transmitter 453436

Contents

Installation Manual 2

RFID Reader/Writer Module: TR3-C101 is installed in the Barcode Printer of SATO
CORPORATION as shown in separate sheets.
With installation of TR3-C101 in the Barcode Printer of SATO CORPORATION, the
following remarks are to be considered:
1. TR3-C101 is designated its own FCC ID Number; therefore, the FCC ID
Number of TR3-C101 should be appeared on the label on the exterior of the
Barcode Printer of SATO CORPORATION unless it is visible. Such label on
the exterior should include a statement, either “Contains RFID Reader/Writer
Module FCC ID: MMFSATOTR3” or “Contains FCC ID: MMFSATOTR3”.
2. TR3-C101 is in compliance with the requirements of sub-sections 15.207, and
15.225 of FCC Rules Part 15. TR3-C101 is to be installed in accordance with
their requirements.
3. User Manual of Barcode Printer, in which the RFID Reader/Writer Module is
installed, will include the warning statement with regard to co-location of any
other transmitter and antenna.
4. Special Accessory (Ferrite Core) must be patched for RF inference.
Ferrite Core must be fixed to the position of 5 – 15mm from module.
Please refer to the following pictures. (Next sheet)
TR3-C101 is in compliance with the requirements of the sub-section 2.1091. When
TR3-C101 is installed in the Barcode Printer of SATO CORPORATION, installers
must ensure that the public is not exposed to radio frequency energy levels in excess of
FCC guidelines in accordance with FCC Rules Part 15.
Installation Description

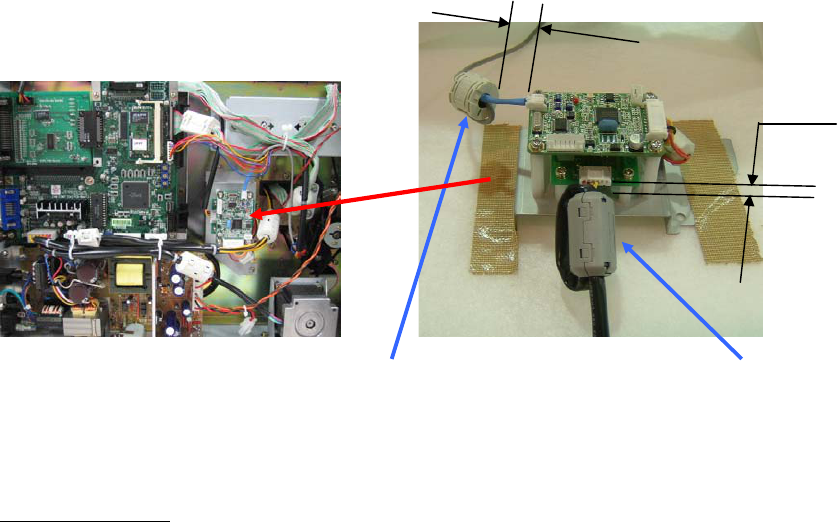

Figure1 RFID Reader/Writer Module installed in Printer Figure2 RFID Reader/Writer Module
Details of Ferrite Core
(1) Ferrite core is on RFID Reader/Writer Module to Antenna cable on RFID side.
Model: TFT081610N
Manufacture: TKK Co.,Ltd.
(2) Ferrite core is on RFID Reader/Writer Module to Printer control board cable on RFID side.
Model: ZCAT2035-0930
Manufacture: TDK Co.,Ltd.
(1)
1 turn
15mm
5mm
(2)
1 turn
