Box Contents
(1) Savant® Smart Host with Control (SHC-2000-00)
(1) 5V DC 3A Power Supply
with 4 Quick Change AC Adapters (025-XXXX-xx)
(2) M3x6 mm Flathead Philips Screw Black (039-00101-xx)
(1) Wall Mount Bracket (074-0585-xx)
(1) Host Mount Bracket (074-0584-xx)
(2) 6-pin Screw Down Plug-in Connector Black (028-0664-xx)
(2) 3-pin Screw Down Plug-in Connector Black (028-0665-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 90% Relative Humidity (non-
condensing)
Cooling
10 CFM
Maximum BTU
51.15 BTU/hr
Dimensions and Weight
Dimensions and Weight
Height
1.58 in (4 cm)
Width
7.86 in (19.9 cm)
Depth
7.65 in (19.4 cm)
Weight
Net: 1.3 lb (0.58 kg)
Shipping: 2.1 lb (0.95 kg)
Rack Space
1U
Power
Power
Input Power
5V DC 3A
Maximum Power
15 watts
Standards
Standards
Wireless
Wi-Fi® (802.11 b/g/n dual band 2.4 GHz and 5.0
GHz)
Compliance
Compliance
Safety and
Emissions
FCC Part 15 | CE Mark | C-Tick | UL |
ICES-003 | Wi-Fi Alliance
RoHS
Compliant
Minimum Supported Release
Minimum Supported Release
Savant OS
da Vinci 7.2
Chassis Installation
The Smart Host can be installed on a solid, flat, level surface such as a
table, cabinet or shelf, or wall mounted using the included bracket.
The location should be dry, well ventilated, and out of direct sunlight.
Rack Installation
The optional RCK-3000-xx provides a ventilated shelf for mounting up
to 2 Smart Hosts.
Wall Bracket Installation
A wall bracket is included that can be used to mount the Smart Host
to a wall or back of a cabinet. This bracket consists of two pieces, one
for the host and one for the wall.
1. Attach the host bracket to the rear of the host using the included
M3x6 mm Flathead Philips Screws.
2. Attach the wall bracket to the wall. Screws to attach are not
included.
3. Position the host over the wall bracket and gently slide into place.
See Wall Bracket Diagram on pg 2.

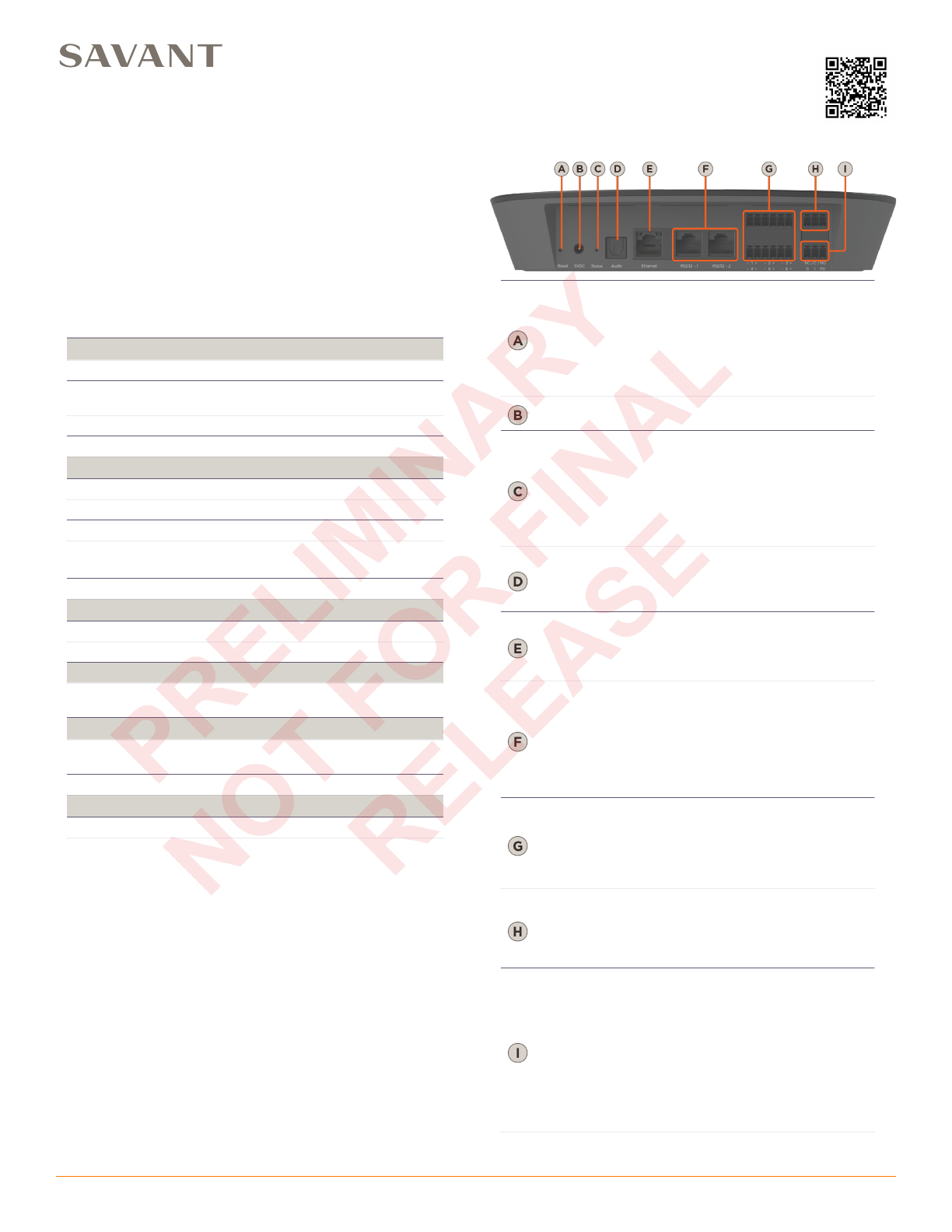

Rear Panel
Reset (hole)
Press and hold for 5 seconds while powered
On to clear Wi-Fi or wired Ethernet settings.
Status LED will blink rapidly when reset is
complete.
Note: This will reset the network settings back
to factory defaults. Any static IP
Addresses or Wi-Fi settings will be lost.
Power Input
5V DC 3A - Connect to included power
supply.
Status LED
O: Disconnected from power supply.
Amber: Controller is booting/rebooting and is
disconnected from the network.
Amber Blinking: Smart Host is not connected
to a wired Ethernet network and has not
joined a Wi-Fi network.
Green: Connected to wired Ethernet or Wi-Fi
Network.
Digital Audio
Output
TOSLink (Optical) digital audio output.
Connect to digital optical audio input on
switcher for using the Audio Interrupt Service
(AIS).
Ethernet
8-pin RJ-45 female.
10/100/1000 Base-T auto-negotiating port.
Connection to this port will disable Wi-Fi
settings.
RS-232
8-pin RJ-45 female.
Used to transmit and receive serial binary
data to and from serial controllable devices.
Ports 1-2 RS-232 - CTS/RTS handshaking.
CTS/RTS Handshaking availability based on
component profile.
See RS-232 Wiring for pinouts.
IR
6-pin Screw Down Plug-in Connector.
Used to send IR signals to control devices
with an IR input or IR receiver via an IR flasher
(5V tolerant only). See IR Wiring for
important precautions regarding IR
functionality before making any connections.
Relay
3-pin Screw Down Plug-in Connector.
See Relay Wiring for pinouts.
Normally Open (NO) Normally Closed (NC)
to control devices requiring basic on/o
operation. DC Voltage Max: 30V DC 1A.
GPIO
3-pin Screw Down Plug-in Connector.
See GPIO Wiring for pinouts.
GPIO Input: When configured as an input,
the processor will look for a low (<0.8V DC)
or a high (>2.4V DC ) state.
Minimum 0V DC / Maximum 12V DC
GPIO Output: When configured as an output,
the port provides a binary output of 0-12V
DC 150mA max.
SHC-2000-00 | 009-1326-00 | 150327
SHC-2000-00 | 009-1326-00 | 150327
45 Perseverance Way, Hyannis, MA 02601
Copyright © 2015 Savant Systems, LLC
1
of
2
savant.com | 508.683.2500
Savant® Smart Host with Control
Quick Reference Guide
For Product Info

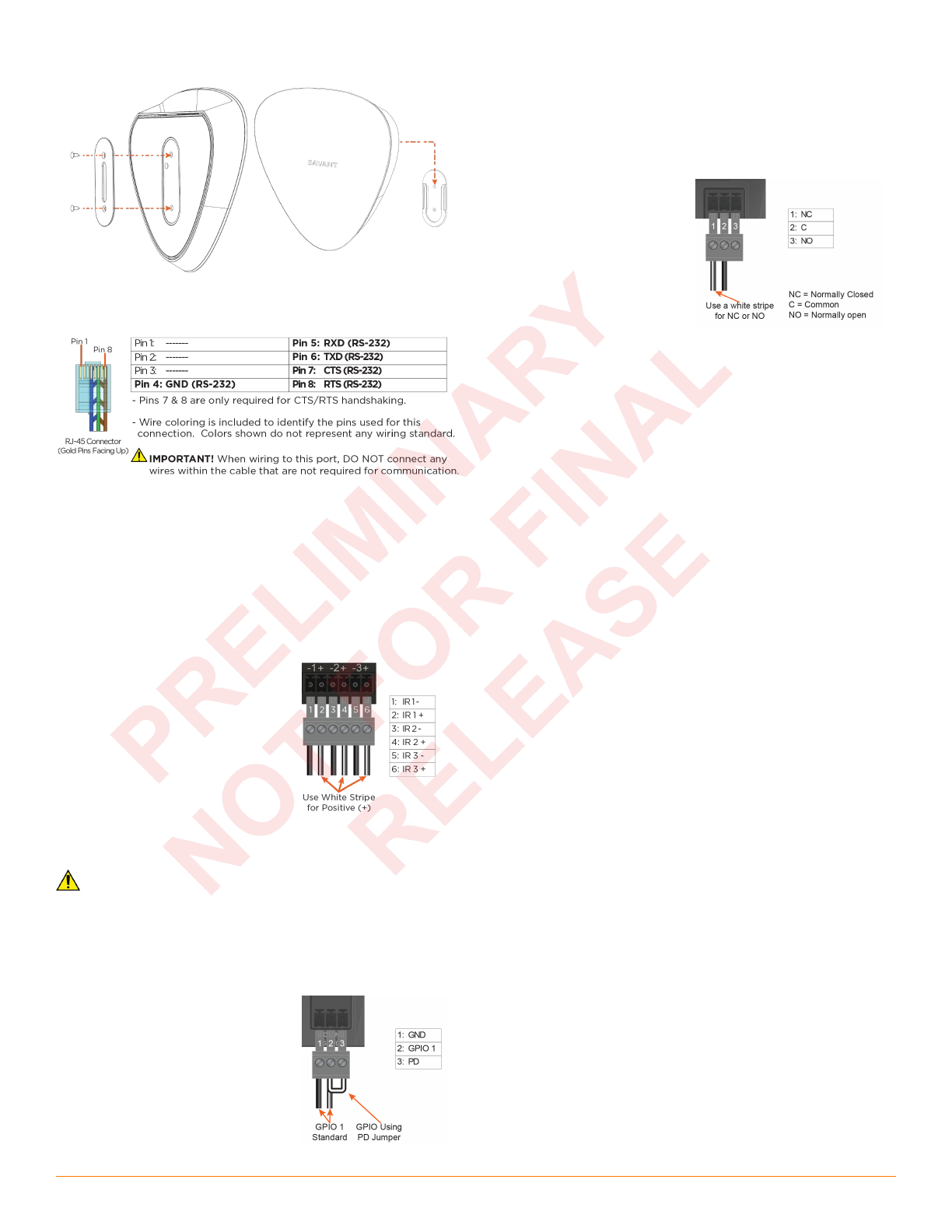

Wall Bracket Diagram
Wiring and Connections
RS-232 Wiring
Note:
CTS/RTS handshaking is supported for flow control based on the
profile used in the configuration.
RJ-45 to DB9 Adapters
Refer to the RS-232 Conversion to DB9 and RS-422/485 Pinout
Application Note located on the Savant Community for more
information on RJ-45 to DB9 adapters oered by Savant.
Note:
The SHC-2000 does not support RS-422/485.
IR Wiring
IR connections are made using 6-pin
Screw Down Plug-in Connectors supplied
with the Smart Host. The wire slips into
the hole and locks with a screw located
at the top of the connector.
Note:
While not shown in the diagram above, IR connections 4 to 6
follow the same wiring as 1 to 3.
Note:
While not shown in the diagram above, IR connections 4 to 6
follow the same wiring as 1 to 3.
IMPORTANT! IR Wiring Precautions
•Ensure that all IR emitters are within 15 feet (4.6 meters) from the
controllers location.
•Use of 3rd party flashing IR emitters with Talk Back is not
recommended. These types of emitters can draw voltage away from
the IR signal that can degrade IR performance.
GPIO Wiring
General Purpose Input/Outputs (GPIO)
are binary I/O ports used on Savant
controllers to trigger an action within the
system. Events can control a device,
such as turning on an amplifier (output)
or detecting a state change for a device
(input) to perform a workflow. Pin 2 is
used for input or output depending on
configuration.
GPIO Pull Down Resistor (PD) Usage
GPIO pins are configured as inputs and are pulled high to 12V while the
host is booting up. To make the GPIO signal low during a host reboot
and/or a power cycle, attach the GPIO 1 pin to the PD pin. The PD pin
is a 1K ohm pull down resistor (to signal ground)which keeps the GPIO
output below 0.8V during processor boot times.
Relay Wiring
Relay ports are used when a
device is controlled via a
normally open (NO) or normally
closed (NC) relay.
Refreshing the IP Connection
•Reset Network Settings via Rear Panel Button
•Cycle Power
•Hot Plug the Ethernet (LAN) Connection
