Scanreco G5RF 2.4 GHz Transceiver User Manual

Scanreco AB 2.4 GHz Transceiver

User Manual

Instruction Manual
66065 AEnglish
Document Revision Language
G5 RF
Attribute Information
Document Type Instruction Manual
Title SCANRECO G5 Rocket Flex
Document No. 66065
Language English
Release date 2013-10-16
Original English
Release date (original) 2013-10-16
Author SCANRECO
Company SCANRECO AB, SWEDEN
Revision Date Note
A 2013-10-16 First release
Document information
Revision history
All rights reserved
Design, equipment, technical data and specications are subject to change or improvement
without prior notice. The text in this instruction manual, or any part of it may not be reproduced
or transmitted in any form or by any means, including electronic, mechanical, photocopying,
recording, storage in an information retrieval system, or otherwise, without prior written permis-
sion of SCANRECO AB, SWEDEN.
Document type Document number PageRev
Instruction Manual 66065 A2 of 8

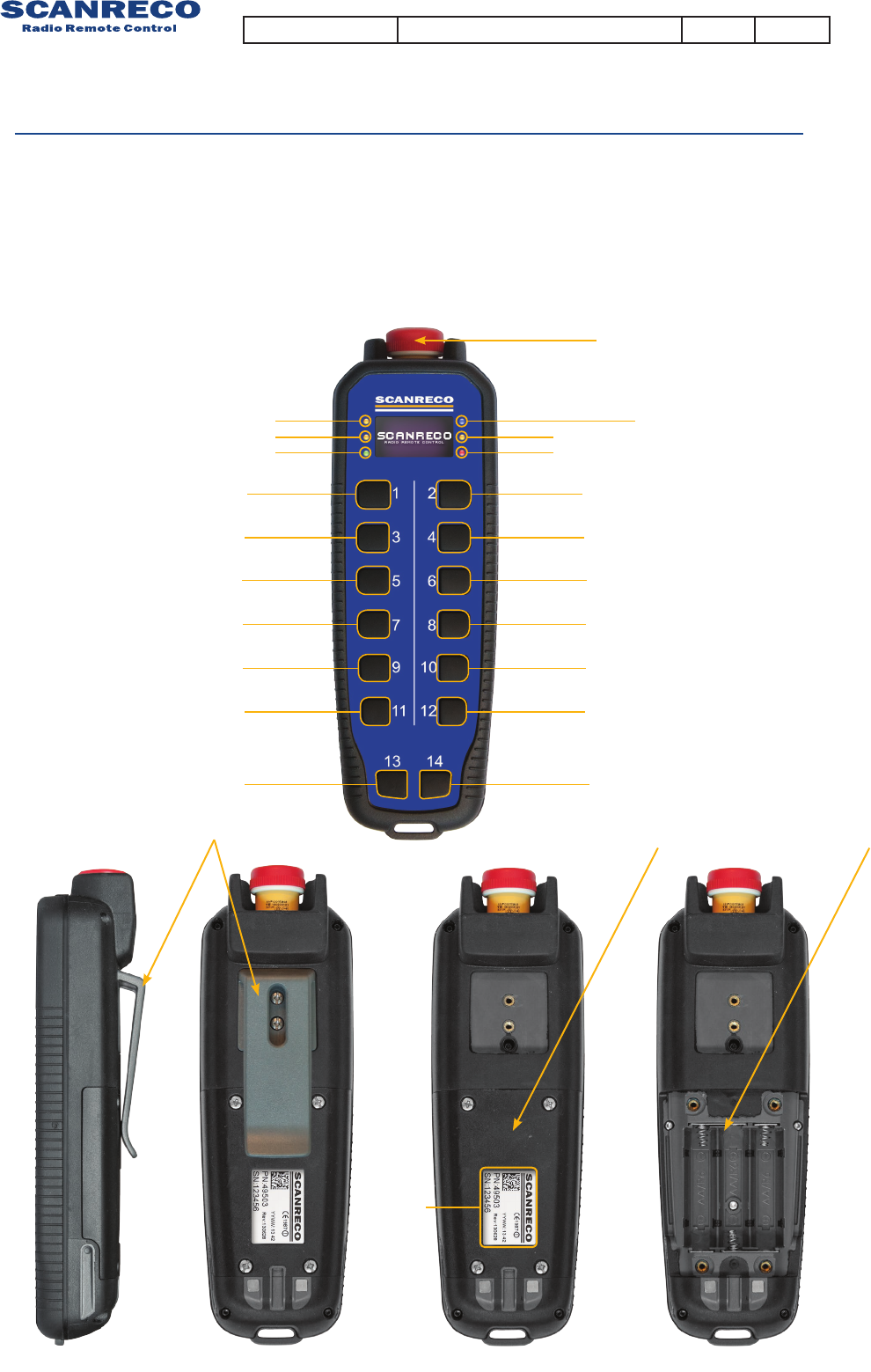

Product description
G5 Rocket Flex Transmitter
The G5 Rocket Flex HCU is a light weight, impact and water resistant handheld
unit equipped with up to fourteen ON/OFF function buttons. It has six congurable
Light Emitting Diodes (LED) for machine and status feedback. The buttons and the
LED’s can be congured for a variety of different operations. The unit is powered
with 3 standard AAA batteries and the backside has a belt clip for convenient at-
tachment on the operator’s belt.
Belt clip Battery compartment
(Belt clip removed)
Battery compartment
(cover removed)
Label
Charge indication
Stop button
Button 1 Button 2
Button 3 Button 4
Button 5 Button 6
Button 7 Button 8
Button 9 Button 10
Button 11 Button 12
Button 13 Button 14
Led 3
Led 2 Led 4
Led 1 Led 5
Document type Document number PageRev
Instruction Manual 66065 A3 of 8

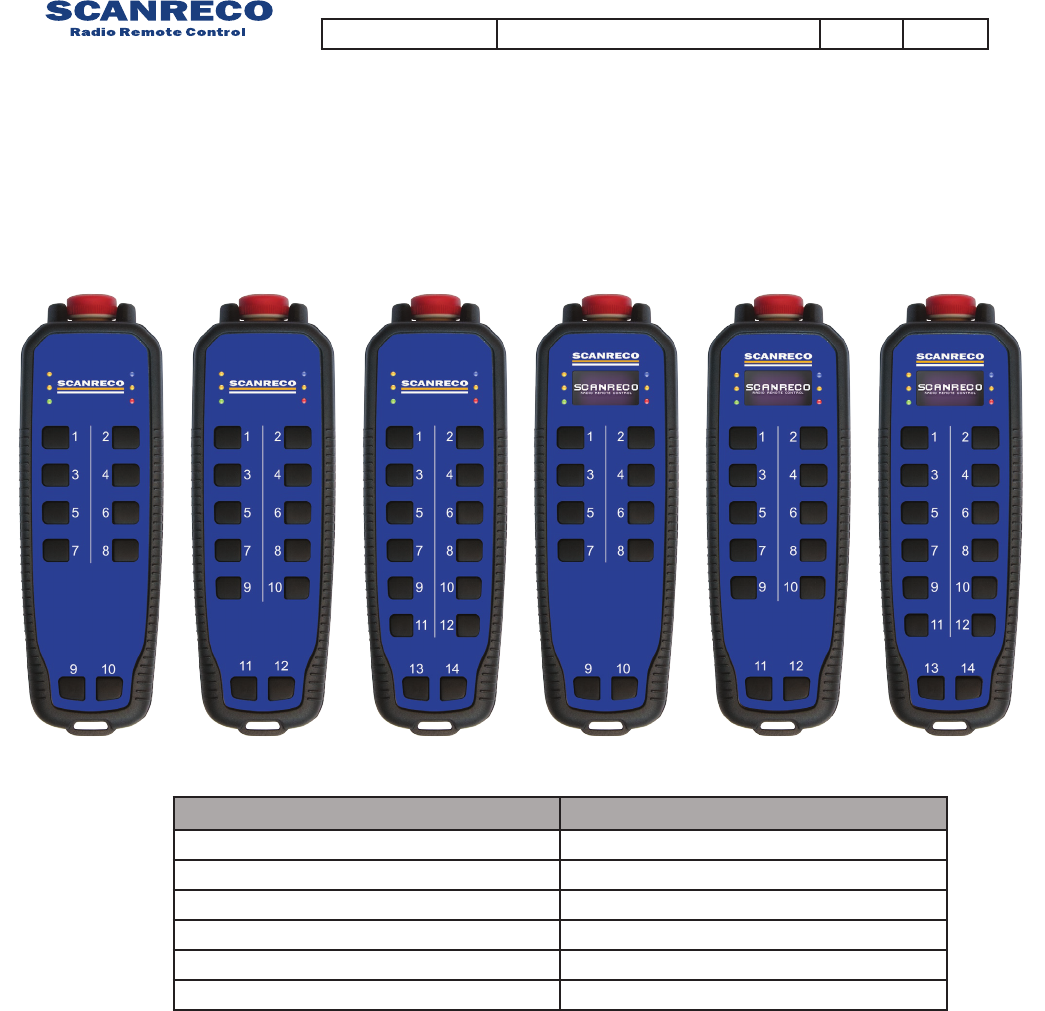

Model Functions
G5 RF 10 10 Push buttons
G5 RF 12 12 Push buttons
G5 RF 14 14 Push buttons
G5 RF 10 Display 10 Push buttons
G5 RF 12 Display 12 Push buttons
G5 RF 14 Display 14 Push buttons
Versions
The G5 Rocket Flex transmitter exists in the following versions:
Functionality
G5 RF 10 G5 RF 12 G5 RF 14 G5 RF 10 Display G5 RF 12 Display G5 RF 14 Display
The G5 Rocket-Flex systems are required to be congured prior to operation but normally
this is done already before delivery. The push buttons are easily programmed to activate
any output or series of functions. Button denitions include momentary, interlocked,
non-latched or latched output.
The models may have the different printed symbols on the buttons, colors, scripts,
pictures etc.
Document type Document number PageRev
Instruction Manual 66065 A
4 of 8

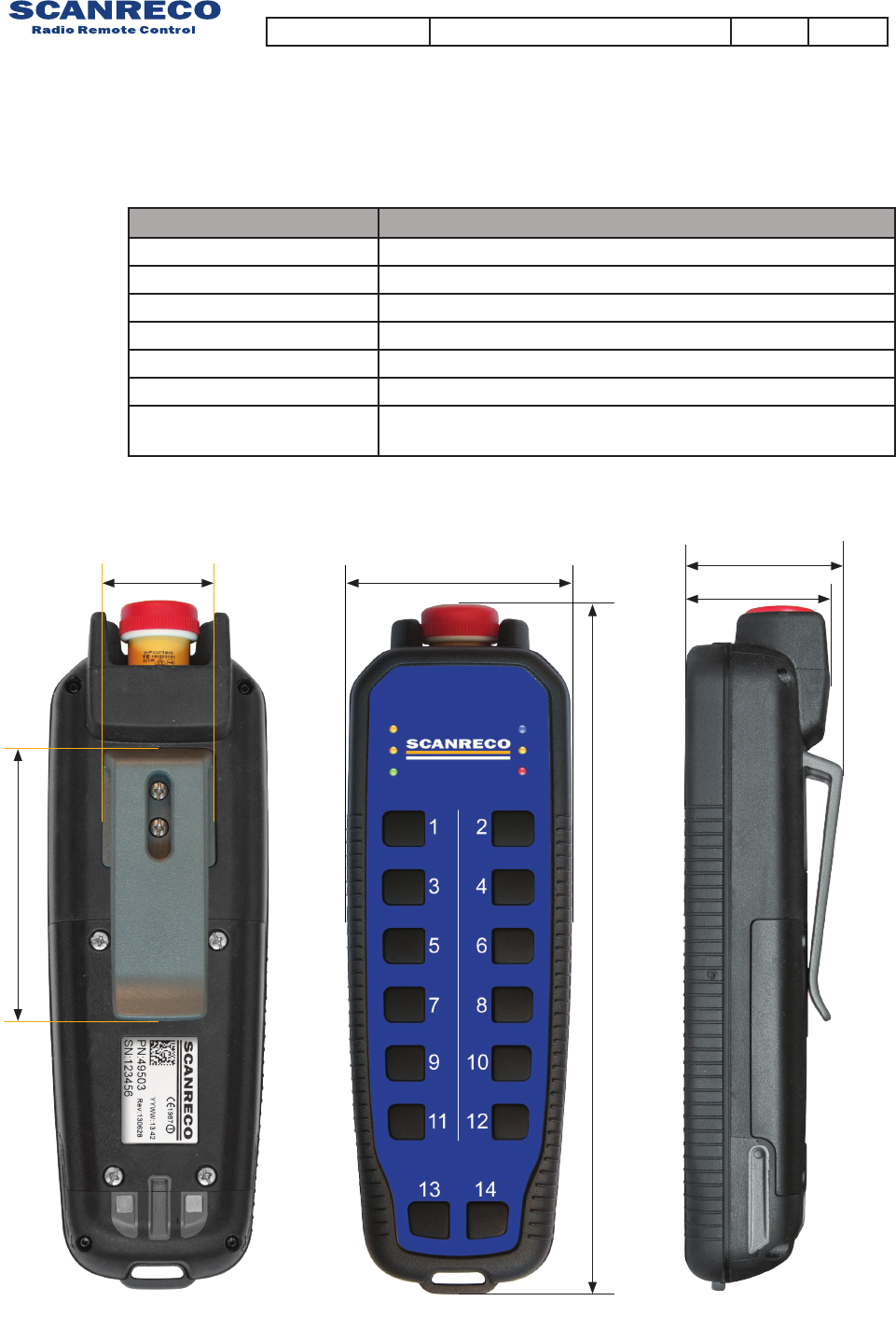

48mm
42,2mm
213mm
69mm
Attribute Information
Housing material Plastic PC
IP-class IP67
Ambient temperature -25˚C to +70˚C
Supply 3 x AA battery
Operating time Several months (depending of usage and application)
Weight 400g (0,88lb.) including battery
ISO-13849 for stop function Category 3, PL D with G5 CU Rxxx
Category 3, PL E with G5 CU Mxxx
Dimensions:
34,7mm
83,5mm
Technical information
Document type Document number PageRev
Instruction Manual 66065 A
5 of 8
Attribute Information
Frequency 2,400 - 2,4835 GHz
Channels
management
FHSS
DSSS
THSS
Channel order Pseudorandom
Channel
capacity
Duplex
System
address/ID
<16777216 unique system addresses available
Redundancy CRC-16
Range 100 meters
Technical information
The G5 system family incorporates an automated frequency jumping technology, a reliable
radio transmission highly resistant to interference.
The radio transmission takes place within the ISM-band used at pre-dened channels.
The channel switching takes place multiple times per second following a pseudorandom se-
quence. This ensures that transmission takes place on an optimal frequency at all times!
No transmitter uses the same pseudorandom sequence order when switching channels; this
minimizes the risk of two G5 systems interfering with each other.
The G5 Rocket-Flex is approved to transmit on the ISM band.
The radio is license free for the end user.
Radio information
Document type Document number PageRev
Instruction Manual 66065 A6 of 8
Document type Document number PageRev
Instruction Manual 66065 A7 of 8zz
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates,uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
CAN ICES-3 (A)/NMB-3(A)
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
When the device is stored on the operators belt it must be shut off. Pressing the
buttons and operating the machine while the device is hanging from the belt or any
other place it not allowed. It must be held in the hand.
L’antenne (s) utiliseé pour cet émetteur doit être installé pour fournir une distance
de séparation d’au moins 20 cm de toute personne et ne doit pas être co-localisées
ou opérant en conjonction avec une autre antenne ou émetteur.
Lorsque l’appareil est stocké sur la bande des opérateurs, il doit être arrêté.
Appuyant sur les boutons et faire fonctionner la machine alors que l’appareil est
accroché à la ceinture ou tout autre lieu il pas permis. Il doit être tenu à la main.
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Warning
FCC information
Industry Canada Information
