1 Introduction
This document is a general description of the PORT device; type PORT 3.1.
(PORT: Personal Occupant Requirement Terminal)
The version called PORT 3.2 differs from PORT 3.1 only by the absence of keypad.
1.1 Application
When you are committed to providing continuous service to a building's occupants as they go about their busi-
ness, it is essential to have a consistent method of communicating with them. The extraordinary new PORT
system can provide a whole range of command and communication functions from a wide variety of locations.
Functions that utilize a standard hardware design which is as reliable as it is elegant. PORT 3.1 represents one
such interface device with a specific application to allow entry.
1.2 Features
The PORT 3.1 features an elegant combination of card reader, keypad and LED indication which may be used
to control access.
The version called PORT 3.2 differs from PORT 3.1 only by the absence of keypad.
1.3 Functionalities
The PORT 3.1 device is used to control access through a door system utilizing either a proximity card, a pre-
programmed pin code or a combination of both.
The system is used to get access to the building. Any kind of Building can be considered for example Office,
Hotel or Apartment.
PORT 3.1 is a fully integrated component of The PORT Technology.
1.4 Package contents
1 x PORT 3.1 Card Reader Terminal
1 x Damping Pad
1 x Signal + Supply cable
1 x Wall mounted fastening material
1 x Small user and maintenance manual (this manual)
1 x Lock Tool (partly)
Schindler Elevators Ltd.
NT-NB
via della Pace 22
CH-6600 Locarno
www.schindler.com
PORT 3.1
Basic user and maintenace
Manual
Version 1.1 5/2010 5/13

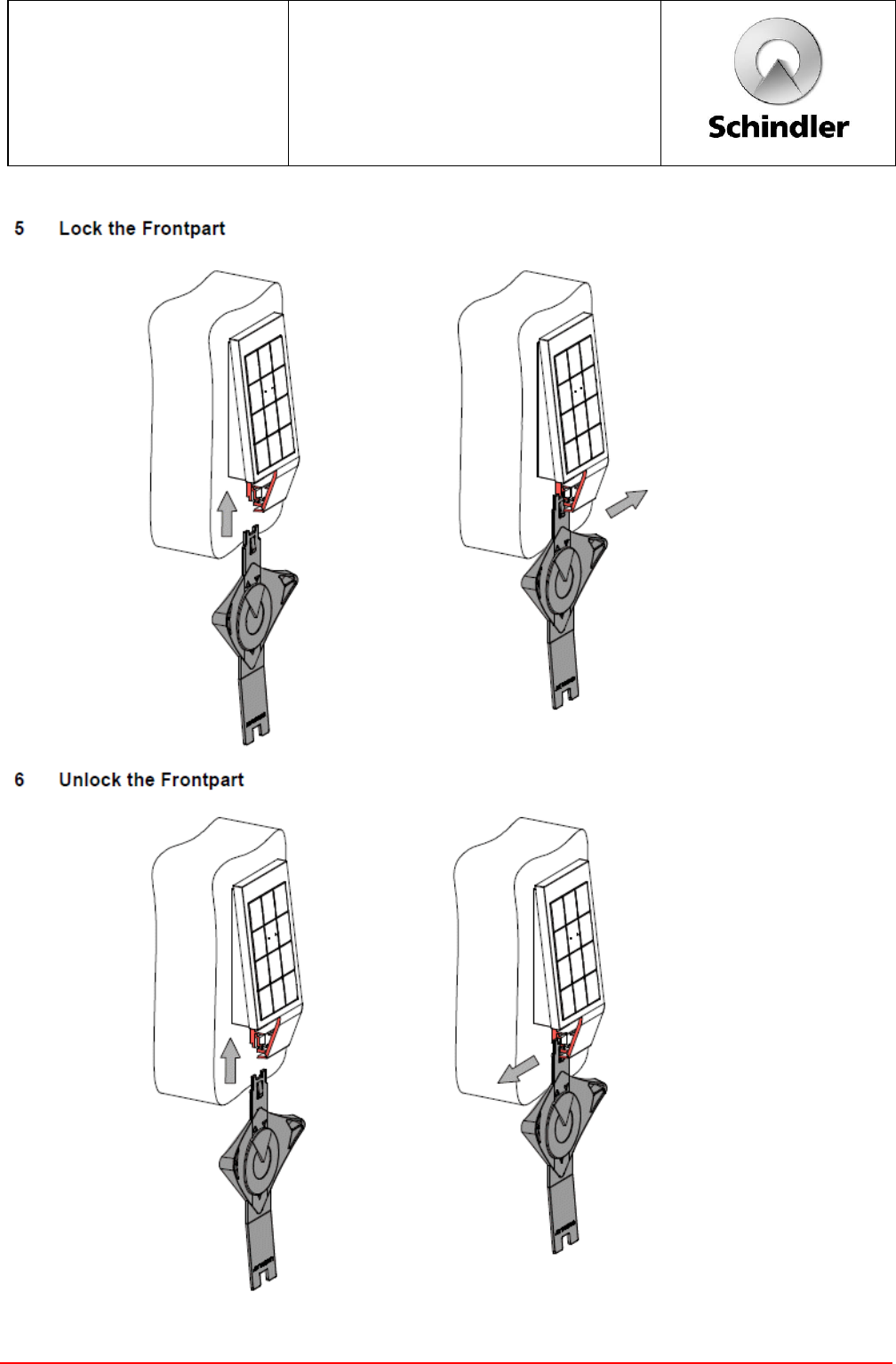

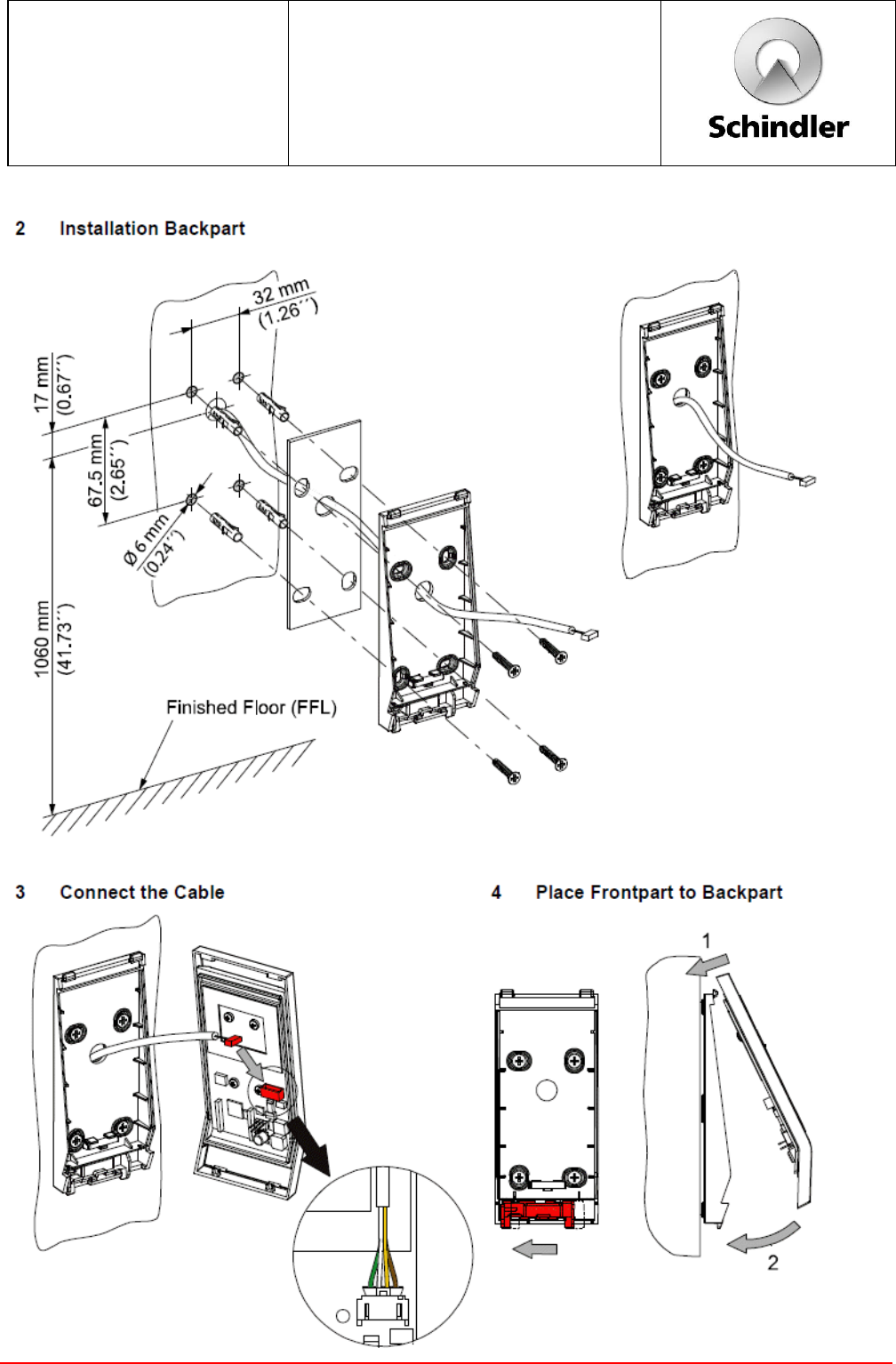

2 Installation and cabling
Schindler Elevators Ltd.
NT-NB
via della Pace 22
CH-6600 Locarno
www.schindler.com
PORT 3.1
Basic user and maintenace
Manual
Version 1.1 5/2010 6/13
Schindler Elevators Ltd.
NT-NB
via della Pace 22
CH-6600 Locarno
www.schindler.com
PORT 3.1
Basic user and maintenace
Manual
Version 1.1 5/2010 7/13
Schindler Elevators Ltd.
NT-NB
via della Pace 22
CH-6600 Locarno
www.schindler.com
PORT 3.1
Basic user and maintenace
Manual
Version 1.1 5/2010 8/13

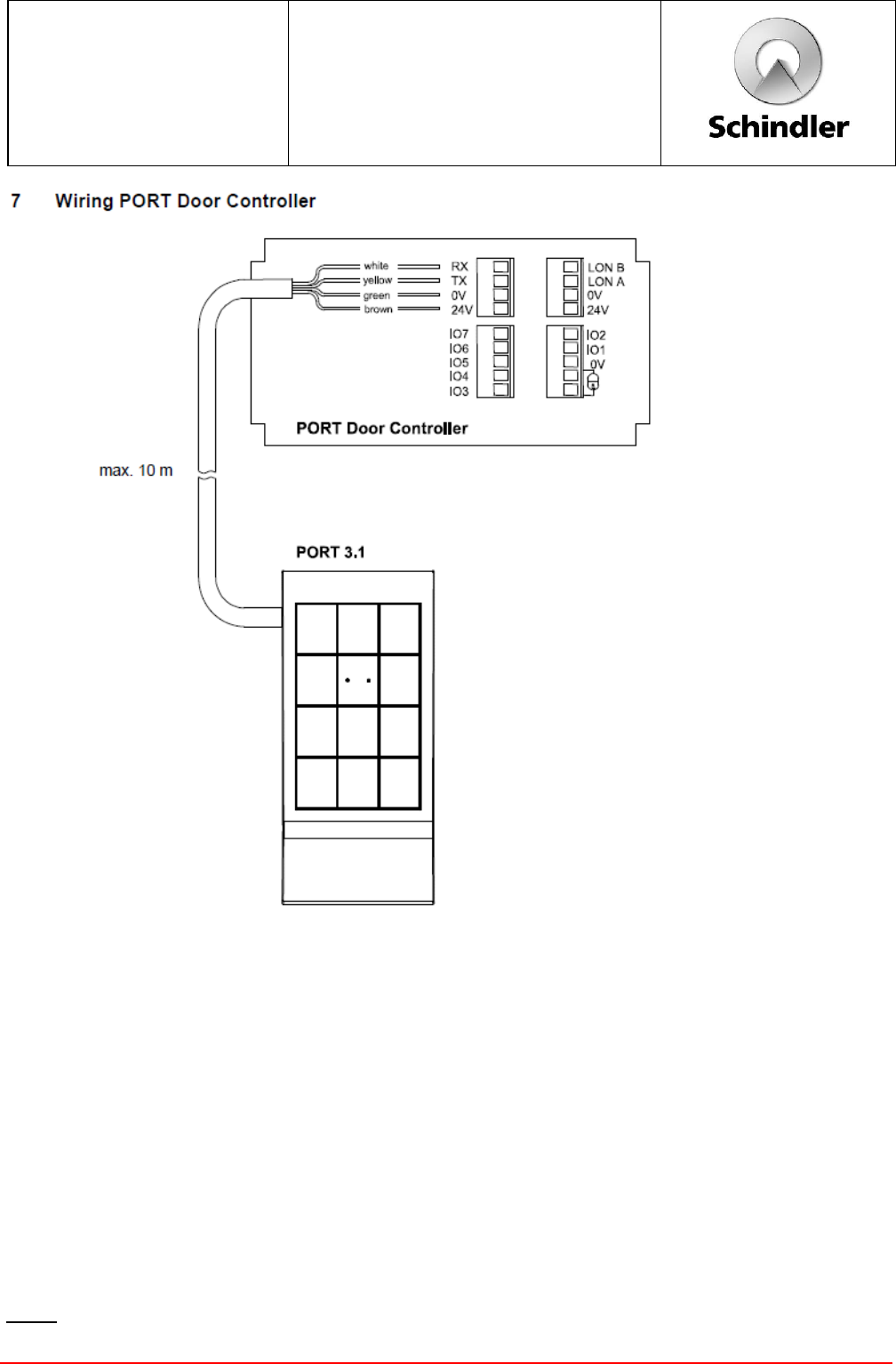

2.1 Cabling:
Standard Cable length 10 m.
Note: The AUXILIARY 24VDC input should not be used. If used a cable of MAXIMUM 3 m length is allowed.
Schindler Elevators Ltd.
NT-NB
via della Pace 22
CH-6600 Locarno
www.schindler.com
PORT 3.1
Basic user and maintenace
Manual
Version 1.1 5/2010 9/13
3 Characteristics:
3.1 Port 3.1 characteristics:
Picture Characteristics
Name PORT 3.1
Power Supply 24 DVC +/- 10%
Energy Consumption max. 2 W
Ambient LED RGB Colours
CPU ATMEL ATMEGA64 /
Operating system -
Standby modus yes (if no card present or no
button pushed)
Card Reader Frequency 13,56 MHz (RFID)
Card Reader Protocols ISO14443A, ISO14443B-2B,
ISO144443B-3B, ISO15693
Standard Card Types Mifare Classic, Mifare Ultra
Light, Mifare 1K, Mifare 4K, Mi-
fare DESFire (all other cards
have to be pre-qualified by out
test service center before use!)
Beeper confirmation/alarm
Network Serial UART connection
4 Power Supply, Communication connection:
Power supply Power supply Input Communication ETH
24 VDC +/- 10%
< 2 W connector 24VDC IN
Pin1 +
Pin 2, Pin 3 -
connector ETH-A
connector ETH-B
5 Operating conditions:
Humidity: max 90 %, protection rating IP53
Operating Temperature -10 to 60°C (14 to 140 °F)
Storage temperature -40 – 85 °C
Damage danger: Do not exceed these limits. Operating failure could occur!
