SW-NAP-SDW
Slim Door Window Sensor
NAPCO COMPATIBLE
INSTALLATION MANUAL
TECHNICAL SUPPORT
Secure Wireless 866-908-Tech
www.mysecurewireless.com
SLIM DOOR WINDOW SENSOR ENROLLMENT /
PROGRAMMING
The SW-NAP-SDW Door Window is equipped with an
internal reed switch as well as the ability to use as
external magnet .
For a detail programming guide, the instruction manual
should be consulted for that panel. The below guide
should only be used as a reference and not as a
replacement for using the programming instructions.
1. Pull Battery Tab
2. ENTER PANEL PROGRAMMING
3. ENTER Zone
4. ENTER Serial ID ( Auto-learn or Manual)
To Auto-Learn
Hit “Bypass”
Fault and Restore the device or the
tamper switch can be used.
To Manual Learn
Enter serial Id listed on back)
Enter Checksum ( digit after the
“:” on Serial ID)
5. ENTER POINT (1 for Internal Reed or 2
for External )
6. Push ON/OFF to Save

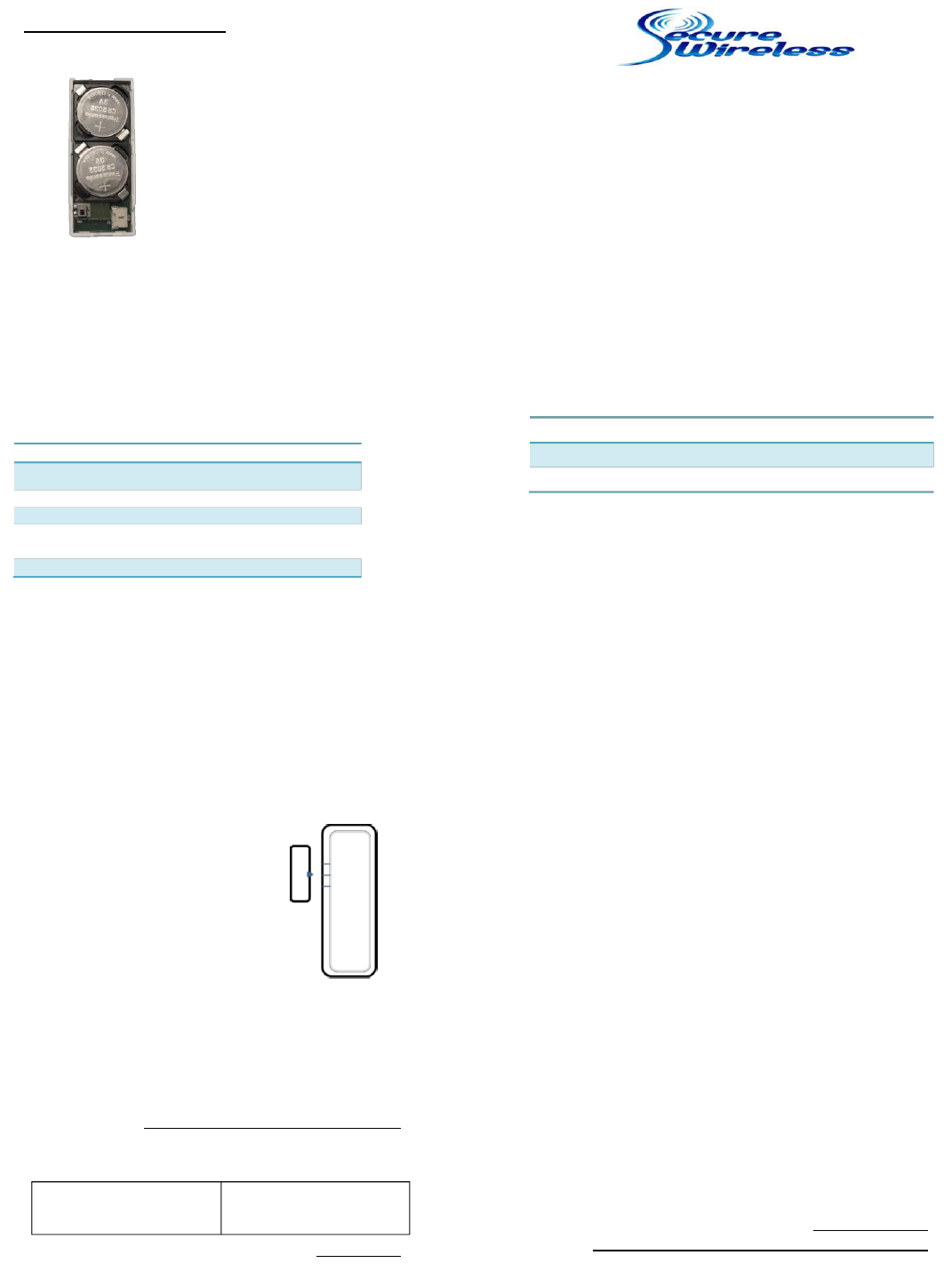

REPLACING THE BATTERIES
Pop open the case
using a coin. Replace
with new batteries. ( +
) or positive polarity
should be facing up
Replace Cover
FCC Compliance
This device complies with Part 15 FCC Rules.
Operation complies with the following 2 conditions
(1) This device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation
ODEL
SW-NAP-SDW
FCC ID
QNP-SDW319
FREQUENCY
319.5 MHz
WARRANTY
Limited Life time
BATTERY
(2) CR2032 Replace
with Panasonic
MANUAL PART #
200-10003 Rev A
Alpha Chart
A - *0
B - *1
C -*2
D - *3
E - *4
F - *5
DOOR WINDOW MOUTING / USAGE
The SW-NAP-SDW Door Window is equipped with an
internal reed switch as well as the ability to use an external
magnet.
Mounting
Double Sided Tape is included for
easy installation.
Reed Switch (Use Point 1
when Programming )
Align the Arrow on magnet with
the 3 lines on the side of the
sensor case
Mount the magnet no more than
¼ in from the sensor.
External (Use Point 2 when
programming
Wire run to the External Magnet
can be no longer than 12 Ft in
length.
