TETRA - Mobile Radio Terminal
Quick Reference Guide

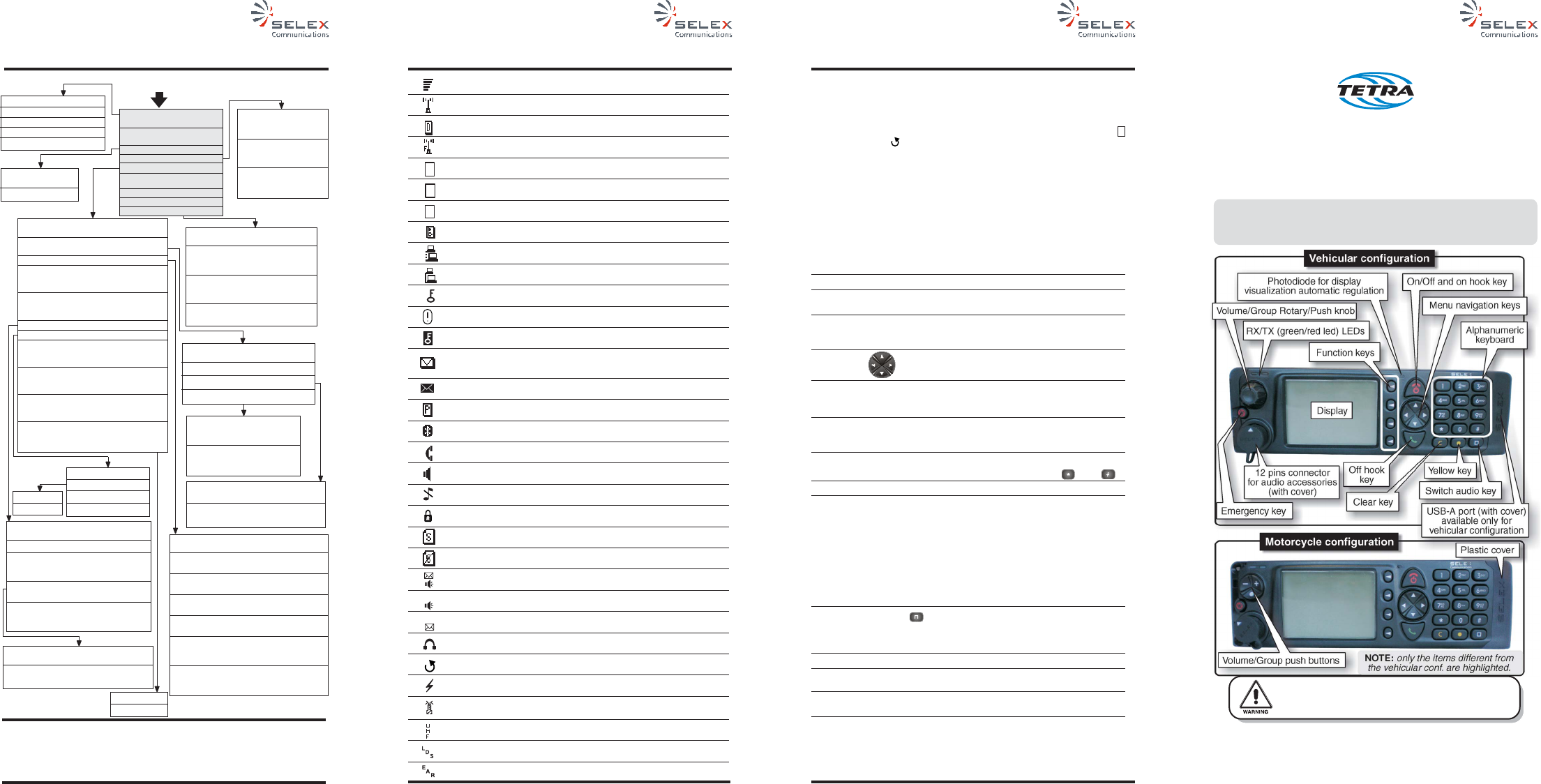

Controls, indicators and connectors
VS3000-FPG3
Displayed symbols SELEX Communications S.p.A. A Finmeccanica Company
Via Pieragostini, 80, 16151 - Genova, Italy
D
R
G
M
M
Volume
Controller/
Group -
channel
Selector
Green LED
Red LED
Function Keys
Menu
navigation
keys
Off hook key
On hook key
Alphanumeric
keypad
Clear key
Yellow key
Switch audio
key
Emergency key
12 pins
connector
USB connector
(only vehicular)
PTT (Not
located on the
FPG3 front
panel)
Menu
NOTES:
- Some menus can be or not available according to the configuration of
the radio terminal.
- Choosing some options of WPS menus can cause the ending of active
group calls.
E2EE Status (enable/
disable E2EE)
E2EE Key
In Box (TMO, DMO, REP, FM)
Out Box (TMO, DMO, FM)
Text Message (TMO, DMO, FM)
Send Status (TMO, DMO, FM)
Char Size (TMO, DMO)
Messages (TMO, DMO, REP,
FM)
Change Mode (TMO, DMO,
REP, GTW, FM)
Encryption (TMO, and DMO only)
Phone Lists
Settings
Monitor (to check radio coverage,
FM only)
GPS
Information
Help
Phone Book
(user defined TMO and
DMO only)
Home TETRA
(pre-configured phone
book TMO and DMO only
Non TETRA
(pre-configured phone
book, TMO only)
Group
(To see the configured groups, FM only)
Group Management
(TMO, DMO and GTW)
Calls (TMO and DMO only)
Delivery Options
(to select the kind of messages delivery
report, TMO and DMO)
Tx Inhibit
(to disable/enable the transmission, TMO
and DMO only)
Preferences
Bluetooth (TMO only)
Speech Monitor
(to enable/disable the functionality; REP and
GTW only)
SDS Monitor
(to enable/disable the functionality; REP
only)
Auxiliary Microphone
(to configure the kind of auxiliary microphone,
TMO, DMO and FM)
Full Duplex
(to set the type of full duplex: real or pseudo
full duplex, TMO only)
Group Scanning
(to enable/disable it, TMO and DMO only)
WPS Selection (TMO, DMO and GTW)
WPS Update (TMO, DMO and GTW)
WPS Reconfigure (TMO, DMO and GTW)
Active WPS
(to change the configuration of
the active WPS)
Extra WPS
(to move the groups assigned
by DGNA in the current WPS)
WPS Data
(to modify the current WPS parameters)
Group Data
(to modify the groups parameters)
Late Entry
(to enable/disable the function)
Communication
(with/without ack, DMO only)
Send TPNI
(enable/disable, DMO only)
Group Call
(to select the type of group call, TMO only)
Dial Mode
(to select the dialling modality)
Call Identification
(to choose if send or hide its own radio identifier,
TMO only)
Gateway <0>, <9>
(to select the default gateway from the gateway
list, TMO only)
Pin
(to change/enable/disable it)
Language
Sounds
(to disable and to control the sounds
volume)
Display
(to configure display settings)
Presence Signalling
(to enable/disable the presence signal
transmission; REP only)
Hands Free
Lemo
Key Access
(direct access keys are shown)
Dialling
(dialling digits are shown; TMO and
DMO only)
Supplementary String
(supplementary strings are shown;
TMO and DMO only)
Symbols
(symbols meaning is shown)
Activation/Deactivation
Devices
Active Connections
Offered Services
Find New
Devices List
Backlight
(to change the display backlight modality)
Zoom
(to zoom in/zoom out the display)
& FM
Before using the equipment, read all the
instructions contained in the manual and, with
special care, those relative to safety.
Two versions are available:
• VS3000-FPG3 Vehicular configuration
• VS3000-FPG3 Motorcycle configuration
See the Safety Recommendation guide for FCC Approval.
P/N MAN-0698/01.01P/N MAN-0698/01.01P/N MAN-0698/01.01P/N MAN-0698/01.01

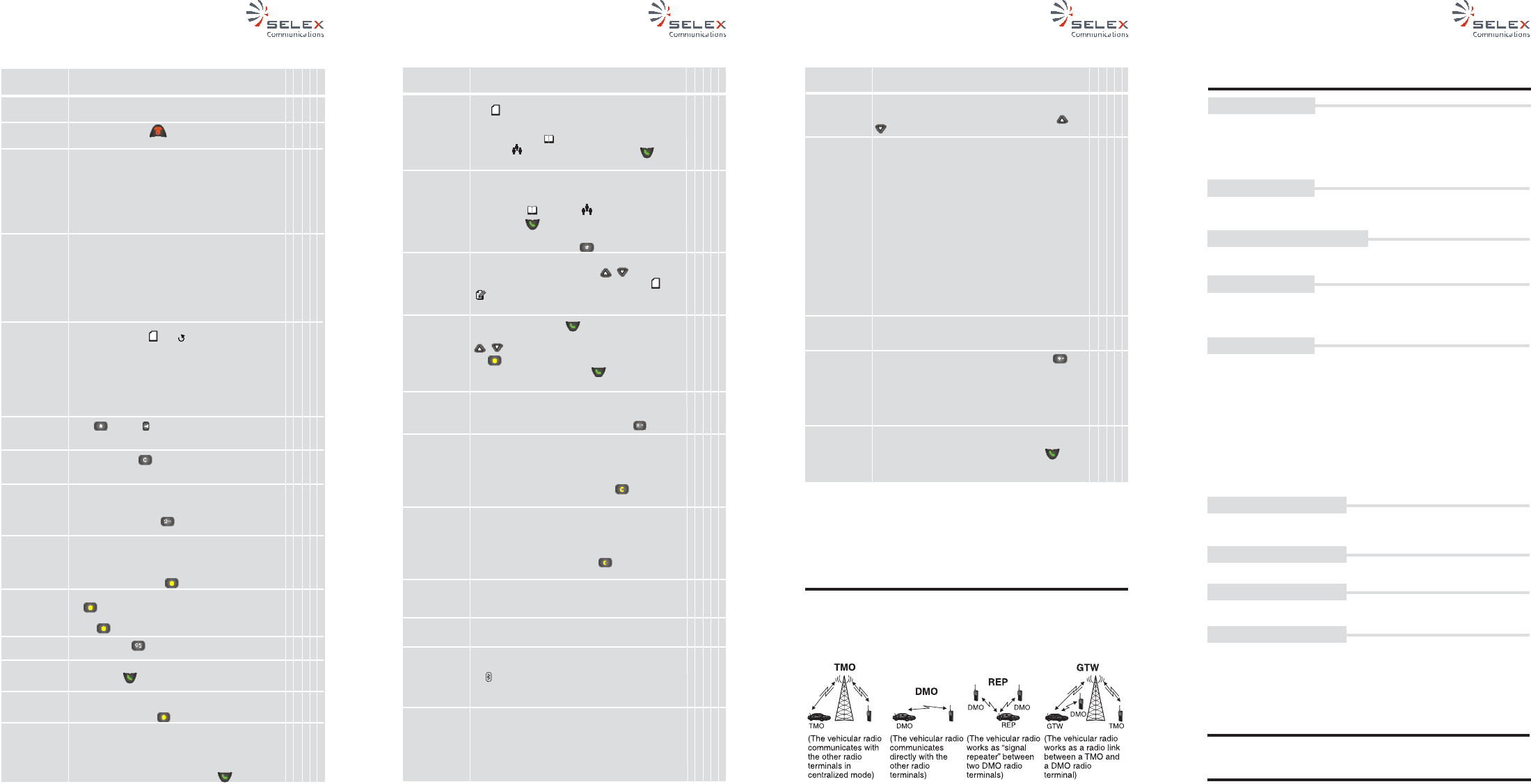

How to...
Access the send status menu, pressing the key associated
with
S
when the radio is in idle status or selecting from main
menu: Messages →→
→→
→ Send Status.
Select the status to be sent, then select an user by means of the
key associated with or a group by means of the key asso-
ciated with . To send the message use the key or select
the Send option.
Access the text messages selecting from main menu Mes-
sages →→
→→
→ Text Message. Create a new message or select a
predefined message then select OPT →→
→→
→ Send.
Select an user ( ) or a group ( ) and send the message by
means of key or selecting the option Send. During the
editing of a message it is possible to change from uppercase
to lowercase pressing the key .
Access the received messages list from main menu selecting
Messages →→
→→
→ Inbox. Use the keys , to scroll the list
of messages. The received messages can be status
S
or text
messages. Select the message to be read (VIEW) and
then OPT to choose among Delete-Reply-Reply+History.
From idle status press key to display the list of the last 20
received/made individual calls. Scroll them by means of keys
, . It is possible to recall the subscriber pressing the
key followed by the PTT pressing (Half-Duplex call) or
followed by the pressing of the key (Full-Duplex call, TMO
only).
It is possible to go back in a group call which is still active and
from which you have disconnected: in TMO by pressing the
PTT and in DMO by keeping pressed the key .
From main menu select Settings →→
→→
→ Speech monitor, to
change the function status. If the speech monitor is active the
user will be asked to deactivate it and vice versa. By pressing
the key corresponding to YES the change is confirmed; by press-
ing the key corresponding to NO or the key the user can exit
the menu without modification.
From main menu select Settings →→
→→
→ SDS monitor, to change
the function status. If the SDS monitor is active the user will be
asked to deactivate it and vice versa. By pressing the key cor-
responding to YES the change is confirmed; by pressing the
key corresponding to NO or the key the user can exit the
menu without modification.
From main menu select Settings → →
→ →
→ Preferences →→
→→
→
Presence Signalling To enable the transmission of presence
signal select PsOn; select PsOff to disable it.
From main menu select GPS. The data relative to vehicle
position will be shown on the display.
Activate Bluetooth functionality selecting Settings →→
→→
→
Bluetooth →→
→→
→ Activation. Once Bluetooth is active the sym-
bol appears on the radio display. Note: If the radio is turned
off with the Bluetooth active, at the successive switch on the
Bluetooth is deactivated.
With Bluetooth functionality active select the menu item Find
New from Settings →→
→→
→ Bluetooth →→
→→
→ Devices. Once the device
has been found check if it is "Trusted" or "Untrusted" through
the menu item Devices List from menu Settings →→
→→
→
Bluetooth →→
→→
→ Devices, showing the device information. If the
device is "Untrusted" select OPT from the display showing the
device information, and then select Service Search.
Menu main items
NOTE:
For what concerns technical characteristics, reference standard,
maintenance and troubleshooting, refer to the relevant technical handbook.
TETRA Operating modes
The vehicular radio terminal can work in four different TETRA
operating modes, depending on the protocol selected in menu
Change Mode: Trunked Mode (TMO), Direct Mode (DMO), Repe-
ater Mode (REP), Gateway Mode (GTW).
TMO
DMO
REP
GTW
FM
* *
*
Send a status
message
Send a text mes-
sage
Read a received
message (Inbox)
Access last calls
list
Go back in a group
call
Enable/Disable
the speech
monitoring
function
Enable/Disable
the SDS
monitoring
function
Enable/Disable
the presence
signal
Visualize
GPS data
Activate Bluetooth
(*)
Connect with
Bluetooth device
(*)
How to...
See the relative accessories user’s guide.
Keep pressed the key for a few seconds.
PIN insertion at power on, can be:
• Enable/disabled from menu
• Always enabled
• Always disabled
If PIN insertion is enabled, at power on the user must insert the
current PIN. In case of insertion of 3 consecutive wrong pin, the
current PUK must be inserted to unlock the radio. In case of 3
consecutive wrong PUK insertion the radio must be repro-
grammed to be unlocked.
To adjust the volume of the various sounds access from main
menu to Settings →→
→→
→ Preferences →→
→→
→ Sounds.
In the vehicular configuration: to adjust the speech volume,
use the volume knob; turn it clockwise to increase the volume
and counterclockwise to decrease it.
In the Motorcycle configuration: the triple pushbutton al-
lows the same operativity of the knob.
(“+” and “-” to increase/decrease the volume;
“•” to switch from volume control to group selection function).
In the Vehicular configuration: keep pressed the knob until
the alternate symbols
S
and appear on the display. The
radio is in group selection mode. Once in this modality turn the
knob to choose among the available groups-channel and select
the group by pressing the knob.
In the Motorcycle configuration: the triple pushbutton al-
lows the same operativity of the knob.
(“+” and “-” to scroll the groups list;
“•” to switch from volume control to group selection and to
confirm the choose).
Press and then (associated to menu) keys to lock the
keypad; to unlock it press any key and follow the instructions
shown on the display.
Keep pressed key for a few seconds. Otherwise select
Change mode from main menu and select the modality.
Each WPS is composed of a set of different groups related to
the group selector knob positions. Changing WPS you change
the groups that can be selected by means of the knob. To change
WPS, keep pressed key for a few seconds. Otherwise
select Settings →→
→→
→ Group Management →→
→→
→ WPS Select.
Select the group by means of the relevant knob (in the vehicular
configuration) or the triple push button (in the motorcycle configu-
ration), then press PTT to talk; otherwise type in the group address
and press PTT (if the PTT default modality is set (by PRP) for
individual call, press the key before pressing the PTT).
Select the group by means of the relevant knob and press the
key . Now by pressing PTT the first available dispatcher of
the selected group is called (not the gorup). By pressing again
the key and then the PTT the selected group is called.
Keep pressed key for a few seconds, then press PTT to talk.
Type in the address or select a subscriber from phone book
then press key .
Type in the address or select a subscriber from phone book
then press PTT (if the PTT default modality is set (by PRP) for
group call, press the key before pressing the PTT).
Keep pressed the emergency key at least for 2 seconds.
In TETRA mode the radio can be programmed to: send a call
request, send an SDS, send a call request and an SDS, at the
emergency key pressing.
In FM mode, the radio sends an alarm until another radio gives
the received alarm signal throught the key .
* * * * *
TMO
DMO
REP
GTW
FM
** * * *
** *
** **
* * *
*
Change accesso-
ries configuration
Switch on/switch
off the radio
Manage the PIN
(Personal Identifi-
cation Number)
Adjust the
Volume
Change group -
channel
Lock/unlock
keypad
Change modality
TMO/DMO/REP/
GTW/FM (*)
Change
Working Profile
Subset (WPS)
Call a group /
Channel
Call the dispatcher
of the selected
group (if the net-
work allows this
function)
Call the OPEN
GROUP
Make an individual
full duplex speech
call
Make an individual
half duplex speech
call
Send an emer-
gency alarm
*
*
How to...
Once the device is "Trusted" select OPT from the display
showing the device information, and then select Service List.
Choose the service scrolling the list through the keys and
, select OPT and then Connect, to connect to the service.
To remove a Bluetooth device it is first necessary to discon-
nect it closing and removing the relative service:
• select Settings →→
→→
→ Bluetooth →→
→→
→ Devices →→
→→
→ Devices
List;
• scroll the device list till the device to be removed and
select OPT;
• select the item Service List and scroll the Service List till
the service to be close;
• select OPT and then Disconnect. Then, from the same
menu select Remove to remove the service.
Now it is possible to remove the device:
• select Settings →→
→→
→ Bluetooth →→
→→
→ Devices →→
→→
→ Devices
List;
• scroll the device list till the device to be removed and
select OPT;
• select the item Remove Device
• press the key associated with "YES" to confirm the opera-
tion.
To deactivate Bluetooth it is first necessary to remove all the
Bluetooth accessories, then select Settings →→
→→
→ Bluetooth
→→
→→
→ Deactivation.
Access the monitor menu keeping pressed the key for a
few seconds from idle status, otherwise select item Monitor
from main menu. Selecting Opt it is possible to choose among:
•Add (to add an user to be monitored);
•Delete (to remove an user to be monitored);
•View (to visualize the details of the last three radio coverage
checks of the specific user).
To make a call in FM mode (whether to a user or to a group)
dial the user or the group address to be called, or select the
address from the Phone lists and press the key . Press
PTT to talk.
TMO
DMO
REP
GTW
FM
*
Remove
Bluetooth device
(*)
Deactivate
Bluetooth (*)
Check the
coverage of other
users
Make a call in
FM mode (*)
* * * * *
* * * * *
* * *
** * * *
* * *
**
* * *
* * *
* * *
* * *
*
*** * *
*
*
*
*
*
* *
Messages
By means of this menu it is possible to send text and status
messages, and to read received messages and sent messages that
have been saved. It is also possible to define the text char size.
In Repeater mode with SDS Monitor active it is possible to read
the messages monitored by the radio.
Change Mode
By means of this menu item it is possible to select the transmis-
sion protocol TMO/DMO/REP/GTW/FM.
Encryption (TETRA only)
By means of this menu it is possible to enable/disable the
encryption function.
Phone Lists
In TETRA mode, by means of this menu you can access the
phone books (whether user defined or predefined). In FM mode
you can directly access the FM users list.
Settings
Through the sub-menus of this item it is possible to configure
several options of the radio terminal. For example (in TETRA
mode) it is possible to inhibit the transmission (Tx Inhibit), to
manage the working profiles WPS (Group Management), to ac-
cess the Bluetooth functionalities.
Furthermore through the Preferences menu the user can person-
alize the terminal, setting: language, sounds volume, backlight,
zoom in/zoom out. It is also possible in REP mode, to enable or
disable the presence signal transmission.
In REP or GTW mode it is also possible to enable or disable the
speech monitor function and only in REP mode the SDS monitor
function.
Monitor (FM only) (*)
By means of menu Monitor it is possible to check the radio
coverage of other FM radio users.
GPS
This menu allows to display the GPS data information.
Information
This menu allows to display the equipment information.
Help
Selecting Help from main menu it is possible to visualize the
direct access keys function (direct access keys are available even
during calls). Within the Help menu are also shown: the descrip-
tion of the strings to be dialled to define the call priority, the
gateways and the address composition method (for TETRA). It is
also possible to visualize a brief description of the symbols that
can appear on the display.
(*) Function not available for U.S. market
