Semtech TBSP100 LoRaWAN Sensor User Manual TBHH100TBHV100

TrackNet, Inc LoRaWAN Sensor Users Manual TBHH100TBHV100

Users Manual_TBHH100TBHV100

Get Started
12 Having trouble? Get technical support at tabs.io/support.
Set Up Your Device
4. Place Your Device
Make sure that its air vent
is not blocked and that it is
not directly in front of fans or
other ventilation.
1. Download the App
Search for Tabs on the Apple
App Store or Google Play Store.
2. Sign Up
Create a Tabs account, or log
in if you already have one.
3. Add Your Device
Follow the in-app instructions,
or tap the button in the
Control tab.
32 Having trouble? Get technical support at tabs.io/support.
Healthy
Home Sensor
Monitor Air Quality
Be alerted if there are harmful levels of
VOCs or eCO detected in your home.
Monitor Temperature & Humidity
Maintain a comfortable environ-
ment by being aware of changes
in temperature and humidity.
Long-Lasting Batteries
Don’t worry about replacing the
batteries for a year or more.
Set Custom Alerts
Get notified by the app when
important events occur.
Ensure that your family is comfortable and that your home air
quality is safe. The Healthy Home Sensor alerts you to harmful
contaminants in your home air quality as well as major changes in
humidity or temperature.
What’s in the Box
Healthy Home Sensor
Requirements
Tabs Hub or
Mini Hub
Internet
Connection
iOS 9+ or
Android 4.1+
54 Having trouble? Get technical support at tabs.io/support.

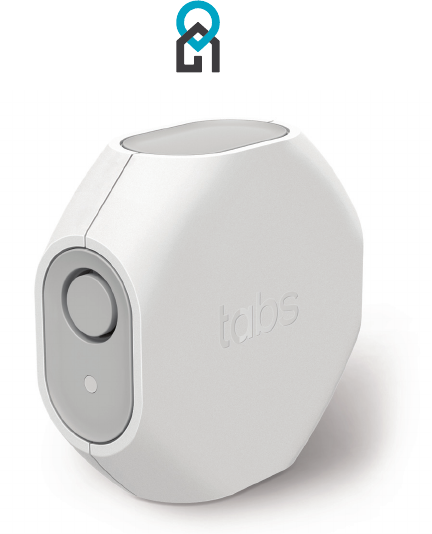

Healthy Home Sensor Placement
Place the sensor in the room of your home
that you would like to monitor. It can be
either standing up or on its side.
• Do not allow the air sensing vent to be
blocked by other objects.
• Do not place the device in the direct air flow
from fans, heating, ventilation, or air condi-
tioning.
• Good locations include bookshelves, desks,
and night stands.
• It may take up to forty-eight hours after the
Healthy Home Sensor is installed for the air
quality readings to become accurate. During
that time it may show elevated readings.
Air Sensing
Vent
About VOCs and eCO2
In addition to temperature and humidity, your sensor evaluates the relative air quality in your
home by measuring Volatile Organic Compounds (VOCs). VOCs are emitted as gases from
various household products and can lead to a degradation in indoor air quality. The Healthy
Home sensor also calculates the level of equivalent Carbon Dioxide (eCO), another
potential hazard to indoor air quality. Long-term exposure to poor air quality can affect the
health and comfort of those exposed. For more information, visit tabs.io/support.
The Tabs App
76 Having trouble? Get technical support at tabs.io/support.
You can monitor the status of your Healthy
Home Sensor by viewing its detail screen via
the Control tab. From there, you will be able to
see details of the current temperature, humidity,
VOC, and eCO levels in the room that your
sensor is placed in. By default, these will register
at the following levels:
Healthy Home Sensor Status
Temperature
Blue: Lower than 64°F (18°C)
Green: 64–82°F (18–28°C)
Red: Higher than 82°F (28°C)
Humidity
Red: Lower than 30% or higher than 60%
Green: 30–60%
eCO
Good: Less than 1100ppm
Fair: 1100–2100ppm
Poor: Greater than 2100ppm
VOC
Good: Less than 250ppm
Fair: 250–500ppm
Poor: Greater than 500ppm
Manage all of your devices, create custom
alerts and more with our easy-to-use app.
About the App
Menu
View alerts, update settings, get product
and app support, and set your Quick Mode.
Locate
See the current location of your Tabs
Object or Wristband Locator.
Control
Manage and view history, settings, and
alerts for all of your devices.
Wi-Fi
Set Wi-Fi Parental Controls including
schedules, time limits, and restricted con-
tent. In-app purchase required.
98 Having trouble? Get technical support at tabs.io/support.
You can set up custom alerts for your Tabs devices. From the Control tab, select the
device you would like to create an alert for, and then follow the steps below:
23
4
1. Select Alerts inside the device detail screen.
2. You will see a list of all available alerts. Active
alerts will have a green dot. Choose the alert
which you would like to set or edit.
Custom Alerts
1
3. Some alerts require extra information such as
temperature or humidity ranges.
4. All alerts must be activated in at least one
Quick Mode (see next page).
Home NightAway
Quick modes ensure that you only get the
alerts you really need, when you want them. For
example, you might not want to receive alerts
from your door sensor when you are home.
Modes are set per alert during alert creation.
You can change your current mode from the side
menu .
Quick Modes
Switching to Away mode displays a toggle for
Friends & Family. This feature forwards your alerts
to a trusted neighbor or family member. Members
can be added by going to Alerts under Settings in
the side menu and tapping on Friends & Family
Alerts.
Friends & Family Mode
1110 Having trouble? Get technical support at tabs.io/support.
Important Product & Safety Instructions
For the most current and more detailed information about Tabs features and settings as
well as safety instructions, please download the user manual for the products online at
tabs.io/support before use of any Tabs products or services.
Certain sensors contain magnets. Keep
away from ALL Children! Do not put in
nose or mouth. Swallowed magnets can
stick to intestines causing serious injury or
death. Seek immediate medical attention
if magnets are swallowed.
These products are not toys and contain
small parts that can be dangerous to
children under 3 years old. Do not allow
children or pets to play with products.
Observe proper precautions when
handling batteries. Batteries may leak or
explode if improperly handled.
Observe the following precautions to
avoid a sensor explosion or fire:
• Do not drop, disassemble, open,
crush, bend, deform, puncture, shred,
microwave, incinerate or paint the
sensors, Hub or other hardware.
• Do not insert foreign objects into any
opening on the sensors or Hub, such as
the USB port.
• Do not use the hardware if it has been
damaged—for example, if cracked,
punctured or harmed by water.
Disassembling or puncturing the battery
(whether integrated or removable) can
cause an explosion or fire.
• Do not dry the sensors or battery with
an external heat source such as a
microwave oven or hair dryer.
Warnings
• Do not place naked flame sources, such as
lighted candles, on or near the equipment.
• The battery shall not be exposed to excessive
heat such as sunshine, fire or the like.
• Do not dismantle, open or shred battery pack
or cells.
• Do not expose batteries to heat or fire. Avoid
storage in direct sunlight.
• Do not short-circuit the battery. Do not store
batteries in a box or drawer where they may
short-circuit each other or be short-circuited by
other metal objects.
• Do not remove a battery from its original
packaging until required for use.
• Do not subject batteries to mechanical shock.
• In the event of a battery leaking, do not allow
the liquid to come in contact with the skin
or eyes. If contact has been made, wash the
aected area with copious amounts of water
and seek medical advice.
• Do not use any charger other than that specifi-
cally provided for use with the equipment.
• Observe the plus (+) and minus (-) marks on the
battery and equipment and ensure correct use.
• Do not use any which is not designed for use
with the product.
• Do not mix cells of dierent manufacture,
capacity, size or type within a device.
• Keep batteries out of the reach of children.
• Seek medical advice immediately if a battery
has been swallowed.
• Always purchase the correct battery for the
equipment.
• Keep batteries clean and dry.
• Wipe the battery terminals with a clean dry cloth
if they become dirty.
• Rechargeable batteries need to be charged
before use. Always use the correct charger
and refer to the manufacturer’s instructions
or equipment manual for proper charging
instructions.
• Do not leave a rechargeable battery on
prolonged charge when not in use.
1312 Having trouble? Get technical support at tabs.io/support.
Notices
Avoid exposing your sensors or batteries
to very cold or very hot temperatures. Low
or high temperature conditions may tem-
porarily shorten the battery life or cause
the sensors to temporarily stop working.
Take care in setting up the Hub Gateway
and other hardware. Follow all installation
instructions in the User Guide. Failure to
do so may result in injury.
Do not install hardware equipment while
standing in water or with wet hands.
Failure to do so can result in electric shock
or death. Use caution when setting up all
electronic equipment.
When charging the sensors, do not handle
the sensors with wet hands. Failure to
observe this precaution could result in
electric shock.
Do not check the GPS via the Tabs
application while driving or in other
situations where distractions could be
hazardous. Always be aware of your
surroundings when using the Wristband
Locator or other sensors.
The Wristband Locator Sensor may cause
skin irritation. Prolonged contact may
contribute to skin irritation or allergies in
some users. To reduce irritation, follow
four simple wear and care tips: (1) Keep
it clean; (2) keep it dry; (3) don’t wear it
too tight, and (4) give your wrist a rest
by removing the band for an hour after
extended wear.
PROP 65 WARNING: This product
contains chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm
Cleaning Tabs Products: Use a clean dry
cloth or wipe to clean Tabs products. Do
not use detergent or abrasive materials
to clean the Tabs products, as this may
damage the sensors.
Hereby, TrackNet declares that the radio equipment for Tabs products is in compliance with Directive
2014/53/EU.
This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
For the full FCC/IC Compliance Statements and EU declaration of conformity, visit www.tabs.io/legal
Warranty
Limited Warranty: To the extent permitted by the law in the country in which purchase Tabs products, TrackNet
warrants that for a period of one (1) year from original date of purchase, the product will be free from defects in
materials and workmanship under normal use. In the event of a defect, contact TrackNet Customer Support (tabs.io/
support) for assistance. TrackNet’s sole obligation under this warranty will be, at its option, to repair or replace the
product. This warranty does not apply to products damaged by misuse, accident, or normal wear and tear. Damage
resulting from use with non-Tracknet’s batteries, power cables, or other battery charging/recharging accessories or
devices is also not covered by this or any warranty. NO OTHER WARRANTY OF ANY KIND (EITHER EXPRESS OR
IMPLIED) IS PROVIDED AND ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A SPECIFIC OR GENERAL PURPOSE AND THOSE ARISING
BY STATUTE OR BY LAW, OR FROM A CAUSE OF DEALING OR USAGE OF TRADE.
Limitation of Liability: IN NO EVENT, REGARDLESS OF CAUSE, SHALL TRACKNET BE LIABLE FOR ANY INDIRECT,
SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, AND WHETHER
RELATED TO THE USE OF THE TABS PRODUCTS OR SERVICES OR OTHERWISE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
This symbol means that according to local laws and regulations your product should be disposed of separately
from household waste. When this product reaches its end of life, take it to a collection point designated by
local authorities. Some collection points accept products for free. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment.
TBUG100-HH1 Rev. A
© 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved
Manufactured by Trackio GmbH
Engelhölzlistrasse 7A, 8645 Rapperswil-Jona SG, Switzerland

Navigation menu
