BT-MC88-1X 产品说明书

介绍 Introduction

1.1 简要 Overview

★ BT-MC88-1X是一款基于 CSR8811芯片设计的 HCI模组 .

BT-MC88-1X is a H CI module bas ed on CSR8811 ch ip.

★ BT-MC88-1X是由一单射频和基带 IC组成并应用于蓝牙 2.4GHz系统的模组 .

The BT-MC88-1X i s a module that Integrate a single-chip r adio and baseband IC for

Bluetooth 2.4G Hz systems.

1.2 特征 Features

★ 蓝牙双模/蓝牙低功耗

Dual-mode Bluetoo th/Bluetooth low energy

★ 高品质蓝牙4.0

High qualit y Bluetooth v4.0

★ Class2蓝牙功率等级

Bluetooth powe r level：Class 2

★ 高速串行通讯接口（最高到4Mbps）

High-speed UAR T port (up to 4Mbp s)

★ PCM/I2S兼容数字音频接口

PCM/I2S digital audio inter faces.

★ 支持IEEE 802.11协议

Support for IEEE 802.11

★ 模组尺寸23*16*3.2mm，邮票孔，24个脚位（带屏蔽罩）

Module size 23 *16*3.2mm, Sta mp-24(with shi eld case)

★ 模组内置PCB天线

Built-in pat tern antenna o n the module

★ 标准的HCI通讯接口

Standard HC I support

★ 宽电源供电，电压范围：2.7-3.6V

Flexible voltage supply, supp ly range: 2.7 -3.6V

★ 环保RoHS

Environmental car e: RoHS

1.3 应用 Applications

★ 车载免提

Hands-Free Car Kits

★ 低端手机、功能手机、智能手机

Low-cost phones , Feature phone s, Smart-phone s

★ 便携式媒体播放器

Portable media players

BT-MC88-1X Specification

2.规格参数

3 射频规格 RF Spe

规格

Specification

条件

Condition

最小

Min.

典型

Type

最大

Max.

单位

Unit

输出功率

Output transmit power Normal -6 0 4 dBm

调制特性

Modulation characteristics

f1 avg 140 175 kHz

f2 max 115 kHz

f2avg/f1a

80 %

初始载波频率容限

Initial carrier-frequency tolerance Normal -20 20 kHz

载波频率漂移

Carrier frequency drift

DH1 -25 25 kHz

DH3 -40 40 kHz

DH5 -40 40 kHz

Draft rate/50us

-20 20 kHz

备注：常温下是25±5℃

Remark: Normal Test Condition is 25±5℃

1 产品或项目名称 Product/ Project Name 车载蓝牙模组 Car kit Bluetooth Module

2 芯片类型 Chip set BlueCore CSR8811 A08 0.5mm WLCSP

3 产品射频功率等级 Power class level Class 2 (-6dBm < PAV < 4dBm)

4 波特率 Baud Rate 9600bps～4Mbps

5 额定电压 Rated Voltage 3.3V

6 工作电压范围 Operation Voltage range 2.7V～3.6V

7 工作范围 Operation Range 10 meters (33 feet)

8 尺寸 Dimension 23*16*3.2mm （L*W*H）

9 核心规格版本 Core Specification Version

□1.2 □2.0 □2.0+EDR □2.1

□2.1+EDR ■3.0 □3.0+HS ■4.0

10 认证 Test of certification FCC\CE\IC\MIC\BQB

11 工作温度范围 Operation Temperature range -30～85℃

12 储存温度范围 Storage Temperature range -40～85℃

BT-MC88-1X Specification

4 管脚配置

No. 名称 Pin Name I/O

接口类型 Pad Type 描述 Pin Description

1 GND - VSS Ground of supply voltage

2 SPI_CS#/PCM_SYN

C I/O

Bi-directional, Tristate, with

weak internal pull-down

SPI chip select(active low) or PCM synchronous data

sync

3 SPI_MISO/PCM_OU

T O Output, Tristate, with weak

internal pull-down SPI data output or PCM synchronous data output

4 SPI_CLK/PCM_CLK

I/O

Bi-directional, Tristate, with

weak internal pull-down SPI clock or PCM synchronous data-clock

5 SPI_MOSI/PCM_IN I Input, Tristate, with weak

internal pull-down SPI data input or PCM synchronous data input

6 SPI_PCM#_SEL I Input with weak internal

pull-down

Control line to select SPI or PCM interface, H=SPI,

L=PCM

7 RESET# I Input with strong internal

pull-down

Active low reset, to ensure a full reset the reset sigma

should be asserted for period greater than 5ms.

8 VDD_3V3 I VDD Positive supply for module,

-Supply voltage: Typical 3.3V

9 VDD_PADS I VDD Positive supply for module,

-Supply voltage: Typical 3.3V

10 GND - VSS Ground of supply voltage

11 I2C_SDA I/O

Bi-directional, Tristate EEPROM data pin, Internal 4.7K pull-up resistor

12 I2C_SCL I Input clock EEPROM clock pin, Internal 4.7K pull-up resistor

13 I2C_WP I Write protect input EEPROM write protect pin, Internal 4.7K pull-up resistor

14 VDD_1V8 I VDD Output from internal high-voltage regulator

15 GND - VSS Ground of supply voltage

16 UART_CTS I Bi-directional, Tristate, with

weak internal pull-up UART clear to send, active low

17 UART_RTS O Bi-directional, Tristate, with

weak internal pull-up UART request to send, active low.

18 UART_RX I Bi-directional, Tristate, with

weak internal pull-up

UART data input, active high

-Recommended external 10K pull-up resistor.

19 UART_TX O Bi-directional, Tristate, with

weak internal pull-up

UART data output, active high

-Recommended external 10K pull-up resistor.

20 GND - VSS Ground of supply voltage

21 NC - NC NC

22 NC - NC NC

23 NC - NC NC

24 GND - VSS Ground of supply voltage

备注：建议PCM,I2C以及 UART都串联一个10Ω-1K的外置电阻

Remark: Recommended external 10Ω-1K serial resistor for all the PCM, I2C and UART transfer ports.

BT-MC88-1X Specification

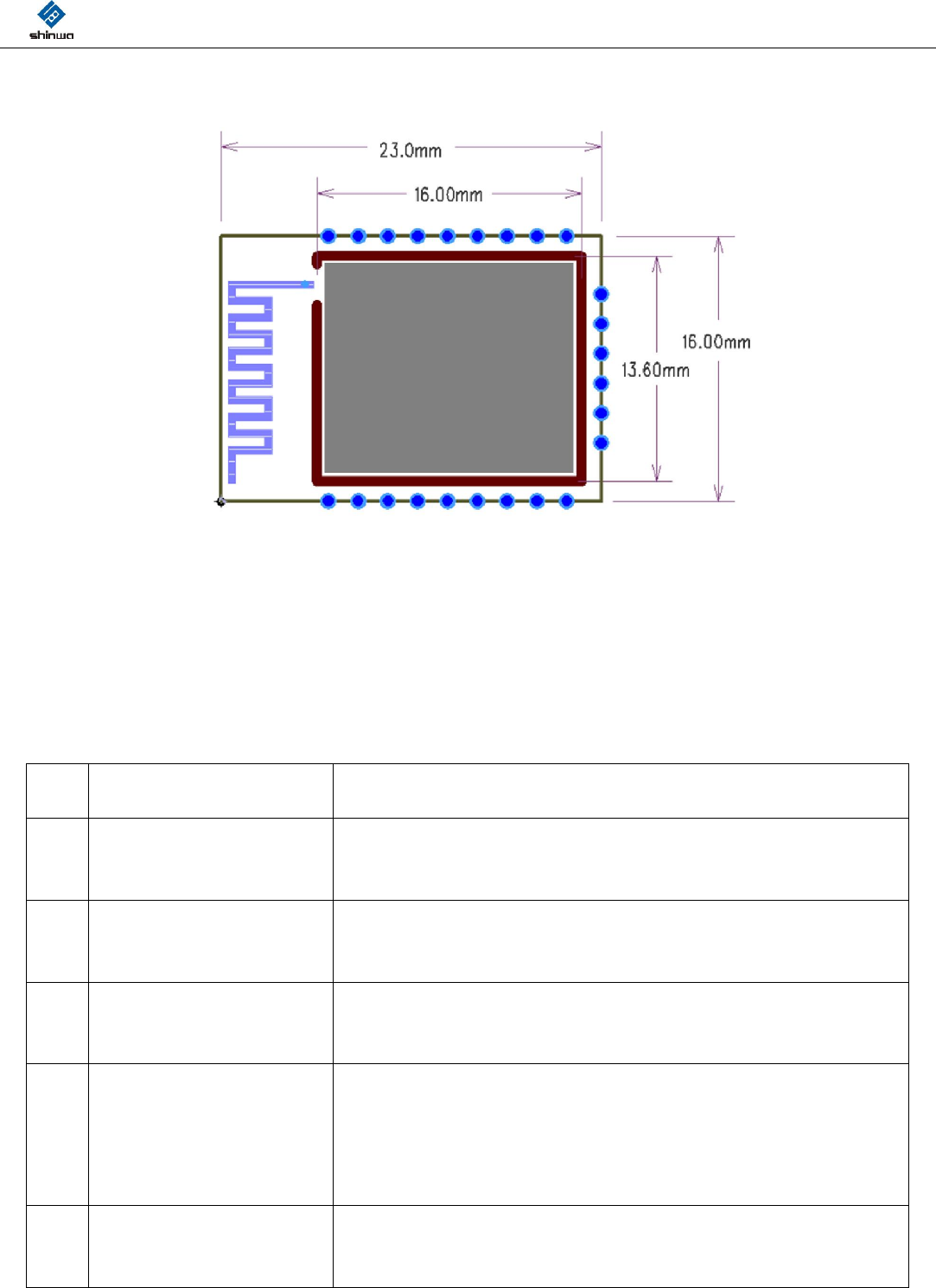

5 模组尺寸 Module Dimension

模块尺寸 23*16*3.2mm(长*宽*高) 公差: ±0.1mm

Module Size：23*16*3.2mm (L*W*H) tolerance: ±0.1mm

6试验规格 Routine Test Specification

序号

No.

测试项目

Test Item

测试条件

Conditions

换

高温存储

High Temperature (Storage)

在+85℃环境下放置 48 小时，在标准测试条件下三小时内进行测试，模块应满足可

靠性测试标准

+85℃, 48hrs, In standard test condition take measurements within 3 hours.

低温存储

Low Temperature (Storage)

在-40±3℃环境下放置 48 小时，在标准测试条件下三小时内进行测试，模块应满足

可靠性测试标准

-40±3℃,48hrs, In standard test condition, take measurements within 3 hours

高湿存储

High Humidity (Storage)

在40±3℃,90±5%RH 环境中放置 48 小时，在标准测试条件下三小时内进行测试，

模块应满足可靠性测试标准

40±3℃,90±5%RH, 48hrs, In standard test condition, take measurements within 3 hours

高低温循环

High and low temperature

cycling test

在+85℃环境下放置 30 分钟，然后温度降低到到-40℃（温度转换时间为 2个小时）

放置 30 分钟；然后温度升高到 85℃放置 30 分钟（温度转换时间为 2个小时），如

此重复循环 5次。实验完成后，在标准测试条件下，模块应满足可靠性测试标准

Tstg Max 85℃ 30 min s, Temperature shift time: within 2hrs. Tstg Min -40℃ 30 min s.

5 cycles

热冲击

Thermal Shock

在+85℃环境下放置 20 分钟后，温度切换到-40℃（在 5分钟之内）放置 20 分钟，

然后温度切换到 85℃（在 5分钟之内）放置 20 分钟，如此重复循环 5次，实验完

成后，在标准测试条件下，模块应满足基本功能

BT-MC88-1X Specification

Tstg Max 85℃ 20 mins, Temperature shift time: within 5 mins. Tstg Min -40℃ 20

mins. 50 cycles

静电测试

Electrostatic Resistance

人体接触放电 ±2KV，3次，静电测试后，在标准测条件下，模块应满足基本功能

human body model ±2KV, 3 times

振动测试

Vibration Resistance

振动频率：10～55Hz，扫频速率：0.1 oct/min，最大加速度：4G。X ，Y，Z三个

方向各两个小时，振动完成后，在标准测试条件下三个小时内测试，满足基本功能

Freq: 10~55Hz, 0.1 oct/min, max acceleration: 4Grms- Test time: X,Y, Z axis for 6

hours. After 1 hour vibration test, do the test in each direction. In standard test condition,

take measurements within 3 hours.

冲击测试

Impact Resistance

冲击测试：冲击加速度：50G(m/sec2)；冲击时间：11 毫秒；冲击频率和方向：6

个方向每个方向 10 次。在标准测试条件下三个小时内测试，模块应满足可靠性测

试标准跌落测试：将模块从 100 厘米的高度跌落到一块 10 毫米厚的胶合板上，

重复 5次，实验完成后在标准测试条件下，模块应满足基本功能

Shock Test: Impact acceleration: 50G(m/sec2), impact time: 11msec, impact frequency

and direction: 10 times each in 6 directions. In standard test condition, take

measurements within 3hr. Drop Test: Test height: 100cm. Frequency: 5 times. Drop the

module onto 10mm thickness plywood. In standard test condition, take measurements

within 3 hours

蒸压测试

Pressurizing Vapour

在-30℃环境下放置 1个小时，在 1分钟之内切换至 25℃,90%RH 环境下，放置 1

个小时，开启 15 分钟，然后关闭 15 分钟。在标准测试条件下进行 3个循环，实验

完成后在常温下放置 2个小时后测试，模块应满足基本功能

-30℃ 1 hour, shift to 25℃,90%RH within 1 min, stay 25℃,90%RH 1 hour, On:15min

then Off: 15min. 3 cycle In Standard test condition, take measurements 2 hours after
