Sichuan Changhong Electronic Component R811USA2 WLAN 802.11a/b/g/n/ac module User Manual

Sichuan Changhong Electronic Component Co., Ltd. WLAN 802.11a/b/g/n/ac module

User Manual

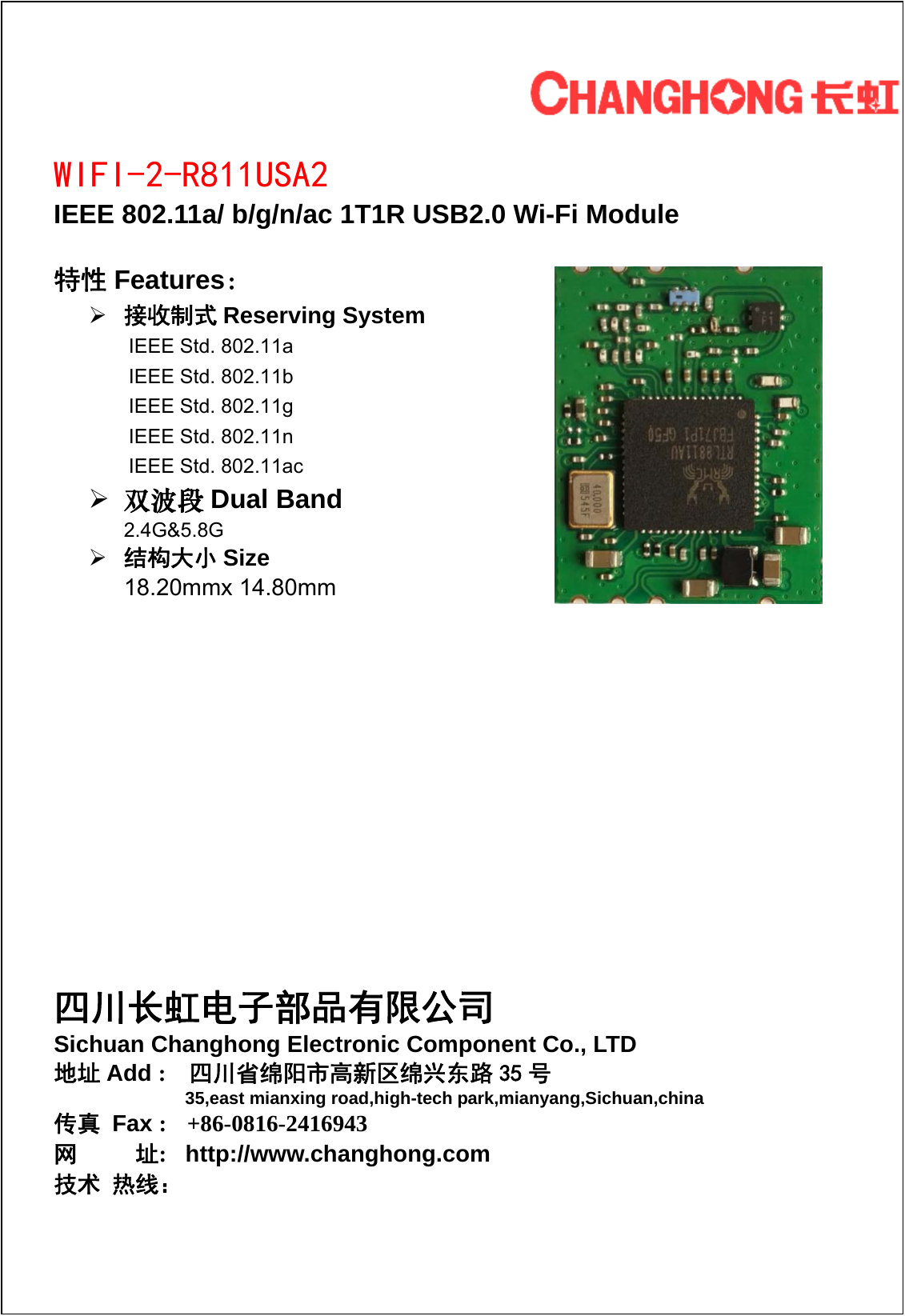

        WIFI-2-R811USA2 IEEE 802.11a/ b/g/n/ac 1T1R USB2.0 Wi-Fi Module  特性 Features: ¾ 接收制式 Reserving System IEEE Std. 802.11a IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n IEEE Std. 802.11ac ¾ 双波段 Dual Band 2.4G&5.8G ¾ 结构大小 Size 18.20mmx 14.80mm         四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., LTD 地址 Add :  四川省绵阳市高新区绵兴东路 35 号                  35,east mianxing road,high-tech park,mianyang,Sichuan,china 传真 Fax :  +86-0816-2416943 网     址:   http://www.changhong.com  技术 热线:

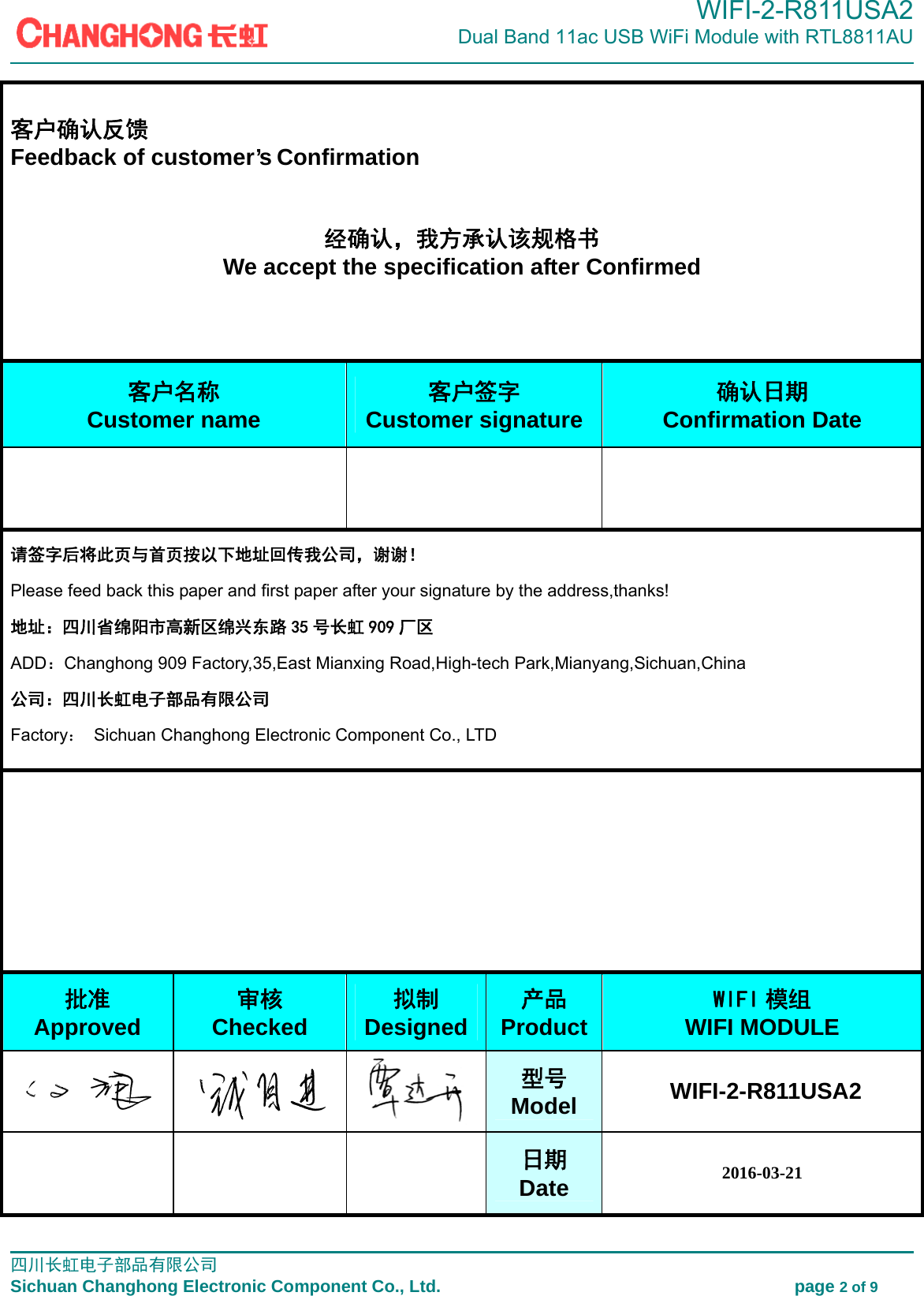

                                                                                            WIFI-2-R811USA2                            Dual Band 11ac USB WiFi Module with RTL8811AU                                                                                                                                                                                                                                                         四川长虹电子部品有限公司                                                                              Sichuan Changhong Electronic Component Co., Ltd.                                         page 2 of 9    客户确认反馈 Feedback of customer’s Confirmation         经确认,我方承认该规格书 We accept the specification after Confirmed    客户名称 Customer name 客户签字 Customer signature 确认日期 Confirmation Date    请签字后将此页与首页按以下地址回传我公司,谢谢! Please feed back this paper and first paper after your signature by the address,thanks! 地址:四川省绵阳市高新区绵兴东路 35 号长虹 909 厂区 ADD:Changhong 909 Factory,35,East Mianxing Road,High-tech Park,Mianyang,Sichuan,China 公司:四川长虹电子部品有限公司 Factory:  Sichuan Changhong Electronic Component Co., LTD            批准 Approved 审核 Checked 拟制     Designed 产品 ProductWIFI 模组 WIFI MODULE    型号 Model  WIFI-2-R811USA2    日期 Date 2016-03-21

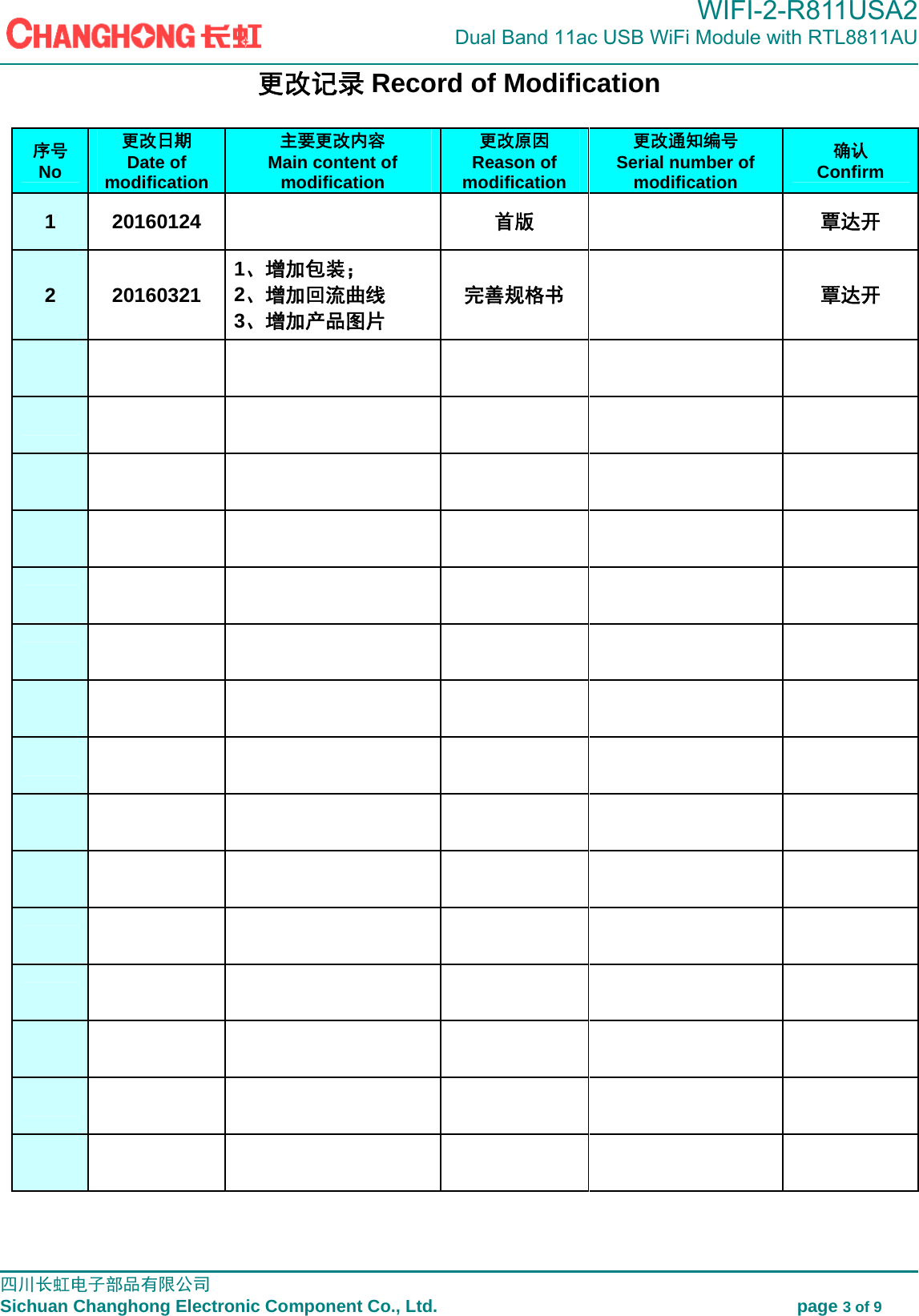

                                                                                            WIFI-2-R811USA2                            Dual Band 11ac USB WiFi Module with RTL8811AU                                                                                                                                                                                                                                                         四川长虹电子部品有限公司                                                                              Sichuan Changhong Electronic Component Co., Ltd.                                         page 3 of 9  更改记录 Record of Modification  序号 No 更改日期 Date of modification 主要更改内容 Main content of modification 更改原因 Reason of modification 更改通知编号 Serial number of modification 确认 Confirm 1 20160124    首版  覃达开 2 20160321 1、增加包装; 2、增加回流曲线 3、增加产品图片 完善规格书  覃达开

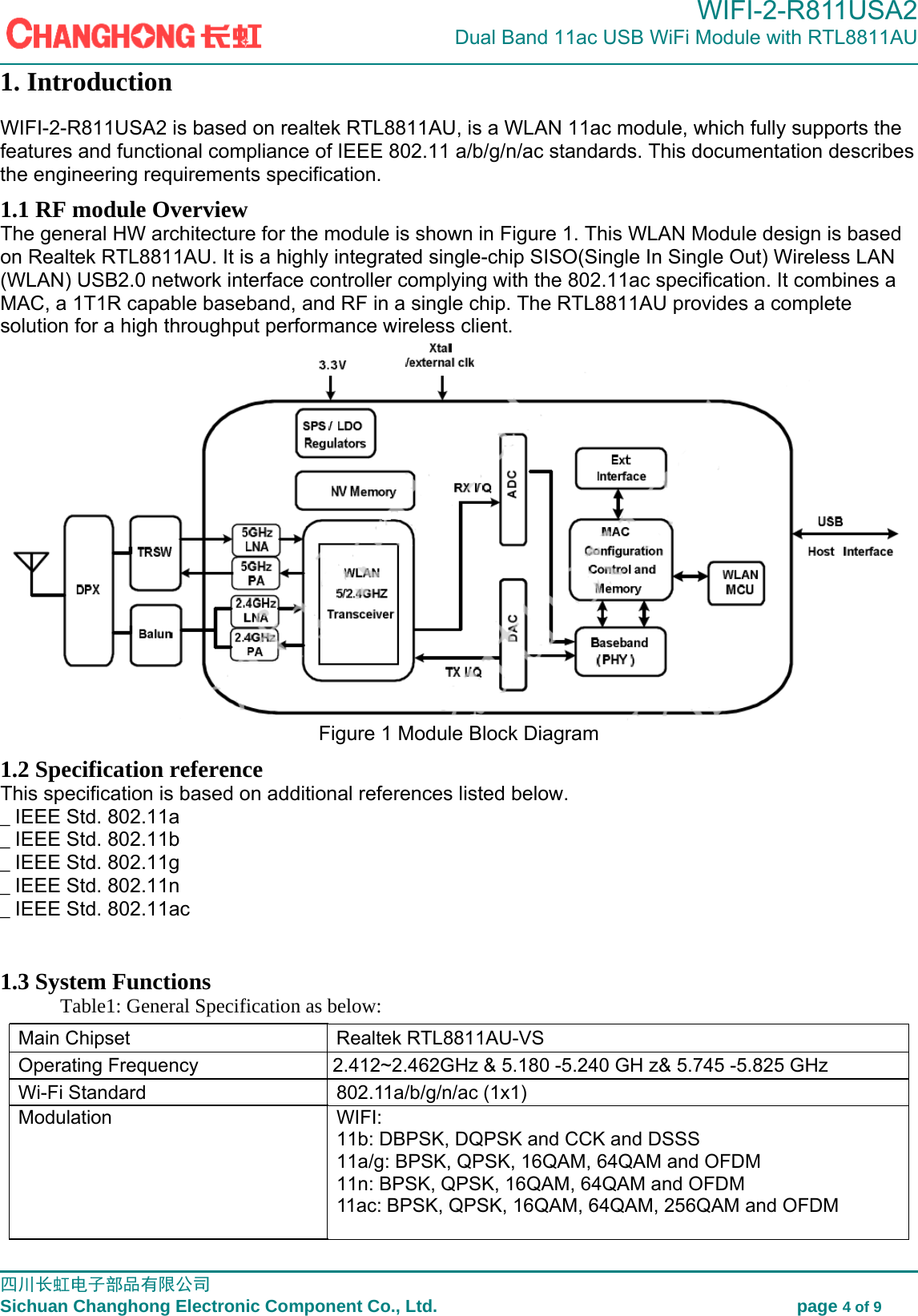

                                                                                            WIFI-2-R811USA2                            Dual Band 11ac USB WiFi Module with RTL8811AU                                                                                                                                                                                                                                                         四川长虹电子部品有限公司                                                                              Sichuan Changhong Electronic Component Co., Ltd.                                         page 4 of 9  1. Introduction WIFI-2-R811USA2 is based on realtek RTL8811AU, is a WLAN 11ac module, which fully supports the features and functional compliance of IEEE 802.11 a/b/g/n/ac standards. This documentation describes the engineering requirements specification.   1.1 RF module Overview The general HW architecture for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8811AU. It is a highly integrated single-chip SISO(Single In Single Out) Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11ac specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. The RTL8811AU provides a complete solution for a high throughput performance wireless client.  Figure 1 Module Block Diagram 1.2 Specification reference This specification is based on additional references listed below. _ IEEE Std. 802.11a _ IEEE Std. 802.11b _ IEEE Std. 802.11g _ IEEE Std. 802.11n _ IEEE Std. 802.11ac  1.3 System Functions Table1: General Specification as below:   Main Chipset    Realtek RTL8811AU-VS Operating Frequency  2.412~2.472GHz & 5.180 -5.240 GHz& 5.745 -5.825 GHz Wi-Fi Standard  802.11a/b/g/n/ac (1x1) Modulation   WIFI: 11b: DBPSK, DQPSK and CCK and DSSS   11a/g: BPSK, QPSK, 16QAM, 64QAM and OFDM   11n: BPSK, QPSK, 16QAM, 64QAM and OFDM 11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM and OFDM 2.412~2.462GHz & 5.180 -5.240 GH z& 5.745 -5.825 GHz

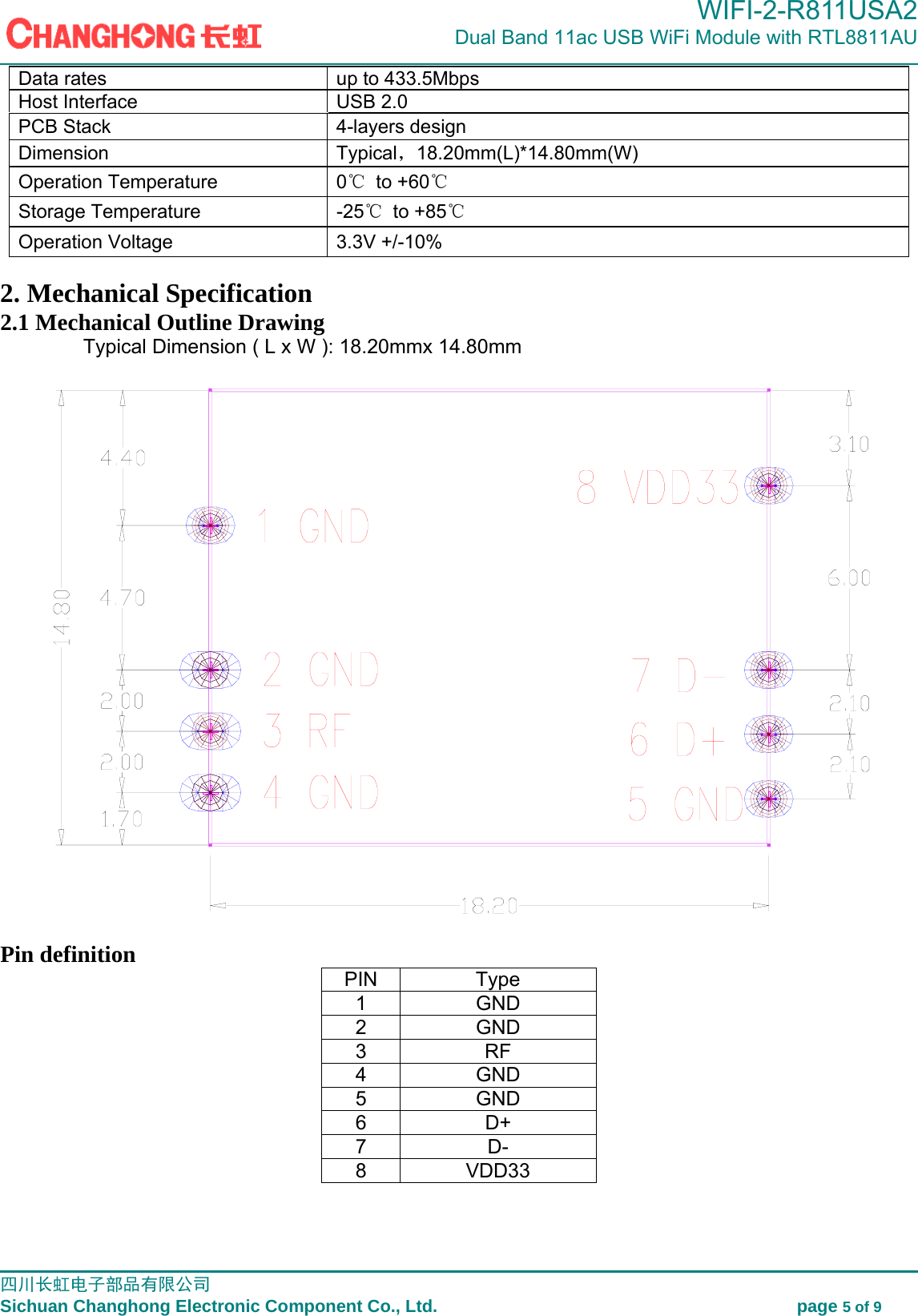

                                                                                            WIFI-2-R811USA2                            Dual Band 11ac USB WiFi Module with RTL8811AU                                                                                                                                                                                                                                                         四川长虹电子部品有限公司                                                                              Sichuan Changhong Electronic Component Co., Ltd.                                         page 5 of 9  Data rates    up to 433.5Mbps Host Interface    USB 2.0 PCB Stack  4-layers design Dimension Typical,18.20mm(L)*14.80mm(W) Operation Temperature  0℃ to +60℃ Storage Temperature  -25℃ to +85℃ Operation Voltage  3.3V +/-10% 2. Mechanical Specification 2.1 Mechanical Outline Drawing Typical Dimension ( L x W ): 18.20mmx 14.80mm  Pin definition PIN Type 1 GND 2 GND 3 RF 4 GND 5 GND 6 D+ 7 D- 8 VDD33

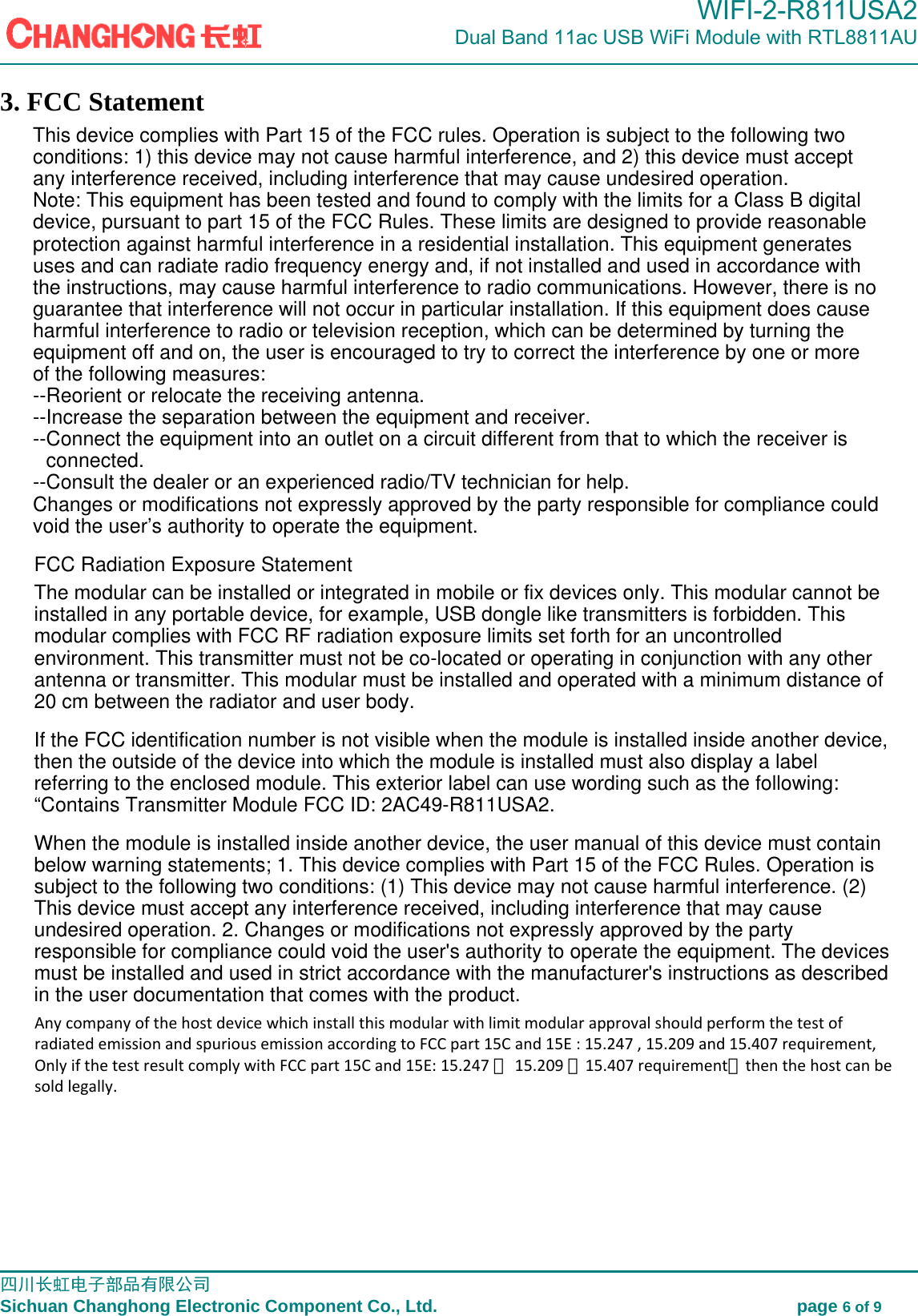

                                                                                            WIFI-2-R811USA2                            Dual Band 11ac USB WiFi Module with RTL8811AU                                                                                                                                                                                                                                                         四川长虹电子部品有限公司                                                                              Sichuan Changhong Electronic Component Co., Ltd.                                         page 6 of 9  3. FCC StatementThis device complies with Part 15 of the FCC rules. Operation is subject to the following twoconditions: 1) this device may not cause harmful interference, and 2) this device must acceptany interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generatesuses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or moreof the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user’s authority to operate the equipment.FCC Radiation Exposure Statement The modular can be installed or integrated in mobile or fix devices only. This modular cannot beinstalled in any portable device, for example, USB dongle like transmitters is forbidden. Thismodular complies with FCC RF radiation exposure limits set forth for an uncontrolledenvironment. This transmitter must not be co-located or operating in conjunction with any otherantenna or transmitter. This modular must be installed and operated with a minimum distance of20 cm between the radiator and user body.If the FCC identification number is not visible when the module is installed inside another device,then the outside of the device into which the module is installed must also display a labelreferring to the enclosed module. This exterior label can use wording such as the following:“Contains Transmitter Module FCC ID: 2AC49-R811USA2.When the module is installed inside another device, the user manual of this device must containbelow warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may causeundesired operation. 2. Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate the equipment. The devicesmust be installed and used in strict accordance with the manufacturer's instructions as describedin the user documentation that comes with the product.Any company of the host device which install this modular with limit modular approval should perform the test of radiated emission and spurious emission according to FCC part 15C and 15E : 15.247 , 15.209 and 15.407 requirement, Only if the test result comply with FCC part 15C and 15E: 15.247 , 15.209 ,15.407 requirement,then the host can be sold legally.

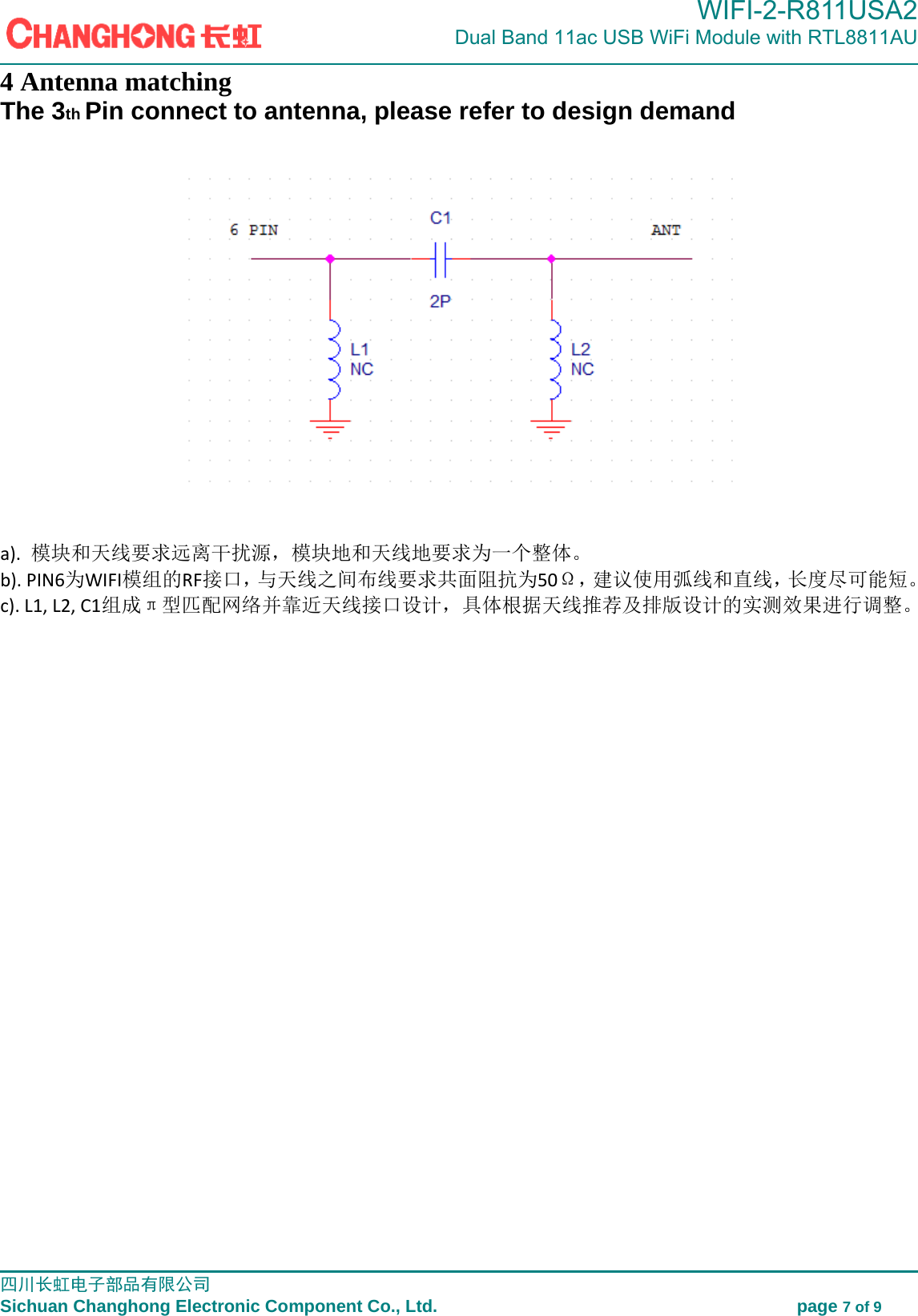

                                                                                            WIFI-2-R811USA2                            Dual Band 11ac USB WiFi Module with RTL8811AU                                                                                                                                                                                                                                                         四川长虹电子部品有限公司                                                                              Sichuan Changhong Electronic Component Co., Ltd.                                         page 7 of 9  4 Antenna matching The 3th Pin connect to antenna, please refer to design demand      a).模块和天线要求远离干扰源,模块地和天线地要求为一个整体。b).PIN6为WIFI模组的RF接口,与天线之间布线要求共面阻抗为50Ω,建议使用弧线和直线,长度尽可能短。c).L1,L2,C1组成π型匹配网络并靠近天线接口设计,具体根据天线推荐及排版设计的实测效果进行调整。

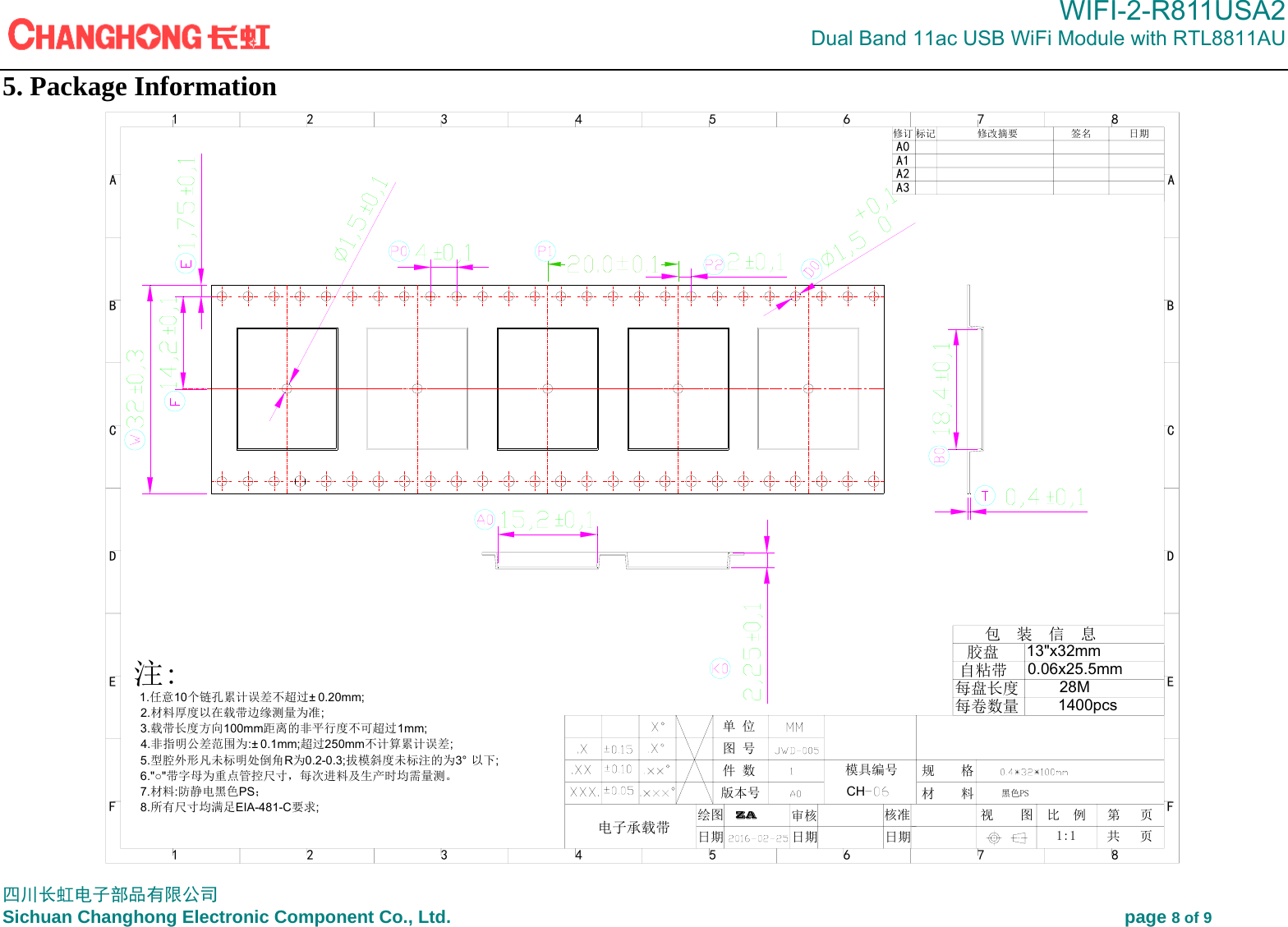

                                                                                            WIFI-2-R811USA2                             Dual Band 11ac USB WiFi Module with RTL8811AU  四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., Ltd.                                                                           page 8 of 9  5. Package Information A1A0日期签名修改摘要标记修订12345678FABCDE87654321FEDCBA单 位图 号件 数版本号   模具编号 规    格材    料绘图  审核 核准 比  例 第   页共   页1:1视    图日期 日期 日期A3A2黑色PSZA   电子承载带1.任意10个链孔累计误差不超过± 0.20mm;2.材料厚度以在载带边缘测量为准;3.载带长度方向100mm距离的非平行度不可超过1mm;4.非指明公差范围为:± 0.1mm;超过250mm不计算累计误差;5.型腔外形凡未标明处倒角R为0.2-0.3;拔模斜度未标注的为3° 以下;6."○"带字母为重点管控尺寸,每次进料及生产时均需量测。7.材料:防静电黑色PS;8.所有尺寸均满足EIA-481-C要求;注:包  装  信  息1400pcs每卷数量28M每盘长度0.06x25.5mm自粘带胶盘 13"x32mmCH

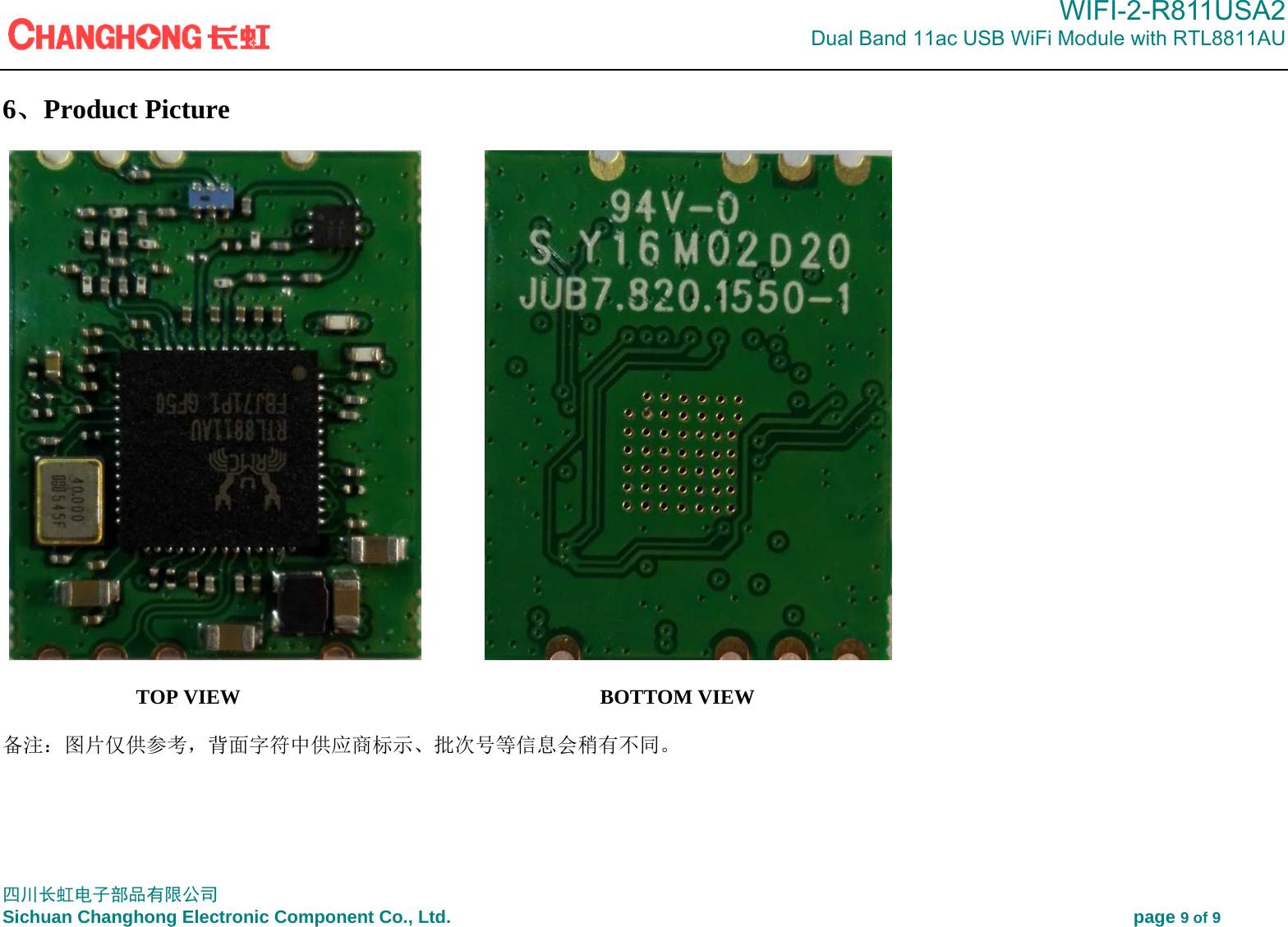

                                                                                            WIFI-2-R811USA2                             Dual Band 11ac USB WiFi Module with RTL8811AU  四川长虹电子部品有限公司 Sichuan Changhong Electronic Component Co., Ltd.                                                                                 page 9 of 9  6、Product Picture                    TOP VIEW                           BOTTOM VIEW  备注:图片仅供参考,背面字符中供应商标示、批次号等信息会稍有不同。
