SIMATIC NET
Industrial Wireless LAN
SCALANCE W774-1/W734-1
Operating Instructions
07/2013
C79000
-G8976-C325-01
Information on the Internet
1
Introduction
2
Description
3
Mounting
4
Connection
5
Technical data
6
Approvals
7
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
Order number: C79000-G8976-C325-01
Ⓟ
07/2013 Technical data subject to change
Copyright © Siemens AG 2013.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance a
re required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 3
Contents
1 Information on the Internet ...................................................................................................................... 5
2 Introduction ............................................................................................................................................. 7
2.1 Information on the Operating Instructions SCALANCE W774/W734 ............................................ 7
2.2 Structure of the type designation ................................................................................................... 8
2.3 Security information ....................................................................................................................... 8
3 Description .............................................................................................................................................. 9
3.1 Components of the product ............................................................................................................ 9

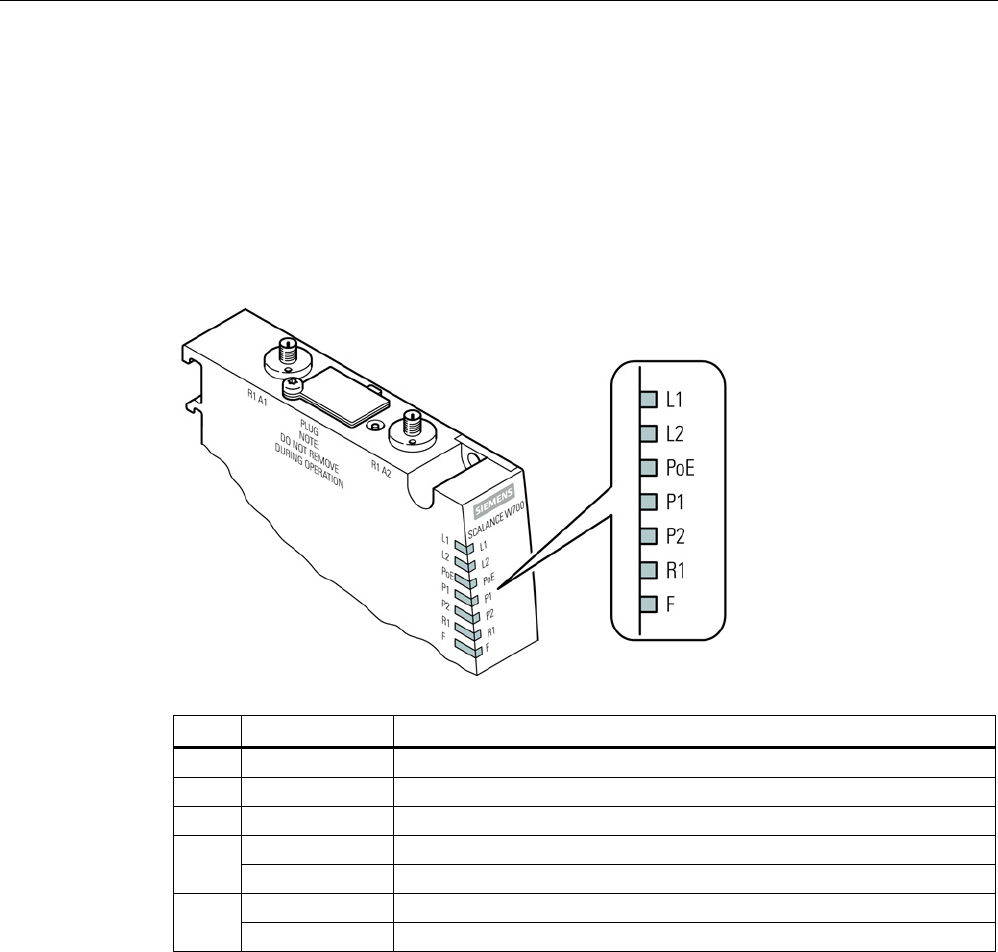

3.2 LED display .................................................................................................................................. 10
3.3 Reset button ................................................................................................................................. 12
4 Mounting ............................................................................................................................................... 13
4.1 Access restriction due to high housing temperature .................................................................... 13

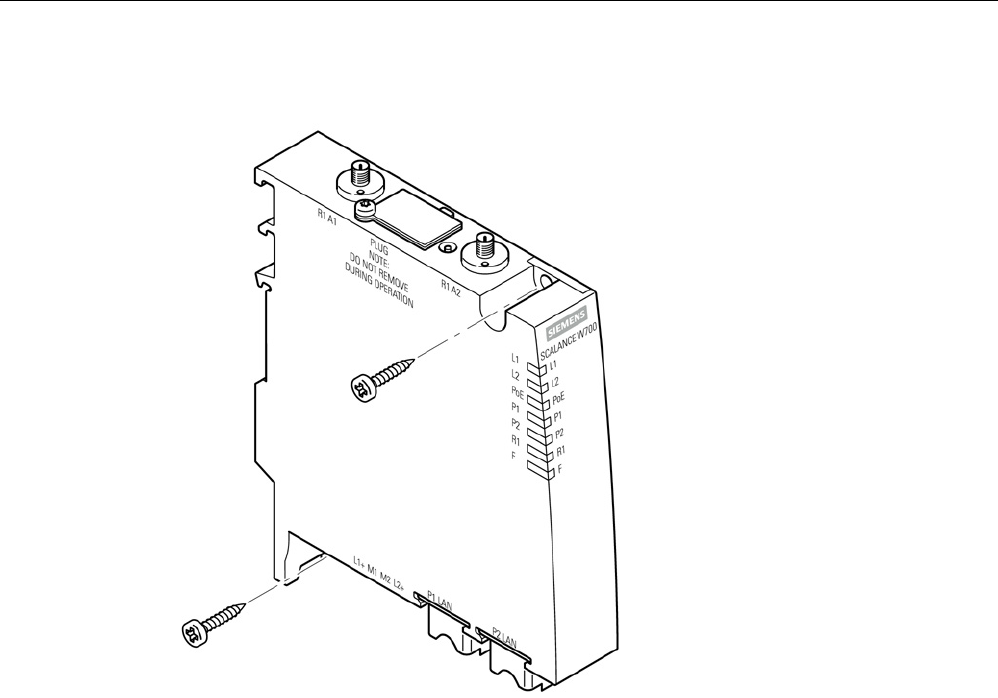

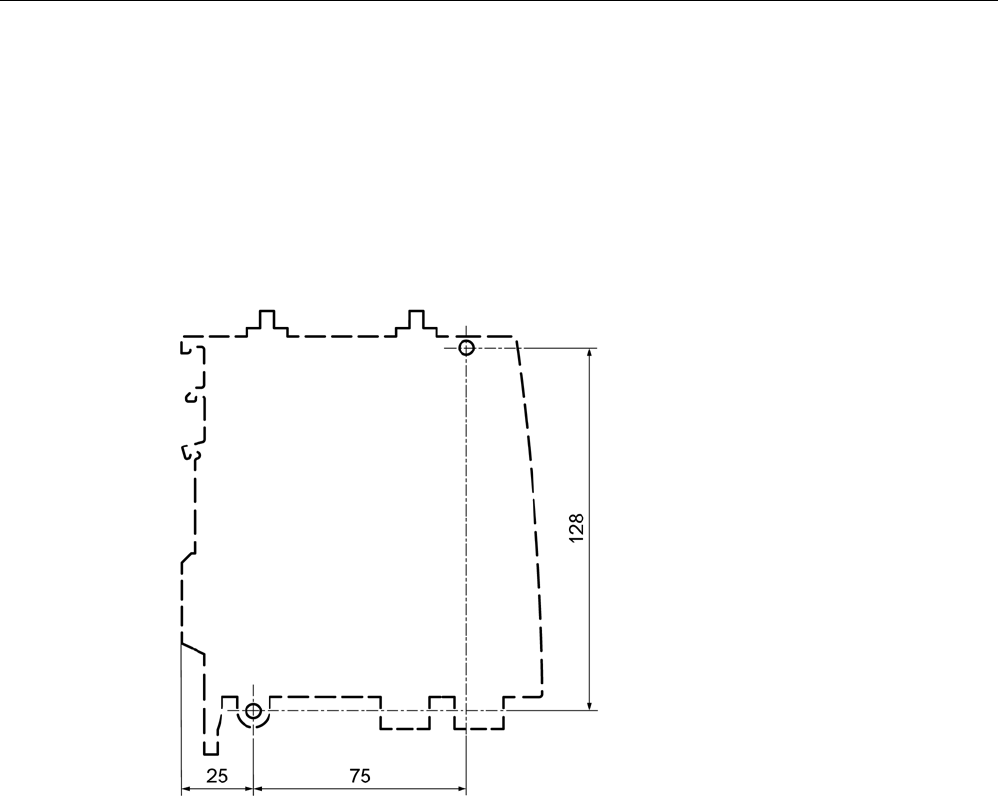

4.2 Wall mounting .............................................................................................................................. 14

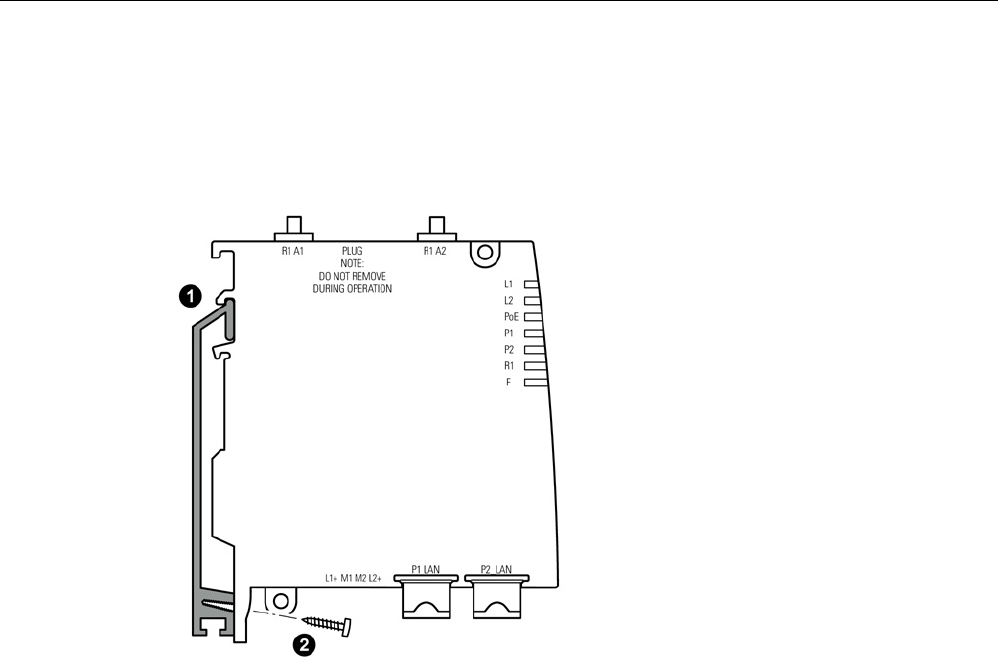

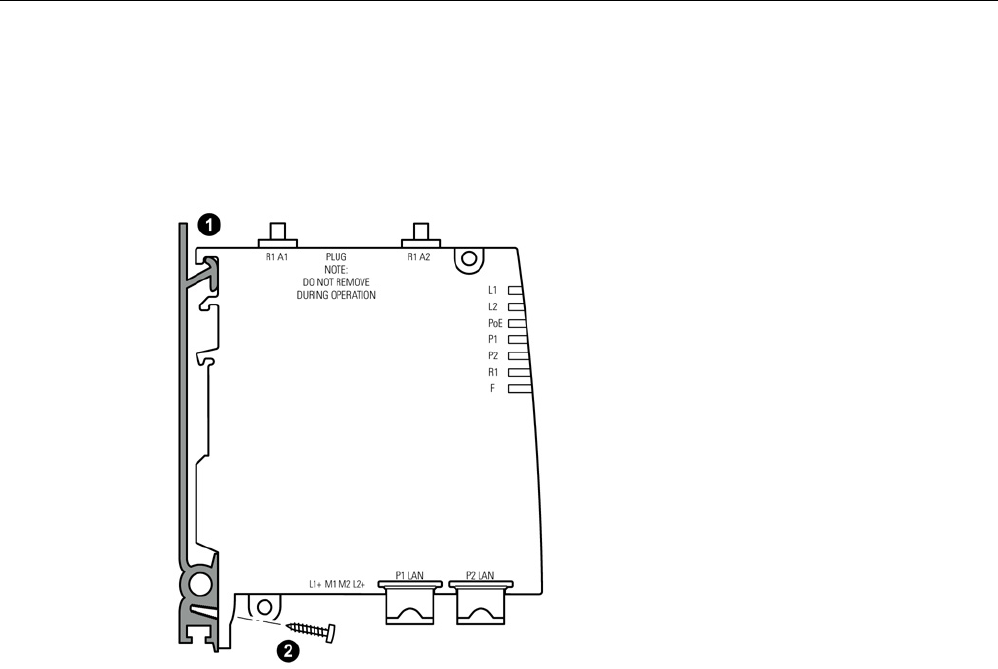

4.3 Installing on an S7-300 standard rail ........................................................................................... 16
4.4 Installing on an S7-1500 standard rail ......................................................................................... 17

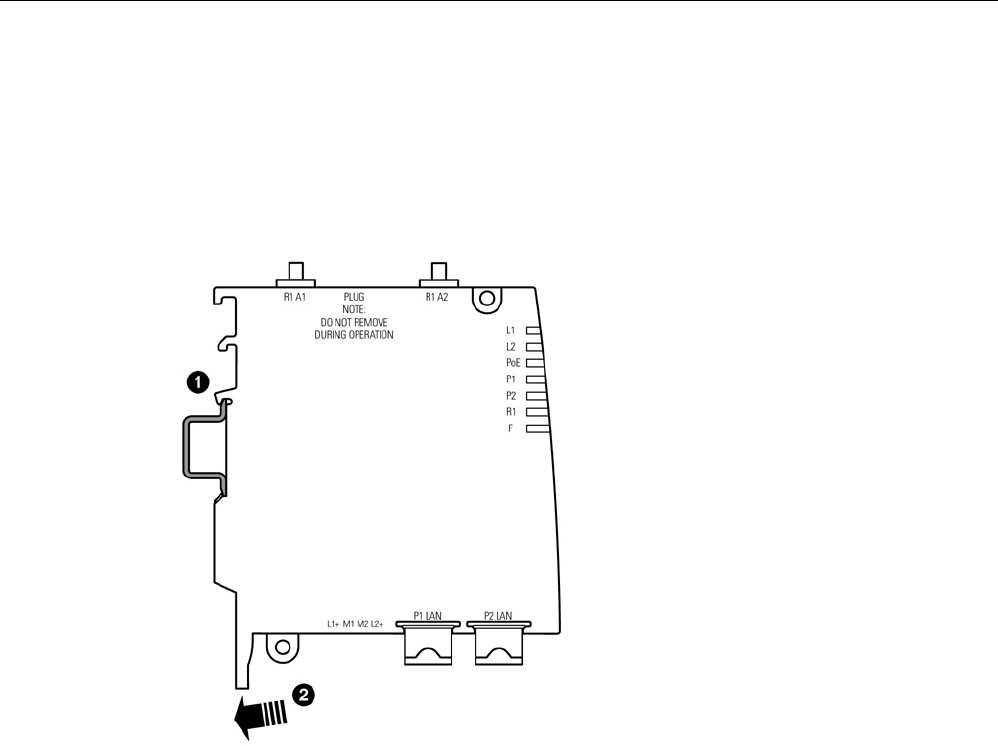

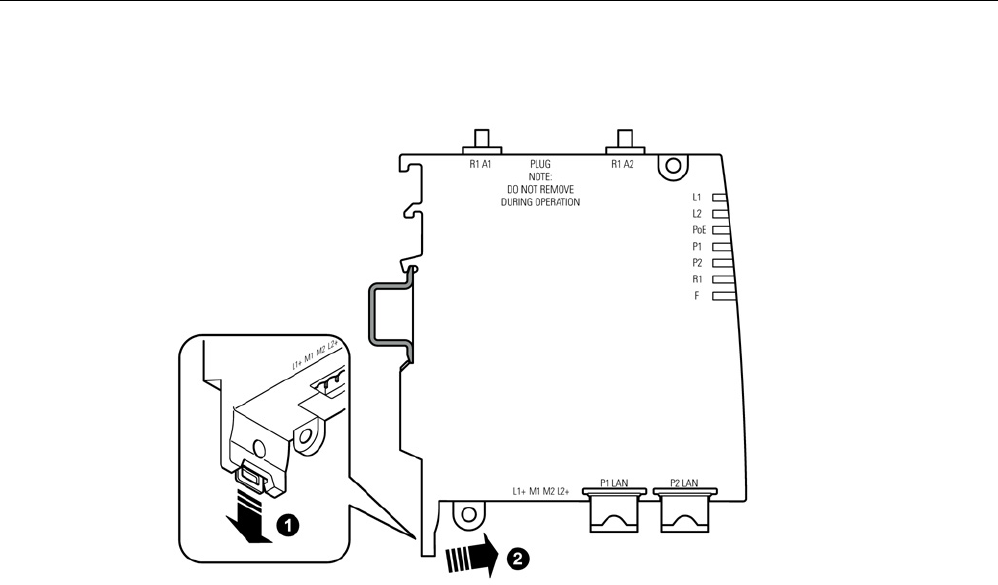

4.5 Installing on a DIN rail / removing ................................................................................................ 18
5 Connection ........................................................................................................................................... 21
5.1 Lightning protection, power supply and grounding ...................................................................... 21
5.2 Power supply ................................................................................................................................ 25
5.3 Ethernet ........................................................................................................................................ 26
5.4 Suitable cables for power supply and Ethernet ........................................................................... 27

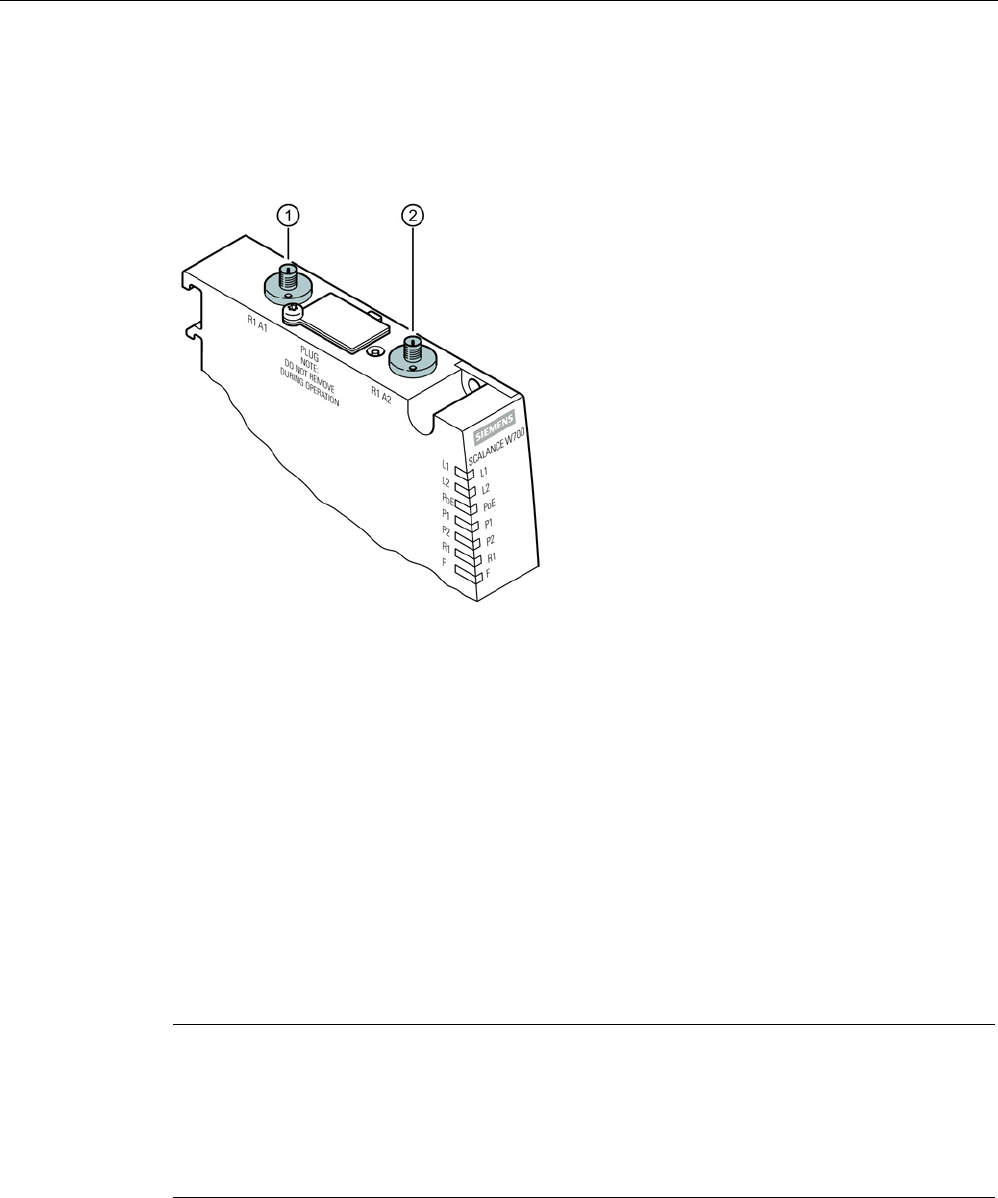

5.5 Antenna connectors ..................................................................................................................... 28
5.6 Suitable antenna cables and antennas ........................................................................................ 29

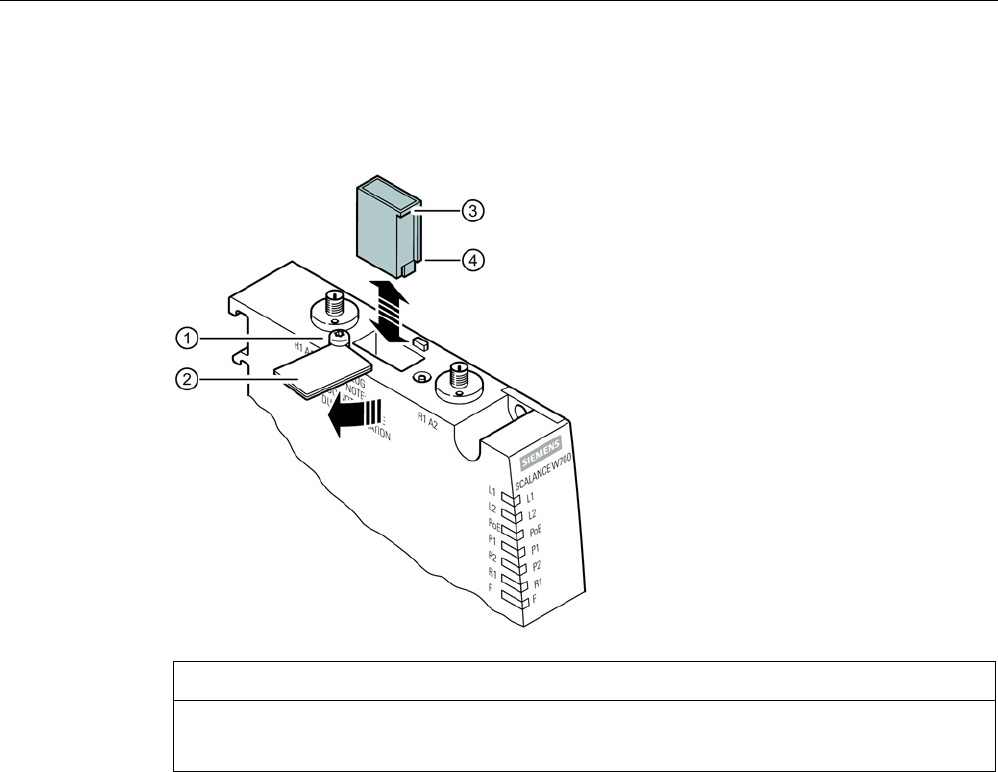

5.7 C-PLUG/KEY-PLUG .................................................................................................................... 31
6 Technical data ...................................................................................................................................... 33

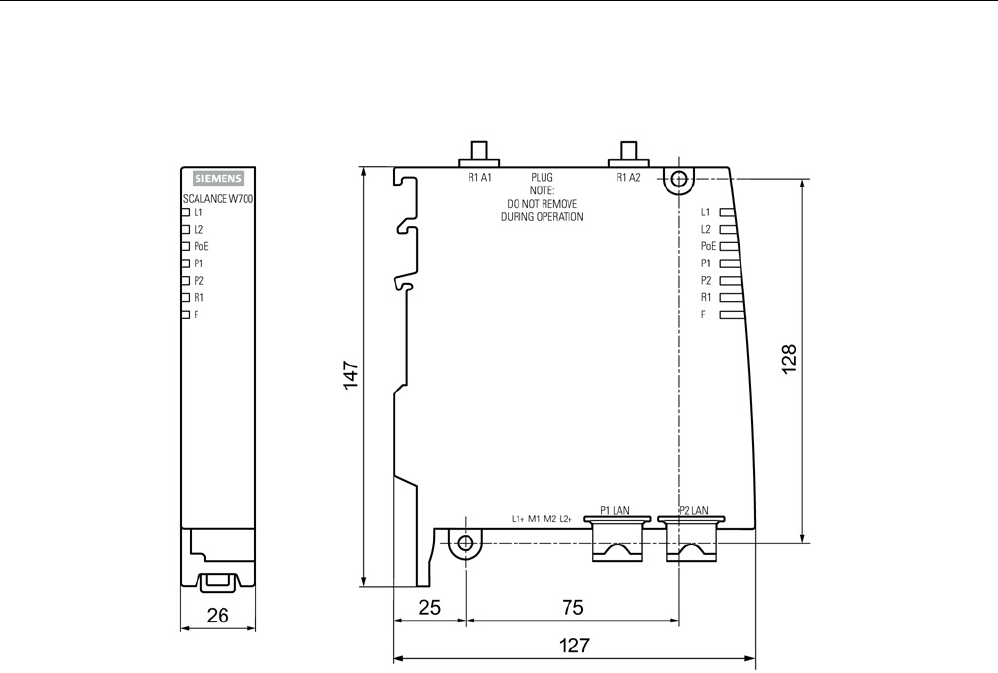

6.1 Dimensional drawing .................................................................................................................... 35
7 Approvals .............................................................................................................................................. 37
7.1 SCALANCE W774/W734 national approvals .............................................................................. 42
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 5
Information on the Internet
1
Bitte beachten Sie die Warnhinweise und zusätzlichen Informationen in der
Kompaktbetriebsanleitung in Ihrer Sprache im Internet:
http://support.automation.siemens.com/ww/view/at/10806097
http://support.automation.siemens.com/ww/view/ch/10806097
http://support.automation.siemens.com/ww/view/de/10806097
http://support.automation.siemens.com/ww/view/li/10806097
http://support.automation.siemens.com/ww/view/lu/10806097
Please observe the warnings and additional information in the compact operating
instructions in your language in the Internet:
http://support.automation.siemens.com/ww/view/au/10806097
http://support.automation.siemens.com/ww/view/ca/10806097
http://support.automation.siemens.com/ww/view/gb/10806097
http://support.automation.siemens.com/ww/view/ie/10806097
http://support.automation.siemens.com/ww/view/us/10806097
http://support.automation.siemens.com/ww/view/za/10806097
Veuillez tenir compte des avertissements et informations supplémentaires de la notice de
service dans votre langue sur Internet:
http://support.automation.siemens.com/ww/view/be/10806097
http://support.automation.siemens.com/ww/view/ch/10806097
http://support.automation.siemens.com/ww/view/fr/10806097
http://support.automation.siemens.com/ww/view/lu/10806097
Si prega di tenere conto delle avvertenze e ulteriori informazioni nell’istruzione operativa
compatta nella relativa lingua in Internet:
http://support.automation.siemens.com/ww/view/it/10806097
Se ruega tener en cuenta las advertencias y las informaciones complementarias contenidas
en las instrucciones de servicio (resumen) en español en Internet:
http://support.automation.siemens.com/ww/view/cl/10806097
http://support.automation.siemens.com/ww/view/es/10806097
Dbejte prosím na výstražné pokyny a doplňkové informace v kompaktním návodu k obsluze
ve vašem jazyce na internetu:
http://support.automation.siemens.com/ww/view/cz/10806097
Vær venligst opmærksom på de advarselsanvisninger og ekstra informationer der findes på
dit sprog i kompaktdriftsvejledningen på internettet:
http://support.automation.siemens.com/ww/view/dk/10806097
Noudata lyhyen käyttöoppaan sisältämiä varoituksia ja huomio sen muutkin tiedot. Oman
kielisesi käyttöoppaan löydät internetistä osoitteesta:
http://support.automation.siemens.com/ww/view/fi/10806097
Λάβετε υπόψη τις υποδείξεις προειδοποίησης και τις πρόσθετες πληροφορίες των
συνοπτικών οδηγιών χρήσης που παρέχονται στη γλώσσα σας στο Διαδίκτυο:
http://support.automation.siemens.com/ww/view/gr/10806097
Information on the Internet
SCALANCE W774-1/W734-1
6 Operating Instructions, 07/2013, C79000-G8976-C325-01
请注意互联网上精编版操作说明相应语言版本中的警告提示和附加信息：
http://support.automation.siemens.com/ww/view/cn/10806097
http://support.automation.siemens.com/ww/view/hk/10806097
http://support.automation.siemens.com/ww/view/sg/10806097
Kérjük, vegye figyelembe az interneten található, az Ön anyanyelvén íródott kompakt
használati útmutatóban található figyelmeztetéseket és további információkat:
http://support.automation.siemens.com/ww/view/hu/10806097
Skoðið vel viðvaranir og aðrar upplýsingar í notkunarleiðbeiningunum á ykkar tungumáli á
internetinu:
http://support.automation.siemens.com/ww/view/is/10806097
インターネットサイトにある各言語の注意事項および追加情報を参照してください:
http://support.automation.siemens.com/ww/view/jp/10806097
사이트에 있는 귀하의 언어로 된 콤팩트 사용 설명서에 명시된 경고 지침 및 추가 정보를
준수하십시오:
http://support.automation.siemens.com/ww/view/kr/10806097
http://support.automation.siemens.com/ww/view/kw/10806097
Neem goed nota van de waarschuwingen en extra informatie in de compacte
gebruiksaanwijzing in uw taal op internet:
http://support.automation.siemens.com/ww/view/be/10806097
http://support.automation.siemens.com/ww/view/nl/10806097
Vennligst følg advarslene og annen informasjon i den kompakte bruksanvisningen, som du
finner på ditt språk på internett:
http://support.automation.siemens.com/ww/view/no/10806097
Proszę zwrócić uwagę na ostrzeżenia oraz dodatkowe informacje w kompaktowej instrukcji
obsługi, dostępnej w odpowiednim języku w internecie:
http://support.automation.siemens.com/ww/view/po/10806097
Observera varningshänvisningarna och extrainformationerna i kompaktbruksanvisningen
som finns på ditt språk på internet:
http://support.automation.siemens.com/ww/view/se/10806097
İnternette kendi dilinizdeki kompakt işletim kılavuzunda yer alan uyarı notlarına ve ek
bilgilere lütfen dikkat edin:
http://support.automation.siemens.com/ww/view/tr/10806097
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 7
Introduction
2
2.1
Information on the Operating Instructions SCALANCE W774/W734
Validity of the Operating Instructions
These operating instructions cover the following products:
Order no.
Order no. of the US version:
Access point
SCALANCE W774-1 RJ-45
6GK5774-1FX00-0AA0
6GK5774-1FX00-0AB0
Ethernet client modules
SCALANCE W734-1 RJ-45
6GK5734-1FX00-0AA0
6GK5734-1FX00-0AB0
These operating instructions apply to the following software version:
● SCALANCE W774/W734 firmware as of Version 3.0
Purpose of the Operating Instructions
Based on the operating instructions, you will be able to install and connect up the
SCALANCE W774/W734 correctly. The configuration and the integration of the device in a
WLAN are not described in these instructions.
Documentation on the accompanying CD
You will find detailed information about configuration in the SCALANCE W700 configuration
manuals on the accompanying SIMATIC NET IWLAN CD under the file name:
PH_SCALANCE-W77x-W73x-WBM_76.pdf and PH_SCALANCE-W77x-W73x-CLI_76.pdf
Note
Make sure that you read the explanations and instructions in the README.txt file
Introduction
2.2 Structure of the type designation
SCALANCE W774-1/W734-1
8 Operating Instructions, 07/2013, C79000-G8976-C325-01
2.2

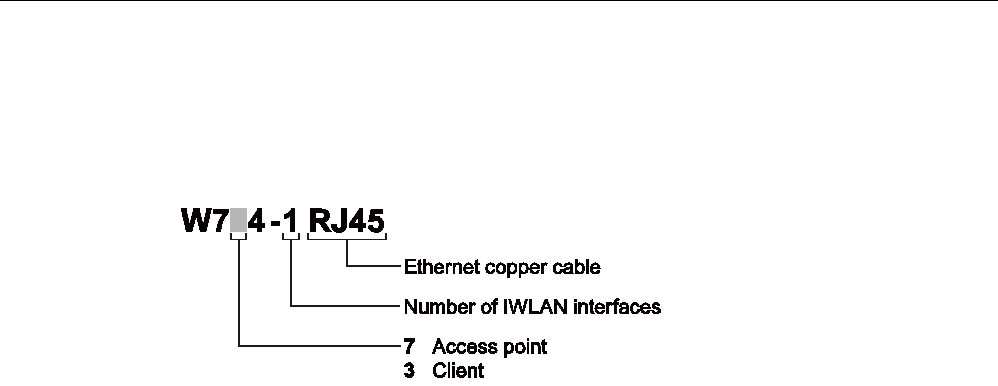

Structure of the type designation
The type designation of the device is made up of several parts that have the following
meaning:
2.3
Security information
Siemens provides automation and drive products with industrial security functions that
support the secure operation of plants or machines. They are an important component in a
holistic industrial security concept. With this in mind, our products undergo continuous
development. We therefore recommend that you keep yourself informed with respect to our
product updates. Please find further information and newsletters on this subject at:
http://support.automation.siemens.com.
To ensure the secure operation of a plant or machine it is also necessary to take suitable
preventive action (e.g. cell protection concept) and to integrate the automation and drive
components into a state-of-the-art holistic industrial security concept for the entire plant or
machine. Any third-party products that may be in use must also be taken into account.
Please find further information at: http://www.siemens.com/industrialsecurity
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 9
Description
3
3.1
Components of the product
The following components are supplied with the product:
● SCALANCE W774 or SCALANCE W734
● 2 protective caps for the antenna sockets
● 1 connector for the power supply
● 1 screw for mounting on an S7-300 standard rail or S7-1500 standard rail
● SCALANCE W774/W734 safety notices in printed form
● SIMATIC NET Industrial Wireless LAN CD
Please check that the consignment you have received is complete. If the consignment is
incomplete, contact your supplier or your local Siemens office.
Description
3.2 LED display
SCALANCE W774-1/W734-1
10 Operating Instructions, 07/2013, C79000-G8976-C325-01
3.2
LED display
Information on operating status and data transfer
On the front of the housing, several LEDs provide information on the operating status of the
device:
LED
Color
Meaning
L1
Green
Power supply L1.
L2
Green
Power supply L2.
PoE
Green
Power supply using Power over Ethernet.
P1
Flashing yellow
Data transfer via the first Ethernet interface.
Green
There is a connection via the first Ethernet interface (Link).
P2
Flashing yellow
Data transfer via the second Ethernet interface.
Green
There is a connection via the second Ethernet interface (Link).
Description
3.2 LED display
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 11
R1
Flashing yellow
Data transfer over the WLAN interface.
Green
SCALANCE W774 in access point mode:
The WLAN interface is initialized and ready for operation.
SCALANCE W774 in client mode or SCALANCE W734:
There is a connection via the WLAN interface.
Flashing green
SCALANCE W774 in client mode or SCALANCE W734:
The client is searching for a connection to an access point.
Green
flashing briefly
SCALANCE W774 in access point mode:
With 802.11h, the channel is scanned for one minute for primary users
before the channel can be used for data traffic.
SCALANCE W774 in client mode or SCALANCE W734:
The client waits for the MAC address due to the setting "Automatic" for
the "MAC mode" parameter and is connected to no access point.
Green
flashing 3 x
short, 1 x long
SCALANCE W774 in client mode or SCALANCE W734:
The client waits for the MAC address due to the setting "Automatic" for
the "MAC mode" parameter and is connected to an access point.
F Red An error occurred during operation with the device.
Red
R1 flashing
green at the
same time
A primary user was found on all enabled channels.
P1
R1
Flashing yellow
and green
simultaneously.
"Flashing" enabled using SIMATIC NET Primary Setup Tool (PST).
Note
Primary user (radar) on all enabled channels
If the device detects a primary user (for example radar signals) on all enabled channels of
the WLAN interface, the LED F
is lit and
R1
flashes. No data traffic is then possible for the
next 30 minutes. After this time, the device runs the scan again and c
hecks whether a
primary user still exists. If no primary user is detected, data traffic is possible again.
The wait time of 30 minutes is necessary due to legal requirements and cannot be shortened
even by restarting the device.
Description
3.3 Reset button
SCALANCE W774-1/W734-1
12 Operating Instructions, 07/2013, C79000-G8976-C325-01
3.3
Reset button

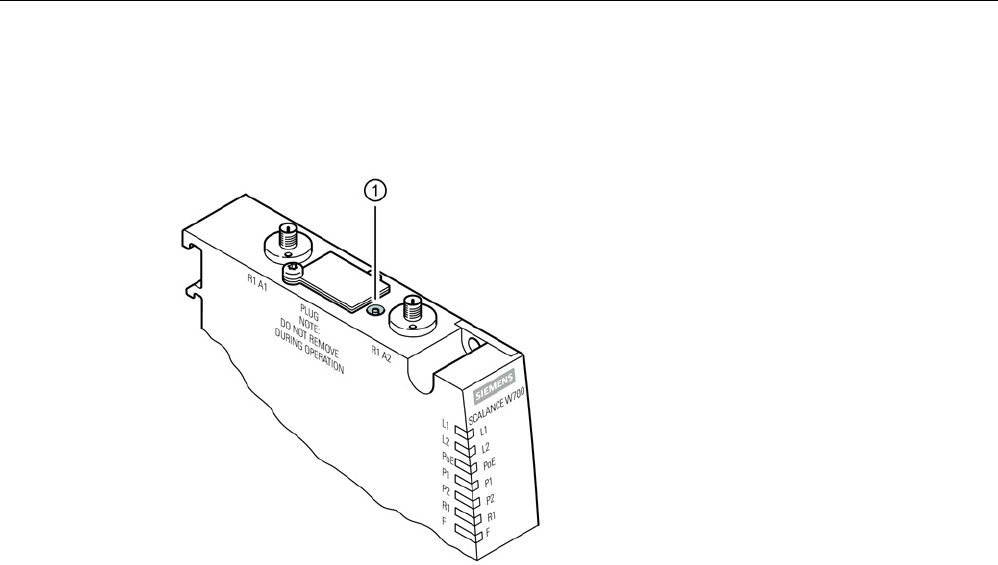

The reset button (position ①) is on the top of the housing:
Functions of the reset button
The reset button has the following functions:
●
Restart of the device
To restart the device, press the Reset button briefly.
●
Loading new firmware
If the normal procedure with the "Load & Save" menu of Web Based Management is
unsuccessful, the reset button can be used to load new firmware. This situation can occur
if there is a power outage during the normal firmware update. You will find more detailed
information in the configuration manual SCALANCE W77x/W73x WBM.
●
Restoring the default parameters (factory defaults)
You will find more detailed information in the configuration manual SCALANCE
W77x/W73x WBM.
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 13
Mounting
4
4.1
Access restriction due to high housing temperature
WARNING
If a device is operated in an ambient temperature of more than 50 °C, the temperature of
the device housing may be higher than 70 °C. The device must therefore be installed so
that it is only accessible to service personnel or users that are aware of the reason for
restricted access and the required safety measures at an ambient temperature higher than
50 °C.
WARNING
When used in hazardous environments corresponding to Class I, Division 2 or Class I,
Zone 2, the device must be installed in a cabinet or a suitable enclosure.
General notes on use according to ATEX
WARNING
To comply with EU Directive 94/9 (ATEX95), this enclosure must meet the requirements of
at least IP54 in compliance with EN 60529.
Mounting
4.2 Wall mounting
SCALANCE W774-1/W734-1
14 Operating Instructions, 07/2013, C79000-G8976-C325-01
4.2
Wall mounting
Drilling template
The location of the holes for mounting the SCALANCE W774/W734 on a wall is shown in the
following figure:
Mounting
4.2 Wall mounting
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 15
Procedure
Secure the device to the wall with two screws. The screws are not supplied with the device.
The type and length of the screws depend on the type of wall.
Mounting
4.3 Installing on an S7-300 standard rail
SCALANCE W774-1/W734-1
16 Operating Instructions, 07/2013, C79000-G8976-C325-01
4.3
Installing on an S7-300 standard rail
Procedure
Follow the steps below to fit the SCALANCE W744/W734 to an S7-300 standard rail:
1. Place the device on the upper edge of the S7-300 standard rail as shown in the figure.
2. Screw the housing to the S7-300 standard rail. The required screw ships with the
SCALANCE W744/W734.
Mounting
4.4 Installing on an S7-1500 standard rail
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 17
4.4
Installing on an S7-1500 standard rail
Procedure
Follow the steps below to fit the SCALANCE W744/W734 to an S7-1500 standard rail:
1. Place the device on the upper edge of the S7-1500 standard rail as shown in the figure.
2. Screw the housing to the S7-1500 standard rail. The required screw ships with the
device.
Mounting
4.5 Installing on a DIN rail / removing
SCALANCE W774-1/W734-1
18 Operating Instructions, 07/2013, C79000-G8976-C325-01
4.5
Installing on a DIN rail / removing
Procedure for installation
Follow the steps below to fit the SCALANCE W744/W734 to a DIN rail:
1. Place the device on the upper edge of the DIN rail as shown in the figure.
2. Press the device against the DIN rail until the DIN rail slider catch locks in place.
Mounting
4.5 Installing on a DIN rail / removing
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 19
Procedure when removing
Follow the steps below to remove the SCALANCE W744/W734 from a DIN rail:
1. Pull the DIN rail slider down with a screwdriver.
2. Tilt the SCALANCE W774/W734 forward and remove the device from the DIN rail.
Mounting
4.5 Installing on a DIN rail / removing
SCALANCE W774-1/W734-1
20 Operating Instructions, 07/2013, C79000-G8976-C325-01
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 21
Connection
5
5.1
Lightning protection, power supply and grounding
Notes on lightning protection
WARNING
Danger due to lightning strikes
Antennas installed outdoors must be within the area covered by a lightning protection
system. Make sure that all conducting systems entering from outdoors can be protected by
a lightning protection potential equalization system.
When implementing your lightning protection concept, make sure you adhere to the VDE
0182 or IEC 62305 standard.
Suitable lightning protectors are available in the range of accessories of SIMATIC NET
Industrial WLAN:
● Lightning protector LP798-1N (order no. 6GK5798-2LP00-2AA6)
● Lightning protector LP798-2N (order no. 6GK5798-2LP10-2AA6)
Note
We recommend that you use the maintenance
-free lightning protector LP798-2N.
Exception: When there is also DC power is supplied via the antenna cable. In this case, only
the lightning protector LP798
-1N can be used.
WARNING
Danger due to lightning strikes
Installing this lightning protector between an antenna and a SCALANCE W700 is not
adequate protection against a lightning strike. The LP798-1N lightening protector only
works within the framework of a comprehensive lightning protection concept. If you have
questions, ask a qualified specialist company.
Connection
5.1 Lightning protection, power supply and grounding
SCALANCE W774-1/W734-1
22 Operating Instructions, 07/2013, C79000-G8976-C325-01
Note
The requirements of EN61000
-4-5, surge immunity tests on power supply lines, are met only
when a Blitzductor is used with 12 to 24 VDC:
12 to 24 VDC: VT AD 24V type no. 918 402
Vendor: DEHN+SÖ
HNE GmbH+Co.KG, Hans Dehn Str. 1, Postfach 1640, D -
92306 Neumarkt, Germany
Safety extra low voltage
WARNING
Danger to life from overvoltage, fire hazard
SCALANCE W700 devices are designed for operation with a directly connectable safety
extra-low voltage or with the power supply adapters available as accessories (available
only for the SCALANCE W786 device). Therefore only safety extra-low voltage (SELV) with
limited power source (LPS) complying with IEC950/EN60950/VDE0805 may be connected
to the power supply terminals (exception: Power supply adapter for 100 - 240 VAC for the
SCALANCE W786).
Take measures to prevent transient overvoltage of more than 40% of the rated voltage.
This criterion is fulfilled, if devices are operated solely with SELV (Safety Extra-Low
Voltage).
The power supply unit to supply the SCALANCE W700 must comply with NEC Class 2
(requirements of class 2 for power supply units of the "National Electrical Code, table 11
(b)") or SELV with LPS (Limited Power Source) EN 60950-1. If the power supply is
designed redundantly (two separate power supplies), both power supplies must meet these
requirements.
Exception:
Power supply with PELV (according to VDE 0100-410 or IEC 60364-4-41) is also possible if
the generated rated voltage does not exceed the voltage limits 25 VAC or 60 VDC.
Connection
5.1 Lightning protection, power supply and grounding
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 23
Grounding
NOTICE
Damage to the device due to potential differences
To fully eliminate the influence of electromagnetic interference, the device must be
grounded. There must be no potential difference between the following parts, otherwise the
device or other connected device could be severely damaged:
• Housing of the SCALANCE W700 and the ground potential of the antenna.
• Housing of the SCALANCE W700 and the ground potential of a device connected over
Ethernet.
• Housing of the SCALANCE W700 and the shield contact of the connected Ethernet
cable.
Connect both grounds to the same foundation earth or use an equipotential bonding cable.
If it is used outdoors, the device must always be connected to protective earth.
WARNING
EXPLOSION HAZARD
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION
2 OR ZONE 2.
WARNING
EXPLOSION HAZARD
DO NOT OPEN WHEN ENERGIZED.
General notes on use according to ATEX
WARNING
EXPLOSION HAZARD
DO NOT CONNECT OR DISCONNECT EQUIPMENT WHEN A FLAMMABLE OR
COMBUSTIBLE ATMOSPHERE IS PRESENT.
Connection
5.1 Lightning protection, power supply and grounding
SCALANCE W774-1/W734-1
24 Operating Instructions, 07/2013, C79000-G8976-C325-01
General notes on use in hazardous areas according to UL-HazLoc
WARNING
EXPLOSION HAZARD
DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS AREA IS KNOWN TO BE
NON-HAZARDOUS.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or non-
hazardous locations only.
This equipment is suitable for use in Class I, Zone 2, Group IIC or non-hazardous locations
only.
Connection
5.2 Power supply
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 25
5.2
Power supply
For the power supply, there are two options with the SCALANCE W774/W734:
● Direct feed in via the four-pin socket (position ①)
● Power over Ethernet via the Ethernet interface P2 (position ②). The other Ethernet
interface P1 is not capable of PoE.
Socket
The four-pin connecting socket has the following pin assignment:
Pin
Assignment
L1+
24 VDC
M1 Ground
M2
Ground
L2+ 24 VDC
Power over Ethernet
The SCALANCE W774/W734 supports the standards 802.3at type 1 (IEEE 802.3af ) and
IEEE 803.at type 2.
● Gigabit Ethernet
When you connect to gigabit Ethernet, the power supply is a phantom power supply over
data wires 1, 2, 3 and 6. This corresponds to alternative A according to IEEE 802.3af.
● Fast Ethernet
On an 8-wire Fast Ethernet cable, the power is supplied via the free data wires 4, 5, 7
and 8. This corresponds to alternative B according to IEEE 802.3af.
Connection
5.3 Ethernet
SCALANCE W774-1/W734-1
26 Operating Instructions, 07/2013, C79000-G8976-C325-01
Note
No power sourcing equipment (PSE)
The SCALANCE W774/W734 cannot be used as a PoE power suppl
y for other devices.
5.3
Ethernet

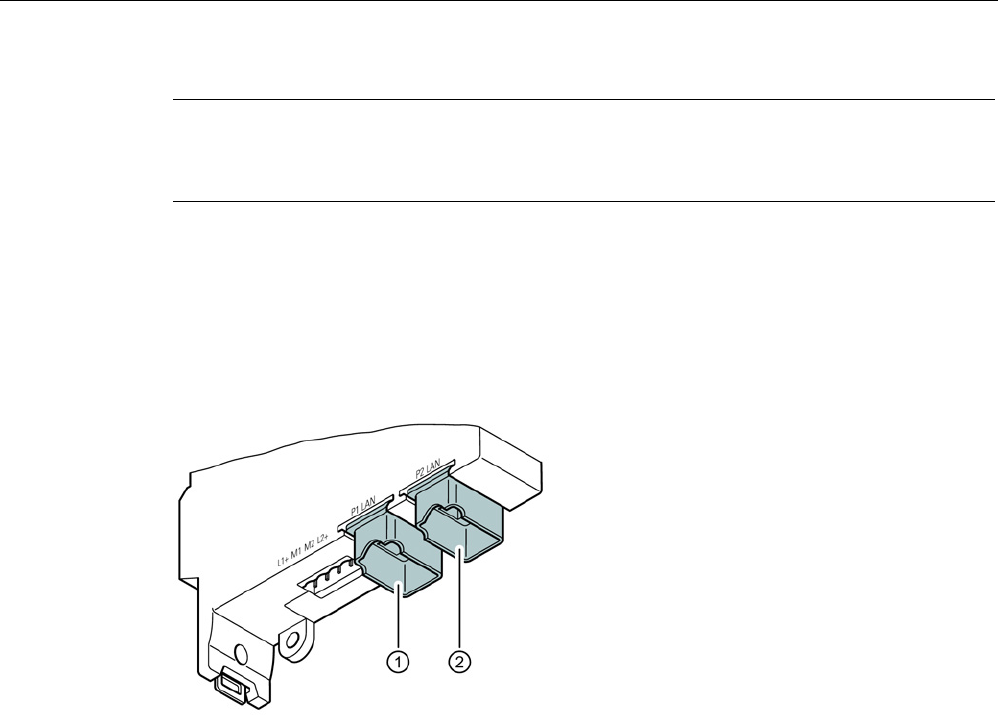

The SCALANCE W774/W734 has two Ethernet interfaces located on the underside of the
device.
①
Ethernet interface P1
②
Ethernet interface P2
The power can also be supplied via this interface (Power over Ethernet).
Connection
5.4 Suitable cables for power supply and Ethernet
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 27
5.4
Suitable cables for power supply and Ethernet
Cable specification
The following table lists the requirements for a cable depending on the application.
Application
Specification
Direct 24 VDC supply • Round cable cross-section with
6 to 8 mm diameter.
Two-wire cable with 0.5 to 1.5 mm2 cross-section
per wire.
• Permitted tensile load at least
100 N.
• UL listing: Type PLTC or ITC
Ethernet 1. IE FC TP standard cable GP 2 x 2 (type A)
Order no.: 6XV1 840-2AH10
2. IE TP torsion cable 2 x 2 (type C)
Order no.: 6XV1 870-2F
3. IE FC TP trailing cable 2 x 2 (type C)
Order no.: 6XV1 840 3AH10
UL listing: Type PLTC or ITC (the three named types
have this approval)
WARNING
Only use cables suitable for high temperatures!
If temperatures in excess of 70 °C occur on the cable or at the housing socket, or the
temperature at the branching points of the cables exceeds 80 °C, special measures need to
be taken.
If the equipment is operated in an air ambient at 45 - 60 °C, only use cables with admitted
maximum operating temperature of at least 90 °C.
Connection
5.5 Antenna connectors
SCALANCE W774-1/W734-1
28 Operating Instructions, 07/2013, C79000-G8976-C325-01
5.5
Antenna connectors
The SCALANCE W774/W734 has two antenna connectors of the type R-SMA located on the
top of the device.
①
Antenna connector R1 A
1
②
Antenna connector R1 A2
Procedure
Follow the steps below to connect a cable for an external antenna to a SCALANCE
W774/W734:
1. Insert the connector on the antenna cable into the R-SMA socket and tighten the sleeve
nut on the socket (key size SW8, tightening torque 0.6 Nm). If you only use one antenna,
you need to connect this to the device via antenna connector R1 A1 (position ①).
2. Screw a terminating resistor to the unused antenna socket R1 R2 (position ②) if you are
only using one antenna.
Note
Cabinet installation
When installing the SCALANCE W774/734 in a cabinet, you need to use detached antennas.
Suitable connecting cable for a connection between SCALANCE W774/w734 and a
detached antenna are available fro
m SIMATIC NET. You will find detailed information in the
following section.
Connection
5.6 Suitable antenna cables and antennas
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 29
5.6
Suitable antenna cables and antennas
N-Connect/R-SMA connecting cable
To connect an antenna with an N-Connector to a SCALANCE W774/734, the following
cables are suitable:
Length
Order number
0.3 m
1 m
2 m
5 m
10 m
6XV1875-5CE30
6XV1875-5CH10
6XV1875-5CH20
6XV1875-5CH50
6XV1875-5CN10
Suitable antennas
Note
When you select an antenna, keep in mind the national approvals for your SCALANCE
W774/W734.
Type
Properties
Order number
ANT792-6MN Omni antenna, mast/wall mounting, 6 dBi
2.4 GHz, N-Connect female
6GK5 792-6MN00-0AA6
ANT793-6MN Omni antenna, mast/wall mounting, 5 dBi
5 GHz, N-Connect female
6GK5 793-6MN00-0AA6
ANT792-8DN Directional antenna, mast/wall mounting,
14 dBi
2.4 GHz, N-Connect female
6GK5 792-8DN00-0AA6
ANT793-8DJ Directional antenna, mast/wall mounting,
18 dBi
5 GHz, 2 x N-Connect female
6GK5 793-8DJ00-0AA0
ANT793-8DK Directional antenna, mast/wall mounting,
23 dBi
5 GHz, 2 x N-Connect female
6GK5 793-8DK00-0AA0
ANT793-8DP Directional antenna, mast/wall mounting,
13 dBi
5 GHz, N-Connect female
6GK5793-8DP00-0AA0
ANT795-6DC Wide angle antenna, mast/
wall mounting, 9 dBi
2.4 GHz and 5 GHz, N-Connect female
6GK5 795-6DC00-0AA0
ANT793-6DG Wide angle antenna, mast/
wall mounting, 9 dBi
5 GHz, 2 x N-Connect female
6GK5 793-6DG00-0AA0
Connection
5.6 Suitable antenna cables and antennas
SCALANCE W774-1/W734-1
30 Operating Instructions, 07/2013, C79000-G8976-C325-01
Type
Properties
Order number
ANT795-6MN Omni antenna, mounted on roof/vehicle,
6/8 dBi
2.4 GHz and 5 GHz, N-Connect female
6GK5 795-6MN10-0AA6
ANT795-4MA Omni antenna, 3/5 dBi
2.4 GHz and 5 GHz, IP30, R-SMA
connector male for direct mounting on the
device, connector angle adjustable 0° to
180°.
6GK5 795-4MA00-0AA3
ANT792-4DN RCoax helical antenna, circular
polarization, 4 dBi, 2.4 GHz, N-connect
female.
6GK5 792-4DN00-0AA6
ANT793-4MN RCoax λ5/8 antenna with vertical
polarization, 6 dBi, 5 GHz, N-connect
female.
6GK5 793-4MN00-0AA6
IWLAN RCoax cable 2.4
GHz PE 1/2"
Omni antenna, 0 dBi
2.400 - 2.485 GHz, N-Connect female.
6XV1875-2A
IWLAN RCoax cable 5
GHz PE 1/2"
Omni antenna, 0 dBi
5.150 - 5.875 GHz, N-Connect female.
6XV1875-2D
Connection
5.7 C-PLUG/KEY-PLUG
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 31
5.7
C-PLUG/KEY-PLUG
The C-PLUG/KEY-PLUG slot is on the top of the SCALANCE W774/734 housing.
NOTICE
Do not replace the PLUG during operation
A PLUG may only be removed or inserted when the device is turned off.
Removing the PLUG
Follow the steps below to remove a PLUG from a SCALANCE W774/734:
1. Turn off the power to the device.
2. Release the screw slot cover (position ①) and swing the slot cover to the side (position
②).
3. Insert a screwdriver between the front edge of the PLUG (Position ③) and the slot and
release the PLUG.
Inserting the PLUG
Follow the steps below to insert a PLUG in a SCALANCE W774/734:
1. Turn off the power to the device.
2. The housing of the PLUG has a protruding ridge on the long side (position ④). The slot
has a groove at this position. Insert the PLUG correctly oriented into the slot. The PLUG
is correctly inserted when it is completely inside the device and does not jut out of the
slot.
Connection
5.7 C-PLUG/KEY-PLUG
SCALANCE W774-1/W734-1
32 Operating Instructions, 07/2013, C79000-G8976-C325-01
3. Close the slot cover (position ②).
4. Tighten the screw at position ① to secure the slot cover.
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 33
Technical data
6
SCALANCE W774/W734
Attachment to Industrial Ethernet
Quantity
2
Design
RJ-45 jack
Properties 10/100BASE-T, IEEE 802, half duplex/full duplex, autocrossover, autonegotiation,
autosensing, PoE, floating
Transmission speed
10 / 100 Mbps
Permitted cable lengths (Ethernet)
(Alternative combinations per length
range) *
0 ... 55 m • Max. 55 m IE TP Torsion Cable
with IE FC RJ45 Plug 180
• Max. 45 m IE TP Torsion Cable
with IE FC RJ45 + 10 m TP Cord
via IE FC RJ45 Outlet
0 ... 85 m • Max. 85 m IE FC TP
Marine/Trailing/Flexible/FRNC/Fe
stoon/Food Cable with
IE FC RJ45 Plug 180
• Max. 75 m IE FC TP
Marine/Trailing/Flexible/FRNC/Fe
stoon/Food Cable + 10 m
TP Cord via IE FC RJ45 Outlet
0 ... 100 m • Max. 100 m IE FC TP Standard
Cable with IE FC RJ45 Plug 180
• Max. 90 m IE FC TP Standard
Cable + 10 m TP Cord via
IE FC RJ45 Outlet
Wireless interface
Antenna connector
Quantity
2
Design
R-SMA female
Impedance
50 Ω nominal
Frequency range 2412 ... 2500 MHz
4920 ... 5875 MHz
Electrical data
Power supply
Supply voltage
24 VDC Safe Extra Low Voltage (SELV)
Permitted range
19.2 to 28.8 VDC
Design
Terminal block, 4 terminals
Technical data
SCALANCE W774-1/W734-1
34 Operating Instructions, 07/2013, C79000-G8976-C325-01
Properties Electrically isolated, redundant design
PoE to 24 VDC non-redundant design
From PoE
36 to 57 VDC
Fusing
2 A / 24 VDC
Current consumption
Typical
xxx mA
Maximum
xxx mA
Power loss at 24 VDC
Typical
xxx W
Maximum
xxx W
Permitted ambient conditions
Ambient temperature During operation with the rack
installed horizontally
-20 ℃ to +60 ℃
During operation with the rack
installed vertically
-20 ℃ to +60 ℃
During operation
-40 ℃ to +70 ℃
During storage
-40 ℃ to +70 ℃
During transportation
-40 ℃ to +70 ℃
Relative humidity During operation ≤ 95% at 25 °C, no condensation
Operating altitude During operation ≤ 2,000 m above sea level at max. 60 °C
ambient temperature
Contaminant concentration According to IEC 60721
Design, dimensions and weight
Degree of protection
IP30
Weight
xxx g
Dimensions (W x H x D)
26 x 147 (without antenna sockets) x 127 mm
Installation options • Wall mounting
• Installation on a DIN rail
• Installation on an S7-300 standard rail
• Installation on an S7-1500 standard rail
Other properties
MTBF
Technical data
6.1 Dimensional drawing
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 35
6.1
Dimensional drawing
Technical data
6.1 Dimensional drawing
SCALANCE W774-1/W734-1
36 Operating Instructions, 07/2013, C79000-G8976-C325-01
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 37
Approvals
7
CE conformity
The products
SIMATIC NET SCALANCE W774-1 RJ45
SIMATIC NET SCALANCE W734-1 RJ45
in the version put into circulation by Siemens AG conforms to the regulations of the following
European directive:
● 99/5/EC
Directive of the European Parliament and of the Council on radio equipment and
telecommunications terminal equipment and the mutual recognition of their conformity.
Conformity with the basic requirement of the directive is attested by adherence to the
following standards:
● EN 60950-1
Information technology equipment - Safety - Part 1: General requirements
● EN 301489-1 V1.9.2
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 1 : Common technical requirements
(V1.8.1).
● EN 301489-17 V2.2.1
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 17: Specific conditions for 2.4 GHz
broadband transmission systems and 5 GHz high performance RLAN equipment
● EN 300328 V1.7.1
Electromagnetic Compatibility and Radio Spectrum Matters (ERM); — Broadband
transmission systems — Data transmission equipment operating in the 2.4 GHz ISM
band and using spread spectrum modulation techniques — Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
● EN 301893 V1.7.1
Broadband Radio Access Networks (BRAN) - 5 GHz high performance RLAN -
Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
● EN 62311
Assessment of electronic and electrical equipment related to human exposure restrictions
for electro-magnetic fields (0 Hz – 300 GHz)
● 1999/519/EC
Council recommendation on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz)
Devices connected to the system must meet the relevant safety regulations.
The EC Declaration of Conformity is available for the responsible authorities according to the
above-mentioned EC Directive at the following address:
Approvals
SCALANCE W774-1/W734-1
38 Operating Instructions, 07/2013, C79000-G8976-C325-01
Siemens Aktiengesellschaft
Industry Sector
Postfach 4848
D-90026 Nürnberg
This declaration certifies compliance with the directives named above, but does not
guarantee any specific properties.
Note
The specified approvals apply only when the corresponding mark is printed on the product.
Certification ID
The following table shows the product names and the corresponding certification ID:
Type
Certification ID
Order number
Order number US variant
W774-1 RJ-45
MSN-W1-RJ-E2
6GK5774-1FX00-0AA0
6GK5774-1FX00-0AB0
W734-1 RJ-45
MSN-W1-RJ-E2
6GK5734-1FX00-0AA0
6GK5734-1FX00-0AB0
ATEX (explosion protection directive)
WARNING
When using SIMATIC NET products in hazardous area zone 2, make absolutely sure that
the associated conditions in the following document are adhered to:
"Use of subassemblies/modules in a Zone 2 Hazardous Area".
This document can be found on the CD that ships with the device or on the Internet at the
following URL:
http://support.automation.siemens.com/WW/
> Product Support > Industrial Communication
Enter the document identification number
A5E00352937
as the search term.
SIMATIC NET products meet the requirements of the EC directive:94/9/EC "Equipment and
Protective Devices for Use in Potentially Explosive Atmospheres".
ATEX classification:
II 3 G Ex nA IIC T4 Gc
Approvals
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 39
KEMA 07ATEX0145 X
The products meet the requirements of the following standards:
● EN 60079-15: 2010 (electrical apparatus for potentially explosive atmospheres; Type of
protection "n")
● EN 60079-0: 2009 (Explosive atmospheres - Part 0: Equipment - General requirements)
FM
The product meets the requirements of the standards:
● Factory Mutual Approval Standard Class Number 3611
● FM Hazardous (Classified) Location Electrical Equipment:
Non Incendive / Class I / Division 2 / Groups A,B,C,D / T4 and
Non Incendive / Class I / Zone 2 / Group IIC / T4
cULus Approval Hazardous Location
cULus Listed I. T. E. FOR HAZ. LOC.
Underwriters Laboratories Inc. complying with
● UL 60950-1 (Information Technology Equipment)
● ANSI/ISA 12.12.01-2007
● CSA C22.2 No. 213-M1987
Approved for use in
Cl. 1, Div. 2, GP A, B, C, D T4
Cl. 1, Zone 2, GP IIC T4
Report no. E240480
FCC approval
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
___________________________________________________________________________
Notice
Changes or modifications made to this equipment not expressly approved by SIEMENS may
void the FCC authorization to operate this equipment.
___________________________________________________________________________
IEEE 802.11b or g operation of this product in the USA is firmware-limited to channels 1
through 11.
Approvals
SCALANCE W774-1/W734-1
40 Operating Instructions, 07/2013, C79000-G8976-C325-01
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
● Consult the dealer or an experienced radio/TV technician for help.
___________________________________________________________________________
Notice
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator and your body.
___________________________________________________________________________
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. Professional Installation Notice:
To comply with FCC part 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Part 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in the
United States. The use of the system in any other combination (such as co-located antennas
transmitting the same information) is expressly forbidden.
CSA Information Technology Equipment
CSA Certification Mark
Canadian Standard Association CSA C22.2 No. 60950-1-03
RSS-210 of Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
i
This radio transmitter (IC: 267AA-MSN1V1) has been approved by Industry Canada to
operate with the antenna types listed in section 5.6 with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Approvals
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 41
Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
Users should also be cautioned to take note that high power radars are allocated as primary
users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars
could cause interference and/or damage to LE-LAN devices.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
The device meets the requirements of the Railway standard EN 50155:2007 "Railway
Applications - Electronic equipment used on rolling stock".
The product meets the requirements of the AS/NZS 2064 standard (Class A).
Railway approval
C-TICK
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Approvals
7.1 SCALANCE W774/W734 national approvals
SCALANCE W774-1/W734-1
42 Operating Instructions, 07/2013, C79000-G8976-C325-01
7.1
SCALANCE W774/W734 national approvals
National approvals
The following table lists the countries in which the SCALANCE W700 product is approved.
The diamond symbol (♦) identifies all countries for which there was no approval at the time
these operating instructions were written.
The current status of the approvals can be found on the Internet at the following address:
http://www.siemens.com/funkzulassungen
Column
Meaning
Country
Country
Mode
IEEE 802.11 standard and the TPC and / or DFS functionality, where required
CH
Channel
MHz
Frequency
PWR (EIRP)
Maximum permitted effective isotropic radiated power
Use
Permitted use indoors and / or outdoors
Approvals
7.1 SCALANCE W774/W734 national approvals
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 43
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Croatia
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Macedonia
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Serbia
Slovakia
Slovenia
Spain
Czech Republic
Turkey
Hungary
Cyprus
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
116
5500
-
5580
1000 mW Indoor + outdoor
132
-
140
5660
-
5700
1000 mW Indoor + outdoor
Approvals
7.1 SCALANCE W774/W734 national approvals
SCALANCE W774-1/W734-1
44 Operating Instructions, 07/2013, C79000-G8976-C325-01
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Australia
11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
11a 11n
TPC
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Brazil 11g 11n 1
-
13
2412
-
2472
4000 mW Indoor + outdoor
11a 11n
TPC
36
-
64
5180
-
5320
200 mW Indoor only
11a 11n
TPC
100
-
140
5500
-
5700
1000 mW Indoor + outdoor
149
-
165
5745
-
5825
4000 mW Indoor + outdoor
China 11g 11n 1
-
13
2412
-
2472
100 mW Indoor + outdoor
11a 11n
TPC
149
-
165
5745
-
5825
2000 mW Indoor + outdoor
Approvals
7.1 SCALANCE W774/W734 national approvals
SCALANCE W774-1/W734-1
Operating Instructions, 07/2013, C79000-G8976-C325-01 45
Country
Mode
CH
MHz
PWR
(EIRP)
Use
Japan
11g 11n 1
-
13
2412
-
2472
200 mW Indoor + outdoor
11a
TPC
8
5040
200 mW Indoor + outdoor
12
5060
16
5080
11a 11n 36
-
48
5180
-
5240
200 mW Indoor only
11h 11n
DFS + TPC
52
-
64
5260
-
5320
200 mW Indoor only
100
-
140
5500
-
5700
200 mW Indoor + outdoor
11a
TPC
184
-
196
4920
-
4980
200 mW Indoor + outdoor
Canada
Peru
Puerto Rico
USA
11g 11n
1
2412
100 mW
Indoor + outdoor
2
-
10
2417
-
2457
200 mW Indoor + outdoor
11
2462
100 mW
Indoor + outdoor
11a 11n
TPC
36
-
48
5180
-
5240
200 mW Indoor only
149
-
165
5745
-
5825
400 mW Indoor + outdoor
Approvals
7.1 SCALANCE W774/W734 national approvals
SCALANCE W774-1/W734-1
46 Operating Instructions, 07/2013, C79000-G8976-C325-01
