Philips EasySense Outboard-Mount for High Bay
Quick Installation Guide
Sensors
EasySense
Outboard-Mount
for High Bay
Commercial Product Name Order Code
EasySense Outboard-Mount
for High Bay
SNH200
Sensor part number
Compatible LED drivers
© 2018 Philips Lighting Holding B.V. All rights reserved.
Philips reserves the right to make changes in speci cations
and/or to discontinue any product at any time without notice
or obligation and will not be liable for any consequences
resulting from the use of this publication.
philips.com/easysense
Philips Lighting North America Corporation
10275 W. Higgins Road, Rosemont IL 60018
Tel: 800-322-2086 Fax: 888-423-1882
Customer/Technical Service: 800-372-3331
OEM Support: 866-915-5886
Philips Lighting Canada Ltd.
281 Hillmount Rd, Markham, ON, Canada L6C 2S3
Tel. 800-668-9008
PLt-17265QG_EasySense SNH200 QIG 04/18 Document #: 4422-107-07551 sh460 2018-04-12 PLt-17265QG_EasySense SNH200 QIG 04/18 Document #: 4422-107-07551 sh460 2018-04-12
Driver Model Number Description
XI040C110V054VPT1 Xitanium 40W 0.1-1.1A 27-54V 120-277V SR
XI075C200V054VPT1 Xitanium 75W 0.1-2.0A 27-54V 120-277V SR
XI075C070V118VSY1 Xitanium 75W 0.07-0.70A 43-118V 120-277V SR with AUX
XI075C105V079VSY1 Xitanium 75W 0.105-1.05A 32-79V 120-277V SR with AUX
XI095C275V054VPF1 Xitanium 95W 0.03-2.75A 27-54V 120-277V SR
XI095C275V054VSF1 Xitanium 95W 0.03-2.75A 27-54V 120-277V SR with AUX
XI150C070V235VSF1 Xitanium 150W 0.07-0.70A 78-235V 120-277V SR with AUX
XI150C105V157VSF1 Xitanium 150W 0.105-1.05A 44-157V 120-277V SR with AUX
Speci cations available at www.philips.com/xitaniumsr/na.
Wiring requirements
XITANIUM SR
LED DRIVER
EASYSENSE LED+
LED+
LED-
LED-
RSET2
SGND
NFC ANTENNA
SR-
Connectors
SR+
SR
SR
LINE
NEUTRAL
GROUND NC
(2) 18AWG wires, non-polarized
Overall length 60cm
Strip length 8mm
Note: Above depicts connecting wires from sensor
to Xitanium SR drivers that include connectors. For
connection to Xitanium SR drivers that include leads,
use wirenuts
suitable for 18AWG solid wire.
Wire to wire connection
SNH200 includes 18AWG wires, 60cm in length with 8mm strip length. A wire to wire connection can be made with
connectors or wirenuts suitable for 18AWG solid wire.
The wire strip length in case of a wire to wire connection is connector dependent.
Wire to driver connection
A connection between the sensor and the driver should be made according to local practices. The SR input wires of the
EasySense for High Bay are not polarized for xtures using one driver and one sensor, and therefore can be connected,
without taking care of polarity, to the SR output of the driver – SR+ and SR- terminals. It is recommended to keep wire
distance from sensor to driver less than 50 feet. Polarity must be maintained when connecting multiple drivers to one sensor.
The wire strip length in case of sensor to driver connection is ~8mm.

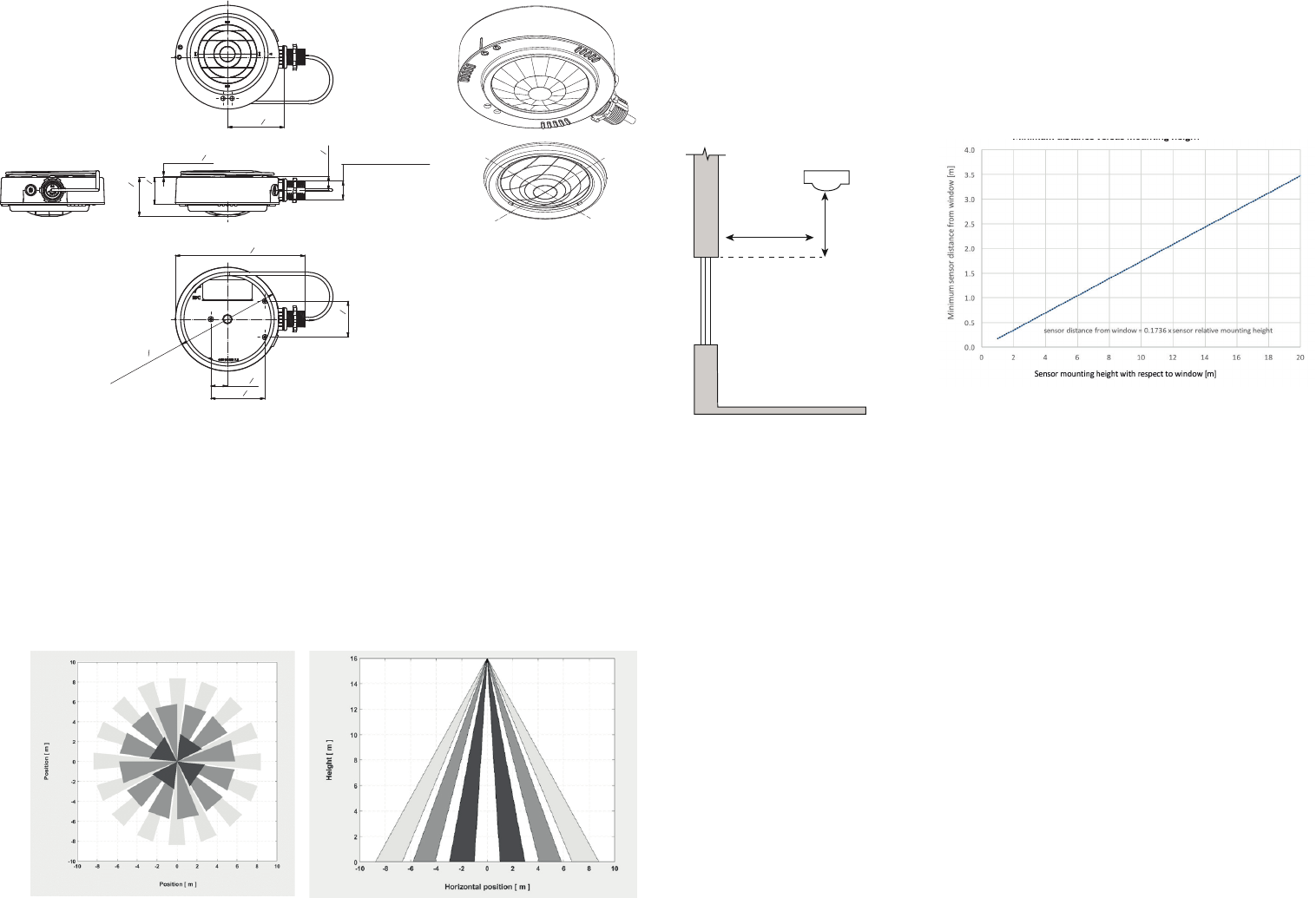

Sensor Dimensions, mm [in]
1.5
30
14-0
0
.5
+
M20x1.5
1 15 -0
1
+
Ø
43-0
1
+
86
63
60 21 .5
40
Optional view shield (included). Refer to
design-in guide for details on coverage
patterns when using view shield.
1 43.8 [ 521 32 ]
115-0
1
+4
1732
-0
0
+
[]
1 .5 [ 11 6]
43.25-0
1
+1
4564
-0
0
+
[]
60 [ 238]
40 [1
58
]
1 8.5 [ 34]
30
.1 [1
316
]
63 [ 212]
15.7 [
58
]
[ 1 /2"] Straight pipe thread
Ø
Ø
Mounting in a Luminaire
EasySense for High Bay is intended to be mounted to a standard ½" knockout available on the luminaire itself or a junction
box. A washer and locknut are included with the sensor for this purpose. An OEM can develop custom brackets to attach to
the top surface of the sensor in case the sensor needs to be mounted to a curved/non-flat surface. Mounting screws are
provided with the sensor for this purpose. These screws are matched to the thickness of the plastic sensor housing. In case
other screws are used, ensure that they do not protrude through the sensor plastics. Also make sure that the view of the
sensor is not blocked anywhere by the luminaire or the bracket to avoid loss of functionality.
Occupancy Sensing Coverage Pattern
Based on 16m mounting height
Daylight Sensor
The light sensor measures the total amount of light in a circular eld of ≈80% of the PIR detection area.
The following aspects should be observed during installation:
• Minimum distance from the window ≥ 2.0'/0.6m.
• Prevent light re ections from outside entering the sensor (for example sunlight re ection on a car bonnet)
as this will lead to incorrect light regulation.
As a guideline the formula 0.72 x H can be used to calculate the minimum distance between the window and
sensor whereby H is the height from the bottom of the window to the ceiling.
Note: Restrictions only for daylight regulation. No restrictions for skylights.
Window
Wall
Sensor height with
respect to window
Sensor distance
to window
Floor
SNH200
Photosensor spatial response
Minimum distance versus mounting height
Minimum distance versus mounting height
Con guration via Mobile App
Note: Use of IR requires a speci c IR dongle from Philips to con gure and group from oor level. Consult your Philips representative.
EasySense parameters can be con gured via Philips eld apps available for Android phones. Two options are available:
1. EasySense NFC – This app allows con guring EasySense parameters only when you can physically access the sensor
with a smartphone.
2. EasySense Industry IR – This app allows con guring EasySense paramters plus enables grouping to a wireless switch,
which can be done with an Android phone and a speci c IR dongle from Philips.
You must rst register for Philips eld apps to receive a username and password, then download Philips eld apps from the
Google Play Store. Refer to www.philips.com/easysense for details, including applicable Android phones and user manuals.
