Signify 9290012630X LED MODULE User Manual 2AGBW9290012630X Rev4
Philips Lighting(China) Investment Co.,Ltd. LED MODULE 2AGBW9290012630X Rev4
Signify >
2AGBW9290012630X_User manual_Rev4
Hue Engine V1.0
Specification item Value Unit Condition
Description
The Hue Engine is a general purpose Zigbee certified building block for Hue
connected lighting applications e.g. Hue White, Hue White Ambiance and Hue
White and Color ambiance for lamps and luminaires. It does not work stand-alone
but is meant to be SMT soldered on a application specific motherboard that
contains the proper interfacing for stand-alone usage.
Logistical data
12NC 929001263055
Minimum Order Quantity 500 PCE
Electrical input data
Vcc voltage 3.0~3.6 Volt Ripple<50 mV
Current (normal) 25 mA
Electrical output data
Average power consumption 85mW Watt
PSU wattage <60W Watt maximum wattage
Standby power <150mW
Wiring & Connections

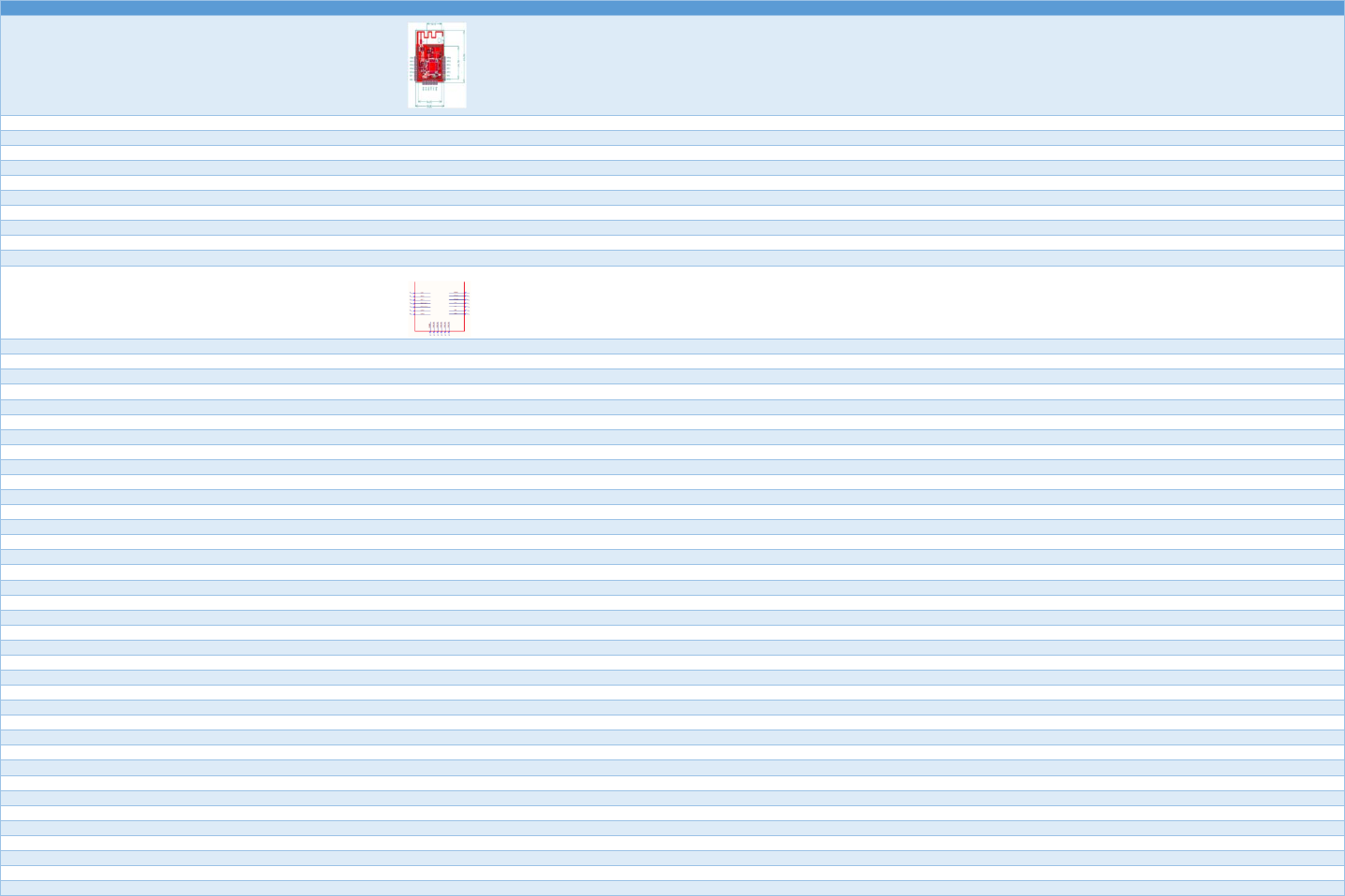

I/O definition
Ground 1 GND
ADC2, e.g. for voltage sensing General purpose in/out 2 2 ADC2
ADC1, e.g. for current sensing 3 ADC1
to be used as ADC (e.g. NTC read-out), I2C, SPI or PWM 4 Mixed_out_1
to be used as ADC, I2C, SPI or PWM PWM_CHN1 5 Mixed_out_2
General purpose in/out 1: E.g. for button control 6GPIO1
General purpose in/out 2: E.g. for button controlPWM_CHN3 7GPIO2
i.e. for current source 8Enable
PWM output 9PWM_CH0
PWM output 10 PWM_CH1
PWM output 11 PWM_CH2
PWM output 12 PWM_CH3
PWM output 13 PWM_CH4
Ground 14 GND
3V power in 15 VDD
Used for SW programming, UART bus communication 16 TXD
Used for SW programming, UART bus communication 17 RXD
Used for SW debugging 18 Nreset
Used for SW debugging 19 SWCLK
Used for SW debugging 20 SWDIO
Features & Functions
Hue White Color Ambience yes
Hue White Ambiance yes
Hue White yes
Dimming yes
Device diversity yes by late state configuration
Automatic color consistency yes
OTA upgrade yes Over the air upgradable when connected to the Hue Bridge
Wireless specifications
Wireless RF mode frequency band 2400–2483.5 MHz MHz
Wireless communications protocol IEEE 802.15.4 ZigBee Light Link protocol
Operating channel 11 – 26 channels
Range 12 meter indoor
Frequency tolerances (Typical) +/-30 ppm Continuous single tone
Output power (Typical) 4 dBM Measured at antenna feedpoint
Spurious emissions* (Typical) -36 dBM 30 – 1000MHz
-30 dBM 1 – 12.75GHz
-47 dBM 1.8 – 1.9GHz
-47 dBM 5.15 – 5.3GHz
EVM (Typical) 15 %rms
Receiver Sensitivity (Typical) -99 dBM PER < 1%
TRP -2 dBM when mounted on a motherboard of 30x40mm (i.e. Hue Connect)
LED board requirements
Hue White Color Ambience Unified Gamut covered by L1.5 specifications
Tunable white CCT range: 2000-6500K
CRI > 80 for CCT 2000-4000K
CRI > 65 for CCT 6500K
R9 > 0 for CCT 2000-4000K
Color consistency: 95% within 5SDCM covered by L1.5 specifications
Minimum dim-level: 2%
Hue White Ambiance Tunable white CCT range: 2000-6500K
CRI > 80 for CCT 2000-4000K
CRI > 65 for CCT 6500K
R9 > 0 for CCT 2000-4000K
Color consistency: 95% within 5SDCM covered by L1.5 specifications
Minimum dim-level: 2%
Hue White 2700K / 3000K / 4000K
CRI > 80
R9 >
Color consistency: 95% within 5SDCM covered by L1.5 specifications
Minimum dim-level: 2%
Insulations
Dimensions & Weight
Length 23.5 mm ±10% tolerance
Width 18 mm ±10% tolerance
Height 3.7 mm ±10% tolerance
Fixing hole diameter NA mm
Fixing hole distance NA mm
Weight gram
Operational temperatures and humidity
Ambient temperature -10 to 50°C Celcius
Tcase-max 70°C Celcius to be measured on Hue Engine shield
Maximum housing temperature
Relative humidity Non-condensing
Storage temperature and humidity
Ambient temperature For 6 months
Relative humidity Non-condensing
Lifetime
lifetime hours
Measured temperature at Tc-point is Tcase- max.
Maximum failures = 10%
Surge capability
ESD rating +/-2 KV Contact
+/-4 KV Air
Certificates and standards
Approval marks CE, FCC, ETSI, ROHS & REACH, ZLL
Compliances and approvals
FCC FCC Labelling Requirements
When integrating HUE Engine V1.0 into a product it must be ensured that the FCC labelling requirements are
met. This includes a clearly visible label on the outside of the finished product specifying the FCC identifier (FCC
ID:2AGBW9290012630X). This exterior label can use wording such as “Contains Transmitter Module FCC ID:
2AGBW9290012630X” although any similar wording that expresses the same meaning may be used.
Note: Changes or modifications made to this device that are not expressly approved by Philips Lighting North
America Corporation(“Philips”) may void the user's authority to operate the device.
The advance interface module complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
The module and associated antenna must be installed to provide a separation distance of at least 20cm from all
persons and must not transmit simultaneously with any other antenna or transmitter.
FCC Approvals
FCC statement:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC notice:
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the device and receiver
Connect the device into an outlet on a circuit different from that to which
the receiver is connected
Consult the dealer or an experienced radio/television technician for help .
IC
IC (Industry Canada) Approvals
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that permitted for successful communication
This module complies with FCC and Industry Canada RF radiation exposure limits set forth for general
population. To maintain compliance, this module must not be co-located or operating in conjunction with any
other antenna or transmitter
Immediately following the above notice, the manufacturer shall provide a list of all
antenna types approved for use with the transmitter, indicating the maximum permissible
antenna gain (in dBi) and required impedance for each.
The labelling requirements for Industry Canada are similar to those of the FCC. Again a clearly visibly label must
be placed on the outside of the finished product stating something like “Contains Transmitter Module, IC-ID:
20812-2630X”, although any similar wording that expresses the same meaning may be used.
Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de
brouillage, et (2)I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
En vertu de la réglementation d’Industrie Canada, cet émetteur radio risquera uniquement à l’aide d’une
antenne de type et de gain maximum (ou moins) pour l’émetteur a approuvé par Industrie Canada. Pour réduire
les interférences radio potentielles à d’autres utilisateurs, le type d’antenne et son gain doivent être choisies
que la puissance isotrope rayonnée équivalente (p.i.r.e.) n’est pas plus que celle autorisée pour une
communication réussie
Ce module est conforme à la FCC et Industrie Canada RF limites d’exposition aux rayonnements définies pour l
’ensemble de la population. Pour maintenir la conformité, ce module ne doit pas être co-implanté ou fonctionner
en conjonction avec toute autre antenne ou émetteur
À la suite de l’avis ci-dessus, le fabricant doit fournir une liste de tous les
types d’antenne approuvés pour une utilisation avec l’émetteur, indiquant au maximum
gain d’antenne (en dBi) et impédance requise pour chacun.
Les exigences d’étiquetage pour Industrie Canada sont semblables à celles de la FCC. Encore une fois un
clairement visiblement étiquette doit être placée à l’extérieur du produit fini indiquant quelque chose comme
"Module émetteur de Contains, IC ID: 20812-2630 X", bien que tout même libellé qui exprime que le même sens
peuvent être utilisé.
IC notice:
This Class B complies with Canadian ICES-005.---
Cet appareil numérique de la classe B est conforme à la norme NMB 005 du Canada
CE European Certification (ETSI)
The module have been certified to the following standards:
• Radio: EN 300 328:V1.9.1
• EMC: EN 301 489-17:V2.2.1
• Safety: EN 60950-1:2006 / A12:2011
If the module is incorporated into an OEM product, the OEM product manufacturer must ensure compliance of the
final product to the European Harmonized EMC, and low voltage/safety standards
JP TELEC
This exterior label can use wording such as “Contains Transmitter Module ” although
any similar wording that expresses the same meaning may be used.
CN SRRC
This exterior label can use wording such as “Contains Transmitter Module ”
although any similar wording that expresses the same meaning may be used.
Inrush current
Earth leakage current
Hue Connect 24V DC in/out 60W HWCA V1.0
Specification item Value Unit Condition
Description
The Hue Connect is a motherboard that accommodates the Hue Engine. Its
application is intended to be used for color tunable luminaires. In combination
with the a 24V DC power supply and defined L1.5 LED kit, color consistency
can between luminaires or light points within a luminaire can be guaranteed.
Logistical data
12NC 929001263155
Minimum Order Quantity 1024 PCE
Features & Functions
Electrical input data
Input power 60W
Current of single channel 2.5A Ampere
Electrical output data Watt
Voltage 24V Volt +/-1V
Average power consumption
Standby power
Wiring & Connections
J1 connector Output to Sensor or 2nd light source
GND 1 GND
3V3 supply to auxilary microcontroller of sensor / 2nd light source 2 VDD
Input pin for simple sensor or reset pin for auxiliary micro 3GPIO1
I2C 4SDA
I2C 5SCL
Input pin for simple sensor or reset pin for auxiliary micro 6GPIO
J2 connector connector to L2 LED board
VBUS 1
Pin connects to Red
(
Hue
),
2200K
(
Tone
),
2700K
(
Lux
)
or 4000K
(
Lu
x
2
Pin connects Green
(
Hue or Tone
)
or Lime
(
Tone
)
to GND via MOSF
E
3
Pin connects Blue (Hue) or 6500K (Tone) to GND via MOSFET 4
Pin connects 2200K (Hue) to GND via MOSFET 5
Pin connects 6500K (Hue) to GND via MOSFET 6
J3 connector Power in
24V 1
GND 2
J4 connector Pragram connector (internal use)
Operational temperatures and humidity
Ambient temperature -10 to 50°C Celcius
Tcase-max
Maximum housing temperature
Relative humidity
Storage temperature and humidity
Ambient temperature
Relative humidity
Lifetime
lifetime
Surge capability
ESD rating +/-2 KV Contact
+/-4 KV Air
Certificates and standards
Approval marks
Compliances and approvals
Inrush current
Earth leakage current
