Simcom 0606020060002 911 MOBILE PHONE User Manual 911

Shanghai Simcom Ltd. 911 MOBILE PHONE 911

Users Manual

911 Phone Product Descriptions
Use Conditions
Ambient temperature -20 +60
Relative humidity 0%~95
Atmospheric pressure 86106Kpa
Working frequency GSM 850/1900
Quick Installation
1. Open the battery compartment cover in the bottom of the phone; insert
the battery into the battery compartment based on polarity direction in
the drawings.
2. Refit the battery compartment cover; make the screw in well state.

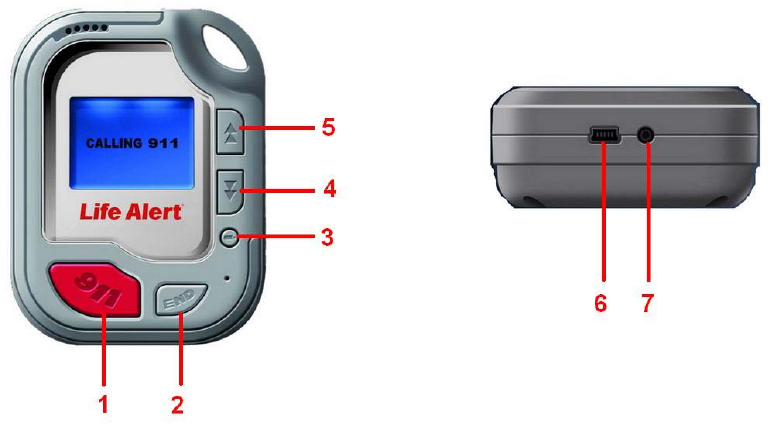

Understand your phone
1. 911 key: Long press this key for about 3 seconds to turn on the
phone, search the network and automatically dial “911”. In
addition, this key is used as “1” key in the conversation.
2. End key: Long press this key for about 1 second to turn off the
phone (except for battery power in display state)
3. Check the battery power key: Long press this key to display the
battery power
4. Volume key: Press this key in the conversation to decrease volume.
1
5. Volume key: Press this key in the conversation to increase volume.
6. The firmware upgrade interface.
7. Headphone jack.
Quick use introduction
Dial “911” for help
Long press 911for about 3 seconds to turn on terminal, accompanied with
vibrating alert, after completed the network search, play the voice prompt
“calling 911” and automatically dial “911”.
If the call failure, will automatically redial, with the maximum for 10 times,
accompanied with the corresponding prompt in voice and display in the period.
In the conversation:
1. User can press VOL and VOL to adjust the volume.
2. Use 911as number 1
3. Long press End for about 1 seconds to stop the present
conversation and turn off the phone.
Check the battery power
Long press Check the battery powerto display the present remaining battery
power, 10 seconds later, automatically turn off the phone. Display style as the
following figure
6 levels in total: 0%,20%,40%,60%,80%,100.
NoteIf the remaining battery power is too low, please replace the
battery in time.
Terminate the call
When need to terminate the call, long press End for about 1 seconds to
make terminal exit call and shutdown. Note that in checking the remaining
battery power, Endwill be no effective.
Safety Caution
Electronic equipment
2
Nearby the electronic equipment controlled by high precision, please turn off the phone,
otherwise, cause electronic equipment failure. The equipment may be affected by the
phone, including hearing aid, pacemaker, fire-alarm, automatic gate and other automatic
control equipments. Users who use medical auxiliary equipment should contact with the
equipment service and confirm the effect of radio wave on the equipment.
Medical place
Please follow the following notes in the medical place
z Please do not install and use the phone in the operation room, intensive
care unit (ICU) or coronary care unit (CCU).
z Please turn off the phone, nearby the area in use of medical equipment.
z In the medical place where the phone is prohibiting using, please follow the
instruction and regulation.
z Please note the ringer, volume and vibration setting, so as not to affect the patients
with heart disease.
Combustible and explosive area
In inflammable and explosive area, please do not use or charge the phone to
avoid causing explosion or fire. Inflammable and explosive area as following:
z Gas station
z Fuel area (such as: the cabin under the deck of the ship)
FCC Statement
RF exposure information:
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This
device types 911 (Contain FCC ID: UDV-0606020060002) has been tested against
this SAR limit. The highest SAR value reported under this standard during product
certification when properly worn on the body is 0.889 W/kg.
Tests for SAR are conducted using standard operating positions specified by the FCC
with the device transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power level, the actual
SAR level of the device while operation can be well below the maximum value. This is
because the device is designed to operate at multiple power levels so as to use only
the power required to reach the network. In general, the closer you are to a wireless
base station antenna, the lower the power output. Before a device model is available
3
for sale to the public, it must be tested and certified to the FCC that it does not exceed
the limit established by the government-adopted requirement for safe exposure. The
tests are performed in positions and locations (e.g., at the ear and worn on the body)
as required by the FCC for each model. (Body-worn measurements may differ among
device models, depending upon available accessories and FCC requirements.) While
there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement for safe exposure.
For body worn operating, this device has been tested and meets the FCC RF
exposure guidelines when used with an accessory that contains no metal. Use
of other accessories may not ensure compliance with FCC RF exposure guidelines.
NOTE:
This device was tested to comply with FCC rules based on the pre-approval module
(FCC ID: UDV-0606020060002) that was installed in the unit. The original FCC ID is
labeled on the GSM Module.
This product’s label was placed in the battery compartment, it can be reached when
you install the batteries.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to pirate the equipment.
4
