Simrad RS87 RS87 VHF Marine Radiotelephone with Class D DSC User Manual RS87 Manual
Simrad Ltd RS87 VHF Marine Radiotelephone with Class D DSC RS87 Manual
Simrad >
User manual
ALWAYS AT THE FOREFRONT OF TECHNOLOGY
Instruction Manual
III
Simrad RS87
VHF Radio System
MANUAL
RS87 VHF
IV Part No. E04297 Issue 1.1 05/03/03 MDL
The technical data, information and illustrations contained in this publication were to the best of our knowledge correct at the time of
going to print. We reserve the right to change specifications, equipment, installation and maintenance instructions without notice as
part of our policy of continuous development and improvement.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic or otherwise without
prior permission from Simrad Ltd.
No liability can be accepted for any inaccuracies or omissions in the publication, although every care has been taken to make it as com-
plete and accurate as possible.
©2003 Simrad Ltd
CONTENTS
1. GENERAL 1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2 The Simrad integrated system . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.4 Entering MMSI numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.5 Group ID MMSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. MAIN FUNCTIONS
2.1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2 Switching on & Second Country mode . . . . . . . . . . . . . . . . 12

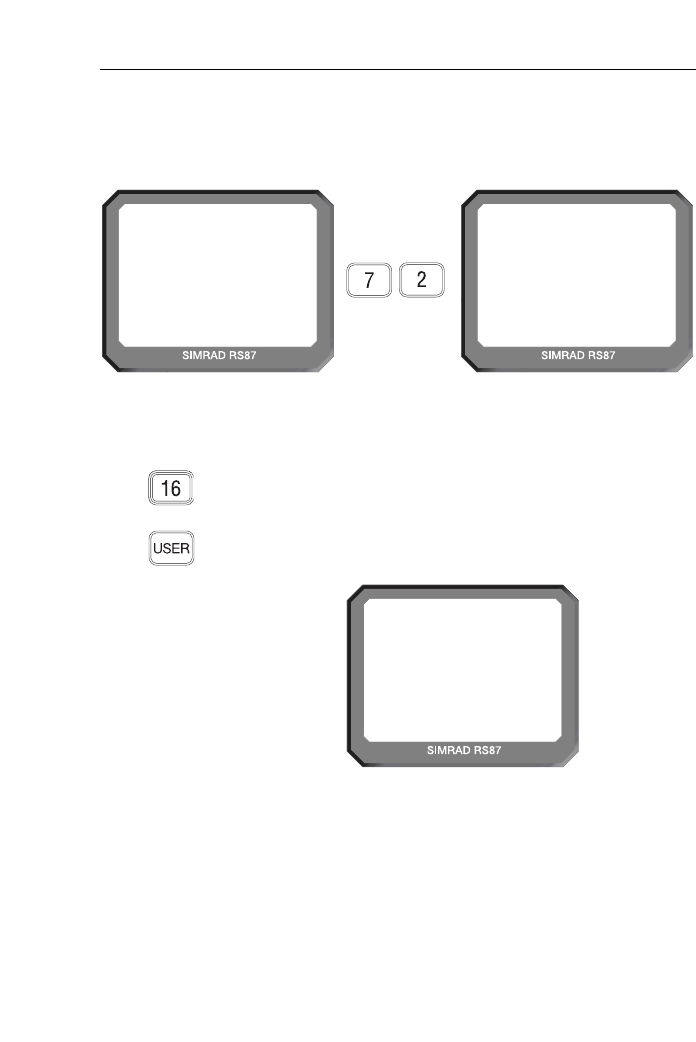

2.3 Changing channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3.1 Channel Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

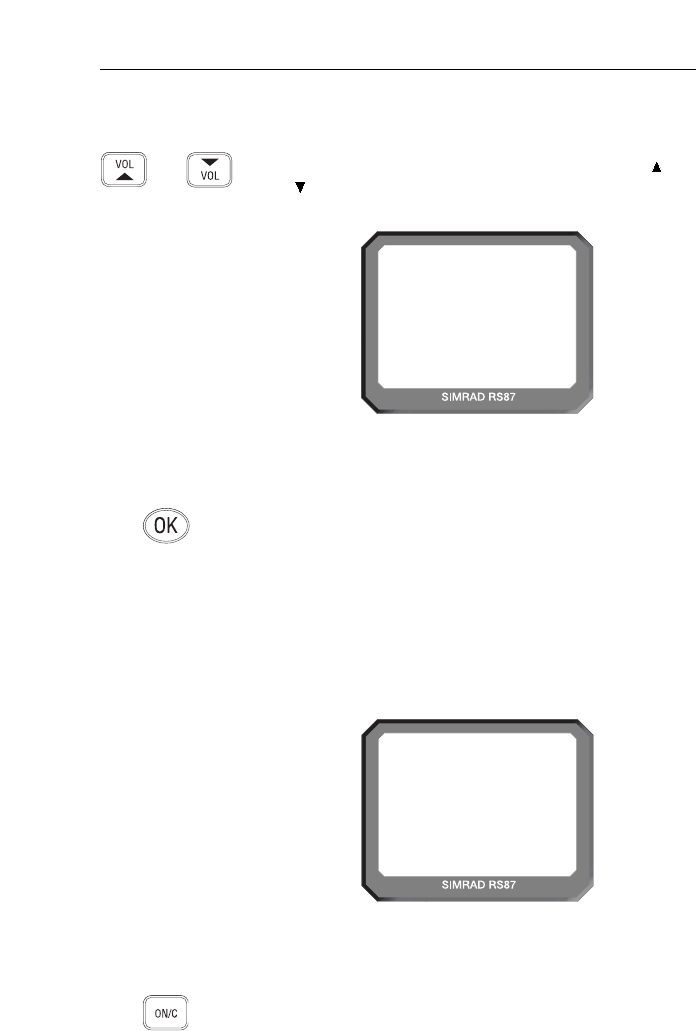

2.4 Volume adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.5 Squelch adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

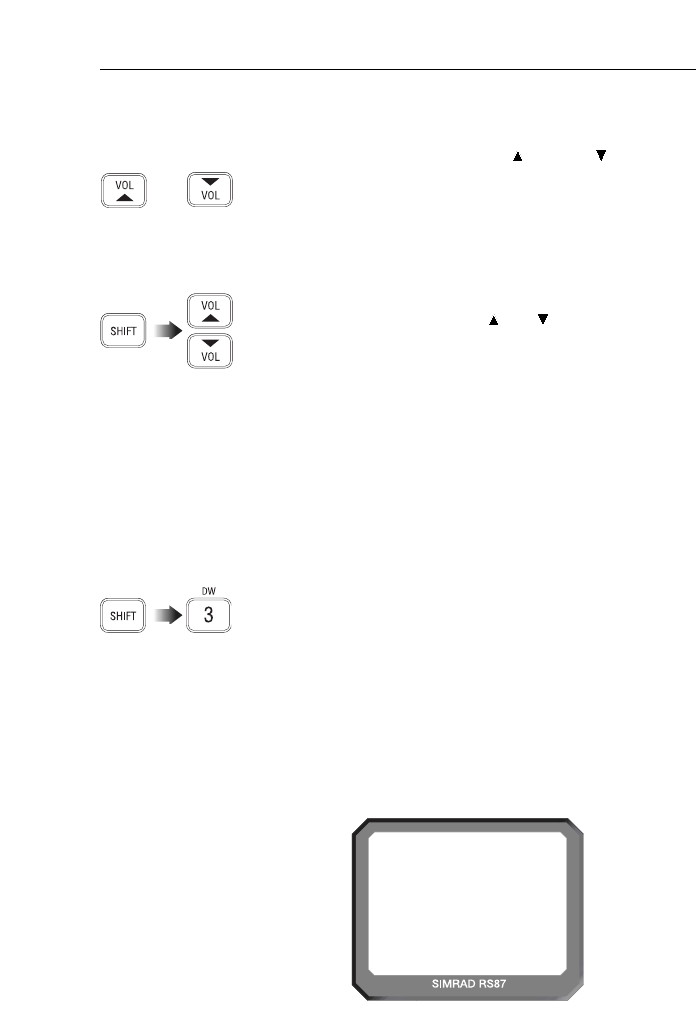

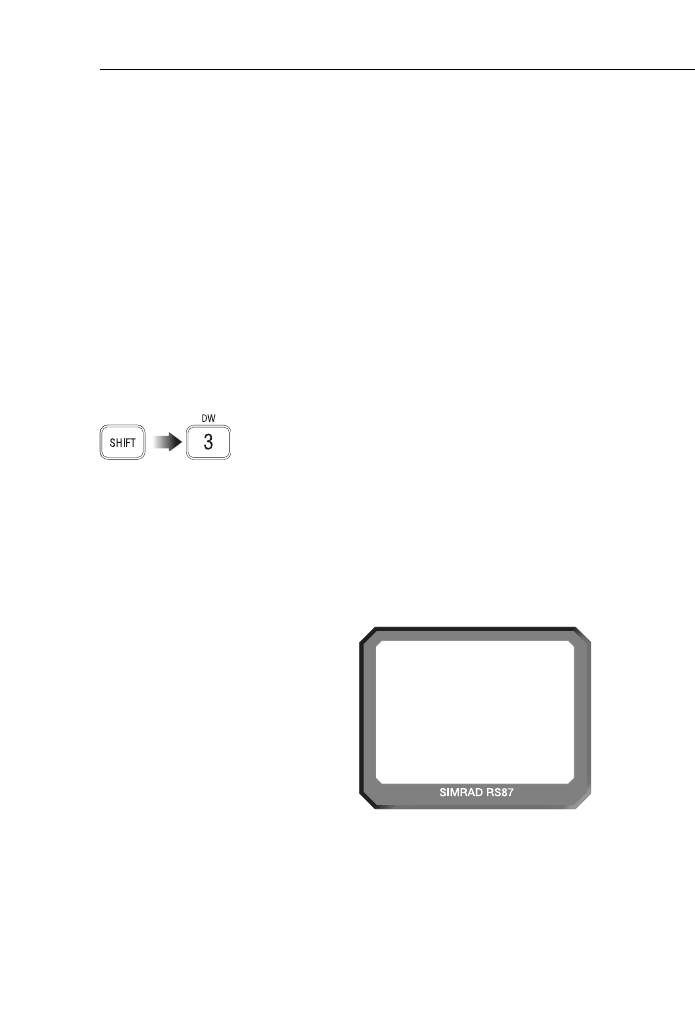

2.6 Dual Watch mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.7 Tri-Watch mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.8 All Scan mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.8.1 Dynamic All Scan Inhibit . . . . . . . . . . . . . . . . . . . . . . 17

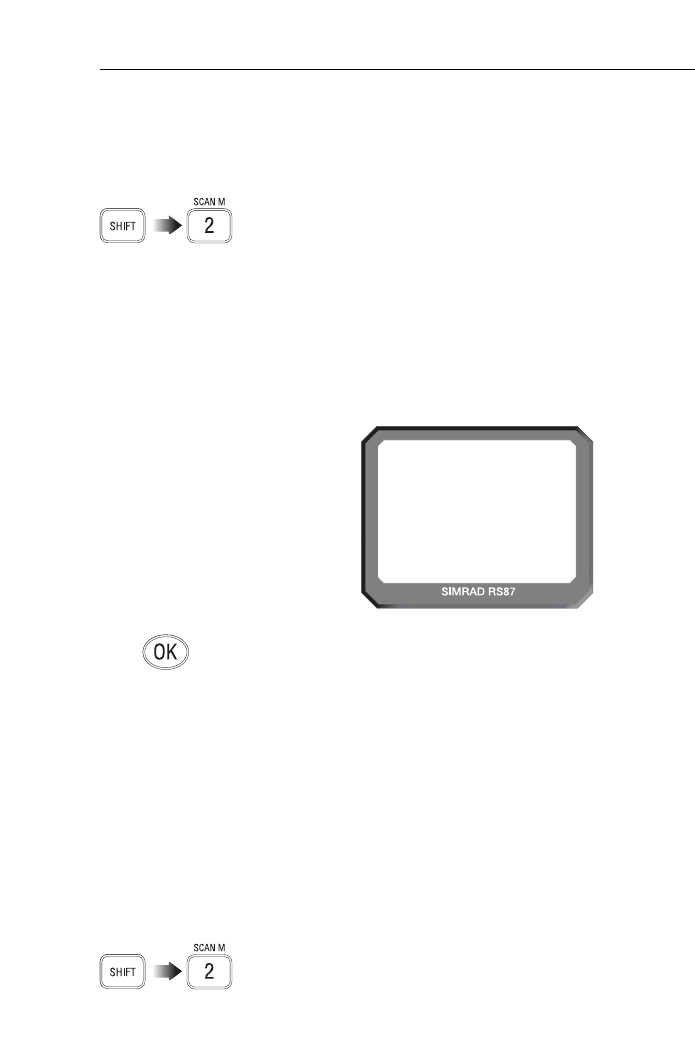

2.9 Memory Scan mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.9.1 Dynamic Memory Scan Delete . . . . . . . . . . . . . . . . . . 18
2.10 Adjusting backlighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.11 Handset off cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3. MENU MODE
3.1 Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.1.1 All Scan inhibit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.1.2 All Scan reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.1.3 All Scan show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.1.4 Memory Scan select . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.1.5 Memory Scan clear . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1.6 Memory Scan show . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1.7 Scan dwell time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.2 Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2.1 Ship’s MMSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.2.2 ATIS number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2.3 Group MMSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.3 VHF items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.3.1 User channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.3.2 Position view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.3 Last used channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.3.4 Interrupt intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.3.5 Auxiliary audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.3.6 Speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Instruction Manual
V
CONTENTS ctd -
4. DSC FUNCTIONS
4.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.2 Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.2.1 Individual Routine call . . . . . . . . . . . . . . . . . . . . . . . . 31
4.2.2 Public Correspondence call . . . . . . . . . . . . . . . . . . . . . 32

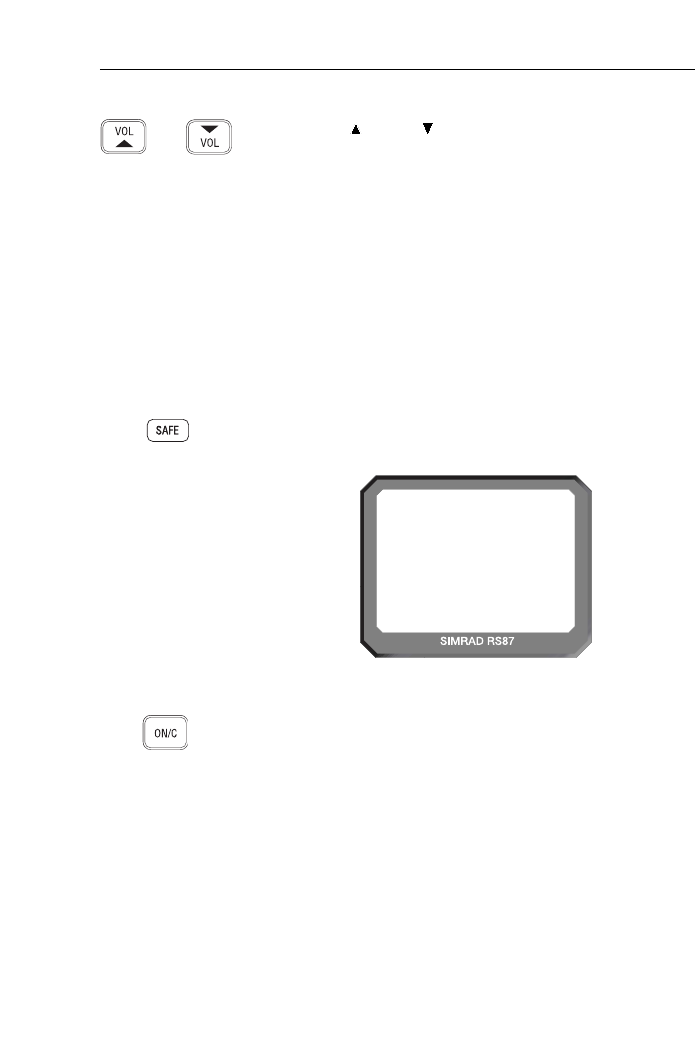

4.2.3 All Ships Safety call . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.2.4 All Ships Urgency call . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.2.5 Group call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.2.6 Distress Alert call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.3 Receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.3.1 Individual Routine call . . . . . . . . . . . . . . . . . . . . . . . . 37
4.3.2 Public Correspondence call . . . . . . . . . . . . . . . . . . . . . 38
4.3.3 All Ships Safety call . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.3.4 All Ships Urgency call . . . . . . . . . . . . . . . . . . . . . . . . . 39
4.3.5 Group call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.3.6 Distress Alert call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.3.7 Distress Alert acknowledgement . . . . . . . . . . . . . . . . 42
4.3.8 Distress Relay call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.4 Viewing the Call Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
4.5 Position over 4 hours old . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5. THE DIRECTORY
5.1 Switching between the directories . . . . . . . . . . . . . . . . . . . . 46

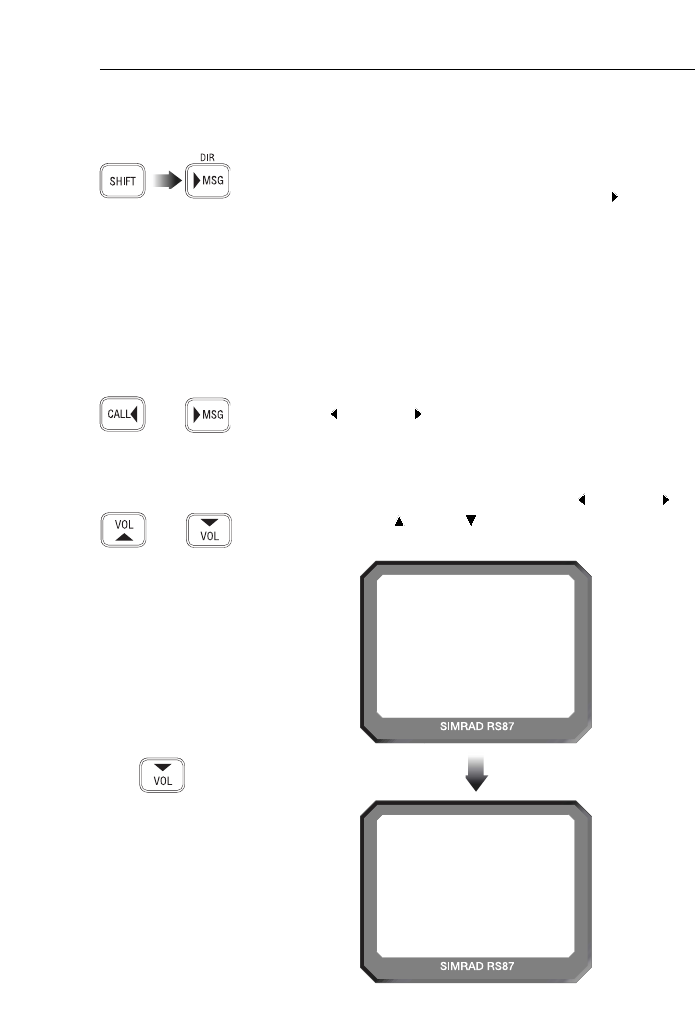

5.2 Viewing the directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.3 Entering a number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.4 Editing a number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6. MISCELLANEOUS FUNCTIONS
6.1 Selecting Weather Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.1.1 Weather Watch alert . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.2 Security mode (voice scrambler) . . . . . . . . . . . . . . . . . . . . . 50

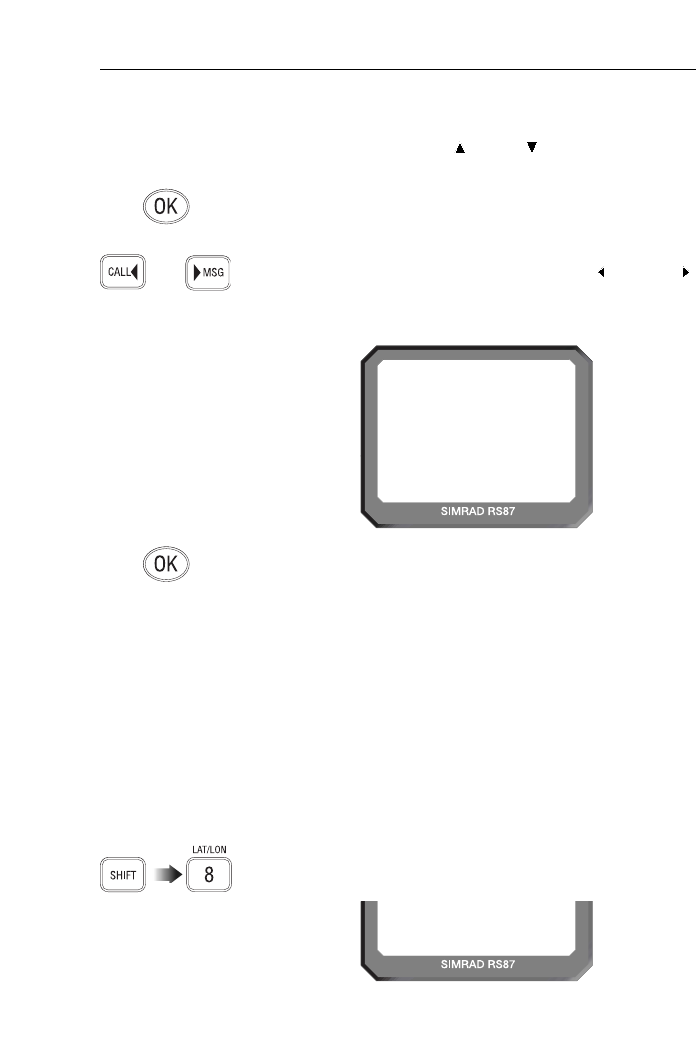

6.3 Editing Latitude, Longitude and UTC . . . . . . . . . . . . . . . . . 50
6.4 Toggling between Lat/Long and UTC views . . . . . . . . . . . 51

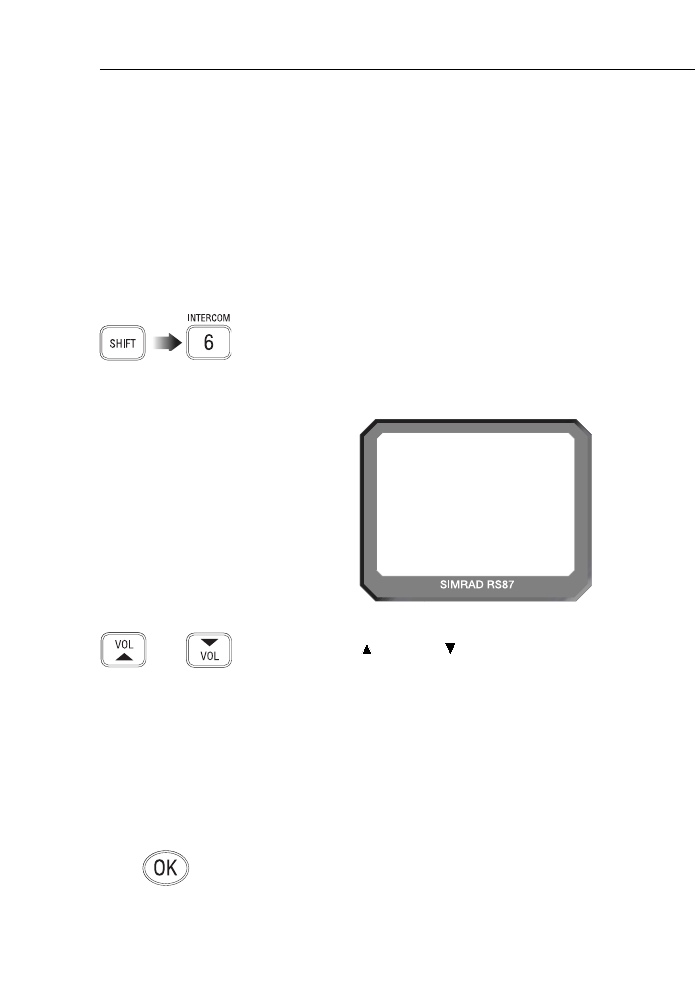

6.5 Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.5.1 Making an intercom call . . . . . . . . . . . . . . . . . . . . . . . 52
6.5.2 Receiving an intercom call . . . . . . . . . . . . . . . . . . . . . 53
6.6 Loudhailer / Foghorn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.6.1 Loudhailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.6.2 Foghorn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.7 station speaker mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6.8 iDSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
RS87 VHF
6Part No. E04297
CONTENTS ctd -
7. INSTALLATION
7.1 Physical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

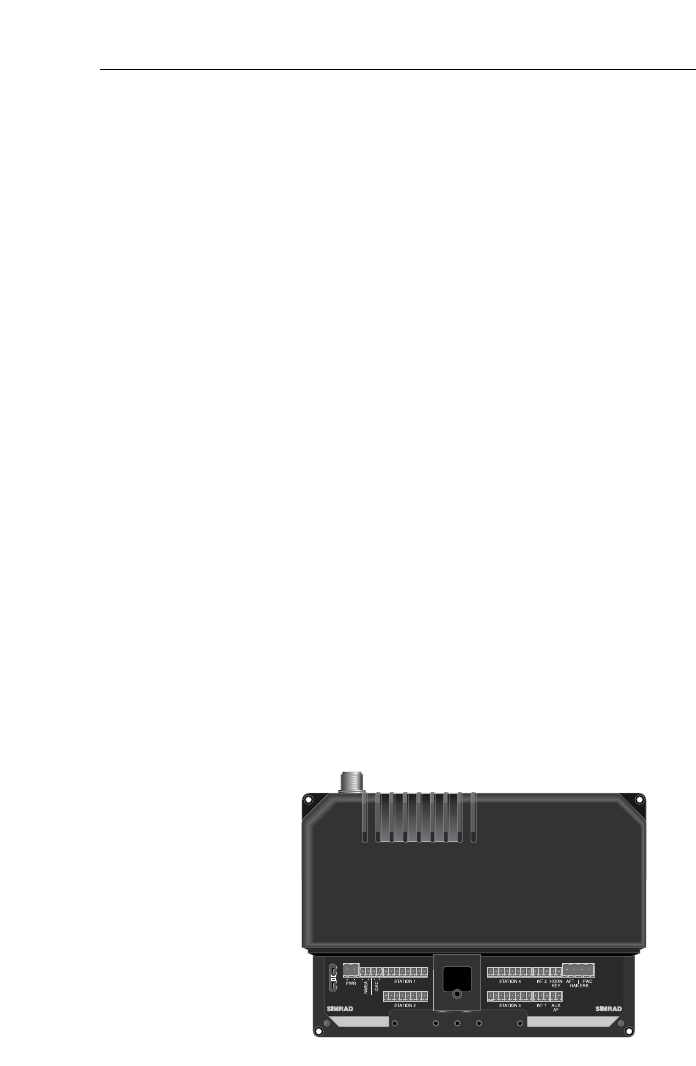

7.1.2 Transceiver installation . . . . . . . . . . . . . . . . . . . . . . . . 57
7.1.2 Handset installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.1.3 Station speaker installation . . . . . . . . . . . . . . . . . . . . . 59

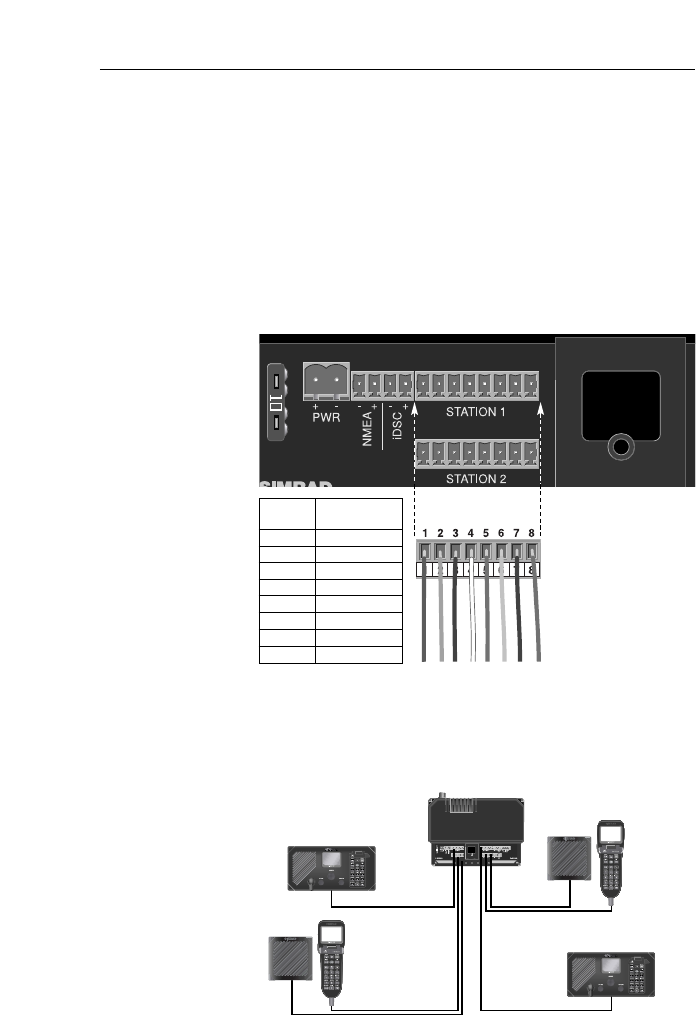

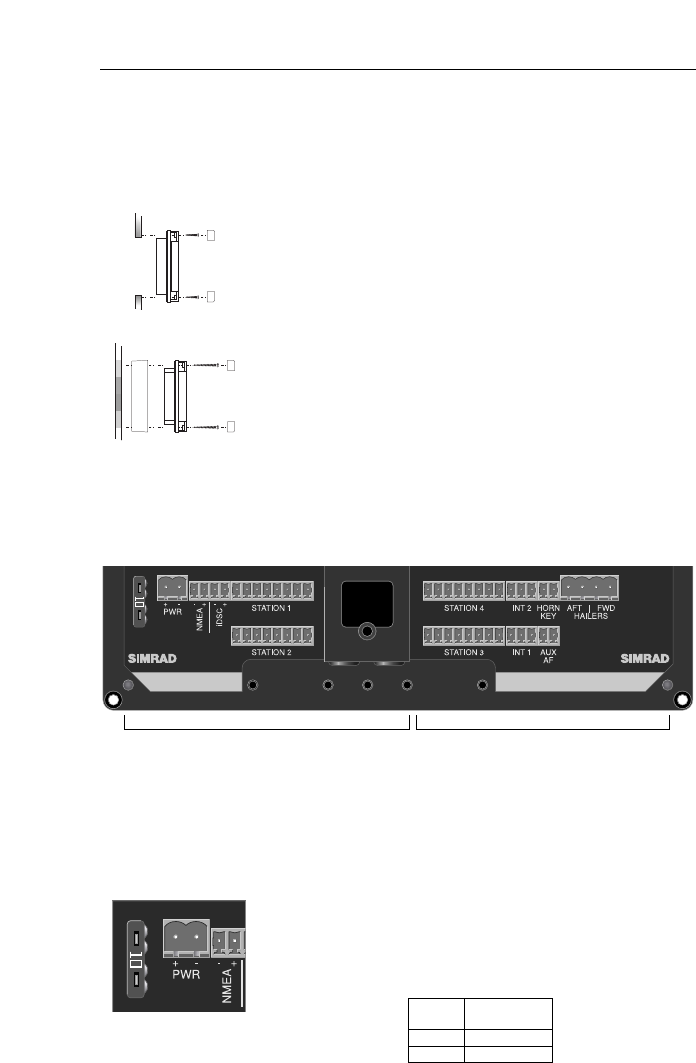

7.2 Electronic installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
7.2.1 Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
7.2.2 Loudspeakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7.2.3 Intercoms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

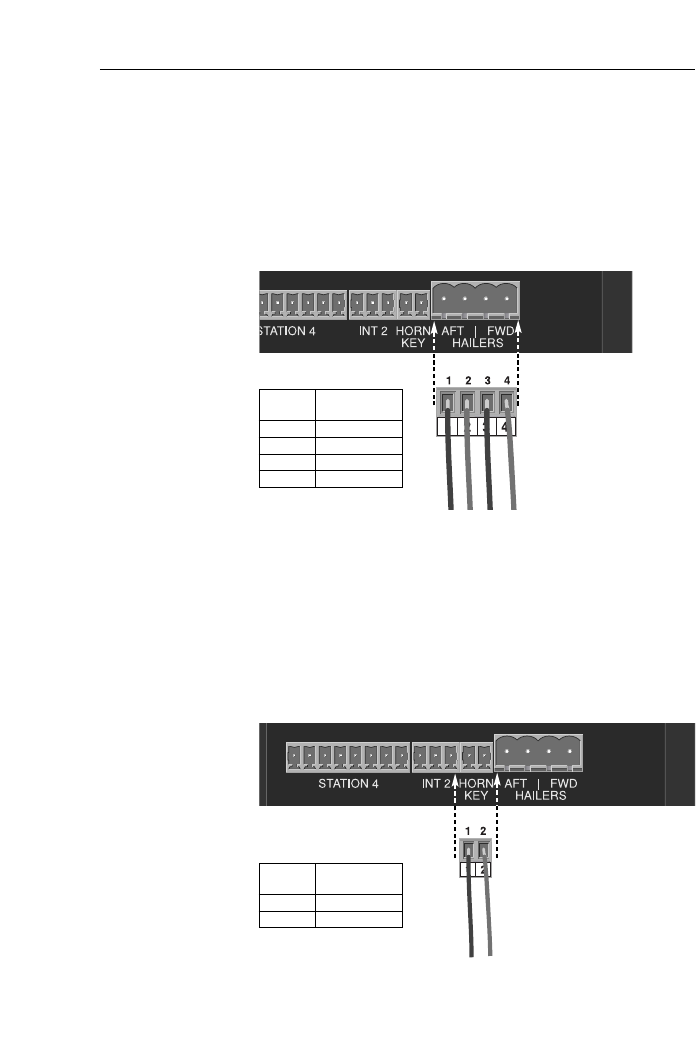

7.2.4 Loudhailer/Foghorns . . . . . . . . . . . . . . . . . . . . . . . . . 62
7.2.5 Remote foghorn button . . . . . . . . . . . . . . . . . . . . . . . . 62
7.2.6 Auxiliary audio input . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.2.7 NMEA0183 input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7.2.8 iDSC output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.2.9 Future options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.2.10 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

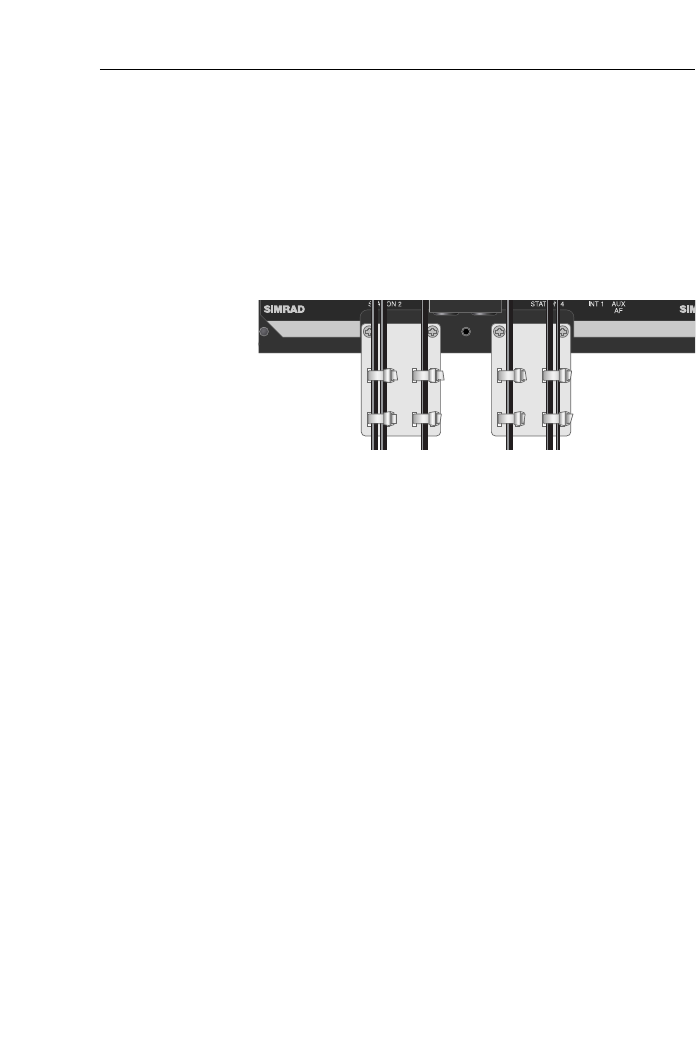

7.2.11 Cable strain relief . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

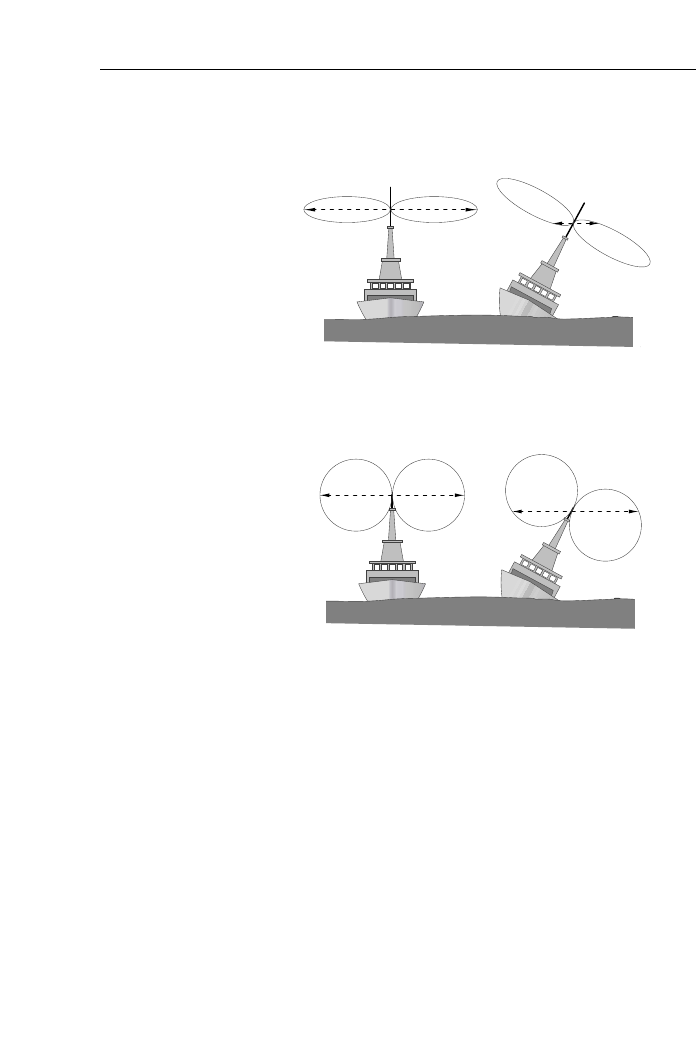

7.3 Antenna installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
7.4 Electrical interference suppression . . . . . . . . . . . . . . . . . . . . 68
8. APPENDIX 8.1 Operating procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8.1.1 Sending a distress alert . . . . . . . . . . . . . . . . . . . . . . . . 69
8.1.2 Acknowledging and relaying a distress alert . . . . . . 69
8.1.3 Cancelling a distress alert . . . . . . . . . . . . . . . . . . . . . . 70
8.1.4 Alerting all vessels within range . . . . . . . . . . . . . . . . 70
8.1.5 Calling a coast station . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.1.6 Making an intership call . . . . . . . . . . . . . . . . . . . . . . . 70
8.2 NMEA sentences received . . . . . . . . . . . . . . . . . . . . . . . . . . 70

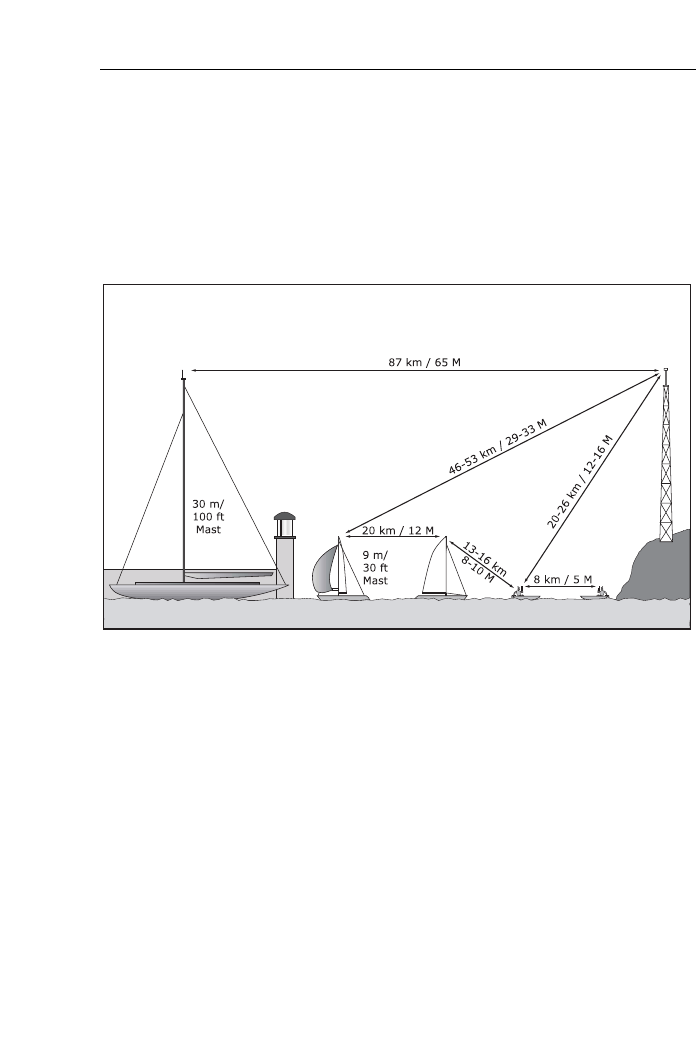

8.3 Transmission range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

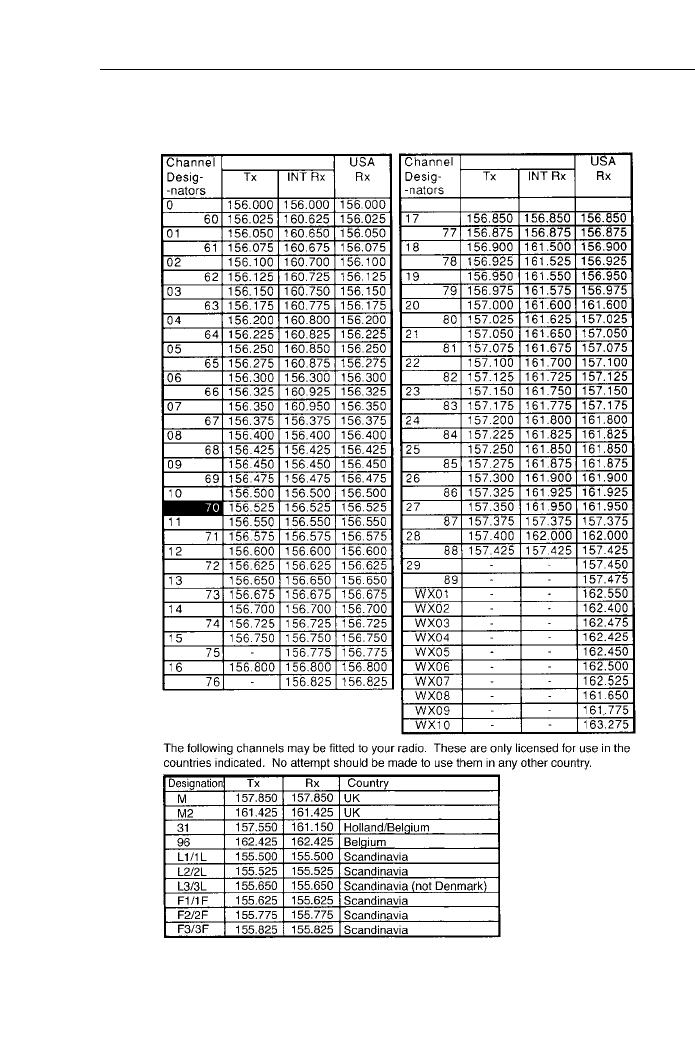

8.4 Frequency of channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
8.5 Fault finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
8.6 Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
8.7 Technical specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

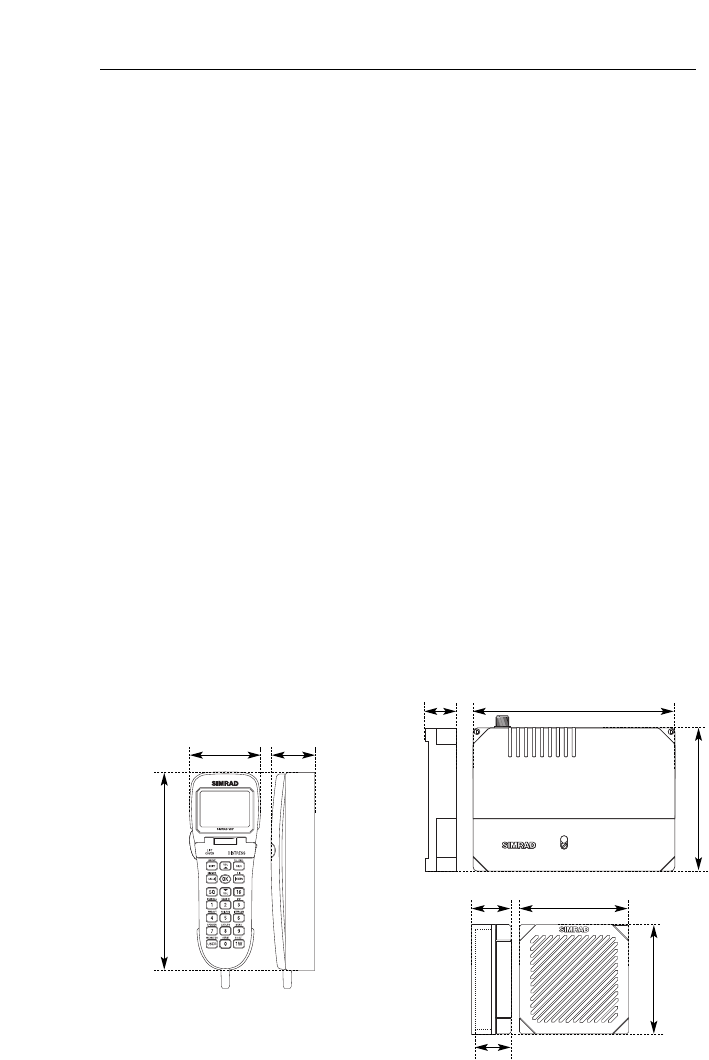

8.8 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
8.9 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . 76
8.10 Service & warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Instruction Manual
7
Part No. E04297
1 GENERAL
1.1 Introduction
The RS87 is a modular VHF radio and Class D Digital
Selective Calling (DSC) radio telephone system using a fully
featured telephone-style handset to access and control all func-
tions. It supports the latest GMDSS requirements for non-
SOLAS vessels from the International Maritime Organisation
(IMO). It will enable you to make digitally selected calls,
which are quicker and simpler to make than traditional voice
calls using Channel 16. Should a distress situation occur, with
the RS87 you can quickly raise an alert, indicating your identi-
ty, your position and automatically establish distress communi-
cation on the emergency voice channel.
The RS87 transceiver is robustly constructed using a pressure
die cast aluminium case for effective heat dissipation, ensuring
maximum transmission performance even after many hours
constant use.
Thank you for choosing Simrad
If you are pleased with your VHF we hope you will be interest-
ed in our range of marine electronic equipment, which is man-
ufactured to the same high standards as the RS87. Please con-
tact your nearest Simrad Agent for a catalogue showing our
increasing range of high tech navigational instruments, GPS,
autopilots, Radar, Echosounders, Chartplotters and VHF radio
sets.
Simrad operate a policy of continual development and reserve
the right to alter and improve the specification of their prod-
ucts without notice.
RS87 VHF
8Part No. E04297
WX WATCH
SPEAKER
DIR
TEL CALL
VOL
VOL ON/C
LAT/LON
CH SET
LIFT
COVER DISTRESS
16
VOLUME 1 1
SQUELCH 07
INT

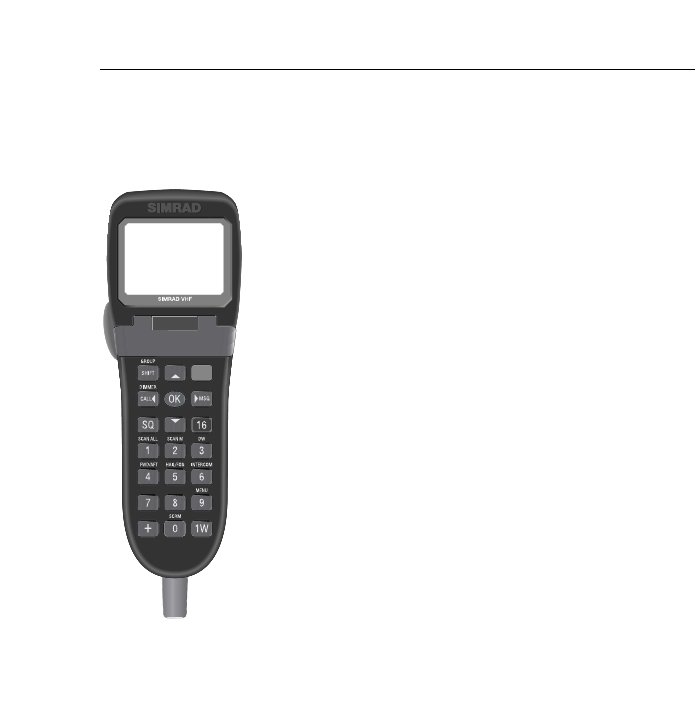

Fig 1.1 - RS87 Handset
1.2 The Simrad integrated system
The standard RS87 radiotelephone can support up to two sta-
tions with full intercom facility, geographical position input
via NMEA0183 and iDSC integration with Simrad chartplotters
which enables the plotters to display DSC call information.
With the addition of the expansion board, the system can sup-
port an additional two stations, two intercom speakers and for-
ward and aft foghorn/loudhailer speakers in addition to the
standard functions.
Additional stations can either be another RS87 type telephone
handset, or an RS86 fixed panel display, with a passive tele-
phone handset or fistmike allowing great flexibility in installa-
tions (Fig 1.2) -
Instruction Manual
9
Part No. E04297

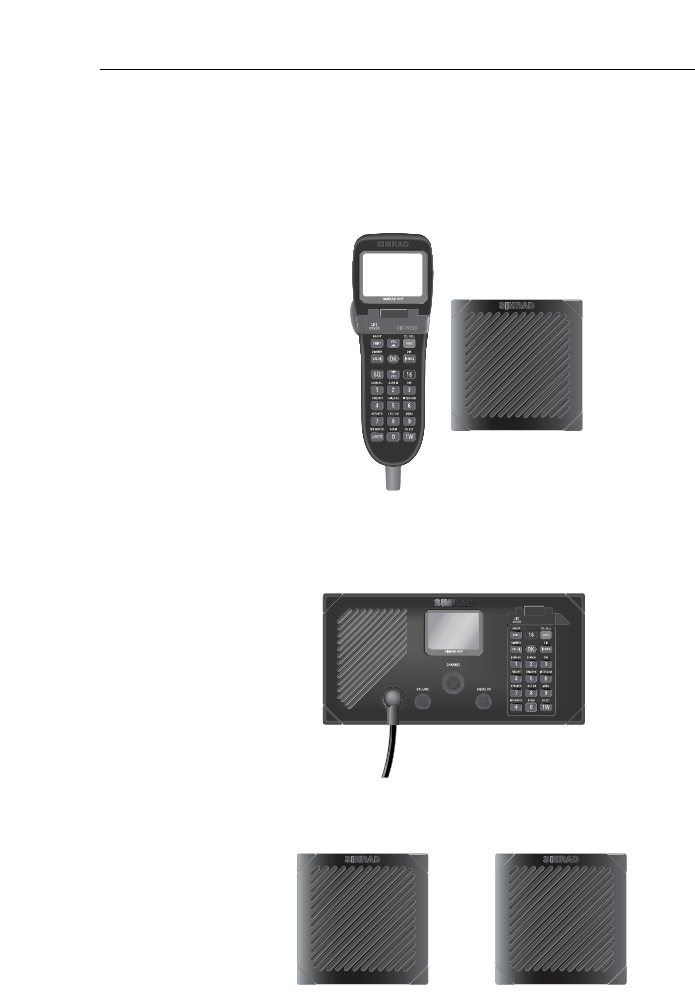

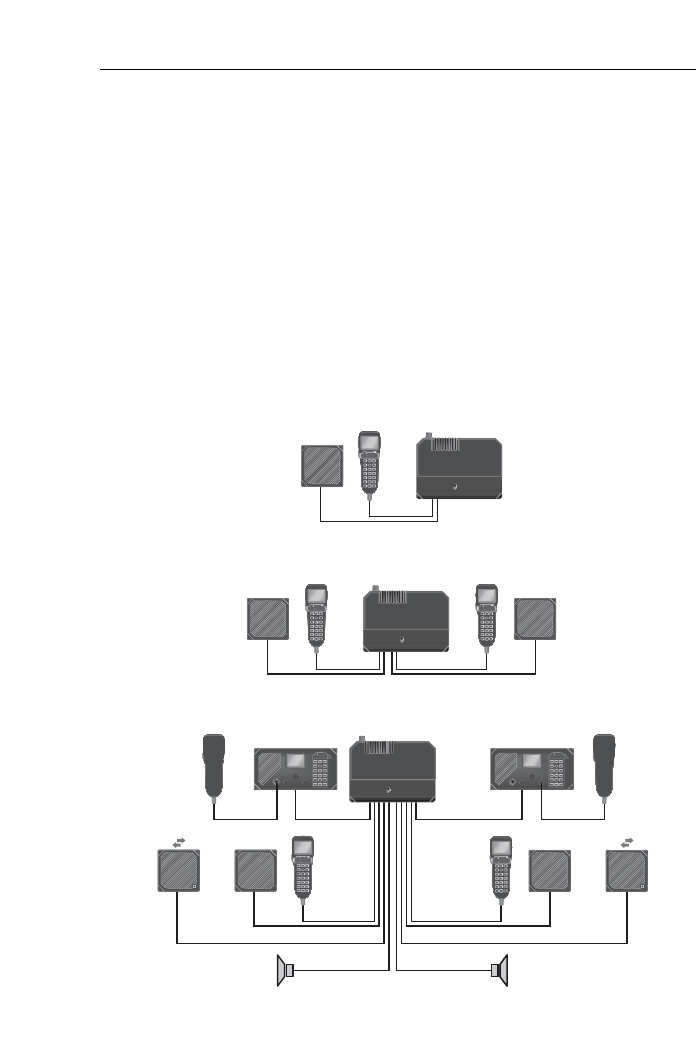

Fig 1.2 - RS87 system options
DUAL STATION SYSTEM
EXPANDED SYSTEM
BASIC SYSTEM
1.3 Licensing
NOTE Prior to use check the national licensing requirements for the
operator.
In the UK license applications and queries should be made to
the following authority -
Ship Radio Licensing
Radio Licensing Centre
The Post Office
PO Box 1495
Bristol
BS99 3QS
Aset may only be operated by, or under the supervision of a
holder of a Certificate of Competence and Authority to
Operate. This involves a simple examination and an annual
license renewal fee. The VHF only certificate is administered
by the Royal Yachting Association -
Royal Yachting Association
RYA House
Romsey Road
Eastleigh
Hants, SO5 4YA
Holders of the Restricted Certificate of Competence in Radio-
telephony (which covers MF/HF SSB etc), do not need a sepa-
rate VHF certificate.
In all other countries, please contact your regional authority for
information.
RS87 VHF
10 Part No. E04297
1.4 Entering MMSI numbers
At the time of issue of your vessel’s radio license, an MMSI
(Maritime Mobile Service Identifier) must be requested. This is
a nine digit number which must be permanently entered into
the RS87 when the radio is first set up, otherwise the DSC
functions cannot be accessed.
NOTE If the boat or the RS87 are subsequently sold, the radio must
be returned to an authorised Simrad agent for the MMSI num-
ber to be erased and the new owner’s MMSI number entered.
For European leisure vessels fitted with VHF DSC equipment, a
CEPT Short Range Certificate is required by the operator.
Additional requirements, such as GOC or ROC may apply to
operators on commercial vessels. Please enquire with your
local licensing authority for full details.
Refer to section 3.2.1 to enter the vessel’s MMSI number.
1.5 Group ID MMSI
For boats that are part of a flotilla, racing fleet or other group, a
Group ID MMSI number can also be entered which will allow
DSC communication within the group. Refer to section 3.2.3 to
enter a Group MMSI number.
Instruction Manual
11
Part No. E04297
2. MAIN FUNCTIONS
2.1 General notes
Although it has many advanced features, the RS87 has been
designed to be as simple and intuitive to operate as possible.
The Shift key is used to access the secondary functions printed
above each key - press and release Shift, then press the appro-
priate key. These secondary functions are shown in this manu-
al in italics (eg Group).
NOTE The Shift key will automatically time out of Shift Mode after
two seconds if another key is not pressed.
At any time, pressing ON/C will cancel the current operation.
The lowest occupied port is the master controller - therefore
any operations initiated on this handset will override all other
stations.
CAUTION In order for other users to be able to operate the radio, it is
imperative that the handset is replaced in the cradle after use.
2.2 Switching on & Second Country mode
To turn the radio on, press the ON/C key. The display will
show the handset software issue number two seconds, then the
station number and software issue number for the transceiver
unit for two seconds.
As a default, the radio switches on tuned to the priority chan-
nel (normally 16). If Last Channel Used mode has been set (see
section 3.3.3) the radio will switch on tuned to the previously
used channel.
The radio stores the previous volume and squelch settings and
will use these on startup.
In countries where it is permitted, the RS87 can operate on a
secondary set of channels, such as the USA channels.
To select the secondary channel table, press Shift followed by
OK. The display will show the channel set selected for two
seconds before reverting to the default display.
NOTE Channels available will depend on programming. Please
enquire with your national licensing authority for details of
permitted channel sets in your own country.
RS87 VHF
12 Part No. E04297

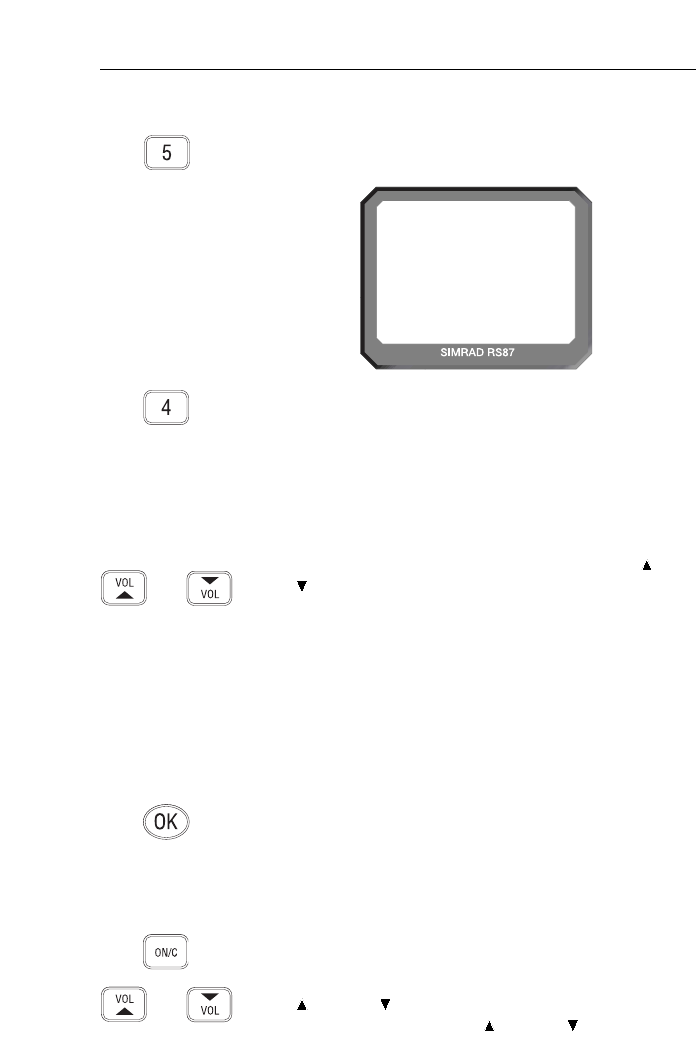

2.3 Changing channels
To select a channel, enter the channel number using the numer-
ic keypad (Fig 2.1) -
Instruction Manual
13
Part No. E04297
Fig 2.1 - Selecting a channel
If the channel is invalid, the display will show “Invalid
Channel” and then revert to the previous channel.
The priority channel (normally 16) can be selected by pressing
16, which will also set the radio to 25W transmit power.
The preselected User Channel can be directly selected by press-
ing the User key. The display will show “U” next to the chan-
nel number to indicate that it is the User Channel (Fig 2.2).
72
VOLUME 05
SQUELCH 03
INT
U 23
VOLUME 05
SQUELCH 03
INT
16
VOLUME 05
SQUELCH 03
INT
The default setting for the User Channel is 16. Refer to section
3.3.1 for details on setting the User Channel.
Fig 2.2 - User channel selected
2.3.1 Channel Sets
In addition to the standard International Channel, the RS87 can
also be programmed with regional Auxiliary Channels, such as
the marina channels M and M2 in the UK, the USA weather
channels and the fishing or leisure channels in Scandinavia.
To display the channel sets available, press Shift followed by
1W (Ch Set). Multiple presses of the 1W key while still in Shift
Mode will scroll through the available channel sets.
RS87 VHF
14 Part No. E04297
When the required channel set is displayed, enter the channel
number using the numeric keypad - eg “2” for M2 (Fig 2.4) -
MAR I NAAAAA
MAR I NAAAAA
INT
PR I VATE AAA
Fig 2.3 - Selecting auxiliary channel sets
(sets must be available to be displayed)
Fig 2.4 - Selecting auxiliary channel number
The only exception to this is when selecting UK marina chan-
nel M, which has no number associated with it. Simply select-
ing the marina channel set will automatically select it.
NOTE If no numeric keys are pressed within two seconds the radio
will revert to the previous working channel (except for marina
channel M as noted above).
2
MAR I NAAAAA
INT
2.4 Volume adjustment
To adjust the volume, press the VOL and VOL keys to
increase and decrease the setting respectively. Press and hold
the key to increase/decrease the setting rapidly.
The volume setting can be between 1 and 24 (loud).
2.5 Squelch adjustment
To adjust the squelch setting, press the SQ key to enter squelch
adjustment mode, then press the and (VOL) keys to
increase or decrease the squelch respectively. Press and hold
the key to increase/decrease the setting rapidly.
The squelch setting can be between 0 (open) and 10.
NOTE Squelch mode will automatically time out after two seconds if
another key is not pressed. Squelch mode can also be cancelled
by pressing the ON/C key.
2.6 Dual Watch mode
Dual Watch allows the radio to scan between the selected
working channel and the watch channel (the priority channel -
normally 16).
To enter Dual Watch, select the required working channel, then
press Shift and 3(DW) within two seconds.
If Dual Watch is selected while the handset is off cradle, the
display will show “Place back on cradle”. If the handset is
replaced within ten seconds of selecting Dual Watch, it will
automatically initiate Dual Watch when the handset is
replaced.
The display will show “D/W” - the large digits on the display
indicate the working channel, with the watch channel shown
below in small digits (Fig 2.5) -
Instruction Manual
15
Part No. E04297
6
D/WAAAAA 16
BBBBBBBBBB
INT
DW
Fig 2.5 - Dual Watch mode
If the radio detects a signal on the watch channel, it will lock
onto this and the large digits will change to show the watch
channel.
NOTE All other stations will also show the Dual Watch display.
NOTE Normal VHF functions will not be available when in Dual Watch
mode. To exit Dual Watch press 16, ON/C or lift the handset
from the cradle.
2.7 Tri Watch mode
Tri Watch allows the radio to scan between the selected work-
ing channel, the user channel and the watch channel.
NOTE Tri Watch cannot be selected if the user channel is set to Ch16.
To enter Tri Watch, select the required working channel, press
Shift and then press and hold the 3(DW) for two seconds.
If Tri Watch is selected while the handset is off cradle, the dis-
play will show “Place back on cradle”. If the handset is
replaced within ten seconds of selecting Tri Watch, it will auto-
matically initiate Tri Watch when the handset is replaced.
The display will show “T/W” - the large digits on the display
indicate the working channel, with the user channel and watch
channel shown below in small digits (Fig 2.6) -
RS87 VHF
16 Part No. E04297
Press & hold
T/WAAAAA 16
USERBBBBB6
INT 10
Fig 2.6 - Tri Watch mode
If the radio detects a signal on the user or watch channels, it
will lock onto this and the large digits will change to show the
relevant channel.
NOTE All other stations will also show the Tri Watch display.
NOTE Normal VHF functions will not be available when in Tri Watch
mode. To exit Tri Watch press 16, ON/C or lift the handset
from the cradle.
If the radio locks onto a busy channel, pressing OK will manu-
ally continue the scan. All Scan will otherwise automatically
restart when the channel becomes clear.
NOTE All other stations will also show the All Scan display.
NOTE While in scan mode, normal VHF functions are not available.
To exit All Scan press 16, ON/C or lift the handset from the
cradle.
2.8.1 Dynamic All Scan Inhibit
If the radio is constantly locking onto a busy channel when
scanning, this channel can be inhibited from the scan by press-
ing Shift then 1while locked on that channel.
The display will show “Channel Inhibited” and the channel
will no longer be included in the scan cycle.
The channel can be reinstated using the menu option described
in section 3.1.1.

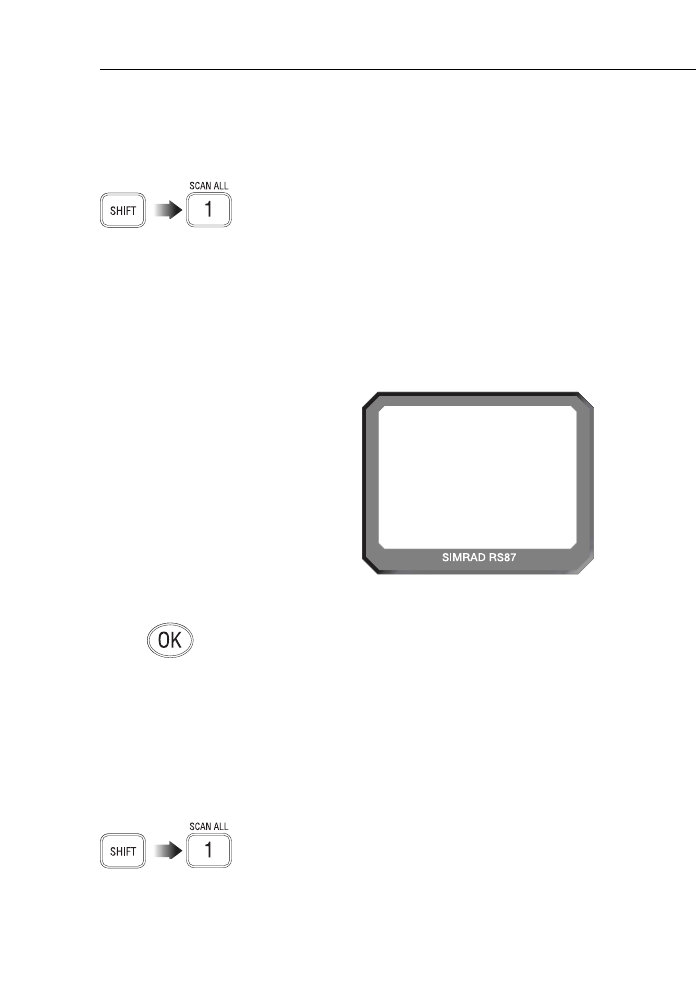

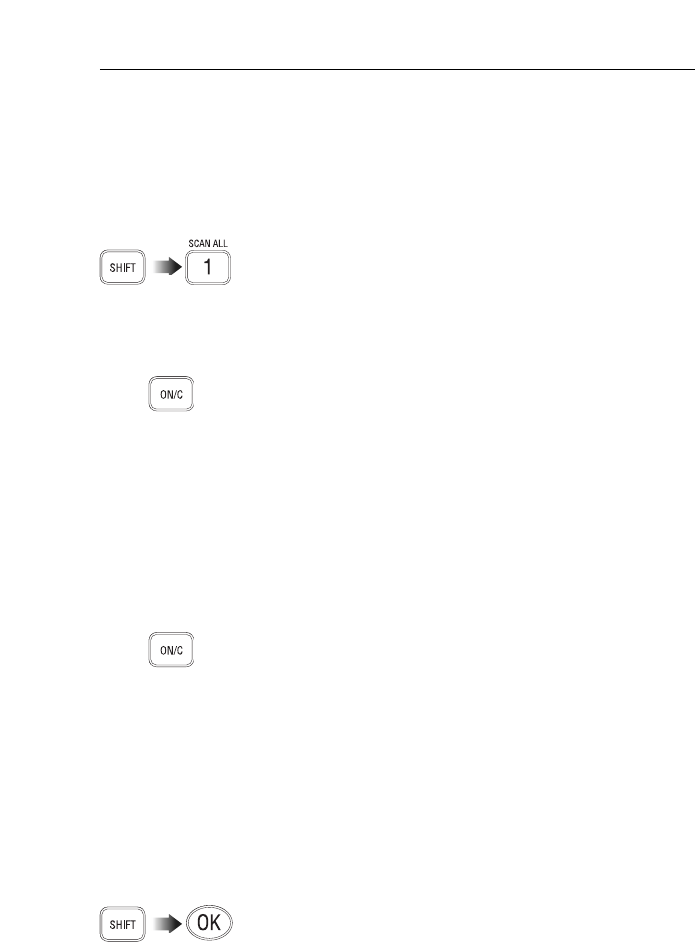

2.8 All Scan mode
The scan function cycles the RS87 sequentially through each
enabled channel, pausing when a signal is detected.
Press Shift followed by 1(Scan All) to enter All Scan Mode.
If Scan is selected while the handset is off cradle, the display
will show “Place back on cradle”. This function will be can-
celled if the handset is not returned to the cradle within 10
seconds.
The display will show “Scan All” on the display. If the radio
detects a signal, it will lock onto this and the large digits will
change to show the relevant channel number (Fig 2.7) -
Instruction Manual
17
Part No. E04297
67
INT SCAN
ALL
Fig 2.7 - All Scan mode
2.9 Memory Scan mode
Memory Scan gives the option of scanning a preprogrammed
set of channels specified by the user (see sections 3.1.4 and
3.1.5).
Press Shift then 2(Scan M) to enter Memory scan mode.
If Memory Scan is selected while the handset is off cradle, the
display will show “Place back on cradle”. If the handset is
replaced within ten seconds of selecting Memory Scan, it will
automatically initiate Memory Scan when the handset is
replaced.
The display will show “Scan M” on the display. If the radio
detects a signal, it will lock onto this and the large digits will
change to show the relevant channel (Fig 2.8) -
RS87 VHF
18 Part No. E04297
68
INT SCAN
M
Fig 2.8 - Memory Scan mode
If the radio locks onto a busy channel, pressing OK will manu-
ally continue the scan. Memory Scan will otherwise automati-
cally restart when the channel becomes clear.
NOTE If only one channel has been entered into the memory then
initiating Memory Scan will retune the RS87 to the stored
channel.
NOTE All other stations will also show the Memory Scan display.
NOTE While in memory Scan mode, normal VHF functions are not
available. To exit Memory Scan press 16, ON/C or lift the
handset from the cradle.
2.9.1 Dynamic Memory Scan Delete
If the radio is constantly locking onto a busy channel when
scanning, this channel can be removed from the Memory Scan
channel set by pressing Shift then 2while locked on that
channel.
The display will show “Channel Deleted” and the channel will
no longer be included in the scan cycle.

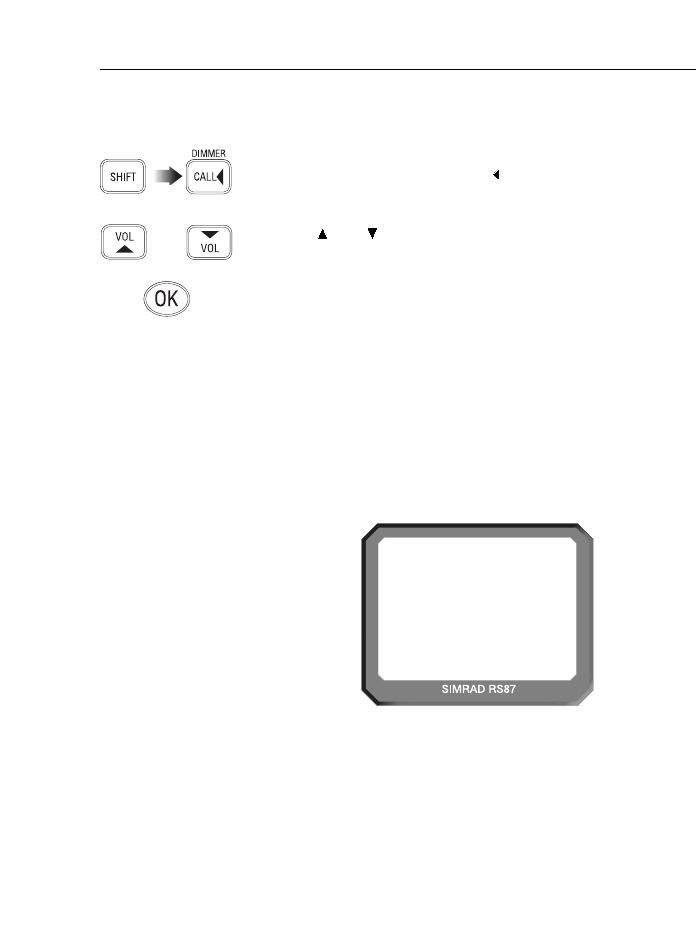

2.10 Adjusting backlighting
The display and keypad are backlit - to set the backlighting
level press Shift followed by Call (Dimmer) to enter back-
light mode.
Use the and (VOL) keys to adjust the backlighting level
from off through to level 5..
Press Ok or ON/C to exit the backlight mode at the selected
level.
NOTE Backlighting levels will only affect this station.
2.11 Handset off cradle
When a handset is lifted off cradle, all other stations will show
“Occupied” on the display (Fig 2.9). This means that these sta-
tions are locked out until the handset is returned to the cradle,
unless the station is being called on intercom by the handset.
Instruction Manual
19
Part No. E04297
NOTE The handset plugged into the lowest numbered port is
designated the Master unit. Lifting the Master handset will
override all other stations, even if it is displaying “Occupied” -
all other stations will then display “Occupied” and be locked
out.
STAT I ONAA2
OCCUP I EDBB
INT 16
Fig 2.9 - Station 2 handset is in use

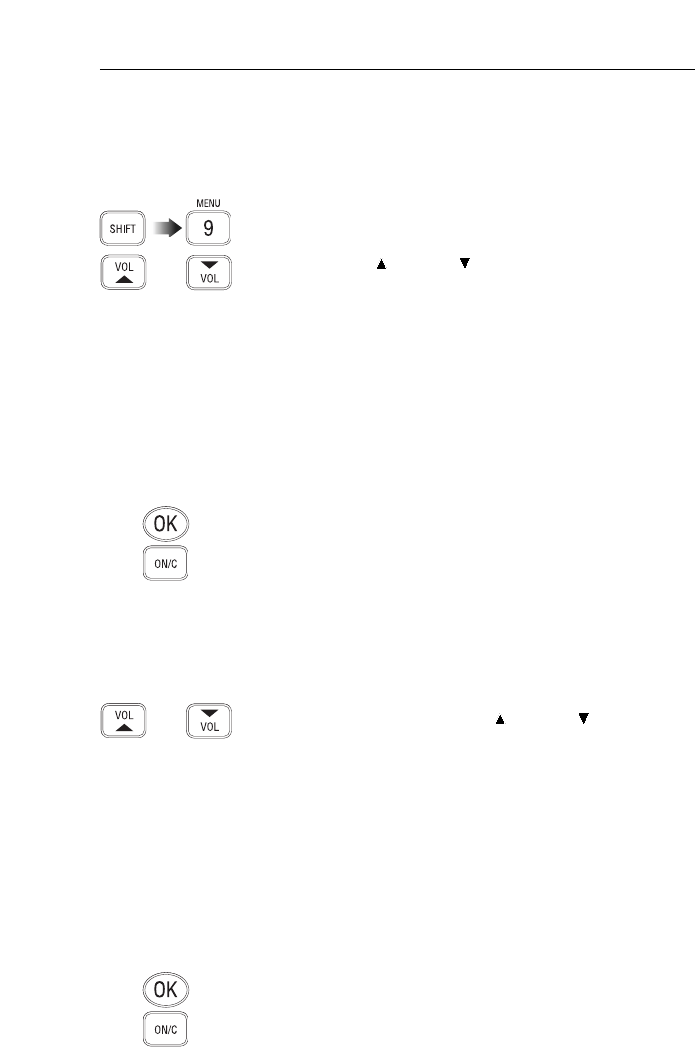

3. MENU MODE
Menu mode is used to adjust the various settings of the radio,
such as channels inhibited from the scan functions, MMSI num-
ber programming and User channel selection.
To enter Menu mode, press Shift followed by 9(Menu).
Use the the VOL and VOL keys to scroll through the
various menu options -
- Scanning (section 3.1)
Options related to the various scanning functions such as
channel inhibit, memory scan select and scan dwell time.
- Numbers (section 3.2)
Entering of ID numbers such as MMSI, Group MMSI and
ATIS number (if applicable in country of use).

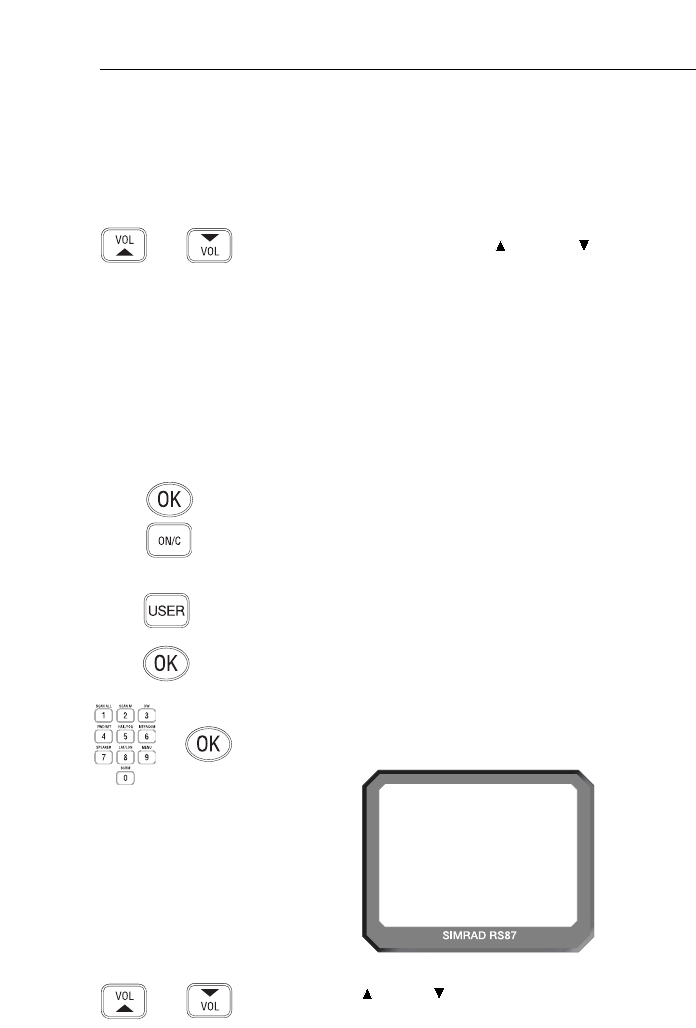

- VHF Items (section 3.3)
Miscellaneous options such as selection of User channel,
last used channel, interrupt intercom and speaker settings.
To select an option, press Ok.
To return to normal radio operation, press On/C.
NOTE Entering Menu mode will inhibit the operation of the radio.
Exit Menu mode before returning the handset to the cradle to
permit normal operation.
3.1Scanning Once the Scanning menu option has been selected (see intro-
duction to section 3), use the VOL and VOL keys to scroll
through the menu options -
All Scan inhibit (section 3.1.1)
All Scan reset (section 3.1.2)
All Scan show (section 3.1.3)
Memory Scan select (section 3.1.4)
Memory Scan clear (section 3.1.5)
Memory Scan show (section 3.1.6)
Scan dwell time (section 3.1.7)
To select an option, press Ok.
To return to the main menu, press On/C.
RS87 VHF
20 Part No. E04297
3.1.1 All Scan inhibit
If the radio is constantly locking onto a busy channel when
scanning, this channel can be inhibited from the scan cycle.
From the Scanning menu (see section 3.1) select All Scan Inhibit
and press Ok.
Enter the relevant channel number using the numeric keypad.
The display will show the channel number and it’s inhibit status
- “All Scan” for enabled, or “All Scan Inhibited” for inhibited
(Fig 3.1) -
Instruction Manual
21
Part No. E04297
Press Ok to change the channel’s inhibit status - i.e if it is
enabled, pressing Ok will inhibit it and vice versa. If the chan-
nel is inhibited, it will no longer be included in the All Scan
cycle. Enabling the channel will re-include it.
Additional channels can be inhibited/enabled by entering the
channel number and repeating the above procedure.
To exit, press the VOL or VOL key to select another
Scanning menu option, or press On/C to return to the main
menu.

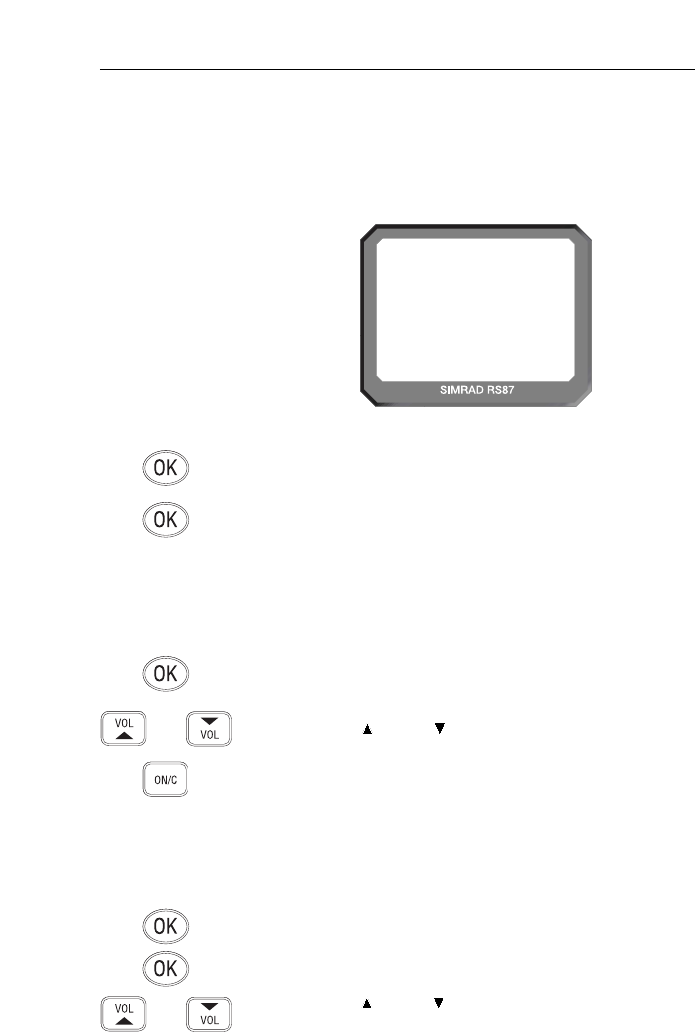

3.1.2 All Scan reset
This function will reset all inhibited channels so that they are
enabled.
From the scanning menu (section 3.1) select All Scan Reset and
press Ok - the display will show “Channels Reset” (Fig 3.2) -
65
ALL SCANAA
INH IB ITEDB
INT

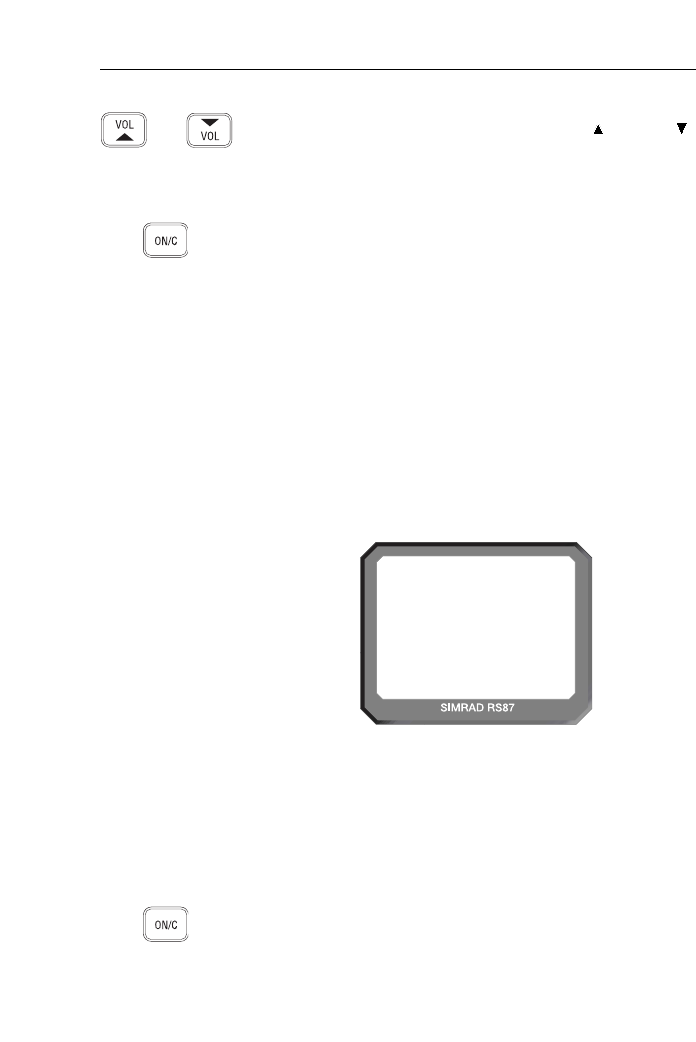

Fig 3.1 - Selected channel inhibited from scan
CHANNELSSS
RESETEDBBB
Fig 3.2 - All inhibited channels reset
Press the VOL or VOL key to select another Scanning
menu option, or On/C to return to the main menu.
Press Ok to change the channel’s Memory Scan status - i.e if it
is not selected, pressing Ok will add it to the Memory Scan
cycle and vice versa.
Additional channels can be added/removed by entering the
channel number and repeating the above procedure.
Press the VOL or VOL key to select another Scanning
menu option, or On/C to return to the main menu.
NOTE North American users - Only one Weather channel can be
entered into Memory Scan - if another one is selected, it will
override the existing channel. The Weather channel is not
scanned as part of the Memory Scan sequence - it is used by
the Weather Watch function (see section 6.1).
3.1.3 All Scan show
This function displays all the inhibited channels.
From the scanning menu (section 3.1) select All Scan Show and
press Ok. The display will then show “Showing Channels”
and display all the inhibited channels in sequence.
Press the VOL or VOL key to select another Scanning
menu option, or On/C to return to the main menu.

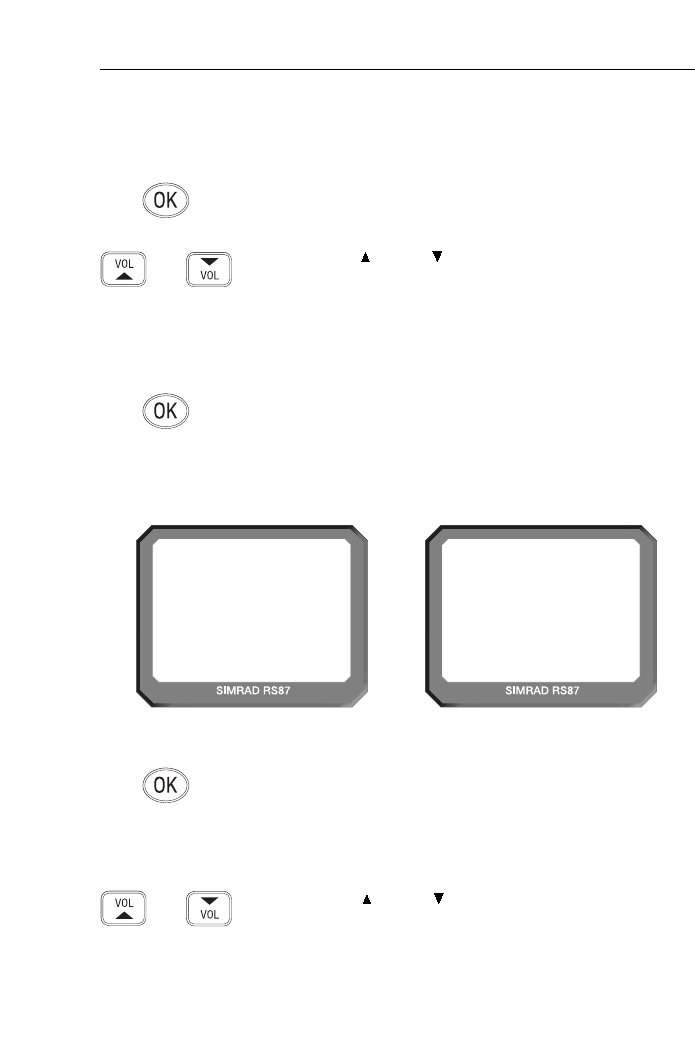

3.1.4 Memory Scan select
This function selects the channels to be used in the Memory
Scan cycle (see section 2.9).
From the scanning menu (section 3.1) select Memory Scan
Select and press Ok - the display will show “Mem Scan Select”.
Enter the relevant channel number using the numeric keypad.
The display will show the channel number and it’s memory sta-
tus - “Mem Scan” if it is not currently selected for Memory
Scan, or “Mem Scan Enabled” if it is already selected (Fig 3.3) -
RS87 VHF
22 Part No. E04297
65
MEM SCANAA
ENABLEDBB
INT
65
MEM SCANAA
INT

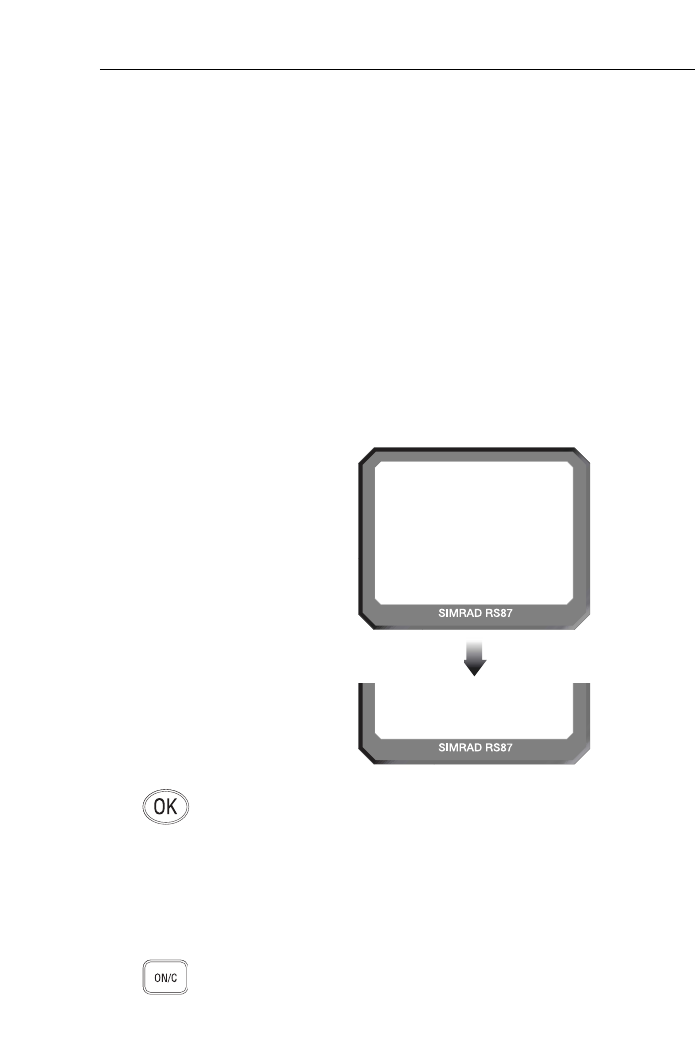

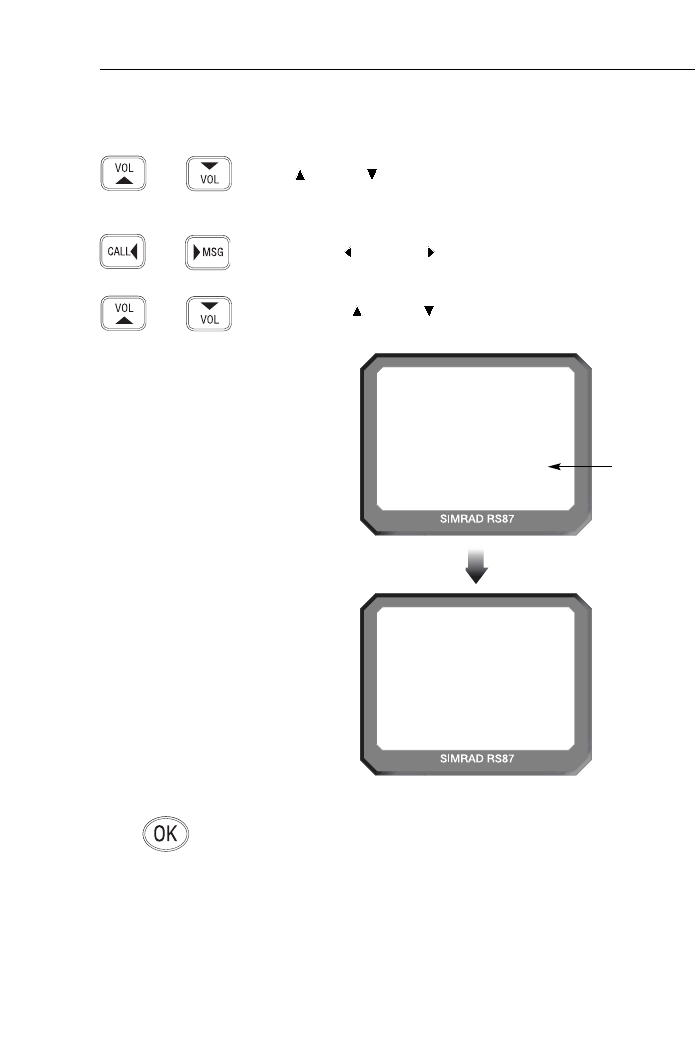

Fig 3.3 - Selecting channel for Memory Scan
CHANNEL CURRENTLY NOT SELECTED CHANNEL ALREADY SELECTED
3.1.5 Memory Scan clear
Memory Scan Clear will reset all channels selected for Memory
Scan so that they are disabled.
From the scanning menu (section 3.1) select Memory Scan
Clear and press Ok - the display will show “Channels Cleared”
(Fig 3.4) -
Instruction Manual
23
Part No. E04297
CHANNELSSS
CLEAREDBBB
Fig 3.4 - Selecting channel for Memory Scan
Press the VOL or VOL key to select another Scanning
menu option, or On/C to return to the main menu.

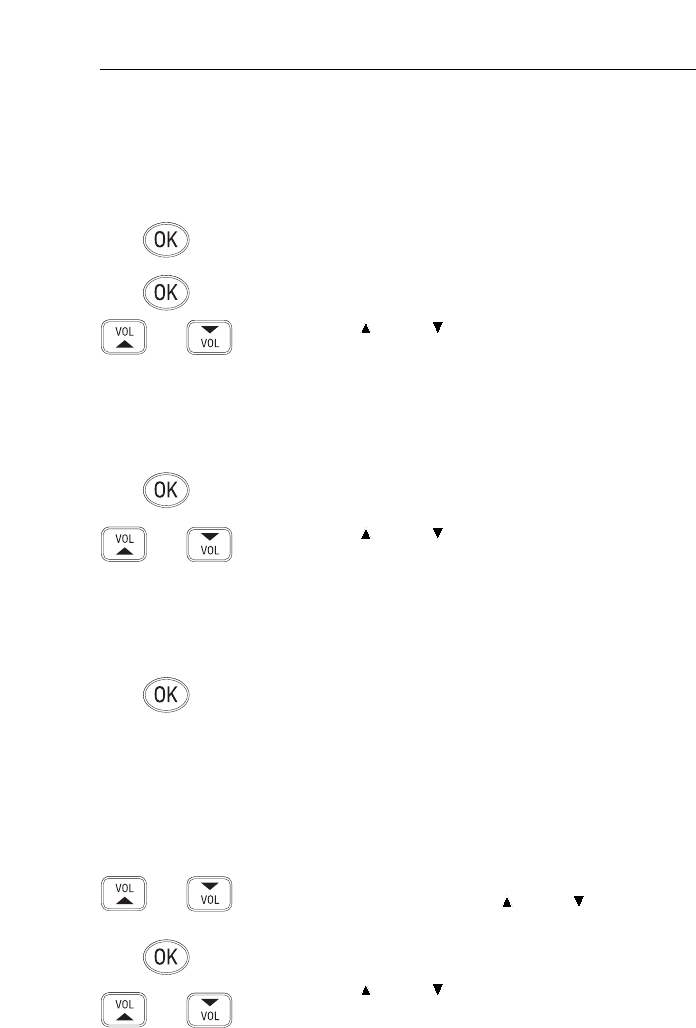

3.1.6 Memory Scan show
This function displays all channels selected for Memory Scan.
From the scanning menu (section 3.1) select Memory Scan
Show and press Ok. The display will then show “Showing
Channels” and display all the Memory Scan selected channels
in sequence.
Press the VOL or VOL key to select another Scanning
menu option, or On/C to return to the main menu.

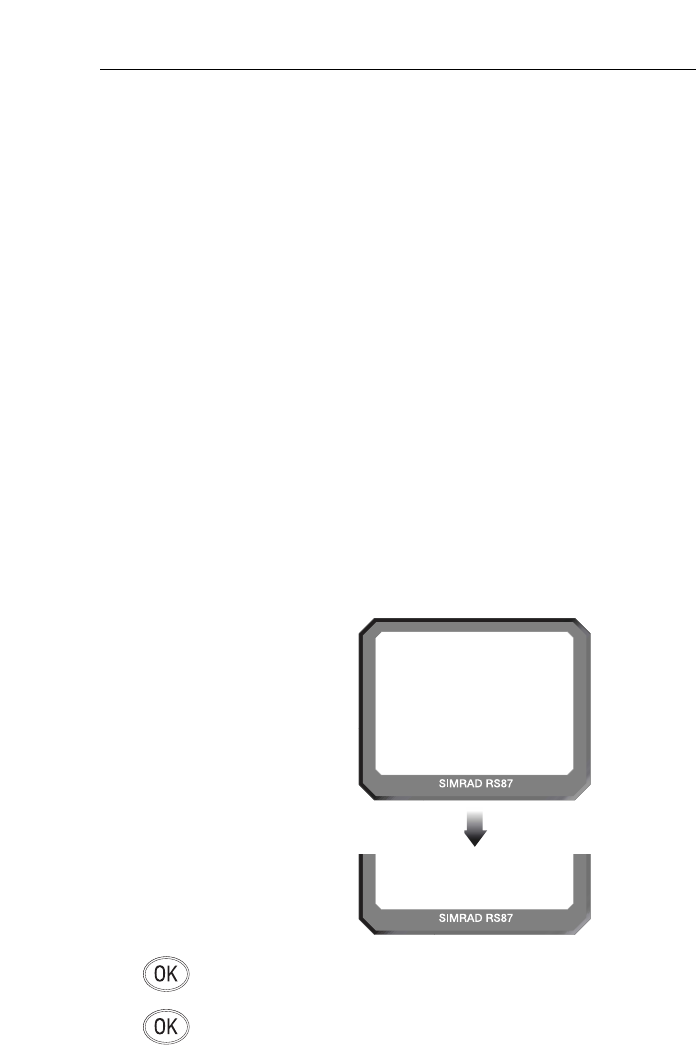

3.1.7 Scan dwell time
This function is used to select the amount of time the RS87
remains on a channel after it has locked onto it during a scan-
ning function (All Scan, Memory Scan) and the signal is lost.
From the scanning menu (section 3.1) select Scan Dwell Time
and press Ok - the display will show “Scan Dwell Time xx”,
where xx is the current dwell time in seconds (Fig 3.5) -

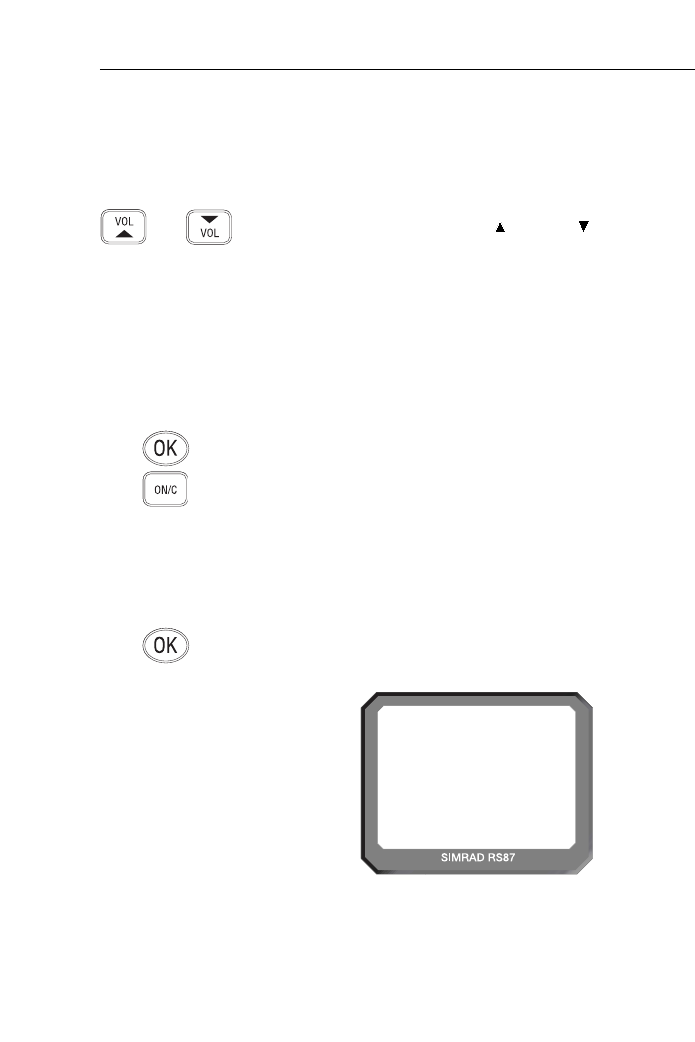

Fig 3.5 - Scan dwell time
SCAN DWELL
T I ME 04
The default time is 0, meaning that the scan will continue as
soon as the signal is lost. There are 11 levels from 0-10 seconds
- use the numeric keys to enter the scan dwell time and press
Ok to select - the display will show “Dwell Time xx Seconds”.
Press the VOL or VOL key to select another Scanning
menu option, or On/C to return to the main menu.
3.2 Numbers The Numbers menu is used for entering ID numbers such as
MMSI, Group MMSI and ATIS (if applicable in country of use).
Once the Numbers menu option has been selected (see intro-
duction to section 3), use the VOL and VOL keys to scroll
through the menu options -
Ship’s MMSI (section 3.2.1)
ATIS Number (section 3.2.2)
Group MMSI (section 3.2.3)
NOTE The ATIS Number option will only be shown if the radio is
ATIS enabled. This feature is only available for sets used in
Benelux and the Rhine/Danube waterways.
To select an option, press Ok.
To return to the main menu, press On/C.

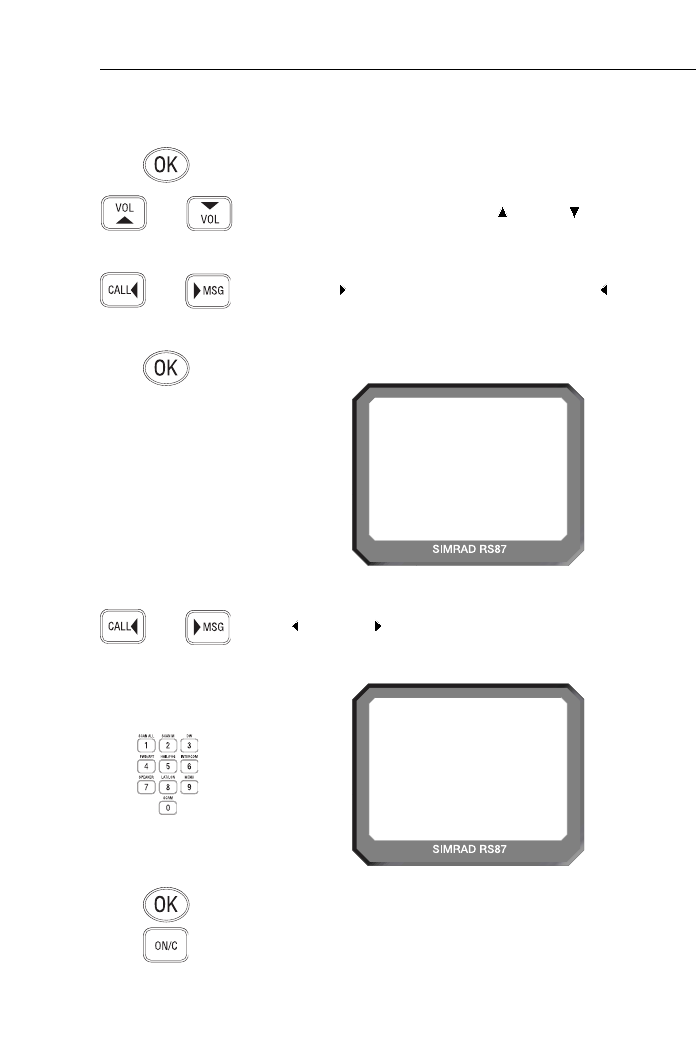

3.2.1 Ship’s MMSI
Ship’s MMSI will display the boat’s MMSI number if it has
already been entered, or will allow the MMSI to be entered if
the radio is being used for the first time.
From the Numbers menu (section 3.2) select Ship’s MMSI and
press Ok - the display will show “Ships MMSI” and the MMSI
number (unless the number has not been entered yet, in which
case it will show “_ _ _ _ _ _ _ _ _” - Fig 3.6).
RS87 VHF
24 Part No. E04297
SH I PS MMS Ii
------------
INT 16
Fig 3.6 - Entering MMSI Number
CAUTION The MMSI number can only be entered once and cannot be
edited by the user. If it is necessary to change the MMSI (for
example if the radio is being moved to another boat), the radio
must be sent to an authorised Simrad service agent for repro-
gramming.

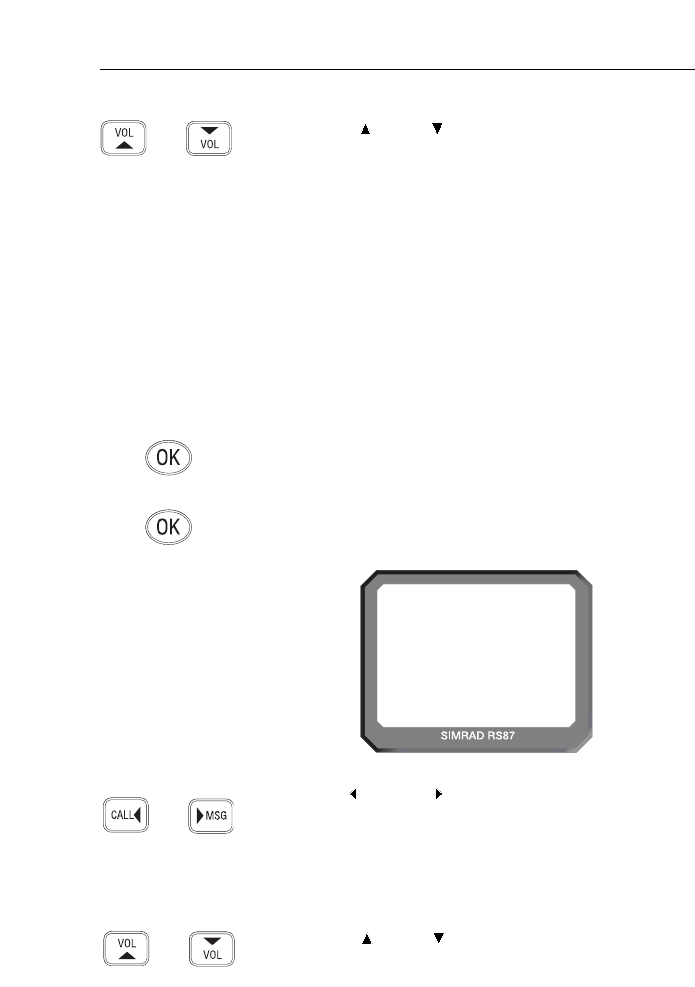

To enter the MMSI number press Ok again. The display will
show ENTER MMSI and the first dash in the number will start
flashing to indicate that entry can begin.
Enter the nine digit MMSI number using the numeric keypad
and press Ok. The radio will then ask that the MMSI is re-
entered to confirm. If the two numbers do not match, the
MMSI will need to be re-entered and re-confirmed.
Use the Call and MSG keys to move the cursor to correct
any errors. The cursor position is indicated by the number flash-
ing. Enter a new number to overwrite the incorrect number.
NOTE The MMSI number will not be accepted unless all 9 characters
have been entered.
Press the VOL or VOL key to select another Numbers
menu option, or On/C to return to the main menu.

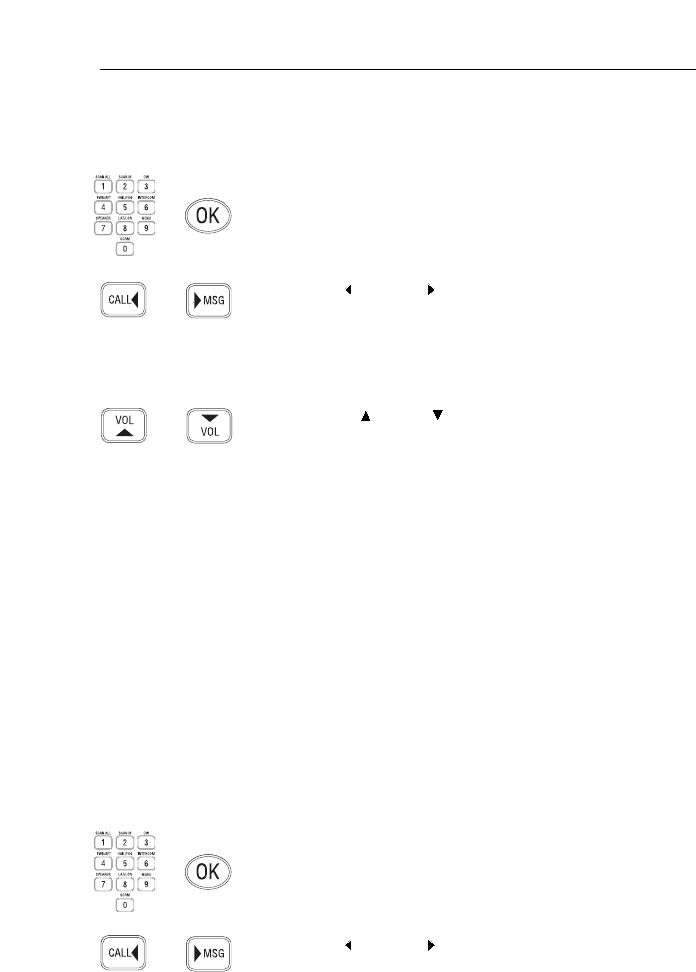

3.2.2 ATIS number
NOTE This section applies only to radios used in countries where the
ATIS system is in operation (Benelux and the Rhine/Danube
waterways). This option will only appear on ATIS equipped
radios.
From the Numbers menu (section 3.2) select ATIS No. - the
display will show “ATIS No.” and the ATIS number (unless
the number has not been entered yet, in which case it will
show “_ _ _ _ _ _ _ _ _”).
CAUTION The ATIS number can only be entered once and cannot be
edited by the user. If it is necessary to change the ATIS num-
ber, the radio must be sent to an authorised Simrad service
agent for reprogramming.
To enter the ATIS number press Ok again. The display will
show ENTER ATIS and the first dash in the number will start
flashing to indicate that entry can begin.
Enter the nine digit ATIS number using the numeric keypad
and press Ok. The radio will then ask that the number is re-
entered to confirm. If the two numbers do not match, the num-
ber will need to be re-entered and re-confirmed.
Use the Call and MSG keys to move the cursor to correct
any errors. The cursor position is indicated by the number flash-
ing. Enter a new number to overwrite the incorrect number.
NOTE The ATIS number will not be accepted unless all 9 digits have
been entered - the prefix 9 is automatically inserted by the radio.
Instruction Manual
25
Part No. E04297
Press the VOL or VOL key to select another Numbers
menu option, or On/C to return to the main menu.
3.2.3 Group MMSI
For boats that are part of a flotilla, racing/fishing fleet or other
group, a Group ID MMSI number can also be entered and used
to contact other boats in the same fleet.
NOTE The Group MMSI number may be allocated on a temporary
basis by the local administration, for this reason the number
can be changed by the user.
From the Numbers menu (section 3.2) select Group MMSI - the
display will show “Group MMSI” and the Group MMSI num-
ber (unless the number has not been entered yet, in which case
it will show “0 _ _ _ _ _ _ _ _”).
To enter the Group MMSI number press Ok again. The display
will show ENTER MMSI and the first dash in the number will
start flashing to indicate that entry can begin.
The first digit of a Group MMSI is always 0, and this is prese-
lected by the radio. Enter the remaining 8 digits using the
numeric keypad and press Ok (Fig 3.7) -
RS87 VHF
26 Part No. E04297
GROUP MMS II
0436 1 ----
INT 16
Use the Call and MSG keys to move the cursor to correct
any errors. The cursor position is indicated by the number
flashing. Enter a new number to overwrite the incorrect
number.
NOTE The number will not be accepted unless all 8 remaining digits
have been entered.
Press the VOL or VOL key to select another Numbers
menu option, or On/C to return to the main menu.
Fig 3.7 - Entering Group MMSI number
Press the VOL or VOL key to select another VHF items
menu option, or On/C to return to the main menu.
3.3 VHF items
The VHF items menu contains the settings for miscellaneous
items such as user channel, position view, auxiliary audio and
speaker settings amongst others.
Once the VHF items menu option has been selected (see intro-
duction to section 3), use the VOL and VOL keys to scroll
through the menu options -
User channel (section 3.3.1)
Position view (section 3.3.2)
Last used channel (section 3.3.3)
Interrupt intercom (section 3.3.4)
Auxiliary audio (section 3.3.5)
Speaker settings (section 3.3.6)
Scrambler codes (only if scrambler option is fitted)
Serial number
To select an option, press Ok.
To return to the main menu, press On/C.
3.3.1 User channel
This is a user programmable priority channel that is used in the
Tri-watch function and is selected by pressing the User key.
From the VHF items menu (section 3.2) select User Channel
and press Ok - the display will show “User Channel”.
Enter the channel number using the numeric keypad and press
Ok. The display will show “Set User Channel” (Fig 3.8) -
Instruction Manual
27
Part No. E04297
10
SET USERAA
CHANNELBBB
INT
Fig 3.8 - Setting the User Channel
From the VHF items menu (section 3.2) select Position View and
press Ok.
If GPS position information is being received, the display will
show “Position View Off”. Press the Ok key to toggle between
ON and OFF. When this option is turned on, the bottom two
lines of the display will show the current Lat / Long position on
all handsets. If the volume or squelch is adjusted, the display
will show the settings while the up/down keys are operated,
before reverting to the position display.
If no GPS position information is being received, the display
will show “View”. Pressing Ok will show the manual position
entered, or the last known GPS position. If there has not been a
position entered, the Lat and Long display will show all 9’s.
Press the VOL or VOL key to toggle between position and
time (UTC) displays.
Press On/C to exit.
3.3.3 Last used channel
Normally the RS87 will power up on the programmed start up
channel (usually the priority channel). This function enables the
radio to power up on the last used channel - the default setting is off.
From the VHF items menu (section 3.2) select Last Used Chan
and press Ok - the current status will be shown - “On” or “Off”.
Press Ok to toggle between the On and Off settings.
Press the VOL or VOL key to select another VHF items
menu option, or On/C to return to the main menu.
3.3.2 Position view
This option allows the user to view the current GPS position that
will be used if a distress call is made (Fig 3.9). The function of
this option depends on whether the position is being received
automatically via NMEA, or if it has been entered manually.
RS87 VHF
28 Part No. E04297
16
89º 23. 000N
102º 54. 120E
INT
LAT
LON
Fig 3.9 - Position display
3.3.4 Interrupt intercom
This function is used to specify whether intercom or loudhailer
functions should be interrupted when an incoming VHF trans-
mission is received - the default setting is “Yes”.
From the VHF items menu (section 3.2) select Interrupt
Intercom and press Ok - the display will show “Interrupt
Intercom” and the current status - “Y” or “N”.
Press Ok to toggle between Yes and No interrupt.
Press the VOL or VOL key to select another VHF items
menu option, or On/C to return to the main menu.
3.3.5 Auxiliary audio
The Auxiliary Audio input allows an outside audio source to
be connected to the radio and outputted through the speaker/
intercom system (eg an FM receiver for weather forecasts etc).
From the VHF items menu (section 3.2) select Auxiliary Audio
and press Ok to enter the Auxiliary Audio sub-menu.
Press the VOL or VOL keys to select the required
Auxiliary Audio settings option -
Use Aux AF
Interrupt Aux AF
To turn the Auxiliary Audio input on, select “Use Aux AF” -
the display will show “Use Aux AF” and the current status
(“No” or “Yes”). Press Ok to toggle between the On and Off
settings. If the Aux AF option is switched on, the external
audio source will be outputted through all speakers in the sys-
tem at the set volume level.
NOTE When this option is turned on, the display will show “Using
Aux Audio” on the bottom line of the display. If the volume or
squelch is adjusted, the volume/squelch settings will be shown
while they are being adjusted, then revert to this display.
To specify whether the Auxiliary Audio input should be inter-
rupted if an incoming VHF transmission is received select
“Interrupt Aux AF” using the VOL or VOL key - the
default setting is “Yes”.
Press Ok to toggle between Yes and No interrupt.
Press the VOL or VOL key to select another Auxiliary
Audio sub-menu option, or On/C to return to the VHF Items
menu. Press On/C again to return to the main menu.
Instruction Manual
29
Part No. E04297
3.3.6 Speaker settings
The Speaker Settings option is used to set the individual
default volume levels for each station, intercom and loudhailer
in the system.
From the VHF items menu (section 3.2) select Speaker Settings
and press Ok to enter the Speaker Settings sub-menu. Press
the VOL or VOL keys to scroll through each speaker, dis-
playing the default volume level for each one.
NOTE Only connected speakers will be shown.
The first option in the sub-menu is Reset To Defaults (Fig 3.10) -
pressing Ok when this option is displayed will reset all speaker
levels to their default settings - the display will show “Resetting
Levels”.
RS87 VHF
30 Part No. E04297
To set the required volume levels for each individual position,
use the VOL or VOL keys to select the required station
and press Ok. The selected speaker will then emit a continu-
ous tone indicating the current volume level. Press VOL or
VOL to adjust the volume level as suitable and press Ok to
confirm.
Press the VOL or VOL keys to select another station and
repeat the above procedure, or On/C to return to the VHF
Items menu. Press On/C again to return to the main menu.
16
RESET TO000
DEFAULTS00
INT
Fig 3.10 - Resetting speaker settings to defaults
Enter the required working channel using the numeric keypad,
or use the VOL or VOL keys to scroll through the four
default reply channels (06, 08, 72 & 77). Press Ok to confirm.
NOTE Only simplex channels can be selected as the working channel.
NOTE If the MMSI entered is for a coast station, the option to select a
working channel will not be available - this is specified by the
coast station, and will normally be a duplex channel.
The display will show “Press Ok To Send” - press Ok to initi-
ate the call, or On/C to abort.
4. DSC FUNCTIONS
4.1General The RS87 features full Class D DSC (Digital Selective Calling)
functionality, which enables the user to make digitally selected
calls - quicker and simpler to make than traditional voice calls
using Channel 16. Should a distress situation occur, a Distress
Alert call can be initiated, indicating the vessel’s identity, posi-
tion and automatically establish distress communication on the
emergency voice channel (normally Channel 16)
NOTE DSC functions will only be available if the MMSI number has
been entered into the radio (see section 3.2.1).
4.2Making a call
4.2.1 Individual Routine call

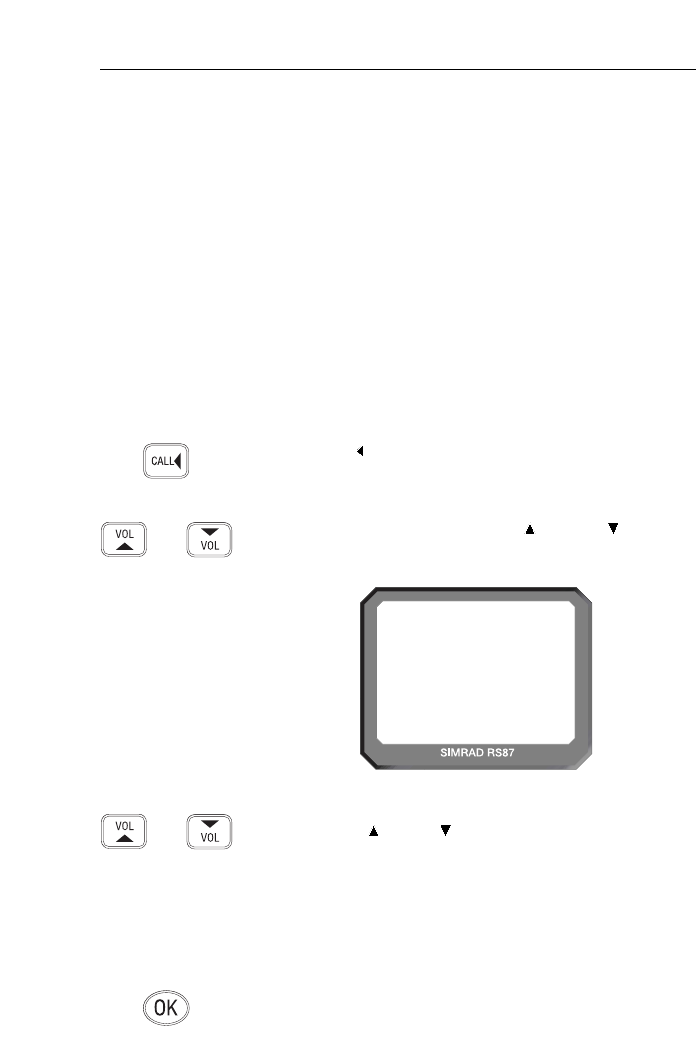

Press the Call key to enter the Individual Routine call func-
tion.
Either manually enter the MMSI number of the station using
the numeric keypad, or press the VOL and VOL keys to
scroll through the MMSI number directory (Fig 4.1). Press Ok
to confirm the selected entry.
Instruction Manual
31
Part No. E04297
SEA M I STAA
ON CH 06 00
INT 06
Fig 4.1 - Selecting a number from the MMSI directory
On initiation of the call, the display will show “Awaiting
Acknowledg” (Fig 4.2). Once an acknowledgement is received,
the radio will automatically.switch to the specified working
channel.
RS87 VHF
32 Part No. E04297
NOTE If an acknowledgement is not received, the radio will continue
showing the “Awaiting Acknowledg” display for 4.5 minutes
before timing out and returning to normal operation.
4.2.2 Public Correspondence call
For vessels within range of a country operating the necessary
network, the RS87 can be used to directly make and receive
Public Correspondence calls from a land based telephone sys-
tem via a coast station.

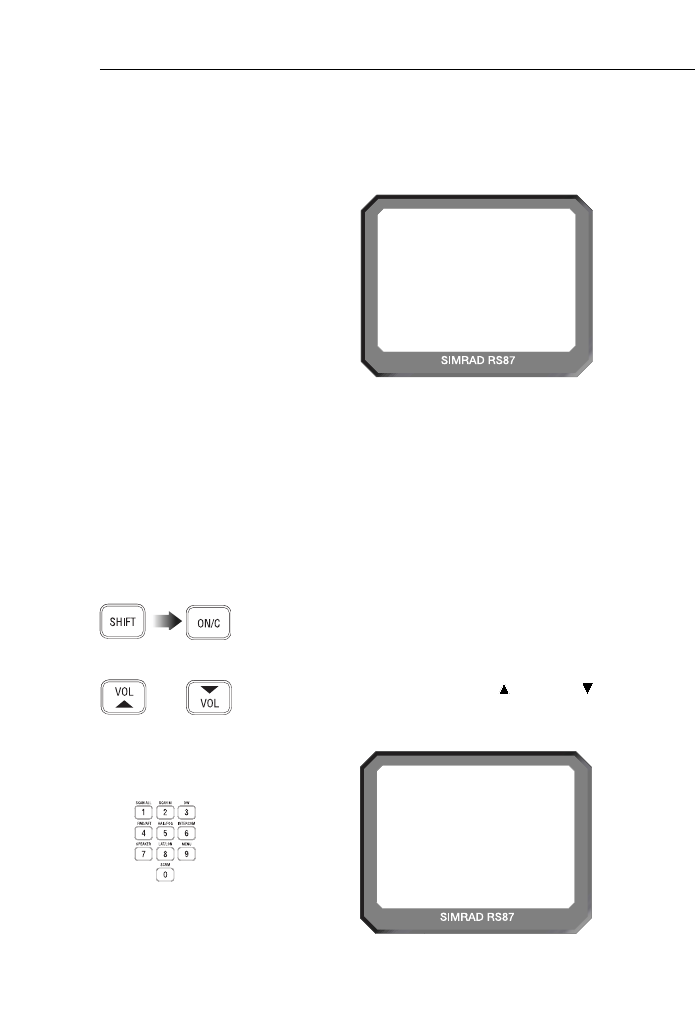

Press Shift then On/C to enter the Public Correspondence call
function.
Either manually enter the telephone number using the numeric
keypad (Fig 4.3), or press the VOL and VOL keys to scroll
through the telephone number directory. Press Ok to confirm
the selected entry.
06
AWA I T I NGAA
ACKNOWLEDG
INT
Fig 4.2 - Call sent, awaiting acknowledgment from recipient
06
44 1 606547
677------
INT
NOTE Check with your local network provider for usage instructions.
Fig 4.3 - Dialling a number manually
The next stage is to specify the coast station the call is to be
routed through. Either manually enter the MMSI number of the
coast station using the numeric keypad, or press the VOL and
VOL keys to scroll through the Coast Station MMSI number
directory (Fig 4.4). Press Ok to confirm the selected entry.
Instruction Manual
33
Part No. E04297
06
COAST 1 AAA
INT
NOTE The MMSI number entered must have two leading zeros
(indicating a coast station), or it will not be accepted.
The display will show “Press Ok To Send” - press Ok to initi-
ate the call, or On/C to abort.
On initiation of the call, the display will show “Attempting To
Connect”. If the call cannot be connected for any reason, the
display will show “Cannot Connect”, then “Pls Wait 15
Minutes” before returning to the default display.
If the call is connected, the display will show “Call In
Progress” (Fig 4.5) - press the PTT key to talk and release to
listen.
Fig 4.4 - Selecting a Coast Station from the coast station directory
NOTE The channel number displayed during the call is determined
by the Coast Station.
Press On/C to end the call, or wait for the other end to replace
the receiver.
07
CALL I N AAA
PROGRESSBB
INT
Fig 4.5 - Call has been connected

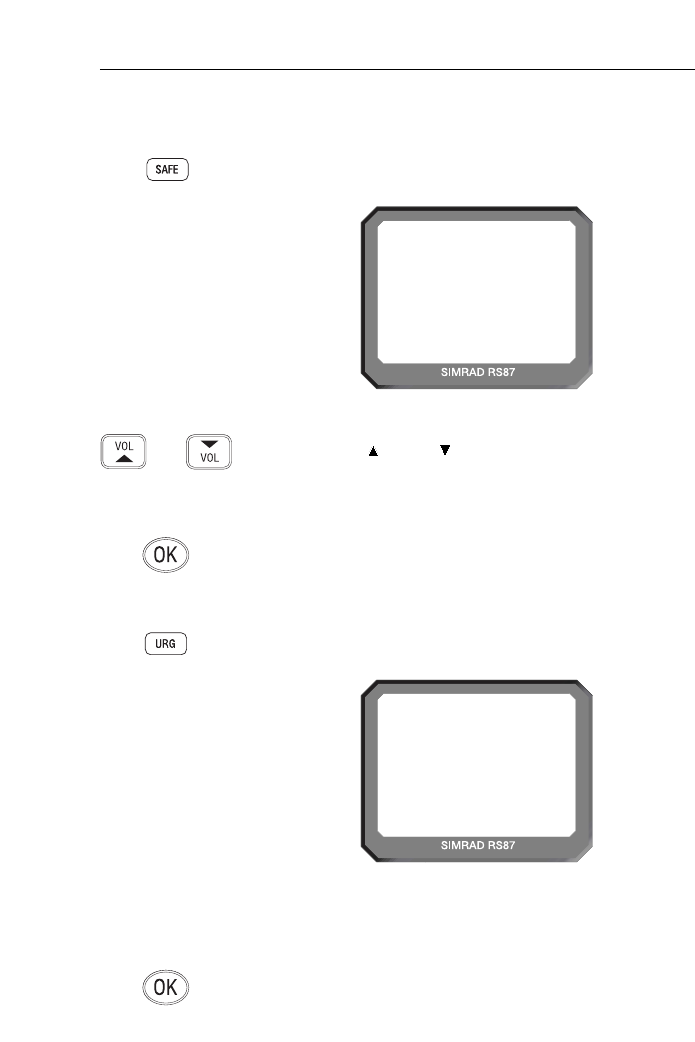

4.2.3 All Ships Safety call
To make an All Ships Safety call, lift the protective cover on the
front of the handset and press the Safety key. The display will
show “Safety on Ch 16” (Fig 4.6) -
RS87 VHF
34 Part No. E04297
06
SAFE T YAAAA
ON CH 16 00
INT
Fig 4.6 - Making an All Ships Safety call
Enter the required working channel using the numeric keypad,
or use the VOL or VOL keys to scroll through the four
default reply channels (06, 08, 72 & 77). Press Ok to confirm.
NOTE Only simplex channels can be selected as the working channel.
The display will show “Press Ok To Send” - press Ok to initi-
ate the call, or On/C to abort.
4.2.4 All Ships Urgency call
To make an All Ships Urgency call, lift the protective cover on
the front of the handset and press the Urgency key. The dis-
play will show “Urgency on Ch 16” (Fig 4.7) -
06
URGEN CYAAA
ON CH 16 00
INT
Fig 4.6 - Making an All Ships Urgency call
NOTE As All Ships Urgency calls must use Ch 16 for voice commun-
ication, the option to manually select a working channel is not
available.
The display will show “Press Ok To Send” - press Ok to initi-
ate the call, or On/C to abort.

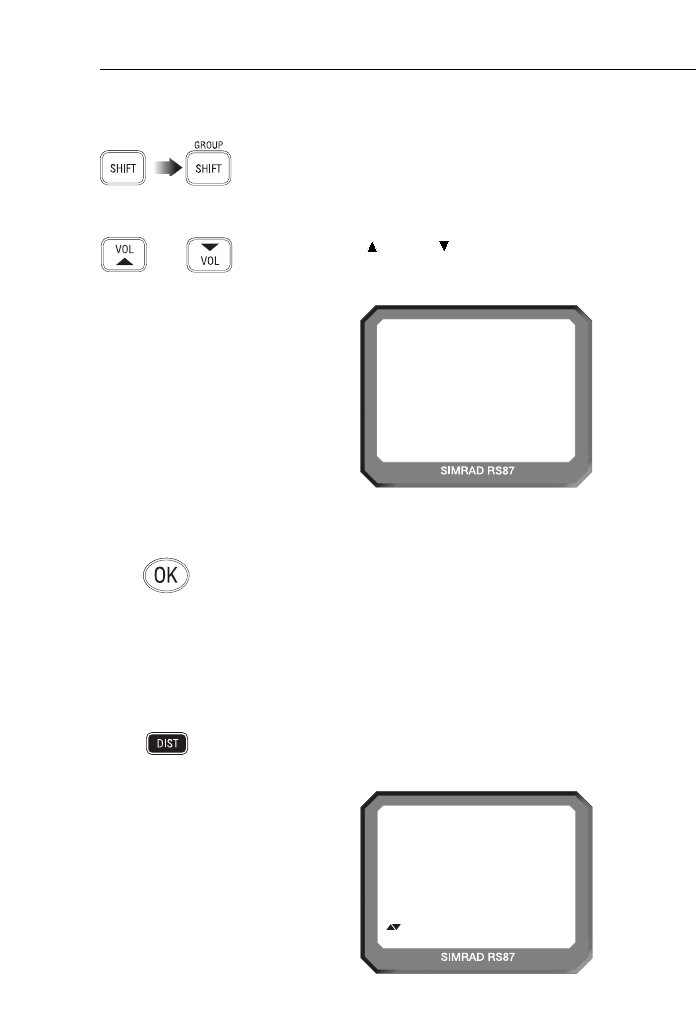

4.2.5 Group call
Press the Shift key twice to enter the Group call function - the
display will show the Group MMSI number stored in the radio
(see section 3.2.3).
Enter the required working channel using the numeric keypad,
or use the VOL or VOL keys to scroll through the four
default reply channels (06, 08, 72 & 77). Press Ok to confirm
(Fig 4.7) -
Instruction Manual
35
Part No. E04297
06
026530 1 45
ON CH 06B
INT
Fig 4.7 - Making a Group Call
NOTE Only simplex channels can be selected as the working channel.
The display will show “Press Ok To Send” - press Ok to initi-
ate the call, or On/C to abort.
4.2.6 Distress Alert call
WARNING This call should only be made if the vessel is in a genuine
distress situation. It is an offense to send a Distress Alert call
if the vessel or crew are not in danger.
The distress button is located under the protective cover on the
front of the handset. Press the Distress button to access the
Distress Alert call function - the display will show “Distress
Undefined” (Fig 4.8) -
--
D I STRESSAA
UNDEF I NED b
INT
Fig 4.8 - Distress Alert menu
ctd -
Use the VOL or VOL keys to scroll through the available
Nature of Distress categories -
• Undefined (default)
• Abandoning
• Piracy
• MOB
• Fire
• Flooding
• Collision
• Grounding
• Listing
• Sinking
• Adrift
Press and HOLD the Distress key to begin the 5 second count-
down - the large digits will count down from 5 to 1 before initi-
ating the distress alert - the display will show “Sending Alert”
(Fig 4.9) -
RS87 VHF
36 Part No. E04297
NOTE The Distress Alert call can be aborted if the Distress key is
released at any time before the 5 second countdown has ended.
Press On/C to return to normal radio operation.
The Distress Alert call sent includes the vessel’s MMSI, the
nature of the distress as specified, the time the call was sent
and the current position of the vessel (if the appropriate navi-
gational receiver is connected to the radio, or a manual posi-
tion has been entered - see section 6.3).
The radio will switch to monitoring channel 16 and the display
will show “Awaiting Acknowledg” until an acknowledgement
is received. The radio will automatically repeat the Alert
approximately every four minutes until either an acknowl-
edgement is received, or On/C is pressed (it is not recommend-
ed that the Distress Alert is cancelled manually by pressing
On/C unless you are requested to do so by the rescue authori-
ties).
--
SEND I NGAAA
ALER T BBBBB
INT
Fig 4.9 - Sending a Distress Alert
When an acknowledgement is received from the Rescue Co-
ordination Centre, this will automatically cancel the Distress
Alert transmission. The subsequent rescue co-ordination will
be performed using the voice working channel (Ch 16).
WARNING If a DSC distress alert is sent accidentally, cancel it immediately
on the RD87 by pressing the On/C button to prevent repeats,
then make the following announcement on channel 16 -
“This is (name of vessel, callsign, MMSI)”
“Cancel DSC Alert sent (date & time UTC)”
Do not simply cancel the DSC alert without verbally cancelling
it as well, otherwise the rescue authorities will not be aware
that this is a false alarm.
4.3 Receiving a call
4.3.1 Individual Routine call
If an Individual Routine call is received, the radio will sound
an incoming call alarm.
The display will flash between displaying “Call From”, the
caller’s MMSI and the specified working channel (Fig 4.10). If
the caller’s MMSI is stored in the MMSI directory (see section
5.2), then the display will show the name stored instead of the
MMSI number.
Instruction Manual
37
Part No. E04297
10
CALL FROMA
3453428599
INT
REPLY ONA0
CH 0628599

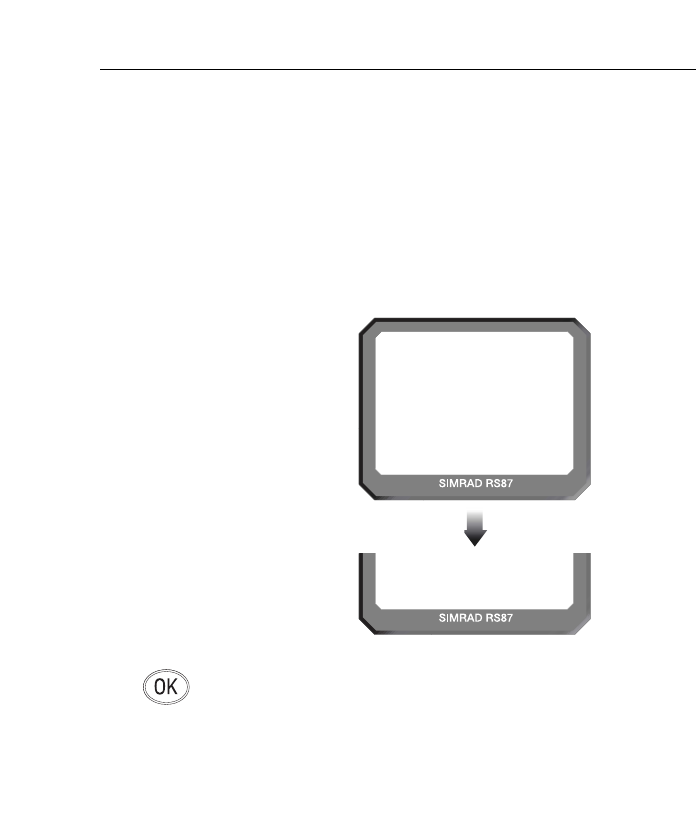

Fig 4.10 - Receiving incoming Individual Routine call
Press Ok to accept the call or On/C to reject the call.
If the call has been accepted, the display will show “Send
Acknowledg”. Press Ok to send a call acknowledgement and
automatically switch to the specified working channel.
4.3.2 Public Correspondence call
APublic Correspondence call is a call made from a landbased
telephone which is routed via a coast station. This is only
available in countries operating the necessary network.
NOTE At present, it is not possible to receive incoming calls on the
Public Correspondence network - calls can only be made
from the radio. This section is for reference purposes only.
When a Public Correspondence call is received the radio will
sound an incoming call alarm.
The display will flash between displaying “Tel Call From” and
the caller’s telephone number. If the caller’s number is stored
in the Telephone Number directory (see section 5.3), then the
display will show the name stored instead of the telephone
number (Fig 4.11) -
RS87 VHF
38 Part No. E04297
10
TEL CALLA0
FROM428599
INT
SIMRAD ONA0
8599
Fig 4.11 - Receiving incoming Public Correspondence call
Press Ok to accept the call or On/C to reject the call - the dis-
play will show “Call In Progress”.
NOTE As the telephone call is transmitted via a VHF channel
specified by the coast station, it will still be necessary to press
the PTT key to talk and release it to listen, as with a normal
VHF call. The coast station will disconnect the call if the PTT
is not pressed for 5 seconds at least every 45 seconds.
To end the call, press the On/C key, or wait until the caller
replaces the receiver (an End Call signal will be sent to the
radio). Replace the handset in the cradle.
Press Ok to accept the call and automatically switch to channel
16, or On/C to reject the call.
NOTE All Ships Urgency calls always use channel 16 as the working
channel.
4.3.3 All Ships Safety call
If an All Ships Safety call is received, the radio will sound an
incoming call alarm.
The display will flash between displaying “All Ships Safety”
and the caller’s MMSI. If the caller’s MMSI is stored in the
MMSI directory (see section 5.2), then the display will show the
name stored instead of the MMSI number.
Press Ok to accept the call - the display will change to “Reply
On Ch X”, where X is the specified working channel, or On/C
to reject the call.
Press Ok again to automatically switch to the working channel.
4.3.4 All Ships Urgency call
If an All Ships Urgency call is received, the radio will sound an
incoming call alarm.
The display will flash between displaying “All Ships Urgency”
and the caller’s MMSI. If the caller’s MMSI is stored in the
MMSI directory (see section 5.2), then the display will show the
name stored instead of the MMSI number (Fig 4.12) -
Instruction Manual
39
Part No. E04297
10
ALL SHIPSSS
URGENCY9 9
INT
FROMPRAY 0
SEASPRAY 0
Fig 4.12 - Incoming All Ships Urgency call
Press Ok again to automatically switch to the working
channel.
4.3.5 Group call
If the radio has a Group MMSI number entered (see section
3.2.3) and a Group call is received, the radio will sound an
incoming call alarm.
The display will flash between displaying “Routine Group
Call” + the caller’s MMSI and the specified working channel
(Fig 4.13). If the caller’s MMSI is stored in the MMSI directory
(see section 5.2), then the display will show the name stored
instead of the MMSI number.
RS87 VHF
40 Part No. E04297
06
ROUT I NESS
GROUP CALL
INT
FROMPRAY 0
3895623970

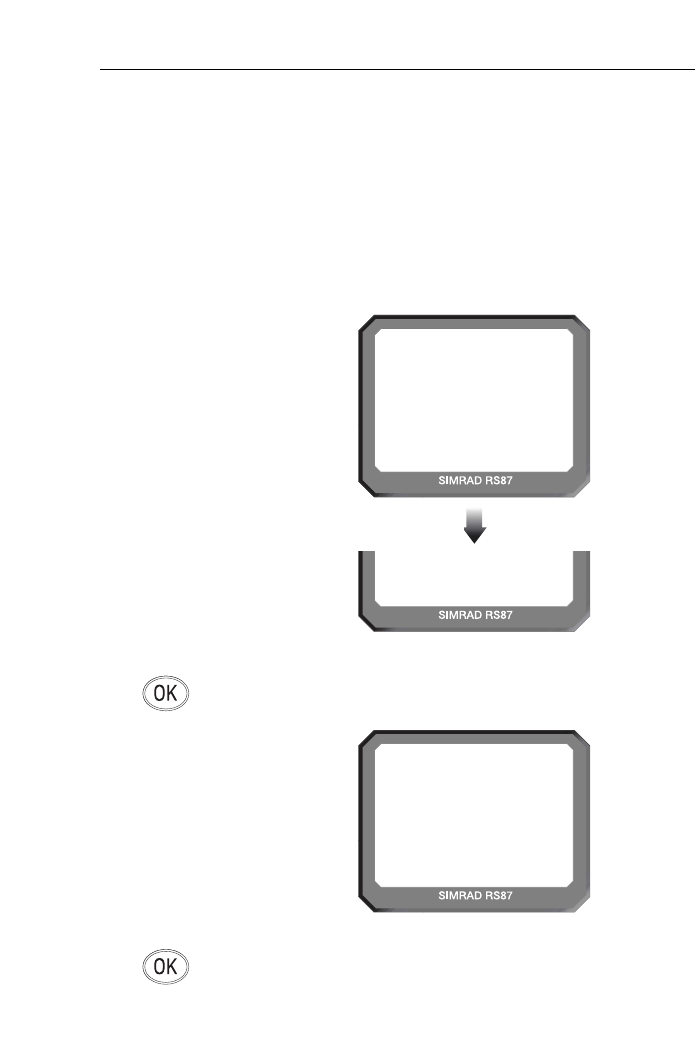

Fig 4.13 - Incoming Group call
Fig 4.14 - Working channel specified by incoming Group call
Press Ok to accept the call - the display will change to “Reply
On Ch X” (Fig 4.14), where X is the specified working channel,
or On/C to reject the call.
06
REPLY ONAA
CH 1 0BBBBB
INT
4.3.6 Distress Alert call
If a Distress Alert call is received, the radio will sound an
incoming call alarm.
The display will flash between displaying “Distress Alert” and
the caller’s MMSI along with the nature of the distress alert.
If the caller’s MMSI is stored in the MMSI directory (see section
5.2), then the display will show the name stored instead of the
MMSI number (Fig 4.15) -
Instruction Manual
41
Part No. E04297
06
D I STRESS S
ALERT CALL
INT
S I NK I NG 0
3453428599
Fig 4.15 - Incoming Distress Alert call
Press Ok to accept the call and automatically switch to channel
16, or On/C to reject the call.
The full details of the Distress Alert may be viewed in the log
(see section 4.4).
NOTE Distress Alert calls always use channel 16 as the working
channel.
4.3.7 Distress Alert acknowledgement
If an acknowledgement is received for a Distress Alert sent
(normally from a coast station or rescue co-ordination centre),
the radio will sound an incoming call alarm.
The display will flash between displaying “Distress
Acknowledg” and the MMSI of the vessel in distress, or your
MMSI if the Distress Alert was sent by the RS87 and the
Distress Alert transmission sent has been cancelled.
If the vessel’s MMSI is stored in the MMSI directory (see sec-
tion 5.2), then the display will show the name stored instead of
the MMSI number (Fig 4.16) -
RS87 VHF
42 Part No. E04297
06
D I STRESS S
ACKNOWLEDG
INT
FORK I NG 0
ROBERTA00
Fig 4.16 - Distress Acknowledgment received
NOTE The MMSI / name displayed will be that of the vessel in
distress, not the station that has acknowledged the call.
Press Ok to accept the acknowledgment and automatically
switch to channel 16, or On/C to ignore the call.
NOTE Distress Alert calls always use channel 16 as the working
channel.
4.3.8 Distress Relay call
The Distress Relay facility enables an incoming Distress Alert
call to be passed onwards via boats within receiving distance of
the call, thus increasing the potential range of the Distress Alert
call.
If a Distress Relay call is received, the radio will sound an
incoming call alarm.
The display will flash between displaying “Distress Relay”
and the vessel’s MMSI (Fig 4.17) -
Instruction Manual
43
Part No. E04297
06
D I STRESS S
RELAY ALL
INT
FOR I NG 0
3453428599
Fig 4.17 - Incoming Distress Relay
If the vessel’s MMSI is stored in the MMSI directory (see sec-
tion 5.2), then the display will show the name stored instead of
the MMSI number.
NOTE The MMSI / name displayed will be that of the vessel in
distress, not the vessel that relayed the call.
Press Ok to accept the call, automatically switch to channel 16
or On/C to reject the call.
4.4 Viewing the Call Log
The call log records details of the last 20 DSC or telephone calls
received including the date and time received, the type of call
and the caller id. There are two separate logs - one for “stan-
dard” calls, the other for distress calls.
NOTE All calls are logged, even those rejected by pressing On/C.
Press MSG enter the Call Log menu. If the call logs are
empty the display will show “No Calls Received” before
returning to the default display.
Press the Call and MSG keys to switch between the stan-
dard call log (indicated by “1” shown next to the large digits)
and the distress call log (indicated by “2” shown next to the
large digits).
Press VOL or VOL to scroll through the log entries - the dis-
play will show the call type and the date/time the call was
received (Fig 4.18). The small digit shows the log type (1 - stan-
dard call log, 2 - distress call log) and the large digits show the
entry number - the first entry shown is the most recent call.
RS87 VHF
44 Part No. E04297
1 03
I ND I V I DUAL
1 9- 1 2 1 452
MSG
INT
Fig 4.18 - Viewing Call Log entry
NOTE The date and time displayed uses the date/time data received
from the navigational receiver interfaced to the radio, not from
the incoming message. If a navigational receiver was not con-
nected to the radio at the time the message is received the date
and time will not be displayed.
Press Ok to view the details of the selected call - the display
will show the caller’s number (Or the name if the number is
stored in the directory).
Press VOL or VOL to display any relevant additional
information - for example the nature of distress and position of
the vessel in distress if viewing the distress call log (Fig 4.19) -
Instruction Manual
45
Part No. E04297
207
D I ST ALERT
1 4- 1 0 0937
MSG
INT
Fig 4.18 - Viewing Call Log entry
S I NK I NG 0
3453428599
LA 56-52N
LO 009-50E
Press On/C to return to the log entries menu. Press On/C
again to exit the Call Log menu.
4.5 Position over 4 hours old
Normally current position data is supplied automatically to
the radio via an interfaced navigational receiver (see section
7.2.7) or by manually entering a position (see section 6.3). If
the last recorded position is over 4 hours old, the display will
show “Position 4 Hours Old”. Press Ok to confirm and man-
ually enter a position (refer to section 6.3) or On/C to ignore
the message.
NOTE This display will be shown 30 minutes after switch on if there
is no NMEA position data being received, or the position has
not been manually entered.
5. THE DIRECTORY
The Directory function allows frequently used boat MMSI,
Coast Station MMSI and telephone numbers to be stored in the
radio. To enter the directory, press Shift then MSG (Dir).
5.1 Switching between the directories
The large digits will show the currently displayed entry num-
ber and the smaller digit to the left of the large digits will show
the currently selected directory -
1. Boat MMSI directory
2. Telephone number directory
3. Coast Station MMSI directory
Press Call and MSG to switch between the directories.
5.2 Viewing the directory
Select the appropriate directory using the Call and MSG
keys. Use the VOL or VOL keys to scroll through the
directory entries (Fig 5.1) -
RS87 VHF
46 Part No. E04297
101
SEASPRAY 0
475394270
DIR
INT
102
ROBERTAY 0
9463872 1 5
DIR
INT
Fig 5.1 - Scrolling through the directory entries
Use the numeric keypad to enter the number (Fig 5.3). Press the
Call and MSG keys to move the cursor to correct any errors.
The cursor position is indicated by the number flashing - enter a
new number to overwrite the incorrect number.

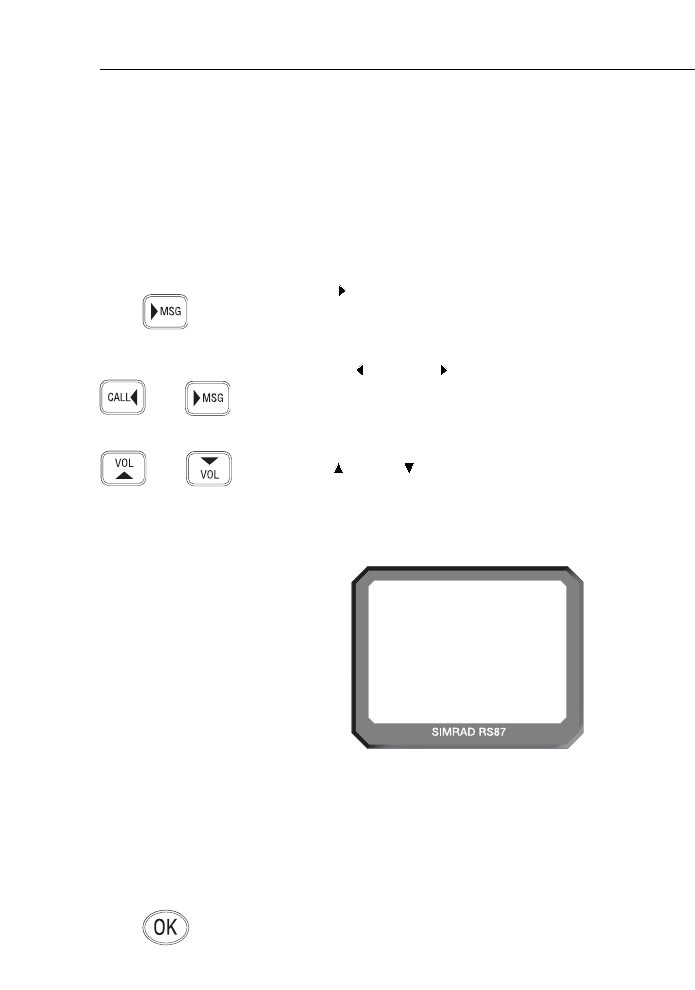

5.3 Entering a number
Press Ok to begin entering a new number - the large digits will
show the entry number in the directory (1 if it is the first entry).
Enter the name first - use the VOL or VOL keys to scroll
through the alphabetical characters and the numeric keypad to
enter any numbers (Fig 5.2)
Press MSG to move the cursor forward, or Call to move
back and correct any errors (The cursor position is indicated by
the character flashing - enter a new character to overwrite).
Press Ok to confirm the entry and move on to the MMSI entry.
Instruction Manual
47
Part No. E04297
1 0 1
SEASP-----
----------
DIR
INT
Fig 5.2 - Entering a new name into the directory
1 0 1
SEASPRAY 0
47539-----
DIR
INT
Fig 5.3 - Entering the number
Press Ok to confirm and store the entry to the directory.
Press On/C at any time to abort to the default display.
NOTE If using the Boat or Coast Station directories the entry will not
be accepted unless all nine digits of the MMSI number have
been entered.
5.4 Editing a number
Select the directory entry to be edited and press Ok. Use the
VOL or VOL keys to highlight either the name or the
number for editing - the selected field will flash. Press Ok
again to begin editing the selected field.
Use the Call and MSG keys to move the cursor - the cursor
position is indicated by the character flashing. Enter a new char-
acter to overwrite - use the numeric keypad to enter a number,
or press VOL or VOL to scroll through the alphabetical
characters (Fig 5.4) -
RS87 VHF
48 Part No. E04297
101
SEASPRAY 0
475394270
DIR
INT
101
SEASP-----
475394270
DIR
INT
Fig 5.4 - Editing an existing directory entry
Selected
field will
flash
Press Ok to confirm and store the edited entry or On/C to
abort entry.
6. MISCELLANEOUS FUNCTIONS

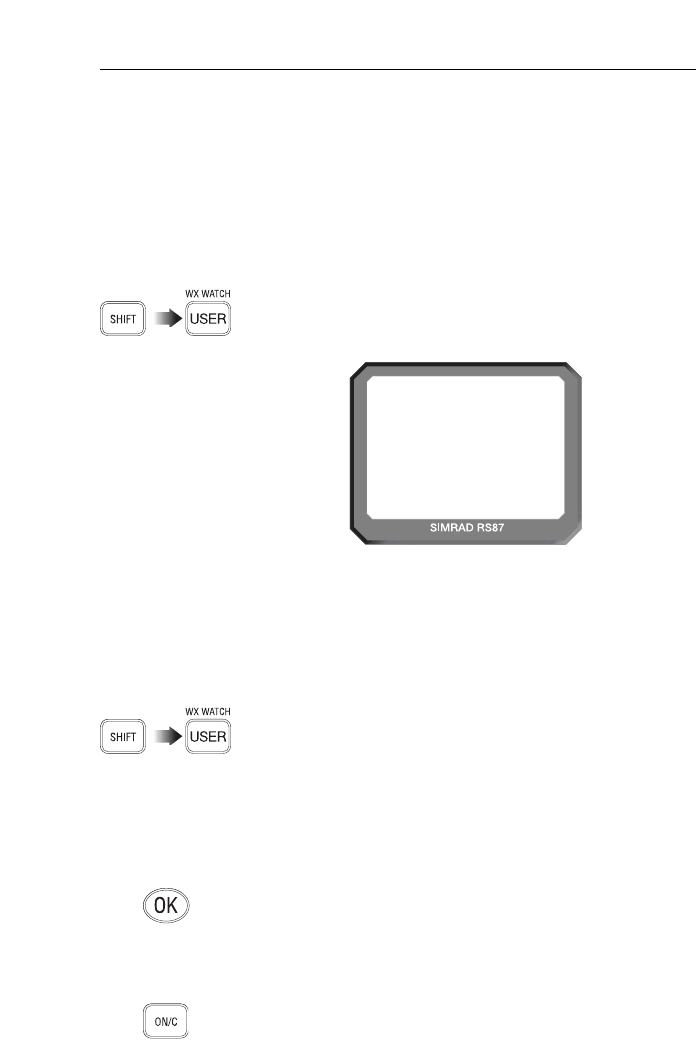

6.1 Selecting Weather Watch
The Weather Watch function enables the radio to monitor a sin-
gle Weather channel specified in the Memory Scan Select func-
tion (see section 3.1.4). A transmission on a Weather channel is
preceded by a tone - if this is detected by the radio, it will sound
an alert allowing the user to switch to the Weather channel.
To enable Weather Watch, press Shift followed by the User key
(Wx Watch). The“WX” legend will be shown in the top left of
the display and the selected weather channel will be shown on
the bottom line of the display (Fig 6.1) -
Instruction Manual
49
Part No. E04297
12
WEA T HERAAA
WATCHBBBW4
WX
Fig 6.1 - Selecting Weather Watch mode
NOTE If a Weather channel has not been specified, the display will
show “No Wx Chan Selected” and Weather Watch will not be
enabled. Refer to section 3.1.4 to select a Weather channel.
NOTE If the Weather Watch function is not available (for example, if
no Weather channels are programmed into the radio), the dis-
play will show “Wx Not Enabled”.
To cancel Weather Watch, press Shift followed by the User key
(Wx Watch).
6.1.1 Weather Watch alert
If a Weather Alert tone is detected by the radio on the specified
Weather channel while Weather Watch is enabled, the radio
will sound a 10 second alarm and the display will show
“Weather Alert”.
Press Ok to cancel the alarm and switch to the Weather chan-
nel, or On/C to cancel the alarm and ignore the Weather Alert.
NOTE Because the Weather channels transmit a continuous carrier
signal, it is not possible for the RS87 to detect when the trans-
mission has ended.
Press On/C to return to the working channel once the trans-
mission has ended.

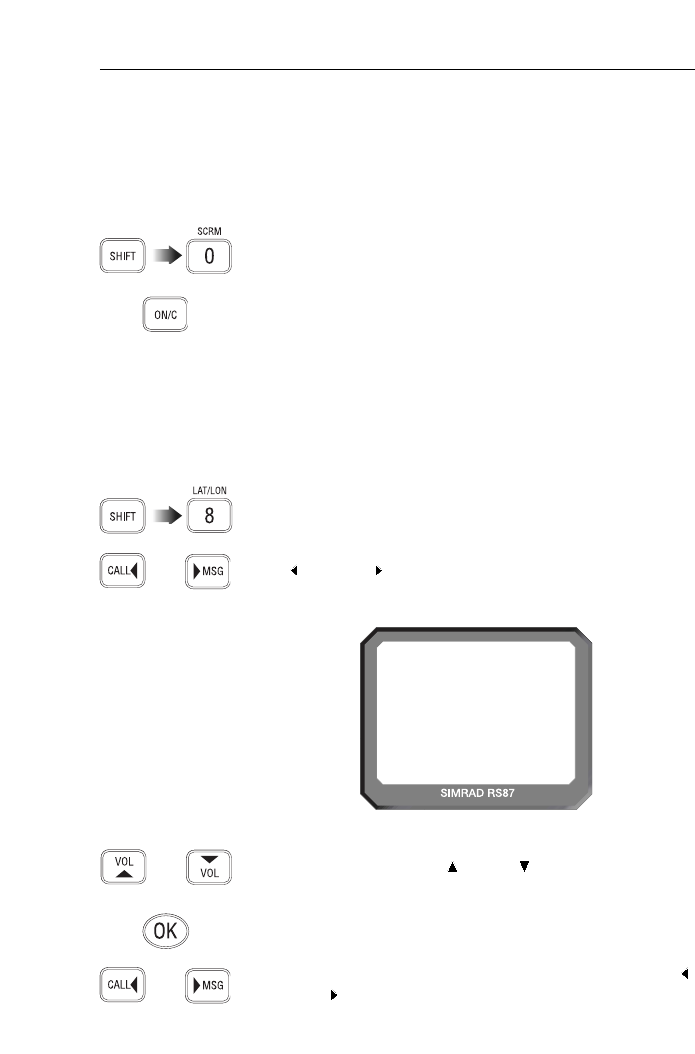

6.2 Security mode (voice scrambler)
For additional security, a voice scrambler function is available
as an optional accessory. The scrambler uses frequency inver-
sion to encrypt the transmission and will allow secure trans-
mission between compatible radios.
To enable Security mode press Shift followed by 0 (Scrm). The
display will show “Sec” indicating that Security mode is on.
To exit Security mode, press Shift followed by 0 (Scrm) again,
or press On/C. Security mode will be cancelled if the RS87 is
placed into another mode that requires the use of the PTT key
(i.e Hailer/Intercom) or if a DSC call is made/received.
6.3 Editing Latitude, Longitude and UTC
Normally, position and time data should be supplied to the
RS87 via a GPS or other navigational device connected to the
radio. However, if this is not possible, the position and time
can be entered manually -
Press Shift then 8(Lat/Lon). The display will show “Enter Lat”.
Enter the Latitude using the numeric keypad (Fig 6.2). Use the
Call and MSG keys to move the cursor to correct any
errors. The cursor position is indicated by the number flashing.
Enter a new number to overwrite the incorrect number.
RS87 VHF
50 Part No. E04297
12
ENTER LA T A
LA 52-B---
INT
Fig 6.2 - Manually entering position
The final digit specifies whether the Latitude is north or south
of the Equator - press VOL or VOL to toggle between N
and S.
Press Ok to confirm and move on to entering the Longitude -
the display will show “Enter Long” - or On/C to abort entry.
Enter the Longitude using the numeric keypad. Use the Call
and MSG keys to move the cursor to correct any errors. The
cursor position is indicated by the number flashing. Enter a
new number to overwrite the incorrect number.
The final digit specifies whether the Longitude is west or east
of the Meridian - press VOL or VOL to toggle between W
and E.
Press Ok to confirm and move on to entering the time - the dis-
play will show “Enter UTC” - or On/C to abort entry.
Enter the UTC time (formerly known as GMT) in 24hr format
using the numeric keypad (Fig 6.3). Use the Call and MSG
keys to move the cursor to correct any errors. The cursor posi-
tion is indicated by the number flashing. Enter a new number
to overwrite the incorrect number.
Instruction Manual
51
Part No. E04297
Press Ok to confirm all settings or On/C to abort entry.
WARNING This data is only stored temporarily and will be lost when the
radio is switched off. Since the accuracy of this information is
vital in the event of a Distress Alert transmission being neces-
sary, we strongly recommend that a GPS or other navigational
device is permanently interfaced with the radio. This data will
then be automatically supplied and updated without the need
for user intervention.
6.4 Toggling between Lat/Long and UTC views
If the Position View option (see section 3.3.2) is turned on, the
current position will be displayed on the bottom two lines of
the display.
The UTC time can be displayed instead by pressing Shift then
holding the 8(Lat/Lon) key down for two seconds (Fig 6.4) -
12
ENTER U T CA
UTC 19B----
INT
Fig 6.3 - Manually entering time (UTC)
UTC 19B26-
Fig 6.4 - Displaying UTC time
Repeat the above key sequence to toggle between the Position
and Time displays.
6.5 IntercomIf the system comprises of more than one station and/or
includes intercom speaker/s, it is possible to make an intercom
call to a selected position from a handset.
NOTE This assumes that the installation comprises a full expanded
RS87 system with four stations and two intercom speakers.
The options shown will only be available if the relevant sta-
tions / intercoms are installed.
6.5.1 Making an intercom call
Press Shift then 6 (Intercom) to enter Intercom mode. The dis-
play will show “Intercom Stn X - Stn Y”, where “X” is the I/D
of the current station being used and “Y” is the first of the
other stations in the system (Fig 6.5) -
RS87 VHF
52 Part No. E04297
Press the VOL and VOL keys to scroll through the avail-
able stations / intercoms that can be called from the station -
“Stn 1–Stn 2” Intercom call to Station 2
“Stn 1–Stn 3” Intercom call to Station 3
“Stn 1–Stn 4” Intercom call to Station 4
“Int Spkr 1” Intercom call to Intercom speaker 1
“Int Spkr 2” Intercom call to Intercom speaker 2
“All Spkrs” Intercom call to all Station speakers
“P A” Intercom call to all speakers in system
(including horns)
Press the PTT key or Ok to activate the intercom or press
On/C to cancel. Once the call has been initiated, further press-
es of the Ok key will re-sound the call alarm. Pressing the
PTT key will open the audio path to the called station.
NOTE The call will be terminated if it is not accepted within 15 secs.
12
I N T ERCOMAA
STN 1 -STN2 B
INT
Fig 6.5 - Making an intercom call to station 2 from station 1
If calling an Intercom speaker, pressing the VOL and VOL
keys while the PTT key is held to adjust the Intercom speaker
volume. This option is not available if calling another Station
or making an All Speaker / PAcall - the current volume set-
tings for each position will be used.
To end the intercom call, press On/C or return the handset to
its cradle.
NOTE While making an intercom call, all other stations will display
“Station X Occupied”.
NOTE If the Interrupt Intercom option (section 3.3.4) is disabled and a
VHF transmission is being received, the display will show
“Signal Present” until the transmission has ended. If Interrupt
Intercom is enabled, the intercom call will be interrupted if a
VHF transmission is received.
6.5.2 Receiving an intercom call
If an intercom call is received from another station, the display
will show “Intercom From Stn Y”, where “Y” is the I/D of the
Station making the intercom call (Fig 6.6) -
Instruction Manual
53
Part No. E04297
If the other station is making an All Speakers call, the display
will show “Int All From Stn Y”.
If the other station is making a PA call, the display will show
“P A from Stn Y”.
To accept the call lift the handset from the cradle or press On/C
to cancel the intercom call.
To end the intercom call, press On/C or return the handset to
its cradle.
NOTE All speaker and PA calls are announcement calls and therefore
do not need to be accepted manually by the receiving stations.
12
I N T ERCOMAA
FROM STN 22
INT
Fig 6.6 - Receiving an intercom call from station 2
6.6 Loudhailer / Foghorn
Up to two loudhailer / foghorns can be fitted to the RS87 - one
Fore and one Aft.
To enter Hailer / Foghorn mode press Shift then 5(Hail/Fog).
The display will show “Loudhailer Fwd” (Fig 6.7) -
RS87 VHF
54 Part No. E04297
12
LOUDHA I LER
FWDM STN 22
INT
Fig 6.7 - Selecting Foghorn mode
To toggle between Loudhailer and Foghorn press the 5key -
the display will show “Foghorn Fwd”.
NOTE If no hailers are connected to the radio the display will show
“Horns not enabled”.
6.6.1 Loudhailer
To cycle through the loudhailer options press the 4 key -
Loudhailer Fwd
Loudhailer Aft
Loudhailer Both
NOTE If a single loudhailer is fitted, only the “Loudhailer Fwd” or
“Loudhailer Aft” option will show, depending on where fitted.
Press the PTT key to make the loudhailer call. Press the
VOL and VOL keys while the PTT is pressed to adjust the
hailer volume.
Press Ok to open the talkback path, enabling users at the loud-
hailer to talk back.
Press the On/C key to exit Loudhailer /Foghorn mode.
NOTE If Interrupt Intercom is disabled (see section 3.3.4) the display
will show “Signal Present” if an incoming VHF transmission is
being received.
6.6.2 Foghorn
To select Foghorn press the 5key while in Loudhailer /
Foghorn mode - the display shows “Foghorn Fwd” (Fig 6.8) -
Instruction Manual
55
Part No. E04297
To cycle through the foghorn options press the 4 key -
Foghorn Fwd
Foghorn Aft
Foghorn Both
NOTE If a single loudhailer is fitted, only the “Foghorn Fwd” or
“Foghorn Aft” option will show, depending on where fitted.
Press Ok to enter the Foghorn sub menu. Use the VOL and
VOL keys to scroll through the available horn tone options -
Horn
Siren
Power Vessel Under Way
Power Vessel Stopped
Restricted Manoeuvre
Working at anchor
Vessel Being Towed
Vessel In Pilotage
Anchor
Aground
Press PTT or Ok to sound the horn. If an external horn button
is fitted to the radio, pressing this will also sound the horn.
NOTE For single activation options (eg Horn), it is necessary to press
the activation button each time to sound the horn. For auto-
matic repeat options (eg Anchor) it is only necessary to press
the key once and the foghorn will sound automatically. Press
On/C to cancel the automatic repeat sequence.
Adjusting horn volume - for single activation options press the
VOL and VOL keys while the PTT is pressed. For auto-
matic repeat options, press VOL and VOL while the dis-
play shows “Horn In Use”. ctd -
12
FOGHORN AA
FWDM STN 22
INT
Fig 6.8 - Selecting Foghorn mode

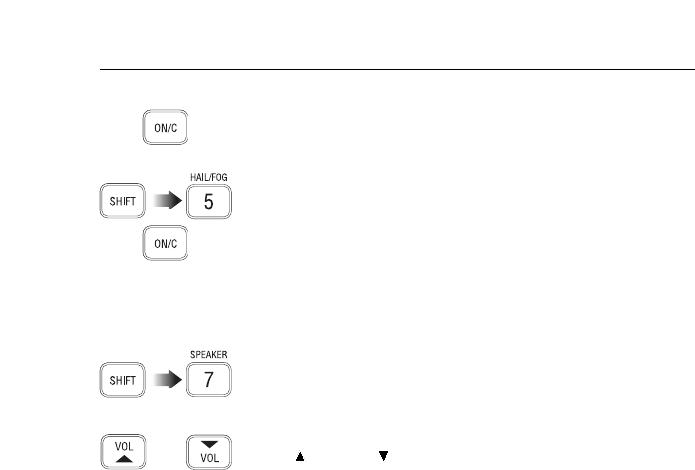

Press the On/C key to exit Loudhailer /Foghorn mode.
NOTE Ten seconds after the automatic horn is sounded the unit will
revert to normal radio operation, but the horn will continue to
sound. To cancel, press Shift followed by 5(Hail/Fog), then
On/C.
6.7 Station speaker mute
The station speaker that is installed alongside the handset can
be muted if required.
To mute the speaker, press Shift followed by 7(Speaker) on the
specific handset that is used with the speaker.
To disable mute, press Shift followed by 7(Speaker) again, the
VOL and VOL keys or lift the handset from the cradle. If
the system is powered down, the speaker will be un-muted
when the system is turned on again.
NOTE This will only affect the speaker that is used with this specific
handset - eg handset 1 will only mute the speaker connected to
the Station 1 terminals. To mute any other speakers on the sys-
tem it will be necessary to go to the relevant handset and select
mute.
6.8iDSC The RS87 can be integrated with one of Simrad’s navigational
displays (33, 42 and 52 series) enabling details of any incoming
DSC calls to be displayed on the unit. Refer to the instruction
manual of the relevant unit for more details. Refer to section
7.2.5 for interfacing details.
RS87 VHF
56 Part No. E04297
7 INSTALLATION
7.1 Physical Installation
The RS87 is a modular system that is very simple to install,
however the performance of the radio is directly affected by the
quality of the installation. Please read these instructions thor-
oughly before attempting installation and if in any doubt, con-
sult a qualified marine electronics engineer.
7.1.1 Transceiver Installation
The transceiver unit is designed to be installed in a concealed
location such as in a locker or behind the switch panel.
CAUTION The transceiver unit is not waterproof, therefore it must not be
installed in any location where it is likely to be exposed to
excess moisture (eg a wet locker or an outside locker).
The fins on the top of the transceiver act as a heatsink to dissi-
pate heat generated by the set when in use, which maintains
the high efficiency of the radio. The free circulation of air is
essential - if mounting the transceiver in an enclosed space,
ensure that the space is well ventilated
The transceiver requires a flat surface with an area of at least
170 x 245mm (6.8 x 9.8in) for mounting. Allow sufficient space
beneath the unit to allow cable entry - at least 50mm (2.0in) is
recommended. The surface should be rigid and sturdy enough
to be able to support the weight of the unit, taking into account
the shock loads likely to be encountered when the vessel is
underway in heavy seas.
Fix the transceiver unit to the surface using the four self-tap-
ping screws supplied. The four fixing points are at the corners
of the transceiver unit -the bottom two are underneath the ter-
minal cover (Fig 7.1) -
Instruction Manual
57
Part No. E04297
Fig 7.1 - Transceiver box mounting
7.1.2 Handset Installation
The handset should be sited so that engine noise and vibration
or other background noise do not make it difficult for the oper-
ator to hear.
As microphones and loudspeakers contain powerful magnets,
the handset and speakers should not be installed within 1m
(3ft 3in) of any compasses, whether magnetic or electronic.
The handset is connected to a 5m (16.5ft) extension cable, there-
fore the handset should be fitted within reach of the transceiver
box (for longer runs, 20m extension cables are also available as
separate accessories - see section 8.6).
The handset cradle should be mounted on a flat surface with
enough space to allow the bulkhead socket for the extension
cable to be fitted alongside. Space should also be allowed near-
by for the accompanying loudspeaker to be fitted.
NOTE The handset and bulkhead socket are waterproof, but if the
handset is to be fitted in an exposed location (for example on
the flybridge of a power boat) it is recommended that the
handset and especially the bulkhead socket is fitted to an
angled or vertical surface to prevent standing water lying on
the handset face or inside the bulkhead socket, which could
corrode the pins.
Fit the supplied template for the handset cradle to the desired
mounting location. Drill 4 x3.2mm (0.125in) pilot holes in the
indicated positions. If drilling into GRP, it is recommended
that the holes are also countersunk to prevent the gelcoat split-
ting when the self-tapping screws are inserted.
Fit the supplied template to the desired mounting location for
the bulkhead socket. Drill a 23.5mm (0.94in) hole and 4 x
2.4mm (0.1in) pilot holes. Again, the pilot holes should be
countersunk if drilling into GRP.
Fit the bulkhead socket and run the cable to the transceiver box
position.
NOTE It is recommended that the cable is routed away from any other
cables carrying high current (eg mains power cables) or pulsed
signals (eg transducer cables) to avoid possible interference.
If the handset is being removed, the waterproof cover should
always be fitted to the bulkhead socket to protect the pins from
possible corrosion.
RS87 VHF
58 Part No. E04297
7.1.3 Station speaker Installation
The loudspeaker should be installed near to the handset and can
be flush mounted or surface mounted with the supplied pattress.
Flush Mounting Attach the self adhesive gasket to the back of the loudspeaker.
Remove the four detachable corners of the speaker which con-
ceal the mounting holes. Apply the supplied cutting template
to the mounting position. Carefully cut out the aperture
required for the speaker back and use the short self tapping
screws provided. Refit the corners to conceal the screw fixings.
Surface Mounting Drill a 5mm (0.2in) hole for the speaker cable. Attach the self
adhesive gasket to the back of the loudspeaker. Remove the
four detachable corners which conceal the mounting holes. Fit
the pattress to the back of the speaker and use the long self-tap-
ping screws provided to fix the speaker and the pattress block
to the bulkhead. Refit the corners to conceal the screw fixings.
7.2 Electronic Installation
Electronic installation is straightforward - all peripherals con-
nect to the Transceiver Unit using the clearly labelled plug-in
terminals (Fig 7.2) -
Instruction Manual
59
Part No. E04297
Fig 7.2 - Transceiver terminal connections
NOTE The diagram shows the terminal bay with the optional expan-
sion board, which is not included with the standard radio.
If it is necessary to shorten any of the cables, ensure the ends
are re-tinned for the best quality connection.
The transceiver unit is fitted with a 10amp “blade” type fuse.
It is recommended that the radio is connected to a 10amp
fused switch or breaker on the boat’s switch panel.
Connect the supplied power cable to the terminals marked
PWR + and - as follows -
STANDARD CONNECTIONS EXPANSION BOARD
Terminal
Number
1
2
Wire
Colour(s)
Red
Black
7.2.1 Control panel
Asingle cable links the control panel to the transceiver unit.
The standard model can support up to two control stations, or
up to four stations if the expansion board is fitted. One fixed
station is supplied with the radio - additional stations are sup-
plied as separate accessories. The control stations can be either
a handset model which is supplied with a separate loudspeak-
er or a fixed control panel with a passive fistmike or handset.
Connect the main control station to the “Station 1” terminals on
the transceiver unit as shown (Fig 7.3) -
RS87 VHF
60 Part No. E04297
Terminal
Number
1
2
3
4
5
6
7
8
Wire
Colour(s)
Brown
Green
Red
White
Blue
Yellow
Orange
Black
Additional control stations should be wired in the same man-
ner and connected to the “Station 2”, “Station 3*” and “Station
4*” terminals (Fig 7.5).
* Only available on models fitted with the expansion board
Fig 7.4 - Control panel terminal connections
Station 2
Station 1
Station 4*
Station 3*
Fig 7.5 - Example of a typical multi-station installation
7.2.2 Loudspeakers
The RS87 can be fitted with Simrad LS80 station speakers or
third party station speakers with an impedance of 4Ω.
Connect the station speaker to terminals 7 and 8 of a free
Station terminal strip (Fig 7.6).
Instruction Manual
61
Part No. E04297
Terminal
Number
7
8
Wire
Colour(s)
Orange
Black

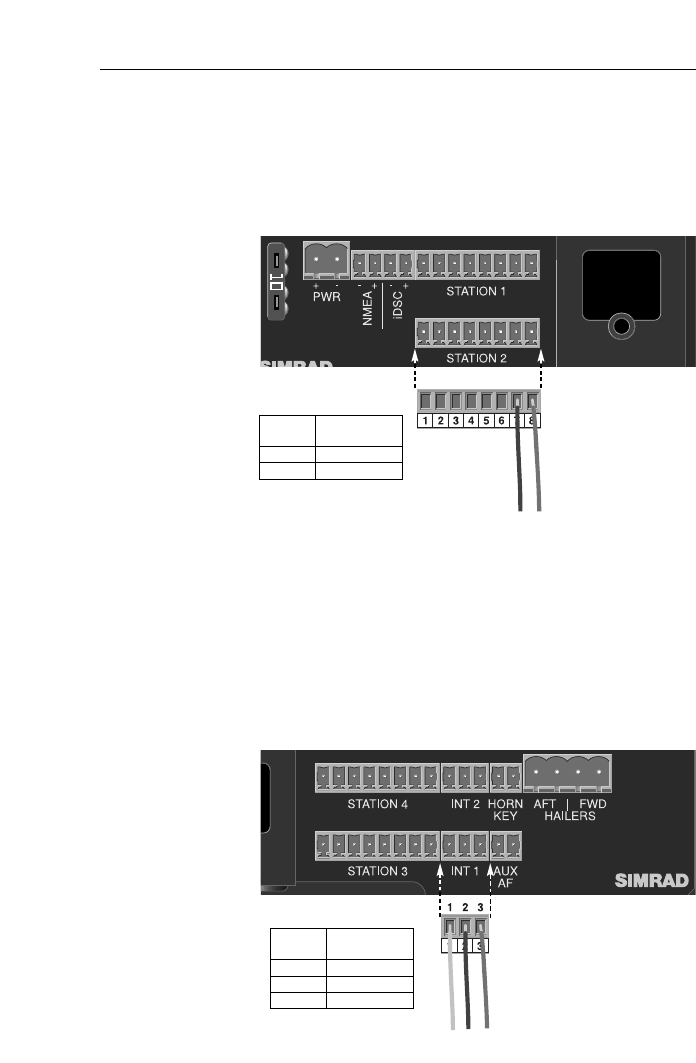

Fig 7.6 - Station loudspeaker terminal connections
7.2.3 Intercoms
NOTE Only available on units fitted with the expansion board.
The RS87 intercoms enable two-way onboard communication
with the main stations but do not allow control or use of VHF
or DSC functions. Intercoms are normally fitted in areas such
as the engine room, galley or crew quarters. Up to two inter-
coms can be fitted to the RS87.
Connect the intercoms to the “Int 1” and “Int 2” terminals on
the transceiver unit as shown (Fig 7.7) -
Fig 7.7 - Intercom terminal connections
Terminal
Number
1
2
3
Wire
Colour(s)
Black
Red
White
7.2.4 Loudhailer/Foghorns
NOTE Only available on units fitted with the expansion board.
Two separate loudhailer/foghorns can be fitted to the RS87
(normally one is mounted on the fore of the boat, the other aft).
Connect the loudhailers to the “Aft/Fwd Hailers” terminals on
the transceiver unit as appropriate (Fig 7.8) -
RS87 VHF
62 Part No. E04297
Terminal
Number
1
2
3
4
Wire
Colour(s)
Aft +
Aft -
Fore +
Fore -
Fig 7.8 - Loudhailer terminal connections
WARNING Do not connect any of these terminals to a common ground,
otherwise the RS87 will be permanently damaged.
7.2.5 Remote foghorn button
NOTE Only available on units fitted with the EHX80 expansion board.
Aremote button can be used to activate the foghorn. Connect
the remote button to the terminals marked “Horn Key” as
shown (Fig 7.9) -
Terminal
Number
1
2
Wire
Colour(s)
Red
Blue
Fig 7.9 - Remote foghorn button terminal connections
NOTE Apart from when transmitting, pressing this button will enable
the foghorn to be sounded at any time, regardless of what
mode the RS87 is currently in.
7.2.6 Auxiliary audio input
NOTE Only available on units fitted with the EHX80 expansion board.
The expansion board upgrade on the RS87 allows an auxiliary
audio input - for example from a radio receiver or an entertain-
ment system - to be fed into the intercom / loudspeaker system.
The auxiliary input must be a line level signal (0.775V rms)
Connect the line out from the auxiliary source to the terminals
marked “Aux AF” as shown (Fig 7.10) -
Instruction Manual
63
Part No. E04297
7.2.7 NMEA0183 input
The inbuilt NMEA0183 processor allows navigational position
information to be received from a GPS or Chart Plotter. The
boat’s position is automatically transmitted when a Distress
Alert is initiated.
NMEA input must be of the 0183 format, version 2.0 - 3.0, out-
putting sentences GLL, RMC and ZDA at a Baud rate of 4800.
The NMEA Out connections from the GPS/Plotter should be
connected to the “NMEA In” terminals as shown (Fig 7.11) -
Terminal
Number
1
2
Wire
Colour(s)
Line Out +
Line Out -
Fig 7.10 - Auxiliary audio input terminal connections
Terminal
Number
1
2
Wire
Reference
Common Out -
Data Out +
Fig 7.10 - Auxiliary audio input terminal connections
7.2.8 iDSC output
The RS87 is designed to integrate with other Simrad equipment
which enables DSC call information to be displayed on the
xx33, xx42 and xx52 series chartplotters.
Connect the iDSC input terminals of the chartplotter to the ter-
minals marked “iDSC” as shown (Fig 7.11) -
RS87 VHF
64 Part No. E04297
Terminal
Number
3
4
Wire
Reference
iDSC -
iDSC +
Fig 7.11 - iDSC output terminal connections
7.2.9 Future options
The two circular ports in the centre of the connection panel are
reserved for future options (Fig 7.12) -
Fig 7.12 - Future options
Reserved
for future
options
7.2.10 Summary
Summary of the RS87 connections -
Instruction Manual
65
Part No. E04297
STANDARD CONNECTIONS EXPANSION BOARD
Terminal
Number
1
2
3
4
5
6
7
8
Wire
Colour(s)
Brown
Green
Red
White
Blue
Yellow
Orange
Black
Terminal
Number
1
2
3
Wire
Colour(s)
Black
Red
White
Terminal
Number
1
2
3
4
Wire
Colour(s)
Aft +
Aft -
Fore +
Fore -
Terminal
Number
1
2
Wire
Colour(s)
Red
Blue
Terminal
Number
1
2
Wire
Colour(s)
Line Out +
Line Out -
Station 1
Terminal
Number
1
2
3
4
5
6
7
8
Wire
Colour(s)
Brown
Green
Red
White
Blue
Yellow
Orange
Black
Station 2
Terminal
Number
1
2
3
4
5
6
7
8
Wire
Colour(s)
Brown
Green
Red
White
Blue
Yellow
Orange
Black
Station 3
Terminal
Number
1
2
3
4
5
6
7
8
Wire
Colour(s)
Brown
Green
Red
White
Blue
Yellow
Orange
Black
Station 4 Fog/Hailers
Terminal
Number
1
2
3
4
Wire
Reference
Common Out -
Data Out +
iDSC -
iDSC +
NMEA/iDSC
Intercoms (Int1/Int2)
Horn Key Aux AF
Terminal
Number
+
-
Wire
Reference
Red (12v in)
Black (0v)
PWR
STANDARD CONNECTIONS
EXPANSION BOARD CONNECTIONS
Fig 7.13 - Transceiver unit connections summary
7.2.11 Cable strain relief
Once all the cables have been run to the appropriate peripher-
als and connected to the transceiver unit they should be
secured to ensure that they are not snagged or exposed to
excess strain.
Screw the strain relief tabs to the cable exit port on the trans-
ceiver unit using the screws supplied and secure the cables to
the tabs using tie wraps as shown (Fig 7.14) -
RS87 VHF
66 Part No. E04297
Replace the terminal cover and secure by tightening the retain-
ing screw.
7.3 Antenna installation
The most important factor in the performance of the radio will
be the quality and positioning of the antenna. Most recorded
problems with VHF radios are related to poor antenna siting,
faulty cabling, poor quality cable joints and low voltage sup-
ply. Even a VHF as highly advanced as the RS87 cannot com-
pensate for these factors. Therefore, if replacing an existing
VHF installation, it is important that the antenna is thoroughly
checked for any faults or damage before use.
As the range of VHF signals are governed by line of sight (see
section 8.3), the antenna should be placed as high as possible,
while remaining clear of any metallic objects that could influ-
ence the resonance of the antenna.
The most popular antennae for marine use are 1m (3ft 3in)
long. On sail boats these are usually mounted on the mast-
head, where the length of the antenna keeps it clear from the
navigation lights and windvanes etc. This type of antenna can
also be mounted on the cockpit roof or garage of power boats.
Longer whip antennae are recommended for larger boats -
these radiate the same total power as smaller antennae, but
concentrate it into a narrower beam, which is advantageous on
a tall mast at extreme range where concentrating the available
power into a narrow horizontal beam becomes more impor-
Fig 7.14 - Cable strain relief
tant. However, if the antenna is not vertical when transmitting,
the beam will be angled either too high or too low (Fig 7.15) -
Instruction Manual
67
Part No. E04297
Fig 7.16 - Effect of heel on range of 1m marine antenna
Fig 7.15 - Effect of heel on range of longer whip antenna
Here the wider beam of the shorter antenna will be more uni-
versally effective, although the signal will be weaker (Fig 7.16) -
Therefore vessels with a large heel angle (small sailboats)
would be better choosing a short masthead antenna. Your
local agent should be able to provide specific advice on anten-
na choice for the vessel it is to be fitted to.
WARNING The antenna coaxial cable and any connectors used must be
rated at 50Ω. Under no circumstances should standard domestic
TV cable and connectors be used. Incorrectly rated cabling and
connectors could result in power not reaching the antenna, but
also power could be reflected back into the radio, damaging it
in the process.
The quality of any connections and integrity of the cable (with-
out breaks in the sheathing) will directly affect the performance
of the radio. Poor soldering or corrosion of the terminals can
impair performance. We recommend that screw or crimp ter-
minal type connectors are not used for any through deck fit-
tings - a good quality waterproof solder terminal connector will
be less susceptible to poor connection due to corrosion of the
contacts.
To ensure the best performance of the radio, the antenna cable
should be routed where it is least likely to interfere with, or
receive interference from other electronic equipment, such as
echosounder transducer cables and high current carrying
cables.
The antenna cable should terminate in a standard marine
PL259 plug fitting. Connect the antenna plug to the socket on
the top of the transceiver unit and screw the retaining collar
down (Fig 7.17) -
RS87 VHF
68 Part No. E04297
NOTE To avoid possible water damage to the radio, it is recommend-
ed that the antenna cable is looped to provide a drip path.
7.4 Electrical interference suppression
Interference generated by the alternator of the engine may
occasionally cause problems. The RS87 has been designed to
minimise the effects of outside interference. However, precau-
tions should still be taken - route the power supply and anten-
na cables away from the engine compartment. The cable run
should not be down the same trunking as other cables carrying
high current. The antenna cable should also be kept separate
from the radio’s power cable.
Engines with spark ignition - and also some refrigerators -
should be fitted with suppressors. Your local agent should be
able to give advice on this, and also supply suppression kits
where necessary.

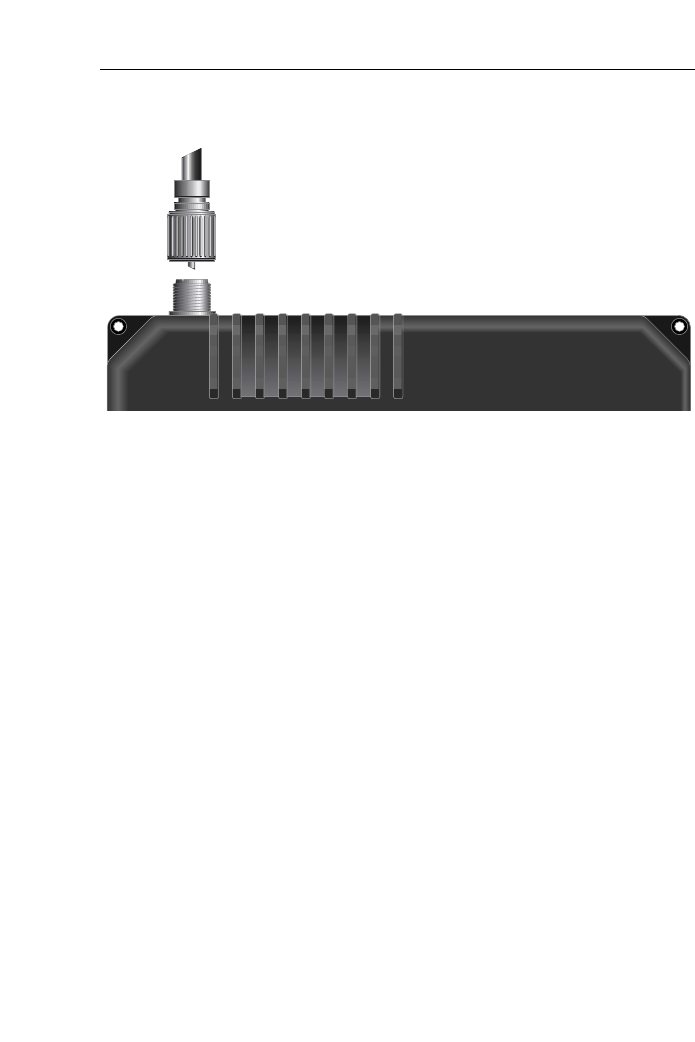

Fig 7.17 - VHF antenna connection
8 APPENDIX
8.1 Operating procedures
The following operating procedure summary has been pro-
posed by the UK Maritime and Coastguard Agency. It is not
exhaustive and should not be regarded as a replacement for
information provided by the proper two day VHF/DSC train-
ing course required for all VHF license holders.
8.1.1 Sending a distress alert
1. Send a distress alert call (see section 2.7)
2. Wait approx 15 seconds for a DSC acknowledgement from
the Coastguard or a ship station.
3. On receipt of a DSC acknowledgement or after about 15
seconds, transmit the Distress call on channel 16 -
“Mayday, Mayday, Mayday”
“This is (name of vessel repeated three times)
“Mayday”
MMSI number and name of vessel or callsign, spoken once
Position
Nature of distress
If the vessel is not in “grave and imminent danger”, an All
Ships Urgency call followed by a spoken “Pan Pan” call or a
routine call to the nearest coastguard station may be more
appropriate. It is a prosecutable offense to initiate a Distress
Alert call for any other reason than that the vessel and/or crew
is in imminent danger.
8.1.2 Acknowledging and relaying a
distress alert
When a DSC distress alert is received, an audible alarm will
sound. Immediately cease any transmission that may interfere
with distress traffic and continue a watch on channel 16.
If there is no DSC acknowledgement from a coast station or
ship, after a short interval acknowledge by voice on channel 16 -
“Mayday (MMSI of vessel in distress repeated three times)”
“This is (name of own vessel, repeated three times)”
“Received Mayday”
(State the assistance you can give).
Asimilar response should be given to a distress relay, using the
words “Mayday Relay” instead of “Mayday”.
Instruction Manual
69
Part No. E04297
8.1.3 Cancelling a distress alert
If a DSC distress alert is sent accidentally, cancel it immediately
on the RS87 by pressing the Cbutton to prevent repeats, then
make the following announcement on channel 16 -
“This is (name of vessel, callsign, MMSI)”
“Cancel DSC Alert sent (date & time UTC)”
Do not simply cancel the DSC alert without verbally cancelling
it as well, otherwise the rescue authorities will not be aware
that this is a false alarm.
8.1.4 Alerting all vessels within range
If the vessel is outside of coast radio range and needs to issue a
safety warning to all vessels within radio range, transmit an All
Ships Safety call by DSC. After about 15 seconds transmit on
channel 16 the safety call and message as follows -
“Securité, Securité, Securité”
“All stations (or called station)” repeated three times
“This is (MMSI and name or callsign of own vessel)”
Repeat text of safety message.
8.1.5 Calling a coast radio station
Enter the MMSI of the station into the RS87, either manually
or from the directory. When the call is acknowledged, the
working channel for voice communication will be indicated
and the RS87 will automatically switch to that channel. Make a
voice call as normal.
8.1.6 Making an intership call
Enter the vessel’s MMSI into the RS87, either manually or from
the directory. Before sending the call, enter the inter-ship chan-
nel to be used for subsequent communication. When the alarm
sounds on the called vessel, its operator should acknowledge
by DSC, then respond by voice on the selected channel.
If the MMSI number of the vessel is not known, call as now on
channel 16. If no response is received, call on channel 13. This
is the GMDSS bridge to bridge communication channel.
8.2 NMEA sentences received
The following NMEA0183 sentences are processed by the RS87
in order to transmit the boat’s position if a Distress Alert is ini-
tiated -
NMEA0183 version 2 and 3 - GGA, GLL, RMC, ZDA
RS87 VHF
70 Part No. E04297
8.3 Transmission range
Because VHF signals travel in a straight line and are not reflect-
ed back off the ionosphere as lower frequency signals are, the
range of VHF signals is limited to ‘line of sight’, beyond which
the other vessel passes behind the curve of the Earth.
Therefore, the range will increase greatly the higher above sea
level the antenna is, as Fig 8.1 illustrates (assuming maximum
transmission power is used):
Instruction Manual
71
Part No. E04297
Therefore, the typical ship to ship range of a fixed VHF radio
such as the RS87 with a masthead antenna will be approxi-
mately 20 Km (12 miles). This will increase as height above
sea level increases, or if the other radio user’s antenna is at a
greater height - note that the range between the yacht with the
antenna mounted on a 9 M (30 Ft) mast and the shore station
increases to 46-53 Km (29-33 Miles).
Fig 8.1 - VHF transmission range
8.4 Frequency of channels
RS87 VHF
72 Part No. E04297
NOTE Ch 0 will only be made available in the UK to Coastguard
users with written authorisation.
Channel 70 is the designated Digital Selected Calling (DSC)
channel and may not be used for voice transmissions.
8.5 Fault finding
Symptom Possible Cause Remedy
Unit will not switch on • Faulty connection to power • Check power connection
• Fuse has blown • Replace fuse and check
power supply current
• Supply voltage above limit • Check supply voltage is
less than 15.6v
Scan or Memory Scan is • Noise on the channel is • Increase squelch level
locking on a channel holding the scan • Inhibit channel from scan
without a signal (see section 2.11.1)
Dual Watch not being • Priority channel selected • Select a working channel
entered • Handset off cradle • Replace handset
Cannot change channel • Dual Watch (D/W) engaged • Exit Dual Watch
Certain channels are • Some channels are restricted • Consult your national
not obtainable and not programmed depend- authority for permitted
ing on country of purchase channels in your region
Will not transmit • Scanning or D/W function active • Exit D/W or Scan
Will not transmit on 25W • Low voltage when full transmit- • Check power supply
but OK on 1W ting current is drawn
• Some channels are restricted to • Consult your national
low power transmission only authority
Transmissions persistently • Damaged antenna • Replace antenna
weak/display flashes • Antenna cable broken • Replace cable
ANT • Poor contact • Check antenna sockets &
through deck connector
These simple checks should be carried out before seeking tech-
nical assistance and may save time and expense. Before con-
tacting your servicing agent please obtain the radio’s serial
number. The software iteration should also be quoted - this is
shown in the large digits on the display for 2 seconds after the
radio is turned on and should be written in the box below for
future reference.
Instruction Manual
73
Part No. E04297
8.6 Optional Accessories
The following accessories are available from your nearest
Simrad Technical Dealer. Please quote the correct part number
when ordering.
RS87 VHF
74 Part No. E04297
AHK87
Active Handset Kit
(includes 20m cable)
LS80
Loudspeaker LS81
Intercom Speaker
PCK86:F or PCK86:H
Fixed control panel
(Available with fistmike or telephone handset)
5.6 Technical specification
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . 12v DC (10.8v - 15.5v DC)
Channel Capability . . . . . . . . . . . . . . . . . . . . . 55 international channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28, 60-88 simplex & semi-duplex
. . . . . . . . . . . . . . . . . . . . . . . . UK : includes M (previously 37) and M2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USA : Wx1-10 receive only.
. . . . . . . . . . . Scandinavia : leisure or fishing channels as appropriate.
. . . . . . . . . . . . . . . . . . . . . . . . . . Canada : Canadian and USA channels.
Private Channels . . . . . . . . . . . . . . . . . . . . . Up to 18 private channels*
External Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Ω
* Contact local Simrad Technical Dealer for further details of channel programming etc.
Transmit
Frequency Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155-163Mhz
Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 watt or 25 watts
Current Consumption . . . . . . . . . . . . . . . 5.5A (25 watts), 1.3A (1 watt)
Harmonic and Spurious Emissions . . . . . . . . . . . . . . . . . . . . . < 0.25µW
Hum / Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < -40dB
Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5kHz
Receive
Audio Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 watts
Current Consumption . . . . . . . 600mA (Full Volume, illumination on)
. . . . . . . . . . . . . . . . . . . . . . . 220mA (Fully Squelched, illumination off)
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . < 1µV emf for 20 dB SINAD
Harmonic and Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . < -2nW
Hum / Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < -40dB
Adjacent Channel Selectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70dB
Intermodulation Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70dB
Environmental
Telephone Handset & Loudspeakers . . . . . . . . . . . . Waterproof to IP67
5.7 Dimensions
Instruction Manual
75
Part No. E04297
190mm (7.6in)
70mm (2.8in) 45mm
(1.8in)
168mm (6.72in)
243mm (9.72in)
63mm
(2.5in)
110mm (4.4in)
110mm (4.4in)
48mm
(1.9in)
45mm
(1.8in)
5.8 Declaration of Conformity
RS87 VHF
76 Part No. E04297
English Hereby, Simrad Limited (Margate), declares that this RS87 VHF Radio is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Finnish Simrad Limited (Margate) vakuuttaa täten että RS87 VHF Radio tyyppinen laite
on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Dutch Hierbij verklaart Simrad Limited (Margate) dat het toestel RS87 VHF Radio in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG
French Par la présente, Simrad Limited (Margate) déclare que ce RS87 VHF Radio est
conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE
qui lui sont applicables
Swedish Härmed intygar Simrad Limited (Margate) att denna RS87 VHF Radio står i
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser
som framgår av direktiv 1999/5/EG.
Danish Undertegnede Simrad Limited (Margate) erklærer herved, at følgende udstyr RS87 VHF
Radio overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
German Hiermit erklärt Simrad Limited (Margate), dass sich dieses RS87 VHF Radio in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)
Greek Με την παρουσα Simrad Limited (Margate) δηλωνει οτι RS87 VHF Radio
συµµορφωνεται προζ τιζ ουσιωδειζ απαιτησειζ και τιζ λοιπεζ σχετικεζ διαταξειζ τηζ
οδηγιαζ 1999/5/ΕΚ
Italian Con la presente Simrad Limited (Margate) dichiara che questo RS87 VHF Radio
è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Spanish Por medio de la presente Simrad Limited (Margate) declara que el RS87 VHF Radio
cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE
Portuguese Simrad Limited (Margate) declara que este RS87 VHF Radio está conforme com
os requisitos essenciais e outras provisões da Directiva 1999/5/CE.
Website - www.simrad.com
5.9 Service & warranty
Your radio should seldom need servicing, although it will bene-
fit from an application of silicone or Teflon grease to the anten-
na and mic sockets each season. The equipment should be reg-
ularly checked by making routine calls to other stations. On an
annual basis, test the Distress Alert button by pressing it ONCE.
This will display the Distress Alert screen and ensure that the
button is functioning. Press On/C to return to the main screen -
DO NOT HOLD DOWN THE DISTRESS BUTTON.
The unit is guaranteed for 2 years from date of retail sale. If it
is necessary to have the unit repaired, return it carriage prepaid
to the agent in the country of purchase with a copy of the
receipted invoice showing the date of purchase. Where possi-
ble, return all the components unless you are certain that you
have located the source of the fault. If the original box is not
available, ensure that it is well cushioned in packing; the
rigours of freight handling can be very different from the loads
encountered in the marine environment for which the unit is
designed.
For Worldwide Warranty details, please refer to the Warranty
Card supplied with this unit.
Instruction Manual
77
Part No. E04297
ALWAYS AT THE FOREFRONT OF TECHNOLOGY
www.simrad.com
