Sirius XM Radio XMXRC1 XM Satellite RX and FM TX User Manual RC quick guide ai

Sirius XM Radio Inc. XM Satellite RX and FM TX RC quick guide ai

Contents

XpressRC Quick Guide

1

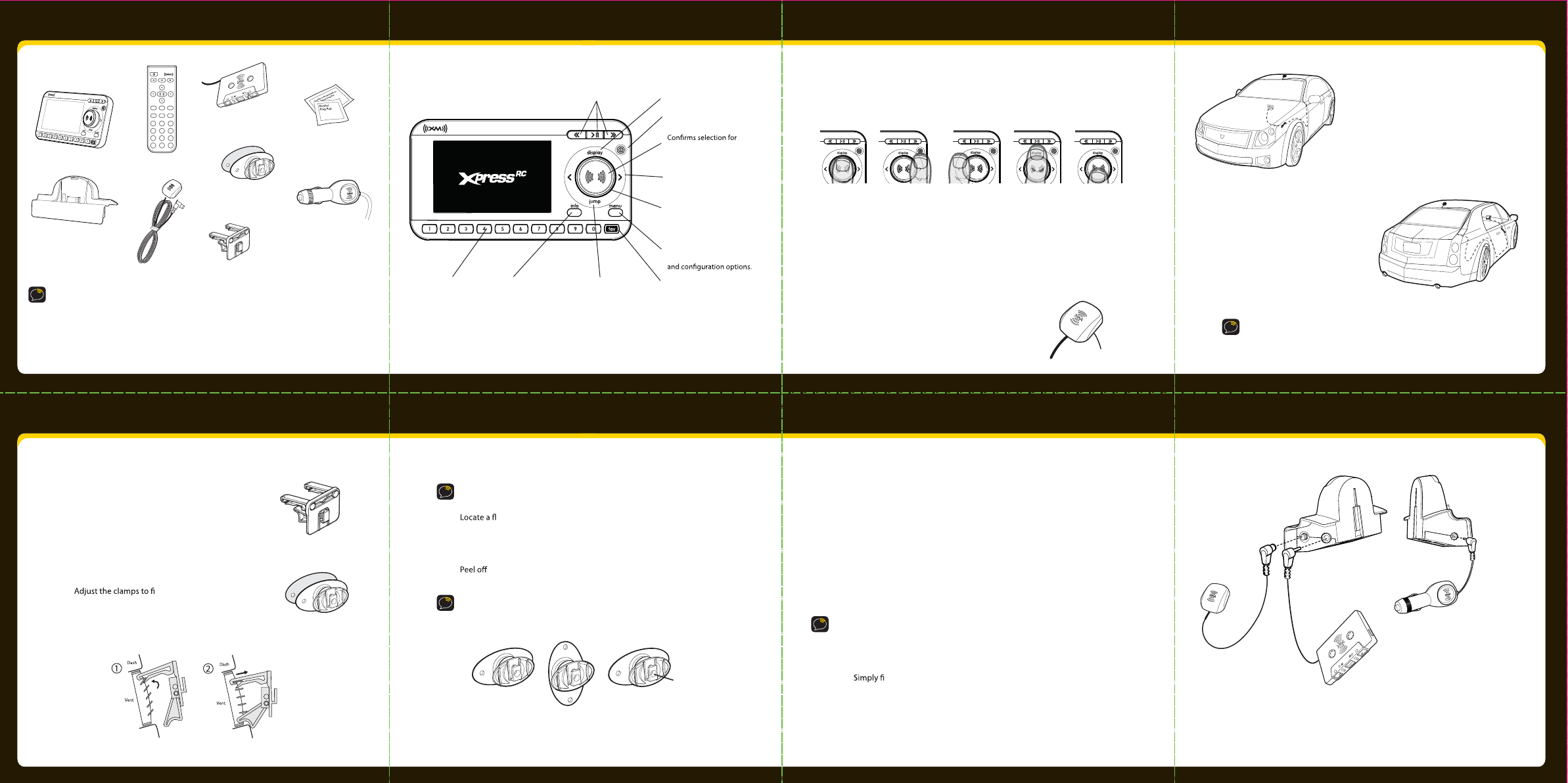

What’s in the box
234
56 78
Car Cradle
8
5
2
7
4
1
9
6
3
mute
info menu
display
0
jump fav
+
Remote Control
XM Car Antenna
Cassette Adapter
Swivel Mount
Vent Mount
Swivel Mount
Preparation Kit
Car Power Adapter
XpressRC
sserpX RC functions 60-Minute Replay Buttons
Pause and replay up to 60
minutes of live XM broadcast.
Jump
Switches between
current channel and
previous channel.
Info
Displays either your
personal stock or info
extras information.
Number Keys
Enter a channel
directly, select your
favorite channels, or
access songs saved
in SongSaver.
Power Button
Display
Changes the way content is
viewed on the display.
Left and Right Arrows
Search for channels by
category.
5-way Navigation
Knob
Previews channels; also selects
various menu options.
Menu
Access advanced features
XM Button
channel and menu items, also
press and hold to save a song
to SongSaver or TuneSelect.
Fav
Selects between direct
channel entry, favorite
channels, and SongSaver
mode.
Warnings
- When using this product it is always important to keep your eyes on the road and hands on the wheel.
Not doing so could result in personal injury, death, and/or damage to your XpressR Receiver,
accessories, and/or to your vehicle or other property.
- XpressR should be placed in your vehicle where it will not interfere with the function of safety features,
e.g., deployment of airbags. Failure to correctly place XpressR may result in injury to you or others if
the unit becomes detached during an accident and/or obstructs the deployment of an airbag.
5-way navigation knob
Turn the knob to scroll through a list.
Press the center of the XM button to make a selection
Press the edge of the knob to select display, jump, < or>
Toggle right Toggle left Toggle up Toggle down
Press center button
(XM button)
Vehicle Installation
Step 1: Mount the XM Antenna
The XM antenna contains a strong magnet which
will stick to any metal parts of your vehicle.
1
Magnet
Choose the best location for your XM antenna considering your own personal situation.
Pay particular attention to any accessories that you may have like luggage racks and
how frequently you may use them.
If you placed the XM antenna on the front of
the vehicle, route the cable across the top of
the windshield. Gently pry up the rubber
weather seal and tuck the cable underneath.
Follow the weather seal down to the door
jam. Tuck the cable into the door jam and up
to the dash or under the carpet to the car
cradle as shown.
If you placed the XM antenna on the rear of
the vehicle, route the cable under the
weather seal of the rear window. Route it
into the trunk and through any existing
wire passages or cargo passages to the rear
passenger compartment. Tuck the cable
under the door jam trim or under the
carpet to the radio as shown.
TIP! Always be careful to include enough slack in your cable to accommodate
open doors or trunk lids. Use things typically found around the home, like
electrical tape, to secure cables in areas so that hinges do not pinch the cable
with the door. Hide any excess cable in the trim.
Swivel Mount
Vent Mount
Step 2: Install the vent or swivel mount
You can use either the vent mount or the swivel
mount for your XpressRC depending on your
particular situation.
Installing the vent mount
1 Locate a vent with horizontal slats
sturdy enough to hold your XM cradle and radio.
2 t your vent.
3 Snap the mount onto the vent.
To remove, push the mount into the vent, then lift up.
Installing the swivel mount
1 at surface for the mount. Make sure there is ample room
for the XM cradle and radio when installed.
2 Clean the surface with the preparation kit and let it dry thoroughly.
the adhesive liner. Position, press, and hold the swivel mount
in place for 30 seconds.
IMPORTANT! Let the adhesive cure for 24 hours before attaching the XM
cradle and radio to the mount.
You can adjust this screw
to adjust the tension of the
mount with a screwdriver.
ANT IN AUDIO OUT
DC IN
XM Antenna
Power Adapter
Cassette Adapter
XpressRC Car Cradle
Step 3: Connect your XpressRC.
Plug the antenna into ANT IN on the cradle.
2
1
3
Plug the power adapter into DC IN on the cradle.
Plug the audio adapter into AUDIO OUT on the cradle.
• Use the Cassette Adapter if your vehicle has a built-in cassette player.
• Use a mini audio cable (sold separately) if your vehicle has
an audio input jack.
Insert the cradle into the mount.
Insert your XpressRC into the cradle.
NOTE!
If your car does not contain a cassette player or an audio input, you will
need to use either the XM SureConnect (sold separately) or the FM Direct
adapter (sold separately).
CAUTION! The adhesive used with the swivel mount may make it dicult t o remove. Do not
install this mount on leather surfaces and make sure the air temperature is at least 60°F (15°C).
Turn the swivel to accommodate the XM cradle and radio. Adjust the tension via
the center screw.
To remove, carefully lift the adhesive pad with your ngers or a spoon. Warming the pad with a
hairdryer for several minutes will help soften the adhesive.
You can reinstall the swivel mount using the extra adhesive pad.
• XM SureConnect (sold separately): You can listen to your XpressRC through your
car stereo by using XpressRC’s built-in FM modulator and the XM SureConnect.
nd an unused FM frequency on the stereo and set your XpressRC
to transmit on that same frequency. Refer to Set the FM frequency page in your
user guide for more information
• FM Direct Adapter (sold separately): This option directly connects the XpressRC
to your car’s audio system and antenna. A professional installation is recommended
if you choose to use this method
Quick Guide
910 11
12 13 14 15
Step 4: Turn on your XpressRC.
1
1 Turn on your car radio.
2
2 Insert the cassette adapter.
3
3 Turn on your XpressRC.
fav
NOTE:
You may experience a two-second delay and hear a short beep while your
XpressRC powers up. If you press the power button during these two seconds,
you will see a Please Wait message.
NOTE: If you are using the XM SureConnect or the FM Direct adapter, refer to
on page xxx for information.
1 Make sure your XpressRC is properly installed and receiving the XM
signal so that you can hear the audio on channel 1.
2 nd it:
• On XM channel 0
• On the rear package label
• On the label on the back of your XpressRC
NOTE: The XM Radio ID does not use the letters I, O, S, or F.
3 Activate your service:
• Browse to http://activate.xmradio.com and follow the instructions.
OR
• Call 1 800 XM RADIO (1-800-967-2346).
4 When your service is activated, your XpressRC will receive all channels.
This usually takes 10 to 15 minutes, but may take up to an hour. Your radio
must remain on until activated.
Activation
Before you can listen to any of XM’s great channels, you must rst activate your XpressRC
Using your Xpress
Listening to XM
Enter a channel
1
1 Turn the knob to scroll through the list of channels.
2
2
You’ll see the channel logo and current artist. In a few seconds,
the current song title appears.
TIP: You can change the display mode to show both the current channel
and all channels. Refer to Changing the display on page 35.
3
3 Press the XM button to select a channel.
View a category
With so many channels to choose from, XM Satellite Radio has organized them into cat-
nd the ones that suit your taste.
1
1 To view a category, press < or >.
2
2 nd the channel you want.
3 Press the XM button
TIP! y listen to each channel in the category, select Scan, then press the XM button
TIP: You can congure XpressRC to automatically tune to the channel you scroll to. Refer
to page 32 for instructions on how to eliminate the need to enter your selection.
Preset your favorite channel
You can assign up to 10 of your favorite channels to the number buttons so you can
quickly access them.
To assign a favorite channel to a button:
1
1 Tune to the desired channel.
2
2
3
3
To listen to a favorite channel:
1
1
Be sure you are in Favorite Channels
mode. Press fav until Favorite
Channels appears in the title bar.
Press and hold the number button
you want to use for that channel.
Be sure you are in Favorite Channels
mode by pressing fav until Favorite
Channels appears in the title bar.
2
2 Press the number button where the desired channel is programmed.
TIP! To see your list of Favorite Channels, press < or >. Select a favorite and press the XM button
to listen to that channel.
Change the display mode
You can view multiple channels on the display to see what else is playing.
Choose from:
To change the mode, press display.
TIP!
When in split screen with the channel list, you can scroll through the list
of channels, just like when it appears on the full screen. Press < or > to change
categories. Press the XM button to select a channel.
TIP! Press jump to change to the previous channel.
split screen with previoustsil lennahc htiw neercs tilpslennahc tnerruc elgnis
FCC Statement
Please note that the power cable that has been supplied with your device is supplied with permanently
attached ferrite beads. It is the responsibility of the user to use the power cable with the ferrite beads.
can void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the installation instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
more of the following measures:
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
(neither portable nor permanent installation). Therefore, XM Satellite Radio cannot support this type of
application or installation
SA10316
XM name and related logos are registered
trademarks of XM Satellite Radio Inc. All
other trademarks are the property of their
respective owners.
DPSS-07-E-XXX
Delphi Corporation
1441 West Long Lake Road
Troy, Michigan 48098-5090 U.S.A.
1.877. GO.DELPHI
www.delphi.com
Printed on Recycled Paper
© 2007 Delphi Corporation. All rights reserved.
XM9800012500
XM- 9800 - 0125 - 00
