XMP3i Users Guide 1 to 43

User Guide
p3i
3
Table of Contents
Introduction....................5
Features ............................6
Safety and Care Information . . . . . . . . . . .7
Important Battery Information . . . . . . . . 10
What’s in the Box? . . . . . . . . . . . . . . . . . . 12
XMp3i Buttons and Connectors . . . . . . . 13
Home Dock.........................14
Remote Control Functions . . . . . . . . . . . . 15

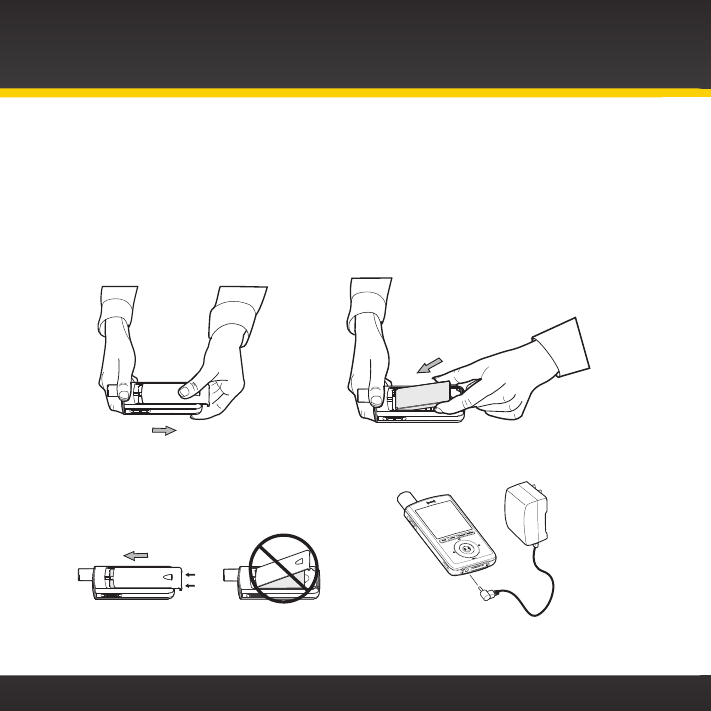

Installing and Charging the Battery . . . . 16
MicroSD™ Memory Card. . . . . . . . . . . . . . 17
Home Installation . . . . . . . . . . . . . . 19

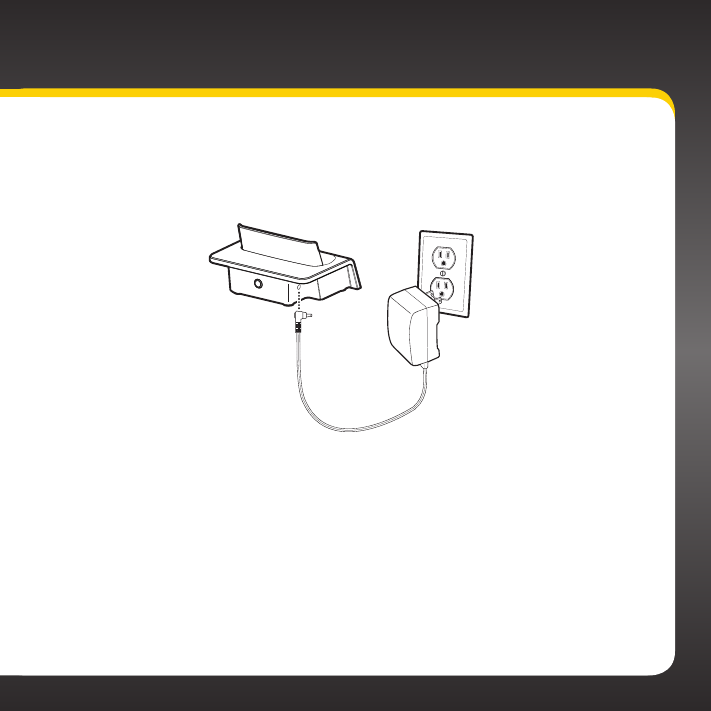

Step 1: Connect the Home Dock . . . . . . 20
Step 2: Install the Indoor/Outdoor
Antenna......................... 24
Activation ................... 29
Using Your XMp3i . . . . . . . . . . . . . 31
The Four XMp3i Menu Options . . . . . . . 32
Docked and Portable Use of Your
XMp3i........................... 33
Navigation Buttons . . . . . . . . . . . . . . . . . 35
Display Icons .......................37
Using the Control Wheel. . . . . . . . . . . . . 39
Live XM ......................41
Introduction....................... 42
The Live XM Main Display . . . . . . . . . . . 43
Tuning a Channel. . . . . . . . . . . . . . . . . . . 44
Category Lists..................... 45
Replay Live XM .................... 46
XM Highlights...................... 47
Online Program Guide. . . . . . . . . . . . . . . 48
Favorite Channels . . . . . . . . . . . . . . . . . . 49
TuneSelect and GameSelect . . . . . . . . . 50
Info Extras .........................51
Recording......................... 54
Bookmarks........................ 59
Blocking Explicit Channels. . . . . . . . . . . 60
My Music Library . . . . . . . . . . . . . . 61
Introduction....................... 62
The My Music Library Main Display
Screens ......................... 63
Listening to My Music Library. . . . . . . . 65
Playlists .......................... 68
Auto Recordings . . . . . . . . . . . . . . .73
Introduction........................74
Listening to Auto Recordings . . . . . . . . .75
Settings .....................77
Introduction........................78
EQ Settings ........................79
Change Display ....................80
Edit Alerts ........................ 82
Info Extras ........................84
Channel Access.................... 86
4
Auto Recordings . . . . . . . . . . . . . . . . . . . 88
Vehicle Settings. . . . . . . . . . . . . . . . . . . . 89
Line Out Level ..................... 93

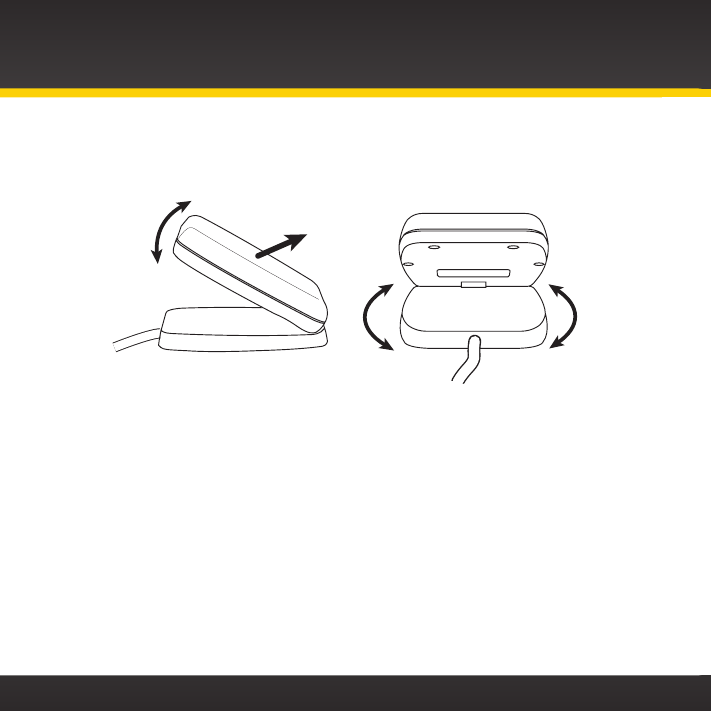

Antenna Aiming.................... 94
Restore Defaults . . . . . . . . . . . . . . . . . . . 97
Memory Usage..................... 99
Using your XMp3i with a PC . . . . 101
Introduction.......................102
My Music..........................104
Record XM ........................105
Bookmarks........................106
napster.com .......................107
My Books .........................108
audible.com/xm....................109
Updating the XMp3i Firmware. . . . . . . . . 111
Disconnecting the XMp3i from a PC. . . 112
Troubleshooting. . . . . . . . . . . . . . . 113
Product Specifications . . . . . . . . . 119
Patent Information . . . . . . . . . . . . . . . . . 121
Environmental Information . . . . . . . . . . 121
Owner’s Record . . . . . . . . . . . . . . . . . . . 124
Indoor/Outdoor Antenna
Template...................125
Table of Contents
5
Introduction
Table of Contents
6
Features
Congratulations on your purchase of the XMp3i™!
The XMp3i has these exciting features to enhance your overall experience:
• Live or recorded XM content at your fingertips. Spin the Control Wheel to
quickly tune to your favorite XM channels.
• Have to step away for a few minutes? Pause and replay up to 30 minutes of
XM programming.
• Record up to 5 channels simultaneously, so you’ll always have something
to listen to. Schedule a recording time, or let the XMp3i learn your listening
habits and automatically record your favorite channels for you.
• Find out what’s playing now or in the future with XM’s programming guide.
• TuneSelect and GameSelect find your favorite artists or sports events on
any XM channel.
• Upload MP3 files, WMA tracks, and Audible.com books from your PC.
Manage your collection and playlists with the XM2go Music Manager
software.
• Store MP3 or WMA files on a removable microSD memory card (sold
separately).
Please read the entire User Guide before using your XMp3i!
Introduction
7
Safety and Care Information
IMPORTANT! Always read and understand all the instructions to avoid
injury to yourself and/or damage to your device. SIRIUS XM Radio Inc.
disclaims all responsibility for damage from data loss due to breakdown,
repair, or other causes.
• Do not expose to extreme temperatures (above 140ûF or below -4ûF, or
above 60ûC or below -20ûC).
• Do not expose to moisture. Do not use device near or in water. Do not
touch the device with wet hands.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight for a prolonged period of time, and do
not expose to fire, flame, or other heat sources.
• Do not try to disassemble and/or repair device yourself.
• Do not drop your device or subject it to severe impact.
• Do not place heavy objects on device.
• Do not subject device to excessive pressure.
• If the LCD screen is damaged, do not touch the liquid crystal fluid.
8
Warning!
• Opening the case may result in electric shock.
• If the liquid crystal fluid comes in contact with your skin, wipe the skin area
with a cloth and then wash the skin thoroughly with soap and running water.
If the liquid crystal fluid comes into contact with your eyes, flush the eyes
with clean water for at least 15 minutes and seek medical care. If the liquid
crystal fluid is ingested, flush your mouth thoroughly with water. Drink large
quantities of water, and induce vomiting. Seek medical care.
• Use only the provided Home Power Adapter.
• Insert the Home Power Adapter all the way into the electrical outlet. Be
careful not to overload the outlet with too many electrical devices, and
keep metallic objects away from the power plugs.
• When using this product, stay aware of your surroundings when enjoying your
XMp3i. If you’re a pedestrian, keep your eyes and ears open. If you’re driving,
keep your eyes on the road and your hands on the wheel. Not doing so could
result in personal injury, death, and/or damage to your device, accessories, and/
or to your vehicle or other property.
• Radio functions should not be performed while driving. Park your vehicle in
a safe location before using the Radio.
• This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Your device should be placed in your vehicle where it will not interfere with the
function of safety features, e.g., deployment of airbags. Failure to correctly place
device may result in injury to you or others, if the unit becomes detached during an
accident and/or obstructs the deployment of an airbag.
Introduction
9
Protect Your Ears and Yourself
• Always follow traffic safety directions. Do not use earbuds or
headphones while operating a bicycle, automobile, or motorcycle. Not
only is it dangerous, it may be illegal.
• Make sure the earbud or headphone cable does not get in the way
of your arms or other surrounding objects while you’re walking or
exercising.
• Maintain a moderate volume when walking or exercising. Always be
aware of what is happening around you.
• Using earbuds or headphones for a long time and/or at high volume
can cause serious damage to your hearing. If you hear ringing in your
ears, STOP listening immediately.
Sound can be deceiving. Over time, your hearing “comfort level” adapts to
higher and higher volumes. What sounds “normal” may be dangerously loud.
TO ESTABLISH A SAFE LEVEL: Start the volume control at a low setting.
Slowly increase the volume until you can hear comfortably, without
distortion, and still be aware of your surroundings.
ONCE YOU ESTABLISH A COMFORTABLE SOUND LEVEL: Leave the
volume at that level; do not increase it over time. SIRIUS | XM and the
Consumer Electronics Association recommend that you avoid prolonged
exposure to excessive noise. Sustained sound levels above 85 decibels can
be dangerous without hearing protection. (For reference, a garbage disposal
or loud shouting at 3 feet are about 80 decibels; a food blender or gas lawn
blower at 3 feet are around 90 decibels.) SIRIUS | XM disclaims all liability
for hearing loss, bodily injury, or property damage as a result of use or
misuse of this product.
10
Important Battery Information
Your XMp3i’s battery should be charged before you use it. The amount of charge
is indicated by the battery level meter in your XMp3i’s display. When you’re
charging the battery you will see . When the battery is exhausted you will see
a red battery icon.
When you use your XMp3i for the first time, charge the battery until the battery
icon turns green. Then use your XMp3i until the battery is exhausted. This
charge/discharge cycle calibrates the battery level meter so that it accurately
reports the state of the battery.
Battery Safety
• Exposure to extreme temperatures can seriously degrade your battery’s
performance and useable life and may result in permanent damage.
• Your Radio and battery are designed to withstand temperatures between
14 to 140F (-10 to +60C). Do not operate or store your Radio and battery
in temperatures outside this range.
• Do not leave your Radio and battery in an unattended vehicle, particularly
in warmer weather.
• Do not place or store your Radio and battery in direct sunlight, or near a
heat source.
• If your battery swells, leaks or malfunctions you should replace your
battery
Introduction
11
Replacement batteries can be ordered online at www.xmradio.com/
accessories or by calling 800-XM RADIO (800-967-2346)
Your XMp3i’s rechargeable battery should be disposed of properly and may
need to be recycled. Contact your local recycler for details. Never dispose of
batteries in a fire or in water as they may explode.
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate (Applicable to California, U.S.A.)
12
Introduction
What’s in the Box?
XMp3i Radio Remote Control
Home Dock
Battery
USB Cable
Indoor/Outdoor Antenna
Home Power Adapter
Earbuds Stereo Audio Cable
13
XMp3i Buttons and Connectors
Power/Lock Switch
Slide down to turn
XMp3i on or off, slide
up to lock buttons.
30-Minute Replay
Pause and replay live
XM or navigate your
recorded content.
Record
Record a song or a
channel. Also schedule a
recording and set channel
to auto record.
Select Button
Press to confirm
highlighted selections.
Control Wheel
Rotate to highlight
selections.
Back
Return to previous screen.
Press and hold to return to
the previous channel.
Menu
Go to Live XM, My Music
Library, Auto Recordings,
or Settings.
Keypad
Enter a channel
number to tune to the
channel.
Options
Displays options
available for the
displayed screen.
Headphone Jack and
microSD Card Slot
Volume/Mute
USB Jack
Universal
Connector
14
Introduction
Home Dock
Color-Coded Connections
The color-coded Home Dock makes it simple to connect. Just match the colors
on the cable ends to the colors on the dock to see what goes where.
ANT (Silver)
Connection for
the Indoor/Outdoor
Antenna.
AUDIO (Green)
Connection for home
stereo system or
powered speakers.
Rear/Side View
POWER (Red)
Connection for
the Home Power
Adapter.
antenna
15
Remote Control Functions
Replay Buttons
Pause and replay live XM
programming and navigate
your recordings.
Power Button
Turn Radio on/off.
Record
Press to record songs,
channels or schedule a
recording.
Arrow Buttons
Tune channels and
navigate lists.
Options
Displays available options
for current display.
Select Button
Press to confirm
highlighted selections;
press and hold to access
FM channel presets.
Back
Return to previous
screen.
Jump
Switches between current
channel and previously
tuned channel.
Menu
Go to the main menu.
Number Keys
Enter a channel number
to tune directly to the
channel.
+ and —
Change channels or
control volume for audio
system (sold separately).
Mute
Silences the audio.
16
Introduction
Installing and Charging the Battery
The battery is shipped partially charged. Charge the battery for at least 3 hours
before using your XMp3i for the first time, or if you have not used it for several
months.
Insert the battery into the XMp3i as shown.
3. Carefully replace the battery
door, sliding in place. 4. Charge the battery for
at least 3 hours.
1. Open battery compartment. 2. Insert the battery into the XMp3i.
17
MicroSD™ Memory Card
You can add removable microSD memory to store more of your personal
MP3 and WMA music files. The microSD memory card is sold separately, and
may be purchased at most electronics retailers.
NOTE! You cannot store any recorded XM content on your microSD card.
Installing and Removing the microSD Memory Card
Turn your XMp3i off before inserting or removing the microSD memory card.
To insert the memory card, press it down until it clicks into place. To remove
it, press down and release and it will eject. Do not remove the card if you see
this icon in red on the display.
WARNING! Do not remove
microSD memory card during
scanning.
Be sure you insert
the microSD card
correctly.
18
19
Home Installation
20
There are two parts to installing your Home Dock. First, connecting the Home
Dock to the AC Power Adapter, the Indoor Outdoor Antenna, and to your stereo or
powered speakers, and second, placing and aiming the Indoor/Outdoor Antenna.
If you plan to use the XM2go Music Manager software, you should locate the Home
Dock near your PC computer.
Step 1: Connect the Home Dock
When installing the Home Dock in your home, choose a location in close proximity
to your home stereo system or powered speakers, and also where the cable from
the Indoor/Outdoor Antenna can reach the Home Dock. The location should be
easily accessible and provide good visibility of the display, but should not be
located where it will be in direct sunlight, which will affect the visibility of the
display screen.
You will also need to decide whether you will be connecting your Home Dock to
your home stereo system using the provided Stereo Audio Cable, or directly to
powered speakers.
Connect the Indoor/Outdoor Antenna
Once you have selected a location,
connect the antenna to the silver
ANT connector at the right side of the
Home Dock. (After completing a few
additional steps, we will work on the
location of the antenna.)
Home Dock Installation
21
Connect the Home Power Adapter
Connect the Home Power Adapter to the red POWER connector at the left
side of the Home Dock, and plug it into a wall outlet.
Connect the Home Dock to a Home Stereo System or Powered
Speakers
The Home Dock can be connected to your home stereo system, or to a pair
of powered speakers. If you are connecting to a home stereo system, see the
following section. If you are connecting to a pair of powered speakers, refer
to “To Connect the Home Dock to Your Powered Speakers” on page 23.
To Connect the Home Dock to Your Home Stereo System
The Home Dock can be connected to your home stereo system through the
22
Home Dock Installation
AUX In or LINE In connection of your home stereo system, using the provided
Stereo Audio Cable.
1 Take the provided Stereo Audio Cable and connect the single 1/8” (3.5
mm) connector to the green AUDIO connector at the rear of the Home
Dock.
2 Connect the white left and red right Stereo Audio Cable connectors
(“L” and “R” are also on each respective tip) to any available input
other than PHONO on your home stereo system. (If your stereo’s
inputs are marked red and black, simply connect the white plug to the
black input.)
3 Turn the home stereo system On, and make sure you select the correct
input on your stereo system for the AUX In or LINE In connection, or
whatever input you have selected.
L
R
23
To Connect the Home Dock to Your Powered Speakers
The Home Dock can be connected directly to a pair of speakers. The speakers
will need to be powered for amplification.
1 Connect the 1/8” (3.5 mm) connector from the powered speakers
to the green AUDIO connector at the rear of the Home Dock.
2 Plug the AC Power Adapter for the speakers into an
AC outlet.
3 Turn the speakers On.
Dock Your XMp3i
Place the XMp3i into the Home Dock as shown, and turn it On
by sliding the Power/Lock switch down.
IMPORTANT! Allow the XMp3i to charge the battery for a
minimum of three hours before removing from the Home Dock.
24
Home Dock Installation
Step 2: Install the Indoor/Outdoor Antenna
Proper installation of the Indoor/Outdoor Antenna is necessary to insure good
and consistent signal reception. To begin, try experimenting with the antenna to
get a feel for the reception in your location. Move
the antenna around the room or from room to room.
Aim it from different windows. In major metropolitan
areas, you might find that you get great reception in
several locations without worrying too much about
aim and placement.
Access the Antenna Aiming screen of your XMp3i to
see a visual indication of signal strength. Press
menu Settings Antenna Aiming. If you’re
receiving a good Satellite and Terrestrial signal
strength, you’re done. If not, try some of the
suggestions which follow.
Other Indoor/Outdoor Antenna
Installation Suggestions
If you find you are getting a
signal, but it’s inconsistent,
try moving the Indoor/Outdoor
Antenna closer to a window,
ideally one that is facing due
south.
Not sure which way is south? Think
S
25
about where the sun rises (in the east) and sets (in the west). Then stand so that
east is to your left and you’ll be facing south. Is there a window in the direction
you’re facing? Move the antenna closer to the window.
TIP! Still not sure which way is south or where to place your Indoor/Outdoor
Antenna? Look up your location on an online mapping website that offers
satellite views of street addresses where you can easily see which way is
south, and what window may offer an unobstructed view of the sky.
Another easy method is to start at any window, then work from window to
window in a simple pattern to find the window gives the best signal strength.
Note that the antenna must also have an unobstructed view, with no trees
or buildings blocking its aim. If the antenna is aimed through a window, be
aware that blinds, screens, or any other non-glass elements such as thermal
insulation can sometimes cause reception issues. If this is the case, you may
want to use another window or place the antenna outside of the window.
If you find a window that gives you good
signal strength, you can place the antenna
on the windowsill. The antenna may need
to be placed on something to raise it above
the level of the window frame.
If you don’t have a window where you
receive a consistent signal, or placing
the antenna in a window is not a practical
solution for you, BETTER reception can be
achieved by placing the antenna outside
on a window ledge, porch, table, or patio.
The location you choose should provide
SOUTH
26
the antenna with a clear view of the southern sky.
If none of the previous solutions work
for you, then the BEST reception can
be achieved by mounting the antenna
outdoors, with a clear view of the
southern sky.
Note that you will want to consider any
potential hazards when you choose
the mounting location, and possibly
consider professional installation.
SIRIUS XM Radio Inc. is not liable for
any damages.
To mount the antenna, you will need
four screws (not included) with a
1/4” head (e.g., an M3 screw),
and that are suitable for
the material onto which you
are affixing the antenna,
(e.g., wood, metal, etc.). The
screws should be spaced
1-3/8” apart horizontally and
1-1/8” vertically. Refer to the
template “Indoor/Outdoor
Antenna Template” on page 126.
Home Dock Installation
OUTDOORS
SOUTH
SOFFIT
SOUTH
27
Once you have found a suitable location
for the antenna, route the antenna cable
to the Home Dock. Be sure you avoid any
obstructions that could crimp, kink, or
twist the cable. Use protective grommets
wherever rough openings are encountered.
If the antenna is installed outdoors, route
the cable from the antenna location to the
interior of the home, working the cable
through the basement, under a window
sill, etc., and make adjustments to take up
cable slack as necessary.
TIP! If your Indoor/Outdoor Antenna’s cable isn’t long enough, visit xmradio.
com/accessories, or your favorite retailer, and consider a 50 ft. Indoor/
Outdoor Antenna Extension Cable or a Wireless Home Signal Repeater.
If the signal is good for either Satellite or Terrestrial (or both), and you are
hearing the audio from the Radio, the installation is complete.
If the signal reception is low, or intermittent, try another location for the
antenna. Verify that the antenna is pointed south, and that the antenna’s view
of the sky is not blocked by a tree, a building, a bridge, or anything else. Adjust
until you are receiving a good signal.
The Indoor/Outdoor Antenna’s reception can also be tweaked by opening or
closing the antenna clamshell, and turning the antenna. While observing the
signal strength, make small adjustments to the angle of tilt of the clamshell
until the highest possible signal strength is achieved. If you have not wall-
1-3/8 in
1-1/8 in
28
Home Dock Installation
mounted the antenna, turn the antenna slightly to the right or left and observe
if the signal strength increases. For each tweak, allow a few seconds in each
position to determine if the signal strength increases.
If the signal reception is good, but there is no audio, verify your audio connection.
• If you are connected to a home stereo system, be sure the system is set to
the auxiliary input source, and you have connected the Stereo Audio Cable
to the auxiliary input connectors.
• If you are connected to powered speakers, be sure the speakers are
plugged into an outlet, and are turned On.
The Line Out level of your Radio can also be increased. Refer to “Line Out Level”
on page 93.
SOUTH
29
Activation
30
Activation
Before you can enjoy Commercial-Free Music, plus Sports, News, Talk &
Entertainment, you need to activate your XMp3i.
1 Make sure your XMp3i is properly installed, turned on, and receiving the
XM signal so that you can hear the audio on channel 1.
2 Make a note of your XM Radio ID. You can find it on channel 0, on a label
on the bottom of the gift box, and on the label on the back of your XMp3i.
NOTE! The XM Radio ID does not use the letters I, O, S, or F.
3 Activate your service:
•Online: Go to www.xmradio.com and click on “ACTIVATE RADIO” in the
top right corner
OR
•By phone: Call 1-800-XM-RADIO (1-800-967-2346)
4 When your service is activated, your XMp3i will receive all channels to
which you have subscribed. At this time, you use the Control Wheel or
Remote Control to tune other channels. Activation usually takes 10 to
15 minutes, but may take up to an hour. We recommend that your XMp3i
remain on until activated.
31
Using Your XMp3i
32
Using Your XMp3i
The Four XMp3i Menu Options
The XMp3i has four menu options which can be selected after pressing the menu
button. These menu options are summarized here, and are explained in detail in
the four following chapters of this User Guide.
Live XM: Listen to Live XM, browse channels or categories of channels
such as Pop, Rock, Country, etc. Check out the XM highlights, record
songs, and set up scheduled recordings.
My Music Library: Access (or Browse) and playback your XM recordings,
downloaded MP3 and WMA music files, and downloaded audio books.
Auto Recordings: Listen to content from your favorite XM channels that
your XMp3i has automatically saved for you.
Settings: Make adjustments to the XMp3i’s behavior, such as display
brightness, audio equalizer settings, and channel access. Select Info
Extras to display scrolling stock ticker or sports scores.
33
Docked and Portable Use of Your XMp3i
Your XMp3i comes with everything you need to listen to your XM
programming and personal music collection at home or on the go.
At Home/Office
Place your XMp3i in the Home Dock to listen to live XM through your home
stereo or powered speakers. Use the Remote Control to tune channels, play
tracks from your music library or record new content from across the room.
The Home Dock will also charge your Radio’s battery so its always ready to
go.
The Home Dock is also the best place to record your favorite XM
programming. As long as your docked Radio is powered and receiving a good
signal, you can record programming from up
to 5 channels at once. Even when your Radio
is powered off, it will wake up for scheduled
recordings and store them in My Music
Library.
Portable
Use the XMp3i as a portable Radio to listen
to Live XM, recorded XM programming, or
your downloaded MP3 and WMA music files
wherever you go.
To listen to Live XM, your XMp3i needs to have
34
a clear view of the sky to receive the satellite signal. Trees, buildings and even
your own body can block this signal causing audio interruption. If you lose the
satellite signal, XMp3i will prompt you to listen to content from My Music Library
or Auto Recordings.
Using Your XMp3i
35
Navigation Buttons
Power/Lock Switch
Sliding the Power/Lock switch down turns the XMp3i On or Off.
Sliding the Power/Lock switch up locks the buttons on the XMp3i to
prevent the accidental pressing of a button. Slide back to the center
position to unlock the buttons.
Volume +/—
Pressing + or — on the volume button increases or decreases
the audio volume, when you are listening to the XMp3i with the
Earbuds.
Control Wheel
The Control Wheel on the XMp3i is multifunctional. Turn
it clockwise or counter-clockwise to browse and highlight
channels and list items.
The Control Wheel can also be pressed at the north, south,
east, or west positions to select Play/Pause , Record
rec
, Fast-Forward
, or Rewind respectively.
+
36
Using Your XMp3i
Select Button
Pressing the Select button selects a highlighted item in a list and confirms
settings. Pressing and holding accesses the FM channel presets when docked in
the XMp3i Vehicle Dock (sold separately).
Back Button
Pressing back returns you to the previous display screen. Repeatedly pressing
back will return you to the channel or recording to which you are listening.
Pressing and holding back returns to the previous channel to which you were
listening.
Menu Button
The menu button lets you access the four XMp3i modes, Live XM, My Music Library,
Auto Recordings, and Settings.
Keypad Button
The keypad button displays an on-screen keypad allowing you to directly tune any
XM channel by entering the channel number.
Options Button
The options button shows a list of available options in the context of the currently
displayed screen. If no options are available, nothing is displayed.
menu
back
keypad
options
37
Display Icons
The following is a list of the icons that are displayed by the XMp3i.
Icon Explanation
Live XM mode
My Music Library mode
Auto Recordings mode
Settings mode
Battery Charging
Battery Charged (green)
Battery Low (red)
Lock - buttons locked. To unlock, slide the Power/Lock switch down
to the middle position
Mute – to unmute, press both volume up and volume down buttons at
the same time
Repeat
Shuffle
MP3 or WMA song loaded onto the microSD card
38
Using Your XMp3i
Icon Explanation
(Green) microSD card is in the device
Song included on a playlist
MP3 or WMA file loaded onto the microSD card that has been added
to a playlist
TuneSelect set to alert on artist’s name
TuneSelect set to alert on song title
No alert is set for the TuneSelect or
Channel is skipped in channel list
XM signal strength
(Red) MicroSD card is being read. Do not remove the microSD card
until this icon turns green
GameSelect set to alert or
Channel is added to channel list
Scheduled recording via “View Programs” or “XM Highlights”
Schedule to Alert via “View Programs” or “XM Highlights”
Scheduled recording via “Schedule Recording”
39
Using the Control Wheel
The Control Wheel on the XMp3i is multifunctional. Use your finger to
spin the wheel clockwise or counter-clockwise to browse and highlight XM
channels and menu lists.
Select highlighted items by pressing the Select button in the center of the
Control Wheel.
The Control Wheel can also be pressed at the north, south, east, or west
positions to select Play/Pause , Record
rec
, Fast-Forward , or Rewind
respectively.
40
41
Live XM
42
Live XM
Introduction
Live XM is where you listen to Satellite Radio, browse channels and tune to your
favorite XM programs.
To listen to Live XM with your XMp3i from any screen:
1 Press menu. The Live XM icon is highlighted.
2 Press Select.
43
The Live XM Main Display
When listening to a channel, information about the channel and XMp3i are
displayed.
Other icons may be displayed on the screen depending upon what you are
doing. Refer to “Display Icons” on page 37 for an explanation of the various
icons.
Channel Name Channel Number
Satellite Signal Strength
Battery Level
Indicates whether you
are listening to Live XM
or Replay content
Clock
Indicates that the
Power/Lock switch is
set in the lock position
Artist or Program Name
or Sports Teams/Score
Song Title
or Program Topic
or Game Time/Game Details

Navigation menu
