UserGuide_EN
Hearing
Systems
StreamLine TV
User Guide
4
Before you art
This device is intended as a wireless transmitter of
sound from a TV or from other electronic devices
to hearing inruments. It is intended to be used by
children (> 36 months) and adults together with their
hearing inruments.
CAUTION
Read this user guide thoroughly and completely and
follow the safety information in this document to avoid
damage or injury.
5
Compatible hearing inruments
StreamLine TV works with our specic wireless hearing
inruments. Your Hearing Care Professional will advise
you on the compatible models.
7
➋
➏
9
➌
➋
10
Getting arted
Positioning
Position the transmitter close to
your electronic device, so that
they can be easily connected
with cables. For be connection
to your hearing inruments,
position the transmitter
horizontally and in
direct line of sight with
your hearing inruments.
11
Connecting to power supply
Only use the USB power
cable and power plug that
came with the transmitter.
XConnect the micro USB
side of the power cable to
the power connection of
the transmitter ➊.
XConnect the power plug to
the power supply ➋.
12
X
Observe the indicators ➌:
Description
‑The transmitter is arting up.
If after a few seconds, both indicators ash
blue, the transmitter is on but not paired to
any hearing inrument. Refer to the section
"Pairing hearing inruments".
other Refer to the section "Power and TV indicator".
13

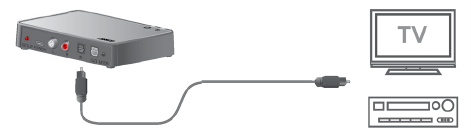

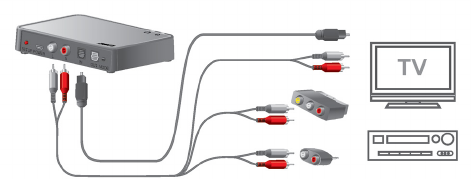

Connecting to your electronic device
You can connect the transmitter to your electronic device
with the TOSLINK cable or with the RCA cable. We
recommend using the TOSLINK connection. Use the
supplied cables and adapters.
14
We recommend to connect either the TOSLINK input or the
RCA input of the transmitter.
If both inputs of the transmitter are used, the electronic
device that is connected via TOSLINK cable has the higher
priority and only the audio signal of this device will be
reamed to your hearing inruments.
15
TOSLINK connection
XBefore connecting the cable, remove the protection caps
from the TOSLINK cable plugs.
XPlug the cable into the TOSLINK input of your transmitter
and into the TOSLINK (optical audio) output of your
electronic device.
To prevent the TOSLINK cable from breaking, do not
forcefully bend it.
16
Further information:
● Refer to the electronic device's manual: Set the
output format of the electronic device to either PCM
(pulse‑code modulation) or Dolby® Digital*.
● The TOSLINK output of your transmitter may be used to
connect further TOSLINK devices such as external Dolby
decoders or surround sound syems.
* Dolby and the double‑D symbol are regiered trademarks of Dolby Laboratories.
17
RCA connection
XPlug the cable into the RCA connections of your
transmitter.
XPlug the other side of the cable into the RCA output of
the electronic device. Or via adapter into the SCART or
mini jack output of the electronic device.
18
Further information:
● Without adapter: The RCA output of the electronic device
is typically marked "L‑R AUDIO OUT" and found on the
back or control panel.
● With SCART adapter: The audio signal can depend
on the source selected on the electronic device. For
example some TVs will only make TV sound available on
the SCART output, but not the sound from a connected
DVD player.
● With mini jack adapter: The mini jack output on the
electronic device is typically the headphone output.
The speakers of the electronic device may be muted
19
if the headphone output is used. So that sound is only
heard through the hearing inruments.
● Refer to the electronic device's manual: Set the output
format of the electronic device to analog audio or
uncompressed audio.
20
Pairing hearing inruments
Your hearing inruments need to be paired once with the
transmitter. After that, the pairing is saved in the hearing
inruments and remembered each time they are turned on.
XEnsure that the transmitter is connected to the power
supply.
XTurn the hearing inruments o and on again:
Open and close the battery compartments.
If your hearing inruments do not have a battery
compartment, turn them o and on as described
in the hearing inruments' user guide.
21
X
Place both hearing
inruments close
to, or on top of the
transmitter. The
pairing process arts
automatically.
XObserve the indicators:
Description
If pairing is completed, both indicators are blue
for about 30 seconds.
other Refer to the section "Power and TV indicator".
22
Multiple users:
● This transmitter can be paired to multiple hearing
inruments. All users will be able to hear the same sound.
● To clear the pairings of one current user, r reset
the transmitter to factory settings. This will clear
the pairings of all users. After that, pair the hearing
inruments of the other users again. Refer to the section
"Resetting to factory settings".
23
Daily use
Using the transmitter
Function Description
Start audio
reaming
Switch your hearing inruments to the
transmitter mode or change to the dedicated
hearing program.
Stop audio
reaming
Quit transmitter mode or switch to any other
hearing program in your hearing inruments.
Adju
volume
Use the controls of your hearing inruments.
24
Further information:
● Depending on your hearing inruments' type and
conguration, you can change their mode or hearing
program with the hearing inruments' controls
(e. g. push button), or with a smartphone app, or
with a dedicated remote control. Refer to the hearing
inruments' user guide for details.
● Volume functions and hearing programs are optional
hearing inrument features. They depend on the type
of hearing inrument and can be programmed by your
Hearing Care Professional.
25
● The volume of the reamed audio signal is normally
not aected by volume adjuments from the TV remote
control.
● Your Hearing Care Professional can adju the mix of the
audio reaming signal with surrounding sounds according
to your preference.
26
Power and TV indicator
Both power indicator and TV indicator show the
current atus of the transmitter.
Description
‑ Power indicator is white:
The transmitter is arting up.
Both indicators ash blue:
Power is on. The transmitter is not paired to
any hearing inrument. Refer to the section
"Pairing hearing inruments".
27
Description
Both indicators are blue for 30 seconds:
Pairing is complete.
‑ Power indicator is red:
Power is on. The transmitter is not receiving
an audio signal. Refer to the section
"Troubleshooting".
Both indicators are green:
The transmitter is receiving an audio signal via
the RCA connection.
28
Description
Power indicator is green, TV indicator ashes
green:
The transmitter is not receiving an audio signal
via the RCA connection or the volume is
too low.
Power indicator is green, TV indicator is blue:
The transmitter has a valid TOSLINK
connection to your electronic device regardless
of whether an audio signal is played or not.
29
Description
Power indicator is green, TV indicator ashes
red:
The signal format is not supported. Refer to the
section "Connecting to your electronic device".
Both indicators ash red:
Error. Contact your Hearing Care Professional.
30
Important safety information
Personal safety
WARNING
Choking hazard!
Your device contains small parts which can be
swallowed.
XKeep hearing inruments, batteries and
accessories out of reach of children and mentally
disabled persons.
XIf parts have been swallowed consult a physician or
hospital immediately.
31
WARNING
Risk of electrical shock!
XDo not use obviously damaged devices and return
them to point of sale.
WARNING
Note that any unauthorized changes to the product
may cause damage to the product or cause injury.
XUse only approved parts and accessories. Ask your
Hearing Care Professional for support.
32
WARNING
Risk of electric shock!
XConnect audio input only to a device conforming to
IEC 60065, the IEC‑Norm for audio, video and other
electronic devices.
WARNING
This device may interfere with measuring and
electronic equipment.
XDo not use your device on airplanes or areas where
sensitive or life‑supporting electronic equipment is
used.
33
WARNING
Risk of explosion!
XDo not use your device in explosive atmospheres
(e. g. in mining areas).
Product safety
NOTICE
XProtect your devices from extreme heat. Do not
expose them to direct sunlight.
NOTICE
XProtect your devices from high humidity.
34
NOTICE
XDo not dry your devices in the microwave oven.
NOTICE
Dierent types of rong radiation, e. g. during X‑ray
or MRI head examinations, may damage devices.
XDo not use the devices during these or similar
procedures.
Weaker radiation, e. g. from radio equipment or
airport security, does not damage the devices.
35
In some countries rerictions for the usage of wireless
equipment exi.
XRefer to local authorities for further information.
NOTICE
Your devices are designed to comply with international
andards on electromagnetic compatibility but
interference with nearby electronic devices could
occur. In this case, move away from the source of
interference.
36
Important information
Explanation of symbols
Symbols used in this document
Points out a situation that could lead to serious,
moderate, or minor injuries.
Indicates possible property damage.
Advice and tips on how to handle your device better.
37
Symbols on the device or packaging
CE compliance label, conrms compliance with
certain European Directives, refer to section
"Conformance information".
EMC and radio communications
compliance label Auralia, refer to section
"Conformance information".
Indicates the legal manufacturer of the device.
Do not dispose of the device with general
domeic wae. Read more in section
"Disposal information".
38
Symbols on the device or packaging
Read and follow the inructions in the
user guide.
Manufactured under licence from
Dolby Laboratories.
39
Maintenance and care
NOTICE
XDo not put your device in water!
XDo not clean your device with alcohol
or benzine.
X Clean the device as necessary with a soft tissue.
XAvoid abrasive cleaning liquids with additives such as
citric acids, ammonia, etc.
40
Resetting to factory settings
To reset the transmitter to factory settings:
XPress and hold the setup button for more than 5 seconds.
All pairings are deleted. Both indicators ash blue.
41
Troubleshooting
If audio reaming is not working, check the following tables.
TOSLINK cable is connected
Troubleshooting
The signal format is not supported. Refer to the
section "Connecting to your electronic device".
No audio signal is available. For example, pause
or mute is pressed on the electronic device.
Your hearing inruments are out of operating
diance. Move closer to the transmitter.
42
Troubleshooting
Your hearing inruments have not been
paired with the transmitter, but other
hearing inruments are paired. Pair your
hearing inruments. Refer to the section
"Pairing hearing inruments".
‑No audio signal is available. For example, pause
or mute is pressed on the electronic device.
‑TOSLINK cable is defective. Check the cable
for damages and replace it if necessary.
43
RCA cable is connected
Troubleshooting
The output signal of the electronic device is
not loud enough. Increase the volume on the
electronic device.
No audio signal is available. For example, pause
or mute is pressed on the electronic device.
Your hearing inruments are out of operating
diance. Move closer to the transmitter.
44
Troubleshooting
Your hearing inruments have not been
paired with the transmitter, but other
hearing inruments are paired. Pair your
hearing inruments. Refer to the section
"Pairing hearing inruments".
The signal format is not supported. Refer to the
section "Connecting to your electronic device".
‑ The output signal of the electronic device is
not loud enough. Increase the volume on
the electronic device.
45
Troubleshooting
‑No audio signal is available. For example, pause
or mute is pressed on the electronic device.
Both TOSLINK and RCA cable are connected
● Unplug the cable that is currently not in use
(either TOSLINK or RCA cable).
46
Technical information
Operating, transport, and orage conditions
Operating conditions
Temperature 5 to 40 °C
Relative humidity 15 to 93 %, non‑condensing
Atmospheric pressure 700 to 1060 hPa
During extended periods of transport and orage, please
observe the following conditions:
47
Transport and Storage
Temperature ‑25 to 70 °C
Relative humidity 15 to 93 %, non‑condensing
For other parts, such as hearing inruments, other
conditions may apply.
Technical data of the power supply
Input voltage: 100‑240 V AC
Input current: max. 0.2 A at 100 V AC
Input frequency: 47‑63 Hz
Output voltage: 5 V DC
Output current: max. 1 A
48
Disposal information
Recycle devices, accessories and packaging according to
local regulations.
Conformance information
The CE mark indicates conformity with the following
European directives: 93/42/EEC concerning medical devices,
99/5/EC (R&TTE) concerning radio and telecommunications
terminal equipment, and 2011/65/EU RoHS concerning the
reriction of hazardous subances.
The full text of the declaration of conformity can be obtained
from www.signia‑hearing.com/doc.
49
Wireless functionality
This device contains a wireless transmitter using 2.4 GHz
technology. The emission power from this device is
max. 17.1 dBm EIRP. This device complies with international
andards concerning electromagnetic compatibility and
human exposure.
FCC and ISED compliance information can be found on
the back of the device.
The ACMA compliance mark indicates conformity
with the electromagnetic interference andards set by the
Auralian Communications and Media Authority (ACMA).
Devices with the FCC marking comply with the andards of
the FCC regarding electromagnetic interference.
50
This Class B digital apparatus complies with Canadian
ICES‑003.
This device complies with Part 15 of the FCC Rules and with
ISED's licence‑exempt RSSs.
Operation is subject to the following two conditions:
● This device may not cause harmful interference, and
● this device mu accept any interference received,
including interference that may cause undesired
operation.
This equipment has been teed and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection again harmful interference in a
51
residential inallation. This equipment generates, uses
and can radiate radio frequency energy and, if not inalled
and used in accordance with the inructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular inallation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and
receiver.
52
● Connect the equipment to an outlet on a circuit dierent
from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician
for help.
FCC caution: Any changes or modications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
To comply with FCC RF exposure requirements, the device
and the antenna for this device mu be inalled to ensure
a minimum separation diance of 20 cm or more from a
person's body. Other operating congurations should be
avoided.
53
54
www.signia-hearing.com
Document No. 03132‑99T01‑7600 EN
Order/Item No. 109 463 23
Master Rev02, 03.2017
© Signia GmbH, 03.2017
Legal Manufacturer
Signia GmbH
Henri‑Dunant‑Strasse 100
91058 Erlangen
Germany
Phone +49 9131 308 0
