Smarfid Security Equipment LFR Card Reader User Manual Mounting
Shanghai Smarfid Security Equipment Co, Ltd. Card Reader Mounting
User Manual
Keypad & Proximity Reader Installation Manual
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Keypad & Proximity Reader Installation Manual
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
IC STATEMENT
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Keypad & Proximity Reader Installation Manual
Parts
o 1 - reader
o 1 - Installation manual
Required Tools
o Up to 9 wire splices (pigtail)
o Cable, 5-9 conductor (Weigand or RS232), 24 AWG shielded (pigtail)
o Linear DC power supply
o Gang box (optional)
o Security tool for anti tamper screw

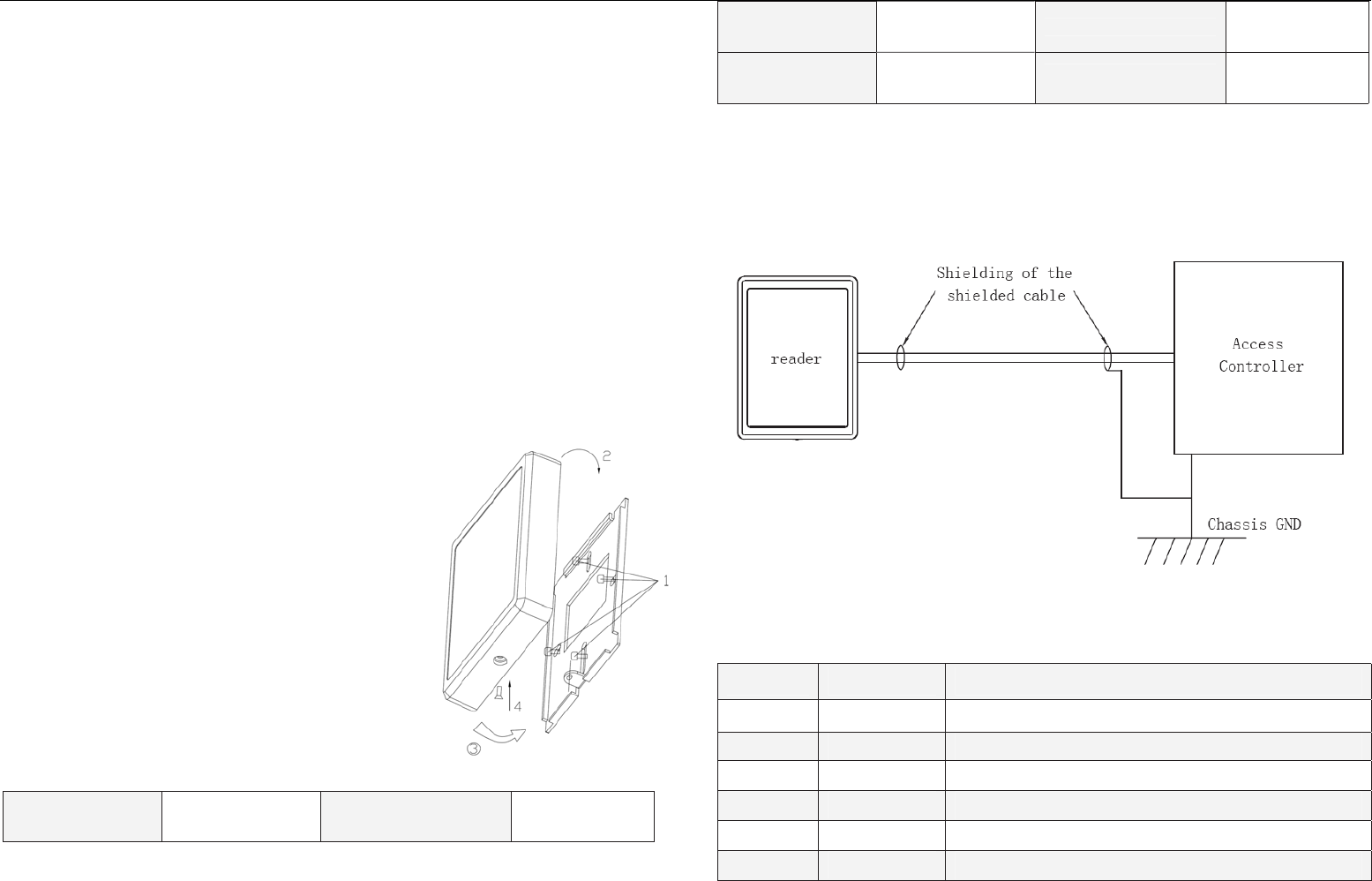

Mounting
1. Fasten the metal base plate to the wall with two or four
screws to the wall or gang box (optional) 1 (gang
box not included).
2. Clip the top edge of the cover 2, followed by the
bottom edge of the reader 3.
3. Secure the reader to the base plate by fastening the
security screw at the base of the reader 4.
Installation is completed.
Specifications
Input voltage
(Reader end) DC10V~15V Average read range > 6cm
Operating current 160mA (max) Maximum cable length 150m
Operating
temperature -30ºC~70 ºC Number pad format 4 bits burst by
default
Recommendations
1. Linear DC Power Supply
2. 22AWG shielded cable; “One-point” ground recommended (refer to diagram)
Wiring
Color Label Description
Red +12VDC Power Supply to reader
Black GND Signal GND
Green Data0 Wiegand Output data, D0
White Data1 Wiegand Output data, D1
Yellow RED LED RED LED control, active low
Blue Green LED Green LED control, active low
Keypad & Proximity Reader Installation Manual
Brown Buzzer Buzzer input, active low
Grey Tamper Tamper output (open collector, Active low, max 100mA)
Purple Doorbell Door bell output (open collector, +5Vdc output ≤ 5mA)
Troubleshooting
Power & Testing
1. When reader is powered up, the blue LED will light up. The orange LED will flicker for 5
seconds. The reader will beep once for 1 second and the reader is in Ready mode.
2. Present the card. The orange LED will flicker once; the back lit will light for 5 seconds;
buzzer will beep once.
3. For keypad readers, the back light and the keypad numeral will light when the keypad is
pressed; the buzzer will beep once
Using the Configuration Card (For keypad readers only)
The default keypad format is “00”. The Configuration Card is required when the default
keypad format is not compatible with the controller.
1. When reader is powered up, the blue LED will light up. The orange LED will flicker for 5
seconds.
2. Present the Configuration Card for the required format. A 1-second beep indicates a
successful attempt. The new keypad format is saved.
Configuration cards are available for:
o 4 bits ○ Apollo 6 bits
o 8 bits ○ 26 bits (Fixed Facility Code 190)

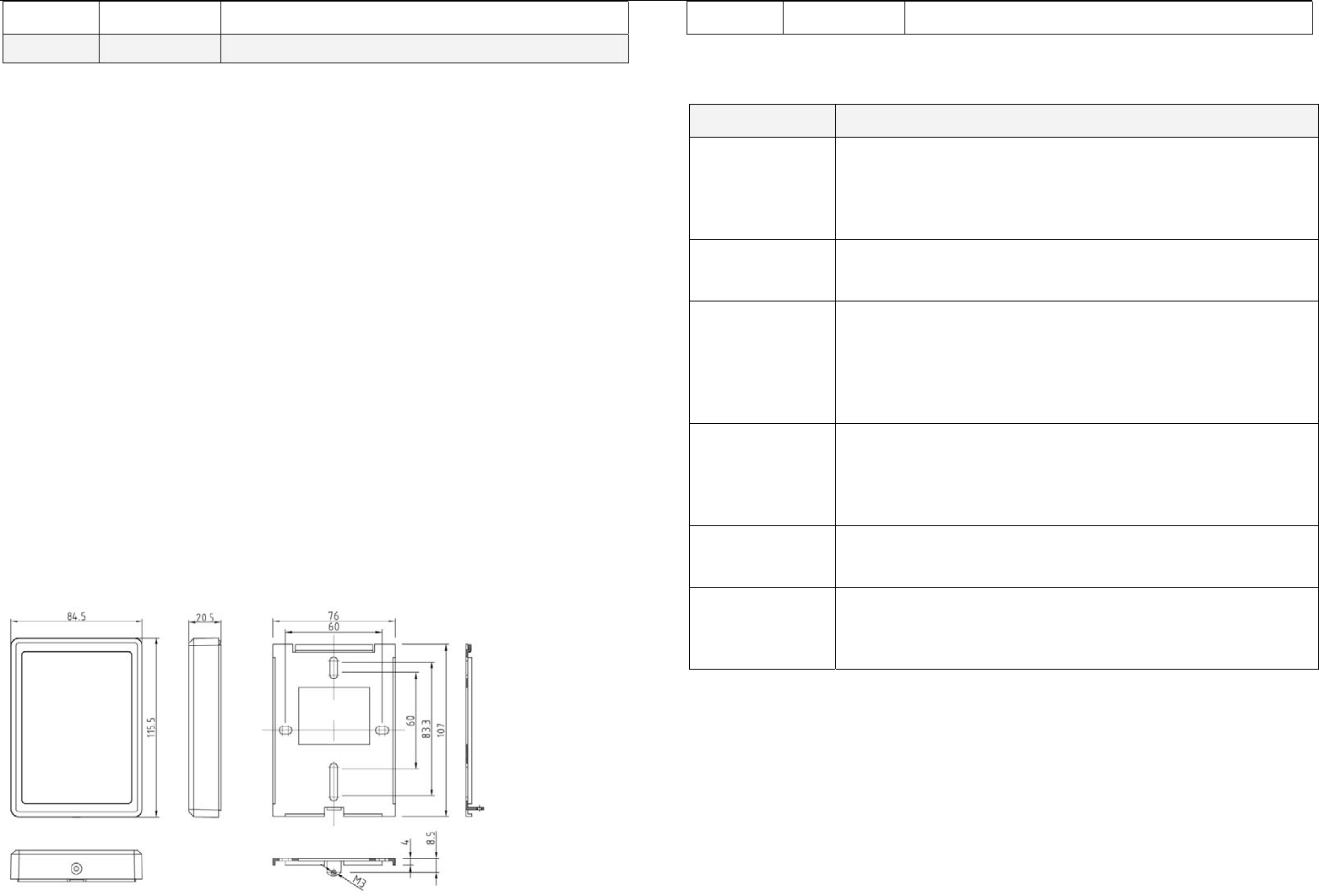

Physical Dimension
Symptom Solution
o Disconnect the power and confirm that the power supply cable
is correctly connected (Refer to Wiring table)
No response when
power up o Check the input voltage is sufficient (Refer to Specifications
table)
o Check the input voltage is sufficient ( Refer to Specifications
table)
Auto restart
o Verify that the format setting on the controller is the same as the
card format. Use approved card (known format and Facility
Code) to test
Card number not
read correctly o Check that the shield cable is correctly connected to Chassis
Ground at ONE point only
o Check that Data 0 and Data 1 cable are correctly connected
(Refer to Wiring table).
Reader beeps but
no card data o Check the input voltage at the card reader end is correct (Refer
to Specifications table)
o Verify that the buzzer cable is correctly connected (Refer to
Wiring table)
No buzzer sound
o Verify that the LED cable is correctly connected (Refer to Wiring
table)
Back lit error
o Use the default Configuration Card to reset to default setting
Low Frequency Mullion Mount Reader Installation Manual
Mounting:
1. Install the back plate on the wall as shown in the diagram below1.
2. The cover shall clip on the upper edge 2 the push in the bottom part as show in
diagram3.
3. Tighten the non-dropout screw, which located underneath of the reader to fix the reader and
the back plate4, installation is completed.
Specification:
Recommendation:
1. Linear DC Power Supply;
2. 22AWG shielded cable; it’s required to do “one-point” ground. (As shown in the diagram)
Wiring:
Input Voltage (at
Reader end) DC9V~15V Typical Read
range > 5cm
Operating Current 120mA (max) Maximum Cable
Length 150m
Operating
Temperature -30ºC~70 ºC
Color Label Description
Red +12V dc Power Supply to the reader
Black GND Signal GND
Green RS232+/RS485+ RS232+/RS485+
White RS232-/RS485- RS232-/RS485-
Yellow RED LED RED LED control, active low.
Blue Green LED Green LED control, active low
Brown Buzzer Buzzer input, active low
Grey Tamper Tamper output (open collector, Active low, max 100mA)
Low Frequency Mullion Mount Reader Installation Manual
Power up Sequences:
1. When reader is powered up, the reader will flash in Green for 5 seconds . Then the Reader is ready.
2. Blue back lit stays on when the reader is ready.
3. When card is present and read by the reader, blue back lit will flash once; and buzzer will beep once as well. The card data will then transmit to the controller. After, weather the back lit of the reader
will remain ON or Flash or change to Green or Red color, this shall depend on the Green and Red LED inputs.

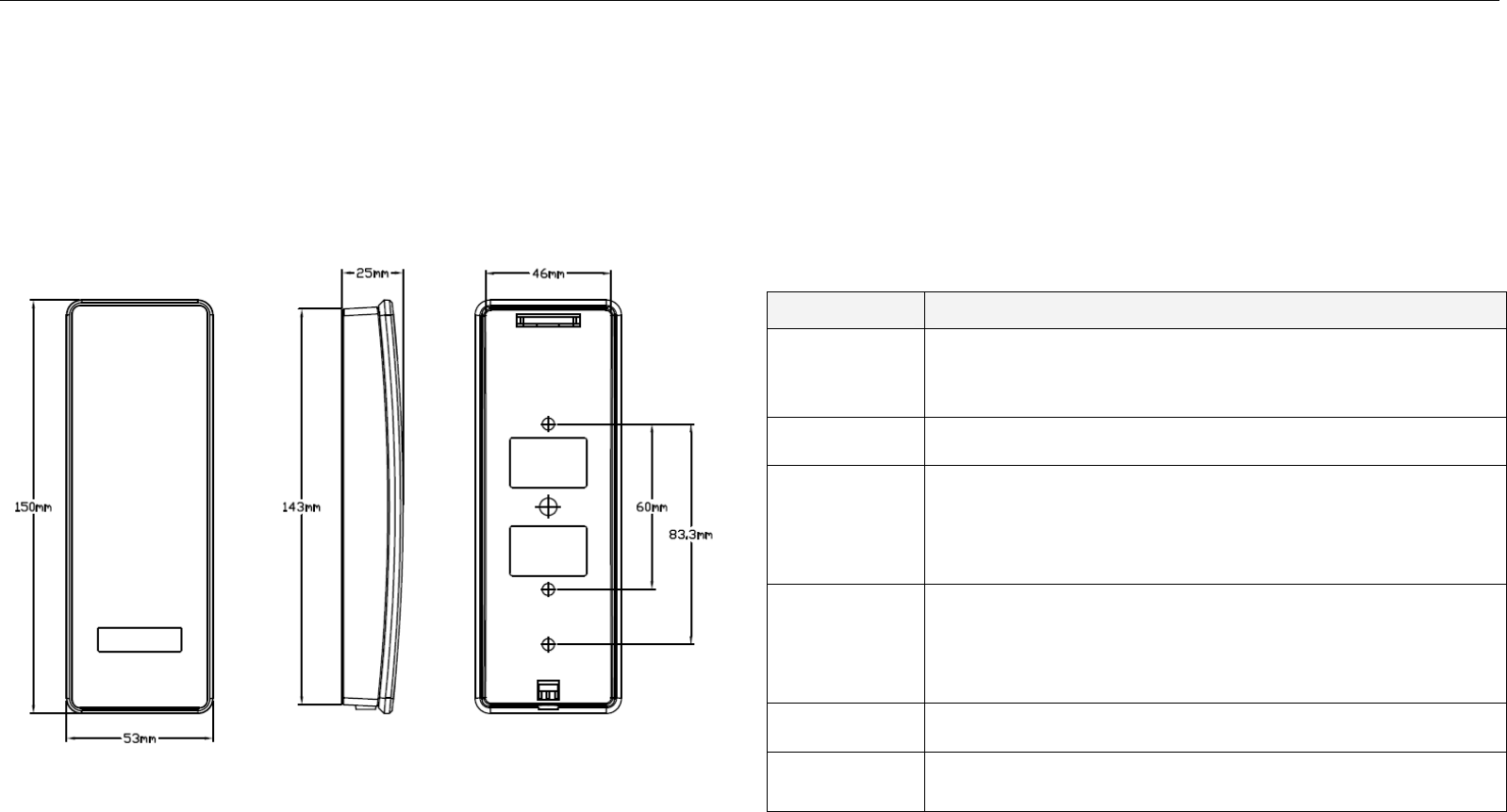

Physical Dimension:
Troubleshooting:
Trouble List Solution
No Response
when Power Up
z Discount the power and confirm that the power supply cable is
correctly connected (See “Wiring” above).
z Check the input voltage is sufficient (See “Specifications” above).
Auto Restart z Check the input voltage is sufficient (See “Specifications” above).
Cannot read card
number correctly
z Check the format setting on the controller if it is the same as the card
format. Use approved card (known format and Facility Code) to test.
z Check if the shield cable is correctly connected to Classis Ground at
ONE point only.
Reader beeps but
No card data info
z Check if data 0 & data 1 cable is correctly connected (See “Wiring”
above).
z Check the input voltage at the card reader end is correct (See
“Specifications” above).
Buzzer error z Check if the buzzer cable is correctly connected (See “Wiring” above).
Back Lit Error z Check the Led cable is correctly connected (See “Wiring” above).
z Use Default Configuration Card to set it back to normal.
