Smarfid Security Equipment MD3221356M Magic Series Desfire Reader User Manual
Shanghai Smarfid Security Equipment Co, Ltd. Magic Series Desfire Reader
User Manual

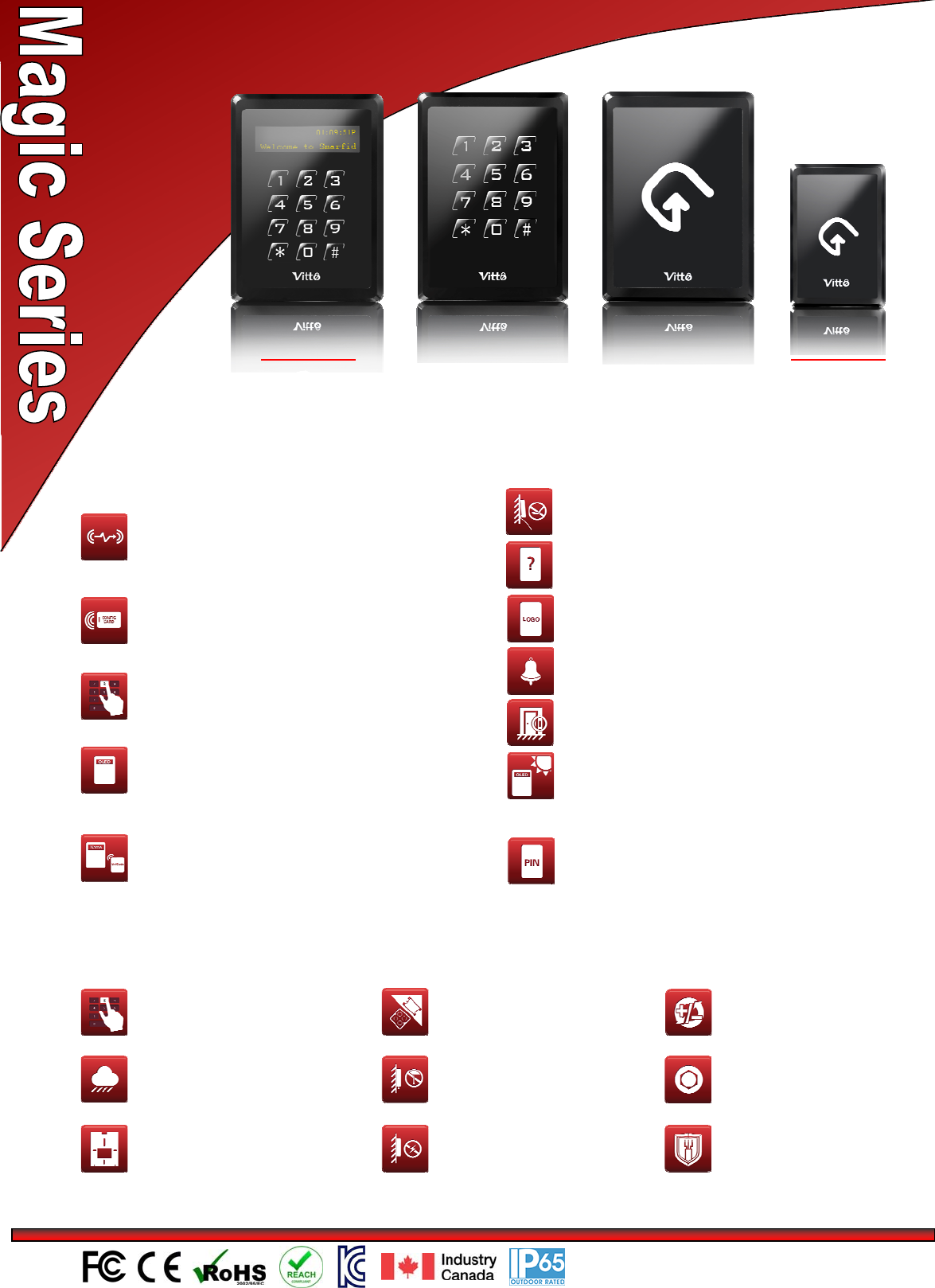

DesFire EV1 Magic Series Reader
Design & Technologies
Number pad use “touching sensor”, the latest
technology and individual number backlit when
touch. Economical Mini Magic can be mullion mount.
Display Magic can provide customer a full
series of choices
Front plate customization and back lit design is
available.
Design with End User logo is possible.
Support on-site Reader Configuration Card to
change certain parameters.
OLED Display allow user to see the message
clearly under direct sunlight.
Door Bell function for Number pad reader.
Tamper protection
Friendly Installation
“Touch” number pad does not
carry any moving parts, which
implies more durable.
All weather proof design with
IP65 certificate.
Universal back plate allows
the reader be installed on
different size of gang box.
Non-drop bottom screw made
servicing handier.
Metal back plate allows the
reader install on metal surface
and back-to back without
affecting the read range.
All input and output signals are
protected against static
charges.
Reverse power protection.
Stainless steel Security
screw is an option
All inputs are 12Vdc
protected.
Display reader can display CSN/UID number or
Programmed Card Number or user Name when
the user card is present.* (Supported Multiple
Languages)
Available Later! Standard Magic Available Later!Number pad Magic
Read full 56 bits UID, Application & Files
content of DesFire EV1 card.
Support 3DES & AES encrypted
communication between the reader and card.
APINcanbesetinsidethecardtoauthenticate
with the reader so that “Card + PIN” mode can
be implemented without relying on the
controller.*
Model Number: X1X2N1N2N3–N
4X3
Model
Functions Standard & Mini Reader Keypad Reader Display Reader
Configurable Functions
Re-configure Window 5 seconds (Default) or Half an hour after Power up
Reader Output Format CSN/UID 32bits, 34bits, 56bits (backward/forward), file content reading for programmed ID
Wiegand Plus Width Different choices to fit with different Controller’s requirements
Keypad Output N/A Definable Definable
Buzzer Control Reader & Controller control (Default) or Controller control only
LED/Back lit Control Define different LED color response base on Green LED N/A
Display Clock
Synchronization. N/A N/A
H/W reset
Via RS485 TimeSyn S/W
Technical Specifications
Typical Read range 2–3cm
Reader Standard Output Wiegand (RS232 & RS485 optional)
Standard Keypad output N/A Wiegand with 4 bits burst Wiegand with 4 bits burst
Display N/A N/A OLED Display
Display Message N/A N/A
Access Granted, Access
Denied, Enter PIN;
Time;
Card Number
Wiring Distance 150m (22 AWG with shielded cable) 120m (22 AWG with shielded cable)
Operating Specification:
Operating Voltage 10 - 15VDC
Operating Current 150mA (max)
Operating Temperature -30℃-70℃
Exterior dimension (Mini) 115.5*84.5*20.5mm (84.05*54.05*16.5mm)
Case material PC+ABS
Standard Color Black
Operating Humidity 10% - 90%
Weight (Mini) 210g (160g)
RF Technologies Reader Appearance and Function
X1X2MD = DesFire Technology
N13 = Normal Reader ; 5 = Display Reader
N2
2 = Normal Size
8=MiniSize
N3
2 = Read UID / Card Number
3 = Sector reading (Only Mifare)
N4
3 = Terminal (for Display Reader)
8 = Pigtail
X3N = No Number pad; K = Number pad
