Smarfid Security Equipment MGLH32 Magic Series Legic & 125KHz Reader User Manual
Shanghai Smarfid Security Equipment Co, Ltd. Magic Series Legic & 125KHz Reader
User manual

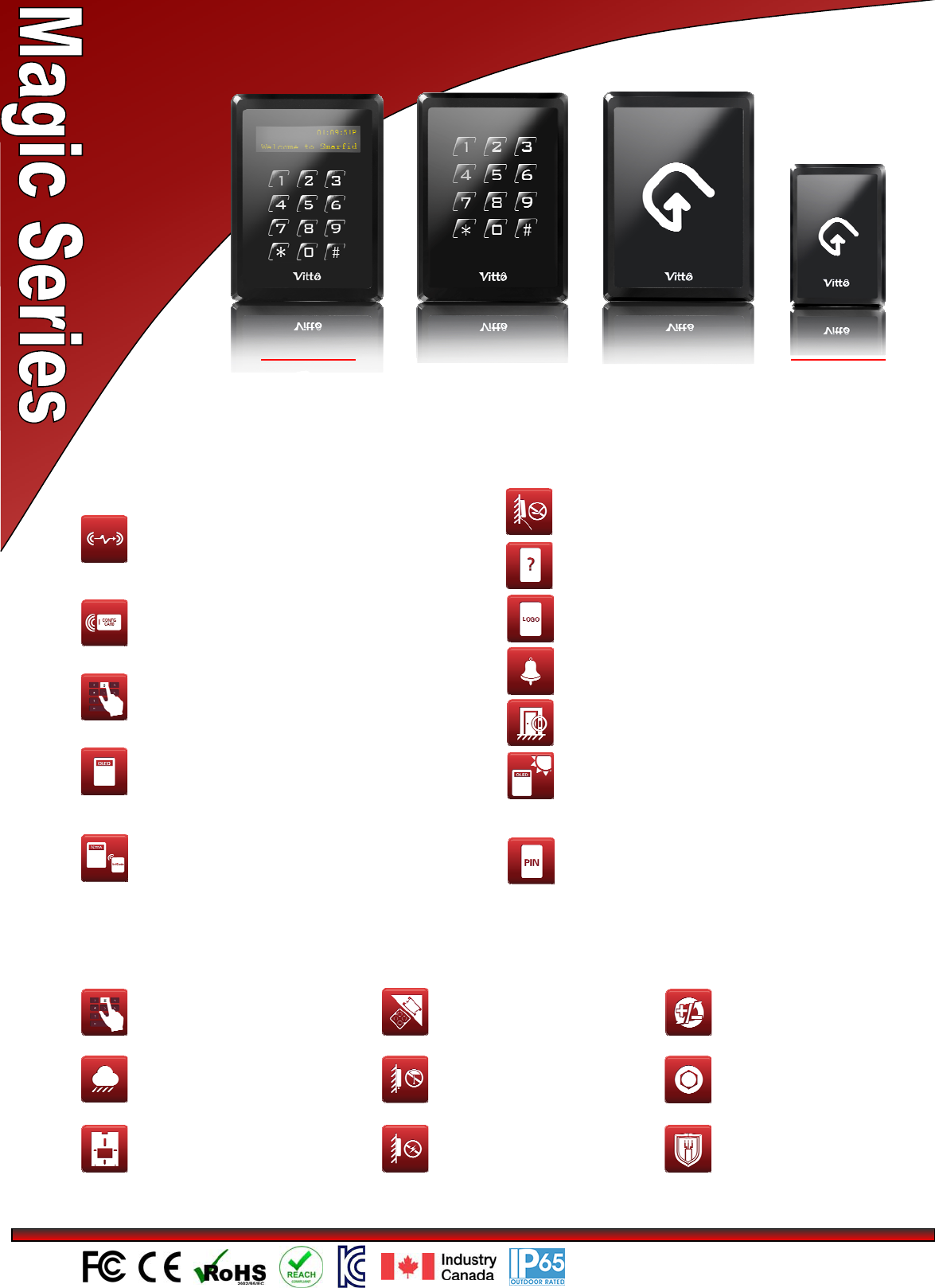

125KHz & 13.56HMz Dual Frequencies Magic Series Reader
Design & Technologies
Number pad use “touching sensor”, the latest
technology and individual number backlit when
touch. Economical Mini Magic can be mullion mount.
Display Magic can provide customer a full
series of choices
Front plate customization and back lit design is
available.
Design with End User logo is possible.
Support on-site Reader Configuration Card to
change certain parameters.
OLED Display allow user to see the message
clearly under direct sunlight.
Door Bell function for Number pad reader.
Tamper protection
Friendly Installation
“Touch” number pad does not
carry any moving parts, which
implies more durable.
All weather proof design with
IP65 certificate.
Universal back plate allows
thereaderbeinstalledon
different size of gang box.
Non-drop bottom screw made
servicing handier.
Metal back plate allows the
reader install on metal surface
and back-to back without
affecting the read range.
All input and output signals are
protected against static
charges.
Reverse power protection.
Stainless steel Security
screw is an option
All inputs are 12Vdc
protected.
Display reader can display CSN/UID number or
Programmed Card Number or user Name when
the user card is present.* (Supported Multiple
Languages)
Available Later! Standard Magic Available Later!Number pad Magic
Read both low frequencies (125KHz) and high
frequencies card; supported high frequency
technologies are Legic, Mifare, Mifare Plus,
DesFire or FuDan CPU
)
.
A PIN can be set inside the card to authenticate
with the reader so that “Card + PIN” mode can
be implemented without relying on the
controller.*
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Model Number: X1X2N1N2N3–N
4X3
RF Technologies Reader Appearance and Function
X1X2
HM = Mifare & 125KHz Technologies
HL = Legic & 125KHz Technologies
N13 = Normal Reader ; 5 = Display Reader
N2
2 = Normal Size
8=MiniSize
N3
2 = Read UID / Card Number
3 = Read Sector (Mifare) / Segment (Legic)
N4
3 = Terminal (for Display Reader)
8=Pigtail
X3N = No Number pad; K = Number pad
Model
Functions Standard & Mini Reader Keypad Reader Display Reader
Configurable Functions
Re-configure Window 5 seconds (Default) or Half an hour after Power up
Reader Output Format CSN/UID 32bits, 34bits, 56bits (backward/forward), file content reading for programmed ID
Wiegand Plus Width Different choices to fit with different Controller’s requirements
Keypad Output N/A Definable Definable
Buzzer Control Reader & Controller control (Default) or Controller control only
LED/Back lit Control Define different LED color response base on Green LED N/A
Display Clock
Synchronization. N/A N/A H/W reset
Via RS485 TimeSyn S/W
Technical Specifications
Typical Read range 3–5cm
Reader Standard Output Wiegand (RS232 & RS485 optional)
Standard Keypad output N/A Wiegand with 4 bits burst Wiegand with 4 bits burst
Display N/A N/A OLED Display
Display Message N/A N/A
Access Granted, Access
Denied, Enter PIN;
Time;
Card Number
Wiring Distance 150m (22 AWG with shielded cable) 120m (22 AWG with shielded cable)
Operating Specification:
Operating Voltage 10 - 15VDC
Operating Current 150mA (max)
Operating Temperature -30℃-70℃
Exterior dimension (Mini) 115.5*84.5*20.5mm (84.05*54.05*16.5mm)
Case material PC+ABS
Standard Color Black
Operating Humidity 10% - 90%
Weight (Mini) 210g (160g)
