I F YOU W I L L B E USI NG A K E Y CHAIN M I NI T R ANSM I T T E R (Figure C),
it will operate the same as the Single Entry transmitter. Both will
work with any of our trinary coded receivers. I MPORTANT: The
exact same code must be set on your existing transmitter(s) and your
Mini Transmitter. If just one switch is mismatched, the controls will
not function. If you are adding the Mini Transmitter to your existing
controls, verify the exact code you are currently using on your
standard transmitter. Do not set your existing transmitter(s) to the
factory code of the Mini Transmitter.
1. R emove the Transmitter Cover
Remove the screw from the back of the Mini Transmitter with a
small Phillips screwdriver. L ay the transmitter down with the
button facing up. Unsnap the top of the transmitter to access the
coding switches.
2. Set the Coding Switches
There are nine (9) dip switches, each of which can be placed in
three different positions (+,0,-). Set the switches in the Mini
Transmitter to exactly match your existing transmitter(s). DO
NOT set all switches in the same position, such as all+, all -, or
all zeros (Figure D). WA R NI NG : No other adjustments should
be made inside the transmitter.
3. R eassemble the Transmitter
When you are sure that all the switches are set the same in all transmitters put the top back on the
Mini Transmitter and tighten the Phillips screw. Remember to place the necklace chain or key ring in
the eye of the transmitter case before you snap the transmitter back together.
NOT E : If the red light on the transmitter is dim or flickers when the transmitter button is pushed, the
transmitter battery may be weak. Replace when necessary with a 12 Volt battery (available at most
camera stores).
I NST RUC T I ONS FOR K E Y CH AI N M I NI T R ANSMI T T E R
K
P
amp
Q@R@S@T@U@V@W@X@Y@

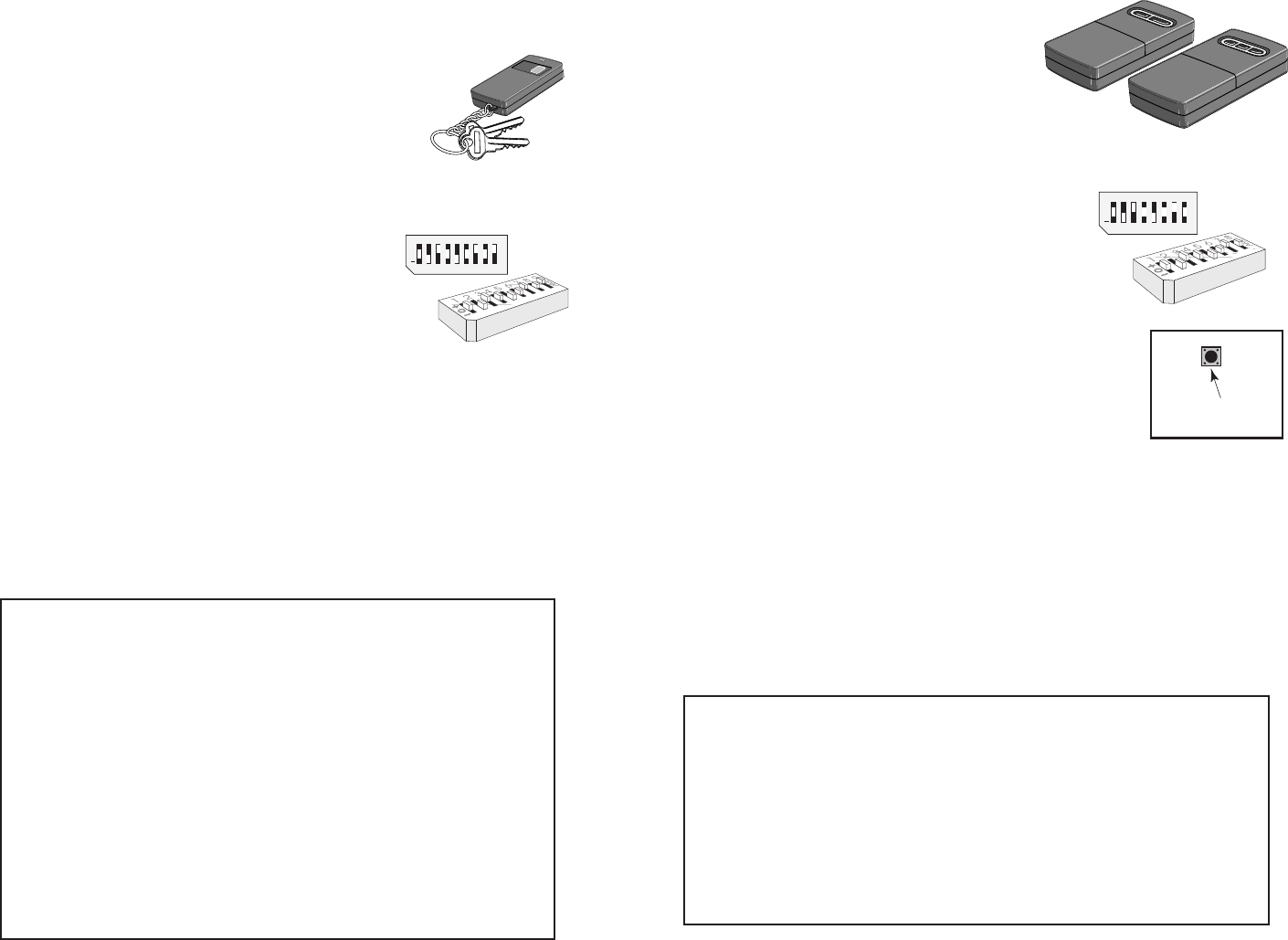

Figure C
Figure D
Your GTO¨ Accessory is warranted by the manufacturer against defects in materials and manufacturer workmanship for a period of one (1) year
from date of purchase, provided the recommended installation procedures have been followed.
GTO¨ sells its pr oducts through authorized retail and on-line channels to ensure that consumers obtain quality pre-sale and after sale support and
service. T he warranty on GTO¨ products is NO T VALID if the products have been purchased from an unauthorized, on-line E -tailer (e.g., E -bay¨
sellers who are not authorized GTO¨ r esellers), or if a product's serial number has been altered, removed, or replaced in any way. To verify that you
are buying from an authorized, on-line GTO¨ E-tailer , visit www.gtoinc.com, or call 1-800-543-GATE.
In the case of product failure due to defective material or manufacturer workmanship within the one (1) year warranty period, the opener will be
repaired or replaced (at the manufacturer's option) at no charge to the customer, if returned freight prepaid to GTO, Inc., 3121 Hartsfield R oad,
Tallahassee, Florida, USA 32303. IMPORTANT: Call (850) 575-4144 or Fax (850) 575-8950 for a Return Goods A uthorization (RGA) number
before returning item(s) to the factory. Products shipped to the factory without an R GA number will not be accepted. R eplacement or repaired parts
are covered by this warranty for the remainder of the one (1) year warranty period or six (6) months, whichever is greater. GTO¨ will pay shipping
costs (equal to United Parcel Service ground rate) for return to owner of item(s) repaired under warranty.
The manufacturer will not be responsible for any charges or damages incurred in the removal of the defective parts for repair, or the reinstallation of
these parts after repair. Use of any components that are not GTO¨ specif ied (e.g. battery or transformer) will void the warranty. T his warranty shall
be considered void if damage to the product(s) was due to improper installation or use, use of non-GTO¨ specif ied or approved components or
replacement parts, connection to an improper power source, or if damage was caused by lightning, wind, fire, flood, insects, or other natural agents.
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. This warranty is in lieu of all
other warranties, either expressed or implied.
After the one (1) year warranty period expires, GTO¨ (or one of its author ized service centers) will perform necessary repairs for a nominal fee. Call
GTO¨ at (800) 543-1236 or (850) 575-4144 for mor e information.
WAR R ANT Y
The two and three button transmitters are used for the remote
control of two or three gate openers and/or garage door
openers (Figure E).
1. R emove the Transmitter Cover
Remove the access cover from the front of the
transmitter by sliding the cover away from the top of the
transmitter. This will expose the battery and the dip
switches. The code can now be changed using a small
screwdriver.
2. Setting the Codes
There are eight (8) dip switches, each of which can be placed in
three different positions (+,0,-). DO NOT set all switches in the
same position, such as all +, all -, or all zeros (Figure F).
WAR NI NG : No other adjustments should be made inside the
transmitter.
3. Commit the Code to Memory in Control Board
Remove operator control box lid. L ocate the L EARN TRANSMITTER or
S5 button on the control board:
A. Turn the control box power switch OFF.
B. While pressing the L EARN TRANSMITTER or S5 button on the
control board turn the control box power switch ON and press the
TR ANSMITTER button.
C. Release the L EA RN T RA NSMITTER or S5 button after
approximately 5 seconds.
D. Continue to hold the T RA NSMITTER button until the gate begins to move. The new
TR ANSMITTER code is now stored in the control board memory.
4. Using your transmitter
The transmitter can either be hand held or mounted on the sun visor of your vehicle. To activate your
gate operator, simply depress your transmitter button until the gate begins to move. Make note of the
button you chose, as this will be the button you must now use to operate your gate.
If you have more than one gate operator, repeat #3, Commit the Code to Memory in Control B oard as
needed. Be sure to select a different transmitter button to use with each operator.
I NST R UCT I ONS FOR DUAL AND T R IPL E T R ANSM I T T E R S
K
P
amp
Q@R@S@T@U@V@W@X@@
Figure E
Figure F
lˆ„˜”@t˜„”™“Œššˆ˜
•˜@sU@b›šš•”
F C C R egulation: T his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
¥ R eorient or replace the receiver antenna.
¥ Increase the separation between the equipment and receiver.
¥ Connect the equipment into an outlet on a circuit different from that which the receiver is connected.
¥ Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must
accept an interference that may cause an undesired operation.
distance may v yary due to circumstances be ond our control.
NOT E : If the red light on the transmitter is dim or flickers when the transmitter button is pushed, the
transmitter battery may be weak. R eplace when necessary with a 9Volt battery.
WA R NING: Changes or modifications to this unit not expressly
Such modif
ications
responsible for compliance could void the user's authority to operate the equipment.
approved by the party
equipment.
Transmitter
void the user's authority to operate the
could
T O PR OG R AM FOR USE W I T H G AR AGE DOOR R E C E IV E R :
The Garage Door R eceiver allows the use of the same GTO remote transmitter for both the gate opener
and the garage door opener and works in conjunction with dual and triple transmitters (Figure E).
1. R emove the Transmitter Cover
Remove the access cover from the front of the transmitter by sliding the cover away from the top of
the transmitter. This will expose the battery and the dip switches. The code can now be changed using
a small screwdriver.
2. R emove the Garage Door Receiver Cover
Use a small screwdriver or knife to remove small door on top of receiver to gain access to coding
switches.
3. Setting the Transmitter Code (Figure G)
In the transmitter there are eight (8) dip switches,
each of which can be placed in three different
positions (+,0,-). DO NOT set all switches in the
same position, such as all +,all -, or all zeros.
WAR NI NG : No other adjustments should be
made inside the transmitter.
3. Setting the R eceiver Code
In the receiver, there are nine (9) dip switches.
Set the first eight switches in the receiver so that
they exactly match the eight switch settings on
the transmitter (Figure G).
Set the ninth dip switch to correspond with the transmitter button that you wish to use to open garage
door. Each transmitter button corresponds to a (+, 0, or -) setting (Figure H).
On the Dual Transmitter, the L eft button has a (+) setting, and the R ight button has a setting of (0).
On the Triple Transmitter, the L eft button has a (+) setting, the middle button has a setting of (0), and
the Right button has a setting of (-).
For example, if you wish to use the R ight button on the Dual Transmitter to open your garage, you
would set the ninth dip switch on the receiver to (0). Be sure not to use the same transmitter button
that you selected to activate the gate operator. For example, on a Dual Transmitter, if you set the L eft
Button to open your gate, you would use the R ight Button to open your garage door.
K
P
amp
Q@R@S@T@U@V@W@X@@
K
P
Q@R@S@T@U@V@W@X@Y@
HKI HPI HKI HPI H
½
I
t˜„”™“Œššˆ˜@sžŒš†‹ˆ™ rˆ†ˆŒœˆ˜@sžŒš†‹ˆ™

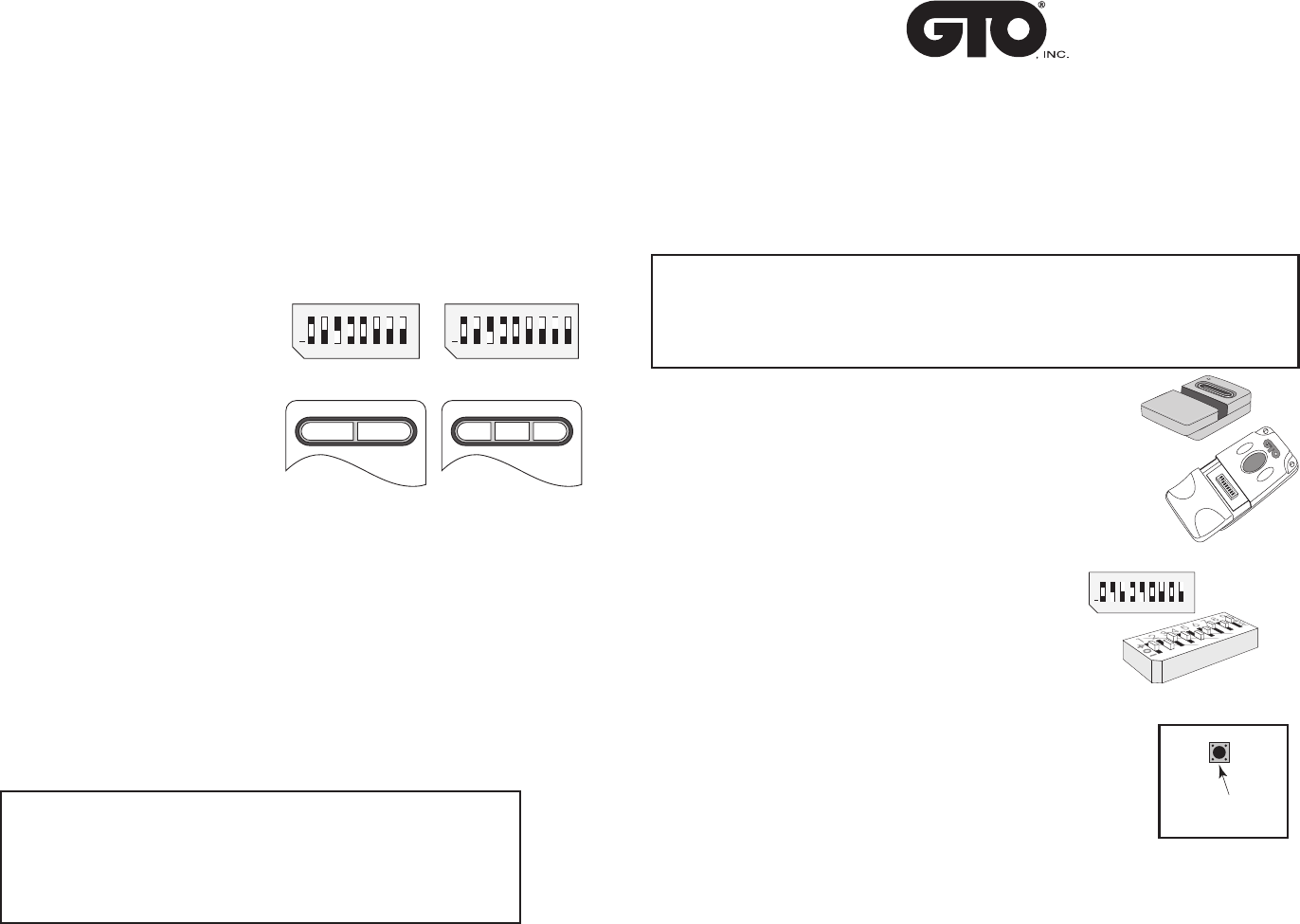

Figure G
Figure H
Please note: verification of the warranty period
requires copies of receipts or other proof of
purchase. Warranty can not be honored without
proof of purchase. Please retain these records.
GTO, Inc. ¥ 3121 Hartsfield R oad ¥ Tallahassee, Florida, USA 32303
Telephone GTO Sales: 1-800-543-GAT E (4283) or (850) 575-0176 ¥ Fax (850) 575-8912
or GTO Technical Service: 1-800-543-1236 or (850) 575-4144 ¥ Fax (850)575-8950
www.gtoinc.com
I nstructions for G ate Operator R adio C ontrols:
Single E ntr y Transmitter, K eychain M ini Transmitter,
Dual & Triple E ntry Transmitters
1. R emove the Transmitter Cover
Remove the access cover from the front of the transmitter by sliding the
cover away from the top of the transmitter (Figure A). This will expose the
battery and the dip switches. T he code can now be changed using a small
screwdriver.
2. Setting the Code
There are nine (9) dip switches, each of which can be placed in
three different positions (+,0,-). DO NOT set all switches in the
same position, such as all +, all -, or all zeros (Figure B).
WA R NING: No other adjustments should be made inside the
transmitter.
Now that your have selected your personal code, reassemble the
transmitter.
3. Commit the Code to Memory in Control Board
Remove operator control box lid. L ocate the L EARN TRANSMITTER or
S5 button on the control board:
A. Turn the control box power switch OFF.
B. While pressing the L EARN TRANSMITT ER or S5 button on the
control board turn the control box power switch ON and press the
TR ANSMITTER button.
C. R elease the L EA RN TRANSMITTER or S5 button after approxi-
mately 5 seconds.
D. Continue to hold the TR ANSMITT ER button until the gate begins to move. The new
TR ANSMITTER code is now stored in the control board memory.
4. Using your transmitter
The transmitter can either be hand held or mounted on the sun visor of your vehicle. To activate your
gate operator, simply depress your transmitter button until the gate begins to move.
NOT E : If the red light on the transmitter is dim or flickers when the transmitter button ispushed, the
transmitter battery may be weak. R eplace when necessary with a 12 Volt battery.
C AUT I ON: E ach transmitter is set to a factory preset code. I t must be
changed to safeguard against unauthorized or unwanted oper ation.
I NST R UCT I ONS FOR SI NG L E E NT R Y T R ANSMI T T E R
R ead the following instructions thoroughly before using transmitter.
K
P
amp
Q@R@S@T@U@V@W@X@Y@
Figure A
Figure B
lˆ„˜”@t˜„”™“Œššˆ˜
•˜@sU@b›šš•”
F C C R egulation: T his device complies with FC C Rules Part 15. Operation is subject to the following two conditions:
1) This device may not cause harmful interference. 2) This device must accept an interference that may cause an
our control.
aundesired oper
tion. WA RNING: Changes or modifications to this unit not expressly approved by the party
Such modifications could
responsible for compliance could void the user's authority to operate the equipment.
Transmitter distance may vary due to circumstances beyond
void the user's authority to operate the equipment.
