23 dBi antenna MT485002 8
MTI part No.MT-485002
Type Planar Array
Regulatory Compliance ETSI EN 302 085 V1.1.2 (2001-02)
Electrical
Frequency Range 5.15-5.35 GHz and 5.725-5.875 GHz
Gain 23 dBi (min)
VSWR 1.7:1 (max)
3 dB BW 9 (typ)
Polarization Linear (Vertical or Horizontal)
Cross Polarization -28 dB (max)

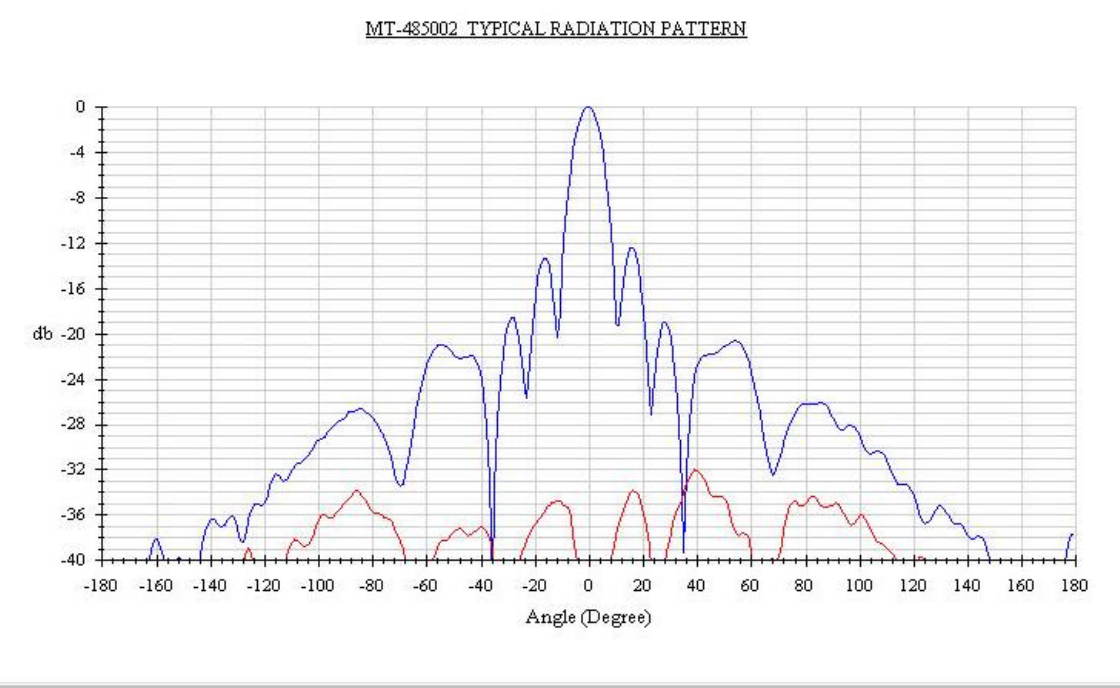

Sidelobe Level ETSI EN 302 085 V1.1.2 (2001-02) Range 1TS1-
TS3
F/B Ratio -32 dB (max)
Lightning Protection DC Grounded
Mechanical

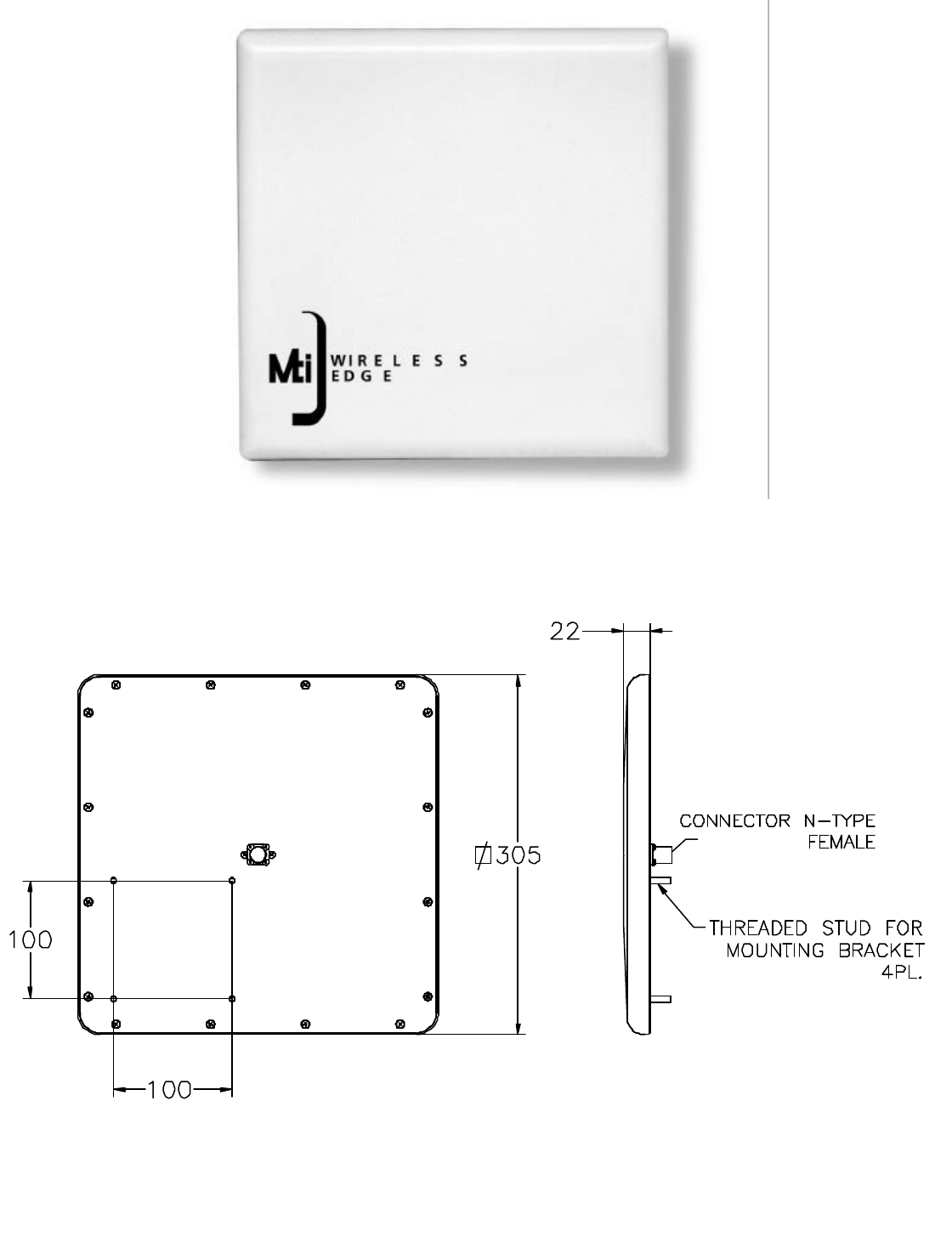

Dimensions (LxWxD)305 x 305 x 25mm
Weight 1.5 kgs
Connector N-Type Female*
Temperature (operating) -45C to +70C
Wind Load (Survival)220 km/hr
Radial Ice Load 25 mm
Mounting Kit MT-50001 + MT-120018
* Also available with SMA connector
