71
XtremeWave™ MFB Series
XtremeWave™ Models 25007 (MMDS), MFB58009
(5.8 GHz ISM) and MFB19008A (PCS), MFB24006
and MFB24008 (2.4 GHz ISM) Antennas
XtremeWave™ MFB24012
MFB24010 and
MFB24012
An ISO-9001 Registered Company
General Specifications:
Omnidirectional base station antennas
Radome Material:
UV resistant pultruded fiberglass
Polarization:
Vertical
Nominal Impedance:
50 Ohms
Mounting Base Diameter:
1.25 inches (all models except MFB24012)
1.5 inches (model MFB24012)
Mounting Method (sold separately):
MMK1924 – L-bracket mount for wall or pipe mount (all models, except
MFB24010 and MFB24012)
MMK8 - Aluminum extruded bracket for mast mounting (all models, except
model MFB24012)
MMK11 - Ceiling mount bracket (for MFB24004, MFB24006 and MFB24008 only)
MMK12 - Heavy duty bracket for mast mounting the MFB24012
MMK14 - Light duty mounting clamp for MFB24012
Termination:
N female standard with all 2.4 GHz models, except MFB24012
N female, reverse polarity and reverse threaded connectors optional
16” RG-213 pigtail with N female connector for model MFB24012 only
5’ LMR400 pigtail with N male connector for model MFB58009PTNM only
Features and Benefits:
•UV stable, pultruded fiberglass radome. Allows outdoor installation even in
harsh climates.
•Vented system design. Provides reliable performance by protecting the
electrical design against extreme moisture and/or temperatures.
•Thread relief on connector (all models, except MFB24012 and
MFB58009PTNM which have pigtails.) Improved accessibility for taping
reduces installation time and improves overall effectiveness.
•Internal o-ring seal in the base of the antenna with integrated connector at
the base. Assures a watertight seal to prevent water from migrating into
the antenna connector (all models, except MFB24012 which has a pigtail.)
•Electrical downtilt options on select models. Provide system planners
flexibility in challenging operating environments.
The MAXRAD XtremeWave™wireless broadband omnidirectional antennas are
designed to provide maximum performance and reliability under the toughest
weather conditions. These antennas feature a UV stable, vented radome that
provides ultimate protection against weather elements. The line includes
MMDS, ISM, UNII and PCS models with gains ranging from 4 to 12 dBi. These an-
tennas can be mast, wall or ceiling mounted.
PCS, 2.4 GHz ISM, MMDS and 5.8 GHz ISM/UNII
Omnidirectional Base Station Antenna Series
![](/img.php?id=368323&img=bg2.png)
Model # Frequency Range Gain
Bandwidth @
1.5:1 VSWR
Vertical
Beamwidth
@ 1/2 Power VSWR
Maximum
Power Downtilt
MFB19008A 1850-1990 MHz 8 dBi 140 MHz 12° < 1.5:1 25 Watts N/A
MFB24004 2400-2483.5 MHz 4 dBi 100 MHz 30° < 1.5:1 25 Watts N/A
MFB24006 2400-2483.5 MHz 6 dBi 100 MHz 20° < 1.5:1 25 Watts N/A
MFB24008 2400-2483.5 MHz 8 dBi 100 MHz 13° < 1.5:1 25 Watts N/A
MFB24008DT3 2400-2483.5 MHz 8 dBi 100 MHz 13° < 1.5:1 25 Watts 3°
MFB24008DT5 2400-2483.5 MHz 8 dBi 100 MHz 13° < 1.5:1 25 Watts 5°
MFB24008DT7 2400-2483.5 MHz 8 dBi 100 MHz 13° < 1.5:1 25 Watts 7°
MFB24008DT12 2400-2483.5 MHz 8 dBi 100 MHz 13° < 1.5:1 25 Watts 12°
MFB24010 2400-2483.5 MHz 10 dBi 100 MHz 9° < 1.5:1 25 Watts N/A
MFB24012 2400-2500 MHz 12 dBi 100 MHz 7° < 1.5:1 25 Watts N/A
MFB25007 2500-2700 MHz 7 dBi 200 MHz 13° < 1.5:1 25 Watts N/A
MFB25007DT3 2500-2700 MHz 7 dBi 200 MHz 13° < 1.5:1 25 Watts 3°
MFB51510 5150-5350 MHz 10 dBi 200 MHz 7° < 1.8:1 25 Watts N/A
MFB58009 5725-5875 MHz 9 dBi 150 MHz 8° < 1.5:1 25 Watts N/A
MFB58009PTNM 5725-5825 MHz 9 dBi 100 MHz 6° < 1.5:1 25 Watts N/A
MFB58010 5725-5825 MHz 10 dBi 100 MHz 6° < 1.5:1 25 Watts N/A
Model #
Wind
Survival
Equivalent
Flat Plate
Area
Lateral Thrust
@ Rated Wind
Bending
Moment @
Rated Wind Height Weight
MFB19008A 125 mph .07 ft25.9 lbs 5.7 ft-lbs 24.0” (609.6 mm) 0.70 lbs (0.318 kg)
MFB24004 125 mph .02 ft22.1 lbs 0.7 ft-lbs 8.1” (205.7 mm) 0.34 lbs (0.154 kg)
MFB24006 125 mph .04 ft23.0 lbs 1.4 ft-lbs 11.6” (294.6 mm) 0.38 lbs (0.172 kg)
MFB24008 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB24008DT3 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB24008DT5 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB24008DT7 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB24008DT12 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB24010 125 mph .11 ft210.1 lbs 14.7 ft-lbs 36.0” (914.4 mm) 0.65 lbs (0.295 kg)
MFB24012 125 mph .25 ft222.4 lbs 41 ft-lbs 44.0” (1,118 mm) 3.00 lbs (1.400 kg)
MFB25007 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB25007DT3 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB51510 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB58009 125 mph .046 ft24.1 lbs 2.7 ft-lbs 15.7” (398.8 mm) 0.43 lbs (0.195 kg)
MFB58009PTNM 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
MFB58010 125 mph .06 ft25.2 lbs 4.4 ft-lbs 20.2” (513.1 mm) 0.50 lbs (0.226 kg)
Electrical Specifications
72 ORDER (800) 323-9122 FAX (630) 372-8077 www.maxrad.com

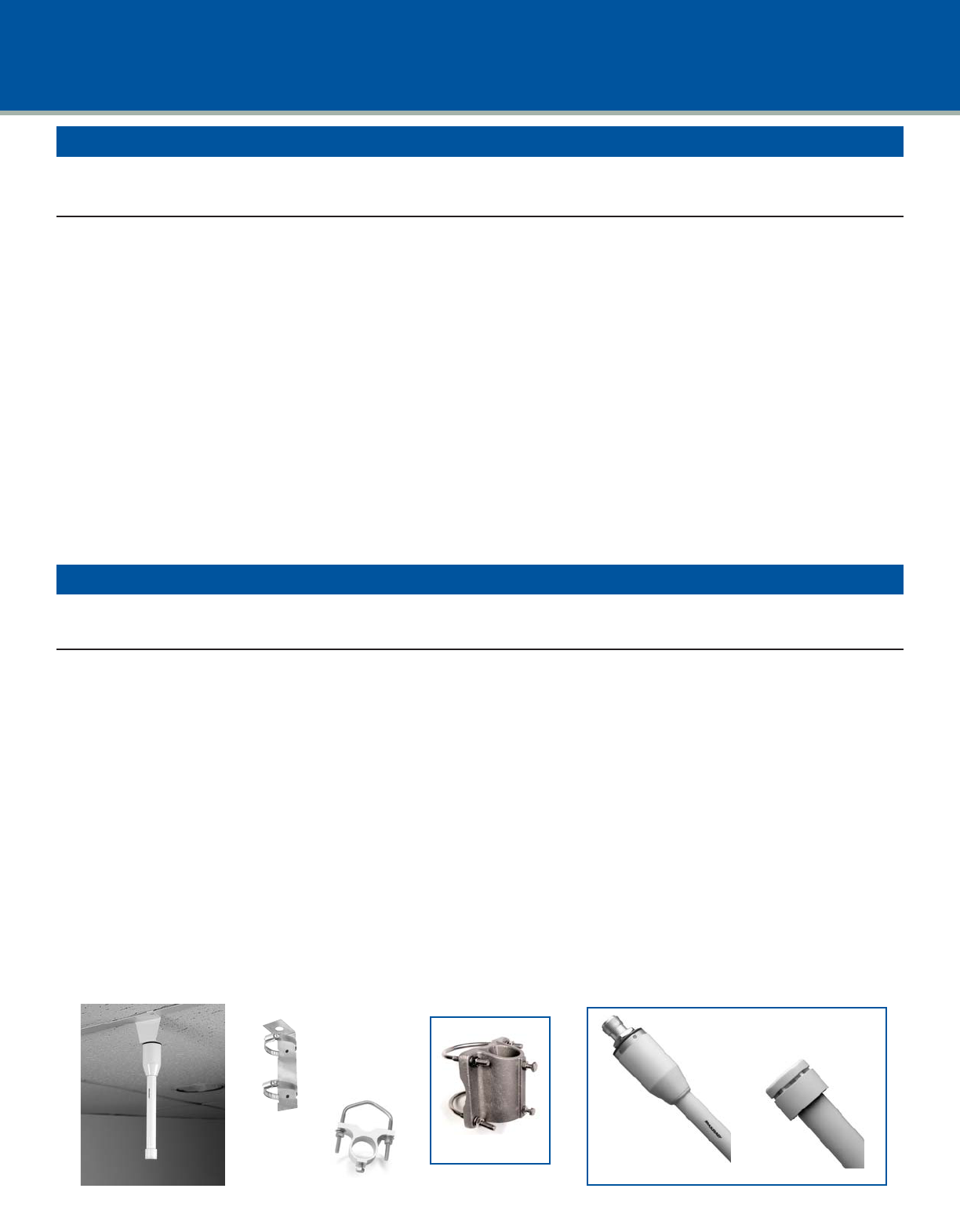

Specifications
MMK1924
MFB24004 with MMK11
MMK8
Vented System
MMK12
Mechanical Specifications
