USERS MANUAL

Operating InstructionsCM-M1300CM-M2300CM-M3300Digital PortableCellular Telephone3-861-740-11 (2)80-68301-1 Rev ACM-M1300_01_07final 3/2/98, 11:40 AM1

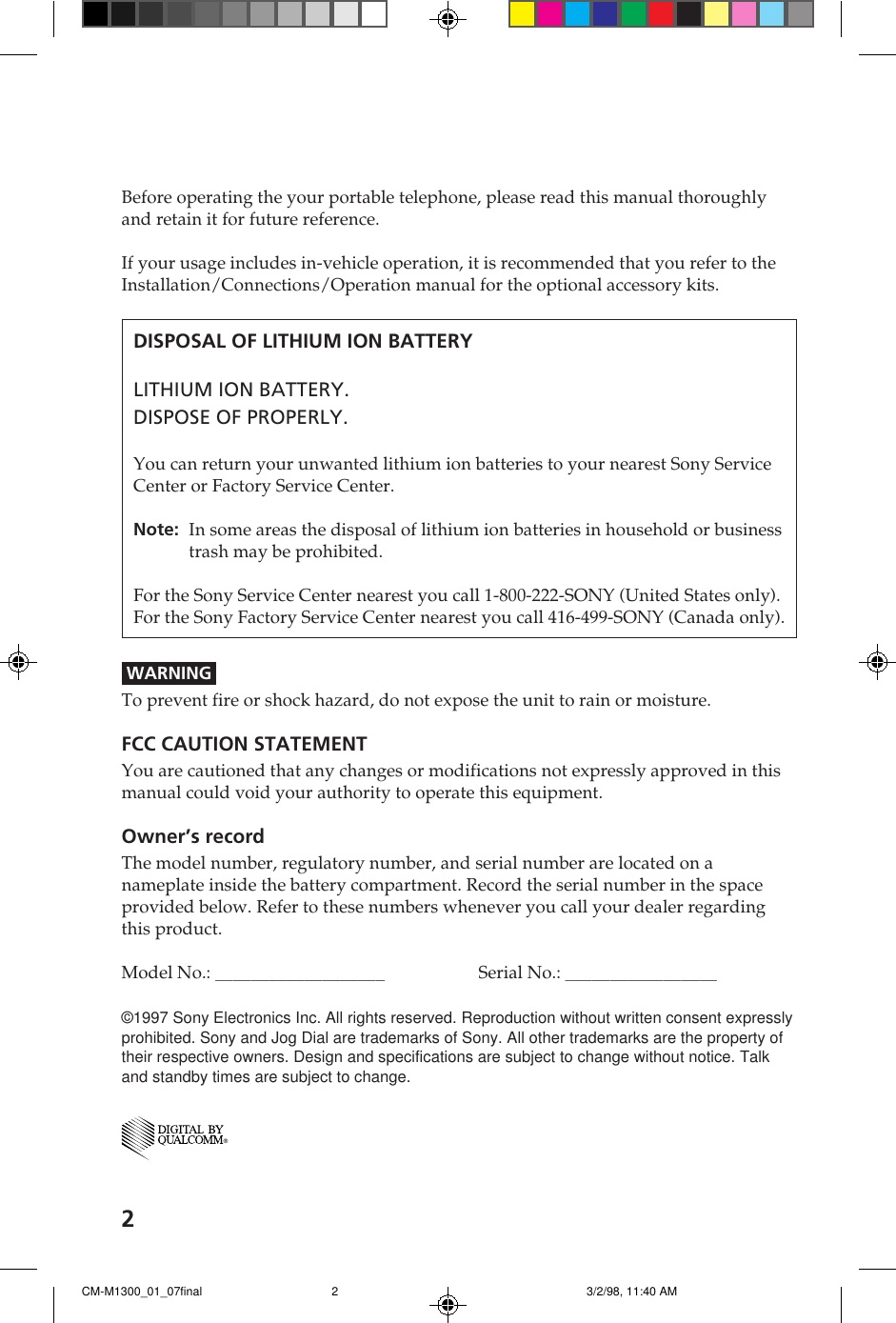

2Before operating the your portable telephone, please read this manual thoroughlyand retain it for future reference.If your usage includes in-vehicle operation, it is recommended that you refer to theInstallation/Connections/Operation manual for the optional accessory kits.WARNINGTo prevent fire or shock hazard, do not expose the unit to rain or moisture.FCC CAUTION STATEMENTYou are cautioned that any changes or modifications not expressly approved in thismanual could void your authority to operate this equipment.Owner’s recordThe model number, regulatory number, and serial number are located on anameplate inside the battery compartment. Record the serial number in the spaceprovided below. Refer to these numbers whenever you call your dealer regardingthis product.Model No.: ___________________ Serial No.: _________________DISPOSAL OF LITHIUM ION BATTERYLITHIUM ION BATTERY.DISPOSE OF PROPERLY.You can return your unwanted lithium ion batteries to your nearest Sony ServiceCenter or Factory Service Center.Note: In some areas the disposal of lithium ion batteries in household or businesstrash may be prohibited.For the Sony Service Center nearest you call 1-800-222-SONY (United States only).For the Sony Factory Service Center nearest you call 416-499-SONY (Canada only).®©1997 Sony Electronics Inc. All rights reserved. Reproduction without written consent expresslyprohibited. Sony and Jog Dial are trademarks of Sony. All other trademarks are the property oftheir respective owners. Design and specifications are subject to change without notice. Talkand standby times are subject to change.CM-M1300_01_07final 3/2/98, 11:40 AM2

3Rules and regulationsThe U.S. Federal CommunicationsCommission and the Industry Canadaregulate cellular telephone service intheir respective countries. It isimportant for you, the cellulartelephone user, to observe theapplicable regulations when operatingyour cellular telephone in eithercountry. In addition to these U.S. andCanadian federal regulations, you maybe bound also by certain state,provincial, territorial, and local rulesand regulations, as well as by yourcellular carrier’s tariff (the rates, terms,and conditions of its service). If youwish to use your cellular telephone inboth the U.S. and Canada, pleaseconsult with your System Operator.Furthermore, you should remember thatyour cellular telephone is aradiotelephone, — i.e., it combines bothwireline technology, as used in yourhome or office telephone system, andradio technology — and that the scopeof regulations and precautions istherefore broader than the scope ofregulations and precautions relating towireline-only telephone usage.Some of the major points ofconsideration are set out below. Pleasenote, however, that these “Rules andRegulations" and "Safety Precautions”sections do not constitute legal advice,and are intended merely for generalinformation purposes. If you havespecific questions, please contact yourcellular carrier (System Operator).License — If your home system is in theU.S., you do not require a separatelicense to operate your cellulartelephone; obtaining a cellulartelephone access number is sufficient toregister you as a user. If your homesystem is in Canada, a separate licenseis required; your carrier will assist youin the licensing process. If you wish touse your cellular phone on both sides ofthe border, please contact your cellularcarrier (System Operator).Equipment modifications — The U.S.Federal Communications Commissionhas type-approved the model of cellulartelephone which you have purchased,and has allocated a specific frequencyrange for cellular service. No changes oradjustments are to be made to yourcellular telephone.The radio equipment shall be madeavailable for inspection upon request byrepresentatives of the FCC or licensees.Denial of service — A cellular carriermay deny service temporarily orterminate service for violation of anygovernment regulations or violation ofits tariff.Privacy — As a telephone user, you havecome to assume a certain standard ofprivacy when you place or receive atelephone call via the traditional wirelinesystems. However, because cellulartelephones utilize radio transmissions toeffect calls, the same standard cannotalways be assured. While it is unlawfulfor any unauthorized person to divulgeor use any information obtained fromintercepting or “listening in on”conversations intended for others, youshould not assume that yourconversation is completely secure.Commercially available scanningequipment can permit a third party tomonitor the radio channels used forcellular telephone calls.Interference — No person shallinterfere with, or cause interference to,any radio communication or signal.CM-M1300_01_07final 3/2/98, 11:40 AM3

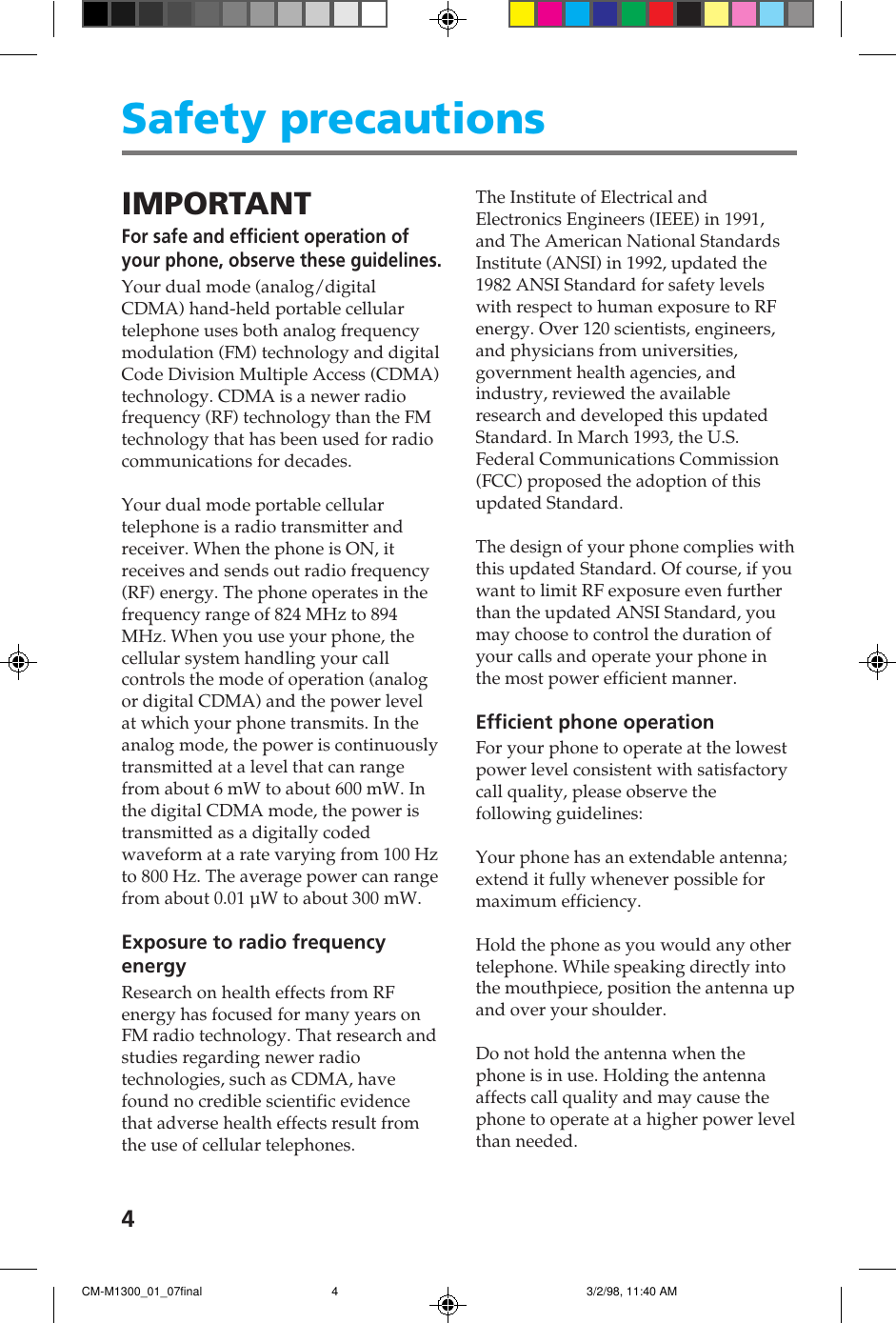

4The Institute of Electrical andElectronics Engineers (IEEE) in 1991,and The American National StandardsInstitute (ANSI) in 1992, updated the1982 ANSI Standard for safety levelswith respect to human exposure to RFenergy. Over 120 scientists, engineers,and physicians from universities,government health agencies, andindustry, reviewed the availableresearch and developed this updatedStandard. In March 1993, the U.S.Federal Communications Commission(FCC) proposed the adoption of thisupdated Standard.The design of your phone complies withthis updated Standard. Of course, if youwant to limit RF exposure even furtherthan the updated ANSI Standard, youmay choose to control the duration ofyour calls and operate your phone inthe most power efficient manner.Efficient phone operationFor your phone to operate at the lowestpower level consistent with satisfactorycall quality, please observe thefollowing guidelines:Your phone has an extendable antenna;extend it fully whenever possible formaximum efficiency.Hold the phone as you would any othertelephone. While speaking directly intothe mouthpiece, position the antenna upand over your shoulder.Do not hold the antenna when thephone is in use. Holding the antennaaffects call quality and may cause thephone to operate at a higher power levelthan needed.Safety precautionsIMPORTANTFor safe and efficient operation ofyour phone, observe these guidelines.Your dual mode (analog/digitalCDMA) hand-held portable cellulartelephone uses both analog frequencymodulation (FM) technology and digitalCode Division Multiple Access (CDMA)technology. CDMA is a newer radiofrequency (RF) technology than the FMtechnology that has been used for radiocommunications for decades.Your dual mode portable cellulartelephone is a radio transmitter andreceiver. When the phone is ON, itreceives and sends out radio frequency(RF) energy. The phone operates in thefrequency range of 824 MHz to 894MHz. When you use your phone, thecellular system handling your callcontrols the mode of operation (analogor digital CDMA) and the power levelat which your phone transmits. In theanalog mode, the power is continuouslytransmitted at a level that can rangefrom about 6 mW to about 600 mW. Inthe digital CDMA mode, the power istransmitted as a digitally codedwaveform at a rate varying from 100 Hzto 800 Hz. The average power can rangefrom about 0.01 µW to about 300 mW.Exposure to radio frequencyenergyResearch on health effects from RFenergy has focused for many years onFM radio technology. That research andstudies regarding newer radiotechnologies, such as CDMA, havefound no credible scientific evidencethat adverse health effects result fromthe use of cellular telephones.CM-M1300_01_07final 3/2/98, 11:40 AM4

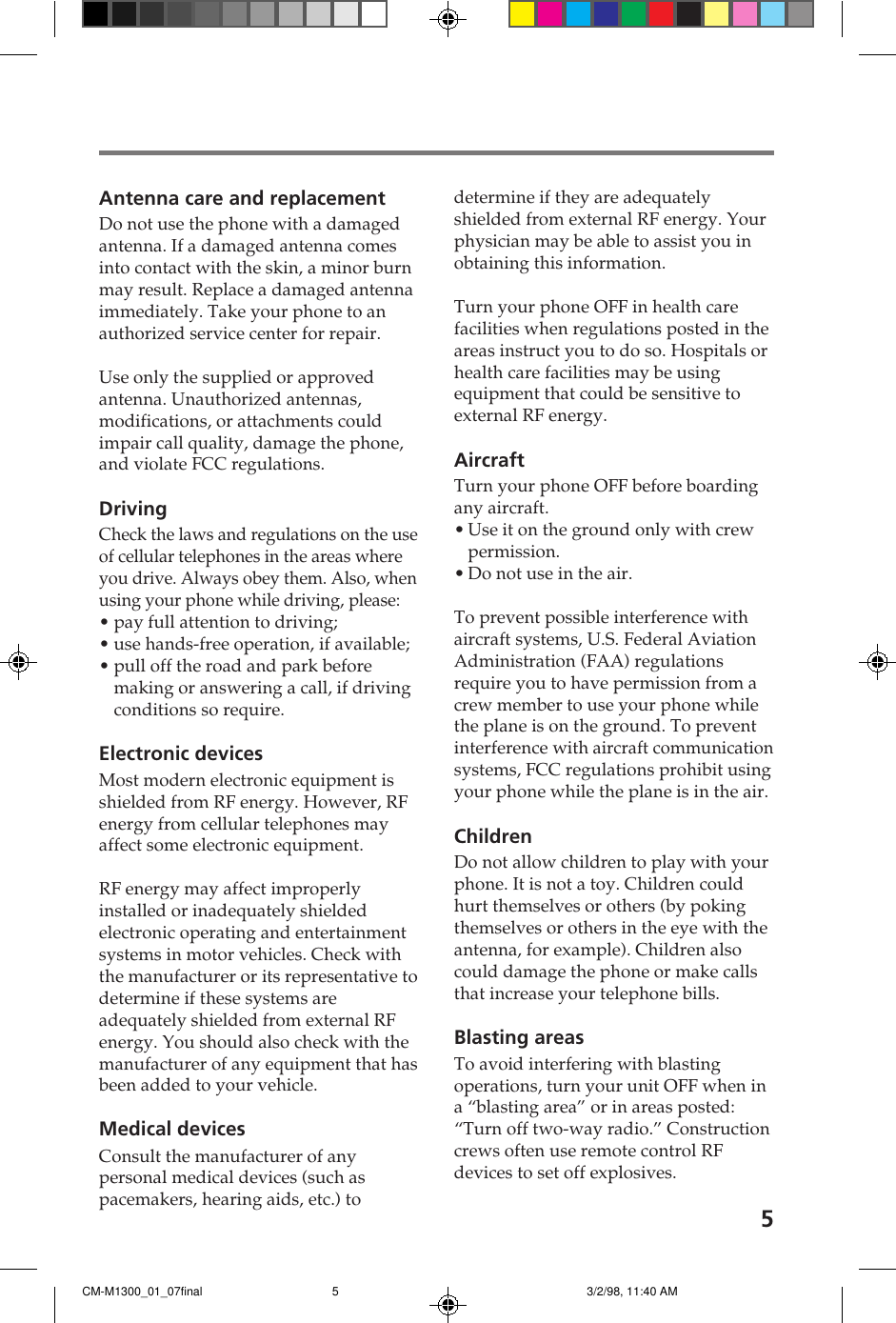

5Antenna care and replacementDo not use the phone with a damagedantenna. If a damaged antenna comesinto contact with the skin, a minor burnmay result. Replace a damaged antennaimmediately. Take your phone to anauthorized service center for repair.Use only the supplied or approvedantenna. Unauthorized antennas,modifications, or attachments couldimpair call quality, damage the phone,and violate FCC regulations.DrivingCheck the laws and regulations on the useof cellular telephones in the areas whereyou drive. Always obey them. Also, whenusing your phone while driving, please:• pay full attention to driving;• use hands-free operation, if available;• pull off the road and park beforemaking or answering a call, if drivingconditions so require.Electronic devicesMost modern electronic equipment isshielded from RF energy. However, RFenergy from cellular telephones mayaffect some electronic equipment.RF energy may affect improperlyinstalled or inadequately shieldedelectronic operating and entertainmentsystems in motor vehicles. Check withthe manufacturer or its representative todetermine if these systems areadequately shielded from external RFenergy. You should also check with themanufacturer of any equipment that hasbeen added to your vehicle.Medical devicesConsult the manufacturer of anypersonal medical devices (such aspacemakers, hearing aids, etc.) todetermine if they are adequatelyshielded from external RF energy. Yourphysician may be able to assist you inobtaining this information.Turn your phone OFF in health carefacilities when regulations posted in theareas instruct you to do so. Hospitals orhealth care facilities may be usingequipment that could be sensitive toexternal RF energy.AircraftTurn your phone OFF before boardingany aircraft.• Use it on the ground only with crewpermission.• Do not use in the air.To prevent possible interference withaircraft systems, U.S. Federal AviationAdministration (FAA) regulationsrequire you to have permission from acrew member to use your phone whilethe plane is on the ground. To preventinterference with aircraft communicationsystems, FCC regulations prohibit usingyour phone while the plane is in the air.ChildrenDo not allow children to play with yourphone. It is not a toy. Children couldhurt themselves or others (by pokingthemselves or others in the eye with theantenna, for example). Children alsocould damage the phone or make callsthat increase your telephone bills.Blasting areasTo avoid interfering with blastingoperations, turn your unit OFF when ina “blasting area” or in areas posted:“Turn off two-way radio.” Constructioncrews often use remote control RFdevices to set off explosives.CM-M1300_01_07final 3/2/98, 11:40 AM5

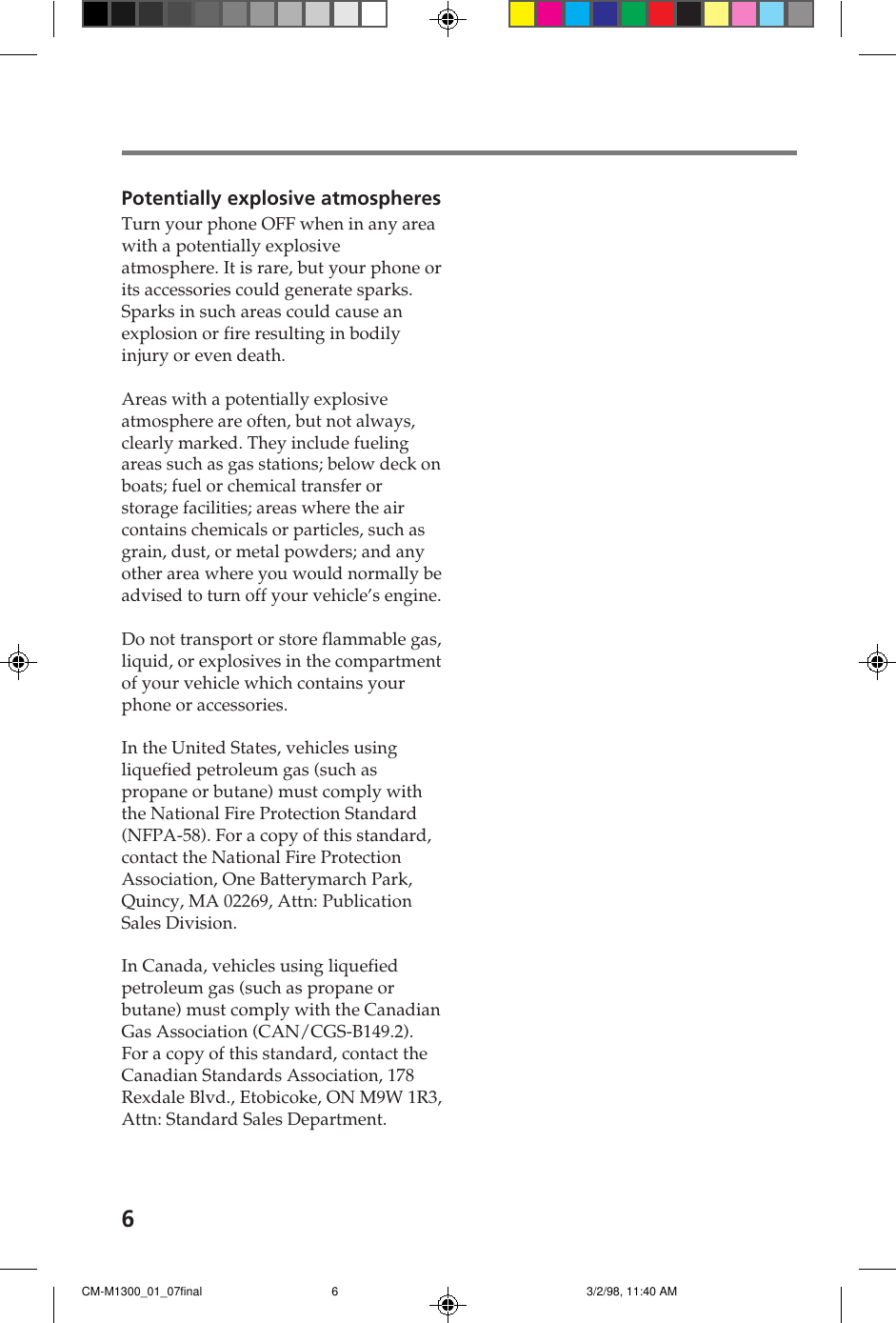

6Potentially explosive atmospheresTurn your phone OFF when in any areawith a potentially explosiveatmosphere. It is rare, but your phone orits accessories could generate sparks.Sparks in such areas could cause anexplosion or fire resulting in bodilyinjury or even death.Areas with a potentially explosiveatmosphere are often, but not always,clearly marked. They include fuelingareas such as gas stations; below deck onboats; fuel or chemical transfer orstorage facilities; areas where the aircontains chemicals or particles, such asgrain, dust, or metal powders; and anyother area where you would normally beadvised to turn off your vehicle’s engine.Do not transport or store flammable gas,liquid, or explosives in the compartmentof your vehicle which contains yourphone or accessories.In the United States, vehicles usingliquefied petroleum gas (such aspropane or butane) must comply withthe National Fire Protection Standard(NFPA-58). For a copy of this standard,contact the National Fire ProtectionAssociation, One Batterymarch Park,Quincy, MA 02269, Attn: PublicationSales Division.In Canada, vehicles using liquefiedpetroleum gas (such as propane orbutane) must comply with the CanadianGas Association (CAN/CGS-B149.2).For a copy of this standard, contact theCanadian Standards Association, 178Rexdale Blvd., Etobicoke, ON M9W 1R3,Attn: Standard Sales Department.CM-M1300_01_07final 3/2/98, 11:40 AM6

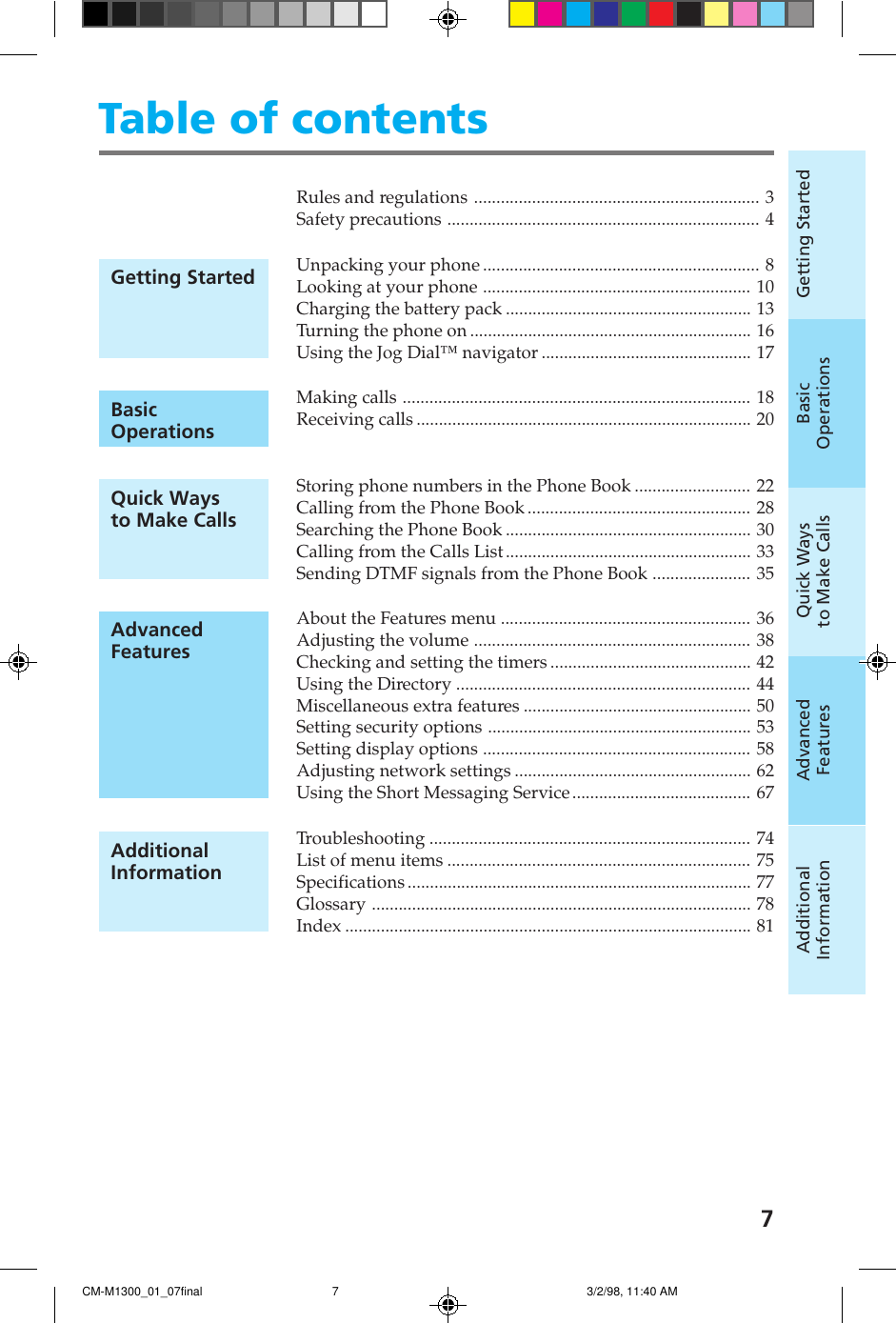

7BasicOperations Getting StartedQuick Waysto Make CallsAdvancedFeaturesAdditionalInformationTable of contentsRules and regulations ................................................................ 3Safety precautions ...................................................................... 4Unpacking your phone .............................................................. 8Looking at your phone ............................................................ 10Charging the battery pack ....................................................... 13Turning the phone on ............................................................... 16Using the Jog Dial™ navigator ............................................... 17Making calls .............................................................................. 18Receiving calls ........................................................................... 20Storing phone numbers in the Phone Book .......................... 22Calling from the Phone Book .................................................. 28Searching the Phone Book ....................................................... 30Calling from the Calls List....................................................... 33Sending DTMF signals from the Phone Book ...................... 35About the Features menu ........................................................ 36Adjusting the volume .............................................................. 38Checking and setting the timers ............................................. 42Using the Directory .................................................................. 44Miscellaneous extra features ................................................... 50Setting security options ........................................................... 53Setting display options ............................................................ 58Adjusting network settings ..................................................... 62Using the Short Messaging Service........................................ 67Troubleshooting ........................................................................ 74List of menu items .................................................................... 75Specifications............................................................................. 77Glossary ..................................................................................... 78Index ........................................................................................... 81Getting StartedBasicOperationsQuick Waysto Make CallsAdvancedFeaturesAdditionalInformationCM-M1300_01_07final 3/2/98, 11:40 AM7

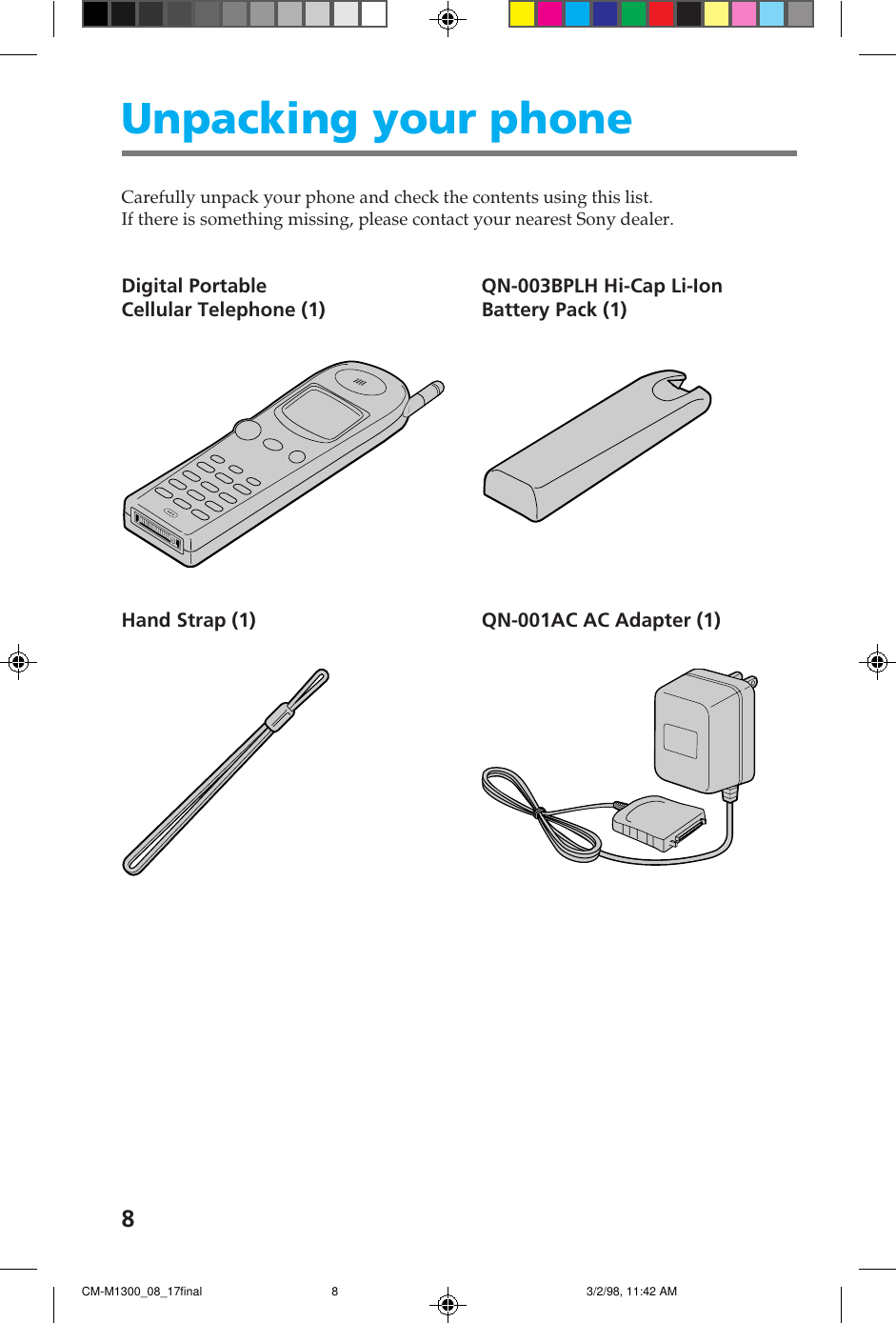

8Carefully unpack your phone and check the contents using this list.If there is something missing, please contact your nearest Sony dealer.Digital Portable QN-003BPLH Hi-Cap Li-IonCellular Telephone (1) Battery Pack (1)Hand Strap (1) QN-001AC AC Adapter (1)Unpacking your phoneCM-M1300_08_17final 3/2/98, 11:42 AM8

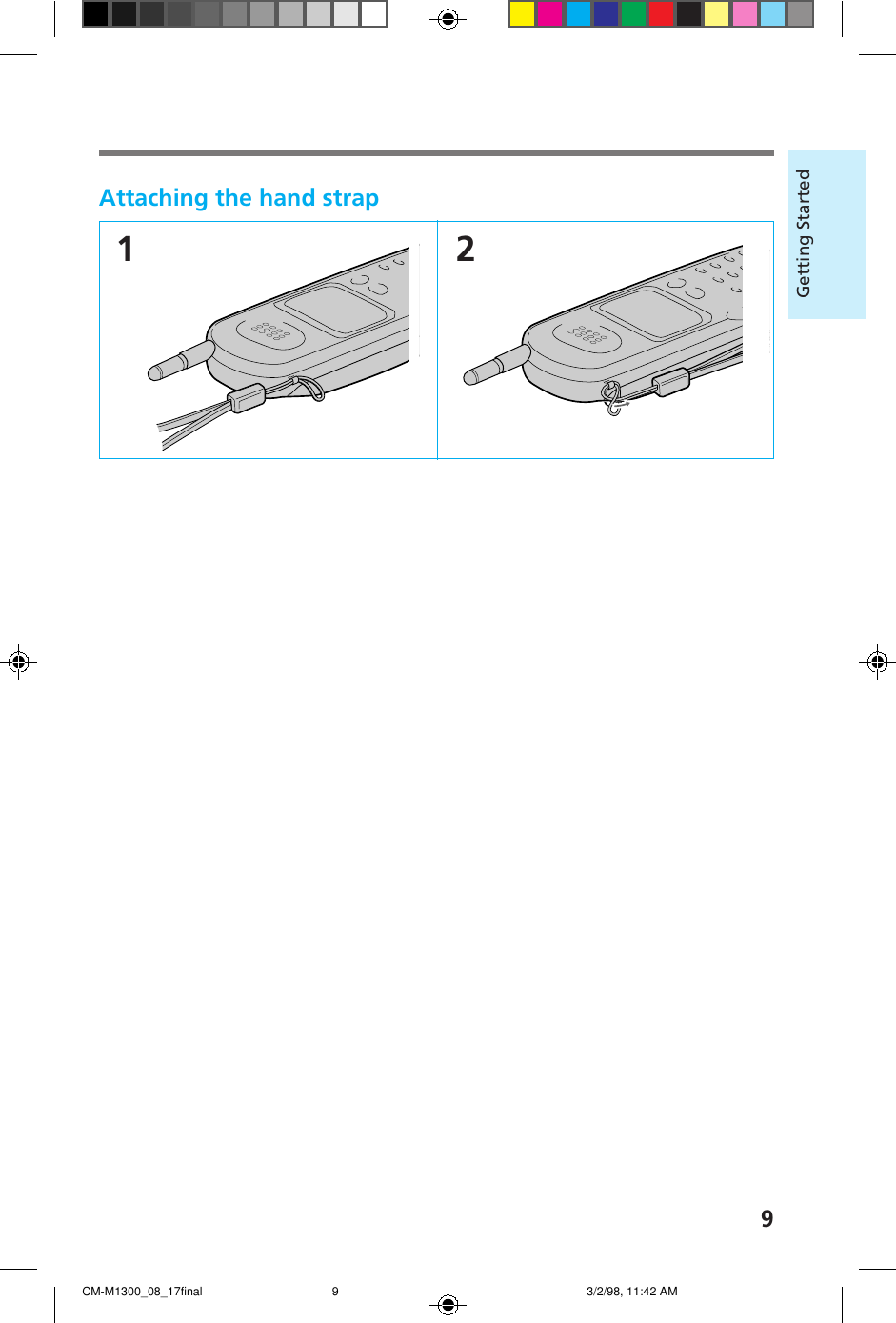

9Getting StartedAttaching the hand strap12CM-M1300_08_17final 3/2/98, 11:42 AM9

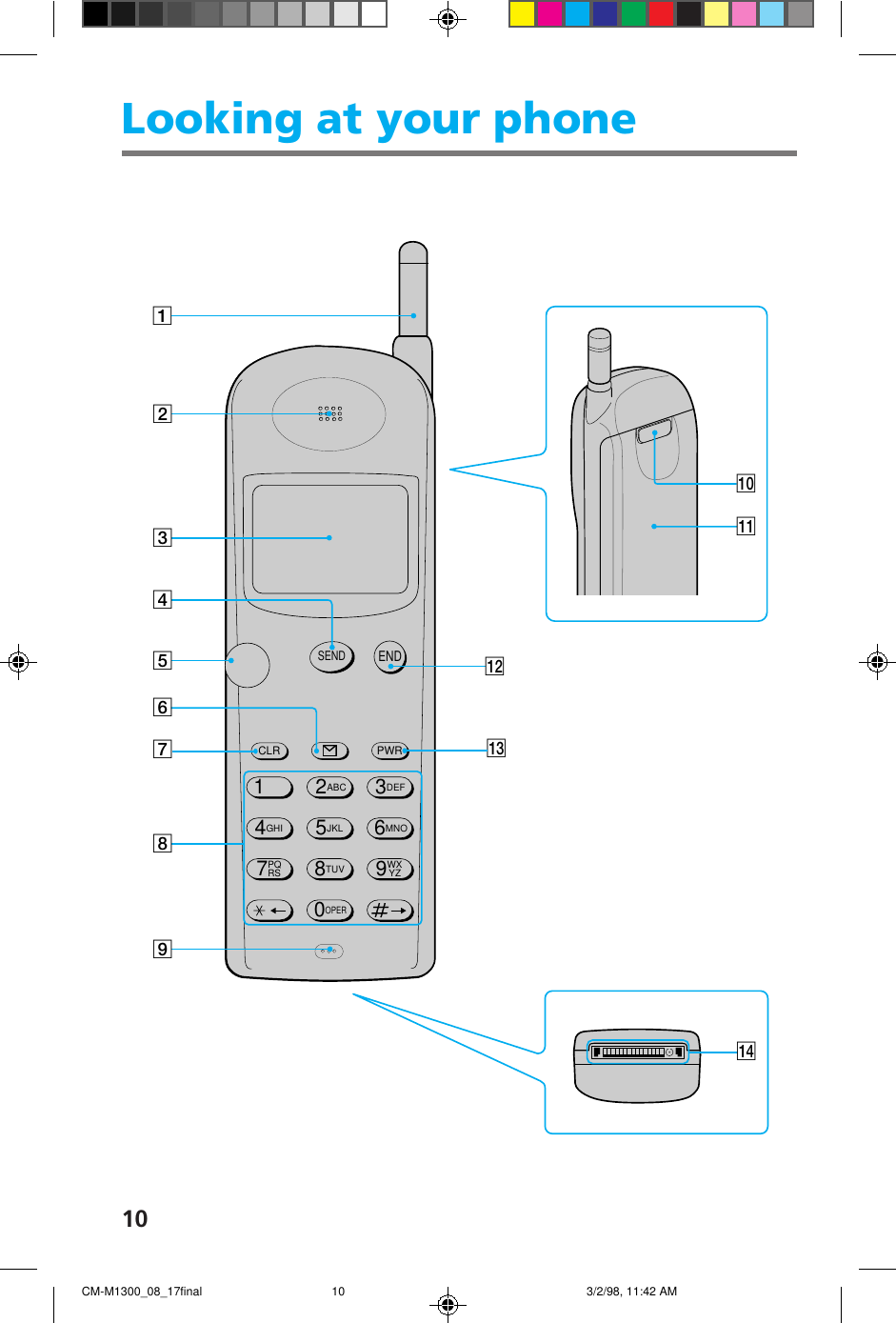

10Looking at your phone1!£!¢!¡02ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSEND92867END!™534CM-M1300_08_17final 3/2/98, 11:42 AM10

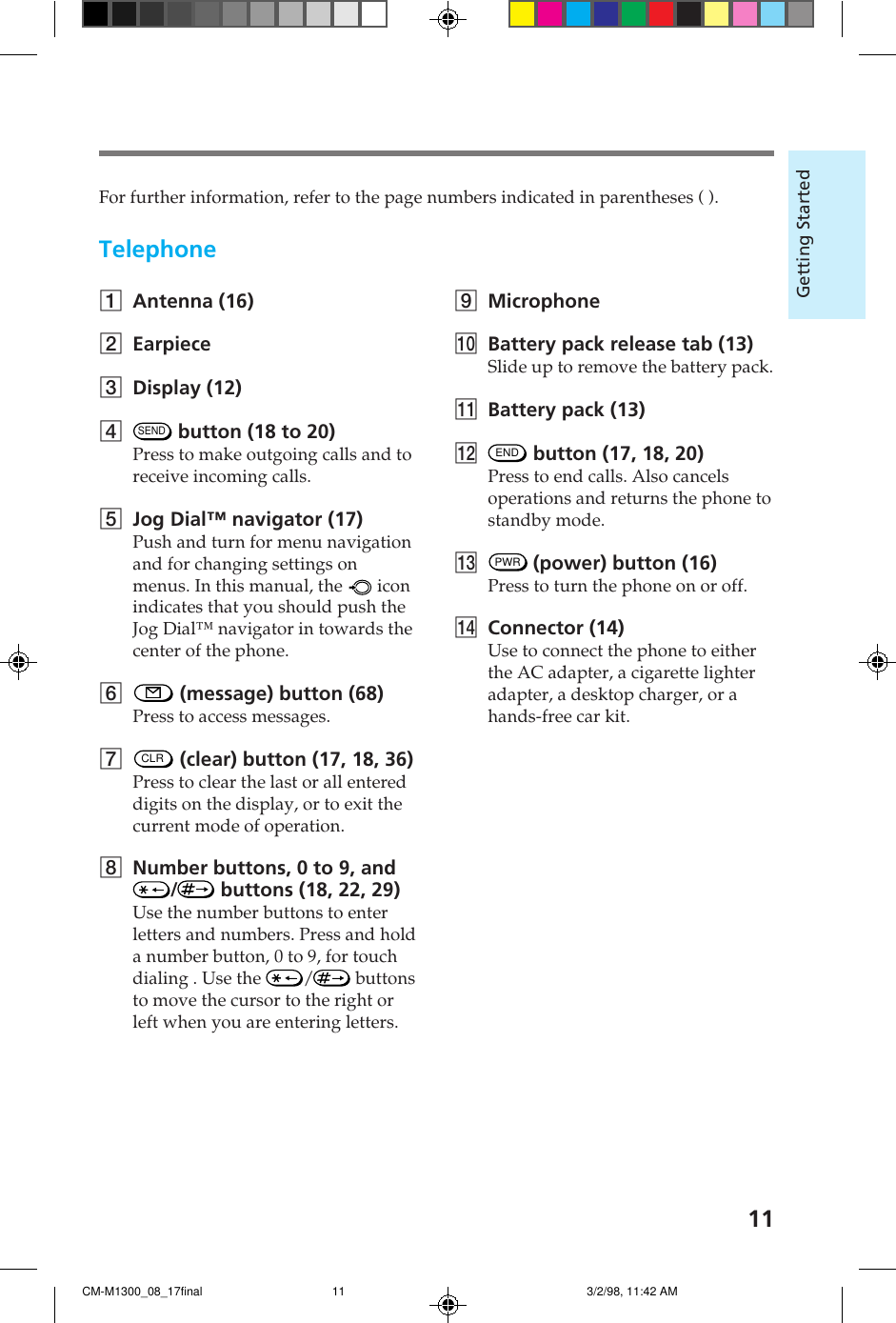

11Getting StartedFor further information, refer to the page numbers indicated in parentheses ( ).9Microphone0Battery pack release tab (13)Slide up to remove the battery pack.!¡ Battery pack (13)!™END button (17, 18, 20)Press to end calls. Also cancelsoperations and returns the phone tostandby mode.!£PWR (power) button (16)Press to turn the phone on or off.!¢ Connector (14)Use to connect the phone to eitherthe AC adapter, a cigarette lighteradapter, a desktop charger, or ahands-free car kit.Telephone1Antenna (16)2Earpiece3Display (12)4SEND button (18 to 20)Press to make outgoing calls and toreceive incoming calls.5Jog Dial™ navigator (17)Push and turn for menu navigationand for changing settings onmenus. In this manual, the iconindicates that you should push theJog Dial™ navigator in towards thecenter of the phone.6 (message) button (68)Press to access messages.7CLR (clear) button (17, 18, 36)Press to clear the last or all entereddigits on the display, or to exit thecurrent mode of operation.8Number buttons, 0 to 9, and/ buttons (18, 22, 29)Use the number buttons to enterletters and numbers. Press and holda number button, 0 to 9, for touchdialing . Use the / buttonsto move the cursor to the right orleft when you are entering letters.CM-M1300_08_17final 3/2/98, 11:42 AM11

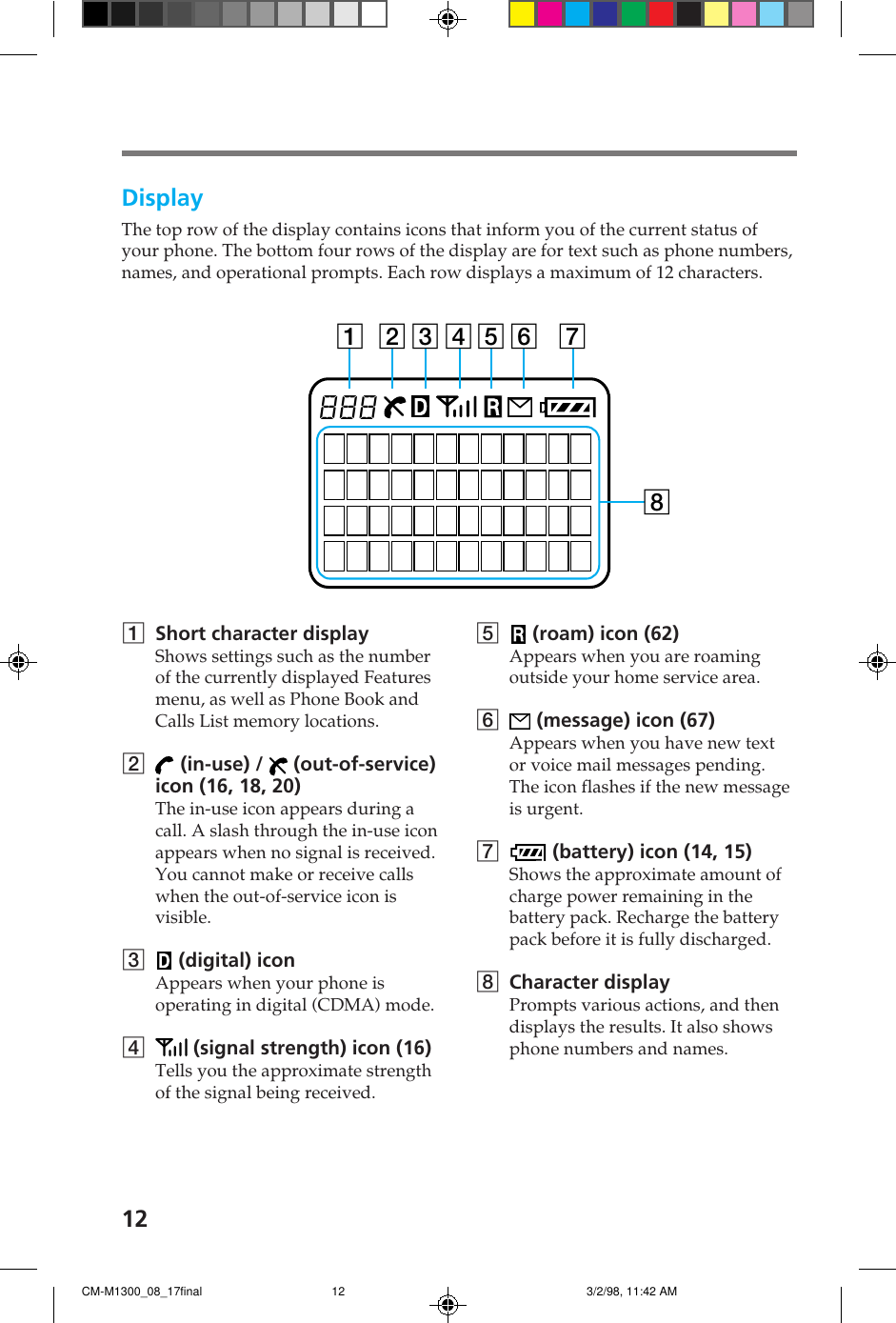

125 (roam) icon (62)Appears when you are roamingoutside your home service area.6 (message) icon (67)Appears when you have new textor voice mail messages pending.The icon flashes if the new messageis urgent.7 (battery) icon (14, 15)Shows the approximate amount ofcharge power remaining in thebattery pack. Recharge the batterypack before it is fully discharged.8Character displayPrompts various actions, and thendisplays the results. It also showsphone numbers and names.8881 2 3 4 5 6 78DisplayThe top row of the display contains icons that inform you of the current status ofyour phone. The bottom four rows of the display are for text such as phone numbers,names, and operational prompts. Each row displays a maximum of 12 characters.1Short character displayShows settings such as the numberof the currently displayed Featuresmenu, as well as Phone Book andCalls List memory locations.2 (in-use) / (out-of-service)icon (16, 18, 20)The in-use icon appears during acall. A slash through the in-use iconappears when no signal is received.You cannot make or receive callswhen the out-of-service icon isvisible.3 (digital) iconAppears when your phone isoperating in digital (CDMA) mode.4 (signal strength) icon (16)Tells you the approximate strengthof the signal being received.CM-M1300_08_17final 3/2/98, 11:42 AM12

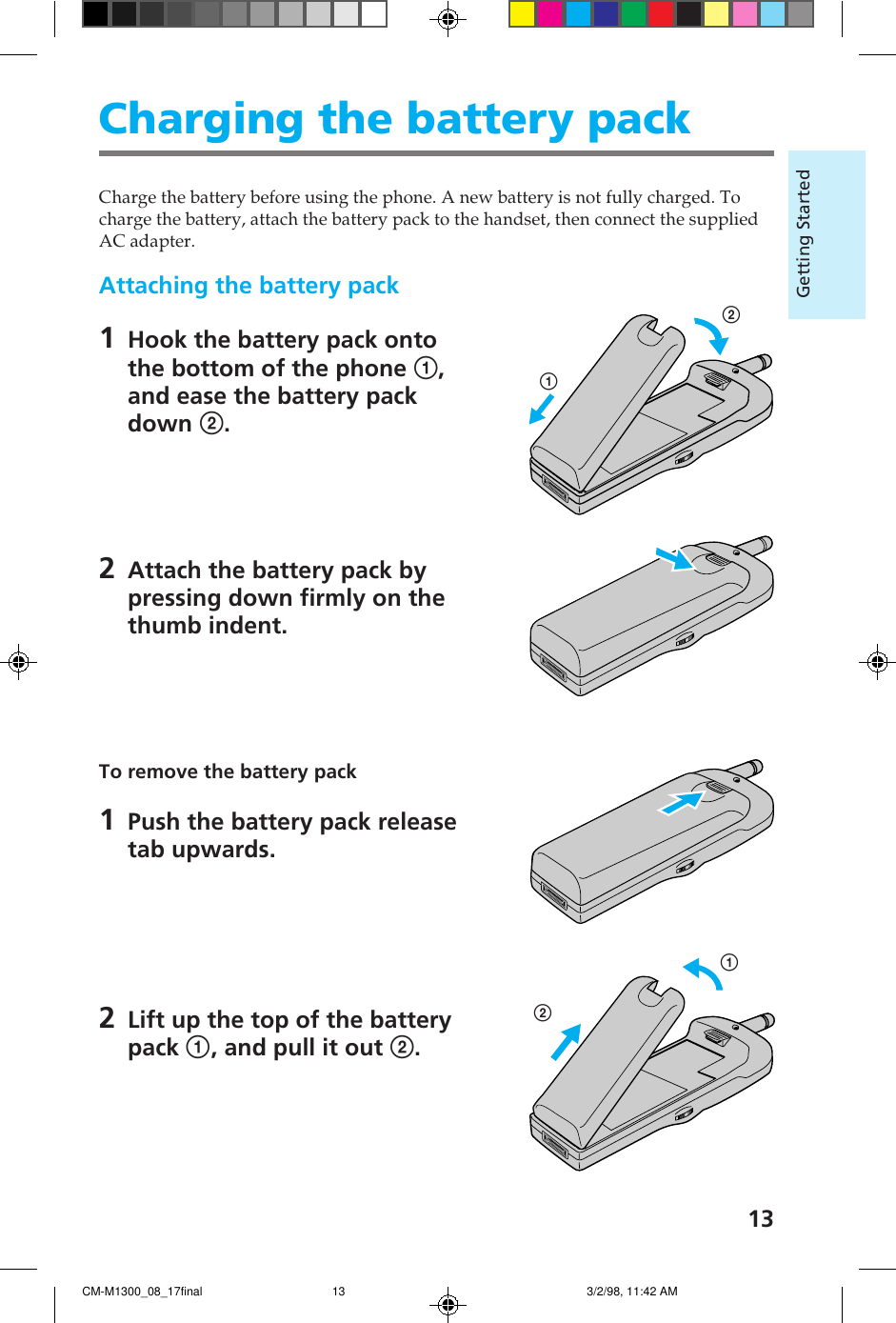

13Getting StartedCharge the battery before using the phone. A new battery is not fully charged. Tocharge the battery, attach the battery pack to the handset, then connect the suppliedAC adapter.Attaching the battery pack1Hook the battery pack ontothe bottom of the phone 1,and ease the battery packdown 2.2Attach the battery pack bypressing down firmly on thethumb indent.To remove the battery pack1Push the battery pack releasetab upwards.2Lift up the top of the batterypack 1, and pull it out 2.Charging the battery pack1221CM-M1300_08_17final 3/2/98, 11:42 AM13

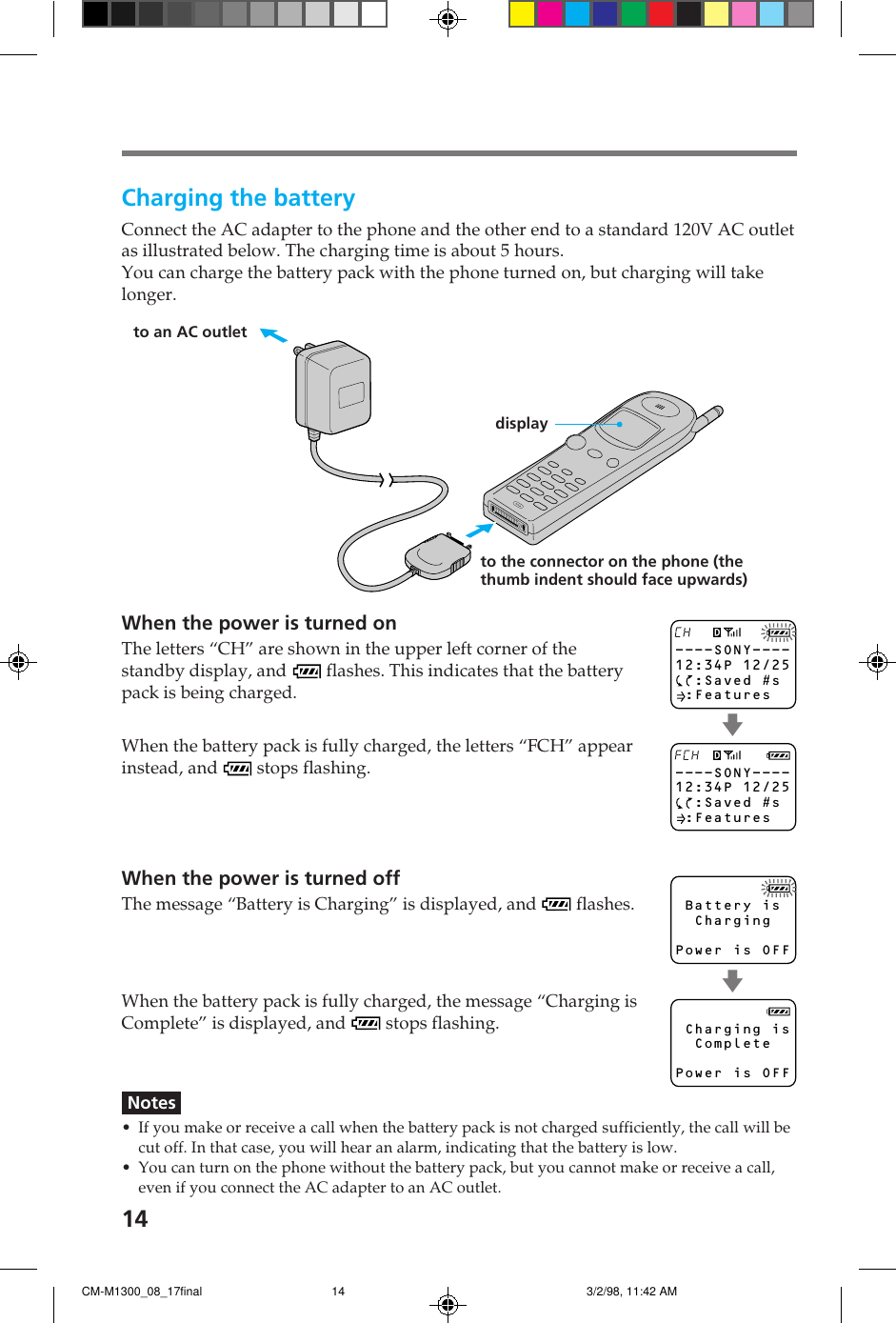

14Charging the batteryConnect the AC adapter to the phone and the other end to a standard 120V AC outletas illustrated below. The charging time is about 5 hours.You can charge the battery pack with the phone turned on, but charging will takelonger.When the power is turned onThe letters “CH” are shown in the upper left corner of thestandby display, and flashes. This indicates that the batterypack is being charged.When the battery pack is fully charged, the letters “FCH” appearinstead, and stops flashing.When the power is turned offThe message “Battery is Charging” is displayed, and flashes.When the battery pack is fully charged, the message “Charging isComplete” is displayed, and stops flashing.Notes• If you make or receive a call when the battery pack is not charged sufficiently, the call will becut off. In that case, you will hear an alarm, indicating that the battery is low.• You can turn on the phone without the battery pack, but you cannot make or receive a call,even if you connect the AC adapter to an AC outlet.----SONY----12:34P 12/25 :Saved #s :FeaturesCHv----SONY----12:34P 12/25 :Saved #s :FeaturesFCH Battery is Charging Power is OFFv Charging is Complete Power is OFFto an AC outletdisplayto the connector on the phone (thethumb indent should face upwards)CM-M1300_08_17final 3/2/98, 11:42 AM14

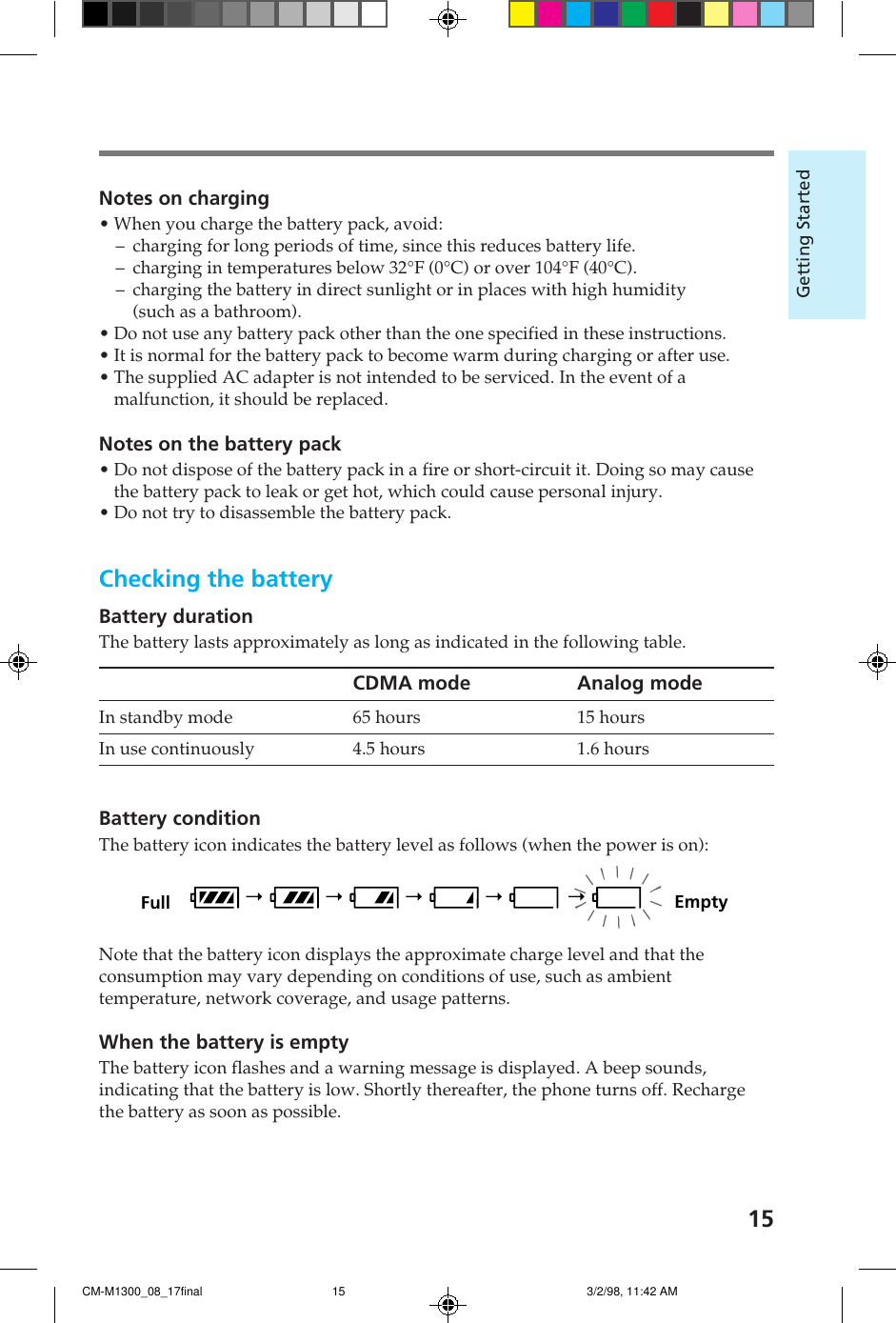

15Getting StartedNotes on charging• When you charge the battery pack, avoid:– charging for long periods of time, since this reduces battery life.– charging in temperatures below 32°F (0°C) or over 104°F (40°C).– charging the battery in direct sunlight or in places with high humidity(such as a bathroom).• Do not use any battery pack other than the one specified in these instructions.• It is normal for the battery pack to become warm during charging or after use.• The supplied AC adapter is not intended to be serviced. In the event of amalfunction, it should be replaced.Notes on the battery pack• Do not dispose of the battery pack in a fire or short-circuit it. Doing so may causethe battery pack to leak or get hot, which could cause personal injury.• Do not try to disassemble the battery pack.Checking the batteryBattery durationThe battery lasts approximately as long as indicated in the following table.CDMA mode Analog modeIn standby mode 65 hours 15 hoursIn use continuously 4.5 hours 1.6 hoursBattery conditionThe battery icon indicates the battery level as follows (when the power is on):Note that the battery icon displays the approximate charge level and that theconsumption may vary depending on conditions of use, such as ambienttemperature, network coverage, and usage patterns.When the battery is emptyThe battery icon flashes and a warning message is displayed. A beep sounds,indicating that the battery is low. Shortly thereafter, the phone turns off. Rechargethe battery as soon as possible.nnnFulln nEmptyCM-M1300_08_17final 3/2/98, 11:42 AM15

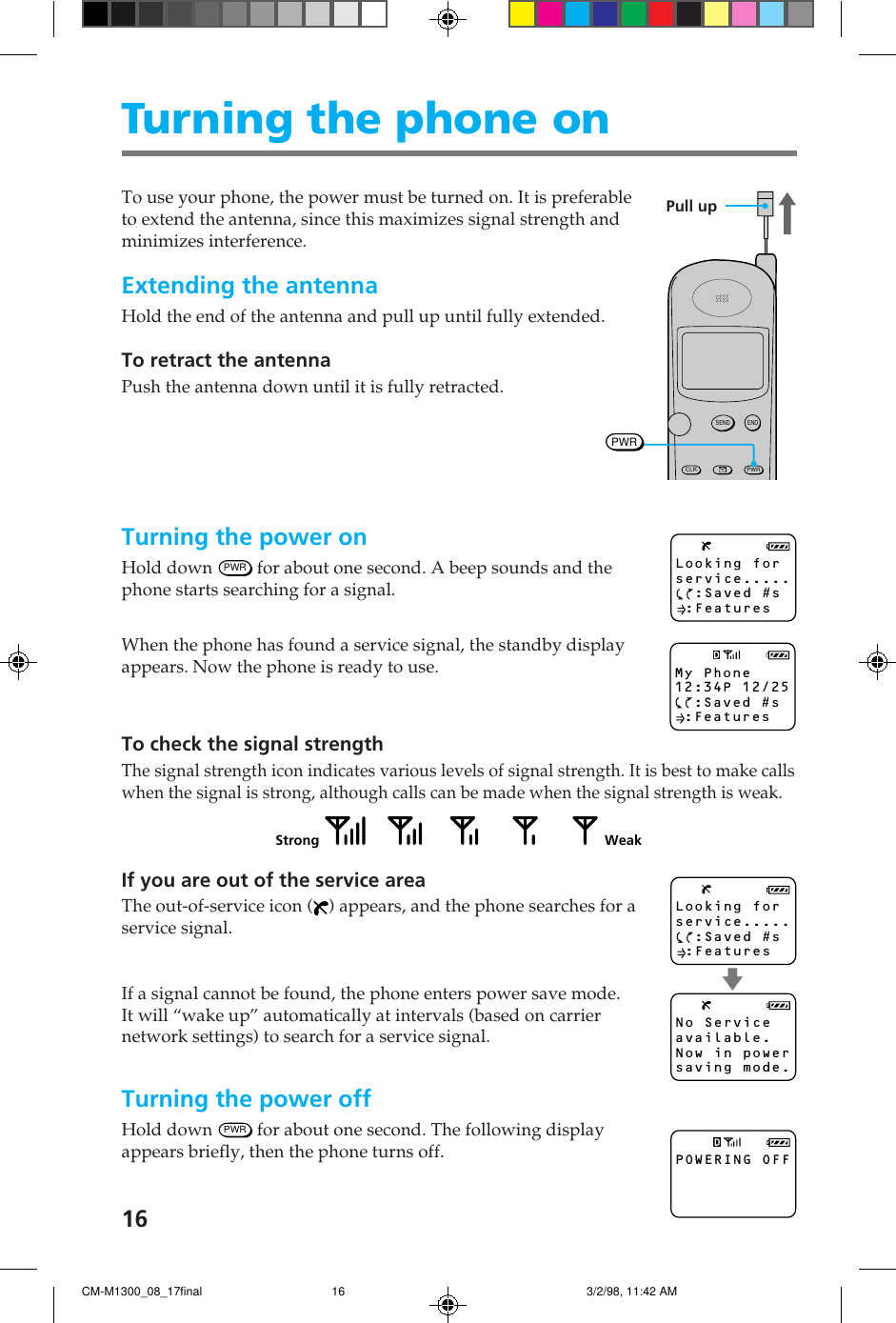

16To use your phone, the power must be turned on. It is preferableto extend the antenna, since this maximizes signal strength andminimizes interference.Extending the antennaHold the end of the antenna and pull up until fully extended.To retract the antennaPush the antenna down until it is fully retracted.Turning the power onHold down PWR for about one second. A beep sounds and thephone starts searching for a signal.When the phone has found a service signal, the standby displayappears. Now the phone is ready to use.To check the signal strengthThe signal strength icon indicates various levels of signal strength. It is best to make callswhen the signal is strong, although calls can be made when the signal strength is weak.If you are out of the service areaThe out-of-service icon ( ) appears, and the phone searches for aservice signal.If a signal cannot be found, the phone enters power save mode.It will “wake up” automatically at intervals (based on carriernetwork settings) to search for a service signal.Turning the power offHold down PWR for about one second. The following displayappears briefly, then the phone turns off.Turning the phone onPWRCLRSEND ENDLooking for service..... :Saved #s :FeaturesMy Phone12:34P 12/25 :Saved #s :FeaturesStrong WeakPull upLooking for service..... :Saved #s :FeaturesvPOWERING OFFNo Service available.Now in power saving mode.PWRCM-M1300_08_17final 3/2/98, 11:42 AM16

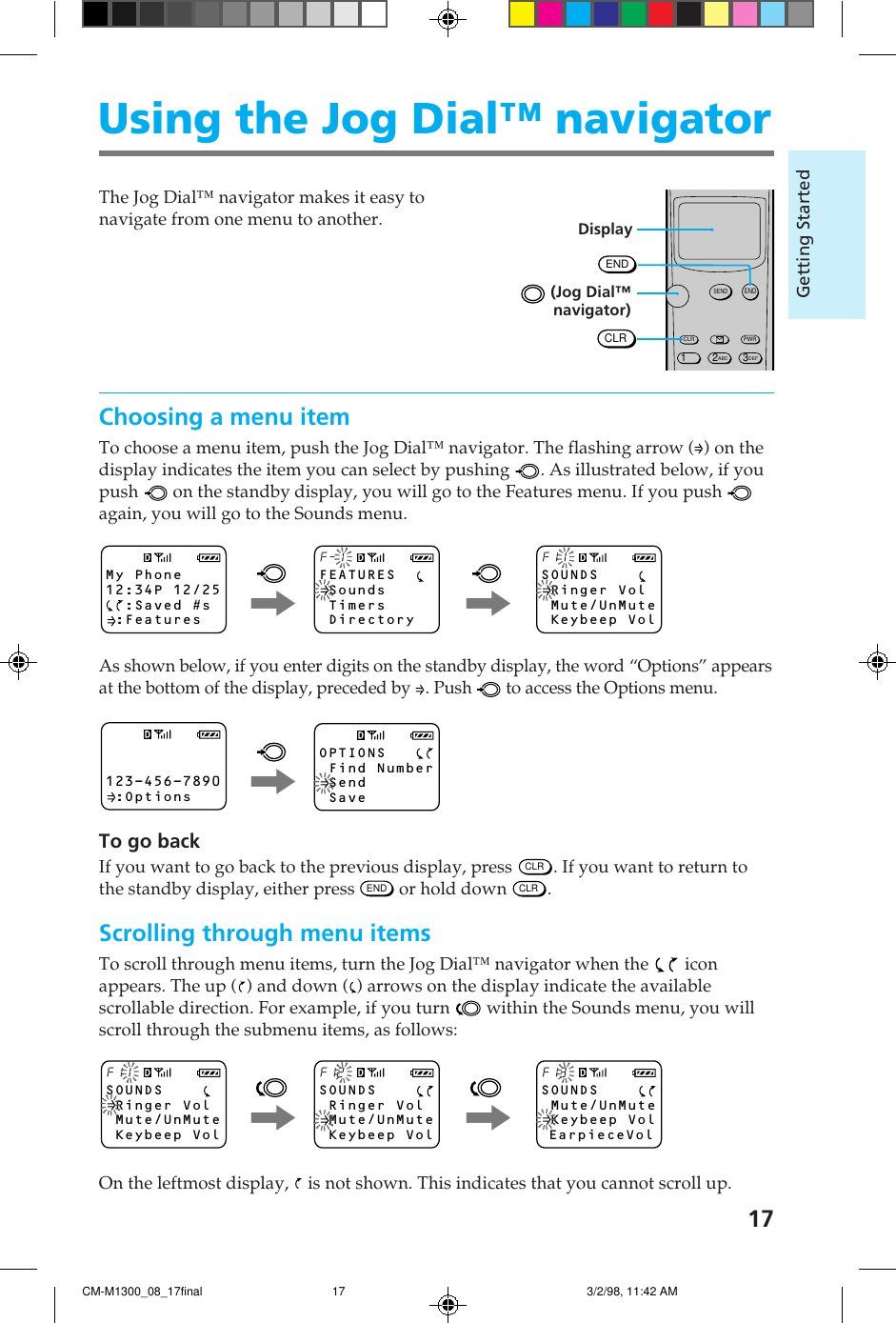

17Getting StartedThe Jog Dial™ navigator makes it easy tonavigate from one menu to another.Choosing a menu itemTo choose a menu item, push the Jog Dial™ navigator. The flashing arrow ( ) on thedisplay indicates the item you can select by pushing . As illustrated below, if youpush on the standby display, you will go to the Features menu. If you push again, you will go to the Sounds menu.As shown below, if you enter digits on the standby display, the word “Options” appearsat the bottom of the display, preceded by . Push to access the Options menu.To go backIf you want to go back to the previous display, press CLR. If you want to return tothe standby display, either press END or hold down CLR.Scrolling through menu itemsTo scroll through menu items, turn the Jog Dial™ navigator when the iconappears. The up ( ) and down ( ) arrows on the display indicate the availablescrollable direction. For example, if you turn within the Sounds menu, you willscroll through the submenu items, as follows:On the leftmost display, is not shown. This indicates that you cannot scroll up. (Jog Dial™navigator)Using the Jog Dial™ navigatorFEATURES Sounds Timers DirectoryF-1SOUNDS Ringer Vol Mute/UnMute Keybeep VolF11My Phone12:34P 12/25 :Saved #s :Features / / 123-456-7890 :Options /OPTIONS Find Number Send SaveSOUNDS Ringer Vol Mute/UnMute Keybeep VolF11SOUNDS Ringer Vol Mute/UnMute Keybeep VolF12SOUNDS Mute/UnMute Keybeep Vol EarpieceVolF13//2ABC3DEF1PWRCLRSENDENDCLRENDDisplayCM-M1300_08_17final 3/2/98, 11:42 AM17

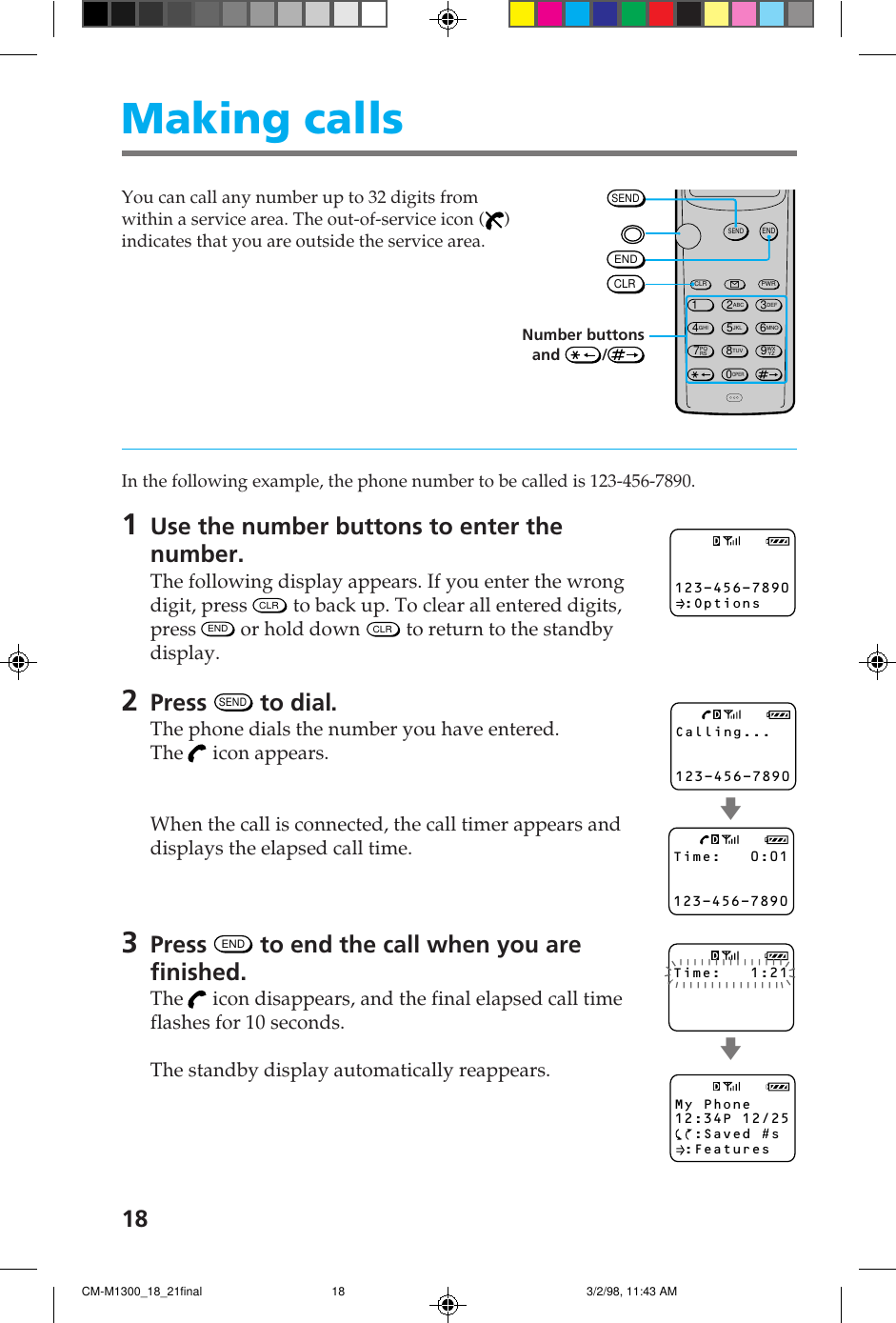

18You can call any number up to 32 digits fromwithin a service area. The out-of-service icon ( )indicates that you are outside the service area.In the following example, the phone number to be called is 123-456-7890.1Use the number buttons to enter thenumber.The following display appears. If you enter the wrongdigit, press CLR to back up. To clear all entered digits,press END or hold down CLR to return to the standbydisplay.2Press SEND to dial.The phone dials the number you have entered.The icon appears.When the call is connected, the call timer appears anddisplays the elapsed call time.3Press END to end the call when you arefinished.The icon disappears, and the final elapsed call timeflashes for 10 seconds.The standby display automatically reappears.Making calls 123-456-7890 :OptionsCalling...123-456-7890Time: 0:01123-456-7890vMy Phone12:34P 12/25 :Saved #s :FeaturesTime: 1:21v2ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDSENDENDCLRNumber buttonsand /CM-M1300_18_21final 3/2/98, 11:43 AM18

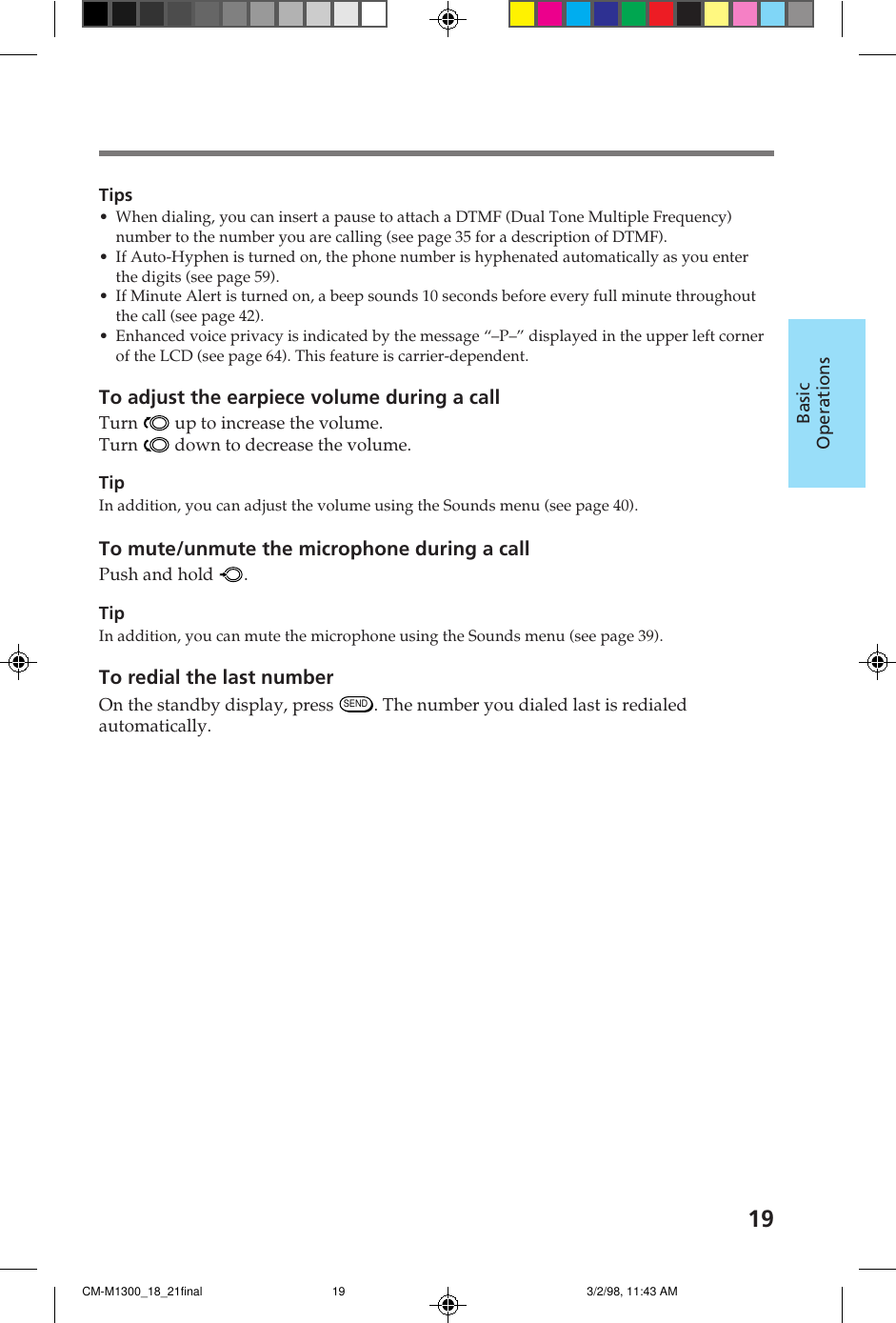

19BasicOperationsTips• When dialing, you can insert a pause to attach a DTMF (Dual Tone Multiple Frequency)number to the number you are calling (see page 35 for a description of DTMF).• If Auto-Hyphen is turned on, the phone number is hyphenated automatically as you enterthe digits (see page 59).• If Minute Alert is turned on, a beep sounds 10 seconds before every full minute throughoutthe call (see page 42).• Enhanced voice privacy is indicated by the message “–P–” displayed in the upper left cornerof the LCD (see page 64). This feature is carrier-dependent.To adjust the earpiece volume during a callTurn up to increase the volume.Turn down to decrease the volume.TipIn addition, you can adjust the volume using the Sounds menu (see page 40).To mute/unmute the microphone during a callPush and hold .TipIn addition, you can mute the microphone using the Sounds menu (see page 39).To redial the last numberOn the standby display, press SEND. The number you dialed last is redialedautomatically.CM-M1300_18_21final 3/2/98, 11:43 AM19

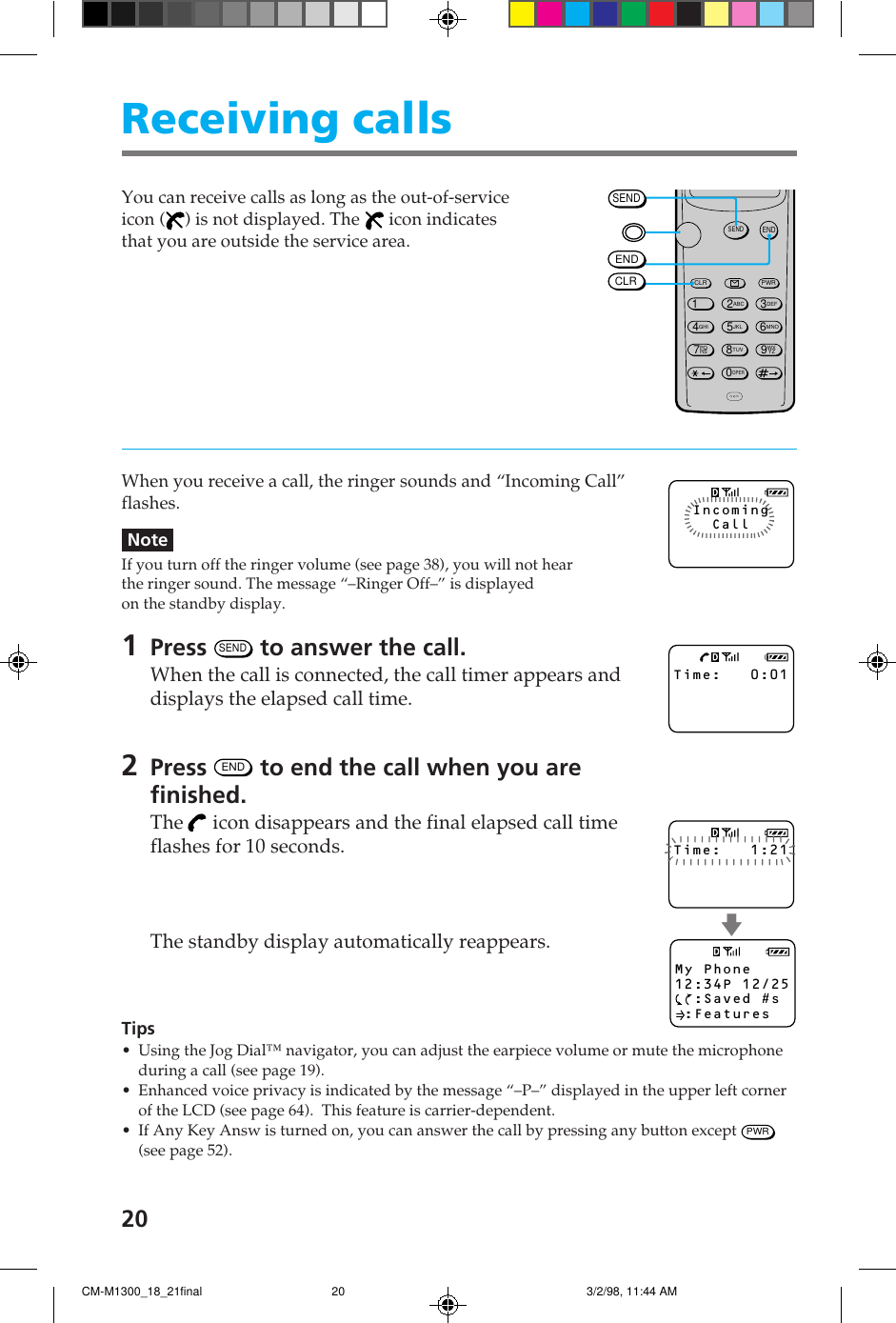

20You can receive calls as long as the out-of-serviceicon ( ) is not displayed. The icon indicatesthat you are outside the service area.When you receive a call, the ringer sounds and “Incoming Call”flashes.NoteIf you turn off the ringer volume (see page 38), you will not hearthe ringer sound. The message “–Ringer Off–” is displayedon the standby display.1Press SEND to answer the call.When the call is connected, the call timer appears anddisplays the elapsed call time.2Press END to end the call when you arefinished.The icon disappears and the final elapsed call timeflashes for 10 seconds.The standby display automatically reappears.Tips• Using the Jog Dial™ navigator, you can adjust the earpiece volume or mute the microphoneduring a call (see page 19).• Enhanced voice privacy is indicated by the message “–P–” displayed in the upper left cornerof the LCD (see page 64). This feature is carrier-dependent.• If Any Key Answ is turned on, you can answer the call by pressing any button except PWR(see page 52).Receiving calls Incoming CallMy Phone12:34P 12/25 :Saved #s :FeaturesTime: 1:21vTime: 0:012ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDSENDENDCLRCM-M1300_18_21final 3/2/98, 11:44 AM20

21BasicOperationsIf the caller has caller IDThe caller’s phone number appears on the display when youreceive a call, if both the caller and the carrier support thisfeature.If the caller has caller ID and the number matches a Phone Bookentry, the name that you stored with the number (if any) isdisplayed also.If you miss a callIf you miss an incoming call, a message appears similar to theone in the following display. To return to the standby display,either press CLR, END, or . If the caller had caller ID, thecaller’s number is stored in the Calls List (see page 33). Incoming Call From123-456-7890 Incoming Call FromSONY123-456-7890 You have missed 15 calls. :OKCM-M1300_18_21final 3/2/98, 11:44 AM21

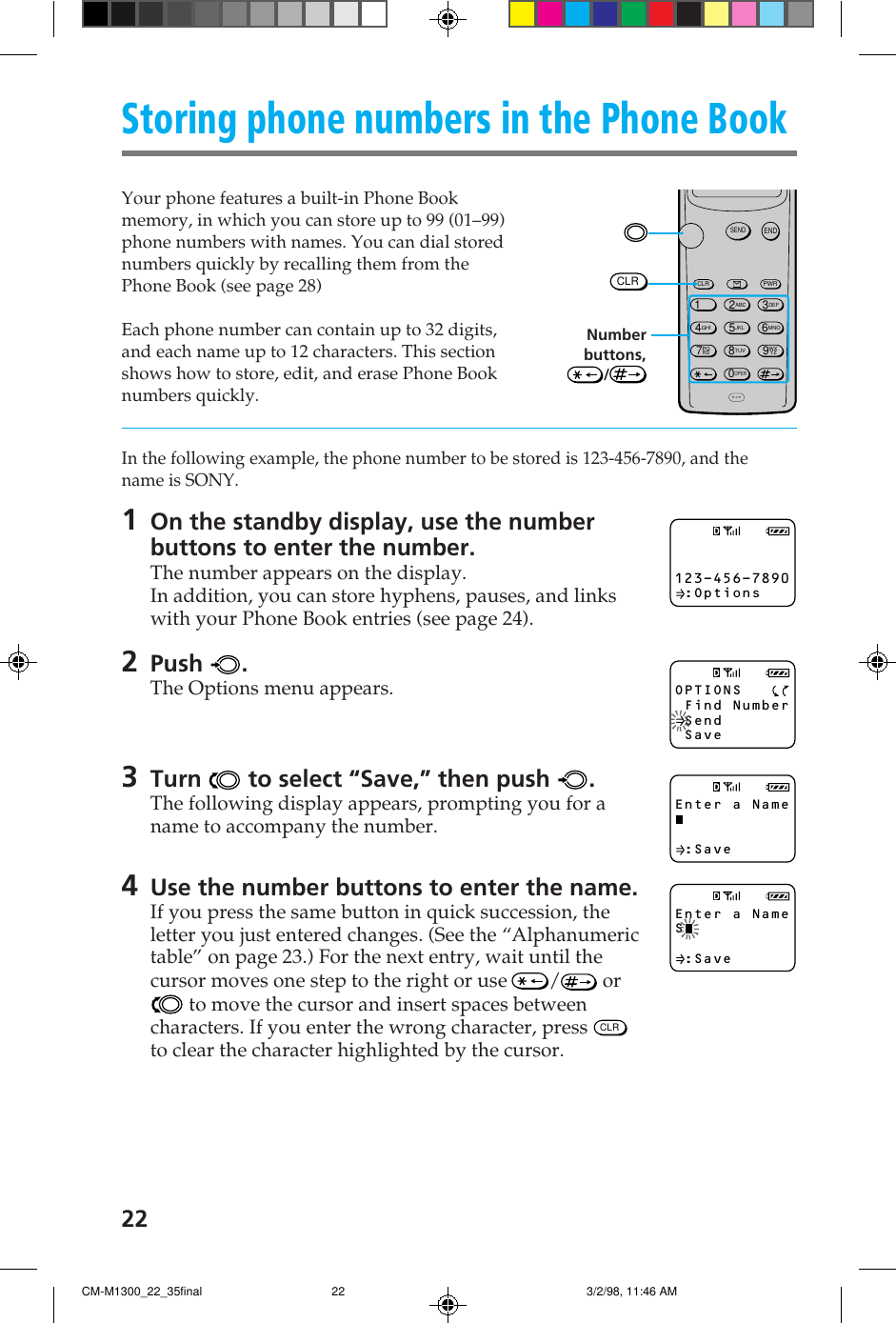

22Your phone features a built-in Phone Bookmemory, in which you can store up to 99 (01–99)phone numbers with names. You can dial storednumbers quickly by recalling them from thePhone Book (see page 28)Each phone number can contain up to 32 digits,and each name up to 12 characters. This sectionshows how to store, edit, and erase Phone Booknumbers quickly.In the following example, the phone number to be stored is 123-456-7890, and thename is SONY.1On the standby display, use the numberbuttons to enter the number.The number appears on the display.In addition, you can store hyphens, pauses, and linkswith your Phone Book entries (see page 24).2Push .The Options menu appears.3Turn to select “Save,” then push .The following display appears, prompting you for aname to accompany the number.4Use the number buttons to enter the name.If you press the same button in quick succession, theletter you just entered changes. (See the “Alphanumerictable” on page 23.) For the next entry, wait until thecursor moves one step to the right or use / or to move the cursor and insert spaces betweencharacters. If you enter the wrong character, press CLRto clear the character highlighted by the cursor.Storing phone numbers in the Phone BookEnter a NameS :SaveEnter a Name :Save 123-456-7890 :OptionsOPTIONS Find Number Send Save2ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDNumberbuttons,/CLRCM-M1300_22_35final 3/2/98, 11:46 AM22

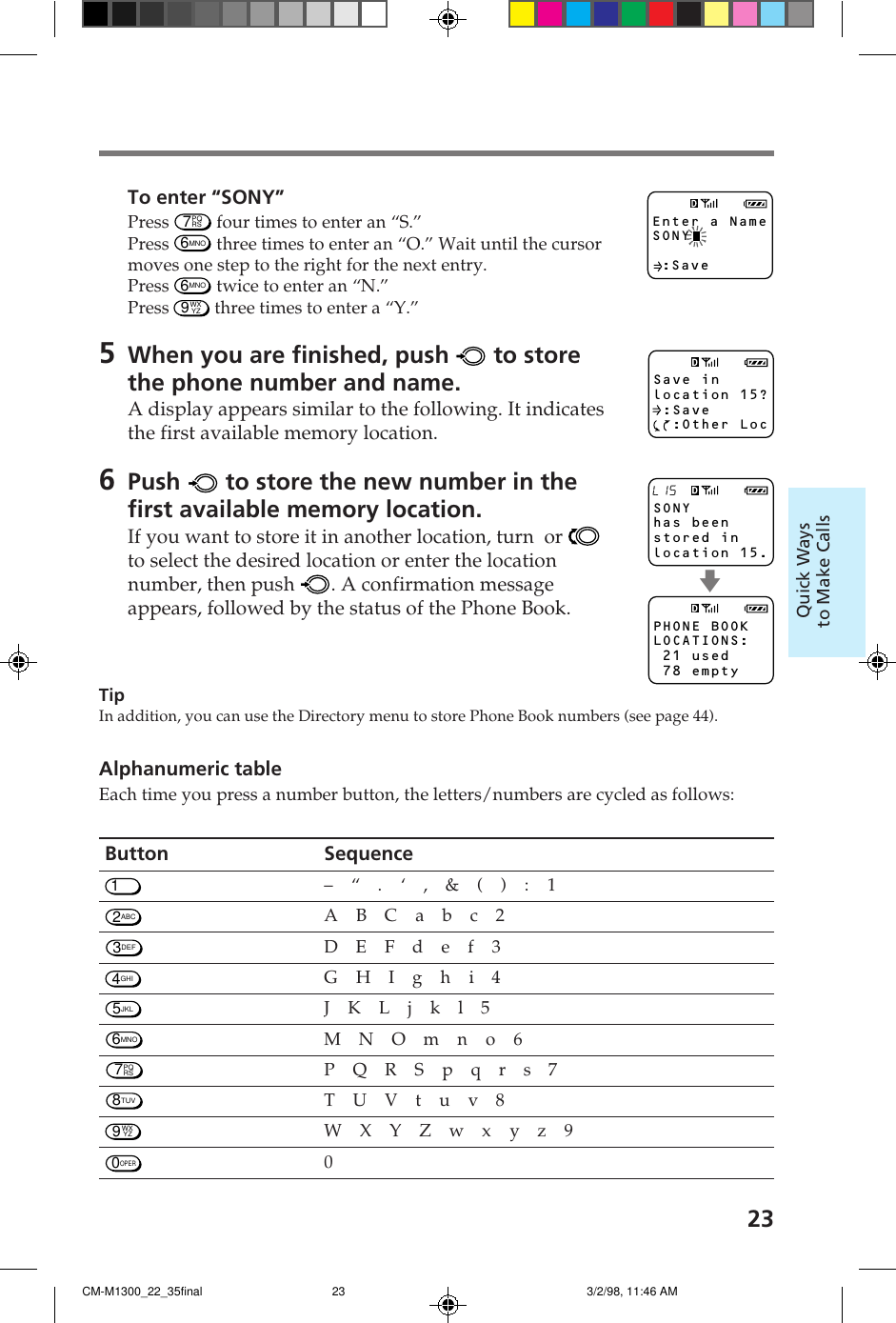

23Quick Waysto Make CallsTo enter “SONY”Press 7RSPQ four times to enter an “S.”Press 6MNO three times to enter an “O.” Wait until the cursormoves one step to the right for the next entry.Press 6MNO twice to enter an “N.”Press 9YZWX three times to enter a “Y.”5When you are finished, push to storethe phone number and name.A display appears similar to the following. It indicatesthe first available memory location.6Push to store the new number in thefirst available memory location.If you want to store it in another location, turn or to select the desired location or enter the locationnumber, then push . A confirmation messageappears, followed by the status of the Phone Book.TipIn addition, you can use the Directory menu to store Phone Book numbers (see page 44).Alphanumeric tableEach time you press a number button, the letters/numbers are cycled as follows:Button Sequence1–“.‘,&():12ABCABCabc23DEFDEFdef34GHIGHIghi45JKLJKLjkl56MNOMNOmno67RSPQPQRSpqrs78TUVTUVtuv89YZWXWXYZwxyz90OPER0Save in location 15? :Save :Other LocEnter a NameSONY :SaveSONYhas beenstored inlocation 15.L15PHONE BOOK LOCATIONS: 21 used 78 emptyvCM-M1300_22_35final 3/2/98, 11:46 AM23

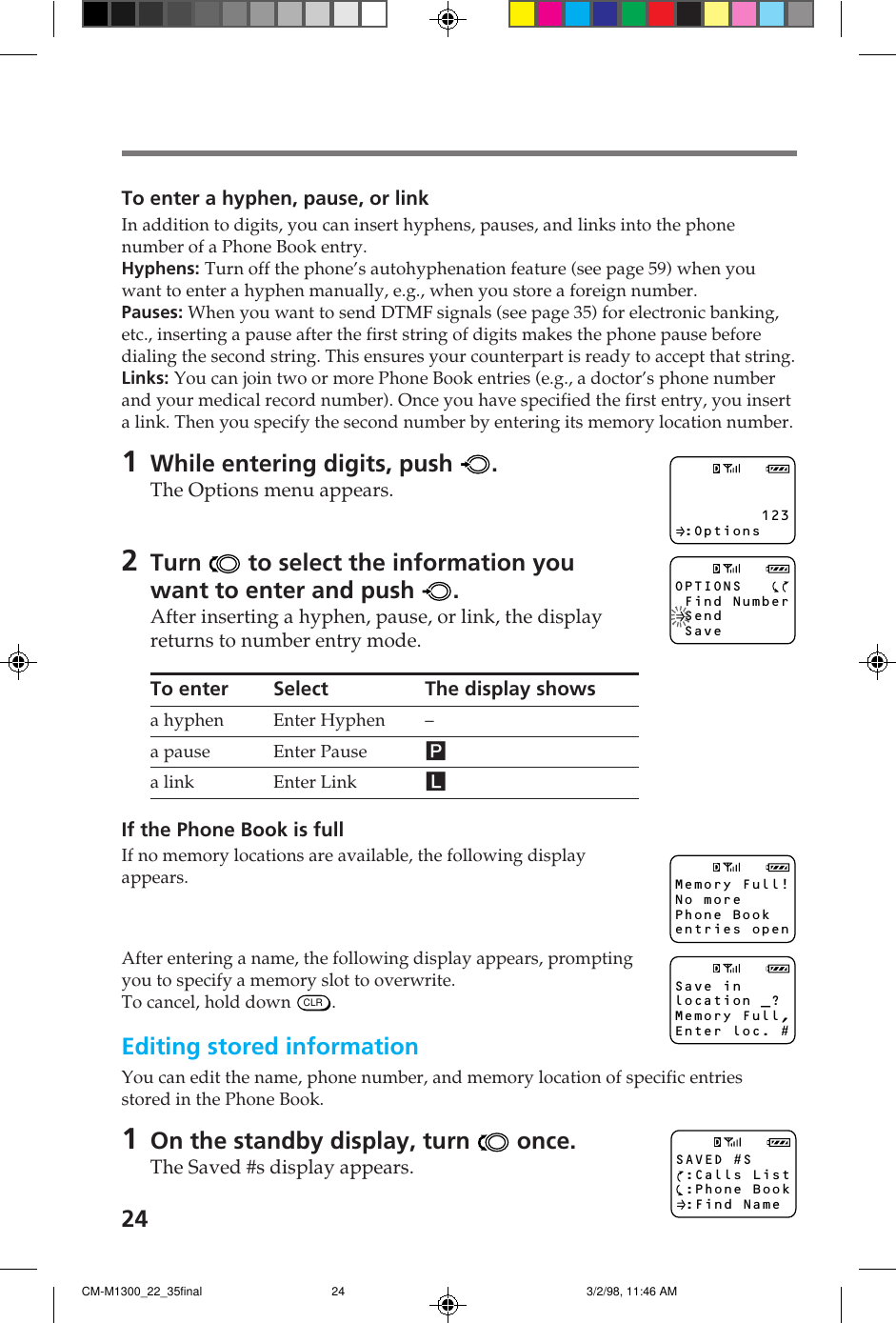

24To enter a hyphen, pause, or linkIn addition to digits, you can insert hyphens, pauses, and links into the phonenumber of a Phone Book entry.Hyphens: Turn off the phone’s autohyphenation feature (see page 59) when youwant to enter a hyphen manually, e.g., when you store a foreign number.Pauses: When you want to send DTMF signals (see page 35) for electronic banking,etc., inserting a pause after the first string of digits makes the phone pause beforedialing the second string. This ensures your counterpart is ready to accept that string.Links: You can join two or more Phone Book entries (e.g., a doctor’s phone numberand your medical record number). Once you have specified the first entry, you inserta link. Then you specify the second number by entering its memory location number.1While entering digits, push .The Options menu appears.2Turn to select the information youwant to enter and push .After inserting a hyphen, pause, or link, the displayreturns to number entry mode.To enter Select The display showsa hyphen Enter Hyphen –a pause Enter Pause Pa link Enter Link LIf the Phone Book is fullIf no memory locations are available, the following displayappears.After entering a name, the following display appears, promptingyou to specify a memory slot to overwrite.To cancel, hold down CLR.Editing stored informationYou can edit the name, phone number, and memory location of specific entriesstored in the Phone Book.1On the standby display, turn once.The Saved #s display appears.Memory Full!No more Phone Book entries openSave inlocation _?Memory Full,Enter loc. # 123 :OptionsOPTIONS Find Number Send SaveSAVED #S :Calls List :Phone Book :Find NameCM-M1300_22_35final 3/2/98, 11:46 AM24

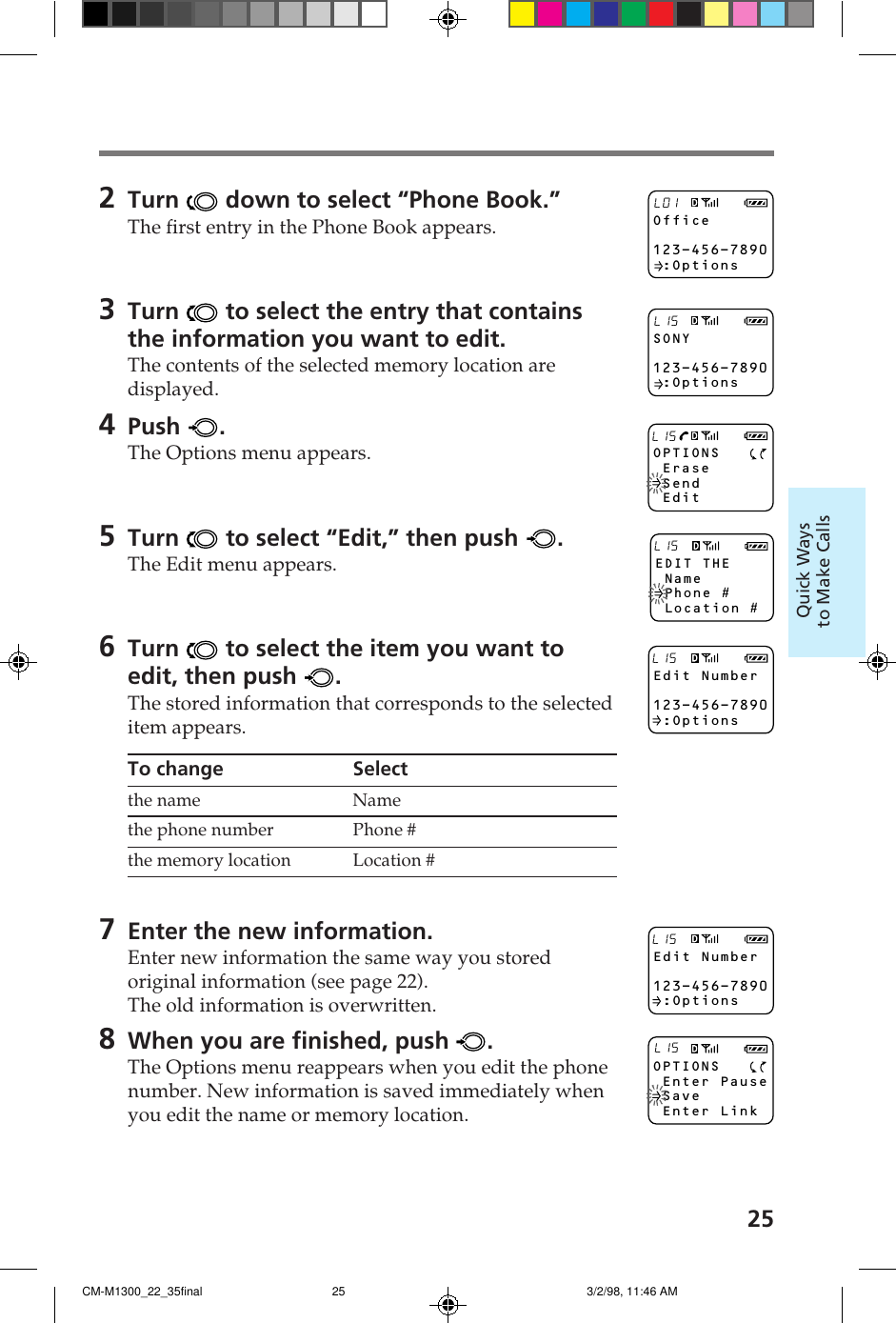

25Quick Waysto Make Calls2Turn down to select “Phone Book.”The first entry in the Phone Book appears.3Turn to select the entry that containsthe information you want to edit.The contents of the selected memory location aredisplayed.4Push .The Options menu appears.5Turn to select “Edit,” then push .The Edit menu appears.6Turn to select the item you want toedit, then push .The stored information that corresponds to the selecteditem appears.To change Selectthe name Namethe phone number Phone #the memory location Location #7Enter the new information.Enter new information the same way you storedoriginal information (see page 22).The old information is overwritten.8When you are finished, push .The Options menu reappears when you edit the phonenumber. New information is saved immediately whenyou edit the name or memory location.Edit Number123-456-7890 :OptionsL15Edit Number123-456-7890 :OptionsL15Office 123-456-7890 :OptionsL01SONY 123-456-7890 :OptionsL15EDIT THE Name Phone # Location #L15OPTIONS Erase Send EditL15OPTIONS Enter Pause Save Enter LinkL15CM-M1300_22_35final 3/2/98, 11:46 AM25

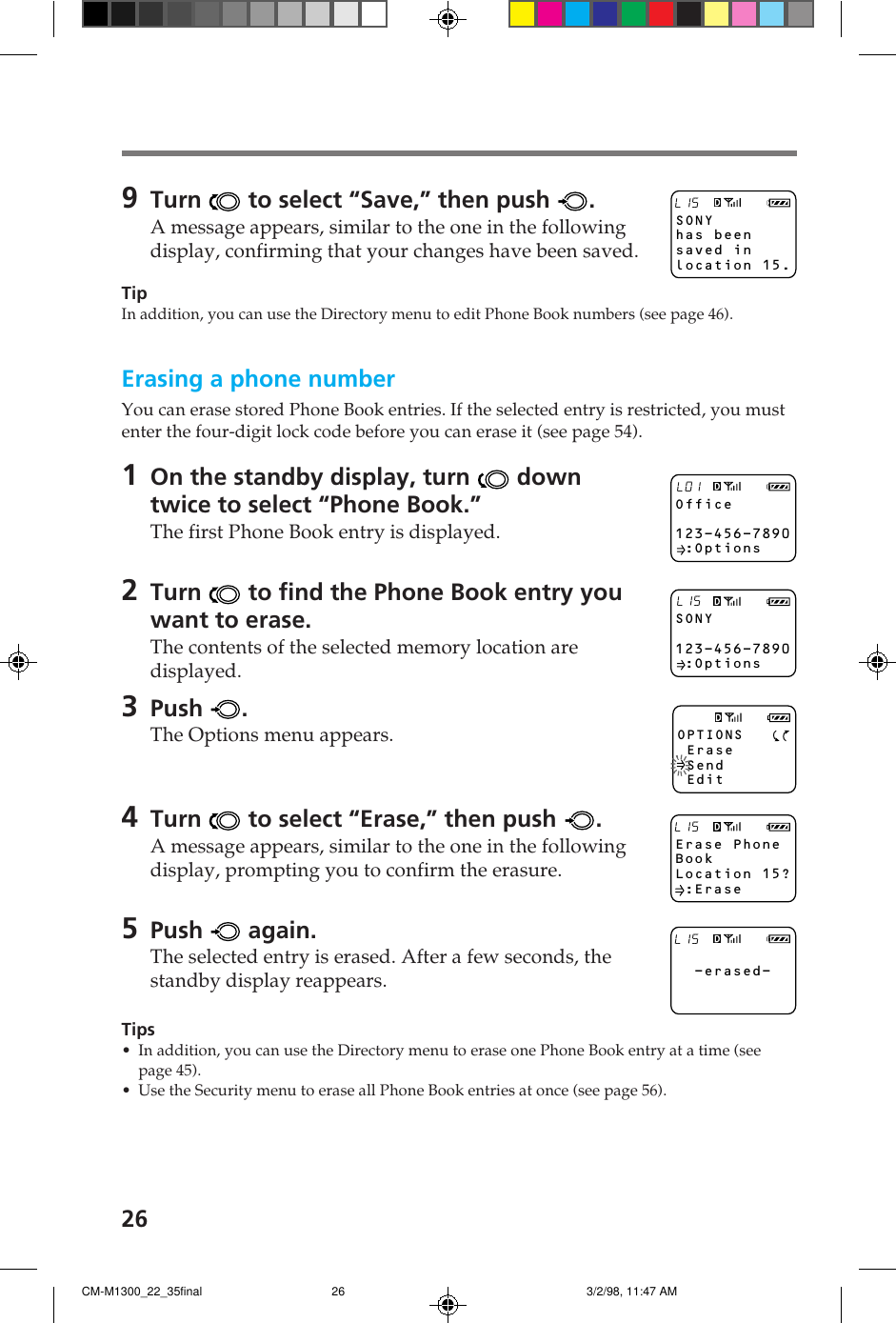

269Turn to select “Save,” then push .A message appears, similar to the one in the followingdisplay, confirming that your changes have been saved.TipIn addition, you can use the Directory menu to edit Phone Book numbers (see page 46).Erasing a phone numberYou can erase stored Phone Book entries. If the selected entry is restricted, you mustenter the four-digit lock code before you can erase it (see page 54).1On the standby display, turn downtwice to select “Phone Book.”The first Phone Book entry is displayed.2Turn to find the Phone Book entry youwant to erase.The contents of the selected memory location aredisplayed.3Push .The Options menu appears.4Turn to select “Erase,” then push .A message appears, similar to the one in the followingdisplay, prompting you to confirm the erasure.5Push again.The selected entry is erased. After a few seconds, thestandby display reappears.Tips• In addition, you can use the Directory menu to erase one Phone Book entry at a time (seepage 45).• Use the Security menu to erase all Phone Book entries at once (see page 56).SONYhas beensaved inlocation 15.L15Office 123-456-7890 :OptionsL01SONY 123-456-7890 :OptionsL15Erase Phone BookLocation 15? :EraseL15 -erased- L15OPTIONS Erase Send EditCM-M1300_22_35final 3/2/98, 11:47 AM26

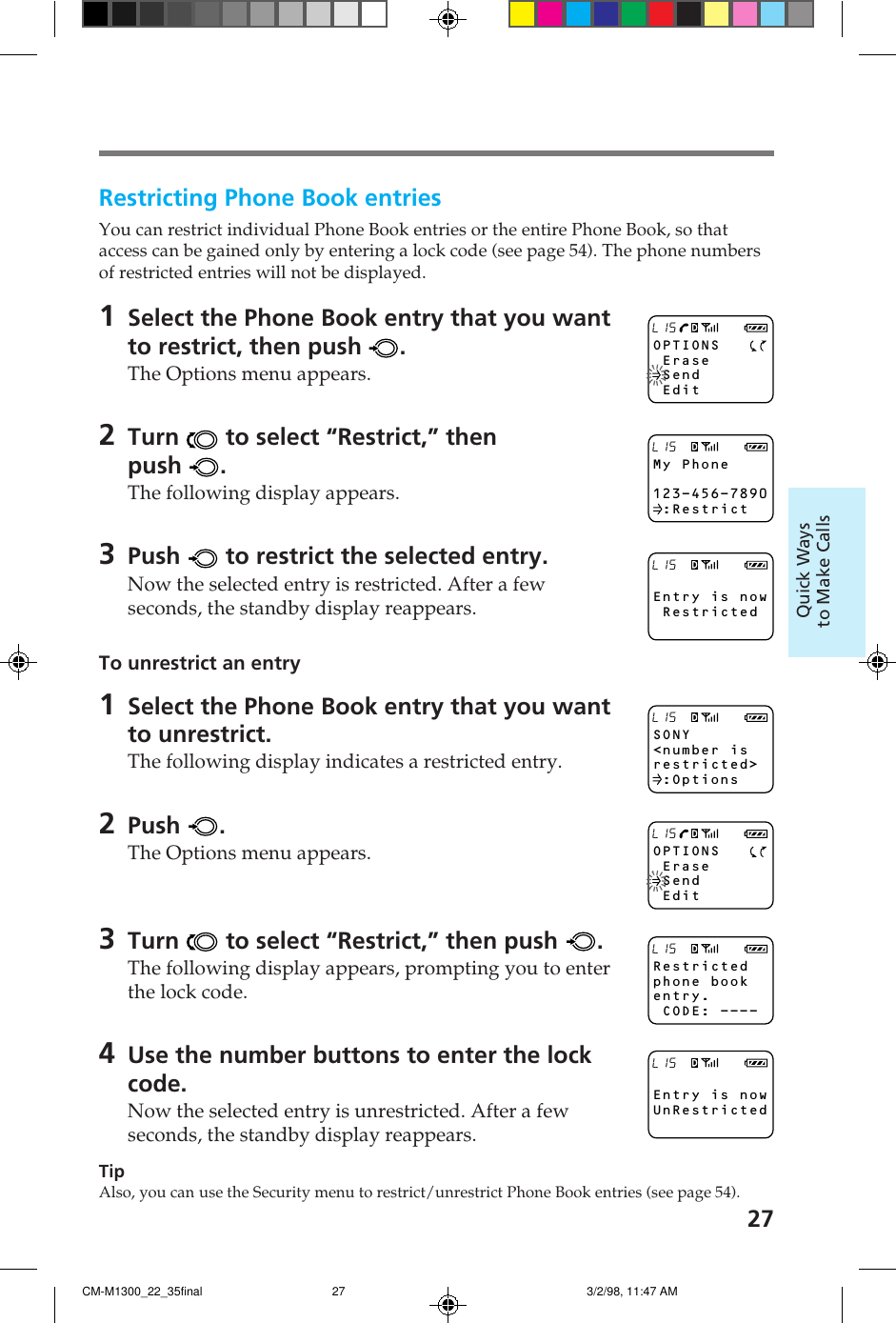

27Quick Waysto Make CallsRestricting Phone Book entriesYou can restrict individual Phone Book entries or the entire Phone Book, so thataccess can be gained only by entering a lock code (see page 54). The phone numbersof restricted entries will not be displayed.1Select the Phone Book entry that you wantto restrict, then push .The Options menu appears.2Turn to select “Restrict,” thenpush .The following display appears.3Push to restrict the selected entry.Now the selected entry is restricted. After a fewseconds, the standby display reappears.To unrestrict an entry1Select the Phone Book entry that you wantto unrestrict.The following display indicates a restricted entry.2Push .The Options menu appears.3Turn to select “Restrict,” then push .The following display appears, prompting you to enterthe lock code.4Use the number buttons to enter the lockcode.Now the selected entry is unrestricted. After a fewseconds, the standby display reappears.TipAlso, you can use the Security menu to restrict/unrestrict Phone Book entries (see page 54).SONY<number is restricted> :OptionsL15My Phone123-456-7890 :RestrictL15Entry is now RestrictedL15Restrictedphone book entry. CODE: ----L15Entry is nowUnRestrictedL15OPTIONS Erase Send EditL15OPTIONS Erase Send EditL15CM-M1300_22_35final 3/2/98, 11:47 AM27

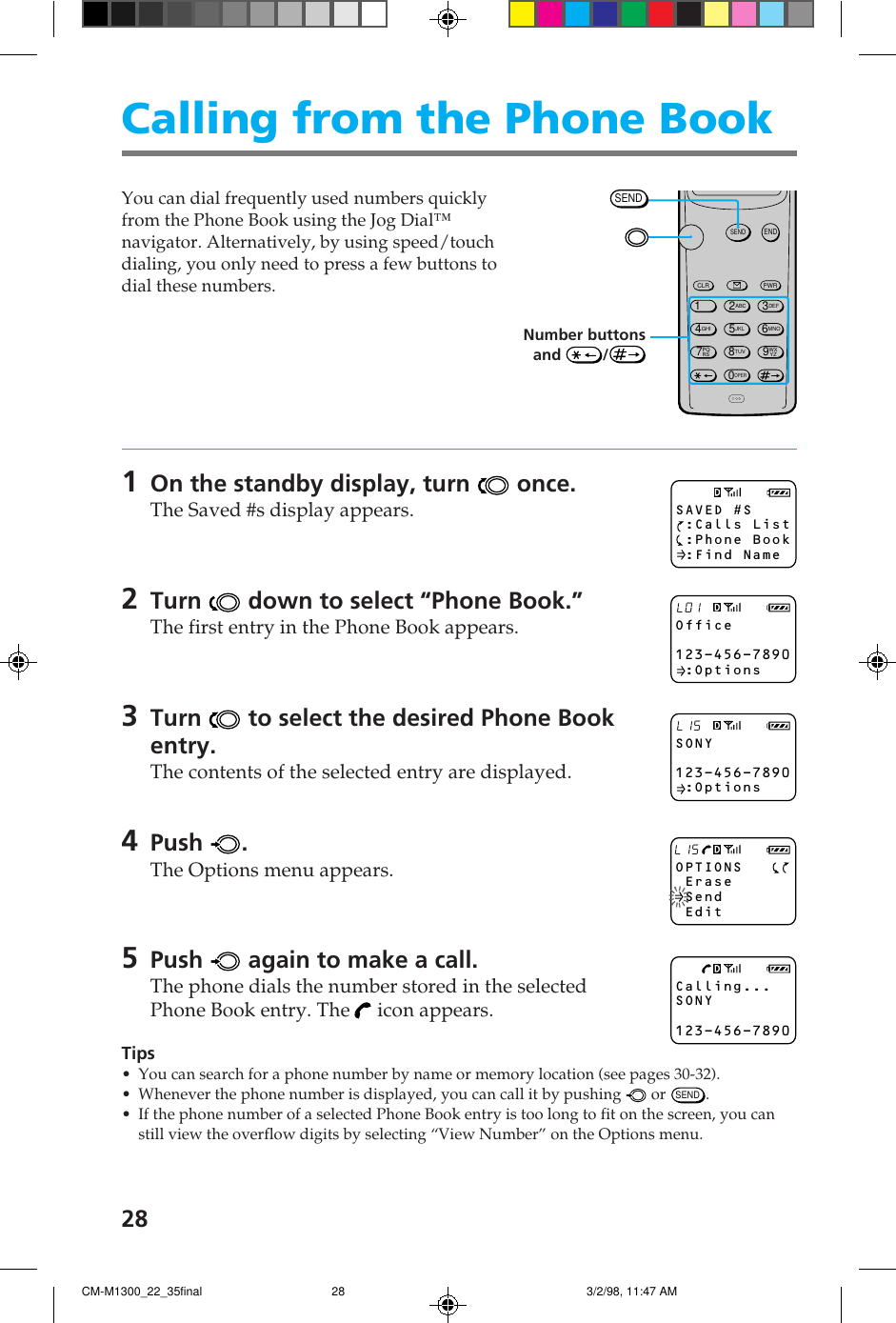

28You can dial frequently used numbers quicklyfrom the Phone Book using the Jog Dial™navigator. Alternatively, by using speed/touchdialing, you only need to press a few buttons todial these numbers.1On the standby display, turn once.The Saved #s display appears.2Turn down to select “Phone Book.”The first entry in the Phone Book appears.3Turn to select the desired Phone Bookentry.The contents of the selected entry are displayed.4Push .The Options menu appears.5Push again to make a call.The phone dials the number stored in the selectedPhone Book entry. The icon appears.Tips• You can search for a phone number by name or memory location (see pages 30-32).• Whenever the phone number is displayed, you can call it by pushing or SEND.• If the phone number of a selected Phone Book entry is too long to fit on the screen, you canstill view the overflow digits by selecting “View Number” on the Options menu.Calling...SONY123-456-7890Calling from the Phone BookOffice 123-456-7890 :OptionsL01SAVED #S :Calls List :Phone Book :Find NameSONY 123-456-7890 :OptionsL152ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDNumber buttonsand /SENDOPTIONS Erase Send EditL15CM-M1300_22_35final 3/2/98, 11:47 AM28

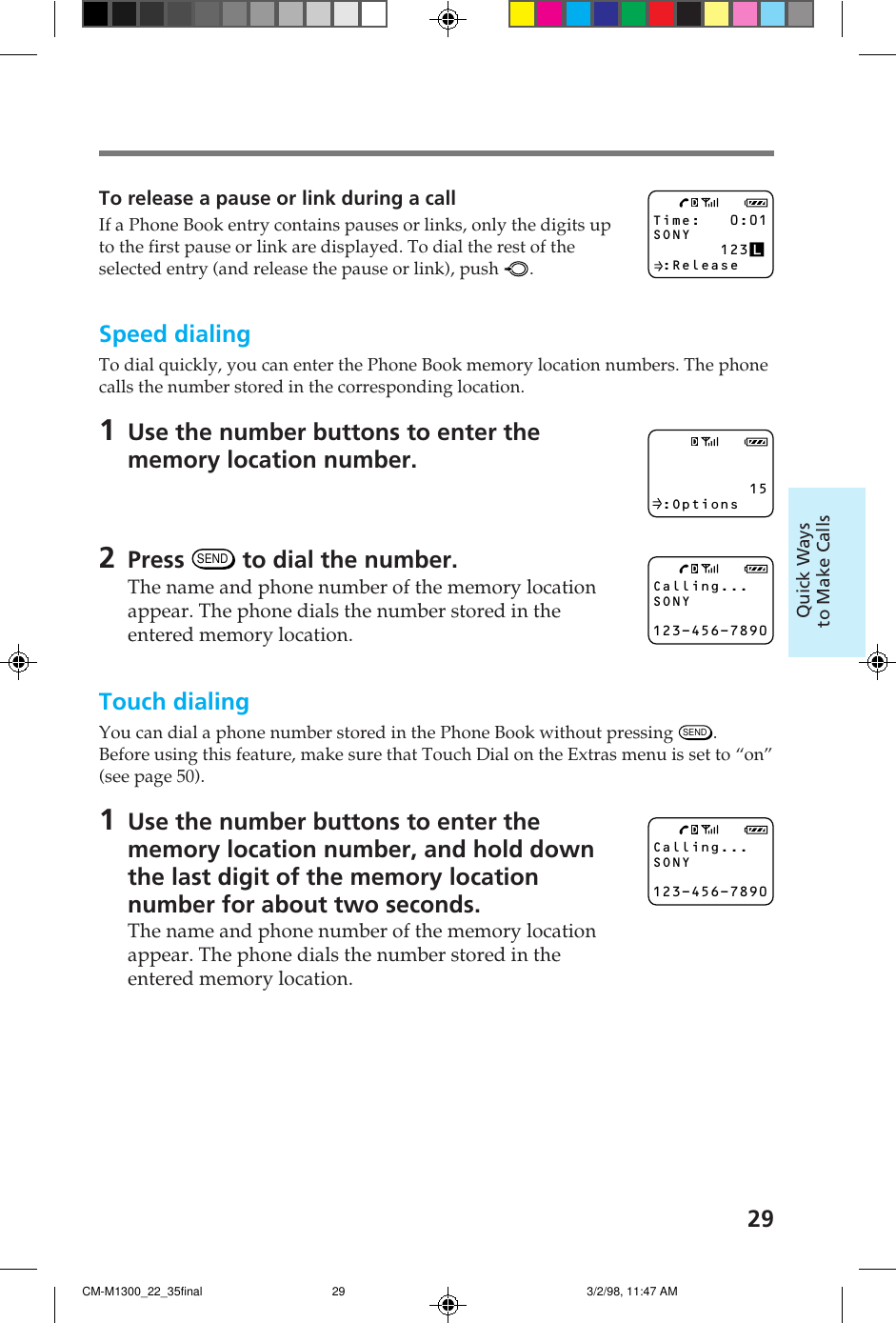

29Quick Waysto Make CallsTo release a pause or link during a callIf a Phone Book entry contains pauses or links, only the digits upto the first pause or link are displayed. To dial the rest of theselected entry (and release the pause or link), push .Speed dialingTo dial quickly, you can enter the Phone Book memory location numbers. The phonecalls the number stored in the corresponding location.1Use the number buttons to enter thememory location number.2Press SEND to dial the number.The name and phone number of the memory locationappear. The phone dials the number stored in theentered memory location.Touch dialingYou can dial a phone number stored in the Phone Book without pressing SEND.Before using this feature, make sure that Touch Dial on the Extras menu is set to “on”(see page 50).1Use the number buttons to enter thememory location number, and hold downthe last digit of the memory locationnumber for about two seconds.The name and phone number of the memory locationappear. The phone dials the number stored in theentered memory location.Time: 0:01SONY 123L :Release Calling...SONY123-456-7890Calling...SONY123-456-7890 15 :OptionsCM-M1300_22_35final 3/2/98, 11:47 AM29

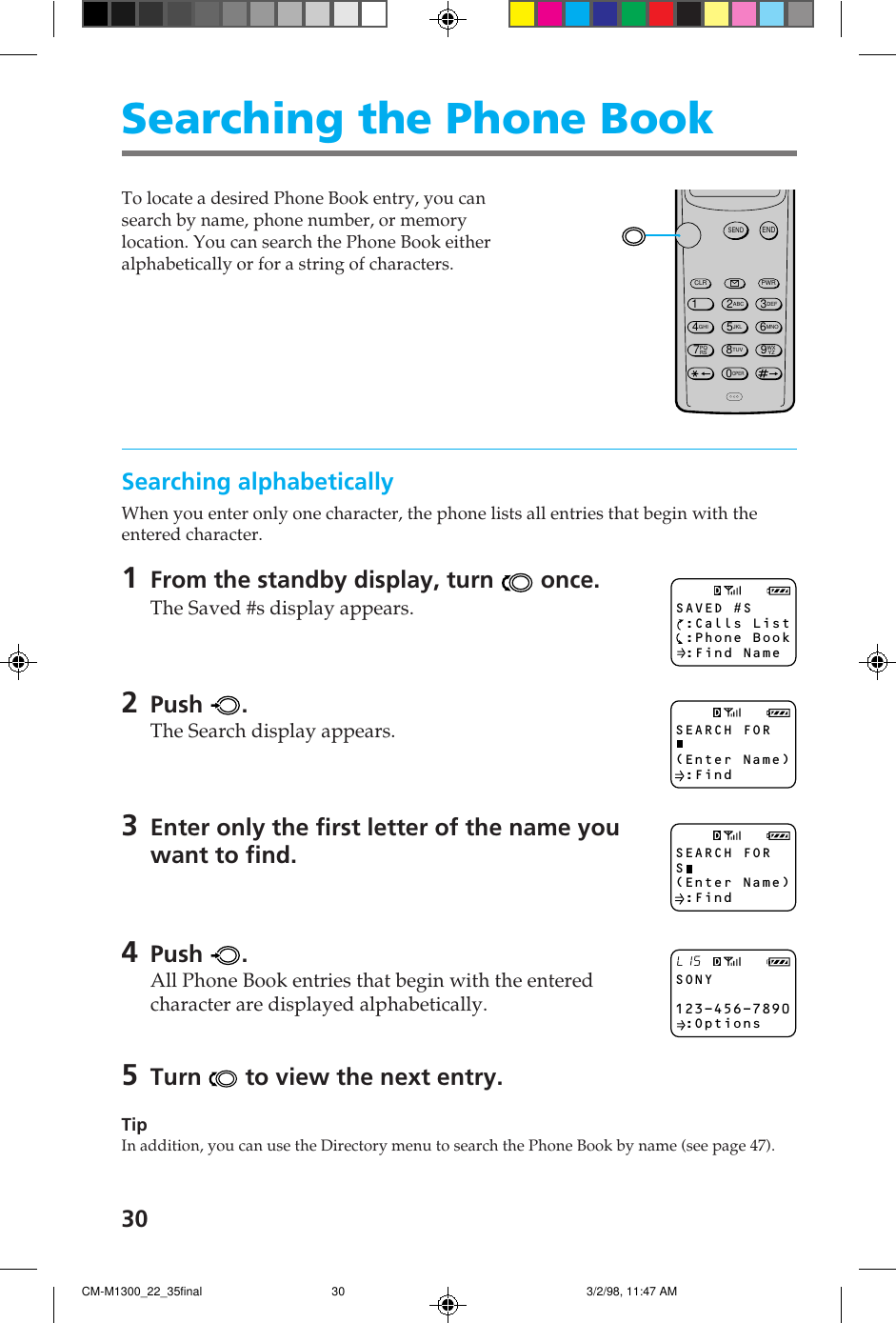

30To locate a desired Phone Book entry, you cansearch by name, phone number, or memorylocation. You can search the Phone Book eitheralphabetically or for a string of characters.Searching alphabeticallyWhen you enter only one character, the phone lists all entries that begin with theentered character.1From the standby display, turn once.The Saved #s display appears.2Push .The Search display appears.3Enter only the first letter of the name youwant to find.4Push .All Phone Book entries that begin with the enteredcharacter are displayed alphabetically.5Turn to view the next entry.TipIn addition, you can use the Directory menu to search the Phone Book by name (see page 47).SEARCH FORS (Enter Name) :FindSONY 123-456-7890 :OptionsL15SEARCH FOR (Enter Name) :FindSAVED #S :Calls List :Phone Book :Find NameSearching the Phone Book2ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDCM-M1300_22_35final 3/2/98, 11:47 AM30

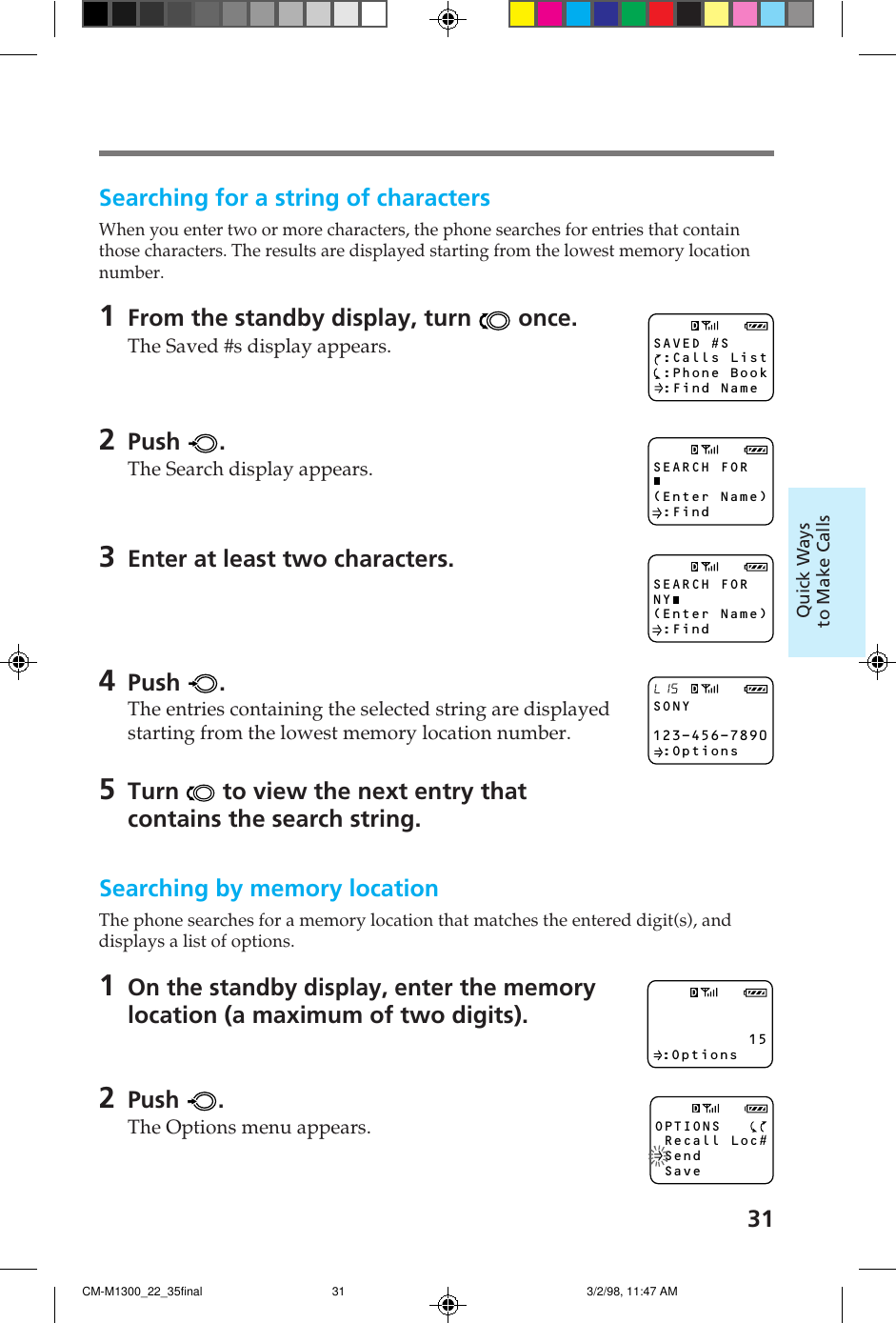

31Quick Waysto Make CallsSearching for a string of charactersWhen you enter two or more characters, the phone searches for entries that containthose characters. The results are displayed starting from the lowest memory locationnumber.1From the standby display, turn once.The Saved #s display appears.2Push .The Search display appears.3Enter at least two characters.4Push .The entries containing the selected string are displayedstarting from the lowest memory location number.5Turn to view the next entry thatcontains the search string.Searching by memory locationThe phone searches for a memory location that matches the entered digit(s), anddisplays a list of options.1On the standby display, enter the memorylocation (a maximum of two digits).2Push .The Options menu appears.OPTIONS Recall Loc# Send Save 15 :OptionsSEARCH FOR (Enter Name) :FindSEARCH FORNY (Enter Name) :FindSONY 123-456-7890 :OptionsL15SAVED #S :Calls List :Phone Book :Find NameCM-M1300_22_35final 3/2/98, 11:47 AM31

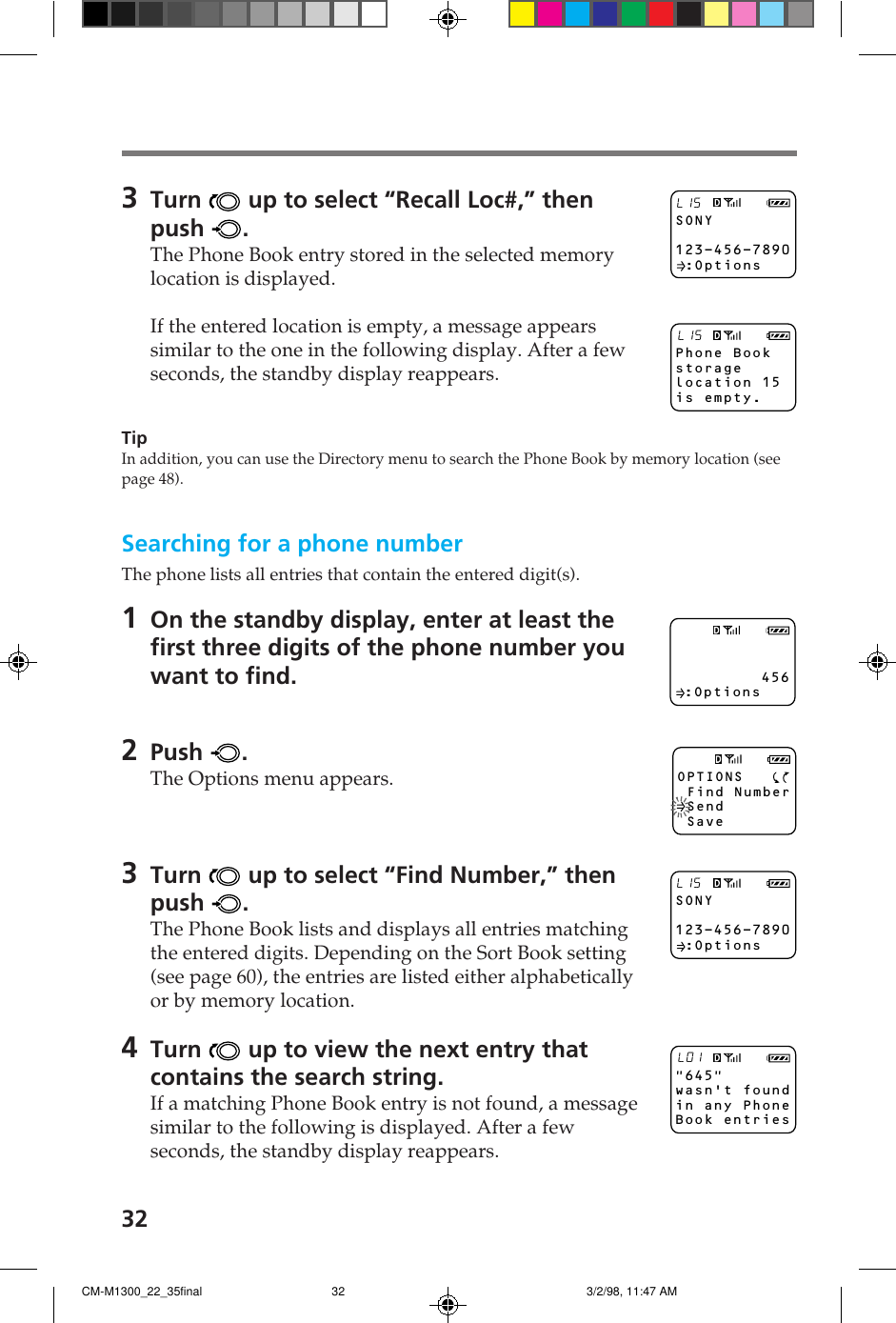

323Turn up to select “Recall Loc#,” thenpush .The Phone Book entry stored in the selected memorylocation is displayed.If the entered location is empty, a message appearssimilar to the one in the following display. After a fewseconds, the standby display reappears.TipIn addition, you can use the Directory menu to search the Phone Book by memory location (seepage 48).Searching for a phone numberThe phone lists all entries that contain the entered digit(s).1On the standby display, enter at least thefirst three digits of the phone number youwant to find.2Push .The Options menu appears.3Turn up to select “Find Number,” thenpush .The Phone Book lists and displays all entries matchingthe entered digits. Depending on the Sort Book setting(see page 60), the entries are listed either alphabeticallyor by memory location.4Turn up to view the next entry thatcontains the search string.If a matching Phone Book entry is not found, a messagesimilar to the following is displayed. After a fewseconds, the standby display reappears.Phone Bookstoragelocation 15is empty.L15SONY 123-456-7890 :OptionsL15SONY 123-456-7890 :OptionsL15"645"wasn't foundin any PhoneBook entriesL01OPTIONS Find Number Send Save 456 :OptionsCM-M1300_22_35final 3/2/98, 11:47 AM32

33Quick Waysto Make CallsCalling from the Calls ListInformation on the ten most recent outgoingcalls, incoming calls, scratch pad entries, andmissed calls are stored in the phone’s Calls List. Ifyou call the same number twice in a row, only themost recent call is stored in the Calls List.1On the standby display, turn once.The Saved #s display appears.2Turn up to select “Calls List.”Information on the most recent call appears.“Calls List is empty” is displayed if there are no entries.3Turn to select the entry you want.The contents of the selected entry are displayed.4Push .The Options menu appears.5Push again to call the selected entry.The phone dials the selected Calls List entry.The icon appears.CALL FROM Office123-456-7890 :OptionsC01SAVED #S :Calls List :Phone Book :Find NameCALL TO SONY123-456-7890 :OptionsC06OPTIONS Save Send DurationC06Calling...SONY123-456-7890C062ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDNumber buttonsand /SENDCM-M1300_22_35final 3/2/98, 11:47 AM33

34Tips• In addition, you can dial by pressing SEND after selecting the entry in step 3 on page 33.• If the selected entry contains a pause or a link, only the digits up to the pause or link aredialed. To release pauses and links, see page 29.• In addition, you can use the Directory menu to view the Calls List (see page 49).To view detailed information of Calls List entriesIn addition, you can view the digits of a phone number that do not fit on the screen,the duration of the call, or the time and date of the call by using the Options menu(see step 4 on page 33).To view Selectdigits that do not fit on the screen View Numberthe duration of the call Durationthe time and date of the call Time/DateTo save the number to the Phone BookSelect “Save” from the Options menu (step 4 on page 33) by pushing the Jog Dial™navigator.CM-M1300_22_35final 3/2/98, 11:47 AM34

35Quick Waysto Make CallsYou can send DTMF (Dual Tone MultipleFrequency) signals to access electronic services(such as telephone banking) when dialingnumbers from the Phone Book. Dual ToneMultiple Frequency is also known as “touch-tone.” A tone is generated when you press atelephone button (number, *, or #). It can be usedto access answering machines, pagers, telephonebanking services, data services, and otherelectronic services.1During a call, search for the Phone Bookentry that contains the numbers you wantto send.The selected entry is displayed. Use the Directorymenu to search for the Phone Book entry (see pages 47and 48).2Push .The Options menu appears.3Turn to select “Number Tone,” thenpush .A DTMF signal, containing the entered digits, is sent ina burst.DTMF signal in standby modeIf you try to send a DTMF signal in standby mode, the followingmessage is displayed. You can send a DTMF signal only during acall.Notes• To enter and send numbers one by one during a call, use the number buttons to send theDTMF number.• To change the length of the DTMF transmission, see “Setting the keybeep length” on page 41.Sending DTMF signals from the Phone BookTones canbe playedonly duringa call.L01SONY 123-456-7890 :OptionsL15OPTIONS Erase Send EditL152ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDNumber buttonsand /CM-M1300_22_35final 3/2/98, 11:47 AM35

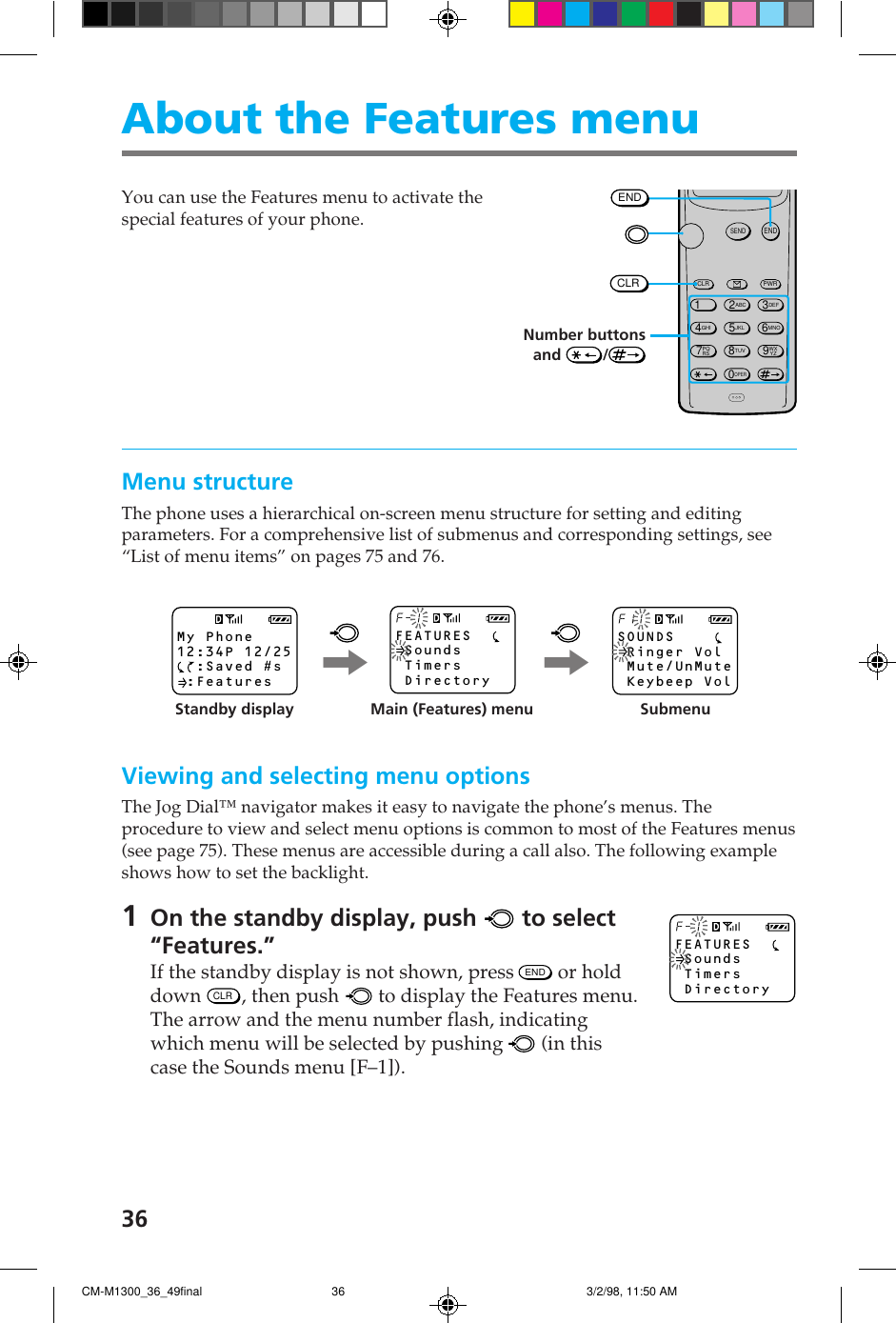

36You can use the Features menu to activate thespecial features of your phone.Menu structureThe phone uses a hierarchical on-screen menu structure for setting and editingparameters. For a comprehensive list of submenus and corresponding settings, see“List of menu items” on pages 75 and 76.Viewing and selecting menu optionsThe Jog Dial™ navigator makes it easy to navigate the phone’s menus. Theprocedure to view and select menu options is common to most of the Features menus(see page 75). These menus are accessible during a call also. The following exampleshows how to set the backlight.1On the standby display, push to select“Features.”If the standby display is not shown, press END or holddown CLR, then push to display the Features menu.The arrow and the menu number flash, indicatingwhich menu will be selected by pushing (in thiscase the Sounds menu [F–1]).About the Features menuMy Phone12:34P 12/25 :Saved #s :FeaturesFEATURES Sounds Timers DirectoryF-1SOUNDS Ringer Vol Mute/UnMute Keybeep VolF11Standby display Main (Features) menu SubmenuFEATURES Sounds Timers DirectoryF-12ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDNumber buttonsand /ENDCLR/ /CM-M1300_36_49final 3/2/98, 11:50 AM36

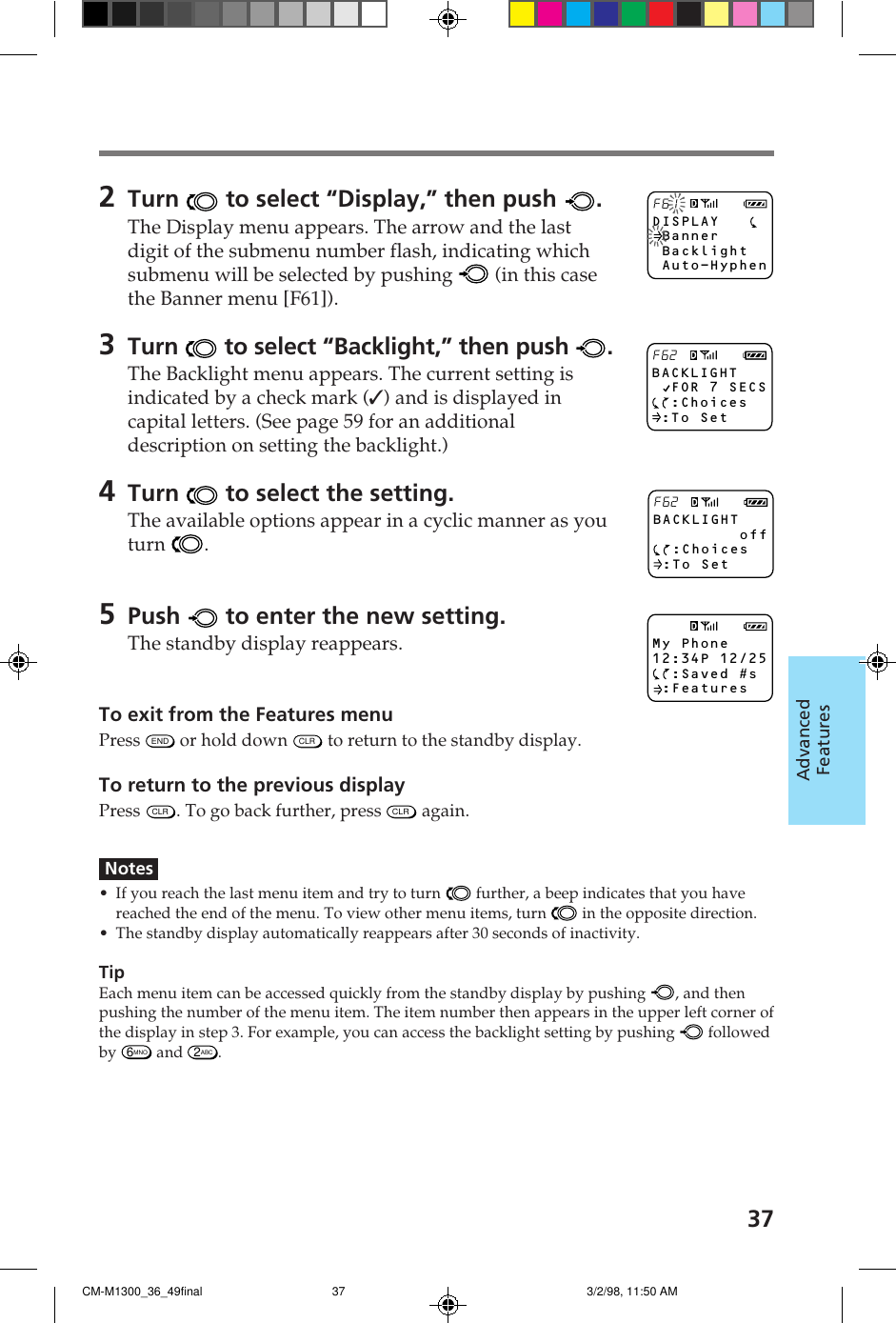

37AdvancedFeatures2Turn to select “Display,” then push .The Display menu appears. The arrow and the lastdigit of the submenu number flash, indicating whichsubmenu will be selected by pushing (in this casethe Banner menu [F61]).3Turn to select “Backlight,” then push .The Backlight menu appears. The current setting isindicated by a check mark (✓) and is displayed incapital letters. (See page 59 for an additionaldescription on setting the backlight.)4Turn to select the setting.The available options appear in a cyclic manner as youturn .5Push to enter the new setting.The standby display reappears.To exit from the Features menuPress END or hold down CLR to return to the standby display.To return to the previous displayPress CLR. To go back further, press CLR again.Notes• If you reach the last menu item and try to turn further, a beep indicates that you havereached the end of the menu. To view other menu items, turn in the opposite direction.• The standby display automatically reappears after 30 seconds of inactivity.TipEach menu item can be accessed quickly from the standby display by pushing , and thenpushing the number of the menu item. The item number then appears in the upper left corner ofthe display in step 3. For example, you can access the backlight setting by pushing followedby 6MNO and 2ABC .DISPLAY Banner Backlight Auto-HyphenF61BACKLIGHT FOR 7 SECS :Choices :To SetF62BACKLIGHT off :Choices :To SetF62My Phone12:34P 12/25 :Saved #s :FeaturesCM-M1300_36_49final 3/2/98, 11:50 AM37

38You can adjust the volume of the ringer, keybeep, and earpieceon the Sounds menu. In addition, you can select the type ofsound heard when the phone rings and when you press buttons.(See page 36 for instructions on how to reach the Sounds menu.)Adjusting the ringer volume [F11]1Push to select “Ringer Vol.” from theSounds menu.The Ringer Vol. menu appears.2Turn up to raise the ringer volume,and down to lower it.You can select from five ringer volume settings: “off,”“low,” “med.” (medium), “high,” and “escalate.”3Push to enter the new setting.The standby display reappears.If you turn off the ringer volumeThe message “–Ringer Off–” is displayed at the top of the screenwhen the standby display appears.TipIf you set the ringer volume to “escalate,” the telephone rings twice at a low volume, then onceat medium volume, and thereafter at a high volume.Muting/unmuting the microphone [F12]You can mute/unmute the phone during a call directly, without using the Soundsmenu by pushing and holding .In addition, you can mute/unmute the microphone during a call using the Soundsmenu. This feature is disabled in standby mode.1During a call, push to select “Sounds”from the Features menu.The Sounds menu appears.Adjusting the volume-Ringer Off-12:34P 12/25 :Saved #s :FeaturesSOUNDS Ringer Vol Mute/UnMute Keybeep VolF11RINGER VOL. HIGH :Choices :To SetF11RINGER VOL. med. :Choices :To SetF11SOUNDS Ringer Vol Mute/UnMute Keybeep VolF12Sounds menuCM-M1300_36_49final 3/2/98, 11:50 AM38

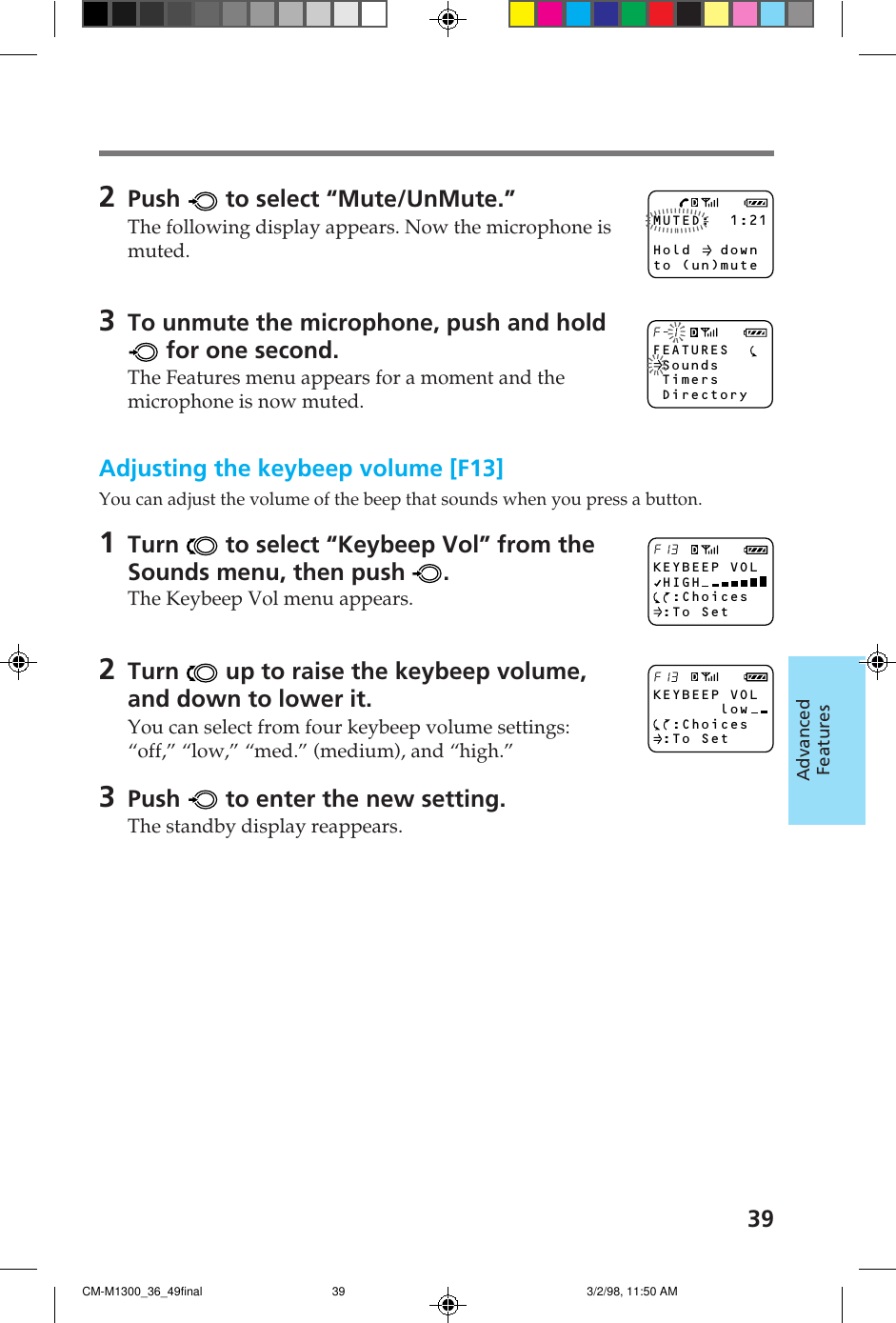

39AdvancedFeatures2Push to select “Mute/UnMute.”The following display appears. Now the microphone ismuted.3To unmute the microphone, push and hold for one second.The Features menu appears for a moment and themicrophone is now muted.Adjusting the keybeep volume [F13]You can adjust the volume of the beep that sounds when you press a button.1Turn to select “Keybeep Vol” from theSounds menu, then push .The Keybeep Vol menu appears.2Turn up to raise the keybeep volume,and down to lower it.You can select from four keybeep volume settings:“off,” “low,” “med.” (medium), and “high.”3Push to enter the new setting.The standby display reappears.MUTED: 1:21Hold downto (un)muteFEATURES Sounds Timers DirectoryF-1KEYBEEP VOL HIGH :Choices :To SetF13KEYBEEP VOL low :Choices :To SetF13CM-M1300_36_49final 3/2/98, 11:50 AM39

40Adjusting the earpiece volume [F14]You can adjust the earpiece volume during a call by turning . In addition, you can adjust thespeaker volume as follows:1Turn to select “Earpiece Vol” from theSounds menu, then push .The Earpiece Vol menu appears.2Turn up to raise the earpiece volume,and down to lower it.You can select from seven earpiece volume settings, from“1” to “7.” A higher number indicates higher volume.3Push to enter the new setting.The standby display reappears.Setting the ringer type [F15]You can set the type of beep that sounds for an incoming call.1Turn to select “Ringer Type” from theSounds menu, then push .The Ringer Type menu appears.2Turn to select the ringer type.You can select from five different ringer settings.The ringer sounds every time you turn .3Push to enter the new setting.The standby display reappears.RINGER TYPE STANDARD :Choices :To SetF15RINGER TYPE option 2 :Choices :To SetF15EARPIECE VOL 7 :Choices To SetF14EARPIECE VOL 4 :Choices :To SetF14CM-M1300_36_49final 3/2/98, 11:50 AM40

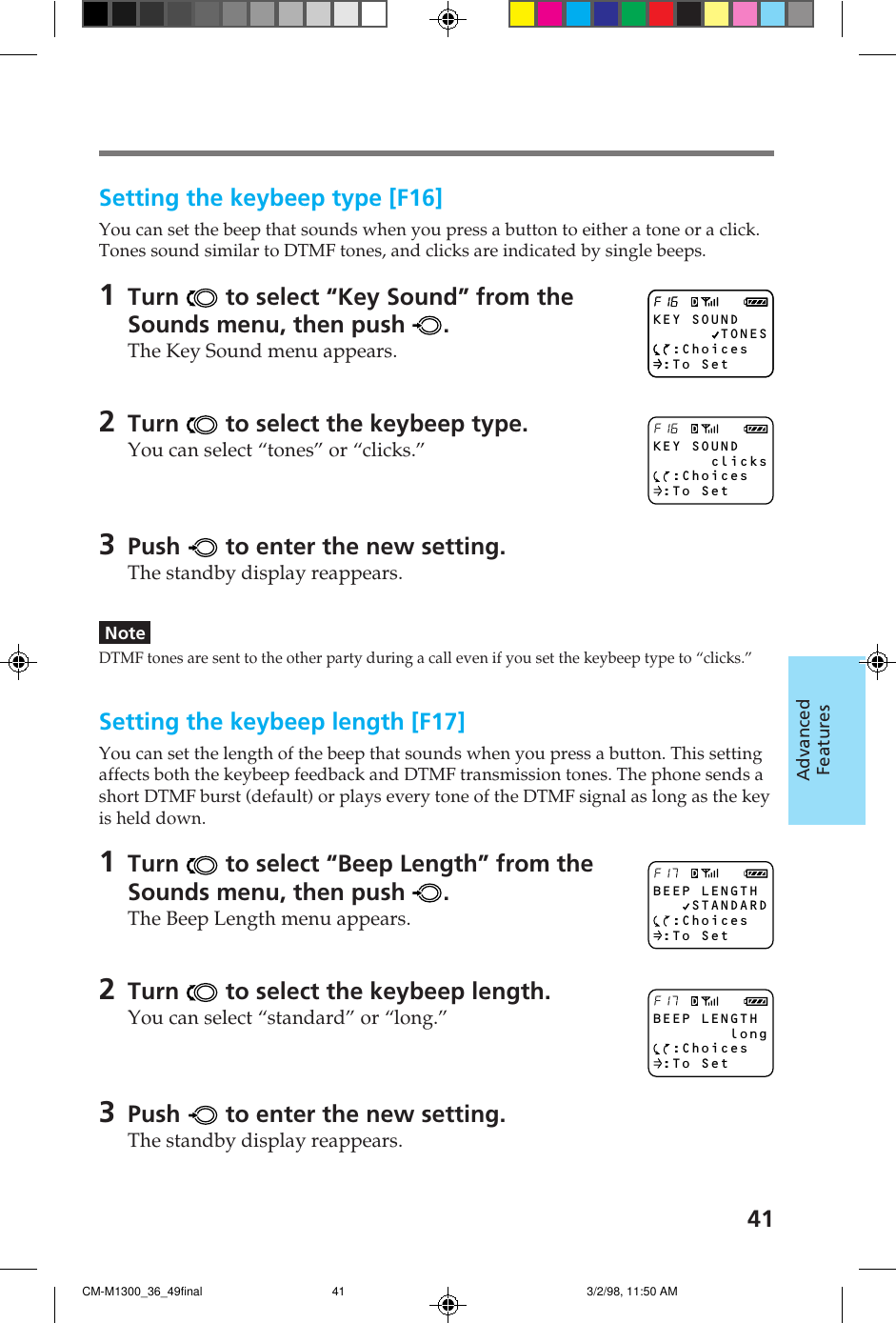

41AdvancedFeaturesSetting the keybeep type [F16]You can set the beep that sounds when you press a button to either a tone or a click.Tones sound similar to DTMF tones, and clicks are indicated by single beeps.1Turn to select “Key Sound” from theSounds menu, then push .The Key Sound menu appears.2Turn to select the keybeep type.You can select “tones” or “clicks.”3Push to enter the new setting.The standby display reappears.NoteDTMF tones are sent to the other party during a call even if you set the keybeep type to “clicks.”Setting the keybeep length [F17]You can set the length of the beep that sounds when you press a button. This settingaffects both the keybeep feedback and DTMF transmission tones. The phone sends ashort DTMF burst (default) or plays every tone of the DTMF signal as long as the keyis held down.1Turn to select “Beep Length” from theSounds menu, then push .The Beep Length menu appears.2Turn to select the keybeep length.You can select “standard” or “long.”3Push to enter the new setting.The standby display reappears.F16KEY SOUND TONES :Choices :To SetF16KEY SOUND clicks :Choices :To SetF16BEEP LENGTH STANDARD :Choices :To SetF17BEEP LENGTH long :Choices :To SetF17CM-M1300_36_49final 3/2/98, 11:50 AM41

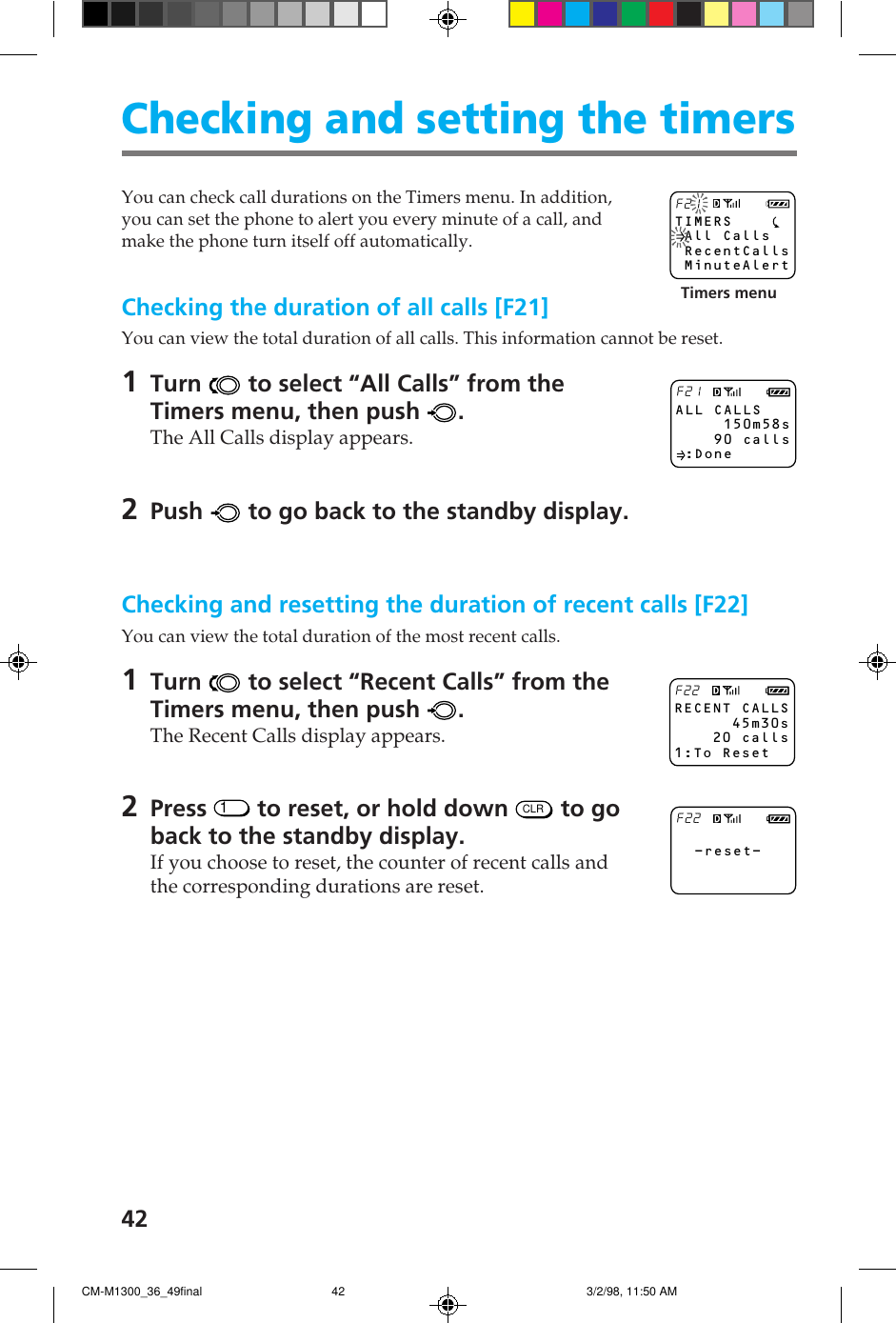

42You can check call durations on the Timers menu. In addition,you can set the phone to alert you every minute of a call, andmake the phone turn itself off automatically.Checking the duration of all calls [F21]You can view the total duration of all calls. This information cannot be reset.1Turn to select “All Calls” from theTimers menu, then push .The All Calls display appears.2Push to go back to the standby display.Checking and resetting the duration of recent calls [F22]You can view the total duration of the most recent calls.1Turn to select “Recent Calls” from theTimers menu, then push .The Recent Calls display appears.2Press 1 to reset, or hold down CLR to goback to the standby display.If you choose to reset, the counter of recent calls andthe corresponding durations are reset.Checking and setting the timersTIMERS All Calls RecentCalls MinuteAlertF21ALL CALLS 150m58s 90 calls :DoneF21RECENT CALLS 45m30s 20 calls1:To ResetF22 -reset- F22Timers menuCM-M1300_36_49final 3/2/98, 11:50 AM42

43AdvancedFeaturesSetting the minute alert [F23]You can set the phone to alert you ten seconds before every full minute.1Turn to select “Minute Alert” from theTimers menu, then push .The Minute Alert menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.Setting the phone to automatically turn off [F24]You can set the phone to automatically turn itself off after a specified duration.1Turn to select “Auto-Off” from theTimers menu, then push .The Auto-Off menu appears.2Turn to select the duration before thephone powers off automatically.You can select from five settings: “never,” “in 3 hours,”“in 2 hours,” “in 1 hour,” and “in 30 mins.” If youselect “never,” the phone does not turn itself offautomatically.3Push to enter the new setting.If you set the phone to power off in 30 minutes, forexample, the following display appears.Notes• If you press any button or operate the Jog Dial™ navigator, the timer is reset and the countdownstarts over.• The phone does not turn itself off automatically during a call.• If the Auto-Off timer is set, the phone turns off after a user-specified duration and thecountdown “Off:xx:xx:xx” is displayed.• Once the phone turns off, the setting will revert to “never.”MINUTE ALERT OFF :Choices :To SetF23FMINUTE ALERT on :Choices :To SetF23FAUTO-OFF NEVER :Choices :To SetF24FAUTO-OFF in 30 mins :Choices :To SetF24FPhone will turn off in 30 minutes.F24FCM-M1300_36_49final 3/2/98, 11:50 AM43

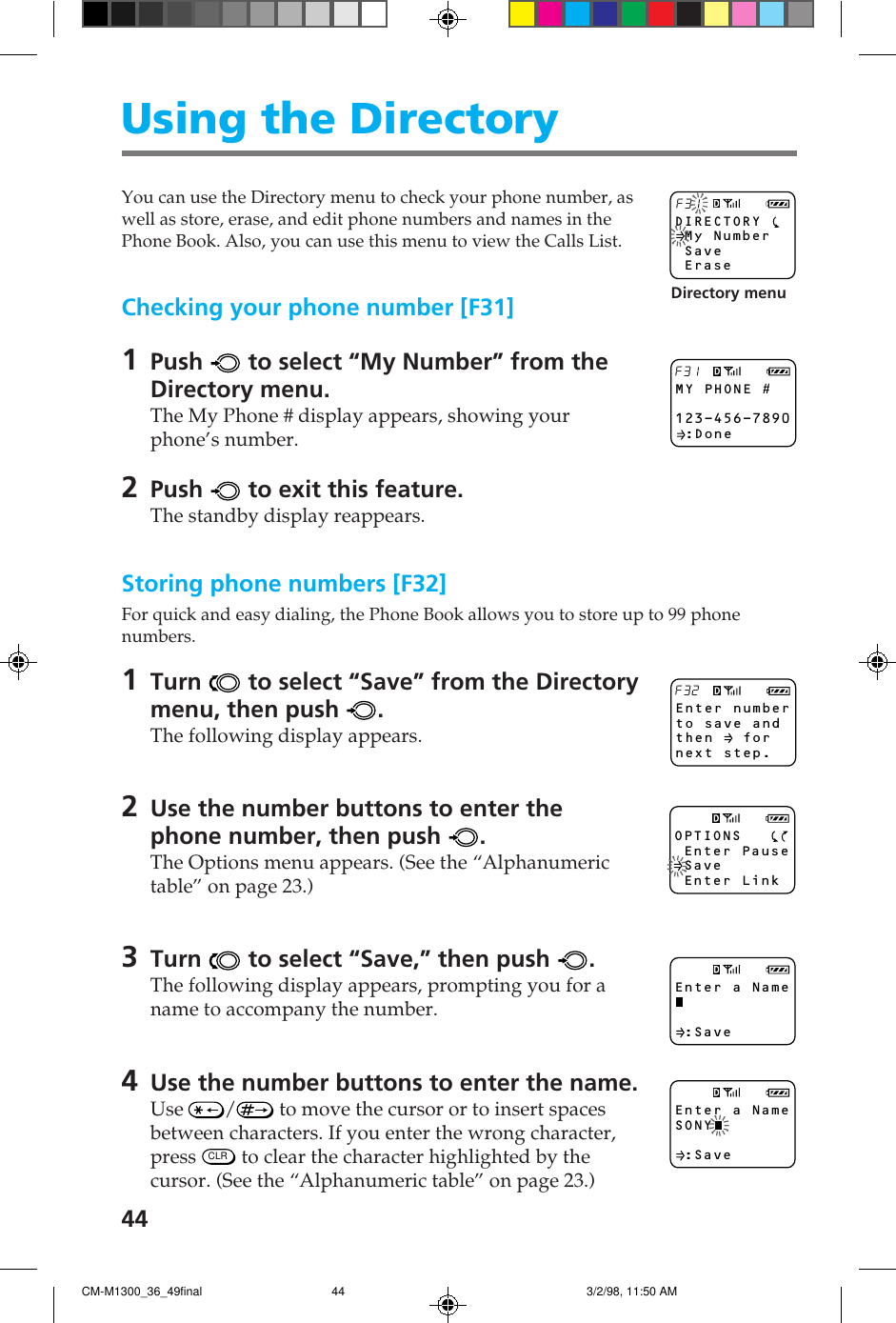

44You can use the Directory menu to check your phone number, aswell as store, erase, and edit phone numbers and names in thePhone Book. Also, you can use this menu to view the Calls List.Checking your phone number [F31]1Push to select “My Number” from theDirectory menu.The My Phone # display appears, showing yourphone’s number.2Push to exit this feature.The standby display reappears.Storing phone numbers [F32]For quick and easy dialing, the Phone Book allows you to store up to 99 phonenumbers.1Turn to select “Save” from the Directorymenu, then push .The following display appears.2Use the number buttons to enter thephone number, then push .The Options menu appears. (See the “Alphanumerictable” on page 23.)3Turn to select “Save,” then push .The following display appears, prompting you for aname to accompany the number.4Use the number buttons to enter the name.Use / to move the cursor or to insert spacesbetween characters. If you enter the wrong character,press CLR to clear the character highlighted by thecursor. (See the “Alphanumeric table” on page 23.)Enter a Name :SaveEnter a NameSONY :SaveEnter number to save and then for next step.F32Using the DirectoryDIRECTORY My Number Save EraseF31MY PHONE #123-456-7890 :DoneF31OPTIONS Enter Pause Save Enter LinkDirectory menuCM-M1300_36_49final 3/2/98, 11:50 AM44

45AdvancedFeatures5When you are finished, push to storethe phone number and name.A display similar to the following appears.6Push to store the new number in thefirst available memory location.If you want to store it in another location, turn toselect the desired location, then push .A confirmation message appears, followed by thestatus of the Phone Book.TipIn addition, you can use the Options menu to store Phone Book numbers (see page 22).Erasing a phone number [F33]You can erase stored Phone Book entries. If the selected entry is restricted, you mustenter the four-digit lock code to erase it (see page 54).1Turn to select “Erase” from theDirectory menu, then push .The following display appears, prompting you for thePhone Book entry to be erased.2Turn to select the entry you want toerase, then push .A display similar to the following appears, promptingyou to confirm that the selected Phone Book entryshould be erased. In addition, you can use the numberbuttons to select the entry to be erased.3Push again.The selected entry is erased. After a few seconds, thestandby display reappears.Tips• Also, you can use the Options menu to erase one Phone Book entry at a time (see page 26).• Use the Security menu to erase all Phone Book entries at once (see page 56).Save in location 15? :Save :Other LocSONYhas beensaved inlocation 15.L15PHONE BOOK LOCATIONS: 21 used 78 emptyv -erased- L15Erase Phone BookLocation 15? :EraseL15 to findentry toerase thento select.F33CM-M1300_36_49final 3/2/98, 11:50 AM45

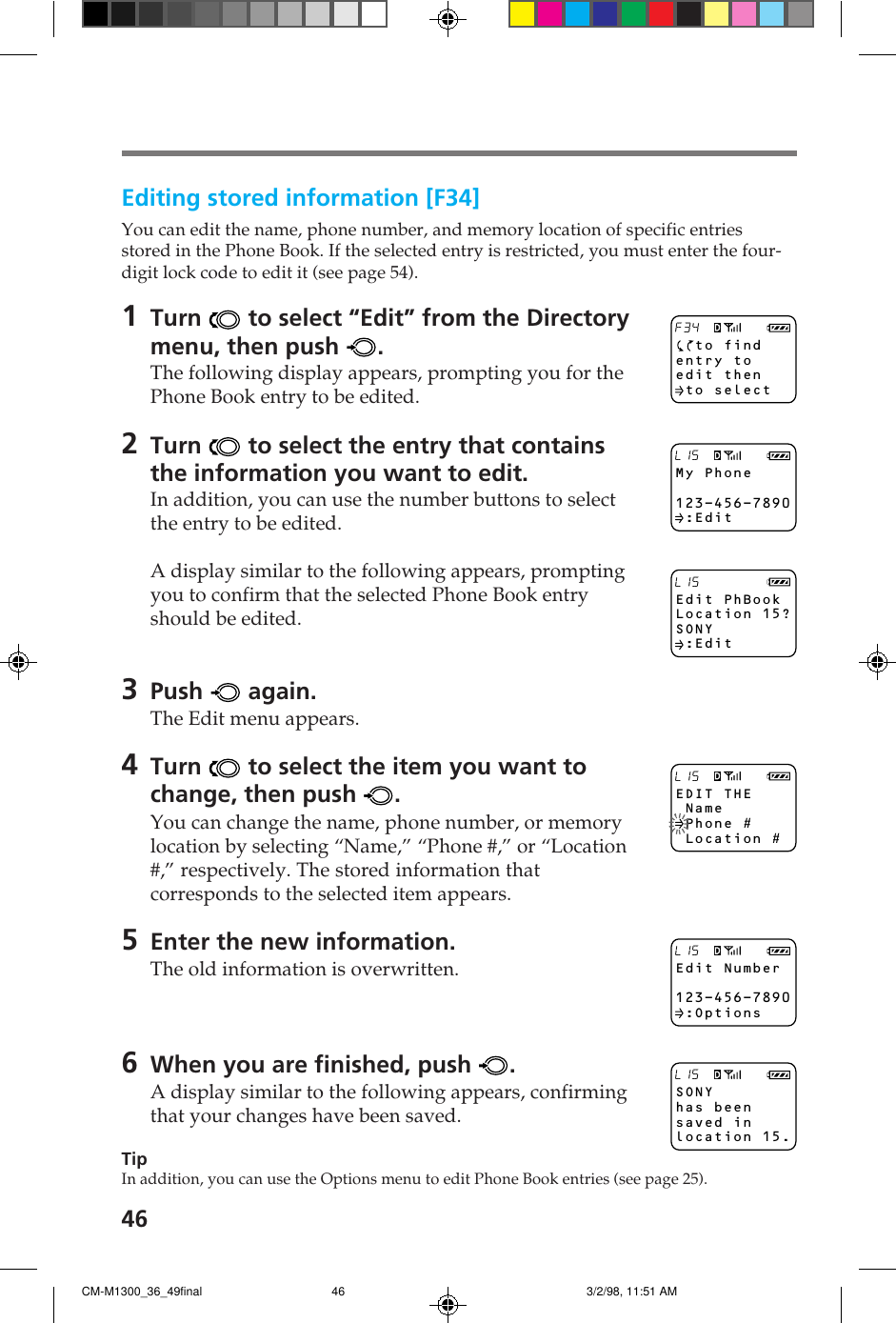

46SONYhas beensaved inlocation 15.L15Editing stored information [F34]You can edit the name, phone number, and memory location of specific entriesstored in the Phone Book. If the selected entry is restricted, you must enter the four-digit lock code to edit it (see page 54).1Turn to select “Edit” from the Directorymenu, then push .The following display appears, prompting you for thePhone Book entry to be edited.2Turn to select the entry that containsthe information you want to edit.In addition, you can use the number buttons to selectthe entry to be edited.A display similar to the following appears, promptingyou to confirm that the selected Phone Book entryshould be edited.3Push again.The Edit menu appears.4Turn to select the item you want tochange, then push .You can change the name, phone number, or memorylocation by selecting “Name,” “Phone #,” or “Location#,” respectively. The stored information thatcorresponds to the selected item appears.5Enter the new information.The old information is overwritten.6When you are finished, push .A display similar to the following appears, confirmingthat your changes have been saved.TipIn addition, you can use the Options menu to edit Phone Book entries (see page 25). to findentry to edit then to selectF34Edit PhBookLocation 15? SONY :EditL15EDIT THE Name Phone # Location #L15Edit Number123-456-7890 :OptionsL15My Phone123-456-7890 :EditL15CM-M1300_36_49final 3/2/98, 11:51 AM46

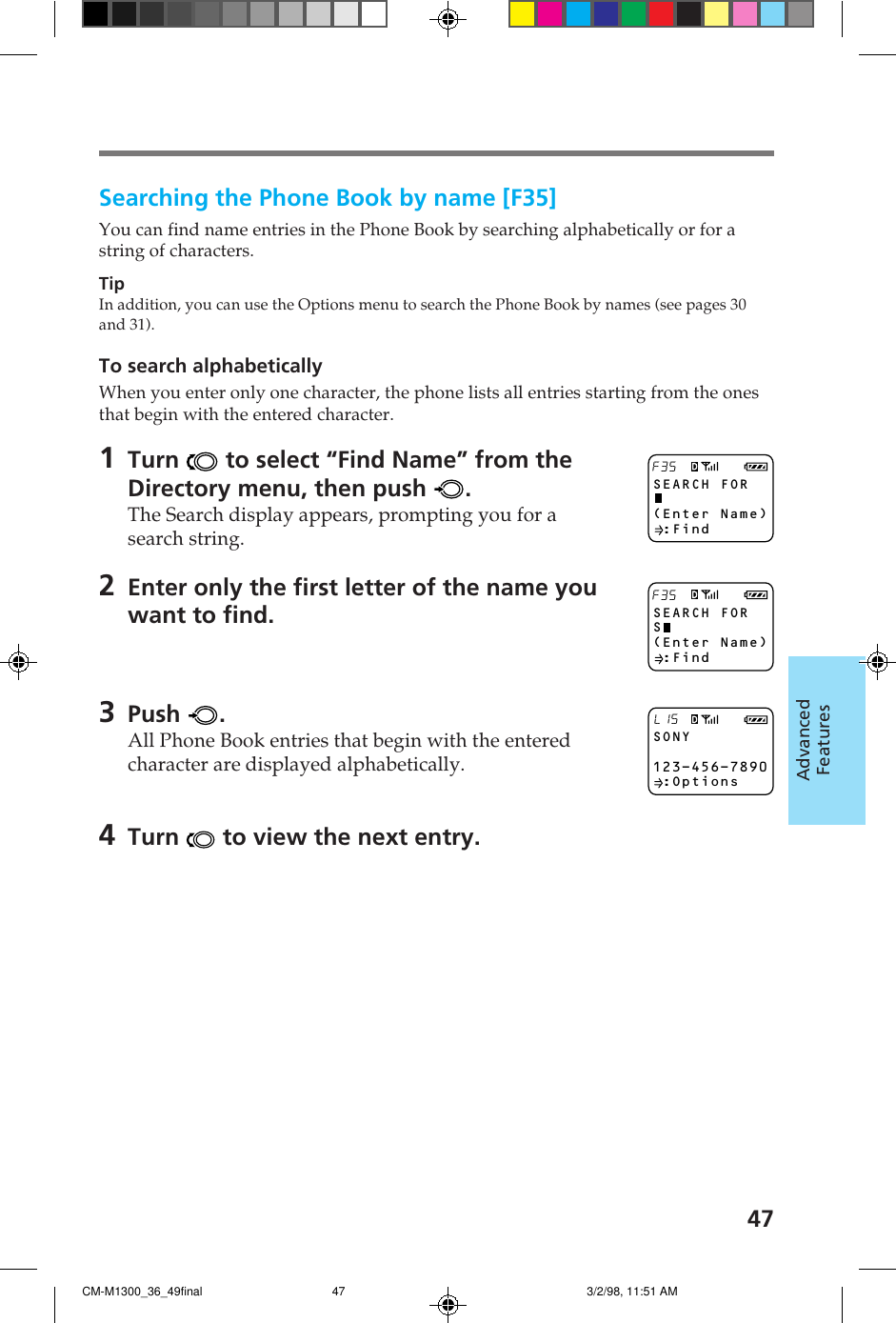

47AdvancedFeaturesSearching the Phone Book by name [F35]You can find name entries in the Phone Book by searching alphabetically or for astring of characters.TipIn addition, you can use the Options menu to search the Phone Book by names (see pages 30and 31).To search alphabeticallyWhen you enter only one character, the phone lists all entries starting from the onesthat begin with the entered character.1Turn to select “Find Name” from theDirectory menu, then push .The Search display appears, prompting you for asearch string.2Enter only the first letter of the name youwant to find.3Push .All Phone Book entries that begin with the enteredcharacter are displayed alphabetically.4Turn to view the next entry.SEARCH FORS(Enter Name) :FindF35SONY 123-456-7890 :OptionsL15SEARCH FOR(Enter Name) :FindF35CM-M1300_36_49final 3/2/98, 11:51 AM47

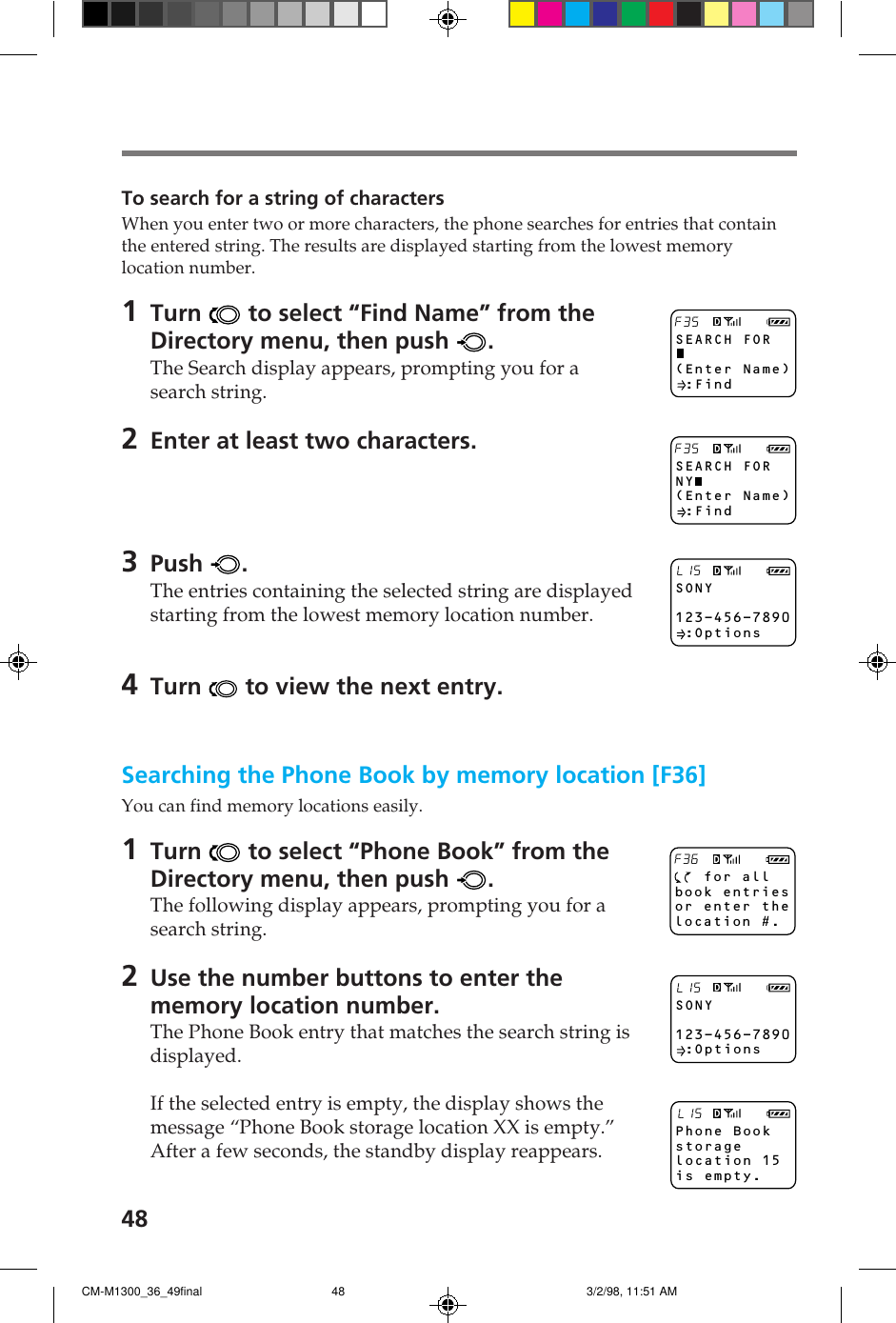

48To search for a string of charactersWhen you enter two or more characters, the phone searches for entries that containthe entered string. The results are displayed starting from the lowest memorylocation number.1Turn to select “Find Name” from theDirectory menu, then push .The Search display appears, prompting you for asearch string.2Enter at least two characters.3Push .The entries containing the selected string are displayedstarting from the lowest memory location number.4Turn to view the next entry.Searching the Phone Book by memory location [F36]You can find memory locations easily.1Turn to select “Phone Book” from theDirectory menu, then push .The following display appears, prompting you for asearch string.2Use the number buttons to enter thememory location number.The Phone Book entry that matches the search string isdisplayed.If the selected entry is empty, the display shows themessage “Phone Book storage location XX is empty.”After a few seconds, the standby display reappears. for all book entries or enter the location #.F36SONY 123-456-7890 :OptionsL15Phone Bookstoragelocation 15is empty.L15SEARCH FOR(Enter Name) :FindF35SEARCH FORNY(Enter Name) :FindF35SONY 123-456-7890 :OptionsL15CM-M1300_36_49final 3/2/98, 11:51 AM48

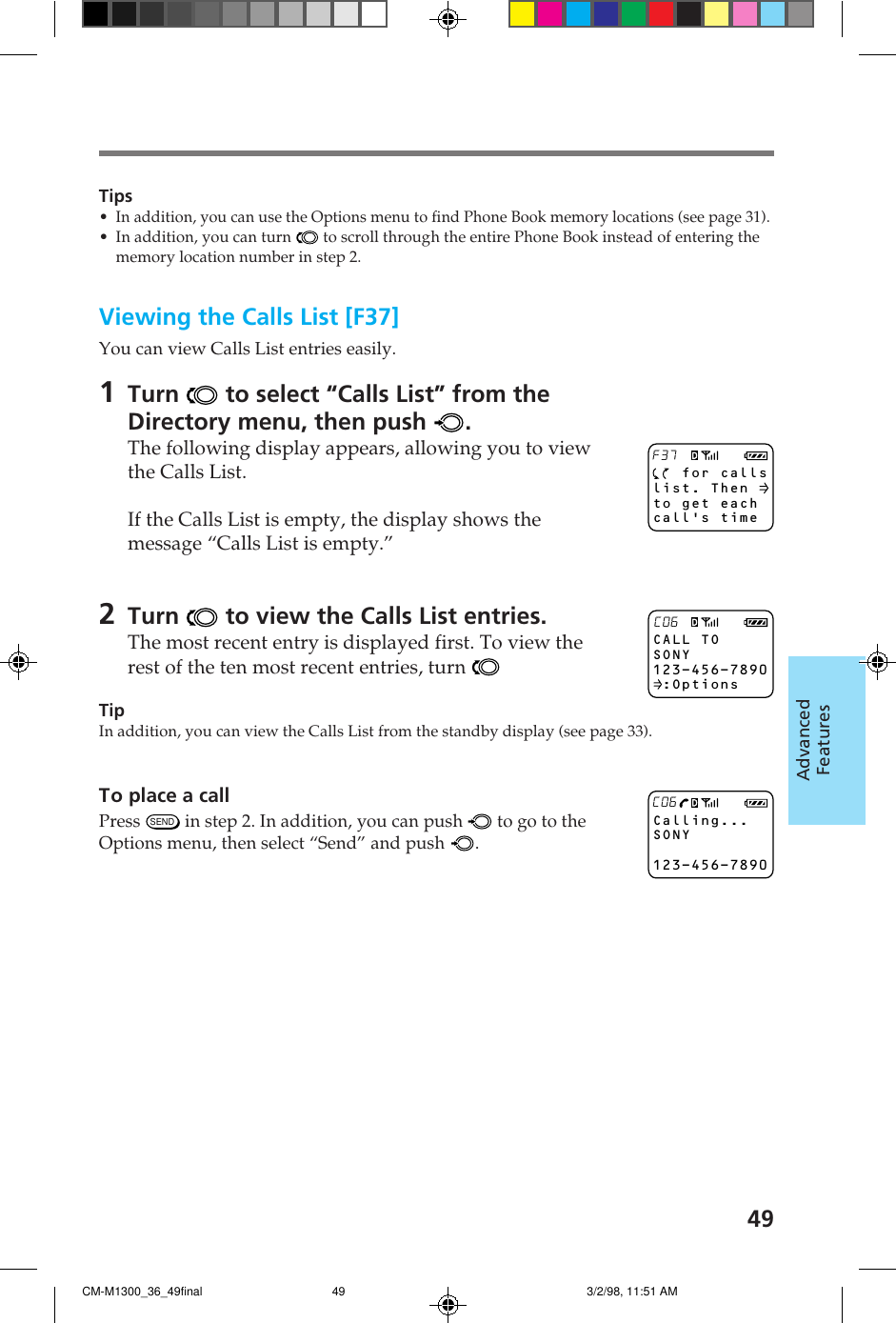

49AdvancedFeaturesTips• In addition, you can use the Options menu to find Phone Book memory locations (see page 31).• In addition, you can turn to scroll through the entire Phone Book instead of entering thememory location number in step 2.Viewing the Calls List [F37]You can view Calls List entries easily.1Turn to select “Calls List” from theDirectory menu, then push .The following display appears, allowing you to viewthe Calls List.If the Calls List is empty, the display shows themessage “Calls List is empty.”2Turn to view the Calls List entries.The most recent entry is displayed first. To view therest of the ten most recent entries, turn TipIn addition, you can view the Calls List from the standby display (see page 33).To place a callPress SEND in step 2. In addition, you can push to go to theOptions menu, then select “Send” and push . for calls list. Then to get each call's timeF37CALL TO SONY123-456-7890 :OptionsC06Calling...SONY123-456-7890C06CM-M1300_36_49final 3/2/98, 11:51 AM49

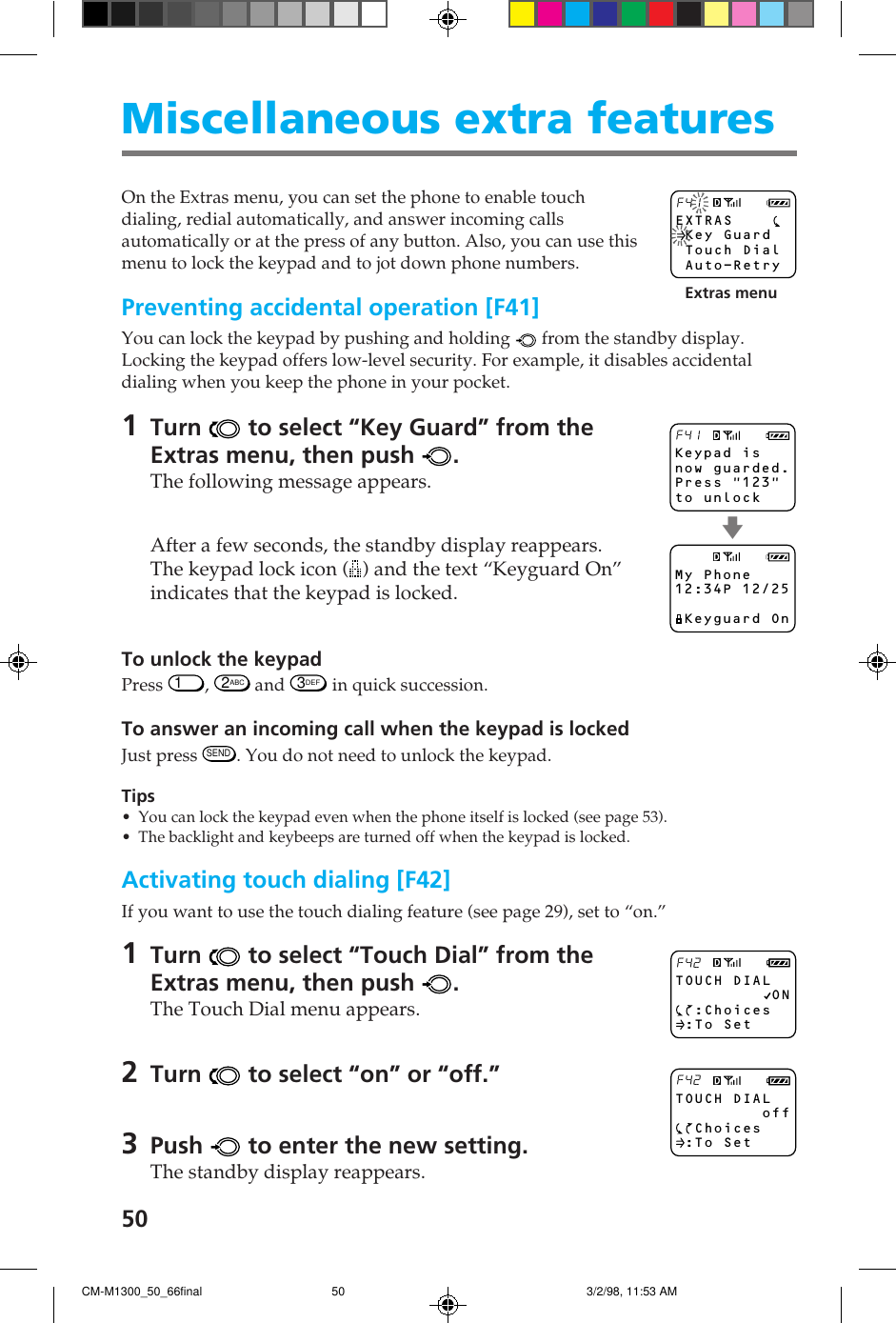

50Miscellaneous extra featuresOn the Extras menu, you can set the phone to enable touchdialing, redial automatically, and answer incoming callsautomatically or at the press of any button. Also, you can use thismenu to lock the keypad and to jot down phone numbers.Preventing accidental operation [F41]You can lock the keypad by pushing and holding from the standby display.Locking the keypad offers low-level security. For example, it disables accidentaldialing when you keep the phone in your pocket.1Turn to select “Key Guard” from theExtras menu, then push .The following message appears.After a few seconds, the standby display reappears.The keypad lock icon ( ) and the text “Keyguard On”indicates that the keypad is locked.To unlock the keypadPress 1, 2ABC and 3DEF in quick succession.To answer an incoming call when the keypad is lockedJust press SEND. You do not need to unlock the keypad.Tips• You can lock the keypad even when the phone itself is locked (see page 53).• The backlight and keybeeps are turned off when the keypad is locked.Activating touch dialing [F42]If you want to use the touch dialing feature (see page 29), set to “on.”1Turn to select “Touch Dial” from theExtras menu, then push .The Touch Dial menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.Keypad is now guarded. Press "123" to unlockF41My Phone 12:34P 12/25 Keyguard OnEXTRAS Key Guard Touch Dial Auto-RetryF41vTOUCH DIAL ON :Choices :To SetF42TOUCH DIAL off Choices :To SetF42Extras menuCM-M1300_50_66final 3/2/98, 11:53 AM50

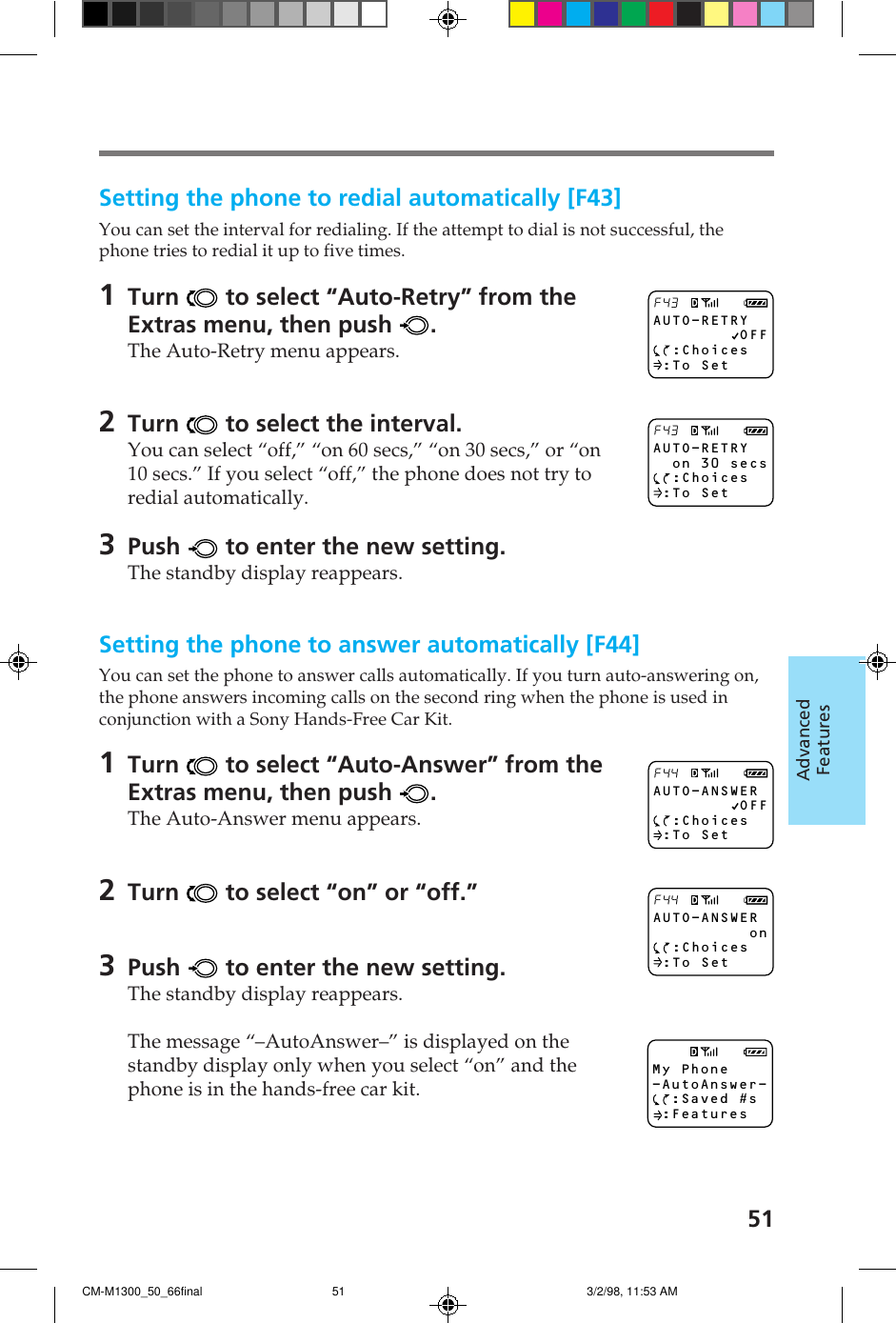

51AdvancedFeaturesSetting the phone to redial automatically [F43]You can set the interval for redialing. If the attempt to dial is not successful, thephone tries to redial it up to five times.1Turn to select “Auto-Retry” from theExtras menu, then push .The Auto-Retry menu appears.2Turn to select the interval.You can select “off,” “on 60 secs,” “on 30 secs,” or “on10 secs.” If you select “off,” the phone does not try toredial automatically.3Push to enter the new setting.The standby display reappears.Setting the phone to answer automatically [F44]You can set the phone to answer calls automatically. If you turn auto-answering on,the phone answers incoming calls on the second ring when the phone is used inconjunction with a Sony Hands-Free Car Kit.1Turn to select “Auto-Answer” from theExtras menu, then push .The Auto-Answer menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.The message “–AutoAnswer–” is displayed on thestandby display only when you select “on” and thephone is in the hands-free car kit.AUTO-RETRY OFF :Choices :To SetF43AUTO-RETRY on 30 secs :Choices :To SetF43AUTO-ANSWER OFF :Choices :To SetF44AUTO-ANSWER on :Choices :To SetF44My Phone-AutoAnswer- :Saved #s :FeaturesCM-M1300_50_66final 3/2/98, 11:53 AM51

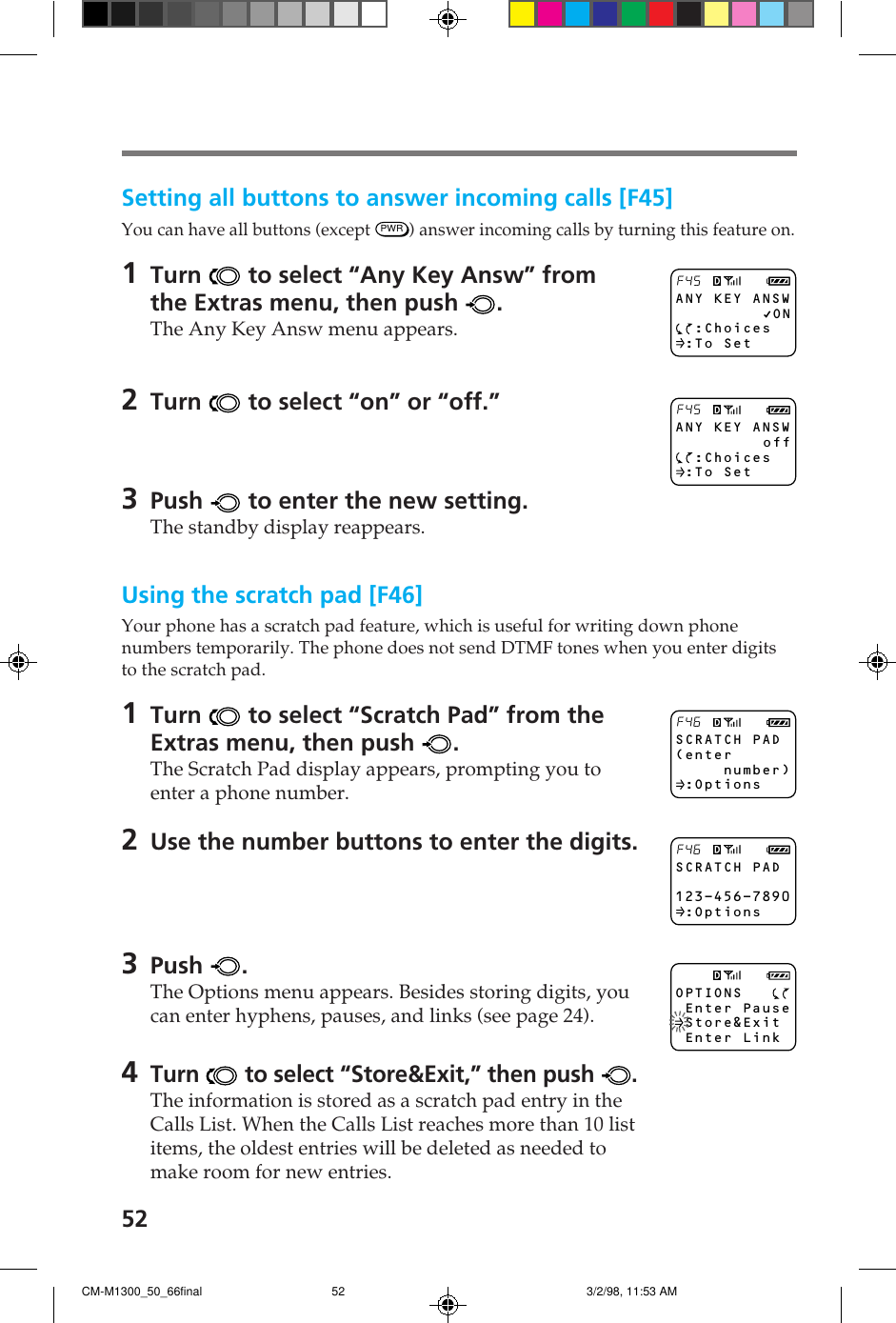

52Setting all buttons to answer incoming calls [F45]You can have all buttons (except PWR) answer incoming calls by turning this feature on.1Turn to select “Any Key Answ” fromthe Extras menu, then push .The Any Key Answ menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.Using the scratch pad [F46]Your phone has a scratch pad feature, which is useful for writing down phonenumbers temporarily. The phone does not send DTMF tones when you enter digitsto the scratch pad.1Turn to select “Scratch Pad” from theExtras menu, then push .The Scratch Pad display appears, prompting you toenter a phone number.2Use the number buttons to enter the digits.3Push .The Options menu appears. Besides storing digits, youcan enter hyphens, pauses, and links (see page 24).4Turn to select “Store&Exit,” then push .The information is stored as a scratch pad entry in theCalls List. When the Calls List reaches more than 10 listitems, the oldest entries will be deleted as needed tomake room for new entries.ANY KEY ANSW off :Choices :To SetF45SCRATCH PAD (enter number) :OptionsF46SCRATCH PAD 123-456-7890 :OptionsF46OPTIONS Enter Pause Store&Exit Enter LinkANY KEY ANSW ON :Choices :To SetF45CM-M1300_50_66final 3/2/98, 11:53 AM52

53AdvancedFeaturesYou can restrict unauthorized access to your phone and theinformation it holds. Additionally, on the Security menu, you canreset menu settings to default and store emergency numbers.Unlike other items on the Features menu, accessing the Securitymenu requires a lock code when you select it from the Featuresmenu.A typical default lock code is either the last four digits of yourphone number or 0000.Preventing others from using your phone [F51]This option lets you set when the phone will be locked. When the phone is locked,carrying out most operations requires entering the lock code; you can still answerincoming calls and dial 911 or other stored emergency numbers.1Push to select “Lock Phone” from theSecurity menu.The Lock Phone menu appears.2Turn to select when the phone will belocked.You can select “never,” “on power-up,” or “right now.”If you select “never,” the phone is available for use atany time without a lock code. If you select “on power-up,” the phone is locked every time you turn it on.3Push to enter the new setting.The standby display reappears. The message“ :Unlock” indicates that the phone is locked.To unlock the phoneOn the standby display, push . When prompted, enter the lock code.SECURITY Lock Phone New Code Restrict #F51LOCK PHONE NEVER :Choices :To SetF51LOCK PHONE on power-up :Choices :To SetF51My Phone12:34P 12/25 :UnlockSecurity menuSECURITYEnter codefor access. CODE: ----F-5vSetting security optionsCM-M1300_50_66final 3/2/98, 11:53 AM53

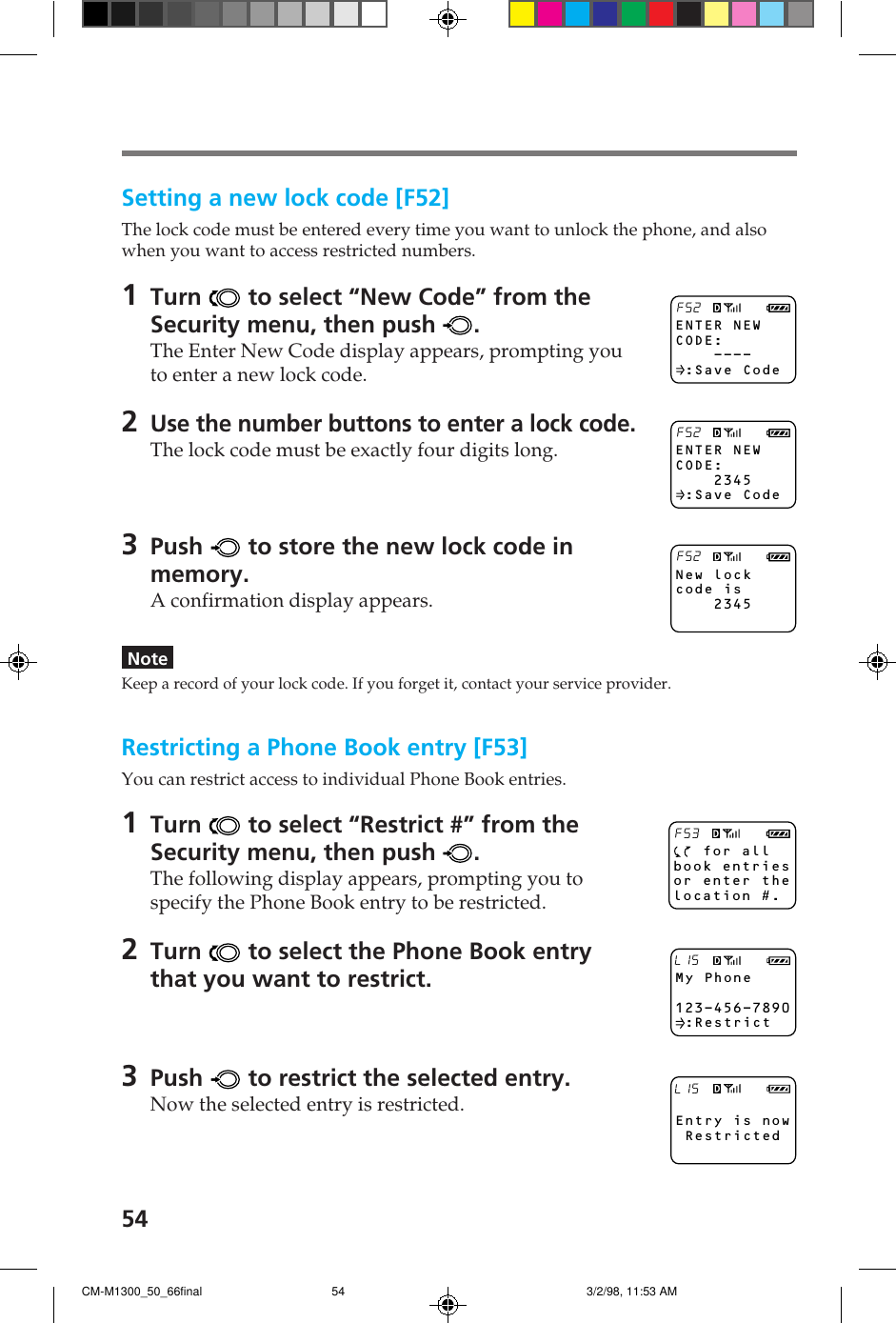

54Setting a new lock code [F52]The lock code must be entered every time you want to unlock the phone, and alsowhen you want to access restricted numbers.1Turn to select “New Code” from theSecurity menu, then push .The Enter New Code display appears, prompting youto enter a new lock code.2Use the number buttons to enter a lock code.The lock code must be exactly four digits long.3Push to store the new lock code inmemory.A confirmation display appears.NoteKeep a record of your lock code. If you forget it, contact your service provider.Restricting a Phone Book entry [F53]You can restrict access to individual Phone Book entries.1Turn to select “Restrict #” from theSecurity menu, then push .The following display appears, prompting you tospecify the Phone Book entry to be restricted.2Turn to select the Phone Book entrythat you want to restrict.3Push to restrict the selected entry.Now the selected entry is restricted. for all book entries or enter the location #.F53My Phone123-456-7890 :RestrictL15Entry is now RestrictedL15ENTER NEW CODE: 2345 :Save CodeF52New lock code is 2345F52ENTER NEW CODE: ---- :Save CodeF52CM-M1300_50_66final 3/2/98, 11:53 AM54

55AdvancedFeaturesTo unrestrict an entryFollow the procedure for restricting an entry on the previouspage to select the entry you want to unrestrict.Notes• The phone number of a restricted entry is not displayed when you view the Phone Book andmake a call.• Restricted entries are not listed or displayed after a digit string search (see pages 31 and 48).• Calling, editing, and erasing a restricted entry requires the four-digit lock code.TipIn addition, you can use the Options menu to restrict/unrestrict Phone Book entries (see page 27).Restricting all Phone Book entries [F54]You can restrict access to all Phone Book entries. All operations that involve PhoneBook entries require the four-digit lock code (see page 54).1Turn to select “Restrict All” from theSecurity menu, then push .The Restrict All menu appears.2Turn to set restriction of all Phone Bookentries on or off.3Push to enter the new setting.The standby display reappears.NoteIf you restricted some entries by using “Restrict #,” they are still restricted when you turn off“Restrict All.”Entry is nowUnRestrictedL15RESTRICT ALL OFF :Choices :To SetF54RESTRICT ALL on :Choices :To SetF54CM-M1300_50_66final 3/2/98, 11:53 AM55

56Reverting to default settings [F55]You can reset all menu settings to the defaults. This does not affect Phone Book orCalls List entries.1Turn to select “Master Reset” from theSecurity menu, then push .The Master Reset display appears.2Press 1 to revert to the factory defaults,or push to keep the current settings.If you revert to the factory defaults, all your custommenu settings are erased.Erasing all Phone Book entries [F56]You can erase all Phone Book entries at once.1Turn to select “Erase Book” from theSecurity menu, then push .The Erase Book display appears.2Press 1 to erase all Phone Book entries,or push to quit without erasing.If you erase all entries, the following display appears.Erasing all Calls List entries [F57]You can erase all Calls List entries at once.1Turn to select “Erase Calls” from theSecurity menu, then push .The Erase Calls display appears.2Press 1 to erase all Calls List entries, orpush to quit without erasing.If you erase all entries, the following display appears. -erased-F57ERASE BOOK1:To ErasePhone Book :QuitF56 -erased-F56ERASE CALLS1:To EraseCalls List :QuitF57MASTER RESET1:To ResetAll Settings :QuitF55 -reset- F55CM-M1300_50_66final 3/2/98, 11:54 AM56

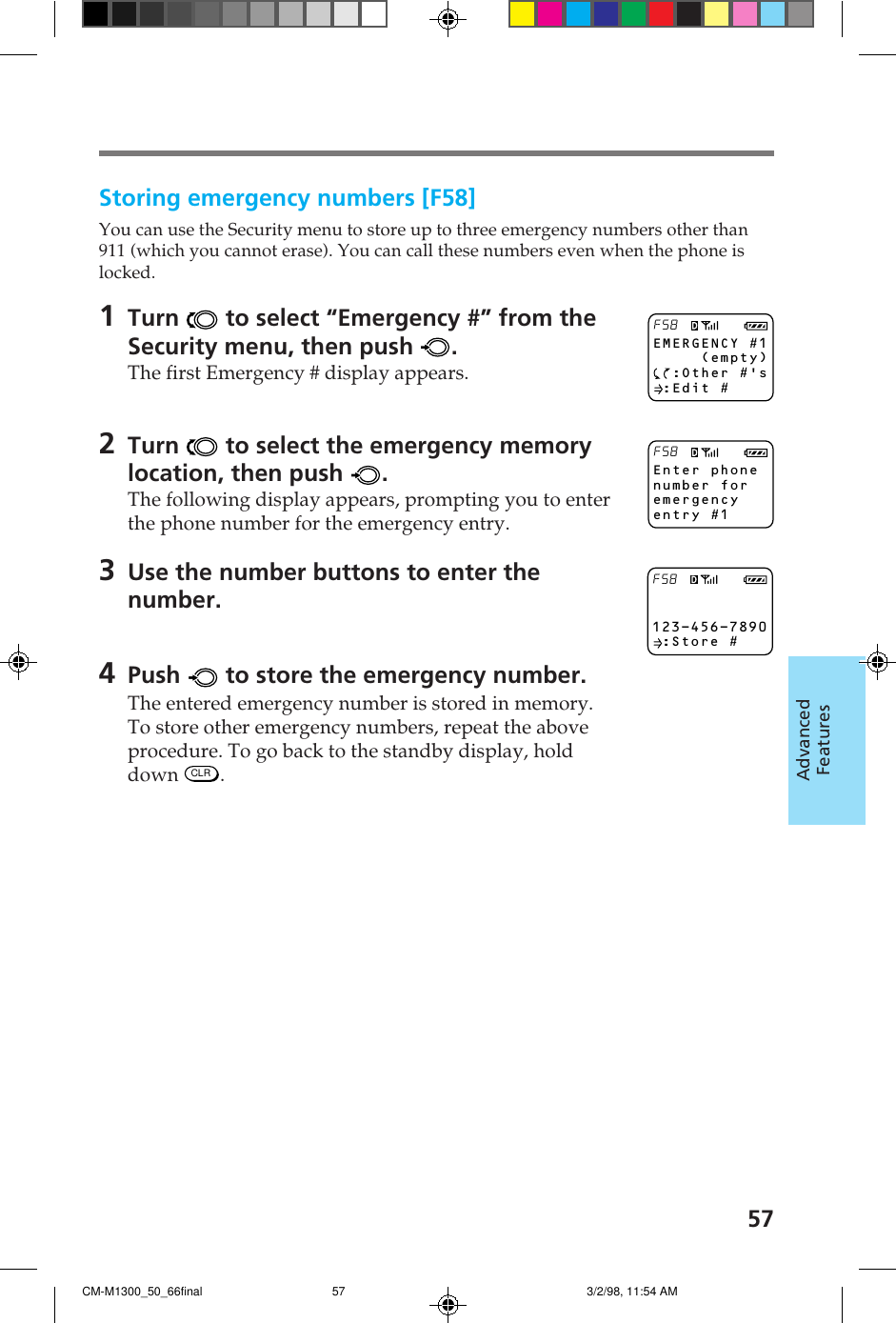

57AdvancedFeaturesStoring emergency numbers [F58]You can use the Security menu to store up to three emergency numbers other than911 (which you cannot erase). You can call these numbers even when the phone islocked.1Turn to select “Emergency #” from theSecurity menu, then push .The first Emergency # display appears.2Turn to select the emergency memorylocation, then push .The following display appears, prompting you to enterthe phone number for the emergency entry.3Use the number buttons to enter thenumber.4Push to store the emergency number.The entered emergency number is stored in memory.To store other emergency numbers, repeat the aboveprocedure. To go back to the standby display, holddown CLR.Enter phone number for emergency entry #1F58EMERGENCY #1 (empty) :Other #'s :Edit #F58 123-456-7890 :Store #F58CM-M1300_50_66final 3/2/98, 11:54 AM57

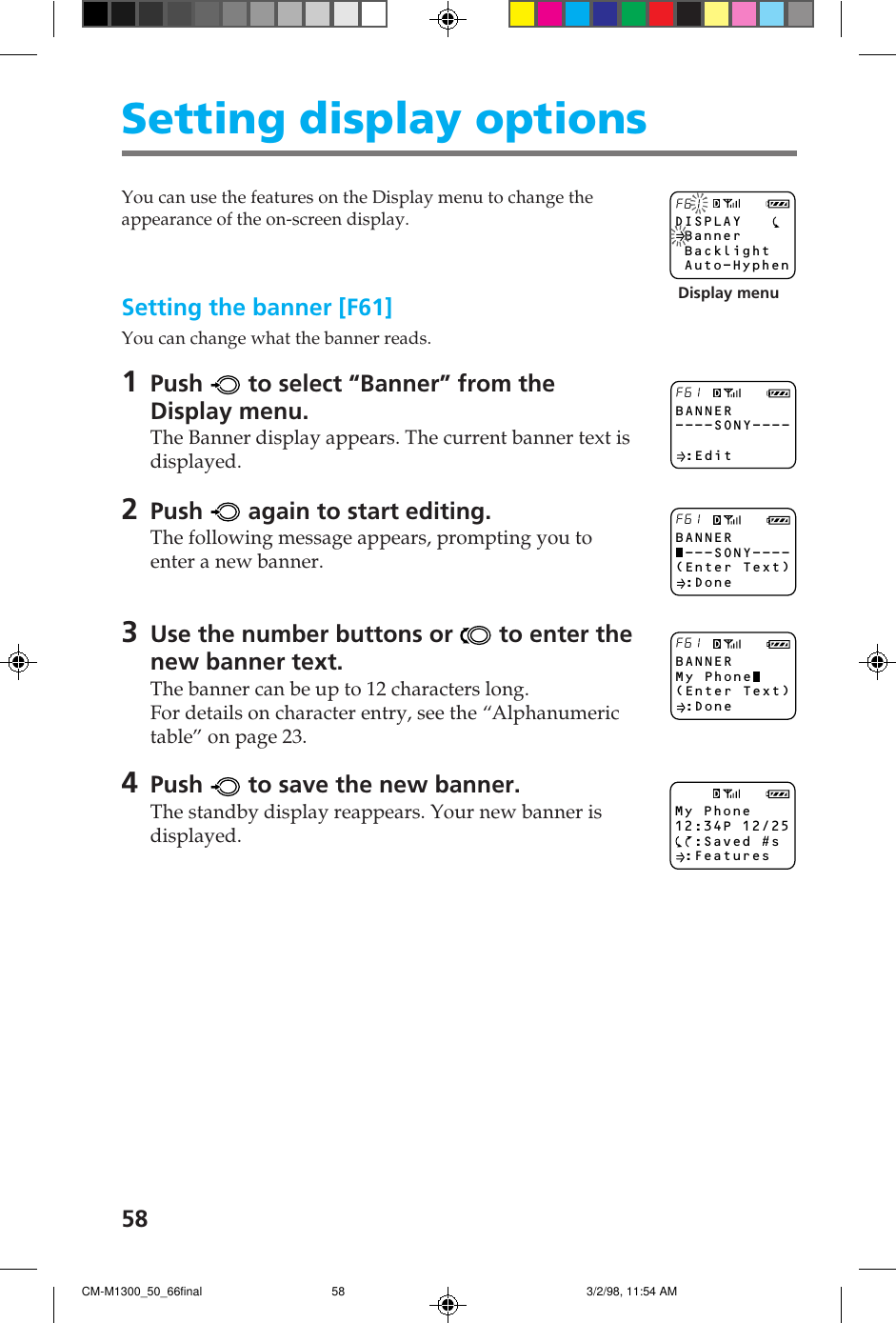

58Setting display optionsYou can use the features on the Display menu to change theappearance of the on-screen display.Setting the banner [F61]You can change what the banner reads.1Push to select “Banner” from theDisplay menu.The Banner display appears. The current banner text isdisplayed.2Push again to start editing.The following message appears, prompting you toenter a new banner.3Use the number buttons or to enter thenew banner text.The banner can be up to 12 characters long.For details on character entry, see the “Alphanumerictable” on page 23.4Push to save the new banner.The standby display reappears. Your new banner isdisplayed.DISPLAY Banner Backlight Auto-HyphenF61BANNER ---SONY----(Enter Text) :DoneF61BANNER----SONY---- :EditF61BANNERMy Phone(Enter Text) :DoneF61My Phone12:34P 12/25 :Saved #s :FeaturesDisplay menuCM-M1300_50_66final 3/2/98, 11:54 AM58

59AdvancedFeaturesSetting the backlight [F62]You can adjust the duration of the backlight on the display and keypad.1Turn to select “Backlight” from theDisplay menu, then push .The Backlight menu appears.2Turn to select how long the backlight ison after the last press of a button.You can select “for 15 secs,” “for 7 secs,” or “off.” If thephone is used in conjunction with a hands-free car kit, acigarette lighter adapter, or a single- or dual-slot batterycharger, the added option of “always on” leaves thebacklight on.3Push to enter the new setting.The standby display reappears.Setting autohyphenation [F63]You can turn the autohyphenation feature on and off. If you turn it on, enterednumbers are hyphenated according to the North American Numbering Plan (elevendigits which include a long distance identifier, an area code, a three-digit communitycode, and a four-digit location code, e.g., 9-999-999-9999).1Turn to select “Auto-Hyphen” from theDisplay menu, then push .The Auto-Hyphen menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.BACKLIGHT for 15 secs :Choices :To SetF62BACKLIGHT FOR 7 SECS :Choices :To SetF62AUTO-HYPHEN ON :Choices :To SetF63AUTO-HYPHEN off :Choices :To SetF63CM-M1300_50_66final 3/2/98, 11:54 AM59

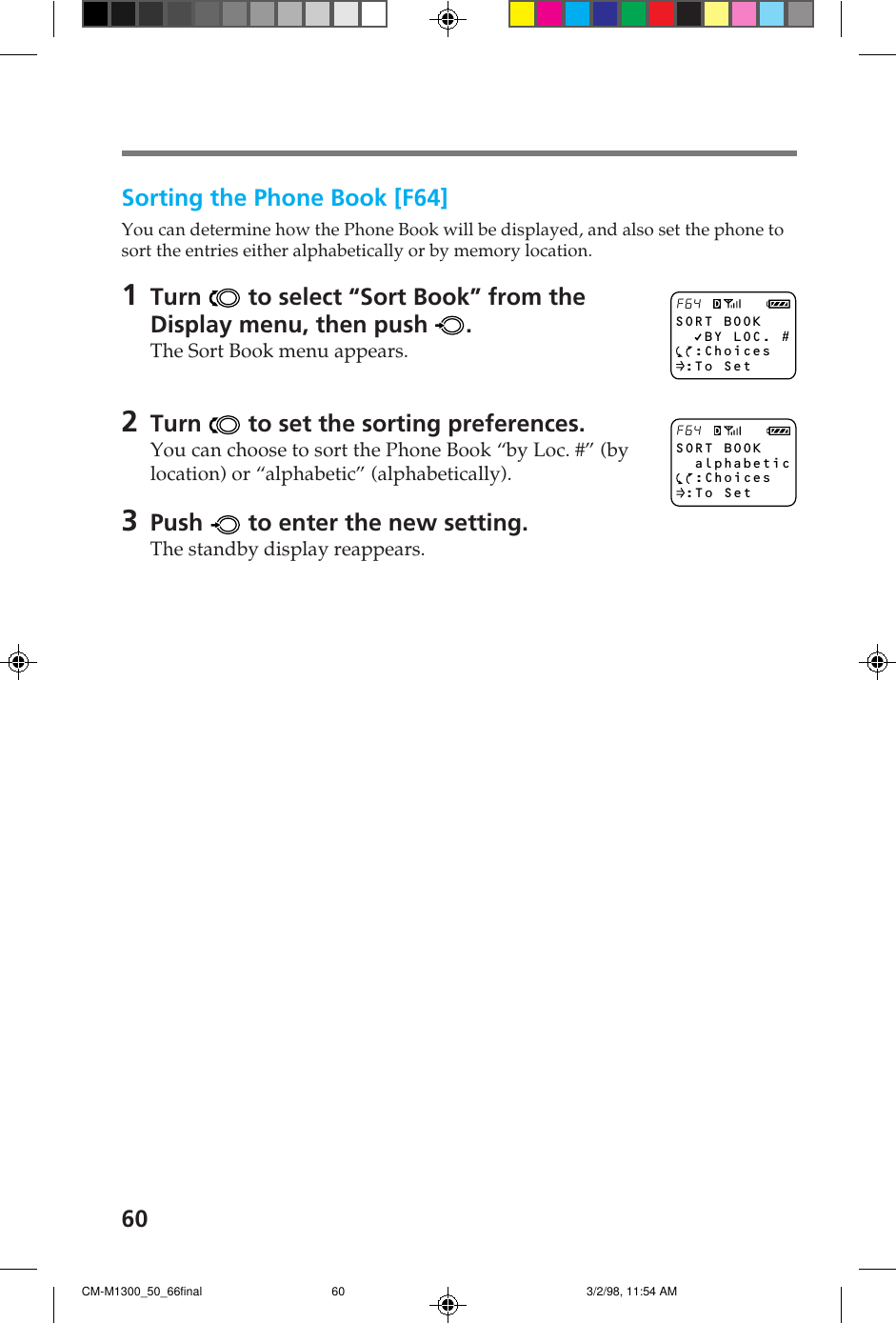

60Sorting the Phone Book [F64]You can determine how the Phone Book will be displayed, and also set the phone tosort the entries either alphabetically or by memory location.1Turn to select “Sort Book” from theDisplay menu, then push .The Sort Book menu appears.2Turn to set the sorting preferences.You can choose to sort the Phone Book “by Loc. #” (bylocation) or “alphabetic” (alphabetically).3Push to enter the new setting.The standby display reappears.SORT BOOK BY LOC. # :Choices :To SetF64SORT BOOK alphabetic :Choices :To SetF64CM-M1300_50_66final 3/2/98, 11:54 AM60

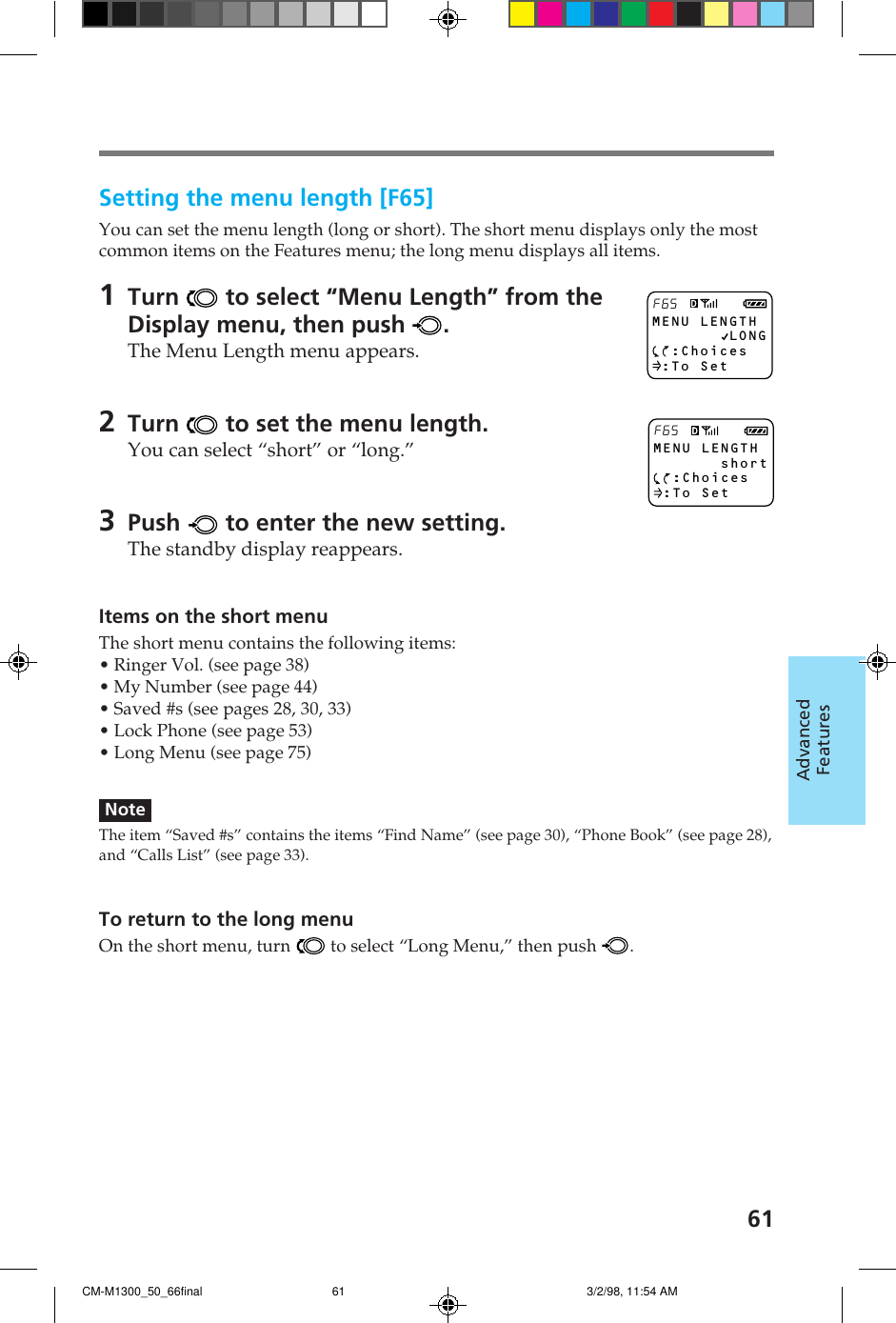

61AdvancedFeaturesSetting the menu length [F65]You can set the menu length (long or short). The short menu displays only the mostcommon items on the Features menu; the long menu displays all items.1Turn to select “Menu Length” from theDisplay menu, then push .The Menu Length menu appears.2Turn to set the menu length.You can select “short” or “long.”3Push to enter the new setting.The standby display reappears.Items on the short menuThe short menu contains the following items:• Ringer Vol. (see page 38)• My Number (see page 44)• Saved #s (see pages 28, 30, 33)• Lock Phone (see page 53)• Long Menu (see page 75)NoteThe item “Saved #s” contains the items “Find Name” (see page 30), “Phone Book” (see page 28),and “Calls List” (see page 33).To return to the long menuOn the short menu, turn to select “Long Menu,” then push .MENU LENGTH LONG :Choices :To SetF65MENU LENGTH short :Choices :To SetF65CM-M1300_50_66final 3/2/98, 11:54 AM61

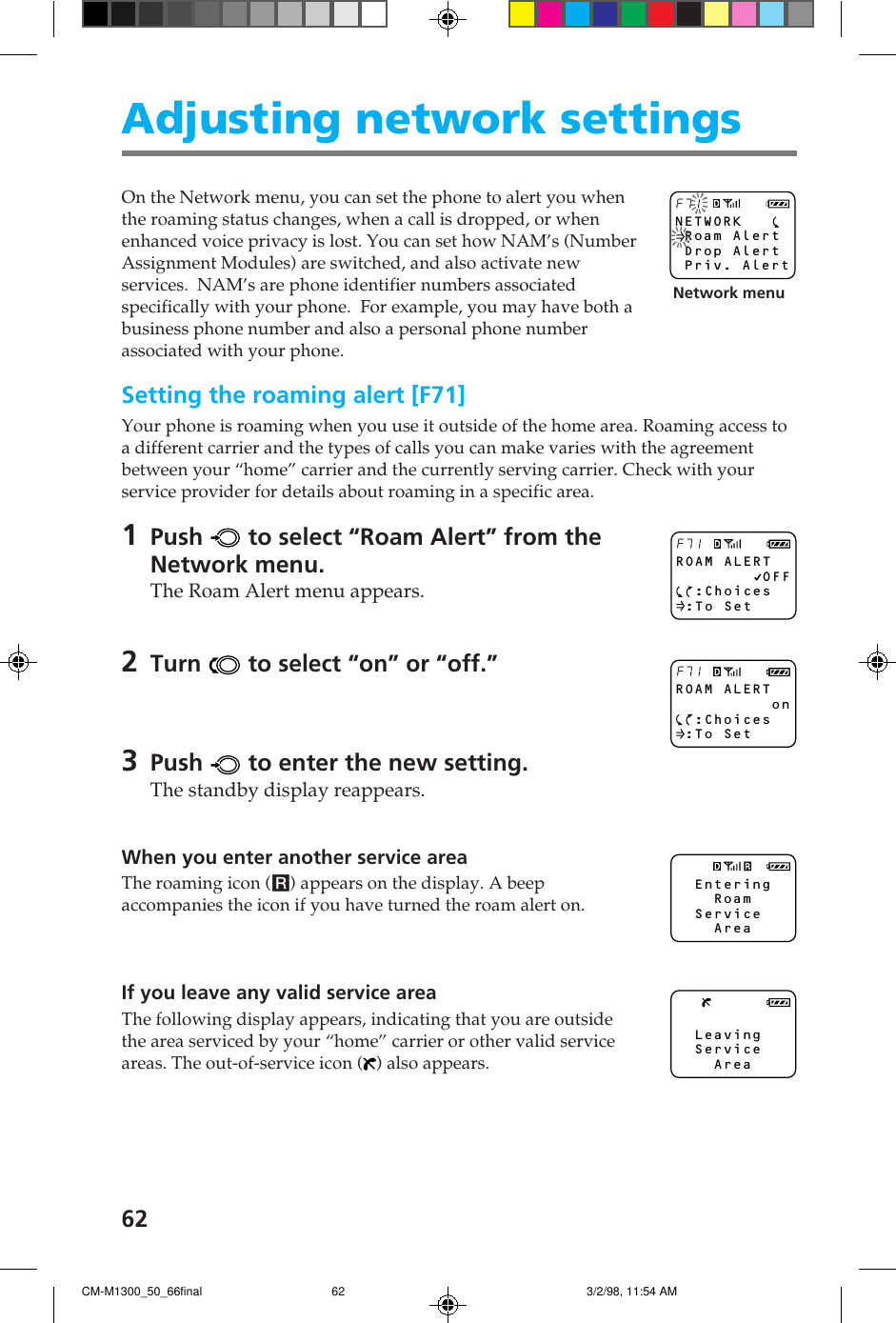

62Adjusting network settingsOn the Network menu, you can set the phone to alert you whenthe roaming status changes, when a call is dropped, or whenenhanced voice privacy is lost. You can set how NAM’s (NumberAssignment Modules) are switched, and also activate newservices. NAM’s are phone identifier numbers associatedspecifically with your phone. For example, you may have both abusiness phone number and also a personal phone numberassociated with your phone.Setting the roaming alert [F71]Your phone is roaming when you use it outside of the home area. Roaming access toa different carrier and the types of calls you can make varies with the agreementbetween your “home” carrier and the currently serving carrier. Check with yourservice provider for details about roaming in a specific area.1Push to select “Roam Alert” from theNetwork menu.The Roam Alert menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.When you enter another service areaThe roaming icon (R) appears on the display. A beepaccompanies the icon if you have turned the roam alert on.If you leave any valid service areaThe following display appears, indicating that you are outsidethe area serviced by your “home” carrier or other valid serviceareas. The out-of-service icon ( ) also appears.NETWORK Roam Alert Drop Alert Priv. AlertF71ROAM ALERT on :Choices :To SetF71ROAM ALERT OFF :Choices :To SetF71 Entering Roam Service Area Leaving Service AreaNetwork menuCM-M1300_50_66final 3/2/98, 11:54 AM62

63AdvancedFeaturesSetting the drop alert [F72]If the signal fades, your phone may drop the ongoing call. You can choose to bealerted by an audible alarm when a call is dropped.1Turn to select “Drop Alert” from theNetwork menu, then push .The Drop Alert menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.When a call is droppedThe following display appears. A beep will sound if you haveturned the drop alert on.DROP ALERT on :Choices :To SetF72DROP ALERT OFF :Choices :To SetF72Time: 1:30SIGNAL FADED Your call was lost.CM-M1300_50_66final 3/2/98, 11:54 AM63

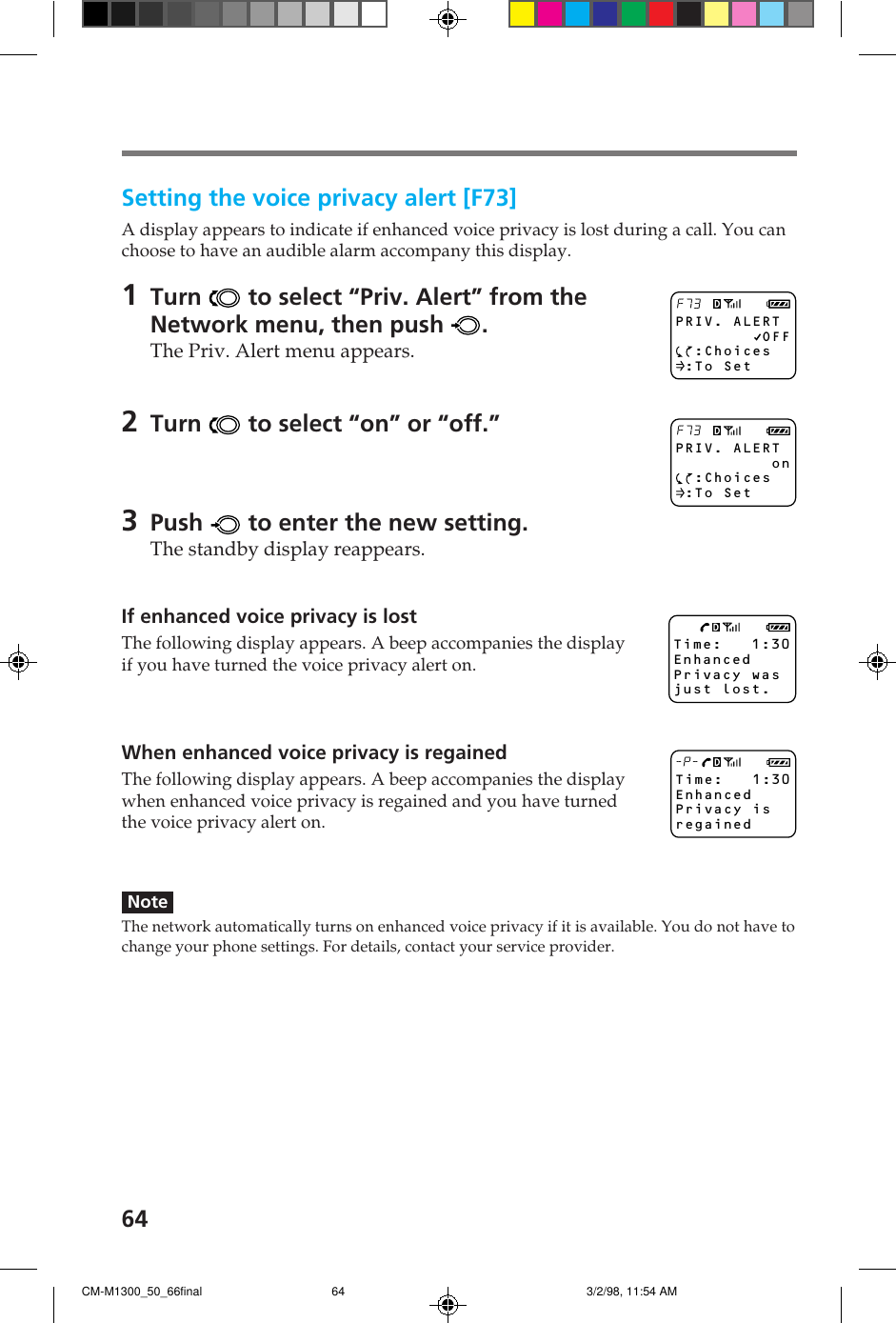

64Setting the voice privacy alert [F73]A display appears to indicate if enhanced voice privacy is lost during a call. You canchoose to have an audible alarm accompany this display.1Turn to select “Priv. Alert” from theNetwork menu, then push .The Priv. Alert menu appears.2Turn to select “on” or “off.”3Push to enter the new setting.The standby display reappears.If enhanced voice privacy is lostThe following display appears. A beep accompanies the displayif you have turned the voice privacy alert on.When enhanced voice privacy is regainedThe following display appears. A beep accompanies the displaywhen enhanced voice privacy is regained and you have turnedthe voice privacy alert on.NoteThe network automatically turns on enhanced voice privacy if it is available. You do not have tochange your phone settings. For details, contact your service provider.PRIV. ALERT on :Choices :To SetF73PRIV. ALERT OFF :Choices :To SetF73Time: 1:30 Enhanced Privacy was just lost.Time: 1:30Enhanced Privacy is regained-P-CM-M1300_50_66final 3/2/98, 11:54 AM64

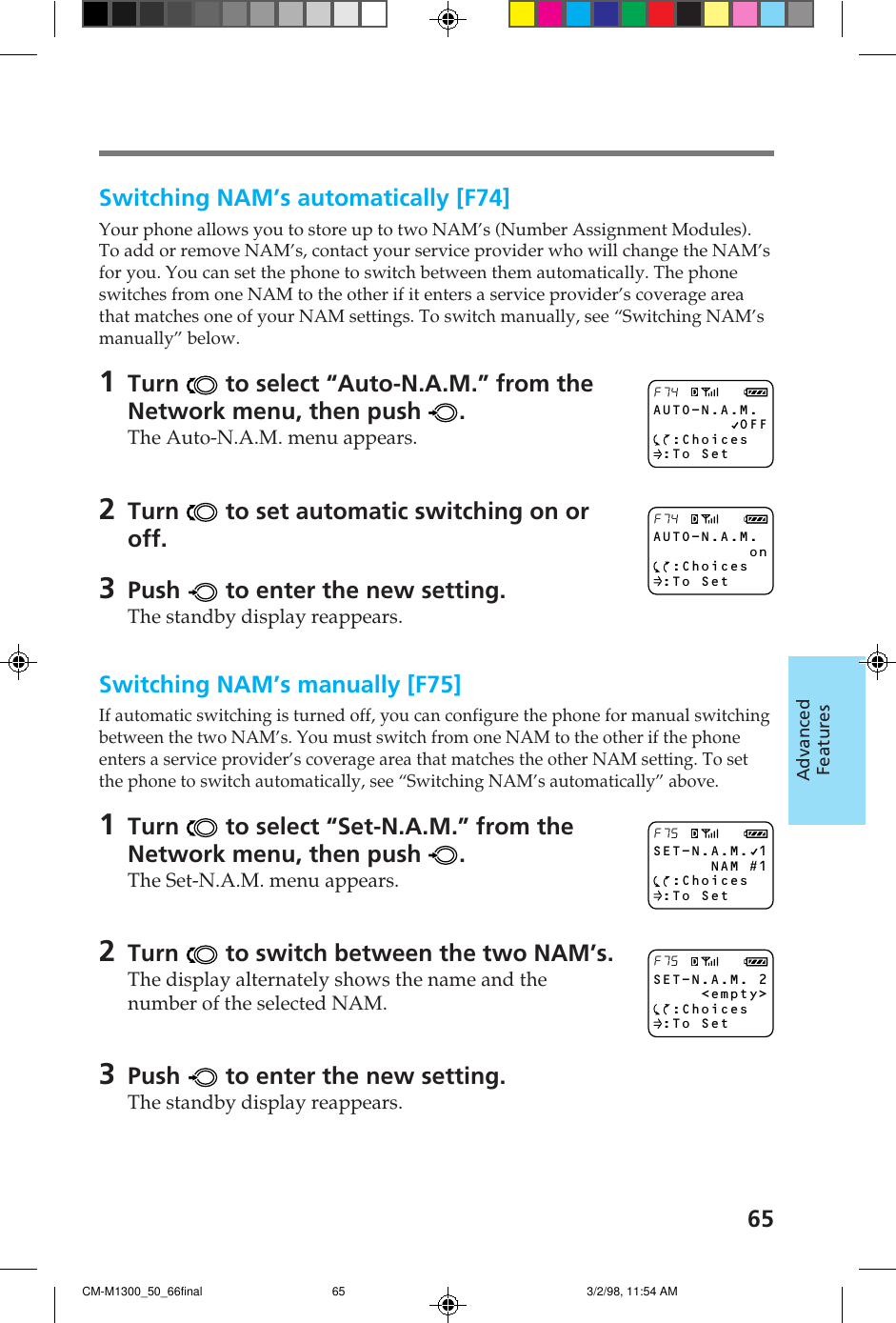

65AdvancedFeaturesSwitching NAM’s automatically [F74]Your phone allows you to store up to two NAM’s (Number Assignment Modules).To add or remove NAM’s, contact your service provider who will change the NAM’sfor you. You can set the phone to switch between them automatically. The phoneswitches from one NAM to the other if it enters a service provider’s coverage areathat matches one of your NAM settings. To switch manually, see “Switching NAM’smanually” below.1Turn to select “Auto-N.A.M.” from theNetwork menu, then push .The Auto-N.A.M. menu appears.2Turn to set automatic switching on oroff.3Push to enter the new setting.The standby display reappears.Switching NAM’s manually [F75]If automatic switching is turned off, you can configure the phone for manual switchingbetween the two NAM’s. You must switch from one NAM to the other if the phoneenters a service provider’s coverage area that matches the other NAM setting. To setthe phone to switch automatically, see “Switching NAM’s automatically” above.1Turn to select “Set-N.A.M.” from theNetwork menu, then push .The Set-N.A.M. menu appears.2Turn to switch between the two NAM’s.The display alternately shows the name and thenumber of the selected NAM.3Push to enter the new setting.The standby display reappears.AUTO-N.A.M. on :Choices :To SetF74AUTO-N.A.M. OFF :Choices :To SetF74SET-N.A.M. 2 <empty> :Choices :To SetF75SET-N.A.M. 1 NAM #1 :Choices :To SetF75CM-M1300_50_66final 3/2/98, 11:54 AM65

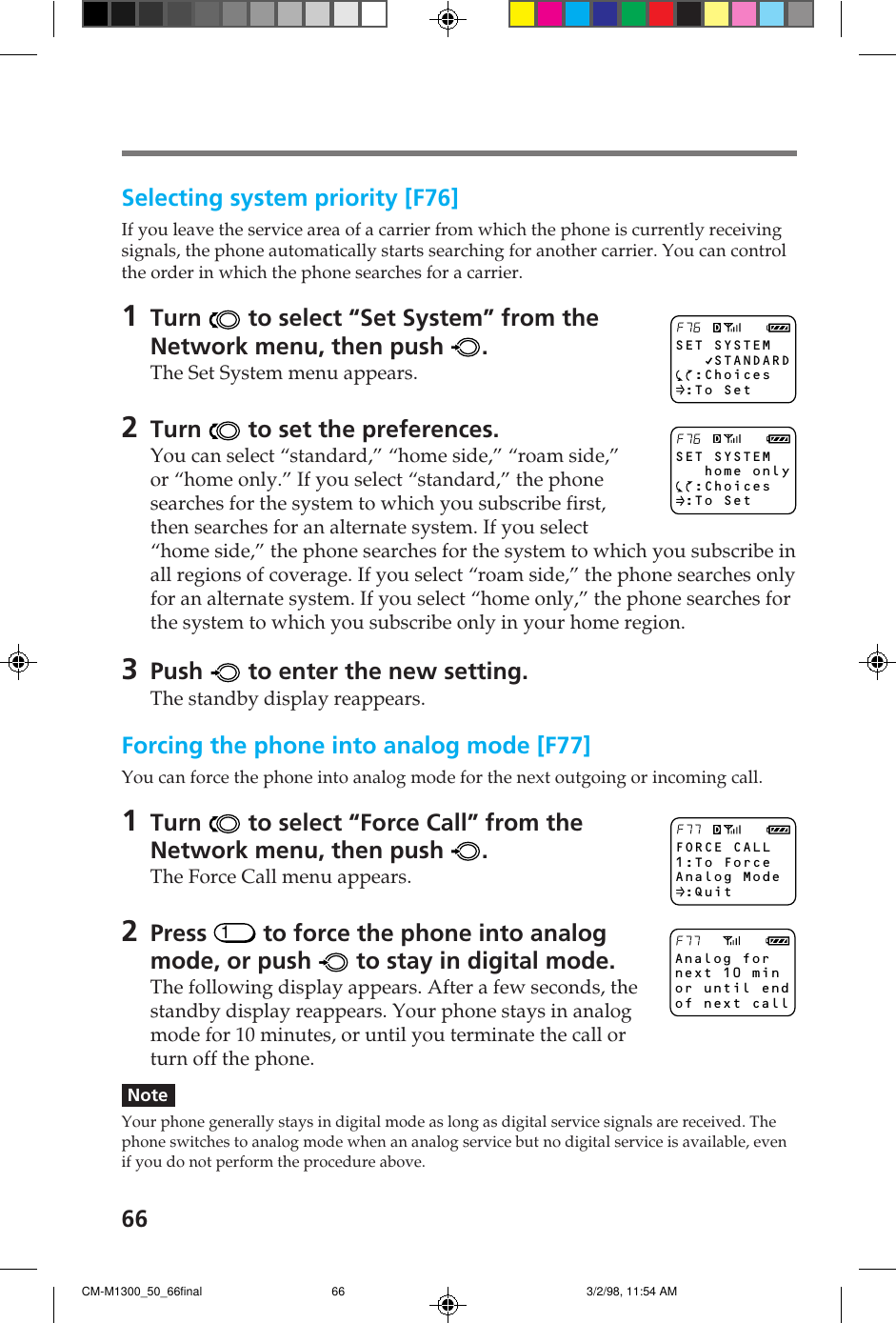

66Selecting system priority [F76]If you leave the service area of a carrier from which the phone is currently receivingsignals, the phone automatically starts searching for another carrier. You can controlthe order in which the phone searches for a carrier.1Turn to select “Set System” from theNetwork menu, then push .The Set System menu appears.2Turn to set the preferences.You can select “standard,” “home side,” “roam side,”or “home only.” If you select “standard,” the phonesearches for the system to which you subscribe first,then searches for an alternate system. If you select“home side,” the phone searches for the system to which you subscribe inall regions of coverage. If you select “roam side,” the phone searches onlyfor an alternate system. If you select “home only,” the phone searches forthe system to which you subscribe only in your home region.3Push to enter the new setting.The standby display reappears.Forcing the phone into analog mode [F77]You can force the phone into analog mode for the next outgoing or incoming call.1Turn to select “Force Call” from theNetwork menu, then push .The Force Call menu appears.2Press 1 to force the phone into analogmode, or push to stay in digital mode.The following display appears. After a few seconds, thestandby display reappears. Your phone stays in analogmode for 10 minutes, or until you terminate the call orturn off the phone.NoteYour phone generally stays in digital mode as long as digital service signals are received. Thephone switches to analog mode when an analog service but no digital service is available, evenif you do not perform the procedure above.FORCE CALL1:To ForceAnalog Mode :QuitF77Analog for next 10 min or until end of next callF77SET SYSTEM home only :Choices :To SetF76SET SYSTEM STANDARD :Choices :To SetF76CM-M1300_50_66final 3/2/98, 11:54 AM66

67AdvancedFeaturesThis section contains information on the ShortMessaging Service (SMS). This feature lets youreceive “text” messages, which are stored in yourphone as long as there are enough memorylocations available.Contact your service provider to see if thisservice is available in your area.Receiving messagesTo receive messages, the phone must be turned on. The phone supports three typesof messages: “MESSAGE” indicates a text message; “PAGE” typically contains onlydigits; “VOICE MAIL” is a voice mail notification, and indicates the number of newvoice mail messages stored in your voice mailbox.When you receive a messageThe message icon ( ) appears on the display, accompanied byaudible alerts. The following display appears. The first lineindicates message type and priority. If the message is urgent, themessage type is flanked by asterisks (*) and followed by anexclamation mark (!). If you press any key, this displaydisappears. The message icon ( ) remains displayed as long asthere are unread messages.TipIf you receive duplicate messages, the phone deletes the older one and stores the new one withthe indication “DUPLICATE.”WARNINGWhen you receive a new message and your phone does not have enough memory to store it, thephone automatically erases old messages that are not locked.If the memory becomes fullThe phone issues a warning when the memory is 75% full. Atthis point, you should erase expendable messages (see page 72).If the memory becomes completely full or your phone does nothave enough memory to receive an incoming message, newmessages are rejected and the following display appears.Using the Short Messaging Service ** PAGE! **at 11:15AM12/25 from123-456-7890Msg Memory is 75% full.Please read new messagesMsg Memory is full.Last Msg(s)rejected.2ABC3DEF5JKL6MNO8TUV0OPER4GHI7PQ RS9WX YZ1PWRCLRSENDENDCLRENDSENDCM-M1300_67_73final 3/2/98, 11:57 AM67

68Accessing messages1Press from the standby display.The Messages display appears, indicating the number ofthe following types of messages, respectively:• Voice mail messages (see page 73).• Unread text messages and pagings (see the sectionbelow).• Text messages and pagings that you have alreadyread but are still stored in memory (see page 69).Reading text messagesYou can read both new and old messages stored in memory. After reading messages,you can protect or erase them.To read new messages1From the Messages display, turn toselect “New Text,” then push .The first message is displayed.If there are no new messages, the following displayappears. Push to return to the Messages display.2Turn to scroll through the message.If you do not scroll, the display automatically scrollsdown. A hollow box ( ) indicates the end of themessage.3To proceed to the next message, push when you reach the end of the message.The Options menu appears. To return to the standbydisplay, press END.4Turn to select “Next Msg,” then push .The next message is displayed. If there are no moremessages, the Messages display reappears. MESSAGE from123-456-7890 * URGENT *MESSAGE fromSONY123-456-7890 MESSAGES 15 Voice 5 New Text 5 Old TextOPTIONS Erase Msg Send Next Msg12:25P 12/25 ============ :OptionsThere are no new text messages. :OKCM-M1300_67_73final 3/2/98, 11:57 AM68

69AdvancedFeaturesTo read old messages1From the Messages display, turn toselect “Old Text,” then push .A list of old messages is displayed. An asterisk (*)indicates an urgent message. A lock icon ( ) indicatesthat the message is locked (see page 70). If a number istoo long to fit, an ellipsis (...) is used.2Turn to scroll through the list of oldmessages.3To read the selected message, push .The selected message is displayed.4Turn to scroll through the message.If you do not scroll, the display automatically scrollsdown to the end of the message, which is indicatedwith a hollow box ( ).5When you have read the message, pressCLR to return to the list of old messages.To return to the Messages display, press .To read the next message, push to go to theOptions menu, then select “Next Msg.”OLD TEXT *Bob, flig 123-555-55 *555-1234OLD TEXT 123-555-55 *555-1234 Great Job!!v12:25P 12/25 ============ :OptionsBob, flight comes in at1:30. Please pick me up!OLD TEXT *Bob, flig 123-555-55 *555-1234CM-M1300_67_73final 3/2/98, 11:57 AM69

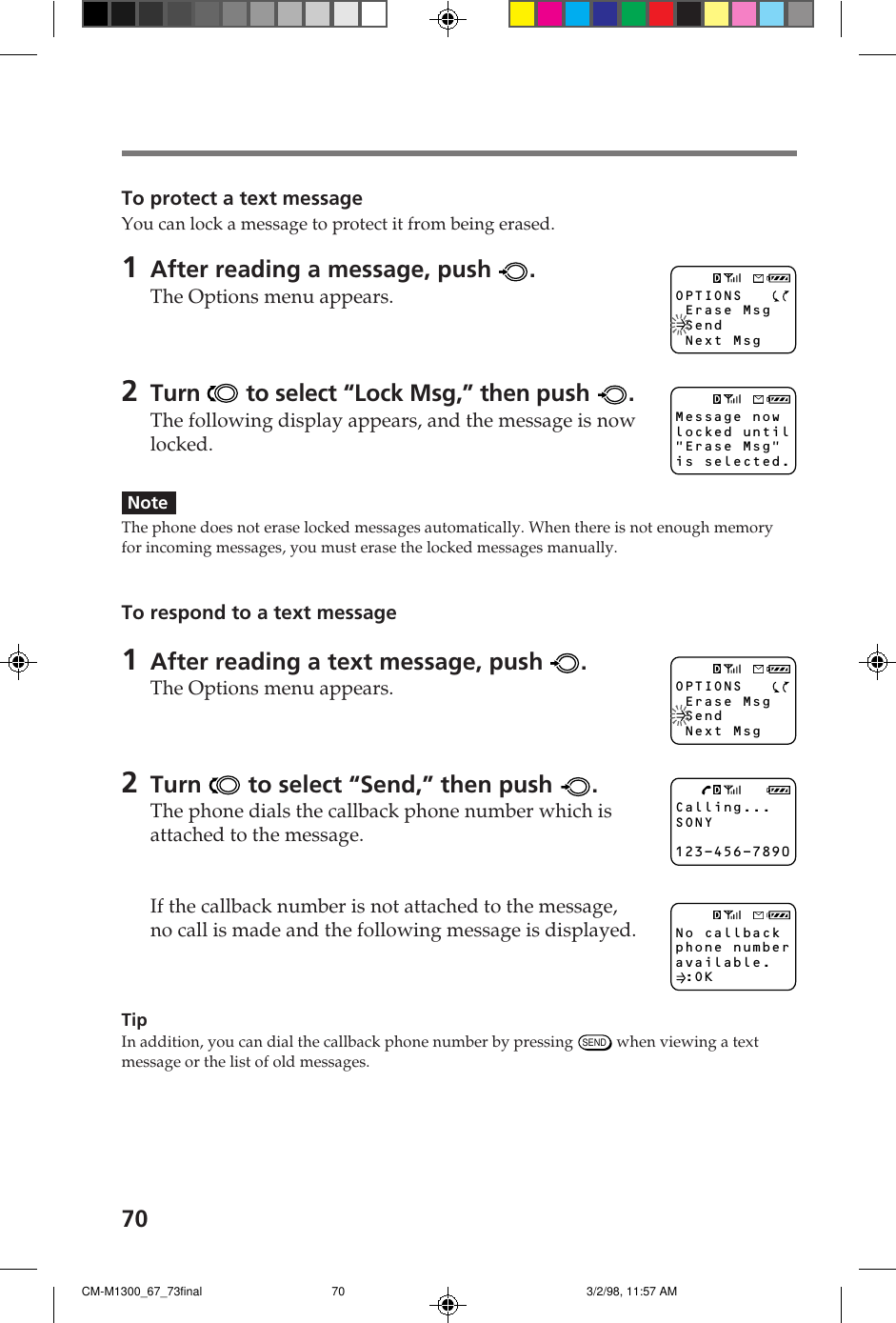

70To protect a text messageYou can lock a message to protect it from being erased.1After reading a message, push .The Options menu appears.2Turn to select “Lock Msg,” then push .The following display appears, and the message is nowlocked.NoteThe phone does not erase locked messages automatically. When there is not enough memoryfor incoming messages, you must erase the locked messages manually.To respond to a text message1After reading a text message, push .The Options menu appears.2Turn to select “Send,” then push .The phone dials the callback phone number which isattached to the message.If the callback number is not attached to the message,no call is made and the following message is displayed.TipIn addition, you can dial the callback phone number by pressing SEND when viewing a textmessage or the list of old messages.OPTIONS Erase Msg Send Next MsgMessage now locked until "Erase Msg" is selected.Calling...SONY123-456-7890No callback phone number available. :OKOPTIONS Erase Msg Send Next MsgCM-M1300_67_73final 3/2/98, 11:57 AM70

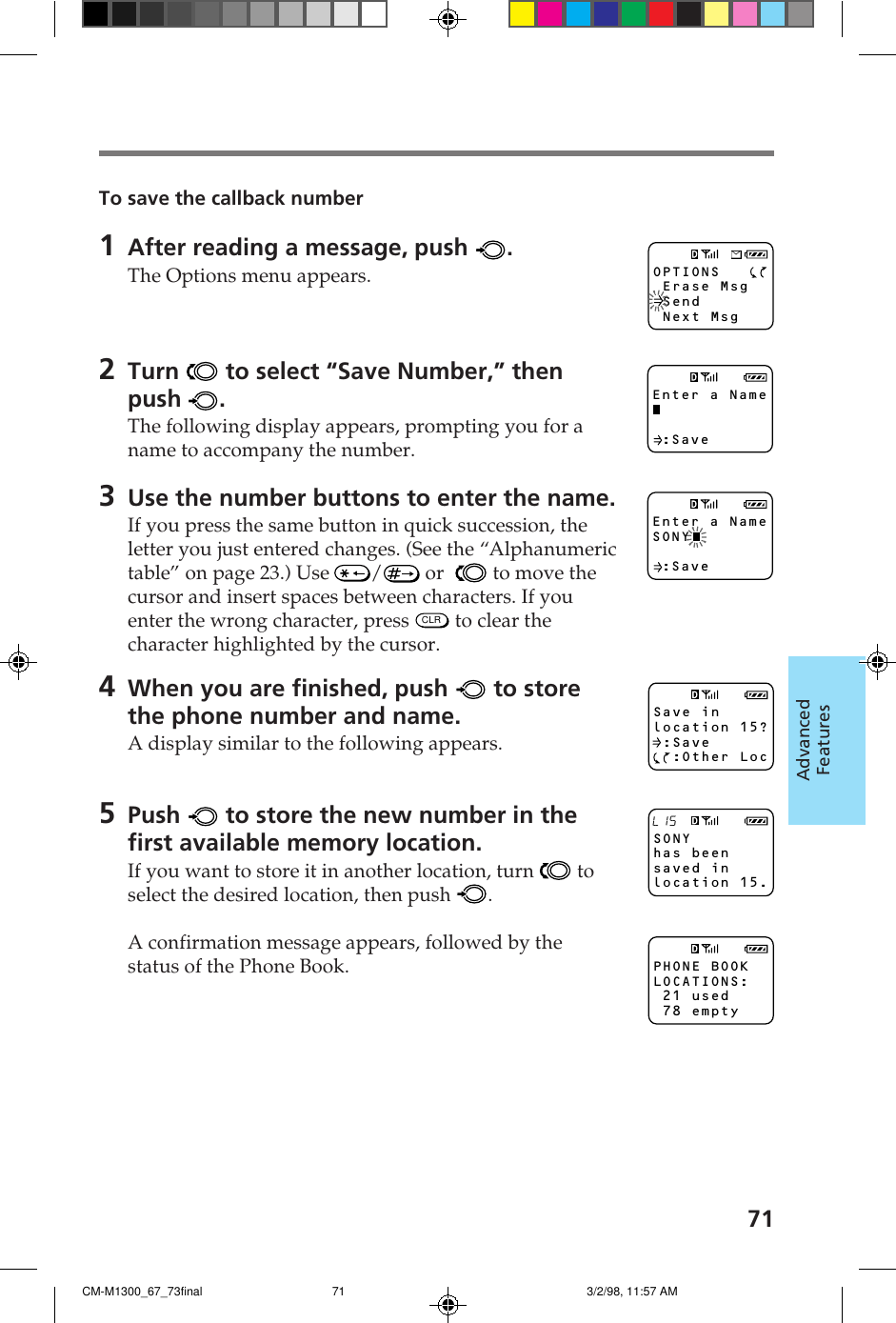

71AdvancedFeaturesTo save the callback number1After reading a message, push .The Options menu appears.2Turn to select “Save Number,” thenpush .The following display appears, prompting you for aname to accompany the number.3Use the number buttons to enter the name.If you press the same button in quick succession, theletter you just entered changes. (See the “Alphanumerictable” on page 23.) Use / or to move thecursor and insert spaces between characters. If youenter the wrong character, press CLR to clear thecharacter highlighted by the cursor.4When you are finished, push to storethe phone number and name.A display similar to the following appears.5Push to store the new number in thefirst available memory location.If you want to store it in another location, turn toselect the desired location, then push .A confirmation message appears, followed by thestatus of the Phone Book.Enter a Name :SaveSave in location 15? :Save :Other LocEnter a NameSONY :SaveSONYhas beensaved inlocation 15.L15OPTIONS Erase Msg Send Next MsgPHONE BOOK LOCATIONS: 21 used 78 emptyCM-M1300_67_73final 3/2/98, 11:57 AM71

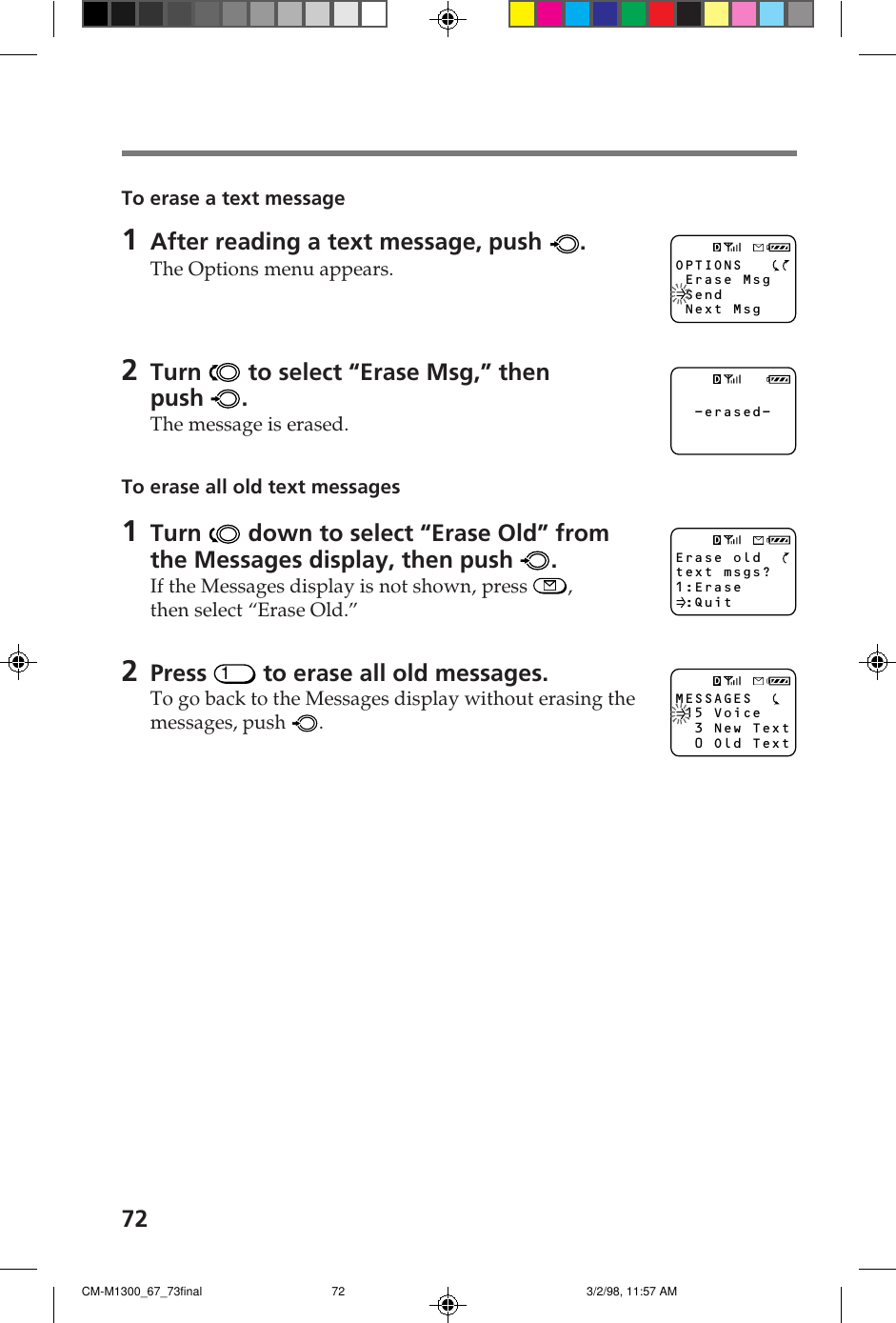

72To erase a text message1After reading a text message, push .The Options menu appears.2Turn to select “Erase Msg,” thenpush .The message is erased.To erase all old text messages1Turn down to select “Erase Old” fromthe Messages display, then push .If the Messages display is not shown, press ,then select “Erase Old.”2Press 1 to erase all old messages.To go back to the Messages display without erasing themessages, push . -erased- Erase oldtext msgs?1:Erase :QuitMESSAGES 15 Voice 3 New Text 0 Old TextOPTIONS Erase Msg Send Next MsgCM-M1300_67_73final 3/2/98, 11:57 AM72

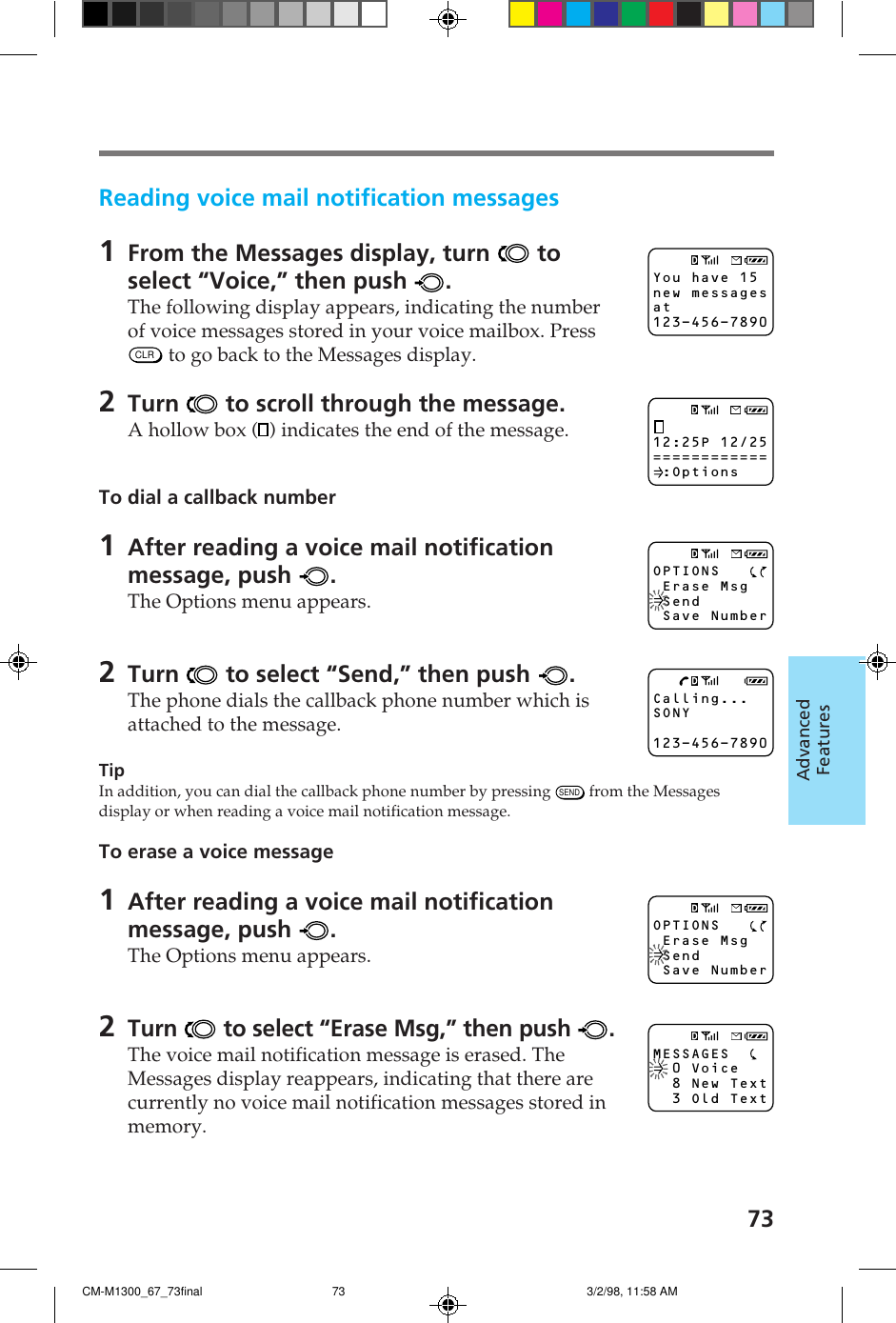

73AdvancedFeaturesReading voice mail notification messages1From the Messages display, turn toselect “Voice,” then push .The following display appears, indicating the numberof voice messages stored in your voice mailbox. PressCLR to go back to the Messages display.2Turn to scroll through the message.A hollow box ( ) indicates the end of the message.To dial a callback number1After reading a voice mail notificationmessage, push .The Options menu appears.2Turn to select “Send,” then push .The phone dials the callback phone number which isattached to the message.TipIn addition, you can dial the callback phone number by pressing SEND from the Messagesdisplay or when reading a voice mail notification message.To erase a voice message1After reading a voice mail notificationmessage, push .The Options menu appears.2Turn to select “Erase Msg,” then push .The voice mail notification message is erased. TheMessages display reappears, indicating that there arecurrently no voice mail notification messages stored inmemory.You have 15 new messages at123-456-7890MESSAGES 0 Voice 8 New Text 3 Old TextCalling...SONY123-456-7890OPTIONS Erase Msg Send Save NumberOPTIONS Erase Msg Send Save Number12:25P 12/25 ============ :OptionsCM-M1300_67_73final 3/2/98, 11:58 AM73

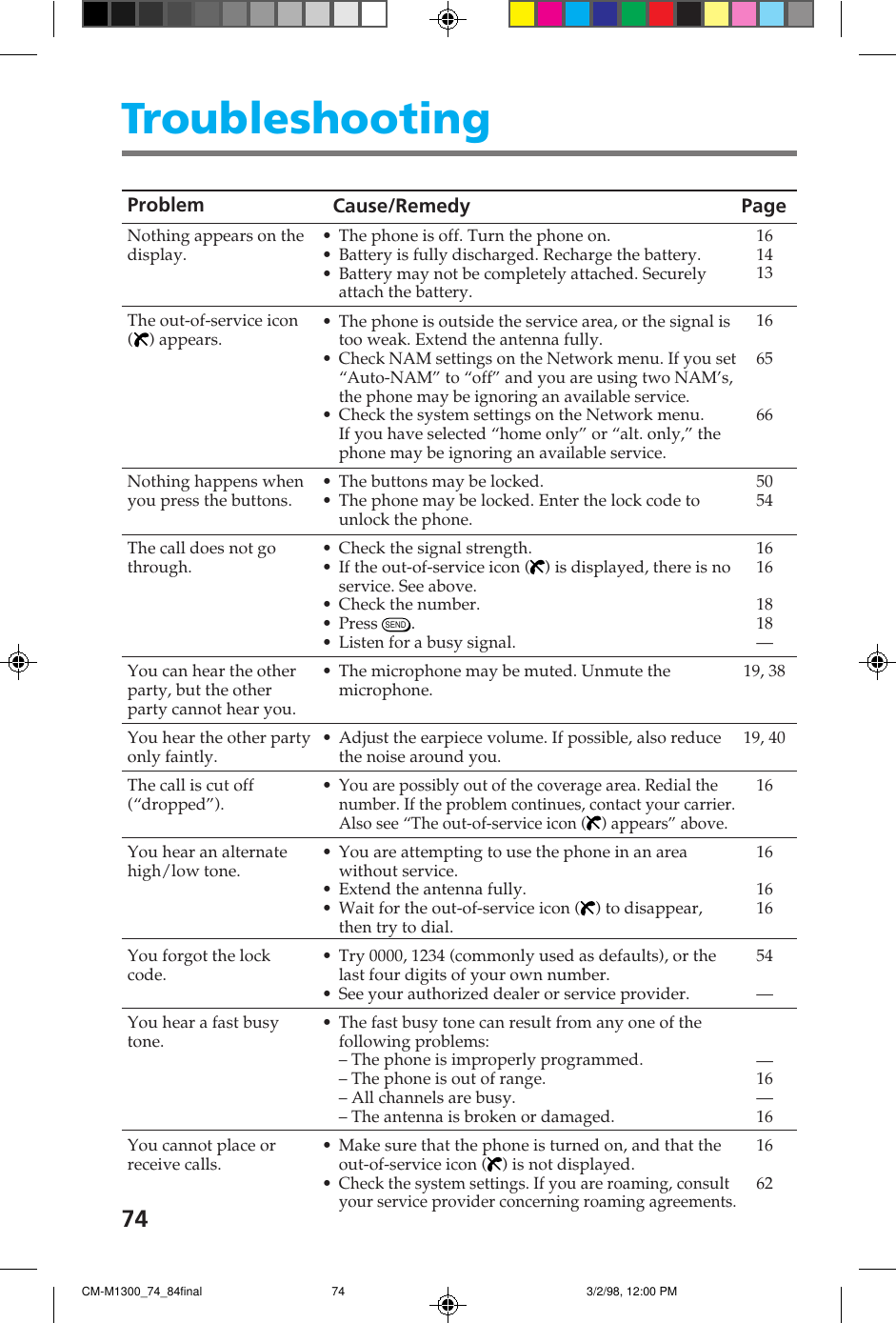

74Problem161413166566505416161818—19, 3819, 401616161654——16—161662• The phone is off. Turn the phone on.• Battery is fully discharged. Recharge the battery.• Battery may not be completely attached. Securelyattach the battery.• The phone is outside the service area, or the signal istoo weak. Extend the antenna fully.•Check NAM settings on the Network menu. If you set“Auto-NAM” to “off” and you are using two NAM’s,the phone may be ignoring an available service.• Check the system settings on the Network menu.If you have selected “home only” or “alt. only,” thephone may be ignoring an available service.• The buttons may be locked.• The phone may be locked. Enter the lock code tounlock the phone.• Check the signal strength.• If the out-of-service icon ( ) is displayed, there is noservice. See above.• Check the number.• Press SEND.• Listen for a busy signal.• The microphone may be muted. Unmute themicrophone.• Adjust the earpiece volume. If possible, also reducethe noise around you.•You are possibly out of the coverage area. Redial thenumber. If the problem continues, contact your carrier.Also see “The out-of-service icon ( ) appears” above.• You are attempting to use the phone in an areawithout service.• Extend the antenna fully.• Wait for the out-of-service icon ( ) to disappear,then try to dial.• Try 0000, 1234 (commonly used as defaults), or thelast four digits of your own number.• See your authorized dealer or service provider.• The fast busy tone can result from any one of thefollowing problems:– The phone is improperly programmed.– The phone is out of range.– All channels are busy.– The antenna is broken or damaged.• Make sure that the phone is turned on, and that theout-of-service icon ( ) is not displayed.•Check the system settings. If you are roaming, consultyour service provider concerning roaming agreements.TroubleshootingCause/Remedy PageNothing appears on thedisplay.The out-of-service icon() appears.Nothing happens whenyou press the buttons.The call does not gothrough.You can hear the otherparty, but the otherparty cannot hear you.You hear the other partyonly faintly.The call is cut off(“dropped”).You hear an alternatehigh/low tone.You forgot the lockcode.You hear a fast busytone.You cannot place orreceive calls.CM-M1300_74_84final 3/2/98, 12:00 PM74

75AdditionalInformationThis section lists the Features menu and its submenus. Use these to set the variousparameters that pertain to the operation of the phone. For details on how to navigatefrom one menu to another, see “About the Features menus” on page 36.Submenu Menu Item Settings PageF-1 Sounds F11 Ringer Vol. off / low / medium / high / escalate 38F12 Mute/UnMute mutes or unmutes the microphone 38F13 Keybeep Vol off / low / medium / high 39F14 Earpiece Vol 1 / 2 / 3 / 4 / 5 / 6 / 7 40F15 Ringer Type standard / option 1 to 4 40F16 Key Sound tones / clicks 41F17 Beep Length standard / long 41F-2 Timers F21 All Calls total call time, number of calls 42F22 Recent Calls total call time, number of calls0 m 0 s 0 call 42F23 Minute Alert on / off 43F24 Auto-Off never / in 3 hours / in 2 hours /in 1 hour / in 30 mins 43F-3 Directory F31 My Number —44F32 Save —44F33 Erase —45F34 Edit —46F35 Find Name —47F36 Phone Book No default entries 48F37 Calls List No default entries 49F-4 Extras F41 Key Guard —50F42 Touch Dial on / off 50F43 Auto-Retry off / on 60 sec / on 30 sec / on 10 sec 51F44 Auto-Answer on / off 51F45 Any Key Answ on / off 52F46 Scratch Pad —52List of menu itemsCM-M1300_74_84final 3/2/98, 12:00 PM75

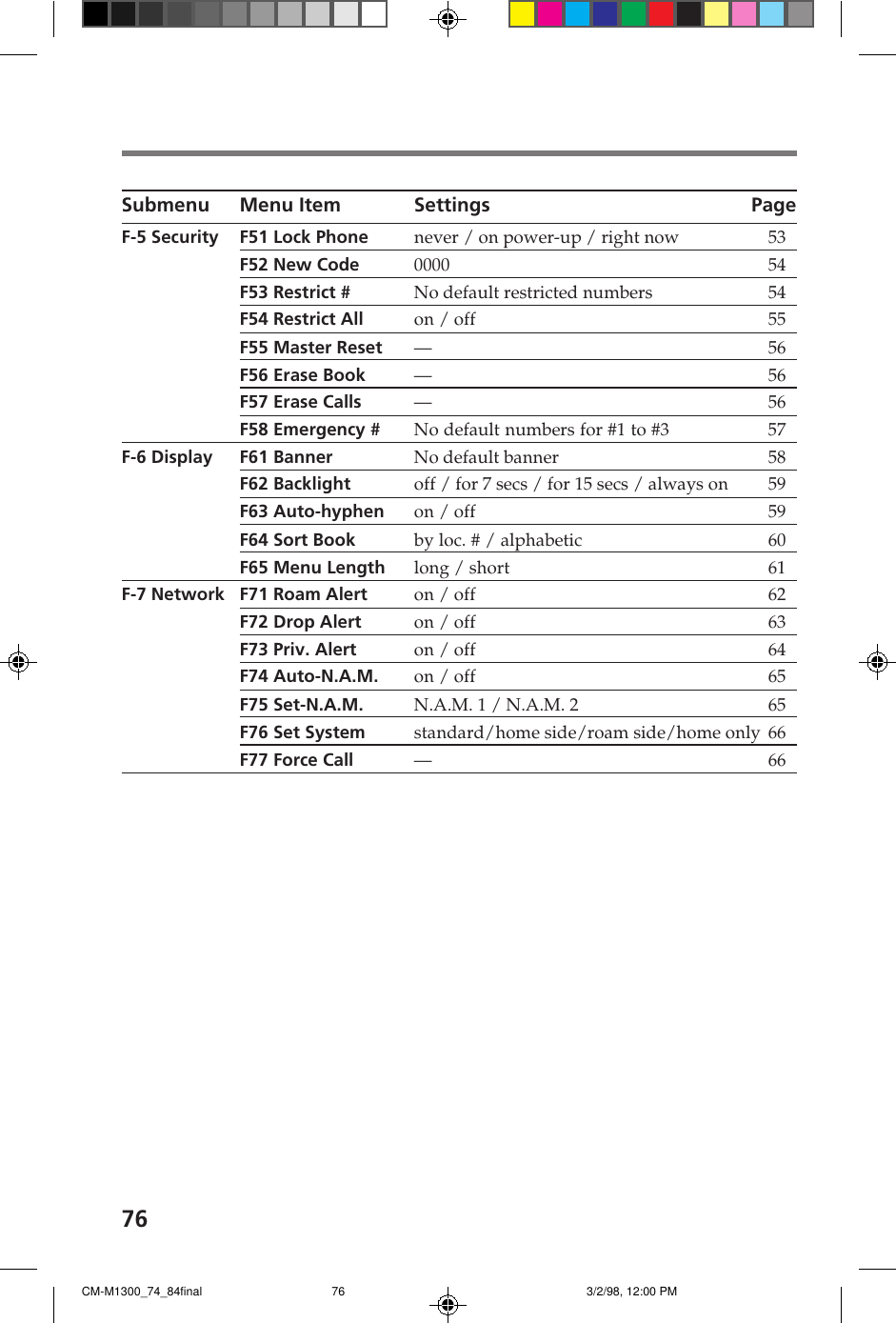

76Submenu Menu Item Settings PageF-5 Security F51 Lock Phone never / on power-up / right now 53F52 New Code 0000 54F53 Restrict # No default restricted numbers 54F54 Restrict All on / off 55F55 Master Reset —56F56 Erase Book —56F57 Erase Calls —56F58 Emergency # No default numbers for #1 to #3 57F-6 Display F61 Banner No default banner 58F62 Backlight off / for 7 secs / for 15 secs / always on 59F63 Auto-hyphen on / off 59F64 Sort Book by loc. # / alphabetic 60F65 Menu Length long / short 61F-7 Network F71 Roam Alert on / off 62F72 Drop Alert on / off 63F73 Priv. Alert on / off 64F74 Auto-N.A.M. on / off 65F75 Set-N.A.M. N.A.M. 1 / N.A.M. 2 65F76 Set System standard/home side/roam side/home only 66F77 Force Call —66CM-M1300_74_84final 3/2/98, 12:00 PM76

77AdditionalInformationSpecificationsFrequency range Transmit: 824.04 to 848.97 MHzReceive: 869.04 to 893.97 MHzDimensions 5.7 × 2.0 × 1.5 inches (h/w/d)(not including antenna)(146 × 50 × 37 mm)Mass (weight) Approx. 7.2 oz (203 g)(including battery)RF power output CDMA: 0.01 µW to 300 mWFM: 6 mW to 600 mWOperational temperature –22°F to +140°F(–30°C to +60°C)(excluding battery pack)Supplied accessories QN-003BPLH Hi-Cap Li-Ion Battery Pack (1)QN-001AC AC Adapter (1)Hand strap (1)Optional accessories QN-002BCD Dual Slot Battery ChargerQN-003BPLH Hi-Cap Li-Ion Battery PackQN-004BPLS Slim Li-Ion Battery PackQN-005BPNM Ni-MH Battery PackQN-006BPNC Ni-Cd Battery PackQN-007HFK Hands-Free Car KitQN-008CLA Rapid Charging Cigarette Lighter AdapterQN-009TA Travel AdapterQN-010LC Carrying Case (for CM-M1300, B1200, S1100 series telephones)QN-011PH Hands-Free Privacy HandsetQN-012DA Data CableQN-013HC Auto Travel HolderQN-016SKT Starter Kit (QN-010LC Carrying Case, Single SlotCharging Stand, Rapid Charging Cigarette Lighter Adapter)QN-017SKT Starter Kit (QN-019LC Carrying Case, Single SlotCharging Stand, Rapid Charging Cigarette Lighter Adapter)QN-018SKT Starter Kit (QN-018LC Carrying Case, Single SlotCharging Stand, Rapid Charging Cigarette Lighter Adapter)QN-018LC Carrying Case (for CM-M2300, B2200, S2100 series telephones)QN-019LC Carrying Case (for CM-M3300, B3200, S3100 series telephones)QN-020TCL Combination Travel Adapter/CigaretteLighter AdapterQN-025PHK Portable Hands-Free Car KitCall 1-800-488-SONY (7669) to order additional accessories (USA only).Design and specifications are subject to change without notice.CM-M1300_74_84final 3/2/98, 12:00 PM77

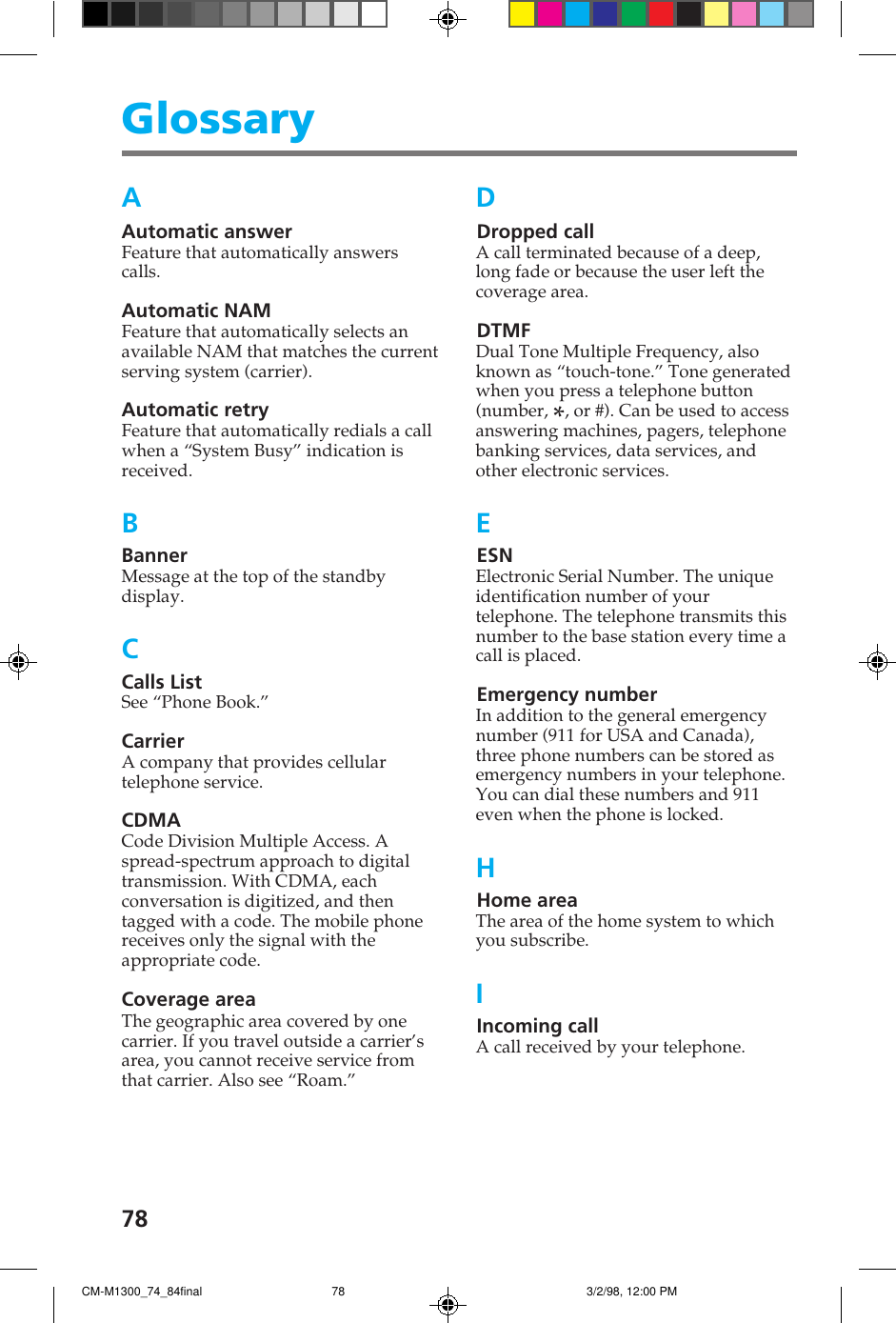

78AAutomatic answerFeature that automatically answerscalls.Automatic NAMFeature that automatically selects anavailable NAM that matches the currentserving system (carrier).Automatic retryFeature that automatically redials a callwhen a “System Busy” indication isreceived.BBannerMessage at the top of the standbydisplay.CCalls ListSee “Phone Book.”CarrierA company that provides cellulartelephone service.CDMACode Division Multiple Access. Aspread-spectrum approach to digitaltransmission. With CDMA, eachconversation is digitized, and thentagged with a code. The mobile phonereceives only the signal with theappropriate code.Coverage areaThe geographic area covered by onecarrier. If you travel outside a carrier’sarea, you cannot receive service fromthat carrier. Also see “Roam.”DDropped callA call terminated because of a deep,long fade or because the user left thecoverage area.DTMFDual Tone Multiple Frequency, alsoknown as “touch-tone.” Tone generatedwhen you press a telephone button(number, *, or #). Can be used to accessanswering machines, pagers, telephonebanking services, data services, andother electronic services.EESNElectronic Serial Number. The uniqueidentification number of yourtelephone. The telephone transmits thisnumber to the base station every time acall is placed.Emergency numberIn addition to the general emergencynumber (911 for USA and Canada),three phone numbers can be stored asemergency numbers in your telephone.You can dial these numbers and 911even when the phone is locked.HHome areaThe area of the home system to whichyou subscribe.IIncoming callA call received by your telephone.GlossaryCM-M1300_74_84final 3/2/98, 12:00 PM78

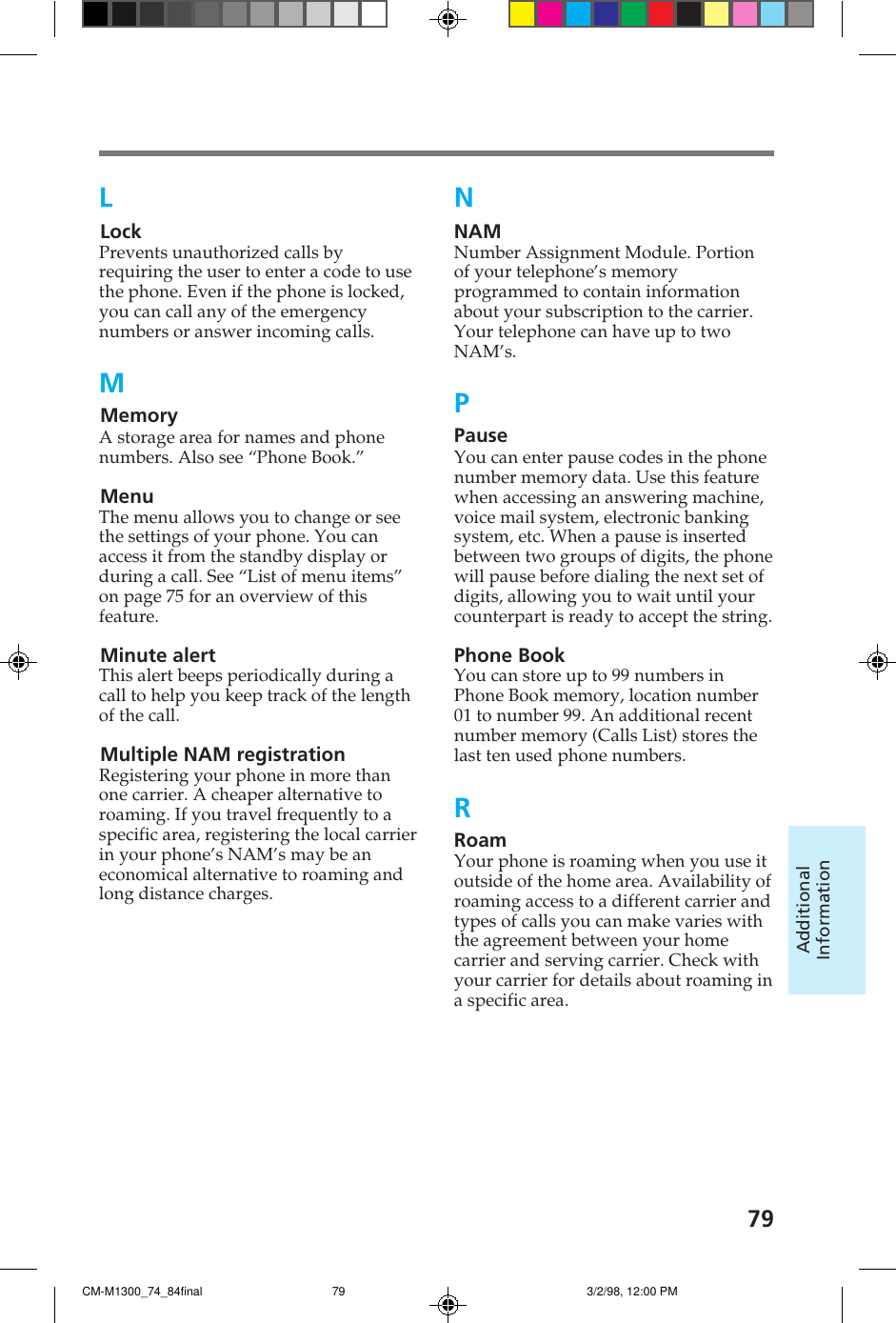

79AdditionalInformationLLockPrevents unauthorized calls byrequiring the user to enter a code to usethe phone. Even if the phone is locked,you can call any of the emergencynumbers or answer incoming calls.MMemoryA storage area for names and phonenumbers. Also see “Phone Book.”MenuThe menu allows you to change or seethe settings of your phone. You canaccess it from the standby display orduring a call. See “List of menu items”on page 75 for an overview of thisfeature.Minute alertThis alert beeps periodically during acall to help you keep track of the lengthof the call.Multiple NAM registrationRegistering your phone in more thanone carrier. A cheaper alternative toroaming. If you travel frequently to aspecific area, registering the local carrierin your phone’s NAM’s may be aneconomical alternative to roaming andlong distance charges.NNAMNumber Assignment Module. Portionof your telephone’s memoryprogrammed to contain informationabout your subscription to the carrier.Your telephone can have up to twoNAM’s.PPauseYou can enter pause codes in the phonenumber memory data. Use this featurewhen accessing an answering machine,voice mail system, electronic bankingsystem, etc. When a pause is insertedbetween two groups of digits, the phonewill pause before dialing the next set ofdigits, allowing you to wait until yourcounterpart is ready to accept the string.Phone BookYou can store up to 99 numbers inPhone Book memory, location number01 to number 99. An additional recentnumber memory (Calls List) stores thelast ten used phone numbers.RRoamYour phone is roaming when you use itoutside of the home area. Availability ofroaming access to a different carrier andtypes of calls you can make varies withthe agreement between your homecarrier and serving carrier. Check withyour carrier for details about roaming ina specific area.CM-M1300_74_84final 3/2/98, 12:00 PM79

80SScratch padAllows you to enter a number and storeit in the Calls List.Service areaRegion covered by a cellular service.Also see “Coverage area.”SMSShort Messaging Service. An extendedservice offered by carriers that allowsyou to receive text messages on yourphone. Check with your carrier fordetails.Speed dialingMaking a call using Phone Bookmemory locations. Also see “PhoneBook.”TTouch dialingA quick way of making a call using anumber stored in a Phone Book memorylocation. Also see “Speed dialing.”Touch-toneSee “DTMF.”VVoice mailAn extended service, offered by carriers,that allows you to retrieve voice mailmessages stored in your voice mailbox.Check with your carrier for details.VolumeYou can adjust the volume of keybeep,ringer, and earpiece.CM-M1300_74_84final 3/2/98, 12:00 PM80

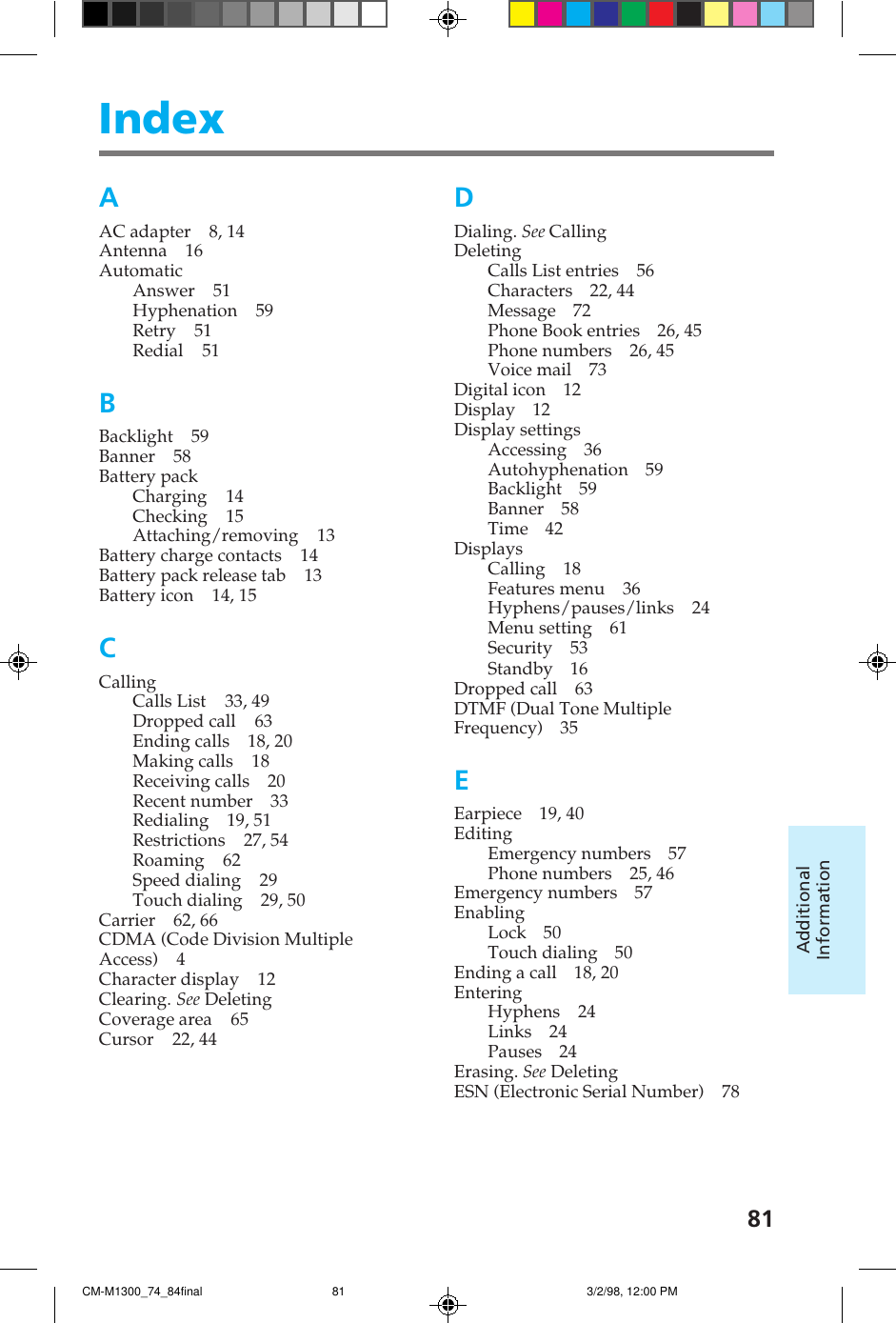

81AdditionalInformationAAC adapter 8, 14Antenna 16AutomaticAnswer 51Hyphenation 59Retry 51Redial 51BBacklight 59Banner 58Battery packCharging 14Checking 15Attaching/removing 13Battery charge contacts 14Battery pack release tab 13Battery icon 14, 15CCallingCalls List 33, 49Dropped call 63Ending calls 18, 20Making calls 18Receiving calls 20Recent number 33Redialing 19, 51Restrictions 27, 54Roaming 62Speed dialing 29Touch dialing 29, 50Carrier 62, 66CDMA (Code Division MultipleAccess) 4Character display 12Clearing. See DeletingCoverage area 65Cursor 22, 44IndexDDialing. See CallingDeletingCalls List entries 56Characters 22, 44Message 72Phone Book entries 26, 45Phone numbers 26, 45Voice mail 73Digital icon 12Display 12Display settingsAccessing 36Autohyphenation 59Backlight 59Banner 58Time 42DisplaysCalling 18Features menu 36Hyphens/pauses/links 24Menu setting 61Security 53Standby 16Dropped call 63DTMF (Dual Tone MultipleFrequency) 35EEarpiece 19, 40EditingEmergency numbers 57Phone numbers 25, 46Emergency numbers 57EnablingLock 50Touch dialing 50Ending a call 18, 20EnteringHyphens 24Links 24Pauses 24Erasing. See DeletingESN (Electronic Serial Number) 78CM-M1300_74_84final 3/2/98, 12:00 PM81

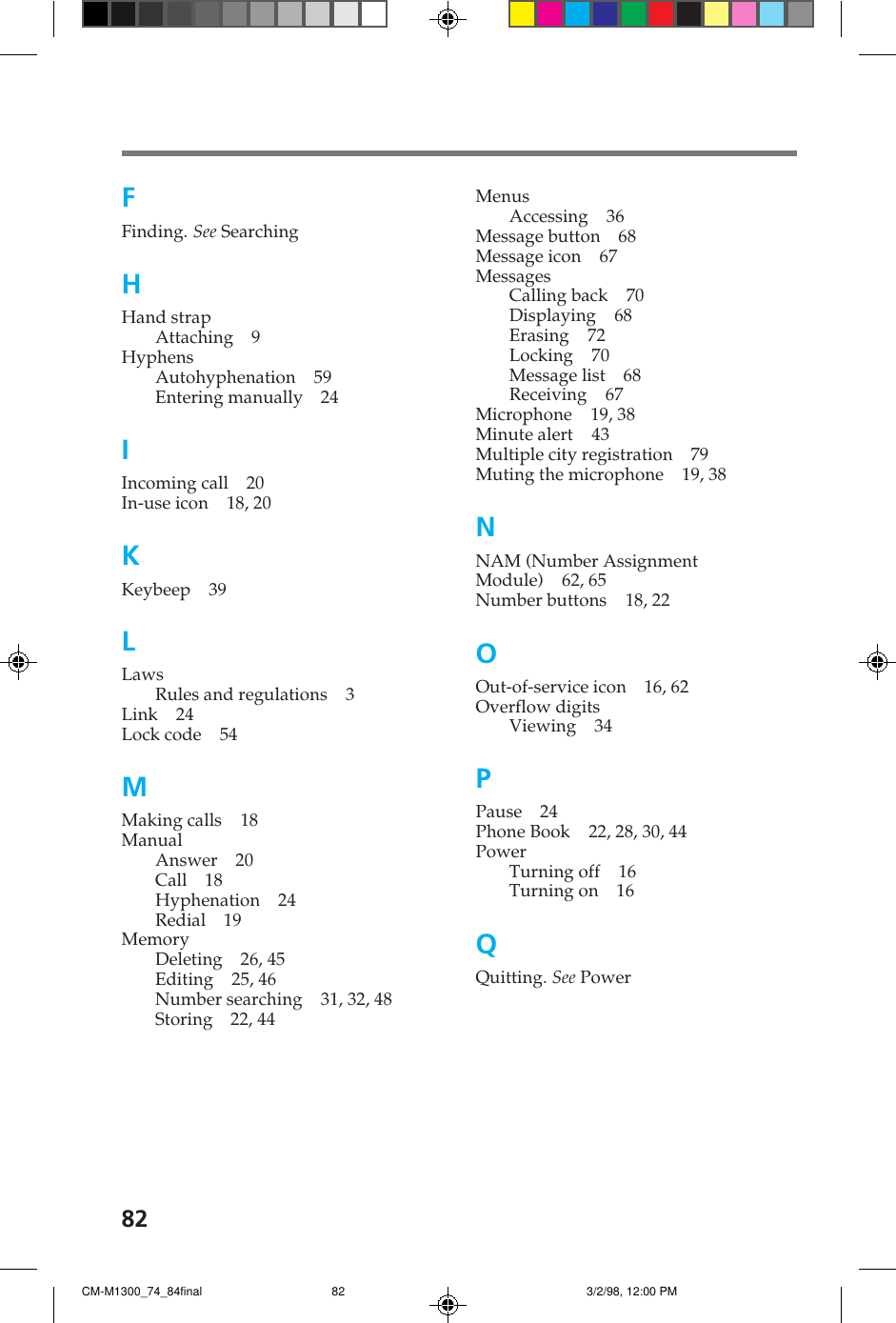

82FFinding. See SearchingHHand strapAttaching 9HyphensAutohyphenation 59Entering manually 24IIncoming call 20In-use icon 18, 20KKeybeep 39LLawsRules and regulations 3Link 24Lock code 54MMaking calls 18ManualAnswer 20Call 18Hyphenation 24Redial 19MemoryDeleting 26, 45Editing 25, 46Number searching 31, 32, 48Storing 22, 44MenusAccessing 36Message button 68Message icon 67MessagesCalling back 70Displaying 68Erasing 72Locking 70Message list 68Receiving 67Microphone 19, 38Minute alert 43Multiple city registration 79Muting the microphone 19, 38NNAM (Number AssignmentModule) 62, 65Number buttons 18, 22OOut-of-service icon 16, 62Overflow digitsViewing 34PPause 24Phone Book 22, 28, 30, 44PowerTurning off 16Turning on 16QQuitting. See PowerCM-M1300_74_84final 3/2/98, 12:00 PM82

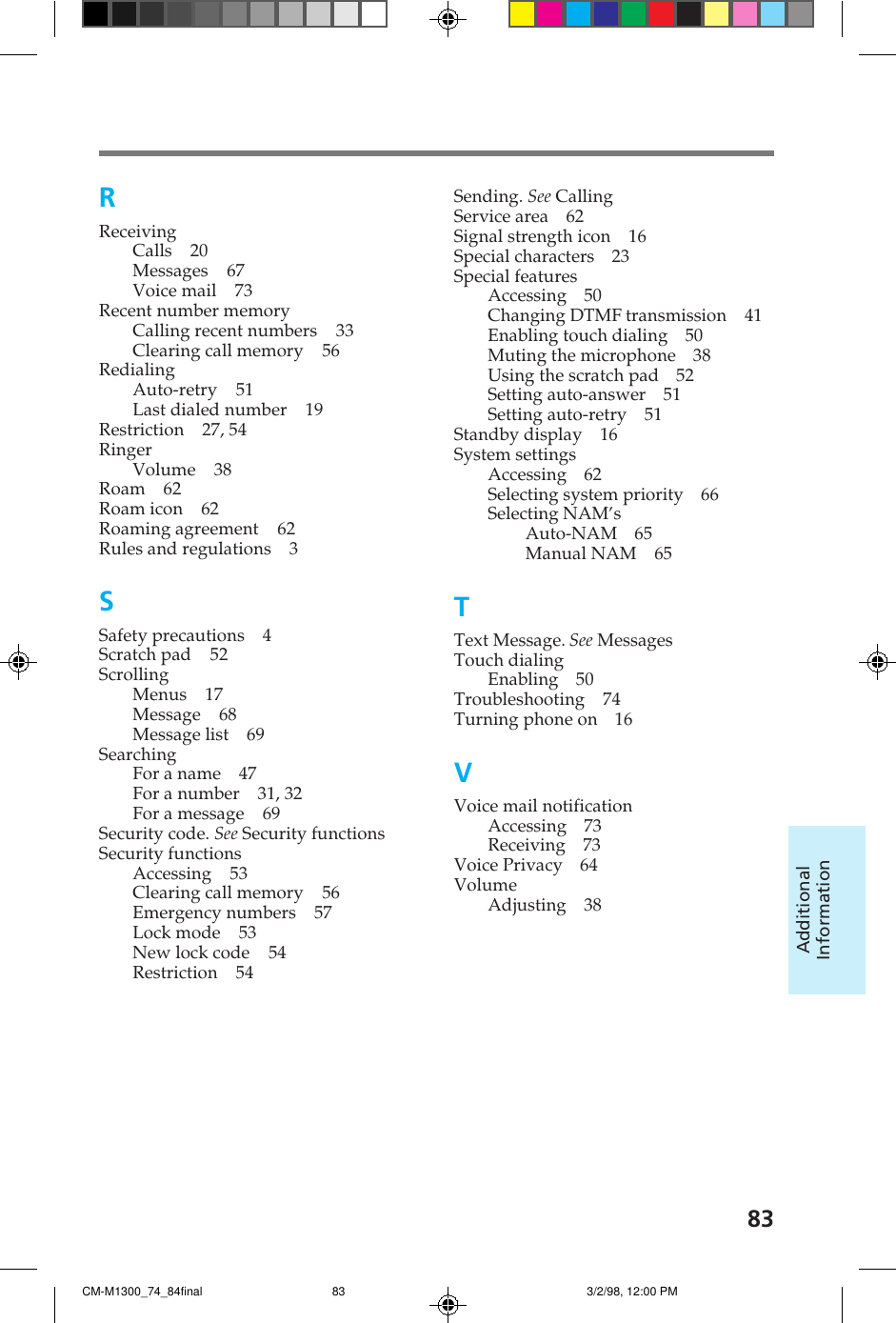

83AdditionalInformationRReceivingCalls 20Messages 67Voice mail 73Recent number memoryCalling recent numbers 33Clearing call memory 56RedialingAuto-retry 51Last dialed number 19Restriction 27, 54RingerVolume 38Roam 62Roam icon 62Roaming agreement 62Rules and regulations 3SSafety precautions 4Scratch pad 52ScrollingMenus 17Message 68Message list 69SearchingFor a name 47For a number 31, 32For a message 69Security code. See Security functionsSecurity functionsAccessing 53Clearing call memory 56Emergency numbers 57Lock mode 53New lock code 54Restriction 54Sending. See CallingService area 62Signal strength icon 16Special characters 23Special featuresAccessing 50Changing DTMF transmission 41Enabling touch dialing 50Muting the microphone 38Using the scratch pad 52Setting auto-answer 51Setting auto-retry 51Standby display 16System settingsAccessing 62Selecting system priority 66Selecting NAM’sAuto-NAM 65Manual NAM 65TText Message. See MessagesTouch dialingEnabling 50Troubleshooting 74Turning phone on 16VVoice mail notificationAccessing 73Receiving 73Voice Privacy 64VolumeAdjusting 38CM-M1300_74_84final 3/2/98, 12:00 PM83

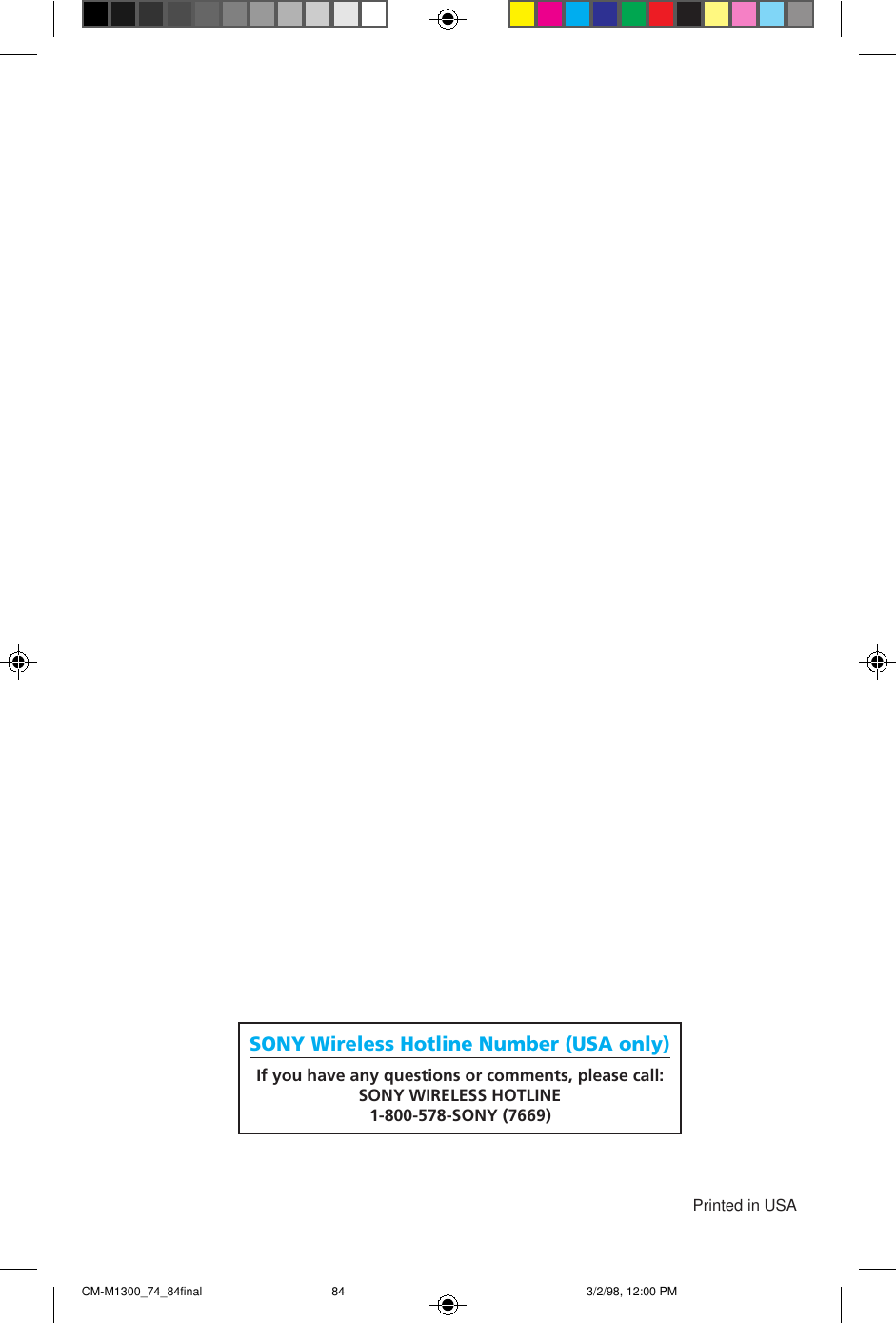

84SONY Wireless Hotline Number (USA only)If you have any questions or comments, please call:SONY WIRELESS HOTLINE1-800-578-SONY (7669)Printed in USACM-M1300_74_84final 3/2/98, 12:00 PM84
