DSX-A400BT
DSX-A400BT
4-573-404-11(1)
FM/AM
Digital Media
Player
The warranty for this product is included in this manual
(page 35, 36).
La garantie de ce produit est inclus dans le présent manuel
(page 37).
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the spaces provided below.
Refer to these numbers whenever you call upon your Sony dealer
regarding this product.
Model No. DSX-A400BT
Serial No.
Operating Instructions GB
Mode d’emploi FR
Manual de instrucciones ES
To cancel the demonstration (DEMO) display, see page 19.
For the connection/installation, see page 30.
Pour annuler l’affichage de démonstration (DEMO),
reportez-vous à la page 20.
Pour le raccordement/l’installation, reportez-vous à la page 32.
Para cancelar la pantalla de demostración (DEMO), consulte
la página 19.
Para la conexión/instalación, consulte la página 30.
010COV.book Page 1 Wednesday, September 2, 2015 3:41 PM
2GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\020INT.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
The nameplate indicating operating voltage, etc., is
located on the bottom of the chassis.
Warning
For safety, be sure to install this unit in the
dashboard of the car as the rear side of the unit
becomes hot during use.
For details, see “Connection/Installation”
(page 30).
FOR THE CUSTOMERS IN THE USA. NOT
APPLICABLE IN CANADA, INCLUDING IN THE
PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON
APPLICABLE AU CANADA, Y COMPRIS LA
PROVINCE DE QUÉBEC.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
ˋReorient or relocate the receiving antenna.
ˋIncrease the separation between the
equipment and receiver.
ˋConnect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
ˋConsult the dealer or an experienced radio/TV
technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
010COV.book Page 2 Wednesday, September 2, 2015 3:41 PM
3GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\020INT.fm masterpage: Right_
A
DSX-A400BT
4-573-404-11(1)
This device complies with Part 15 of the FCC Rules
and Industry Canada's licence-exempt RSSs.
Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
This transmitter must not be co-located or operated
in conjunction with any other antenna or
transmitter.
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for
the transmitter by Industry Canada. To reduce
potential radio interference to other users, the
antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful
communication.
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency
(RF) Exposure Guidelines and RSS-102 of the IC
radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that is
deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it
should be installed and operated keeping the
radiator at least 20 cm or more away from person’s
body.
Note on the lithium battery
Do not expose the battery to excessive heat such as
direct sunlight, fire or the like.
Disclaimer regarding services offered by
third parties
Services offered by third parties may be changed,
suspended, or terminated without prior notice.
Sony does not bear any responsibility in these sorts
of situations.
Warning if your car’s ignition has no ACC
position
Be sure to set the AUTO OFF function (page 19).
The unit will shut off completely and
automatically in the set time after the unit is
turned off, which prevents battery drain. If you
do not set the AUTO OFF function, press and hold
OFF until the display disappears each time you
turn the ignition off.
010COV.book Page 3 Wednesday, September 2, 2015 3:41 PM
For the State of California, USA only
Perchlorate Material – special handling may apply,
See
www.dtsc.ca.gov/hazardouswaste/perchlorate
4GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\020INT.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
Caution
IN NO EVENT SHALL SONY BE LIABLE FOR ANY
INCIDENTAL, INDIRECT OR CONSEQUENTIAL
DAMAGES OR OTHER DAMAGES INCLUDING,
WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE OF THE
PRODUCT OR ANY ASSOCIATED EQUIPMENT,
DOWNTIME, AND PURCHASER’S TIME RELATED TO
OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS
HARDWARE AND/OR ITS SOFTWARE.
Dear customer, this product includes a radio
transmitter.
Please check your vehicle operation manual or
contact the manufacturer of your vehicle or your
vehicle dealer, before you install this product into
your vehicle.
Emergency calls
This BLUETOOTH car handsfree and the electronic
device connected to the handsfree operate using
radio signals, cellular, and landline networks as well
as user-programmed function, which cannot
guarantee connection under all conditions.
Therefore do not rely solely upon any electronic
device for essential communications (such as
medical emergencies).
On BLUETOOTH communication
ˎMicrowaves emitting from a BLUETOOTH device
may affect the operation of electronic medical
devices. Turn off this unit and other BLUETOOTH
devices in the following locations, as it may cause
an accident.
ˋwhere inflammable gas is present, in a hospital,
train, airplane, or petrol station
ˋnear automatic doors or a fire alarm
ˎThis unit supports security capabilities that
comply with the BLUETOOTH standard to provide
a secure connection when the BLUETOOTH
wireless technology is used, but security may not
be enough depending on the setting. Be careful
when communicating using BLUETOOTH wireless
technology.
ˎWe do not take any responsibility for the leakage
of information during BLUETOOTH
communication.
If you have any questions or problems concerning
your unit that are not covered in this manual,
consult your nearest Sony dealer.
Important notice
010COV.book Page 4 Wednesday, September 2, 2015 3:41 PM
5GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\010COVTOC.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Table of Contents
Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Guide to Parts and Controls . . . . . . . . . . . . . . . . . . 6
Getting Started
Detaching the Front Panel. . . . . . . . . . . . . . . . . . . . 8
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Preparing a BLUETOOTH Device . . . . . . . . . . . . . . . 9
Connecting a USB Device . . . . . . . . . . . . . . . . . . . . 11
Connecting Other Portable Audio Device . . . . . . . 11
Listening to the Radio
Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . 12
Using Radio Data System (RDS) . . . . . . . . . . . . . . . 12
Playback
Playing a USB Device . . . . . . . . . . . . . . . . . . . . . . . . 13
Playing a BLUETOOTH Device . . . . . . . . . . . . . . . . . 13
Searching and Playing Tracks . . . . . . . . . . . . . . . . 14
Listening to Pandora®
Setting up Pandora® . . . . . . . . . . . . . . . . . . . . . . . . 15
Streaming Pandora®. . . . . . . . . . . . . . . . . . . . . . . . . 15
Available Operations in Pandora®. . . . . . . . . . . . . . 15
Handsfree Calling (via BLUETOOTH
only)
Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Available Operations during Call . . . . . . . . . . . . . . 17
Useful Functions
Using Siri Eyes Free . . . . . . . . . . . . . . . . . . . . . . . . 18
Settings
Canceling the DEMO Mode. . . . . . . . . . . . . . . . . . . 19
Basic Setting Operation . . . . . . . . . . . . . . . . . . . . . 19
General Setup (GENERAL) . . . . . . . . . . . . . . . . . . . . 19
Sound Setup (SOUND). . . . . . . . . . . . . . . . . . . . . . . 19
Display Setup (DISPLAY) . . . . . . . . . . . . . . . . . . . . 20
BLUETOOTH Setup (BT) . . . . . . . . . . . . . . . . . . . . . 20
Additional Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connection/Installation
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Parts List for Installation . . . . . . . . . . . . . . . . . . . . 30
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Important notice
The warranty for this product is included in this
manual (page 35, 36). Keep this manual for
future use.
010COV.book Page 5 Wednesday, September 2, 2015 3:41 PM
6GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)

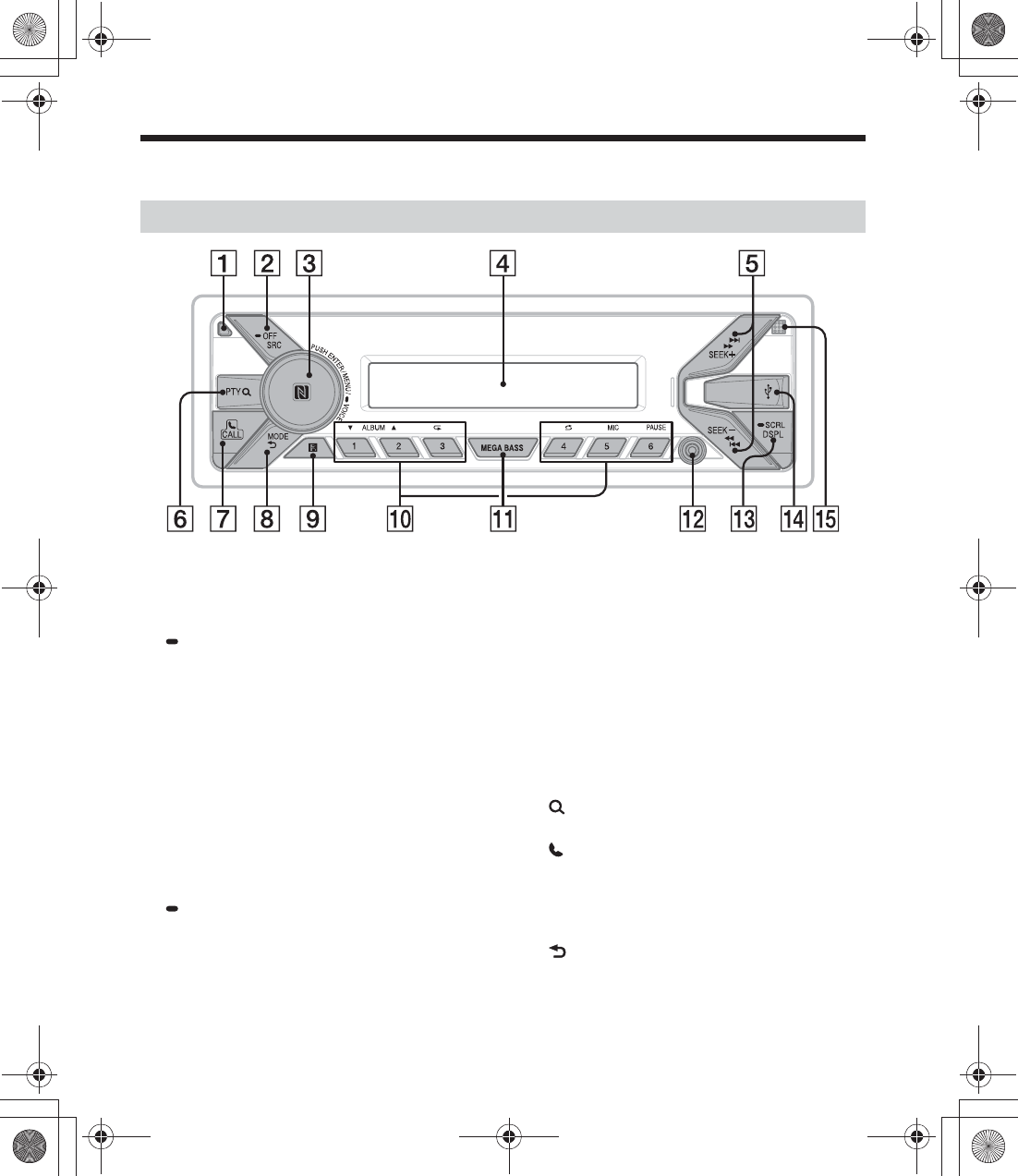

Guide to Parts and Controls
ȩFront panel release button
ȪSRC (source)
Turn on the power.
Change the source.
OFF
Press and hold for 1 second to turn the source
off and display the clock.
Press and hold for more than 2 seconds to turn
off the power and the display.
If the unit is turned off and the display
disappears, operation by the remote
commander is not available.
ȫControl dial
Rotate to adjust the volume.
PUSH ENTER
Enter the selected item.
MENU*
Open the setup menu.
VOICE (page 17, 18)
Press and hold for more than 2 seconds to
activate voice dial or the Siri function (iPhone
only).
N-Mark
Touch the control dial with Android™ phone to
make Bluetooth® connection.
* Not available when the BT phone is selected.
ȬDisplay window
ȭSEEK +/–
Tune in radio stations automatically. Press and
hold to tune manually.
Ã/Ñ (prev/next)
ù/ß (fast-reverse/fast-forward)
ȮPTY (program type)
Select PTY in RDS.
(browse) (page 14, 15)
Enter the browse mode during playback.
ȯ CALL
Enter the call menu. Receive/end a call.
Press and hold for more than 2 seconds to
switch the BLUETOOTH signal.
ȰMODE (page 12, 13, 15, 17)
(back)
Return to the previous display.
ȱReceptor for the remote commander
Main unit
010COV.book Page 6 Wednesday, September 2, 2015 3:41 PM
7GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
ȲNumber buttons (1 to 6)
Receive stored radio stations. Press and hold to
store stations.
Call a stored phone number. Press and hold to
store a phone number.
ALBUM è/Ă
Skip an album for audio device. Press and hold
to skip albums continuously.
Press Ă to thumbs up, or è to thumbs down in
Pandora® (page 15).
(repeat)
(shuffle)
MIC (page 17)
PAUSE
ȳMEGA BASS
Reinforces bass sound in synchronization with
the volume level. Press to change the MEGA
BASS setting: [1], [2], [OFF].
ȴAUX input jack
ȵDSPL (display)
Press to change display items.
SCRL (scroll)
Press and hold to scroll a display item.
ȶUSB port
ȷMicrophone (inner panel)
In order for the handsfree function to work
properly, do not cover the microphone with
tape, etc.
The VOL (volume) + button has a tactile dot.
̣CALL
Enter the call menu. Receive/end a call.
̤SOUND*
Open the SOUND menu directly.
MENU*
Press and hold to open the setup menu.
* Not available when the BT phone is selected.
̥R/a/{/C
Select a setup item, etc.
ENTER
Enter the selected item.
Ã/Ñ (prev/next)
+/– (album +/–)
ȻVOL (volume) +/–

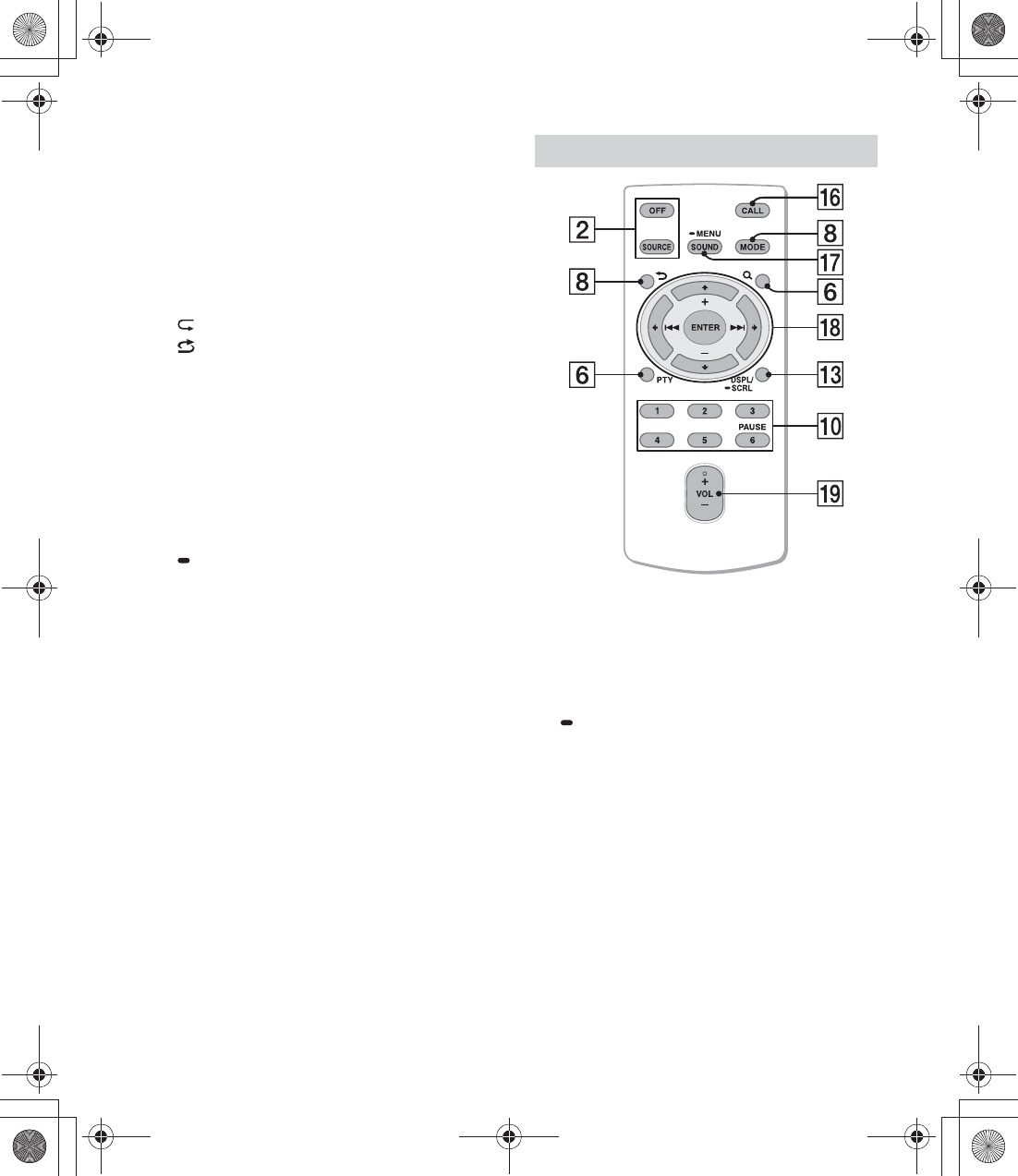

RM-X231 Remote commander
010COV.book Page 7 Wednesday, September 2, 2015 3:41 PM
8GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
Remove the insulation film before use.

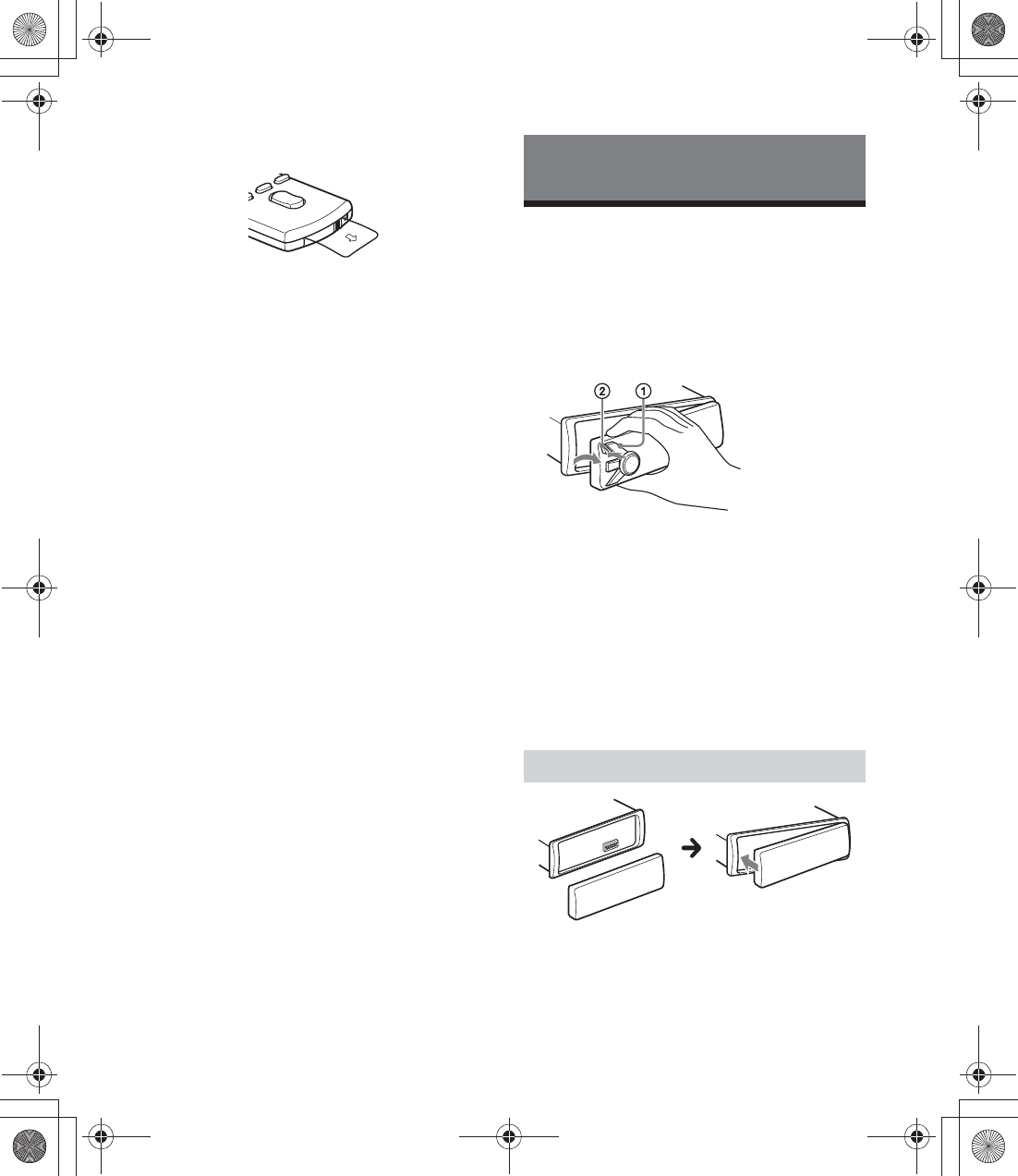

Detaching the Front Panel
You can detach the front panel of this unit to
prevent theft.
1Press and hold OFF ʓ until the unit turns
off, press the front panel release button
ʔ, then pull the panel towards you to
remove.
Caution alarm
If you turn the ignition switch to the OFF position
without detaching the front panel, the caution
alarm will sound for a few seconds. The alarm will
only sound if the built-in amplifier is used.
Serial numbers
Make sure the serial numbers on the bottom of the
unit and the back of the front panel are matched
correctly. Otherwise you cannot make BLUETOOTH
pairing, connection and disconnection by NFC.
Getting Started
Attaching the front panel
010COV.book Page 8 Wednesday, September 2, 2015 3:41 PM
9GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Setting the Clock
1Press MENU, rotate the control dial to
select [SET GENERAL], then press it.
2Rotate the control dial to select [SET
CLOCK-ADJ], then press it.
The hour indication flashes.
3Rotate the control dial to set the hour
and minute.
To move the digital indication, press SEEK +/–.
4After setting the minute, press MENU.
The setup is complete and the clock starts.
To display the clock
Press DSPL.
Preparing a BLUETOOTH Device
You can enjoy music, or perform handsfree calling
depending on the BLUETOOTH compatible device
such as a smartphone, cellular phone and audio
device (hereafter “BLUETOOTH device” if not
otherwise specified). For details on connecting,
refer to the operating instructions supplied with the
device.
Before connecting the device, turn down the
volume of this unit; otherwise, loud sound may
result.

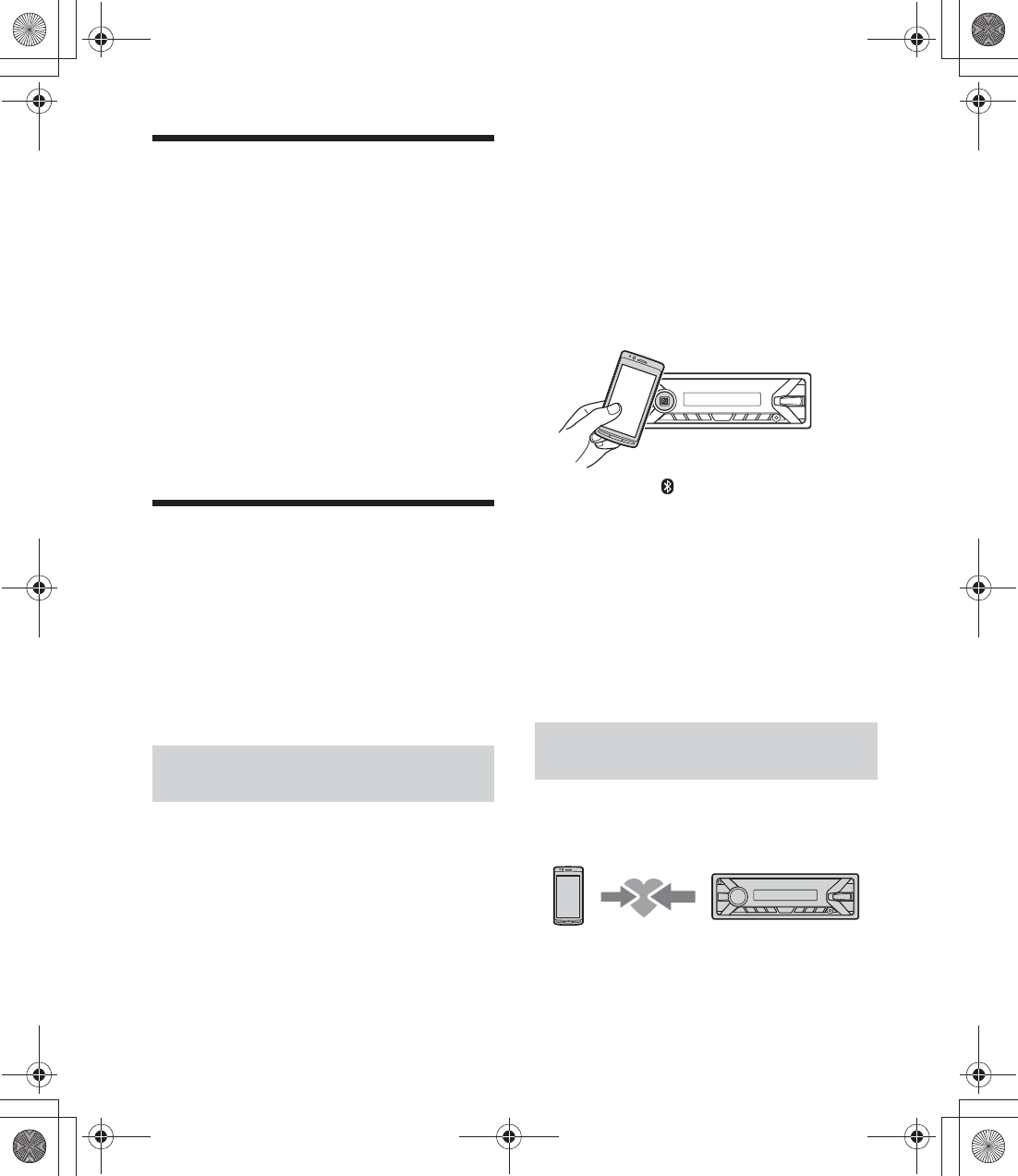

By touching the control dial on the unit with an
NFC* compatible smartphone, the unit is paired and
connected with the smartphone automatically.
* NFC (Near Field Communication) is a technology
enabling short-range wireless communication
between various devices, such as mobile phones and
IC tags. Thanks to the NFC function, data
communication can be achieved easily just by
touching the relevant symbol or designated location
on NFC compatible devices.
For a smartphone with Android OS 4.0 or lower
installed, downloading the app “NFC Easy Connect”
available at Google Play™ is required. The app may
not be downloadable in some countries/regions.
1Activate the NFC function on the
smartphone.
For details, refer to the operating instructions
supplied with the smartphone.
2Touch the N-Mark part of the unit with
the N-Mark part of the smartphone.
Make sure that lights up on the display of the
unit.
To disconnect by One touch
Touch the N-Mark part of the unit with the N-Mark
part of the smartphone again.
Notes
ˎWhen making the connection, handle the
smartphone carefully to prevent scratches.
ˎOne touch connection is not possible when the unit is
already connected to another NFC compatible device.
In this case, disconnect the other device, and make
connection with the smartphone again.
When connecting a BLUETOOTH device for the first
time, mutual registration (called “pairing”) is
required. Pairing enables this unit and other devices
to recognize each other.
1Place the BLUETOOTH device within 1 m
(3 ft) of this unit.
Connecting with a Smartphone by One
touch (NFC)
Pairing and connecting with a
BLUETOOTH device
010COV.book Page 9 Wednesday, September 2, 2015 3:41 PM
10GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)

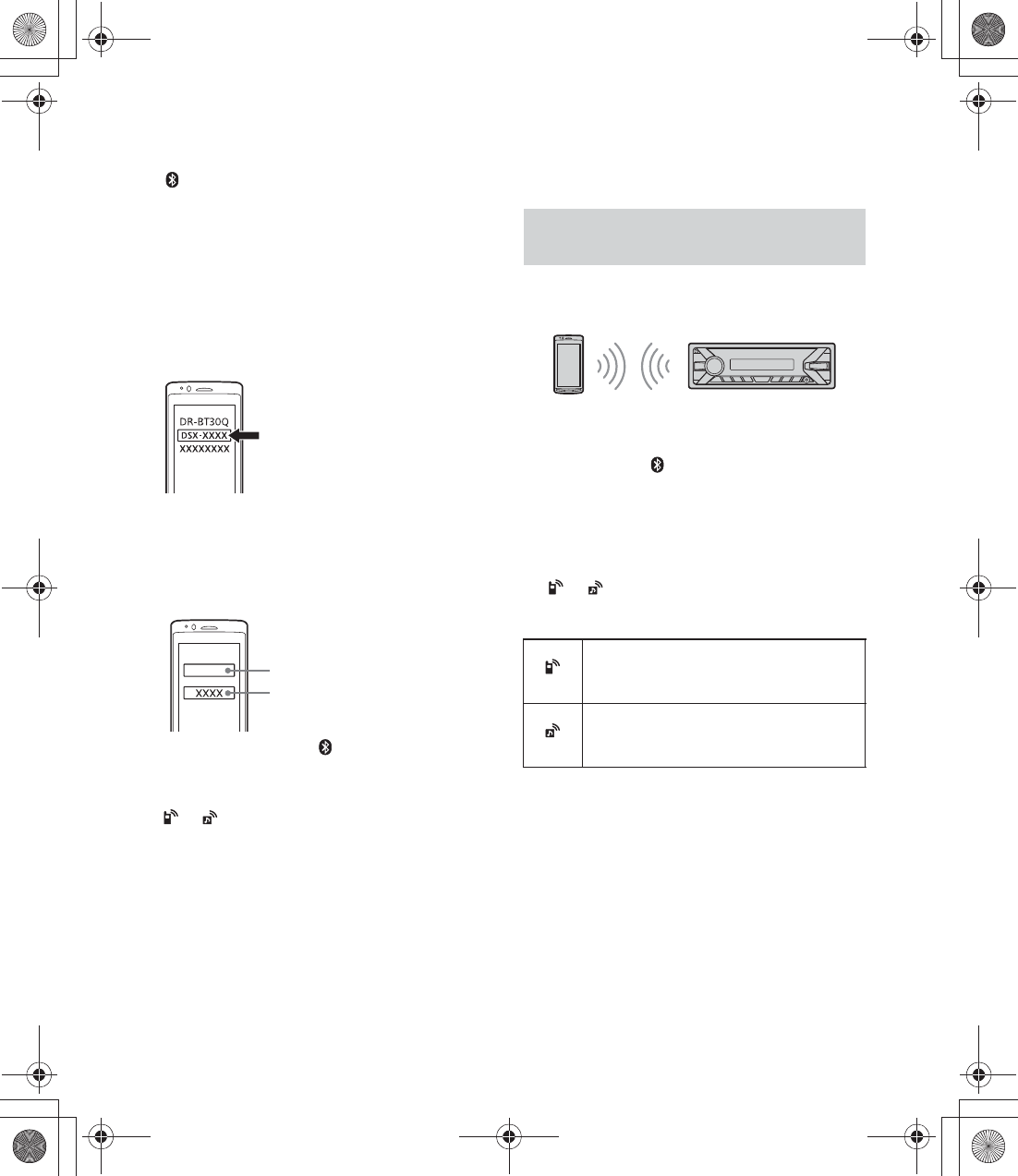

2Press CALL, rotate the control dial to
select [SET PAIRING], then press it.
flashes while the unit is in pairing standby
mode.
3Perform pairing on the BLUETOOTH
device so it detects this unit.
4Select [DSX-XXXX] (your model name)
shown in the display of the BLUETOOTH
device.
If your model name does not appear, repeat
from step 2.
5If passkey* input is required on the
BLUETOOTH device, input [0000].
* Passkey may be called “Passcode,” “PIN code,”
“PIN number” or “Password,” etc., depending on
the device.
When pairing is made, stays lit.
6Select this unit on the BLUETOOTH device
to establish the BLUETOOTH connection.
or lights up when the connection is made.
Note
While connecting to a BLUETOOTH device, this unit
cannot be detected from another device. To enable
detection, enter the pairing mode and search for this
unit from another device.
To start playback
For details, see “Playing a BLUETOOTH Device”
(page 13).
To cancel pairing
Perform step 2 to cancel the pairing mode after this
unit and the BLUETOOTH device are paired.
To use a paired device, connection with this unit is
required. Some paired devices will connect
automatically.
1Press CALL, rotate the control dial to
select [SET BT SIGNL], then press it.
Make sure that lights up.
2Activate the BLUETOOTH function on the
BLUETOOTH device.
3Operate the BLUETOOTH device to
connect to this unit.
or lights up.
Icons in the display:
To connect the last-connected device from
this unit
Activate the BLUETOOTH function on the
BLUETOOTH device.
Press SRC to select [BT PHONE] or [BT AUDIO].
Press ENTER to connect with the cellular phone, or
PAUSE to connect with the audio device.
Note
While streaming BLUETOOTH audio, you cannot
connect from this unit to the cellular phone. Connect
from the cellular phone to this unit instead.
[0000]
Input passkey
Connecting with a paired BLUETOOTH
device
Lights up when handsfree calling is
available by enabling the HFP (Handsfree
Profile).
Lights up when the audio device is
playable by enabling the A2DP
(Advanced Audio Distribution Profile).
010COV.book Page 10 Wednesday, September 2, 2015 3:41 PM
11GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Tip
With BLUETOOTH signal on: when the ignition is turned
to on, this unit reconnects automatically to the last-
connected cellular phone.
When an iPhone/iPod with iOS5 or later installed is
connected to the USB port, the unit is paired and
connected with the iPhone/iPod automatically.
To enable BLUETOOTH Auto Pairing, make sure
[AUTOPAIR] in [BT] is set to [ON] (page 20).
1Activate the BLUETOOTH function on the
iPhone/iPod.
2Connect an iPhone/iPod to the USB port.
Make sure that lights up on the display of the
unit.
Notes
ˎBLUETOOTH Auto Pairing is not possible if the unit is
already connected to another BLUETOOTH device. In
this case, disconnect the other device, then connect
the iPhone/iPod again.
ˎIf BLUETOOTH Auto Pairing is not established, see
“Preparing a BLUETOOTH Device” for details (page 9).

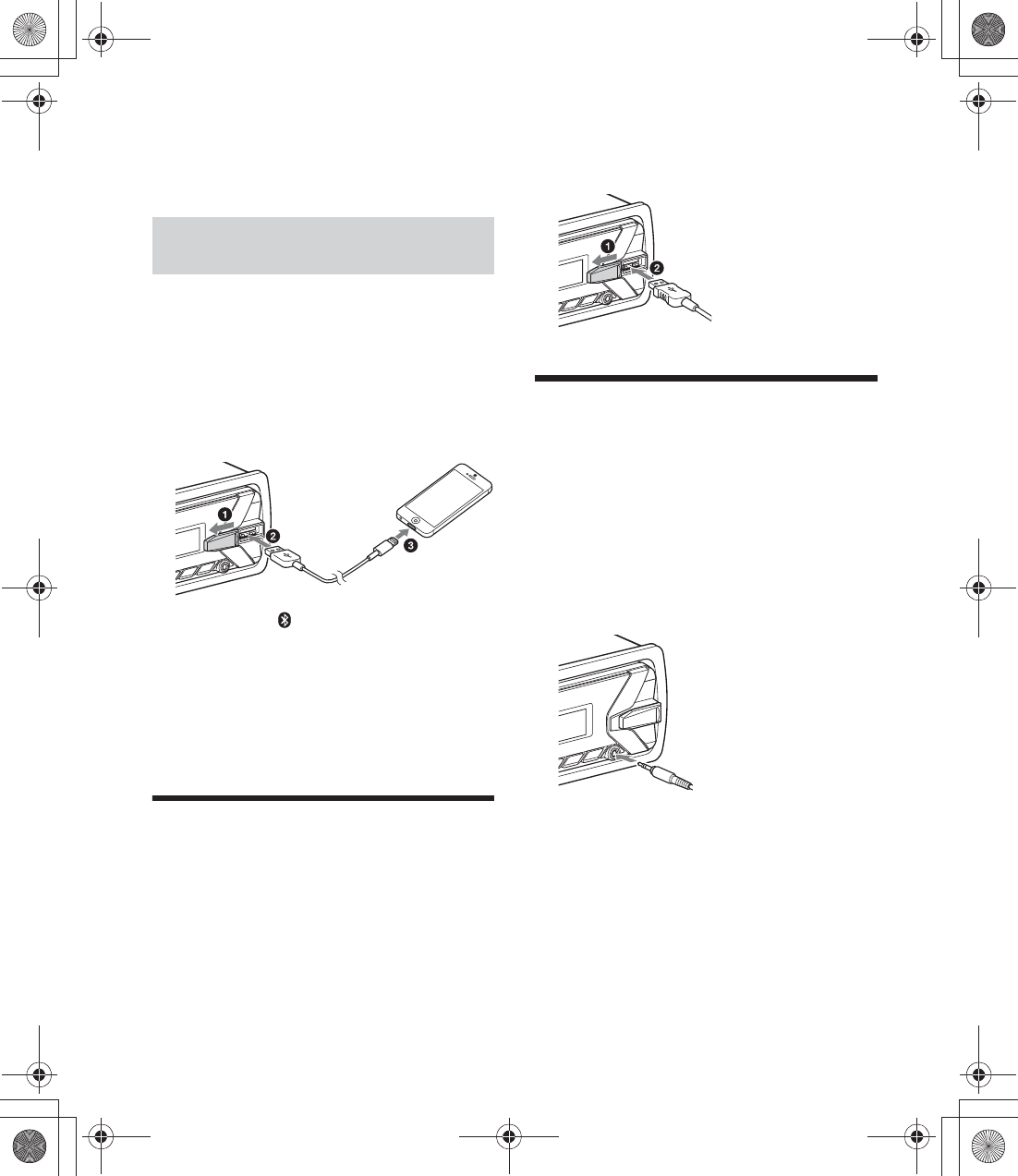

Connecting a USB Device
1Turn down the volume on the unit.
2Connect the USB device to the unit.
To connect an iPod/iPhone, use the USB
connection cable for iPod (not supplied).
Connecting Other Portable
Audio Device
1Turn off the portable audio device.
2Turn down the volume on the unit.
3Connect the portable audio device to the
AUX input jack (stereo mini jack) on the
unit with a connecting cord (not
supplied)*.
* Be sure to use a straight type plug.
4Press SRC to select [AUX].
To match the volume level of the connected
device to other sources
Start playback of the portable audio device at a
moderate volume, and set your usual listening
volume on the unit.
Press MENU, then select [SET SOUND] q [SET AUX
VOL] (page 20).
Connecting with an iPhone/iPod
(BLUETOOTH Auto Pairing)
010COV.book Page 11 Wednesday, September 2, 2015 3:41 PM
12GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
Listening to the Radio
To listen to the radio, press SRC to select [TUNER].
1Press MODE to change the band (FM1,
FM2, FM3, AM1 or AM2).
2Press MENU, rotate the control dial to
select [SET GENERAL], then press it.
3Rotate the control dial to select [SET
BTM], then press it.
The unit stores stations in order of frequency on
the number buttons.
1Press MODE to change the band (FM1,
FM2, FM3, AM1 or AM2).
2Perform tuning.
To tune manually
Press and hold SEEK +/– to locate the
approximate frequency, then press SEEK +/–
repeatedly to fine adjust to the desired
frequency.
To tune automatically
Press SEEK +/–.
Scanning stops when the unit receives a station.
1While receiving the station that you want
to store, press and hold a number button
(1 to 6) until [MEM] appears.
1Select the band, then press a number
button (1 to 6).
Using Radio Data System (RDS)
1Press PTY during FM reception.
2Rotate the control dial until the desired
program type appears, then press it.
The unit starts to search for a station
broadcasting the selected program type.
Type of programs
The CT data from the RDS transmission sets the
clock.
1Set [SET CT-ON] in [SET GENERAL]
(page 19).
Listening to the Radio
Storing automatically (BTM)
Tuning
Storing manually
Receiving the stored stations
Selecting program types (PTY)
NEWS (News), INFORM (Information), SPORTS
(Sports), TALK (Talk), ROCK (Rock), CLS ROCK
(Classic Rock), ADLT HIT (Adult Hits), SOFT RCK (Soft
Rock), TOP 40 (Top 40), COUNTRY (Country),
OLDIES (Oldies), SOFT (Soft), NOSTALGA
(Nostalgia), JAZZ (Jazz), CLASSICL (Classical),
R & B (Rhythm and Blues), SOFT R&B (Soft Rhythm
and Blues), LANGUAGE (Foreign Language), REL
MUSC (Religious Music), REL TALK (Religious Talk),
PERSNLTY (Personality), PUBLIC (Public), COLLEGE
(College), HABL ESP (Spanish Talk), MUSC ESP
(Spanish Music), HIP HOP (Hip-Hop), WEATHER
(Weather)
Setting clock time (CT)
010COV.book Page 12 Wednesday, September 2, 2015 3:41 PM
13GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Playing a USB Device
In these Operating Instructions, “iPod” is used as a
general reference for the iPod functions on an iPod
and iPhone, unless otherwise specified by the text
or illustrations.
For details on the compatibility of your iPod, see
“About iPod” (page 22) or visit the support site on
the back cover.
MSC (Mass Storage Class) and MTP (Media Transfer
Protocol) type USB devices (such as a USB flash
drive, digital media player, Android phone)
compliant with the USB standard can be used.
Depending on the digital media player or Android
phone, setting the USB connection mode to MTP is
required.
Notes
ˎFor details on the compatibility of your USB device,
visit the support site on the back cover.
ˎPlayback of the following files is not supported.
MP3/WMA/FLAC:
ˋcopyright-protected files
ˋDRM (Digital Rights Management) files
ˋMulti-channel audio files
MP3/WMA:
ˋlossless compression files
1Connect a USB device to the USB port
(page 11).
Playback starts.
If a device is already connected, to start
playback, press SRC to select [USB] ([IPD]
appears in the display when the iPod is
recognized).
2Adjust the volume on this unit.
To stop playback
Press and hold OFF for 1 second.
To remove the device
Stop playback, then remove the device.
Caution for iPhone
When you connect an iPhone via USB, phone call
volume is controlled by the iPhone, not the unit. Do
not inadvertently increase the volume on the unit
during a call, as a sudden loud sound may result
when the call ends.
1During playback, press and hold MODE
until [MODE IPOD] appears.
Operations of the iPod become available.
Note that the volume can be adjusted only by
the unit.
To exit passenger control
Press and hold MODE until [MODE AUDIO] appears.
Playing a BLUETOOTH Device
You can play contents on a connected device that
supports BLUETOOTH A2DP (Advanced Audio
Distribution Profile).
1Make BLUETOOTH connection with the
audio device (page 9).
2Press SRC to select [BT AUDIO].
3Operate the audio device to start
playback.
4Adjust the volume on this unit.
Notes
ˎDepending on the audio device, information such as
title, track number/time and playback status may not
be displayed on this unit.
ˎEven if the source is changed on this unit, playback of
the audio device does not stop.
Playback
Operating an iPod directly (Passenger
control)
010COV.book Page 13 Wednesday, September 2, 2015 3:41 PM
14GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
To match the volume level of the BLUETOOTH
device to other sources
Start playback of the BLUETOOTH audio device at a
moderate volume, and set your usual listening
volume on the unit.
Press MENU, then select [SET SOUND] q [SET BTA
VOL] (page 20).
Searching and Playing Tracks
1During playback, press (repeat) or
(shuffle) repeatedly to select the desired
play mode.
Playback in the selected play mode may take
time to start.
Available play modes differ depending on the
selected sound source.
1During USB playback, press (browse)*
to display the list of search categories.
When the track list appears, press (back)
repeatedly to display the desired search
category.
* During USB playback, press (browse) for more
than 2 seconds to directly return to the beginning
of the category list.
2Rotate the control dial to select the
desired search category, then press it to
confirm.
3Repeat step 2 to search the desired track.
Playback starts.
To exit the Quick-BrowZer mode
Press (browse).
1Press (browse).
2Press SEEK +.
3Rotate the control dial to select the item.
The list is jumped in steps of 10% of the total
number of items.
4Press ENTER to return to the Quick-
BrowZer mode.
The selected item appears.
5Rotate the control dial to select the
desired item, then press it.
Playback starts.
Repeat play and shuffle play
Searching a track by name (Quick-
BrowZer™)
Searching by skipping items
(Jump mode)
010COV.book Page 14 Wednesday, September 2, 2015 3:41 PM
15GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Pandora® is available to stream music through your
iPhone and Android phone. You can control
Pandora® on a USB-connected iPhone or
BLUETOOTH-connected Android phone from this
unit.
Pandora® is only available in certain countries.
Please visit
http://www.pandora.com/legal
for more information.
Setting up Pandora®
1Check the compatibility of your mobile
device by visiting the support site on the
back cover.
2Download the latest version of the
Pandora® application from your
smartphone’s app store. A list of
compatible devices can be found at
www.pandora.com/everywhere/mobile
Streaming Pandora®
1Connect this unit with the mobile device.
ˎiPhone via USB (page 11)
ˎAndroid phone via BLUETOOTH function
(page 9)
2Press SRC to select [PANDORA USB] or
[BT PANDORA].
3Launch Pandora® application on your
mobile device.
4Press PAUSE to start playback.
If the device number appears
Make sure that the same numbers are displayed
(e.g., 123456) in this unit and the mobile device,
then press ENTER on this unit and select [Yes] on
the mobile device.
When activating the BLUETOOTH function
You can adjust the volume level.
Press MENU, then select [SET SOUND] q [SET BTA
VOL] (page 20).
Available Operations in
Pandora®
“Thumbs Up” or “Thumbs Down” feedback allows
you to personalize stations.
1During playback, press Ă (Thumbs Up) or
è (Thumbs Down).
The station list allows you to easily select a desired
station.
1During playback, press (browse).
2Press SEEK + to select the sorting order
[BY DATE] or [A TO Z].
3Rotate the control dial to select the
desired station, then press it.
Playback starts.
The track currently being played can be
bookmarked and stored in your Pandora® account.
1During playback, press MODE.
Listening to Pandora®
“Thumbs” feedback
Using the station list
Bookmarking
010COV.book Page 15 Wednesday, September 2, 2015 3:41 PM
16GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)

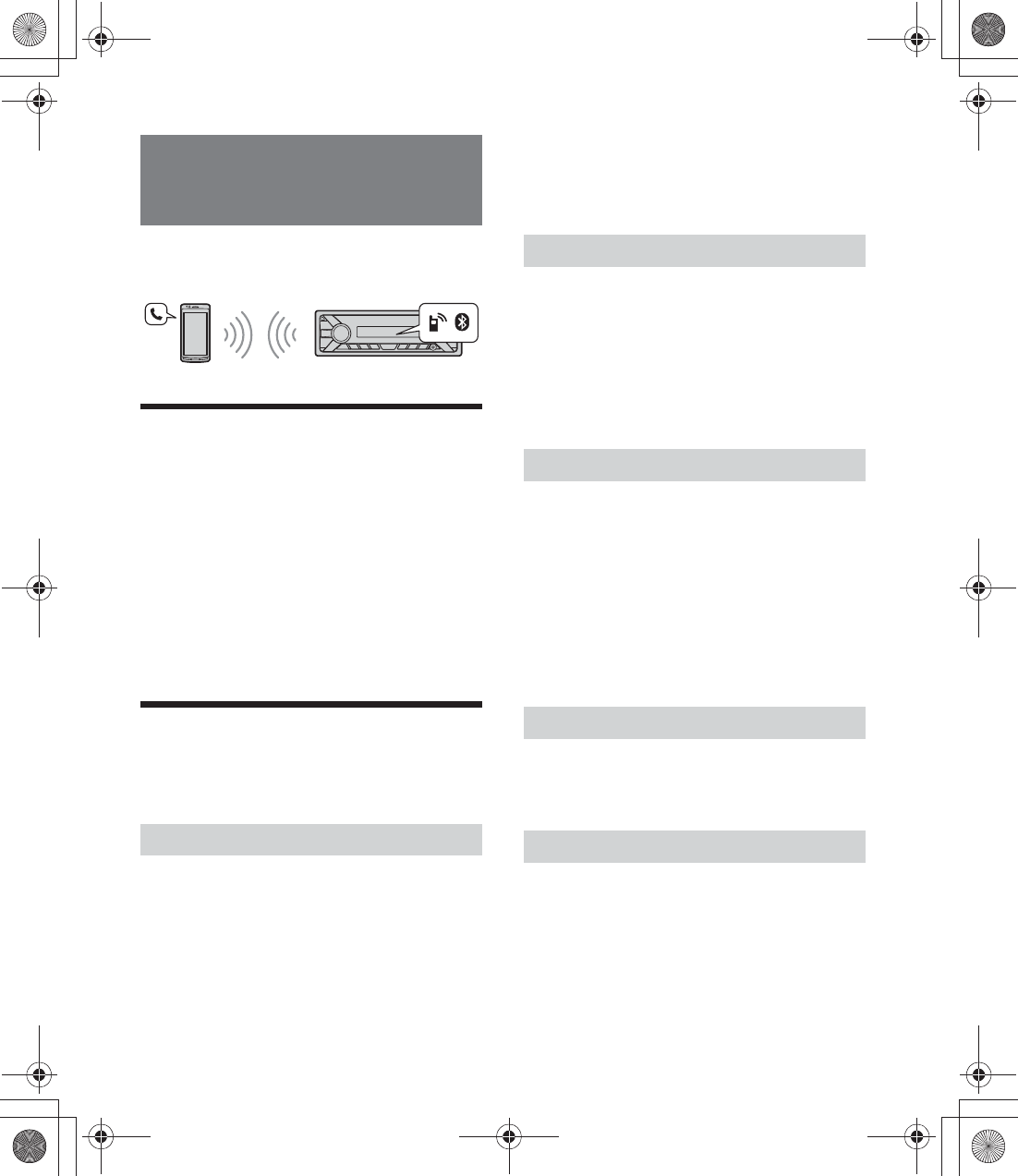

To use a cellular phone, connect it with this unit. For
details, see “Preparing a BLUETOOTH Device”
(page 9).
Receiving a Call
1Press CALL when a call is received with a
ringtone.
The phone call starts.
Note
The ringtone and talker’s voice are output only from the
front speakers.
To reject the call
Press and hold OFF for 1 second.
To end the call
Press CALL again.
Making a Call
You can make a call from the phonebook or call
history when a cellular phone supporting PBAP
(Phone Book Access Profile) is connected.
1Press CALL, rotate the control dial to
select [PHONE BOOK], then press it.
2Rotate the control dial to select an initial
from the initial list, then press it.
3Rotate the control dial to select a name
from the name list, then press it.
4Rotate the control dial to select a
number from the number list, then press
it.
The phone call starts.
1Press CALL, rotate the control dial to
select [RECENT CALL], then press it.
A list of the call history appears.
2Rotate the control dial to select a name
or phone number from the call history,
then press it.
The phone call starts.
1Press CALL, rotate the control dial to
select [DIAL NUMBER], then press it.
2Rotate the control dial to enter the
phone number, and lastly select [ ]
(space), then press ENTER*.
The phone call starts.
* To move the digital indication, press SEEK +/–.
Note
[_] appears instead of [#] on the display.
1Press CALL, rotate the control dial to
select [REDIAL], then press it.
The phone call starts.
1Press SRC to select [BT PHONE].
2Press a number button (1 to 6) to select
the contact you want to call.
3Press ENTER.
The phone call starts.
Handsfree Calling (via BLUETOOTH
only)
From the phonebook
From the call history
By phone number input
By redial
By preset number
010COV.book Page 16 Wednesday, September 2, 2015 3:41 PM
17GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Presetting phone numbers
You can store up to 6 contacts in the preset dial.
1Select a phone number that you want to store in
the preset dial, from the phonebook, call history or
by inputting the phone number directly.
The phone number appears in the display of this
unit.
2Press and hold a number button (1 to 6) until [MEM]
appears.
The contact is stored in the selected preset number.
You can make a call by saying the voice tag stored
in a connected cellular phone that has a voice
dialing function.
1Press CALL, rotate the control dial to
select [VOICE DIAL], then press it.
Alternatively, press and hold VOICE for more
than 2 seconds.
2Say the voice tag stored on the cellular
phone.
Your voice is recognized, and the call is made.
To cancel voice dialing
Press VOICE.
Available Operations during
Call
To adjust the ringtone volume
Rotate the control dial while receiving a call.
To adjust the talker’s voice volume
Rotate the control dial during a call.
To adjust the volume for the other party (Mic
gain adjustment)
Press MIC.
Adjustable volume levels: [MIC-LOW], [MIC-MID],
[MIC-HI].
To reduce echo and noise (Echo Canceler/
Noise Canceler Mode)
Press and hold MIC.
Settable mode: [EC/NC-1], [EC/NC-2].
To switch between handsfree mode and
handheld mode
During a call, press MODE to switch the phone call
audio between the unit and cellular phone.
Note
Depending on the cellular phone, this operation may
not be available.
By voice tags
010COV.book Page 17 Wednesday, September 2, 2015 3:41 PM
18GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
Using Siri Eyes Free
Siri Eyes Free allows you to use an iPhone
handsfree by simply speaking into the microphone.
This function requires you to connect an iPhone to
the unit via BLUETOOTH. Availability is limited
iPhone 4s or later. Make sure that your iPhone is
running the latest iOS version.
You must complete BLUETOOTH registration and
connection configurations for the iPhone with the
unit in advance. For details, see “Preparing a
BLUETOOTH Device” (page 9).
1Activate the Siri function on the iPhone.
For details, refer to the operating instructions
supplied with the iPhone.
2Press and hold VOICE for more than
2seconds.
The voice command display appears.
3After the iPhone beeps, speak into the
microphone.
The iPhone beeps again, then Siri starts
responding.
To deactivate Siri Eyes Free
Press VOICE.
Notes
ˎThe iPhone may not recognize your voice depending
on usage conditions. (For example, if you are in a
moving car.)
ˎSiri Eyes Free may not function properly, or the
response time may lag in locations where iPhone
signals are difficult to receive.
ˎDepending on the iPhone’s operating condition, Siri
Eyes Free may not function properly, or may quit.
ˎIf you play a track with an iPhone using the
BLUETOOTH audio connection, when the track starts
playback via BLUETOOTH, Siri Eyes Free automatically
quits and the unit switches to the BLUETOOTH audio
source.
ˎWhen Siri Eyes Free is activated during audio
playback, the unit may switch to the BLUETOOTH
audio source even if you do not specify a track to play.
ˎWhen connecting the iPhone to the USB port, Siri Eyes
Free may not function properly, or may quit.
ˎWhen connecting the iPhone to the unit via USB, do
not activate Siri with the iPhone. Siri Eyes Free may
not function properly, or may quit.
ˎThere is no audio sound while Siri Eyes Free is
activated.
Useful Functions
010COV.book Page 18 Wednesday, September 2, 2015 3:41 PM
19GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Canceling the DEMO Mode
You can cancel the demonstration display which
appears when the source is off and the clock is
displayed.
1Press MENU, rotate the control dial to
select [SET GENERAL], then press it.
2Rotate the control dial to select [SET
DEMO], then press it.
3Rotate the control dial to select [SET
DEMO-OFF], then press it.
The setting is complete.
4Press (back) twice.
The display returns to normal reception/play
mode.
Basic Setting Operation
You can set items in the following setup categories:
General setup (GENERAL), Sound setup (SOUND),
Display setup (DISPLAY), BLUETOOTH setup (BT)
(Not available when the BT phone is selected.)
1Press MENU.
2Rotate the control dial to select the setup
category, then press it.
The items that can be set differ depending on
the source and settings.
3Rotate the control dial to select the
options, then press it.
To return to the previous display
Press (back).
General Setup (GENERAL)
DEMO (demonstration)
Activates the demonstration: [ON], [OFF].
CLOCK-ADJ (clock adjust) (page 9)
CAUT ALM (caution alarm)
Activates the caution alarm: [ON], [OFF]
(page 8).
(Available only while the source is off and the
clock is displayed.)
BEEP
Activates the beep sound: [ON], [OFF].
AUTO OFF
Shuts off automatically after a desired time
when the unit is turned off: [NO], [30S] (30
seconds), [30M] (30 minutes), [60M] (60
minutes).
CT (clock time)
Activates the CT function: [ON], [OFF].
BTM (best tuning memory) (page 12)
(Available only when the tuner is selected.)
Sound Setup (SOUND)
This setup menu is available when any source
except for the BT phone is selected.
EQ5 PRESET
Selects an equalizer curve from 10 equalizer
curves or off: [OFF], [R&B], [ROCK], [POP],
[DANCE], [HIP-HOP], [ELECTRONICA], [JAZZ],
[SOUL], [COUNTRY], [CUSTOM].
The equalizer curve setting can be memorized
for each source.
Settings
010COV.book Page 19 Wednesday, September 2, 2015 3:41 PM
20GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
EQ5 SETTING
Sets [CUSTOM] of EQ5.
BASE
Selects a preset equalizer curve as a basis for
further customizing: [BAND1] (low frequency),
[BAND2] (mid-low frequency), [BAND3] (mid
frequency), [BAND4] (mid-high frequency),
[BAND5] (high frequency).
The volume level is adjustable in 1 dB steps,
from -10 dB to +10 dB.
BALANCE
Adjusts the sound balance: [RIGHT-15] –
[CENTER] – [LEFT-15].
FADER
Adjusts the relative level: [FRONT-15] – [CENTER]
– [REAR-15].
S.WOOFER (subwoofer)
SW LEVEL (subwoofer level)
Adjusts the subwoofer volume level:
[+6 dB] – [0 dB] – [-6 dB], [ATT].
([ATT] is displayed at the lowest setting.)
SW PHASE (subwoofer phase)
Selects the subwoofer phase: [NORM], [REV].
LPF FREQ (low pass filter frequency)
Selects the subwoofer cut-off frequency: [80Hz],
[100Hz], [120Hz].
AUX VOL (AUX volume level)
Adjusts the volume level for each connected
auxiliary device: [+18 dB] – [0 dB] – [-8 dB].
This setting negates the need to adjust the
volume level between sources.
BTA VOL (BLUETOOTH audio volume level)
Adjusts the volume level for each connected
BLUETOOTH device: [+6 dB] – [0 dB] – [-6 dB].
This setting negates the need to adjust the
volume level between sources.
Display Setup (DISPLAY)
DIMMER
Changes the display brightness: [ON], [OFF].
SND SYNC (sound synchronization)
Activates the synchronization of the illumination
with the sound: [ON], [OFF].
AUTO SCR (auto scroll)
Scrolls long items automatically: [ON], [OFF].
(Not available when the AUX or tuner is
selected.)
BLUETOOTH Setup (BT)
PAIRING (page 9)
PHONE BOOK (page 16)
REDIAL (page 16)
RECENT CALL (page 16)
VOICE DIAL (page 17)
DIAL NUMBER (page 16)
RINGTONE
Selects whether this unit or the connected
cellular phone outputs the ringtone: [1] (this
unit), [2] (cellular phone).
AUTO ANS (auto answer)
Sets this unit to answer an incoming call
automatically: [OFF], [1] (about 3 seconds), [2]
(about 10 seconds).
AUTOPAIR (auto pairing)
Start BLUETOOTH pairing automatically when
iOS device version 5.0 or later is connected via
USB: [ON], [OFF].
BT SIGNL (BLUETOOTH signal) (page 10)
Activates/deactivates the BLUETOOTH function.
010COV.book Page 20 Wednesday, September 2, 2015 3:41 PM
21GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
BT INIT (BLUETOOTH initialize)
Initializes all the BLUETOOTH related settings
(pairing information, preset number, device
information, etc.): [YES], [NO].
When disposing the unit, initialize all the
settings.
(Available only while the source is off and the
clock is displayed.)
Precautions
ˎCool off the unit beforehand if your car has been
parked in direct sunlight.
ˎDo not leave the front panel or audio devices
brought in inside the car, or it may cause
malfunction due to high temperature in direct
sunlight.
ˎPower antenna (aerial) extends automatically.
To maintain high sound quality
Do not splash liquid onto the unit.
Additional Information
Playback order of audio files
Folder (album)
Audio file (track)
010COV.book Page 21 Wednesday, September 2, 2015 3:41 PM
22GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
ˎYou can connect to the following iPod models.
Update your iPod devices to the latest software
before use.
Compatible iPhone/iPod models
ˎ“Made for iPod,” and “Made for iPhone,” mean
that an electronic accessory has been designed to
connect specifically to iPod or iPhone,
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and
regulatory standards. Please note that the use of
this accessory with iPod or iPhone may affect
wireless performance.
If you have any questions or problems concerning
your unit that are not covered in this manual,
consult your nearest Sony dealer.
Maintenance

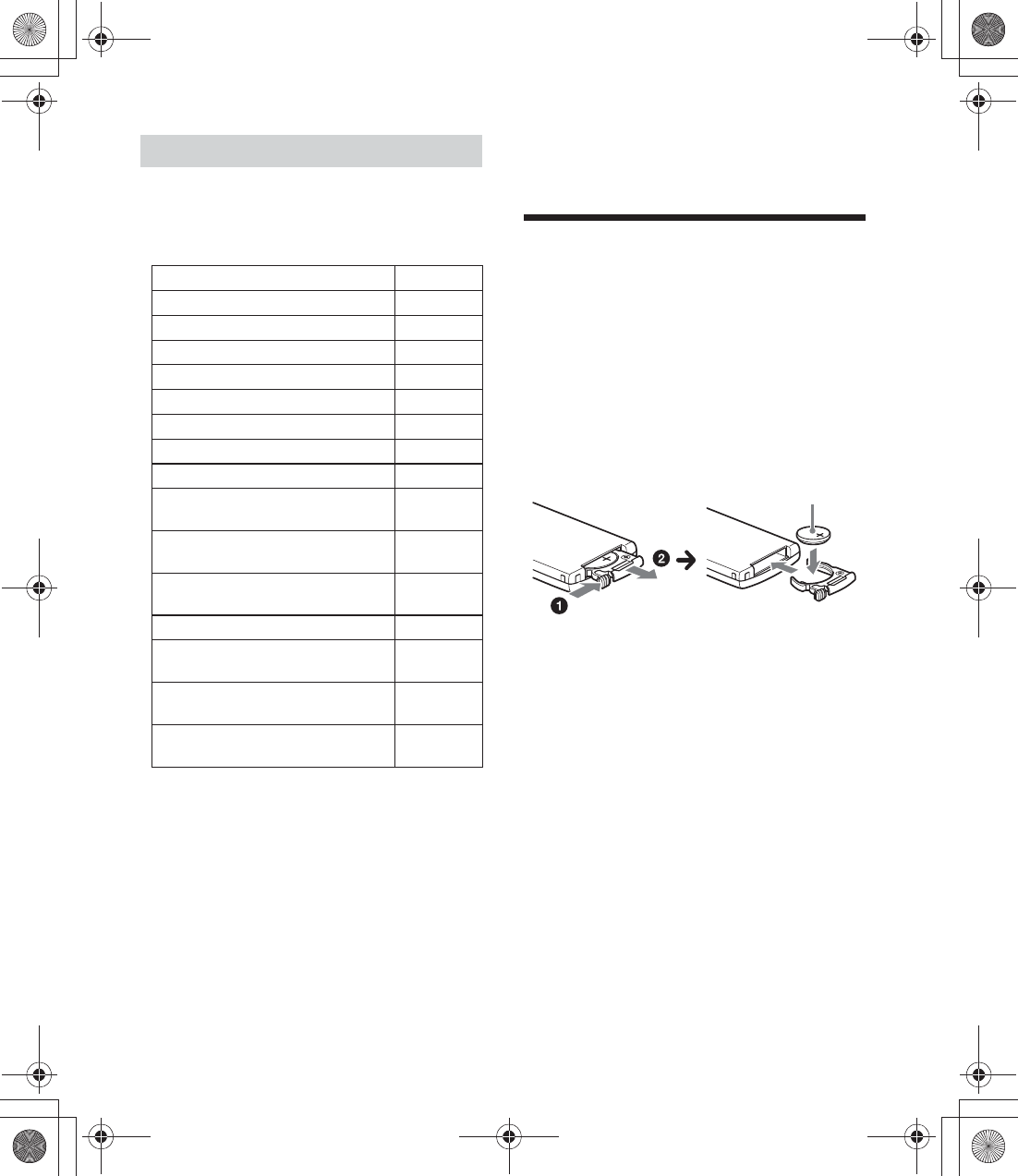

Replacing the lithium battery of the remote
commander
Under normal conditions, the battery will last
approximately 1 year. (The service life may be
shorter, depending on the conditions of use.)
When the battery becomes weak, the range of the
remote commander becomes shorter.
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replaced only with the same or
equivalent type.
Notes on the lithium battery
ˎKeep the lithium battery out of the reach of children.
Should the battery be swallowed, immediately
consult a doctor.
ˎWipe the battery with a dry cloth to ensure a good
contact.
ˎBe sure to observe the correct polarity when installing
the battery.
ˎDo not hold the battery with metallic tweezers,
otherwise a short-circuit may occur.

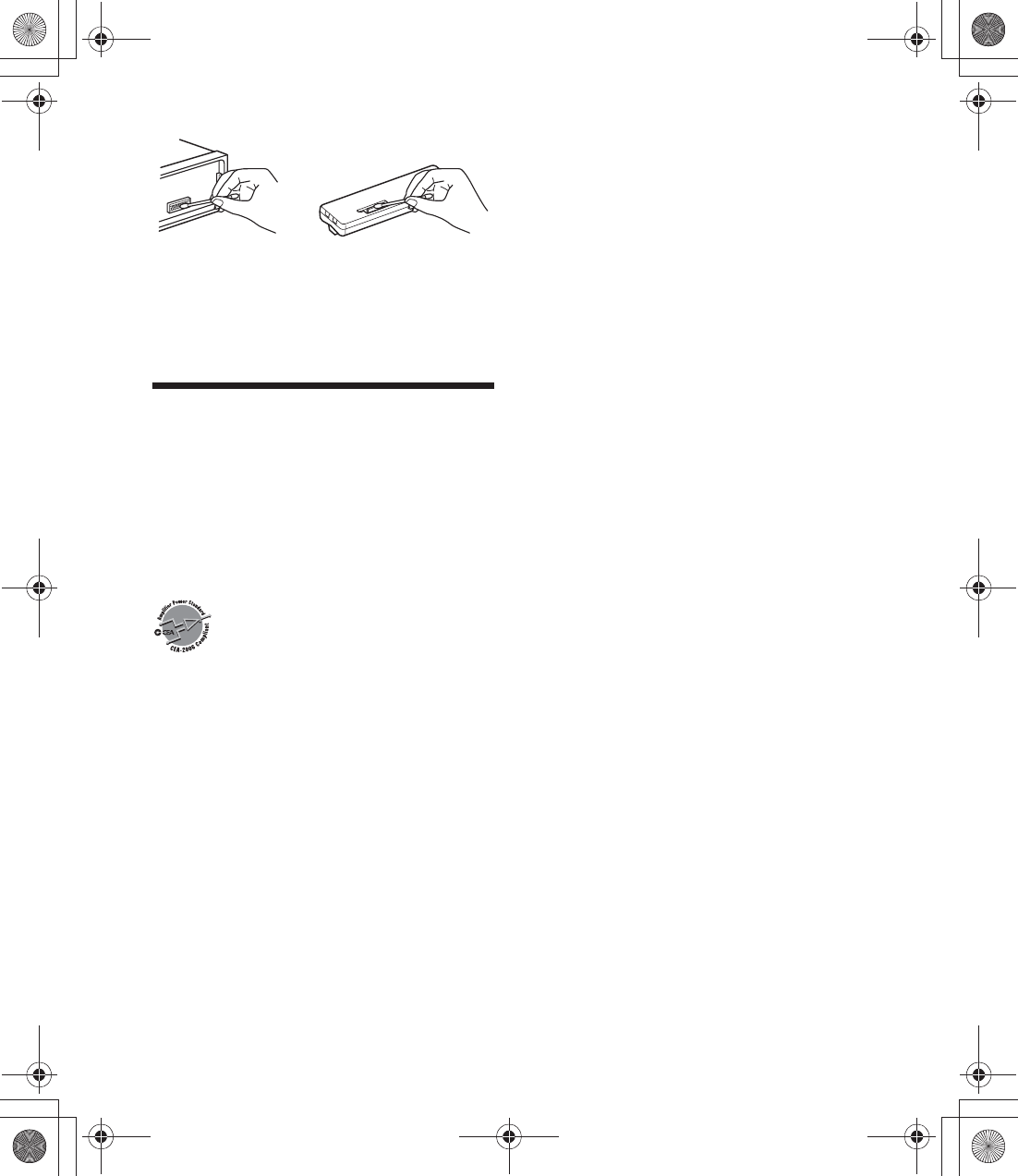

Cleaning the connectors
The unit may not function properly if the
connectors between the unit and the front panel
are not clean. In order to prevent this, detach the
front panel (page 8) and clean the connectors with
a cotton swab. Do not apply too much force.
Otherwise, the connectors may be damaged.
About iPod
Compatible Model USB
iPhone 6 Plus í
iPhone 6 í
iPhone 5s í
iPhone 5c í
iPhone 5 í
iPhone 4s í
iPhone 4 í
iPhone 3GS í
iPod touch
(5th generation) í
iPod touch
(4th generation) í
iPod touch
(3rd generation) í
iPod classic í
iPod nano
(7th generation) í
iPod nano
(6th generation) í
iPod nano
(5th generation) í
+ side up
010COV.book Page 22 Wednesday, September 2, 2015 3:41 PM
23GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Notes
ˎFor safety, turn off the ignition before cleaning the
connectors, and remove the key from the ignition
switch.
ˎNever touch the connectors directly with your fingers
or with any metal device.
Specifications
FOR THE CUSTOMERS IN THE USA. NOT
APPLICABLE IN CANADA, INCLUDING IN THE
PROVINCE OF QUEBEC.
POUR LES CLIENTS AUX ÉTATS-UNIS. NON
APPLICABLE AU CANADA, Y COMPRIS LA
PROVINCE DE QUÉBEC.
AUDIO POWER SPECIFICATIONS
CEA2006 Standard
Power Output: 17 Watts RMS × 4 at 4
Ohms < 1% THD+N
SN Ratio: 80 dBA
(reference: 1 Watt into 4 Ohms)
Tuner section
FM
Tuning range: 87.5 – 107.9 MHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Intermediate frequency:
FM CCIR: -1,956.5 to -487.3 kHz and
+500.0 to +2,095.4 kHz
Usable sensitivity: 7 dBf
Selectivity: 75 dB at 400 kHz
Signal-to-noise ratio: 73 dB
Separation: 50 dB at 1 kHz
Frequency response: 20 – 15,000 Hz
AM
Tuning range: 530 – 1,710 kHz
Antenna (aerial) terminal:
External antenna (aerial) connector
Sensitivity: 26 μV
USB Player section
Interface: USB (Full-speed)
Maximum current: 1 A
The maximum number of recognizable tracks:
ˋfolders (albums): 256
ˋfiles (tracks) per folder: 256
Corresponding codec:
MP3 (.mp3)
Bit rate: 8 – 320 kbps (Supports VBR (Variable
Bit Rate))
Sampling rate: 16 – 48 kHz
WMA (.wma)
Bit rate: 32 – 192 kbps (Supports VBR (Variable
Bit Rate))
Sampling rate: 32 kHz, 44.1 kHz, 48 kHz
FLAC (.flac)
Bit depth: 16 bit, 24 bit
Sampling rate: 44.1 kHz, 48 kHz
Wireless Communication
Communication System:
BLUETOOTH Standard version 3.0
Output:
BLUETOOTH Standard Power Class 2
(Max. +4 dBm)
Maximum communication range:
Line of sight approx. 10 m (33 ft)*1
Frequency band:
2.4 GHz band (2.4000 – 2.4835 GHz)
Modulation method: FHSS
Compatible BLUETOOTH Profiles*2:
A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.3
HFP (Handsfree Profile) 1.6
PBAP (Phone Book Access Profile)
Corresponding codec:
SBC (.sbc)
*1 The actual range will vary depending on factors such
as obstacles between devices, magnetic fields
around a microwave oven, static electricity,
reception sensitivity, antenna (aerial)’s performance,
operating system, software application, etc.
*2 BLUETOOTH standard profiles indicate the purpose
of BLUETOOTH communication between devices.
010COV.book Page 23 Wednesday, September 2, 2015 3:41 PM
24GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
Power amplifier section
Output: Speaker outputs
Speaker impedance: 4 – 8 ohms
Maximum power output: 55 W × 4 (at 4 ohms)
General
Outputs:
Audio outputs terminal (rear, sub)
Power antenna (aerial)/Power amplifier control
terminal (REM OUT)
Inputs:
Remote controller input terminal
Antenna (aerial) input terminal
AUX input jack (stereo mini jack)
USB port
Power requirements: 12 V DC car battery (negative
ground (earth))
Rated current consumption: 10 A
Dimensions:
Approx. 178 mm × 50 mm × 120 mm
(7 1/8 in × 2 in × 4 3/4 in) (w/h/d)
Mounting dimensions:
Approx. 182 mm × 53 mm × 102 mm
(7 1/4 in × 2 1/8 in × 4 1/8 in) (w/h/d)
Mass: Approx. 0.7 kg (1 lb 9 oz)
Package contents:
Main unit (1)
Remote commander (1): RM-X231

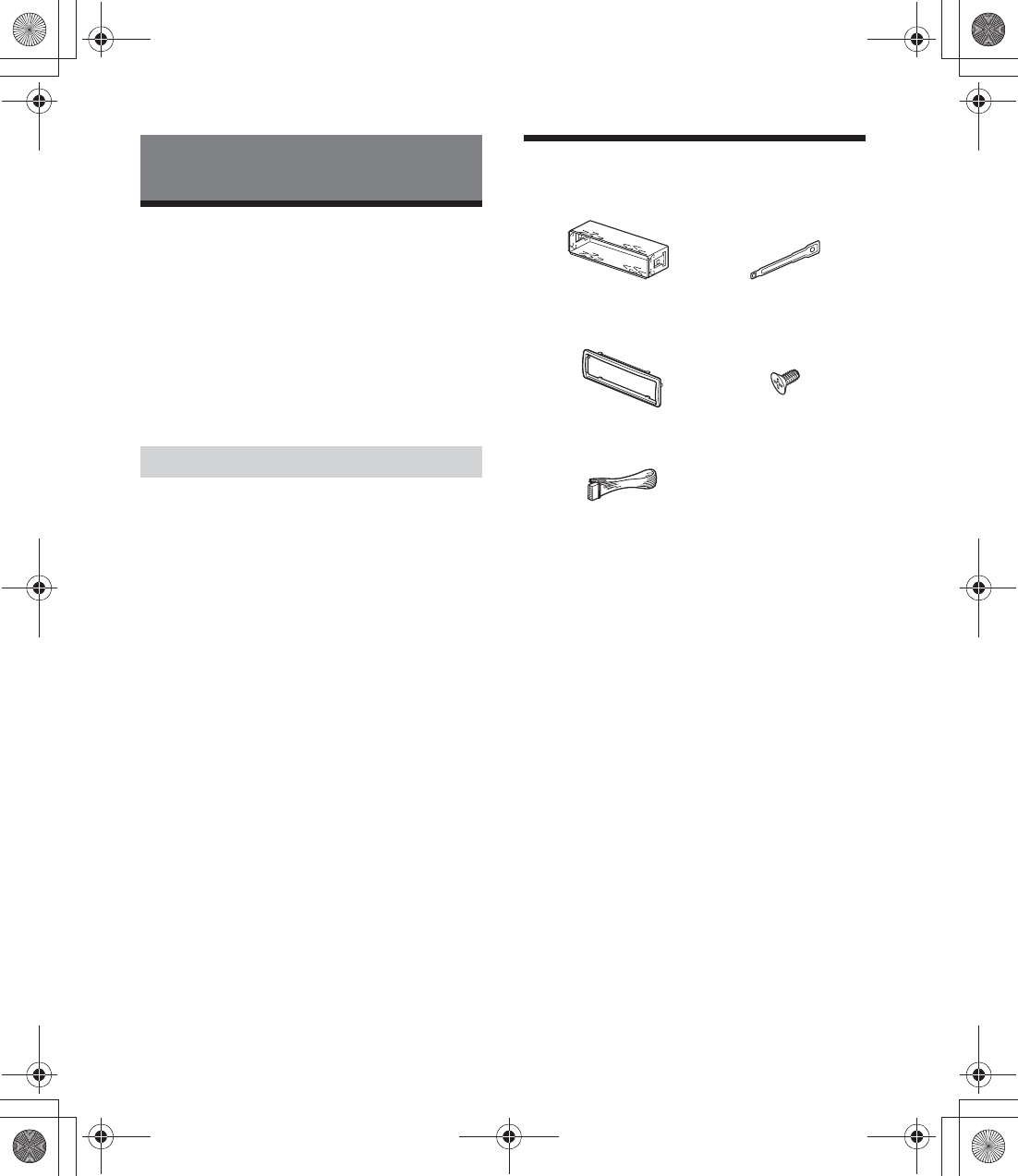

Parts for installation and connections (1 set)
Your dealer may not handle some of the above
listed accessories. Please ask the dealer for detailed
information.
Design and specifications are subject to change
without notice.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Sony Corporation is under
license. Other trademarks and trade names are
those of their respective owners.
The N-Mark is a trademark or registered trademark
of NFC Forum, Inc. in the United States and in other
countries.
Windows Media is either a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft Corporation. Use or
distribution of such technology outside of this
product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary.
iPhone, iPod, iPod classic, iPod nano, iPod touch,
and Siri are trademarks of Apple Inc., registered in
the U.S. and other countries.
MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.
Pandora®, the Pandora® logo, and the Pandora®
trade dress are trademarks or registered
trademarks of Pandora Media, Inc., used with
permission.
Google, Google Play and Android are trademarks of
Google Inc.
libFLAC
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted
provided that the following conditions are met:
ˋRedistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
Copyrights
010COV.book Page 24 Wednesday, September 2, 2015 3:41 PM
25GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
ˋRedistributions in binary form must reproduce
the above copyright notice, this list of conditions
and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
ˋNeither the name of the Xiph.org Foundation nor
the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE FOUNDATION OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Troubleshooting
The following checklist will help you remedy
problems you may encounter with your unit.
Before going through the checklist below, check
the connection and operating procedures.
For details on using the fuse and removing the unit
from the dashboard, see “Connection/Installation”
(page 30).
If the problem is not solved, visit the support site on
the back cover.
General
No power is being supplied to the unit.
qIf the unit is turned off and the display
disappears, the unit cannot be operated with the
remote commander.
ˋTurn on the unit.
No sound or the sound is very low.
qThe position of the fader control [FADER] is not
set for a 2-speaker system.
qThe volume of the unit and/or connected device
is very low.
ˋIncrease the volume of the unit and connected
device.
No beep sound.
qAn optional power amplifier is connected and
you are not using the built-in amplifier.
The contents of the memory have been erased.
qThe power supply lead or battery has been
disconnected or not connected properly.
Stored stations and correct time are erased.
The fuse has blown.
Makes a noise when the position of the ignition
is switched.
qThe leads are not matched correctly with the car’s
accessory power connector.
During playback or reception, the demonstration
mode starts.
qIf no operation is performed for 5 minutes with
[DEMO-ON] set, the demonstration mode starts.
ˋSet [DEMO-OFF] (page 19).
010COV.book Page 25 Wednesday, September 2, 2015 3:41 PM
26GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
The display disappears from/does not appear in
the display window.
qThe dimmer is set to [DIM-ON] (page 20).
qThe display disappears if you press and hold OFF.
ˋPress OFF on the unit until the display appears.
qThe connectors are dirty (page 22).
The display/illumination flashes.
qThe power supply is not sufficient.
ˋCheck that the car battery supplies enough
power to the unit. (The power requirement is
12 V DC.)
The operation buttons do not function.
qThe connection is not correct.
ˋCheck the connection of the unit.
If the situation does not improve, press DSPL
and (back)/MODE for more than 2 seconds
to reset the unit.
The contents stored in memory are erased.
For your safety, do not reset the unit while you
are driving.
Radio reception
Stations cannot be received.
The sound is hampered by noises.
qThe connection is not correct.
ˋIf your car has built-in radio antenna (aerial) in
the rear/side glass, connect an REM OUT lead
(blue/white striped) or accessory power supply
lead (red) to the power supply lead of a car’s
antenna (aerial) booster.
ˋCheck the connection of the car antenna
(aerial).
ˋIf the auto antenna (aerial) will not extend,
check the connection of the power antenna
(aerial) control lead.
Preset tuning is not possible.
qThe broadcast signal is too weak.
RDS
PTY displays [- - - - - - - -].
qThe current station is not an RDS station.
qRDS data has not been received.
qThe station does not specify the program type.
USB device playback
You cannot play items via a USB hub.
qThis unit cannot recognize USB devices via a USB
hub.
A USB device takes longer to play.
qThe USB device contains files with a complicated
tree structure.
The sound is intermittent.
qThe sound may be intermittent at a high-bit-rate.
qDRM (Digital Rights Management) files may not
be playable in some cases.
Audio file cannot be played.
qUSB device formatted with file systems other
than FAT16 or FAT32 are unsupported.*
* This unit supports FAT16 and FAT32, but some USB
device may not support all of these FAT. For details,
refer to the operating instruction of each USB device
or contact the manufacturer.
NFC function
One touch connection (NFC) is not possible.
qIf the smartphone does not respond to the
touching.
ˋCheck that the NFC function of the smartphone
is turned on.
ˋMove the N-Mark part of the smartphone
closer to the N-Mark part on this unit.
ˋIf the smartphone is in a case, remove it.
qNFC receiving sensitivity depends on the device.
If One touch connection with the smartphone
fails several times, make BLUETOOTH connection
manually.
BLUETOOTH function
The connecting device cannot detect this unit.
qBefore the pairing is made, set this unit to pairing
standby mode.
qWhile connected to a BLUETOOTH device, this
unit cannot be detected from another device.
ˋDisconnect the current connection and search
for this unit from another device.
qWhen the device pairing is made, set the
BLUETOOTH signal output to on (page 10).
010COV.book Page 26 Wednesday, September 2, 2015 3:41 PM
27GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Connection is not possible.
qThe connection is controlled from one side (this
unit or BLUETOOTH device), but not both.
ˋConnect to this unit from a BLUETOOTH device
or vice versa.
The name of the detected device does not
appear.
qDepending on the status of the other device, it
may not be possible to obtain the name.
No ringtone.
qAdjust the volume by rotating the control dial
while receiving a call.
qDepending on the connecting device, the
ringtone may not be sent properly.
ˋSet [RINGTONE] to [1] (page 20).
qThe front speakers are not connected to the unit.
ˋConnect the front speakers to the unit. The
ringtone is output only from the front speakers.
The talker’s voice cannot be heard.
qThe front speakers are not connected to the unit.
ˋConnect the front speakers to the unit. The
talker’s voice is output only from the front
speakers.
A call partner says that the volume is too low or
high.
qAdjust the volume accordingly using mic gain
adjustment (page 17).
Echo or noise occurs in phone call conversations.
qLower the volume.
qSet EC/NC Mode to [EC/NC-1] or [EC/NC-2]
(page 17).
qIf the ambient noise other than the phone call
sound is loud, try reducing this noise.
E.g.: If a window is open and road noise, etc., is
loud, shut the window. If an air conditioner is
loud, lower the air conditioner.
The phone is not connected.
qWhen BLUETOOTH audio is played, the phone is
not connected even if you press CALL.
ˋConnect from the phone.
The phone sound quality is poor.
qPhone sound quality depends on reception
conditions of cellular phone.
ˋMove your car to a place where you can
enhance the cellular phone’s signal if the
reception is poor.
The volume of the connected audio device is low
(high).
qVolume level will differ depending on the audio
device.
ˋAdjust the volume of the connected audio
device or this unit.
The sound skips during playback of a
BLUETOOTH audio device.
qReduce the distance between the unit and the
BLUETOOTH audio device.
qIf the BLUETOOTH audio device is stored in a case
which interrupts the signal, remove the audio
device from the case during use.
qSeveral BLUETOOTH devices or other devices
which emit radio waves are in use nearby.
ˋTurn off the other devices.
ˋIncrease the distance from the other devices.
qThe playback sound stops momentarily when the
connection between this unit and the cellular
phone is being made. This is not a malfunction.
The connected BLUETOOTH audio device cannot
be controlled.
qCheck that the connected BLUETOOTH audio
device supports AVRCP.
Some functions do not work.
qCheck if the connecting device supports the
functions in question.
A call is answered unintentionally.
qThe connecting phone is set to answer a call
automatically.
Pairing failed due to a timeout.
qDepending on the connecting device, the time
limit for pairing may be short.
ˋTry completing the pairing within the time.
BLUETOOTH function cannot operate.
qTurn off the unit by pressing OFF for more than
2 seconds, then turn the unit on again.
010COV.book Page 27 Wednesday, September 2, 2015 3:41 PM
28GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
No sound is output from the car speakers during
handsfree call.
qIf the sound is output from the cellular phone, set
the cellular phone to output the sound from the
car speakers.
Siri Eyes Free is not activated.
qPerform the handsfree registration for an iPhone
that supports Siri Eyes Free.
qSet the Siri function on the iPhone to on.
qCancel the BLUETOOTH connection with the
iPhone and the unit, and reconnect.
Pandora® operation
Pandora® connection is not possible.
qShut down the Pandora® application on the
mobile device, and then launch it again.
Error displays/Messages
HUB NO SUPRT: USB hubs are not supported.
IPD STOP: iPod playback has finished.
qOperate your iPod/iPhone to start playback.
NO DEV: A USB device is not connected or
recognized.
qMake sure the USB device or USB cable is securely
connected.
OVERLOAD: The USB device is overloaded.
qDisconnect the USB device, then press SRC to
select another source.
qThe USB device has a fault, or an unsupported
device is connected.
READ: Now reading information.
qWait until reading is complete and playback
starts automatically. This may take some time
depending on the disc structure.
USB ERROR: The USB device cannot be played.
qConnect the USB device again.
USB NO MUSIC: There is no playable file.
qConnect a USB device containing playable files
(page 23).
USB NO SUPRT: The USB device is not supported.
qFor details on the compatibility of your USB
device, visit the support site on the back cover.
For BLUETOOTH function:
ERROR: The selected operation could not be
performed.
qWait for a while, then try again.
NO DEV: The BLUETOOTH device is not connected
or recognized.
qMake sure the BLUETOOTH device is securely
connected, or the BLUETOOTH connection is
established with the BLUETOOTH device.
P EMPTY: No phone numbers are stored.
UNKNOWN: A name or phone number cannot be
displayed.
WITHHELD: The phone number is hidden by the
caller.
For Pandora® operation:
CANNOT SKIP: Skipping tracks is not allowed.
qWait until the commercial ends, next track
begins, or select another station on the list.
Pandora® limits the number of skips allowed on
their service.
NO NETWORK: The network connection is unstable
or lost.
qMake the network connection again on the
device, or wait until the network connection is
established.
NO STATION - PLEASE - CREATE - STATION - IN -
PANDORA APP: No stations on your account.
qCreate the station on the mobile device.
010COV.book Page 28 Wednesday, September 2, 2015 3:41 PM
29GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
NOT ALLOWED: The selected operation is not
allowed.
q“Thumbs” feedback is not allowed.
ˋWait until the commercial ends.
ˋSome functions, such as Shared Station, do not
permit feedback. Wait until the next track
begins, or select another station on the list.
qBookmark is not allowed.
ˋWait until the commercial ends.
ˋSelect another track or station, then try it again.
PAN ERROR: The selected operation could not be
performed.
qWait for a while, then try again.
PAN MAINT: The Pandora® server is under
maintenance.
qWait for a while, then try again.
PAN NO SUPRT: The connected device is not
supported.
qFor details of compatible devices, visit the
support site.
PAN OPEN APP: Pandora® is not running when
connecting via the USB port.
qLaunch the Pandora® application on the iPhone.
PAN OPEN APP - PRESS PAUSE: Pandora® is not
running when connecting via the BLUETOOTH
function.
qLaunch the Pandora® application on the mobile
device, then press PAUSE.
PAN RESTRICT: Pandora® is not available outside
your country.
PLEASE LOGIN - PANDORA APP: You are not
logged into your Pandora® account.
qDisconnect the device, log into your Pandora®
account, then connect the device again.
UPDATE PAN: An old version of Pandora® is
connected.
qUpdate the Pandora® application to the latest
version.
If these solutions do not help improve the situation,
consult your nearest Sony dealer.
010COV.book Page 29 Wednesday, September 2, 2015 3:41 PM
30GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
Cautions
ˎRun all ground (earth) leads to a common
ground (earth) point.
ˎDo not get the leads trapped under a screw, or
caught in moving parts (e.g., seat railing).
ˎBefore making connections, turn the car ignition
off to avoid short circuits.
ˎConnect the yellow and red power supply leads
only after all other leads have been connected.
ˎBe sure to insulate any loose unconnected leads
with electrical tape for safety.
ˎChoose the installation location carefully so that
the unit will not interfere with normal driving
operations.
ˎAvoid installing the unit in areas subject to dust,
dirt, excessive vibration, or high temperature,
such as in direct sunlight or near heater ducts.
ˎUse only the supplied mounting hardware for a
safe and secure installation.
Note on the power supply lead (yellow)
When connecting this unit in combination with other
stereo components, the amperage rating of the car
circuit to which the unit is connected must be higher
than the sum of each component’s fuse amperage
rating.
Mounting angle adjustment
Adjust the mounting angle to less than 45°.
Parts List for Installation
ˎThis parts list does not include all the package
contents.
ˎThe bracket ʓ and the protection collar ʕ are
attached to the unit before shipping. Before
mounting the unit, use the release keys ʔ to
remove the bracket ʓ from the unit. For details,

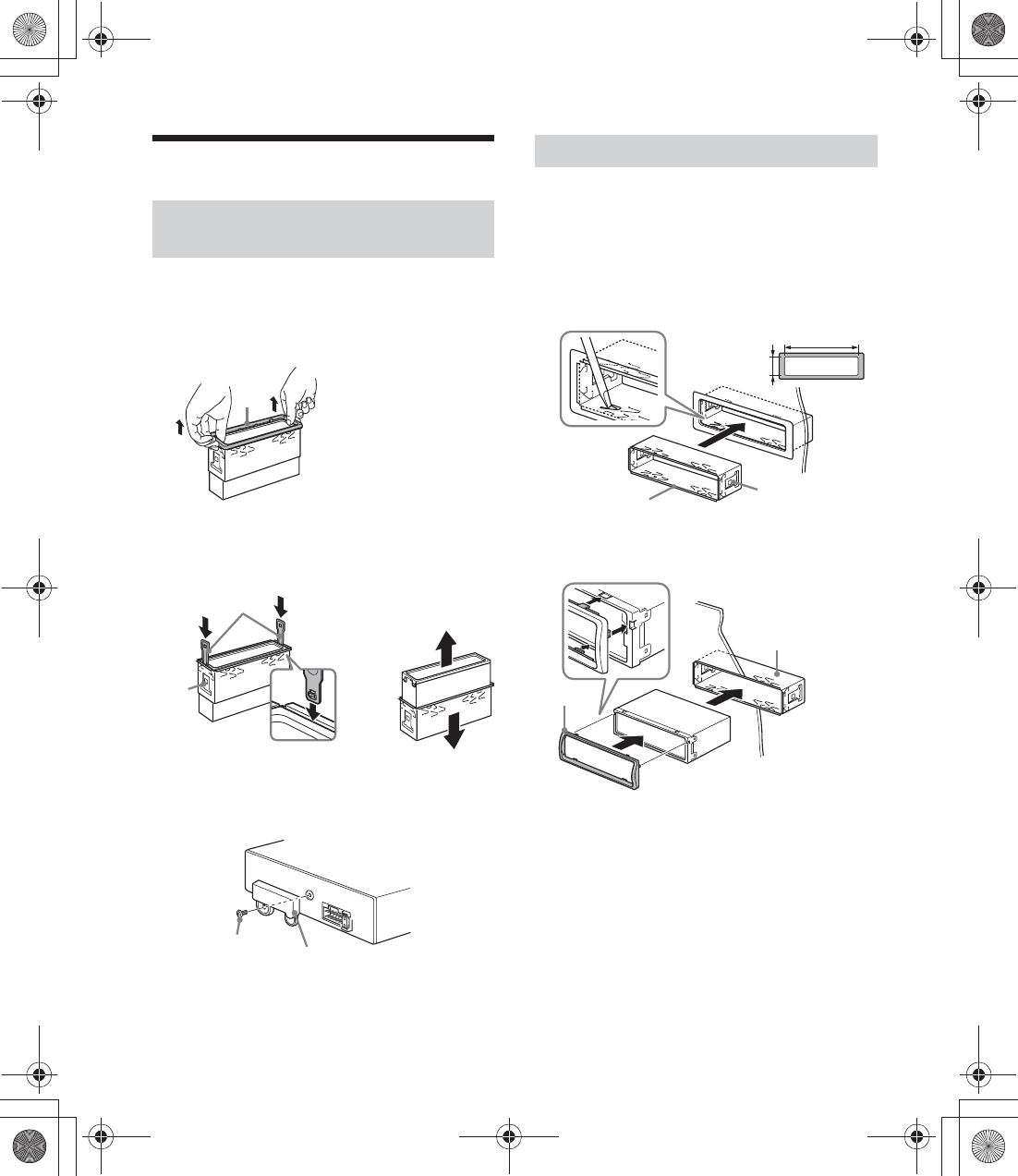

see “Removing the protection collar and the
bracket” (page 33).
ˎKeep the release keys ʔ for future use as they are
also necessary if you remove the unit from your
car.
Connection/Installation
Precautions
ʓ
ʕʖ
ʗ
× 4
5 × max. 8 mm
(7/32 × max. 5/16 in)
ʔ
× 2
010COV.book Page 30 Wednesday, September 2, 2015 3:41 PM
31GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)

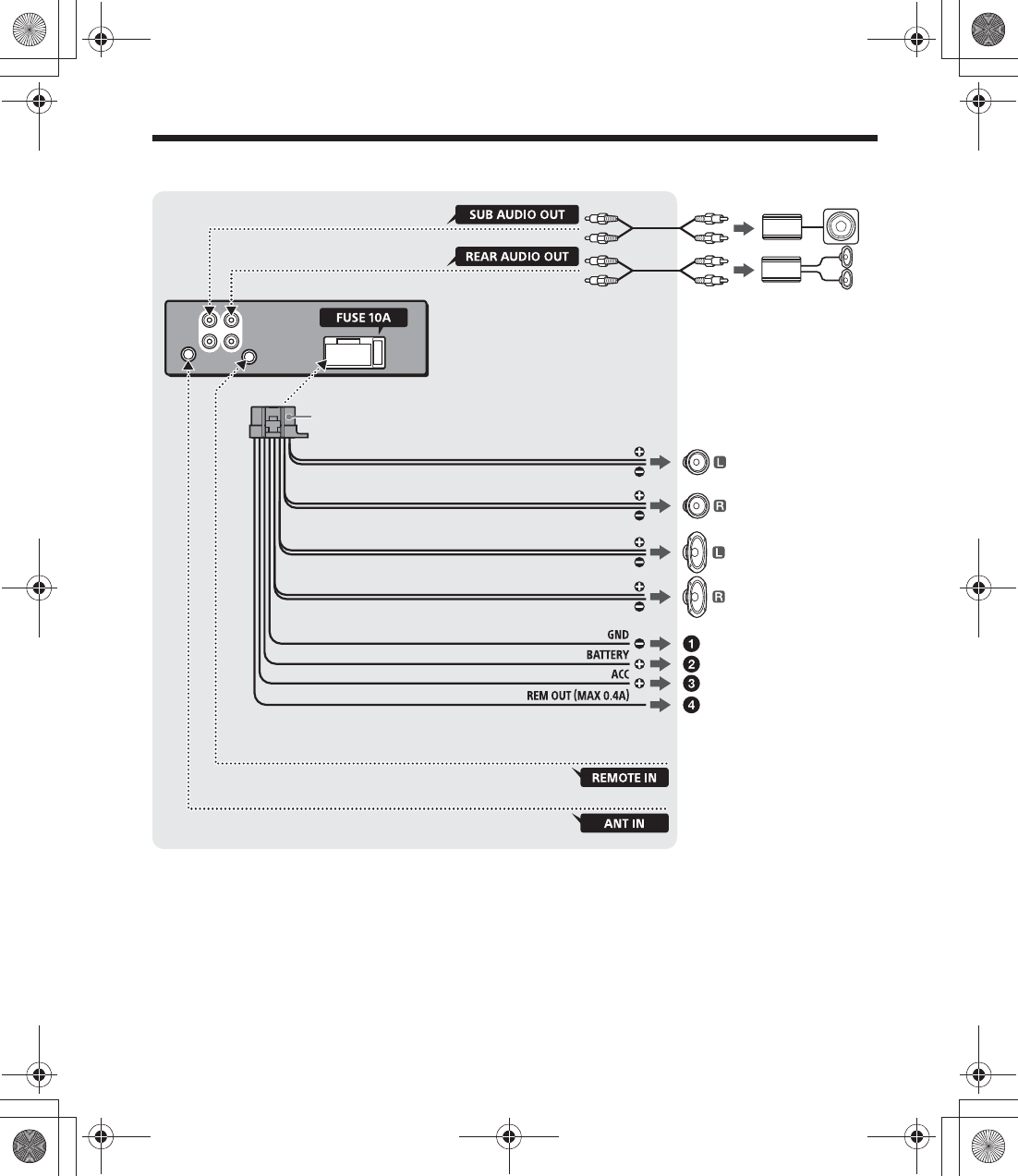

Connection
*1 Not supplied
*2 Speaker impedance: 4 – 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied).
ʗ
from a wired remote control
(not supplied)*4
White
White/black striped
Gray
Black
Yellow
Red
Blue/white striped
from a car antenna
(aerial)
Front speaker*1*2
Rear speaker*1*2
Gray/black striped
Green
Green/black striped
Purple
Purple/black striped
*3
*3
Subwoofer*1
Power amplifier*1
For details, see “Making
connections” (page 32).
010COV.book Page 31 Wednesday, September 2, 2015 3:41 PM
32GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
ɞTo a common ground (earth) point
First connect the black ground (earth) lead, then
connect the yellow and red power supply leads.
ɟTo the +12 V power terminal which is
energized at all times
Be sure to first connect the black ground (earth)
lead to a common ground (earth) point.
ɠTo the +12 V power terminal which is
energized when the ignition switch is set to
the accessory position
If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energized at all times.
Be sure to first connect the black ground (earth)
lead to a common ground (earth) point.
ɡTo the power antenna (aerial) control lead or
the power supply lead of the antenna (aerial)
booster
It is not necessary to connect this lead if there is
no power antenna (aerial) or antenna (aerial)
booster, or with a manually-operated telescopic
antenna (aerial).
To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers and a
power antenna (aerial). Connecting any other
system may damage the unit.

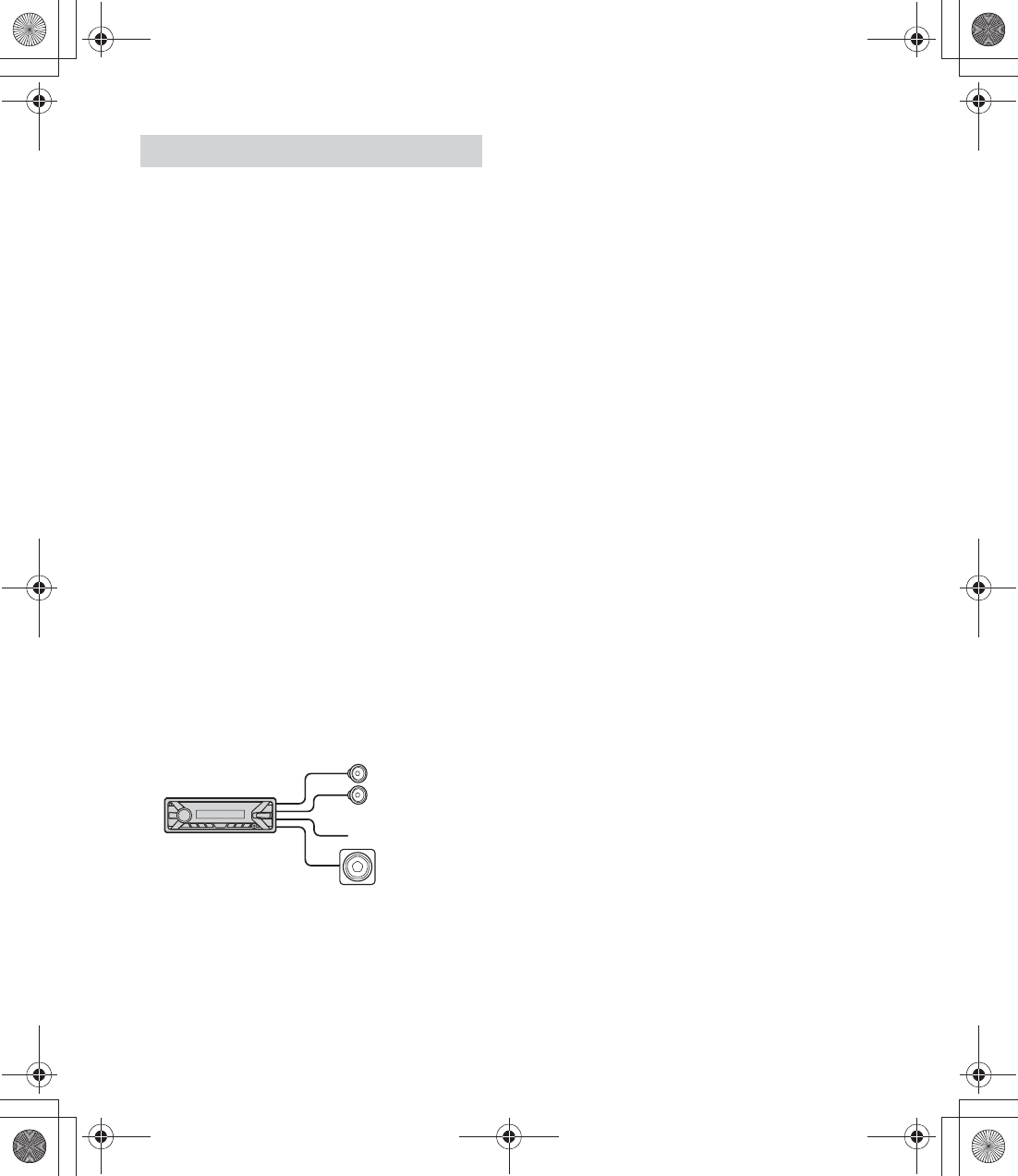

Subwoofer Easy Connection
You can use a subwoofer without a power amplifier
when it is connected to a rear speaker cord.
Note
Use a subwoofer with an impedance of 4 to 8 ohms,
and with adequate power handling capacities to avoid
damage.
Memory hold connection
When the yellow power supply lead is connected,
power will always be supplied to the memory
circuit even when the ignition switch is turned off.
Speaker connection
ˎBefore connecting the speakers, turn the unit off.
ˎUse speakers with an impedance of 4 to 8 ohms,
and with adequate power handling capacities to
avoid damage.
Making connections
Front speaker
Subwoofer
010COV.book Page 32 Wednesday, September 2, 2015 3:41 PM
33GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
Installation
Before installing the unit, remove the protection
collar ͨ and the bracket ʓ from the unit.
1Pinch both edges of the protection collar
ͨ, then pull it out.
2Insert both release keys ͧ until they
click, and pull down the bracket ʓ, then
pull up the unit to separate.
Note
Before installing this unit, remove the screw and box on
the back of the unit. Do not use the previous parts you
removed when installing the unit.
Before installing, make sure the catches on both
sides of the bracket ʓ are bent inwards 2 mm (3/32
in). When mounting in a Japanese car, see
“Mounting the unit in a Japanese car” (page 34).
1Position the bracket ʓ inside the
dashboard, then bend the claws outward
for a tight fit.
2Mount the unit onto the bracket ʓ, then
attach the protection collar ͨ.
Notes
ˎIf the catches are straight or bent outwards, the unit
will not be installed securely and may spring out.
ˎMake sure the 4 catches on the protection collar ͨ
are properly engaged in the slots of the unit.
Removing the protection collar and the
bracket
ͨ
ʓ
ͧ
Face the hook inwards.
Screw
Box
Mounting the unit in the dashboard
ʓ
182 mm (7 1/4 in)
53 mm (2 1/8 in)
Catch
ʓ
ͨ
010COV.book Page 33 Wednesday, September 2, 2015 3:41 PM
34GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)

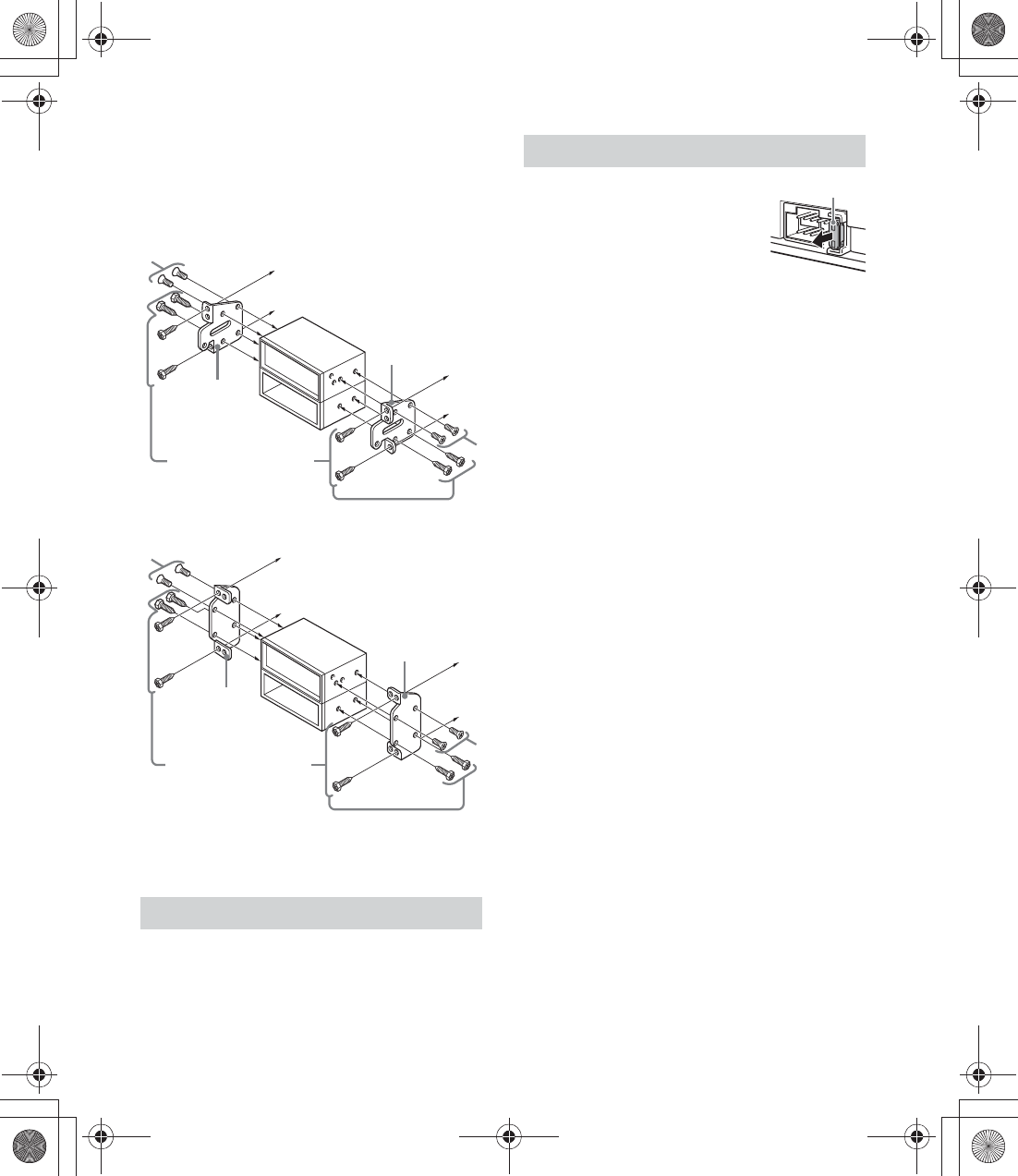

Mounting the unit in a Japanese car
You may not be able to install this unit in some
makes of Japanese cars. In such a case, consult your
Sony dealer.
TOYOTA
NISSAN
Note
To prevent malfunction, install only with the supplied
screws ʖ.
For details, see “Detaching the Front Panel”
(page 8).
When replacing the fuse, be sure
to use one matching the
amperage rating stated on the
original fuse. If the fuse blows,
check the power connection and
replace the fuse. If the fuse blows
again after replacement, there
may be an internal malfunction. In such a case,
consult your nearest Sony dealer.
Detaching and attaching the front panel
ʖ
to dashboard/center console
Existing parts supplied with
your car
ʖ
Bracket
Bracket
ʖ
to dashboard/center console
Existing parts supplied with
your car
ʖ
Bracket
Bracket
Fuse replacement
Fuse (10 A)
010COV.book Page 34 Wednesday, September 2, 2015 3:41 PM
35GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Right
DSX-A400BT
4-573-404-11(1)
010COV.book Page 35 Wednesday, September 2, 2015 3:41 PM
36GB
F:\0902\4573404111\4573404111DSXA400BTUC\01GB-DSXA400BTUC\030CD.fm masterpage: Left
DSX-A400BT
4-573-404-11(1)
010COV.book Page 36 Wednesday, September 2, 2015 3:41 PM
