User Guide

FCC statement

This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

Sony Ericsson HBH-PV705

This manual is published by Sony Ericsson Mobile Communications

AB, without any warranty. Improvements and changes to this manual

necessitated by typographical errors, inaccuracies of current

information, or improvements to programs and/or equipment, may be

made by Sony Ericsson Mobile Communications AB at any time and

without notice. Such changes will, however, be incorporated into new

©Sony Ericsson Mobile Communications AB, 2006

Publication number: LZT 108 8620/3 PE1

Some of the services in this manual are not supported by all networks.

This also applies to the GSM International Emergency Number 112.

Contact your network operator or service provider if you are in doubt

whether you can use a particular service or not.

The Bluetooth word mark and logos are owned by the Bluetooth SIG,

Inc. and any use of such marks by Sony Ericsson is under license.

This product is leadfree and halogenfree.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

3

Introduction

Bluetooth™ headset HBH-PV705

The Bluetooth™ headset HBH-PV705 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Bluetooth™ headset HBH-PV705

The Bluetooth™ headset HBH-PV705 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Bluetooth™ headset HBH-PV705

The Bluetooth™ headset HBH-PV705 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Bluetooth™ headset HBH-PV705

The Bluetooth™ headset HBH-PV705 can be connected

to any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

4

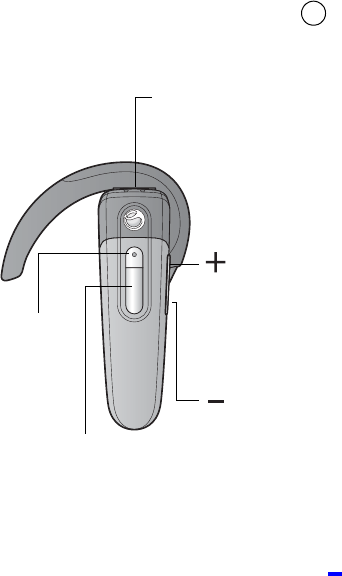

Front

Call handling button

Indicator light

Charging connector

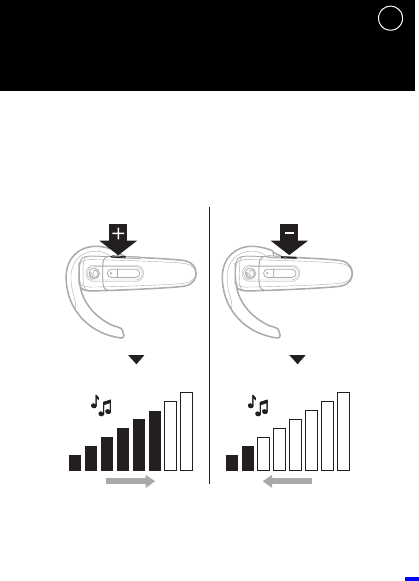

Decrease volume

Increase volume

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

5

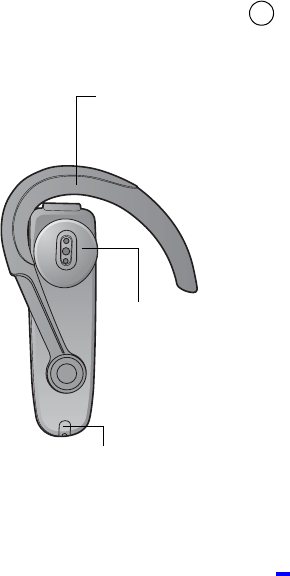

Back

Speaker

Microphone

Ear hook

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

6

User guide symbols

Green flash

Red flash

Steady green light

Steady red light

Ring signal

Beep tone

Press and release

Press and hold

Press

simultaneously

Press

simultaneously

Press

simultaneously

Press

simultaneously

Press and hold

simultaneously

Press and hold

simultaneously

Press and hold

simultaneously

Press and hold

simultaneously

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

7

Getting started

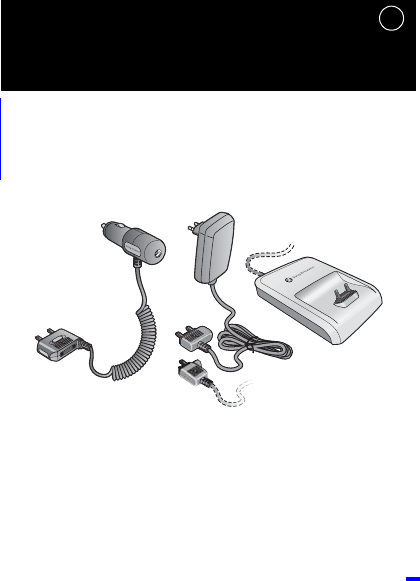

Compatible chargers

First time use: Charge approximately 8 hours.

CST-60

CST-61

CLA-60

CDS-60

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

8

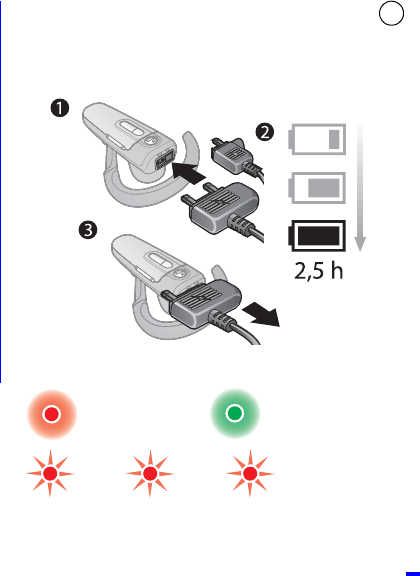

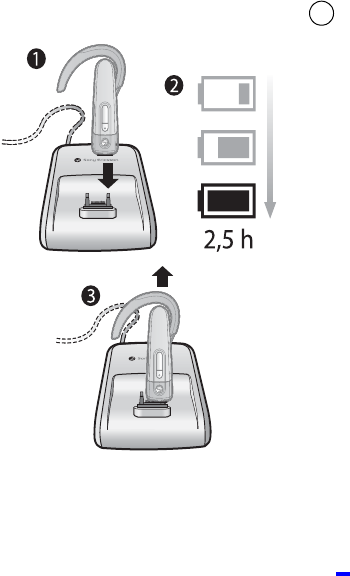

Charging

Battery needs charging

Fully charged

Charging

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

9

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

10

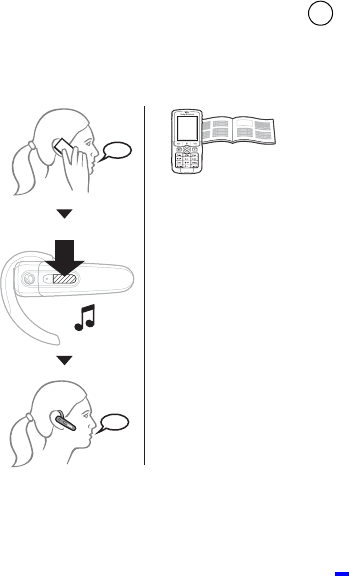

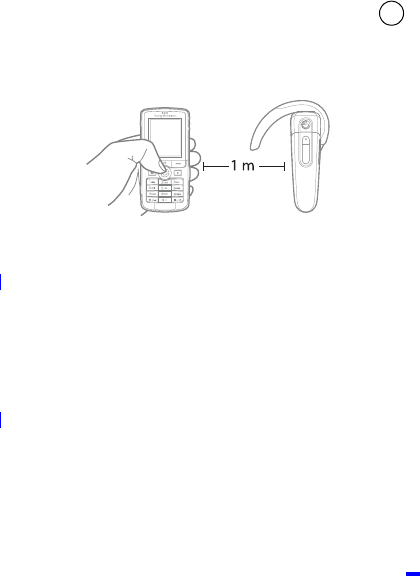

Adding the headset to the phone (pairing)

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions in the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Make sure Bluetooth visibility is on in your phone. This

makes your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 15.

4. Prepare your phone according to the phone user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

11

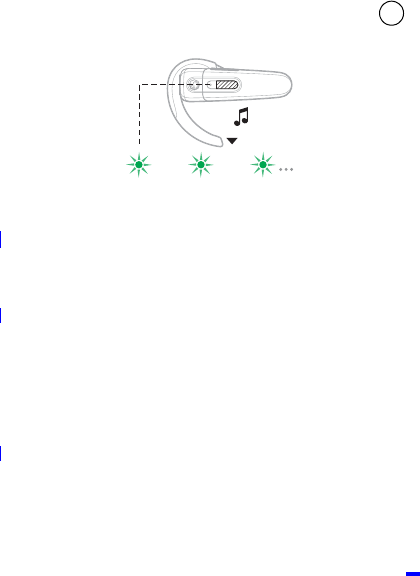

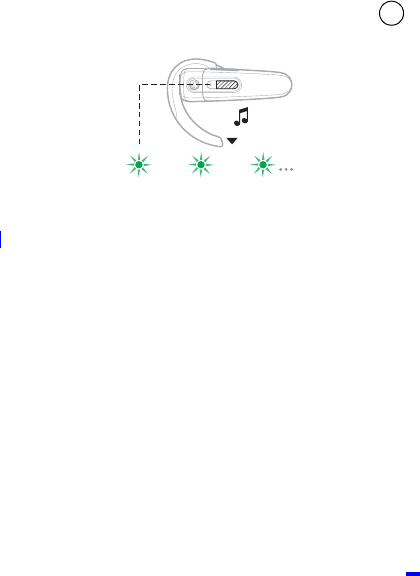

The headset beeps and the indicator light flashes

green when successfully added.

After you have added the headset to the phone, the

headset automatically connects to the phone as soon as it

is turned on and within range (for example when you

receive or make calls).

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions in the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Make sure Bluetooth visibility is on in your phone. This

makes your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 15.

4. Prepare your phone according to the phone user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

12

The headset beeps and the indicator light flashes

green when successfully added.

After you have added the headset to the phone, the

headset automatically connects to the phone as soon as it

is turned on and within range (for example when you

receive or make calls).

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions in the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Make sure Bluetooth visibility is on in your phone. This

makes your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 15.

4. Prepare your phone according to the phone user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

13

The headset beeps and the indicator light flashes

green when successfully added.

After you have added the headset to the phone, the

headset automatically connects to the phone as soon as it

is turned on and within range (for example when you

receive or make calls).

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone. Follow the

instructions in the phone user guide on how to turn on

Bluetooth in your phone.

1. Turn on Bluetooth in your phone.

2. Make sure Bluetooth visibility is on in your phone. This

makes your phone visible to other Bluetooth devices.

3. Prepare your headset according to page 15.

4. Prepare your phone according to the phone user guide

on how to add a Bluetooth device. Please note that for

some phones you may need to enter a passcode. The

headset passcode is 0000.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

14

The headset beeps and the indicator light flashes

green when successfully added.

After you have added the headset to the phone, the

headset automatically connects to the phone as soon as it

is turned on and within range (for example when you

receive or make calls).

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

15

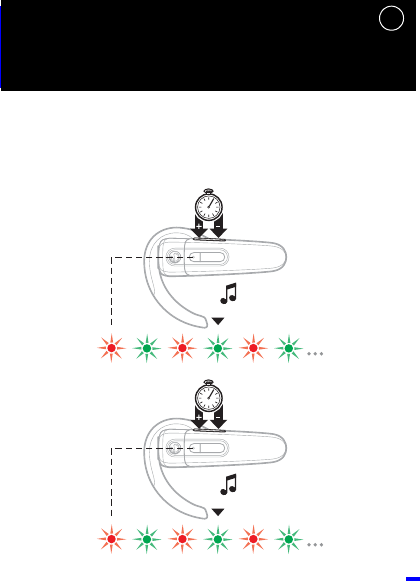

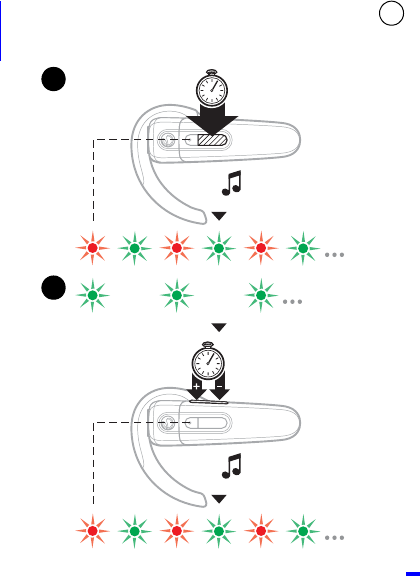

Preparing the headset

Make sure the headset is turned off (see page 17).

•A: Press and hold the call handling button and make sure

the indicator light flashes red and green. B: If the

headset only flashes green, press and hold the volume

buttons until the indicator light flashes red and green.

•A: Press and hold the call handling button and make sure

the indicator light flashes red and green. B: If the

headset only flashes green, press and hold the volume

buttons until the indicator light flashes red and green.

•A: Press and hold the call handling button and make sure

the indicator light flashes red and green. B: If the

headset only flashes green, press and hold the volume

buttons until the indicator light flashes red and green.

•A: Press and hold the call handling button and make sure

the indicator light flashes red and green. B: If the

headset only flashes green, press and hold the volume

buttons until the indicator light flashes red and green.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

16

(5 s)

A

(5-8 s)

B

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

17

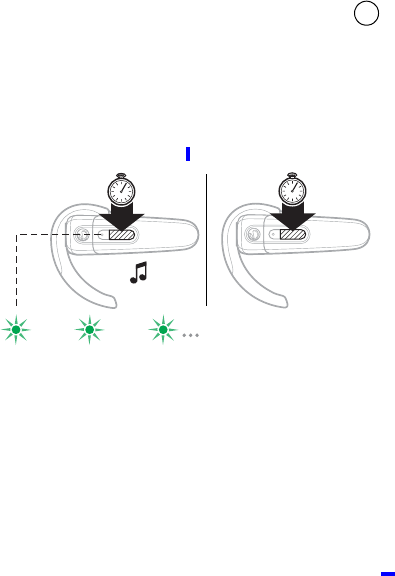

Turning the headset on (and off)

Note: If the indicator light flashes red and green your

headset is ready to be added to a phone (see page 10).

Note: If the indicator light flashes red and green your

headset is ready to be added to a phone (see page 10).

Note: If the indicator light flashes red and green your

headset is ready to be added to a phone (see page 10).

Note: If the indicator light flashes red and green your

headset is ready to be added to a phone (see page 10).

(5 s) (5 s)

On

Off

Sony Ericsson Mobile Communications AB

SE-221 88 Lund, Sweden

www.sonyericsson.com

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

LZT 108 8620/3 PD1

Printed in XXXX

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

19

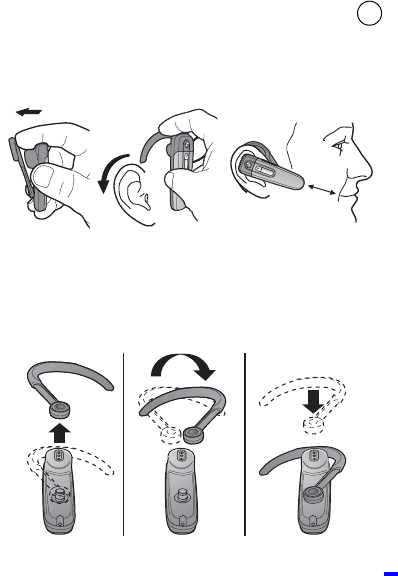

Putting the headset on

Left-ear use

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

20

Calling

Range

Optimal performance

Limited performance

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

21

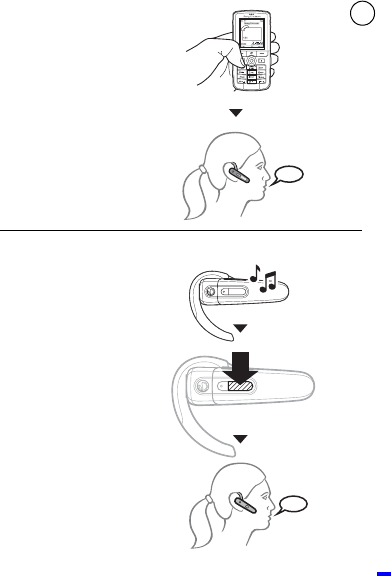

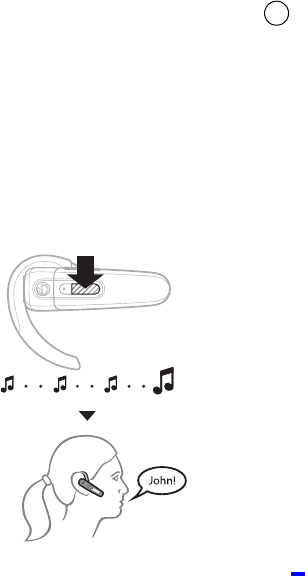

Making a call

Answering a call

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

22

Ending a call

Rejecting a call

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

23

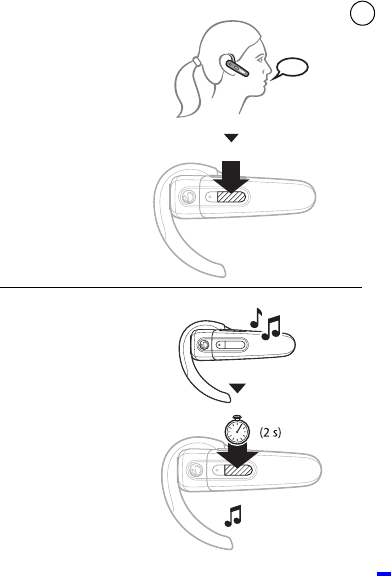

Using voice commands

Voice commands, such as dial, redial,

answer and reject, can be useful when

using the headset. For more information on

voice commands, and to know if your

phone supports it, refer to the phone user guide.

Voice commands, such as dial, redial, answer and reject,

can be useful when using the headset. For more

information on voice commands, and to know if your

phone supports it, refer to the phone user guide.

Voice commands, such as dial, redial, answer and reject,

can be useful when using the headset. For more

information on voice commands, and to know if your

phone supports it, refer to the phone user guide.

Voice commands, such as dial, redial, answer and reject,

can be useful when using the headset. For more

information on voice commands, and to know if your

phone supports it, refer to the phone user guide.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

24

Making a call using voice commands

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

Make sure that voice commands are enabled and

recorded in your phone before you start using them.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

25

Transferring a call

To transfer a call from

headset to phone, refer to

the phone user guide.

To transfer a call from

headset to phone, refer to

the phone user guide.

To transfer a call from

headset to phone, refer to

the phone user guide.

To transfer a call from

headset to phone, refer to

the phone user guide.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

26

Turning the microphone off (and on)

during a call

Turning the microphone off (and on)

during a call

Turning the microphone off (and on)

during a call

Turning the microphone off (and on)

during a call

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

27

Settings

Adjusting ring volume (in standby mode)

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

28

Adjusting speaker volume (during a call)

Warning! Loud volume could damage your hearing.

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

29

Master reset

Make sure the headset is turned on (see page 17).

(5 s)

(5-8 s)

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

30

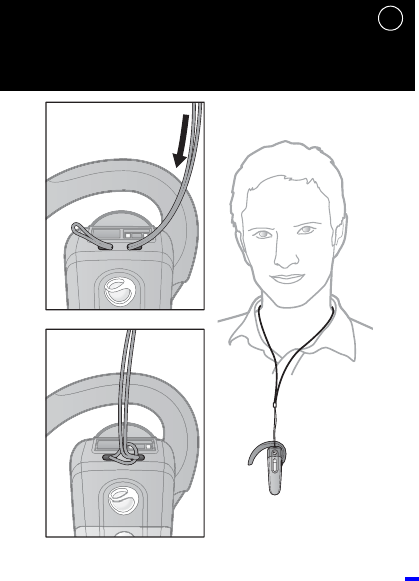

Attaching the strap

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

31

Viewing regulatory information

xxx xxx xx

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

32

Troubleshooting

No connection between headset and phone

Make sure the headset is charged and within range of the

phone (see page 8 and 20). Check or redo the Bluetooth

settings in the phone. Try to pair the headset again.

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. Charge the headset (see page 8).

•The headset switches off if you do not add it to the phone

within 10 minutes. Prepare the headset again (see page

15).

Unexpected behaviour

Do a master reset (see page 29). After a master reset the

headset is reset to factory settings and the paired

Bluetooth devices are removed from your phone.

Battery capacity

A battery that has been infrequently used or a new one,

could have reduced capacity. It may need to be charged/

discharged a number of times (see page 8).

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

33

No connection between headset and phone

Make sure the headset is charged and within

range of the phone (see page 8 and 20). Check or

redo the Bluetooth settings in the phone. Try to pair the

headset again.

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. Charge the headset (see page 8).

•The headset switches off if you do not add it to the phone

within 10 minutes. Prepare the headset again (see page

15).

Unexpected behaviour

Do a master reset (see page 29). After a master reset the

headset is reset to factory settings and the paired

Bluetooth devices are removed from your phone.

Battery capacity

A battery that has been infrequently used or a new one,

could have reduced capacity. It may need to be charged/

discharged a number of times (see page 8).

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

34

No connection between headset and phone

Make sure the headset is charged and within

range of the phone (see page 8 and 20). Check or

redo the Bluetooth settings in the phone. Try to pair the

headset again.

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. Charge the headset (see page 8).

•The headset switches off if you do not add it to the phone

within 10 minutes. Prepare the headset again (see page

15).

Unexpected behaviour

Do a master reset (see page 29). After a master reset the

headset is reset to factory settings and the paired

Bluetooth devices are removed from your phone.

Battery capacity

A battery that has been infrequently used or a new one,

could have reduced capacity. It may need to be charged/

discharged a number of times (see page 8).

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

35

No connection between headset and phone

Make sure the headset is charged and within

range of the phone (see page 8 and 20). Check or

redo the Bluetooth settings in the phone. Try to pair the

headset again.

For more information on Bluetooth and pairing, go to

www.sonyericsson.com/learnabout

The headset is automatically switched off

•The battery is too low. Charge the headset (see page 8).

•The headset switches off if you do not add it to the phone

within 10 minutes. Prepare the headset again (see page

15).

Unexpected behaviour

Do a master reset (see page 29). After a master reset the

headset is reset to factory settings and the paired

Bluetooth devices are removed from your phone.

Battery capacity

A battery that has been infrequently used or a new one,

could have reduced capacity. It may need to be charged/

discharged a number of times (see page 8).

www.sonyericsson.com/support/

D

r

a

f

t

f

o

r

Son

y

E

r

icsson Inte

r

nal Use Onl

y

-PE1

36

Declaration of conformity

We, Sony Ericsson Mobile Communications

AB of

Nya Vattentornet

221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony Ericsson type DDA-0002006

to which this declaration relates is in conformity with the

appropriate standards EN 300 328, EN 301 489-17, EN

301 489-7 and EN 60950 following the provisions of

Radio Equipment and Telecommunication Equipment

directive 1999/5/EC with requirements covering

EMC directive 89/336/EEC and Low Voltage directive

73/23/EEC.

Lund, March 2006

Ulf Persson, Head of Product Business Unit Accessories

We fulfill the R&TTE Directive.

Sony DDA-2006 Bluetooth Headset User Manual Peppe static earhook A7 HBH PV705 folded

Sony Mobile Communications Inc Bluetooth Headset Peppe static earhook A7 HBH PV705 folded

08 user manual

Navigation menu

Namespaces

Views

Navigation
