Users Manual
Operating Instructions
Sophos Access Points
Operating Instructions
1Wireless Access Points
Foreword
We are pleased to welcome you as a new Sophos Access Point customer.
These operating instructions will help you install and configure the access point
and provide technical specifications of all Sophos access point models. In addition,
please also see the following documents that contain useful information on safety,
regulatory compliance, and configuration options:
Ì Sophos Access Points Safety Instructions and Regulatory Information
Ì Sophos UTM Administration Guide: Configuring the
UTM hardware and software appliance
The instructions must be read carefully prior to using the device and should be kept
in a safe place. You may download all user manuals and additional documentation
from the Sophos Knowledgebase at http://www.sophos.com/en-us/support/
knowledgebase.aspx.
Introduction
UTM Wireless Protection simplifies the operation of secure and reliable wireless
networks. It combines affordable and configuration-less access points through a built-
in wireless controller in the in Sophos UTM. The wireless controller itself centrally
manages all wireless access points; all you need to do is plug in the device anywhere
in your network. The access point will find the controller, fetch its configuration and
become operable within seconds. In addition, it easily provides wireless guest Internet
access during the initial setup, unless you explicitly deny automatic configuration.
Installation
Preliminary steps
Please update your UTM appliance to the latest version available. Note that you also
need a valid UTM Wireless Protection subscription to operate the Sophos Access
Points.
Connect the access point to the internal network
Decide where you would prefer to place the access point, and put the access point in
that location. For mounting instructions, see below. Now connect the access point to
your internal network by plugging in the network cable to the access point’s RJ45 or
LAN (PoE) Ethernet interface, respectively.
Operating Instructions
2Wireless Access Points

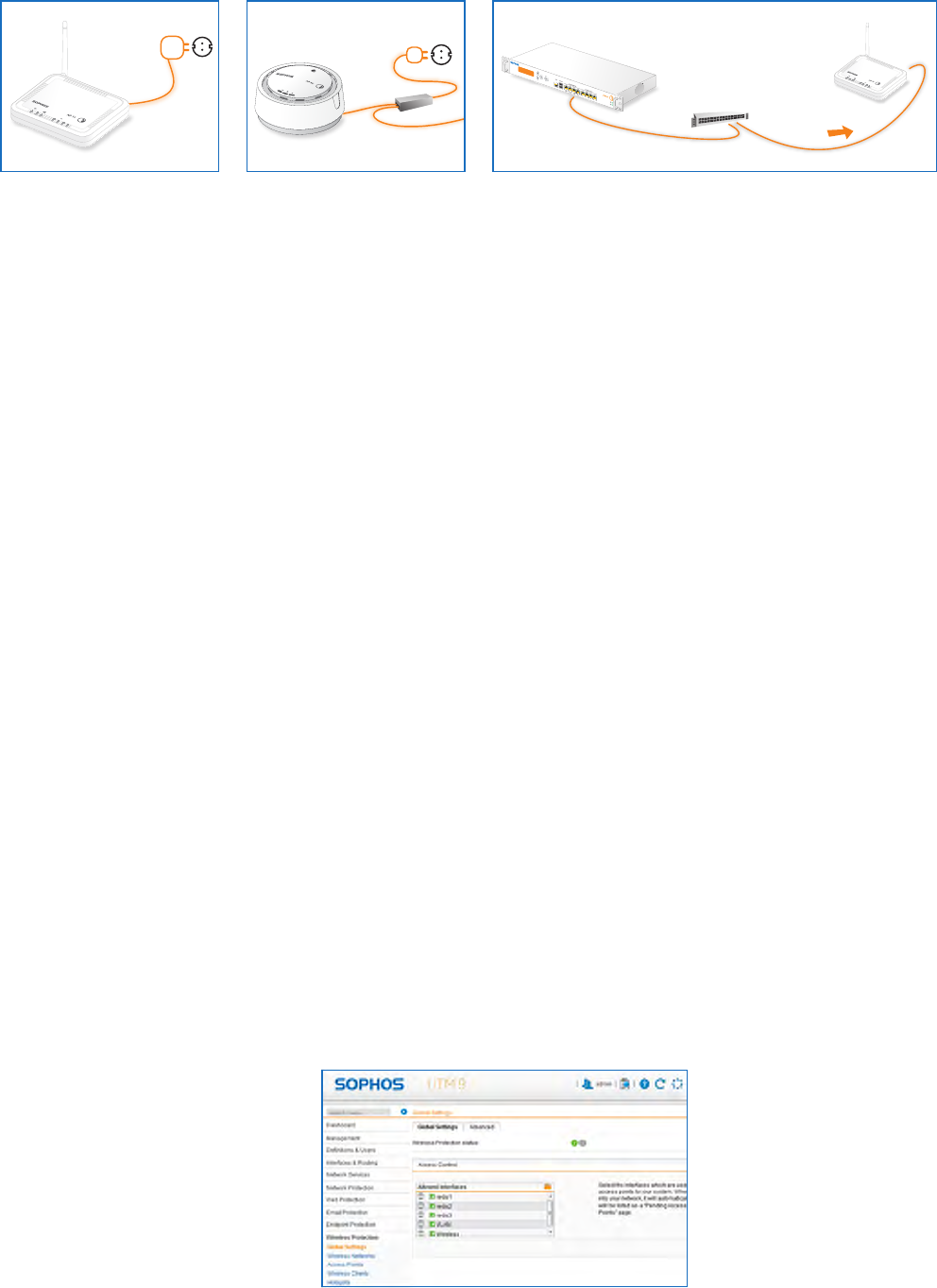

Connect the access point to the power supply
The AP 15, AP 15C, AP 55, AP 55C, AP 100, AP 100C, and AP 100X can be powered
directly through the Power-over-Ethernet-injector. Note that it is also possible to

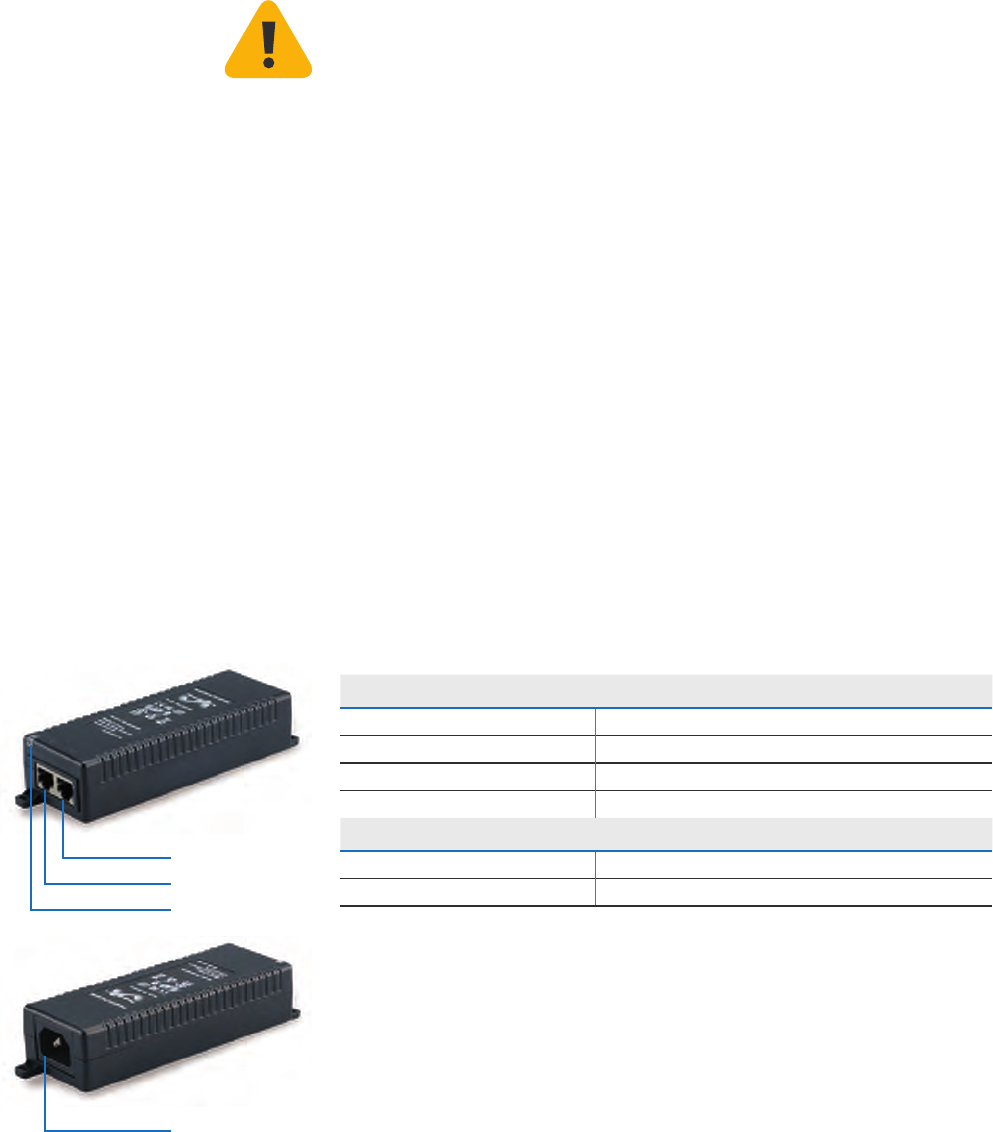

power them by a PoE-compliant switch. For more information on PoE-injectors, see
below.
Connect the AP 15 to the power supply. Please use the power supply from the scope
of supply. Note that the AP 15 can also be operated through a PoE-injector or PoE-
compliant switch.
Start the communication between the access point and the UTM appliance
When connected to the network, the access point will try to receive an IP address via
DHCP. Therefore, you need either the UTM appliance (with a DHCP server enabled
and listening on the interface the access point is connected to) or any other DHCP
server to provide an IP address for the access point.
After successfully receiving an IP address, the access point will communicate with
the UTM appliance. For this to happen, the UTM appliance needs to be put in the
upstream of the access points, either being the default gateway of the access points
(which was provided by the DHCP service) or on the default route (most likely your
route to the Internet).
Please note that the actual Internet access is not necessary to use UTM Wireless
Protection. While waiting for DHCP and searching for the UTM appliance, the access
point’s power LED will blink slowly.
Enable UTM Wireless Protection on the UTM appliance
In WebAdmin, navigate to the Wireless Protection menu entry. On the Global Settings
tab, click the Enable button. When enabling Wireless Protection for the first time,
the Initial Setup frame will appear. It shows the configuration which will be created:
A separate Wireless “Guest” network using WPA2 personal with DHCP for wireless
clients, which will be allowed to use DNS on the UTM appliance and the “Web
Surfing” service.
The pre-shared key is auto-generated and will only be shown in this section. This
configuration is intended as a template, you can edit the settings at any time on the
Wireless Protection > Wireless Networks tab. You can also skip the initial setup by
ticking the checkbox on the bottom of the section.
Operating Instructions
3Wireless Access Points
Accepting the access point
The UTM appliance will start to communicate with the access point and they will
show up as “Pending” on the Wireless Protection > Access Points tab in WebAdmin.
The ID of the Access Points, shown in square brackets, is also printed on the bottom

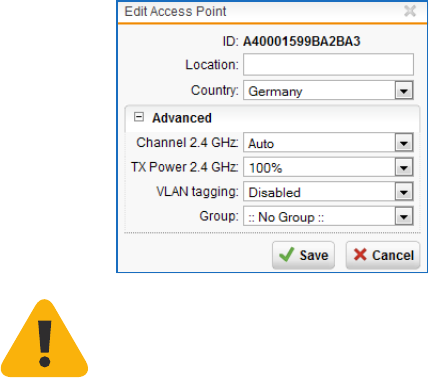

of the device. It can be used to distinguish the access point. By clicking the Accept
button, you are given the option to select the channel this access point will transmit
on. When leaving the channel setting on “Auto”, the access point will use the least
used channel.
We also suggest to give the access point a meaningful location (e.g., “Meeting Room”)
as this will ease handling multiple access points. After clicking the Save button,
the access points will reboot. Upon reconnect, the access point will check if a more
recent firmware is available. If so, they will automatically perform a firmware update.
During the firmware update, the access point’s power LED will blink rapidly.
Important note: Do not unplug the power while the firmware is updating. Otherwise
the access point will be rendered inoperable and must be returned to the reseller.
The access point will then reboot to complete the firmware update. If no new
firmware is available, the access point is operational and appears as “Active” in
WebAdmin.
Country code selection usage (WLAN devices)
Note: According to FCC regulations, all WLAN devices marketed and sold in the U.S.
must be restricted to U.S. channels only. Therefore, the country code selection is
applicable to non-U.S. models only. So changing the country setting of any Sophos
AP sold in the U.S. will not modify authorized parameters such as RF channels, which
means that the Access Point will always operate in U.S. authorized channels.
Operating Instructions
4Wireless Access Points
AP 15

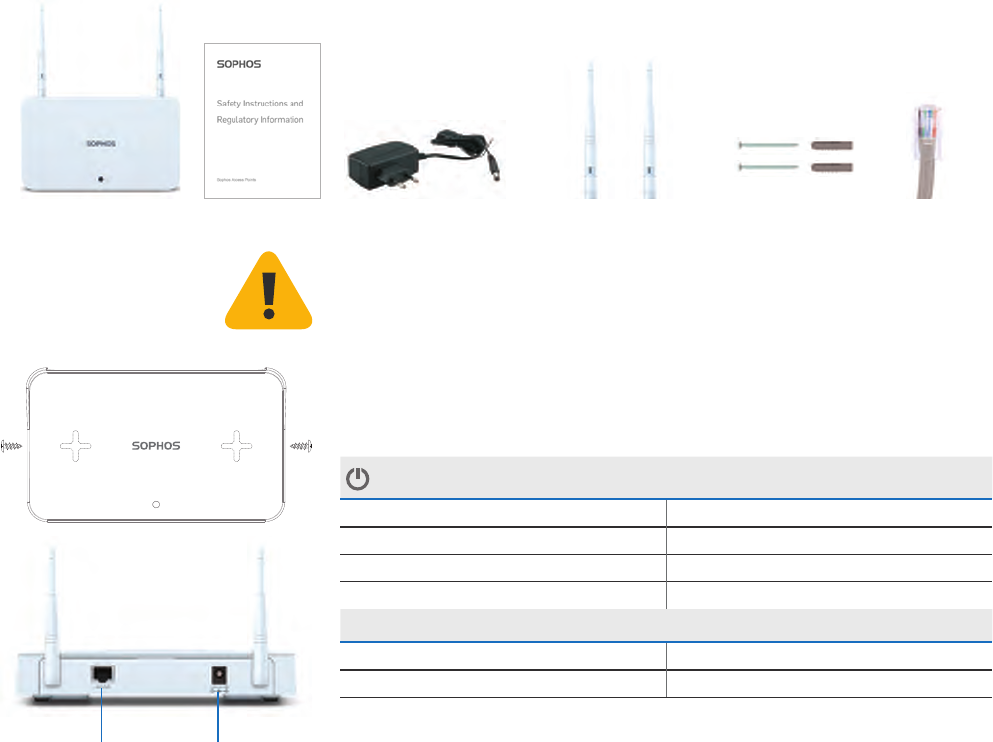

Scope of supply
Important note: Sophos AP 15 requires Sophos UTM V 9.207 to be installed.
10/100/1000 Base-TX Power
Mounting instructions
The Sophos AP 15 can be mounted on the wall. Screws are included in delivery.
Controls
LED
Green - blinking slowly AP is booting
Green - blinking rapidly Network connectivity
Orange - blinking slowly No connection to the Sophos UTM
Orange - blinking rapidly Firmware update
Interfaces and buttons
12V DC-IN Power
LAN (PoE) 10/100/1000 Base-TX interface
Sophos AP 15 2 screws and dowelsSecurity Notes Power supply Ethernet cable2 Detachable dipole antenna
Operating Instructions
5Wireless Access Points
Technical specifications
Sophos AP 15
Chassis Plastic housing, white
Maximum throughput 300 Mbit/s
LAN interfaces 1 x 10/100/1000 Base-TX
Supported WLAN standards 802.11 b/g/n 2.4 GHz
Antenna 2 x detachable dipole antenna (2 dBi) Connector type: RP-SMA
Frequencies / channels ETSI FCC
2.412–2.472 GHz (Channels 1-13) 2.412-2.462 GHz (channels 1-11)
Power supply 12 Vdc / 1 A
Power consumption 2.5 W (max.)
Power-over-Ethernet 802.3af
Dimensions W x H x D 194 x 32 x 115 mm
Weight 260g
Temperature range Operating: 0°C to 45°C Storage: -20°C to 60°C
Humidity (non-condensing) 0% to 90%
Mounting Desktop / wall
Supported security standards WPA/WPA2, WEP, 802.1X (RADIUS)
Number of supported SSIDs 8
Regulatory compliance CE FCC
Radio: EN 300328 CFR 47, Part 15 Subpart C
EMC: EN 301489-1, EN 301489-17 CFR 47, Part 15 Subpart B
EMF: EN 50385 FCC 1.1310, IEEE C95.1
Safety: EN 60950-1 N/a
Operating Instructions
6Wireless Access Points
AP 15 Mounting template
Do not shrink to fit when printing
12 cm (4,72 in)
Operating Instructions
7Wireless Access Points
AP 15C

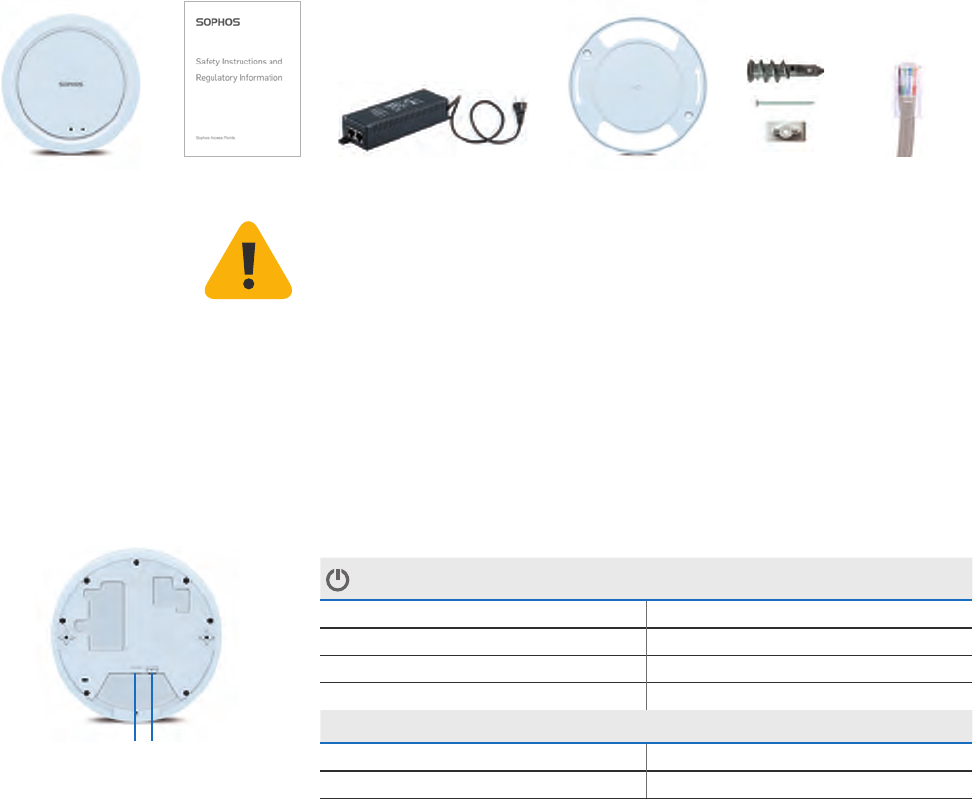

Scope of supply
Important note: Sophos AP 15C requires Sophos UTM V 9.400 to be installed.
Mounting instructions
The Sophos AP 15C can be mounted on the ceiling. Screws are included in delivery.
Use the screws from the scope of supply or screws whose dimensions correspond
with the mounting holes in the bracket.
1. Mount the bracket on the ceiling
Use the screws and anchors from the scope of supply.
2. Place the access point on the bracket
Place the housing on the bracket and lock it by turning clockwise until stop.
Controls
LED
Green - blinking slowly AP is booting
Green - blinking rapidly Network connectivity
Orange - blinking slowly No connection to the Sophos UTM
Orange - blinking rapidly Firmware update
Interfaces and buttons
12V DC-IN Power
LAN (PoE) 10/100/1000 Base-TX interface
Power
1 x 10/100/1000
Base-TX
Console

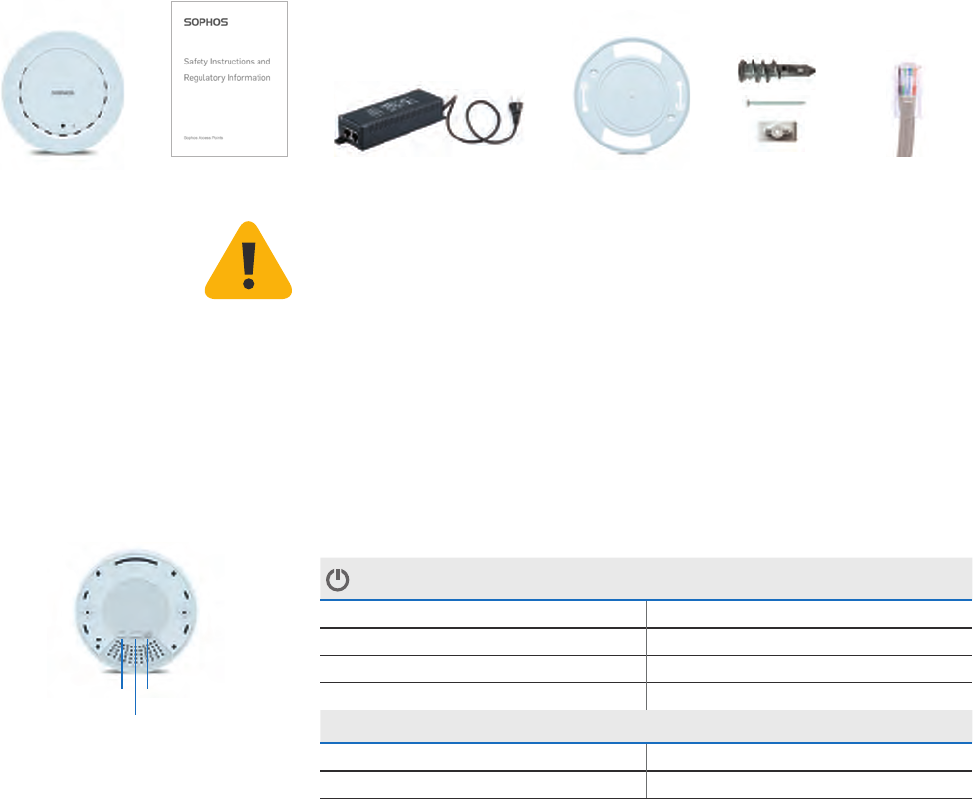

Security Notes Ethernet cableSophos AP 15C Mounting bracket Screws and
T-rail clips
Power-over-Ethernet (PoE)
injector + power cord
Operating Instructions
8Wireless Access Points
Technical specifications
Sophos AP 15C
Chassis Plastic, white
Physical security Kensington lock
Maximum theoretical throughput 300 Mbps (5GHz / 802.11an) + 300 Mbps (2.4GHz / 802.11n)
LAN interfaces 1 x 10/100/1000 Base-TX
Supported WLAN standards 802.11a/b/g/n
Antenna 4 x internal antennas
Frequencies / channels ETSI
2.412-2.472GHz (channels 1-13) 5.180-5.240GHz (channels 36-48)
FCC
2.412-2.462GHz (channels 1-11) U-NII-1:
5.180-5.240GHz (channels 36-48)
U-NII-3:
5.745-5.825GHz (channels 149-165)
MIC
2.412-2.472GHz (channels 1-13) W52:
5.180-5.240GHz (channels 36-48)
Power supply 12 Vdc / 1 A
Power consumption 7 W (max.)
Power-over-Ethernet 802.3af/at
Diameter x H 176 x 29.86mm
Weight 265g
Temperature range Operating: 0°C to 50°C
Humidity (non-condensing) 0% to 90%
Mounting Ceiling
Supported security standards WPA/WPA2, WEP, 802.1X (RADIUS)
Number of supported SSIDs 8
Regulatory compliance CB, CE, UL, FCC, IC, MIC, VCCI, RCM
Operating Instructions
9Wireless Access Points
AP 55

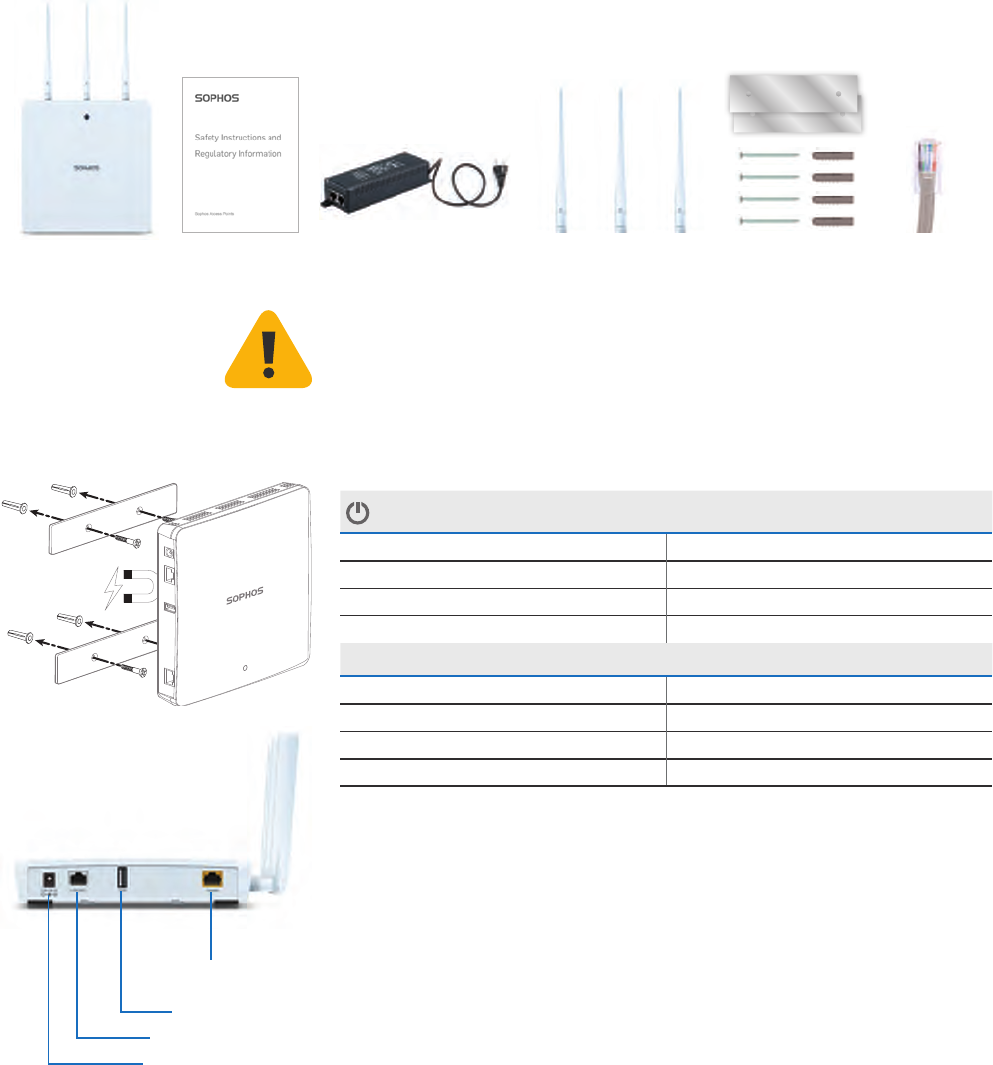

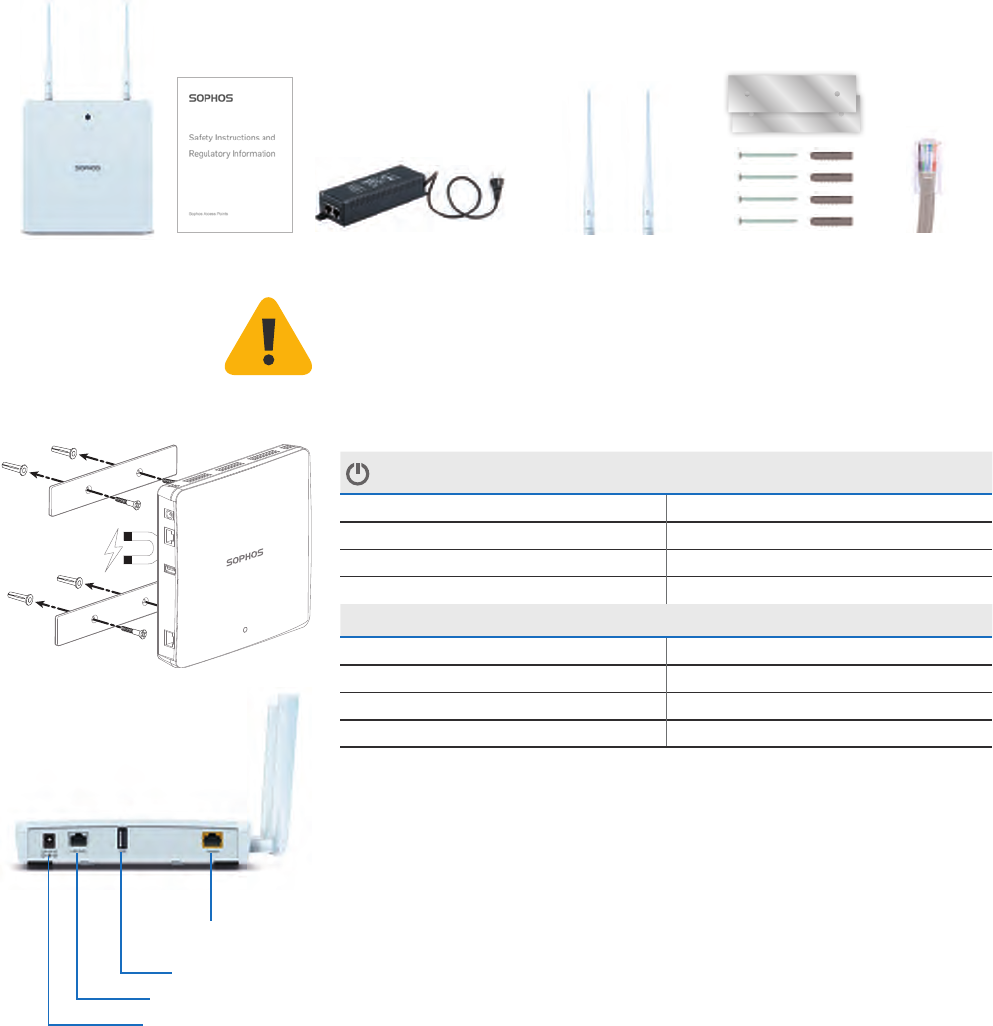

Scope of supply
Important note: Sophos AP 55 requires Sophos UTM V 9.308 to be installed.
Mounting instructions
The Sophos AP 55 can be mounted on the wall. A mounting kit is included in delivery.
Controls
LED
Green - blinking slowly AP is booting
Green - blinking rapidly Network connectivity
Orange - blinking slowly No connection to the Sophos UTM
Orange - blinking rapidly Firmware update
Interfaces and buttons
12V DC-IN Power
LAN (PoE) 10/100/1000 Base-TX interface
Console Console access for debugging purposes
USB Currently not used; reserved for future use
Console
USB
10/100/1000 Base-TX
Power
Sophos AP 55 4 screws, dowels
and metal plates
Security Notes Ethernet cable2 Detachable dipole antenna
Power-over-Ethernet (PoE)
injector + power cord
Operating Instructions
10Wireless Access Points
Technical specifications
Sophos AP 55
Chassis Plastic housing, white
Physical security Kensington lock
Maximum theoretical throughput 867 Mbps (5GHz / 802.11ac) + 300 Mbps (2.4GHz / 802.11n)
LAN interfaces 1 x 10/100/1000 Base-TX
Supported WLAN standards 802.11a/b/g/n/ac
Antenna 2 x detachable dipole antenna (2 dBi) Connector type: RP-SMA
Frequencies / channels ETSI
2.412–2.472 GHz (Channels 1-13) RLAN sub-band 1:
5.180-5.320GHz (channels 36-64)
RLAN sub-band 2:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
FCC
2.412-2.462GHz (channels 1-11) U-NII-1:
5.180-5.240GHz (channels 36-48)
U-NII-3:
5.745-5.825GHz (channels 149-165)
Power supply 12 Vdc / 4 A
Power consumption 11 W (max.)
Power-over-Ethernet 802.3at
Dimensions W x H x D 183 x 36 x 183 mm
Weight 500g
Temperature range Operating: 0°C to 50°C
Humidity (non-condensing) 0% to 90%
Mounting Desktop / wall
Supported security standards WPA/WPA2, WEP, 802.1X (RADIUS)
Number of supported SSIDs 8 per radio (16 in total)
Regulatory compliance CE FCC
Radio: EN 300 328, EN 301 893 CFR 47, Part 15 Subpart C, E
EMC: EN 301 489-1, EN 301 489-17 CFR 47, Part 15 Subpart B
EMF: EN 50385 FCC 1.1310, IEEE C95.1
Safety: EN 60950-1 N/a
Operating Instructions
11Wireless Access Points
AP 55C
Scope of supply
Important note: Sophos AP 55C requires Sophos UTM V 9.308 to be installed.
Mounting instructions
The Sophos AP 55C can be mounted on the ceiling. Screws are included in delivery.
Use the screws from the scope of supply or screws whose dimensions correspond
with the mounting holes in the bracket.
1. Mount the bracket on the ceiling
Use the screws and anchors from the scope of supply.
2. Place the access point on the bracket
Place the housing on the bracket and lock it by turning clockwise until stop.
Controls
LED
Green - blinking slowly AP is booting
Green - blinking rapidly Network connectivity
Orange - blinking slowly No connection to the Sophos UTM
Orange - blinking rapidly Firmware update
Interfaces and buttons
12V DC-IN Power
LAN (PoE) 10/100/1000 Base-TX interface
Power1 x 10/100/1000 Base-TX
Security Notes Ethernet cableSophos AP 55C Mounting bracket Screws and
T-rail clips
Power-over-Ethernet (PoE)
injector + power cord
Operating Instructions
12Wireless Access Points
Technical specifications
Sophos AP 55C
Chassis Top enclosure: plastic, white; bottom enclosure: metal, white
Physical security Kensington lock
Maximum theoretical throughput 867 Mbps (5GHz / 802.11ac) + 300 Mbps (2.4GHz / 802.11n)
LAN interfaces 1 x 10/100/1000 Base-TX
Supported WLAN standards 802.11a/b/g/n/ac
Antenna 4 x internal antennas
Frequencies / channels ETSI
2.412–2.472 GHz (Channels 1-13) RLAN sub-band 1:
5.180-5.320GHz (channels 36-64)
RLAN sub-band 2:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
FCC
2.412-2.462GHz (channels 1-11) U-NII-1:
5.180-5.240GHz (channels 36-48)
U-NII-2:
5.260-5.320GHz (channels 52-64)
U-NII-2e:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
U-NII-3:
5.745-5.825GHz (channels 149-165)
Power supply 12 Vdc / 1.5 A
Power consumption 13 W (max.)
Power-over-Ethernet 802.3at
Diameter x H 200 x 37mm
Weight 630g
Temperature range Operating: 0°C to 50°C
Humidity (non-condensing) 0% to 90%
Mounting Ceiling
Supported security standards WPA/WPA2, WEP, 802.1X (RADIUS)
Number of supported SSIDs 8 per radio (16 in total)
Regulatory compliance CE FCC
Radio: EN 300 328, EN 301 893 CFR 47, Part 15 Subpart C, E
EMC: EN 301 489-1, EN 301 489-17 CFR 47, Part 15 Subpart B
EMF: EN 50385 FCC 1.1310, IEEE C95.1
Safety: EN 60950-1 UL-60950-1, UL-2043 (plenum rated)
Operating Instructions
13Wireless Access Points
AP 100
Scope of supply
Important note: Sophos AP 100 requires Sophos UTM V 9.207 to be installed.
Mounting instructions
The Sophos AP 100 can be mounted on the wall. A mounting kit is included in
delivery.
Controls
LED
Green - blinking slowly AP is booting
Green - blinking rapidly Network connectivity
Orange - blinking slowly No connection to the Sophos UTM
Orange - blinking rapidly Firmware update
Interfaces and buttons
12V DC-IN Power
LAN (PoE) 10/100/1000 Base-TX interface
Console Console access for debugging purposes
USB Currently not used; reserved for future use
Console
USB
10/100/1000 Base-TX
Power
Sophos AP 100 4 screws, dowels
and metal plates
Security Notes Ethernet cable3 Detachable dipole antenna
Power-over-Ethernet (PoE)
injector + power cord
Operating Instructions
14Wireless Access Points
Technical specifications
Sophos AP 100
Chassis Plastic housing, white
Physical security Kensington lock
Maximum theoretical throughput 1.3 Gbps (5GHz / 802.11ac) + 450 Mbps (2.4GHz / 802.11n)
LAN interfaces 1 x 10/100/1000 Base-TX
Supported WLAN standards 802.11a/b/g/n/ac
Antenna 3 x detachable dipole antenna (2 dBi) Connector type: RP-SMA
Frequencies / channels ETSI
2.412–2.472 GHz (Channels 1-13) RLAN sub-band 1:
5.180-5.320GHz (channels 36-64)
RLAN sub-band 2:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
FCC
2.412-2.462GHz (channels 1-11) U-NII-1:
5.180-5.240GHz (channels 36-48)
U-NII-2:
5.260-5.320GHz (channels 52-64)
U-NII-2e:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
U-NII-3:
5.745-5.825GHz (channels 149-165)
Power supply 12 Vdc / 4 A
Power consumption 13 W (max.)
Power-over-Ethernet 802.3at
Dimensions W x H x D 183 x 36 x 183 mm
Weight 505g
Temperature range Operating: 0°C to 50°C
Humidity (non-condensing) 0% to 90%
Mounting Desktop / wall
Supported security standards WPA/WPA2, WEP, 802.1X (RADIUS)
Number of supported SSIDs 8 per radio (16 in total)
Regulatory compliance CE FCC
Radio: EN 300 328, EN 301 893 CFR 47, Part 15 Subpart C, E
EMC: EN 301 489-1, EN 301 489-17 CFR 47, Part 15 Subpart B
EMF: EN 50385 FCC 1.1310, IEEE C95.1
Safety: EN 60950-1 N/a
Operating Instructions
15Wireless Access Points
AP 100C
Scope of supply
Important note: Sophos AP 100C requires Sophos UTM V 9.308 to be installed.
Mounting instructions
The Sophos AP 100C can be mounted on the ceiling. Screws are included in delivery.
Use the screws from the scope of supply or screws whose dimensions correspond
with the mounting holes in the bracket.
1. Mount the bracket on the ceiling
Use the screws and anchors from the scope of supply.
2. Place the access point on the bracket
Place the housing on the bracket and lock it by turning clockwise until stop.
Controls
LED
Green - blinking slowly AP is booting
Green - blinking rapidly Network connectivity
Orange - blinking slowly No connection to the Sophos UTM
Orange - blinking rapidly Firmware update
Interfaces and buttons
12V DC-IN Power
LAN (PoE) 10/100/1000 Base-TX interface
Power1 x 10/100/1000 Base-TX
Security Notes Ethernet cableSophos AP 100C Mounting bracket Screws and
T-rail clips
Power-over-Ethernet (PoE)
injector + power cord
Operating Instructions
16Wireless Access Points
Technical specifications
Sophos AP 100C
Chassis Top enclosure: plastic, white; bottom enclosure: metal, white
Physical security Kensington lock
Maximum theoretical throughput 1.3 Gbps (5GHz / 802.11ac) + 450 Mbps (2.4GHz / 802.11n)
LAN interfaces 1 x 10/100/1000 Base-TX
Supported WLAN standards 802.11a/b/g/n/ac
Antenna 6 x internal antennas
Frequencies / channels ETSI
2.412–2.472 GHz (Channels 1-13) RLAN sub-band 1
5.180-5.320GHz (channels 36-64)
RLAN sub-band 2:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
FCC
2.412-2.462GHz (channels 1-11) U-NII-1:
5.180-5.240GHz (channels 36-48)
U-NII-2:
5.260-5.320GHz (channels 52-64)
U-NII-2e:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
U-NII-3:
5.745-5.825GHz (channels 149-165)
Power supply 12 Vdc / 1.5 A
Power consumption 15 W (max.)
Power-over-Ethernet 802.3at
Diameter x H 200 x 37mm
Weight 630g
Temperature range Operating: 0°C to 50°C
Humidity (non-condensing) 0% to 90%
Mounting Ceiling
Supported security standards WPA/WPA2, WEP, 802.1X (RADIUS)
Number of supported SSIDs 8 per radio (16 in total)
Regulatory compliance CE FCC
Radio: EN 300 328, EN 301 893 CFR 47, Part 15 Subpart C, E
EMC: EN 301 489-1, EN 301 489-17 CFR 47, Part 15 Subpart B
EMF: EN 50385 FCC 1.1310, IEEE C95.1
Safety: EN 60950-1 UL-60950-1, UL-2043 (plenum rated)
Operating Instructions
17Wireless Access Points

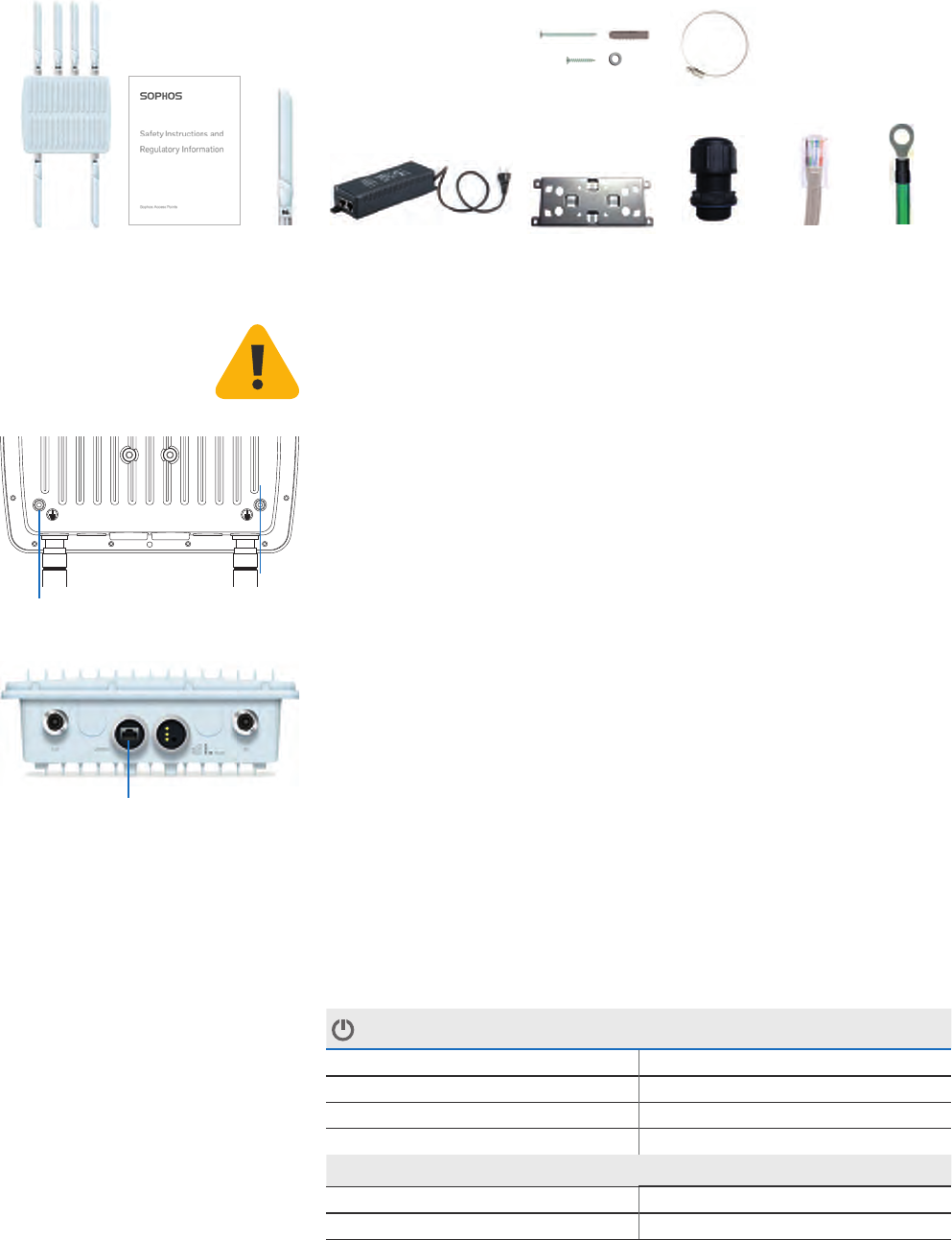

AP 100X
Scope of supply
Important note: Sophos AP 100X requires Sophos UTM V 9.308 to be installed.
Mounting instructions
The Sophos AP 100X can be mounted on a pole. A mounting kit is included in delivery.
Warning: The equipment has a separate protective earthing terminal on the chassis
that must be permanently connected to earth ground to adequately ground the
chassis and protect the operator from electrical hazards.
Caution: Before equipment installation begins, ensure that a service personnel has
attached an appropriate grounding lug to the grounding cable that you supply.
Power installation must be performed with qualified electrician and followed with
National Electrical Code, ANSI/NFPA 70 and Canadian Electrical Code, Part I, CSA C22.1.
To connect earth ground to Unit:
ÌConnect one end of the grounding cable to a proper earth ground.
ÌPlace the grounding lug attached to the grounding
cable over the protective earthing terminal.
ÌSecure the grounding lug to the protective earthing
terminal with the washers and screws.
ÌDress the grounding cable and ensure that it does not
touch or block access to other components.
Warning: At first before powered on, connect the frame of the unit to earth. For
earthing wire, green-and-yellow insulation is required and the cross-sectional area of
the conductor must be more than 0.75mm2 or 18 AWG.
Controls
LED
Power (Green) - continuously on Power on
WLAN (Green) - blinking rapidly WLAN activity
WLAN (Green) - blinking regularly Firmware update
LAN (Green) - blinking rapidly Network connectivity
Interfaces and buttons
LAN (PoE) 10/100/1000 Base-TX interface
Reset Currently not supported
10/100/1000 Base-TX
Connect a ground cable from the outdoor
unit to an appropriate grounding point.
Sophos AP 100X Security Notes 6 antenna Ethernet cable Grounding
wire
1 wall mount plate
4 wood screws and
wood/gyprock plug,
4 M6 screws and
washers
1 M25
cable gland
2 metal straps
Power-over-Ethernet (PoE)
injector + power cord
Operating Instructions
18Wireless Access Points
Technical specifications
Sophos AP 100X
Mounting Wall / Pole
Chassis Metal housing, white
IP Code 67
Maximum throughput 1.3 Gbps (5GHz / 802.11ac) + 450 Mbps (2.4GHz / 802.11n)
Multiple SSIDs 8 per radio, 16 in total
Number of radios 2
MIMO capabilities 3x3:3
LAN interfaces 1 x 10/100/1000 Base-TX
Antenna 6 x external dipole antenna Connector type: N-Type
Antenna gain 4 dBi @ 2.4GHz, 6 dBi @5GHz
Supported WLAN standards 802.11a/b/g/n/ac
Frequencies / channels ETSI
2.412-2.472GHz (channels 1-13) RLAN sub-band 2:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
FCC
2.412-2.462GHz (channels 1-11) U-NII-2:
5.260-5.320GHz (channels 52-64)
U-NII-2e:
5.500-5.580GHz (channels 100-116)
5.660-5.700GHz (channels 132-140)
U-NII-3:
5.745-5.825GHz (channels 149-165)
Dimensions W x H x D 255 x 225 x 90 mm
Weight 2.5kg
Power supply PoE only
Power consumption 15 W (max.)
Power-over-Ethernet 802.3at
Temperature range Operation: -20°C to 60°C Storage: -30°C to 60°C
Humidity (non-condensing) Operation: 0% to 90% Storage: 0% to 95%
Regulatory compliance CE FCC UL
Radio: EN 300 328, EN 301 893 CFR 47, Part 15
Subpart C Section
15.247 and Subpart
E Section 15.407
N/a
EMC: EN 301489-1,
EN 301489-17
CFR 47, Part 15
Subpart B
N/a
EMF: EN 62311 CFR 47, Part 2
(Section 2.1091)
N/a
Safety: EN 60950-22 N/a UL 60950-22
Operating Instructions
19Wireless Access Points
Power-over-Ethernet injector
Optionally included with AP 15C, AP 55, AP 55C, AP 100, AP 100C and AP 100X
The PoE injector converts alternating current (AC) to direct current (DC), which is
then provided over the Ethernet cable to power the Sophos Access Points.
Installation
Warning: Do not use crossover cable between the PoE injector’s output port and the
access point.
Before placing the PoE injector, please pay attention to the following safety
instructions:
Ì Do not cover the PoE injector or block the airflow to the PoE
with any foreign objects. Keep the PoE away from excessive
heat and humidity and free from vibration and dust.
Ì Ensure that the cable length from Ethernet network source to the access point
does not exceed 100 m
(330 ft). The PoE is not a repeater and does not amplify the Ethernet data signal.
To install the PoE injector, proceed as follows:
1. Connect an Ethernet cable to the Data & Power Out interface.
2. Connect the other end of this Ethernet cable to the
Ethernet interface of the access point.
3. Connect an Ethernet cable to the Data In interface.
4. Connect the other end of this Ethernet cable to your network switch.
5. Connect the AC power cord from the scope of supply to the PoE injector.
6. Connect the AC power cable to an AC outlet
(100-240 VAC).
Controls
LED display
Off Power off
Yellow continuously Power on
Green continuously A remote terminal is connected
Green blinking Overload state or short-circuit
Interfaces
Input (Data In) 1 x 10/100/1000 Base-TX
Output (Data & Power Out) 1 x 10/100/1000 Base TX, plus 55 VDC
LED
Data & Power Out
Data In
Power
Operating Instructions
Technical specifications
Chassis Plastic housing
Input power AC Input Voltage: 100 to 240 VAC
AC Input Current: 0.8A @ 100-240 VAC
AC Frequency: 50 to 60 Hz
Power-over-Ethernet output (max.) Output power voltage: 55 VDC
Output power: 30 W
Supported PoE standard 802.3at compliant
Weight 200g
Dimensions W x H x D 1 x 10/100/1000 Base TX, plus 55 VDC
Mounting Desktop / wall
Temperature 0°C to 40°C (operating)
-20°C to 70°C (storage)
Humidity (non-condensing) 10% to 90%
Regulatory compliance CE, FCC, VCCI, UL, GS, RoHS, WEEE
United Kingdom and Worldwide Sales
Tel: +44 (0)8447 671131
Email: sales@sophos.com
North American Sales
Toll Free: 1-866-866-2802
Email: nasales@sophos.com
Australia and New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
Asia Sales
Tel: +65 62244168
Email: salesasia@sophos.com
Oxford, UK | Boston, USA
© Copyright 2015. Sophos Ltd. All rights reserved.
Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK
Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are
trademarks or registered trademarks of their respective owners.
2015-12-16 OINA (DD-2252)
