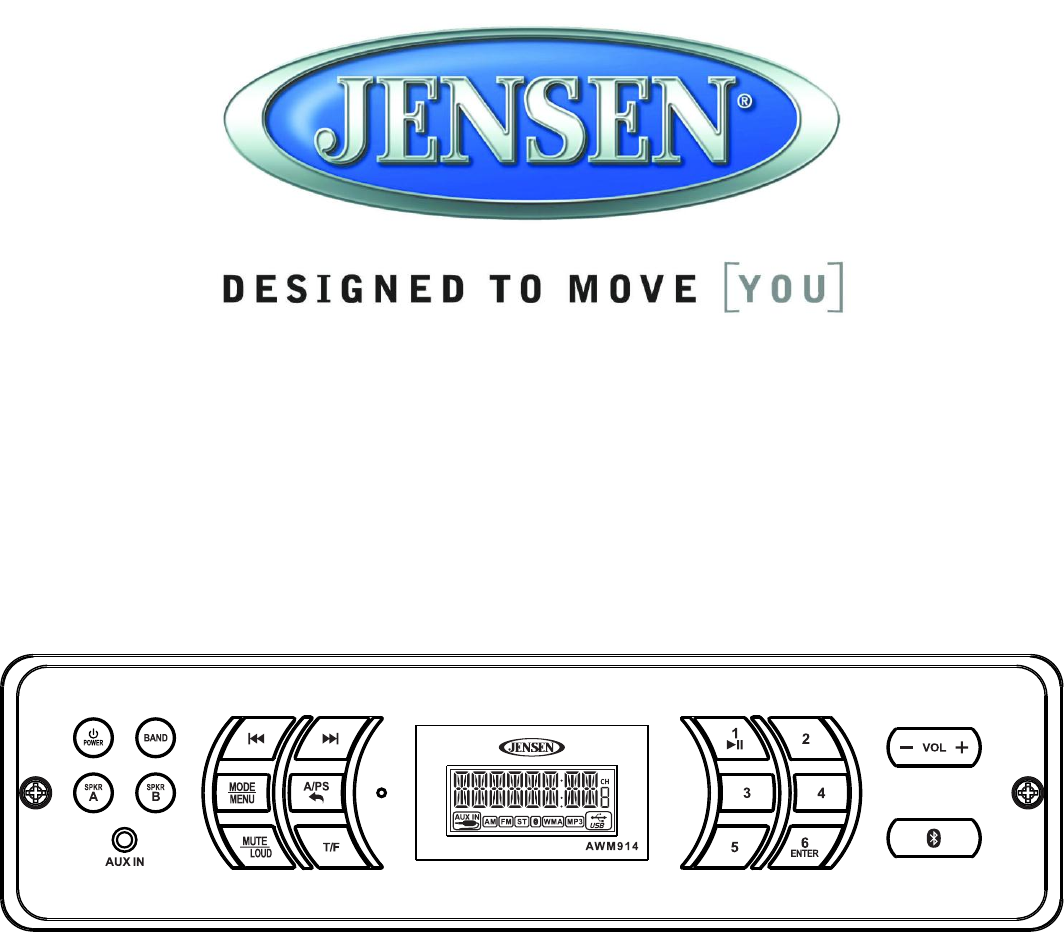

AWM914
Owner’s Manual
AWM914
ii
Table of Contents
Installation ........................................................................................... 2
Wiring ................................................................................................... 3
Basic Operation .................................................................................. 4
Tuner Operation .................................................................................. 6
Bluetooth Operation ........................................................................... 7
Specifications ...................................................................................... 9
AWM914
1
Thank You!
Thank you for choosing a Jensen product. We hope you will find the
instructions in this owner’s manual clear and easy to follow. If you take
a few minutes to look through it, you’ll learn how to use all the features
of your new Jensen receiver for maximum enjoyment.
Features
Features of the Jensen AWM914 mobile audio system include:
• Backlit Controls and Display
• Electronic AM/FM Tuner
• Bluetooth Ready with A2DP / AVRCP streaming Audio
• Time/Alarm Clock
• Front Aux Audio Input
• 4 Speaker Output (2 zones)
Packing List
Precautions
• Use the Proper Power Supply.
This product is designed to operate with a 12 volt DC, negative
ground battery system (the standard system in a North American
vehicle).
• Use Authorized Service Centers.
Do not attempt to disassemble or adjust this precision product;
contact a professional for assistance.
• Avoid Moisture.
To reduce the risk of fire or electric shock, do not expose this
equipment to rain or moisture.
• Avoid Cleaning Products.
The front of this unit should only be cleaned with a slightly damp
cloth. Do not use cleansers.
• Use Recommended Accessories.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND
ANNOYING INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
AWM914
AWM914
2
INSTALLATION
It’s a good idea to read all of the instructions before beginning the
installation. We recommend having your JENSEN AWM914 installed
by a reputable RV dealership.
Tools and Supplies
You will need these tools and supplies to
install your AWM914:
• Phillips screwdriver
• Wire cutters and strippers
• Tools to remove existing radio
(screwdriver, socket wrench set or
other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 16 gauge wire for power connections
• 16 – 18 gauge speaker wire
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove
the negative (-) battery cable prior to installation.
NOTE: If the AWM914 is to be installed in a vehicle equipped with
an on-board drive or navigation computer, do not disconnect the
battery cable. If the cable is disconnected, the computer memory
may be lost. Under these conditions, use extra caution during
installation to avoid causing a short circuit.
Select Mounting Location
Select a mounting location, taking care to avoid the following:
• Places exposed to heat-radiating appliances such as electric
heaters
• Adjacent to other equipment that radiates heat
• Poorly-ventilated or dusty places
• Moist or humid locations
Preparing the Opening

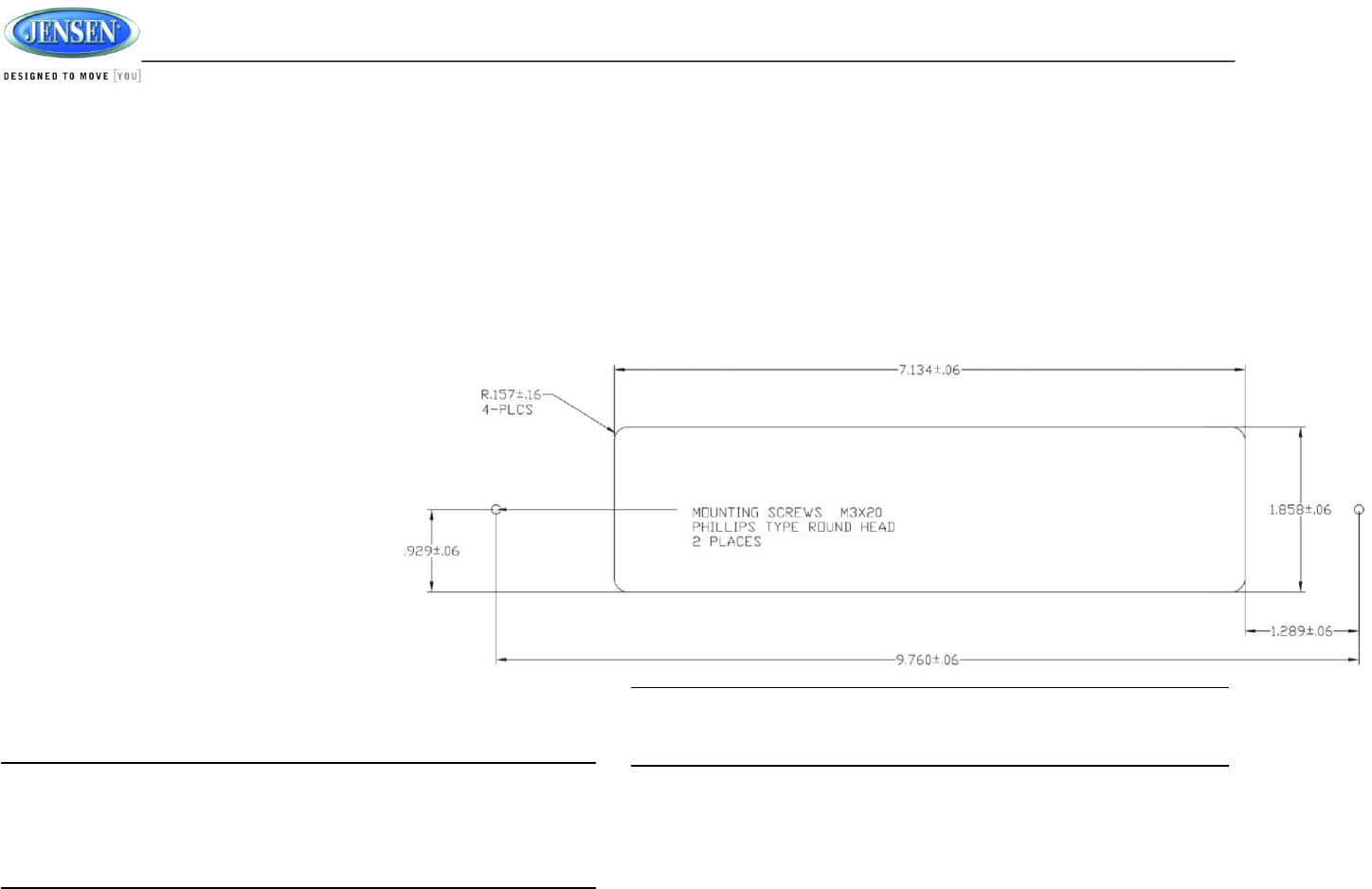

Use the mounting hole diagram (below) to measure and cut a mounting
hole, and mount the unit using the M3x20mm self-tapping screws.
NOTE: Before cutting the mounting hole, make sure the area
behind the mounting location is clear of wires and fuel, vacuum
and or brake lines.
Mounting the Radio
Route power, speaker and antenna cables through the hole, and
connect them to the unit as outlined in the wiring diagram. After
ensuring correct connections, test operation.
AWM914
3
WIRING

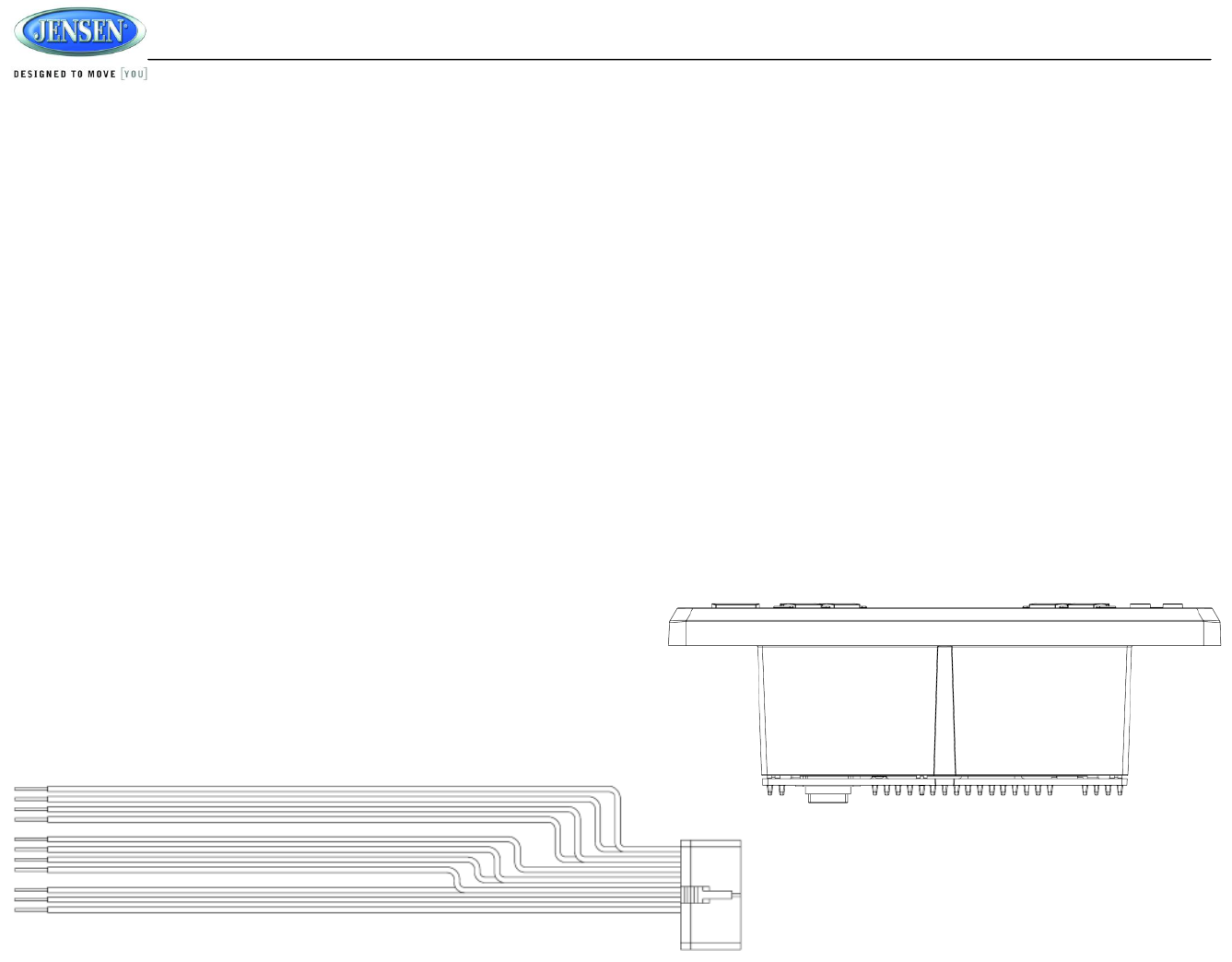

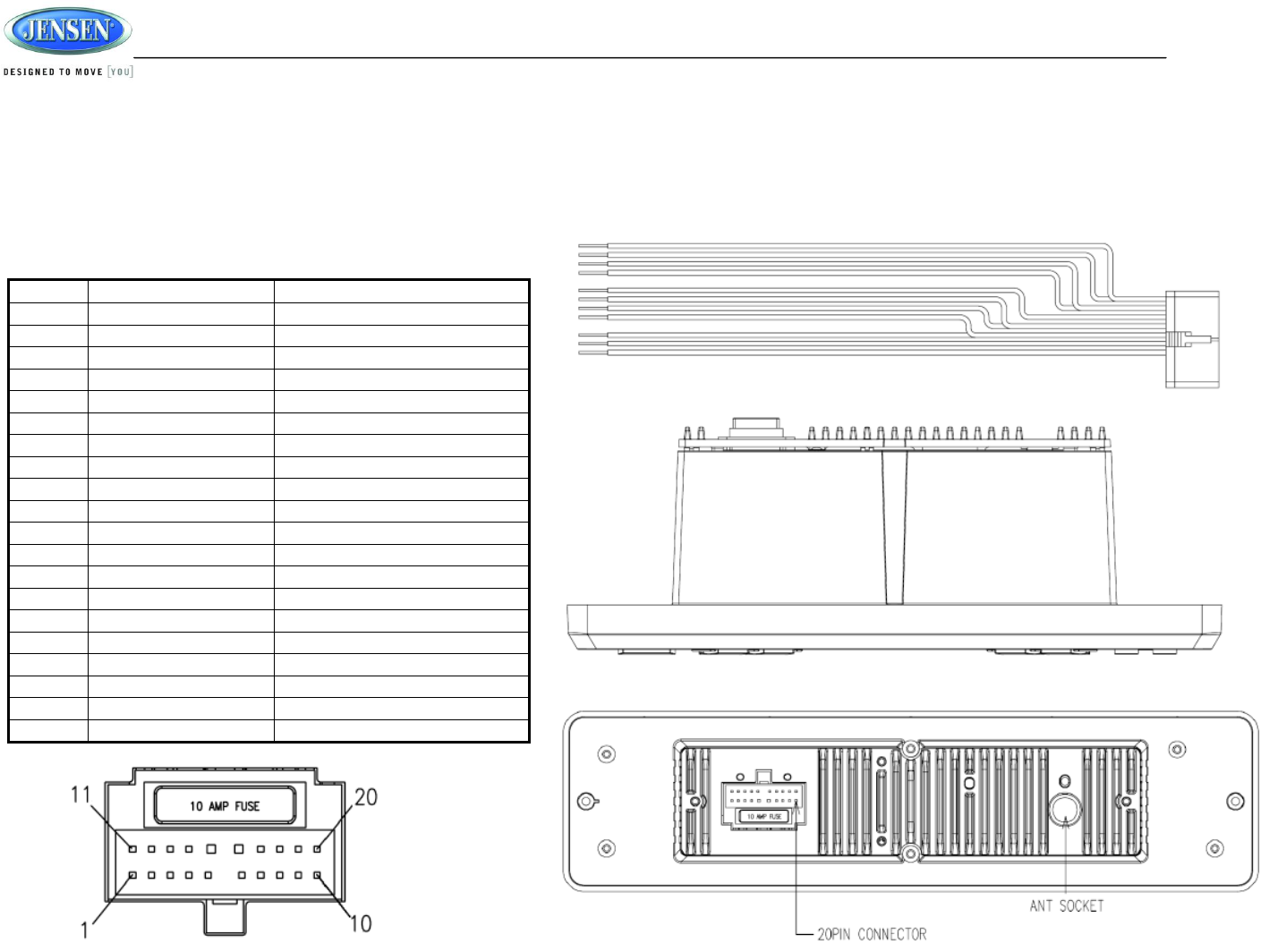

The wiring diagram depicts all the wiring connections required for
proper operation of the unit.
DETAIL A
SHOWN FROM PIN VIEW
WIRE COLOR
FUNCTION (Label Contents)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
GRAY
RIGHT(A) SPEAKER(+)
GRAY/BLACK
RIGHT(A) SPEAKER(-)
N/A
N/A
WHITE/BLACK
LEFT(A) SPEAKER(-)
WHITE
LEFT(A) SPEAKER(+)
N/A
N/A
N/A
N/A
N/A
N/A
BLUE
AMP/REMOTE(+12VDC 100MA)
RED
+12VDC SWITCHED
BLACK
GROUND
VIOLET
RIGHT(B) SPEAKER(+)
VIOLET/BLACK
RIGHT(B) SPEAKER(-)
LIGHT GREEN/BLACK
LEFT(B) SPEAKER(-)
LIGHT GREEN
LEFT(B) SPEAKER(+)
AWM914
4

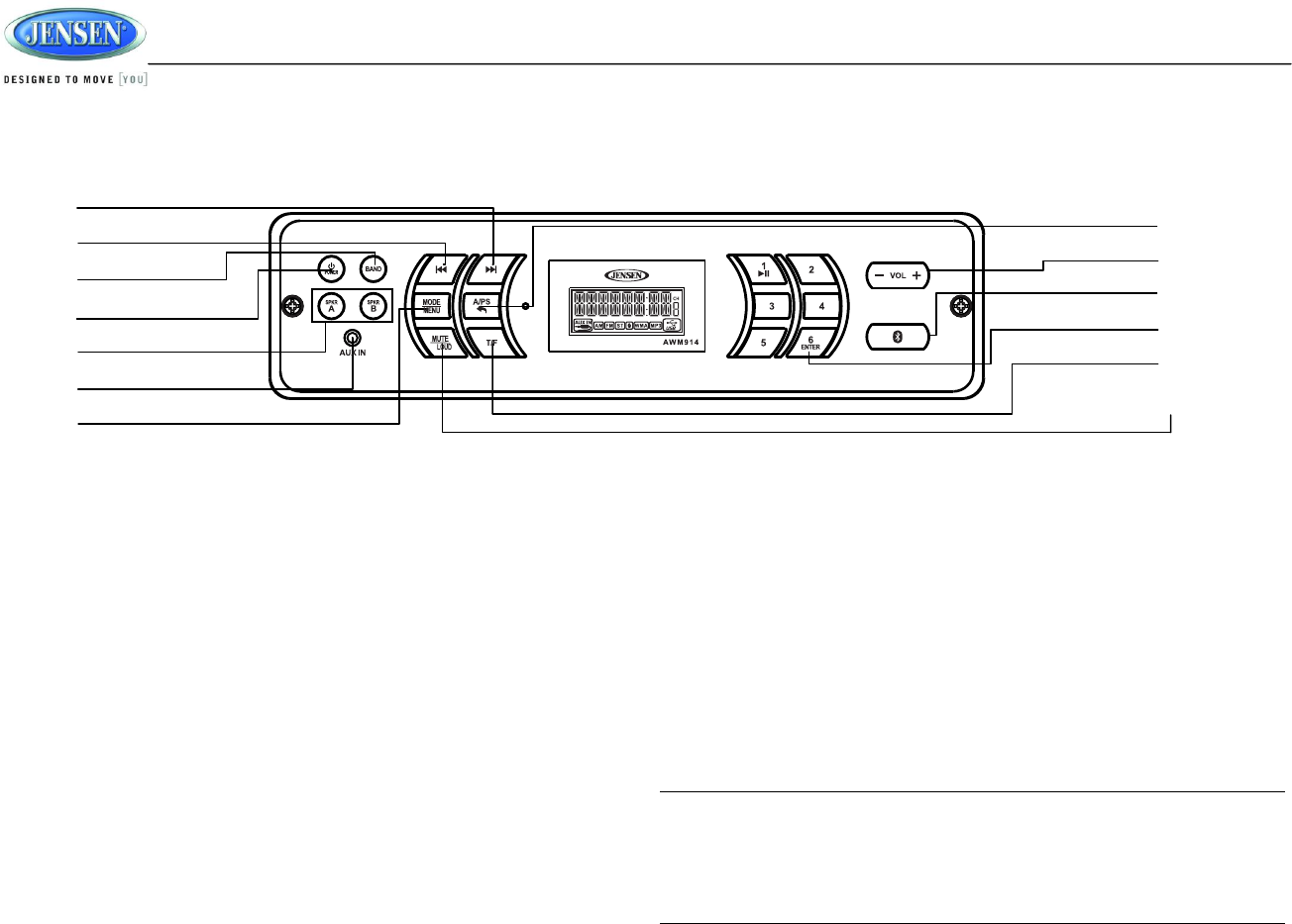

BASIC OPERATION
○
1
○
2
○
3
○
4
○
5
○
6
○
7
Power
Press the POWER button (4) to turn the unit on or to enter standby
mode.
Volume Control
• Press the VOL + to increase the volume output. Press and hold
the VOL + to increase the volume output continuously.
• Press the VOL - to decrease the volume output. Press and hold
the VOL - to decrease the volume output continuously.
Mode / Menu
Press the MODE/MENU button (7) to switch to radio mode or auxiliary
input function.
Long press the MODE/MENU button (7) to choose the following menu
list:
Audio Adjustment
• BAS: Adjust the Bass level from “-7” to “+7”.
• TRE: Adjust the treble from “-7” to “+7”.
• BAL: Adjust the speaker output balance between “L7” (left) and
○
8
○
9
○
10
○
11
○
12
○
13
• BAL: Adjust the speaker output balance between “L7” (left) and
“R7” (right). “BAL 0” indicates an equal balance between the left
and right speakers.
• FAD: Adjust the speaker fade between “R7” (rear) and “F7” (front).
“FAD 0” indicates an equal balance between the rear and front
speakers.
Use the VOL +/- to make adjustments in each menu item
Liquid Crystal Display (LCD) Back Light
• Dimmer: Adjust the brightness of the LCD from “LIGHT 9”
(brightest) to “LIGHT 0” (off).
NOTE: When subjected to cold temperatures for an extended
period of time, LCD panels will take longer to illuminate and the
display visibility may slightly decrease. Optimal LCD operation
will return to normal when the temperature increases to a normal
range.
AWM914
5
Sleep Mode
• Sleep: The Sleep Timer will automatically turn off the AWM914 in
the designated number of minutes. To set the Sleep Time, press
VOL +/- repeatedly to change the sleep time from 0(off), 15, 30 or
60 minutes.
Setting the alarm
• Alarm ON/OFF: Press VOL +/- to turn on and off the alarm. The
“ALARM” icon will show on the display.
• Alarm Hour: The number representing the hours will flash. Press
VOL +/- to adjust the alarm hour.
• Alarm MIN: The number representing the minutes will flash.
Press VOL +/- to adjust the alarm minute.
Reset
• RESET: Press 6/ENTER button (11) to reset to factory default
settings. Display will show “OK” when Reset is accomplished.
This function will time out after 5 seconds of inactivity and the unit
will resume normal operation.
Mute / Loudness
Press the MUTE/LOUD button (13) to silence the audio output in tuner,
Bluetooth or auxiliary/input mode. Press again to restore the previous
volume level. Press and hold the MUTE/LOUD button to toggle the
Loudness function on/off. Display will show “LOUD” when on.
Auxiliary Input Function
Press the MODE/MENU button (7) to directly access auxiliary input
modes from any other mode when a portable audio device is
connected to the unit. To connect a portable audio device, insert a
standard 3.5 mm (audio line output or headphone output from your
portable CD / MP3 / iPod or other media player) into the AUX IN
connector (6) on the front of the unit. Display will show
when on.

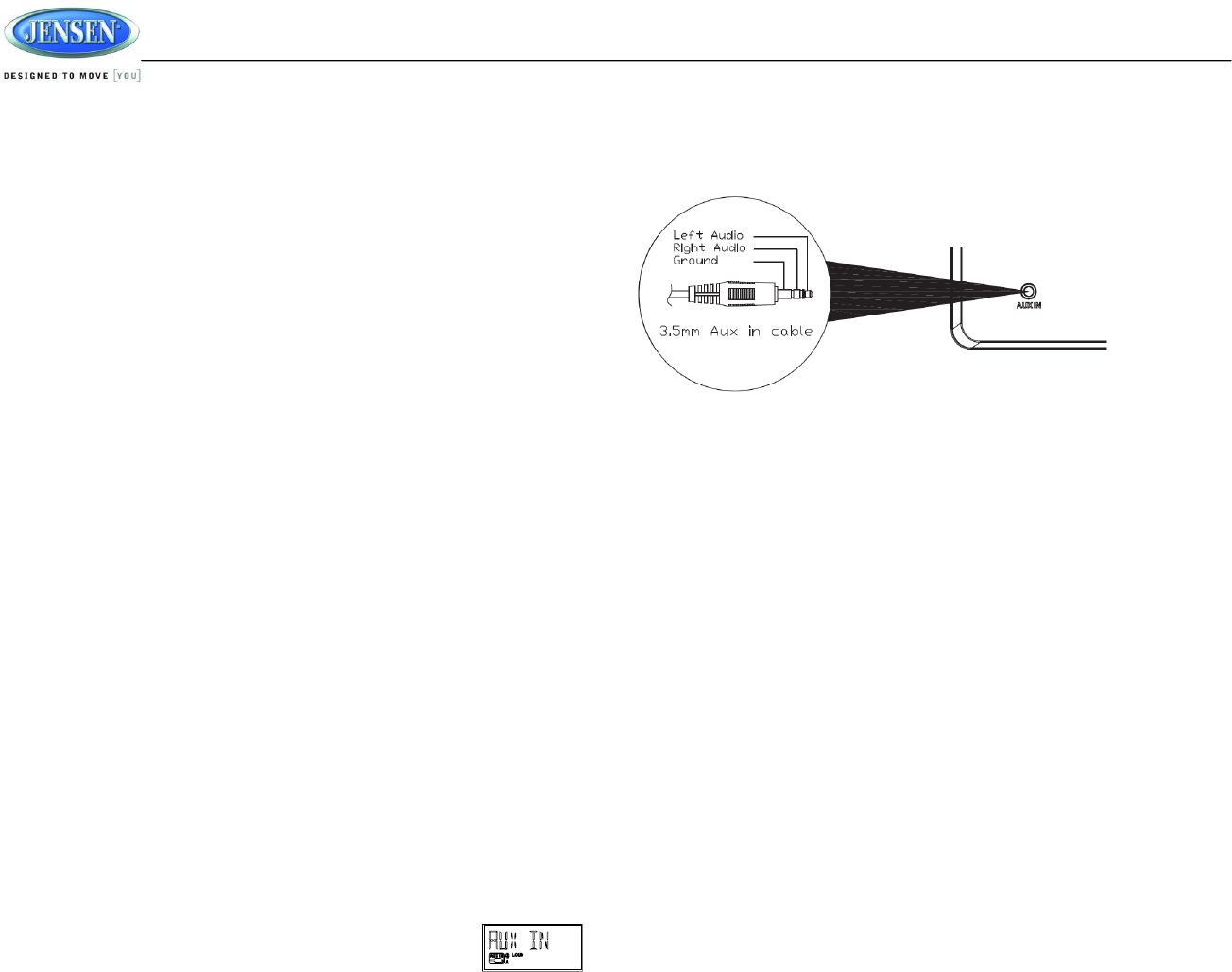

Auxiliary Input Connector
Connect the device to the AUX IN connector (6) on the front panel, and
then press MODE/MENU to switch to auxiliary input mode.
Clock Display
Press the T/F button (12) to alternate the display between Playback
mode and clock time while in Tuner, Bluetooth or auxiliary input mode.
Clock Setup
Press and hold the T/F button (12) to access Clock Setup mode. The
number representing the hours will flash. Press VOL +/- buttons to
adjust the hour. Press T/F again briefly and the number representing
the minutes will flash. Press the VOL +/- buttons to adjust the minutes.
The new time will be saved 5 seconds after the last adjustment is
made.
Speaker Output
The two speaker output buttons (5) (SPEAKER A and SPEAKER B)
control speaker output from the radio. Press any of the two buttons to
turn the corresponding speaker sets on or off.
AWM914
6
TUNER OPERATION
Select a Band
Press BAND (3) to change between three FM bands (FM1, FM2 and
FM3) and two AM bands (AM1 and AM2).
Tuning
Manual Tuning
Press the tune up (1) or tune down (2) buttons to tune the frequency
one step higher or lower. Press and hold to seek tune to next strong
station.
Preset Stations
Store Preset Stations
Six numbered preset buttons store and recall stations for each AM and
FM band. To store a station, select a band (if needed), then select a
station. Hold a preset button for one second.
The current station will be stored, and the corresponding preset
number will appear in the display.
Recall Preset Stations
To recall a station, select a band (if needed). Press a preset button
momentarily, and the unit will tune to the corresponding stored station.
Automatic Store / Preset Scan (A / PS)
Automatically Stores
Press and hold the A/PS button (8) for more than one second, and the
unit will automatically scan for and store six strong stations for all
bands. To stop this function before the automatic storing is complete,
press A/PS again.
Preset Scan
Press A/PS to scan all preset stations in the current band. The unit
will play each station for five seconds before moving on to the next
station. To stop this function and play the current station, press the
A/PS button again.
AWM914
7
BLUETOOTH OPERATION
The AWM914 includes built-in Bluetooth technology that allows you to
connect this head unit to Bluetooth devices for streaming audio
playback.
About Bluetooth Technology
Bluetooth is a short-range wireless radio connectivity technology
developed as a cable replacement for various electronic devices.
Bluetooth operates in 2.4 GHz frequency range and transmits voice
and data at speeds up to 1 megabit per second. Bluetooth was
launched by a special interest group (SIG) comprised of Ericsson Inc.,
Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently
developed by nearly 2,000 companies worldwide. The Bluetooth word
mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks is under license. Other trademarks and trade names are
those of their respective owners.
Pairing a Bluetooth Device
Before you begin, consult the owner’s manual for the Bluetooth device
you want to pair.
1. Make sure the device you want to pair is on and ready to receive a
signal from the AWM914. To begin pairing, press and hold
the button (10). The unit will automatically attempt to pair to
available devices. When pairing with a smartphone, the AWM914
becomes “discoverable” by your smartphone and can be paired
using the phone menu.
2. When the Bluetooth device has completed its search, the mobile
phone will display the Bluetooth device name (AWM914).
3. Select AWM914.
4. Enter the pairing password (0000), if requested.
5. If successful, the unit will display “PAIR OK”.
After connecting successfully, you are able to listen to music stored on
your Bluetooth enabled device through the radio.
BT Audio (A2DP)
The A2DP music is available for Bluetooth enabled phones when the
phone is connected. To access Bluetooth mode and play songs stored
on your phone, press the button (10). While in BT mode , the “BT
AUDIO” is displayed on the LCD.
Selecting Tracks
During playback, press the tune up >>| (1) or tune down |<< (2) to
play the previous or next track.
Pausing Playback
During playback, press the number button 1/ to pause the BT
AUDIO player. Press number button 1/ again to resume playback.
If you change to another mode, the mobile phone audio will pause.
Press the button (10) to return to BT mode and resume mobile
phone audio playback.
NOTE: If a Bluetooth device is disconnected due to the power
being turned off or if the device is disconnected inadvertently, the
unit will automatically search for the matching BT mobile phone
when the power is restored.
Bluetooth Menu Options
1. Press the button (10) to enter menu adjustment mode.
2. With “Device” displayed, press the VOL +/- (9) buttons to select.
3. Press the VOL +/- buttons to view paired BT devices and press
6/ENTER button (11) to select.
4. Once a device is selected, press the VOL +/- buttons to choose
one of the following options: connect/disconnect, lock/unlock or
delete (delete displays only if the device is not connected).
• LOCK/UNLOCK: The AWM914 can store up to 5 devices for
BT connection. The devices are stored in FIFO (First In First
Out) order.
To prevent a device from being bumped from the list when
more than 5 devices are used, you must lock the device.
AWM914
8
To Lock/Unlock a device, press the 6/ENTER button.
• DISCONNECT: To disconnect a paired device, press the
6/ENTER button to temporarily remove the BT link. The link
can be re-established through your phone menu by
selecting the AWM914 for connection.
• DELETE: To delete a device from the list, press the
6/ENTER button.
5. Press the 6/ENTER button to enter.
AWM914
9
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which thereceiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This Transmitter must be installed to provide a separation distance of
at least 20 cm from all person
SPECIFICATIONS
General
Power Supply Requirements. . . . . . . . . . . . . . . . DC 12 Volts, Negative Ground
Operating Voltage . . . . . . . .. . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .10-16VDC
Overall Dimensions. . . . . .. .. . . .. . . . . . . .. . 10-7/16"(W) x 2-2/3”(H) x 3-2/3"(D)
Mounting Dimensions . . .. . . . . . . . . . . . . . . . . .. . . 9-3/8"(W) x 1-7/8"(H) x 3"(D)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 1.0 lbs.(0.42 Kg)
FM Tuner
Tuning range. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . 87.5-107.9Mhz
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <5uV
Stereo separation @ 1 kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >30dB
AM Tuner
Tuning range. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . .530-1710Khz
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <30uV
Amplifier
Output Power . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 4 x 6 Watts per Channel
Output Impedance . . . . . . . . . . . . . . . . . . . .Compatible with 4-8 Ohm Speakers,
4 Ohm Load Minimum
Total system power . . . . .. . . . . . . . . . . . . . . . . . . . . .. . . . . . 24 Watts Maximum
Specifications subject to change without notice.
FCC Warnings
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS
TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
www.asaelectronics.com
www.jensenrvdirect.com
© 2012 ASA Electronics Corporation
v.121112

Navigation menu
