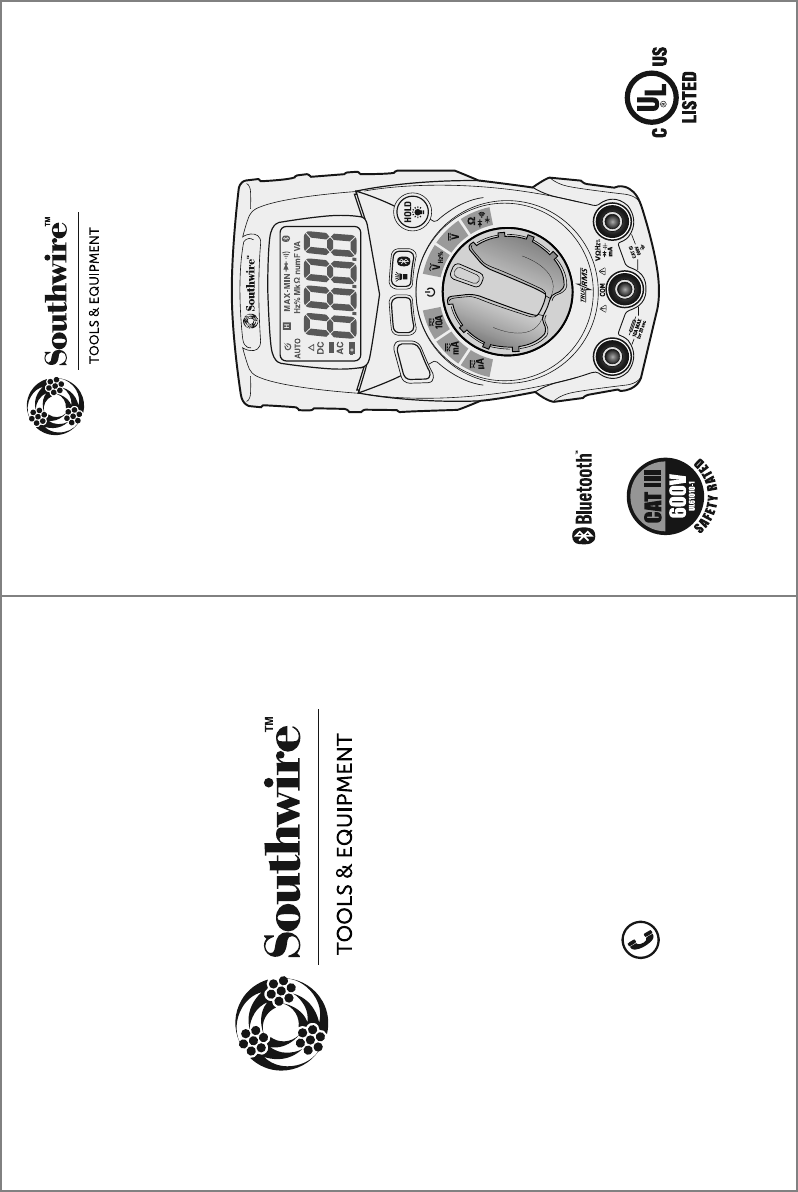

Southwire 16040T True RMS MultiMeter User Manual

Southwire Co. True RMS MultiMeter

User manual

• actual manual size 4.25”W X 5.6875”H
FrontBack
TESTING EQUIPMENT
E361819
3/16 Rev. 0
16040T manual
Contents Made in China
Product distributed by Southwire Company, LLC
One Southwire Drive, Carrollton, GA 30119
©2016 Southwire Company, LLC. All rights reserved.
southwiretools.com
1-855-SW-T00LS
Toll Free Technical Help
Línea de Ayuda Técnica Gratuita
UL61010-1
Operating Instructions
16040T True RMS Multimeter with MApp™ Mobile App
The Bluetooth® word mark and logos are registered
trademarks of Bluetooth SIG, Inc. and any use of such
marks by Southwire Company, LLC is under license.
Instrucciones completas de operación están disponibles en español
en la página de exhibición del producto en SouthwireTools.com.
10 A
16040T
MAX
MIN
MODE
Introduction
1
The Southwire 16040T True RMS Multimeter wirelessly transmits data to
the MApp™ mobile app via Bluetooth
®
technology allowing you to view,
save, organize and share datalogs as well as take measurements from a
safe distance. Visit nextgenmeters.southwiretools.com for mobile app
download information. Functions include AC/DC voltage and current,
resistance, continuity, capacitance, frequency, duty cycle, diode test. The
16040T also offers the added convenience of a built-in flashlight. This meter
is fully tested and calibrated and, with proper use, will provide many years
of reliable service.
WARNINGS
࠮9LHK\UKLYZ[HUKHUKMVSSV^:HML[`9\SLZHUK6WLYH[PUN0UZ[Y\J[PVUZPU
this manual before using this meter.
࠮;OLTL[LY»ZZHML[`MLH[\YLZTH`UV[WYV[LJ[[OL\ZLYPMUV[\ZLKPU
HJJVYKHUJL^P[O[OLTHU\MHJ[\YLY»ZPUZ[Y\J[PVUZ
࠮,UZ\YL[OH[[OL[LZ[SLHKZHYLM\SS`ZLH[LKPU[OLPUW\[QHJRZHUKRLLW
fingers away from the metal probe tips when taking measurements.
࠮)LMVYLJOHUNPUNM\UJ[PVUZ\ZPUN[OLZLSLJ[VYZ^P[JOHS^H`ZKPZJVUULJ[
the test leads from the circuit under test.
࠮<ZLVUS`<3SPZ[LK[LZ[SLHKZ^P[O[OLWYVWLYZHML[`JH[LNVY`YH[PUN
࠮*VTWS`^P[OHSSHWWSPJHISLZHML[`JVKLZ<ZLHWWYV]LKWLYZVUHS
protective equipment when working near live electrical circuits -
particularly with regard to arc-flash potential.
࠮<ZLJH\[PVUVUSP]LJPYJ\P[Z=VS[HNLZHIV]L=(*YTZ=HJWLHR
or 60 V dc pose a shock hazard.
࠮+VUV[\ZLPM[OLTL[LYVY[LZ[SLHKZHWWLHYKHTHNLK
࠮=LYPM`VWLYH[PVUILMVYL\ZPUNTL[LYI`TLHZ\YPUNHRUV^USP]L]VS[HNL
࠮+VUV[\ZL[OLTL[LYPU^L[VYKHTWLU]PYVUTLU[ZVYK\YPUNLSLJ[YPJHS
storms.
࠮+VUV[\ZL[OLTL[LYULHYL_WSVZP]L]HWVYZK\Z[VYNHZZLZ
࠮+VUV[\ZL[OLTL[LYPMP[VWLYH[LZPUJVYYLJ[S`7YV[LJ[PVUTH`IL
compromised.
࠮+VUV[VWLYH[LTL[LY^OPSL3V^)H[[LY`^HYUPUNPZVU9LWSHJL
batteries immediately.
࠮+VUV[HWWS`]VS[HNLVYJ\YYLU[[OH[L_JLLKZ[OLTL[LY»ZTH_PT\T
rated input limits.
REGISTER YOUR PRODUCT
Register your product purchase at www.southwiretools.com. At Southwire,
we are dedicated to providing you with the best customer experience. By
following a few quick steps to register, you can experience quicker service,
more efficient support, and receive information on our future products. Simply
WYV]PKL`V\YTVKLSU\TILYZLYPHSU\TILYHUKQ\Z[HML^WPLJLZVM
information about yourself – it is that quick and easy.
LIMITED WARRANTY AND LIMITATION OF LIABILITY ON
SOUTHWIRE METERS & TESTERS
:V\[O^PYL*VTWHU`33*^HYYHU[Z[OPZWYVK\J[[VILMYLLMYVTKLMLJ[ZPU
material and workmanship for two years from the date of purchase. This
warranty does not cover fuses, disposable batteries, or damage arising from
an accident, neglect, misapplication, contamination, modification, improper
maintenance or repair, operation outside of specifications, or abnormal
handling of the product.
:V\[O^PYL»ZZVSLSPHIPSP[`HUK[OLW\YJOHZLY»Z
exclusive remedy, for any breach of this warranty is expressly limited to
:V\[O^PYL»ZYLWHPYVYYLWSHJLTLU[VM[OLWYVK\J[>OL[OLY:V\[O^PYLYLWHPYZ
or replaces the product will be a determination that Southwire makes at its
sole discretion.
SOUTHWIRE MAKES NO WARRANTY THAT THE PRODUCT WILL
BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE.
SOUTHWIRE MAKES NO OTHER WARRANTY, EXPRESSED OR
IMPLIED, OTHER THAN THE WARRANTY SPECIFICALLY SET FORTH
HEREIN.
SOUTHWIRE WILL NOT BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES FOR
ANY BREACH OF THIS WARRANTY.
This warranty is void if this product is used for rental purposes. No product
YLZLSSLYPZH\[OVYPaLK[VL_[LUKHU`V[OLY^HYYHU[`VU:V\[O^PYL»ZILOHSM
relating to this product, and no such reseller warranty will be binding on
:V\[O^PYL0M`V\OH]LH^HYYHU[`JSHPTVYPM[OLWYVK\J[ULLKZ[VIL
serviced during or after the warranty period set forth above, please contact
[OL*\Z[VTLY:LY]PJL+LWHY[TLU[H[:>;663: 
The sender is responsible for all shipping, freight, insurance, and packaging
costs associated with sending a product to Southwire. Southwire will not be
responsible for lost or damaged products returned pursuant to this warranty.
All products returned to Southwire under this warranty should be mailed to:
Southwire Company, LLC
Attention: Tool Warranty Return
840 Old Bremen Road
Carrollton, GA 30117
18
17
Specifications cont.
40.00nF
400.0nF
4.000µF
40.00µF
400.0µF
4000µF
Input Protection: 250V RMS or 250V DC
10pF
0.1nF
0.001µF
0.01µF
0.1µF
1µF
±(5.0% +35 digits)
±(3.0% +5 digits)
±(4.0% +5 digits)
±(5.0% +5 digits)
Capacitance
Function Range Resolution Accuracy
± (% of reading + digits)
400.0Ω
4.000kΩ
40.00kΩ
400.0kΩ
4.000MΩ
40.00MΩ
Input Protection: 250V RMS or 250V DC
0.1Ω
1Ω
10Ω
100Ω
1kΩ
10kΩ
±(1.0% + 4 digits)
±(1.5% +5 digits)
±(3.5% +5 digits)
Resistance
Function Range Resolution Accuracy
± (% of reading + digits)
Input Limits
Function Maximum Input
Voltage AC or DC
Frequency, Duty Cycle
Resistance, Continuity, Diode Test, Capacitance
µA, mA Current AC or DC
10A Current AC or DC
600V AC RMS/600V DC
600 V AC RMS/600V DC
250V AC RMS/250V DC
500mA 600V fast acting fuse
10A 600V fast acting fuse
(30 seconds max. every 15 minutes)
2
General Specifications
Insulation Class 2, Double insulation
Diode Test Test current 0.3mA typical, open circuit voltage < 3.3V
Continuity Test Audible signal if the resistance is approx. 50Ω or less
Low Battery Indication
Display 4000 count LCD display
Over Range Indication “OL” is displayed
Polarity Minus symbol “-” is displayed for negative polarity
Measurement Rate 2 readings per second, nominal
Auto Power Off After approx. 15 minutes of inactivity
Input Impedance 10MΩ (VDC & VAC)
AC Response True RMS
AC Bandwidth 50/60Hz
Batteries Two “AAA” 1.5V batteries
Fuses µA. mA ranges: 500mA/600V (5 x 20mm) fast blow fuse
10A range: 10A/600V (5 x 20mm) fast blow
Operating Temperature 41°F to 104°F (5°C to 40°C)
Operating Humidity Max 80% up to 87°F (31°C) decreasing linearly to 50%
at 104°F(40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Storage Humidity <80%)
Operating Altitude
Dimensions/ Weight 4.8” x 2.6” x 1.4”/0.32lb (121 x 67 x 35mm/140g)
Complies with UL 61010-1 v.3 for measurement
Category lll 600V, Polution Degree 2
Safety
2000 meters
“ ” is displayed
Insulated Tip On
Insulated Tip Removed
3
Potential danger. Indicates the user must refer to the manual for important safety information
Indicates hazardous voltages may be present
Equipment is protected by double or reinforced insulation
Indicates the terminal(s) so marked must not be connected to a circuit where the
voltage with respect to earth ground exceeds the maximum safety rating of the meter
MAX
600V

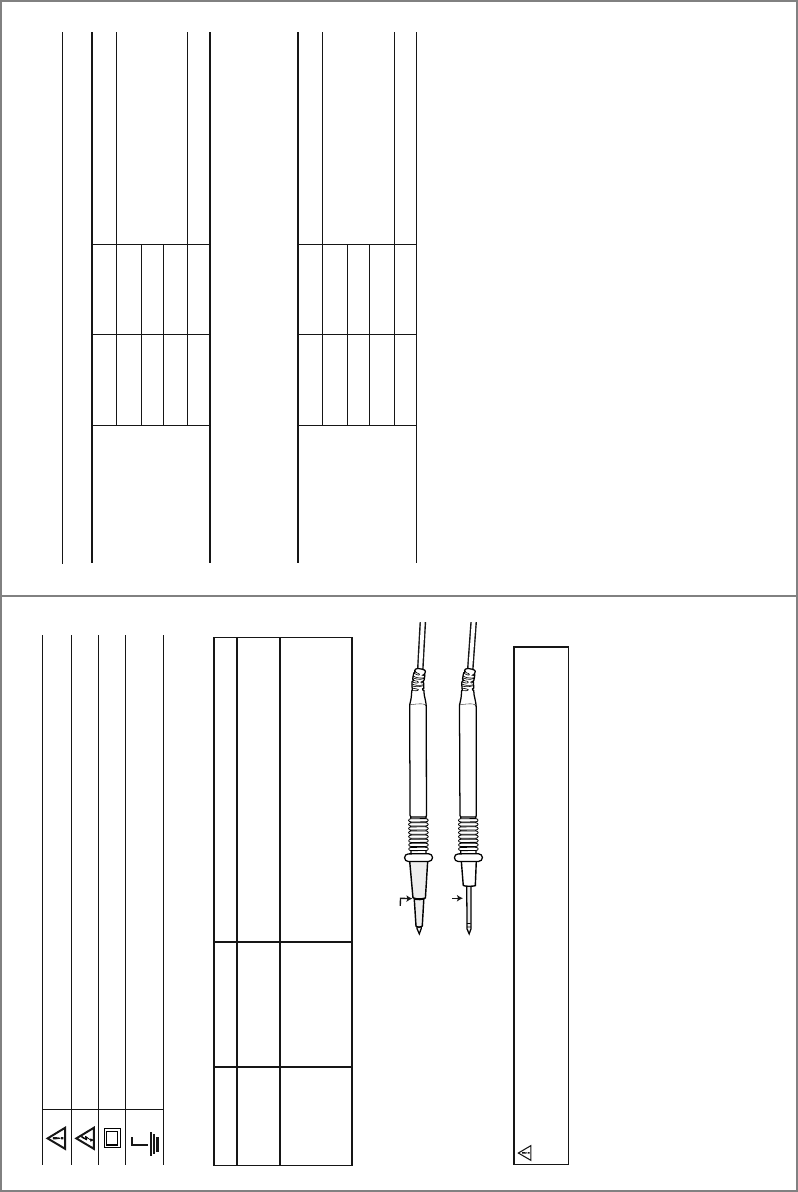

International Safety Symbols
Brief Description Typical Applications
Category Rating
Single phase receptacles
and connected loads
Three phase circuits and
single phase lighting
circuits in commercial
buildings
- Household appliances, power tools
- Outlets more than 30ft (10m) from a CAT III source
- Outlets more than 60ft (20m) from a CAT IV source
- Equipment in fixed installations such as 3-phase
motors, switchgear and distribution panels
- Lighting circuits in commercial buildings
- Feeder lines in industrial plants
- Any device or branch circuit that is close to a CAT III source
CAT II
CAT III
The measurement category (CAT) rating and voltage rating is determined by a combination of the meter, test probes and any accessories connected to
the meter and test probes. The combination rating is the LOWEST of any individual component.
Safety Category Ratings
WARNING:
Operation is limited to CAT II applications when the insulated tips are
removed from one or both test probes. Refer to Input Limits section in this manual for maximum
voltage ratings.
Test Leads
CAT IV 600V
CAT III 1000V
CAT II
1000V
16
Specifications cont.
400.0µA
4000µA
40.00mA
400.0mA
10.00A
All AC current ranges are specified from 5% to 100% of range.
Input Protection: µA/mA ranges: 500mA/600V Fuse
10A range: 10A/600V Fuse
0.1µA
1µ
10µA
0.1mA
10mA
±(2.0% +5 digits)
±(2.5% +5 digits)
±(3.0% +7 digits)
AC Current
50/60Hz
Function Range Resolution Accuracy
± (% of reading + digits)
400.0µA
4000µ
40.00mA
400.0mA
10.00A
Input Protection: µA/mA ranges: 500mA/600V Fuse
10A range: 10A/600V Fuse
0.1µA
1µA
10µA
0.1mA
10mA
±(1.0% +3 digits)
±(1.5% +3 digits)
±(2.5% +5 digits)
DC Current
Function Range Resolution Accuracy
± (% of reading + digits)
4
FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the Southwire Co. could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The device must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Complies with
IDA Standards
DA107392
15
Specifications cont.
4.000V
40.00V
400.0V
600V
All AC voltage ranges are specified from 5% to 100% of range.
Input Protection: 600V RMS or 600V DC
Accuracy is given at 65°F to 83°F (18°C to 28°C), less than 70% relative humidity
1mV
10mV
0.1V
1V
±(1.0% +5 digits)
±(1.2% +5 digits)
AC Voltage
50/60Hz
Function Range Resolution Accuracy
± (% of reading + digits)
400.0mV
4.000V
40.00V
400.0V
600V
Input Protection: 600V RMS or 600V DC
0.1mV
1mV
10mV
0.1V
1V
±(1.0% +8 digits)
±(1.0% +3 digits)
±(1.2% +3 digits)
DC Voltage
Function Range Resolution Accuracy
± (% of reading + digits)
9.999Hz
99.99Hz
999.9Hz
9.999kHz
Input Protection: 600V RMS or 600V DC
0.001Hz
0.01Hz
0.1Hz
1Hz
±(1.0% +5 digits)
Frequency
Sensitivity:
100V < 50Hz
50V 50 to 400Hz
5V > 400Hz to 4000Hz
Function Range Resolution Accuracy
± (% of reading + digits)
20.0%
to
80.0%
Input Protection: 600V RMS or 600V DC
0.1% ±(1.2% +5 digits)
% Duty Cycle
Pulse width:
>100us, <100ms;
Frequency width:
5Hz – 150kHz
Sensitivity: >1V RMS
Function Range Resolution Accuracy
± (% of reading + digits)
FCC ID: 2AENI-16040T / IC: 20144-16040T
Maintenance
This Multimeter is designed to provide years of dependable service, if the following care
instructions are performed:
1. KEEP THE METER DRY. If it gets wet, wipe it off.
2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature extremes can
shorten the life of the electronic parts and distort or melt plastic parts.
3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the electronic
parts or the case.
4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use
chemicals, cleaning solvents, or detergents.
5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove old or
weak batteries so they do not leak and damage the unit.
6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries should
be removed to prevent damage to the unit.
IC Statement
This device complies with RSS247 of Industry Canada. This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Radiation Exposure Statement: This product complies with the Canadian portable RF exposure limit set
forth for an uncontrolled environment and is safe for its intended operation as described in this manual.
Further RF exposure reduction can be achieved if the product is kept as far as possible from the user’s body.
Déclaration de conformité d’Industrie Canada
Leprésent appareil est conforme aux CNR d'Industrie Canada applicable aux appareils radio Exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement."
Déclaration d’exposition aux radiations : Ce produit est conforme aux limites d’exposition pour les appareils portables RF pour le
Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement comme décrit dans ce manuel. La
réduction aux expositions RF peut être augmentée si l’appareil peut être conservé aussi loin que possible du corps de l’utilisateur.
10 A
16040T
MAX
MIN
MODE
14
Operation cont.
1. Loosen the one Phillips
screw on the fuse cover.
2. Remove the fuse cover.
3. Gently remove fuse and
install new fuse into the
holder.
4. Always use a UL
recognized fuse of the
proper size and value:
500mA/600V (5 x 20mm)
fast blow for the µA/mA
ranges and 10A/600V
(5 x 20mm) fast blow for
the 10A range.
5. Install the fuse cover and
tighten the screw.
To avoid electric shock, do not operate meter until
battery and fuse covers are securely fastened to the meter.
WARNING:
To avoid electric shock, remove the test leads from
the meter before removing the battery or fuse covers..
WARNINGS:
Fuse Replacement
TO AVOID ELECTRIC SHOCK,
REMOVE TEST LEADS BEFORE
OPENING CASE OR BATTERY DOOR.
WARNING
TO AVOID ELECTRIC SHOCK,
REMOVE TEST LEADS BEFORE
OPENING CASE OR BATTERY DOOR.
WARNING
TO AVOID ELECTRIC
SHOCK, REMOVE TEST
LEADS BEFORE OPENING
CASE OR FUSE COVER
F10A/600V
WARNING
F500mA/600V
5
Meter Description

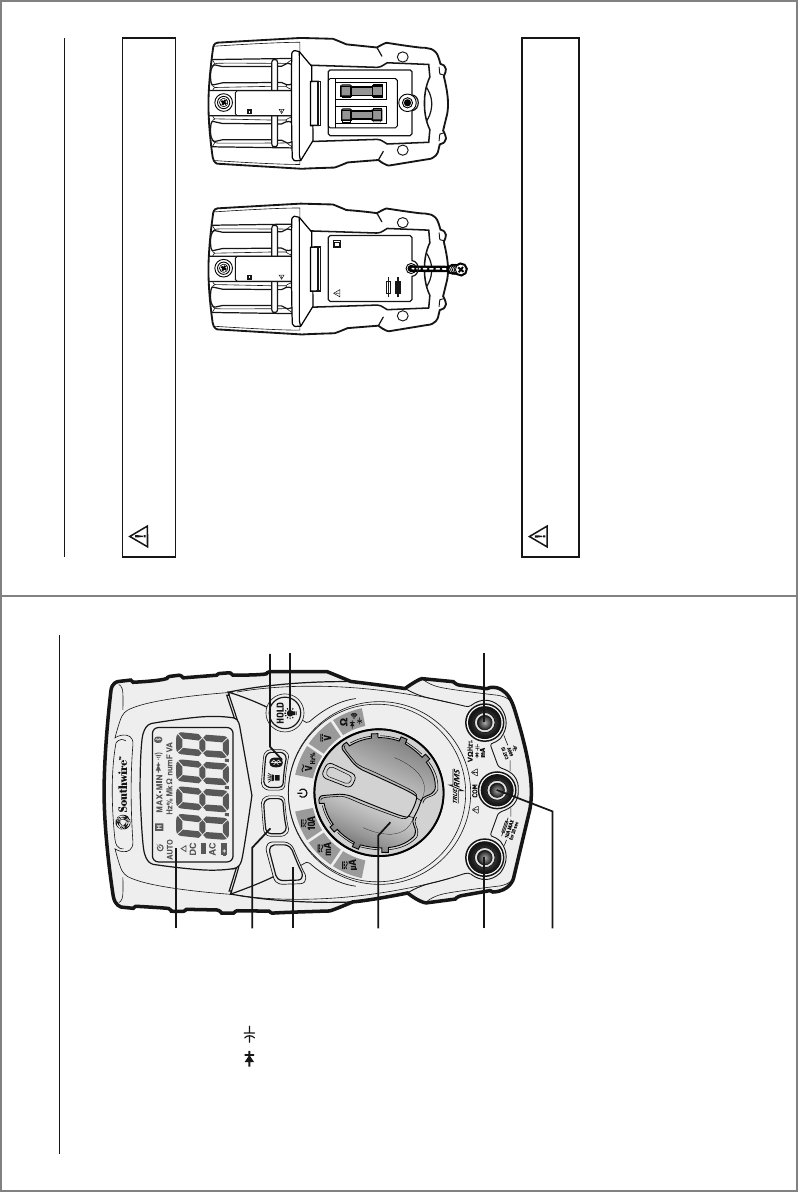

1. LCD display
2. MAX/MIN button
3. MODE button
4. Rotary function switch
5. 10A input jack
=£/a
mA input jack
7. COM input jack
/63+)HJRSPNO[I\[[VU
9. -SHZOSPNO[)S\L[VV[O® button
1.
2.
4.
5. 6.
8.
9.
7.
3.
13

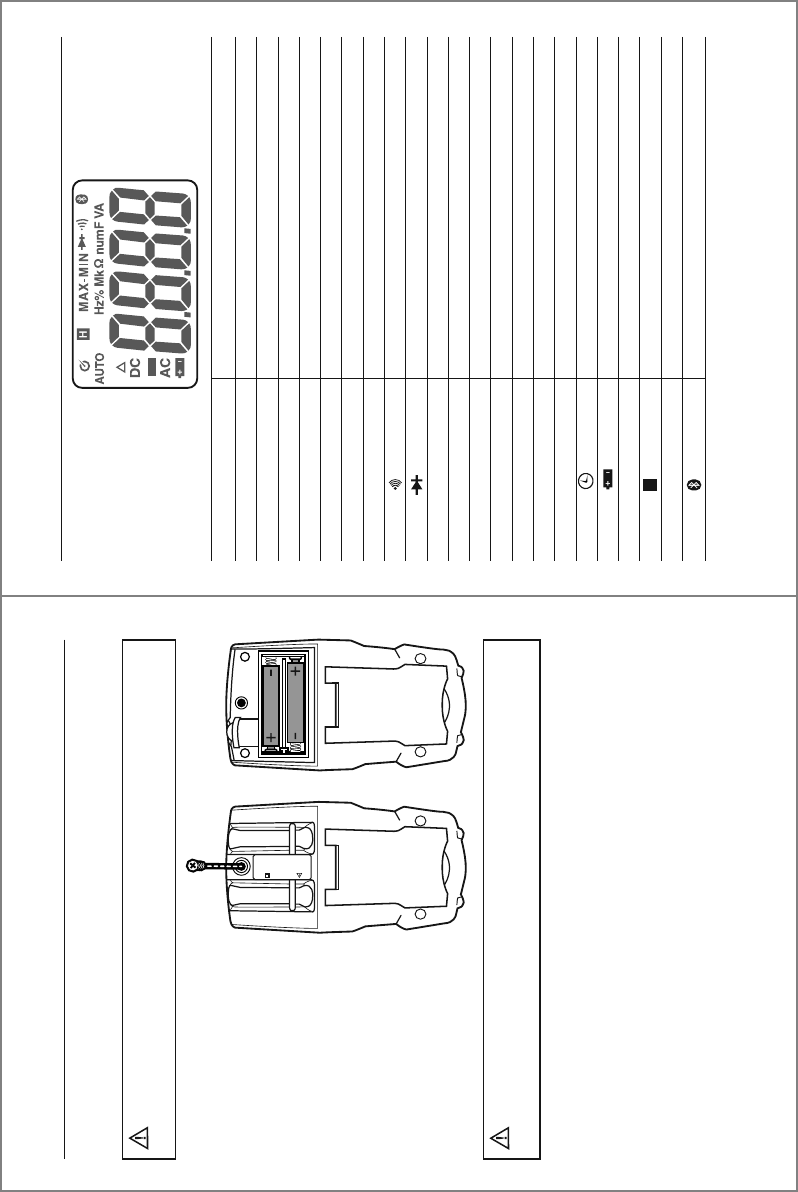

Operation cont.
1. Loosen the one Phillips
screw on the battery cover.
2. Remove the battery cover.
3. Replace batteries with two
AAA batteries.
4. Observe proper polarity as
shown inside battery
compartment.
5. Install the battery cover
and tighten the screw.
To avoid electric shock, do not operate meter until
battery and fuse covers are securely fastened to the meter.
WARNING:
To avoid electric shock, remove the test leads from
the meter before removing the battery or fuse covers.
WARNINGS:
Battery Replacement
TO AVOID ELECTRIC SHOCK,
REMOVE TEST LEADS BEFORE
OPENING CASE OR BATTERY DOOR.
WARNING
6
Symbols Used on LCD Display
V
A
AC
DC
-
Hz
%
£
F
n
µ
m
k
M
OL
AUTO
MAX/MIN
H
Volts
Amperes
Alternating current
Direct current
Minus sign
Hertz (frequency)
Percent (duty cycle)
Ohms
Continuity
Diode test
Farads (capacitance)
nano (10
-9
)
micro (10
-6
)
milli (10
-3
)
kilo (10
3
)
mega (10
6
)
Overload
Auto Power Off
Low battery
Autoranging
Display hold
Maximum/Minimum
Bluetooth
®
Technology
10 A
16040T
MAX
MIN
MODE
10 A
16040T
MAX
MIN
MODE
12
Operation cont.
1. Set the rotary function switch to
the position
2. Press the MODE button until
the “nF” symbol appears on
the display.
3. Insert the black test lead into the
COM input jack and the red test
lead into the Ω input jack.
4. Touch the test lead probes to the
capacitor under test.
5. Read the capacitance value on the LCD display.
It may take up to a minute to get a stable reading
on large capacitors.
Capacitance Measurements
Safely discharge capacitors before
taking capacitance measurements.
WARNING:
1. Set the rotary function switch to
the position.
2. Press the MODE button until
the “ ” symbol appears on the
LCD display.
3. Insert the black test lead into the
COM input jack and the red test
lead into the Ω input jack.
4. Touch the test lead probes to the
device or wire under test.
5. A beeper will sound if the resistance is approximately
50Ω or less and the resistance value will be shown
on the LCD display.
Continuity
WIRE
Never test continuity on a live circuit.
WARNING:
7

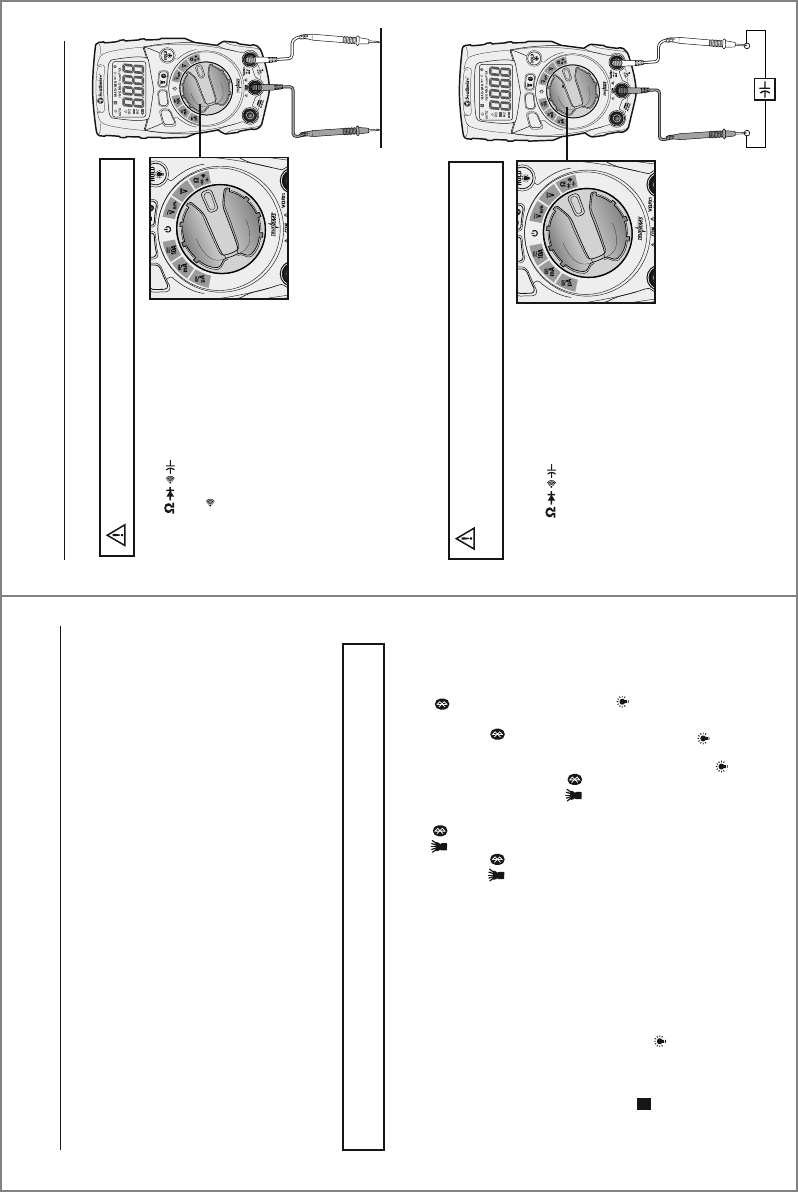

Operation
MODE Button
Used to select AC voltage, Frequency or % Duty Cycle, AC or DC current, and Ohms,
Diode Test, Continuity or Capacitance.
MAX/MIN Button
1. Momentarily press the MAX/MIN button to activate the MAX/MIN mode. “MAX”
will appear on the LCD display and the meter will display and hold the highest
reading. The meter will update the reading when a higher “max” occurs.
2. Momentarily press the MAX/MIN button again to view the lowest reading.
“MIN” will appear on the LCD display and the meter will display and hold the
lowest reading. The meter will update the reading when a lower “min” occurs.
3. Press and hold the MAX/MIN button to end MAX/MIN and return to normal
operation.
NOTE: MAX/MIN does not work on Frequency, Duty Cycle, Resistance,
Continuity, Diode Test and Capacitance.
FLASHLIGHT / Bluetooth® Button
Bluetooth® wireless technology allows readings to be displayed and stored on
mobile devices. To activate, press and hold the button until the " " symbol
appears on the LCD display. The Bluetooth® function should be disabled when not
connected to a mobile device in order to conserve battery power. To turn the
Bluetooth® function off, press and hold the button until the " " symbol no
longer appears on the display.
Visit nextgenmeters.southwiretools.com for mobile app download information.
To turn the flashlight on and off, momentarily press the button.
HOLD/Backlight button
To freeze the reading on the LCD display, momentarily press the HOLD button.
The “ ” indicator will be displayed while the reading is being held. Momentarily
press the HOLD button again to return to normal operation.
The backlight illuminates the LCD display when the ambient light is too low to view
the displayed readings. To turn the backlight on, press the HOLD button until the
backlight turns on. To turn the backlight off, press the HOLD button until the
backlight turns off.
H
10 A
MAX
MIN
MODE
10 A
MAX
MIN
MODE
10 A
16040T
MAX
MIN
MODE
11
Operation cont.

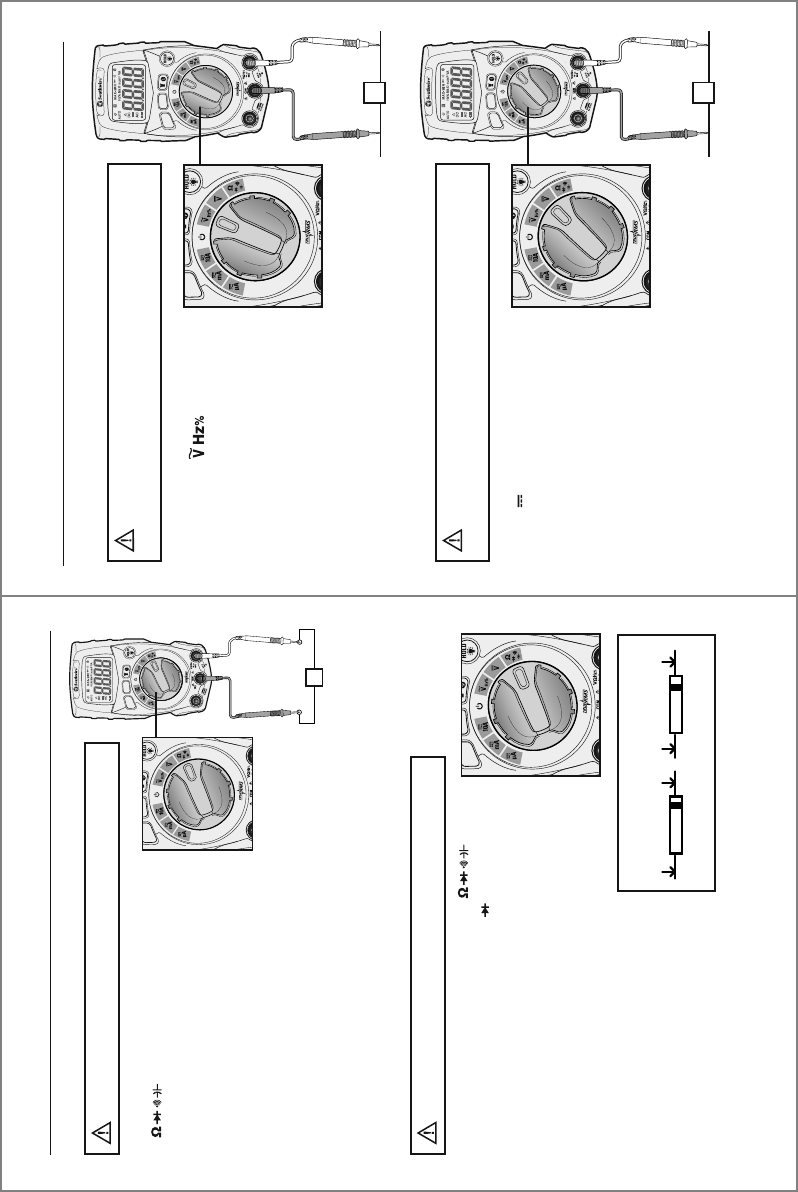

1. Set the rotary function switch to the position.
2. Press the MODE button until the “ “ symbol appears
on the LCD display.
3. Insert the black test lead into the COM input jack and
the red test lead into the Ω input jack.
4. Touch the test lead probes to the diode under test.
5. Forward voltage will indicate 0.4 to
0.7 on the LCD display. Reverse
voltage will indicate “OL”. Shorted
devices will indicate near 0 and
an open device will indicate “OL”
in both polarities.
Diode Test
Never test diodes in a live circuit.
WARNING:
Red Black Black Red
Probe Probe Probe Probe
Forward test Reverse test

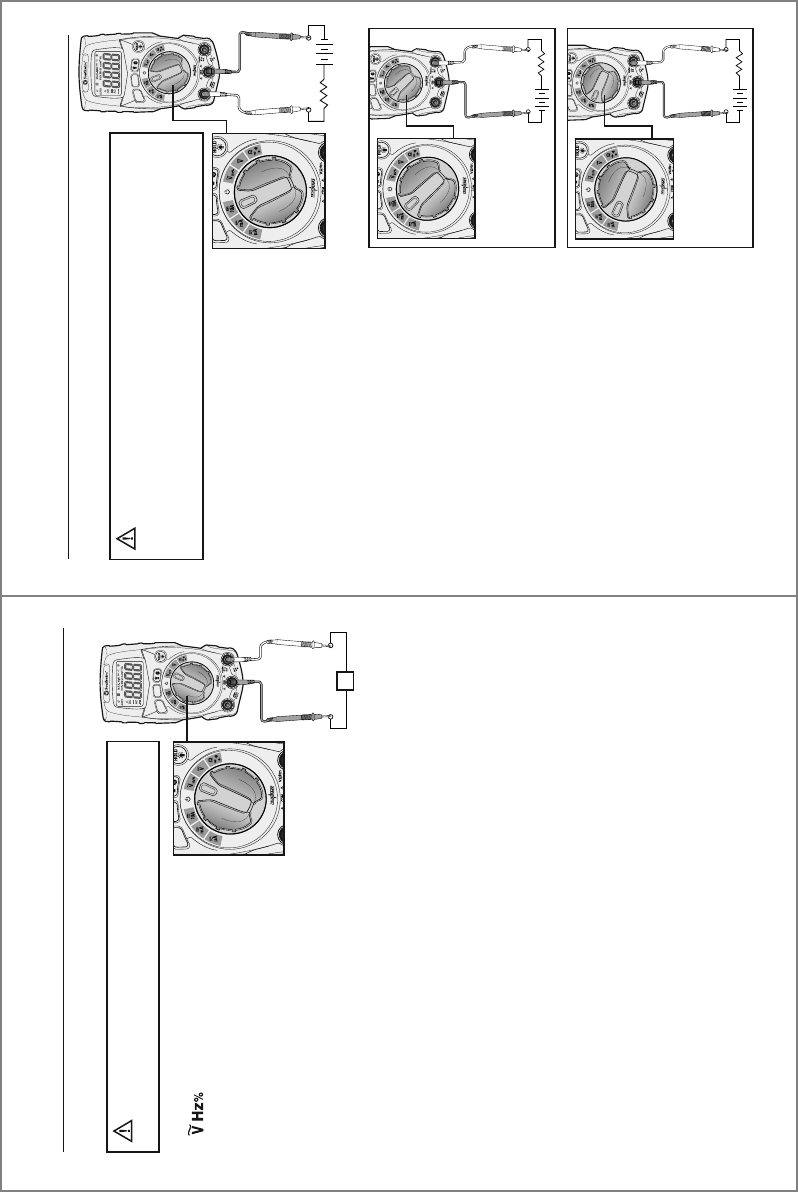

1. Set the rotary function switch to the
position.
2. Press the MODE button until the “Ω”
symbol appears on the display.
3. Insert the black test lead into the COM
input jack and the red test lead into
the Ω input jack.
4. Touch the test lead probes to the component
under test. If the component is installed in a
circuit, it is best to disconnect one side before
testing to eliminate interference with other devices.
5. Read the resistance in on the LCD display.
Resistance Measurements
Never test resistance on a live circuit
WARNING:
Ω
10 A
16040T
MAX
MIN
MODE
10 A
16040T
MAX
MIN
MODE
8
1. Set the rotary function
switch to the
position.
2. Insert the black test lead
into the COM input jack and
the red test lead into
the V input jack.
3. Touch the test lead probes
to the circuit under test.
4. Read the voltage on the LCD display.
AC Voltage Measurements
Observe all safety precautions
when working on live voltages.
WARNING:
Operation cont.
V
V
- +
1. Set the rotary function switch
to the V position.
2. Insert the black test lead into the
COM input jack and the red test
lead into the V input jack.
3. Touch the test lead probes to
the circuit under test. Touch the
red test lead to the positive side
of the circuit and the black test
lead to the negative side of the circuit.
4. Read the voltage on the LCD display.
DC Voltage Measurements
Observe all safety precautions
when working on live voltages.
WARNING:
10 A
MAX
MIN
MODE
10 A
MAX
MIN
MODE
10 A
MAX
MIN
MODE
10 A
MAX
MIN
MODE
10 A
16040T
MAX
MIN
MODE
10 A
16040T
MAX
MIN
MODE
9
Operation
Hz
1. Set the rotary function switch to the
position.
2. Press the MODE button once to select
frequency. The “Hz” symbol will appear
on the display. To select Duty Cycle,
press the MODE button a second time.
The “%” symbol will appear on the display.
3. Insert the black test lead into the COM input jack
and the red test lead into the V input jack.
4. Touch the test lead probes to the circuit under test.
5. Read the frequency or % duty cycle on the LCD display.
6. Pressing the MODE button a third time will return the
meter to the voltage function.
Frequency and % Duty Cycle Measurements
Observe all safety precautions
when working on live live voltages.
WARNING:
-+
-+
-+
10
Operation cont.
10 A
MAX
MIN
MODE
1. Insert the black test lead into the COM
input jack.
2. For current measurements up to 10A AC/DC,
set the rotary function switch to the 10A
position and insert the red test lead into
the 10A input jack.
3. For current measurements up to 400mA
AC/DC, set the rotary function switch to
the mA position and insert the red test
lead into the mA input jack.
4. For current measurements up to 4000µA
AC/DC, set the rotary function switch to
the µA position and insert the red test lead
into the mA input jack.
5. Press the MODE button to select AC or
DC current. The “AC” or “DC” symbol
will appear on the LCD display.
6. Remove power from the circuit under test,
then open up the circuit at the point where
you wish to measure current.
7. Touch the test lead probes in series with
the circuit being measured. For DC current,
touch the red probe to the positive side of
the circuit and touch the black probe to the
negative side of the circuit.
8. Apply power to the circuit.
9. Read the current on the LCD display.
AC/DC Current Measurements
Observe all safety precautions when
working on live circuits. Do not measure current on circuits
that exceed 600V. Measurements in the 10A range should
be limited to 30 seconds every 15minutes.
WARNING:
MEASUREMENTS
UP TO 10A AC/DC
MEASUREMENTS
UP TO
400mA AC/DC
10 A
MAX
MIN
MODE
MEASUREMENTS
UP TO
4000µA AC/DC
10 A
MAX
MIN
MODE
10 A
MAX
MIN
MODE
