Latest 802.11n Wi-Fi Technology
SparkLAN WUBR-507N(M) is an 802.11n Wi-Fi USB module, which is backward
compatible with 802.11a/b/g standard. With advanced 2T2R MIMO technology,
WUBR-507N(M) delivers ultimate wireless data rate for up to 300Mbps. It is
designed properly for any wireless enabled devices with standard 6-Pin
connector USB Type A (optional).
Secure Wireless Connection
WUBR-507N(M) also features advanced WEP encryption, WPA, and WPA2 to help
to protect data over wireless communication without sacrificing the
performance.
■ Chipsets: Ralink RT3572
■ Compliant with 802.11a/b/g/n
Dual-Band standard
■ Interface: 6-Pin or USB 2.0 Type
A (optional)
■ Antenna: 2 x U.FL connector
■ Speeds up to 300Mbps
■ Advanced security:
64/128-bits WEP, WPA, WPA2
■ Support Windows 2000/ XP/
Win CE/ Vista/ Win7, Linux,
MAC
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Feature
Module
6-Pin or Type A Connection with
Ralink RT3572, 2T2R

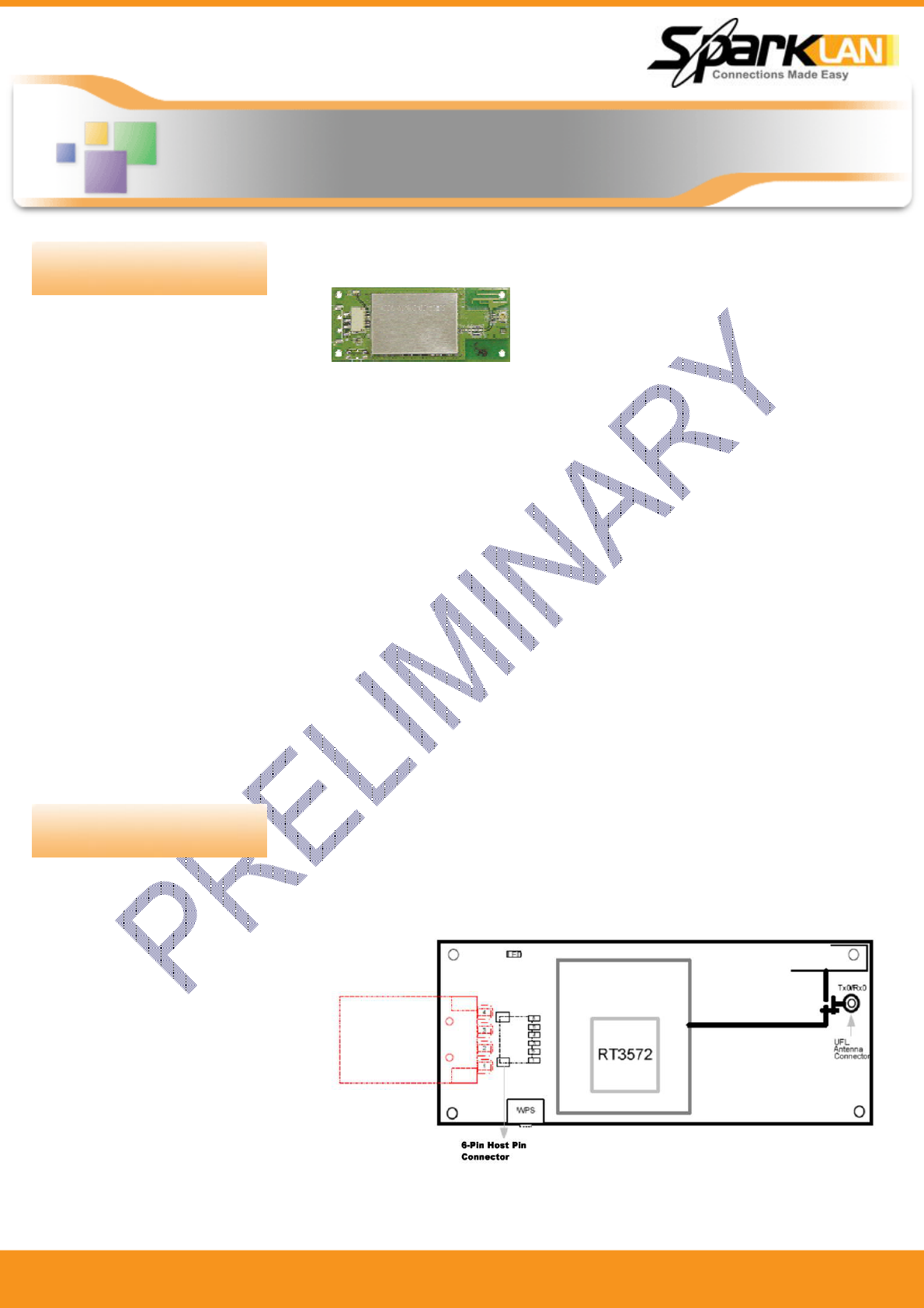

Mechanical Dimension (mm)
Application
■ Networking Equipment
■ USB Dongle
■ Industrial Computers
■ Medical Device
■ POS (Point-of-Sale) System
■ Self-Service KIOSK
■ Gaming Machine
■ Consumer Electronics
www.sparklan.com / sales@sparklan.com / +886-2-2659-
1880
W
UBR
-
507
N
(M)

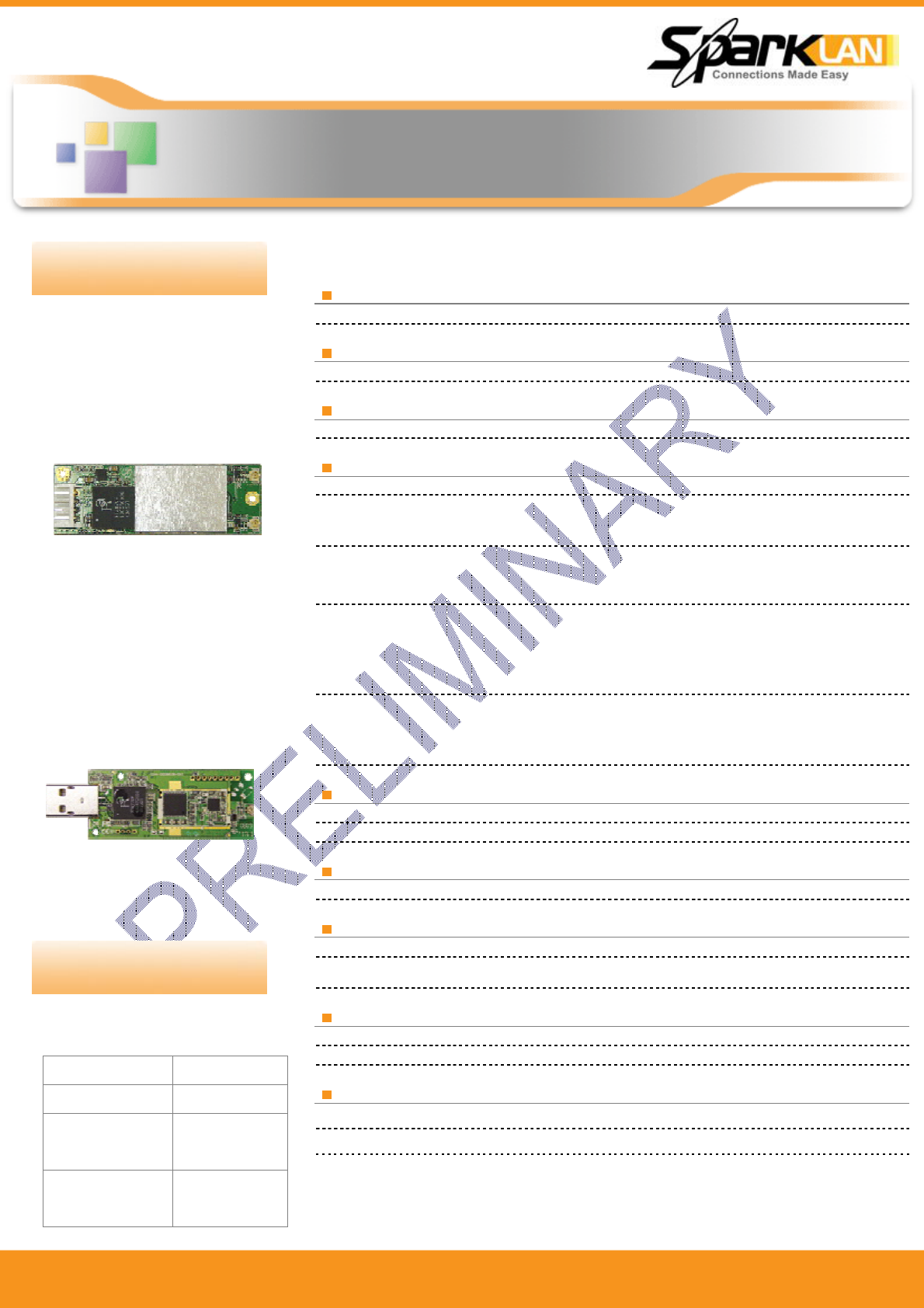

Specifications
Ordering Info
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
■ WUBR-507N(M)
802.11a/b/g/n USB Module
WUBR-507N(M) U.FL+6-Pin
WUBR-507N(MU) U.FL+USB Type A
WUBR-507N(P) Printed Antenna
+USB Type A
WUBR-507N(P6) Printed Antenna
+6-Pin
Related Product
■ WUBR-506N
802.11a/b/g/n dual band USB
Module
■ WUBR-125GN
802.11b/g/n USB Module
Standard
802.11a/b/g/n
Chipset
Mac/BB/RF Ralink RT3572
Host Interface
6-Pin Connector (Pin 1: v+, Pin 2: D-, Pin 3: D+, Pin 4: GND, Pin 5: LED, Pin 6: RF) or Type A (optional)
Radio
Antenna 2 x U.FL connector (2T2R)
Operating Frequency
802.11a ISM Band: 5.1 ~ 5.8GHz
802.11g ISM Band: 2.4 ~ 2.4835GHz
Modulation
802.11b: DSSS (DBPSK, DQPSK, CCK)
802.11g/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Output Power
802.11a: 11dBm ± 1.5dBm@54Mbps
802.11b: 16dBm ± 1.5dBm@11Mbps
802.11g: 13dBm ± 1.5dBm@54Mbps
802.11an HT20: 10dBm ± 1.5dBm 802.11an HT40 : 10dBm ± 1.5dBm
802.11gn HT20: 12dBm ± 1.5dBm 80.211gn HT20 : 12dBm ± 1.5dBm
Receive Sensitivity
802.11a: -72dBm ±2dBm 802.11b: -86dBm ±2dBm
802.11g: -72dBm ±2dBm
802.11an HT20: -68dBm ±2dBm 802.11an HT40 : -65dBm ±2dBm
802.11gn HT20: -68dBm ±2dBm 802.11gn HT40 : -65dBm ±2dBm
Power consumption
Continue TX Max 400mA@2TX
Continue RX Max 250mA@2RX
Operating Voltage
DC 5V ± 10%
Environmental
Temperature Range
0 ~ 60°C (Operating) -20 ~ 70°C (Storing)
Humidity
(Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
Physical Specification
Dimensions 60mm X 25mm (±0.5mm)
Weight TBD
Software
Driver Windows 2000/XP/ WinCE/ Vista,/ Win7, Linux, MAC
Security 64/128-bits WEP, WPA, WPA2
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the
end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is
integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled
environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this
equipment.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RYK-WUBR507N ". If the size
of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label:
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received, including interference that may cause
undesired operation.
