Spectralink 703X Netlink Wireless Telephone User Manual 72 1303 00 A Draft 1

Spectralink Corporation Netlink Wireless Telephone 72 1303 00 A Draft 1

Contents

Regulatory Guide

72-1303-00-A-Draft-1.doc 1
NetLink Wireless Telephone System
Regulatory Guide
PN 72-1303-00
Draft1
72-1303-00-A-Draft-1.doc 2
Trademark Information
SpectraLink
The SpectraLink logo
LinkPlus
Net,Link
Are trademarks and registered trademarks of SpectraLink
Corporation.
All other trademarks used herein are the property of
their respective owners.
Copyright © 2006 SpectraLink Corporation.
All rights reserved
Information in this document is subject to change without notice and does not
represent a commitment on the part of SpectraLink Corporation. The software
described in this document is furnished under a license and/or copyright and
may only be used with the terms of SpectraLink’s software license agreement as
found in this manual or at
http://www.spectralink.com/consumer/resources/software_updates.jsp.
The software may be used only in accordance with the terms of the agreement.
No part of this manual, or the software described herein, may be reproduced or
transmitted in any form or by any means, electronic or mechanical, including
photocopying and recording, for any purpose except for the sole intent to
operate the product or without the express written permission of SpectraLink
Corporation.
SpectraLink Corporation
5755 Central Avenue
Boulder, CO 80301
Within the United States, dial 303 440 5330 or
toll free 800 676 5465
Outside the U.S., dial
+1 303 440 5330
www.spectralink.com
Please email questions or comments about this document to
feedback@spectralink.com
72-1303-00-A-Draft-1.doc 3
Introduction
The NetLink 7000 Series Wireless Telephone and the
accompanying components are state-of-the-art
communication devices that utilizes radio wave
technology to send and receive voice transmissions.
The handsets are designed to operate like a cell
phone. However, the handset utilizes the private
telephone system installed in your facility and will not
operate outside the area covered by this system.
About This Guide
This guide is meant to provide regulatory
information about NetLink components. Additional
documents are available for information about the
NetLink components.
Registered Model Numbers
This document covers registered handset model:
702X/703X
Registered system controller models: SVP100,
TGA104, TGU104, TGA116, TGU116
Registered charger models: PCS1850, PCD1850,
PCQ1850
Registered Battery Pack models: PBP0850, PBP1300,
PBP1850
72-1303-00-A-Draft-1.doc 4
Table of Contents
Introduction......................................................... 3
About This Guide.....................................................3
Registered Model Numbers ....................................3
European Union Directives Conformance Statement
........................................................................... 5
NetLink Telephony Gateway.................................. 6
FCC Information......................................................7
Industry Canada (IC) Notice...................................8
SVP Server........................................................... 9
The Gnu General Public License (GPL)...............9
GNU Lesser General Public License (LGPL)....18
NetLink 7000 Series Wireless Telephones .......... 27
FCC Information....................................................27
Industry Canada (IC) Notice.................................27
International Certifications....................................28
Specific Absorption Rate (SAR) Information ....29
Chargers............................................................ 31
72-1303-00-A-Draft-1.doc 5
European Union Directives
Conformance Statement
Hereby, SpectraLink Corporation declares that the
products in this manual are in compliance with:
• EMC Directive 2004/108/EC
• LVD Directive 73/23/EEC; 93/68/EEC
• R&TTE Directive 1999/5/EEC
• Restriction of Hazardous Substances (RoHS)
2002/95/EC
• Waste Electrical and Electronic Equipment (WEEE)
2002/96/EC
Please visit
http://www.spectralink.com/consumer/resources/complia
nce.jsp to view the Declaration of Conformity as allowed
by the European Commission Interpretation of Directive
1999/5/EC.
(See)
http://europa.eu.int/comm/enterprise/rtte/tcam5.htm#tca
m5.
72-1303-00-A-Draft-1.doc 6
NetLink Telephony Gateway
Note concerning the NetLink Telephony
Gateway:
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications. Operation of
this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own
expense.
WARNING: Changes or modifications
to this equipment not approved by
SpectraLink Corporation may cause this
equipment to not comply with part 15 of
the FCC rules and void the user’s authority
to operate this equipment.
Note concerning the power adapter
The power adapter must have the capacity to connect
to the country AC power mains with the proper AC
power plug.
The power adapter shall have an output voltage of
24V DC +/-5% with a current rating of at least 1.0
Amp and rated at least 33 watts.
The DC plug shall adhere to the following
dimensions 5.5 x 2.1 x 11mm. The plug length shall
be 11mm +/- 1.0mm. The barrel outer diameter shall
be 5.5mm +/- 0.1mm. The inner barrel diameter
shall be 2.1mm +/-0.1mm and shall be positive in
voltage.
TUV Rheinland of North America is a
Nationally Recognized Testing Laboratory
(NRTL) in the United States and is
accredited by the Standards Council of
Canada to test and certify products to
Canadian National Standards. Clients can
demonstrate compliance for both U.S. and
Canadian markets through a single mark
(cTUVus) on their product(s) which
denotes compliance to U.S. and Canadian
National Standards.
Note concerning shielded cable:
SpectraLink recommends the use of shielded cable
for all external signal connections in order to
maintain FCC Part 15 emissions requirements.
72-1303-00-A-Draft-1.doc 7
FCC Information
The NetLink 150 Telephony Gateway complies
with Part 68, FCC Rules
FCC Registration Number IYGUSA-33816-PX-
E
Ringer Equivalence 0.3B
SpectraLink Corporation
NetLink Wireless Telephones
Made in the USA
This equipment complies with Part 68 of the FCC
Rules. On the back of this equipment is a label that
contains, among other information, the FCC
Registration Number and Ringer Equivalence
Number (REN) for this equipment. If requested, this
information must be given to the telephone
company.
This equipment uses RJ-21 connectors.
The REN is useful to determine the quantity of
devices you may connect to your telephone line and
still have all of those devices ring when your number
is called. In most, but not all, areas, the sum of the
RENs of all devices connected to one line should not
exceed five (5.0). To be certain of the number of
devices you may connect to your line, as determined
by the REN, you should contact your local telephone
company to determine the maximum REN for your
calling area.
If your telephone equipment causes harm to the
telephone network, the telephone service may
discontinue your service temporarily. If possible, they
will notify you in advance. But if advance notice isn’t
practical, you will be notified as soon as possible.
You will be informed of your right to file a complaint
with the FCC.
Your telephone company may make changes in its
facilities, equipment, operations or procedures that
could affect the proper functioning of your
equipment. If they do, you will be notified in advance
to give you an opportunity to maintain uninterrupted
telephone service.
If you experience trouble with this telephone
equipment, please contact SpectraLink Corporation
for information on obtaining service or repairs.
SpectraLink Corporation
5755 Central Avenue
Boulder, CO 80301
303-440-5330
The telephone company may ask that you disconnect
this equipment from the network until the problem
has been corrected or until you are sure that the
equipment is not malfunctioning. There are no user
serviceable parts in this equipment.
This equipment may not be used on coin service
provided by the telephone company. Connection to
party lines is subject to state tariffs.
72-1303-00-A-Draft-1.doc 8
Industry Canada (IC) Notice
The Industry Canada (IC) label identifies certified
equipment. This certification means that the
equipment meets telecommunications network
protective, operational, and safety requirements as
prescribed in the appropriate Terminal Equipment
Technical Requirements document(s). The
department does not guarantee the equipment will
operate to the user’s satisfaction.
Before installing this equipment, users should ensure
that it is permissible to be connected to the facilities
of the local telecommunications company. The
equipment must also be installed using an acceptable
method of connection. The customer should be
aware that compliance with the above conditions may
not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated
by a representative designated by the supplier. Any
repairs or alterations made by a user to this
equipment, or equipment malfunctions, may give the
telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility,
telephone lines, and internal metallic water pipe
system, if present, are connected together. This
precaution may be particularly important in rural
areas.
Caution: Users should not attempt to make such
connections themselves, but should contact the
appropriate electric inspection authority, or
electrician, as appropriate.
Notice: The Ringer Equivalence Number (REN)
assigned to each terminal device provides as
indication of the maximum number of terminals
allowed to be connected to a telephone interface.
The termination of an interface may consist of any
combination of devices.
REN 0.3B
Approval Numbers:
2128-9760 A
Warranty and Repair Service Center:
SpectraLink Corporation
5755 Central Avenue
Boulder, CO 80301
303-440-5330
72-1303-00-A-Draft-1.doc 9
SVP Server
Note concerning the NetLink SVP Server:
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications. Operation of
this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own
expense.

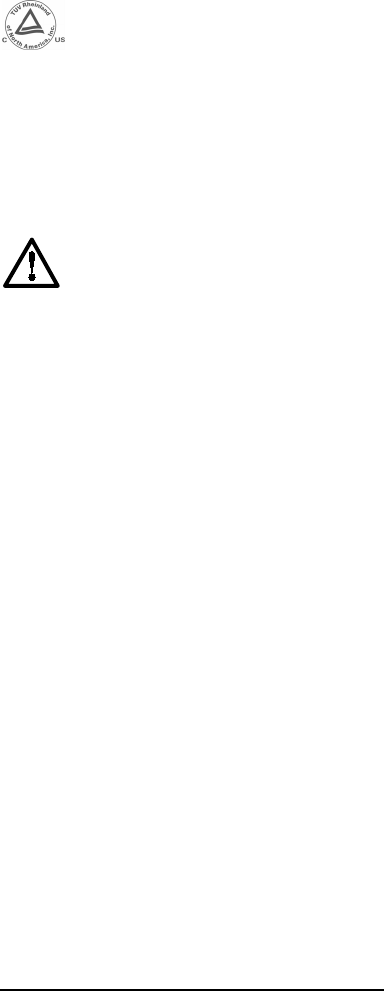

TUV Rheinland of North America is a
Nationally Recognized Testing
Laboratory (NRTL) in the United States
and is accredited by the Standards
Council of Canada to test and certify
products to Canadian National Standards.
Clients can demonstrate compliance for
both U.S. and Canadian markets through
a single mark (cTUVus) on their
product(s) which denotes compliance to
U.S. and Canadian National Standards.
WARNING: Changes or modifications
to this equipment not approved by
SpectraLink Corporation may cause this
equipment to not comply with part 15 of
the FCC rules and void the user’s
authority to operate this equipment.
Required Public Statement
For GPL/LGPL Licensed Software Used
In This Device
The Gnu General Public License (GPL)
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation,
Inc. 59 Temple Place, Suite 330, Boston, MA 02111-
1307 USA.
Everyone is permitted to copy and distribute
verbatim copies of this license document, but
changing it is not allowed.
Preamble
The licenses for most software are designed to take
away your freedom to share and change it. By
contrast, the GNU General Public License is
intended to guarantee your freedom to share and
change free software--to make sure the software is
free for all its users. This General Public License
applies to most of the Free Software Foundation's
software and to any other program whose authors
commit to using it. (Some other Free Software
Foundation software is covered by the GNU Library
72-1303-00-A-Draft-1.doc 10
General Public License instead.) You can apply it to
your programs, too.
When we speak of free software, we are referring to
freedom, not price. Our General Public Licenses are
designed to make sure that you have the freedom to
distribute copies of free software (and charge for this
service if you wish), that you receive source code or
can get it if you want it, that you can change the
software or use pieces of it in new free programs; and
that you know you can do these things.
To protect your rights, we need to make restrictions
that forbid anyone to deny you these rights or to ask
you to surrender the rights. These restrictions
translate to certain responsibilities for you if you
distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a
program, whether gratis or for a fee, you must give
the recipients all the rights that you have. You must
make sure that they, too, receive or can get the
source code. And you must show them these terms
so they know their rights.
We protect your rights with two steps: (1) copyright
the software, and (2) offer you this license which
gives you legal permission to copy, distribute and/or
modify the software.
Also, for each author's protection and ours, we want
to make certain that everyone understands that there
is no warranty for this free software. If the software
is modified by someone else and passed on, we want
its recipients to know that what they have is not the
original, so that any problems introduced by others
will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by
software patents. We wish to avoid the danger that
redistributors of a free program will individually
obtain patent licenses, in effect making the program
proprietary. To prevent this, we have made it clear
that any patent must be licensed for everyone's free
use or not licensed at all.
The precise terms and conditions for copying,
distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work
which contains a notice placed by the copyright
holder saying it may be distributed under the terms
of this General Public License. The "Program",
below, refers to any such program or work, and a
"work based on the Program" means either the
Program or any derivative work under copyright law:
that is to say, a work containing the Program or a
portion of it, either verbatim or with modifications
and/or translated into another language.
(Hereinafter, translation is included without
limitation in the term "modification".) Each licensee
is addressed as "you".
Activities other than copying, distribution and
modification are not covered by this License; they are
outside its scope. The act of running the Program is
72-1303-00-A-Draft-1.doc 11
not restricted, and the output from the Program is
covered only if its contents constitute a work based
on the Program (independent of having been made
by running the Program). Whether that is true
depends on what the Program does.
1. You may copy and distribute verbatim copies of
the Program's source code as you receive it, in any
medium, provided that you conspicuously and
appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to
the absence of any warranty; and give any other
recipients of the Program a copy of this License
along with the Program.
You may charge a fee for the physical act of
transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the
Program or any portion of it, thus forming a work
based on the Program, and copy and distribute such
modifications or work under the terms of Section 1
above, provided that you also meet all of these
conditions:
a) You must cause the modified files to carry
prominent notices stating that you changed the files
and the date of any change.
b) You must cause any work that you distribute or
publish, that in whole or in part contains or is
derived from the Program or any part thereof, to be
licensed as a whole at no charge to all third parties
under the terms of this License.
c) If the modified program normally reads
commands interactively when run, you must cause it,
when started running for such interactive use in the
most ordinary way, to print or display an
announcement including an appropriate copyright
notice and a notice that there is no warranty (or else,
saying that you provide a warranty) and that users
may redistribute the program under these conditions,
and telling the user how to view a copy of this
License. (Exception: if the Program itself is
interactive but does not normally print such an
announcement, your work based on the Program is
not required to print an announcement.)
These requirements apply to the modified work as a
whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably
considered independent and separate works in
themselves, then this License, and its terms, do not
apply to those sections when you distribute them as
separate works. But when you distribute the same
sections as part of a whole which is a work based on
the Program, the distribution of the whole must be
on the terms of this License, whose permissions for
other licensees extend to the entire whole, and thus
to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim
rights or contest your rights to work written entirely
by you; rather, the intent is to exercise the right to
72-1303-00-A-Draft-1.doc 12
control the distribution of derivative or collective
works based on the Program.
In addition, mere aggregation of another work not
based on the Program with the Program (or with a
work based on the Program) on a volume of a
storage or distribution medium does not bring the
other work under the scope of this License.
3. You may copy and distribute the Program (or a
work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2
above provided that you also do one of the
following:
a) Accompany it with the complete corresponding
machine-readable source code, which must be
distributed under the terms of Sections 1 and 2 above
on a medium customarily used for software
interchange; or,
b) Accompany it with a written offer, valid for at
least three years, to give any third party, for a charge
no more than your cost of physically performing
source distribution, a complete machine-readable
copy of the corresponding source code, to be
distributed under the terms of Sections 1 and 2 above
on a medium customarily used for software
interchange; or,
c) Accompany it with the information you received as
to the offer to distribute corresponding source code.
(This alternative is allowed only for noncommercial
distribution and only if you received the program in
object code or executable form with such an offer, in
accord with Subsection b above.)
The source code for a work means the preferred
form of the work for making modifications to it. For
an executable work, complete source code means all
the source code for all modules it contains, plus any
associated interface definition files, plus the scripts
used to control compilation and installation of the
executable. However, as a special exception, the
source code distributed need not include anything
that is normally distributed (in either source or binary
form) with the major components (compiler, kernel,
and so on) of the operating system on which the
executable runs, unless that component itself
accompanies the executable.
If distribution of executable or object code is made
by offering access to copy from a designated place,
then offering equivalent access to copy the source
code from the same place counts as distribution of
the source code, even though third parties are not
compelled to copy the source along with the object
code.
4. You may not copy, modify, sublicense, or
distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy,
modify, sublicense or distribute the Program is void,
and will automatically terminate your rights under
this License. However, parties who have received
copies, or rights, from you under this License will not
have their licenses terminated so long as such parties
remain in full compliance.
72-1303-00-A-Draft-1.doc 13
5. You are not required to accept this License, since
you have not signed it. However, nothing else grants
you permission to modify or distribute the Program
or its derivative works. These actions are prohibited
by law if you do not accept this License. Therefore,
by modifying or distributing the Program (or any
work based on the Program), you indicate your
acceptance of this License to do so, and all its terms
and conditions for copying, distributing or modifying
the Program or works based on it.
6. Each time you redistribute the Program (or any
work based on the Program), the recipient
automatically receives a license from the original
licensor to copy, distribute or modify the Program
subject to these terms and conditions. You may not
impose any further restrictions on the recipients'
exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties
to this License.
7. If, as a consequence of a court judgment or
allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement
or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a
consequence you may not distribute the Program at
all. For example, if a patent license would not permit
royalty-free redistribution of the Program by all those
who receive copies directly or indirectly through you,
then the only way you could satisfy both it and this
License would be to refrain entirely from distribution
of the Program.
If any portion of this section is held invalid or
unenforceable under any particular circumstance, the
balance of the section is intended to apply and the
section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or
to contest validity of any such claims; this section has
the sole purpose of protecting the integrity of the
free software distribution system, which is
implemented by public license practices. Many
people have made generous contributions to the wide
range of software distributed through that system in
reliance on consistent application of that system; it is
up to the author/donor to decide if he or she is
willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear
what is believed to be a consequence of the rest of
this License.
8. If the distribution and/or use of the Program is
restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder
who places the Program under this License may add
an explicit geographical distribution limitation
excluding those countries, so that distribution is
72-1303-00-A-Draft-1.doc 14
permitted only in or among countries not thus
excluded. In such case, this License incorporates the
limitation as if written in the body of this License.
9. The Free Software Foundation may publish
revised and/or new versions of the General Public
License from time to time. Such new versions will be
similar in spirit to the present version, but may differ
in detail to address new problems or concerns.
Each version is given a distinguishing version
number. If the Program specifies a version number
of this License which applies to it and "any later
version", you have the option of following the terms
and conditions either of that version or of any later
version published by the Free Software Foundation.
If the Program does not specify a version number of
this License, you may choose any version ever
published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program
into other free programs whose distribution
conditions are different, write to the author to ask for
permission. For software which is copyrighted by the
Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for this.
Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free
software and of promoting the sharing and reuse of
software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED
FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE
EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE
PROGRAM "AS IS" WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK
AS TO THE QUALITY AND PERFORMANCE
OF THE PROGRAM IS WITH YOU. SHOULD
THE PROGRAM PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE PROGRAM AS
PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY
GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR
A FAILURE OF THE PROGRAM TO OPERATE
72-1303-00-A-Draft-1.doc 15
WITH ANY OTHER PROGRAMS), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS
BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be
of the greatest possible use to the public, the best
way to achieve this is to make it free software which
everyone can redistribute and change under these
terms.
To do so, attach the following notices to the
program. It is safest to attach them to the start of
each source file to most effectively convey the
exclusion of warranty; and each file should have at
least the "copyright" line and a pointer to where the
full notice is found.
one line to give the program's name and a brief idea
of what it does. Copyright (C)
This program is free software; you can redistribute it
and/or modify it under the terms of the GNU
General Public License as published by the Free
Software Foundation; either version 2 of the License,
or (at your option) any later version.
This program is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY
or FITNESS FOR A PARTICULAR PURPOSE.
See the GNU General Public License for more
details.
You should have received a copy of the GNU
General Public License along with this program; if
not, write to the Free Software Foundation, Inc., 59
Temple Place, Suite 330, Boston, MA 02111-1307
USA
Also add information on how to contact you by
electronic and paper mail.
If the program is interactive, make it output a short
notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of
author Gnomovision comes with ABSOLUTELY
NO WARRANTY; for details type `show w'. This is
free software, and you are welcome to redistribute it
under certain conditions; type `show c' for details.
The hypothetical commands `show w' and `show c'
should show the appropriate parts of the General
Public License. Of course, the commands you use
may be called something other than `show w' and
`show c'; they could even be mouse-clicks or menu
items--whatever suits your program.
You should also get your employer (if you work as a
programmer) or your school, if any, to sign a
"copyright disclaimer" for the program, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the program `Gnomovision' (which
makes passes at compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989 Ty Coon,
President of Vice
72-1303-00-A-Draft-1.doc 16
This General Public License does not permit
incorporating your program into proprietary
programs. If your program is a subroutine library,
you may consider it more useful to permit linking
proprietary applications with the library. If this is
what you want to do, use the GNU Library General
Public License instead of this License.
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation,
Inc. 59 Temple Place, Suite 330, Boston, MA 02111-
1307 USA
Everyone is permitted to copy and distribute
verbatim copies of this license document, but
changing it is not allowed.
[This is the first released version of the Lesser GPL.
It also counts as the successor of the GNU Library
Public License, version 2, hence the version number
2.1.]
72-1303-00-A-Draft-1.doc 17
Preamble
The licenses for most software are designed to take
away your freedom to share and change it. By
contrast, the GNU General Public Licenses are
intended to guarantee your freedom to share and
change free software--to make sure the software is
free for all its users.
This license, the Lesser General Public License,
applies to some specially designated software
packages--typically libraries--of the Free Software
Foundation and other authors who decide to use it.
You can use it too, but we suggest you first think
carefully about whether this license or the ordinary
General Public License is the better strategy to use in
any particular case, based on the explanations below.
When we speak of free software, we are referring to
freedom of use, not price. Our General Public
Licenses are designed to make sure that you have the
freedom to distribute copies of free software (and
charge for this service if you wish); that you receive
source code or can get it if you want it; that you can
change the software and use pieces of it in new free
programs; and that you are informed that you can do
these things.
To protect your rights, we need to make restrictions
that forbid distributors to deny you these rights or to
ask you to surrender these rights. These restrictions
translate to certain responsibilities for you if you
distribute copies of the library or if you modify it.
For example, if you distribute copies of the library,
whether gratis or for a fee, you must give the
recipients all the rights that we gave you. You must
make sure that they, too, receive or can get the
source code. If you link other code with the library,
you must provide complete object files to the
recipients, so that they can relink them with the
library after making changes to the library and
recompiling it. And you must show them these terms
so they know their rights.
We protect your rights with a two-step method: (1)
we copyright the library, and (2) we offer you this
license, which gives you legal permission to copy,
distribute and/or modify the library.
To protect each distributor, we want to make it very
clear that there is no warranty for the free library.
Also, if the library is modified by someone else and
passed on, the recipients should know that what they
have is not the original version, so that the original
author's reputation will not be affected by problems
that might be introduced by others.
Finally, software patents pose a constant threat to the
existence of any free program. We wish to make sure
that a company cannot effectively restrict the users of
a free program by obtaining a restrictive license from
a patent holder. Therefore, we insist that any patent
license obtained for a version of the library must be
consistent with the full freedom of use specified in
this license.
Most GNU software, including some libraries, is
covered by the ordinary GNU General Public
72-1303-00-A-Draft-1.doc 18
License. This license, the GNU Lesser General
Public License, applies to certain designated libraries,
and is quite different from the ordinary General
Public License. We use this license for certain
libraries in order to permit linking those libraries into
non-free programs.
When a program is linked with a library, whether
statically or using a shared library, the combination of
the two is legally speaking a combined work, a
derivative of the original library. The ordinary
General Public License therefore permits such
linking only if the entire combination fits its criteria
of freedom. The Lesser General Public License
permits more lax criteria for linking other code with
the library.
We call this license the "Lesser" General Public
License because it does Less to protect the user's
freedom than the ordinary General Public License. It
also provides other free software developers Less of
an advantage over competing non-free programs.
These disadvantages are the reason we use the
ordinary General Public License for many libraries.
However, the Lesser license provides advantages in
certain special circumstances.
For example, on rare occasions, there may be a
special need to encourage the widest possible use of a
certain library, so that it becomes a de-facto standard.
To achieve this, non-free programs must be allowed
to use the library. A more frequent case is that a free
library does the same job as widely used non-free
libraries. In this case, there is little to gain by limiting
the free library to free software only, so we use the
Lesser General Public License.
In other cases, permission to use a particular library
in non-free programs enables a greater number of
people to use a large body of free software. For
example, permission to use the GNU C Library in
non-free programs enables many more people to use
the whole GNU operating system, as well as its
variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less
protective of the users' freedom, it does ensure that
the user of a program that is linked with the Library
has the freedom and the wherewithal to run that
program using a modified version of the Library.
The precise terms and conditions for copying,
distribution and modification follow. Pay close
attention to the difference between a "work based on
the library" and a "work that uses the library". The
former contains code derived from the library,
whereas the latter must be combined with the library
in order to run.
GNU Lesser General Public License
(LGPL)
Terms And Conditions For Copying,
Distribution And Modification
0. This License Agreement applies to any software
library or other program which contains a notice
placed by the copyright holder or other authorized
party saying it may be distributed under the terms of
72-1303-00-A-Draft-1.doc 19
this Lesser General Public License (also called "this
License"). Each licensee is addressed as "you".
A "library" means a collection of software functions
and/or data prepared so as to be conveniently linked
with application programs (which use some of those
functions and data) to form executables.
The "Library", below, refers to any such software
library or work which has been distributed under
these terms. A "work based on the Library" means
either the Library or any derivative work under
copyright law: that is to say, a work containing the
Library or a portion of it, either verbatim or with
modifications and/or translated straightforwardly
into another language. (Hereinafter, translation is
included without limitation in the term
"modification".)
"Source code" for a work means the preferred form
of the work for making modifications to it. For a
library, complete source code means all the source
code for all modules it contains, plus any associated
interface definition files, plus the scripts used to
control compilation and installation of the library.
Activities other than copying, distribution and
modification are not covered by this License; they are
outside its scope. The act of running a program using
the Library is not restricted, and output from such a
program is covered only if its contents constitute a
work based on the Library (independent of the use of
the Library in a tool for writing it). Whether that is
true depends on what the Library does and what the
program that uses the Library does.
1. You may copy and distribute verbatim copies of
the Library's complete source code as you receive it,
in any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to
the absence of any warranty; and distribute a copy of
this License along with the Library.
You may charge a fee for the physical act of
transferring a copy, and you may at your option offer
warranty protection in exchange for a fee.
2. You may modify your copy or copies of the
Library or any portion of it, thus forming a work
based on the Library, and copy and distribute such
modifications or work under the terms of Section 1
above, provided that you also meet all of these
conditions:
a) The modified work must itself be a software
library.
b) You must cause the files modified to carry
prominent notices stating that you changed the files
and the date of any change.
c) You must cause the whole of the work to be
licensed at no charge to all third parties under the
terms of this License.
d) If a facility in the modified Library refers to a
function or a table of data to be supplied by an
application program that uses the facility, other than
as an argument passed when the facility is invoked,
72-1303-00-A-Draft-1.doc 20
then you must make a good faith effort to ensure
that, in the event an application does not supply such
function or table, the facility still operates, and
performs whatever part of its purpose remains
meaningful.
(For example, a function in a library to compute
square roots has a purpose that is entirely well-
defined independent of the application. Therefore,
Subsection 2d requires that any application-supplied
function or table used by this function must be
optional: if the application does not supply it, the
square root function must still compute square
roots.)
These requirements apply to the modified work as a
whole. If identifiable sections of that work are not
derived from the Library, and can be reasonably
considered independent and separate works in
themselves, then this License, and its terms, do not
apply to those sections when you distribute them as
separate works. But when you distribute the same
sections as part of a whole which is a work based on
the Library, the distribution of the whole must be on
the terms of this License, whose permissions for
other licensees extend to the entire whole, and thus
to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim
rights or contest your rights to work written entirely
by you; rather, the intent is to exercise the right to
control the distribution of derivative or collective
works based on the Library.
In addition, mere aggregation of another work not
based on the Library with the Library (or with a work
based on the Library) on a volume of a storage or
distribution medium does not bring the other work
under the scope of this License.
3. You may opt to apply the terms of the ordinary
GNU General Public License instead of this License
to a given copy of the Library. To do this, you must
alter all the notices that refer to this License, so that
they refer to the ordinary GNU General Public
License, version 2, instead of to this License. (If a
newer version than version 2 of the ordinary GNU
General Public License has appeared, then you can
specify that version instead if you wish.) Do not
make any other change in these notices.
Once this change is made in a given copy, it is
irreversible for that copy, so the ordinary GNU
General Public License applies to all subsequent
copies and derivative works made from that copy.
This option is useful when you wish to copy part of
the code of the Library into a program that is not a
library.
4. You may copy and distribute the Library (or a
portion or derivative of it, under Section 2) in object
code or executable form under the terms of Sections
1 and 2 above provided that you accompany it with
the complete corresponding machine-readable source
code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily
used for software interchange.
72-1303-00-A-Draft-1.doc 21
If distribution of object code is made by offering
access to copy from a designated place, then offering
equivalent access to copy the source code from the
same place satisfies the requirement to distribute the
source code, even though third parties are not
compelled to copy the source along with the object
code.
5. A program that contains no derivative of any
portion of the Library, but is designed to work with
the Library by being compiled or linked with it, is
called a "work that uses the Library". Such a work, in
isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a "work that uses the Library" with
the Library creates an executable that is a derivative
of the Library (because it contains portions of the
Library), rather than a "work that uses the library".
The executable is therefore covered by this License.
Section 6 states terms for distribution of such
executables.
When a "work that uses the Library" uses material
from a header file that is part of the Library, the
object code for the work may be a derivative work of
the Library even though the source code is not.
Whether this is true is especially significant if the
work can be linked without the Library, or if the
work is itself a library. The threshold for this to be
true is not precisely defined by law.
If such an object file uses only numerical parameters,
data structure layouts and accessors, and small
macros and small inline functions (ten lines or less in
length), then the use of the object file is unrestricted,
regardless of whether it is legally a derivative work.
(Executables containing this object code plus
portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library,
you may distribute the object code for the work
under the terms of Section 6. Any executables
containing that work also fall under Section 6,
whether or not they are linked directly with the
Library itself.
6. As an exception to the Sections above, you may
also combine or link a "work that uses the Library"
with the Library to produce a work containing
portions of the Library, and distribute that work
under terms of your choice, provided that the terms
permit modification of the work for the customer's
own use and reverse engineering for debugging such
modifications.
You must give prominent notice with each copy of
the work that the Library is used in it and that the
Library and its use are covered by this License. You
must supply a copy of this License. If the work
during execution displays copyright notices, you must
include the copyright notice for the Library among
them, as well as a reference directing the user to the
copy of this License. Also, you must do one of these
things:
a) Accompany the work with the complete
corresponding machine-readable source code for the
72-1303-00-A-Draft-1.doc 22
Library including whatever changes were used in the
work (which must be distributed under Sections 1
and 2 above); and, if the work is an executable linked
with the Library, with the complete machine-readable
"work that uses the Library", as object code and/or
source code, so that the user can modify the Library
and then relink to produce a modified executable
containing the modified Library. (It is understood
that the user who changes the contents of definitions
files in the Library will not necessarily be able to
recompile the application to use the modified
definitions.)
b) Use a suitable shared library mechanism for
linking with the Library. A suitable mechanism is one
that (1) uses at run time a copy of the library already
present on the user's computer system, rather than
copying library functions into the executable, and (2)
will operate properly with a modified version of the
library, if the user installs one, as long as the modified
version is interface-compatible with the version that
the work was made with.
c) Accompany the work with a written offer, valid for
at least three years, to give the same user the
materials specified in Subsection 6a, above, for a
charge no more than the cost of performing this
distribution.
d) If distribution of the work is made by offering
access to copy from a designated place, offer
equivalent access to copy the above specified
materials from the same place.
e) Verify that the user has already received a copy of
these materials or that you have already sent this user
a copy.
For an executable, the required form of the "work
that uses the Library" must include any data and
utility programs needed for reproducing the
executable from it. However, as a special exception,
the materials to be distributed need not include
anything that is normally distributed (in either source
or binary form) with the major components
(compiler, kernel, and so on) of the operating system
on which the executable runs, unless that component
itself accompanies the executable.
It may happen that this requirement contradicts the
license restrictions of other proprietary libraries that
do not normally accompany the operating system.
Such a contradiction means you cannot use both
them and the Library together in an executable that
you distribute.
7. You may place library facilities that are a work
based on the Library side-by-side in a single library
together with other library facilities not covered by
this License, and distribute such a combined library,
provided that the separate distribution of the work
based on the Library and of the other library facilities
is otherwise permitted, and provided that you do
these two things:
a) Accompany the combined library with a copy of
the same work based on the Library, uncombined
72-1303-00-A-Draft-1.doc 23
with any other library facilities. This must be
distributed under the terms of the Sections above.
b) Give prominent notice with the combined library
of the fact that part of it is a work based on the
Library, and explaining where to find the
accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with,
or distribute the Library except as expressly provided
under this License. Any attempt otherwise to copy,
modify, sublicense, link with, or distribute the Library
is void, and will automatically terminate your rights
under this License. However, parties who have
received copies, or rights, from you under this
License will not have their licenses terminated so
long as such parties remain in full compliance.
9. You are not required to accept this License, since
you have not signed it. However, nothing else grants
you permission to modify or distribute the Library or
its derivative works. These actions are prohibited by
law if you do not accept this License. Therefore, by
modifying or distributing the Library (or any work
based on the Library), you indicate your acceptance
of this License to do so, and all its terms and
conditions for copying, distributing or modifying the
Library or works based on it.
10. Each time you redistribute the Library (or any
work based on the Library), the recipient
automatically receives a license from the original
licensor to copy, distribute, link with or modify the
Library subject to these terms and conditions. You
may not impose any further restrictions on the
recipients' exercise of the rights granted herein. You
are not responsible for enforcing compliance by third
parties with this License.
11. If, as a consequence of a court judgment or
allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement
or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a
consequence you may not distribute the Library at all.
For example, if a patent license would not permit
royalty-free redistribution of the Library by all those
who receive copies directly or indirectly through you,
then the only way you could satisfy both it and this
License would be to refrain entirely from distribution
of the Library.
If any portion of this section is held invalid or
unenforceable under any particular circumstance, the
balance of the section is intended to apply, and the
section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to
infringe any patents or other property right claims or
to contest validity of any such claims; this section has
the sole purpose of protecting the integrity of the
free software distribution system which is
implemented by public license practices. Many
72-1303-00-A-Draft-1.doc 24
people have made generous contributions to the wide
range of software distributed through that system in
reliance on consistent application of that system; it is
up to the author/donor to decide if he or she is
willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear
what is believed to be a consequence of the rest of
this License.
12. If the distribution and/or use of the Library is
restricted in certain countries either by patents or by
copyrighted interfaces, the original copyright holder
who places the Library under this License may add an
explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only
in or among countries not thus excluded. In such
case, this License incorporates the limitation as if
written in the body of this License.
13. The Free Software Foundation may publish
revised and/or new versions of the Lesser General
Public License from time to time. Such new versions
will be similar in spirit to the present version, but
may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version
number. If the Library specifies a version number of
this License which applies to it and "any later
version", you have the option of following the terms
and conditions either of that version or of any later
version published by the Free Software Foundation.
If the Library does not specify a license version
number, you may choose any version ever published
by the Free Software Foundation.
14. If you wish to incorporate parts of the Library
into other free programs whose distribution
conditions are incompatible with these, write to the
author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write
to the Free Software Foundation; we sometimes
make exceptions for this. Our decision will be guided
by the two goals of preserving the free status of all
derivatives of our free software and of promoting the
sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED
FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE
EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE
LIBRARY "AS IS" WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE ENTIRE RISK
AS TO THE QUALITY AND PERFORMANCE
OF THE LIBRARY IS WITH YOU. SHOULD
THE LIBRARY PROVE DEFECTIVE, YOU
72-1303-00-A-Draft-1.doc 25
ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY
APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER,
OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE LIBRARY AS
PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY
GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR
A FAILURE OF THE LIBRARY TO OPERATE
WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS
BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New
Libraries
If you develop a new library, and you want it to be of
the greatest possible use to the public, we
recommend making it free software that everyone
can redistribute and change. You can do so by
permitting redistribution under these terms (or,
alternatively, under the terms of the ordinary General
Public License).
To apply these terms, attach the following notices to
the library. It is safest to attach them to the start of
each source file to most effectively convey the
exclusion of warranty; and each file should have at
least the "copyright" line and a pointer to where the
full notice is found.
one line to give the library's name and an idea of
what it does. Copyright (C) year name of author
This library is free software; you can redistribute it
and/or modify it under the terms of the GNU Lesser
General Public License as published by the Free
Software Foundation; either version 2.1 of the
License, or (at your option) any later version.
This library is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY
or FITNESS FOR A PARTICULAR PURPOSE.
See the GNU Lesser General Public License for
more details.
You should have received a copy of the GNU Lesser
General Public License along with this library; if not,
write to the Free Software Foundation, Inc., 59
Temple Place, Suite 330, Boston, MA 02111-1307
USA
Also add information on how to contact you by
electronic and paper mail.
You should also get your employer (if you work as a
programmer) or your school, if any, to sign a
72-1303-00-A-Draft-1.doc 26
"copyright disclaimer" for the library, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright
interest in the library `Frob' (a library for tweaking
knobs) written by James Random Hacker.
signature of Ty Coon, 1 April 1990 Ty Coon,
President of Vice
72-1303-00-A-Draft-1.doc 27
NetLink 7000 Series Wireless
Telephones
FCC Information
The NetLink 7000 Series Wireless Telephones are
certified as model numbers 702X and 703X.
FCC registration number
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Industry Canada (IC) Notice
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions: 1) this device may not cause interference,
and 2) this device must accept any interference,
including interference that may cause undesired
operation of the
device.
Certification Number IC:
72-1303-00-A-Draft-1.doc 28
International Certifications
Canada
CU xxx
European
Union
Norway
Switzerland Switzerland
United
States
UL 60950
United
States Part 15, Part 68
72-1303-00-A-Draft-1.doc 29
Specific Absorption Rate (SAR) Information
Your wireless handheld portable telephone is a low
power radio transmitter and receiver. When it is ON,
it receives and also sends out radio frequency (RF)
signals. In August 1996, the Federal Communications
Commissions (FCC) adopted RF exposure guidelines
with safety levels for hand-held wireless phones.
Those guidelines are consistent with the safety
standards previously set by both U.S. and
international standards bodies:
• ANSI C95.1 (1992) American National
Standards Institute
• NCRP - Report 86 (1986) National Council on
Radiation Protection and Measurements
• ICNIRP (1996) International Commission on
Non-Ionizing Radiation Protection;
• DHWC - Safety Code 6 Department of Health
and Welfare Canada
Those standards were developed by independent
scientific organizations through periodic and
thorough evaluation of scientific studies. The
standards include a substantial safety margin designed
to assure the safety of all persons, regardless of age
and health. The exposure standard for wireless
mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg.1 Tests for
SAR are conducted using standard operating
positions specified by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels
so as to use only the power required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
Before a phone model is available for sale to the
public, it must be tested and certified to the FCC that
it does not exceed the limit established by the
government-adopted requirement for safe exposure.
The tests are performed in positions and locations
(e.g., at the ear and worn on the body) as required by
the FCC for each model. While there may be
differences between the SAR levels of various
phones and at various positions, they all meet the
government requirement for safe exposure. The FCC
has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated
as in compliance with the FCC RF emission
guidelines. SAR information on this model phone is
on file with the FCC and can be found under the
Display Grant section of
1 In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kg (W/kg) averaged
over one gram of tissue. The standard incorporates a
substantial margin of safety to give additional protection for
the public and to account for any variations in
measurements.
72-1303-00-A-Draft-1.doc 30
http://www.fcc.gov/oet/fccid after searching on
FCC ID IYG702X or FCC ID IYG703X. Additional
information on Specific Absorption Rates (SAR) can
be found on the Cellular Telecommunications
Industry Association (CTIA) web-site at
Hhttp://www.wow-com.comH.
The only authorized headsets that may be utilized
with the 702X and the 703X are those obtainable
from SpectraLink or it’s reseller partners.
The measured SAR of the 702X Wireless Telephone
mW/kG Head/body mode
0.193 Body 802.11b
0.076 Body 802.11g
0.393 Body 802.11a
0.220 Head 802.11b
0.093 Head 802.11g
0.399 Head 802.11a
The measured SAR of the 703X Wireless Telephone
mW/kG Head/body mode
0.164 Body 802.11b
0.078 Body 802.11g
0.385 Body 802.11a
0.207 Head 802.11b
0.120 Head 802.11g
0.372 Head 802.11a
Handset Operation Normal Position: Hold
the handset as you would any other
telephone, with the earpiece to your ear
and speak into the microphone. The
internal antenna is then positioned
properly.
Handset Operation Body-Worn Position:
To maintain compliance with RF energy
exposure guidelines, if you wear a handset on
your body when transmitting, always use the
handset with a SpectraLink- supplied accessory
as described in the user guide for this handset.
SpectraLink supplies belt clips, holsters and
lanyards for body worn operation. Use of
accessories not supplied by SpectraLink may
cause the handset emissions to exceed RF
energy exposure guidelines.
72-1303-00-A-Draft-1.doc 31
Chargers
?

Navigation menu
