Spectrum 450241CBR Z-Wave Plus Module User Manual 916 ZWave indd

Spectrum Brands, Inc. Z-Wave Plus Module 916 ZWave indd

Users Manual 916

Required tools
Ruler4 AA Batteries
Hammer Wood block
Phillips head screwdriver
Additional Tools (depending on application)
A
N or P
(2x)
NP
S
Q
A
A
B
B
B
AB
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep.
Note: Additional door preparation may be
required for doors with 11/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep.
or
backset
Measure to conirm that the hole in
the door is either 21/8" (54 mm) or
11/2" (38 mm).
Measure to conirm that the backset is
either 23/8" or 23/4" (60 or 70 mm).
23/8" or 23/4"
60 or 70 mm 13/8" –2"
35 – 51 mm
Measure to conirm that the hole in
the door edge is 1" (25 mm).
Measure to conirm that the door is
between 13/8" and 2" (35 mm and
51 mm) thick.
A
A B
C
D
B C D
Is the door edge chiseled?
Is the D-shaped hole centered in the door hole?
Which latch are you installing?Hold the latch in front of the door hole, with the latch
face lush against the door edge.
21/8"
54 mm
11/2"
38 mm
1"
25 mm
YES
YES
NO
NO
Use latch “A. If the
latch bolt is not already
extended, extend the
latch bolt as shown.
No adjustment is required.
Proceed to next step.
D-shaped hole D-shaped hole
Rotate latch face as
shown to extend latch.
wood
block
actual
size
Use latch “B” (not
included). If the latch
bolt is not already
extended, extend the
latch bolt as shown.
Latch “A” Latch “B
S (2x) C
Q (2x)
Longer screws
install closest to
the door jamb.
door frame
EInstall strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
or
chiseled not
chiseled
or
1Prepare the door and check dimensions
2Install the latch and strike
or
Latch
“B” is not included. If needed,
please contact Kwikset to order
a drive-in latch for your lock.
Strike
C
Keys
E
A
B
Exterior Touchscreen
Adapter
Ring
D
Mounting
Plate
Parts in the box
Fasteners
03809 46780
N Q
S
P
48654 64109
T
V
49191
U
Contemporary
Interior Assembly
SmartKey
Tool
H
Traditional
M
M
Traditional
FF
Contemporary
K L
G

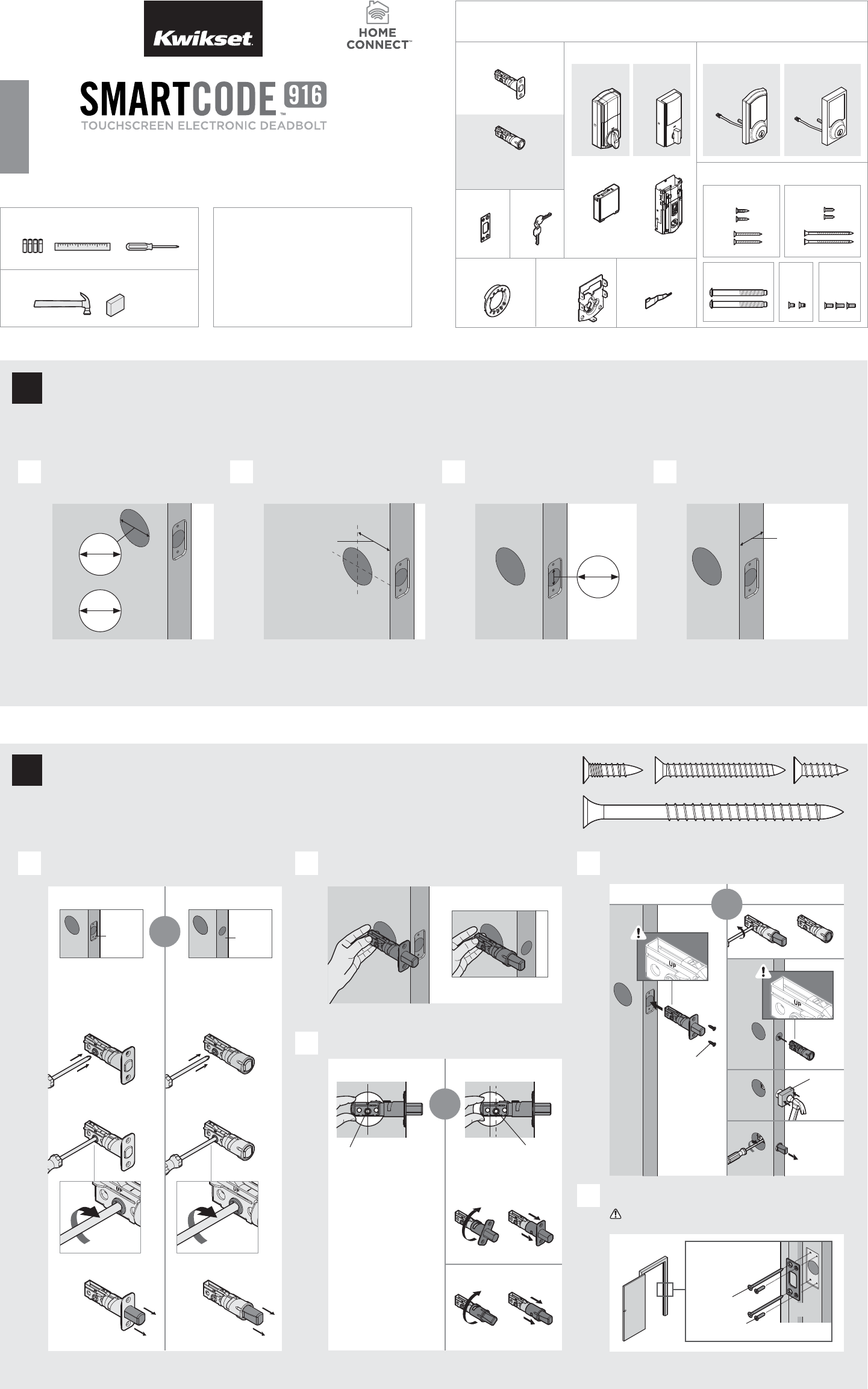

1 / 4
ENGLISH
66074001
Rev 01
ZWave® Plus
Installation and User Guide
Kwikset
Technical Support
1-866-863-6584
www.kwikset.com
21/8"
54 mm
11/2"
38 mm

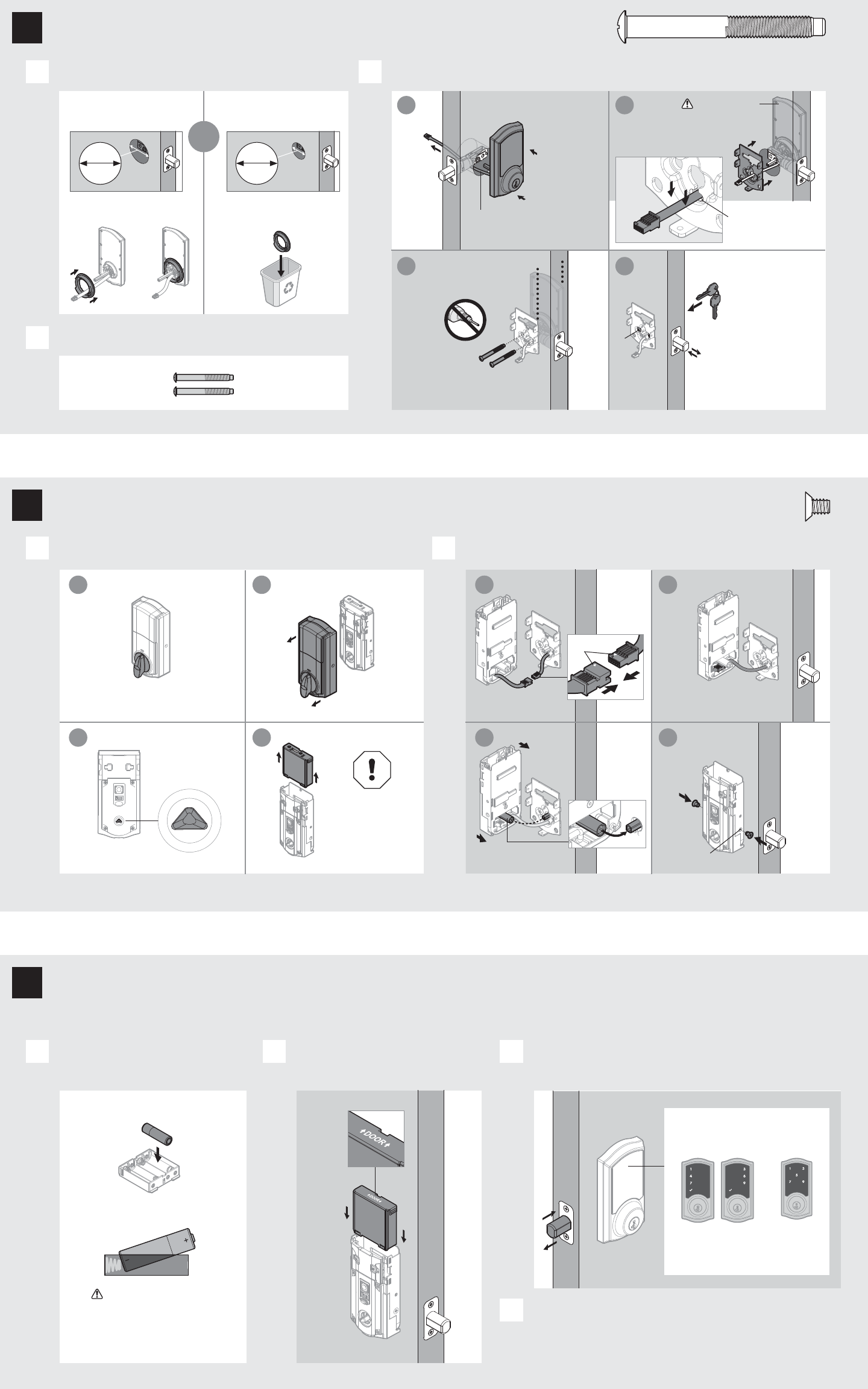

2 / 4
What is the diameter of the hole in the door?
Locate screws for step 3C and keep them within reach.
Install exterior touchscreen and mounting plate.
A
B
C
Diameter is 21/8"
(54 mm)
Diameter is 11/2"
(38 mm)
or
“D” is required for installation.
Install “D” on “F.
“D” is not needed for
installation. Discard “D”. Cable goes
underneath latch.
Support exterior
assembly during
mounting plate
installation.
Route cable through
center hole, then push
cable into bottom hole.
Insert key and
test latch. If latch
does not extend or
retract smoothly,
adjust screws (T).
Remove key when
inished and make
sure the latch bolt
is fully extended.
Keep parallel to
edge of door.
Tighten
screws evenly.
a
c
b
d
Remove battery cover and battery pack from interior assembly. Install interior assembly onto mounting plate.
A B
a
c
b
d
Make sure turnpiece is in
the vertical position.
Make sure
turnpiece shaft is
rotated as shown.
K
K
This step will teach your lock the orientation of your door and is crucial to lock operation.
Install 4 AA batteries in battery pack. Make sure the door is open, and
insert the battery pack.
After a few seconds, the latch bolt will retract and extend on
its own to learn the orientation of the door. This is called the
door handing process, and it is crucial to lock operation.
If the touchscreen indicates a failure, attempt this procedure again.
If the door handing process is still unsuccessful after a second
attempt, perform the “Manual Door Handing” procedure on page 4.
A B C
D
Ensure correct polarity.
For best results, use
new, non-rechargeable
Alkaline batteries only.
Once the door handing process
is complete, the touchscreen
will indicate success or failure:
Success:
lashing checkmark
symbol and single
column of digits
Failure:
lashing
“X” pattern
Ensure tight cable
connection.
Lay excess cable lat inside the
bottom of the interior housing.
align
L
a
c
b
d
U
(2x)
U
actual
size
bottom
hole
M
L
L L
K
4Install the interior assembly
5Install the batteries and perform the door handing process
Do not install
batteries until step 5.
Alarm will sound if
battery is installed
before cable is
connected.
D
D
F
F
G
TT (2x)
T
E
actual
size
T
3Install the exterior touchscreen
1x 3x
3 / 4

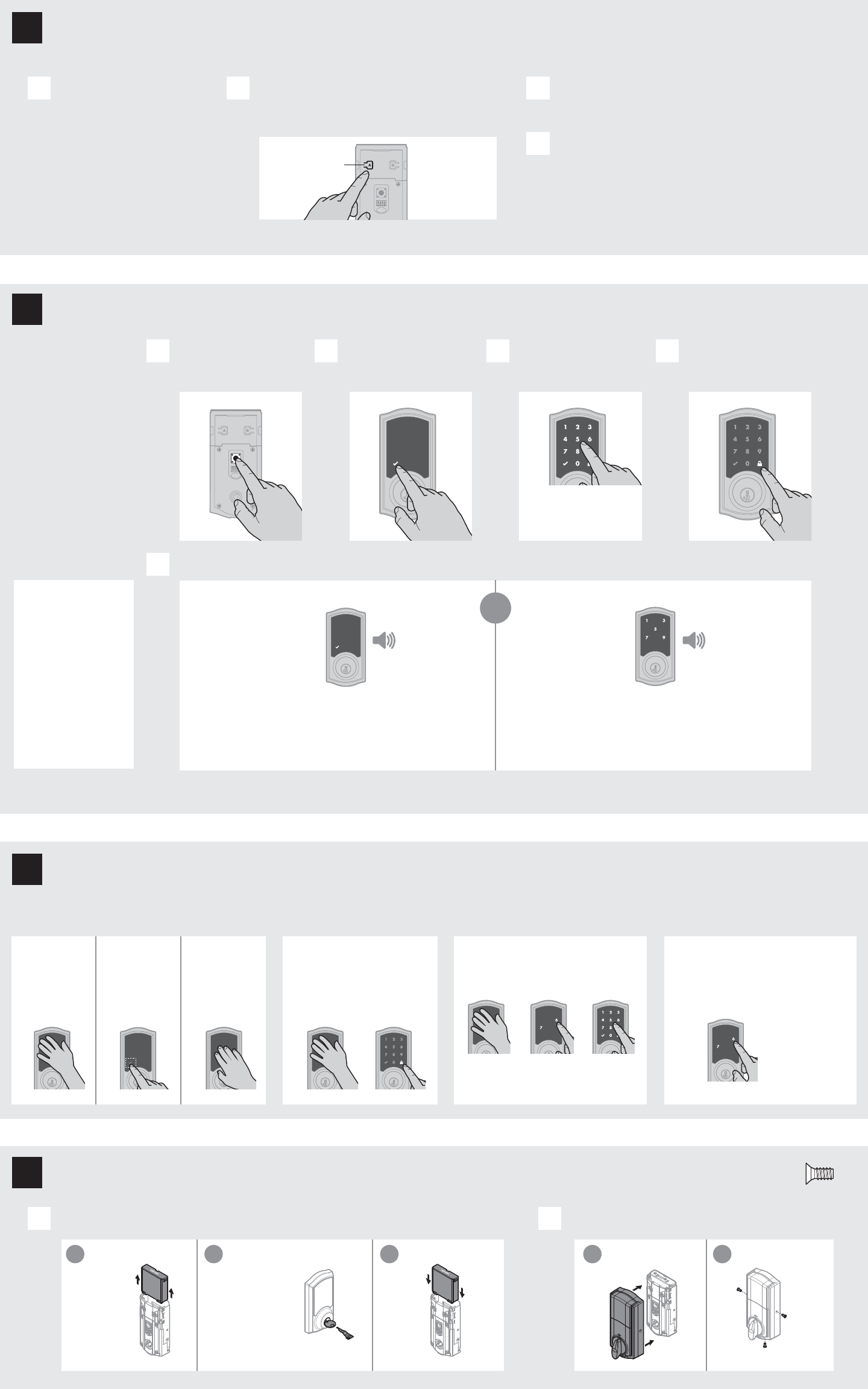

Conirm that the code(s) added in previous step can unlock the door.
Checkmark symbol with one beep
Option 1
Touch screen with
palm or back of
hand until digits
illuminate.
Option 2
Touch lower left
area of screen
(where checkmark
is located) until
digits illuminate.
Option 3
Touch screen
with three or
more ingers until
digits illuminate.
“X” pattern with three beeps
or
Make sure the door is
open. Press the Program
button once.
Activating the Screen Locking the Door Unlocking the Door SecureScreen™
Press checkmark
symbol once.
Enter user code. A total
of 30 user codes may
be programmed.
Press lock symbol once.
A B C D
What digits and sounds did the lock produce?
E
Programming Timeout
During programming, if the
screen is not pressed for 20
seconds, the system will time
out (indicated by three beeps
and the “X” pattern lashing
three times), and you will need to
restart the procedure.
It is recommended that you
add and delete all user codes
through your smart home
control system. If your system
does not allow this, codes may
be added directly to the lock as
shown here.
Programming was successful. Programming was unsuccessful.
Make sure the user code is not a duplicate and that it is between
4 and 8 digits during your next attempt.
Make sure the lock has room for an additional code. If all user code
positions are illed, delete a code to make room for this one.
1. Activate the screen.
2. Press Lock symbol.
Note: If no user codes are
programmed, the door cannot
be locked via touchscreen.
1. Activate the screen.
2. If SecureScreen™ is enabled, touch
the random digits that appear.
3. Enter user code.
If you press the wrong digit while entering
a user code, you can press the Lock symbol
once to clear the digits entered previously and
immediately restart the code entry process.
If desired, this feature
can be disabled by
turning switch #4 to
the o position. See
“Switches” on page 4.
SecureScreen is an added-security feature
that displays random digits before you enter
a user code to unlock the door. This feature
ensures that there are ingerprints on all
digits so that codes cannot be identiied by
examining the touchscreen for inger prints.
Each user code must be a
unique code between 4 and
8 digits, depending on your
smart home system.
*Beeping sound will only be heard if switch #3 (on the lock interior) is in the on positon. See “Switches and Status LED Colors” on page 4.
Mastercode
For enhanced security,
a mastercode may
be used when adding
and deleting user
codes. For more
information about the
mastercode, download
the Programming and
Troubleshooting Guide
on the SmartCode 916
Touchscreen page at
www.kwikset.com.
Re-key the lock (if needed). Install the battery cover.
A B
IMPORTANT:
Remove battery
pack before
re-keying.
actual
size
M
V (3x)
V
K
H
K
a a
b b
c
Re-key the lock
to work with your
existing key. See
the supplied
SmartKey Re-key
instructions for
more information.
Reinstall
battery
pack.
Re-key the lock (if needed) and install the battery cover
6
7
8
9
Pair the lock with your smart home system
Initiate the pairing process at
your smart home controller.
Refer to your smart home
system instructions for
more information.
If your controller is S2-compatible, please refer to the S2 Pairing Guide on the SmartCode 916 page at www.kwikset.com.
When prompted by your smart home system
to initiate pairing at the lock, press button “A
on the lock interior one time. The red LED will
illuminate when pairing mode has been entered.
If the pairing process is successful, re-name
the lock in your system (if applicable).
If pairing is unsuccessful, follow your system's
instructions to remove the lock from the controller
and any other network, then press button “A” on the
lock one time.
Perform steps 6A6C again.
If pairing is still unsuccessful, consult the
Programming and Troubleshooting Guide on the
SmartCode 916 page at www.kwikset.com.
A B C
D
button “A
Please allow time for the controller to pair with the lock.
Add user codes (30 max)
Test the lock (review normal operation)
Display Alert Reason Solution
“X” pattern lashes one time
with one beep*. One incorrect code entered. Re-enter code.
“X” pattern lashes three
times with three beeps*.
No user code programmed. Program at least one user code.
Programming timeout after 20
seconds. Attempt programming procedure again.
Unsuccessful programming.
“X” pattern lashes 15 times
with 15 beeps*
Three incorrect codes entered
within one minute.
Re-enter code after 60 second
touchscreen lockout.
Checkmark and lock symbols
lash simultaneously ive
times with long continuous
beep*.
Low battery. Replace batteries.
Checkmark and lock symbols
alternate lashing ive times
with long continuous beep*.
Door jammed while attempting
to lock.
Manually re-lock door. If needed,
reposition strike.
N/A Lock beeps continuously. Interior assembly is
disconnected from exterior.
Remove battery pack, reconnect the interior
to the exterior, then replace battery pack.
Status
LED
Success
If the touchscreen indicates a failure, see the
online Programming and Troubleshooting Guide
or call Technical Support.
Failure
Note: All codes may be deleted at once if the mastercode is enabled. For more information about the
mastercode, consult the online Programming and Troubleshooting Guide.
© 2016 Spectrum Brands, Inc.

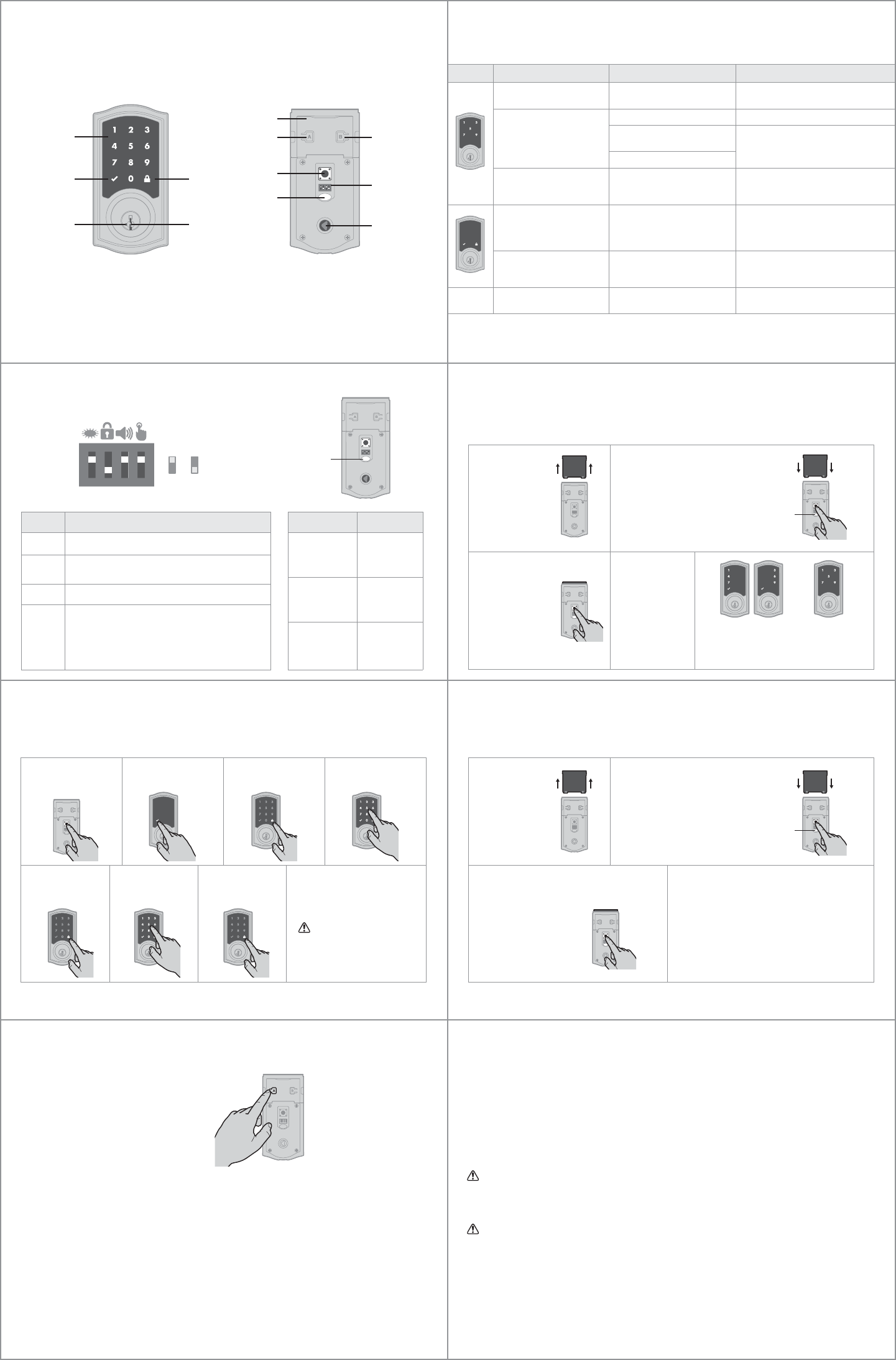

4 / 4
SmartCode at a Glance System Alerts
Switches and Status LED Colors
Deleting a single user code Factory Reset
*Beeping sound will only be heard if switch #3 is on.
If the screen is not pressed for 20 seconds, the system will time out,
and you will need to restart the procedure.
A factory reset will delete all codes associated with the lock, and it will
remove it from your smart home system.
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your systems settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builders hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualiied locksmith or other security professional.
Switch Function
1 Door lock status LED blinks every 6 seconds
2Lock automatically re-locks door 30 seconds after
unlocking. Disabled if no codes are programmed.
3 Audio
4
SecureScreen feature displays random digits to be
pressed before entering user code. This added-
security feature ensures that there are ingerprints
on all digits so that codes cannot be identiied by
examining the touchscreen for ingerprints.
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
Reference Guide
Important Safeguards
Exterior
Touchscreen
Back
panel
ButtonA”
Program
button
Status
LED
Checkmark
symbol
Lock
symbol Switches
Button “B”
Turnpiece
shaft
Note: When the cover is removed,
the turnpiece shaft can be used to
manually lock and unlock the door.
If needed, the door handing process can be initiated manually.
This is useful if the lock is being moved to a di erent door.
Keyway
SmartKey
tool hole
Interior (cover removed)
1 2 3 4
On
Switches
Status
LED
O
Manual Door Handing
3 Press the Program
button once more.
4 The latch bolt
will extend and
retract to learn
the orientation
of the door.
1 Keep door open.
Press Program
button once.
5 Press Lock
symbol once.
2 Press Checkmark
symbol once.
6 Re-enter user
code.
7 Press Lock
symbol once. If unsuccessful
Make sure to enter the same
valid code in steps 4 and 6.
Test code
While the door is open, test the
user code to make sure it no
longer unlocks the door.
3 Press Lock
symbol once.
4 Enter user code
to be deleted.
1 Remove
battery pack.
2 Press and HOLD the Program
button while reinserting the
battery pack.
Release button once battery
pack is installed. The status LED
will lash red and green.
Status
LED
1 Remove
battery pack.
3 Press the Program button
once more. The status
LED will lash green and
red several times.
2 Press and HOLD the Program
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED lashes red.
4 After a few seconds, the lock will
initiate the door handing process, and
the latch bolt will extend and retract
to learn the orientation of the door.
ZWave System Notes
This product is a security enabled Z-wave Plus product and must be used with a Security
Enabled ZWave controller to be fully utilized. ZWave is a “Wireless mesh network,” and
results may vary based on building construction and communication path, with 35 feet+
being typical installed distance from smart home controller. It may be necessary to install
additional ZWave beaming capable devices that can serve as repeaters to enhance the
communication path between the lock and controller for a more robust ZWave network.
To assure interoperability, each ZWave product must pass a stringent conformance test to
assure that it meets the ZWave standard for complete compliance with all other devices and
controls. The ZWave identity mark assures consumers, integrators, dealers and manufacturers
that their products will reliably perform with any other ZWave device. And, regardless of the
vendor, always powered nodes may act as a repeater for Kwikset/Weiser/Baldwin products.
ZWave Coniguration and Association Parameters are available
on the SmartCode 916 page at www.kwikset.com.
Removing the lock from the network
Follow your smart home system’s instructions
to remove the lock from the network. When
prompted by the system, press button A” on the
lock interior once.
Network Information

Navigation menu
