Spectrum 450241CBR Z-Wave Plus Module User Manual 910 Z Wave Plus indd

Spectrum Brands, Inc. Z-Wave Plus Module 910 Z Wave Plus indd

Users Manual 910

A
B
W
F
Parts in the box
Latch
“B” is not included. If needed,
please contact Kwikset to order
a drive-in latch for your lock.
Exterior
Assembly
Strike Adapter
ring
C D
E
Keys
Mounting
Plate
SmartKey
Tool
G
H
03809 46780
N Q
S
P
Fasteners
48654 27526 64109
Interior
Assembly
K L M
T
U V
A
N or P
(2x)
NP
S
Q
A
A
B
B
B
AB
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep.
Note: Additional door preparation may be
required for doors with 11/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep.
or
backset
Measure to conirm that the hole in
the door is either 21/8" (54 mm) or
11/2" (38 mm).
Measure to conirm that the backset is
either 23/8" or 23/4" (60 or 70 mm).
23/8" or 23/4"
60 or 70 mm 13/8" – 13/4"*
35 – 44 mm*
Measure to conirm that the hole in
the door edge is 1" (25 mm).
Measure to conirm that the door is
between 13/8" and 13/4"* (35 mm
and 44 mm*) thick.
A
A B
C
D
B C D
Is the door edge chiseled?
Is the D-shaped hole centered in the door hole?
Which latch are you installing?Hold the latch in front of the door hole, with the latch
face lush against the door edge.
21/8"
54 mm
11/2"
38 mm
1"
25 mm
YES
YES
NO
NO
Use latch “A”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.
wood
block
actual
size
Use latch “B” (not
included). If the latch
bolt is not already
extended, extend the
latch bolt as shown.
Latch “A” Latch “B”
S (2x) C
Q (2x)
Longer screws
install closest to
the door jamb.
door frame
EInstall strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
or
chiseled not
chiseled
or

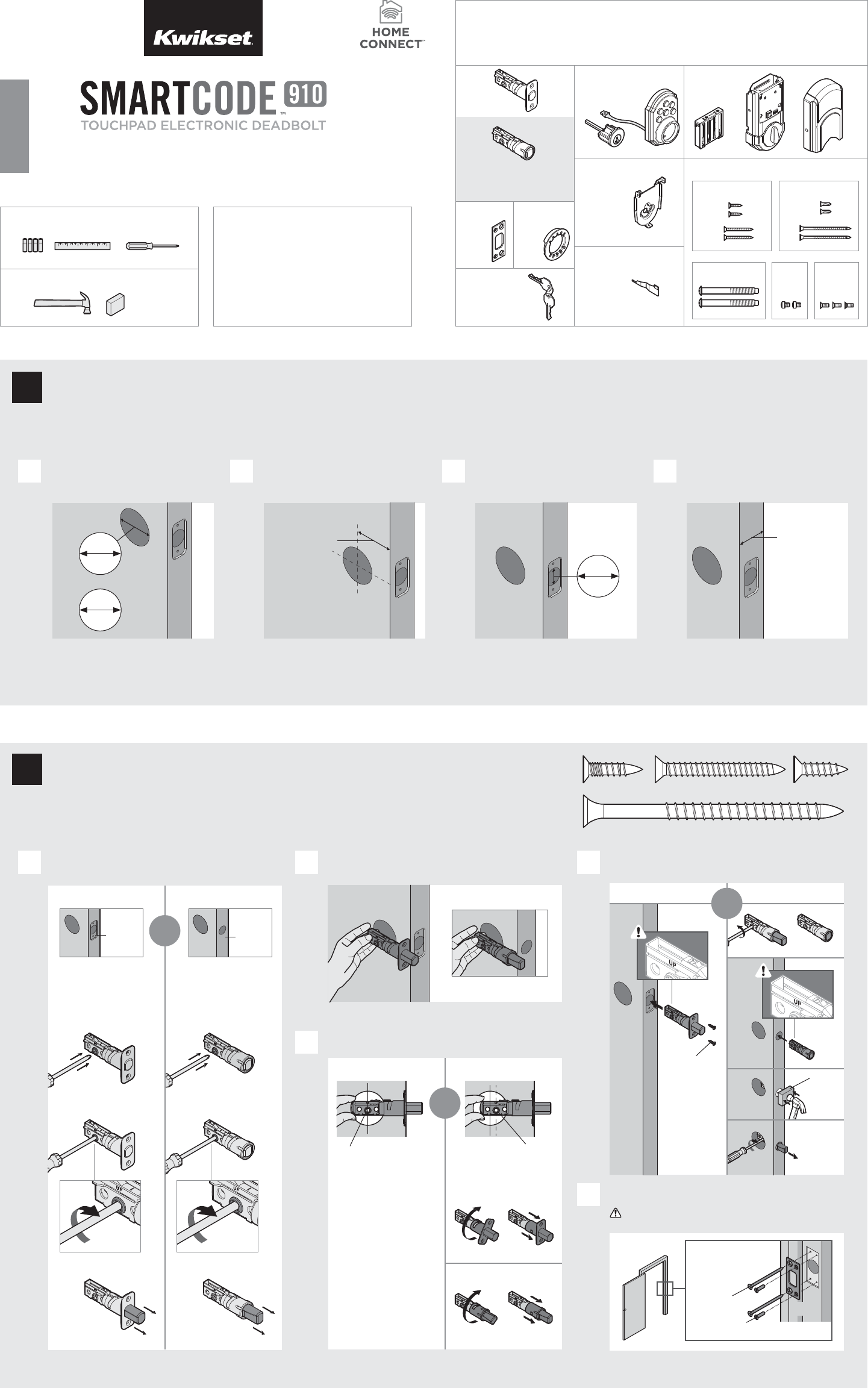

1Prepare the door and check dimensions
2Install the latch and strike
*Service kits for 21/4" (57 mm) thick doors
are available through Kwikset.
No adjustment is required.
Proceed to next step.
D-shaped hole D-shaped hole
Rotate latch face as
shown to extend latch.
or
1 / 4
66071001
Rev 01
ZWave® Plus
Installation and User Guide
ENGLISH
Required tools
Ruler4 AA Batteries
Hammer Wood block
Phillips head screwdriver
Additional Tools (depending on application)
Kwikset
Technical Support
1-866-863-6584
www.kwikset.com
21/8"
54 mm
11/2"
38 mm
YES NO
or
Door handing process
was successful! Proceed
to next step after latch
bolt stops moving.
Remove battery
pack, wait 15 seconds,
then attempt the
process again.
Remove battery cover. Remove battery pack. Make sure the turnpiece is in the vertical position.
A B C
vertical
M
L
K
L
Do not install
batteries
until step 5.
Note: Turnpiece
may not rotate
smoothly until
after step 5.
Connect cable. Ensure tight cable
connection.
Lay cable lat against the interior
housing.
Push turnpiece shaft onto
torque blade.
Secure interior assembly with
supplied screws.
D E F G
turnpiece
shaft
torque
blade
This step will teach your lock the orientation of your door and is crucial to lock operation.
Install 4 AA batteries in battery pack. Press and HOLD the Lock button
while installing battery pack.
Hold button until the latch bolt
starts moving on its own.
Did the latch bolt retract and extend on its
own when the battery pack was installed?
A B C
Ensure correct polarity.
For best results, use
new, non-rechargeable
Alkaline batteries only.
K
L
U (2x)
actual
size
T
actual
size
U
2 / 4
What is the diameter of the hole in the door?
Install exterior keypad and mounting plate.Insert cylinder into keypad.
A
B
C
Diameter is 21/8"
(54 mm)
Diameter is 11/2"
(38 mm)
or
“D” is required for installation.
Install “D” on “F”.
“D” is not needed for
installation. Discard “D”.
Cable goes
underneath latch.
Locate screws
and keep them
within reach.
Support exterior assembly
during mounting plate installation.
Route cable through
center hole, then push
cable into side hole.
Insert key and
test latch. If latch
does not extend or
retract smoothly,
adjust screws (T).
Remove key when
inished and make
sure the latch bolt
is fully extended.
Keep parallel to
edge of door.
Tighten
screws evenly.
a
d
bc
e
D
D
F
F
T
G
T (2x)
W
F
T
E

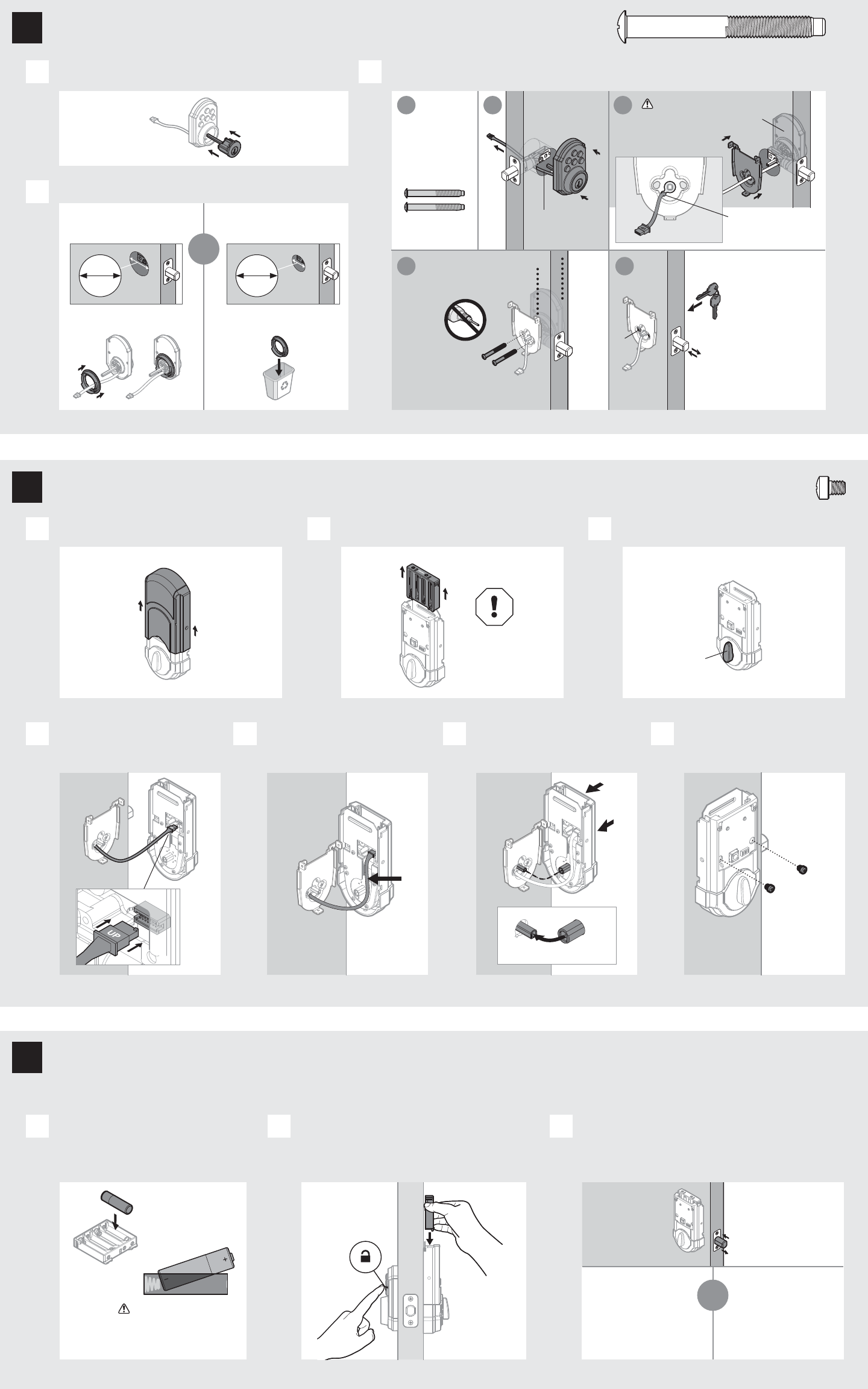

3Install the exterior keypad
4Install the interior assembly
5Install the batteries and perform the door handing process
1x
green
3x
red
Initiate the pairing process at your smart
home controller. Refer to your smart home
system instructions for more information.
When prompted by your smart home system to
initiate pairing at the lock, press button “A” on the
lock interior one time. The red LED will illuminate
when pairing mode has been entered.
Please allow time for the controller to pair with the lock.
If the pairing process is successful, re-name
the lock in your system (if applicable).
If pairing is unsuccessful, follow your system's
instructions to remove the lock from the controller and
any other network, then press button “A” on the lock
one time.
Perform steps 6A6C again.
If pairing is still unsuccessful, consult the Programming
and Troubleshooting Guide on the SmartCode 910
page at www.kwikset.com.
A B C
D
button “A”
Pair the lock with your smart home system
3 / 4
Conirm that the code(s) added in previous step can unlock the door.
Make sure the door is open. Press
the Program button the number of
times that corresponds to the user
code position being programmed.
Locking the Door Unlocking the Door
Enter user code. A total of 30 user
codes may be programmed.
Press Lock button once.
A B C
What lights and sounds does the lock produce?
D
Each user code
must be a unique
code between
4 and 8 digits,
depending on
your smart
home system.
Example: If
programming
the third code,
press the button
three times.
Programming was successful. Programming was unsuccessful.
Make sure the user code is not a duplicate and that it is
between 4 and 8 digits during your next attempt.
Press Lock button once. Enter user code.
It is recommended that you add and
delete all user codes through your smart
home control system. If your system
does not allow this, codes may be added
directly to the lock as shown here.
Programming Timeout
If no button is pressed for ive seconds,
the system will time out and you will need
to restart the procedure.
*Beeping sound will only be heard if switch #3 (on the lock interior) is in the on positon. See “Switches and Status LED Colors” on page 4.
Mastercode
For enhanced security, a mastercode may be used when adding and deleting user codes. For more information about the mastercode, download the Programming
and Troubleshooting Guide on the SmartCode 910 page at www.kwikset.com.
2x
One green lash with one beep* Three red lashes with three beeps* Two beeps*
or or
Programming time out.
Make sure not to pause for more
than 5 seconds during programming.
Tip: You can press the
Lock button before
entering your user
code to light up the
keypad at night.
Re-key the lock (if needed). Install the battery cover.
A B
IMPORTANT:
Remove
battery
pack before
re-keying.
KK
M
H
actual
size
V
V (3x)
a a
b b
c
Re-key the lock
to work with
your existing key.
See the supplied
SmartKey
Re-key
instructions
for more
information.
Reinstall
battery
pack.
If your controller is S2-compatible, please refer to the S2 Pairing Guide on the SmartCode 910 page at www.kwikset.com.
6
7
8
9

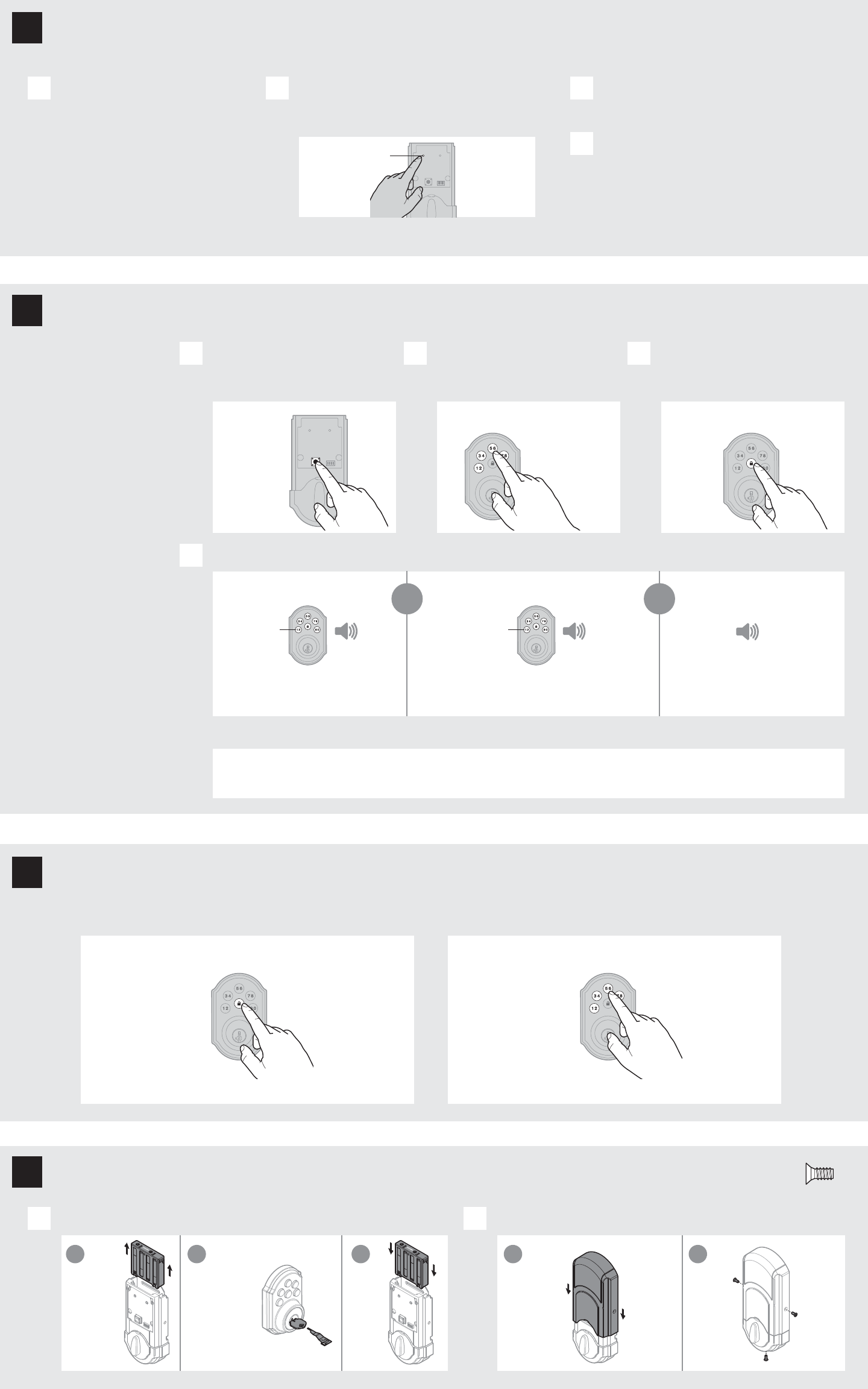

Add user codes (30 max)
Re-key the lock (if needed) and install the battery cover
Test the lock (review normal operation)
Alert Reason Solution
Keypad lashes red 1 time
with 1 beep*
Door jammed while
attempting to lock.
Manually re-lock door. If needed,
reposition strike.
Keypad lashes red 3 times
with 3 beeps*
Unsuccessful programming. Attempt programming procedure
again.
One incorrect code entered. Re-enter code.
No user code programmed. Program at least one user code.
Keypad lashes red 10
times with 10 beeps* Low battery. Replace batteries.
Lock beeps 2 times.
Programming timeout.
Attempt programming procedure
again, making sure not to pause for
more than 5 seconds.
Keypad lashes red 3 times.
Keypad lashes red 6 times
with 6 beeps*.
Keypad lashes red 15 times
with 15 beeps*
Three incorrect codes entered
within one minute.
Re-enter code after 60 second keypad
lockout.
*Beeping sound will only be heard if switch #3 is on.
Removing the lock from the network
Follow your smart home system’s instructions
to remove the lock from the network. When
prompted by the system, press button A” on the
lock interior once.
Network Information
ZWave System Notes
This product is a security enabled Z-wave Plus product and must be used with a Security
Enabled ZWave controller to be fully utilized. ZWave is a “Wireless mesh network,” and
results may vary based on building construction and communication path, with 35 feet+
being typical installed distance from smart home controller. It may be necessary to install
additional ZWave beaming capable devices that can serve as repeaters to enhance the
communication path between the lock and controller for a more robust ZWave network.
To assure interoperability, each ZWave product must pass a stringent conformance test to
assure that it meets the ZWave standard for complete compliance with all other devices and
controls. The ZWave identity mark assures consumers, integrators, dealers and manufacturers
that their products will reliably perform with any other ZWave device. And, regardless of the
vendor, always powered nodes may act as a repeater for Kwikset/Weiser/Baldwin products.
ZWave Coniguration and Association Parameters are available
on the SmartCode 910 page at www.kwikset.com.
© 2016 Spectrum Brands, Inc.
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel
can change the user codes, you must restrict access to the back panel and routinely
check the user codes to ensure they have not been altered without your knowledge.
The use of a mastercode can help protect your system’s settings.
WARNING: This Manufacturer advises that no lock can provide complete security
by itself. This lock may be defeated by forcible or technical means, or evaded by
entry elsewhere on the property. No lock can substitute for caution, awareness of
your environment, and common sense. Builder’s hardware is available in multiple
performance grades to suit the application. In order to enhance security and reduce
risk, you should consult a qualiied locksmith or other security professional.
Important Safeguards
4 / 4

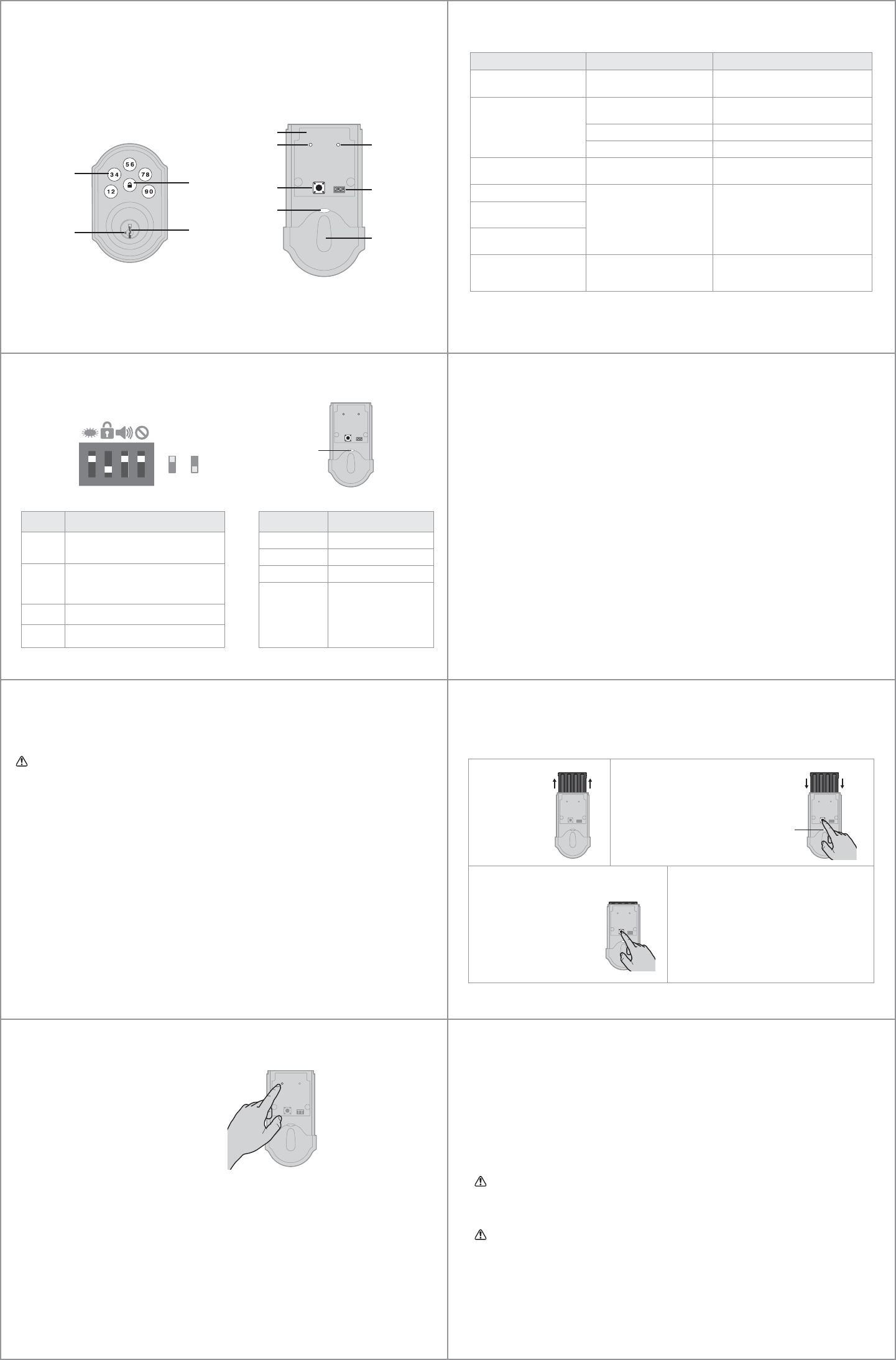

SmartCode at a Glance
Deleting a user code
In order to delete a user code, you must override the code by adding a di erent user code in the same
position. For example, if you want to delete the third code, add a di erent user code in position three.
Test the old user code to make sure it can no longer unlock the door.
If you cannot remember the user code position, you may wish to perform a factory reset to delete all
codes associated with the lock.
Reference Guide
Exterior
Back
panel
Program
button
Status
LED
Switches
Turnpiece
Interior (cover removed)
Switches and Status LED colors Troubleshooting
Switch Function
1Door lock status LED blinks every 6
seconds
2
Lock automatically re-locks door 30
seconds after unlocking. Disabled if no
codes are programmed.
3 Audio
4 Not used.
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
Solid red
Door handing process
did not work properly.
See the online
Programing and
Troubleshooting Guide.
1 2 3 4
On
Switches
Status
LED
O
System Alerts
Factory Reset
A factory reset will delete all codes associated with the lock,
and it will remove it from your smart home system.
Status
LED
1 Remove
battery pack.
2 Press and HOLD the Program
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED lashes red.
Keypad
Lock
button
Keyway
SmartKey
tool hole
Button “A” Button “B”
3 Press the Program button
once more. When the LED
lashes green and you
hear one beep, the lock
has been reset.
4 Perform the door handing process again
to teach the lock the orientation of the
door, pair the lock with your smart home
system, and add user codes to your lock.
A complete Programming and Troubleshooting Guide is
available on the SmartCode 910 page at www.kwikset.com.
