Product Description
Main screen key
SIM card slot
Note: The machine must be in the power-off status
during inserting or removing the SIM card. If plugging
or removing is done in the power-on status, it may
cause a machine stoppage.
·Use a card pin to open the card cover;
·Insert/remove the SIM card according to the illustrated
directions;
PSAM card slot
Used for inserting an encrypted PSAM CPU card.
TF card slot
Used for inserting TF card.
2-D Code Scanner
(optional)
Precautions
Warnings
· Plug the AC plug into an AC power outlet as specified on the
Adapter;
· Don't use in any space with explosive gas;
· This product is verified as Level A, and may cause radio
interference during normal use.
· For avoiding unwanted radio interference, practical actions
may be required.
· Replace the battery:
① Replacing with an unmatched battery may result in
dangerous explosion!
② Return the battery replaced to the serviceman. Don't
dispose it in fire!
Important Safety Instructions
· Try not to install or use the device during lightning, or else
there would be lightning stroke danger;
· When you find unusual smell, overheat or smoke, please cut
off the power immediately;
Suggestions
· Do not use it in extremely cold or hot conditions (e.g., near
fire or a lighted cigarette);
· Do not drop, throw or bend it;
· Try to use it in a clean and dustless environment and
avoid tiny articles falling into the terminal;
· Do not use it near medical equipment without
permission.
Declaration
The company shall not be responsible for the following actions
· Any damage caused by not using and maintaining it under the
conditions described in the guide;
· Any damage or problem caused by optional parts or
consumptive materials (not the original products provided by t
he company or approved products), the company will assume
no responsibility for this. It is not allowed to modify or change
the product without the consent of the company.
· The operating system of this product supports official system
update. If users install ROM system from the third party or
modify the system files by means of cracking, it may lead to
system instability, as well as security risk and security threat.
Disclaimer
Owing to the update of the product, some details of this
document may not be in conformity with those of the product.
Please refer to the material object. The company reserves the
right to interpret this document. The company reserves the right
to modify this instruction book without prior notice.

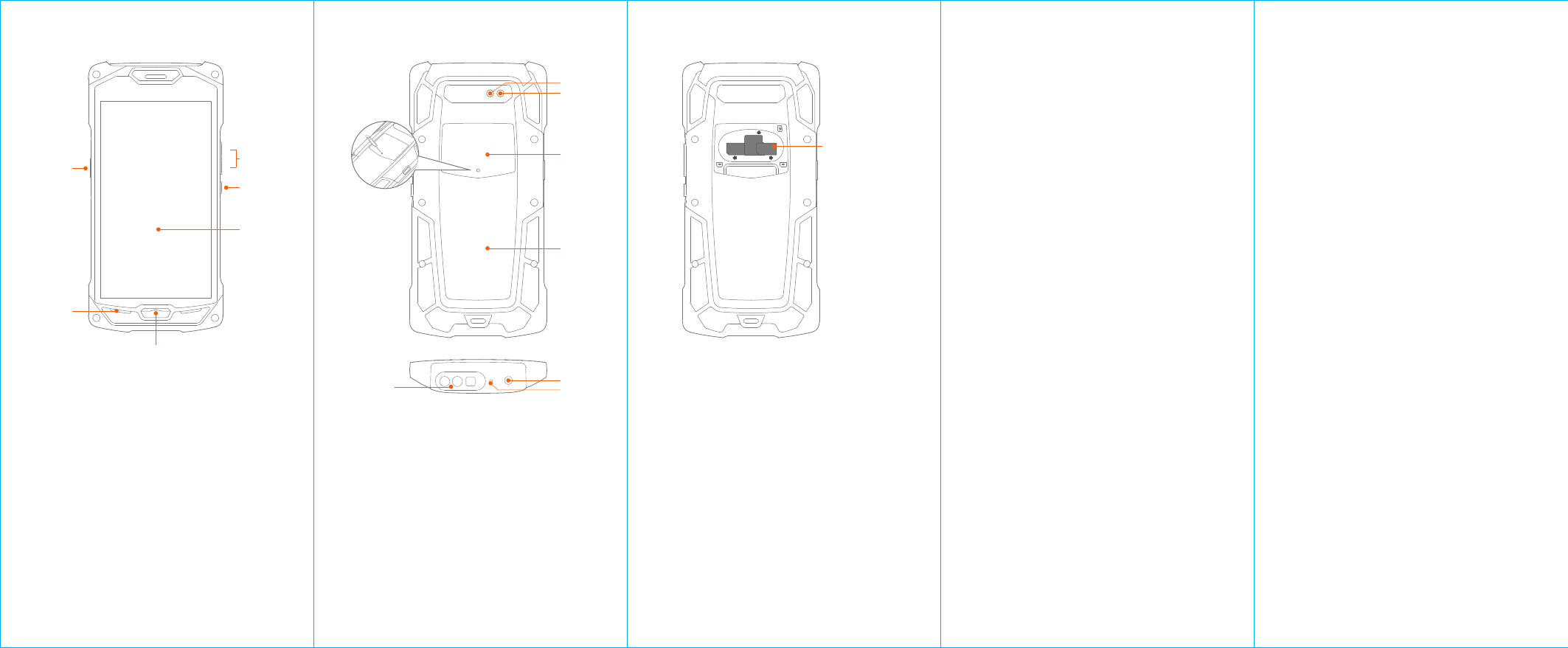

SIM
TF
PSAM
Volume
Power key
Touch screen
Card cover
Earphone socket
Microphone
SIM card, PSAM card and
TF card installation instructions
Flash light
Camera
Function key
Speaker
+
-
Function key
Capable of being configured as a code scanning key
or other functions by software.
Volume up/down button
Volume adjustment.
Power key
Short press: light the screen and lock the screen.
Long press: under the power-off status, long press 2
to 3 seconds to power on;
Under the operating status, long press 2 to
3seconds to choose power-off or restart.
Under the crashed status, long press 11 seconds
to automatically restart.
Main screen key
When the screen is locked, short press to lighten the
screen;
After unlocked, click at any interface to return to the
main screen.
Camera
Supportive of photographing and 1D/2D fast scanning.
Flash light
Facilitating Illumination of the surrounding environment
when taking photos.
Card cover
SIM card, PSAM card and TF card installation place.
NFC reader
For reading Quick Pass bank cards
Earphone socket
Capable of external access to a sound box, and access to
a personal credit card POS (application program support
is required)
Two dimensional code scanner (optional)
One dimensional bar code Infrared scanner, used for
reading.
Note: don't look straight at the Infrared scanning head to
avoid eye injuries.
Extremely easy settings
Only a few steps to activate an intelligent business device
① Set 2G/3G/4G: when power off, insert the 2G(GSM)
/3G(WCDMA)/4G(TD-LTE) card and then power on.
(Refer to the Technical Specifications for the support
of cards)
② Long press the Power Key for 2~3s to activate the
backlight of screen, and then operate following the
prompts after entering the startup/booting screen
for the first time. 2 modes for accessing the Internet
are available.
③ Set WiFi
·Click "Set" button, activate "WLAN" to enter the
WLAN searching screen, and wait it to list all
useable WLAN hot spots;
·Click the WLAN to be connected, and enter the
access password in case of an encrypted network.
Download/use Apps
After connected to the Internet, open the App Market,
find, download and install the Apps.
FAQ
Booting failure (e.g. low battery)
· Plug the USB cable and charge for 3min;
· Check if the screen displays the normal charging
status.
System crash
· Long press the Power Key for 11s to reboot.
Read the installed Help App for more information
NFC reader
![](/img.php?id=4033599&img=bg2.png)
User Guide
T8900、T8901
Product technical specif ications
WIFI
Camera
FLASH
CPU
CPU basic
frequency
Keys
Display
Operating
system
Bluetooth
RAM
Interfaces
Touch screen
Wireless data
Item
Battery
SAM card deck
Outline
dimensions
Three-
prevention
function
Adapter
Build-in WIFI 802.11 a/b/g/n/ac(2.4G/5G)
500W AF
16GB Nand Flash
Quad-core MSM8917
1.4GHZ four cores
Power key, function key, volume key, main screen key
5 inch IPS, resolution 1280*720
Android 7.1
Support of bluetooth 3.0/4.0BLE and iBeacon
2GB LPDDR3
Configuration interfaces Type-c, SIM, PSAM,
TF card slot, support of OTG
Capacitive multi-touch screen, supportive of the
glove mode
Technical Specifications
3.8V/5000mAh
Support SAM card, meet ISO7816 standards
OUTPUT:DC5V/2A
INPUT:AC100~240V/0.3A 50/60Hz
L152.8 mm * W76 mm * H18.9 mm
NFC mifare/Felica/ISO 14443/ Type A/B/ISO15693;
P2P mode and simulation through UICC and the
host card
Scanner
(optional)
Code 128,EAN-13,EAN-8,Code 39,UPC-A,
UPC-E,ISSN,ISBN,Codabar,Code 93,F-6, ITF-14,
Interleaved,Industrial,Standard 2 of 5,Matrix 2
2G:B2/B3/B5/B8
3G:(B1/B2/B4/B5);EVDO(BC0/BC1)
4G:B2/B4/B7/B17/B28
IP67 dust proof and waterproof functions List of packaged items
Terminal device × 1
User's Guide × 1
Charger & Adapter × 1
USB Cable × 1
Sim Card Removal Pin × 1
Name of
parts
Circuit board
(Pb) (Hg) (Cd) (Cr(VII) (PBB) (PBDE)
Toxic and harmful substances and elements
Shell
:It indicates that the content of toxic and harmful
substances in all homogeneous materials of this part is
below the limit specified in SJ/T11363-2006.
:It indicates that the content of toxic and harmful
substances is higher than the limit specified in
SJ/T11363-2006 in at least one homogeneous material of
this part; however, the the reason why the toxic substance
of that part exceeds the limit is that there is no applicable
material to replace it currently.
For products that have reached or passed the service years
for environmental protection, they should be recycled
according to Measures for Control and Management of
Electronic Information Products and should not be thrown
away at will.
Name and content of toxic and harmful substances
contained in this product are shown in the following
table
Technical features and characteristic
the product includes the following features and characteristics:
Manufacture
Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District,
Shanghai, China
This product can be used across EU member states.
The full text of the EU declaration DOC is available at the
following internet address:www.sunmi.com
GSM850
GSM1900
WCDMA bandII
WCDMA bandIV
WCDMA bandV
LTE band2
LTE band4
LTE band7
LTE band17
CDMA BC0
CDMA BC1
BT
Operation Frequency
824MHz-849MHz
1850MHz-1910MHz
1850MHz-1910MHz
1710MHz-1755MHz
824MHz-849MHz
1850MHz-1910MHz
1710MHz-1755MHz
2500MHz-2570MHz
704MHz-716MHz
824MHz-849MHz
1850MHz-1910MHz
2402MHz-2480MHz
2402MHz-2480MHz
5250MHz-5350MHz
Transmitted
33dBm
31dBm
24dBm
24dBm
24dBm
24dBm
24.5dBm
24.5dBm
24dBm
25dBm
24.5dBm
-1dBm
6dBm
BLE
2412MHz-2462MHz
5150MHz-5250MHz
17dBm
12dBm
wifi
5725MHz-5850MHz
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including
interference that may cause undesired operation.
FCC ID: 2AH25L2
NOTE: Changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and
receiver.
---Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician
for help.
Body-worn Operation
This device was tested for typical body-worn operations. To
comply With RF exposure requirements, a minimum separation
distance of 1.0cm must be maintained between the user’s
body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar including the
antenna. Third-party belt-clips, holsters, and similar
accessories used by this device should not contain any
metallic components. Body-worn accessories that do not
meet these requirements may not comply with RF exposure
requirements and should be
avoided.
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's requirements for
exposure to radio waves. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons regardless
of age or health.
FCC RF Exposure Information and Statement. The SAR limit of
USA (FCC) is 1.6W/kg averaged over one gram of tissue.
Device types: T8900&T8901 has also been tested against this
SAR limit. The highest SAR value reported under this standard
during product certification when properly worn on the body is
1.856W/kg(10gSAR, test distance:10mm,limit 4W/kg)
and 1.276W/kg (1gSAR, test distance:10mm,limit
1.6W/kg). This device was tested for body-worn operations
with the back of the handset kept 10mm and 5mm from the
body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 10mm and
5mm separation distance between the user's body and the
back of the handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure
requirements, and should be avoided.
