List of packaged items
Terminal device × 1
User's Guide × 1
Charger & Adapter × 1
USB Cable × 1
Wi-Fi Build-in Wi-Fi 802.11a/b/g/n(2.4G/5G)
Camera 5M AF / （0.3M FF optional）
FLASH 8GB Nand Flash
CPU frequency 1.3 GHz Quad Core
Keys Power key, volume key
Display 5.45 inch IPS, resolution 1440×720
Operating
system SUNMI OS 2.0 (based on Android 7.1)
Bluetooth Support Bluetooth 4.0
RAM 1GB LPDDR3
Interfaces USB Type C， Nano SIM
Printer type Thermal Printer
Printing paper
specifications Width 58mm, maximum diameter 50mm
Touch screen Capacitive Screen
Wireless data
2G：B2/B3/B5/B8
3G：WCDMA(B1/B2/B4/B5)
4G：B2/B3/B4/B7/B17/B28
Item Technical Specifications
Battery 7.6V/2580mAh
Outline
dimensions L 219.1mm ×W 80mm ×H 17.8mm
Adapter OUTPUT：DC5V/2A
INPUT：AC100~240V/0.3A 50/60Hz
User Guide
T5930
Technical specifications
Name of parts
Circuit board
(Pb) (Hg) (Cd) (Cr(VII) (PBB) (PBDE)
Toxic and harmful substances and elements
Shell
:It indicates that the content of toxic and harmful
substances in all homogeneous materials of this part is
below the limit specified in SJ/T11363-2006.
:It indicates that the content of toxic and harmful
substances is higher than the limit specified in
SJ/T11363-2006 in at least one homogeneous material of
this part; however, the the reason why the toxic substance
of that part exceeds the limit is that there is no applicable
material to replace it currently.
For products that have reached or passed the service
years for environmental protection, they should be
recycled according to Measures for Control and
Management of Electronic Information Products and
should not be thrown away at will.
Name and content of toxic and harmful substances
contained in this product are shown in the following table
Manufacture
Shanghai Sunmi Technology Co.,Ltd.
Room 505 No.388 Song Hu Road Shanghai, China
This product can be used across EU member states.
The full text of the EU declaration DOC is available at the
following internet address：www.sunmi.com
Technical features and characteristic
Operation Frequency
824-849 MHz(Tx),869-894 MHz(Rx)
1850-1910 MHz(Tx),1930-1990 MHz(Rx)
1850-1910 MHz(Tx),1930-1990 MHz(Rx)
1710 -1755 MHz(Tx),2110 - 2155MHz(Rx)
824-849 MHz(Tx),869-894 MHz(Rx)
1850-1910 MHz(Tx),1930-1990 MHz(Rx)
1710-1755 MHz(Tx),2110-2155 MHz(Rx)
2500-2570 MHz(Tx),2620-2690 MHz(Rx)
704-716 MHz(Tx),734-746 MHz(Rx)
2412-2462 MHz
2402-2480 MHz
2402-2480 MHz
5150-5250 MHz
5725-5850 MHz
Transmitted
32 dBm
30 dBm
23 dBm
23 dBm
23.5 dBm
22.5 dBm
22.5 dBm
22.5 dBm
23 dBm
15 dBm
6 dBm
6 dBm
17 dBm
16.5 dBm
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including
interference that may cause undesired operation.
FCC ID: 2AH25V2
NOTE: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and
receiver.
---Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for
help.
Body-worn Operation
This device was tested for typical body-worn operations. To
comply With RF exposure requirements, a minimum separation
distance of 1.0cm must be maintained between the user’s body
and the handset, including the antenna.
Third-party belt-clips, holsters, and similar including the antenna.
Third-party belt-clips, holsters, and similar accessories used by
this device should not contain any metallic components.
Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should be
avoided.
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's requirements for
exposure to radio waves. The guidelines are based on standards
that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies.
The standards include a substantial safety margin designed to
assure the safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement. The SAR limit of
USA (FCC) is 1.6W/kg averaged over one gram of tissue.
Device types: T5930 has also been tested against this SAR limit.
The highest SAR value reported under this standard during
product certification when properly worn on the body is
1.856W/kg（10gSAR， test distance：10mm，limit 4W/kg）and
1.276W/kg (1gSAR， test distance：10mm，limit 1.6W/kg). This
device was tested for body-worn operations with the back of
the handset kept 10mm and 5mm from the body. To maintain
compliance with FCC RF exposure requirements, use
accessories that maintain a 10mm and 5mm separation
distance between the user's body and the back of the handset.
The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be
avoided.
GSM 850
GSM 1900
WCDMA BAND II
WCDMA BAND IV
WCDMA BAND V
LTE BAND 2
LTE BAND 4
LTE BAND 7
LTE BAND 17
2.4G Wi-Fi
Bluetooth
BLE
5G Wi-Fi
5G Wi-Fi
Printing instructions
This device supports 58mm thermal paper with the specifications
of 57±0.5mm*Ø50mm
· Please open the paper container with the uncovering handle
(as shown in Fig.1). Please do not force open the paper
container to avoid print head gear wear;
· Feed the paper correctly into the paper container in the
direction as shown, and pull some paper outside the cutter
(as shown in Fig.2);
· Close the cover of the paper container to finish printing paper
feeding(as shown in Fig.3).
Note: If the printed paper is blank, please check whether the
paper roll has been installed in the correct direction.
Type-C USB
Power Outlet
Charger & Adapter

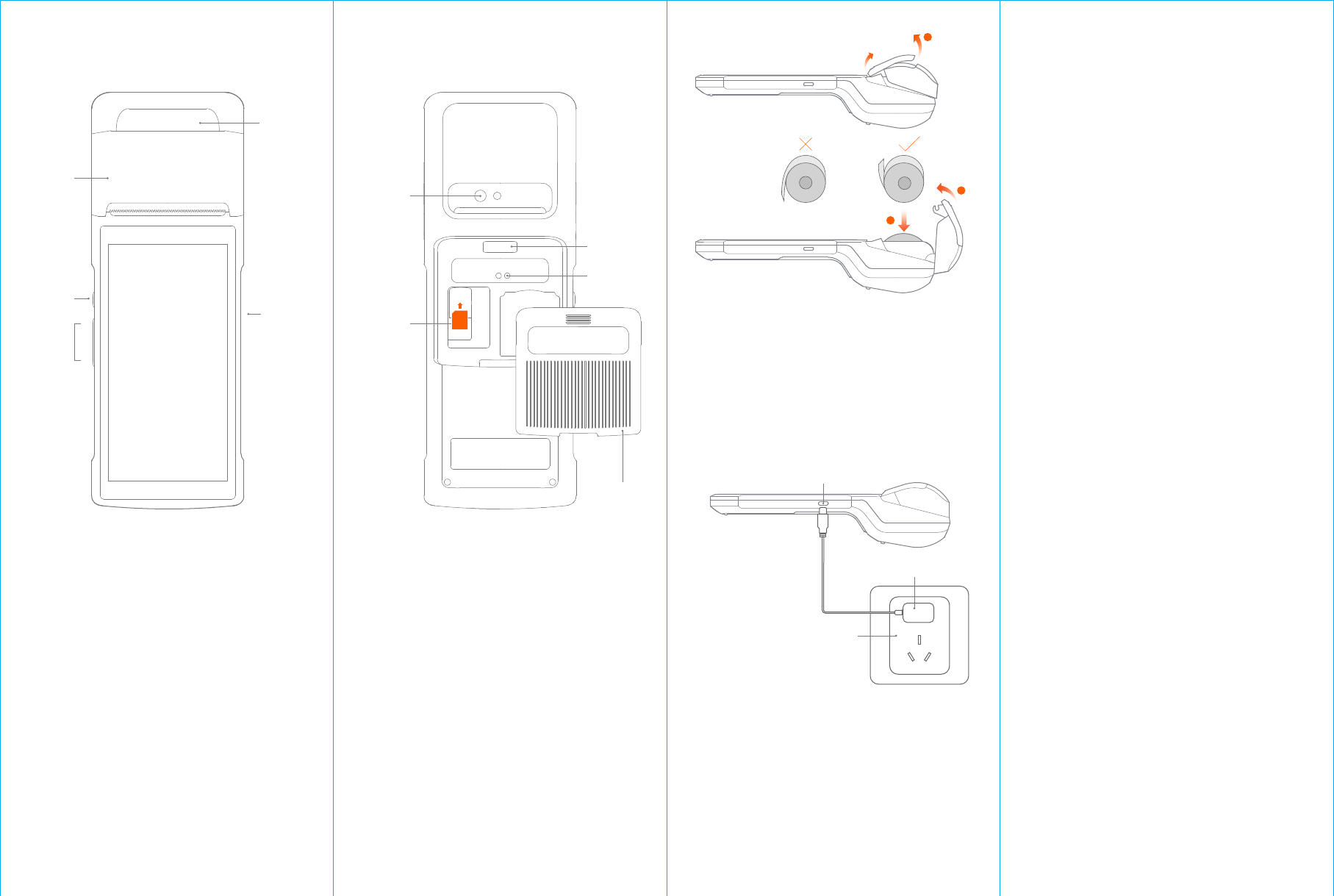

Product Description
Volume key
Power key
+
-
Printer
Type-C USB
Opening
handle
Camera
Speaker
Extended
interface
SIM Card Slot
Extremely easy settings
Only a few steps to activate an intelligent business device
①Set 2G/3G/4G: when power off, insert the 2G/3G/4G
card and then power on.
(Refer to the Technical Specifications for the support of
cards)
② Long press the Power Key for 2~3s to activate the
backlight of screen,and then operate following the
prompts after entering the startup/booting screen for the
first time. 2 modes for accessing the Internet are available.
③ Set WiFi
· Click "Set" button, activate "WLAN" to enter the WLAN
searching screen, and wait it to list all useable WLAN hot
spots;
· Click the WLAN to be connected, and enter the access
password in case of an encrypted network.
Download/use Apps
After connected to the Internet, open the App Market,
find, download and install the Apps.
FAQ
Booting failure (e.g. low battery)
· Plug the USB cable and charge for 3min;
· Check if the screen displays the normal charging status.
System crash
· Long press the Power Key for 11s to reboot.
Read the installed Help App for more information
Battery cover
Nano
SIM
3
2
1
Power key
Short press: wake up the screen, lock the screen.
Long press: long press for 2-3 seconds in power off
mode to switch on the device.
Long press for 2-3 seconds in normal
operation mode to select power off or
reboot.
Long press for 11 seconds when system is
frozenfor automatic reboot.
Volume key
Volume adjustment.
Printer
For printing sales slips in power on mode.
Type-C USB
For device recharging and developer debugging.
Camera
For payment scanning and 1D/2D code quick
scanning.
SIM Card Slot
Note: To prevent system errors, please make sure the
device is turned off when you insert or remove the SIM
card.
Instructions for recharging and battery
This device supports charging only by USB cable
· Connect the 5V adapter to the power supply socket;
· Connect the USB cable to the USB interface of the device for
recharging; · The screen will display the recharging icon during
the recharging process;
· If the recharging icon does not appear, please check whether
the USB interface is well connected.
Instructions/Notes for battery
· This device adopts 7.6V/2580mAh lithium battery;
please do not disassemble the battery.
· In order to protect the battery life, we recommend that
yourecharge the device whenever possible, and please do
not allow the battery to fully drain before recharging.
Precautions
Safety Warning
· Connect the AC plug to the AC socket corresponding
to the marked input of the power adapter;
· Do not use in the presence of any potentially explosive
gas;
· To avoid injury, unauthorized persons shall not open the
power adapter; · This is a Class A product. This product
may cause radio interference in living environments.
In that case, the user may be required to take
adequate measures against interference.
· Battery replacement:
1. Explosion danger may arise if replacing with the
wrong battery!
2. The replaced battery shall be disposed of by
maintenance personnel,and please do not throw it
into fire!
Significant Safety Instructions
· This terminal is a handheld device, and the user shall
protect the password from being peered at by others
while entering the password;
· Do not install or use the device during lightning storms
to avoid the potential risks of lightning shock;
· Please turn off the power immediately if you notice
abnormal odor, heat or smoke;
· The paper cutter is sharp, please do not touch!
Suggestions
· Do not use the terminal near water or moisture to
prevent liquid from falling into the terminal;
· Do not use the terminal in extremely cold or hot
environments, such as near flames or lit cigarettes;
· Do not drop, throw or bend the device;
· Use the terminal in a clean and dust-free environment
if possible to prevent small items from falling into the
terminal;
· Please do not use the terminal near medical
equipment without permission.
Statements
The Company does not assume responsibilities for the
following actions:
· Damages caused by use and maintenance without
complying with the conditions specified in this guide;
· The Company will not assume any responsibilities for
the damages or problemscaused by optional items or
consumables (rather than the initial products or
approvedproducts of the Company). The customer is
not entitled to change or modify the product without
our consent.
· The product’s operating system supports official
systemupdates, but if you change the operating
system into a third party ROM system or alter the system
files by system cracking, it may cause system instability
and security risks and threats.
Disclaimer
As a result of product upgrading, some details in this
document may not match the product, and the actual
product shall govern. The Company reserves the right of
interpretation of this document. The Company also
reserves the right toalter this specification without prior
notice.
