Sunricher Technology RF2818 RF sender User Manual

Shenzhen Sunricher Technology Limited RF sender

User Manual

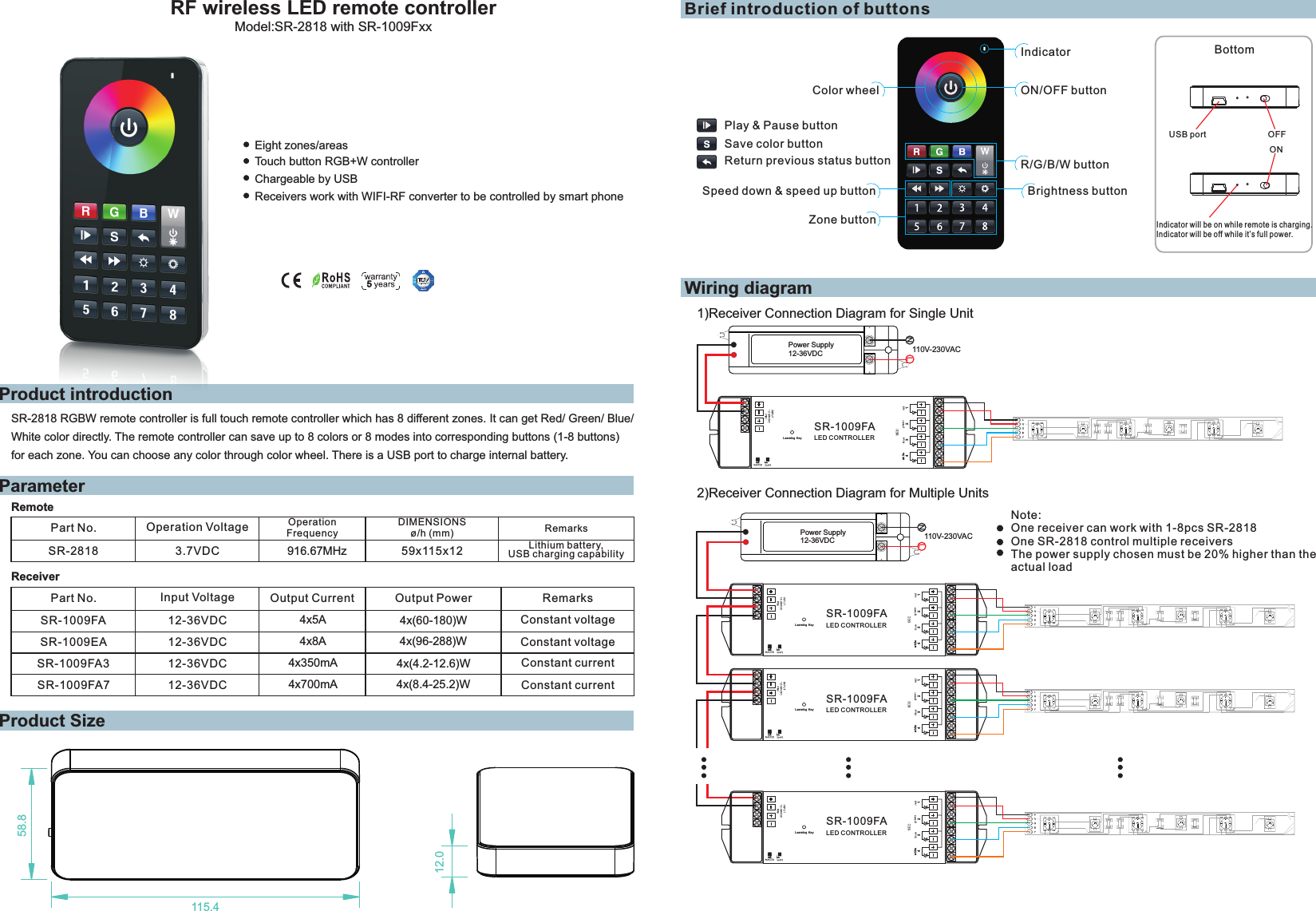

RF wireless LED remote controllerEight zones/areasTouch button RGB+W controllerReceivers work with WIFI-RF converter to be controlled by smart phoneModel:SR-2818 with SR-1009FxxParameterWiring diagramProduct SizeBrief introduction of buttonsProduct introductionSR-2818 RGBW remote controller is full touch remote controller which has 8 different zones. It can get Red/ Green/ Blue/ White color directly. The remote controller can save up to 8 colors or 8 modes into corresponding buttons (1-8 buttons) for each zone. You can choose any color through color wheel. There is a USB port to charge internal battery.Chargeable by USBSR-1009FA 12-36VDC Constant voltage4x(60-180)W4x5ASR-1009EA 12-36VDC Constant voltage4x(96-288)W4x8ARemotePart No. Operation Voltage DIMENSIONSø/h (mm)Operation FrequencySR-2818 3.7VDC 59x115x12916.67MHzReceiverSR-1009FA3 12-36VDC Constant current4x(4.2-12.6)W4x350mASR-1009FA7 12-36VDC Constant current4x(8.4-25.2)W4x700mARemarksLithium battery, USB charging capability1)Receiver Connection Diagram for Single Unit2) Connection Diagram for Multiple UnitsReceiver Power Supply12-36VDCLN110V-230VACwhi teSR-1009FALED CONTROLLER1234Lea rni ng Ke ywhi teSR-1009FALED CONTROLLER1234Lea rni ng Ke ywhi teSR-1009FALED CONTROLLER1234Lea rni ng Ke yPower Supply12-36VDCLN110V-230VACwhi teSR-1009FALED CONTROLLER1234Lea rni ng Ke yUSB port OFFONBottom5566778811223344IndicatorON/OFF buttonR/G/B/W buttonColor wheelPlay & Pause buttonSave color buttonReturn previous status buttonSpeed down & speed up button Brightness buttonZone buttonIndicator will be on while remote is charging.Indicator will be off while it’s full power.Note:One receiver can work with 1-8pcs SR-2818One SR-2818 control multiple receiversThe power supply chosen must be 20% higher than the actual load58.812.0115.4Part No. Input Voltage RemarksOutput Current Output Power5
Safety & WarningsWarranty Agreement1) The product shall be installed and serviced by a qualified person.2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.5) Never connect any cables while power is on and always assure correct connections to avoid short circuits before switching on.6) 7) For update information please consult your supplier.8)The warranty of battery is 1 year.Please ensure that the cable is secured tightly in the connector1) We provide lifelong technical assistance with this product: 5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.The warranty is for free repair or replacement and covers manufacturing faults only. For faults beyond the 5-year warranty we reserve the right to charge for time and parts.2) Limited Warrenty Any defects caused by wrong operation. Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection and replacement of chips. Any damages due to transportation, vibration etc. after purchase. Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage. Any damages caused by negligence, inappropriate storing at high temperatures and humidity or near harmful chemicals. Product has been updated3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.b. How to save mode into different position per zone?Press button for select an ideal mode Choose position( ) to save modeany buttonPress any zone button you wantPress button(the blue indicator will be on) for saving ZONE5566778811223344 ZONE5566778811223344c. RecallChoose zone number form , then press button, and press the position button which color or mode saved into. 5566778811223344OperationLearning (matching)a. Do wiring according to connection diagramb. Wake up the remote control by touching ON/OFF button.c. Press learning button on receiver.d. Touch any zone button on remote control.e. Then touch color wheel.f. Connected LED light will blink to confirm zone designation.g. Press at learning button on receiver over 5 seconds until LED light flash, then delete the learned ID.Note 1: To choose a master from slaves by jumper for each zone.Short circuit for master.Open circuit for slave.Each zone only can set one master controller. After a period of time, the master will do synchronization operation to keep the same color or mode of all slaves in one zone.Note 2: Each remote control 8 zones (areas) receivers, each area can be learned as many receivers as we can.Each receiver maximally can be controlled by 8 different remote controllers.Touch button is to switch on/off of each corresponding color.Hold your finger on button to dim brightness of each corresponding color. There are total 8 levels of brightness.Note: If you press R, then press G, then it is mix color of R and G. If you want to get G color directly, please press R to switch off of R first. Then press G.RGBW ButtonRunning&Pause Buttona.Press pause&run button ,mode will run. Press it once , it runs one mode. Press button again, it stops, then press one more time, it will enter next mode. There are total 10 build-in modes.b.Pause&run button can work with button , it can save modes into different zone.c.Touch button one by one, such as press button 1,2,3,4,5,6, thenPress button.1,2,3,4,5,6 will run synchronized mode, after long press, LED lighting will flash twice, they will switch to chasing running mode, long press again to switch back.5566778811223344Speed up and Speed down ButtonTouch button to return previous color or running mode.Return buttonTouch button to speed down when mode is running, touch button to speed up when mode is running.Brightness down or up buttonLong touch button to dim down brightness of RGB channels, Long touch button to dim up RGB channels.“W” channel is separated from RGB channels, so we can only long touch button to dimming“W” channel.Save Button ZONE Touch color wheel for select an ideal colorSelect R/G/B/W color by pressorLong press button(the blue indicator will be on) for savingChoose position( ) to save colorany button POSITIONPress any zone button you wantFor example, press zone button 1, then touch color wheel for orange color, then press S button (the blue indicator will be on),then choose position button 3. That’s to say, we save orange color from zone 1 into position 3. So each zone can save 8 colors. 8 zones can save 64 colors.a. How to save color into different position per zone? 55667788112233445566778811223344Note:if the remote control is not used for a long time, need to charge it every two months.

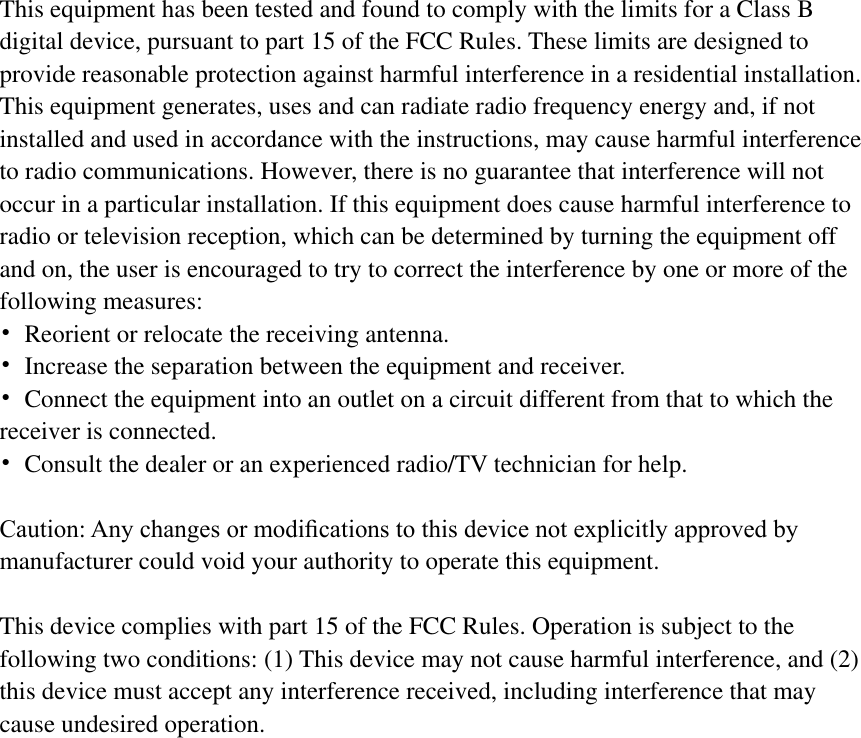

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
