WIRELESS VOICE-OVER-IP
NETWORK APPLIANCE

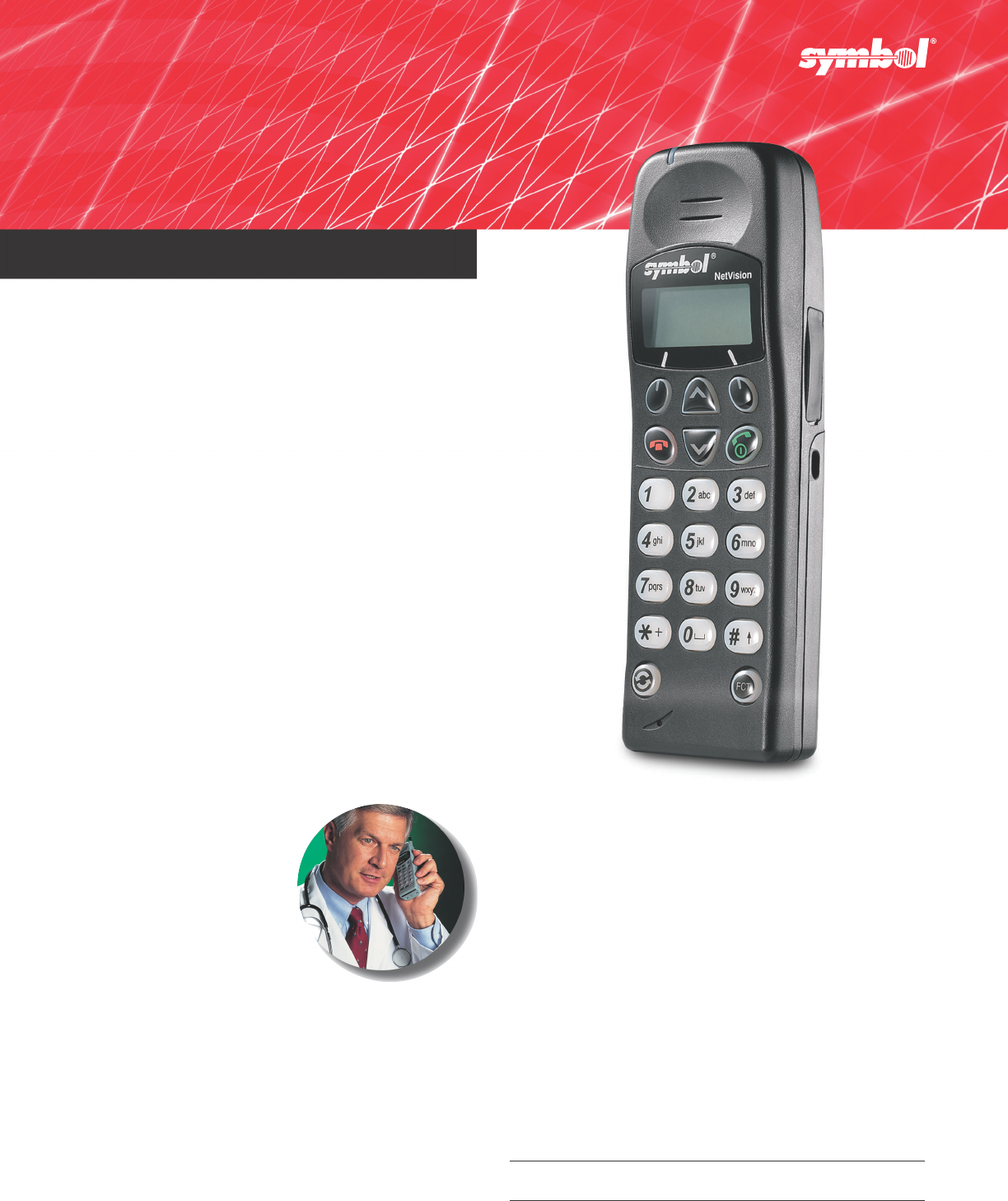

NetVision®Phone
IEEE 802.11b, Direct Sequence
The NetVision®Phone from Symbol Technologies adds voice-
over-IP (VoIP) communications to Symbol’s Wi-Fi™certified
Spectrum24®802.11b direct sequence wireless LAN installations,
allowing simultaneous voice and data support on the same
wireless backbone. Employing VoIP technology based on the
ITU standard H.323, the NetVision Phone converts analog
voice into compressed digital packets that are sent via TCP/IP
protocol over standard data networks.
The IEEE 802.11b-compliant NetVision Phone interoperates
with many Wi-Fi certified wireless LANs. Broad support of VoIP
solutions from major telephony vendors allows PBX integration
of the NetVision Phone via a gateway for internal and external
voice communication.
Communication at the Speed of Business
With business moving faster every day to keep pace with customers
and competitors, communication is a tool of ever-increasing
strategic importance. The ability to send voice and data over one
wireless network can result in significant savings and allows for the
development of new applications that increase productivity and
provide better customer service.
Advanced Handset and Secure, Quality of Service
Wireless Communications
The NetVision Phone handset features
include:
ᮣ
Dialing: peer-to-peer, extension,
name, speed
ᮣ
Messaging: SNPP-based two-way
text messaging
ᮣ
Call hold, park/unpark, transfer,
conference, forwarding, call
waiting, mute, do not disturb
ᮣ
DHCP support
ᮣ
H.323 gatekeeper support
ᮣ
Vibrate, visual, ringer call alert
ᮣ
Headset support (2.5 mm)
ᮣ
Wireless firmware/configuration updates
ᮣ
Signal and battery strength indicators
ᮣ
Shared and personal user mode support
ᮣ
User configuration options (volume, LCD contrast and more;
select features are not available with certain gateways)
Embedded wireless communications features of the NetVision
Phone include:
ᮣ
Dynamic Rate Scaling
ᮣ
Symbol Wireless Voice Prioritization, giving priority to
NetVision Phone “voice packets” on the Symbol Spectrum24
wireless LAN
ᮣ
Pre-emptive Roaming for optimum voice quality and bandwidth
maximization
ᮣ
40 and 128 bit WEP Encryption security; Kerberos V5
ᮣ
10 active calls per wireless access point, on average
ᮣ
IEEE 802.11d International Roaming
PBX Connectivity Solutions
The NetVision Phone is designed to work with your existing
phone system via a gateway through a standard analog or digital
connection. NetVision Phone PBX connectivity solutions include:
Analog Ericsson Webcom Webswitch 2000/100
Digital (T1) Mitel Integrated Communications Platform
(ICP) 3300
Digital Nortel Networks BCM, 802.11 wireless IP
(Integrated) Gateway for Meridian; Cisco AVVID Skinny
Client Control Protocol
For North America, Latin America and Canada
Symbol Technologies
The Americas
One Symbol Plaza
Holtsville, NY 11742-1300
TEL: +1.800.722.6234/+1.631.738.2400
FAX: +1.631.738.5990
Symbol Website
For a complete list of Symbol subsidiaries and
business partners worldwide contact us at:
www.symbol.com
E-mail
info@symbol.com
Corporate Headquarters
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, NY 11742-1300
TEL: +1.800.722-6234/+1.631.738.2400
FAX: +1.631.738.5990
For Asia Pacific Area
Symbol Technologies Asia, Inc.
(Singapore Branch)
Asia Pacific Division
230 Victoria Street #05-07/09
Bugis Junction Office Tower
Singapore 188024
TEL: +65.6796.9600
FAX: +65.6337.6488
For Europe, Middle East and Africa
Symbol Technologies
EMEA Division
Symbol Place, Winnersh Triangle
Berkshire, England RG41 5TP
TEL: +44.118.9457000
FAX: +44.118.9457500
For system, product or services availability and specific information within your country, please
contact your local Symbol Technologies office or Business Partner.
Specifications are subject to change without notice. Symbol®, NetVision® and Spectrum24® are the registered trade-
marks of Symbol Technologies, Inc. All other trademarks and service marks are proprietary to their respective owners.
Part No. NVPDS Printed in USA 02/03 © Copyright 2003 Symbol Technologies, Inc.
All rights reserved. Symbol is an ISO 9001 and ISO 9002 UKAS, RVC, and RAB
Registered company, as scope definitions apply.
NVPDS 02/03
The use of a gateway provides seamless access to desktop phones,
zone-distant phone support, and PBX-provided supplementary
services such as: Performance Characteristics
Phone Protocol: ITU H.323 version 2 compliant; optional support
for Cisco Skinny Client Control Protocol; optional
enhanced H.323 implementation and support for
Mitel’s MiNET protocol and Nortel Networks voice-
over-IP solutions
Codec: 8-bit sampling; supporting G.711 and G.729a
Voice Packet Size: 40-160 bytes (configurable)
Battery: 7.2 volts rechargeable; Lithium ion; 800mAH
Battery Life: Per charge: 3 hours talk time, 20 hour standby
operation, battery meter
Wireless Access Protocol: CSMA/CA
Frequency Range: 2.4 - 2.485 GHz
Number of Channels: 11 - 3
Data Rate: 802.11b Direct Sequence Rate Scaling at 1, 2, 5.5,
and 11 Mbps
Wireless Output Power: 60 mW
Range: 1,000+ ft./300+ m outdoors and up
to 295 ft./75.5 m indoors
Physical Characteristics
Dimensions: 5.10 in. H x 1.75 in. W x 0.75 in. D
13.0 cm H x 4.5 cm W x 1.9 cm D
Weight: 5.5 oz./154 gm
Display: LCD: 3 line, 12 character
Buttons: 0-9 *# key, Send, End, ‘, Function, Menu, Name,
Recall, Store, Scroll, Hold
Notification: Ringer/vibration/LED
Ports: Headset port (2.5 mm) and external serial port
Network Characteristics
Protocol: TCP/IP; DHCP; IEEE 802.11b protocols
Security: Wired Equivalent Privacy (WEP) 40 and 128 bit;
Kerberos V5
User Environment
Drop Specification: 4 ft./1.2 m to concrete
Temperature: 32°F to 140°F/0°C to 60°C
Accessories: AC adapter, dual battery charger, leather case, and
bungee cord
Regulatory
Electrical Safety: Certified to UL1950, CSA C22.2 No. 950,
EN60950/IEC950
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union
EMC Directive, Australian SMA, FCC Part 68
NetVision Phone Specification Highlights
Mobilize Your Enterprise Wirelessly
Symbol’s global wireless industry leadership is founded on a
comprehensive range of innovative technologies and knowledgeable
services. Symbol brings you a unique combination of benefits
that enables your organization’s end-to-end mobile computing
strategy and optimizes the capture, computing and communication
of data crucial to business decision-making and success.
H.323+ for H.323+ Cisco
NetVision Standard Mitel Networks for Nortel AVVID
Phone Feature H.323V ICP 3300 Networks Skinny Client
Control
Protocol
Peer-to-Peer Dialing Yes No No No
Extension Dialing Yes Yes Yes Yes
Name Dialing Yes No No No
Speed Dialing Phone defined Host defined Host defined Host defined
Call Hold Yes Yes Yes Yes
Call Park/Unpark Yes Yes Yes Yes
Call Transfer Yes Yes Yes Yes
Call Conference Yes Yes Yes Yes
Call Forwarding Yes Yes Yes Yes
Call Waiting Yes Yes Yes Yes
Do Not Disturb Yes Yes Yes Yes
Call Mute Yes Yes Yes Yes
DHCP Gateway dependent No Yes Yes
Authentication H.323 RAS H.323 RAS H.323 RAS CM Registration
