Users Manual

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

Version: V0.1

Date: 25 January 2010

Status: Preliminary

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

General notes

With respect to any damages arising in operation with the described product or this document, S&T shall be

liable according to the General Conditions on which the delivery of the described product and this document

are based. This product is not intended for use in life support appliances, devices or systems where a

malfunction of the product can reasonably be expected to result in personal injury. S&T customers using or

selling this product for use in such applications do so at their own risk and agree to fully indemnify S&T for

any damages resulting from illegal use or resale.

Information in this document is subject to change without notice at any time.

Copying of this document and giving it to others and the use or communication of the contents thereof, are

forbidden without express authority. Offenders are liable to the payment of damages.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

1. Introduction.............................................................................................................................1

1.1 Scope 1

1.2 About IntelliTrac A3......................................................................................................................2

1.3 Hardware Architecture .................................................................................................................3

1.4 Related Documents .....................................................................................................................4

2. Basic Operations.....................................................................................................................5

2.1 Hardware Installation ...................................................................................................................5

2.2 Connectors Pins Assignment.......................................................................................................8

2.3 Device Configurations..................................................................................................................9

2.4 Communication Settings............................................................................................................13

2.5 GPS Tracking Configurations.....................................................................................................15

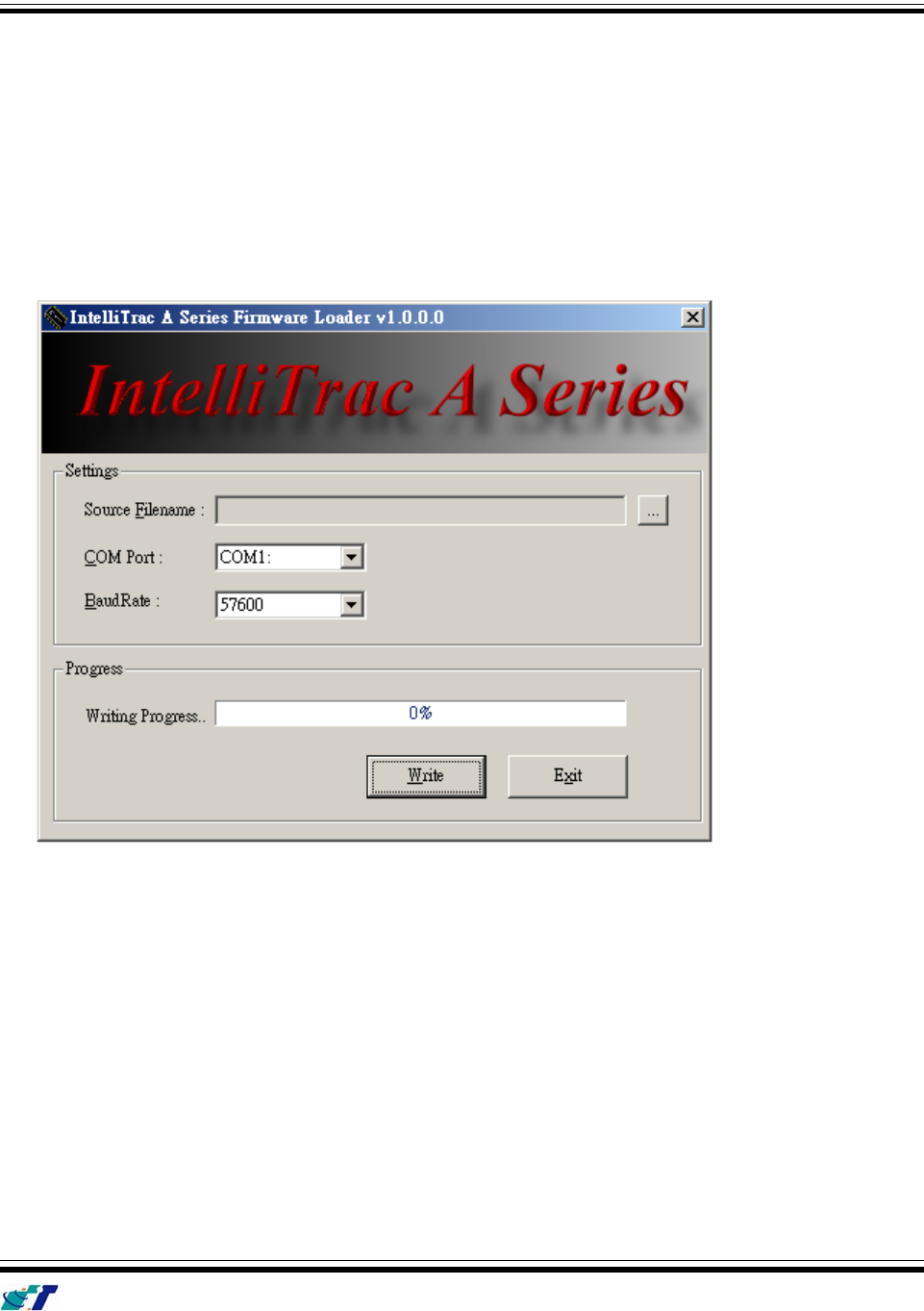

2.6 Firmware Upgrade .....................................................................................................................17

3. Technical Specification for IntelliTrac A3.........................................................................18

4. About Systems & Technology Corporation........................................................................19

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 1 -

Thank you for your purchasing IntelliTrac A3 GPS Vehicle Tracking device. The benefits are:

z Improve Safety

z Ensure Security

z Good efficiency on Fleet management and Dispatch solution

z Asset and resource management

z Economic operation and improving productivity

z Keep the Journey record for future analysis or accident report

z Where is the Car? When it will arrive? What is its speed now?

If you add the CAN-Bus Option, You will get the following features:

z Reduce Vehicle maintenance cost

z Schedule maintenance

z Vehicle performance information

‧ Engine coolant temperature

‧ Air intake temperature

‧ Oil pressure

‧ OBD II/EOBD Data collection

‧ Vehicle monitor data statistics

‧ Idle time (Engine is ON, Speed is Zero)

‧ Odometer reading

‧ Fuel economy

‧ Oxygen sensor status

‧ Catalyst status

‧ Vehicle out of tune

‧ Speed, Calculation load, Throttle position

‧ Remote Diagnostics --- Trouble code reporting

1.1 Scope

The purpose of this document is to describe how to getting started with the IntelliTrac A Series

devices. The document contains basic device configuration. For advanced users, please refer to the

IntelliTrac A Series Protocol Document for detailed information.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 2 -

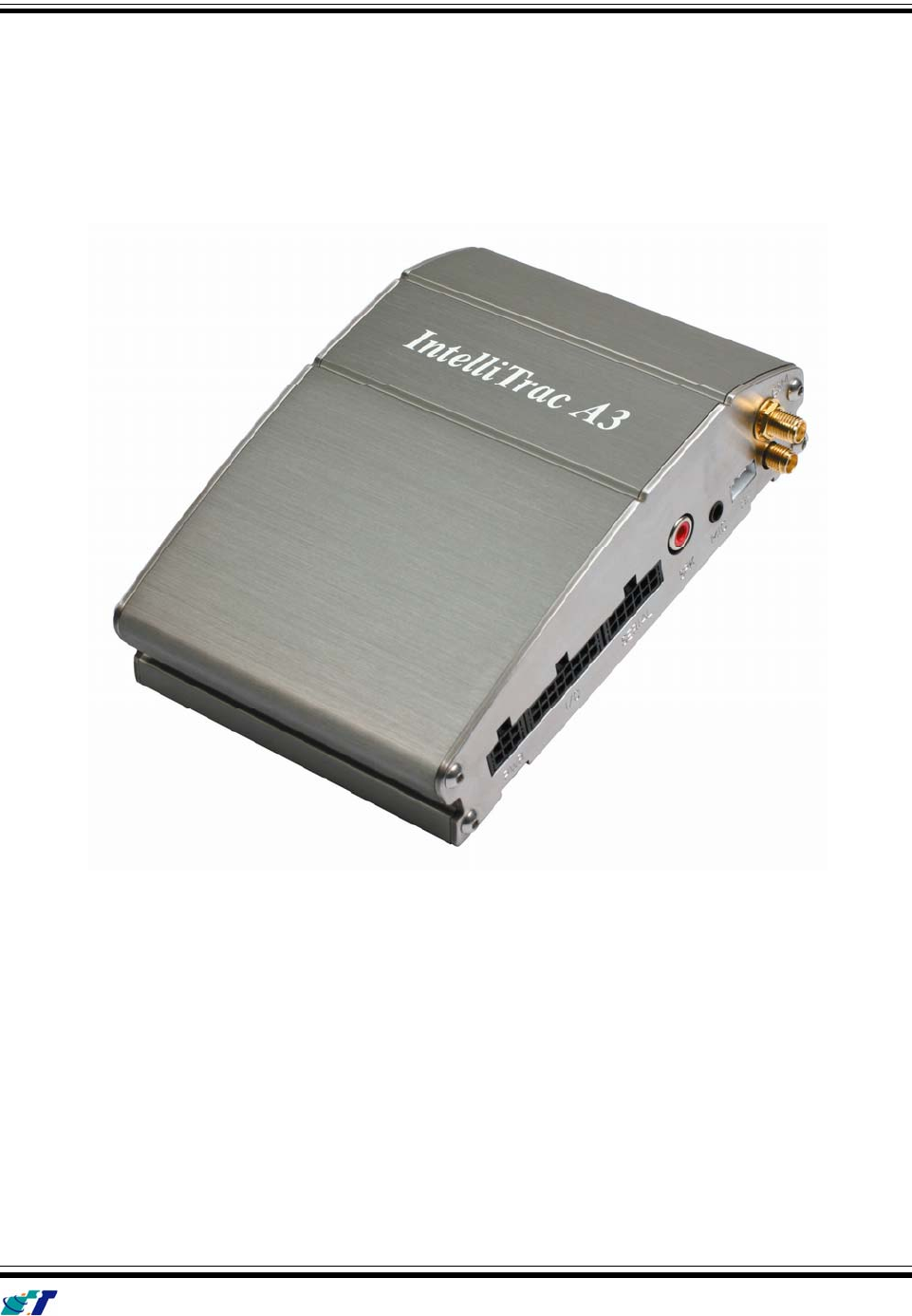

1.2 About IntelliTrac A3

The IntelliTrac A3 GPS Unit wirelessly transmits location, peripheral, and vehicle control data to a

control center. Location data, including speed, direction, mileage, and altitude, is provided by an

onboard GPS receiver. Wireless transmission is achieved using an onboard GSM/GPRS module. A

microcontroller is used to poll location and command data at regular intervals, derive actions based

on location, peripheral, and control data, and execute those actions.

One of the best feature of A series AVL is that they can transit data on ASCII mode ( Intellitrac X

series compatible mode ) or Binary mode.

Peripheral data indicates the status of the various peripherals that are connected to and/or

controlled by the unit. Peripherals include, but not limited to, door locks/un-locks , starter interrupt,

ignition, battery, engine and panic button.

Firmware on the device applies intelligent filtering to overcome coverage limitations for both GPS

and GSM/GPRS networks.

Motion sensor is used to control the status of the unit, either sleep, idle, or full power, there by

controlling the amount of current the unit consumes.

Backup battery and tamper sensing GPS Antennas are primarily used to indicate loss of Main

Power and loss of GPS antenna connectivity.

Device supports Over-the-air firmware upgrade to deliver added functionality without physically

touching the device once installed.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 3 -

1.3 Hardware Architecture

The IntelliTrac A3 hardware includes Micro-controller, GPS receiver, GSM/GPRS modem, G-Force

sensor, Audio interface, I/Os interface and CAN bus interface.

z User can use PC HyperTerminal connect to the Diagnostic / setting port to configure the AVL.

z The G-Sensor is used for car accident. Car tow-away warning and power management.

z Audio interface offer hands free phone call.

z GPIO can be used to connect to any customer monitoring points (door switch, anti-thief) or

Actuators.

z A/D Input is used to connect the analog signal sensor into the AVL. Like the fuel or temperature

sensor.

z OPTIONAL CAN-Bus Interface can be used for Emission Related monitoring of the vehicle. Fleet

management and vehicle Diagnostic.

z OPTIONAL I2 C Bus. SPI Bus can be used for sophisticated peripherals to hook up to the AVL.

z RS232 Expansion port 1-2. Dedicated for A3. It can be used to add on RS232 I/O peripherals.

z RTOS OPTION: We will have A1, A3 professional version with Real Time operation system in

JUN.2009..

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 4 -

1.4 Related Documents

[1] IntelliTrac A3 Series Protocol Document

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 5 -

2.1 Hardware Installation

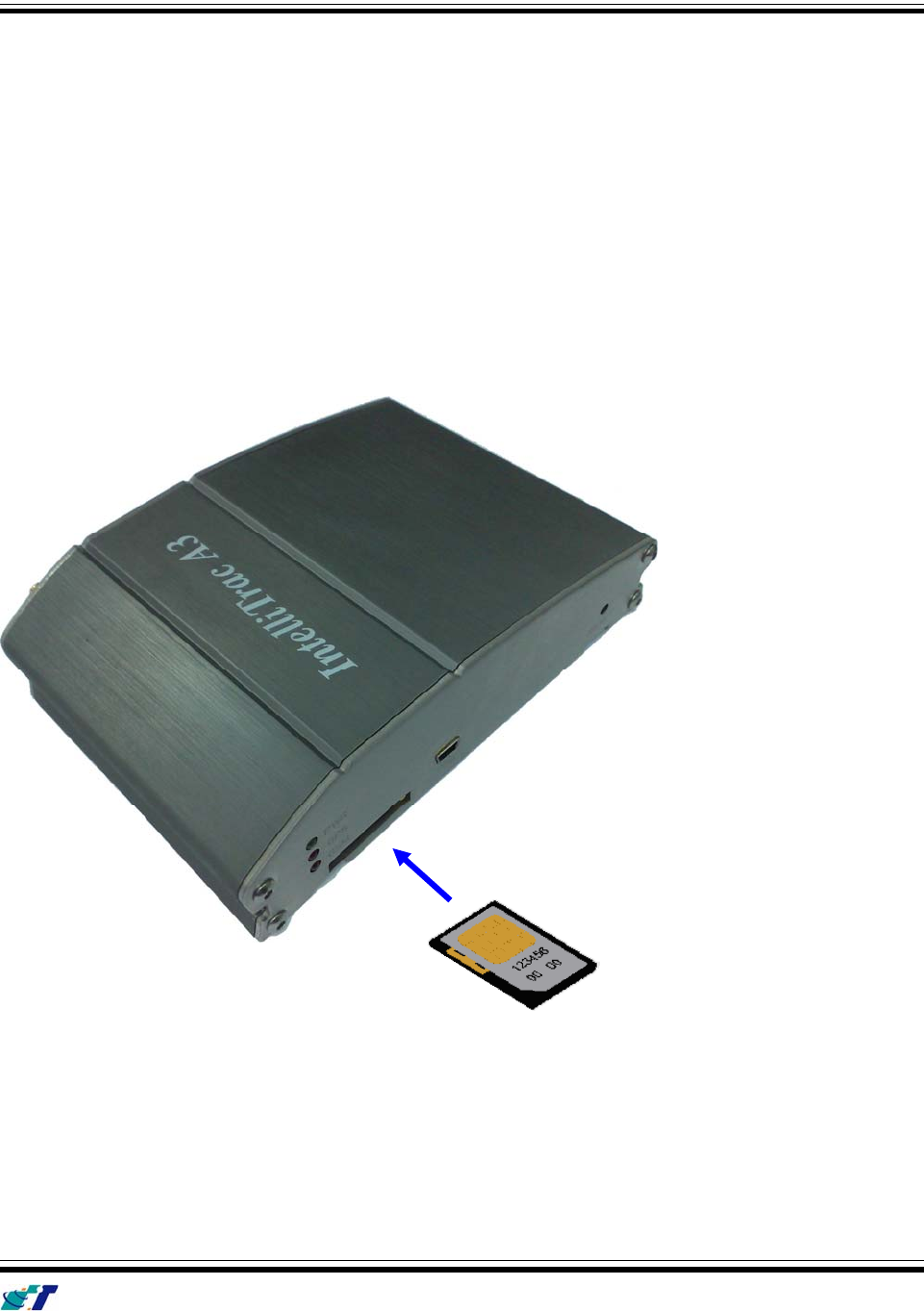

(1) SIM Card Installation

z Press yellow button to eject the SIM card holder.

z Put the SIM card on the SIM card holder.

z Insert the SIM card holder to the device correctly.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 6 -

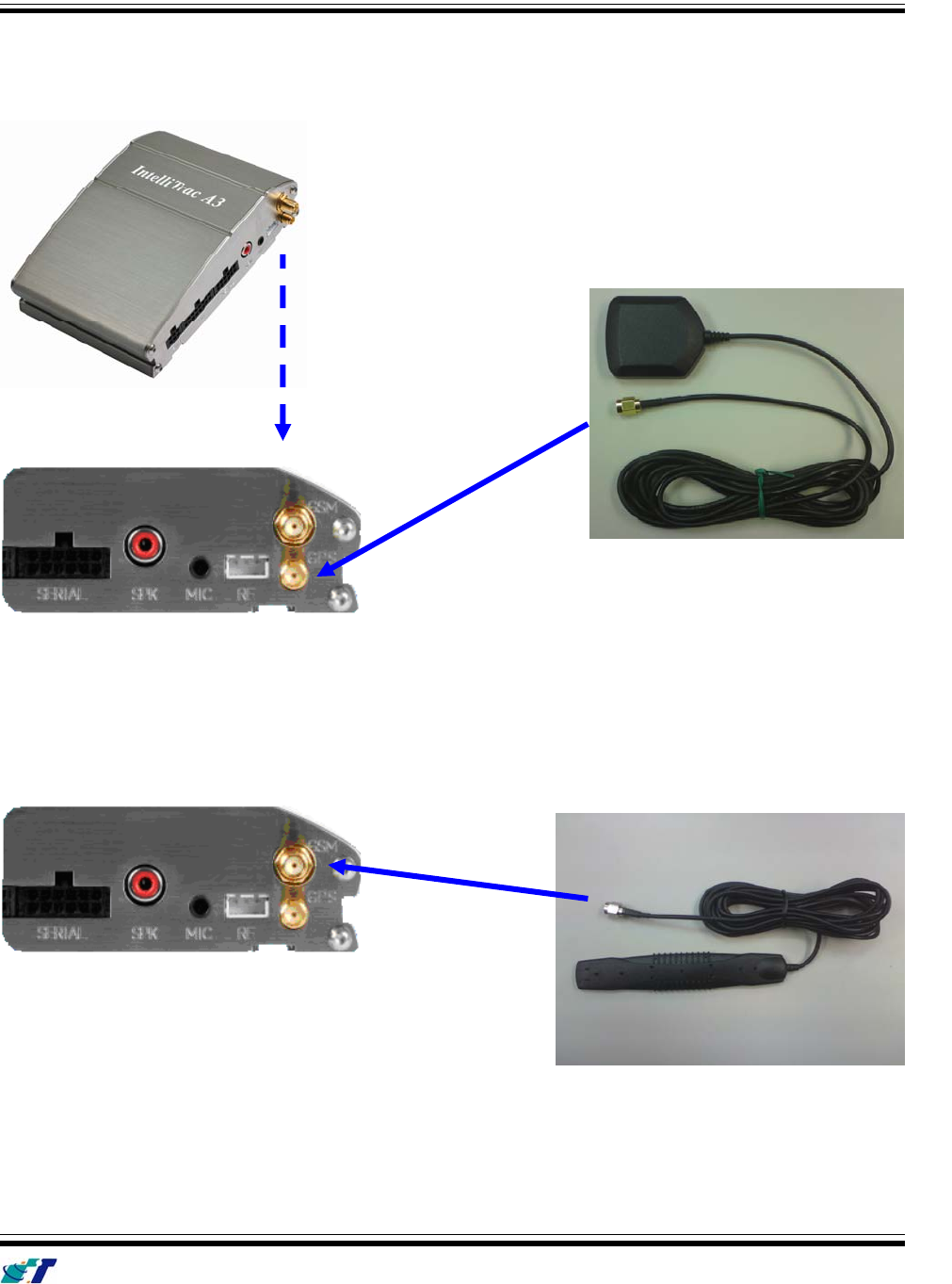

GPS Antenna Installation

z Connect the GPS antenna to the right-down corner SMA connector.

z Recommended mating torque for the SMA connector is 7-10 inch pounds (80-110 N.cm).

GSM Antenna Installation

z Connect the GSM antenna to the right-up corner SMA connector.

z Recommended mating torque for the SMA connector is 7-10 inch pounds (80-110 N.cm).

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 7 -

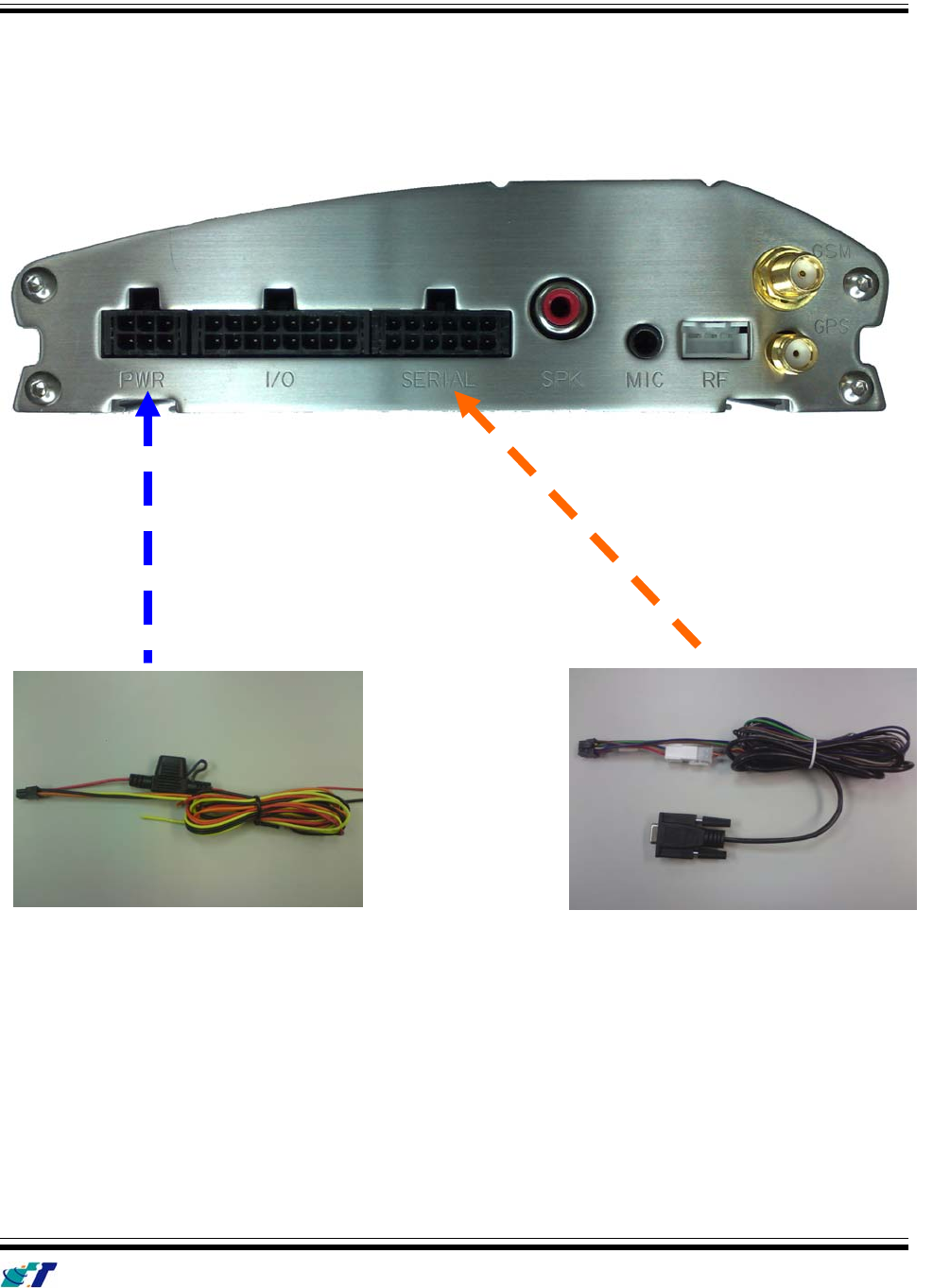

(2) Power and RS-232 Cable Installation

z Connect 4-wires power cable to the device and plug on a DC power supply (8~30V).

z Connect 8-wires cable to the device. The D-SUB can be connected to the COM port of PC.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 8 -

2.2 Connectors Pins Assignment

PWR Connector

Pin# Signal Name Description IO Electrical Characteristic

1 CANH CAN High I VI = 2.75V to 4.5V

2 CANL CAN Low I VI = 0.5V to 2.25V

3 Output0 Open-Collector Output0 O Imax = 300mA

4 Ignition Ignition(ACC) Input I VIHmin = 7.0V, VILmax = 6.0V(High Active)

5 GND Signal ground －

6 DC IN Power supply input I VI = DC8 to 30V, Inormal = 70mA @12V

I/O Connector

Pin# Signal Name Description IO Electrical Characteristic

1 Output1 Open-Collector Output1 O Imax = 300mA

2 Input1 Negative Trigger input1 I VIHmax = 30V, VILmax = 0.7V

3 Output2 Open-Collector Output2 O Imax = 300mA

4 Input2 Negative Trigger input2 I VIHmax = 30V, VILmax = 0.7V(High Active)

5 Output3 Open-Collector Output3 O Imax = 300mA

6 Input3 Negative Trigger input3 I VIHmax = 30V, VILmax = 0.7V

7 Output4 Open-Collector Output4 O Imax = 300mA

8 Input4 Negative Trigger input4 I VIHmax = 30V, VILmax = 0.7V

9 Output5 Open-Collector Output5 O Imax = 300mA

10 Input5 Negative Trigger input5 I VIHmax = 30V, VILmax = 0.7V

11 Output6 Open-Collector Output6 O Imax = 300mA

12 Input6 Negative Trigger input6 I VIHmax = 30V, VILmax = 0.7V

13 Output7 Open-Collector Output7 O Imax = 2000mA

14 Input7 Negative Trigger input7 I VIHmax = 30V, VILmax = 0.7V

15 Analog Input 1 Analog input 1 I VI = DC0V to 30V

16 Analog Input 2 Analog input 2 I VI = DC0V to 30V

SERIAL Connector

Pin# Signal Name Description IO Electrical Characteristic

1 Vout Supply voltage output O Vo = 5.0V, Imax = 250mA

2 TX1 RS232 Data output O

3 RX1 RS232 Data input I

4 GND Signal ground －

5 Vout Supply voltage output O Vo = 5.0V, Imax = 250mA

6 TX2 RS232 Data output O

7 RX2 RS232 Data input I

8 GND Signal ground －

9 Vout Supply voltage output O Vo = 5.0V, Imax = 250mA

10 TX3 RS232 Data output O

11 RX3 RS232 Data input I

12 GND Signal ground －

Connectors pin definition

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 9 -

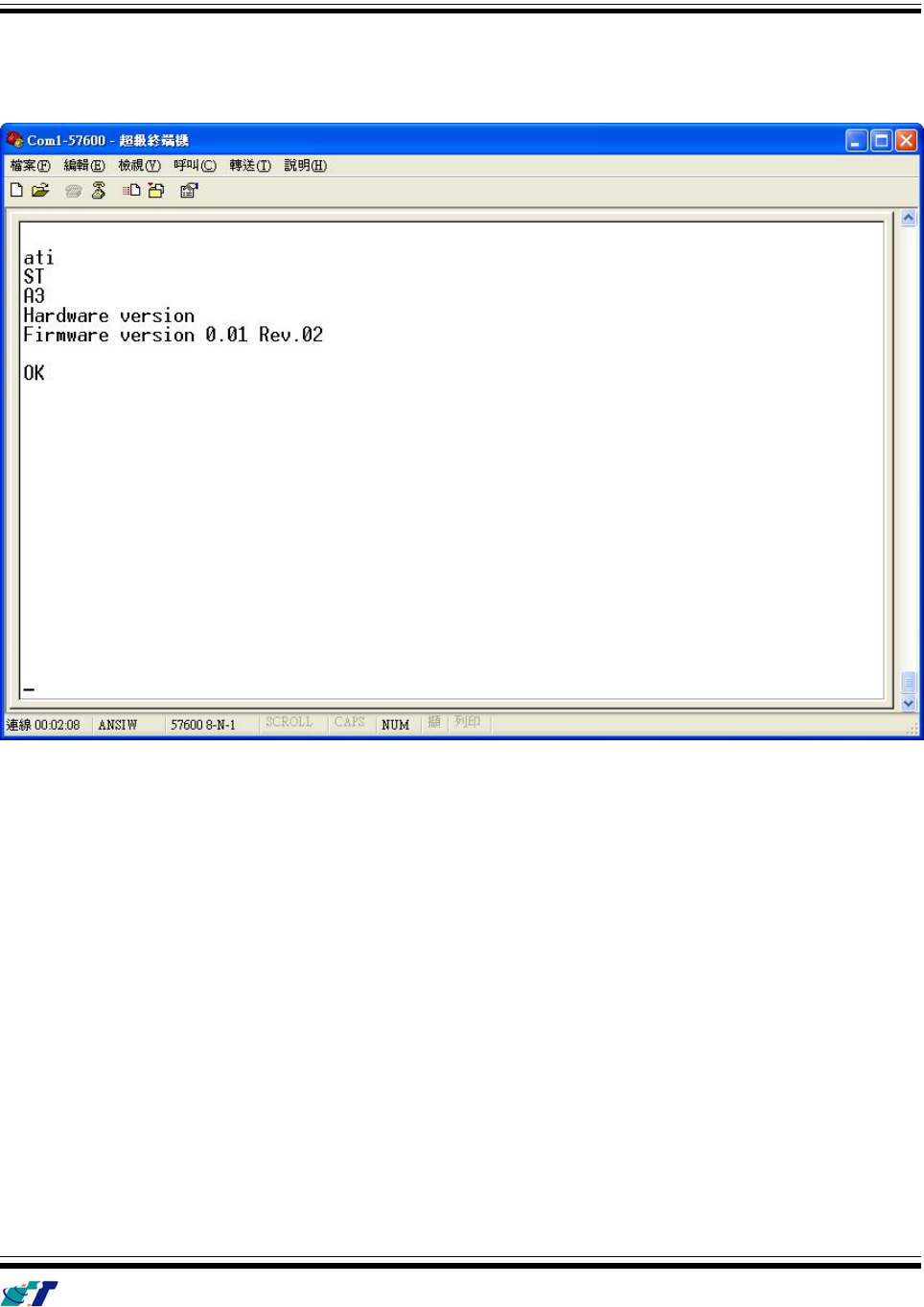

2.3 Device Configurations

For the first installation, some basic parameters should be set before installation. The device parameters

can be set through RS-232 port by using HyperTerminal program. Please see below for the HyperTerminal

settings:

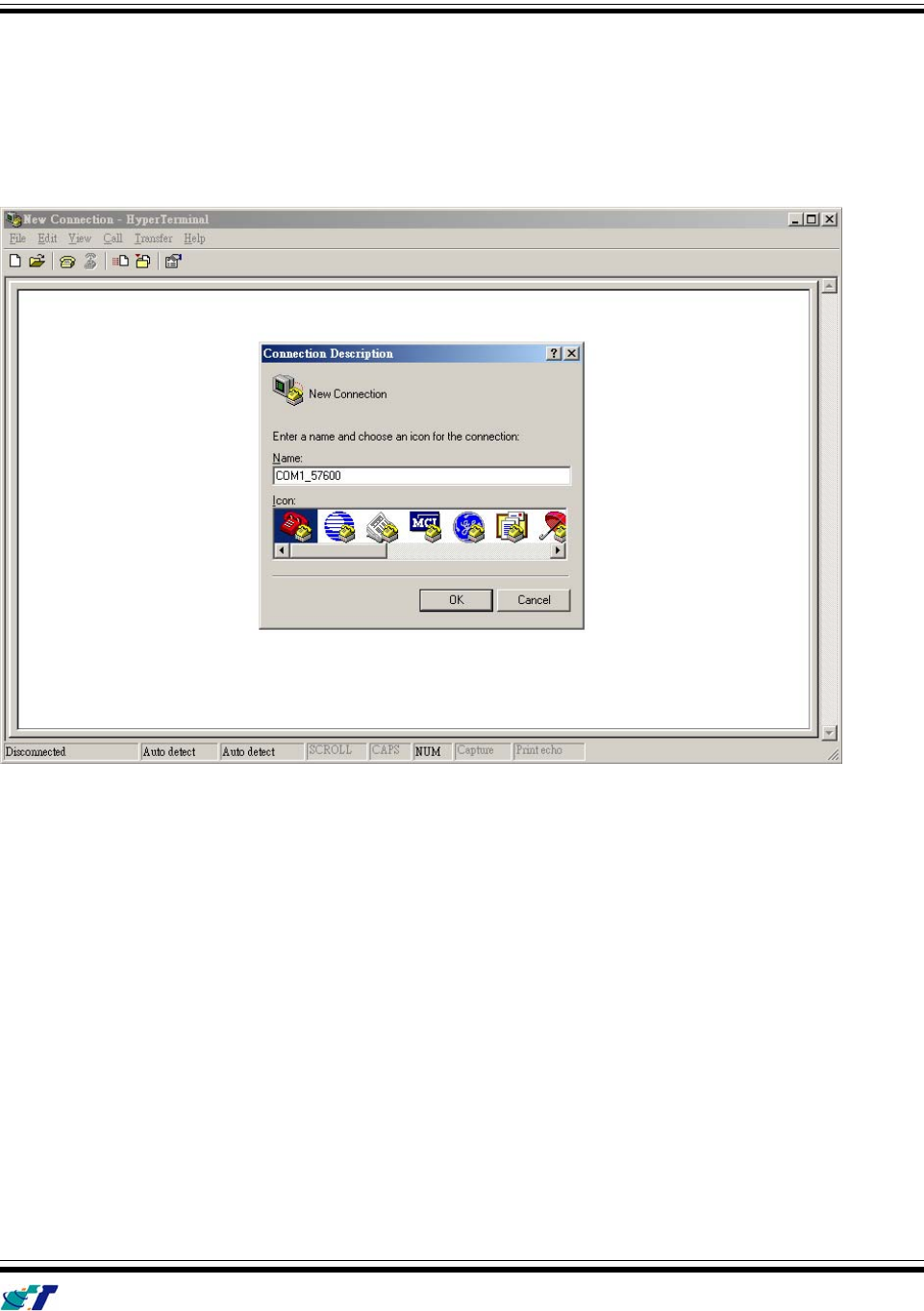

(1) Open HyperTerminal

(2) Choose correct COM port

(3) Baud RateÆ57600bps, Data BitsÆ8, ParityÆNone, Stop BitsÆ1, Flow ControlÆNone

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 10 -

(4) Choose [File]Æ[Properties] and click [ASCII Setup…]

(5) Checked below ASCII Sending options

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 11 -

(3) Connect D-Sub connector to your PC and power on the device.

The device startup message will be shown on the HyperTerminal.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 12 -

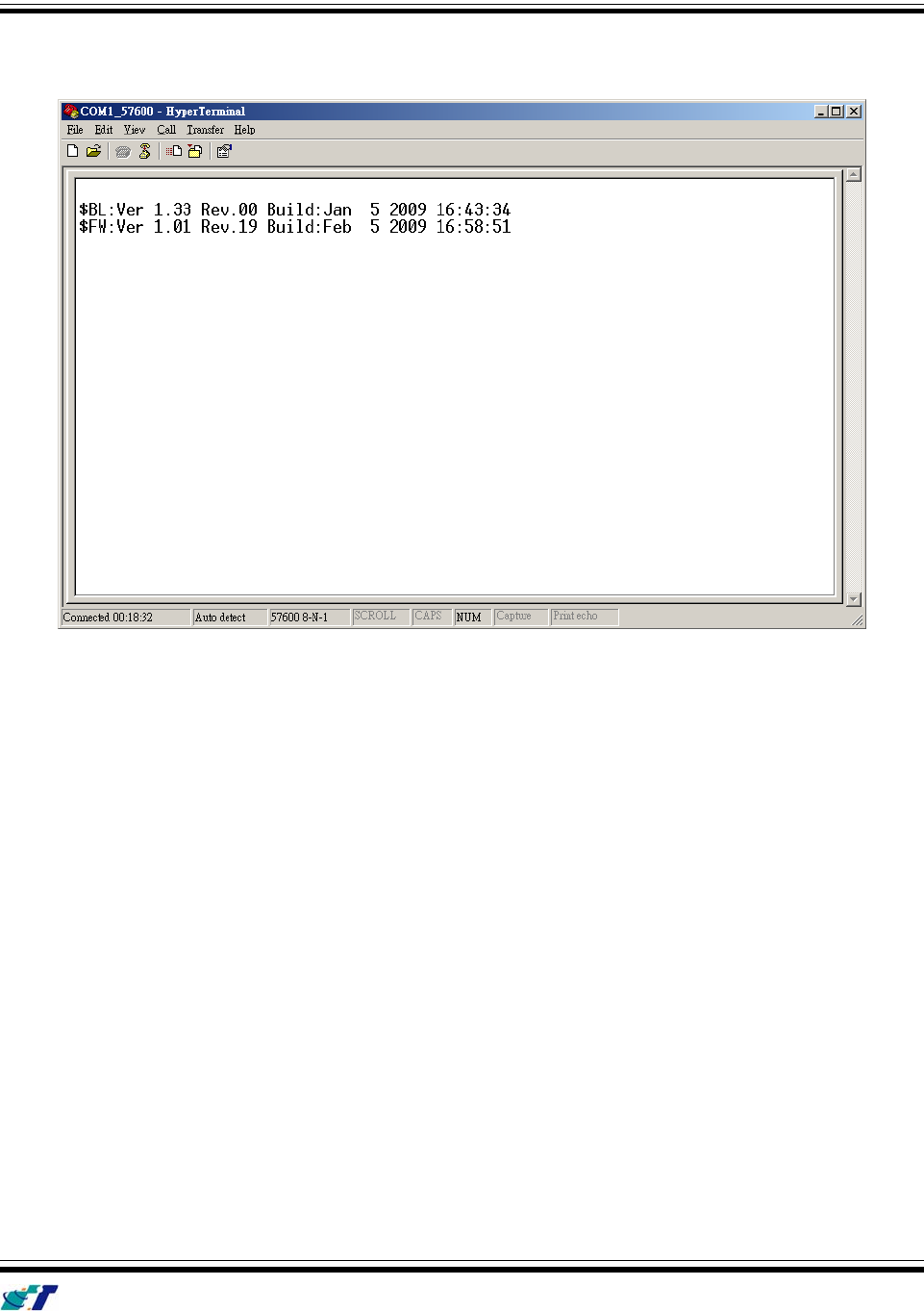

(4) Type ATI command and press [Enter] key, the hardware and firmware version will be shown on the

HyperTerminal. If the HyperTerminal is shown like below, that means connection between the device

and PC is working properly. It is ready to send all configuration commands from now on.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 13 -

2.4 Communication Settings

There are two communication modes for the IntelliTrac A series device to communicate to the control center.

One is SMS, and the other is GPRS (TCP/UDP). The device should be set communication parameters

before install the device to vehicle.

(1) SMS Configuration

Setting SMS control center phone number or short code by using AT$SMSDST command. For example,

the SMS control center phone number is +886123456789, issue the AT$SMSDST command in

HyperTerminal like below:

AT$SMSDST=+886123456789

Then you can try to use cellular phone or SMS gateway to send a SMS message to the A series device.

Send a SMS message Æ "AT$MODID?"

Device will response：

$MODID=101000001

This proves the mobile phone SMS connects successfully.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 14 -

(2) GPRS Configuration

Setting GPRS server using the following commands:

AT$APN=internet,username,password (APN=internet, Username=username, Password=password)

AT$HOSTS=1,0,60.148.19.10,5011 (“1” is the Index number of Hosts,

“0” is to use Static IP as the indication of server location,

“60.148.19.10” is the Server IP address,

“5011” is the port assigned for port listening.)

AT$RETRY=5,10 (Message retry settings)

AT$IPTYPE=1 (Using TCP/IP mode)

AT$GPRSEN=1 (GPRS enable)

AT$HB=60,0 (Heartbeat setting)

Please refer to IntelliTrac A Series Protocol Document for detailed command descriptions.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 15 -

2.5 GPS Tracking Configurations

After the device communication settings are done. The remote GPS tracking function can be performed.

The GPS tracking function can be set by using AT$PDSR command. For example,

AT$PDSR=1,1,0,0,3,0,0,30,0 (Tracking through GPRS by time interval 30 seconds, and Logging by every

second)

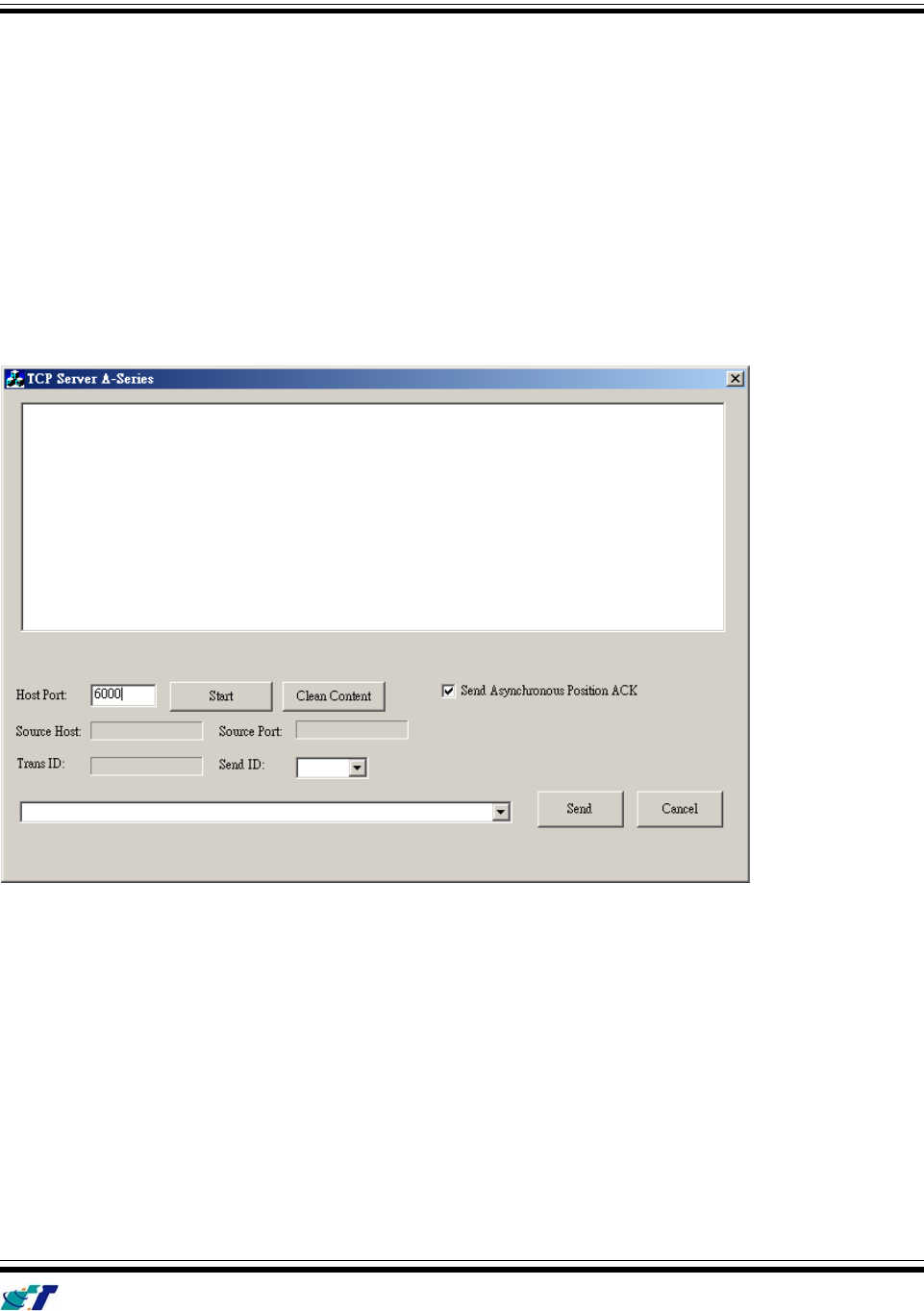

For the simply testing GPRS, open the TCP Server A-Series software which is provided by S&T. It is a

simple server software that can wait for device connection and data.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 16 -

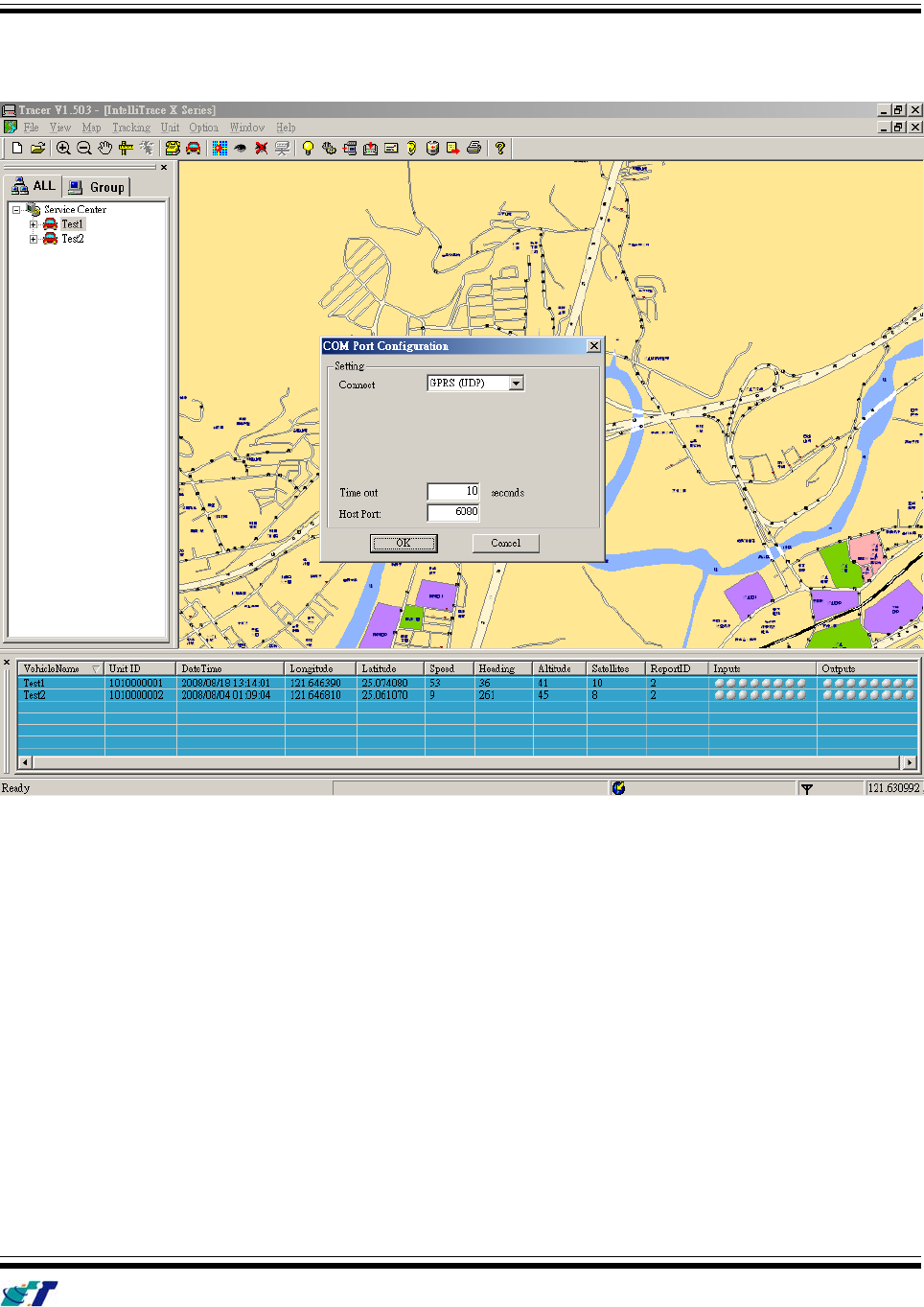

For advanced testing, open the IntelliTrac Tracer software and set communication port properly. The device

will start to connect to the Tracer software and report GPS tracking locations.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 17 -

2.6 Firmware Upgrade

The IntelliTrac A Series device firmware is updated through the serial interface. The firmware update of the

device can be performed with the IntelliTrac A series firmware loader tool provided by S&T. It runs on

Windows based PCs. Please see the following step-by-step upgrade procedure.

(1) Connect the RS232 cable between device an PC.

(2) Turn on the device.

(3) Run AseriesLoader.exe, the following window is displayed.

(4) Click […] button to open firmware file which provide by S&T

(5) Click Write button and start firmware programming.

(6) When the writing progress 100% is reached, the device LEDs will start to fast blinking.

(7) Wait until device LEDs stop fast blinking.

(8) Firmware update complete.

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 18 -

CHARACTERISTICS

Dimensions ( L x W x H)

138 x 101 x 38mm

Weight

350gm

Radio Performance

Frequency (MHz)

Quad-Band 850/900/1800/1900MHz

Transmit Power

1W/1800MHz,1900Mhz

2W/850MHz, 900MHz

GSM Functionality / GPRS

GPRS Mode MultiSlot Class 10 , Mobile Station Class B

GPRS Coding Scheme

CS1,CS2,CS3 and CS4

Connector

SMA

GSM Antenna

External GSM Antenna

SIM Interface

Support SIM card 1.8V, 3V

GPS Functionality

Receiver

12 Channels or above

Sensitivity ( Tracking )

-159dBm

Antenna Type

External GPS Active Antenna , 3.3V

Connector

SMA Female

GPS Protocol

NMEA 0183 Ver3.0

Onboard Components

MCU

32-bit Microcontroller

Data Memory

2MB flash

Motion Sensor

3-Axes Acceleration Sensor

Led Indicator

3 , Green (Power status ) , Red ( GPS, GSM

status )

Interface I/O

I/O Connector

3 connectors. 4pin

Serial Data I/O

RS-232 (Default 57600bps)

Inputs

Outputs

Analog

CAN Bus

1 (Optional)

Voice Interface

Electrical

Power Source

DC 8V to 30V

Power Consumption

70mA @ 12V (Full power mode)

15mA @ 12V (Low power mode)

6mA @ 12V (Very low power mode)

Environment

Operating Temperature

-20oC to +75oC

IntelliTrac A3 Series User Guide

This document contains confidential, restricted, and proprietary information. The document has been prepared for the

exclusive internal use of certain designated S&T employees and may not be duplicated or distributed, in whole or in

part, without the prior, written consent of an authorized officer of S&T.

- 19 -

IntelliTrac A-Series AVL device is produced by Systems & Technology Corporation. The company is a key

developer and supplier of advanced systems in the Automatic Vehicle Location (AVL), Digital Map and Car

Navigation Systems.

If you need information on other maps solutions or products, please contact us at the phone and fax

numbers listed below, or visit our web sites.

Contact Information for System & Technology Corp.

S&T Web Site http://www.systech.com.tw

Technical Support Hotline +886-2-2698-1599

Technical Support E-mail AVL@ms.systech.com.tw

Main Phone +886-2-2698-1599

Main Fax +886-2-2698-1211

Systems and Technology STAVL0941 INTELLITRAC User Manual A3 User Guide 002 A Mao

Systems & Technology Corp. INTELLITRAC A3 User Guide 002 A Mao

Users Manual

Navigation menu

Namespaces

Views

Navigation
