TAIYO YUDEN EYBMABA Complete Class2 Bluetooth Module User Manual

Taiyo Yuden Co., Ltd. Complete Class2 Bluetooth Module

user manual

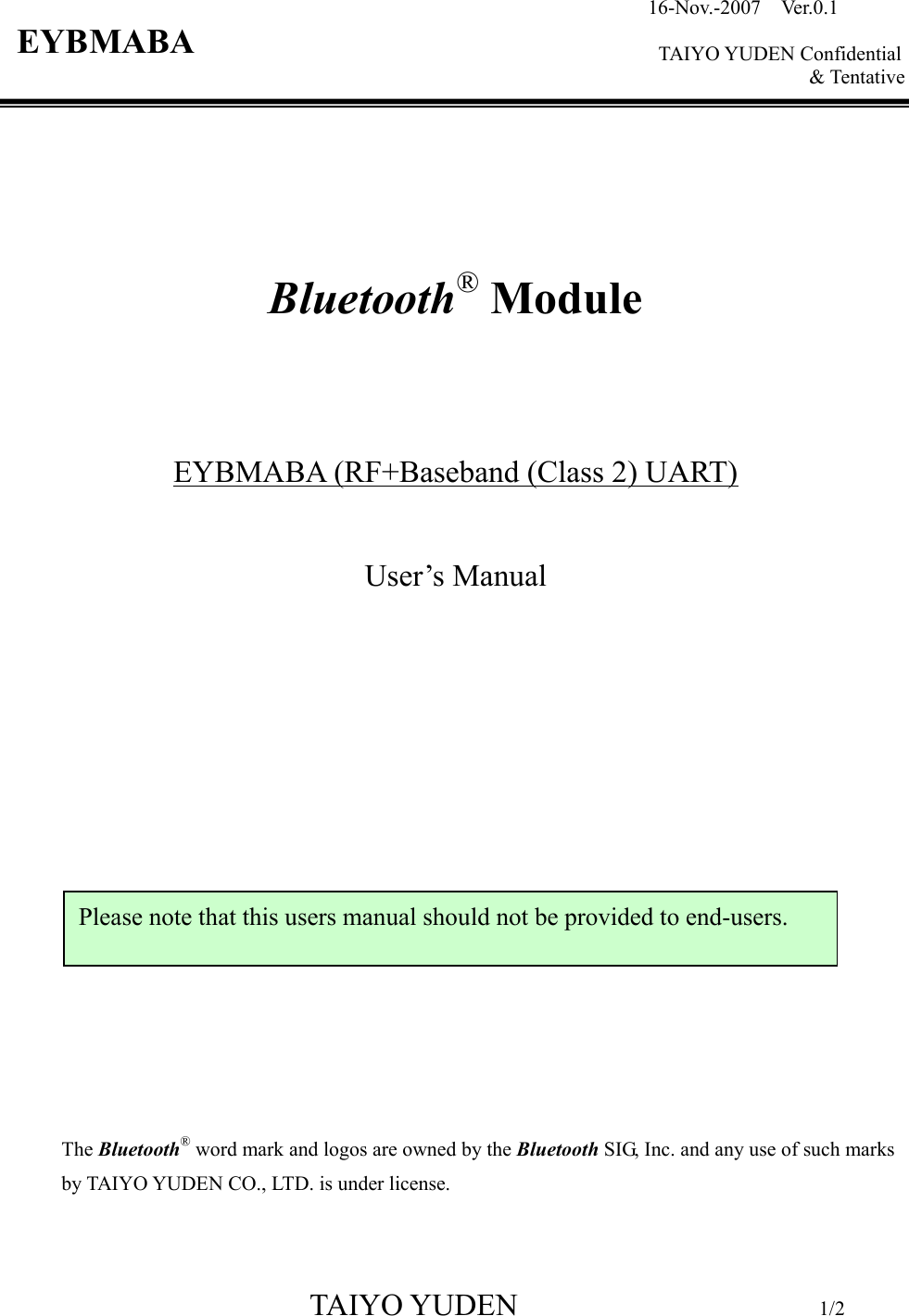

TAIYO YUDEN 1/2 16-Nov.-2007 Ver.0.1 TAIYO YUDEN Confidential & Tentative Bluetooth® Module EYBMABA (RF+Baseband (Class 2) UART) User’s Manual The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TAIYO YUDEN CO., LTD. is under license. Please note that this users manual should not be provided to end-users. EYBMABA

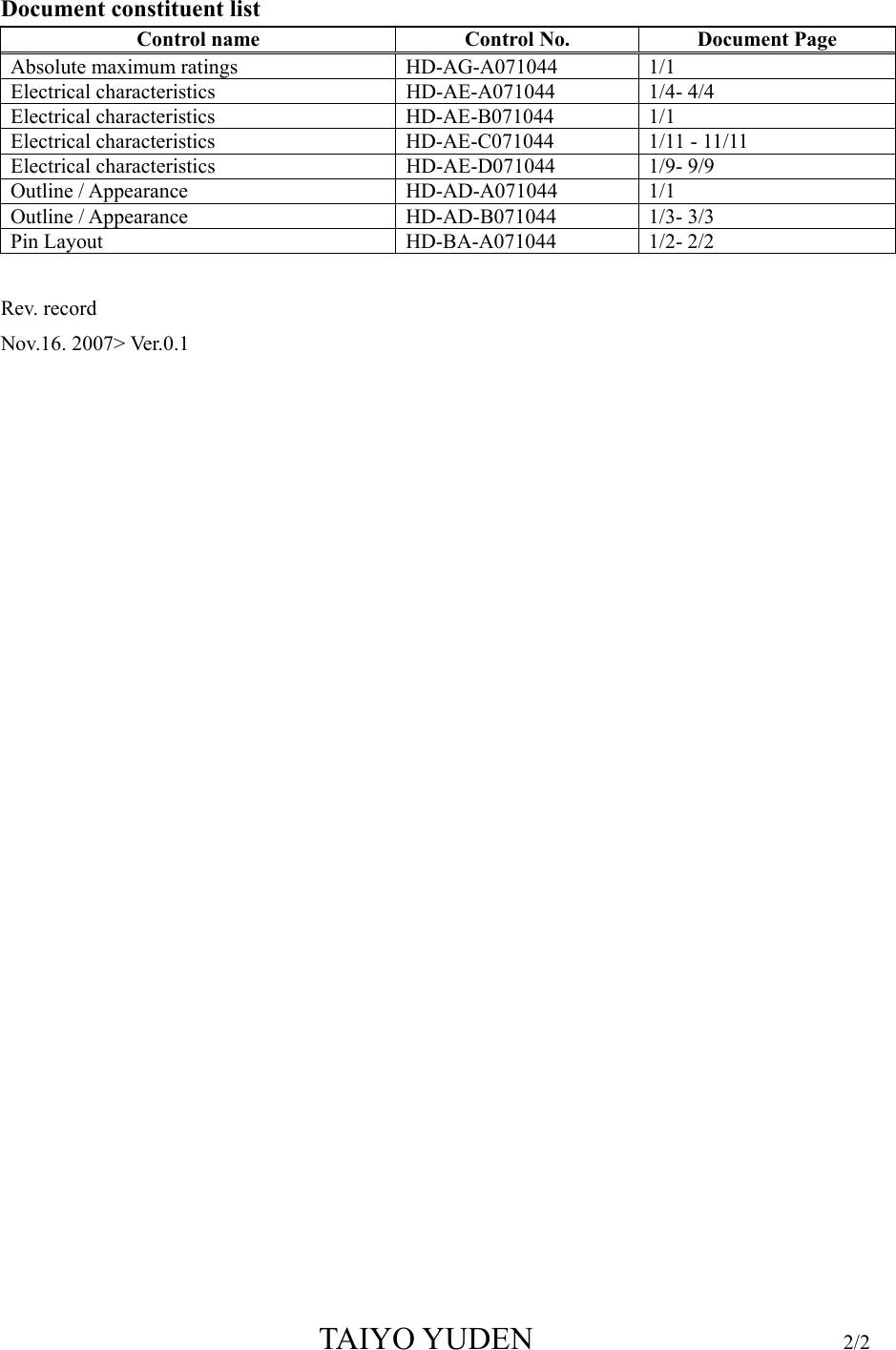

TAIYO YUDEN 2/2 Document constituent list Control name Control No. Document Page Absolute maximum ratings HD-AG-A071044 1/1 Electrical characteristics HD-AE-A071044 1/4- 4/4 Electrical characteristics HD-AE-B071044 1/1 Electrical characteristics HD-AE-C071044 1/11 - 11/11 Electrical characteristics HD-AE-D071044 1/9- 9/9 Outline / Appearance HD-AD-A071044 1/1 Outline / Appearance HD-AD-B071044 1/3- 3/3 Pin Layout HD-BA-A071044 1/2- 2/2 Rev. record Nov.16. 2007> Ver.0.1

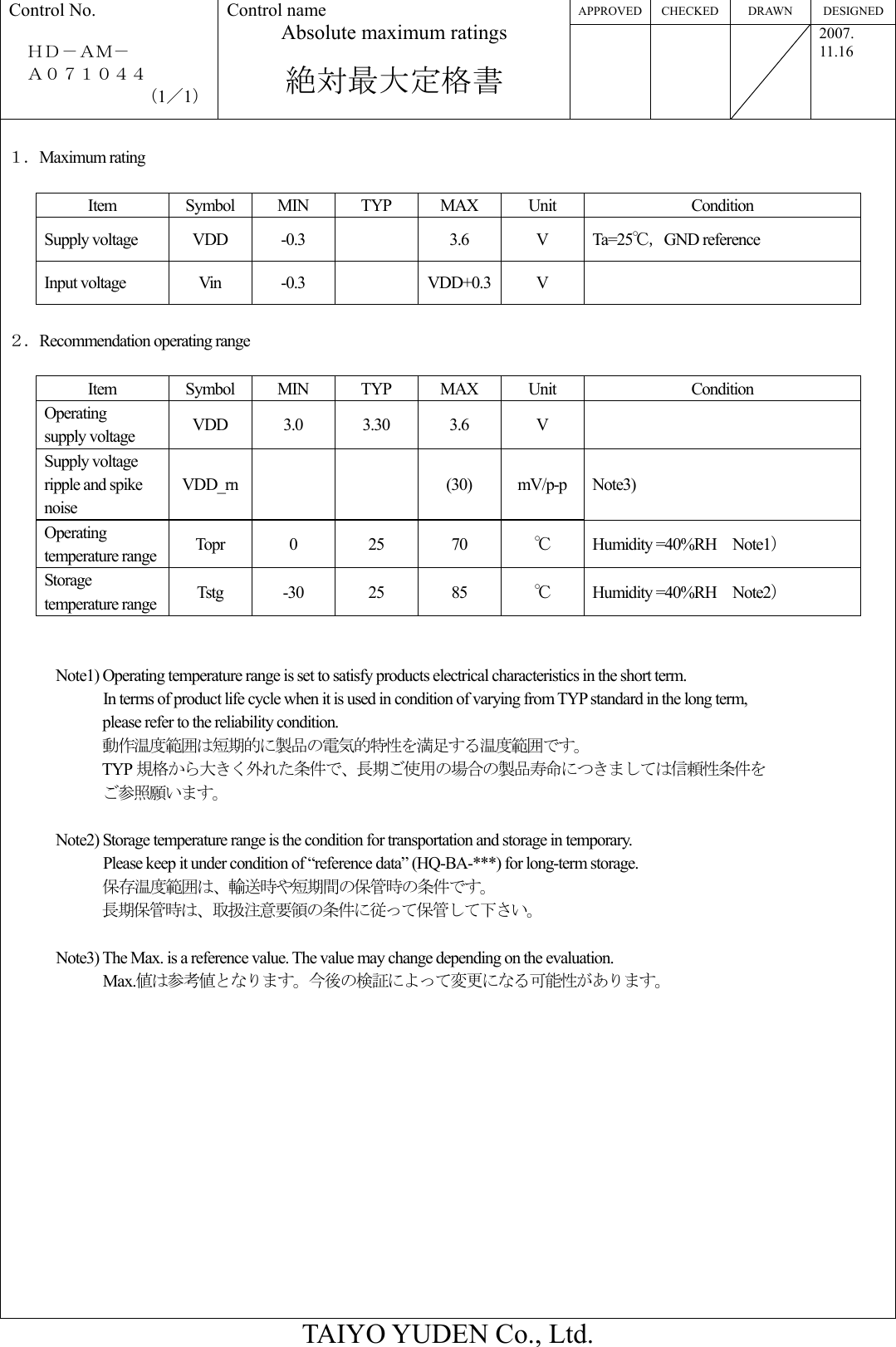

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＭ－ Ａ０７１０４４ （1／1） Control name Absolute maximum ratings 絶対最大定格書 2007. 11.16 TAIYO YUDEN Co., Ltd. １．Maximum rating Item Symbol MIN TYP MAX Unit Condition Supply voltage VDD -0.3 3.6 V Ta=25℃，GND reference Input voltage Vin -0.3 VDD+0.3 V ２．Recommendation operating range Item Symbol MIN TYP MAX Unit Condition Operating supply voltage VDD 3.0 3.30 3.6 V Supply voltage ripple and spike noise VDD_rn (30) mV/p-p Note3) Operating temperature range Topr 0 25 70 ℃ Humidity =40%RH Note1） Storage temperature range Tstg -30 25 85 ℃ Humidity =40%RH Note2） Note1) Operating temperature range is set to satisfy products electrical characteristics in the short term. In terms of product life cycle when it is used in condition of varying from TYP standard in the long term, please refer to the reliability condition. 動作温度範囲は短期的に製品の電気的特性を満足する温度範囲です。 TYP 規格から大きく外れた条件で、長期ご使用の場合の製品寿命につきましては信頼性条件を ご参照願います。 Note2) Storage temperature range is the condition for transportation and storage in temporary. Please keep it under condition of “reference data” (HQ-BA-***) for long-term storage. 保存温度範囲は、輸送時や短期間の保管時の条件です。 長期保管時は、取扱注意要領の条件に従って保管して下さい。 Note3) The Max. is a reference value. The value may change depending on the evaluation. Max.値は参考値となります。今後の検証によって変更になる可能性があります。

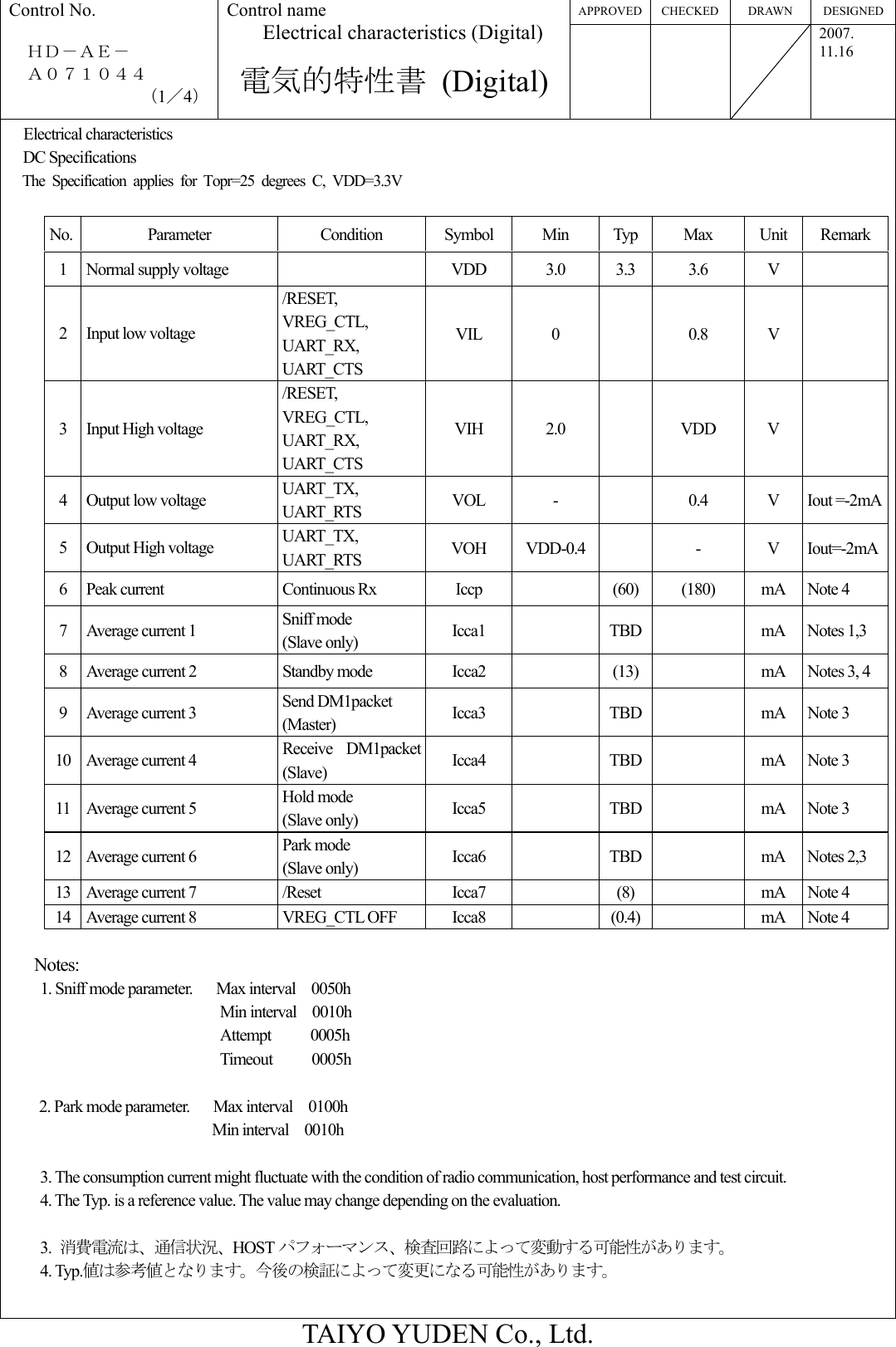

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－ Ａ０７１０４４ （1／4） Control name Electrical characteristics (Digital) 電気的特性書 (Digital) 2007. 11.16 TAIYO YUDEN Co., Ltd. Electrical characteristics DC Specifications The Specification applies for Topr=25 degrees C, VDD=3.3V No. Parameter Condition Symbol Min Typ Max Unit Remark 1 Normal supply voltage VDD 3.0 3.3 3.6 V 2 Input low voltage /RESET, VREG_CTL, UART_RX, UART_CTS VIL 0 0.8 V 3 Input High voltage /RESET, VREG_CTL, UART_RX, UART_CTS VIH 2.0 VDD V 4 Output low voltage UART_TX, UART_RTS VOL - 0.4 V Iout =-2mA5 Output High voltage UART_TX, UART_RTS VOH VDD-0.4 - V Iout=-2mA6 Peak current Continuous Rx Iccp (60) (180) mA Note 4 7 Average current 1 Sniff mode (Slave only) Icca1 TBD mA Notes 1,3 8 Average current 2 Standby mode Icca2 (13) mA Notes 3, 4 9 Average current 3 Send DM1packet (Master) Icca3 TBD mA Note 3 10 Average current 4 Receive DM1packet (Slave) Icca4 TBD mA Note 3 11 Average current 5 Hold mode (Slave only) Icca5 TBD mA Note 3 12 Average current 6 Park mode (Slave only) Icca6 TBD mA Notes 2,3 13 Average current 7 /Reset Icca7 (8) mA Note 4 14 Average current 8 VREG_CTL OFF Icca8 (0.4) mA Note 4 Notes: 1. Sniff mode parameter. Max interval 0050h Min interval 0010h Attempt 0005h Timeout 0005h 2. Park mode parameter. Max interval 0100h Min interval 0010h 3. The consumption current might fluctuate with the condition of radio communication, host performance and test circuit. 4. The Typ. is a reference value. The value may change depending on the evaluation. 3. 消費電流は、通信状況、HOST パフォーマンス、検査回路によって変動する可能性があります。 4. Typ.値は参考値となります。今後の検証によって変更になる可能性があります。

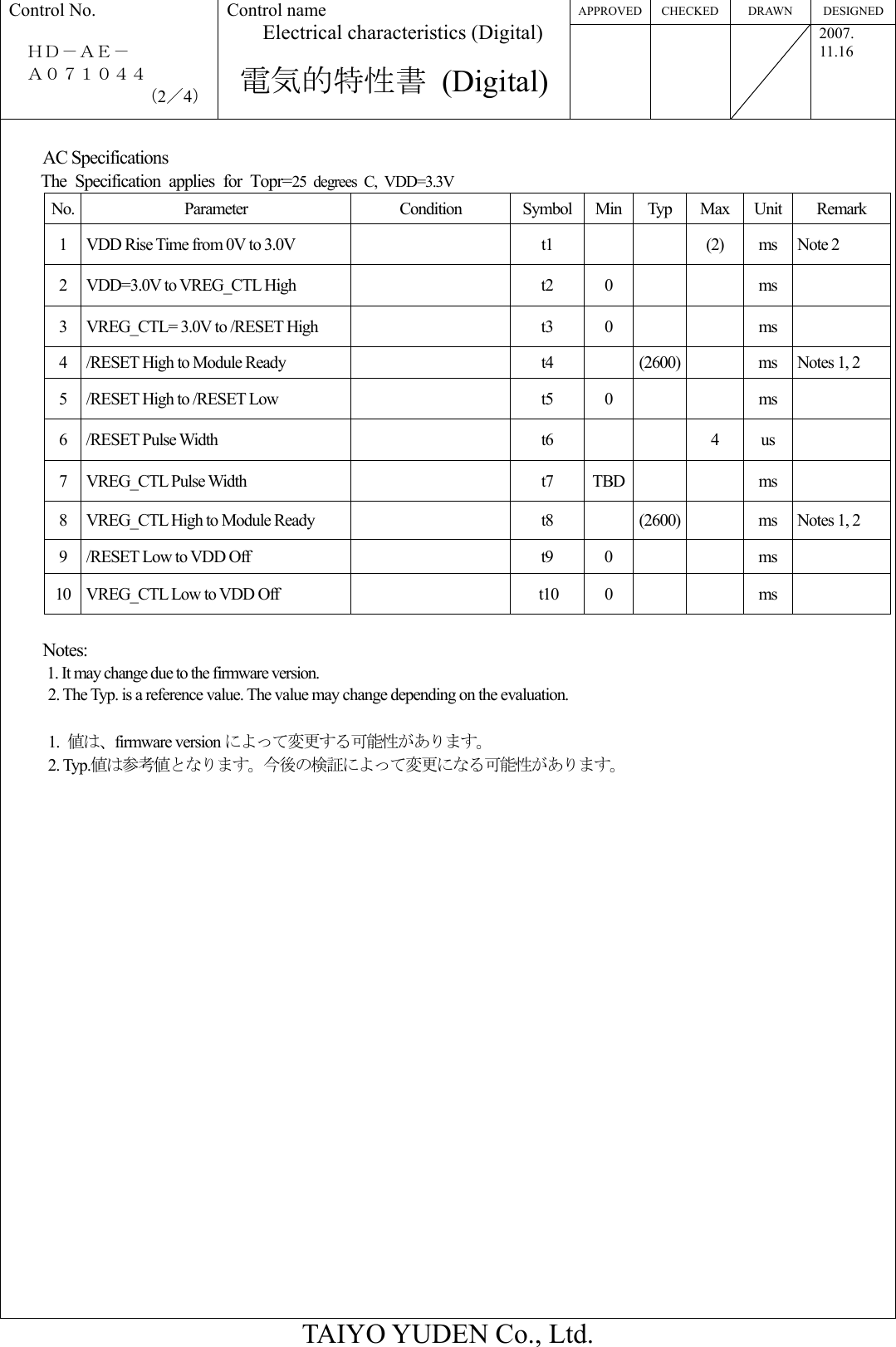

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－ Ａ０７１０４４ （2／4） Control name Electrical characteristics (Digital) 電気的特性書 (Digital) 2007. 11.16 TAIYO YUDEN Co., Ltd. AC Specifications The Specification applies for Topr=25 degrees C, VDD=3.3V No. Parameter Condition Symbol Min Typ Max Unit Remark 1 VDD Rise Time from 0V to 3.0V t1 (2) ms Note 2 2 VDD=3.0V to VREG_CTL High t2 0 ms 3 VREG_CTL= 3.0V to /RESET High t3 0 ms 4 /RESET High to Module Ready t4 (2600) ms Notes 1, 2 5 /RESET High to /RESET Low t5 0 ms 6 /RESET Pulse Width t6 4 us 7 VREG_CTL Pulse Width t7 TBD ms 8 VREG_CTL High to Module Ready t8 (2600) ms Notes 1, 2 9 /RESET Low to VDD Off t9 0 ms 10 VREG_CTL Low to VDD Off t10 0 ms Notes: 1. It may change due to the firmware version. 2. The Typ. is a reference value. The value may change depending on the evaluation. 1. 値は、firmware version によって変更する可能性があります。 2. Typ.値は参考値となります。今後の検証によって変更になる可能性があります。

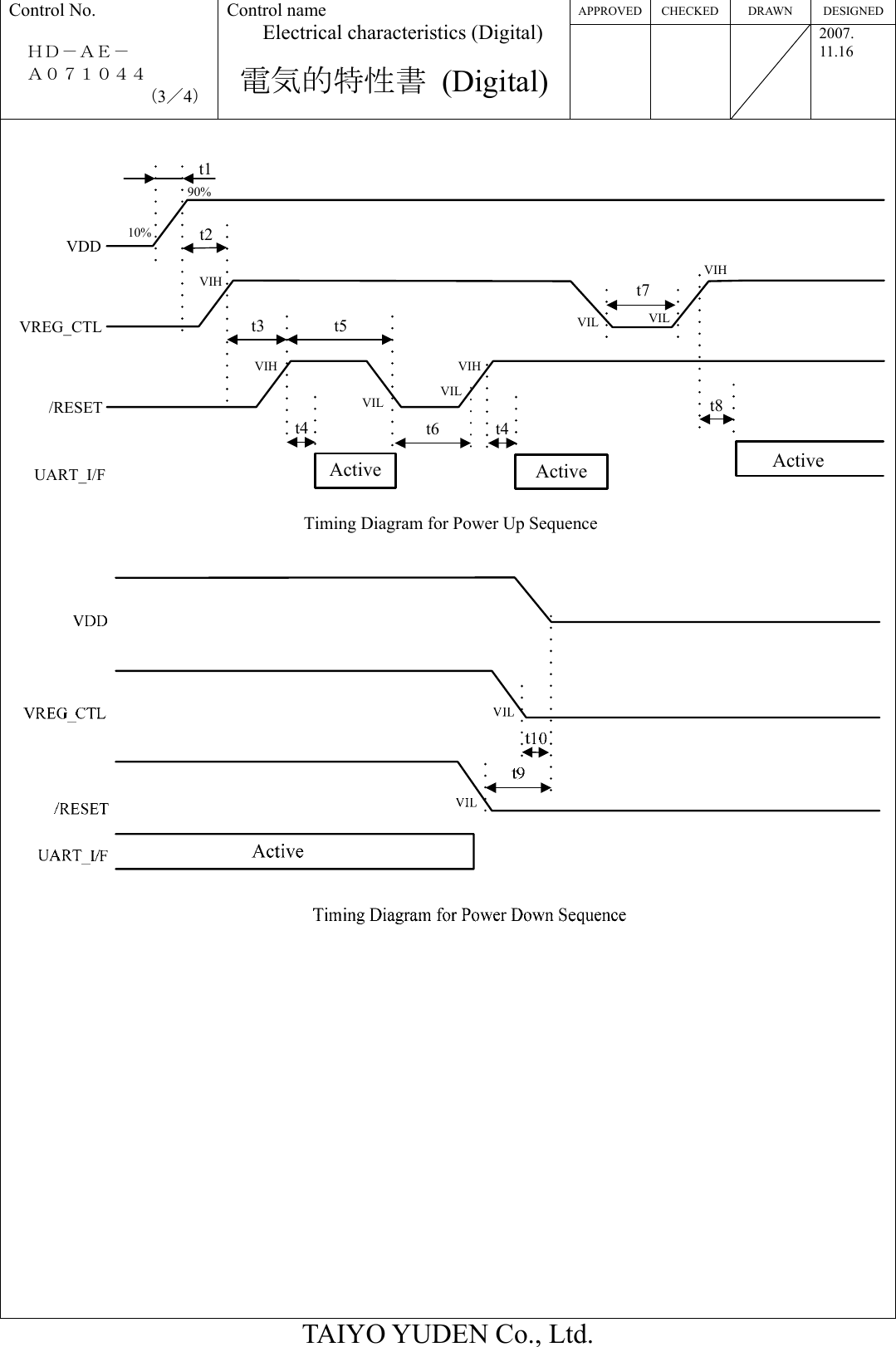

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－ Ａ０７１０４４ （3／4） Control name Electrical characteristics (Digital) 電気的特性書 (Digital) 2007. 11.16 TAIYO YUDEN Co., Ltd. Timing Diagram for Power Up SequenceVDD/RESETUART_I/Ft1t2t3t4Activet6t7VREG_CTL t5Active Activet4t810%90%VIHVIHVIL VILVIHVIL VILVIH

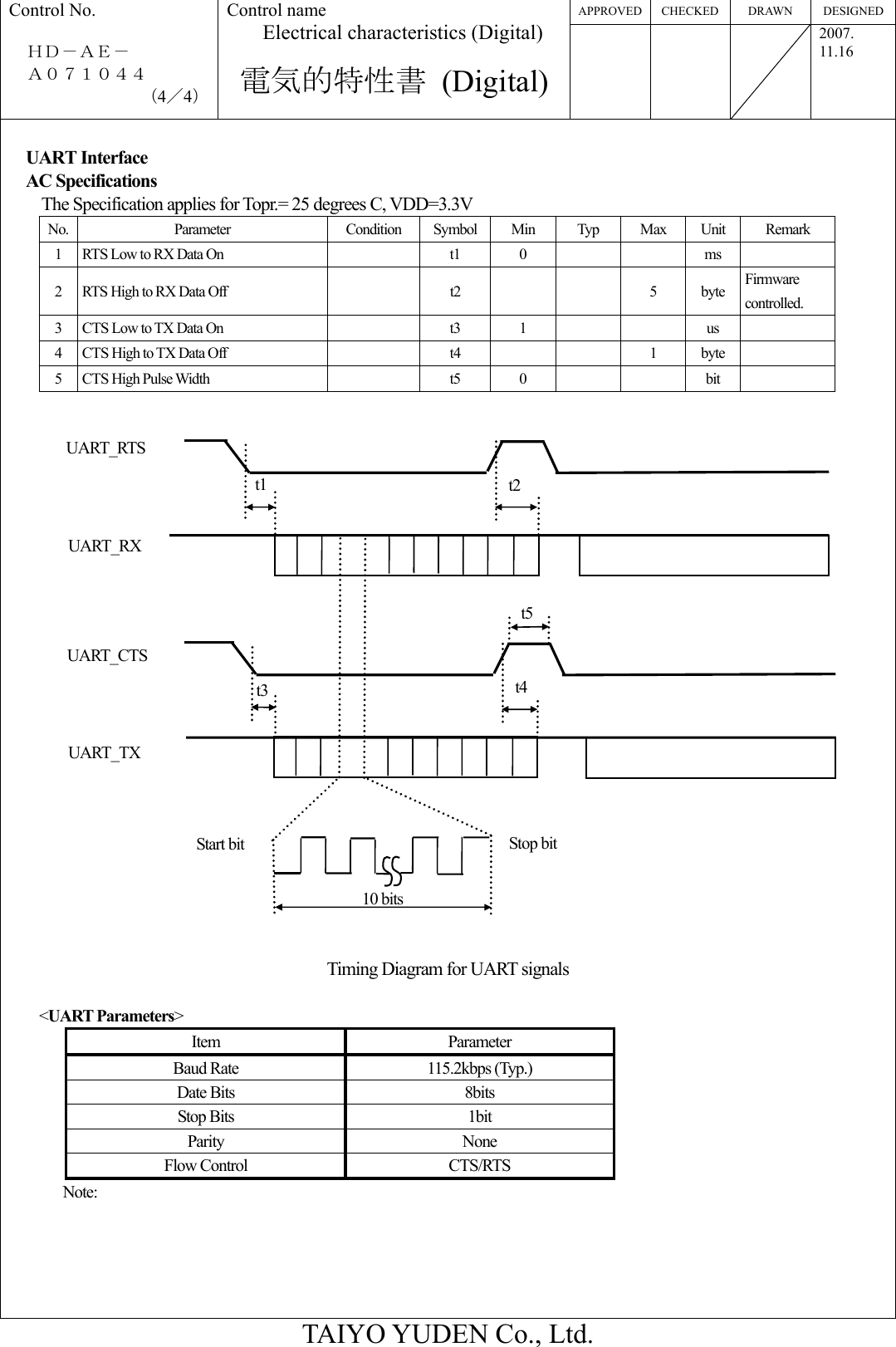

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－ Ａ０７１０４４ （4／4） Control name Electrical characteristics (Digital) 電気的特性書 (Digital) 2007. 11.16 TAIYO YUDEN Co., Ltd. UART Interface AC Specifications The Specification applies for Topr.= 25 degrees C, VDD=3.3V No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RTS Low to RX Data On t1 0 ms 2 RTS High to RX Data Off t2 5 byte Firmware controlled. 3 CTS Low to TX Data On t3 1 us 4 CTS High to TX Data Off t4 1 byte 5 CTS High Pulse Width t5 0 bit Timing Diagram for UART signals <UART Parameters> Item Parameter Baud Rate 115.2kbps (Typ.) Date Bits 8bits Stop Bits 1bit Parity None Flow Control CTS/RTS Note: 10 bits t2 t1 t4 t3 UART_RTS UART_RX UART_CTS UART_TX Stop bit Start bit t5

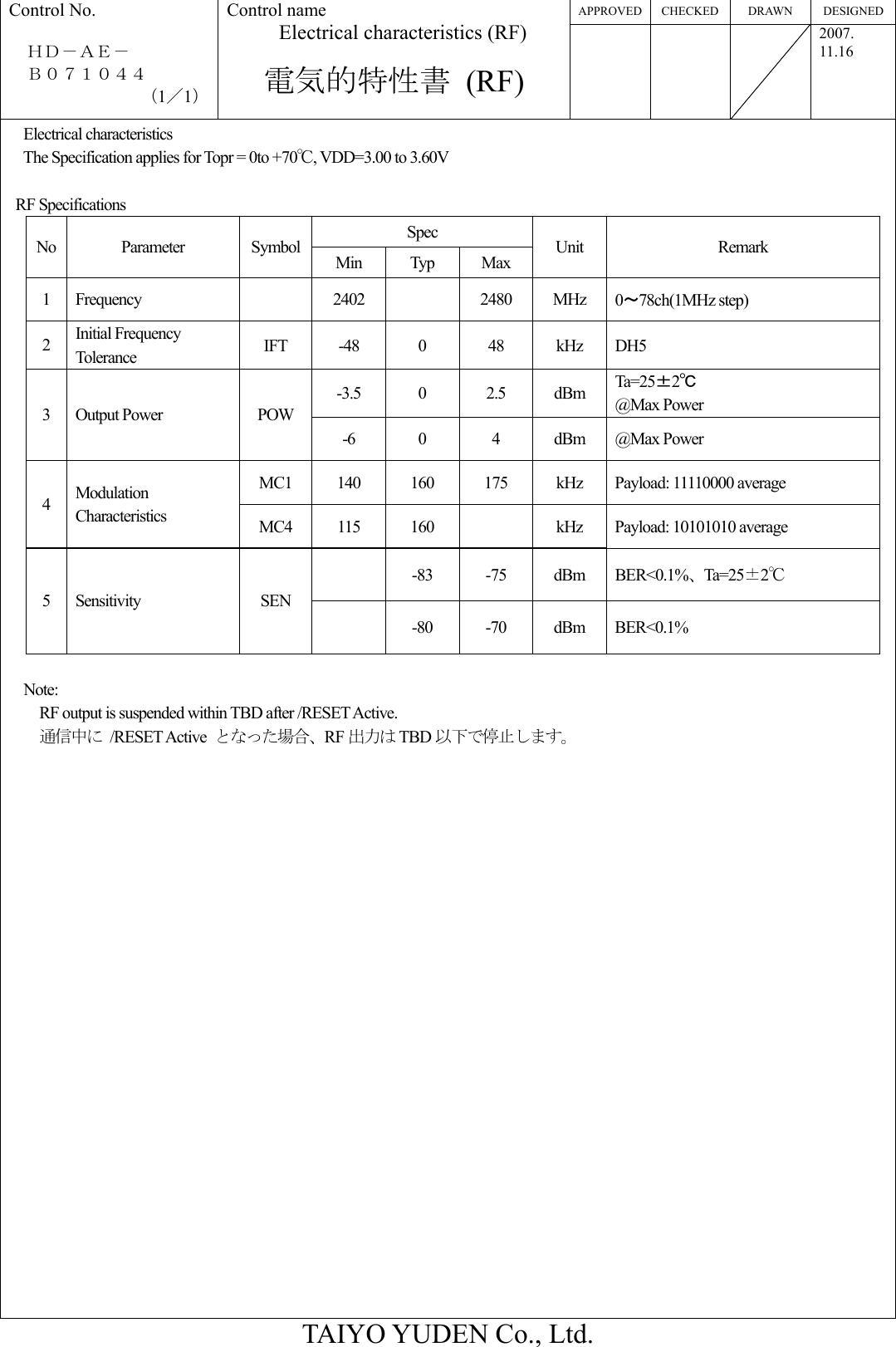

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－ Ｂ０７１０４４ （1／1） Control name Electrical characteristics (RF) 電気的特性書 (RF) 2007. 11.16 TAIYO YUDEN Co., Ltd. Electrical characteristics The Specification applies for Topr = 0to +70℃, VDD=3.00 to 3.60V RF Specifications Spec No Parameter Symbol Min Typ Max Unit Remark 1 Frequency 2402 2480 MHz 0～78ch(1MHz step) 2 Initial Frequency Tolerance IFT -48 0 48 kHz DH5 -3.5 0 2.5 dBm Ta=25±2℃ @Max Power 3 Output Power POW -6 0 4 dBm @Max Power MC1 140 160 175 kHz Payload: 11110000 average 4 Modulation Characteristics MC4 115 160 kHz Payload: 10101010 average -83 -75 dBm BER<0.1%、Ta=25±2℃ 5 Sensitivity SEN -80 -70 dBm BER<0.1% Note: RF output is suspended within TBD after /RESET Active. 通信中に /RESET Active となった場合、RF 出力は TBD 以下で停止します。

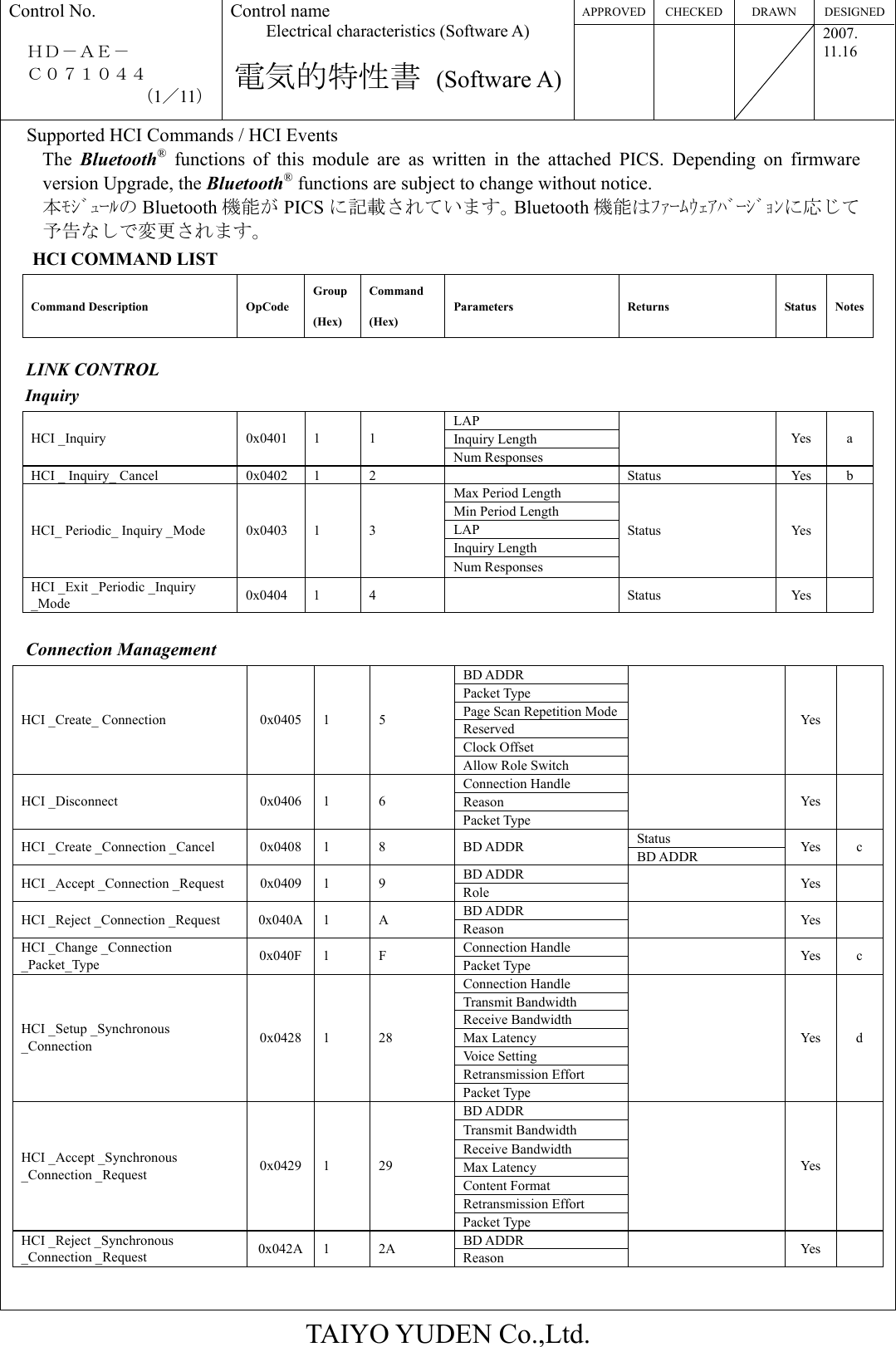

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （1／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Supported HCI Commands / HCI Events The Bluetooth® functions of this module are as written in the attached PICS. Depending on firmware version Upgrade, the Bluetooth® functions are subject to change without notice. 本ﾓｼﾞｭｰﾙの Bluetooth 機能が PICS に記載されています。Bluetooth 機能はﾌｧｰﾑｳｪｱﾊﾞｰｼﾞｮﾝに応じて予告なしで変更されます。 HCI COMMAND LIST Command Description OpCode Group (Hex) Command (Hex) Parameters Returns Status Notes LINK CONTROL Inquiry LAP Inquiry Length HCI _Inquiry 0x0401 1 1 Num Responses Yes a HCI _ Inquiry_ Cancel 0x0402 1 2 Status Yes b Max Period Length Min Period Length LAP Inquiry Length HCI_ Periodic_ Inquiry _Mode 0x0403 1 3 Num Responses Status Yes HCI _Exit _Periodic _Inquiry _Mode 0x0404 1 4 Status Yes Connection Management BD ADDR Packet Type Page Scan Repetition ModeReserved Clock Offset HCI _Create_ Connection 0x0405 1 5 Allow Role Switch Yes Connection Handle Reason HCI _Disconnect 0x0406 1 6 Packet Type Yes Status HCI _Create _Connection _Cancel 0x0408 1 8 BD ADDR BD ADDR Yes c BD ADDR HCI _Accept _Connection _Request 0x0409 1 9 Role Yes BD ADDR HCI _Reject _Connection _Request 0x040A 1 A Reason Yes Connection Handle HCI _Change _Connection _Packet_Type 0x040F 1 F Packet Type Yes c Connection Handle Transmit Bandwidth Receive Bandwidth Max Latency Voice Setting Retransmission Effort HCI _Setup _Synchronous _Connection 0x0428 1 28 Packet Type Yes d BD ADDR Transmit Bandwidth Receive Bandwidth Max Latency Content Format Retransmission Effort HCI _Accept _Synchronous _Connection _Request 0x0429 1 29 Packet Type Yes BD ADDR HCI _Reject _Synchronous _Connection _Request 0x042A 1 2A Reason Yes

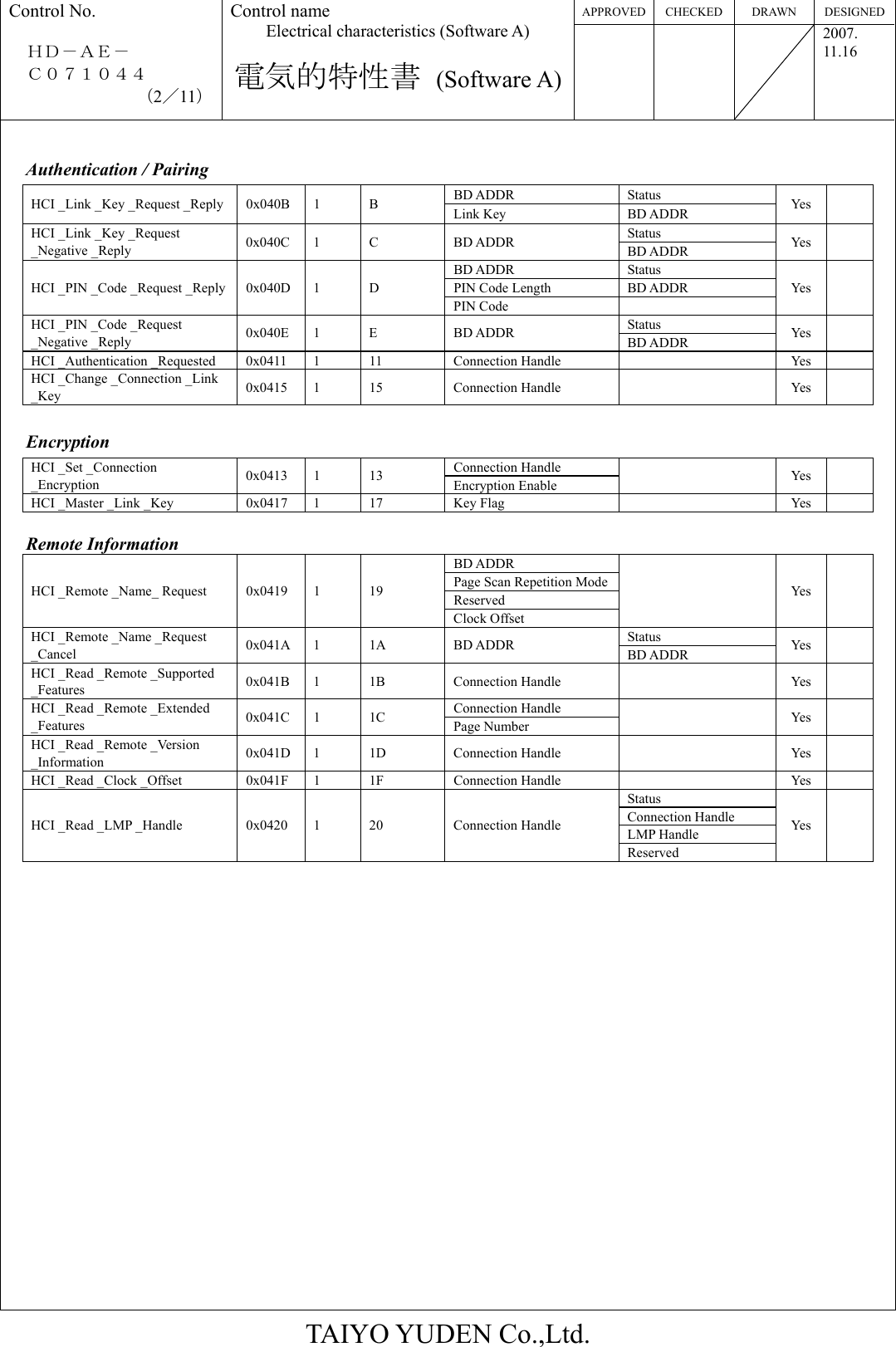

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （2／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Authentication / Pairing BD ADDR Status HCI _Link _Key _Request _Reply 0x040B 1 B Link Key BD ADDR Yes Status HCI _Link _Key _Request _Negative _Reply 0x040C 1 C BD ADDR BD ADDR Yes BD ADDR Status PIN Code Length BD ADDR HCI _PIN _Code _Request _Reply 0x040D 1 D PIN Code Yes Status HCI _PIN _Code _Request _Negative _Reply 0x040E 1 E BD ADDR BD ADDR Yes HCI _Authentication _Requested 0x0411 1 11 Connection Handle Yes HCI _Change _Connection _Link _Key 0x0415 1 15 Connection Handle Yes Encryption Connection Handle HCI _Set _Connection _Encryption 0x0413 1 13 Encryption Enable Yes HCI _Master _Link _Key 0x0417 1 17 Key Flag Yes Remote Information BD ADDR Page Scan Repetition ModeReserved HCI _Remote _Name_ Request 0x0419 1 19 Clock Offset Yes Status HCI _Remote _Name _Request _Cancel 0x041A 1 1A BD ADDR BD ADDR Yes HCI _Read _Remote _Supported _Features 0x041B 1 1B Connection Handle Yes Connection Handle HCI _Read _Remote _Extended _Features 0x041C 1 1C Page Number Yes HCI _Read _Remote _Version _Information 0x041D 1 1D Connection Handle Yes HCI _Read _Clock _Offset 0x041F 1 1F Connection Handle Yes Status Connection Handle LMP Handle HCI _Read _LMP _Handle 0x0420 1 20 Connection Handle Reserved Yes

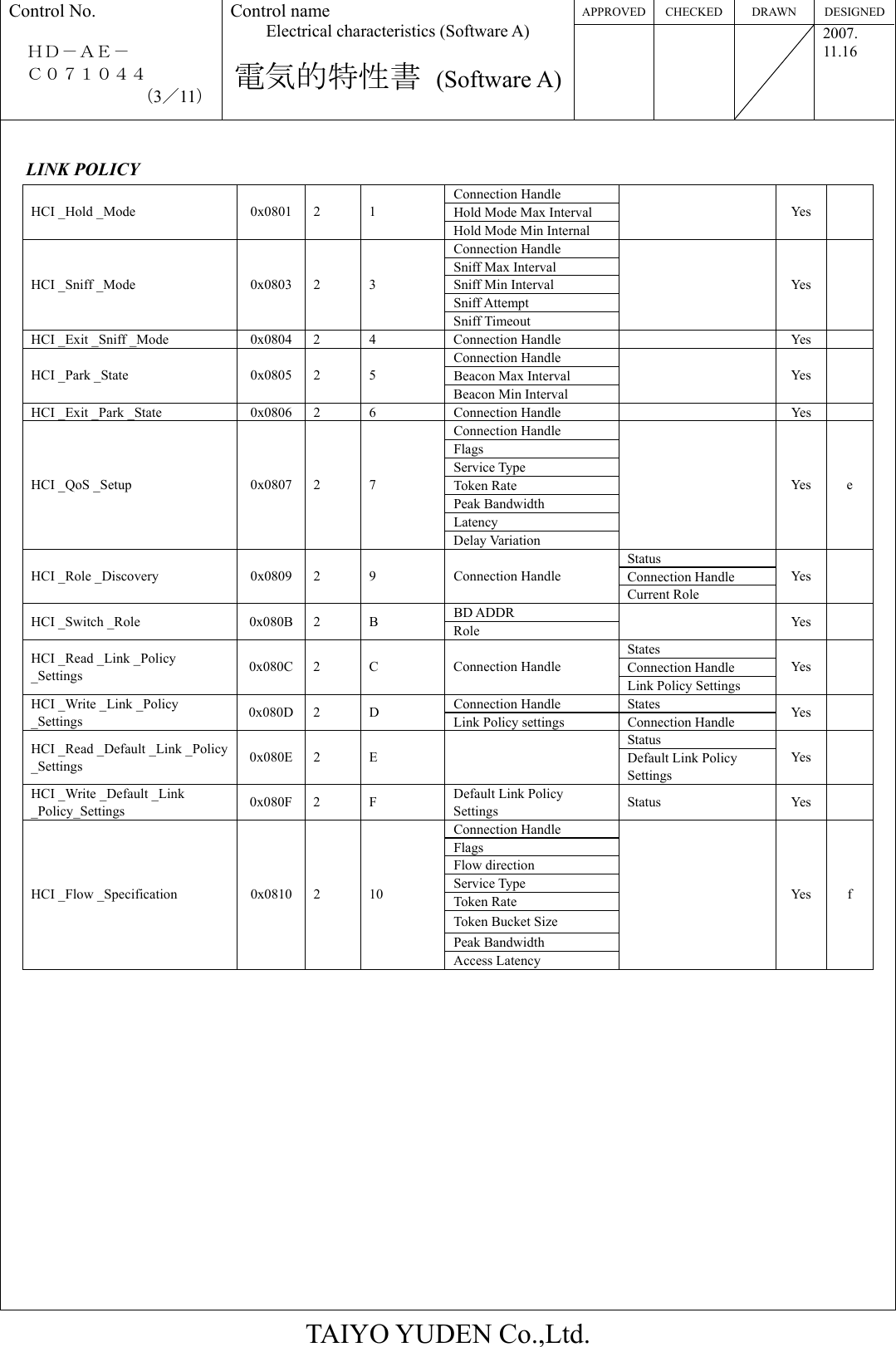

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （3／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. LINK POLICY Connection Handle Hold Mode Max Interval HCI _Hold _Mode 0x0801 2 1 Hold Mode Min Internal Yes Connection Handle Sniff Max Interval Sniff Min Interval Sniff Attempt HCI _Sniff _Mode 0x0803 2 3 Sniff Timeout Yes HCI _Exit _Sniff _Mode 0x0804 2 4 Connection Handle Yes Connection Handle Beacon Max Interval HCI _Park _State 0x0805 2 5 Beacon Min Interval Yes HCI _Exit _Park _State 0x0806 2 6 Connection Handle Yes Connection Handle Flags Service Type Token Rate Peak Bandwidth Latency HCI _QoS _Setup 0x0807 2 7 Delay Variation Yes e Status Connection Handle HCI _Role _Discovery 0x0809 2 9 Connection Handle Current Role Yes BD ADDR HCI _Switch _Role 0x080B 2 B Role Yes States Connection Handle HCI _Read _Link _Policy _Settings 0x080C 2 C Connection Handle Link Policy Settings Yes Connection Handle States HCI _Write _Link _Policy _Settings 0x080D 2 D Link Policy settings Connection Handle Yes Status HCI _Read _Default _Link _Policy_Settings 0x080E 2 E Default Link Policy Settings Yes HCI _Write _Default _Link _Policy_Settings 0x080F 2 F Default Link Policy Settings Status Yes Connection Handle Flags Flow direction Service Type Token Rate Token Bucket Size Peak Bandwidth HCI _Flow _Specification 0x0810 2 10 Access Latency Yes f

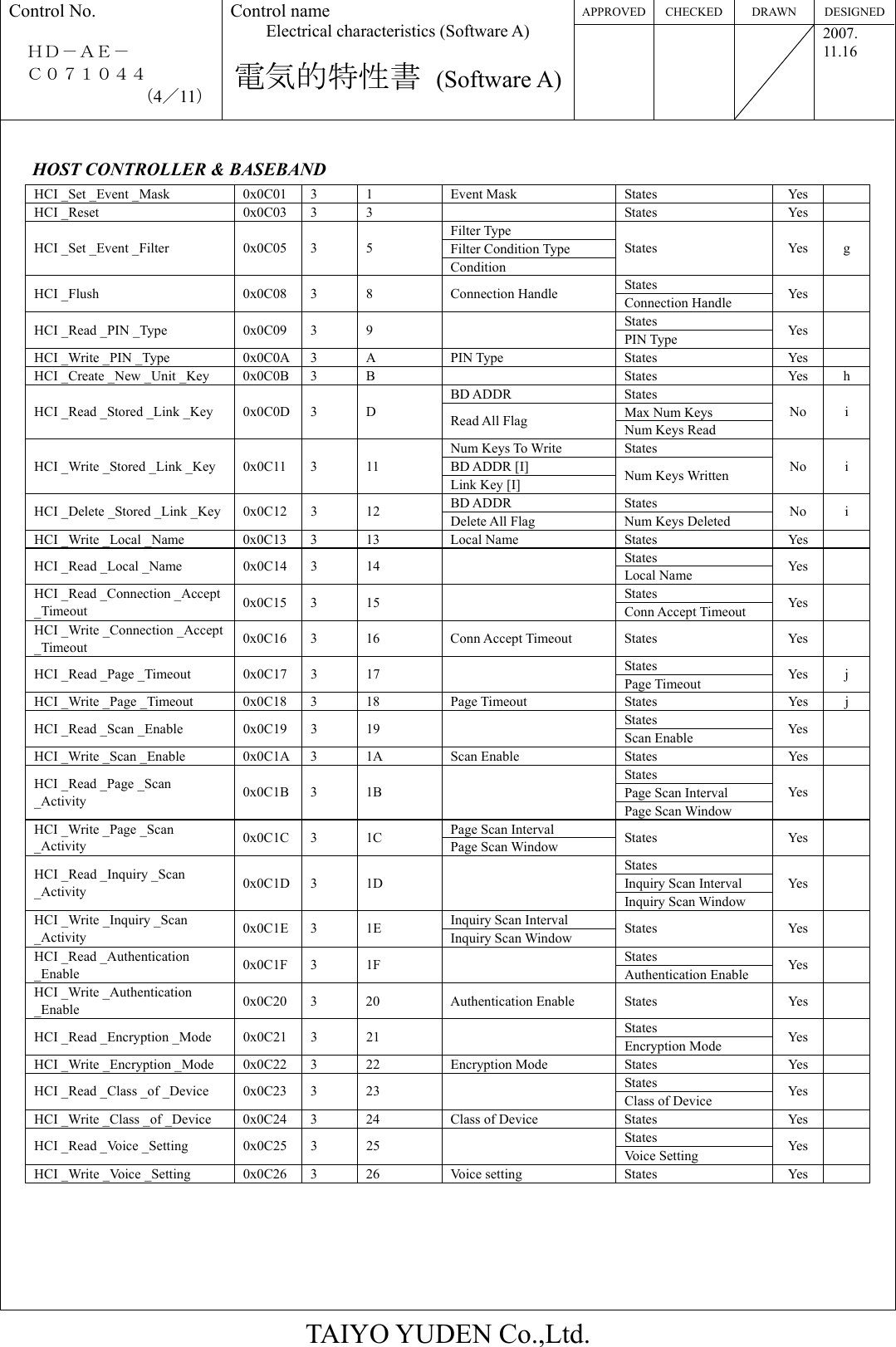

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （4／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. HOST CONTROLLER & BASEBAND HCI _Set _Event _Mask 0x0C01 3 1 Event Mask States Yes HCI _Reset 0x0C03 3 3 States Yes Filter Type Filter Condition Type HCI _Set _Event _Filter 0x0C05 3 5 Condition States Yes g States HCI _Flush 0x0C08 3 8 Connection Handle Connection Handle Ye s States HCI _Read _PIN _Type 0x0C09 3 9 PIN Type Yes HCI _Write _PIN _Type 0x0C0A 3 A PIN Type States Yes HCI _Create _New _Unit _Key 0x0C0B 3 B States Yes h BD ADDR States Max Num Keys HCI _Read _Stored _Link _Key 0x0C0D 3 D Read All Flag Num Keys Read No i Num Keys To Write States BD ADDR [I] HCI _Write _Stored _Link _Key 0x0C11 3 11 Link Key [I] Num Keys Written No i BD ADDR States HCI _Delete _Stored _Link _Key 0x0C12 3 12 Delete All Flag Num Keys Deleted No i HCI _Write _Local _Name 0x0C13 3 13 Local Name States Yes States HCI _Read _Local _Name 0x0C14 3 14 Local Name Yes States HCI _Read _Connection _Accept_Timeout 0x0C15 3 15 Conn Accept Timeout Ye s HCI _Write _Connection _Accept_Timeout 0x0C16 3 16 Conn Accept Timeout States Yes States HCI _Read _Page _Timeout 0x0C17 3 17 Page Timeout Yes j HCI _Write _Page _Timeout 0x0C18 3 18 Page Timeout States Yes j States HCI _Read _Scan _Enable 0x0C19 3 19 Scan Enable Yes HCI _Write _Scan _Enable 0x0C1A 3 1A Scan Enable States Yes States Page Scan Interval HCI _Read _Page _Scan _Activity 0x0C1B 3 1B Page Scan Window Yes Page Scan Interval HCI _Write _Page _Scan _Activity 0x0C1C 3 1C Page Scan Window States Yes States Inquiry Scan Interval HCI _Read _Inquiry _Scan _Activity 0x0C1D 3 1D Inquiry Scan Window Yes Inquiry Scan Interval HCI _Write _Inquiry _Scan _Activity 0x0C1E 3 1E Inquiry Scan Window States Yes States HCI _Read _Authentication _Enable 0x0C1F 3 1F Authentication Enable Yes HCI _Write _Authentication _Enable 0x0C20 3 20 Authentication Enable States Yes States HCI _Read _Encryption _Mode 0x0C21 3 21 Encryption Mode Yes HCI _Write _Encryption _Mode 0x0C22 3 22 Encryption Mode States Yes States HCI _Read _Class _of _Device 0x0C23 3 23 Class of Device Ye s HCI _Write _Class _of _Device 0x0C24 3 24 Class of Device States Yes States HCI _Read _Voice _Setting 0x0C25 3 25 Voice Setting Yes HCI _Write _Voice _Setting 0x0C26 3 26 Voice setting States Yes

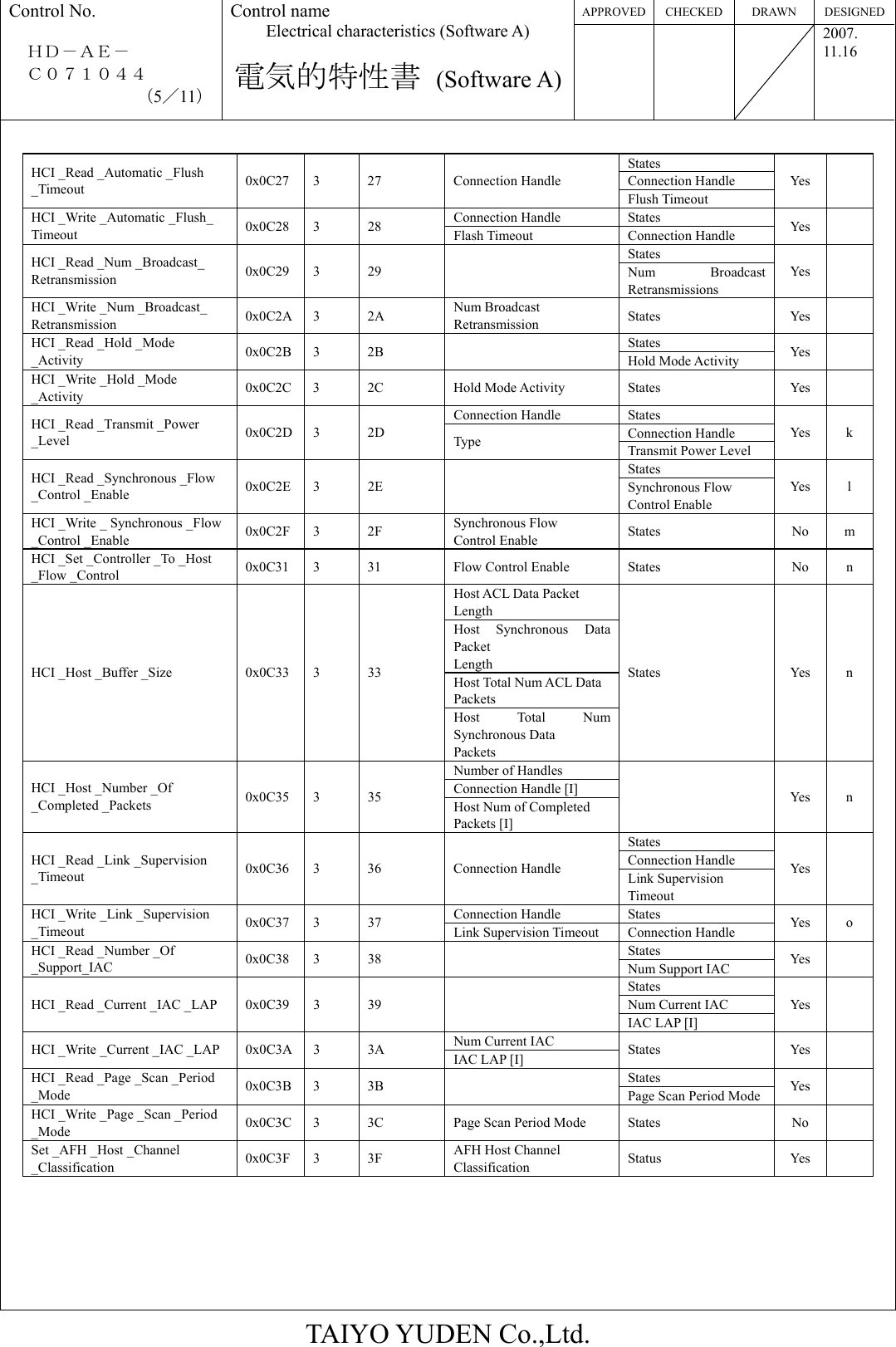

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （5／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. States Connection Handle HCI _Read _Automatic _Flush _Timeout 0x0C27 3 27 Connection Handle Flush Timeout Yes Connection Handle States HCI _Write _Automatic _Flush_ Timeout 0x0C28 3 28 Flash Timeout Connection Handle Yes States HCI _Read _Num _Broadcast_ Retransmission 0x0C29 3 29 Num Broadcast Retransmissions Yes HCI _Write _Num _Broadcast_ Retransmission 0x0C2A 3 2A Num Broadcast Retransmission States Yes States HCI _Read _Hold _Mode _Activity 0x0C2B 3 2B Hold Mode Activity Yes HCI _Write _Hold _Mode _Activity 0x0C2C 3 2C Hold Mode Activity States Yes Connection Handle States Connection Handle HCI _Read _Transmit _Power _Level 0x0C2D 3 2D Type Transmit Power Level Yes k States HCI _Read _Synchronous _Flow _Control _Enable 0x0C2E 3 2E Synchronous Flow Control Enable Yes l HCI _Write _ Synchronous _Flow _Control _Enable 0x0C2F 3 2F Synchronous Flow Control Enable States No m HCI _Set _Controller _To _Host _Flow _Control 0x0C31 3 31 Flow Control Enable States No n Host ACL Data Packet Length Host Synchronous Data Packet Length Host Total Num ACL Data Packets HCI _Host _Buffer _Size 0x0C33 3 33 Host Total Num Synchronous Data Packets States Yes n Number of Handles Connection Handle [I] HCI _Host _Number _Of _Completed _Packets 0x0C35 3 35 Host Num of Completed Packets [I] Yes n States Connection Handle HCI _Read _Link _Supervision _Timeout 0x0C36 3 36 Connection Handle Link Supervision Timeout Yes Connection Handle States HCI _Write _Link _Supervision _Timeout 0x0C37 3 37 Link Supervision Timeout Connection Handle Ye s o States HCI _Read _Number _Of _Support_IAC 0x0C38 3 38 Num Support IAC Ye s States Num Current IAC HCI _Read _Current _IAC _LAP 0x0C39 3 39 IAC LAP [I] Yes Num Current IAC HCI _Write _Current _IAC _LAP 0x0C3A 3 3A IAC LAP [I] States Yes States HCI _Read _Page _Scan _Period _Mode 0x0C3B 3 3B Page Scan Period Mode Ye s HCI _Write _Page _Scan _Period _Mode 0x0C3C 3 3C Page Scan Period Mode States No Set _AFH _Host _Channel _Classification 0x0C3F 3 3F AFH Host Channel Classification Status Yes

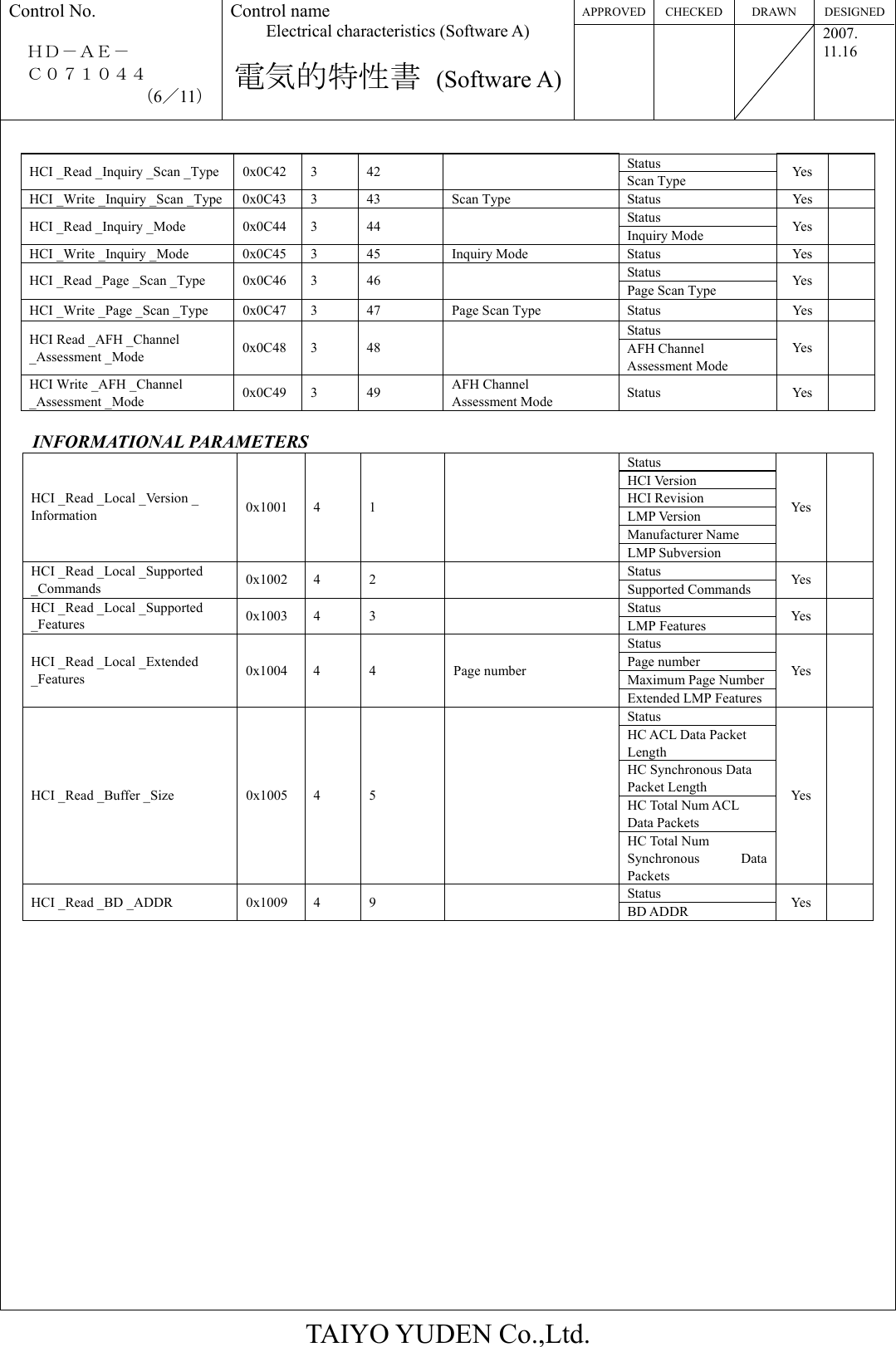

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （6／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Status HCI _Read _Inquiry _Scan _Type 0x0C42 3 42 Scan Type Yes HCI _Write _Inquiry _Scan _Type 0x0C43 3 43 Scan Type Status Yes Status HCI _Read _Inquiry _Mode 0x0C44 3 44 Inquiry Mode Ye s HCI _Write _Inquiry _Mode 0x0C45 3 45 Inquiry Mode Status Yes Status HCI _Read _Page _Scan _Type 0x0C46 3 46 Page Scan Type Yes HCI _Write _Page _Scan _Type 0x0C47 3 47 Page Scan Type Status Yes Status HCI Read _AFH _Channel _Assessment _Mode 0x0C48 3 48 AFH Channel Assessment Mode Yes HCI Write _AFH _Channel _Assessment _Mode 0x0C49 3 49 AFH Channel Assessment Mode Status Yes INFORMATIONAL PARAMETERS Status HCI Version HCI Revision LMP Version Manufacturer Name HCI _Read _Local _Version _ Information 0x1001 4 1 LMP Subversion Yes Status HCI _Read _Local _Supported _Commands 0x1002 4 2 Supported Commands Yes Status HCI _Read _Local _Supported _Features 0x1003 4 3 LMP Features Yes Status Page number Maximum Page Number HCI _Read _Local _Extended _Features 0x1004 4 4 Page number Extended LMP Features Yes Status HC ACL Data Packet Length HC Synchronous Data Packet Length HC Total Num ACL Data Packets HCI _Read _Buffer _Size 0x1005 4 5 HC Total Num Synchronous Data Packets Yes Status HCI _Read _BD _ADDR 0x1009 4 9 BD ADDR Yes

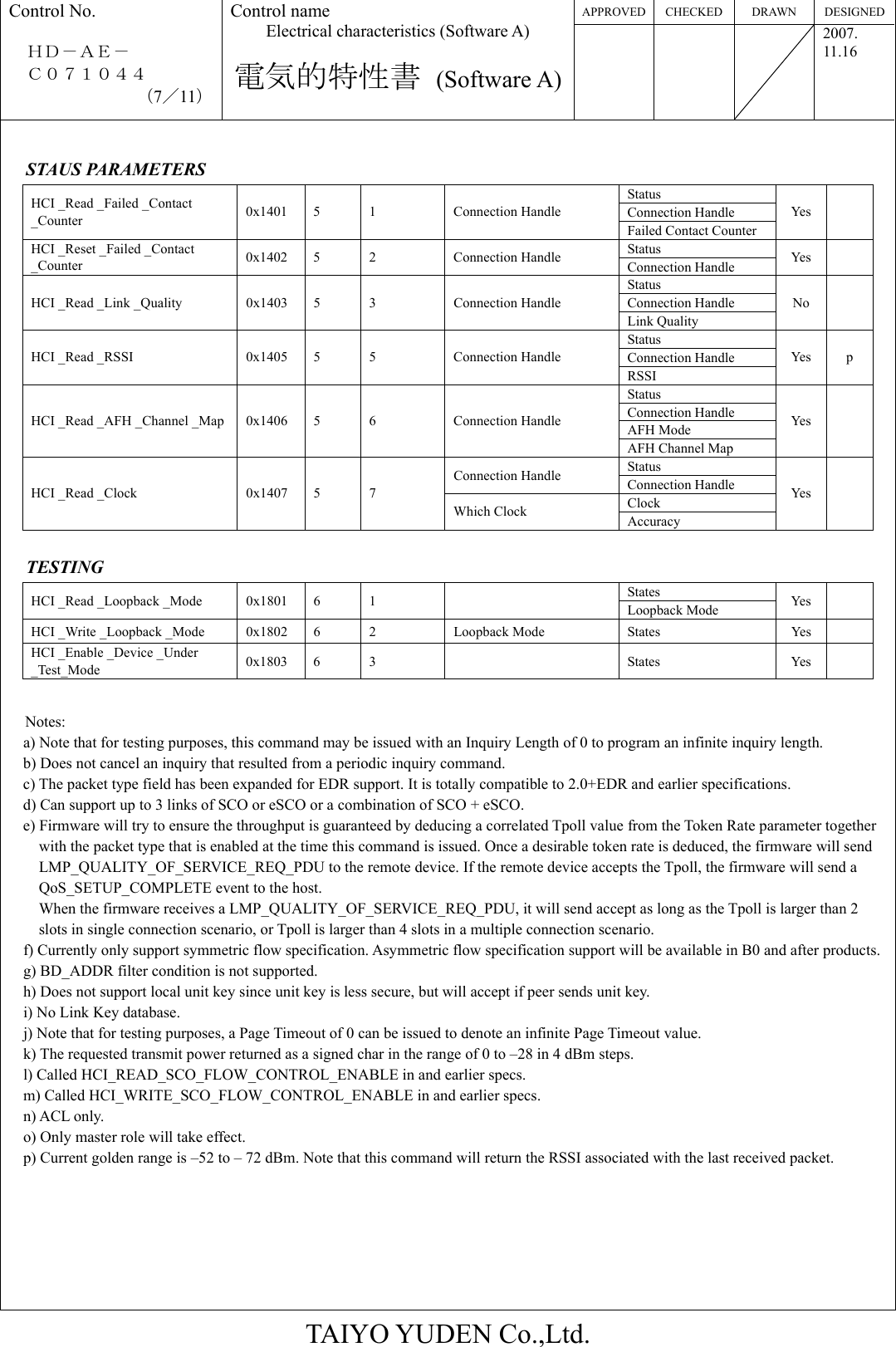

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （7／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. STAUS PARAMETERS Status Connection Handle HCI _Read _Failed _Contact _Counter 0x1401 5 1 Connection Handle Failed Contact Counter Yes Status HCI _Reset _Failed _Contact _Counter 0x1402 5 2 Connection Handle Connection Handle Yes Status Connection Handle HCI _Read _Link _Quality 0x1403 5 3 Connection Handle Link Quality No Status Connection Handle HCI _Read _RSSI 0x1405 5 5 Connection Handle RSSI Yes p Status Connection Handle AFH Mode HCI _Read _AFH _Channel _Map 0x1406 5 6 Connection Handle AFH Channel Map Yes Status Connection Handle Connection Handle Clock HCI _Read _Clock 0x1407 5 7 Which Clock Accuracy Yes TESTING States HCI _Read _Loopback _Mode 0x1801 6 1 Loopback Mode Yes HCI _Write _Loopback _Mode 0x1802 6 2 Loopback Mode States Yes HCI _Enable _Device _Under _Test_Mode 0x1803 6 3 States Yes Notes: a) Note that for testing purposes, this command may be issued with an Inquiry Length of 0 to program an infinite inquiry length. b) Does not cancel an inquiry that resulted from a periodic inquiry command. c) The packet type field has been expanded for EDR support. It is totally compatible to 2.0+EDR and earlier specifications. d) Can support up to 3 links of SCO or eSCO or a combination of SCO + eSCO. e) Firmware will try to ensure the throughput is guaranteed by deducing a correlated Tpoll value from the Token Rate parameter together with the packet type that is enabled at the time this command is issued. Once a desirable token rate is deduced, the firmware will send LMP_QUALITY_OF_SERVICE_REQ_PDU to the remote device. If the remote device accepts the Tpoll, the firmware will send a QoS_SETUP_COMPLETE event to the host. When the firmware receives a LMP_QUALITY_OF_SERVICE_REQ_PDU, it will send accept as long as the Tpoll is larger than 2 slots in single connection scenario, or Tpoll is larger than 4 slots in a multiple connection scenario. f) Currently only support symmetric flow specification. Asymmetric flow specification support will be available in B0 and after products. g) BD_ADDR filter condition is not supported. h) Does not support local unit key since unit key is less secure, but will accept if peer sends unit key. i) No Link Key database. j) Note that for testing purposes, a Page Timeout of 0 can be issued to denote an infinite Page Timeout value. k) The requested transmit power returned as a signed char in the range of 0 to –28 in 4 dBm steps. l) Called HCI_READ_SCO_FLOW_CONTROL_ENABLE in and earlier specs. m) Called HCI_WRITE_SCO_FLOW_CONTROL_ENABLE in and earlier specs. n) ACL only. o) Only master role will take effect. p) Current golden range is –52 to – 72 dBm. Note that this command will return the RSSI associated with the last received packet.

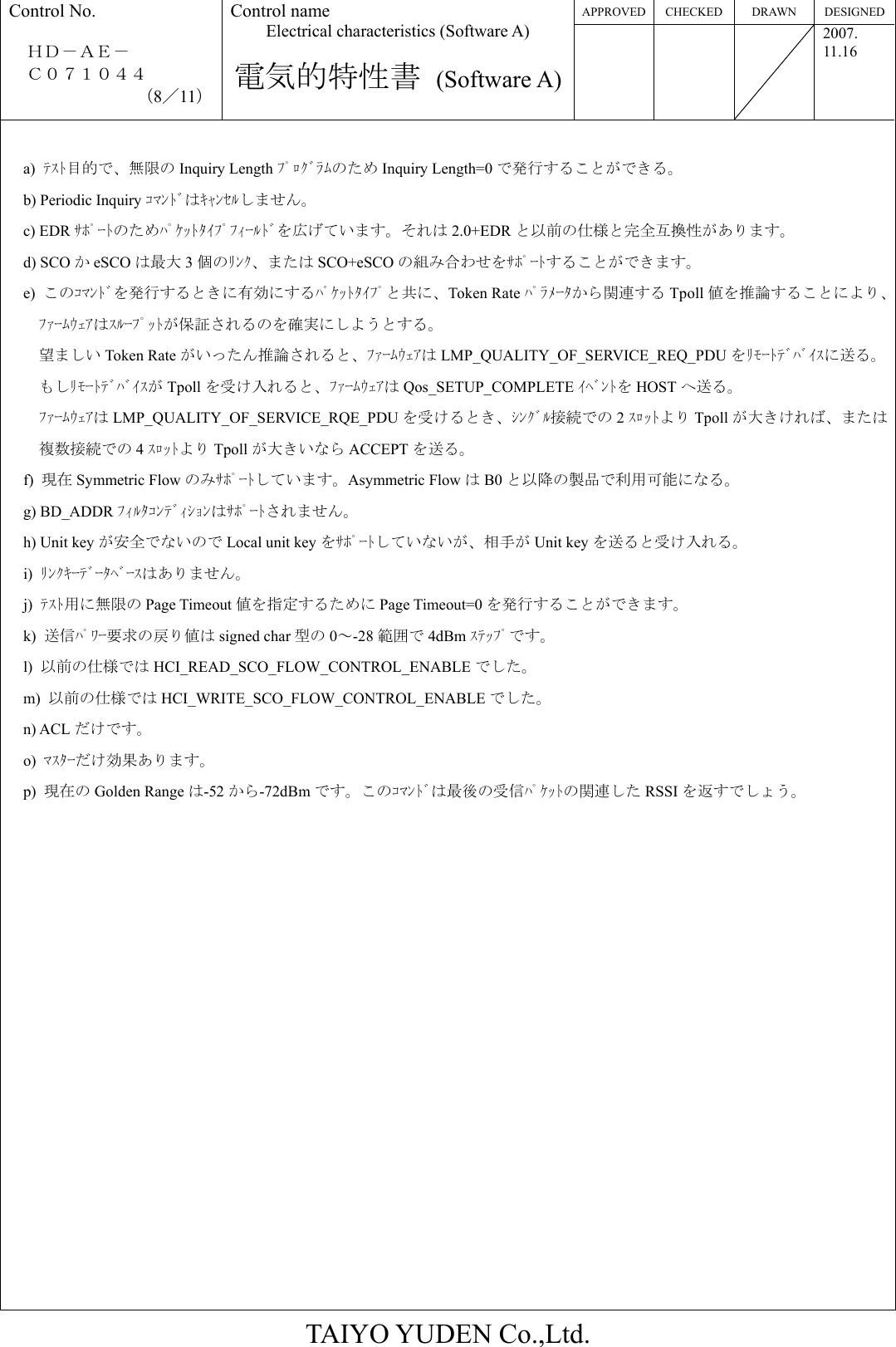

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （8／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. a) ﾃｽﾄ目的で、無限の Inquiry Length ﾌﾟﾛｸﾞﾗﾑのため Inquiry Length=0 で発行することができる。 b) Periodic Inquiry ｺﾏﾝﾄﾞはｷｬﾝｾﾙしません。 c) EDR ｻﾎﾟｰﾄのためﾊﾟｹｯﾄﾀｲﾌﾟﾌｨｰﾙﾄﾞを広げています。それは 2.0+EDR と以前の仕様と完全互換性があります。 d) SCO かeSCO は最大 3個のﾘﾝｸ、または SCO+eSCO の組み合わせをｻﾎﾟｰﾄすることができます。 e) このｺﾏﾝﾄﾞを発行するときに有効にするﾊﾟｹｯﾄﾀｲﾌﾟと共に、Token Rate ﾊﾟﾗﾒｰﾀから関連する Tpoll 値を推論することにより、ﾌｧｰﾑｳｪｱはｽﾙｰﾌﾟｯﾄが保証されるのを確実にしようとする。 望ましい Token Rate がいったん推論されると、ﾌｧｰﾑｳｪｱは LMP_QUALITY_OF_SERVICE_REQ_PDU をﾘﾓｰﾄﾃﾞﾊﾞｲｽに送る。もしﾘﾓｰﾄﾃﾞﾊﾞｲｽが Tpoll を受け入れると、ﾌｧｰﾑｳｪｱは Qos_SETUP_COMPLETE ｲﾍﾞﾝﾄを HOST へ送る。 ﾌｧｰﾑｳｪｱは LMP_QUALITY_OF_SERVICE_RQE_PDU を受けるとき、ｼﾝｸﾞﾙ接続での 2ｽﾛｯﾄより Tpoll が大きければ、または複数接続での 4ｽﾛｯﾄより Tpoll が大きいなら ACCEPT を送る。 f) 現在 Symmetric Flow のみｻﾎﾟｰﾄしています。Asymmetric Flow はB0 と以降の製品で利用可能になる。 g) BD_ADDR ﾌｨﾙﾀｺﾝﾃﾞｨｼｮﾝはｻﾎﾟｰﾄされません。 h) Unit key が安全でないので Local unit key をｻﾎﾟｰﾄしていないが、相手が Unit key を送ると受け入れる。 i) ﾘﾝｸｷｰﾃﾞｰﾀﾍﾞｰｽはありません。 j) ﾃｽﾄ用に無限の Page Timeout 値を指定するために Page Timeout=0 を発行することができます。 k) 送信ﾊﾟﾜｰ要求の戻り値は signed char 型の 0～-28 範囲で 4dBm ｽﾃｯﾌﾟです。 l) 以前の仕様では HCI_READ_SCO_FLOW_CONTROL_ENABLE でした。 m) 以前の仕様では HCI_WRITE_SCO_FLOW_CONTROL_ENABLE でした。 n) ACL だけです。 o) ﾏｽﾀｰだけ効果あります。 p) 現在の Golden Range は-52 から-72dBm です。このｺﾏﾝﾄﾞは最後の受信ﾊﾟｹｯﾄの関連した RSSI を返すでしょう。

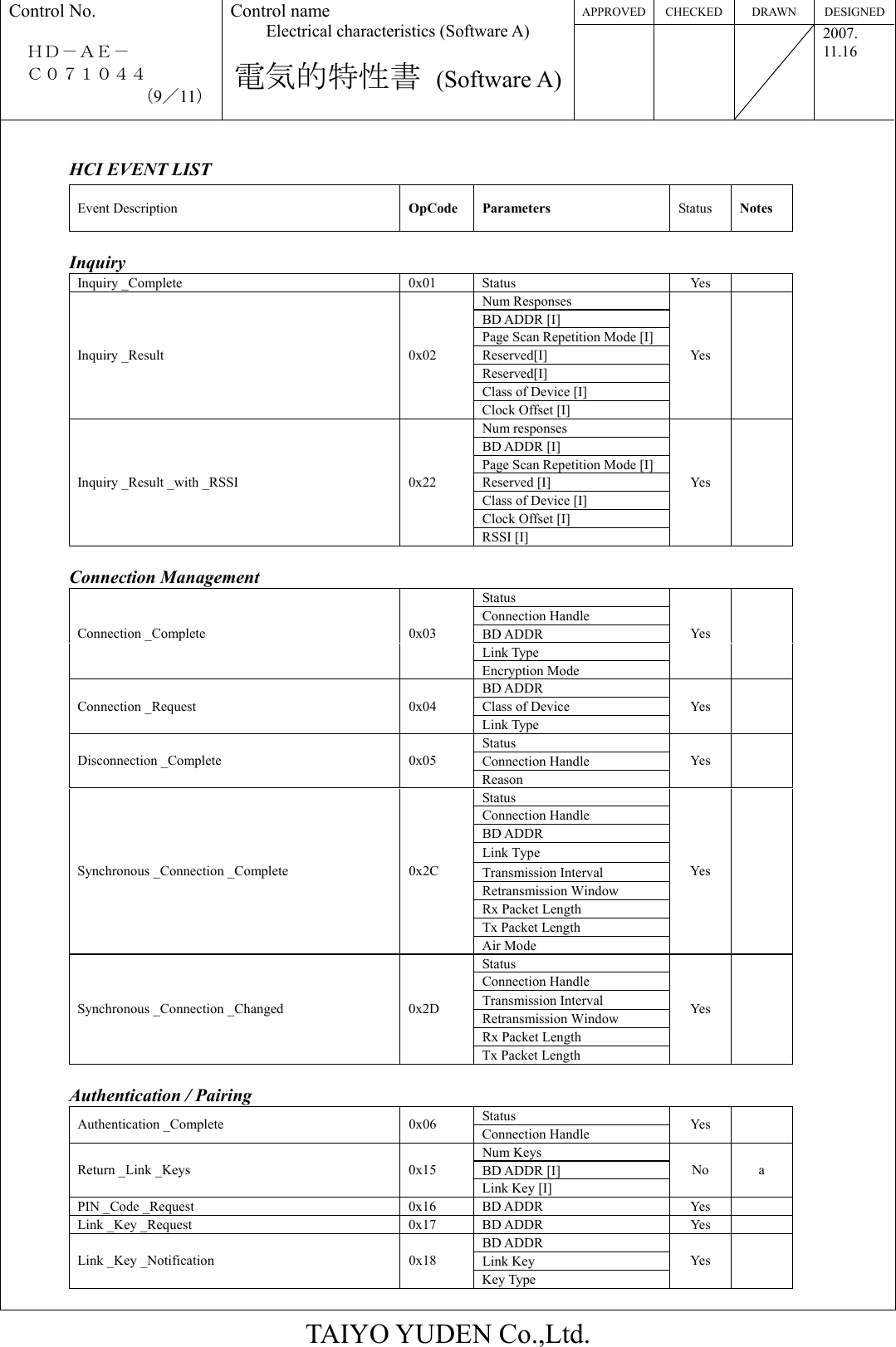

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （9／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. HCI EVENT LIST Event Description OpCode Parameters Status Notes Inquiry Inquiry _Complete 0x01 Status Yes Num Responses BD ADDR [I] Page Scan Repetition Mode [I] Reserved[I] Reserved[I] Class of Device [I] Inquiry _Result 0x02 Clock Offset [I] Yes Num responses BD ADDR [I] Page Scan Repetition Mode [I] Reserved [I] Class of Device [I] Clock Offset [I] Inquiry _Result _with _RSSI 0x22 RSSI [I] Yes Connection Management Status Connection Handle BD ADDR Link Type Connection _Complete 0x03 Encryption Mode Yes BD ADDR Class of Device Connection _Request 0x04 Link Type Yes Status Connection Handle Disconnection _Complete 0x05 Reason Yes Status Connection Handle BD ADDR Link Type Transmission Interval Retransmission Window Rx Packet Length Tx Packet Length Synchronous _Connection _Complete 0x2C Air Mode Yes Status Connection Handle Transmission Interval Retransmission Window Rx Packet Length Synchronous _Connection _Changed 0x2D Tx Packet Length Yes Authentication / Pairing Status Authentication _Complete 0x06 Connection Handle Yes Num Keys BD ADDR [I] Return _Link _Keys 0x15 Link Key [I] No a PIN _Code _Request 0x16 BD ADDR Yes Link _Key _Request 0x17 BD ADDR Yes BD ADDR Link Key Link _Key _Notification 0x18 Key Type Yes

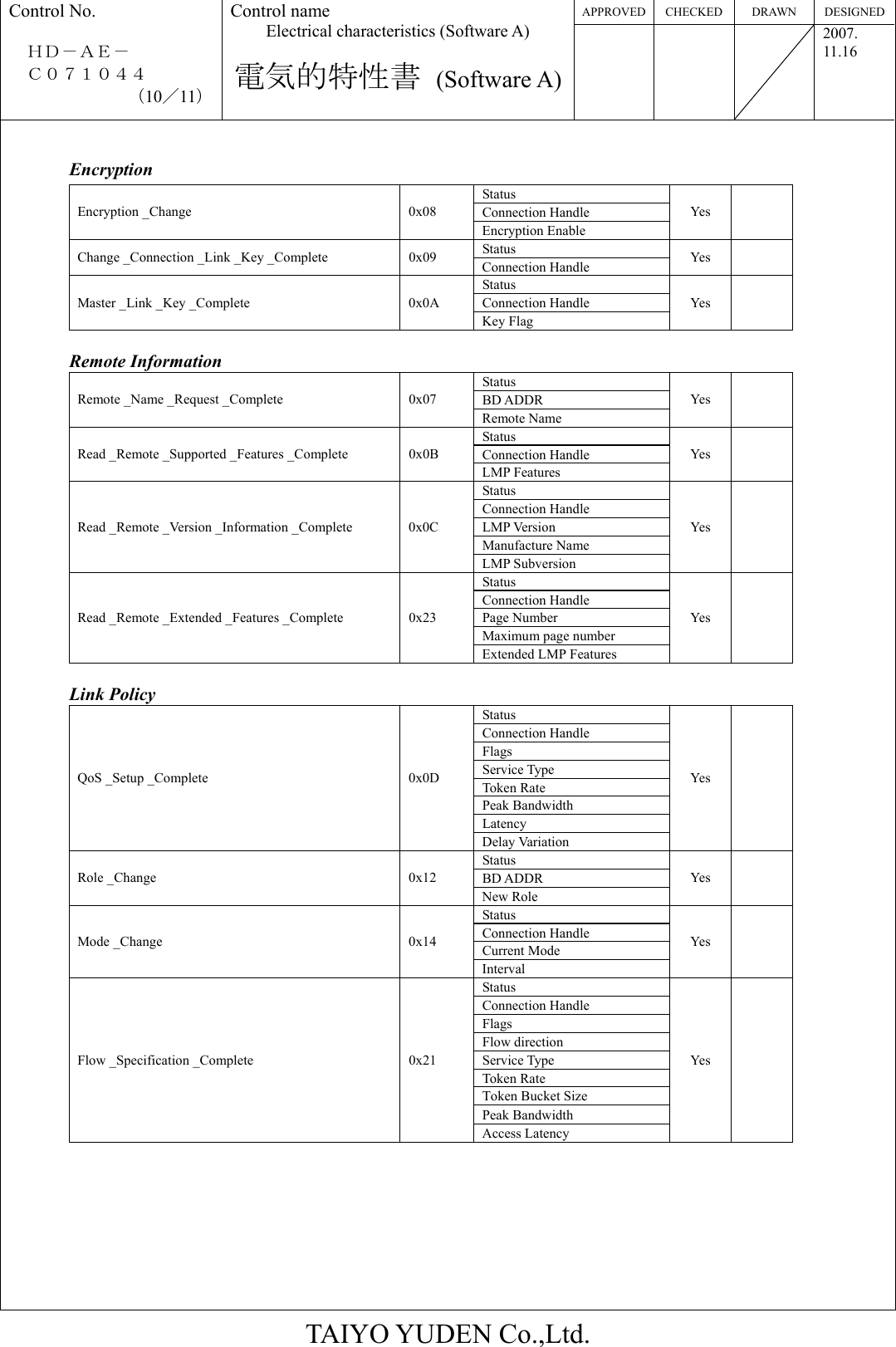

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （10／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Encryption Status Connection Handle Encryption _Change 0x08 Encryption Enable Yes Status Change _Connection _Link _Key _Complete 0x09 Connection Handle Yes Status Connection Handle Master _Link _Key _Complete 0x0A Key Flag Yes Remote Information Status BD ADDR Remote _Name _Request _Complete 0x07 Remote Name Yes Status Connection Handle Read _Remote _Supported _Features _Complete 0x0B LMP Features Yes Status Connection Handle LMP Version Manufacture Name Read _Remote _Version _Information _Complete 0x0C LMP Subversion Yes Status Connection Handle Page Number Maximum page number Read _Remote _Extended _Features _Complete 0x23 Extended LMP Features Yes Link Policy Status Connection Handle Flags Service Type Token Rate Peak Bandwidth Latency QoS _Setup _Complete 0x0D Delay Variation Yes Status BD ADDR Role _Change 0x12 New Role Yes Status Connection Handle Current Mode Mode _Change 0x14 Interval Yes Status Connection Handle Flags Flow direction Service Type Token Rate Token Bucket Size Peak Bandwidth Flow _Specification _Complete 0x21 Access Latency Yes

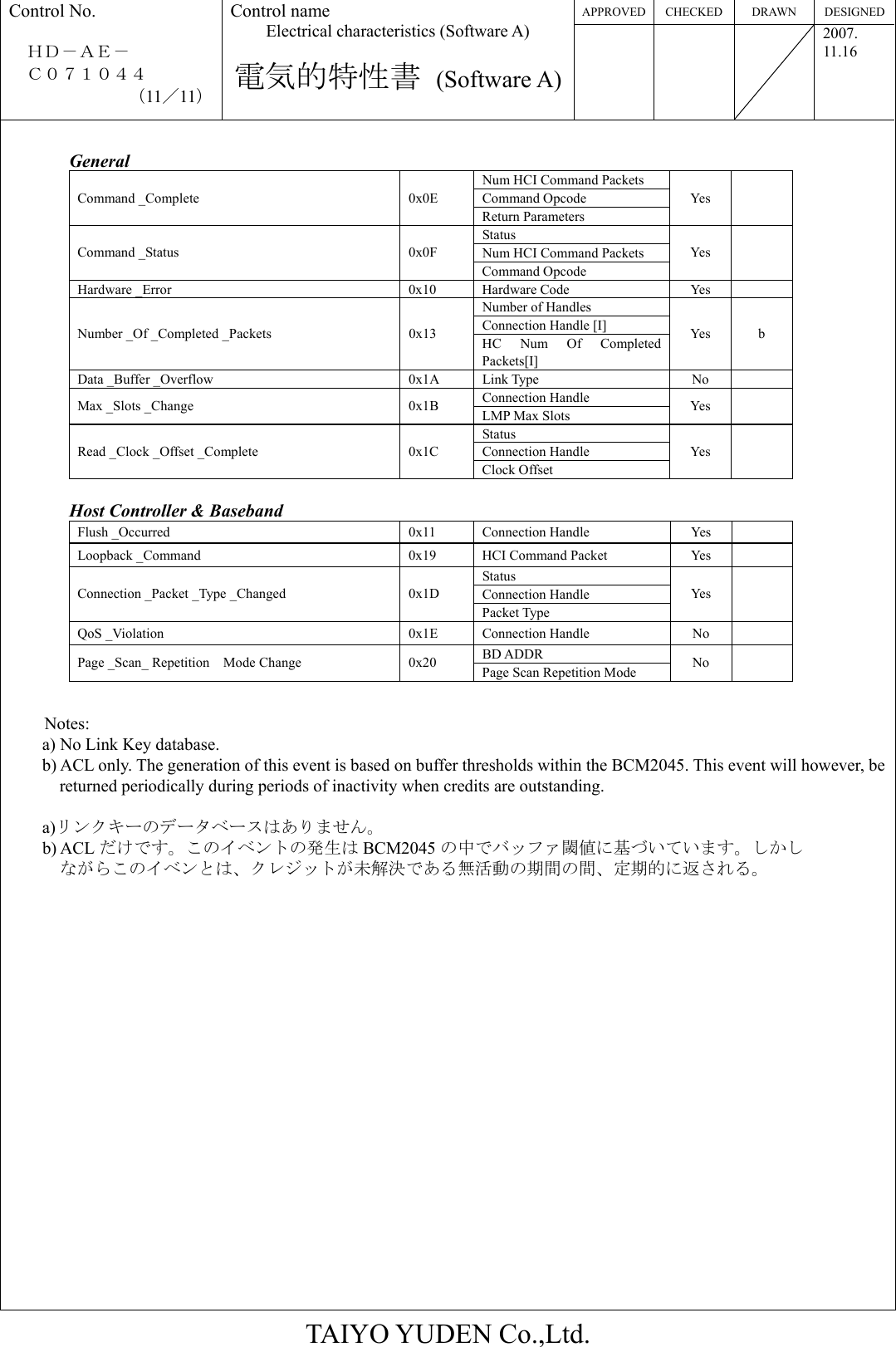

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｃ０７１０４４ （11／11） Control name Electrical characteristics (Software A) 電気的特性書 (Software A) 2007. 11.16 TAIYO YUDEN Co.,Ltd. General Num HCI Command Packets Command Opcode Command _Complete 0x0E Return Parameters Yes Status Num HCI Command Packets Command _Status 0x0F Command Opcode Yes Hardware _Error 0x10 Hardware Code Yes Number of Handles Connection Handle [I] Number _Of _Completed _Packets 0x13 HC Num Of Completed Packets[I] Yes b Data _Buffer _Overflow 0x1A Link Type No Connection Handle Max _Slots _Change 0x1B LMP Max Slots Yes Status Connection Handle Read _Clock _Offset _Complete 0x1C Clock Offset Yes Host Controller & Baseband Flush _Occurred 0x11 Connection Handle Yes Loopback _Command 0x19 HCI Command Packet Yes Status Connection Handle Connection _Packet _Type _Changed 0x1D Packet Type Yes QoS _Violation 0x1E Connection Handle No BD ADDR Page _Scan_ Repetition Mode Change 0x20 Page Scan Repetition Mode No Notes: a) No Link Key database. b) ACL only. The generation of this event is based on buffer thresholds within the BCM2045. This event will however, be returned periodically during periods of inactivity when credits are outstanding. a)リンクキーのデータベースはありません。 b) ACL だけです。このイベントの発生は BCM2045 の中でバッファ閾値に基づいています。しかし ながらこのイベンとは、クレジットが未解決である無活動の期間の間、定期的に返される。

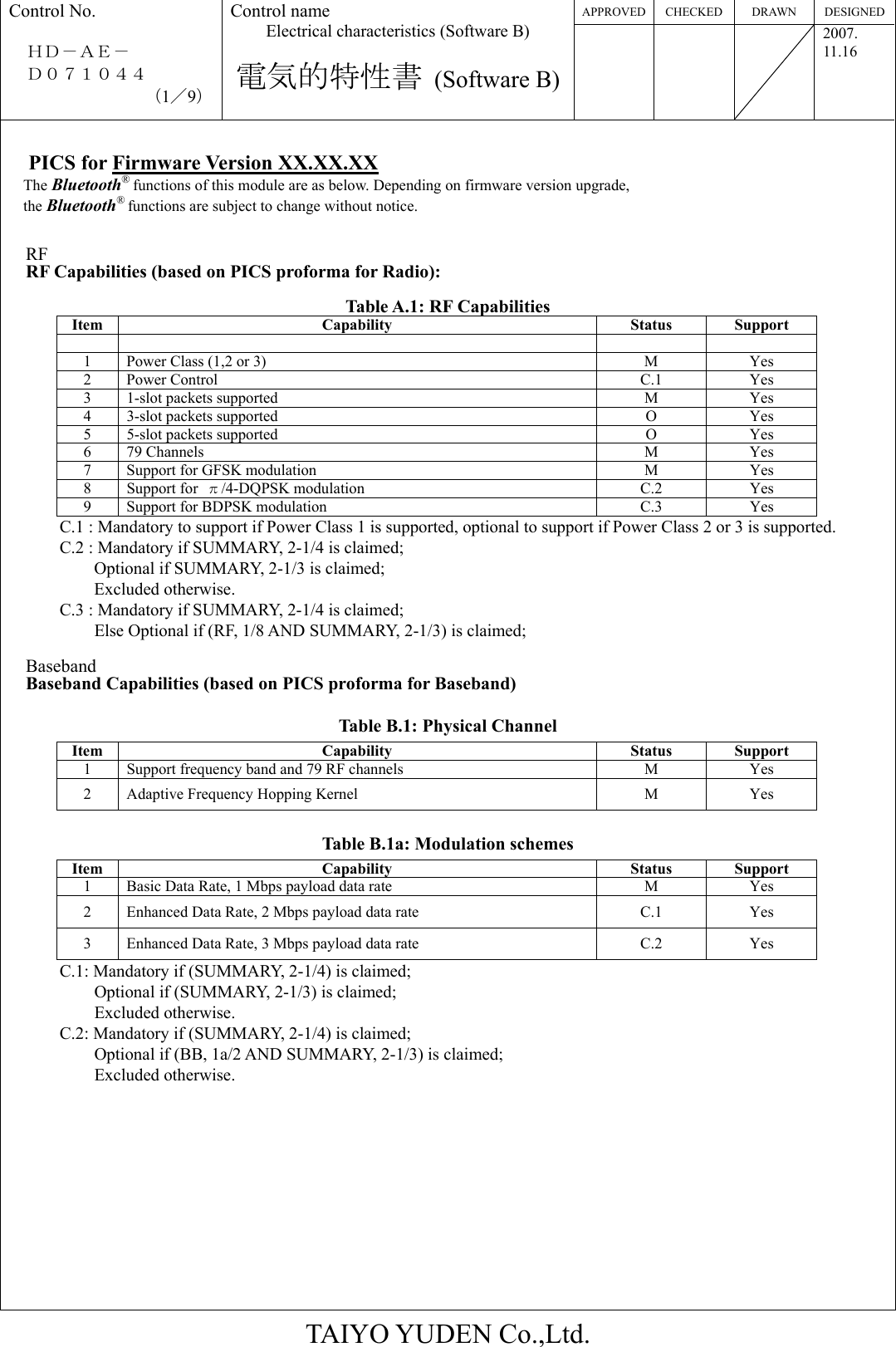

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （1／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. PICS for Firmware Version XX.XX.XX The Bluetooth® functions of this module are as below. Depending on firmware version upgrade, the Bluetooth® functions are subject to change without notice. RF RF Capabilities (based on PICS proforma for Radio): Table A.1: RF Capabilities Item Capability Status Support 1 Power Class (1,2 or 3) M Yes 2 Power Control C.1 Yes 3 1-slot packets supported M Yes 4 3-slot packets supported O Yes 5 5-slot packets supported O Yes 6 79 Channels M Yes 7 Support for GFSK modulation M Yes 8 Support for π/4-DQPSK modulation C.2 Yes 9 Support for BDPSK modulation C.3 Yes C.1 : Mandatory to support if Power Class 1 is supported, optional to support if Power Class 2 or 3 is supported. C.2 : Mandatory if SUMMARY, 2-1/4 is claimed; Optional if SUMMARY, 2-1/3 is claimed; Excluded otherwise. C.3 : Mandatory if SUMMARY, 2-1/4 is claimed; Else Optional if (RF, 1/8 AND SUMMARY, 2-1/3) is claimed; Baseband Baseband Capabilities (based on PICS proforma for Baseband) Table B.1: Physical Channel Item Capability Status Support 1 Support frequency band and 79 RF channels M Yes 2 Adaptive Frequency Hopping Kernel M Yes Table B.1a: Modulation schemes Item Capability Status Support 1 Basic Data Rate, 1 Mbps payload data rate M Yes 2 Enhanced Data Rate, 2 Mbps payload data rate C.1 Yes 3 Enhanced Data Rate, 3 Mbps payload data rate C.2 Yes C.1: Mandatory if (SUMMARY, 2-1/4) is claimed; Optional if (SUMMARY, 2-1/3) is claimed; Excluded otherwise. C.2: Mandatory if (SUMMARY, 2-1/4) is claimed; Optional if (BB, 1a/2 AND SUMMARY, 2-1/3) is claimed; Excluded otherwise.

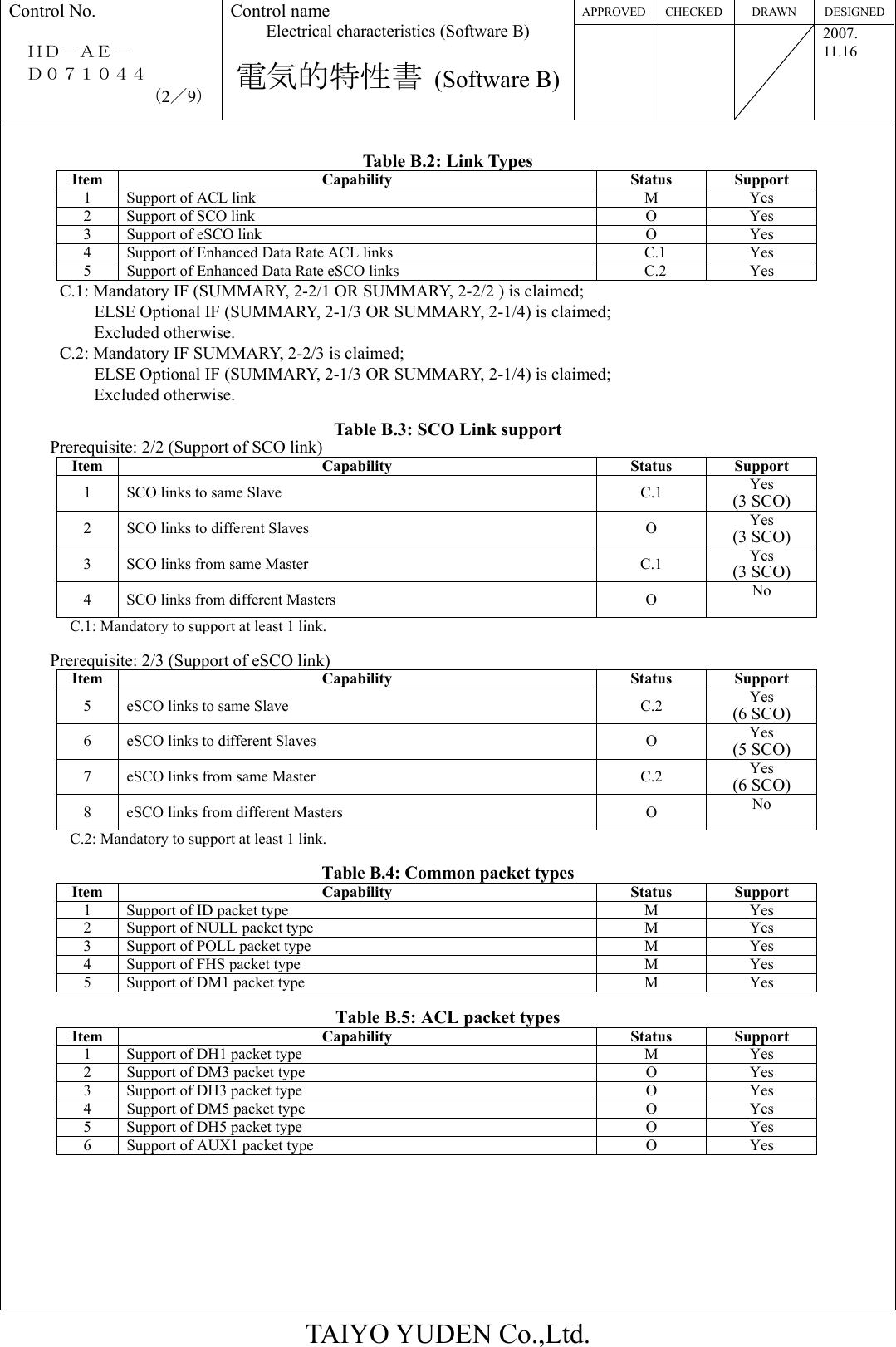

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （2／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table B.2: Link Types Item Capability Status Support 1 Support of ACL link M Yes 2 Support of SCO link O Yes 3 Support of eSCO link O Yes 4 Support of Enhanced Data Rate ACL links C.1 Yes 5 Support of Enhanced Data Rate eSCO links C.2 Yes C.1: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2 ) is claimed; ELSE Optional IF (SUMMARY, 2-1/3 OR SUMMARY, 2-1/4) is claimed; Excluded otherwise. C.2: Mandatory IF SUMMARY, 2-2/3 is claimed; ELSE Optional IF (SUMMARY, 2-1/3 OR SUMMARY, 2-1/4) is claimed; Excluded otherwise. Table B.3: SCO Link support Prerequisite: 2/2 (Support of SCO link) Item Capability Status Support 1 SCO links to same Slave C.1 Yes (3 SCO) 2 SCO links to different Slaves O Yes (3 SCO) 3 SCO links from same Master C.1 Yes (3 SCO) 4 SCO links from different Masters O No C.1: Mandatory to support at least 1 link. Prerequisite: 2/3 (Support of eSCO link) Item Capability Status Support 5 eSCO links to same Slave C.2 Yes (6 SCO) 6 eSCO links to different Slaves O Yes (5 SCO) 7 eSCO links from same Master C.2 Yes (6 SCO) 8 eSCO links from different Masters O No C.2: Mandatory to support at least 1 link. Table B.4: Common packet types Item Capability Status Support 1 Support of ID packet type M Yes 2 Support of NULL packet type M Yes 3 Support of POLL packet type M Yes 4 Support of FHS packet type M Yes 5 Support of DM1 packet type M Yes Table B.5: ACL packet types Item Capability Status Support 1 Support of DH1 packet type M Yes 2 Support of DM3 packet type O Yes 3 Support of DH3 packet type O Yes 4 Support of DM5 packet type O Yes 5 Support of DH5 packet type O Yes 6 Support of AUX1 packet type O Yes

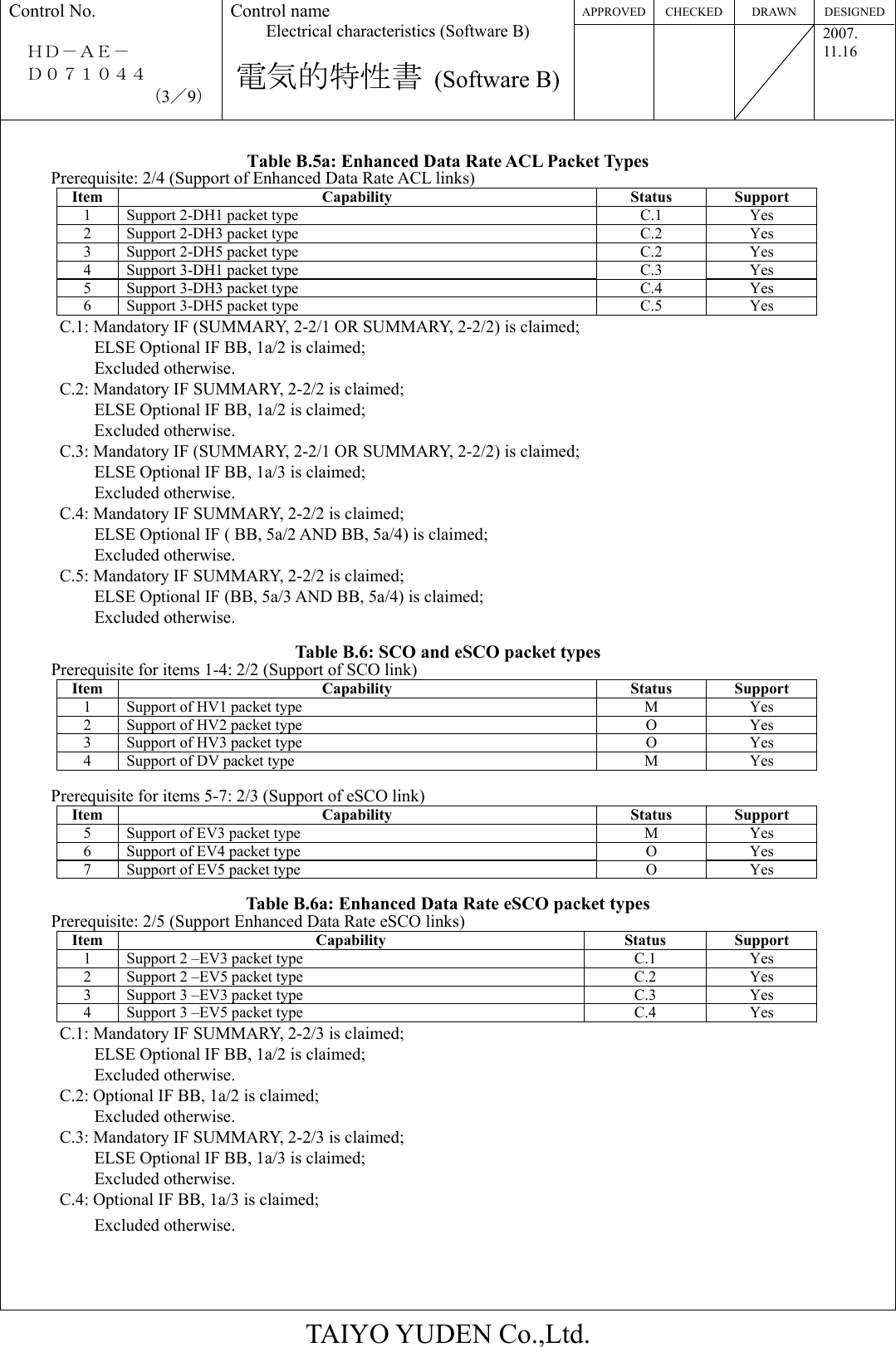

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （3／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table B.5a: Enhanced Data Rate ACL Packet Types Prerequisite: 2/4 (Support of Enhanced Data Rate ACL links) Item Capability Status Support 1 Support 2-DH1 packet type C.1 Yes 2 Support 2-DH3 packet type C.2 Yes 3 Support 2-DH5 packet type C.2 Yes 4 Support 3-DH1 packet type C.3 Yes 5 Support 3-DH3 packet type C.4 Yes 6 Support 3-DH5 packet type C.5 Yes C.1: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed; ELSE Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.2: Mandatory IF SUMMARY, 2-2/2 is claimed; ELSE Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.3: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed; ELSE Optional IF BB, 1a/3 is claimed; Excluded otherwise. C.4: Mandatory IF SUMMARY, 2-2/2 is claimed; ELSE Optional IF ( BB, 5a/2 AND BB, 5a/4) is claimed; Excluded otherwise. C.5: Mandatory IF SUMMARY, 2-2/2 is claimed; ELSE Optional IF (BB, 5a/3 AND BB, 5a/4) is claimed; Excluded otherwise. Table B.6: SCO and eSCO packet types Prerequisite for items 1-4: 2/2 (Support of SCO link) Item Capability Status Support 1 Support of HV1 packet type M Yes 2 Support of HV2 packet type O Yes 3 Support of HV3 packet type O Yes 4 Support of DV packet type M Yes Prerequisite for items 5-7: 2/3 (Support of eSCO link) Item Capability Status Support 5 Support of EV3 packet type M Yes 6 Support of EV4 packet type O Yes 7 Support of EV5 packet type O Yes Table B.6a: Enhanced Data Rate eSCO packet types Prerequisite: 2/5 (Support Enhanced Data Rate eSCO links) Item Capability Status Support 1 Support 2 –EV3 packet type C.1 Yes 2 Support 2 –EV5 packet type C.2 Yes 3 Support 3 –EV3 packet type C.3 Yes 4 Support 3 –EV5 packet type C.4 Yes C.1: Mandatory IF SUMMARY, 2-2/3 is claimed; ELSE Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.2: Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.3: Mandatory IF SUMMARY, 2-2/3 is claimed; ELSE Optional IF BB, 1a/3 is claimed; Excluded otherwise. C.4: Optional IF BB, 1a/3 is claimed; Excluded otherwise.

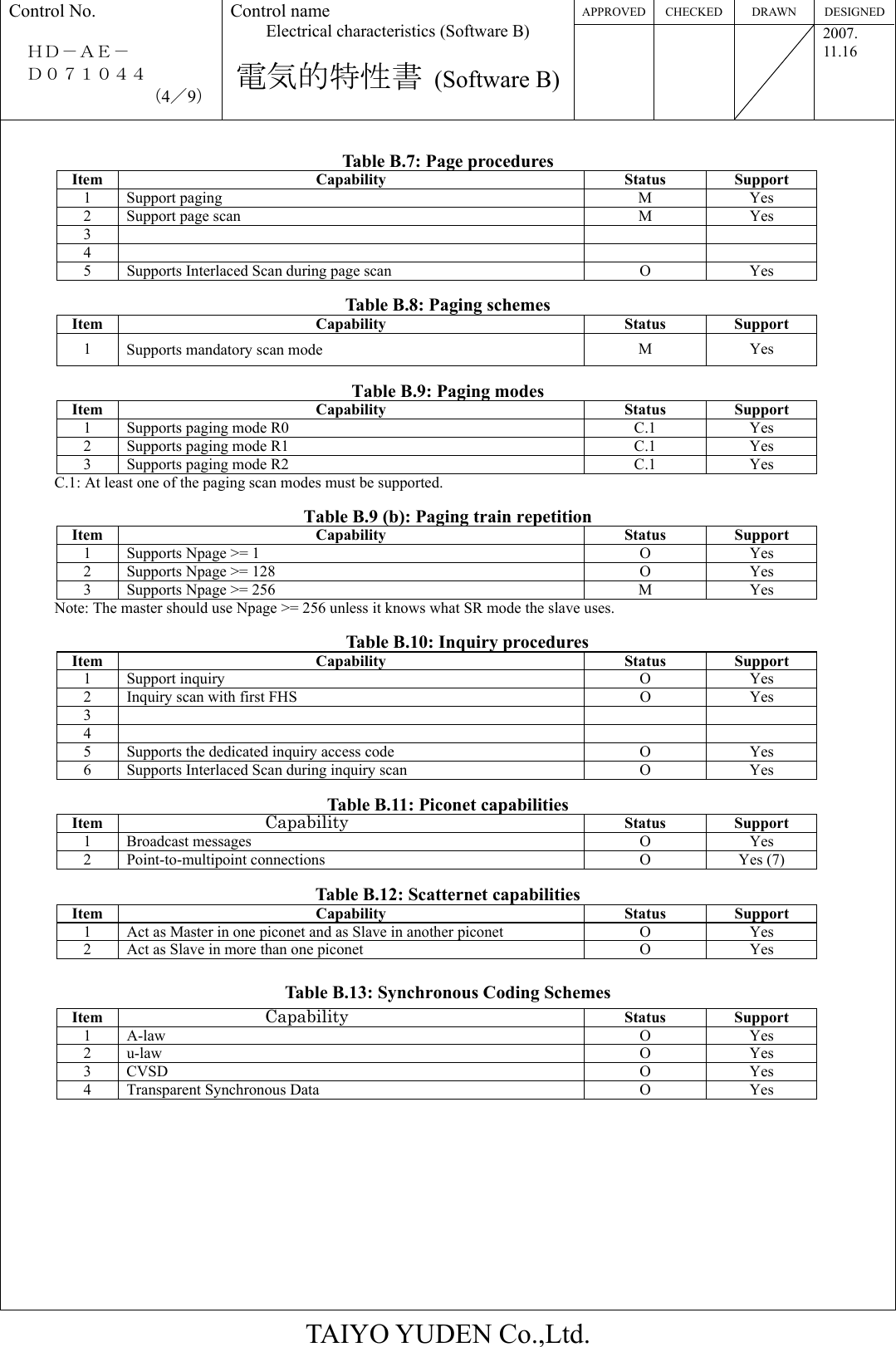

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （4／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table B.7: Page procedures Item Capability Status Support 1 Support paging M Yes 2 Support page scan M Yes 3 4 5 Supports Interlaced Scan during page scan O Yes Table B.8: Paging schemes Item Capability Status Support 1 Supports mandatory scan mode M Yes Table B.9: Paging modes Item Capability Status Support 1 Supports paging mode R0 C.1 Yes 2 Supports paging mode R1 C.1 Yes 3 Supports paging mode R2 C.1 Yes C.1: At least one of the paging scan modes must be supported. Table B.9 (b): Paging train repetition Item Capability Status Support 1 Supports Npage >= 1 O Yes 2 Supports Npage >= 128 O Yes 3 Supports Npage >= 256 M Yes Note: The master should use Npage >= 256 unless it knows what SR mode the slave uses. Table B.10: Inquiry procedures Item Capability Status Support 1 Support inquiry O Yes 2 Inquiry scan with first FHS O Yes 3 4 5 Supports the dedicated inquiry access code O Yes 6 Supports Interlaced Scan during inquiry scan O Yes Table B.11: Piconet capabilities Item Capability Status Support 1 Broadcast messages O Yes 2 Point-to-multipoint connections O Yes (7) Table B.12: Scatternet capabilities Item Capability Status Support 1 Act as Master in one piconet and as Slave in another piconet O Yes 2 Act as Slave in more than one piconet O Yes Table B.13: Synchronous Coding Schemes Item Capability Status Support 1 A-law O Yes 2 u-law O Yes 3 CVSD O Yes 4 Transparent Synchronous Data O Yes

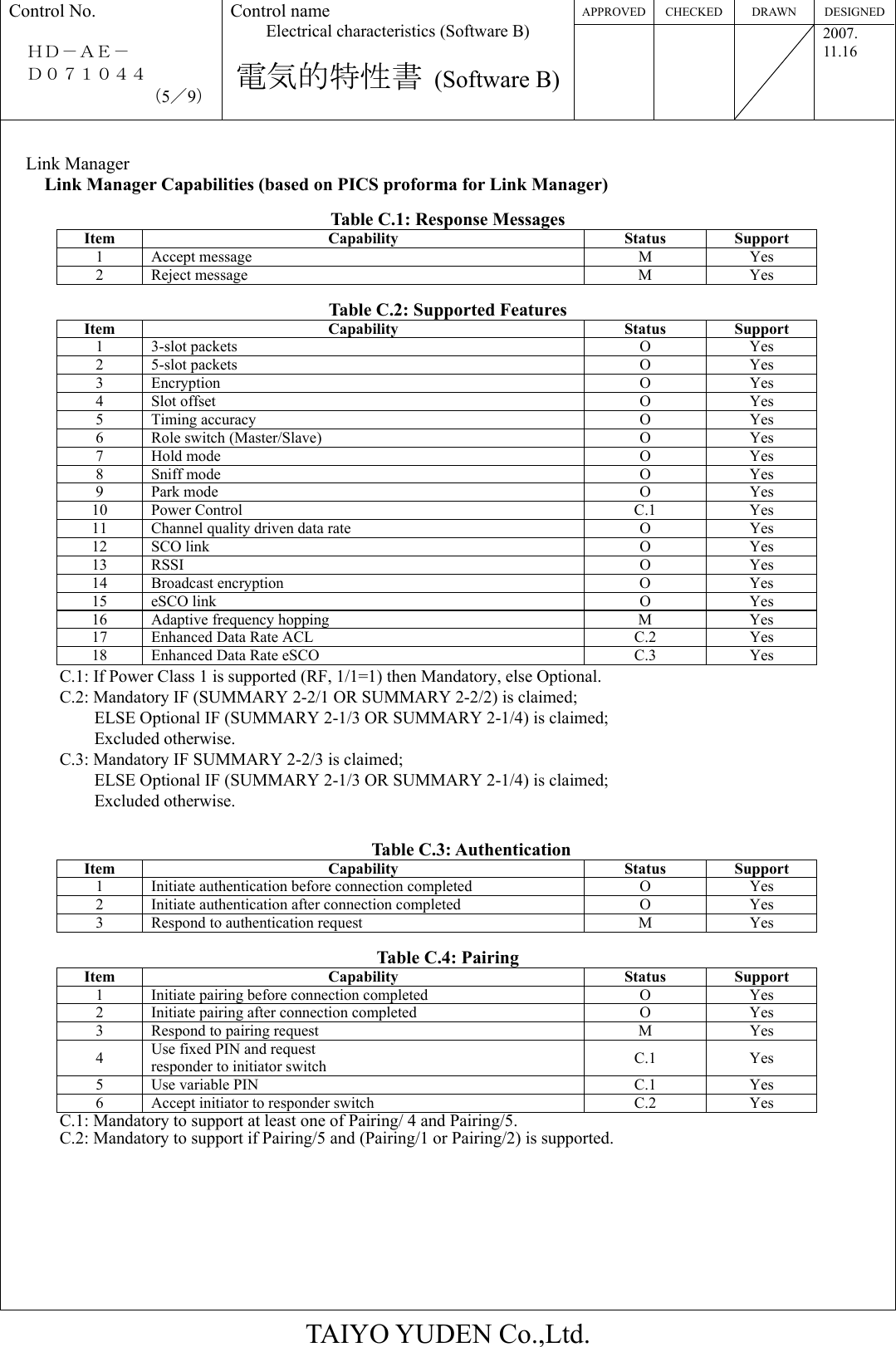

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （5／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Link Manager Link Manager Capabilities (based on PICS proforma for Link Manager) Table C.1: Response Messages Item Capability Status Support 1 Accept message M Yes 2 Reject message M Yes Table C.2: Supported Features Item Capability Status Support 1 3-slot packets O Yes 2 5-slot packets O Yes 3 Encryption O Yes 4 Slot offset O Yes 5 Timing accuracy O Yes 6 Role switch (Master/Slave) O Yes 7 Hold mode O Yes 8 Sniff mode O Yes 9 Park mode O Yes 10 Power Control C.1 Yes 11 Channel quality driven data rate O Yes 12 SCO link O Yes 13 RSSI O Yes 14 Broadcast encryption O Yes 15 eSCO link O Yes 16 Adaptive frequency hopping M Yes 17 Enhanced Data Rate ACL C.2 Yes 18 Enhanced Data Rate eSCO C.3 Yes C.1: If Power Class 1 is supported (RF, 1/1=1) then Mandatory, else Optional. C.2: Mandatory IF (SUMMARY 2-2/1 OR SUMMARY 2-2/2) is claimed; ELSE Optional IF (SUMMARY 2-1/3 OR SUMMARY 2-1/4) is claimed; Excluded otherwise. C.3: Mandatory IF SUMMARY 2-2/3 is claimed; ELSE Optional IF (SUMMARY 2-1/3 OR SUMMARY 2-1/4) is claimed; Excluded otherwise. Table C.3: Authentication Item Capability Status Support 1 Initiate authentication before connection completed O Yes 2 Initiate authentication after connection completed O Yes 3 Respond to authentication request M Yes Table C.4: Pairing Item Capability Status Support 1 Initiate pairing before connection completed O Yes 2 Initiate pairing after connection completed O Yes 3 Respond to pairing request M Yes 4 Use fixed PIN and request responder to initiator switch C.1 Yes 5 Use variable PIN C.1 Yes 6 Accept initiator to responder switch C.2 Yes C.1: Mandatory to support at least one of Pairing/ 4 and Pairing/5. C.2: Mandatory to support if Pairing/5 and (Pairing/1 or Pairing/2) is supported.

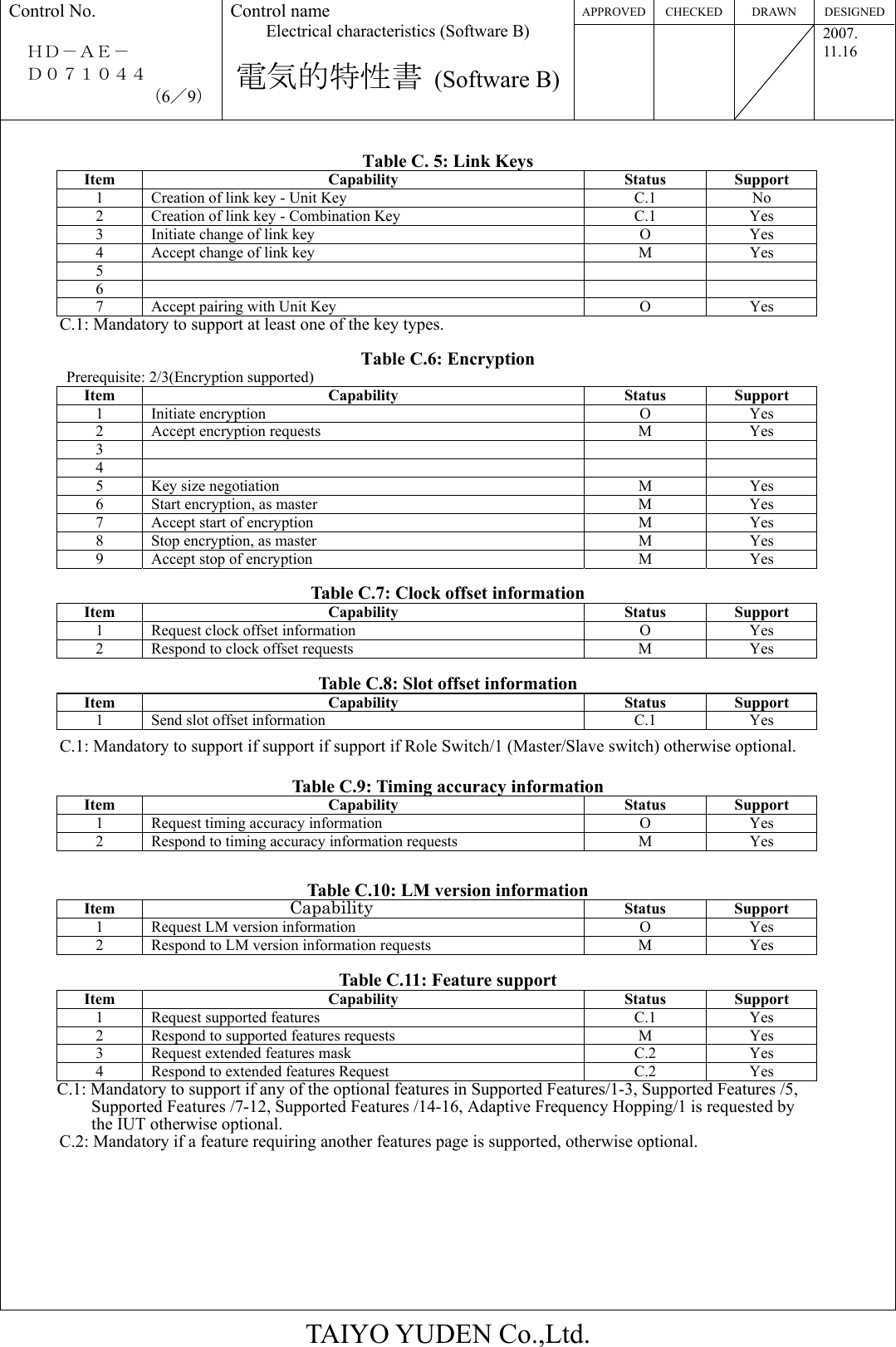

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （6／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table C. 5: Link Keys Item Capability Status Support 1 Creation of link key - Unit Key C.1 No 2 Creation of link key - Combination Key C.1 Yes 3 Initiate change of link key O Yes 4 Accept change of link key M Yes 5 6 7 Accept pairing with Unit Key O Yes C.1: Mandatory to support at least one of the key types. Table C.6: Encryption Prerequisite: 2/3(Encryption supported) Item Capability Status Support 1 Initiate encryption O Yes 2 Accept encryption requests M Yes 3 4 5 Key size negotiation M Yes 6 Start encryption, as master M Yes 7 Accept start of encryption M Yes 8 Stop encryption, as master M Yes 9 Accept stop of encryption M Yes Table C.7: Clock offset information Item Capability Status Support 1 Request clock offset information O Yes 2 Respond to clock offset requests M Yes Table C.8: Slot offset information Item Capability Status Support 1 Send slot offset information C.1 Yes C.1: Mandatory to support if support if support if Role Switch/1 (Master/Slave switch) otherwise optional. Table C.9: Timing accuracy information Item Capability Status Support 1 Request timing accuracy information O Yes 2 Respond to timing accuracy information requests M Yes Table C.10: LM version information Item Capability Status Support 1 Request LM version information O Yes 2 Respond to LM version information requests M Yes Table C.11: Feature support Item Capability Status Support 1 Request supported features C.1 Yes 2 Respond to supported features requests M Yes 3 Request extended features mask C.2 Yes 4 Respond to extended features Request C.2 Yes C.1: Mandatory to support if any of the optional features in Supported Features/1-3, Supported Features /5, Supported Features /7-12, Supported Features /14-16, Adaptive Frequency Hopping/1 is requested by the IUT otherwise optional. C.2: Mandatory if a feature requiring another features page is supported, otherwise optional.

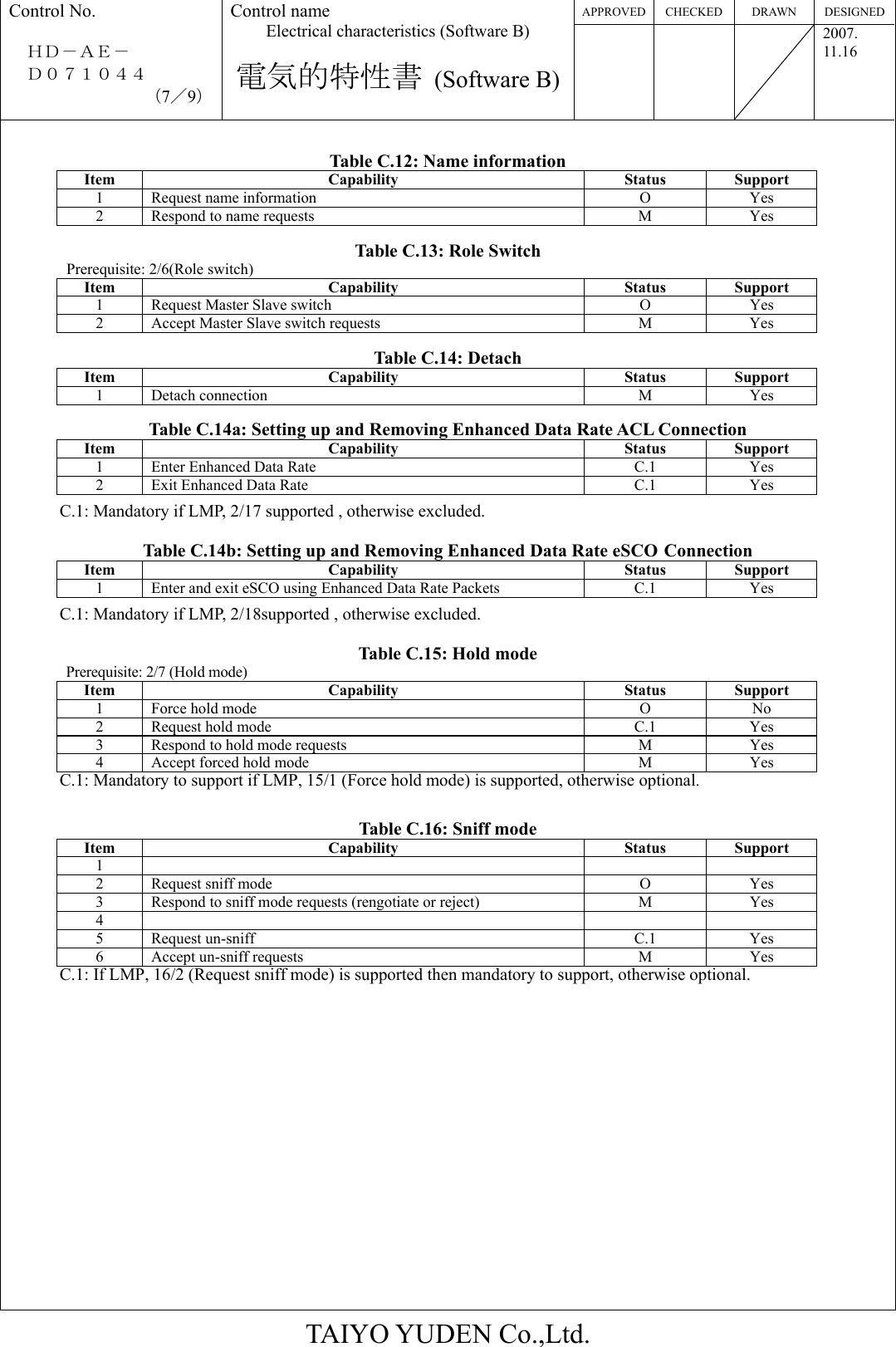

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （7／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table C.12: Name information Item Capability Status Support 1 Request name information O Yes 2 Respond to name requests M Yes Table C.13: Role Switch Prerequisite: 2/6(Role switch) Item Capability Status Support 1 Request Master Slave switch O Yes 2 Accept Master Slave switch requests M Yes Table C.14: Detach Item Capability Status Support 1 Detach connection M Yes Table C.14a: Setting up and Removing Enhanced Data Rate ACL Connection Item Capability Status Support 1 Enter Enhanced Data Rate C.1 Yes 2 Exit Enhanced Data Rate C.1 Yes C.1: Mandatory if LMP, 2/17 supported , otherwise excluded. Table C.14b: Setting up and Removing Enhanced Data Rate eSCO Connection Item Capability Status Support 1 Enter and exit eSCO using Enhanced Data Rate Packets C.1 Yes C.1: Mandatory if LMP, 2/18supported , otherwise excluded. Table C.15: Hold mode Prerequisite: 2/7 (Hold mode) Item Capability Status Support 1 Force hold mode O No 2 Request hold mode C.1 Yes 3 Respond to hold mode requests M Yes 4 Accept forced hold mode M Yes C.1: Mandatory to support if LMP, 15/1 (Force hold mode) is supported, otherwise optional. Table C.16: Sniff mode Item Capability Status Support 1 2 Request sniff mode O Yes 3 Respond to sniff mode requests (rengotiate or reject) M Yes 4 5 Request un-sniff C.1 Yes 6 Accept un-sniff requests M Yes C.1: If LMP, 16/2 (Request sniff mode) is supported then mandatory to support, otherwise optional.

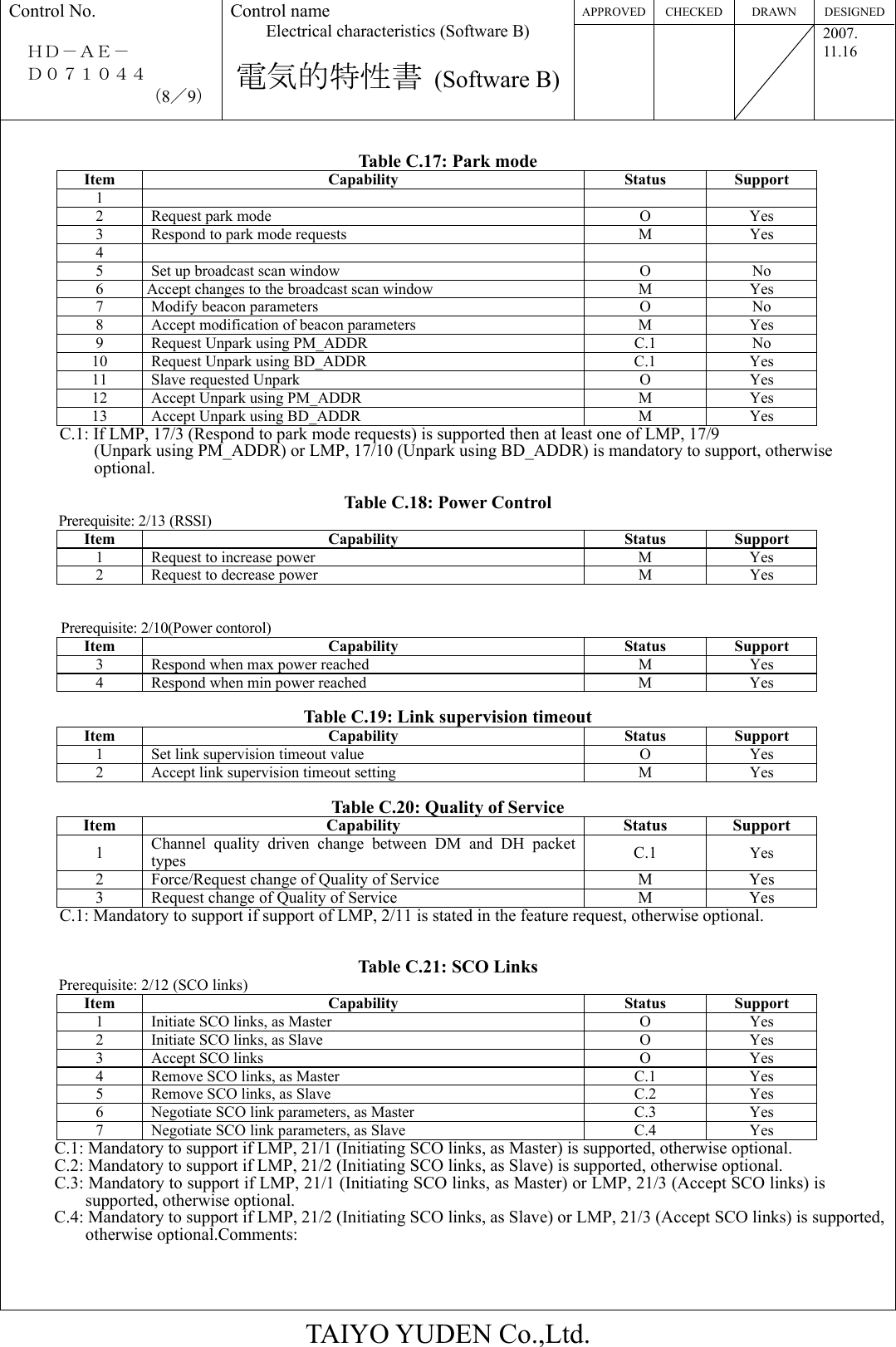

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （8／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table C.17: Park mode Item Capability Status Support 1 2 Request park mode O Yes 3 Respond to park mode requests M Yes 4 5 Set up broadcast scan window O No 6 Accept changes to the broadcast scan window M Yes 7 Modify beacon parameters O No 8 Accept modification of beacon parameters M Yes 9 Request Unpark using PM_ADDR C.1 No 10 Request Unpark using BD_ADDR C.1 Yes 11 Slave requested Unpark O Yes 12 Accept Unpark using PM_ADDR M Yes 13 Accept Unpark using BD_ADDR M Yes C.1: If LMP, 17/3 (Respond to park mode requests) is supported then at least one of LMP, 17/9 (Unpark using PM_ADDR) or LMP, 17/10 (Unpark using BD_ADDR) is mandatory to support, otherwise optional. Table C.18: Power Control Prerequisite: 2/13 (RSSI) Item Capability Status Support 1 Request to increase power M Yes 2 Request to decrease power M Yes Prerequisite: 2/10(Power contorol) Item Capability Status Support 3 Respond when max power reached M Yes 4 Respond when min power reached M Yes Table C.19: Link supervision timeout Item Capability Status Support 1 Set link supervision timeout value O Yes 2 Accept link supervision timeout setting M Yes Table C.20: Quality of Service Item Capability Status Support 1 Channel quality driven change between DM and DH packet types C.1 Yes 2 Force/Request change of Quality of Service M Yes 3 Request change of Quality of Service M Yes C.1: Mandatory to support if support of LMP, 2/11 is stated in the feature request, otherwise optional. Table C.21: SCO Links Prerequisite: 2/12 (SCO links) Item Capability Status Support 1 Initiate SCO links, as Master O Yes 2 Initiate SCO links, as Slave O Yes 3 Accept SCO links O Yes 4 Remove SCO links, as Master C.1 Yes 5 Remove SCO links, as Slave C.2 Yes 6 Negotiate SCO link parameters, as Master C.3 Yes 7 Negotiate SCO link parameters, as Slave C.4 Yes C.1: Mandatory to support if LMP, 21/1 (Initiating SCO links, as Master) is supported, otherwise optional. C.2: Mandatory to support if LMP, 21/2 (Initiating SCO links, as Slave) is supported, otherwise optional. C.3: Mandatory to support if LMP, 21/1 (Initiating SCO links, as Master) or LMP, 21/3 (Accept SCO links) is supported, otherwise optional. C.4: Mandatory to support if LMP, 21/2 (Initiating SCO links, as Slave) or LMP, 21/3 (Accept SCO links) is supported, otherwise optional.Comments:

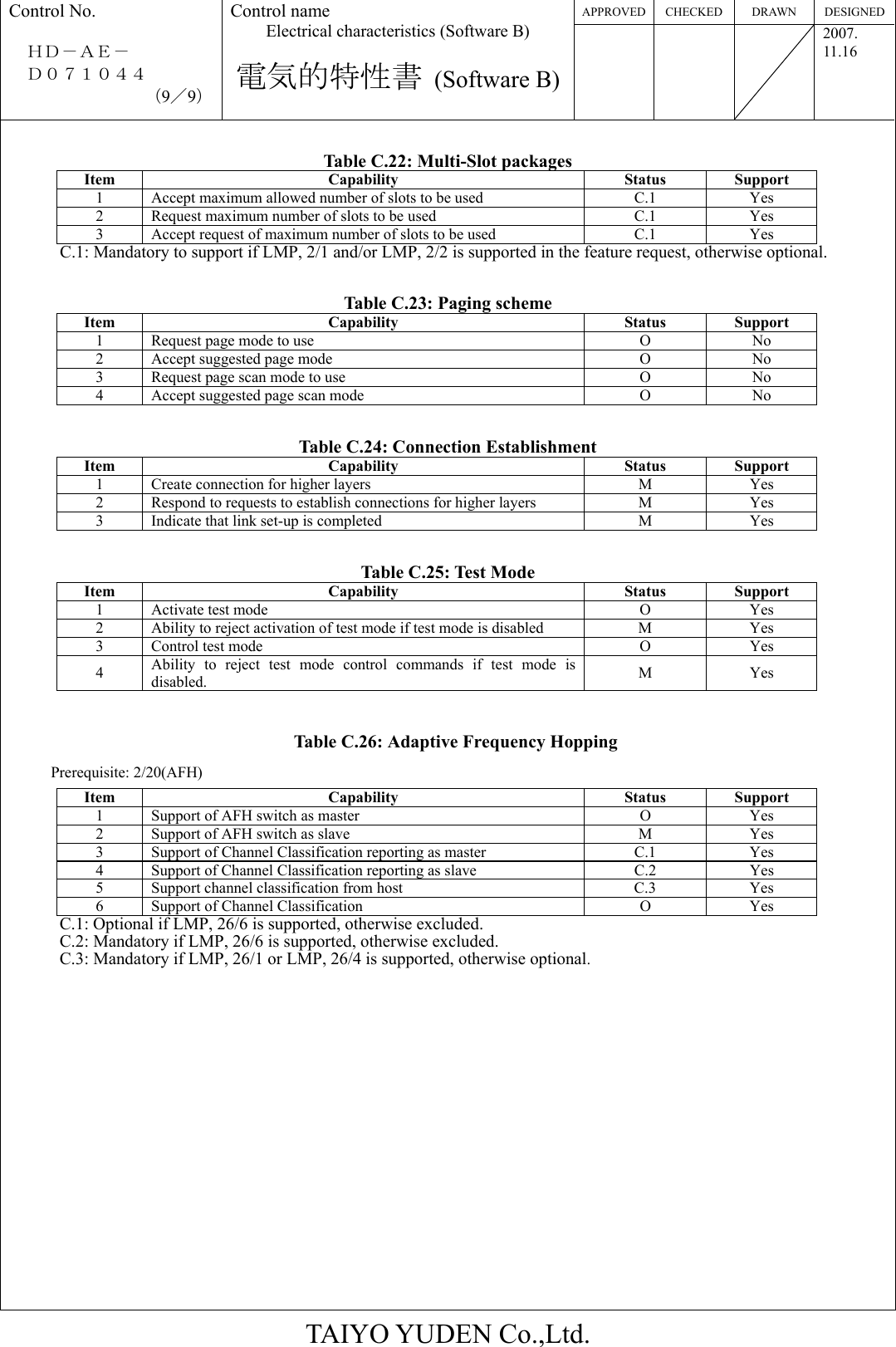

APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－ Ｄ０７１０４４ （9／9） Control name Electrical characteristics (Software B) 電気的特性書 (Software B) 2007. 11.16 TAIYO YUDEN Co.,Ltd. Table C.22: Multi-Slot packages Item Capability Status Support 1 Accept maximum allowed number of slots to be used C.1 Yes 2 Request maximum number of slots to be used C.1 Yes 3 Accept request of maximum number of slots to be used C.1 Yes C.1: Mandatory to support if LMP, 2/1 and/or LMP, 2/2 is supported in the feature request, otherwise optional. Table C.23: Paging scheme Item Capability Status Support 1 Request page mode to use O No 2 Accept suggested page mode O No 3 Request page scan mode to use O No 4 Accept suggested page scan mode O No Table C.24: Connection Establishment Item Capability Status Support 1 Create connection for higher layers M Yes 2 Respond to requests to establish connections for higher layers M Yes 3 Indicate that link set-up is completed M Yes Table C.25: Test Mode Item Capability Status Support 1 Activate test mode O Yes 2 Ability to reject activation of test mode if test mode is disabled M Yes 3 Control test mode O Yes 4 Ability to reject test mode control commands if test mode is disabled. M Yes Table C.26: Adaptive Frequency Hopping Prerequisite: 2/20(AFH) Item Capability Status Support 1 Support of AFH switch as master O Yes 2 Support of AFH switch as slave M Yes 3 Support of Channel Classification reporting as master C.1 Yes 4 Support of Channel Classification reporting as slave C.2 Yes 5 Support channel classification from host C.3 Yes 6 Support of Channel Classification O Yes C.1: Optional if LMP, 26/6 is supported, otherwise excluded. C.2: Mandatory if LMP, 26/6 is supported, otherwise excluded. C.3: Mandatory if LMP, 26/1 or LMP, 26/4 is supported, otherwise optional.

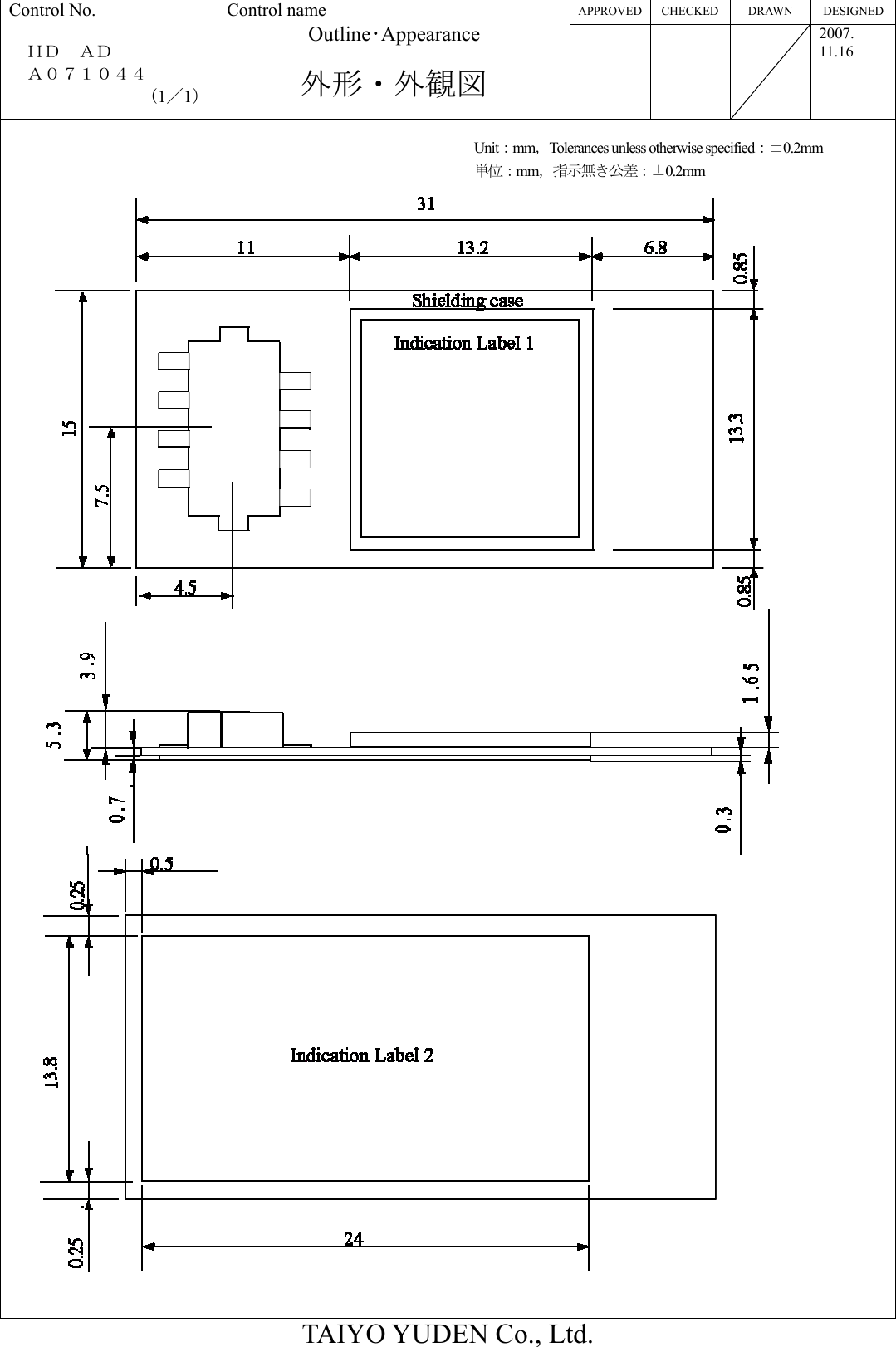

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＤ－ Ａ０７１０４４ （1／1） Control name Outline･Appearance 外形・外観図 2007. 11.16 TAIYO YUDEN Co., Ltd. Unit：mm，Tolerances unless otherwise specified：±0.2mm 単位：mm，指示無き公差：±0.2mm

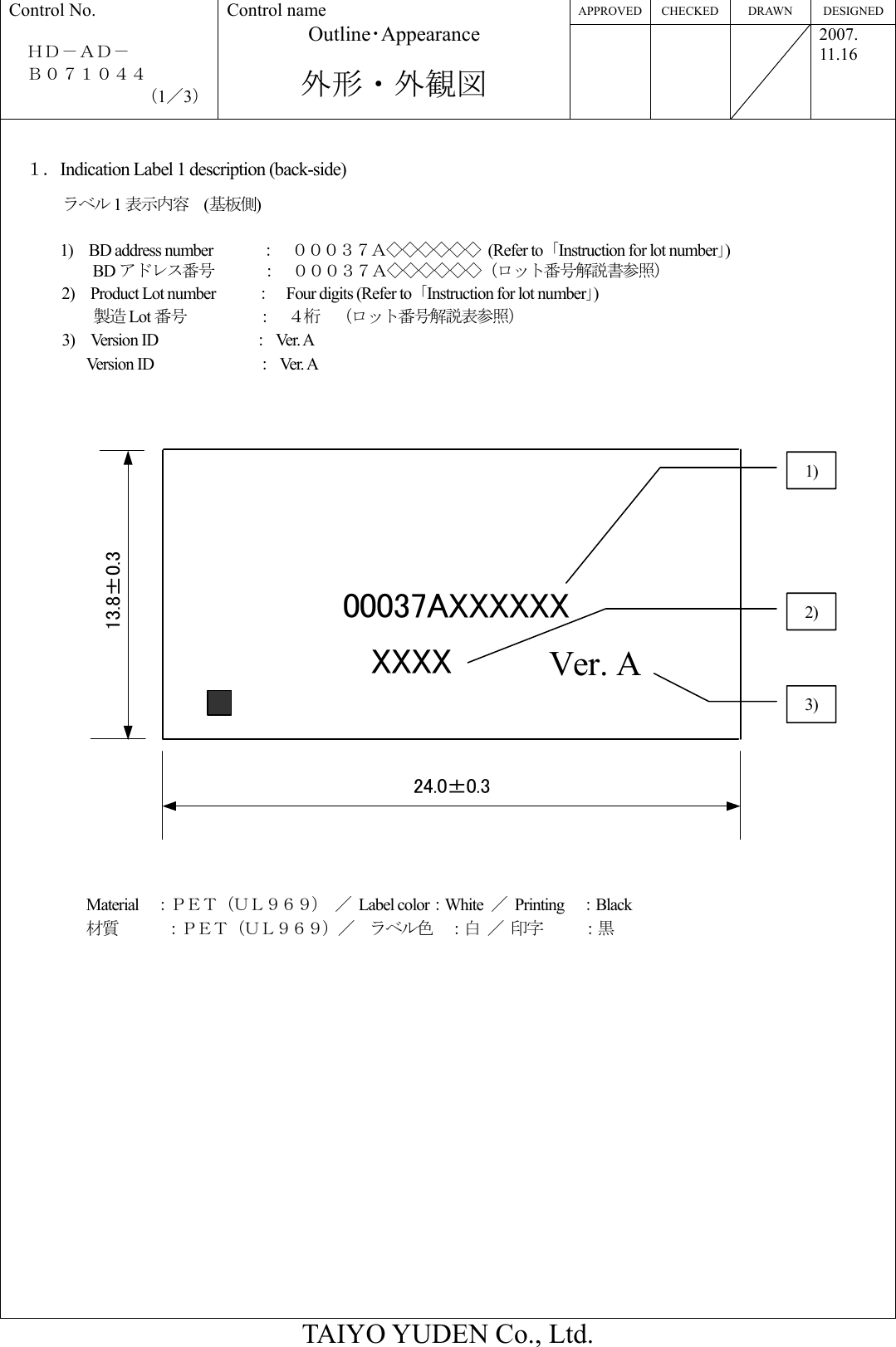

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＤ－ Ｂ０７１０４４ （1／3） Control name Outline･Appearance 外形・外観図 2007. 11.16 TAIYO YUDEN Co., Ltd. 24.0±0.313.8±0.3XXXX Ver. A00037AXXXXXX １．Indication Label 1 description (back-side) ラベル 1表示内容 (基板側) 1) BD address number ： ０００３７Ａ◇◇◇◇◇◇ (Refer to ｢Instruction for lot number｣) BD アドレス番号 ： ０００３７Ａ◇◇◇◇◇◇（ロット番号解説書参照） 2) Product Lot number ： Four digits (Refer to ｢Instruction for lot number｣) 製造 Lot 番号 ： ４桁 （ロット番号解説表参照） 3) Version ID ： Ve r. A Version ID ： Ver. A Material ：ＰＥＴ（ＵＬ９６９） ／ Label color：White ／ Printing ：Black 材質 ：ＰＥＴ（ＵＬ９６９）／ ラベル色 ：白 ／ 印字 ：黒 1) 3) 2)

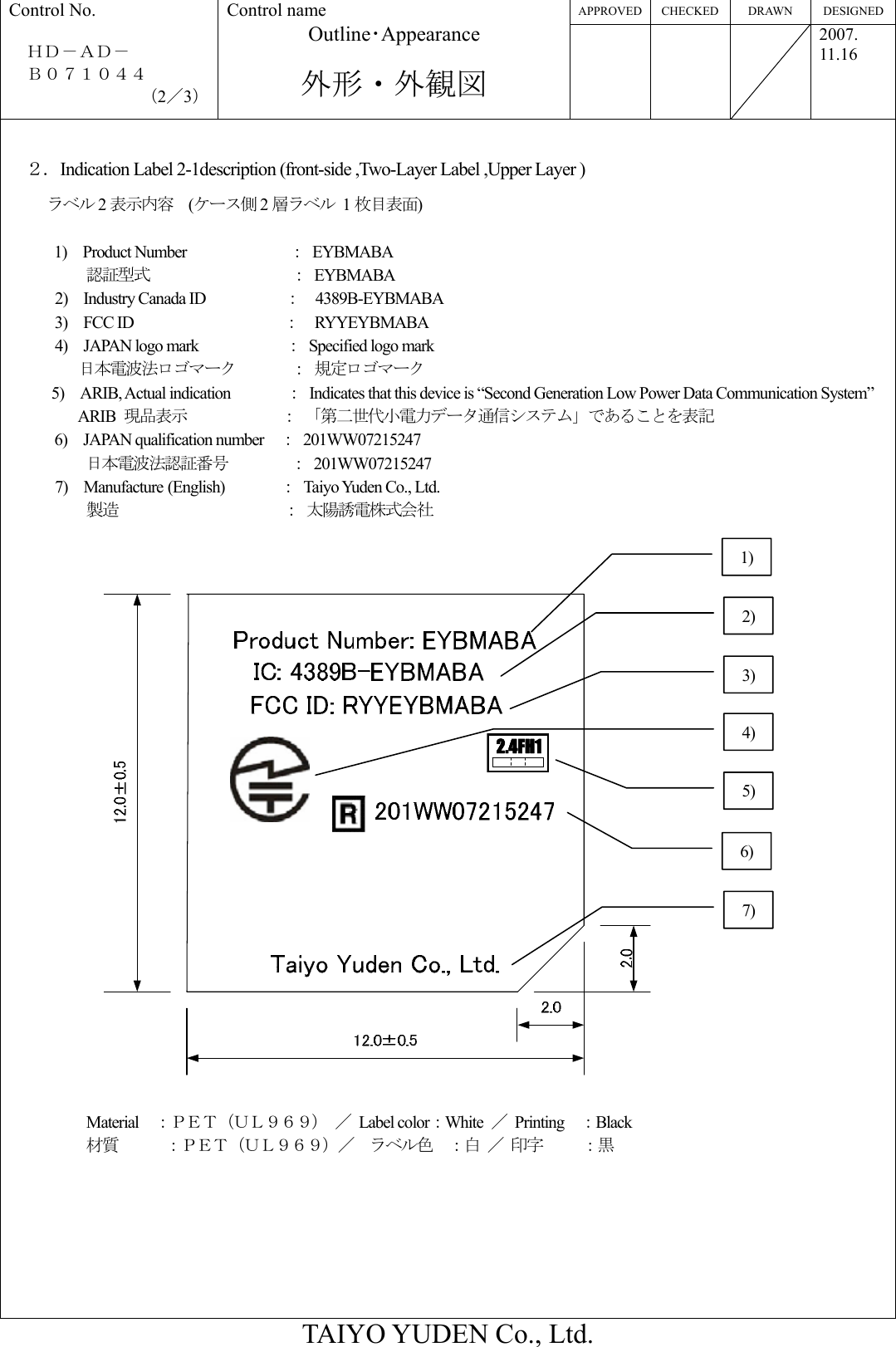

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＤ－ Ｂ０７１０４４ （2／3） Control name Outline･Appearance 外形・外観図 2007. 11.16 TAIYO YUDEN Co., Ltd. ２．Indication Label 2-1description (front-side ,Two-Layer Label ,Upper Layer ) ラベル 2表示内容 (ケース側 2層ラベル 1枚目表面) 1) Product Number ： EYBMABA 認証型式 ： EYBMABA 2) Industry Canada ID ： 4389B-EYBMABA 3) FCC ID ： RYYEYBMABA 4) JAPAN logo mark ： Specified logo mark 日本電波法ロゴマーク ： 規定ロゴマーク 5) ARIB, Actual indication ： Indicates that this device is “Second Generation Low Power Data Communication System” ARIB 現品表示 ： 「第二世代小電力データ通信システム」であることを表記 6) JAPAN qualification number ： 201WW07215247 日本電波法認証番号 ： 201WW07215247 7) Manufacture (English) ： Taiyo Yuden Co., Ltd. 製造 ： 太陽誘電株式会社 2.4FH12.4FH1 Material ：ＰＥＴ（ＵＬ９６９） ／ Label color：White ／ Printing ：Black 材質 ：ＰＥＴ（ＵＬ９６９）／ ラベル色 ：白 ／ 印字 ：黒 2) 3) 5) 4) 6) 7) 1)

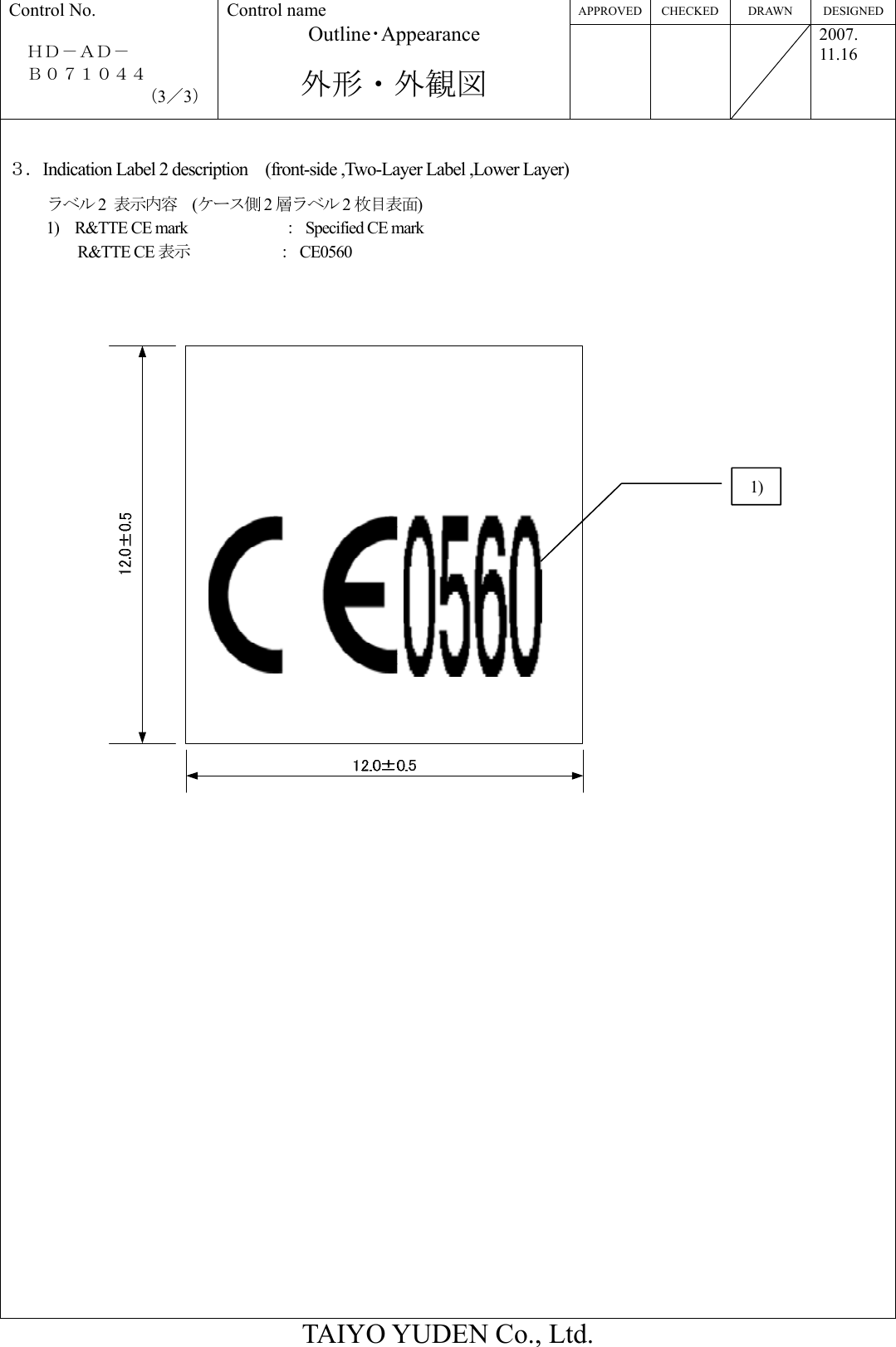

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＤ－ Ｂ０７１０４４ （3／3） Control name Outline･Appearance 外形・外観図 2007. 11.16 TAIYO YUDEN Co., Ltd. ３．Indication Label 2 description (front-side ,Two-Layer Label ,Lower Layer) ラベル 2 表示内容 (ケース側 2層ラベル 2枚目表面) 1) R&TTE CE mark ： Specified CE mark R&TTE CE 表示 ： CE0560 1)

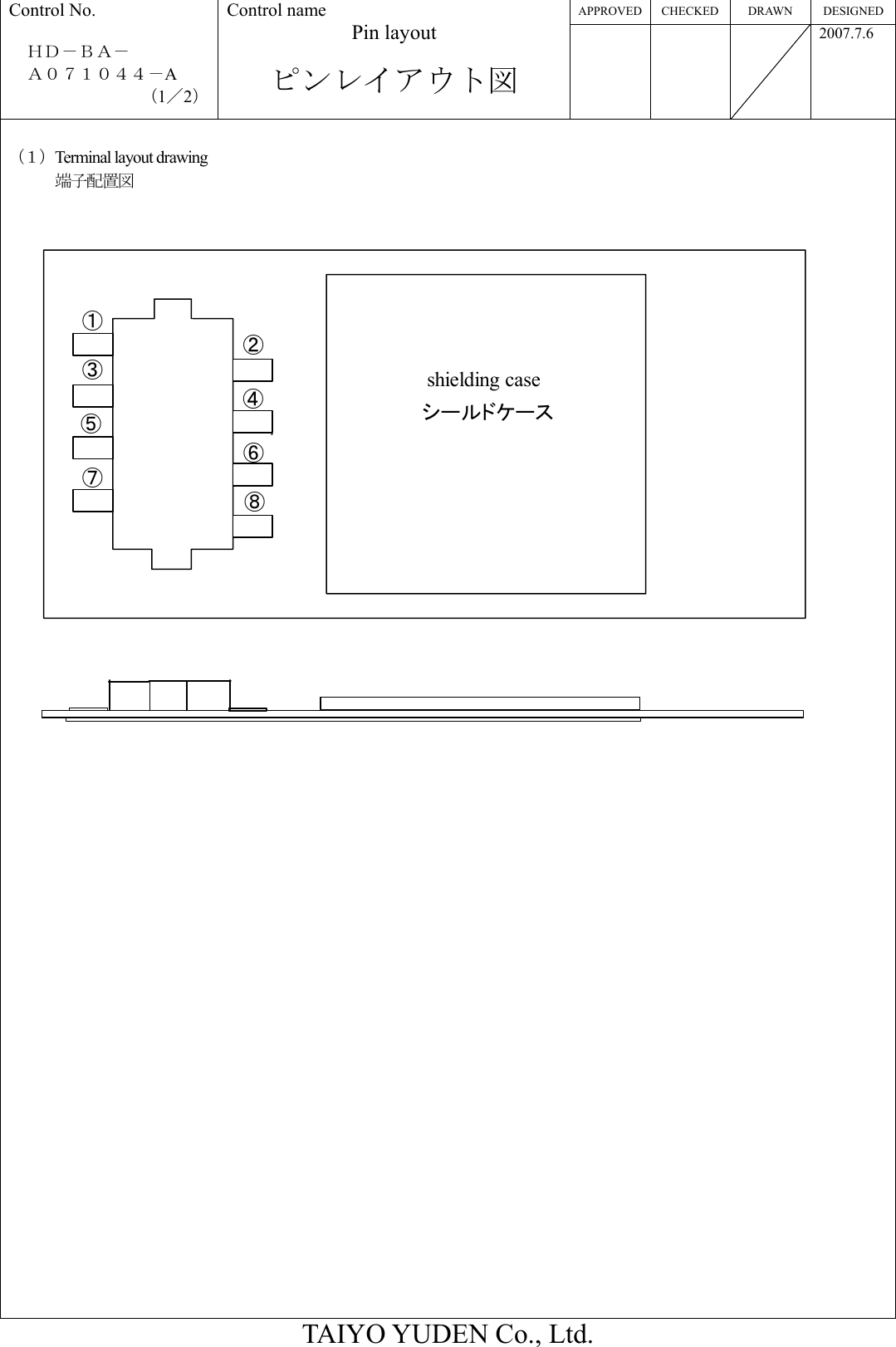

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＢＡ－ Ａ０７１０４４－A （1／2） Control name Pin layout ピンレイアウト図 2007.7.6 TAIYO YUDEN Co., Ltd. （１）Terminal layout drawing 端子配置図 shielding caseシールドケース①②③⑧⑦⑥⑤④

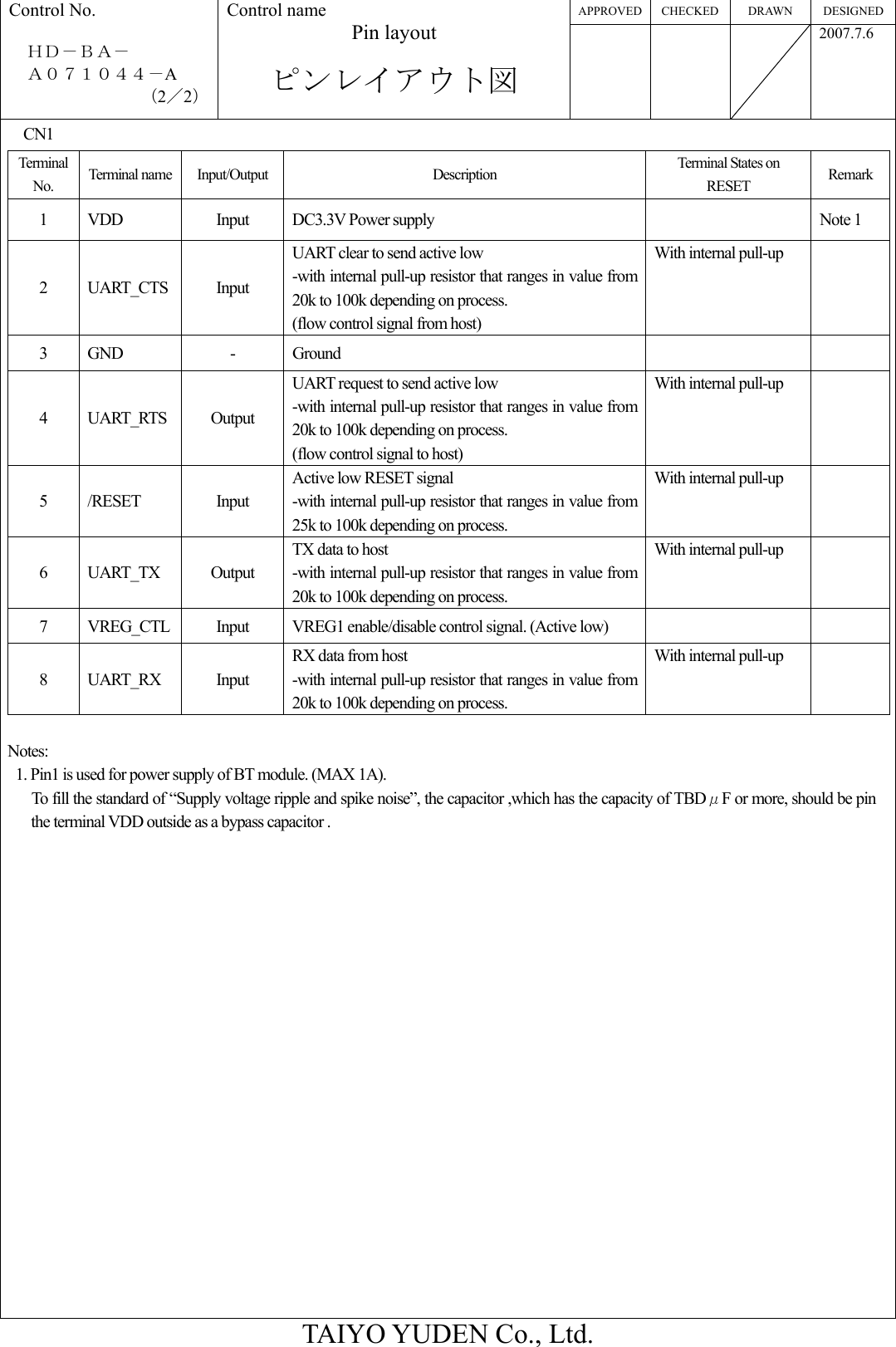

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＢＡ－ Ａ０７１０４４－A （2／2） Control name Pin layout ピンレイアウト図 2007.7.6 TAIYO YUDEN Co., Ltd. CN1 Notes: 1. Pin1 is used for power supply of BT module. (MAX 1A). To fill the standard of “Supply voltage ripple and spike noise”, the capacitor ,which has the capacity of TBDμF or more, should be pin the terminal VDD outside as a bypass capacitor . Terminal No. Terminal name Input/Output Description Terminal States on RESET Remark 1 VDD Input DC3.3V Power supply Note 1 2 UART_CTS Input UART clear to send active low -with internal pull-up resistor that ranges in value from 20k to 100k depending on process. (flow control signal from host) With internal pull-up 3 GND - Ground 4 UART_RTS Output UART request to send active low -with internal pull-up resistor that ranges in value from 20k to 100k depending on process. (flow control signal to host) With internal pull-up 5 /RESET Input Active low RESET signal -with internal pull-up resistor that ranges in value from 25k to 100k depending on process. With internal pull-up 6 UART_TX Output TX data to host -with internal pull-up resistor that ranges in value from 20k to 100k depending on process. With internal pull-up 7 VREG_CTL Input VREG1 enable/disable control signal. (Active low) 8 UART_RX Input RX data from host -with internal pull-up resistor that ranges in value from 20k to 100k depending on process. With internal pull-up

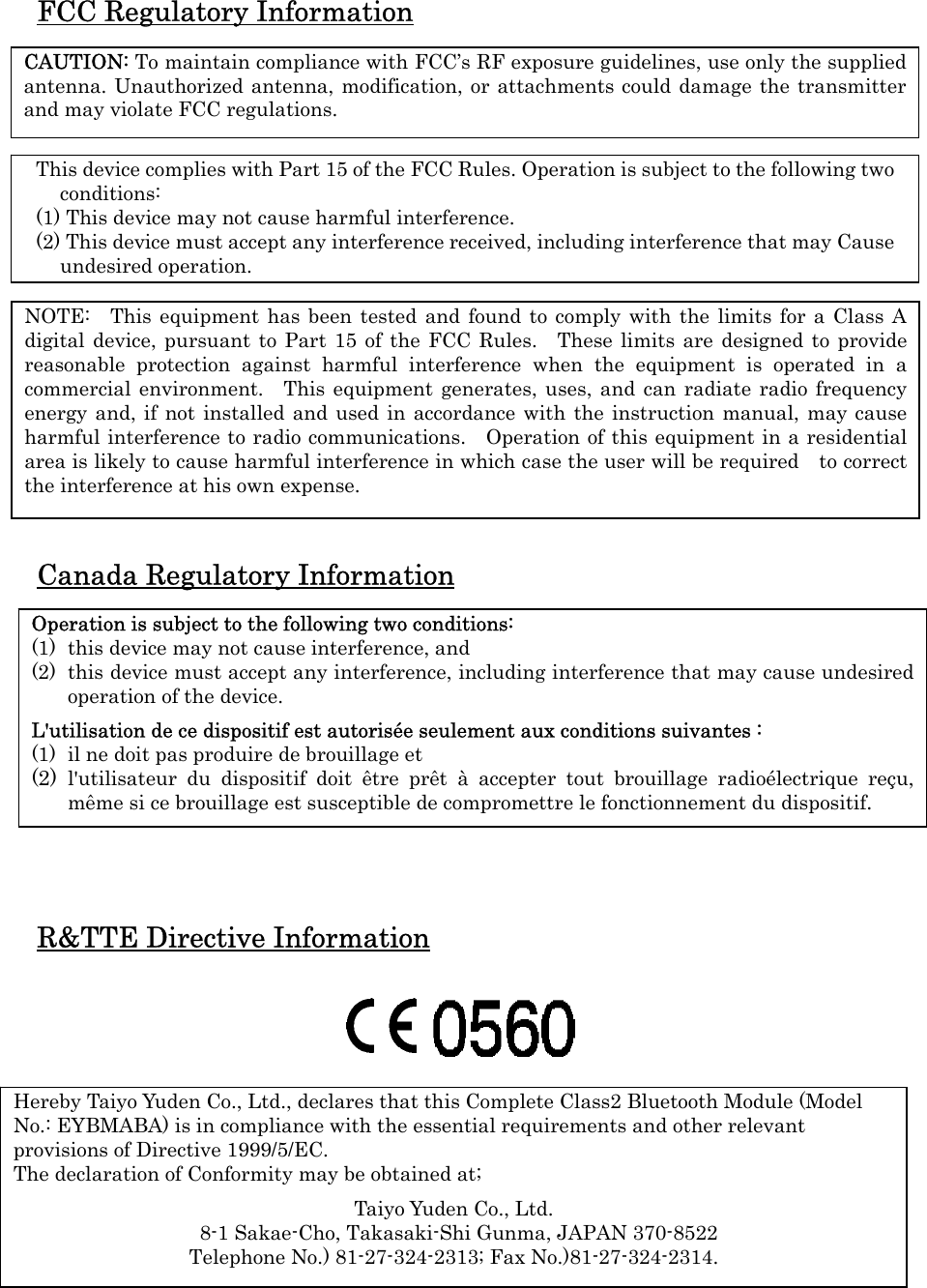

FCC Regulatory Information Canada Regulatory Information R&TTE Directive Information CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may Cause undesired operation. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Hereby Taiyo Yuden Co., Ltd., declares that this Complete Class2 Bluetooth Module (Model No.: EYBMABA) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of Conformity may be obtained at; Taiyo Yuden Co., Ltd. 8-1 Sakae-Cho, Takasaki-Shi Gunma, JAPAN 370-8522 Telephone No.) 81-27-324-2313; Fax No.)81-27-324-2314. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

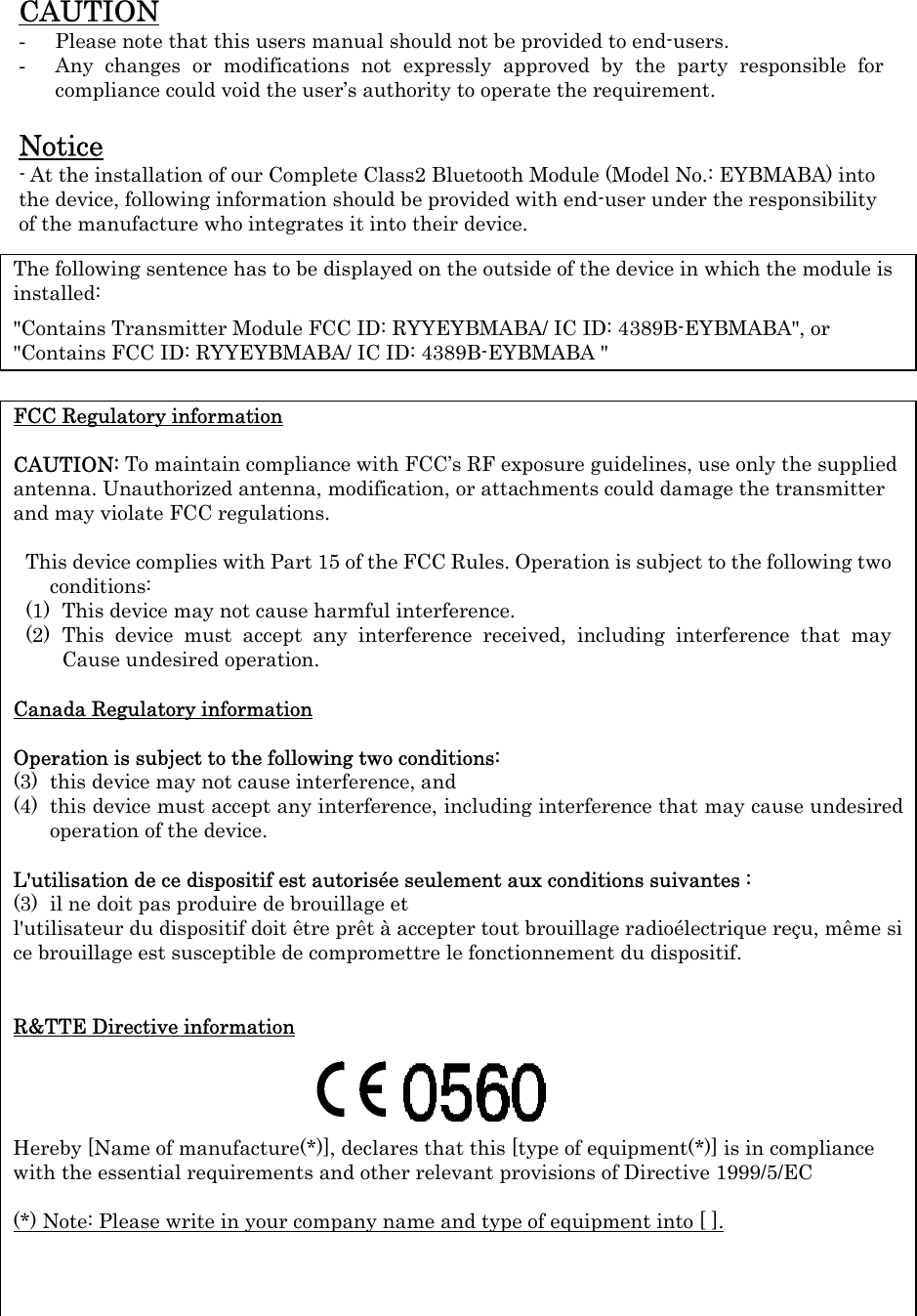

CAUTION - Please note that this users manual should not be provided to end-users. - Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the requirement. Notice - At the installation of our Complete Class2 Bluetooth Module (Model No.: EYBMABA) into the device, following information should be provided with end-user under the responsibility of the manufacture who integrates it into their device. FCC Regulatory information CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may Cause undesired operation. Canada Regulatory information Operation is subject to the following two conditions: (3) this device may not cause interference, and (4) this device must accept any interference, including interference that may cause undesired operation of the device. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (3) il ne doit pas produire de brouillage et l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. R&TTE Directive information Hereby [Name of manufacture(*)], declares that this [type of equipment(*)] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC (*) Note: Please write in your company name and type of equipment into [ ]. The following sentence has to be displayed on the outside of the device in which the module is installed: "Contains Transmitter Module FCC ID: RYYEYBMABA/ IC ID: 4389B-EYBMABA", or "Contains FCC ID: RYYEYBMABA/ IC ID: 4389B-EYBMABA "
