TAIYO YUDEN EYBMABA Complete Class2 Bluetooth Module User Manual
Taiyo Yuden Co., Ltd. Complete Class2 Bluetooth Module
user manual
TAIYO YUDEN 1/2
16-Nov.-2007 Ver.0.1
TAIYO YUDEN Confidential
& Tentative
Bluetooth® Module
EYBMABA (RF+Baseband (Class 2) UART)
User’s Manual
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks
by TAIYO YUDEN CO., LTD. is under license.
Please note that this users manual should not be provided to end-users.
EYBMABA
TAIYO YUDEN 2/2
Document constituent list
Control name Control No. Document Page
Absolute maximum ratings HD-AG-A071044 1/1
Electrical characteristics HD-AE-A071044 1/4- 4/4
Electrical characteristics HD-AE-B071044 1/1
Electrical characteristics HD-AE-C071044 1/11 - 11/11
Electrical characteristics HD-AE-D071044 1/9- 9/9

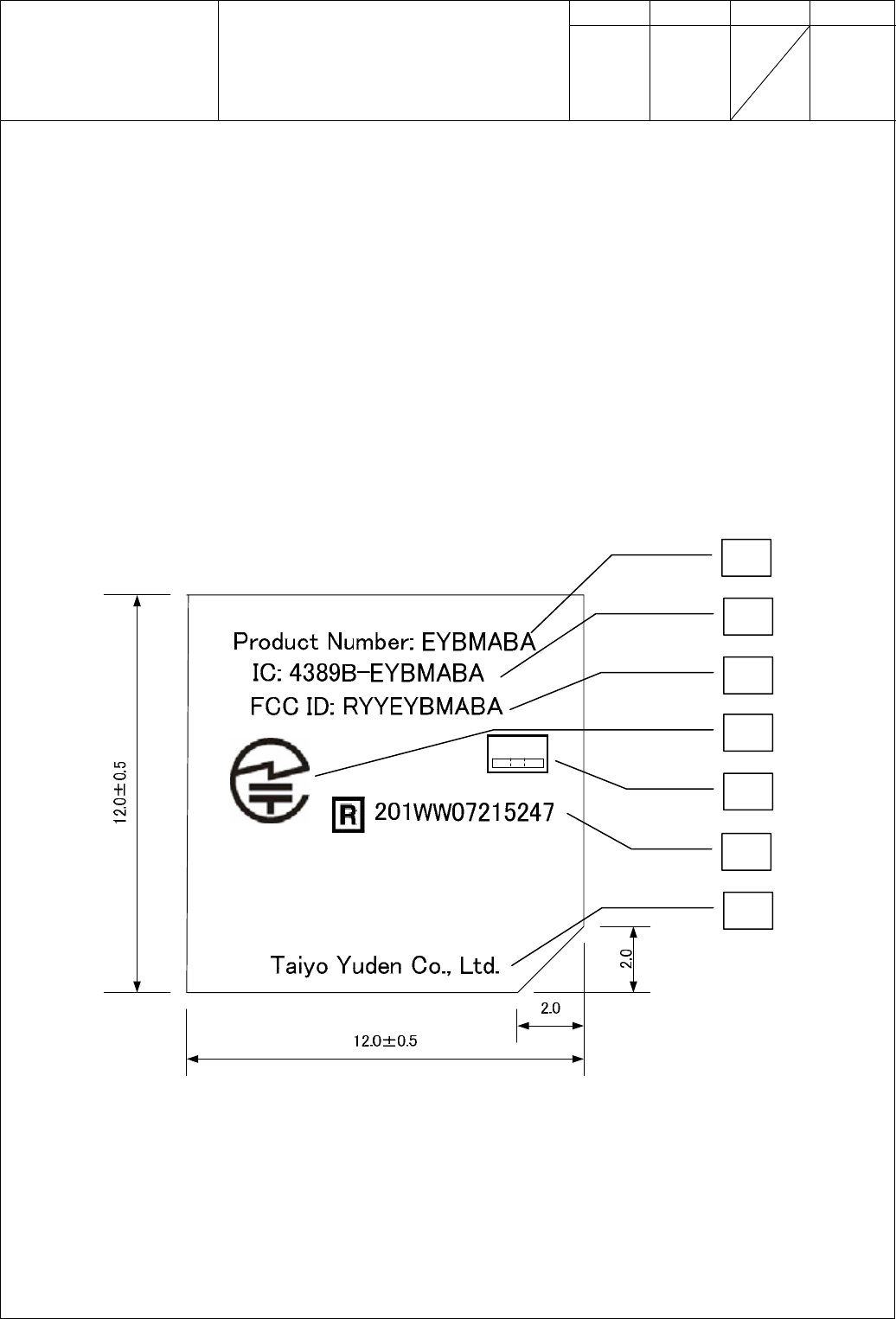

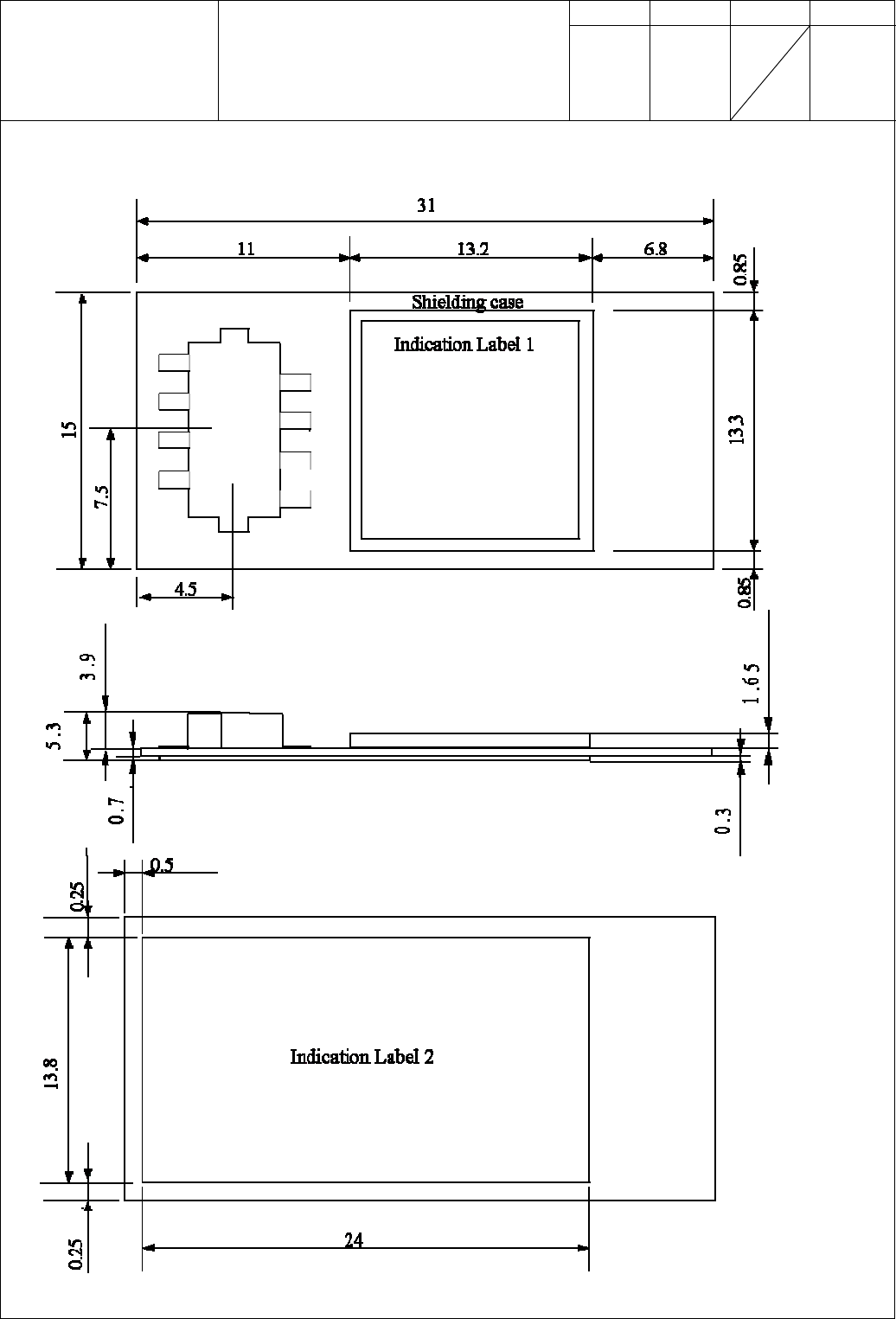

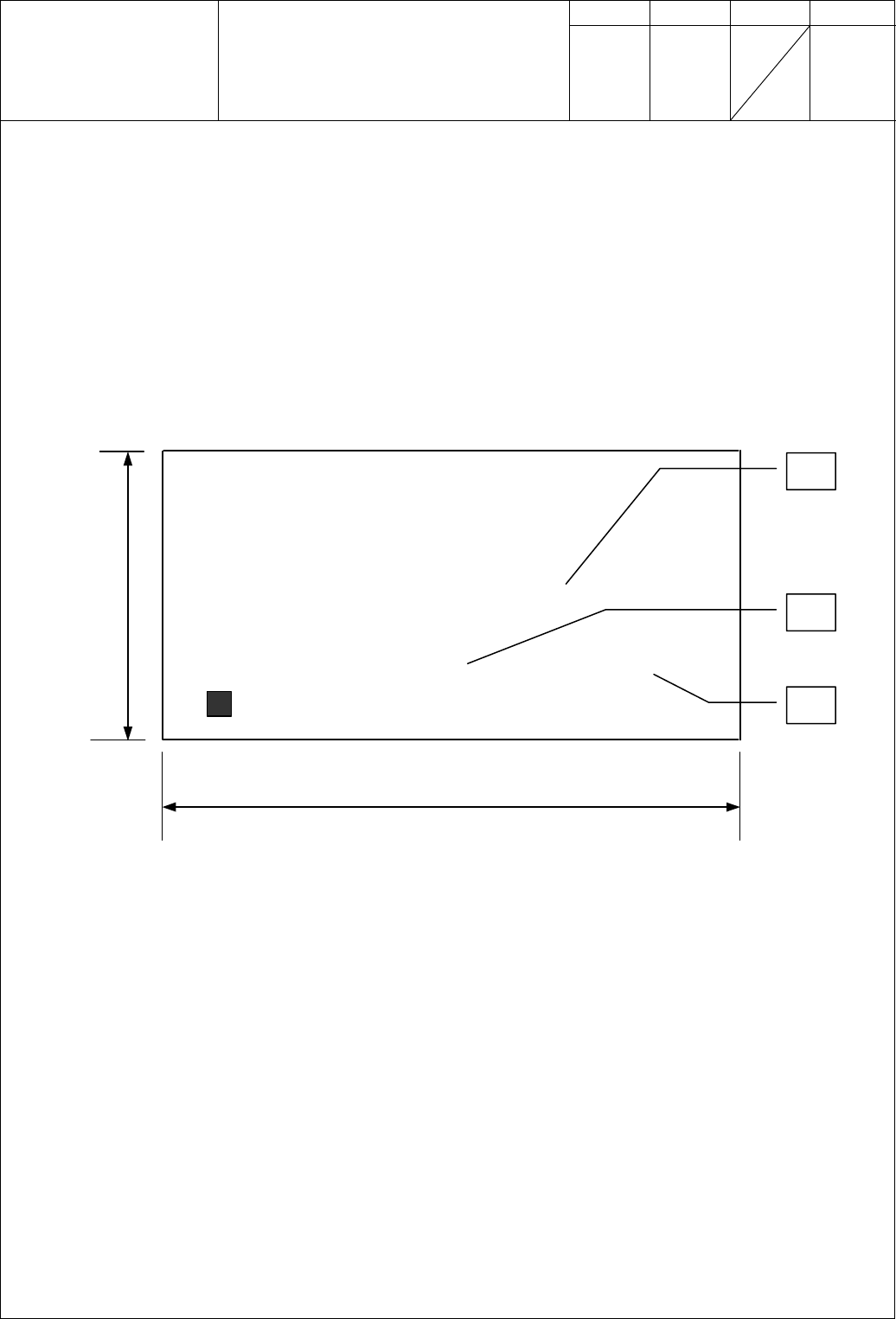

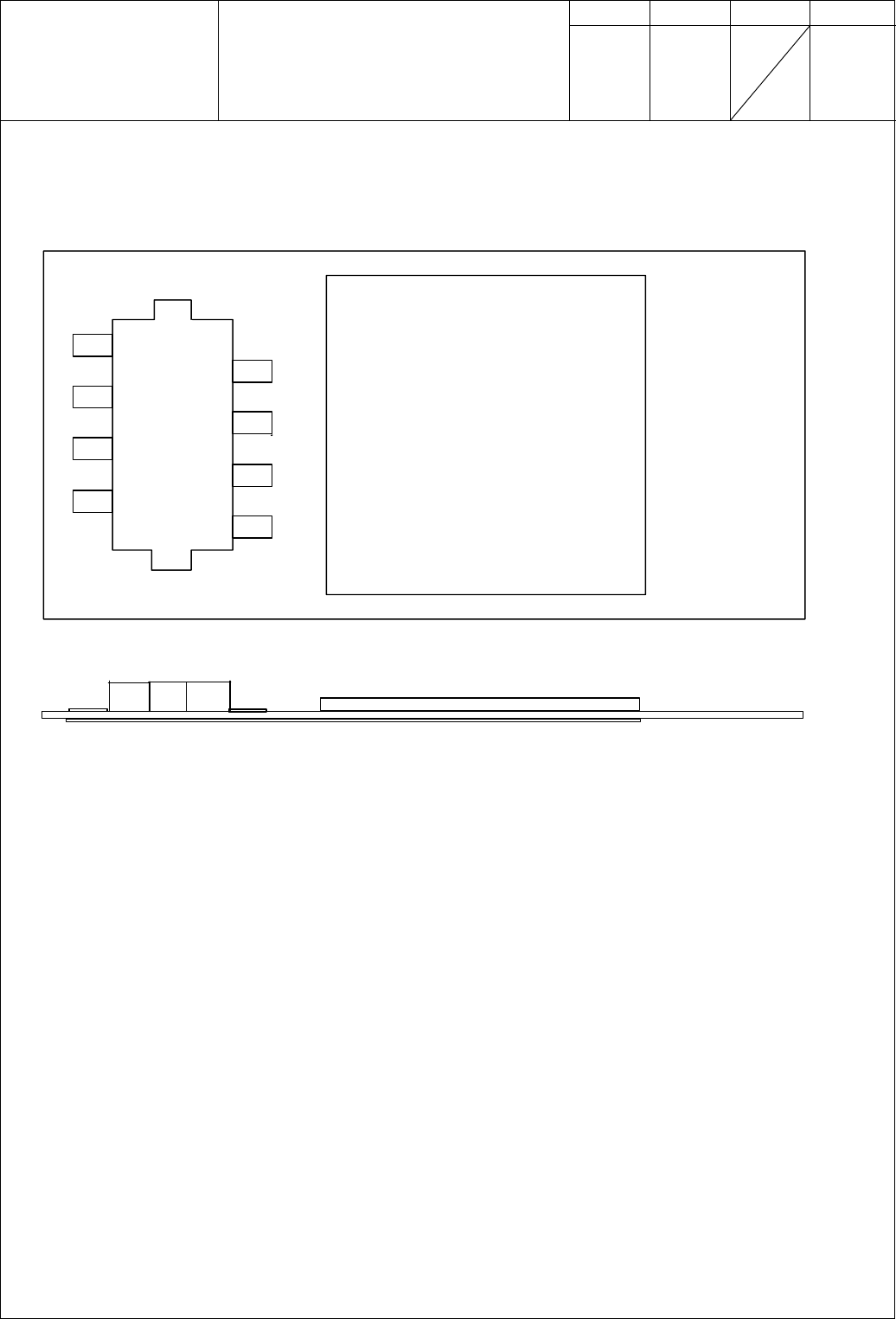

Outline / Appearance HD-AD-A071044 1/1
Outline / Appearance HD-AD-B071044 1/3- 3/3
Pin Layout HD-BA-A071044 1/2- 2/2
Rev. record
Nov.16. 2007> Ver.0.1
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＭ－
Ａ０７１０４４
（1／1）
Control name
Absolute maximum ratings
絶対最大定格書
2007.
11.16
TAIYO YUDEN Co., Ltd.
１．Maximum rating
Item Symbol MIN TYP MAX Unit Condition
Supply voltage VDD -0.3 3.6 V Ta=25℃，GND reference
Input voltage Vin -0.3 VDD+0.3 V
２．Recommendation operating range
Item Symbol MIN TYP MAX Unit Condition
Operating
supply voltage VDD 3.0 3.30 3.6 V
Supply voltage
ripple and spike
noise
VDD_rn (30) mV/p-p Note3)
Operating
temperature range Topr 0 25 70 ℃ Humidity =40%RH Note1）
Storage
temperature range Tstg -30 25 85 ℃ Humidity =40%RH Note2）
Note1) Operating temperature range is set to satisfy products electrical characteristics in the short term.
In terms of product life cycle when it is used in condition of varying from TYP standard in the long term,
please refer to the reliability condition.
動作温度範囲は短期的に製品の電気的特性を満足する温度範囲です。
TYP 規格から大きく外れた条件で、長期ご使用の場合の製品寿命につきましては信頼性条件を
ご参照願います。
Note2) Storage temperature range is the condition for transportation and storage in temporary.
Please keep it under condition of “reference data” (HQ-BA-***) for long-term storage.
保存温度範囲は、輸送時や短期間の保管時の条件です。
長期保管時は、取扱注意要領の条件に従って保管して下さい。
Note3) The Max. is a reference value. The value may change depending on the evaluation.
Max.値は参考値となります。今後の検証によって変更になる可能性があります。
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ａ０７１０４４
（1／4）
Control name
Electrical characteristics (Digital)
電気的特性書 (Digital)
2007.
11.16
TAIYO YUDEN Co., Ltd.
Electrical characteristics
DC Specifications
The Specification applies for Topr=25 degrees C, VDD=3.3V
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 Normal supply voltage VDD 3.0 3.3 3.6 V
2 Input low voltage
/RESET,
VREG_CTL,
UART_RX,
UART_CTS
VIL 0 0.8 V
3 Input High voltage
/RESET,
VREG_CTL,
UART_RX,
UART_CTS
VIH 2.0 VDD V
4 Output low voltage UART_TX,
UART_RTS VOL - 0.4 V Iout =-2mA
5 Output High voltage UART_TX,
UART_RTS VOH VDD-0.4 - V Iout=-2mA
6 Peak current Continuous Rx Iccp (60) (180) mA Note 4
7 Average current 1 Sniff mode
(Slave only) Icca1 TBD mA Notes 1,3
8 Average current 2 Standby mode Icca2 (13) mA Notes 3, 4
9 Average current 3 Send DM1packet
(Master) Icca3 TBD mA Note 3
10 Average current 4 Receive DM1packet
(Slave) Icca4 TBD mA Note 3
11 Average current 5 Hold mode
(Slave only) Icca5 TBD mA Note 3
12 Average current 6 Park mode
(Slave only) Icca6 TBD mA Notes 2,3
13 Average current 7 /Reset Icca7 (8) mA Note 4
14 Average current 8 VREG_CTL OFF Icca8 (0.4) mA Note 4
Notes:
1. Sniff mode parameter. Max interval 0050h
Min interval 0010h
Attempt 0005h
Timeout 0005h
2. Park mode parameter. Max interval 0100h
Min interval 0010h
3. The consumption current might fluctuate with the condition of radio communication, host performance and test circuit.
4. The Typ. is a reference value. The value may change depending on the evaluation.
3. 消費電流は、通信状況、HOST パフォーマンス、検査回路によって変動する可能性があります。
4. Typ.値は参考値となります。今後の検証によって変更になる可能性があります。
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ａ０７１０４４
（2／4）
Control name
Electrical characteristics (Digital)
電気的特性書 (Digital)
2007.
11.16
TAIYO YUDEN Co., Ltd.
AC Specifications
The Specification applies for Topr=25 degrees C, VDD=3.3V
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 VDD Rise Time from 0V to 3.0V t1 (2) ms Note 2
2 VDD=3.0V to VREG_CTL High t2 0 ms
3 VREG_CTL= 3.0V to /RESET High t3 0 ms
4 /RESET High to Module Ready t4 (2600) ms Notes 1, 2
5 /RESET High to /RESET Low t5 0 ms
6 /RESET Pulse Width t6 4 us
7 VREG_CTL Pulse Width t7 TBD ms
8 VREG_CTL High to Module Ready t8 (2600) ms Notes 1, 2
9 /RESET Low to VDD Off t9 0 ms
10 VREG_CTL Low to VDD Off t10 0 ms
Notes:
1. It may change due to the firmware version.
2. The Typ. is a reference value. The value may change depending on the evaluation.
1. 値は、firmware version によって変更する可能性があります。
2. Typ.値は参考値となります。今後の検証によって変更になる可能性があります。
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ａ０７１０４４
（3／4）
Control name
Electrical characteristics (Digital)
電気的特性書 (Digital)
2007.
11.16
TAIYO YUDEN Co., Ltd.

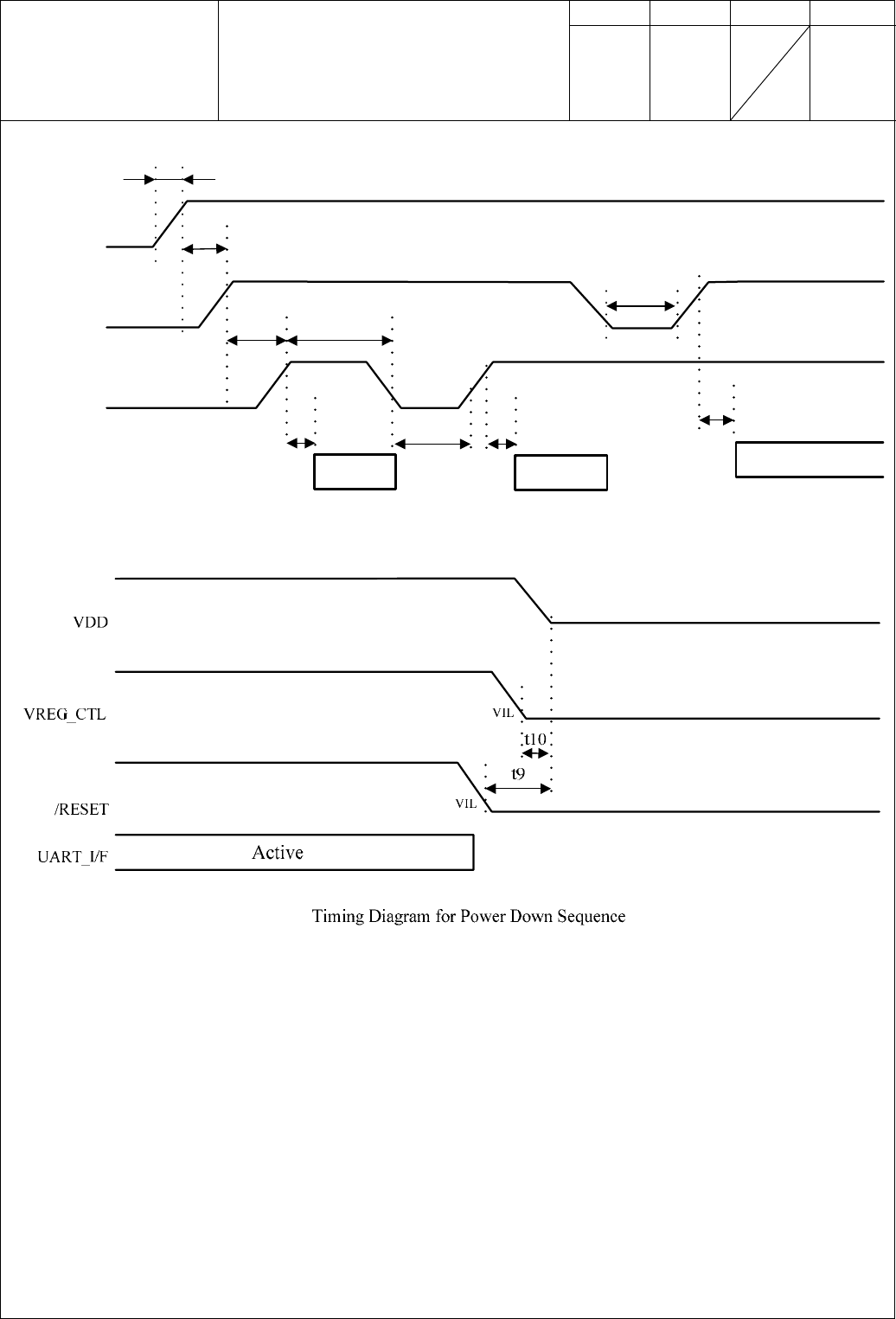

Timing Diagram for Power Up Sequence
VDD
/RESET
UART_I/F
t1
t2
t3
t4
Active
t6
t7
VREG_CTL t5
Active Active
t4
t8
10%
90%
VIH
VIH
VIL VIL
VIH
VIL VIL
VIH
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ａ０７１０４４
（4／4）
Control name
Electrical characteristics (Digital)
電気的特性書 (Digital)
2007.
11.16
TAIYO YUDEN Co., Ltd.
UART Interface
AC Specifications
The Specification applies for Topr.= 25 degrees C, VDD=3.3V
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RTS Low to RX Data On t1 0 ms
2 RTS High to RX Data Off t2 5 byte Firmware
controlled.
3 CTS Low to TX Data On t3 1 us
4 CTS High to TX Data Off t4 1 byte
5 CTS High Pulse Width t5 0 bit

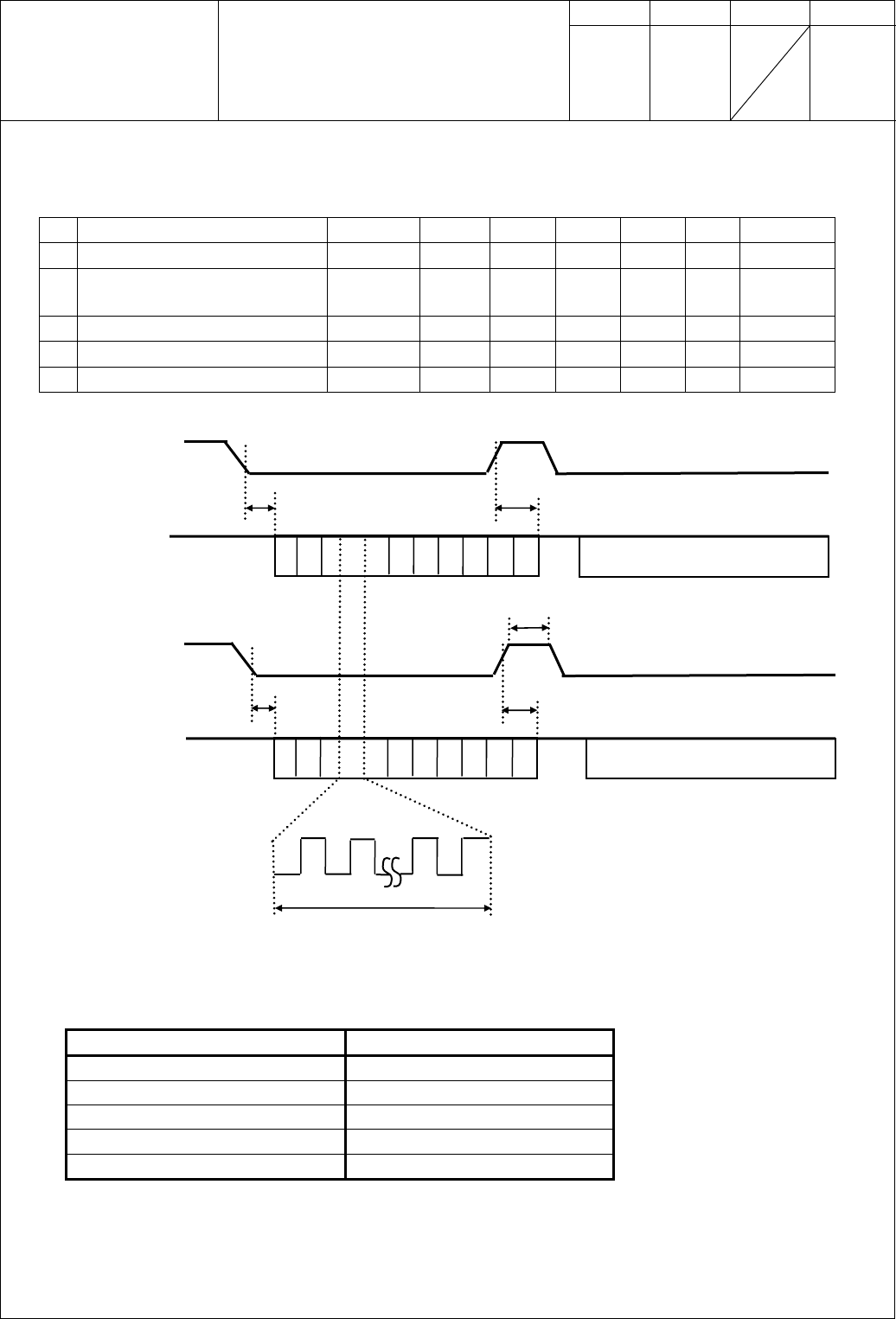

Timing Diagram for UART signals
<UART Parameters>
Item Parameter
Baud Rate 115.2kbps (Typ.)
Date Bits 8bits
Stop Bits 1bit
Parity None
Flow Control CTS/RTS
Note:
10 bits
t2
t1
t4
t3
UART_RTS
UART_RX
UART_CTS
UART_TX
Stop bit
Start bit
t5
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｂ０７１０４４
（1／1）
Control name
Electrical characteristics (RF)
電気的特性書 (RF)
2007.
11.16
TAIYO YUDEN Co., Ltd.
Electrical characteristics
The Specification applies for Topr = 0to +70℃, VDD=3.00 to 3.60V
RF Specifications
Spec
No Parameter Symbol
Min Typ Max
Unit Remark
1 Frequency 2402 2480 MHz
0～78ch(1MHz step)
2 Initial Frequency
Tolerance IFT -48 0 48 kHz DH5
-3.5 0 2.5 dBm
Ta=25±2℃
@Max Power
3 Output Power POW
-6 0 4 dBm @Max Power
MC1 140 160 175 kHz Payload: 11110000 average
4 Modulation
Characteristics MC4 115 160 kHz Payload: 10101010 average
-83 -75 dBm
BER<0.1%、Ta=25±2℃
5 Sensitivity SEN
-80 -70 dBm BER<0.1%
Note:
RF output is suspended within TBD after /RESET Active.
通信中に /RESET Active となった場合、RF 出力は TBD 以下で停止します。
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（1／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Supported HCI Commands / HCI Events
The Bluetooth® functions of this module are as written in the attached PICS. Depending on firmware
version Upgrade, the Bluetooth® functions are subject to change without notice.
本ﾓｼﾞｭｰﾙの Bluetooth 機能が PICS に記載されています。Bluetooth 機能はﾌｧｰﾑｳｪｱﾊﾞｰｼﾞｮﾝに応じて
予告なしで変更されます。
HCI COMMAND LIST
Command Description OpCode
Group
(Hex)
Command
(Hex)
Parameters Returns Status Notes
LINK CONTROL
Inquiry
LAP
Inquiry Length
HCI _Inquiry 0x0401 1 1
Num Responses
Yes a
HCI _ Inquiry_ Cancel 0x0402 1 2 Status Yes b
Max Period Length
Min Period Length
LAP
Inquiry Length
HCI_ Periodic_ Inquiry _Mode 0x0403 1 3
Num Responses
Status Yes
HCI _Exit _Periodic _Inquiry
_Mode 0x0404 1 4 Status Yes
Connection Management
BD ADDR
Packet Type
Page Scan Repetition Mode
Reserved
Clock Offset
HCI _Create_ Connection 0x0405 1 5
Allow Role Switch
Yes
Connection Handle
Reason
HCI _Disconnect 0x0406 1 6
Packet Type
Yes
Status
HCI _Create _Connection _Cancel 0x0408 1 8 BD ADDR BD ADDR Yes c
BD ADDR
HCI _Accept _Connection _Request 0x0409 1 9 Role Yes
BD ADDR
HCI _Reject _Connection _Request 0x040A 1 A Reason Yes
Connection Handle HCI _Change _Connection
_Packet_Type 0x040F 1 F Packet Type Yes c
Connection Handle
Transmit Bandwidth
Receive Bandwidth
Max Latency
Voice Setting
Retransmission Effort
HCI _Setup _Synchronous
_Connection 0x0428 1 28
Packet Type
Yes d
BD ADDR
Transmit Bandwidth
Receive Bandwidth
Max Latency
Content Format
Retransmission Effort
HCI _Accept _Synchronous
_Connection _Request 0x0429 1 29
Packet Type
Yes
BD ADDR HCI _Reject _Synchronous
_Connection _Request 0x042A 1 2A Reason Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（2／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Authentication / Pairing
BD ADDR Status
HCI _Link _Key _Request _Reply 0x040B 1 B Link Key BD ADDR Yes
Status HCI _Link _Key _Request
_Negative _Reply 0x040C 1 C BD ADDR BD ADDR Yes
BD ADDR Status
PIN Code Length BD ADDR
HCI _PIN _Code _Request _Reply 0x040D 1 D
PIN Code
Yes
Status HCI _PIN _Code _Request
_Negative _Reply 0x040E 1 E BD ADDR BD ADDR Yes
HCI _Authentication _Requested 0x0411 1 11 Connection Handle Yes
HCI _Change _Connection _Link
_Key 0x0415 1 15 Connection Handle Yes
Encryption
Connection Handle HCI _Set _Connection
_Encryption 0x0413 1 13 Encryption Enable Yes
HCI _Master _Link _Key 0x0417 1 17 Key Flag Yes
Remote Information
BD ADDR
Page Scan Repetition Mode
Reserved
HCI _Remote _Name_ Request 0x0419 1 19
Clock Offset
Yes
Status HCI _Remote _Name _Request
_Cancel 0x041A 1 1A BD ADDR BD ADDR Yes
HCI _Read _Remote _Supported
_Features 0x041B 1 1B Connection Handle Yes
Connection Handle HCI _Read _Remote _Extended
_Features 0x041C 1 1C Page Number Yes
HCI _Read _Remote _Version
_Information 0x041D 1 1D Connection Handle Yes
HCI _Read _Clock _Offset 0x041F 1 1F Connection Handle Yes
Status
Connection Handle
LMP Handle
HCI _Read _LMP _Handle 0x0420 1 20 Connection Handle
Reserved
Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（3／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
LINK POLICY
Connection Handle
Hold Mode Max Interval
HCI _Hold _Mode 0x0801 2 1
Hold Mode Min Internal
Yes
Connection Handle
Sniff Max Interval
Sniff Min Interval
Sniff Attempt
HCI _Sniff _Mode 0x0803 2 3
Sniff Timeout
Yes
HCI _Exit _Sniff _Mode 0x0804 2 4 Connection Handle Yes
Connection Handle
Beacon Max Interval
HCI _Park _State 0x0805 2 5
Beacon Min Interval
Yes
HCI _Exit _Park _State 0x0806 2 6 Connection Handle Yes
Connection Handle
Flags
Service Type
Token Rate
Peak Bandwidth
Latency
HCI _QoS _Setup 0x0807 2 7
Delay Variation
Yes e
Status
Connection Handle
HCI _Role _Discovery 0x0809 2 9 Connection Handle
Current Role
Yes
BD ADDR
HCI _Switch _Role 0x080B 2 B Role Yes
States
Connection Handle
HCI _Read _Link _Policy
_Settings 0x080C 2 C Connection Handle
Link Policy Settings
Yes
Connection Handle States HCI _Write _Link _Policy
_Settings 0x080D 2 D Link Policy settings Connection Handle Yes
Status
HCI _Read _Default _Link _Policy
_Settings 0x080E 2 E Default Link Policy
Settings
Yes
HCI _Write _Default _Link
_Policy_Settings 0x080F 2 F Default Link Policy
Settings Status Yes
Connection Handle
Flags
Flow direction
Service Type
Token Rate
Token Bucket Size
Peak Bandwidth
HCI _Flow _Specification 0x0810 2 10
Access Latency
Yes f
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（4／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
HOST CONTROLLER & BASEBAND
HCI _Set _Event _Mask 0x0C01 3 1 Event Mask States Yes
HCI _Reset 0x0C03 3 3 States Yes
Filter Type
Filter Condition Type
HCI _Set _Event _Filter 0x0C05 3 5
Condition
States Yes g
States
HCI _Flush 0x0C08 3 8 Connection Handle Connection Handle Ye s
States
HCI _Read _PIN _Type 0x0C09 3 9 PIN Type Yes
HCI _Write _PIN _Type 0x0C0A 3 A PIN Type States Yes
HCI _Create _New _Unit _Key 0x0C0B 3 B States Yes h
BD ADDR States
Max Num Keys
HCI _Read _Stored _Link _Key 0x0C0D 3 D Read All Flag Num Keys Read
No i
Num Keys To Write States
BD ADDR [I]
HCI _Write _Stored _Link _Key 0x0C11 3 11
Link Key [I] Num Keys Written No i
BD ADDR States
HCI _Delete _Stored _Link _Key 0x0C12 3 12 Delete All Flag Num Keys Deleted No i
HCI _Write _Local _Name 0x0C13 3 13 Local Name States Yes
States
HCI _Read _Local _Name 0x0C14 3 14 Local Name Yes
States HCI _Read _Connection _Accept
_Timeout 0x0C15 3 15 Conn Accept Timeout Ye s
HCI _Write _Connection _Accept
_Timeout 0x0C16 3 16 Conn Accept Timeout States Yes
States
HCI _Read _Page _Timeout 0x0C17 3 17 Page Timeout Yes j
HCI _Write _Page _Timeout 0x0C18 3 18 Page Timeout States Yes j
States
HCI _Read _Scan _Enable 0x0C19 3 19 Scan Enable Yes
HCI _Write _Scan _Enable 0x0C1A 3 1A Scan Enable States Yes
States
Page Scan Interval
HCI _Read _Page _Scan
_Activity 0x0C1B 3 1B
Page Scan Window
Yes
Page Scan Interval HCI _Write _Page _Scan
_Activity 0x0C1C 3 1C Page Scan Window States Yes
States
Inquiry Scan Interval
HCI _Read _Inquiry _Scan
_Activity 0x0C1D 3 1D
Inquiry Scan Window
Yes
Inquiry Scan Interval HCI _Write _Inquiry _Scan
_Activity 0x0C1E 3 1E Inquiry Scan Window States Yes
States HCI _Read _Authentication
_Enable 0x0C1F 3 1F Authentication Enable Yes
HCI _Write _Authentication
_Enable 0x0C20 3 20 Authentication Enable States Yes
States
HCI _Read _Encryption _Mode 0x0C21 3 21 Encryption Mode Yes
HCI _Write _Encryption _Mode 0x0C22 3 22 Encryption Mode States Yes
States
HCI _Read _Class _of _Device 0x0C23 3 23 Class of Device Ye s
HCI _Write _Class _of _Device 0x0C24 3 24 Class of Device States Yes
States
HCI _Read _Voice _Setting 0x0C25 3 25 Voice Setting Yes
HCI _Write _Voice _Setting 0x0C26 3 26 Voice setting States Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（5／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
States
Connection Handle
HCI _Read _Automatic _Flush
_Timeout 0x0C27 3 27 Connection Handle
Flush Timeout
Yes
Connection Handle States HCI _Write _Automatic _Flush_
Timeout 0x0C28 3 28 Flash Timeout Connection Handle Yes
States
HCI _Read _Num _Broadcast_
Retransmission 0x0C29 3 29 Num Broadcast
Retransmissions
Yes
HCI _Write _Num _Broadcast_
Retransmission 0x0C2A 3 2A Num Broadcast
Retransmission States Yes
States HCI _Read _Hold _Mode
_Activity 0x0C2B 3 2B Hold Mode Activity Yes
HCI _Write _Hold _Mode
_Activity 0x0C2C 3 2C Hold Mode Activity States Yes
Connection Handle States
Connection Handle
HCI _Read _Transmit _Power
_Level 0x0C2D 3 2D Type Transmit Power Level
Yes k
States
HCI _Read _Synchronous _Flow
_Control _Enable 0x0C2E 3 2E Synchronous Flow
Control Enable
Yes l
HCI _Write _ Synchronous _Flow
_Control _Enable 0x0C2F 3 2F Synchronous Flow
Control Enable States No m
HCI _Set _Controller _To _Host
_Flow _Control 0x0C31 3 31 Flow Control Enable States No n
Host ACL Data Packet
Length
Host Synchronous Data
Packet
Length
Host Total Num ACL Data
Packets
HCI _Host _Buffer _Size 0x0C33 3 33
Host Total Num
Synchronous Data
Packets
States Yes n
Number of Handles
Connection Handle [I]
HCI _Host _Number _Of
_Completed _Packets 0x0C35 3 35 Host Num of Completed
Packets [I]
Yes n
States
Connection Handle
HCI _Read _Link _Supervision
_Timeout 0x0C36 3 36 Connection Handle Link Supervision
Timeout
Yes
Connection Handle States HCI _Write _Link _Supervision
_Timeout 0x0C37 3 37 Link Supervision Timeout Connection Handle Ye s o
States HCI _Read _Number _Of
_Support_IAC 0x0C38 3 38 Num Support IAC Ye s
States
Num Current IAC
HCI _Read _Current _IAC _LAP 0x0C39 3 39
IAC LAP [I]
Yes
Num Current IAC
HCI _Write _Current _IAC _LAP 0x0C3A 3 3A IAC LAP [I] States Yes
States HCI _Read _Page _Scan _Period
_Mode 0x0C3B 3 3B Page Scan Period Mode Ye s
HCI _Write _Page _Scan _Period
_Mode 0x0C3C 3 3C Page Scan Period Mode States No
Set _AFH _Host _Channel
_Classification 0x0C3F 3 3F AFH Host Channel
Classification Status Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（6／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Status
HCI _Read _Inquiry _Scan _Type 0x0C42 3 42
Scan Type Yes
HCI _Write _Inquiry _Scan _Type 0x0C43 3 43 Scan Type Status Yes
Status
HCI _Read _Inquiry _Mode 0x0C44 3 44 Inquiry Mode Ye s
HCI _Write _Inquiry _Mode 0x0C45 3 45 Inquiry Mode Status Yes
Status
HCI _Read _Page _Scan _Type 0x0C46 3 46 Page Scan Type Yes
HCI _Write _Page _Scan _Type 0x0C47 3 47 Page Scan Type Status Yes
Status
HCI Read _AFH _Channel
_Assessment _Mode 0x0C48 3 48 AFH Channel
Assessment Mode
Yes
HCI Write _AFH _Channel
_Assessment _Mode 0x0C49 3 49 AFH Channel
Assessment Mode Status Yes
INFORMATIONAL PARAMETERS
Status
HCI Version
HCI Revision
LMP Version
Manufacturer Name
HCI _Read _Local _Version _
Information 0x1001 4 1
LMP Subversion
Yes
Status HCI _Read _Local _Supported
_Commands 0x1002 4 2 Supported Commands Yes
Status HCI _Read _Local _Supported
_Features 0x1003 4 3 LMP Features Yes
Status
Page number
Maximum Page Number
HCI _Read _Local _Extended
_Features 0x1004 4 4 Page number
Extended LMP Features
Yes
Status
HC ACL Data Packet
Length
HC Synchronous Data
Packet Length
HC Total Num ACL
Data Packets
HCI _Read _Buffer _Size 0x1005 4 5
HC Total Num
Synchronous Data
Packets
Yes
Status
HCI _Read _BD _ADDR 0x1009 4 9 BD ADDR Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（7／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
STAUS PARAMETERS
Status
Connection Handle
HCI _Read _Failed _Contact
_Counter 0x1401 5 1 Connection Handle
Failed Contact Counter
Yes
Status HCI _Reset _Failed _Contact
_Counter 0x1402 5 2 Connection Handle Connection Handle Yes
Status
Connection Handle
HCI _Read _Link _Quality 0x1403 5 3 Connection Handle
Link Quality
No
Status
Connection Handle
HCI _Read _RSSI 0x1405 5 5 Connection Handle
RSSI
Yes p
Status
Connection Handle
AFH Mode
HCI _Read _AFH _Channel _Map 0x1406 5 6 Connection Handle
AFH Channel Map
Yes
Status
Connection Handle Connection Handle
Clock
HCI _Read _Clock 0x1407 5 7
Which Clock Accuracy
Yes
TESTING
States
HCI _Read _Loopback _Mode 0x1801 6 1 Loopback Mode Yes
HCI _Write _Loopback _Mode 0x1802 6 2 Loopback Mode States Yes
HCI _Enable _Device _Under
_Test_Mode 0x1803 6 3 States Yes
Notes:
a) Note that for testing purposes, this command may be issued with an Inquiry Length of 0 to program an infinite inquiry length.
b) Does not cancel an inquiry that resulted from a periodic inquiry command.
c) The packet type field has been expanded for EDR support. It is totally compatible to 2.0+EDR and earlier specifications.
d) Can support up to 3 links of SCO or eSCO or a combination of SCO + eSCO.
e) Firmware will try to ensure the throughput is guaranteed by deducing a correlated Tpoll value from the Token Rate parameter together
with the packet type that is enabled at the time this command is issued. Once a desirable token rate is deduced, the firmware will send
LMP_QUALITY_OF_SERVICE_REQ_PDU to the remote device. If the remote device accepts the Tpoll, the firmware will send a
QoS_SETUP_COMPLETE event to the host.
When the firmware receives a LMP_QUALITY_OF_SERVICE_REQ_PDU, it will send accept as long as the Tpoll is larger than 2
slots in single connection scenario, or Tpoll is larger than 4 slots in a multiple connection scenario.
f) Currently only support symmetric flow specification. Asymmetric flow specification support will be available in B0 and after products.
g) BD_ADDR filter condition is not supported.
h) Does not support local unit key since unit key is less secure, but will accept if peer sends unit key.
i) No Link Key database.
j) Note that for testing purposes, a Page Timeout of 0 can be issued to denote an infinite Page Timeout value.
k) The requested transmit power returned as a signed char in the range of 0 to –28 in 4 dBm steps.
l) Called HCI_READ_SCO_FLOW_CONTROL_ENABLE in and earlier specs.
m) Called HCI_WRITE_SCO_FLOW_CONTROL_ENABLE in and earlier specs.
n) ACL only.
o) Only master role will take effect.
p) Current golden range is –52 to – 72 dBm. Note that this command will return the RSSI associated with the last received packet.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（8／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
a) ﾃｽﾄ目的で、無限の Inquiry Length ﾌﾟﾛｸﾞﾗﾑのため Inquiry Length=0 で発行することができる。
b) Periodic Inquiry ｺﾏﾝﾄﾞはｷｬﾝｾﾙしません。
c) EDR ｻﾎﾟｰﾄのためﾊﾟｹｯﾄﾀｲﾌﾟﾌｨｰﾙﾄﾞを広げています。それは 2.0+EDR と以前の仕様と完全互換性があります。
d) SCO かeSCO は最大 3個のﾘﾝｸ、または SCO+eSCO の組み合わせをｻﾎﾟｰﾄすることができます。
e) このｺﾏﾝﾄﾞを発行するときに有効にするﾊﾟｹｯﾄﾀｲﾌﾟと共に、Token Rate ﾊﾟﾗﾒｰﾀから関連する Tpoll 値を推論することにより、
ﾌｧｰﾑｳｪｱはｽﾙｰﾌﾟｯﾄが保証されるのを確実にしようとする。
望ましい Token Rate がいったん推論されると、ﾌｧｰﾑｳｪｱは LMP_QUALITY_OF_SERVICE_REQ_PDU をﾘﾓｰﾄﾃﾞﾊﾞｲｽに送る。
もしﾘﾓｰﾄﾃﾞﾊﾞｲｽが Tpoll を受け入れると、ﾌｧｰﾑｳｪｱは Qos_SETUP_COMPLETE ｲﾍﾞﾝﾄを HOST へ送る。
ﾌｧｰﾑｳｪｱは LMP_QUALITY_OF_SERVICE_RQE_PDU を受けるとき、ｼﾝｸﾞﾙ接続での 2ｽﾛｯﾄより Tpoll が大きければ、または
複数接続での 4ｽﾛｯﾄより Tpoll が大きいなら ACCEPT を送る。
f) 現在 Symmetric Flow のみｻﾎﾟｰﾄしています。Asymmetric Flow はB0 と以降の製品で利用可能になる。
g) BD_ADDR ﾌｨﾙﾀｺﾝﾃﾞｨｼｮﾝはｻﾎﾟｰﾄされません。
h) Unit key が安全でないので Local unit key をｻﾎﾟｰﾄしていないが、相手が Unit key を送ると受け入れる。
i) ﾘﾝｸｷｰﾃﾞｰﾀﾍﾞｰｽはありません。
j) ﾃｽﾄ用に無限の Page Timeout 値を指定するために Page Timeout=0 を発行することができます。
k) 送信ﾊﾟﾜｰ要求の戻り値は signed char 型の 0～-28 範囲で 4dBm ｽﾃｯﾌﾟです。
l) 以前の仕様では HCI_READ_SCO_FLOW_CONTROL_ENABLE でした。
m) 以前の仕様では HCI_WRITE_SCO_FLOW_CONTROL_ENABLE でした。
n) ACL だけです。
o) ﾏｽﾀｰだけ効果あります。
p) 現在の Golden Range は-52 から-72dBm です。このｺﾏﾝﾄﾞは最後の受信ﾊﾟｹｯﾄの関連した RSSI を返すでしょう。
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（9／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
HCI EVENT LIST
Event Description OpCode Parameters Status Notes
Inquiry
Inquiry _Complete 0x01 Status Yes
Num Responses
BD ADDR [I]
Page Scan Repetition Mode [I]
Reserved[I]
Reserved[I]
Class of Device [I]
Inquiry _Result 0x02
Clock Offset [I]
Yes
Num responses
BD ADDR [I]
Page Scan Repetition Mode [I]
Reserved [I]
Class of Device [I]
Clock Offset [I]
Inquiry _Result _with _RSSI 0x22
RSSI [I]
Yes
Connection Management
Status
Connection Handle
BD ADDR
Link Type
Connection _Complete 0x03
Encryption Mode
Yes
BD ADDR
Class of Device
Connection _Request 0x04
Link Type
Yes
Status
Connection Handle
Disconnection _Complete 0x05
Reason
Yes
Status
Connection Handle
BD ADDR
Link Type
Transmission Interval
Retransmission Window
Rx Packet Length
Tx Packet Length
Synchronous _Connection _Complete 0x2C
Air Mode
Yes
Status
Connection Handle
Transmission Interval
Retransmission Window
Rx Packet Length
Synchronous _Connection _Changed 0x2D
Tx Packet Length
Yes
Authentication / Pairing
Status
Authentication _Complete 0x06 Connection Handle Yes
Num Keys
BD ADDR [I]
Return _Link _Keys 0x15
Link Key [I]
No a
PIN _Code _Request 0x16 BD ADDR Yes
Link _Key _Request 0x17 BD ADDR Yes
BD ADDR
Link Key
Link _Key _Notification 0x18
Key Type
Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（10／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Encryption
Status
Connection Handle
Encryption _Change 0x08
Encryption Enable
Yes
Status
Change _Connection _Link _Key _Complete 0x09 Connection Handle Yes
Status
Connection Handle
Master _Link _Key _Complete 0x0A
Key Flag
Yes
Remote Information
Status
BD ADDR
Remote _Name _Request _Complete 0x07
Remote Name
Yes
Status
Connection Handle
Read _Remote _Supported _Features _Complete 0x0B
LMP Features
Yes
Status
Connection Handle
LMP Version
Manufacture Name
Read _Remote _Version _Information _Complete 0x0C
LMP Subversion
Yes
Status
Connection Handle
Page Number
Maximum page number
Read _Remote _Extended _Features _Complete 0x23
Extended LMP Features
Yes
Link Policy
Status
Connection Handle
Flags
Service Type
Token Rate
Peak Bandwidth
Latency
QoS _Setup _Complete 0x0D
Delay Variation
Yes
Status
BD ADDR
Role _Change 0x12
New Role
Yes
Status
Connection Handle
Current Mode
Mode _Change 0x14
Interval
Yes
Status
Connection Handle
Flags
Flow direction
Service Type
Token Rate
Token Bucket Size
Peak Bandwidth
Flow _Specification _Complete 0x21
Access Latency
Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｃ０７１０４４
（11／11）
Control name
Electrical characteristics (Software A)
電気的特性書 (Software A)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
General
Num HCI Command Packets
Command Opcode
Command _Complete 0x0E
Return Parameters
Yes
Status
Num HCI Command Packets
Command _Status 0x0F
Command Opcode
Yes
Hardware _Error 0x10 Hardware Code Yes
Number of Handles
Connection Handle [I]
Number _Of _Completed _Packets 0x13 HC Num Of Completed
Packets[I]
Yes b
Data _Buffer _Overflow 0x1A Link Type No
Connection Handle
Max _Slots _Change 0x1B LMP Max Slots Yes
Status
Connection Handle
Read _Clock _Offset _Complete 0x1C
Clock Offset
Yes
Host Controller & Baseband
Flush _Occurred 0x11 Connection Handle Yes
Loopback _Command 0x19 HCI Command Packet Yes
Status
Connection Handle
Connection _Packet _Type _Changed 0x1D
Packet Type
Yes
QoS _Violation 0x1E Connection Handle No
BD ADDR
Page _Scan_ Repetition Mode Change 0x20 Page Scan Repetition Mode No
Notes:
a) No Link Key database.
b) ACL only. The generation of this event is based on buffer thresholds within the BCM2045. This event will however, be
returned periodically during periods of inactivity when credits are outstanding.
a)リンクキーのデータベースはありません。
b) ACL だけです。このイベントの発生は BCM2045 の中でバッファ閾値に基づいています。しかし
ながらこのイベンとは、クレジットが未解決である無活動の期間の間、定期的に返される。
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（1／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
PICS for Firmware Version XX.XX.XX
The Bluetooth® functions of this module are as below. Depending on firmware version upgrade,
the Bluetooth® functions are subject to change without notice.
RF
RF Capabilities (based on PICS proforma for Radio):
Table A.1: RF Capabilities
Item Capability Status Support
1 Power Class (1,2 or 3) M Yes
2 Power Control C.1 Yes
3 1-slot packets supported M Yes
4 3-slot packets supported O Yes
5 5-slot packets supported O Yes
6 79 Channels M Yes
7 Support for GFSK modulation M Yes
8 Support for π/4-DQPSK modulation C.2 Yes
9 Support for BDPSK modulation C.3 Yes
C.1 : Mandatory to support if Power Class 1 is supported, optional to support if Power Class 2 or 3 is supported.
C.2 : Mandatory if SUMMARY, 2-1/4 is claimed;
Optional if SUMMARY, 2-1/3 is claimed;
Excluded otherwise.
C.3 : Mandatory if SUMMARY, 2-1/4 is claimed;
Else Optional if (RF, 1/8 AND SUMMARY, 2-1/3) is claimed;
Baseband
Baseband Capabilities (based on PICS proforma for Baseband)
Table B.1: Physical Channel
Item Capability Status Support
1 Support frequency band and 79 RF channels M Yes
2 Adaptive Frequency Hopping Kernel M Yes
Table B.1a: Modulation schemes
Item Capability Status Support
1 Basic Data Rate, 1 Mbps payload data rate M Yes
2 Enhanced Data Rate, 2 Mbps payload data rate C.1 Yes
3 Enhanced Data Rate, 3 Mbps payload data rate C.2 Yes
C.1: Mandatory if (SUMMARY, 2-1/4) is claimed;
Optional if (SUMMARY, 2-1/3) is claimed;
Excluded otherwise.
C.2: Mandatory if (SUMMARY, 2-1/4) is claimed;
Optional if (BB, 1a/2 AND SUMMARY, 2-1/3) is claimed;
Excluded otherwise.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（2／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table B.2: Link Types
Item Capability Status Support
1 Support of ACL link M Yes
2 Support of SCO link O Yes
3 Support of eSCO link O Yes
4 Support of Enhanced Data Rate ACL links C.1 Yes
5 Support of Enhanced Data Rate eSCO links C.2 Yes
C.1: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2 ) is claimed;
ELSE Optional IF (SUMMARY, 2-1/3 OR SUMMARY, 2-1/4) is claimed;
Excluded otherwise.
C.2: Mandatory IF SUMMARY, 2-2/3 is claimed;
ELSE Optional IF (SUMMARY, 2-1/3 OR SUMMARY, 2-1/4) is claimed;
Excluded otherwise.
Table B.3: SCO Link support
Prerequisite: 2/2 (Support of SCO link)
Item Capability Status Support
1 SCO links to same Slave C.1 Yes
(3 SCO)
2 SCO links to different Slaves O Yes
(3 SCO)
3 SCO links from same Master C.1 Yes
(3 SCO)
4 SCO links from different Masters O No
C.1: Mandatory to support at least 1 link.
Prerequisite: 2/3 (Support of eSCO link)
Item Capability Status Support
5 eSCO links to same Slave C.2 Yes
(6 SCO)
6 eSCO links to different Slaves O Yes
(5 SCO)
7 eSCO links from same Master C.2 Yes
(6 SCO)
8 eSCO links from different Masters O No
C.2: Mandatory to support at least 1 link.
Table B.4: Common packet types
Item Capability Status Support
1 Support of ID packet type M Yes
2 Support of NULL packet type M Yes
3 Support of POLL packet type M Yes
4 Support of FHS packet type M Yes
5 Support of DM1 packet type M Yes
Table B.5: ACL packet types
Item Capability Status Support
1 Support of DH1 packet type M Yes
2 Support of DM3 packet type O Yes
3 Support of DH3 packet type O Yes
4 Support of DM5 packet type O Yes
5 Support of DH5 packet type O Yes
6 Support of AUX1 packet type O Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（3／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table B.5a: Enhanced Data Rate ACL Packet Types
Prerequisite: 2/4 (Support of Enhanced Data Rate ACL links)
Item Capability Status Support
1 Support 2-DH1 packet type C.1 Yes
2 Support 2-DH3 packet type C.2 Yes
3 Support 2-DH5 packet type C.2 Yes
4 Support 3-DH1 packet type C.3 Yes
5 Support 3-DH3 packet type C.4 Yes
6 Support 3-DH5 packet type C.5 Yes
C.1: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed;
ELSE Optional IF BB, 1a/2 is claimed;
Excluded otherwise.
C.2: Mandatory IF SUMMARY, 2-2/2 is claimed;
ELSE Optional IF BB, 1a/2 is claimed;
Excluded otherwise.
C.3: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed;
ELSE Optional IF BB, 1a/3 is claimed;
Excluded otherwise.
C.4: Mandatory IF SUMMARY, 2-2/2 is claimed;
ELSE Optional IF ( BB, 5a/2 AND BB, 5a/4) is claimed;
Excluded otherwise.
C.5: Mandatory IF SUMMARY, 2-2/2 is claimed;
ELSE Optional IF (BB, 5a/3 AND BB, 5a/4) is claimed;
Excluded otherwise.
Table B.6: SCO and eSCO packet types
Prerequisite for items 1-4: 2/2 (Support of SCO link)
Item Capability Status Support
1 Support of HV1 packet type M Yes
2 Support of HV2 packet type O Yes
3 Support of HV3 packet type O Yes
4 Support of DV packet type M Yes
Prerequisite for items 5-7: 2/3 (Support of eSCO link)
Item Capability Status Support
5 Support of EV3 packet type M Yes
6 Support of EV4 packet type O Yes
7 Support of EV5 packet type O Yes
Table B.6a: Enhanced Data Rate eSCO packet types
Prerequisite: 2/5 (Support Enhanced Data Rate eSCO links)
Item Capability Status Support
1 Support 2 –EV3 packet type C.1 Yes
2 Support 2 –EV5 packet type C.2 Yes
3 Support 3 –EV3 packet type C.3 Yes
4 Support 3 –EV5 packet type C.4 Yes
C.1: Mandatory IF SUMMARY, 2-2/3 is claimed;
ELSE Optional IF BB, 1a/2 is claimed;
Excluded otherwise.
C.2: Optional IF BB, 1a/2 is claimed;
Excluded otherwise.
C.3: Mandatory IF SUMMARY, 2-2/3 is claimed;
ELSE Optional IF BB, 1a/3 is claimed;
Excluded otherwise.
C.4: Optional IF BB, 1a/3 is claimed;
Excluded otherwise.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（4／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table B.7: Page procedures
Item Capability Status Support
1 Support paging M Yes
2 Support page scan M Yes
3
4
5 Supports Interlaced Scan during page scan O Yes
Table B.8: Paging schemes
Item Capability Status Support
1 Supports mandatory scan mode M Yes
Table B.9: Paging modes
Item Capability Status Support
1 Supports paging mode R0 C.1 Yes
2 Supports paging mode R1 C.1 Yes
3 Supports paging mode R2 C.1 Yes
C.1: At least one of the paging scan modes must be supported.
Table B.9 (b): Paging train repetition
Item Capability Status Support
1 Supports Npage >= 1 O Yes
2 Supports Npage >= 128 O Yes
3 Supports Npage >= 256 M Yes
Note: The master should use Npage >= 256 unless it knows what SR mode the slave uses.
Table B.10: Inquiry procedures
Item Capability Status Support
1 Support inquiry O Yes
2 Inquiry scan with first FHS O Yes
3
4
5 Supports the dedicated inquiry access code O Yes
6 Supports Interlaced Scan during inquiry scan O Yes
Table B.11: Piconet capabilities
Item Capability Status Support
1 Broadcast messages O Yes
2 Point-to-multipoint connections O Yes (7)
Table B.12: Scatternet capabilities
Item Capability Status Support
1 Act as Master in one piconet and as Slave in another piconet O Yes
2 Act as Slave in more than one piconet O Yes
Table B.13: Synchronous Coding Schemes
Item Capability Status Support
1 A-law O Yes
2 u-law O Yes
3 CVSD O Yes
4 Transparent Synchronous Data O Yes
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（5／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Link Manager
Link Manager Capabilities (based on PICS proforma for Link Manager)
Table C.1: Response Messages
Item Capability Status Support
1 Accept message M Yes
2 Reject message M Yes
Table C.2: Supported Features
Item Capability Status Support
1 3-slot packets O Yes
2 5-slot packets O Yes
3 Encryption O Yes
4 Slot offset O Yes
5 Timing accuracy O Yes
6 Role switch (Master/Slave) O Yes
7 Hold mode O Yes
8 Sniff mode O Yes
9 Park mode O Yes
10 Power Control C.1 Yes
11 Channel quality driven data rate O Yes
12 SCO link O Yes
13 RSSI O Yes
14 Broadcast encryption O Yes
15 eSCO link O Yes
16 Adaptive frequency hopping M Yes
17 Enhanced Data Rate ACL C.2 Yes
18 Enhanced Data Rate eSCO C.3 Yes
C.1: If Power Class 1 is supported (RF, 1/1=1) then Mandatory, else Optional.
C.2: Mandatory IF (SUMMARY 2-2/1 OR SUMMARY 2-2/2) is claimed;
ELSE Optional IF (SUMMARY 2-1/3 OR SUMMARY 2-1/4) is claimed;
Excluded otherwise.
C.3: Mandatory IF SUMMARY 2-2/3 is claimed;
ELSE Optional IF (SUMMARY 2-1/3 OR SUMMARY 2-1/4) is claimed;
Excluded otherwise.
Table C.3: Authentication
Item Capability Status Support
1 Initiate authentication before connection completed O Yes
2 Initiate authentication after connection completed O Yes
3 Respond to authentication request M Yes
Table C.4: Pairing
Item Capability Status Support
1 Initiate pairing before connection completed O Yes
2 Initiate pairing after connection completed O Yes
3 Respond to pairing request M Yes
4 Use fixed PIN and request
responder to initiator switch C.1 Yes
5 Use variable PIN C.1 Yes
6 Accept initiator to responder switch C.2 Yes
C.1: Mandatory to support at least one of Pairing/ 4 and Pairing/5.
C.2: Mandatory to support if Pairing/5 and (Pairing/1 or Pairing/2) is supported.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（6／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table C. 5: Link Keys
Item Capability Status Support
1 Creation of link key - Unit Key C.1 No
2 Creation of link key - Combination Key C.1 Yes
3 Initiate change of link key O Yes
4 Accept change of link key M Yes
5
6
7 Accept pairing with Unit Key O Yes
C.1: Mandatory to support at least one of the key types.
Table C.6: Encryption
Prerequisite: 2/3(Encryption supported)
Item Capability Status Support
1 Initiate encryption O Yes
2 Accept encryption requests M Yes
3
4
5 Key size negotiation M Yes
6 Start encryption, as master M Yes
7 Accept start of encryption M Yes
8 Stop encryption, as master M Yes
9 Accept stop of encryption M Yes
Table C.7: Clock offset information
Item Capability Status Support
1 Request clock offset information O Yes
2 Respond to clock offset requests M Yes
Table C.8: Slot offset information
Item Capability Status Support
1 Send slot offset information C.1 Yes
C.1: Mandatory to support if support if support if Role Switch/1 (Master/Slave switch) otherwise optional.
Table C.9: Timing accuracy information
Item Capability Status Support
1 Request timing accuracy information O Yes
2 Respond to timing accuracy information requests M Yes
Table C.10: LM version information
Item Capability Status Support
1 Request LM version information O Yes
2 Respond to LM version information requests M Yes
Table C.11: Feature support
Item Capability Status Support
1 Request supported features C.1 Yes
2 Respond to supported features requests M Yes
3 Request extended features mask C.2 Yes
4 Respond to extended features Request C.2 Yes
C.1: Mandatory to support if any of the optional features in Supported Features/1-3, Supported Features /5,
Supported Features /7-12, Supported Features /14-16, Adaptive Frequency Hopping/1 is requested by
the IUT otherwise optional.
C.2: Mandatory if a feature requiring another features page is supported, otherwise optional.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（7／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table C.12: Name information
Item Capability Status Support
1 Request name information O Yes
2 Respond to name requests M Yes
Table C.13: Role Switch
Prerequisite: 2/6(Role switch)
Item Capability Status Support
1 Request Master Slave switch O Yes
2 Accept Master Slave switch requests M Yes
Table C.14: Detach
Item Capability Status Support
1 Detach connection M Yes
Table C.14a: Setting up and Removing Enhanced Data Rate ACL Connection
Item Capability Status Support
1 Enter Enhanced Data Rate C.1 Yes
2 Exit Enhanced Data Rate C.1 Yes
C.1: Mandatory if LMP, 2/17 supported , otherwise excluded.
Table C.14b: Setting up and Removing Enhanced Data Rate eSCO Connection
Item Capability Status Support
1 Enter and exit eSCO using Enhanced Data Rate Packets C.1 Yes
C.1: Mandatory if LMP, 2/18supported , otherwise excluded.
Table C.15: Hold mode
Prerequisite: 2/7 (Hold mode)
Item Capability Status Support
1 Force hold mode O No
2 Request hold mode C.1 Yes
3 Respond to hold mode requests M Yes
4 Accept forced hold mode M Yes
C.1: Mandatory to support if LMP, 15/1 (Force hold mode) is supported, otherwise optional.
Table C.16: Sniff mode
Item Capability Status Support
1
2 Request sniff mode O Yes
3 Respond to sniff mode requests (rengotiate or reject) M Yes
4
5 Request un-sniff C.1 Yes
6 Accept un-sniff requests M Yes
C.1: If LMP, 16/2 (Request sniff mode) is supported then mandatory to support, otherwise optional.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（8／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table C.17: Park mode
Item Capability Status Support
1
2 Request park mode O Yes
3 Respond to park mode requests M Yes
4
5 Set up broadcast scan window O No
6 Accept changes to the broadcast scan window M Yes
7 Modify beacon parameters O No
8 Accept modification of beacon parameters M Yes
9 Request Unpark using PM_ADDR C.1 No
10 Request Unpark using BD_ADDR C.1 Yes
11 Slave requested Unpark O Yes
12 Accept Unpark using PM_ADDR M Yes
13 Accept Unpark using BD_ADDR M Yes
C.1: If LMP, 17/3 (Respond to park mode requests) is supported then at least one of LMP, 17/9
(Unpark using PM_ADDR) or LMP, 17/10 (Unpark using BD_ADDR) is mandatory to support, otherwise
optional.
Table C.18: Power Control
Prerequisite: 2/13 (RSSI)
Item Capability Status Support
1 Request to increase power M Yes
2 Request to decrease power M Yes
Prerequisite: 2/10(Power contorol)
Item Capability Status Support
3 Respond when max power reached M Yes
4 Respond when min power reached M Yes
Table C.19: Link supervision timeout
Item Capability Status Support
1 Set link supervision timeout value O Yes
2 Accept link supervision timeout setting M Yes
Table C.20: Quality of Service
Item Capability Status Support
1 Channel quality driven change between DM and DH packet
types C.1 Yes
2 Force/Request change of Quality of Service M Yes
3 Request change of Quality of Service M Yes
C.1: Mandatory to support if support of LMP, 2/11 is stated in the feature request, otherwise optional.
Table C.21: SCO Links
Prerequisite: 2/12 (SCO links)
Item Capability Status Support
1 Initiate SCO links, as Master O Yes
2 Initiate SCO links, as Slave O Yes
3 Accept SCO links O Yes
4 Remove SCO links, as Master C.1 Yes
5 Remove SCO links, as Slave C.2 Yes
6 Negotiate SCO link parameters, as Master C.3 Yes
7 Negotiate SCO link parameters, as Slave C.4 Yes
C.1: Mandatory to support if LMP, 21/1 (Initiating SCO links, as Master) is supported, otherwise optional.
C.2: Mandatory to support if LMP, 21/2 (Initiating SCO links, as Slave) is supported, otherwise optional.
C.3: Mandatory to support if LMP, 21/1 (Initiating SCO links, as Master) or LMP, 21/3 (Accept SCO links) is
supported, otherwise optional.
C.4: Mandatory to support if LMP, 21/2 (Initiating SCO links, as Slave) or LMP, 21/3 (Accept SCO links) is supported,
otherwise optional.Comments:
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＥ－
Ｄ０７１０４４
（9／9）
Control name
Electrical characteristics (Software B)
電気的特性書 (Software B)
2007.
11.16
TAIYO YUDEN Co.,Ltd.
Table C.22: Multi-Slot packages
Item Capability Status Support
1 Accept maximum allowed number of slots to be used C.1 Yes
2 Request maximum number of slots to be used C.1 Yes
3 Accept request of maximum number of slots to be used C.1 Yes
C.1: Mandatory to support if LMP, 2/1 and/or LMP, 2/2 is supported in the feature request, otherwise optional.
Table C.23: Paging scheme
Item Capability Status Support
1 Request page mode to use O No
2 Accept suggested page mode O No
3 Request page scan mode to use O No
4 Accept suggested page scan mode O No
Table C.24: Connection Establishment
Item Capability Status Support
1 Create connection for higher layers M Yes
2 Respond to requests to establish connections for higher layers M Yes
3 Indicate that link set-up is completed M Yes
Table C.25: Test Mode
Item Capability Status Support
1 Activate test mode O Yes
2 Ability to reject activation of test mode if test mode is disabled M Yes
3 Control test mode O Yes
4 Ability to reject test mode control commands if test mode is
disabled. M Yes
Table C.26: Adaptive Frequency Hopping
Prerequisite: 2/20(AFH)
Item Capability Status Support
1 Support of AFH switch as master O Yes
2 Support of AFH switch as slave M Yes
3 Support of Channel Classification reporting as master C.1 Yes
4 Support of Channel Classification reporting as slave C.2 Yes
5 Support channel classification from host C.3 Yes
6 Support of Channel Classification O Yes
C.1: Optional if LMP, 26/6 is supported, otherwise excluded.
C.2: Mandatory if LMP, 26/6 is supported, otherwise excluded.
C.3: Mandatory if LMP, 26/1 or LMP, 26/4 is supported, otherwise optional.
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＤ－
Ａ０７１０４４
（1／1）
Control name

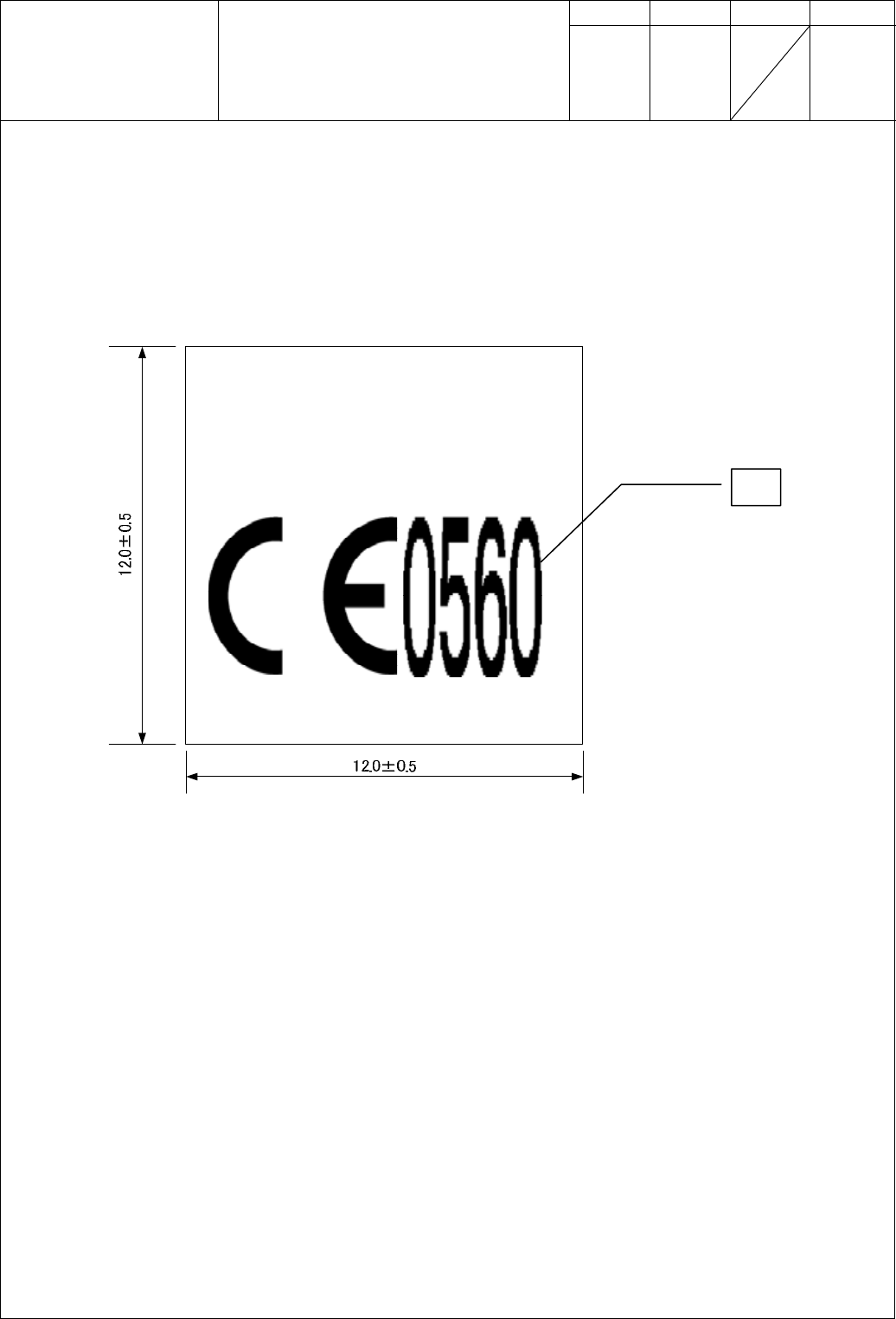

Outline･Appearance
外形・外観図
2007.
11.16
TAIYO YUDEN Co., Ltd.
Unit：mm，Tolerances unless otherwise specified：±0.2mm
単位：mm，指示無き公差：±0.2mm
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＤ－
Ｂ０７１０４４
（1／3）
Control name
Outline･Appearance
外形・外観図
2007.
11.16
TAIYO YUDEN Co., Ltd.
24.0±0.3
13.8±0.3
XXXX Ver. A
00037AXXXXXX
１．Indication Label 1 description (back-side)
ラベル 1表示内容 (基板側)
1) BD address number ： ０００３７Ａ◇◇◇◇◇◇ (Refer to ｢Instruction for lot number｣)
BD アドレス番号 ： ０００３７Ａ◇◇◇◇◇◇（ロット番号解説書参照）
2) Product Lot number ： Four digits (Refer to ｢Instruction for lot number｣)
製造 Lot 番号 ： ４桁 （ロット番号解説表参照）
3) Version ID ： Ve r. A
Version ID ： Ver. A
Material ：ＰＥＴ（ＵＬ９６９） ／ Label color：White ／ Printing ：Black
材質 ：ＰＥＴ（ＵＬ９６９）／ ラベル色 ：白 ／ 印字 ：黒
1)
3)
2)
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＤ－
Ｂ０７１０４４
（2／3）
Control name
Outline･Appearance
外形・外観図
2007.
11.16
TAIYO YUDEN Co., Ltd.
２．Indication Label 2-1description (front-side ,Two-Layer Label ,Upper Layer )
ラベル 2表示内容 (ケース側 2層ラベル 1枚目表面)
1) Product Number ： EYBMABA
認証型式 ： EYBMABA
2) Industry Canada ID ： 4389B-EYBMABA
3) FCC ID ： RYYEYBMABA
4) JAPAN logo mark ： Specified logo mark
日本電波法ロゴマーク ： 規定ロゴマーク
5) ARIB, Actual indication ： Indicates that this device is “Second Generation Low Power Data Communication System”
ARIB 現品表示 ： 「第二世代小電力データ通信システム」であることを表記
6) JAPAN qualification number ： 201WW07215247
日本電波法認証番号 ： 201WW07215247
7) Manufacture
(English) ： Taiyo Yuden Co., Ltd.
製造 ： 太陽誘電株式会社
2.4FH12.4FH1
Material ：ＰＥＴ（ＵＬ９６９） ／ Label color：White ／ Printing ：Black
材質 ：ＰＥＴ（ＵＬ９６９）／ ラベル色 ：白 ／ 印字 ：黒
2)
3)
5)
4)
6)
7)
1)
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＡＤ－
Ｂ０７１０４４
（3／3）
Control name
Outline･Appearance
外形・外観図
2007.
11.16
TAIYO YUDEN Co., Ltd.
３．Indication Label 2 description (front-side ,Two-Layer Label ,Lower Layer)
ラベル 2 表示内容 (ケース側 2層ラベル 2枚目表面)
1) R&TTE CE mark ： Specified CE mark
R&TTE CE 表示 ： CE0560
1)
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＢＡ－
Ａ０７１０４４－A
（1／2）
Control name
Pin layout
ピンレイアウト図
2007.7.6
TAIYO YUDEN Co., Ltd.
（１）Terminal layout drawing
端子配置図
shielding case
シールドケース
①
②
③
⑧
⑦
⑥
⑤
④
APPROVED CHECKED DRAWN DESIGNED
Control No.
ＨＤ－ＢＡ－
Ａ０７１０４４－A
（2／2）
Control name
Pin layout
ピンレイアウト図
2007.7.6
TAIYO YUDEN Co., Ltd.
CN1
Notes:
1. Pin1 is used for power supply of BT module. (MAX 1A).
To fill the standard of “Supply voltage ripple and spike noise”, the capacitor ,which has the capacity of TBDμF or more, should be pin
the terminal VDD outside as a bypass capacitor .
Terminal
No. Terminal name Input/Output Description Terminal States on
RESET Remark
1 VDD Input DC3.3V Power supply Note 1
2 UART_CTS Input
UART clear to send active low
-with internal pull-up resistor that ranges in value from
20k to 100k depending on process.
(flow control signal from host)
With internal pull-up
3 GND - Ground
4 UART_RTS Output
UART request to send active low
-with internal pull-up resistor that ranges in value from
20k to 100k depending on process.
(flow control signal to host)
With internal pull-up
5 /RESET Input
Active low RESET signal
-with internal pull-up resistor that ranges in value from
25k to 100k depending on process.
With internal pull-up
6 UART_TX Output
TX data to host
-with internal pull-up resistor that ranges in value from
20k to 100k depending on process.
With internal pull-up
7 VREG_CTL Input VREG1 enable/disable control signal. (Active low)
8 UART_RX Input
RX data from host
-with internal pull-up resistor that ranges in value from
20k to 100k depending on process.
With internal pull-up
FCC Regulatory Information
Canada Regulatory Information
R&TTE Directive Information
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied
antenna. Unauthorized antenna, modification, or attachments could damage the transmitter
and may violate FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may Cause
undesired operation.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Hereby Taiyo Yuden Co., Ltd., declares that this Complete Class2 Bluetooth Module (Model
No.: EYBMABA) is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
The declaration of Conformity may be obtained at;
Taiyo Yuden Co., Ltd.
8-1 Sakae-Cho, Takasaki-Shi Gunma, JAPAN 370-8522
Telephone No.) 81-27-324-2313; Fax No.)81-27-324-2314.
NOTE: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
CAUTION
- Please note that this users manual should not be provided to end-users.
- Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the requirement.
Notice
- At the installation of our Complete Class2 Bluetooth Module (Model No.: EYBMABA) into
the device, following information should be provided with end-user under the responsibility
of the manufacture who integrates it into their device.
FCC Regulatory information
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied
antenna. Unauthorized antenna, modification, or attachments could damage the transmitter
and may violate FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
Cause undesired operation.
Canada Regulatory information
Operation is subject to the following two conditions:
(3) this device may not cause interference, and
(4) this device must accept any interference, including interference that may cause undesired
operation of the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(3) il ne doit pas produire de brouillage et
l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si
ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
R&TTE Directive information
Hereby [Name of manufacture(*)], declares that this [type of equipment(*)] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC
(*) Note: Please write in your company name and type of equipment into [ ].
The following sentence has to be displayed on the outside of the device in which the module is
installed:
"Contains Transmitter Module FCC ID: RYYEYBMABA/ IC ID: 4389B-EYBMABA", or
"Contains FCC ID: RYYEYBMABA/ IC ID: 4389B-EYBMABA "
