TAIYO YUDEN EYTMECS Complete Class 2 Bluetooth Module User Manual Manual
Taiyo Yuden Co., Ltd. Complete Class 2 Bluetooth Module Manual
Manual
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
1/39
TAIYO YUDEN
EY
T
MECS
Bluetooth® Module
EYTMECS
User Manual
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks
by TAIYO YUDEN CO., LTD. is under license.
In case you adopt this module and design some appliance, please
ask for the latest specifications from the local sales office.
We wish the customer to request the Specification Report when the
design for the mass production begins because the content of this
Data Report might change without a previous notice to the customer.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
2/39
TAIYO YUDEN
EY
T
MECS
Document constituent list
Control name Control No. Document Page
General Items HD-AG-A080137 1/3 - 3/3
Absolute maximum ratings HD-AM-A080137 1/1
Electrical characteristics HD-AE-A080137 1/3 - 3/3
Electrical characteristics HD-AE-B080137 1/2 - 2/2
Electrical characteristics HD-AE-C080137 1/11 - 11/11
Electrical characteristics HD-AE-D080137 1/11 - 11/11

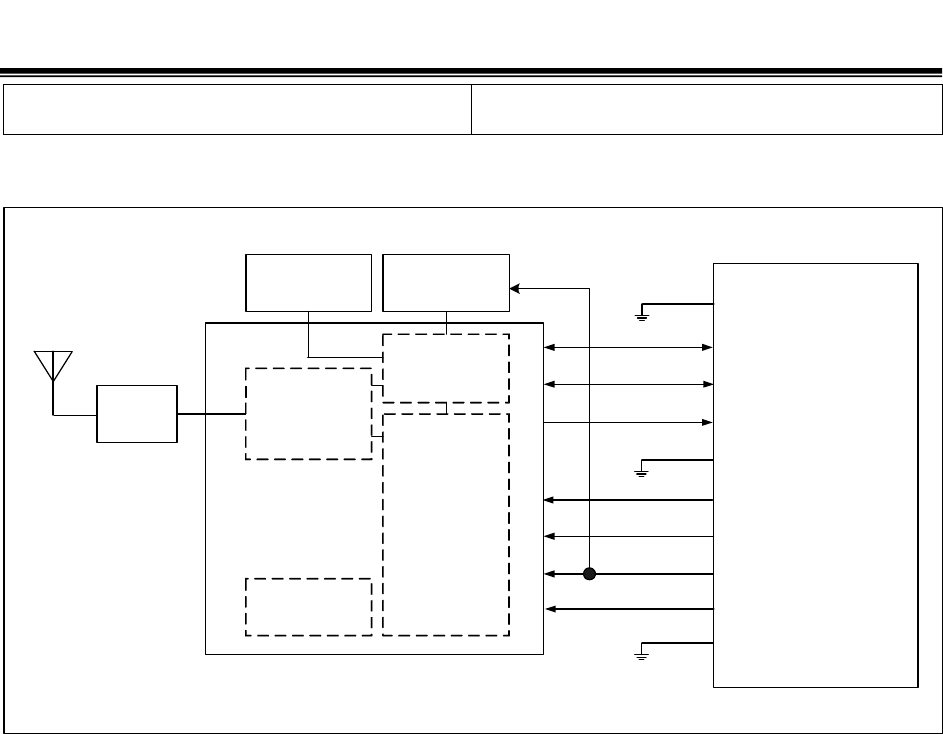

Circuit schematic HD-MC-A080137 1/1

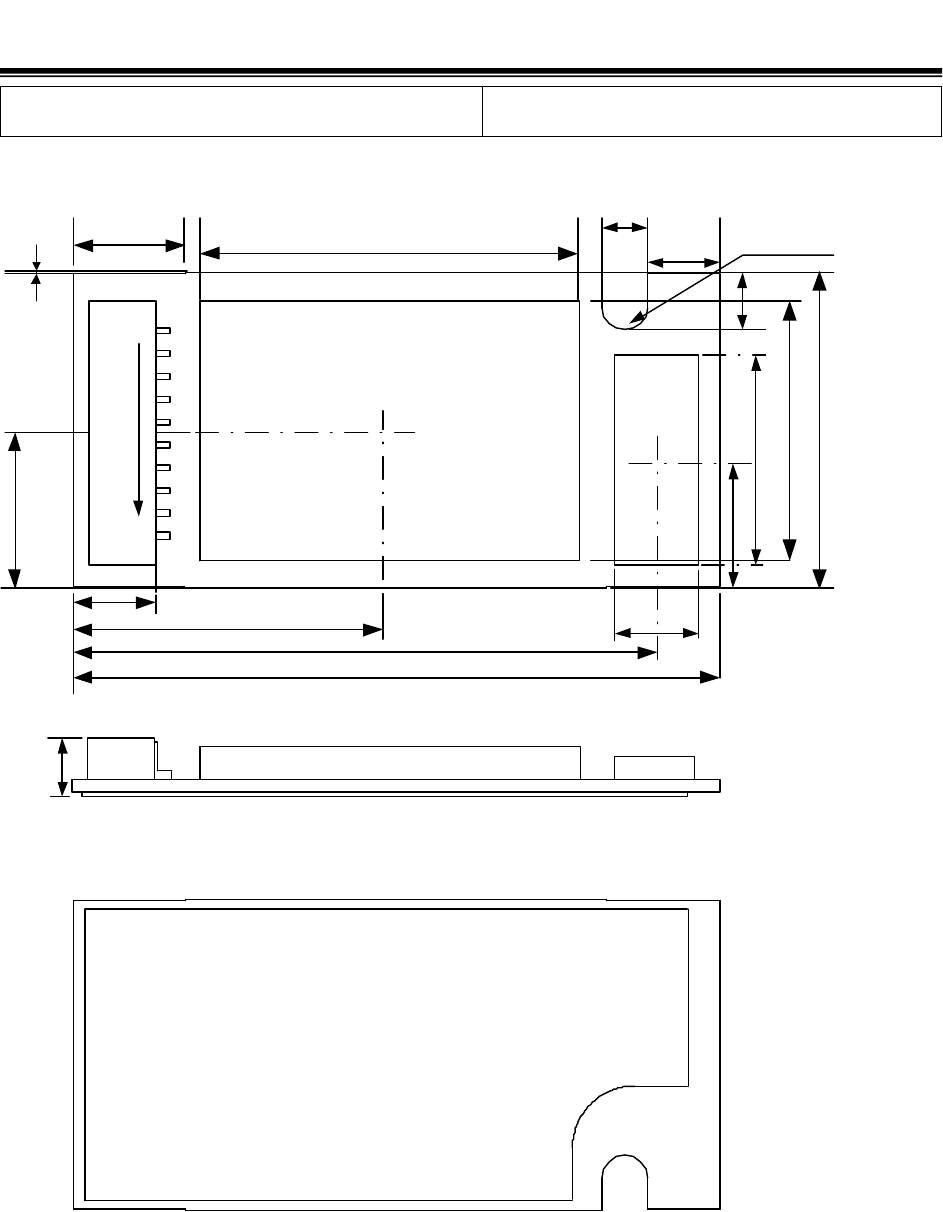

Outline / Appearance HD-AD-A080137 1/1
Outline / Appearance HD-AD-B080137 1/1
Pin Layout HD-BA-A080137 1/1
Rev. record
6-Dec.-2008> Ver.0.5 Draft
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
3/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AG-A080137 (1/3)
Control name
General Items
Scope
This specification (“Specification”) applies to the hybrid IC “EYTMECS” for use Bluetooth® module
(“Product”) manufacture by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”)
1. User’s Code: EYTMECS(USB I/F Support)
Digit3: Customer Code ex) S: TAIYO YUDEN Standard
Digit8: Software Code ex) X: TAIYO YUDEN Standard
Digit9: Hardware Code ex) X: TAIYO YUDEN Standard
* User’s Code may be modified for mass production or other cases.
Please see “m” for more information.
Type: EYTMECS
2. Function: Radio frequency transfer Module (power class 2). Bluetooth® standard Ver 2.1+EDR conformity
3. Application: Laptop PC, PC peripheral, Handy terminal
4. Structure: Hybrid IC loaded with silicon monolithic semiconductor
5. Outline: Cable Connector Type
6. Marking: TBD
7. Features:
-Bluetooth® 2.1+EDR conformity
-QD ID: ****** (Controller Subsystem)
-USB Interface
-Hold, Sniff and Park Mode
-Supported Link Type: ACL links (Piconet<7>), (e)SCO links (Piconet<3>)
-AFH (Adaptive Frequency Hopping)
-Faster Inquiry & Connection
-EDR(Enhanced Data Rate)
-SSP (Secure Simple Pairing), SSR (Sniff Subrating),
EIR (Extended Inquiry Response) and EPR (Encryption Pause/Resume)
8. Packing:TBD
9. Terminal: Data input-output (10pin Cable Connector)
“J.S.T.Mfg.Co.,Ltd. : SM10B-SSR-H-TB(LF)(SN)”
RF input-output (Antenna)
10. Mount: TBD
11. Notes:
a. Any question arising from this Specification shall be solved through mutual discussion by the parties
hereof.
b. This Product is not designed for radiation durable and should not be used under the circumstance of
radiation.
c. The operating conditions of this Product are as shown in this Specification. Please note that TAIYO
YUDEN shall not be liable for a failure and/or abnormality which is caused by use under the conditions
other than the operating conditions hereof.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
4/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AG-A080137 (2/3)
Control name
General Items
d. This Product mentioned in this Specification is manufactured for use in Laptop PC, PC peripheral and
Handy terminal. Before using this Product in any special equipment (such as medical equipment, space
equipment, air craft, disaster prevention equipment), where higher safety and reliability are duly required,
the applicability and suitability of this Product must be fully evaluated by the customer at its sole risk to
ensure correct and safety operation of those special equipments. Also, evaluation of the safety function of
this Product even for use in general electronics equipment shall be thoroughly made and when necessary, a
protective circuit shall be added in design stage, all at the customer’s sole risk.
e. TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year after
purchase and shall in no event give any other warranty.
f. The warranty period shall be one year.
g. Communication between this Product and others might not be established nor maintained depending upon
radio environment or operating conditions of this Product and other Bluetooth® products.
h. This Product is designed for use in products which comply with Bluetooth® Specifications (Ver 2.1+EDR)
(“Bluetooth Specifications”). TAIYO YUDEN disclaims and is not responsible for any liability concerning
infringement by this Product under any intellectual property right owned by third party in case the
customer uses this Product in any product which does not comply with Bluetooth Specifications (the
“non-complying products”). Furthermore, TAIYO YUDEN warrants only that this Product complies with
this Specification and does not grant any other warranty including warranty for application of the
non-complying products.
i. TAIYO YUDEN dose not render updating or upgrading service for the firmware in the Module.
j. In order to take tests for getting the certification of each country’s Radio Law with a device incorporating
this module, it is necessary to make the software in Host to put the module into test condition. Please
contact TAIYO YUDEN for farther details.
k. Please evaluate adequately our module incorporated to your products before mass production.
l. This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the other
wireless devices which operate in same frequency band of this Product, there is a possibility that
interference occurs between this Product and such other devices. If such interference occurs, please stop
the operation of other devices or relocate this Product before using this Product or do not use this
Product around the other wireless devices.
m. User’s Code Modification Notice (Bluetooth® Modules)
User’s Code may be modified based on mass production stage, Bluetooth® logo Qualification stage, or
other related stages. Please contact TAIYO YUDEN to confirm whether your User’s Code needs to be
modified.
Please see the following examples for cases that User’s Code are modified:
- for specific firmware version (our standard item firmware will be upgraded occasionally)
- for specific BD address (our standard item BD address is owned by TAIYO YUDEN )
- for specific PnP (Plug and Play) IDs (our standard item PnP IDs are owned by TAIYO YUDEN or chip
manufacture)
EYTMECS Setting: USB Product ID : 0x0508, USB Vendor ID : 0x0930
- for other related cases (specific or different setting, form, sizes, or display etc..)
In case you have applied for Bluetooth® Qualification with our standard User’s Code without previous
notice to TAIYO YUDEN, we shall not be responsible for any expense that will be required to change its
name/number.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
5/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AG-A080137 (3/3)
Control name
General Items
n. Containment of hazardous substance in this Product
*Pb (Lead) : Non use
* This product conforms to RoHS Directive(2002/95/EC).
p. In addition when this Product is used under environmental conditions such as over voltage which
are not guaranteed ,it may be destroyed in short mode. To ensure the security of customer’s product,
please add an extra fuse or/and a protection circuit for over voltage.
q. In some cases, TAIYO YUDEN may use replacements as component parts of Products. Such
replacement shall apply only to component part of Products, which TAIYO YUDEN deems it
possible to replace or substitute according to (i) Scope provided in this Specification (e.g.
Official Standard (Type Approvals, Bluetooth LOGO etc.)) and (ii) Quality of Products. TAIYO
YUDEN also ensures traceability of such replacement on production lot basis.
r. Do not alter Hardware and/or Software of this Product.
Please note that TAIYO YUDEN shall not be liable for any problem if it is caused by customer's
alteration of Hardware or/and Software without Taiyo Yuden's prior approvals.
This module is still under development, thus specifications do not guarantee both the quality and
reliability at the time of shipment. Since the specifications and mass production of the module are not
confirmed either, the contents of the technical notes are subject to change without any prior notice.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
6/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AM-A 080137 (1/1)
Control name
Absolute maximum ratings
Absolute maximum ratings
Rating
Item Symbol Min. Typ.
Max. Unit Remark
Supply voltage VDD_3.3V -0.3 3.6 V Ta=25 degrees C,
GND reference
Input voltage Vin -0.3 VDD_3.3V
+0.3 V I/O terminals except
USB interface
Recommendation operating range
Rating
Item Symbol Min. Typ. Max. Unit Remark
Supply voltage VDD_3.3V
3.15 3.3 3.45 V
Supply voltage ripple
and spike noise VDD_rn (30) mVp-p Note 1
Operation temperature
range Topr -25 25 75 Degrees C
Humidity=40%RH
Note 2
Storage temperature
range Tstg -30 25 85 Degrees C
Humidity=40%RH
Note 3
Notes:
1. To fill the standard of “Supply voltage ripple and spike noise”, the capacitor, which
has the capacity of 2.2uF or more , should be put in the terminal VDD_3.3V outside as a bypass
capacitor .
2. Operating temperature range is set to satisfy products electrical characteristics in the short term.
In terms of product life cycle when it is used in condition of varying from TYP standard in the long
term, please refer to the reliability condition.
3. Storage temperature range is the condition for transportation and storage in temporary.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
7/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-A080137 (1/3)
Control name
Electrical characteristics
Electrical characteristic
DC Specifications
The Specification applies for Topr.= 25 degrees C, VDD_3.3V=3.3V
No.
Parameter Condition Symbol
Min. Typ. Max. Unit
Remark
1
Normal supply voltage
VDD_3.3
V 3.15 3.3 3.45 V
2
Input Low Voltage1 /RESET, PIOX VIL1
-0.3 0.8 V
3
Input Low Voltage2 USB_D+, USB_D- VIL2
- 0.8 V
4
Input High Voltage1 /RESET, PIOX VIH1
0.7xVDD
_3.3V VDD_3.3V
+0.3 V
5
Input High Voltage2 USB_D+, USB_D- VIH2
2.0 - V
6
Output Low Voltage1 PIOX VOL1
- 0.4 V IOL=4mA
7
Output Low Voltage2 USB_D+, USB_D- VOL2
- 0.3 V
8
Output High Voltage1 PIOX VOH1
VDD_3.3V
-0.4 - V IOH =-4mA
9
Output High voltage2 USB_D+, USB_D- VOH2
2.8 - V
10
Peak current Continuous Rx Iccp1
(42) (120) mA
Notes 3, 4
11
Average current1 Sniff mode (Slave only) Icca1
(13) - mA
Notes 1, 3, 4
12
Average current2 Standby mode Icca2
(9) - mA
Notes 3, 4
13
Average current3 Send DM1packet (Master)
Icca3
(44) - mA
Notes 3, 4
14
Average current4 Receive DM1packet (Slave)
Icca4
(45) - mA
Notes 3, 4
15
Average current5 Hold mode (Slave only) Icca5
(10) - mA
Notes 3, 4
16
Average current6 Park mode (Slave only) Icca6
(11) - mA
Notes 2, 3, 4
Notes:
1. Sniff mode parameter. Max interval 0050h
Min interval 0010h
Attempt 0005h
Timeout 0005h
2. Park mode parameter. Max interval 0100h
Min interval 0010h
3. The consumption current might fluctuate with the condition of radio communication, host performance
and test circuit.
4. The value may fluctuate several (mA) depending on Firmware version.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
8/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-A080137 (2/3)
Control name
Electrical characteristics

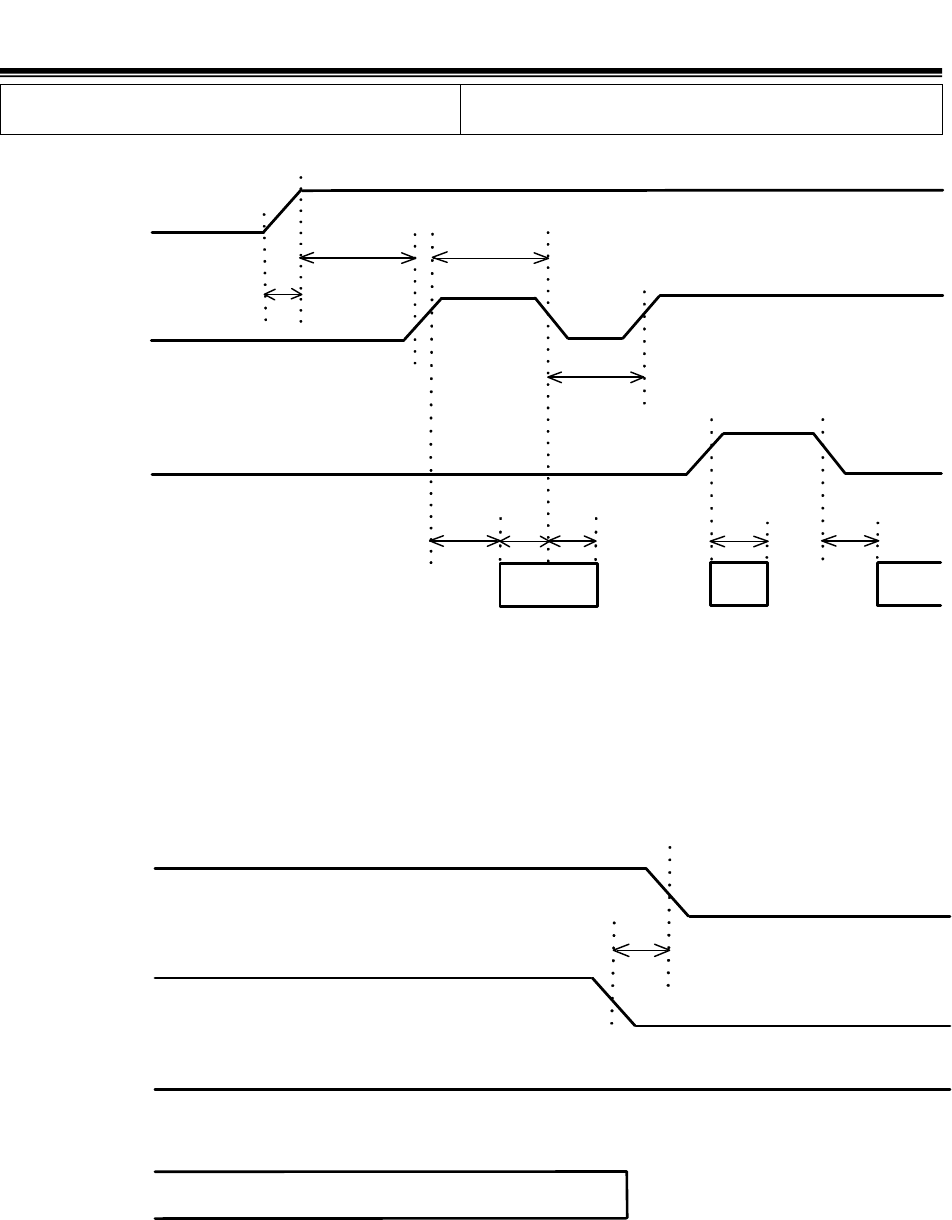

AC Specifications
The Specification applies for Topr.= 25 degrees C, VDD_3.3V=3.3V
No.
Parameter Condition
Symbol
Min Typ
Max
Unit
Remark
1
VDD_3.3V Rise Time from 0V to
3.15V t1 0 2 ms Note 1
2
VDD_3.3V=3.15V to /RESET High
t2 10 ms Note 2
3
/RESET High to Module Ready t3 ( 300 )
3000
ms Notes 3, 4
4
/RESET pulse width t4 6 ms
5
DETACH High to USB I/F High-Z t5 130 ms
6
DETACH Low to USB I/F Active t6 0 10 ms
7
/RESET High to /RESET Low t7 3000
ms Note 5
8
/RESET Low to USB_I/F High-Z t8 0 10 ms
9
Module Active to /RESET Low t9 0 ms Note 5
10
/RESET Low to VDD_3.3V Off t10 0 ms
Notes:
1. This module has an internal EEPROM and a function to erase/sort unnecessary data if certain HCI commands are
issued and consume more than a certain level of free space in the EEPROM.
This operation occurs at every module initialization (power-on).
If supply voltage becomes non-defined states during initialization or writing in EEPROM, data in EEPROM
might be destroyed. If the data in EEPROM is destroyed, module will not work correctly.
Therefore please be sure to stabilize power source before /RESET release.
In addition please design module peripheral circuits to avoid temporary blackout of power source during
operation. Please refer HD-AE-C 080137 for HCI command which rewrites flash memory data.
2. Input /RESET signal of 10ms and more in condition of VDD_3.3V at over 3.15V.
3. When the module is ready to accept the command, its module outputs the “0F 04 00 01 00 00” (Hex) to the USB
Data Line. After that, please access to the module.
4. The Typ. is a reference value. The value may change depending on the firmware version, conditions of use.
5. You don’t need to wait t6 if you confirm that this module has output “0F 04 00 01 00 00” (Hex).
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
9/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-A080137 (3/3)
Control name
Electrical characteristics
USB_DETACH
VDD_3.3V
/RESET
USB_I/F
Timing Diagram for Power Up Sequence
t1
t2
t4
t7
t3
Active
t9 t8
Active Active
t5 t6
Timing Diagram for Power Down
Sequence
VDD_3.3V
/RESET
USB_I/F
USB_DETACH
Active
t10
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
10/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-B080137 (1/2)
Control name
Electrical characteristics
RF Specifications at Basic Rate
The Specification applies for Ta=25 degrees C, VDD_3.3V=3.3V
No.
Parameter Condition Symbol
Min Typ Max Unit Remark
1 Frequency band FREQ
2400 2483.5
MHz
2 Tx power PO -6 0 +4 dBm
3 Modulation
characteristics 1 dF1: F0(11110000) M1 140 175 kHz
4 Modulation
characteristics 2 dF2: AA(10101010) M4 115 kHz
5 Modulation
characteristics 3 dF2/dF1 MC 0.8
6 In-band spurious
emission 2 2MHz(|M-N|=2) ISE1 -20 dBm
7 In-band spurious
emission 3
3MHz or greater
(|M-N|>=3) ISE2 -40 dBm
8 Initial Carrier
Frequency ICF -75 +75 kHz
9 Frequency Drift 1 DH1 FD1 -25 +25 kHz
10 Frequency Drift 2 DH3,DH5 FD2 -40 +40 kHz
11 Drift rate DH1,DH3,DH5 DR 400 Hz/us
12 C/I co-channel CIC 11 dB -60dBm
13 C/I 1MHz CI1 0 dB -60dBm
14 C/I 2MHz CI2 -30 dB -60dBm
15 C/I >= 3MHz CI3 -40 dB -67dBm
16 C/I Image CI4 -9 dB
-3MHz
offset
-67dBm
17 C/I Image +/- 1MHz
CI5 -20 dB -67dBm
18 Out-of-Band
Blocking 1
30MHz to 2000MHz
f=2460MHz OBB1
-10 dBm BER<=0.1
%
19 Out-of-Band
Blocking 2
2000 to 2399MHz
f=2460MHz OBB2
-27 dBm BER<=0.1
%
20 Out-of-Band
Blocking 3
2484 to 3000MHz
f=2460MHz OBB3
-27 dBm BER<=0.1
%
21 Out-of-Band
Blocking 4
3000MHz to
12.75GHz
f=2460MHz
OBB4
-10 dBm BER<=0.1
%
22 Maximum Input
Level MAXP
-20 dBm BER<=0.1
%
23 20dB Bandwidth B20 1 MHz
24 Sensitivity-single DH1 SEN1 -70 dBm BER<=0.1
%
25 Sensitivity-multi DH3,DH5 SEN2 -70 dBm BER<=0.1
%
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
11/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-B080137 (2/2)
Control name
Electrical characteristics
RF Specifications at EDR
The Specification applies for Ta=25 degrees C, VDD_3.3V =3.3V
No.
Parameter Condition Symbol
Min Typ
Max Unit
Remark
1 RMS DEVM 1 Pai/4DQPSK RDE1 0.20
2 RMS DEVM 2 8DPSK RDE2 0.13
3 Peak DEVM 1 Pai/4DQPSK PDE1 0.35
4 Peak DEVM 2 8DPSK PDE2 0.25
5 99% DEVM 1 Pai/4DQPSK D991 0.30
6 99% DEVM 2 8DPSK D992 0.20
7 EDR In-band spurious
emission 1 |M-N|=1 EISE1
26 dB
8 EDR In-band spurious
emission 2 |M-N|=2 EISE2
-20 dBm
9 EDR In-band spurious
emission 3 |M-N|=3 EISE3
-40 dBm
10 EDR Initial Carrier
Frequency EICF -75 +75 kHz
11 EDR Drift ED -10 +10 kHz
12 Relative transmit
power PDPSK RTP PGFSK
-4 PGFSK
+1 dB
13 Actual Sensitivity
Level
2-DH5(3-DH5)
16000000bit ESEN -70 dBm
BER= 10-4
14 BER Floor
Performance
2-DH5(3-DH5)
160000000bit FSEN -60 dBm
BER= 10-5
15 C/I co-channel 2-DH5 2CIC 13 dB -60dBm
16 C/I 1MHz 2-DH5 2CI1 0 dB -60dBm
17 C/I 2MHz 2-DH5 2CI2 -30 dB -60dBm
18 C/I >= 3MHz 2-DH5 2CI3 -40 dB -67dBm
19 C/I Image 2-DH5 2CI4 -7 dB
-67dBm
-3MHz
offset
20 C/I Image +/- 1MHz 2-DH5 2CI5 -20 dB -67dBm
21 C/I co-channel 3-DH5 3CIC 21 dB -60dBm
22 C/I 1MHz 3-DH5 3CI1 5 dB -60dBm
23 C/I 2MHz 3-DH5 3CI2 -25 dB -60dBm
24 C/I >= 3MHz 3-DH5 3CI3 -33 dB -67dBm
25 C/I Image 3-DH5 3CI4 0 dB
-67dBm
-3MHz
offset
26 C/I Image +/- 1MHz 3-DH5 3CI5 -13 dB -67dBm
27 Maximum Input Level
2-DH5(3-DH5) EMAX
P -20 dBm
Note:
Bluetooth® standard Ver 2.1+EDR conformity
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
12/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (1/11)
Control name
Electrical characteristics
Supported HCI Commands / HCI Events
The Bluetooth® functions of this module is as written in the attached PICS. Depending on
firmware version Upgrade, the Bluetooth® functions are subject to change without notice.
Firmware Version 23E (Build5276)
HCI COMMAND LIST
Command Description OpCode Group Command Parameters Returns Status Notes
Device Setup
HCI _Reset 0x0C03 3 3 States Yes
Controller Flow Control
Status
HC ACL Data Packet
Length
HC Synchronous Data
Packet Length
HC Total Num ACL
Data Packets
HCI _Read _Buffer _Size 0x1005 4 5
HC Total Num
Synchronous Data Packets
Yes
Controller Information
Status
HCI Version
HCI Revision
LMP Version
Manufacturer Name
HCI _Read _Local _Version _
Information 0x1001
4 1
LMP Subversion
Yes
Status HCI _Read _Local _Supported
_Commands 0x1002
4 2 Supported Commands Yes
Status HCI _Read _Local _Supported
_Features 0x1003
4 3 LMP Features Yes
Status
Page number
Maximum Page Number
HCI _Read _Local _Extended
_Features 0x1004
4 4 Page number
Extended LMP Features
Yes
Status
HCI _Read _BD _ADDR 0x1009
4 9 BD ADDR Yes
Controller Configuration
HCI _Read _Local _Name 0x0C14
3 14 States Yes
HCI _Write _Local _Name 0x0C13
3 13 Local Name States Yes
States
HCI _Read _Class _of _Device 0x0C23
3 23 Class of Device Yes
HCI _Write _Class _of _Device 0x0C24
3 24 Class of Device States Yes
States
HCI _Read _Number _Of _Support
_IAC 0x0C38
3 38 Num Support IAC Yes
States
Num Current IAC
HCI _Read _Current _IAC _LAP 0x0C39
3 39
IAC LAP [I]
Yes
Num Current IAC
HCI _Write _Current _IAC _LAP 0x0C3A
3 3A IAC LAP [I] States Yes
States
HCI _Read _Scan _Enable 0x0C19
3 19 Scan Enable Yes
HCI _Write _Scan _Enable 0x0C1A
3 1A Scan Enable States Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
13/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (2/11)
Control name
Electrical characteristics
Device Discovery
LAP
Inquiry Length
HCI _Inquiry 0x0401
1 1
Num Responses
Yes
HCI _ Inquiry_ Cancel 0x0402
1 2 Status Yes
Max Period Length
Min Period Length
LAP
Inquiry Length
HCI_ Periodic_ Inquiry _Mode 0x0403
1 3
Num Responses
Status Yes
HCI _Exit _Periodic _Inquiry _Mode
0x0404
1 4 Status Yes
States
Inquiry Scan Interval
HCI _Read _Inquiry _Scan _Activity
0x0C1D
3 1D
Inquiry Scan Window
Yes
Inquiry Scan Interval HCI _Write _Inquiry _Scan
_Activity 0x0C1E
3 1E Inquiry Scan Window States Yes
Status
HCI _Read _Inquiry _Scan _Type 0x0C42
3 42
Scan Type Yes
HCI _Write _Inquiry _Scan _Type 0x0C43
3 43 Scan Type Status Yes
Status
HCI _Read _Inquiry _Mode 0x0C44
3 44 Inquiry Mode Yes
HCI _Write _Inquiry _Mode 0x0C45
3 45 Inquiry Mode Status Yes
Status HCI_Read_Inquiry_Response
_Transmit_Power_Level 0x0C58
3 58 TX_Power Yes
HCI_Write_Inquiry_Transmit_Powe
r _Level 0x0C59
3 59 TX_Power
Status Yes
Status
FEC_Required
HCI_Read_Extended_Inquiry_
Response 0x0C51
3 51 Extended_Inquiry_
Response
Yes
FEC_Required
HCI_Write_Extended_Inquiry_
Response 0x0C52
3 52 Extended_Inquiry_
Response
Status Yes
Connection Setup
BD ADDR
Packet Type
Page Scan Repetition
Mode
Reserved
Clock Offset
HCI _Create_ Connection 0x0405
1 5
Allow Role Switch
Yes
BD ADDR
HCI _Accept _Connection _Request
0x0409
1 9 Role Yes
BD ADDR
HCI _Reject _Connection _Request 0x040A
1 A Reason Yes
Status
HCI _Create _Connection _Cancel 0x0408
1 8 BD ADDR BD ADDR Yes
Connection Handle
Reason
HCI _Disconnect 0x0406
1 6
Packet Type
Yes
States
HCI _Read _Page _Timeout 0x0C17
3 17 Page Timeout Yes
HCI _Write _Page _Timeout 0x0C18
3 18 Page Timeout States Yes
States
Page Scan Interval
HCI _Read _Page _Scan _Activity 0x0C1B 3 1B
Page Scan Window
Yes
Page Scan Interval
HCI _Write _Page _Scan _Activity 0x0C1C 3 1C Page Scan Window States Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
14/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (3/11)
Control name
Electrical characteristics
States
HCI _Read _Page _Scan _Type 0x0C46
3 46 Page_Scan_Type Yes
HCI _Write _Page _Scan_Type 0x0C47
3 47 Page_Scan_Type States Yes
Status HCI_Read_Connection_
Accept_Timeout 0x0C15
3 15 Conn_Accept_Timeout Yes
HCI_Write_Connection_
Accept_Timeout 0x0C16
3 16 Conn_Accept_Timeout Status Yes
Remote Information
BD ADDR
Page Scan Repetition
Mode
Page Scan Mode
HCI _Remote _Name_ Request 0x0419
1 19
Clock Offset
Yes
Status HCI _Remote _Name _Request
_Cancel 0x041A
1 1A BD_ADDR BD_ADDR Yes
HCI _Read _Remote _Supported
_Features 0x041B
1 1B Connection Handle Yes
Connection Handle HCI _Read _Remote _Extended
_Features 0x041C
1 1C Page_Number Yes
HCI _Read _Remote _Version
_Information 0x041D
1 1D Connection Handle Yes
Synchronous Connections
Connection Handle
Transmit Bandwidth
Receive Bandwidth
Max Latency
Voice Setting
Retransmission Effort
HCI _Setup _Synchronous
_Connection 0x0428
1 28
Packet Type
Yes
BD ADDR
Transmit Bandwidth
Receive Bandwidth
Max Latency
Content Format
Retransmission Effort
HCI _Accept _Synchronous
_Connection _Request 0x0429
1 29
Packet Type
Yes
HCI _Reject _Synchronous
_Connection _Request 0x042A
1 2A BD ADDR Yes
States
HCI _Read _Voice _Setting 0x0C25
3 25 Voice Setting Yes
HCI _Write _Voice _Setting 0x0C26
3 26 Voice setting States Yes
HCI_Write_Default_Erroneous_Dat
a_Reporting 0x0C5B
3 5B Erroneous_Data_Reporti
ng Status No
Status
HCI_Read_Default_Erroneous_Dat
a_Reporting 0x0C5A
3 5A Erroneous_Data_
Reporting
No
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
15/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (4/11)
Control name
Electrical characteristics
Connection State
Connection Handle
Hold Mode Max Interval
HCI _Hold _Mode 0x0801
2 1
Hold Mode Min Internal
Yes
Connection Handle
Sniff Max Interval
Sniff Min Interval
Sniff Attempt
HCI _Sniff _Mode 0x0803
2 3
Sniff Timeout
Yes
HCI _Exit _Sniff _Mode 0x0804
2 4 Connection Handle Yes
Connection Handle
Beacon Max Interval
HCI _Park _State 0x0805
2 5
Beacon Min Interval
Yes
HCI _Exit _Park _State 0x0806
2 6 Connection Handle Yes
Connection Handle States
Connection Handle
HCI _Read _Link _Policy _Settings
0x080C
2 C
Link Policy Settings
Yes
Connection Handle States
HCI _Write _Link _Policy _Settings
0x080D
2 D Link Policy settings Connection Handle Yes
Status
HCI _Read _Default _Link _Policy
_Settings 0x080E
2 E Default Link Policy
Settings
Yes
HCI _Write _Default _Link
_Policy_Settings 0x080F
2 F Default Link Policy
Settings Status Yes
States
HCI _Read _Hold _Mode _Activity
0x0C2B
3 2B
Hold Mode Activity
Yes
HCI _Write _Hold _Mode _Activity
0x0C2C
3 2C Hold Mode Activity States Yes
Piconet Structure
Status
Connection Handle
HCI _Role _Discovery 0x0809
2 9 Connection Handle
Current Role
Yes
BD ADDR
HCI _Switch _Role 0x080B
2 B Role Yes
Quality Service
HCI _Flow _Specification Connection Handle
Flags
Flow direction
Service Type
Token Rate
Token Bucket Size
Peak Bandwidth
0x0810
2 10
Access Latency
Yes
HCI _QoS _Setup Connection Handle
Flags
Service Type
Token Rate
Peak Bandwidth
Latency
0x0807
2 7
Delay Variation
Yes
States
HCI _Flush 0x0C08
3 8 Connection Handle Connection Handle Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
16/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (5/11)
Control name
Electrical characteristics
States
Connection Handle
HCI _Read _Automatic _Flush
_Timeout 0x0C27 3 27 Connection Handle
Flush Timeout
Yes
Connection Handle States HCI _Write _Automatic _Flush_
Timeout 0x0C28 3 28 Flash Timeout Connection Handle Yes
Status
Connection Handle
HCI _Read _Failed _Contact
_Counter 0x1401 5 1 Connection Handle
Failed Contact Counter
Yes
Status HCI _Reset _Failed _Contact
_Counter 0x1402 5 2 Connection Handle Connection Handle Yes
HCI _Read _Num _Broadcast_
Retransmission 0x0C29 3 29 States Yes
HCI _Write _Num _Broadcast_
Retransmission 0x0C2A 3 2A Num Broadcast
Retransmission States Yes
Connection_Handle
HCI_Enhanced_Flush 0x0C5F 3 5F Packet_Type Yes
Connection_Handle Status
Maximum_Latency Connection_Handle
Minimum_Remote_
Timeout
HCI_Sniff_Subrating 0x0811 2 11
Minimum_Local_Timeo
ut
Yes
Physical Links
States
Connection Handle
HCI _Read _Link _Supervision
_Timeout 0x0C36
3 36 Connection Handle Link Supervision
Timeout
Yes
Connection Handle States
HCI _Write _Link _Supervision
_Timeout 0x0C37
3 37 Link Supervision
Timeout Connection Handle Yes
Status
HCI Read _AFH _Channel
_Assessment _Mode 0x0C48
3 48 AFH Channel
Assessment Mode
Yes
HCI Write _AFH _Channel
_Assessment _Mode 0x0C49
3 49 AFH Channel
Assessment Mode Status Yes
HCI _Set _AFH _Host _Channel
_Classification 0x0C3F
3 3F AH Host Channel
Classification Status Yes
Connection Handle HCI _Change _Connection
_Packet_Type 0x040F
1 F Packet Type Yes
Host Flow Control
Host ACL Data Packet
Length
Host SCO Data Packet
Length
Host Total Num ACL Data
Packets
HCI _Host _Buffer _Size 0x0C33 3 33
Host Total Num SCO Data
Packets
States Yes
HCI _Set _Event _Mask 0x0C01 3 1 Event Mask States Yes
Filter Type
Filter Condition Type
HCI _Set _Event _Filter 0x0C05 3 5
Condition
States Yes
HCI _Set _Controller _To _Host
_Flow _Control 0x0C31 3 31 Flow Control Enable States Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
17/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (6/11)
Control name
Electrical characteristics
Number of Handles
Connection handle [I]
HCI _Host _Number _Of
_Completed _Packets 0x0C35 3 35 Host Num of Completed
Packets [I]
Yes
States
HCI _Read _Synchronous _Flow
_Control _Enable 0x0C2E
3 2E Synchronous Flow
Control Enable
Yes
HCI _Write _ Synchronous _Flow
_Control _Enable 0x0C2F
3 2F Synchronous Flow
Control Enable States Yes
Link Information
Status
Connection Handle
LMP_Handle
HCI _Read _LMP _Handle 0x0420 1 20 Connection Handle
Reseved
Yes
Connection Handle States
Connection Handle
HCI _Read _Transmit _Power
_Level 0x0C2D
3 2D Type Power Level
Yes
Status
Connection Handle
HCI _Read _Link _Quality 0x1403 5 3 Connection Handle
Link Quality
Yes
Status
Connection Handle
HCI _Read _RSSI 0x1405 5 5 Connection Handle
RSSI
Yes
HCI _Read _Clock _Offset 0x041F 1 1F Connection Handle Yes
Status
Connection Handle Connection Handle
Clock
HCI _Read _Clock 0x1407 5 7
Which Clock Accuracy
Yes
Status
Connection Handle
AFH Mode
HCI _Read _AFH _Channel _Map 0x1406 5 6 Connection Handle
AFH Channel Map
Yes
Authentication and Encryption
States
HCI _Read _Authentication
_Enable 0x0C1F 3 1F Authentication Enable Yes
HCI _Write _Authentication
_Enable 0x0C20 3 20 Authentication Enable States Yes
States
HCI _Read _Encryption _Mode 0x0C21 3 21 Encryption Mode Yes
HCI _Write _Encryption _Mode 0x0C22 3 22 Encryption Mode States Yes
BD ADDR Status
HCI _Link _Key _Request _Reply 0x040B 1 B Link Key BD ADDR Yes
Status
HCI _Link _Key _Request
_Negative _Reply 0x040C 1 C BD ADDR BD ADDR Yes
BD ADDR Status
PIN Code Length
HCI _PIN _Code _Request _Reply
0x040D 1 D
PIN Code BD ADDR Yes
Status
HCI _PIN _Code _Request
_Negative _Reply 0x040E 1 E BD ADDR BD ADDR Yes
HCI _Authentication _Requested 0x0411 1 11 Connection Handle Yes
Connection Handle
HCI _Set _Connection _Encryption
0x0413 1 13 Encryption Enable Yes
HCI _Change _Connection _Link
_Key 0x0415 1 15 Connection Handle Yes
HCI _Master _Link _Key 0x0417 1 17 Key Flag Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
18/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (7/11)
Control name
Electrical characteristics
States
HCI _Read _PIN _Type 0x0C09 3 9 PIN Type Yes
HCI _Write _PIN _Type 0x0C0A 3 A PIN Type States Yes
BD ADDR States
Max Num Keys
HCI _Read _Stored _Link _Key 0x0C0D
3 D Read All Flag Num Keys Read
Yes
Num Keys To Write States
BD ADDR [I]
HCI _Write _Stored _Link _Key 0x0C11 3 11
Link Key [I] Num Keys Written Yes
BD ADDR States
Num Keys Deleted
HCI _Delete _Stored _Link _Key 0x0C12 3 12 Delete All Flag Local Name
Yes
HCI _Create _New _Unit _Key 0x0C0B
3 B States Yes
Status
HCI_User_Confirmation_Request_
Reply 0x042C 1 2C BD ADDR BD ADDR Yes
Status
HCI_User_Confirmation_Request_
Negative_Reply 0x042D 1 2D BD ADDR BD ADDR Yes
BD ADDR Status
HCI_User_Passkey_Request_Reply
0x042E 1 2E Numeric_Value BD ADDR Yes
Status
HCI_User_Passkey_Request_
Negative_Reply 0x042F 1 2F BD ADDR BD ADDR Yes
BD ADDR Status
C (Hash C)
HCI_Remote_OOB_Data_Request
_Reply 0x0430 1 30
R (Randomizer R) BD ADDR Yes
HCI_Remote_OOB_Data_Request
_Negative_Reply 0x0433 1 33 BD ADDR Status Yes
Status
C (Hash C)
HCI_Read_Local_OOB_Data 0x0C57 3 57
R (Randomizer R)
Yes
HCI_Write_Simple_Pairing_mode 0x0C56 3 56 Simple_Pairing_Mode Status Yes
Status
HCI_Read_Simple_Pairing_mode 0x0C55 3 55 Simple_Pairing_Mode Yes
HCI_Refresh_Encryption_Key 0x0C53 3 53 Connection_Handle Status Yes
Testing
States
HCI _Read _Loopback _Mode 0x1801 6 1 Loopback Mode Yes
HCI _Write _Loopback _Mode 0x1802 6 2 Loopback Mode Status Yes
HCI _Enable _Device _Under
_Test_Mode 0x1803 6 3 Status Yes
HCI_Write_Simple_Pairing_
Debug_mode 0x1804 6 4 Simple_Pairing_Debug_
Mode Status Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
19/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (8/11)
Control name
Electrical characteristics
HCI EVENT LIST
Event Description OpCode
Parameters Status
Notes
Inquiry _Complete 0x01 Status Yes
Num Responses
BD ADDR [I]
Page Scan Repetition Mode [I]
Page Scan Period Mode [I]
Page Scan Mode [I]
Class of Device [I]
Inquiry _Result 0x02
Clock Offset [I]
Yes
Status
Connection Handle
BD ADDR
Link Type
Connection _Complete 0x03
Encryption Mode
Yes
BD ADDR
Class of Device
Connection _Request 0x04
Link Type
Yes
Status
Connection Handle
Disconnection _Complete 0x05
Reason
Yes
Status
Authentication _Complete 0x06 Connection Handle Yes
Status
BD ADDR
Remote _Name _Request _Complete 0x07
Remote Name
Yes
Status
Connection Handle
Encryption _Change 0x08
Encryption Enable
Yes
Status
Change _Connection _Link _Key _Complete 0x09 Connection Handle Yes
Status
Connection Handle
Master _Link _Key _Complete 0x0A
Key Flag
Yes
Status
Connection Handle
Read _Remote _Supported _Features _Complete 0x0B
LMP Features
Yes
Status
Connection Handle
LMP Version
Manufacture Name
Read _Remote _Version _Information _Complete 0x0C
LMP Subversion
Yes
Status
Connection Handle
Flags
Service Type
Token Rate
Peak Bandwidth
Latency
QoS _Setup _Complete 0x0D
Delay Variation
Yes
Num HCI Command Packets
Command Opcode
Command _Complete 0x0E
Return Parameters
Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
20/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (9/11)
Control name
Electrical characteristics
Status
Num HCI Command Packets
Command _Status 0x0F
Command Opcode
Yes
Hardware _Error 0x10 Hardware Code Yes
Flush _Occurred 0x11 Connection Handle Yes
Status
BD ADDR
Role _Change 0x12
New Role
Yes
Number of Handles
Connection Handle [I]
Number _Of _Completed _Packets 0x13
HC Num HCI Data Packets [I]
Yes
Status
Connection Handle
Current Mode
Mode _Change 0x14
Interval
Yes
Num Keys
BD ADDR [I]
Return _Link _Keys 0x15
Link Key [I]
Yes
PIN _Code _Request 0x16 BD ADDR Yes
Link _Key _Request 0x17 BD ADDR Yes
BD ADDR
Link _Key _Notification 0x18 Link Key Yes
Loopback _Command 0x19 HCI Command Packet Yes
Data _Buffer _Overflow 0x1A Link Type No
Connection Handle
Max _Slots _Change 0x1B LMP Max Slots Yes
Status
Connection Handle
Read _Clock _Offset _Complete 0x1C
Clock Offset
Yes
Status
Connection Handle
Connection _Packet _Type _Change 0x1D
Packet Type
Yes
QoS _Violation 0x1E Connection Handle No
BD ADDR
Page _Scan _Repetition _Mode _Change 0x20 Page Scan Repetition Mode Yes
Status
Connection Handle
Flags
Flow direction
Service Type
Token Rate
Token Bucket Size
Peak Bandwidth
Flow _Specification _Complete 0x21
Access Latency
Yes
Num Responses
BD ADDR [I]
Page Scan Repetition Mode [I]
Page Scan Period Mode [I]
Page Scan Mode [I]
Class of Device [I]
Clock Offset [I]
Inquiry _Result _with _RSSI 0x22
RSSI [I]
Yes
Status
Connection Handle
Page Number
Maximum page number
Read _Remote _Extended _Features _Complete 0x23
Extended LMP Features
Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
21/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (10/11)
Control name
Electrical characteristics
Status
Connection Handle
BD ADDR
Link Type
Transmission Interval
Retransmission Window
Rx Packet Length
Tx Packet Length
Synchronous _Connection _Complete 0x2C
Air Mode
Yes
Status
Connection Handle
Transmission Interval
Retransmission Window
Rx Packet Length
Synchronous _Connection _Changed 0x2D
Tx Packet Length
Yes
Status
Connection_Handle
Maximum_Transmit_Latency
Maximum_Receive_Latency
Minimum_Remote_Timeout
Sniff Subrating 0x2E
Minimum_Local_Timeout
Yes
Num_Responses
BD_ADDR
Page_Scan_Repetition_Mode
Reserved
Class_of_Device
Clock_Offset
RSSI
Extended Inquiry Result
0x2F
Extended_Inquiry_Response
Yes
Status Encryption Key Refresh Complete
0x30 Connection_Handle Yes
IO Capability Request 0x31 BD_ADDR Yes
BD_ADDR
IO_Capability
OOB_Data_Present
IO Capability Response 0x32
Authentication_
Requirements
Yes
BD_ADDR
User Confirmation Request 0x33 Numeric_Value Yes
User Passkey Request 0x34 BD_ADDR Yes
Remote OOB Data Request 0x35 BD_ADDR Yes
Status
Simple Pairing Complete 0x36 BD_ADDR Yes
Connection_Handle
Link Supervision Timeout Changed 0x38 Link_Supervision_Timeout Yes
Enhanced Flush Complete 0x39 Connection_Handle Yes
BD_ADDR
User Passkey Notification 0x3B Passkey Yes
BD_ADDR
Keypress Notification 0x3C Notification_Type Yes
BD_ADDR Remote Host Supported Features Notification
0x3D Host_Supported_Features Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
22/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-C080137 (11/11)
Control name
Electrical characteristics
Module Stack
Note:
The protocol stack in the module is compliant with the Specification of the Bluetooth® System V2.1+EDR
HOST
USB I/F
USB
HCI
Host Transport
HCI
Implementation
Link Manager
Link Controller
Base Band
Radio
Bluetooth® Module
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
23/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (1/11)
Control name
Electrical characteristics
PICS for Firmware Version 23E (Build5276)
The Bluetooth® functions of this module are as below. Depending on firmware version upgrade,
the Bluetooth® functions are subject to change without notice.
Summary ICS:
Table 21: Controller Core Specification
Item
Capability Status Support
5 Core Spec Version 2.1 M.1 No
6 Core Spec Version 2.1 + EDR (Ver. 2.1 + EDR) M.1 Yes
M.1: Mandatory to choose at least one version from Table 21.
Table 22: EDR Features
Item
Capability Status Support
1 EDR for asynchronous transports (single slot) C.1 Yes
2 EDR for asynchronous transports (multi slot) C.1 Yes
3 EDR for asynchronous transports C.1 Yes
C.1: For implementations supporting Ver. 2.1+EDR, the Supplier shall indicate support for one or more Enhanced Data Rate
features (per specification Volume 0, Part B) in Table 22.
RF Capabilities (based on PICS proforma for Radio):
Table 1: RF Capabilities
Item
Capability Status Support
1 Power Class =1 M.1 No
2 Power Class =2 M.1 Yes
3 Power Class=3 M.1 No
4 Power Control C.1 Yes
5 1-slot packets supported M Yes
6 3-slot packets supported O Yes
7 5-slot packets supported O Yes
8 79 Channels M Yes
9 Support for GFSK modulation M Yes
10 Support for π/4-DQPSK modulation C.2 Yes
11 Support for 8DPSK modulation C.3 Yes
M.1: Must choose One and only One Power Class
C.1: Mandatory to support IF Power Class 1 is supported, ELSE Optional
C.2: Mandatory IF SUM (21/4) OR SUM (21/6) is claimed, Optional IF SUM (21/3) OR SUM (21/5) is claimed, Excluded
otherwise.
C.3: Mandatory IF SUM (21/4) OR SUM (21/6) is claimed, Optional IF RF(1/8) AND ( SUM (21/3) OR SUM (21/5) ) are
claimed
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
24/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (2/11)
Control name
Electrical characteristics
Baseband Capabilities (based on PICS proforma for Baseband)
Table 1: Physical Channel
Item
Capability Status Support
1 Support frequency band and 79 RF channels M Yes
2 Adaptive Frequency Hopping Kernel M Yes
Table 1a: Modulation schemes
Item
Capability Status Support
1 Basic Data Rate, 1 Mbps payload data rate M Yes
2 Enhanced Data Rate, 2 Mbps payload data rate C.1 Yes
3 Enhanced Data Rate, 3 Mbps payload data rate C.2 Yes
C.1 Mandatory IF SUMMARY(21/6) is claimed, Optional IF SUMMARY(21/5) is claimed
C.2 Mandatory IF SUMMARY(21/6) is claimed, Optional IF BB(1a/2) AND SUMMARY(21/5) are claimed
Table 2: Link Types
Item
Capability Status Support
1 Support of ACL link M Yes
2 Support of SCO link O Yes
3 Support of eSCO link O Yes
4 Support of Enhanced Data Rate ACL links C.1 Yes
5 Support of Enhanced Data Rate eSCO links C.2 Yes
C.1 Mandatory IF SUMMARY(22/1) OR SUMMARY(22/2) is claimed, Optional IF SUMMARY(21/5) OR
SUMMARY(21/6) is claimed
C.2 Mandatory IF SUMMARY(22/3) is claimed, Optional IF SUMMARY(21/5) OR SUMMARY(21/6) is claimed
Table 3: SCO Link support
Prerequisite for Items (3/5-8):(2/3) (Support of eSCO link)
Prerequisite for Items (3/1-4):(2/2) (Support of SCO link)
Item
Capability Status Support
1 SCO links to same Slave C.1 Yes
2 SCO links to different Slaves O Yes
3 SCO links from same Master C.1 Yes
4 SCO links from different Masters O No
5 eSCO links to same Slave C.2 Yes
6 eSCO links to different Slaves O Yes
7 eSCO links from same Master C.2 Yes
8 eSCO links from different Masters O No
C.1: Mandatory to support at least One link (3/1 3/3)
C.2: Mandatory to support at least One link (3/5 or 3/7)
Table 4: Common packet types
Item
Capability Status Support
1 Support of ID packet type M Yes
2 Support of NULL packet type M Yes
3 Support of POLL packet type M Yes
4 Support of FHS packet type M Yes
5 Support of DM1 packet type M Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
25/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (3/11)
Control name
Electrical characteristics
Table 5: ACL packet types
Item
Capability Status Support
1 Support of DH1 packet type M Yes
2 Support of DM3 packet type O Yes
3 Support of DH3 packet type O Yes
4 Support of DM5 packet type O Yes
5 Support of DH5 packet type O Yes
6 Support of AUX1 packet type O Yes
Table 5a: Enhanced Data Rate ACL Packet Types
Prerequisite: 2/4 (Support of Enhanced Data Rate ACL links)
Item
Capability Status Support
1 Support 2-DH1 packet type C.1 Yes
2 Support 2-DH3 packet type C.2 Yes
3 Support 2-DH5 packet type C.2 Yes
4 Support 3-DH1 packet type C.3 Yes
5 Support 3-DH3 packet type C.4 Yes
6 Support 3-DH5 packet type C.5 Yes
C.1 Mandatory IF SUMMARY(22/1) OR SUMMARY(22/2) is claimed, Optional IF BB(1a/2) is claimed
C.2 Mandatory IF SUMMARY(22/2) is claimed, Optional IF BB(1a/2) is claimed
C.3 Mandatory IF SUMMARY(22/1) OR SUMMARY(22/2) is claimed, Optional IF BB(1a/3) is claimed
C.4 Mandatory IF SUMMARY(22/2) is claimed, Optional IF BB(5a/2) AND BB(5a/4) are claimed
C.5 Mandatory IF SUMMARY(22/2) is claimed, Optional IF BB(5a/3) AND BB(5a/4) are claimed
Table 6: SCO and eSCO packet types
Prerequisite for Items (6/1-4):(2/2) (Support of SCO link)
Prerequisite for Items (6/5-7):(2/3) (Support of eSCO link)
Item
Capability Status Support
1 Support of HV1 packet type C.1 Yes
2 Support of HV2 packet type O Yes
3 Support of HV3 packet type O Yes
4 Support of DV packet type C.1 Yes
5 Support of EV3 packet type C.2 Yes
6 Support of EV4 packet type O Yes
7 Support of EV5 packet type O Yes
C.1 Mandatory IF only (2/2) SCO link is supported
C.2 Mandatory IF only (2/3) eSCO link is supported
Table 6a: Enhanced Data Rate eSCO packet types
Prerequisite: 2/5 (Support Enhanced Data Rate eSCO links)
Item
Capability Status Support
1 Support 2 –EV3 packet type C.1 Yes
2 Support 2 –EV5 packet type C.2 Yes
3 Support 3 –EV3 packet type C.3 Yes
4 Support 3 –EV5 packet type C.4 Yes
C.1 Mandatory IF SUMMARY(22/3) is claimed, Optional IF BB(1a/2) is claimed
C.2 Optional IF BB(1a/2) is claimed
C.3 Mandatory IF SUMMARY(22/3) is claimed Optional IF BB(1a/3) is claimed
C.4 Optional IF BB(1a/3) is claimed
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
26/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (4/11)
Control name
Electrical characteristics
Table 7: Page procedures
Item
Capability Status Support
1 Support paging M Yes
2 Support page scan M Yes
3 (Intentionally left blank) No
4 (Intentionally left blank) No
5 Supports Interlaced Scan during page scan O Yes
Table 8: Paging schemes
Item
Capability Status Support
1 Supports mandatory scan mode M Yes
Table 9: Paging modes
Item
Capability Status Support
1 Supports paging mode R0 C.1 Yes
2 Supports paging mode R1 C.1 Yes
3 Supports paging mode R2 C.1 Yes
C.1: At least one of the paging scan modes must be supported.
Table 9b: Paging train repetition
Item
Capability Status Support
1 Supports Npage >= 1 O Yes
2 Supports Npage >= 128 O Yes
3 Supports Npage >= 256 M Yes
Note: The master should use Npage >= 256 unless it knows what SR mode the slave uses.
Table 10: Inquiry procedures
Item
Capability Status Support
1 Support inquiry O Yes
2 Inquiry scan with first FHS O Yes
3 (Intentionally left blank) No
4 (Intentionally left blank) No
5 Supports the dedicated inquiry access code O Yes
6 Supports Interlaced Scan during inquiry scan O Yes
7 Extended Inquiry Response O Yes
Table 11: Piconet capabilities
Item
Capability Status Support
1 Broadcast messages O Yes
2 Point-to-multipoint connections O Yes
Table 12: Scatternet capabilities
Item
Capability Status Support
1 Act as Master in one piconet and as Slave in another piconet O Yes
2 Act as Slave in more than one piconet O Yes
Table 13: Synchronous Coding Schemes
Prerequisite: 2/2 (SCO link support)
Item
Capability Status Support
1 A-law O Yes
2 u-law O Yes
3 CVSD O Yes
4 Transparent Synchronous Data O Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
27/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (5/11)
Control name
Electrical characteristics
Table 14: Erroneous Data Reporting
Item Capability Status Support
1 Erroneous Data Reporting for SCO C.1 Yes
2 Erroneous Data Reporting for eSCO C.2 Yes
C.1: Optional IF ((SUM ICS: 21/5 OR SUM ICS: 21/6) AND HCI: 9/6) is supported, ELSE excluded.
C.2: Optional IF ((SUM ICS: 21/5 OR SUM ICS: 21/6) AND HCI: 9/7) is supported, ELSE excluded.
Table 15: This table is intentionally left blank: DO NOT USE
Item Capability Status Support
1 (Intentionally left blank) No
Table 16: Non-flushable Packet Boundary Flag
Item Capability Status Support
1 Support Non-flushable Packet Boundary Flag C.1 Yes
C.1 MANDATORY IF ((SUM ICS: 21/5 OR SUM ICS 21/6) AND HCI: 12/10) is supported, ELSE OPTIONAL IF (SUM
ICS: 21/5 OR SUM ICS: 21/6) is supported, ELSE excluded.
Table 17: Connection States
Item Capability Status Support
1 Sniff Subrating Mode C.1 Yes
C.1 MANDATORY IF ((SUM ICS: 21/5 OR SUM ICS 21/6) AND LMP: 2/8) is supported, ELSE OPTIONAL IF (SUM
ICS: 21/5 OR SUM ICS: 21/6) is supported, ELSE excluded.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
28/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (6/11)
Control name
Electrical characteristics
Link Manager Capabilities (based on PICS proforma for Link Manager)
Table 1: Response Messages
Item Capability Status Support
1 Accept message M Yes
2 Reject message M Yes
Table 2: Supported Features
Item Capability Status Support
1 3-slot packets O Yes
2 5-slot packets O Yes
3 Encryption C.5 Yes
4 Slot offset O Yes
5 Timing accuracy O Yes
6 Role switch (Master/Slave) O Yes
7 Hold mode O Yes
8 Sniff mode O Yes
9 Park mode O Yes
10 Power Control C.1 Yes
11 Channel quality driven data rate O Yes
12 SCO link O Yes
13 RSSI O Yes
14 Broadcast encryption O Yes
15 eSCO link O Yes
16 Adaptive frequency hopping M Yes
17 Enhanced Data Rate ACL C.2 Yes
18 Enhanced Data Rate eSCO C.3 Yes
19 Simple Pairing C.4 Yes
C.1: Mandatory IF (RF:1/1) supported, ELSE Optional
C.2 Mandatory IF (SUMMARY:22/1) OR (SUMMARY:22/2) is claimed, Optional IF (SUMMARY:21/5) OR
(SUMMARY:21/6) is claimed
C.3 Mandatory IF (SUMMARY:22/3) is claimed, Optional IF (SUMMARY:21/5) OR (SUMMARY:21/6) is claimed
C.4 Mandatory IF (SUMMARY 2-1/5 OR SUMMARY 2-1/6) is claimed, ELSE Excluded.
C.5 Optional IF (SUMMARY 2-1/1 OR SUMMARY 2-1/2 OR SUMMARY 2-1/3 OR SUMMARY 2-1/4) ELSE Mandatory.
Table 3: Authentication
Item Capability Status Support
1 Initiate authentication before connection completed O Yes
2 Initiate authentication after connection completed O Yes
3 Respond to authentication request M Yes
Table 4: Pairing
Item Capability Status Support
1 Initiate pairing before connection completed O Yes
2 Initiate pairing after connection completed O Yes
3 Respond to pairing request M Yes
4 Use fixed PIN and request responder to initiator switch C.1 Yes
5 Use variable PIN C.1 Yes
6 Accept initiator to responder switch C.2 Yes
C.1: Mandatory to support at least One, (LMP:4/4) OR (LMP:4/5) OR both
C.2: Mandatory IF (LMP: 4/5) AND (LMP:4/1), OR (LMP: 4/5) AND (LMP:4/2) ) is supported.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
29/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (7/11)
Control name
Electrical characteristics
Table 5: Link Keys
Item Capability Status Support
1 Creation of link key - Unit Key C.1 Yes
2 Creation of link key - Combination Key C.1 Yes
3 Initiate change of link key O Yes
4 Accept change of link key M Yes
5 (Intentionally left blank) No
6 (Intentionally left blank) No
7 Accept pairing with Unit Key O Yes
C.1: Mandatory to support at least One - either (LMP:5/1) OR (LMP:5/2).
Table 6: Encryption
Prerequisite: 2/3(Encryption supported)
Item Capability Status Support
1 Initiate encryption C.1 Yes
2 Accept encryption requests M.1 Yes
3 (Intentionally left blank) No
4 (Intentionally left blank) No
5 Key size negotiation M.1 Yes
6 Start encryption, as master M.1 Yes
7 Accept start of encryption M.1 Yes
8 Stop encryption, as master M.1 Yes
9 Accept stop of encryption M.1 Yes
10 Encryption Pause/Resume M.1 Yes
M.1: Mandatory IF (LMP:2/3) - (Encryption) is supported.
C.1: Mandatory IF (SUMMARY 2-1/5 OR SUMMARY 2-1/6) is claimed, ELSE Optional.
Table 7: Clock offset information
Item Capability Status Support
1 Request clock offset information O Yes
2 Respond to clock offset requests M Yes
Table 8: Slot offset information
Prerequisite: 2/4 (Slot offset)
Item Capability Status Support
1 Send slot offset information C.1 Yes
C.1: Mandatory IF (LMP:13/1) - (Master/Slave switch) supported, ELSE Optional.
Table 9: Timing accuracy information
Prerequisite: 2/5 (Timing accuracy)
Item Capability Status Support
1 Request timing accuracy information O Yes
2 Respond to timing accuracy information requests M.1 Yes
M.1: Mandatory IF (LMP:2/5) - (Timing Accuracy) supported
Table 10: LM version information
Item Capability Status Support
1 Request LM version information O Yes
2 Respond to LM version information requests M Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
30/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (8/11)
Control name
Electrical characteristics
Table 11: Feature support
Item Capability Status Support
1 Request supported features C.1 Yes
2 Respond to supported features requests M Yes
3 Request extended features mask C.2 Yes
4 Respond to extended features Request C.2 Yes
C.1: Mandatory IF any of the Optional features in (LMP:2/1-3), (LMP:2/5), (LMP:2/7-12), (LMP:2/14-16), (LMP:26/1) is
requested by the IUT, ELSE Optional.
C.2 Mandatory IF a feature requiring another features page is supported, ELSE Optional.
Table 12: Name information
Item Capability Status Support
1 Request name information O Yes
2 Respond to name requests M Yes
Table 13: Role Switch
Prerequisite: 2/6(Role switch)
Item Capability Status Support
1 Request Master Slave switch O Yes
2 Accept Master Slave switch requests M.1 Yes
M.1 Mandatory IF LMP:(2/6) - (Role Switch) supported
Table 14: Detach
Item Capability Status Support
1 Detach connection M Yes
Table 14a: Setting up and Removing Enhanced Data Rate ACL Connection
Item Capability Status Support
1 Enter Enhanced Data Rate C.1 Yes
2 Exit Enhanced Data Rate C.1 Yes
C.1 Mandatory IF (LMP:2/17) supported, ELSE Excluded.
Table 14b: Setting up and Removing Enhanced Data Rate eSCO Connection
Item Capability Status Support
1 Enter and exit eSCO using Enhanced Data Rate Packets C.1 Yes
C.1 Mandatory IF (LMP:2/18) supported, ELSE Excluded.
Table 15: Hold mode
Prerequisite: 2/7 (Hold mode)
Item Capability Status Support
1 Force hold mode O Yes
2 Request hold mode C.1 Yes
3 Respond to hold mode requests M Yes
4 Accept forced hold mode M Yes
C.1: Mandatory IF (LMP:15/1) - (Force hold mode) is supported, ELSE Optional.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
31/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (9/11)
Control name
Electrical characteristics
Table 16: Sniff mode
Item Capability Status Support
1 (Intentionally left blank) No
2 Request sniff mode O Yes
3 Respond to sniff mode requests (rengotiate or reject) M.1 Yes
4 (Intentionally left blank) No
5 Request un-sniff C.1 Yes
6 Accept un-sniff requests M.1 Yes
7 Sniff Subrating Mode C2 Yes
C.1: Mandatory IF (LMP:16/2) - (Request sniff mode) is supported, ELSE Optional.
M.1: Mandatory IF (LMP:2/8) - (Sniff Mode) is supported.
C.2 Mandatory IF (SUMMARY 2-1/5 OR SUMMARY 2-1/6) is claimed, ELSE Excluded
Table 17: Park mode
Item Capability Status Support
1 (Intentionally left blank) No
2 Request park mode O Yes
3 Respond to park mode requests M.1 Yes
4 (Intentionally left blank) No
5 Set up broadcast scan window O Yes
6 Accept changes to the broadcast scan window M.1 Yes
7 Modify beacon parameters O Yes
8 Accept modification of beacon parameters M.1 Yes
9 Request Unpark using PM_ADDR C.1 Yes
10 Request Unpark using BD_ADDR C.1 Yes
11 Slave requested Unpark O Yes
12 Accept Unpark using PM_ADDR M.1 Yes
13 Accept Unpark using BD_ADDR M.1 Yes
M.1: Mandatory IF (LMP:2/9) - (Park Mode) is supported
C.1: IF (LMP:17/3) - (Respond to park mode requests) is supported, THEN at least One of (LMP:17/9) - (Unpark using
PM_ADDR) OR (LMP:17/10) - (Unpark using BD_ADDR) is Mandatory, ELSE Optional.
Table 18: Power Control
Prerequisite: 2/13 (RSSI)
Prerequisite: 2/10(Power contorol)
Item Capability Status Support
1 Request to increase power M.1 Yes
2 Request to decrease power M.1 Yes
3 Respond when max power reached M.2 Yes
4 Respond when min power reached M.2 Yes
M.1: Mandatory IF (LMP:2/13) - (RSSI) is supported
M.2: Mandatory IF (LMP:2/10) - (Power Control) is supported
Table 19: Link supervision timeout
Item Capability Status Support
1 Set link supervision timeout value O Yes
2 Accept link supervision timeout setting M Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
32/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (10/11)
Control name
Electrical characteristics
Table 20: Quality of Service
Item Capability Status Support
1 Channel quality driven change between DM and DH packet
types C.1 Yes
2 Force/Request change of Quality of Service M Yes
3 Request change of Quality of Service M Yes
C.1: Mandatory IF support of (LMP:2/11) is stated in the feature request, ELSE Optional.
Table 21: SCO Links
Prerequisite: 2/12 (SCO links)
Item Capability Status Support
1 Initiate SCO links, as Master O Yes
2 Initiate SCO links, as Slave O Yes
3 Accept SCO links O Yes
4 Remove SCO links, as Master C.1 Yes
5 Remove SCO links, as Slave C.2 Yes
6 Negotiate SCO link parameters, as Master C.3 Yes
7 Negotiate SCO link parameters, as Slave C.4 Yes
C.1: Mandatory IF (LMP:21/1) - (Initiating SCO links, as Master) is supported, ELSE Optional.
C.2: Mandatory IF (LMP:21/2) - (Initiating SCO links, as Slave) is supported, ELSE Optional.
C.3: Mandatory IF (LMP:21/1) - (Initiating SCO links, as Master) OR (LMP:21/3) - (Accept SCO links) is supported, ELSE
Optional.
C.4: Mandatory IF (LMP:21/2) - (Initiating SCO links, as Slave) OR (LMP:21/3) - (Accept SCO links) is supported, ELSE
Optional.
Table 22: Multi-Slot packages
Item Capability Status Support
1 Accept maximum allowed number of slots to be used C.1 Yes
2 Request maximum number of slots to be used C.1 Yes
3 Accept request of maximum number of slots to be used C.1 Yes
C.1: Mandatory IF (LMP:2/1) AND/OR (LMP:2/2) is supported in the feature request, ELSE Optional.
Table 23: Paging scheme
Item Capability Status Support
1 Request page mode to use O Yes
2 Accept suggested page mode O Yes
3 Request page scan mode to use O Yes
4 Accept suggested page scan mode O Yes
Table 24: Connection Establishment
Item Capability Status Support
1 Create connection for higher layers M Yes
2 Respond to requests to establish connections for higher layers M Yes
3 Indicate that link set-up is completed M Yes
Table 25: Test Mode
Item Capability Status Support
1 Activate test mode O Yes
2 Ability to reject activation of test mode if test mode is disabled M Yes
3 Control test mode O Yes
4 Ability to reject test mode control commands if test mode is
disabled. M Yes
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
33/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-AE-D080137 (11/11)
Control name
Electrical characteristics
Table 26: Adaptive Frequency Hopping
Prerequisite: 2/20(AFH)
Item Capability Status Support
1 Support of AFH switch as master O Yes
2 Support of AFH switch as slave M Yes
3 Support of Channel Classification reporting as master C.1 Yes
4 Support of Channel Classification reporting as slave C.2 Yes
5 Support channel classification from host C.3 Yes
6 Support of Channel Classification O Yes
C.1: Optional IF (LMP:26/6) is supported, ELSE Excluded.
C.2: Mandatory IF (LMP:26/6) is supported, ELSE Excluded.
C.3: Mandatory IF (LMP:26/1) OR (LMP:26/4) is supported, ELSE Optional.
M.1: Mandatory IF (LMP:2/20) - (AFH) supported
Table 27: This Table is intentionally left blank
Item Capability Status Support
1 This line is intentionally blank. O No
2 This line is intentionally blank. O No
3 N/A O No
4 N/A O No
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
34/39
TAIYO YUDEN
EY
T
MECS
Control No.
HD-MC-A080137 (1/1)
Control name
Circuit Schematic
Block Diagram
PIO6/ WLAN_ACTIVE
/CH_DATA
USB D+
USB D-
PIO4/ BT_PRIORITY
/CH_CLK
PIO1/USB_DETACH
/RESET
1
9
8
Connector
3
2
4
5
6
7
1
0
VDD_3.3V
GND
Balun
filter
Baseband
Micro
controller
16KB
EEPROM
CRYSTAL
26 MHz
RF
LDO
Bluetooth
Device
Antenna
GND(DETECT)
GND
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
TAIYO YUDEN 35/39
EY
T
MECS
Control No.
HD-AD-A080137 (1/1)
Control name
Outline/Appearance
Note:
Outline/Appearance data is PRELIMINARY, not guaranteed and subject to change without notice.
Please contact Taiyo Yuden for the details of module mountings.
Unit: mm, Tolerances unless otherwise specified: +/-0.2mm
31.0
7.5+/-0.3
28.0+/-0.35
15.2+/-0.3
4.0+/-0.3
Indication label
3.0
18.2+/-0.1
max0.5 max5.4
Shielding case
13.0+/-0.1
15.0
10.0+/-0. 3
6.0+/-0.35
2.0+/-0.1
2.5
3.5
3.7+/-0.35
R1.0+/-0.1
1
10
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
TAIYO YUDEN 36/39
EY
T
MECS
Control No.
HD-AD-B080137 (1/1)
Control name
Outline/Appearance

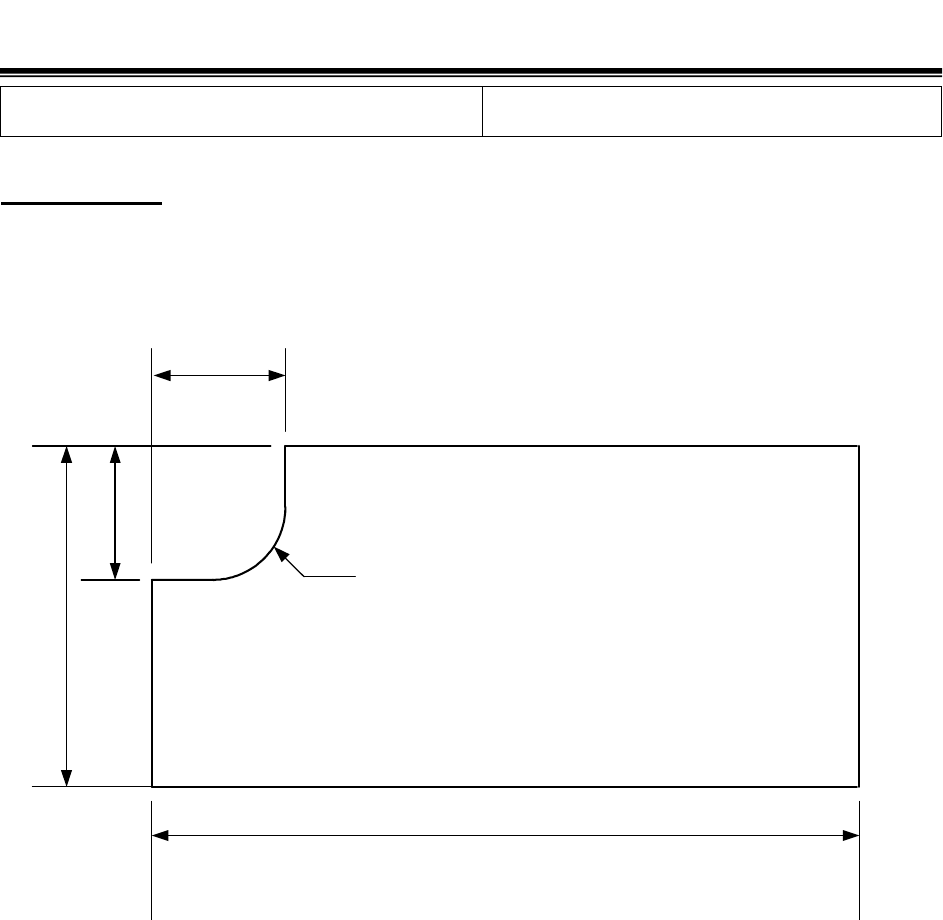

Indication label
Material: PET ( UL969 ) / Label color : White
Unit: mm
5.45
29.0
5.2
13.8
R2.9
TBD
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
TAIYO YUDEN 37/39
EY
T
MECS
Control No.
HD-BA-A080137 (1/1)
Control name
Pin Layout
Pin Descriptions
Terminal
No. Terminal name Input/Output Description Remark
1 GND - Ground
2 USB_D+ Input/Output USB data (Positive) input-output
3 USB_D- Input/Output USB data (Negative) input-output
4
PIO4/
(BT_PRIORITY/
CH_CLK)
Output BT_Priority/CH_CLK output for Co-existence
signaling
Note 2
5 GND(DETECT) - DETECT
6 /RESET Input Active low RESET signal with internal weak
pull-up
Note 3
7
PIO6/
(WLAN_ACTIVE/
CH_DATA)
Input WLAN_Active/CH_Data input for Co-existence
signaling
Note 2
8 VDD_3.3V Input DC3.3V Power supply Note 1
9 PIO1/USB_DETA
CH Input
DETACH signal input
Low USB connect
High USB disconnect
Note 2
10 GND - Ground
Notes:
1. Pin8 (VDD_3.3V) is used for power supply of BT module. (MAX 200mA).
To fill the standard of “Supply voltage ripple and spike noise”, the capacitor, which has the
capacity of 2.2uF or more , should be put in the terminal VDD_3.3V outside as a bypass capacitor .
2. Strength pull-downs (pull-ups) are equivalent to a few kOhms resistance, but are more accurately
modeled as a 40uA current drain (source)
3. Weak pull-ups can be thought of 1M Ohm connections to VDD, but are more accurately
modeled as a -1uA current source.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
TAIYO YUDEN 38/39
EY
T
MECS
FCC Regulatory Information
Canada Regulatory Information
R&TTE Directive Information
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC
regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may Cause undesired
operation.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Hereby Taiyo Yuden Co., Ltd., declares that this Complete Class2 Bluetooth Module (Model No.:
EYTMECS) is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC
The declaration of Conformity may be obtained at;
Taiyo Yuden Co., Ltd.
8-1 Sakae-Cho, Takasaki-Shi Gunma, JAPAN 370-8522
Telephone No.) 81-27-324-2313; Fax No.)81-27-324-2314.
NOTE: This equipment has been tested and foun
d to comply with the limits for
a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference
to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
6-Dec.-2008 Ver.0.5
TAIYO YUDEN Confidential
& Tentative
TAIYO YUDEN 39/39
EY
T
MECS
Caution
- Please note that this users manual should not be provided to end-users.
- Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the requirement.
Notice
- At the installation of our Complete Class2 Bluetooth Module (Model No.: EYTMECS) into the device,
following information should be provided with end-user under the responsibility of the manufacture
who integrates it into their device.
The following sentence has to be displayed on the outside of the device in which the module is installed:
"Contains Transmitter Module FCC ID: RYYEYTMECS / IC ID: 4389B-EYTMECS", or
"Contains FCC ID: RYYEYTMECS / IC ID: 4389B-EYTMECS "
FCC Regulatory information
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna.
Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC
regulations.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may Cause undesired
operation.
Canada Regulatory information
Operation is subject to the following two conditions:
(3) this device may not cause interference, and
(4) this device must accept any interference, including interference that may cause undesired operation of
the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(3) il ne doit pas produire de brouillage et
l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage
est susceptible de compromettre le fonctionnement du dispositif.
R&TTE Directive information
Hereby [Name of manufacture(*)], declares that this [type of equipment(*)] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC
(*) Note: Please write in your company name and type of equipment into [ ].
2006/8/16 v1.0
U.S. Regulatory Wireless Notice
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2006/8/16 v1.0
This device is intended only for OEM integrators under the following
conditions:
The transmitter module may not be co-located with any other transmitter or
antenna,
As long as above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed.
.
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains
FCC ID: RYYEYTMECS”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as show
in this manual.
Canadian Regulatory Wireless Notice
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject
to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
2006/8/16 v1.0
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of
the R&TTE Directive 1999/5/EC:
- EN60950-1:2006
Safety of Information Technology Equipment
- EN50371 : 2002
- Generic standard to demonstrate the compliance of low power electronic and electrical apparatus with
the basic restrictions related to human exposure to electromagnetic fields (10 MHz - 300 GHz) --
General public
-
-
- EN 300 328 V1.7.1: (2006-10)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1:
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
- EN 301 489-17 V1.2.1 (2002-08)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member
states and EFTA countries, except in France and Italy where restrictive use applies.
2006/8/16 v1.0
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed
information the end-user should contact the national spectrum authority in France.
0560
Česky
[Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish] Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German] Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung
mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti
[Estonian] Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish] Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ∆ΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French] Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment /
iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
[Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus
ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch] Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese] Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
2006/8/16 v1.0
Magyar
[Hungarian] Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese] [Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian] [Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak] [Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish] [Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Swedish] Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
