TAKAYA TR3XM-SX01 RFID READER/Writer User Manual TR3XM SX01 EN 100

TAKAYA Corporation RFID READER/Writer TR3XM SX01 EN 100

Contents

manual

User’s Manual
TR3XM-SD01
TR3XM-SU01
TR3XM-SN01
Manual No.TDR-MNL-SX01-EN-100
Manual No.TDR-MNL-SX01-EN-100
TAKAYA RFID TR3 Series
Introduction
Thank you for purchasing a TR3XM-SD01／SU01／SN01 RFID READER/WRITER.
Be sure to read this manual before using the product.
After reading it, store the manual in a convenient place for future reference.
Manual No.TDR-MNL-SX01-EN-100
TAKAYA RFID TR3 Series
Regulations and Standards
FCC
This product is conform to the FCC standards.
FCC Rules (Federal Communications Commission)
This product complies with Part 15 Subpart B and C of the FCC Rules.
FCC ID : MK4TR3XM-SX01
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Japan Radio Law
Equipment using high frequencies: Inductive Reading/Writing Communications Equipment
Conforming standards: Inductive Reading/Writing Communications Equipment;
Standard: ARIB STD-T82
RoHS is support
Restriction of Hazardous Substances
Waste
Dispose of the Products as industrial waste.
Manual No.TDR-MNL-SX01-EN-100
TAKAYA RFID TR3 Series
Safety Precautions
The following symbols are used in this manual to indicate precautions that must be observed to ensure safe use of
this product. The precautions provided here contain important safety information. Be sure to observe these
precautions.
The following signal words are used in this manual.
Failure to comply with a WARNING may result in serious injury or
death.
Failure to comply with a CAUTION may result in injury to the
operator, or damage to the items involved.
Be sure to observe the following precautions to ensure safe use of the Products.
Decomposition of this product and cable, repair, remodeling, please strictly prohibited. There is the
possibility of fire or electric shock injuries.
This product is using the RFID reader writer radio equipment. Therefore, depending on where the
applications you use may affect medical equipment. To minimize the impact of medical equipment for use,
please observe the following countermeasure. The Japan Automatic Identification Systems Association
(JAISA) guidelines are as follows: RFID antennas from implanted cardiac pacemakers or other medical
devices please 22cm apart. We recommend that you paste "RFID sticker" at equipment.
Be sure to observe the following precautions to ensure safe use of the Products.
Installation and storage environment
1. Do not use the Products in sunlight.
2. Do not use the Products in environment of spray of water, oil or chemicals.
3. Do not use the Products in environments with flammable, explosive, or corrosive gasses.
4. Do not use the Products in environment of hot humid.
5. Do not use the Products in environment of vibration or shock.
6. Do not use the Products in environment of condensation.
7. Do not use the Products in environment of around the metal is covered.
8. Do not use the Products in environment of high temperature.
9. Do not use the Products in environment that has a device that generates magnetic field and shock voltage.
10. Do not use the Products in unstable place.
11. If there is failure, discontinue use immediately, please contact us or the distributor.
Installation
1. Turn off the power before installation or removing.
2. The following effects may not work correctly.
･ Near 13.56MHz radio device
･ Near speakers , Inverter, motor and Plasma Display
3. The communication range may vary due to environment and conditions.

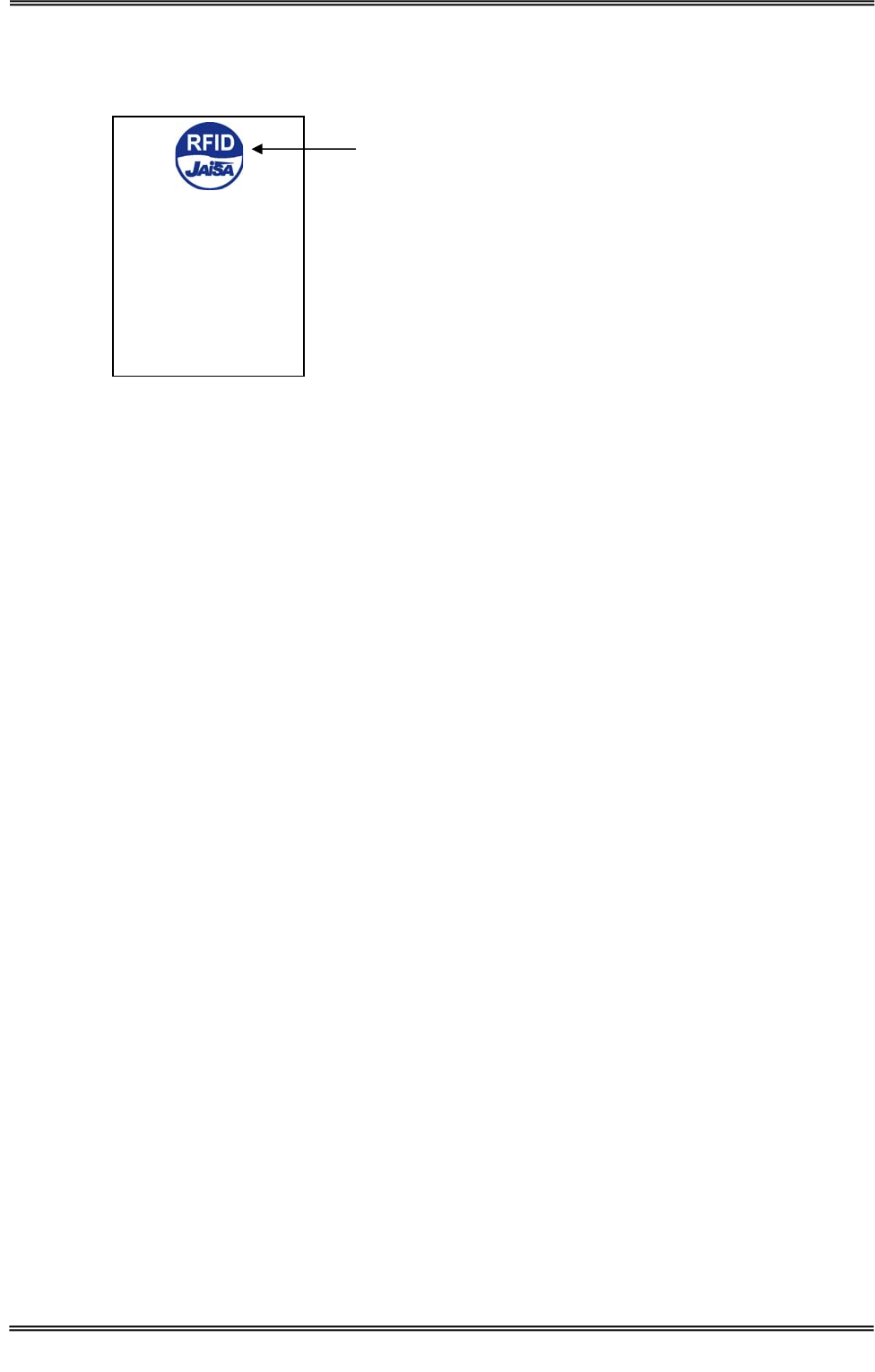

← RFID Sticker
Manual No.TDR-MNL-SX01-EN-100
TAKAYA RFID TR3 Series
Contents
1 Product Overview ........................................................................................................ 1
1.1 Features .............................................................................................................................................. 1
2 Names of Parts and Functions ....................................................................................... 3
2.1 TR3XM-SD01 ..................................................................................................................................... 3
2.2 TR3XM-SU01 ..................................................................................................................................... 4
2.3 TR3XM-SN01 ..................................................................................................................................... 5
3 Setting and connection .................................................................................................. 6
3.1 Setting ................................................................................................................................................. 6
3.1.1 DeskTop ........................................................................................................................................... 6
3.1.2 Wall Installation ................................................................................................................................ 6
3.2 Connection .......................................................................................................................................... 7
3.2.1 Attaching the Cable ........................................................................................................................... 7
4 Specifications ............................................................................................................... 8
4.1 TR3XM-SD01 ..................................................................................................................................... 8
4.2 TR3XM-SU01 .................................................................................................................................... 11
4.3 TR3XM-SN01 ................................................................................................................................... 14
5 Accessories ................................................................................................................. 17

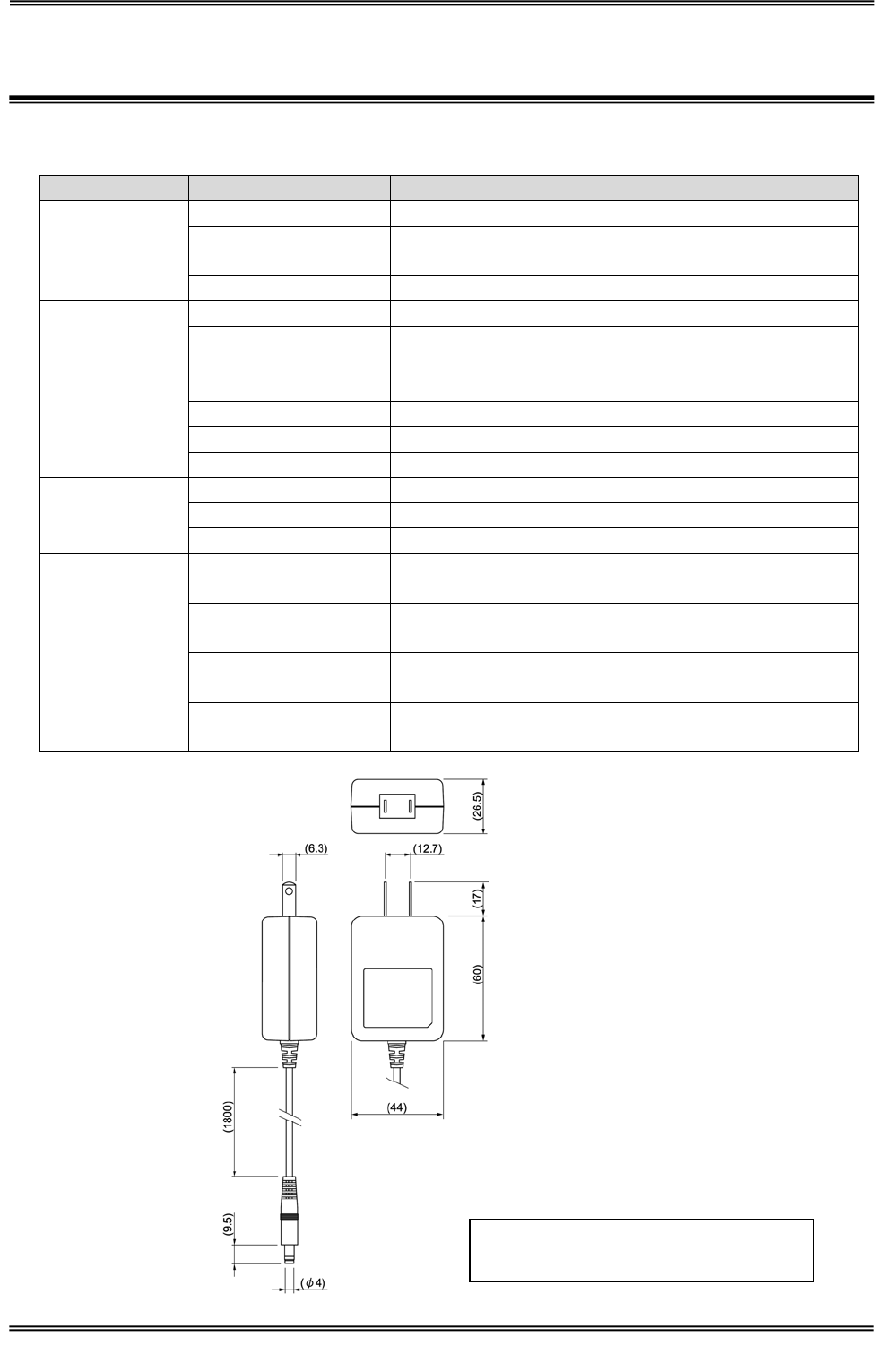

5.1 AC Adapter(TR3-PWR-5V-1) ............................................................................................................ 17

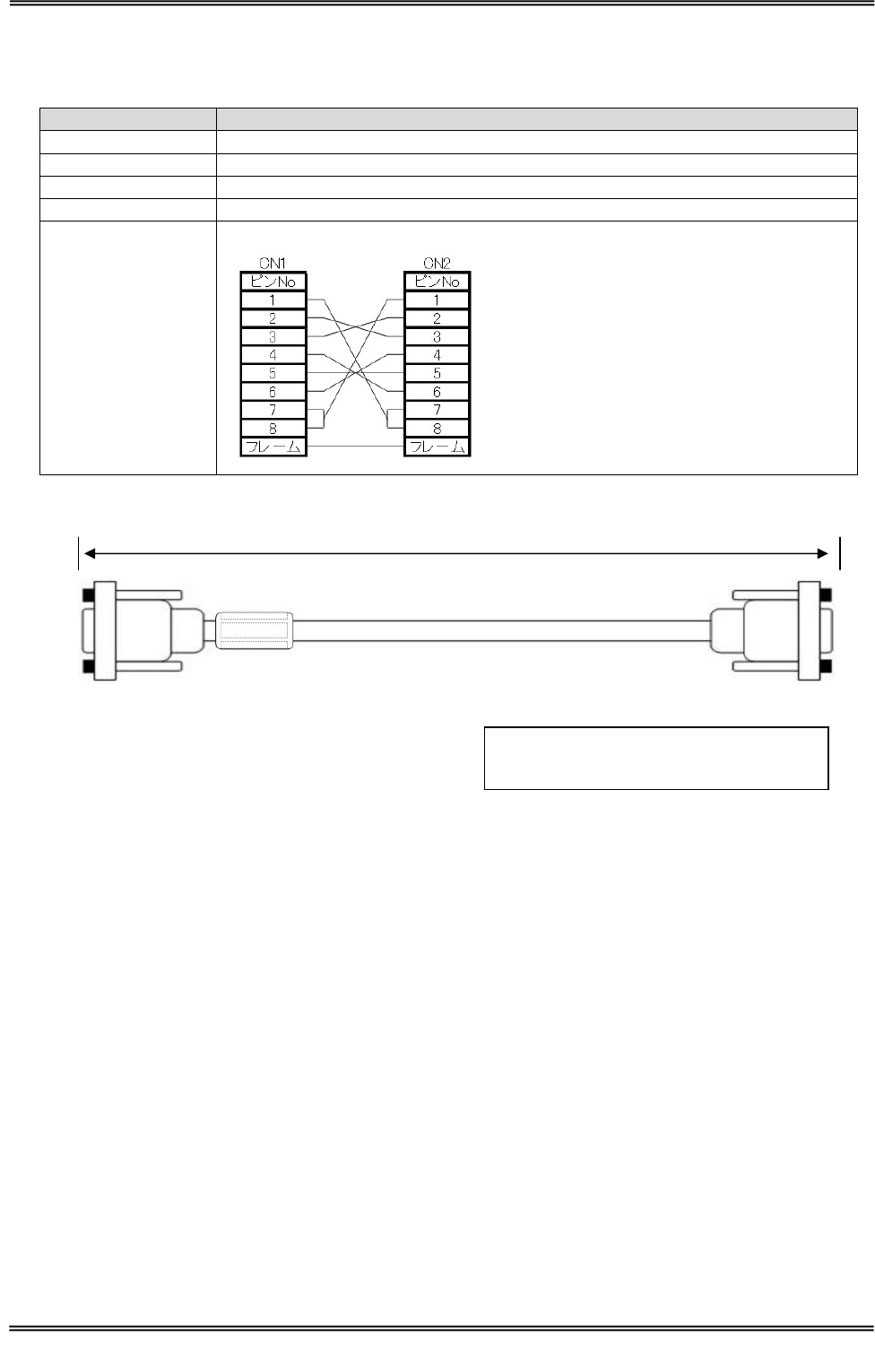

5.2 RS232C Cross-cable(CB-232C-2) ...................................................................................................... 18

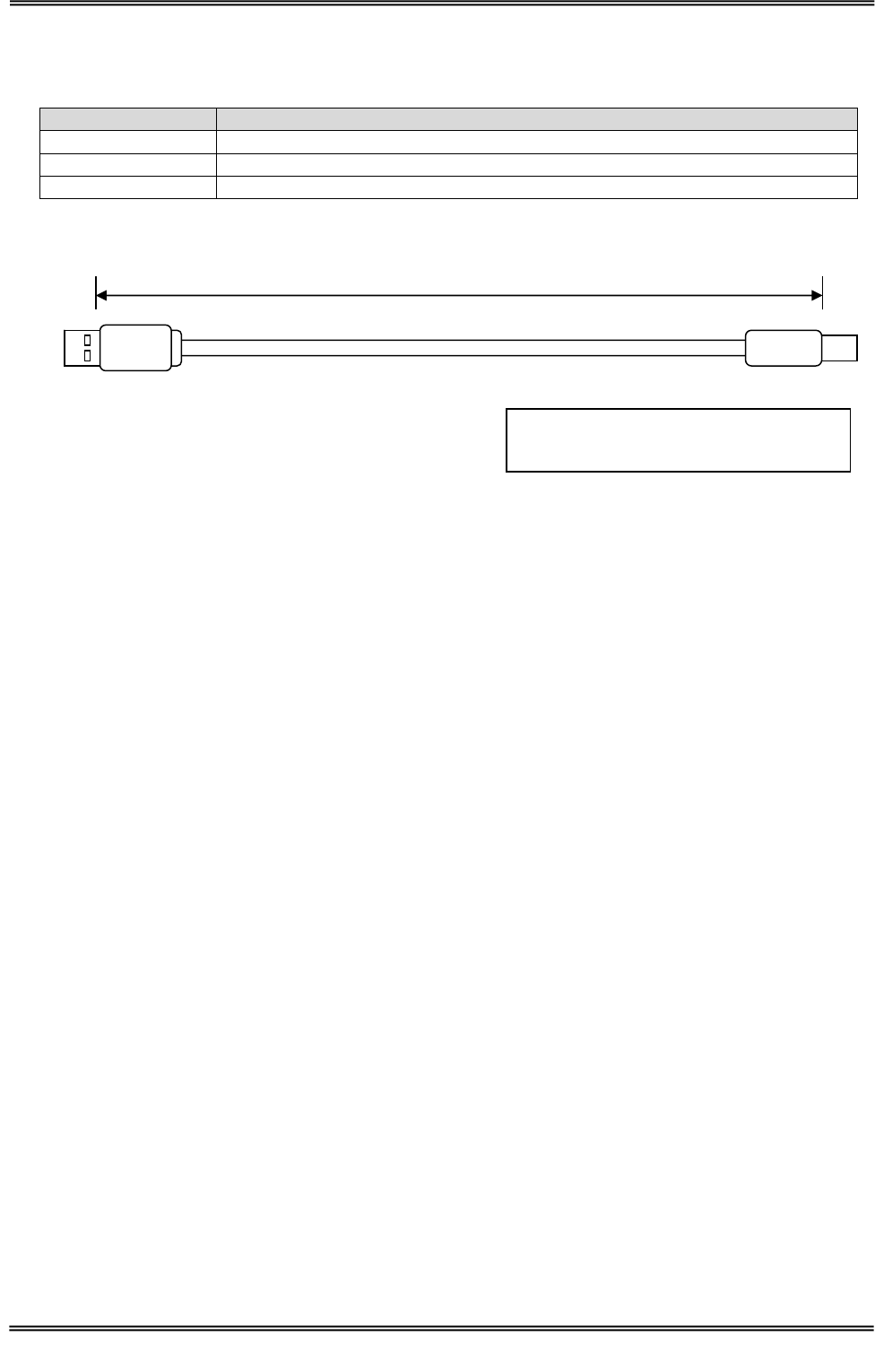

5.3 USB Cable(GH-USB20/1.8M) ............................................................................................................ 19
5.4 RFID Sticker (SEL41400L) ............................................................................................................... 20
6 Maintenance .............................................................................................................. 21
Revision History ............................................................................................................... 22
Manual No.TDR-MNL-C202-A0-1-EN-100
1 Product Overview
1.1 Features
1 TAKAYA RFID TR3 Series
1 Product Overview
1.1 Features
This product uses the 13.56MHz frequency. This product is the electromagnetic induction type non-contact
IC can read and write RFID tag data.
This Product is the desktop reader choice to support various contactless applications such as electronic ID,
payment & public transportation schemes and to interact with NFC-enabled devices.
Model Name Host Device Interface
TR3XM-SD01 RS232C
TR3XM-SU01 USB
TR3XM-SN01 TCP/IP
Antenna
TR3-A202
CPU Memory
RF-ASIC
TR3-C302(READER/WRITER Module)
Load Settings
Save Settings
Interface Module
Tags
Host Device Interface
RS-232C、LAN(TCP/IP)、USB
Communications
UART(CMOS Level)

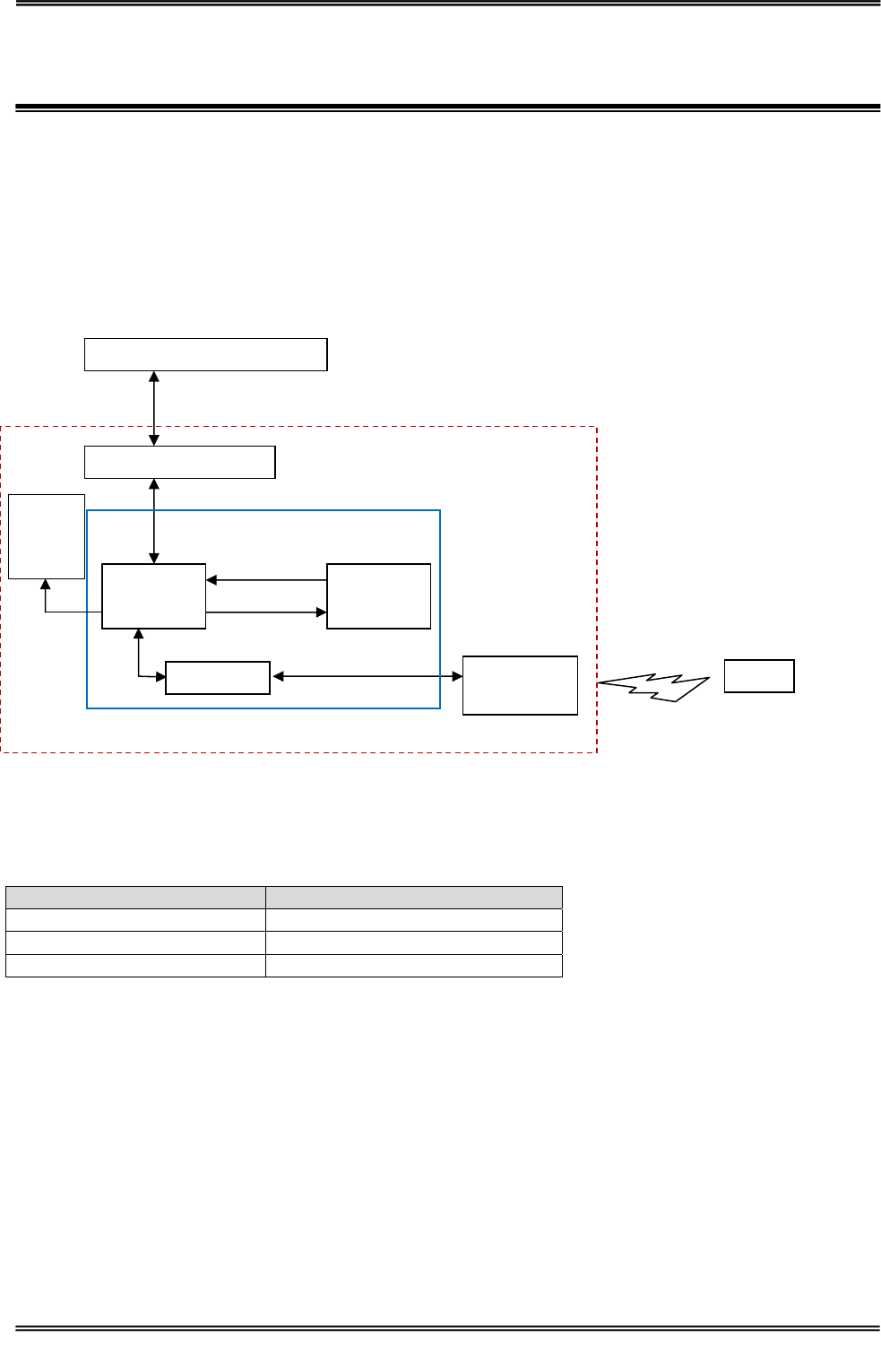

TR3XM-SD01/TR3XM-SU01/TR3XM-SN01 Block Diagram
LED/
BUZZ
ER
Host Device Interface
Manual No.TDR-MNL-C202-A0-1-EN-100
1 Product Overview
1.1 Features
2 TAKAYA RFID TR3 Series
■ Conform to international standards
ISO/IEC15693 and ISO/IEC18000-3(Mode1, 3)
ISO/IEC14443 TypeA
ISO/IEC14443 TypeB
ISO/IEC18052(Passive Mode), FeliCa
■ Software
TR3-series common communication protocol
Software Development Kit
■ Useful
Continuous inventory mode
UID of the tag automatically sends Host Device.
RDLoop mode
UID or User Data of the tag automatically sends Host Device.
For more information please refer to the TR3-PROTOCOL manual.
■ Environmentally
EU RoHS(2002/95/EC) Support
Manual No.TDR-MNL-C202-A0-1-EN-100

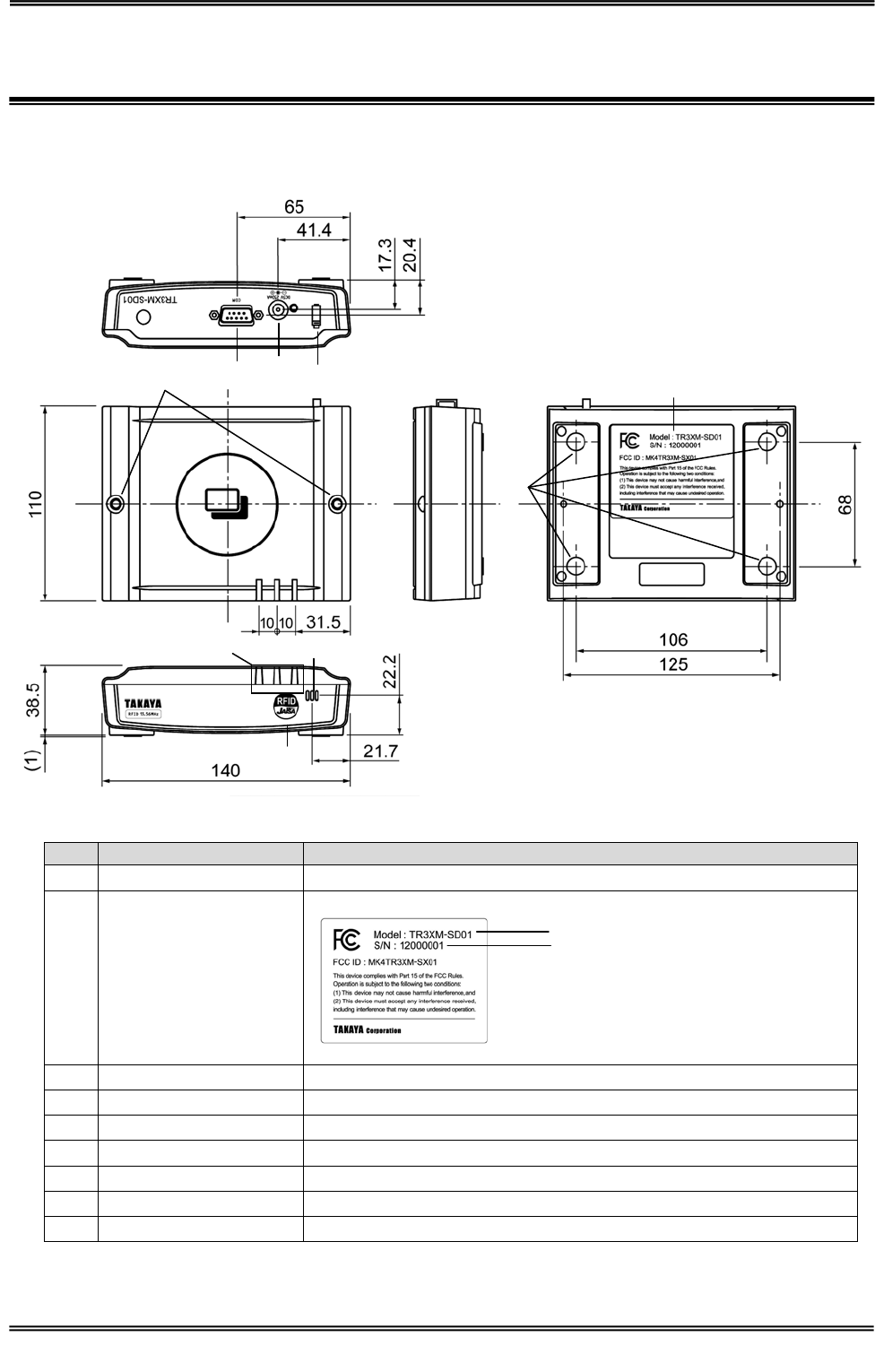

2 Names of Parts and Functions
2.1 TR3XM-SD01
3 TAKAYA RFID TR3 Series
2 Names of Parts and Functions
2.1 TR3XM-SD01
No Name Description
① RFID sticker Specify that the RFID radio waves are radiated.
② FCC ID sticker Production numbers, will be 8-digit serial number.
③ Connector Connect the RS-232C cable.
④ DC Jack DC +5V input.
⑤ Rubber leg 4pcs
⑥ Buzzer Sounds according to settings.
⑦ LED Displays the status of this product.
⑧ Cable hook Hook the AC adapter cable that comes with.
⑨ Screw holes M4 holes
Model Name
Serial number：＊＊＊＊＊＊＊＊(F)
①
②
④
⑤
⑥
⑧
⑨
⑦
③
Manual No.TDR-MNL-C202-A0-1-EN-100
2 Names of Parts and Functions
2.2 TR3XM-SU01
4 TAKAYA RFID TR3 Series

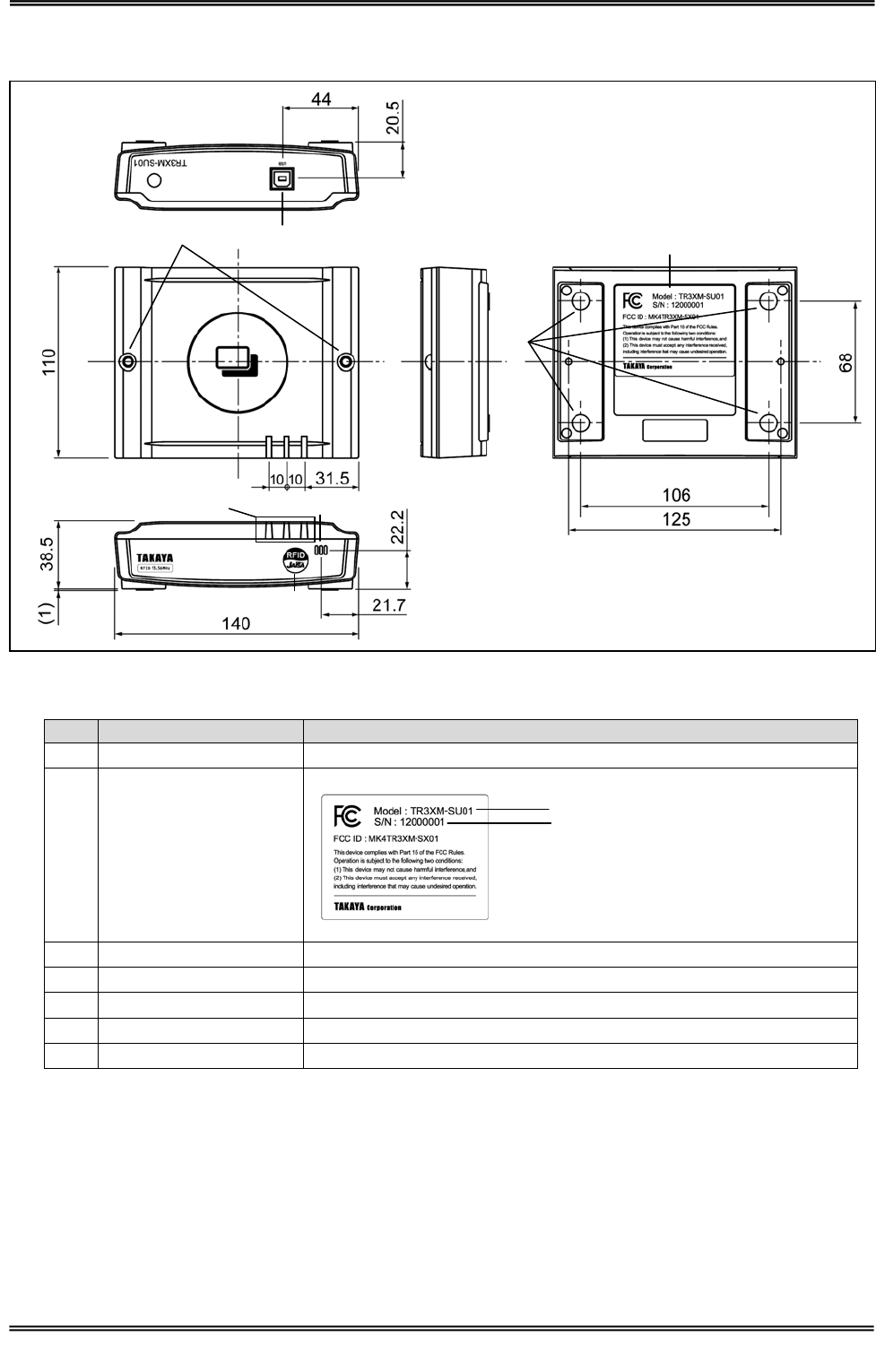

2.2 TR3XM-SU01
No Name Description
① RFID sticker Specify that the RFID radio waves are radiated.
② FCC ID sticker Production numbers, will be 8-digit serial number.
③ Connector Connect the USB cable.
④ Rubber leg 4pcs
⑤ Buzzer Sounds according to settings.
⑥ LED Displays the status of this product.
⑦ Screw holes M4 holes
Model Name
Serial number：＊＊＊＊＊＊＊＊(F)
①
②
③
④
⑥⑤
⑦
Manual No.TDR-MNL-C202-A0-1-EN-100
2 Names of Parts and Functions
2.3 TR3XM-SN01
5 TAKAYA RFID TR3 Series

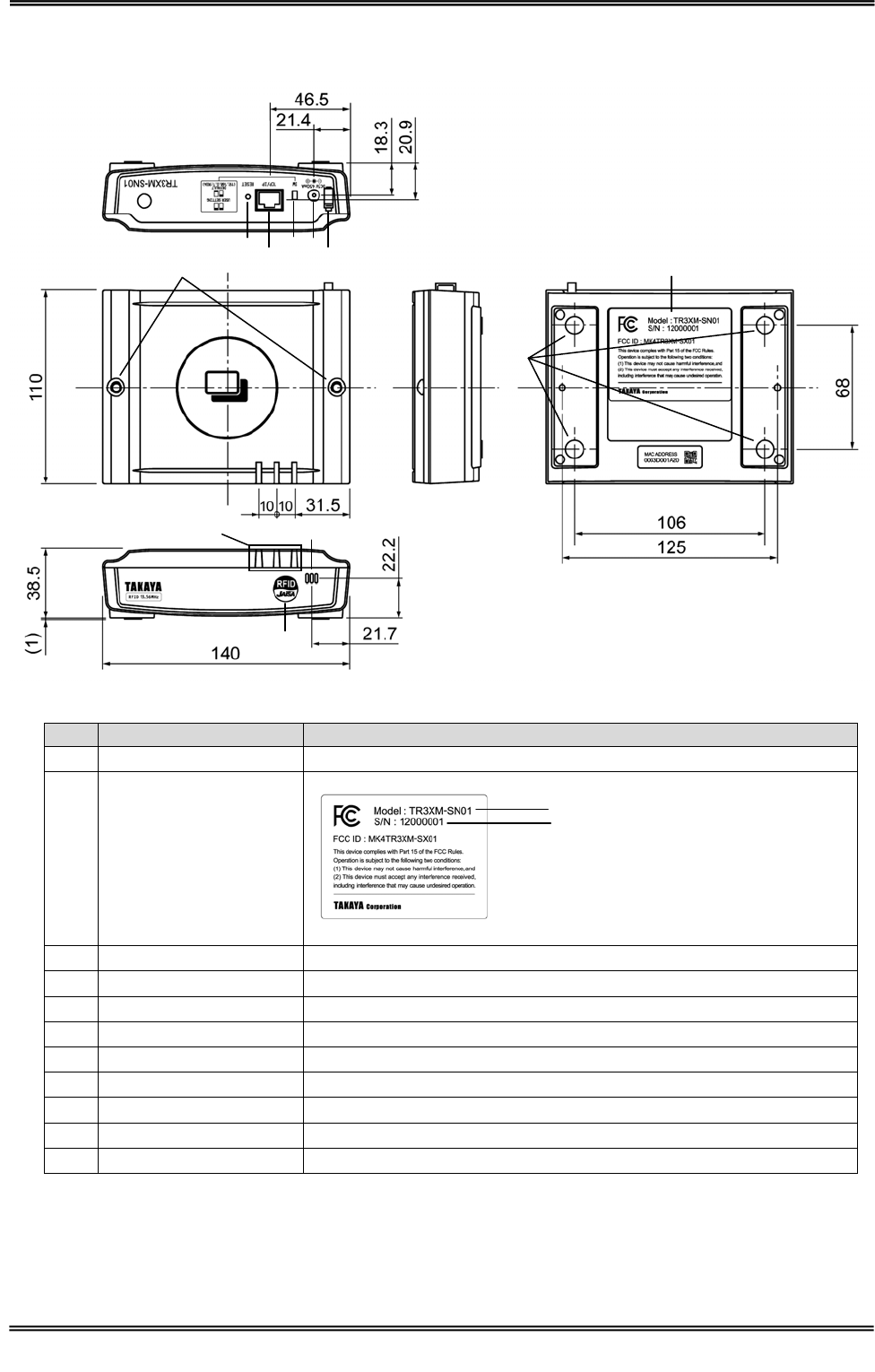

2.3 TR3XM-SN01
No Name Description
① RFID sticker Specify that the RFID radio waves are radiated.
② FCC ID sticker Production numbers, will be 8-digit serial number.
③ Connector Connect the TCP/IP cable.
④ DC Jack DC +5V input.
⑤ Rubber leg 4pcs
⑥ Buzzer Sounds according to settings.
⑦ LED Displays the status of this product.
⑧ Cable hook Hook the AC adapter cable that comes with.
⑨ Screw holes M4 holes
⑩ Reset switch
⑪ State switch Selection of User setting or Default is made.
Model Name
Serial number：＊＊＊＊＊＊＊＊(F)
①
③
⑥
②
④
⑤
⑨
⑦
⑧
⑩ ⑪
Manual No.TDR-MNL-C202-A0-1-EN-100

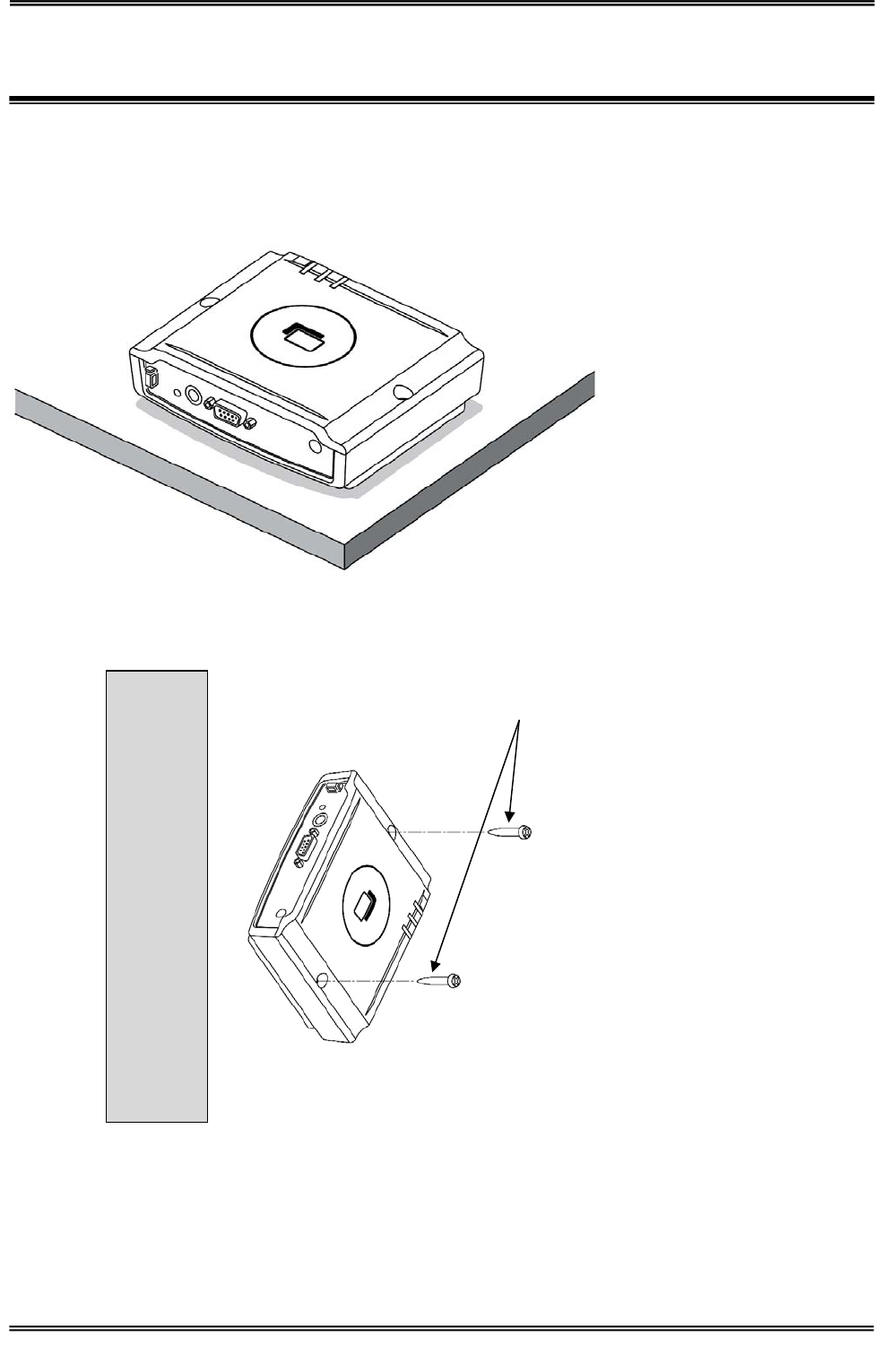

3 Setting and connection
3.1 Setting
6 TAKAYA RFID TR3 Series
3 Setting and connection
3.1 Setting
3.1.1 DeskTop
3.1.2 Wall Installation
M4 Screw
Wall
Manual No.TDR-MNL-C202-A0-1-EN-100
3 Setting and connection
3.2 Connection
7 TAKAYA RFID TR3 Series

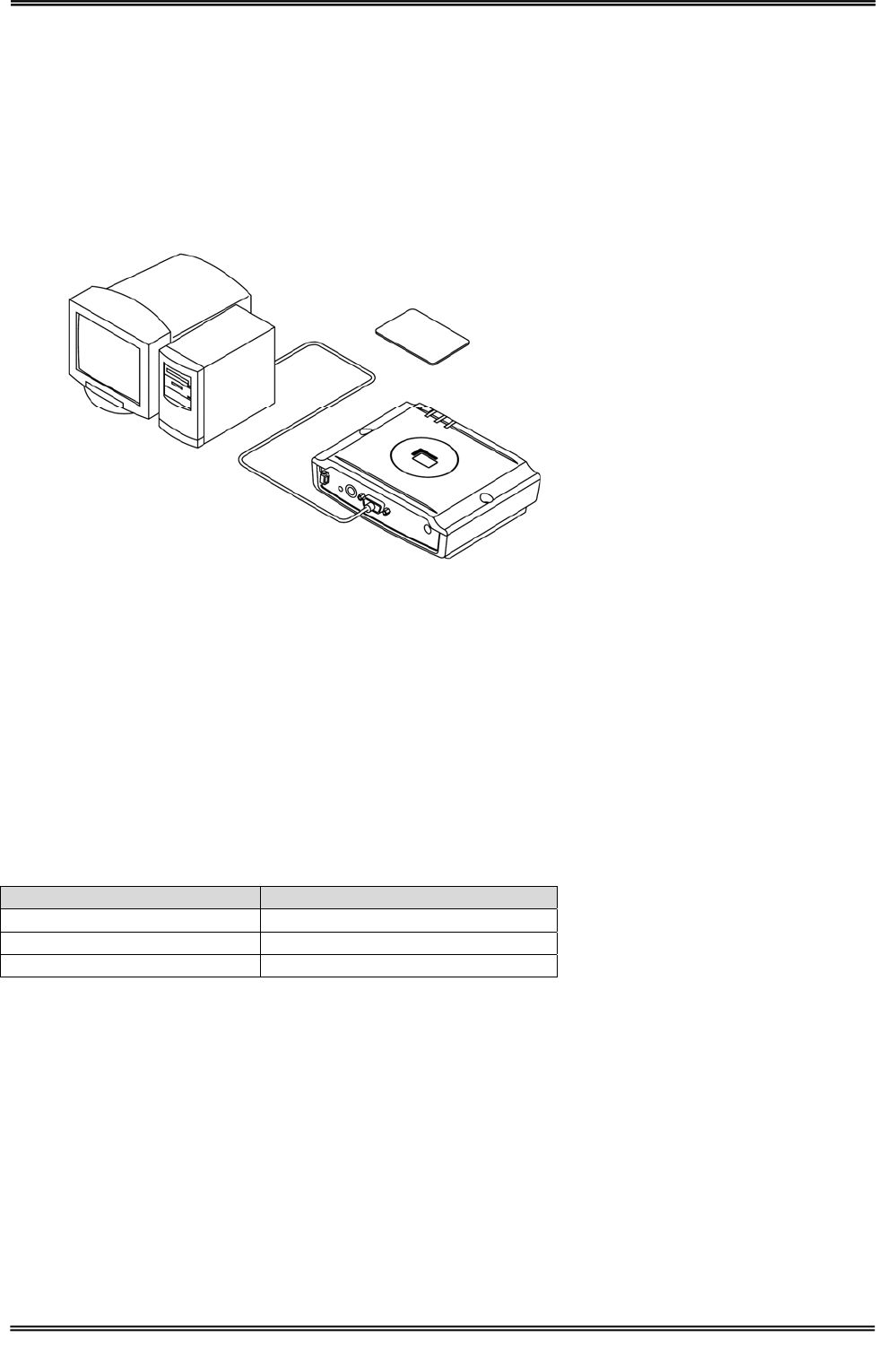

3.2 Connection
This product connects with Host Device with the cable.
3.2.1 Attaching the Cable
Model Name Cable
TR3XM-SD01 RS232C Cable
TR3XM-SU01 USB Cable
TR3XM-SN01 LAN Cable
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.1 TR3XM-SD01
8 TAKAYA RFID TR3 Series
4 Specifications
4.1 TR3XM-SD01
Specifications Item Parameter
Applicable
Standards
Japan Radio Law ARIB STD-T82
FCC FCC Part 15 Subpart B,C
FCC ID : MK4TR3XM-SX01
RoHS EU RoHS(2002/95/EC) Supports
Radio
Frequency
Carrier frequency 13.56MHz ±50ppm(Ta=25℃) or less
Antenna Resonant
frequency
13.56MHz ±40kHz(Ta=25℃)
Transmit power or
power range
10～200mW ± 20%(Ta=25℃, VCC=5.0V)
Standards ISO/IEC 15693、ISO/IEC18000-3(Mode1、Mode3)
ISO/IEC 14443A、ISO/IEC 14443B、ISO/IEC 18092（FeliCa）
Tags Tag-it HF-I, my-d, I･CODE SLI, MB89R118
Mifare Ultralight, FeliCa
Data rate ・ISO/IEC 15693,ISO/IEC18000-3(Mode1)
Speed Data rate
Product⇒Tag 1/4 26.48kbps
1/256 1.65kbps
Tag⇒Product 26.69kbps
・ISO/IEC18000-3(Mode3)
Parameter
Product⇒Tag 26.7kbps～100kbps
Tag⇒Product 53kbps
・ISO/IEC 14443A, ISO/IEC 14443B 106 kbps
・ISO/IEC 18092(Passive Mode) 212kbps
Modulation ・ISO/IEC 15693,ISO/IEC18000-3(Mode1)
Parameter
Product⇒Tag ASK 10% / ASK 100%
Tag⇒Product ASK
・ISO/IEC18000-3(Mode3)
Parameter
Product⇒Tag ASK 10%
Tag⇒Product ASK
・ISO/IEC 14443A
Parameter
Product⇒Tag ASK 100%
Tag⇒Product ASK
・ISO/IEC 14443B
・ISO/IEC 18092(Passive Mode)
Parameter
Product⇒Tag ASK 10%
Tag⇒Product ASK
※1：Tag-it HF-I is a registered trademark of Texas Instruments Incorporated.
my-d is a registered trademark of Infineon Technologies AG.
I･CODE SLI and MIFARE UltraLight are a registered trademark of NXP Semiconductors.
FeliCa is a registered trademark of Sony Corporation.
MB89R118 is a registered trademark of FUJITSU Japan.
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.1 TR3XM-SD01
9 TAKAYA RFID TR3 Series
Specifications Item Parameter
Communication
distance
Standards Communication distance
ISO/IEC 15693
ISO/ISC 18000-3
(Mode1)
10cm
ISO/ISC 18000-3
(Mode3)
8cm
ISO/ISC 14443A 5.5cm
ISO/ISC 14444B 1cm
ISO/ISC 18092
(Passive Mode)
3cm
(Communication distance depends on the environment.)
Anti-collision
Standards Anti-collision
ISO/IEC 15693
ISO/ISC 18000-3
(Mode1)
YES
ISO/ISC 18000-3
(Mode3)
YES
ISO/ISC 14443A No
ISO/ISC 14444B No
ISO/ISC 18092
(Passive Mode)
No
Control Host Interface RS-232C
Item Parameter
Speed 9600bps
19200bps(※2)
38400bps
Data bits 8
Parity None
Stop bit 1
Flow control None
LED 3 LED (red/green/blue)
BUZZER 1 BUZZER
Connector RS-232C Connector
D-SUB 9Pin
Pin assignment
Pin No. Symbol Function
1 NC Not Connected
2 Rx Received data signal
3 Tx Transmitted data signal
4 NC Not Connected
5 GND GND
6 NC Not Connected
7 NC Not Connected
8 NC Not Connected
9 NC Not Connected
DC JACK EIAJ TYPEⅡ(CENTER PLUS)
※2：initialization
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.1 TR3XM-SD01
10 TAKAYA RFID TR3 Series
Specifications Item Parameter
Mechanical
data
Dimensions
(W x D x H)
140 x 110 x 38.5mm
(Protrusions except)
Weight approx. 270g
Installation M4 Screw
Screw is not included.
Electrical
data
Power Supply Voltage
：5V±10%
Current consumption ：approx. 170mA
Carrier off ：approx. 53mA
Power down mode ：approx. 44mA
Consumption ：max 1.4W
Ambient
Conditions
Temperature
Operating range
0 to 40 degree
Humidity Operating
range
30 to 80%RH
Temperature
Storage range
0 to 55 degree
Humidity
Storage range
30 to 80%RH
Accessories AC Adaptor TR3-PWR-5V-1
RS232C
Cross-cable
CB-232C-2
RFID Sticker SEL41400L 1 sheet
CD-ROM CDROM-TR3MNL
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.2 TR3XM-SU01
11 TAKAYA RFID TR3 Series
4.2 TR3XM-SU01
Specifications Item Parameter
Applicable
Standards
Japan Radio Law ARIB STD-T82
FCC FCC Part 15 Subpart B,C
FCC ID : MK4TR3XM-SX01
RoHS EU RoHS(2002/95/EC) Supports
Radio
Frequency
Carrier frequency 13.56MHz ±50ppm(Ta=25℃) or less
Antenna Resonant
frequency
13.56MHz ±40kHz(Ta=25℃)
Transmit power or
power range
10～200mW ± 20%(Ta=25℃, VCC=5.0V)
Standards ISO/IEC 15693、ISO/IEC18000-3(Mode1、Mode3)
ISO/IEC 14443A、ISO/IEC 14443B、ISO/IEC 18092（FeliCa）
Tags Tag-it HF-I, my-d, I･CODE SLI, MB89R118
Mifare Ultralight, FeliCa
Data rate ・ISO/IEC 15693,ISO/IEC18000-3(Mode1)
Speed Data rate
Product⇒Tag 1/4 26.48kbps
1/256 1.65kbps
Tag⇒Product 26.69kbps
・ISO/IEC18000-3(Mode3)
Parameter
Product⇒Tag 26.7kbps～100kbps
Tag⇒Product 53kbps
・ISO/IEC 14443A, ISO/IEC 14443B 106 kbps
・ISO/IEC 18092(Passive Mode) 212kbps
Modulation ・ISO/IEC 15693,ISO/IEC18000-3(Mode1)
Parameter
Product⇒Tag ASK 10% / ASK 100%
Tag⇒Product ASK
・ISO/IEC18000-3(Mode3)
Parameter
Product⇒Tag ASK 10%
Tag⇒Product ASK
・ISO/IEC 14443A
Parameter
Product⇒Tag ASK 100%
Tag⇒Product ASK
・ISO/IEC 14443B
・ISO/IEC 18092(Passive Mode)
Parameter
Product⇒Tag ASK 10%
Tag⇒Product ASK
※1：Tag-it HF-I is a registered trademark of Texas Instruments Incorporated.
my-d is a registered trademark of Infineon Technologies AG.
I･CODE SLI and MIFARE UltraLight are a registered trademark of NXP Semiconductors.
FeliCa is a registered trademark of Sony Corporation.
MB89R118 is a registered trademark of FUJITSU Japan.
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.2 TR3XM-SU01
12 TAKAYA RFID TR3 Series
Specifications Item Parameter
Communication
distance
Standards Communication distance
ISO/IEC 15693
ISO/ISC 18000-3
(Mode1)
10cm
ISO/ISC 18000-3
(Mode3)
8cm
ISO/ISC 14443A 5.5cm
ISO/ISC 14444B 1cm
ISO/ISC 18092
(Passive Mode)
3cm
(Communication distance depends on the environment.)
Anti-collision
Standards Anti-collision
ISO/IEC 15693
ISO/ISC 18000-3
(Mode1)
YES
ISO/ISC 18000-3
(Mode3)
YES
ISO/ISC 14443A No
ISO/ISC 14444B No
ISO/ISC 18092
(Passive Mode)
No
Control Platform Windows2000, Windows XP, Windows Vista, Windows 7
Host Interface USB2.0/1.1(Virtual COM Port)
Item Parameter
Speed 9600bps
19200bps(※2)
38400bps
Data bits 8
Parity None
Stop bit 1
Flow control None
LED 3 LED (red/green/ blue)
BUZZER 1 BUZZER
Connector USB Connector
USB B(Receptacle)
Pin assignment
Pin No. Symbol Function
1 Vbus POWER
2 D- data signal
3 D+ data signal
4 GND GND
※2：initialization
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.2 TR3XM-SU01
13 TAKAYA RFID TR3 Series
Specifications Item Parameter
Mechanical
data
Dimensions
(W x D x H)
140 x 110 x 38.5mm
(Protrusions except)
Weight approx. 270g
Installation M4 Screw
Screw is not included.
Electrical
data
Power Supply Voltage
：5V±10%
Current consumption ：approx. 180mA
Carrier off ：approx. 61mA
Power down mode ：approx. 70mA
Consumption ：max 1.4W
Ambient
Conditions
Temperature
Operating range
0 to 55 degree
Humidity Operating
range
30 to 80%RH
Temperature
Storage range
0 to 55 degree
Humidity
Storage range
30 to 80%RH
Accessories USB cable GH-USB20/1.8M
RFID Sticker SEL41400L 1 sheet
CD-ROM CDROM-TR3MNL
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.3 TR3XM-SN01
14 TAKAYA RFID TR3 Series
4.3 TR3XM-SN01
Specifications Item Parameter
Applicable
Standards
Japan Radio Law ARIB STD-T82
FCC FCC Part 15 Subpart B,C
FCC ID : MK4TR3XM-SX01
RoHS EU RoHS(2002/95/EC) Supports
Radio
Frequency
Carrier frequency 13.56MHz ±50ppm(Ta=25℃) or less
Antenna Resonant
frequency
13.56MHz ±40kHz(Ta=25℃)
Transmit power or
power range
10～200mW ± 20%(Ta=25℃, VCC=5.0V)
Standards ISO/IEC 15693、ISO/IEC18000-3(Mode1、Mode3)
ISO/IEC 14443A、ISO/IEC 14443B、ISO/IEC 18092（FeliCa）
Tags Tag-it HF-I, my-d, I･CODE SLI, MB89R118
Mifare Ultralight, FeliCa
Data rate ・ISO/IEC 15693,ISO/IEC18000-3(Mode1)
Speed Data rate
Product⇒Tag 1/4 26.48kbps
1/256 1.65kbps
Tag⇒Product 26.69kbps
・ISO/IEC18000-3(Mode3)
Parameter
Product⇒Tag 26.7kbps～100kbps
Tag⇒Product 53kbps
・ISO/IEC 14443A, ISO/IEC 14443B 106 kbps
・ISO/IEC 18092(Passive Mode) 212kbps
Modulation ・ISO/IEC 15693,ISO/IEC18000-3(Mode1)
Parameter
Product⇒Tag ASK 10% / ASK 100%
Tag⇒Product ASK
・ISO/IEC18000-3(Mode3)
Parameter
Product⇒Tag ASK 10%
Tag⇒Product ASK
・ISO/IEC 14443A
Parameter
Product⇒Tag ASK 100%
Tag⇒Product ASK
・ISO/IEC 14443B
・ISO/IEC 18092(Passive Mode)
Parameter
Product⇒Tag ASK 10%
Tag⇒Product ASK
※1：Tag-it HF-I is a registered trademark of Texas Instruments Incorporated.
my-d is a registered trademark of Infineon Technologies AG.
I･CODE SLI and MIFARE UltraLight are a registered trademark of NXP Semiconductors.
FeliCa is a registered trademark of Sony Corporation.
MB89R118 is a registered trademark of FUJITSU Japan.
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.3 TR3XM-SN01
15 TAKAYA RFID TR3 Series
Specifications Item Parameter
Communication
distance
Standards Communication distance
ISO/IEC 15693
ISO/ISC 18000-3
(Mode1)
10cm
ISO/ISC 18000-3
(Mode3)
8cm
ISO/ISC 14443A 5.5cm
ISO/ISC 14444B 1cm
ISO/ISC 18092
(Passive Mode)
3cm
(Communication distance depends on the environment.)
Anti-collision
Standards Anti-collision
ISO/IEC 15693
ISO/ISC 18000-3
(Mode1)
YES
ISO/ISC 18000-3
(Mode3)
YES
ISO/ISC 14443A No
ISO/ISC 14444B No
ISO/ISC 18092
(Passive Mode)
No
Control Host Interface Ethernet
Item Parameter
Compliance IEEE802.3
10BASE-T/100BASE-TX
Data transfer length MAX 256 Byte/１Packet
MAC Address
Connection One Connection At the same time
Supported
protocols
ARP、ICMP、TCP/IP、TELNET(Only
Configure)
Routing One Static Route
LED 3 LED (red/green/ blue)
BUZZER 1 BUZZER
Connector TCP/IP
(Ethernet)
Connector
RJ-45
DC JACK EIAJ TYPEⅡ(CENTER PLUS)
※2：initialization
00-03-D1-XX-XX-XX
Product ID
Vender ID(TAKAYA CORP.)
Manual No.TDR-MNL-C202-A0-1-EN-100
4 Specifications
4.3 TR3XM-SN01
16 TAKAYA RFID TR3 Series
Specifications Item Parameter
Mechanical
data
Dimensions
(W x D x H)
140 x 110 x 38.5mm
(Protrusions except)
Weight approx. 270g
Installation M4 Screw
Screw is not included.
Electrical
data
Power Supply Voltage
：5V±10%
Current consumption ：approx. 380mA
Carrier off ：approx. 240mA
Power down mode ：approx. 230mA
Consumption ：max 2.5W
Ambient
Conditions
Temperature
Operating range
0 to 40 degree
Humidity Operating
range
30 to 80%RH
Temperature
Storage range
0 to 55 degree
Humidity
Storage range
30 to 80%RH
Accessories AC Adaptor TR3-PWR-5V-1
RFID Sticker SEL41400L 1 sheet
CD-ROM CDROM-TR3MNL
Manual No.TDR-MNL-C202-A0-1-EN-100
5 Accessories
5.1 AC Adapter(TR3-PWR-5V-1)
17 TAKAYA RFID TR3 Series
5 Accessories
5.1 AC Adapter(TR3-PWR-5V-1)
■ Specifications
Specifications Item Parameter
Applicable
Standards
EMI VCCI CLASS B, FCC class B, CISPR 22 class B
COMPLY SAFETY
STANDARDS
UL60950-1, PSE
RoHS EU RoHS(2002/95/EC) Support
AC INPUT VOLTAGE AC100V to AC240V
FREQUENCY 50 to 60Hz
DC OUTPUT DC OUTPUT VOLTAGE
RANGE
DC5.0V±5%
LOAD CURRENT 2.0A
OUTPUT CENTER PLUS
PLUG TYPE EIAJ TYPE II
Mechanical
data
Wight approx. 110g
Dimensions 60(W) x 44(D) x 26.5(H)mm (Cords are not included)
Cable length approx. 1800mm
Ambient
Conditions
Temperature
Operating range
0 to 40 degree
Humidity Operating
range
5 to 95%RH
Temperature
Storage range
-20 to 65 degree
Humidity
Storage range
5 to 95%RH
■ Dimension
Unit：mm
( )is Recommended Dimension
Manual No.TDR-MNL-C202-A0-1-EN-100
5 Accessories
5.2 RS232C Cross-cable(CB-232C-2)
18 TAKAYA RFID TR3 Series
5.2 RS232C Cross-cable(CB-232C-2)
■ Specifications
Specifications Parameter
RoHS EU RoHS(2002/95/EC) Support
Connector D-sub 9Pin
screw Inch screw
Cable length approx. 1.8m
Connection Cross-cable
■ Dimension
(1800)
Unit：mm
( )is Recommended Dimension
Manual No.TDR-MNL-C202-A0-1-EN-100
5 Accessories
5.3 USB Cable(GH-USB20/1.8M)
19 TAKAYA RFID TR3 Series
5.3 USB Cable(GH-USB20/1.8M)
■ Specifications
Specifications Parameter
RoHS EU RoHS(2002/95/EC) Support
Connector USB(A)-USB(B)
Cable length approx. 1.8m
■ Dimension
(1800)
Unit：mm
( )is Recommended Dimension
Manual No.TDR-MNL-C202-A0-1-EN-100
5 Accessories
5.4 RFID Sticker (SEL41400L)
20 TAKAYA RFID TR3 Series
5.4 RFID Sticker (SEL41400L)
本ステッカは、医療機器装着
者に対し、RFID の電波が出
ていることを明示するため
のものです。
アンテナが装置等に組み込
まれる場合、RFID 機器の本
体外部からよく見える位置
（アンテナ付近）に貼り付け
ることを推奨しています。
φ18mm
Manual No.TDR-MNL-C202-A0-1-EN-100
21 TAKAYA RFID TR3 Series
6 Maintenance
This product is mainly used in electronic components and semiconductors.
Therefore, the long-term stable operation, the environment and conditions are expected to defect, as
shown below.
• Device degradation due to overvoltage and overcurrent.
• Device degradation due to high temperature and long-term stress.
• Poor contact of the connector and cause deterioration of insulation by moisture
or dust.
• Connector corrosion by corrosive gases.
In order to use this product at its best, please conduct routine or periodic inspections.
Item Maintenance Criteria
Ambient
conditions
Temperature Temperature Operating range 0 to 55 degree
Humidity Humidity Operating range 30 to 80%RH
Enclosure
rating Check the dusty None
Corrosive Check the corrosion None
Power
Input Check the voltage
Input Voltage : DC5V±10%
Voltage
fluctuation Check the Voltage fluctuation
Attachment Product Check the Screw Checking and verifying
Check the Connector
Cable Check the Cable break None
Performance Check the Performance Work
Manual No.TDR-MNL-C202-A0-1-EN-100
22 TAKAYA RFID TR3 Series
Revision History
Revision code Date Revised contents
1.00 2012/03/08 Original production
23
[URL] http://www.takaya.co.jp/
[Mail] rfid@takaya.co.jp

Navigation menu
