Explosion

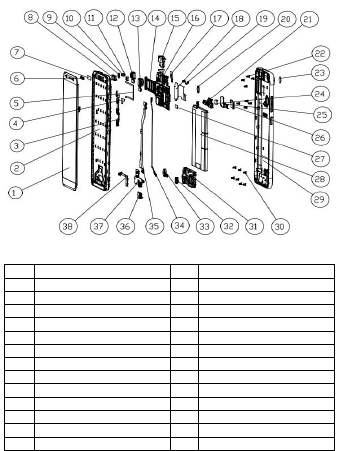

Explosion diagram
diagram specification
specification
1
LCM Assembly
2
Front Housing Assembly
3
Sidkey FPC
4
Front housing rubber
5
Card Slot seal foam
6
Receiver Deco
7
Receiver seal foam
8
Receiver
9
Front CAM seal foam
10
LED rubber
11
PS rubber
12
Front Camera
13
Back Camera
14
Card Holder
15
Audio jack rubber
16
Main PCB
17
Front CAM Conductive Fabric
18
Shield Graphite Film
19
Coaxial Cable 2
20
Back Flash Seal Foam
21
Fingerprint Frame
22
Screw
23
Back CAM lens
24
Fingerprint Conductive Foam
25
Fingerprint Module
26
LCM Connector Pressed Steel
27
LCM BTB Mylar
28
Battery
29
Battery Cover Assembly
30
Screw
31
Speaker
32
Main Mic Rubber
33
Motor
34
Coaxial cable 1
35
Main FPC
36
Usb Rubber
37
PCBA
38
Speaker FPC
Know
Know your
your phone
phone

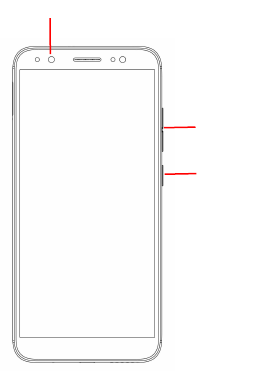

Volume key
Power key
Front camera

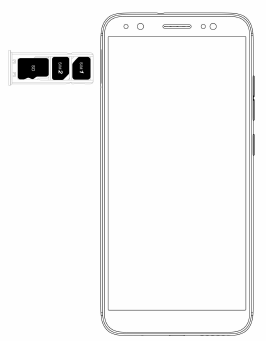

SIM/SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card installation.
Charging
Charging the
the phone
phone

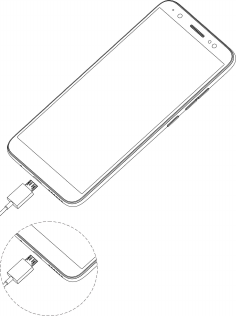

You can charge your device using a charger or by connecting it
to the computer using a USB cable (comes with the phone).
1. Please remind the front and back of the plug.
2. Use only TECNO charger and cables. Other chargers or cables
may damage the device or your device. This will invalidate
your phone warranty.
