ITALLATIOOPERATIONINT CEWCX-IOM-1D18-BB33D7-5ALL phases of this installation must comply withNATIONAL, STATE AND LOCAL CODESModel:WCX024G1WCX030GIWCX036G 1,3,4WCX042G 1,3WCX048G1,3,4WCX060G1,3,4Single Package Heat Pump12 SEER ConvertibleBAYLIFT002AA 2 " 5 TOnLIFTING LUG KITIMPORTANT--This Document is customer propertyand is to remain with this unit. Please return to service information pack upon completion of work.SAVINGTHEEARTH. SAVINGYOURMONEY.All phases dthis installation must comply with the NATIONAL,STATE & LOCAL CODES, In the absence of local codes, theinstallation must conform with National Electric Code -- ANSI/NFPA 70 or "LATEST REVISION."Since The Trane Companyhas a policy of continuous product and product dataimprovement, it reserves the right to change design and specification without notice.NOTICEWarnings and Cautions appear at appro-priate locations throughout this manual.Read these carefully._WARNING: Indicates a potentially haz-ardous situation which, if not avoided, couldresult in death or serious injury.,_CAUTION" Indicates a potentially haz-ardous situation which, if not avoided, mayresult in minor or moderate injury. It may alsobe used to alert against unsafe practicesand where property=damage=only accidentscould occur.© 2002 American Standard Inc. All rights reserved o7/o2

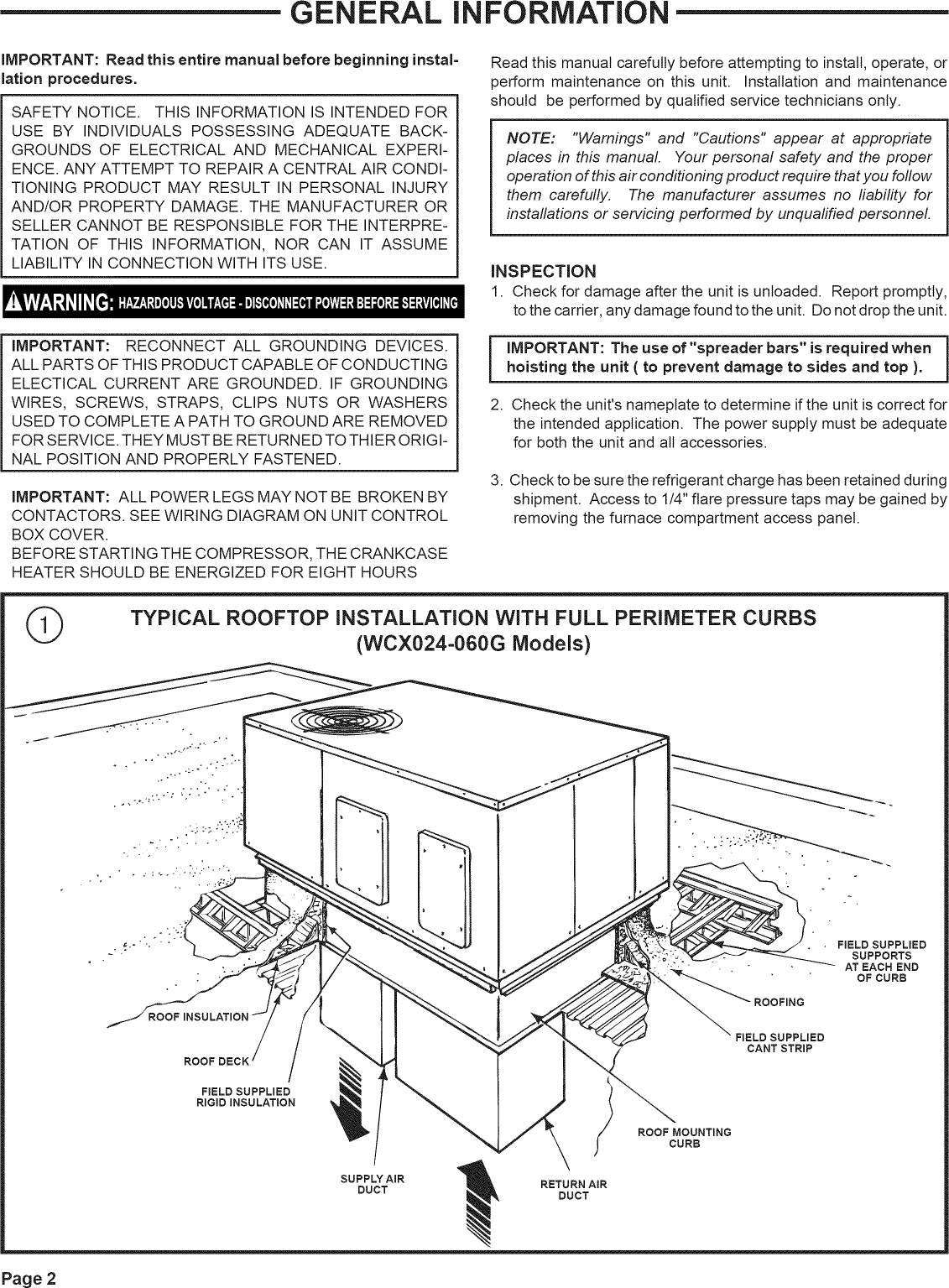

GENERAL INFORMATIONIMPORTANT: Read this entire manual before beginning instal-lation procedures.SAFETY NOTICE• THIS INFORMATION IS INTENDED FORUSE BY INDIVIDUALS POSSESSING ADEQUATE BACK-GROUNDS OF ELECTRICAL AND MECHANICAL EXPERI-ENCE. ANY ATTEMPT TO REPAIR A CENTRAL AIR CONDI-TIONING PRODUCT MAY RESULT IN PERSONAL INJURYAND/OR PROPERTY DAMAGE. THE MANUFACTURER ORSELLER CANNOT BE RESPONSIBLE FOR THE INTERPRE-TATION OF THIS INFORMATION, NOR CAN IT ASSUMELIABILITY IN CONNECTION WITH ITS USE•IMPORTANT: RECONNECT ALL GROUNDING DEVICES•ALL PARTS OF THIS PRODUCT CAPABLE OF CONDUCTINGELECTICAL CURRENT ARE GROUNDED. IF GROUNDINGWIRES, SCREWS, STRAPS, CLIPS NUTS OR WASHERSUSED TO COMPLETE A PATH TO GROUND ARE REMOVEDFOR SERVICE. THEY MUST BE RETURNED TO THIER ORIGI-NAL POSITION AND PROPERLY FASTENED.IMPORTANT: ALL POWER LEGS MAY NOT BE BROKEN BYCONTACTORS. SEE WIRING DIAGRAM ON UNIT CONTROLBOX COVER.BEFORE STARTING THE COMPRESSOR, THE CRANKCASEHEATER SHOULD BE ENERGIZED FOR EIGHT HOURSRead this manual carefully before attempting to install, operate, orperform maintenance on this unit. Installation and maintenanceshould be performed by qualified service technicians only.NOTE: "Warnings" and "Cautions" appear at appropriateplaces in this manual Your personal safety and the properoperation of this air conditioning product require that you followthem carefully. The manufacturer assumes no liability forinstallations or servicing performed by unqualified personnel.INSPECTION1. Check for damage after the unit is unloaded. Report promptly,to the carrier, any damage found to the unit. Do not drop the unit.IMPORTANT: The use of"spreader bars" is required when |3hoisting the unit ( to prevent damage to sides and top ). i2. Check the unit's nameplate to determine if the unit is correct forthe intended application. The power supply must be adequatefor both the unit and all accessories.3. Check to be sure the refrigerant charge has been retained duringshipment. Access to 1/4" flare pressure taps may be gained byremoving the furnace compartment access panel.©TYPICAL ROOFTOP INSTALLATION WITH FULL PERIMETER CURBS(WCX024=060G Models)FIELD SUPPLIEDSUPPORTSAT EACH ENDOF CURBROOFFIELD SUPPLIEDRIGIDINBULATIONSUPPLY AIRDUCT RETURN AIRDUCTROOF MOUNTINGCURBFIELD SUPPLIEDCANT STRIPPage 2
