WIFI MODULE INSTALLATION GUIDE
WIFI-EM01, WIFI-EM101
Installing the WiFi Device to the Printer
Please follow the steps below to install the WiFi device.
1. Turn off the printer power.
2. Plug in the WiFi device into the RS-232 port.
3. Fasten the device by two screws.
Setting the Communication Settings
For industrial printer, the RS-232 communication parameters can be configured from the LCD control panel by
the following procedures.
1. Turn on the printer power.
2. Enter the main menu.
3. Select Serial Comm. Option.
4. Make sure the communication parameters are set to 115200 bps baud rate, None parity, 8 data bits, 1
stop bit.
For desktop printer models, the RS-232 communication parameters can be setup following command
Syntax:
SET COM1 115, N, 8, 1
P/N: 39-0000-00LF
Baud Rate -- Parity -- Data Bite -- Stop Bits -- Exit
Serial Comm.

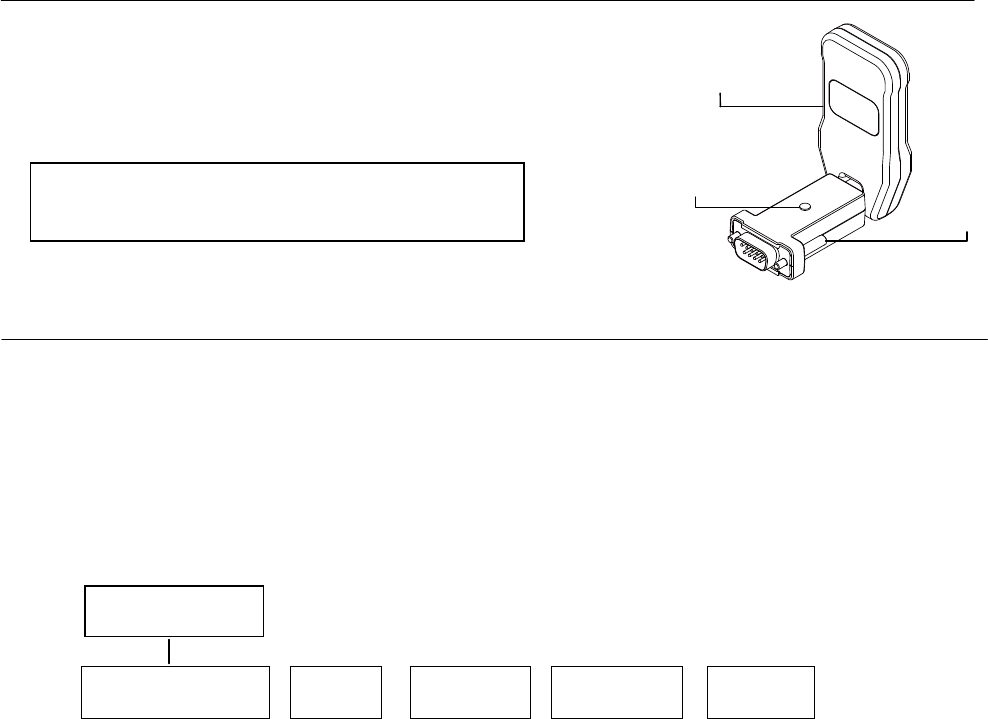

WiFi device
Screw
LED indicator
Note:
This RS-232 interface of WiFi device is used with the
printer only.
